CP 24

240 CPM

To cater to the increasing demand for hard seltzers, sparkling wines, and higher-carbonation beers, a counter-pressure canning line is essential. With over 40 years of experience in canning technology, World Packaging has expanded our capabilities in high-speed beverage production to meet the needs of the craft market.

The CP-24 uses 24 individual filling heads and a SIX-head seamer, and is rated for continuous operation at speeds up to 240 (12oz) cans per minute. This system is optimized for sleek and standard can bodies, and is designed for quick-change adjustments and easy changeovers for various can heights and body diameters, with no valve change required.

Designed after the Meyer filler legacy resulting in industry leading reliability and constancy.

Our patented valve offers the best counterpressure filling. Electronically actuated valves provide a constant and precise fill, easily adjustable for different can or bottle types. Filling with no-foam means no wasted product. Compared to open atmosphere systems that are more susceptible to high dissolved oxygen levels and product loss.

The CP-24 utilizes a star wheel mechanism to apply lids. Furthermore, the star wheel incorporates underlid CO2 to effectively eliminate dissolved oxygen pickup.

Features

  • Very Limited Dissolved Oxygen pickup

  • Rotary counter-pressure filling

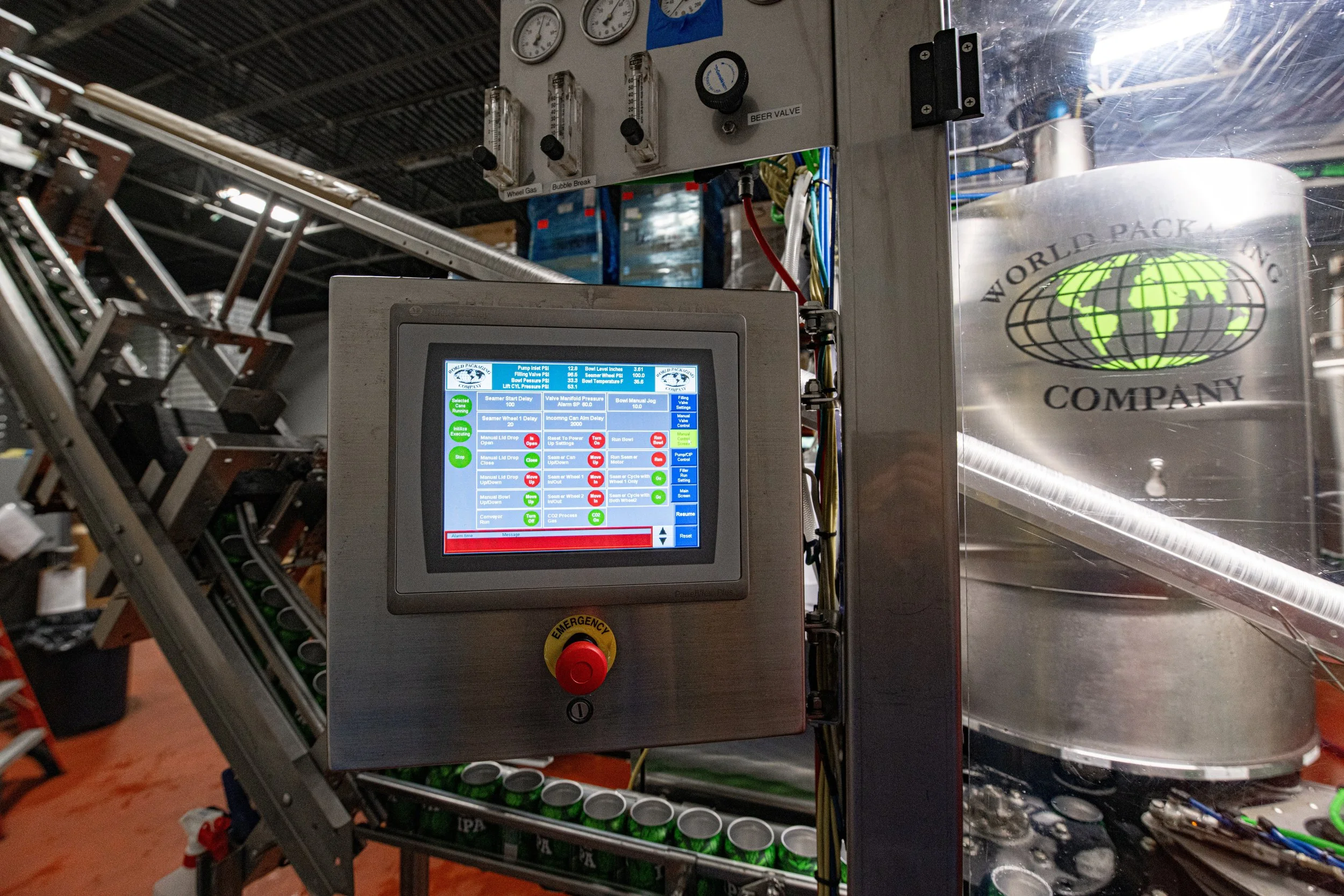

  • Complete control over fill rates, pressure, and sniff rates with HMI

  • Does not ‘cap on foam” resulting in no wasted product

  • C02 gassing rotary-style lid applicator

  • Active seam load monitoring

  • Included temperature / pressure monitoring

  • Automatic CIP cycle

  • Integrated tank pressure control

  • Electronically monitored valve monitoring

Specifications

Dimensions (LxWxH): 82" X 48" x 70"

Weight: 1300lbs (590kg)

Power: 208 - 240V, 3 phase, 27amps

CO2: 60 PSI (16oz: 50lbs/110cs) (12oz: 35lbs/100cs)

Beverage: Temperature: 28° - 52°F (-2.2° - 11°C)

Carbonation: 0 - 5 volumes CO2 (0 - 8g/L)
