CP-12 counter-pressure filler and seamer
High-speed counter-pressure filling technology, scaled for craft beverage. Fill and seam cans, with options for aluminum, glass and PET bottles, from one compact machine.
Why the CP-12
Big-line filling quality in a craft-scale footprint

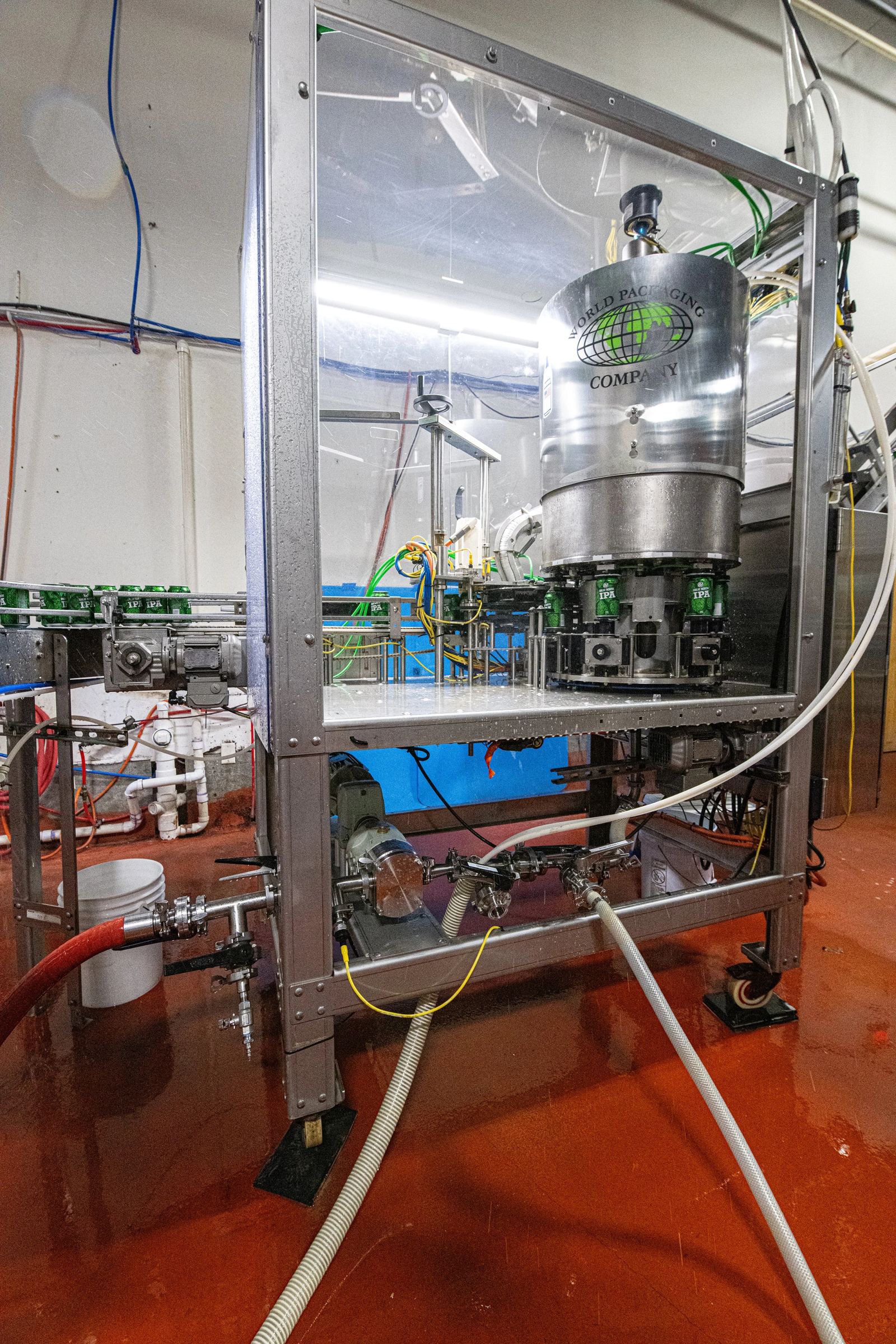

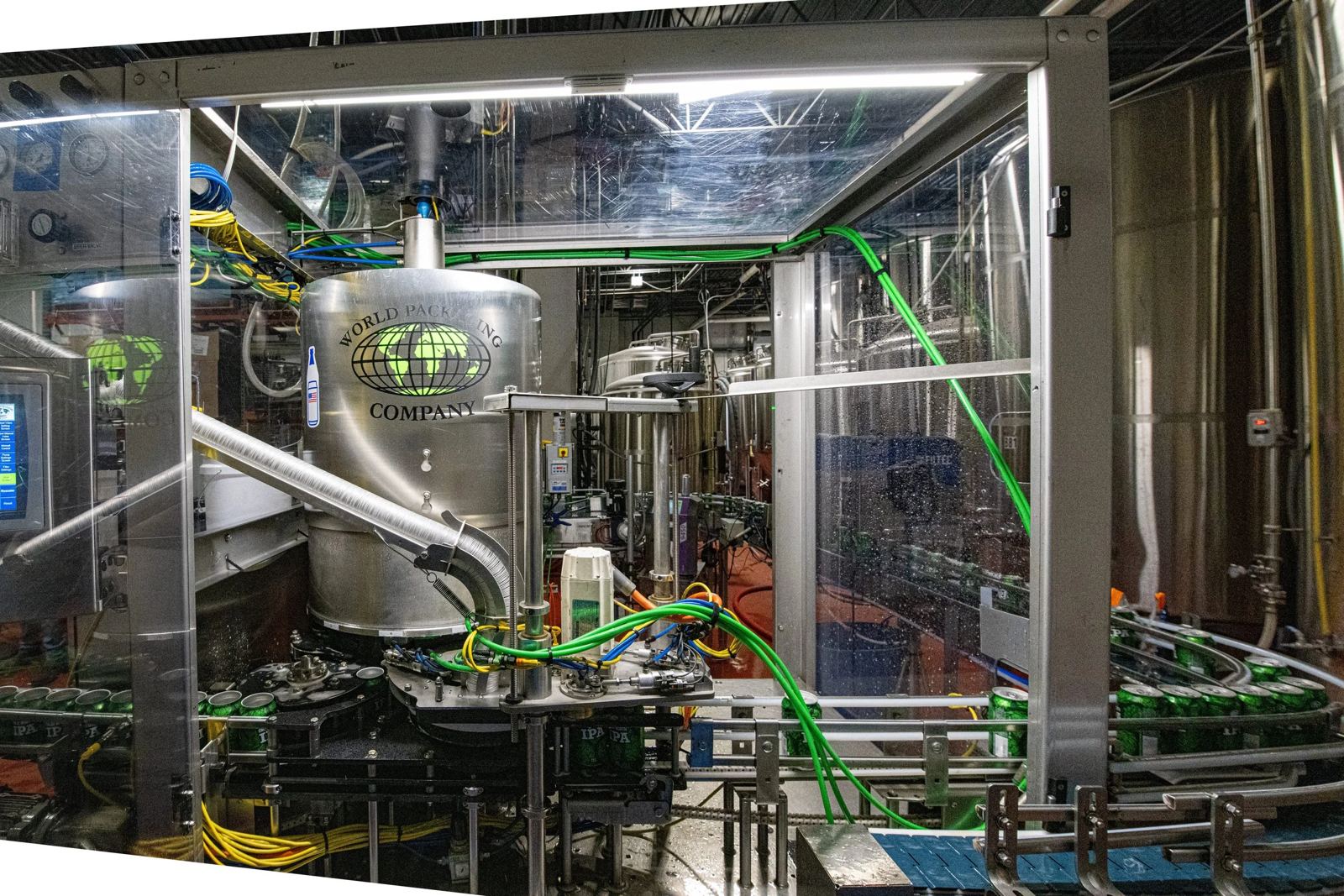

The CP-12 brings the counter-pressure principle used on high-speed beverage lines to breweries and beverage makers who need control over their own packaging. The product tank sits above the fill heads, so product is gravity fed rather than pumped upward, and every container is brought to tank pressure before the fill begins to keep CO2 in solution.
It is designed, built and supported in Summerville, South Carolina, by the same team that keeps high-speed Meyer bottling lines running.
Filling, seaming and tooling
Features
Isobaric filling
Fill tank above the fill heads lets product be gravity fed, as opposed to pumped or forced upward.
HMI fill control
Fill cycle parameters are adjustable through the touch-screen HMI, product by product.
Sanitary by design
316 stainless steel product contact with sanitary piping and connections.
High carbonation
Handles up to 5 volumes (10 g/L) of CO2 for sparkling products.
Automated CIP
Clean in place rated up to 180 °F for repeatable sanitation.
Beverage-optimized seaming
Seaming cam optimized for beverage cans; seaming wheels easily adjustable.
Repeatable changeovers
Tooling adjustments are maintained between changeovers, with quick-change levers.
Protected tooling
Protective guide flange prevents can damage from maladjustment; individual lubrication fittings on seaming rolls.
Container flexibility
Upgrade options for bottles, larger formats and every-other-valve filling.
Specifications
| Filling principle | Counter-pressure (isobaric), gravity fed from tank above fill heads |
|---|---|
| Configurations | 6-head and 12-head filler with integrated seamer |
| Output | 6 heads: up to 50 cans per minute; 12 heads: up to 120 cans per minute |
| Carbonation | Up to 5 volumes CO2 (10 g/L) |
| Product contact | 316 stainless steel, sanitary piping and connections |
| Cleaning | Automated clean in place (CIP), rated up to 180 °F |
| Controls | Allen-Bradley PLC and touch-screen HMI; fill parameters adjustable |
| Standard cans | Slim (200 end), sleek and standard (202 end) |
| Bottle options | Aluminum bottles (ROPP, 38 mm lug, 26.6 crown), glass 50 ml to 3.8 L, PET 40 ml to 1.5 L |
| Max container | Up to 1,750 ml volume and 5 in diameter; every-other-valve fill for larger sizes |
| Footprint (compact frame) | 72 x 36 x 70 in (L x W x H), approx. 1,300 lb |
| Utilities | 208 to 240 V, 3 phase; CO2 at 60 psi |
Speeds depend on configuration, package and product and are confirmed after review of your samples.
Packages
Compatible containers
Standard cans are covered out of the box. Upgrade options extend the CP-12 to aluminum bottles, glass and PET.

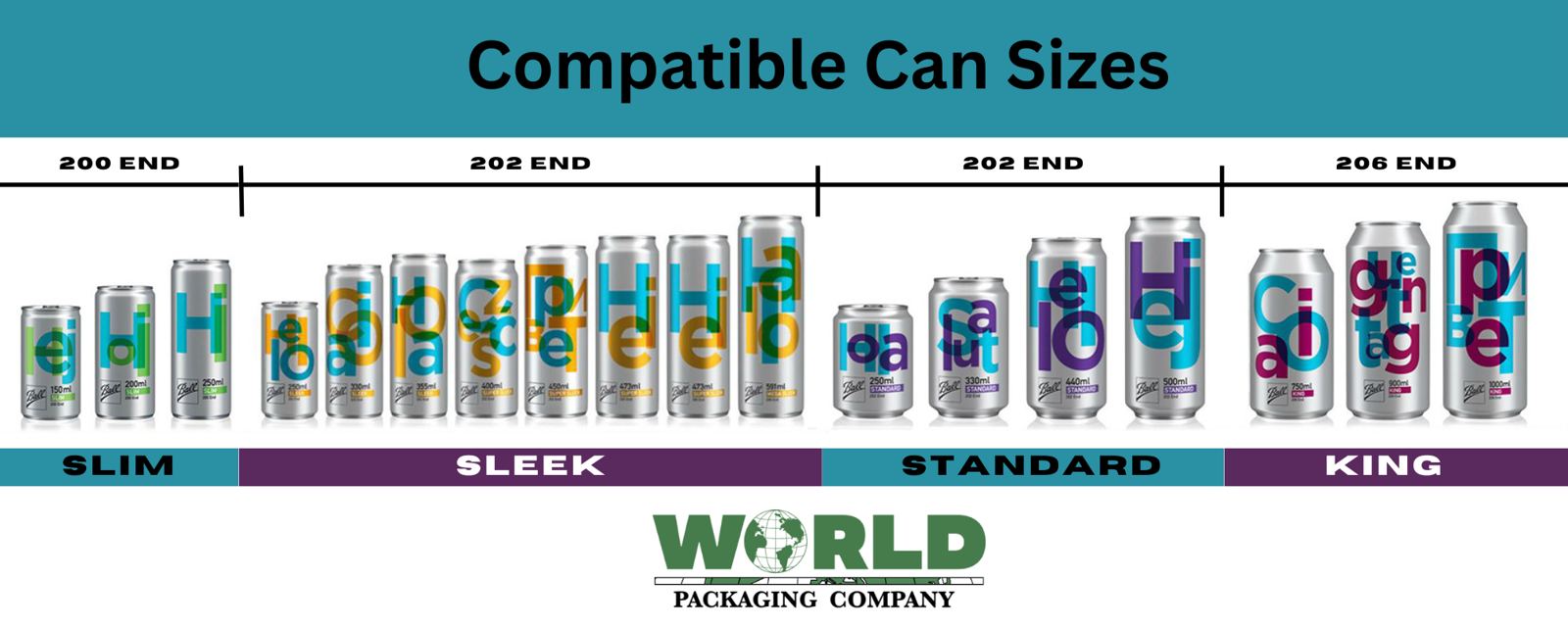

Cans
Slim cans with 200 ends; sleek and standard cans with 202 ends.

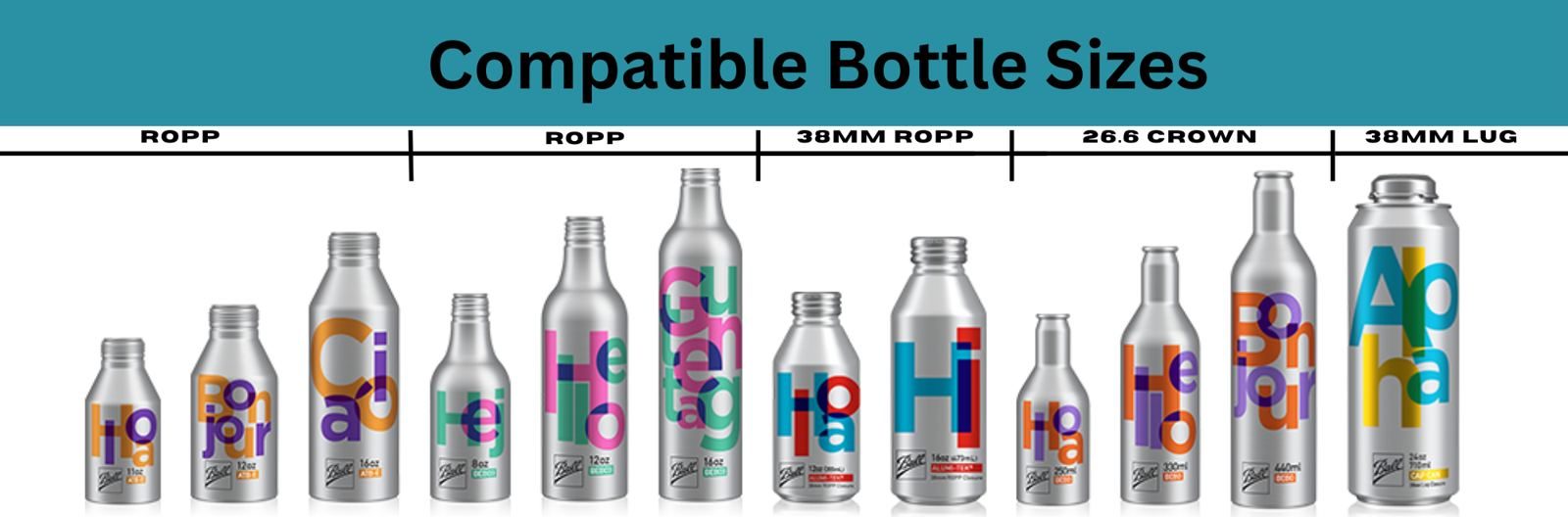

Aluminum bottles
ROPP, 38 mm ROPP, 26.6 crown and 38 mm lug finishes.

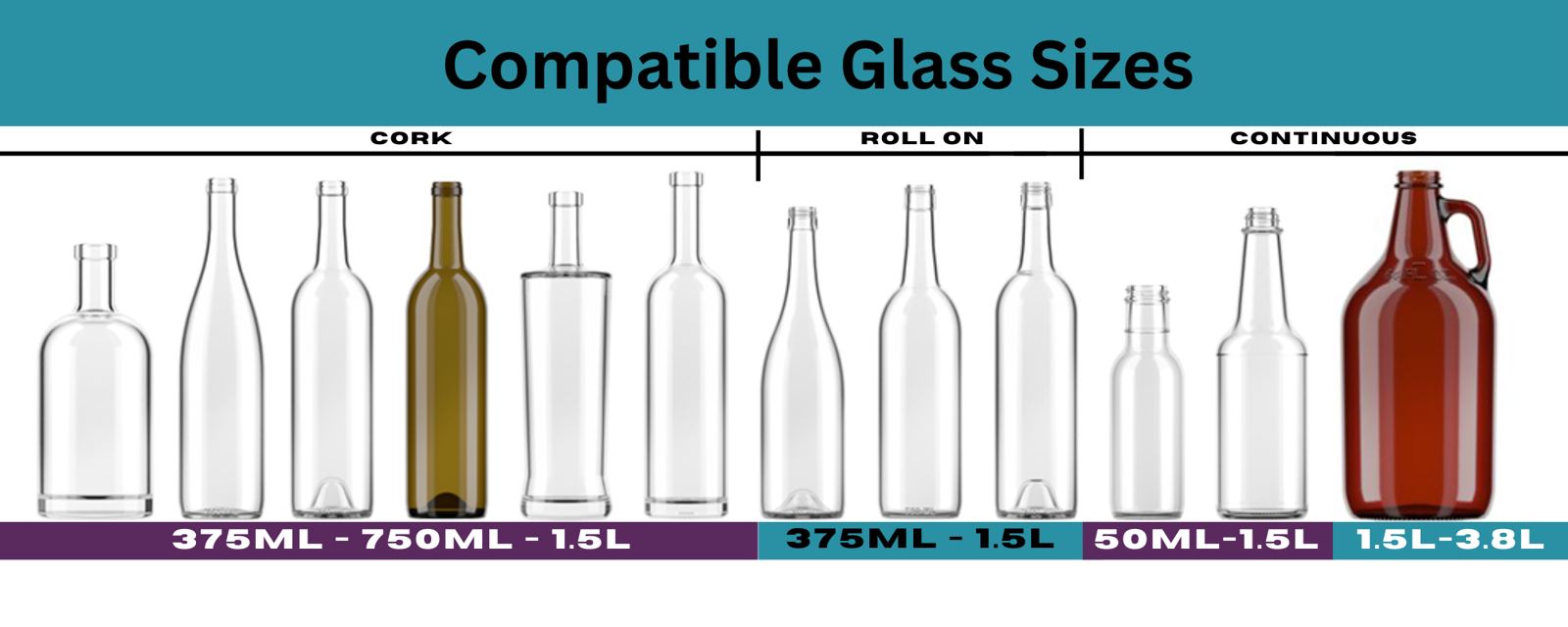

Glass
Cork, roll-on and continuous finishes from 50 ml to 3.8 L growlers.

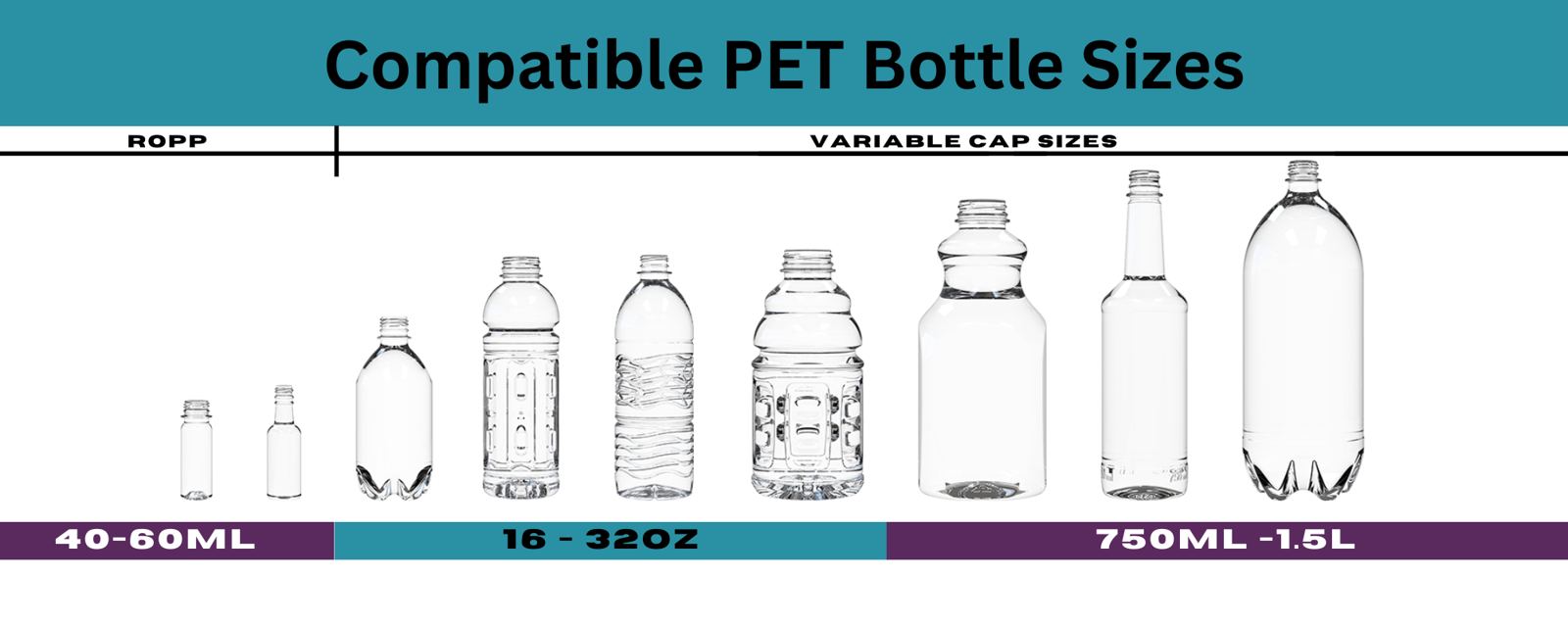

PET
From 40 ml to 1.5 L with ROPP and variable cap sizes.
Complete lines
Need the whole line?
We supply the CP-12 on its own or as the center of a complete small-format line: depalletizer, rinser, filler and seamer, coder and accumulation table, installed and started up by our technicians.
CP-12 questions
What does the CP-12 fill?
The CP-12 fills carbonated and still beverages such as beer, hard seltzer, soft drinks, sparkling water, cider and wine. It handles carbonation up to 5 volumes (10 g/L) CO2.
Can the CP-12 run bottles as well as cans?
Yes. Cans are standard. Upgrade options cover aluminum bottles, glass and PET, with change parts for unique sizes, containers up to 1,750 ml and 5 inches in diameter, and a capping and seaming bypass for quick changes.
How fast is the CP-12?
Output depends on the configuration and package. The CP-12 runs with 6 filling heads at up to 50 cans per minute or 12 filling heads at up to 120 cans per minute, depending on package and product.
Is the CP-12 the same as the Hybrid Series?
The CP-12 is the current name for our compact counter-pressure filler and seamer, previously shown on this site as the Hybrid Series.
Can World Packaging supply the rest of the line?
Yes. We supply complete small-format lines including depalletizing, rinsing, filling and seaming, coding and accumulation, with installation and training.
Talk to us about the CP-12
Send your products, packages and target output and we will come back with a configuration and lead time.
