Meyer 60-10 pint filler parts manual

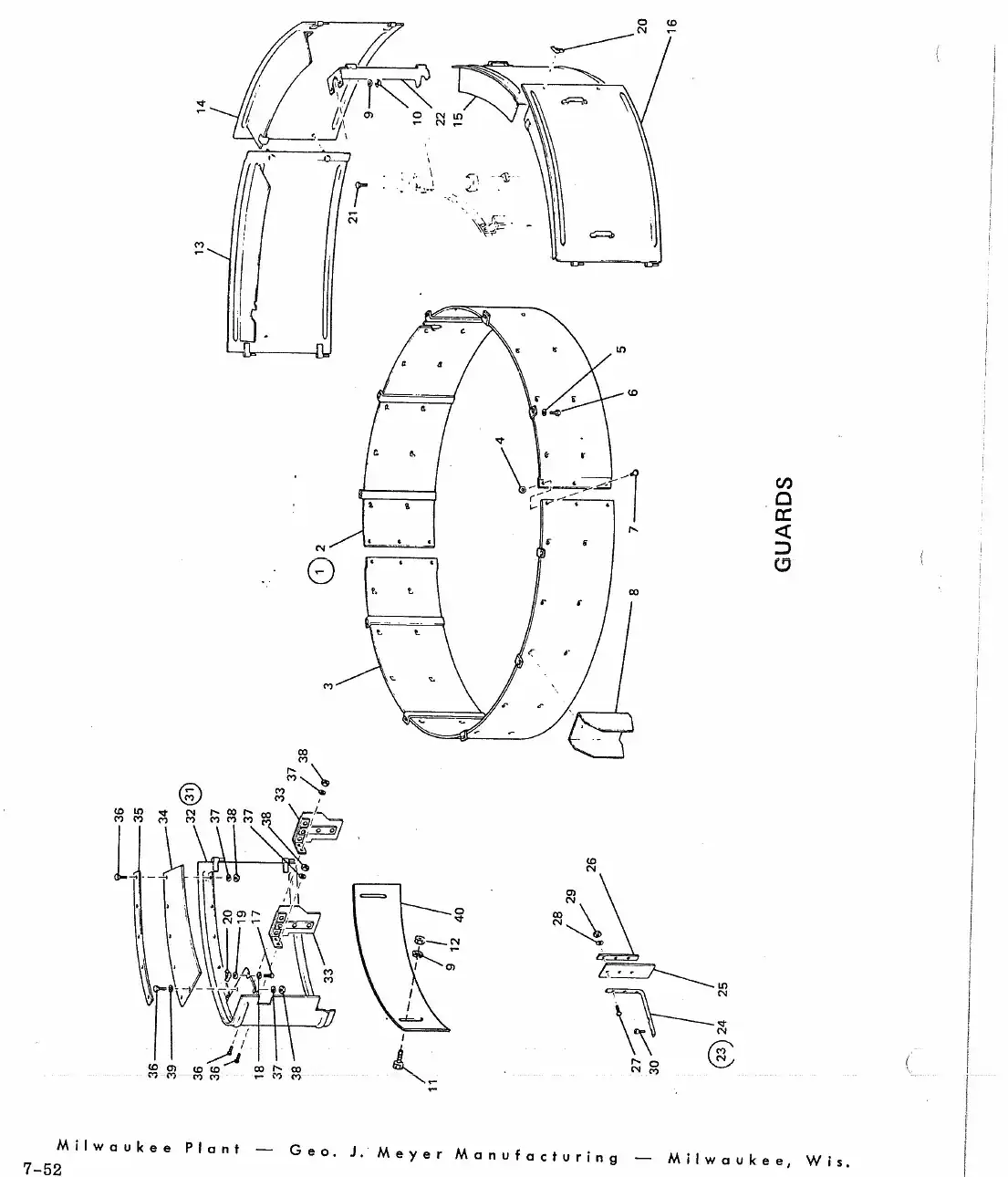

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
21	100-96771009677	Handle	Request
22	000-3378	Flat	Ask us
23	902-2694	Door, rear assembly	Ask us
23	902-1970	—	Ask us
1	101-0193	Cart, lubrication	Ask us
26	HH-1344	Screw, filler jack	Ask us
28	902-4891	Header, grease ass	Ask us
5	HH-2457	Cover, drain hole	Ask us
6	902-1978	Door, side assembly	Ask us
80	100-39411003941	Fitting, grease female str	Request
81	100-4204	Fitting, grease	Ask us
82	HH-2445	Gasket, grease header	Ask us
33	902-7983	Trough, drain ass	Ask us
9	HH-5830	Cover, manhole ass	Ask us
384	X-6256	Cover, filler base	Ask us
85	131-2918	Guide, drain	Ask us
10	DFC-333	Cover, manhole	Ask us
86	X-6501	Guide, drain	Ask us
11	130-0921	Handle, manhole	Ask us
87	902-2696	Door, brake ass	Ask us
12	102-0756	Pin, roll	Ask us
13	100-6959	Gasket, manhole	Ask us
15	DFC-1200	Latch, manhole cover	Ask us
40	102-02951020295	Screw, round head slot	Request
16	902-1974	Door, cone assembly	Ask us
41	102-1690	Screw, drive	Ask us
42	100-3197	Clamp	Ask us
17	102-1491	Pin, taper	Ask us
43	000-3080	Tube, plastic	Ask us
44	100-9787	Plate, legal	Ask us
19	X-6235	Base, filler	Ask us
45	100-9929	Plate, name	Ask us

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
26	102-03321020332	Nut, hex	Request
27	102-03871020387	Washer, lock	Request
28	131-54691315469	Pin track	Request
1	132-3081	Cam assembly	Ask us
29	102-04171020417	Washer, flat	Request
2	102-08091020809	Bolt, hex head	Request
30	102-03891020389	Washer, lock	Request
3	902-1788	Opener, spool valve	Ask us
31	131-5471	Bracket	Ask us
32	X-6852	Ring, support	Ask us
4	902-1787	Bracket	Ask us
384	102-0099	Bolt, hex head	Ask us
6	131-54681315468	Spring	Request
56	102-03341020334	Nut, hex	Request
7	102-04521020452	Screw, set socket cup point	Request
37	102-00881020088	Hex head bolt	Request
38	131-54431315443	Support, bearing pos pull dn	Request
8	102-03401020340	Nut, hex jam	Request
39	102-21931022193	Nut, hex	Request
40	102-00401020040	Bolt, hex head	Request
41	102-03811020381	Washer, lock	Request
11	102-0371	Washer	Ask us
42	902-38399023839	Cam, roller bracket	Request
12	102-0816	Screw, cap hex head 375-16 ass inc	Ask us
44	102-03281020328	Nut, hex jam	Request
45	102-05251020525	Screw, set square hd	Request
46	102-07151020715	Washer, flat	Request
17	131-3099	Bolt 250-20	Ask us
47	102-16041021604	Screw, socket head cap	Request
48	902-6105	Guard, bottle filler	Ask us
20	902-1784	Bracket	Ask us
52	102-00871020087	Bolt, hex head	Request
23	102-05741020574	Pin, cotter	Request

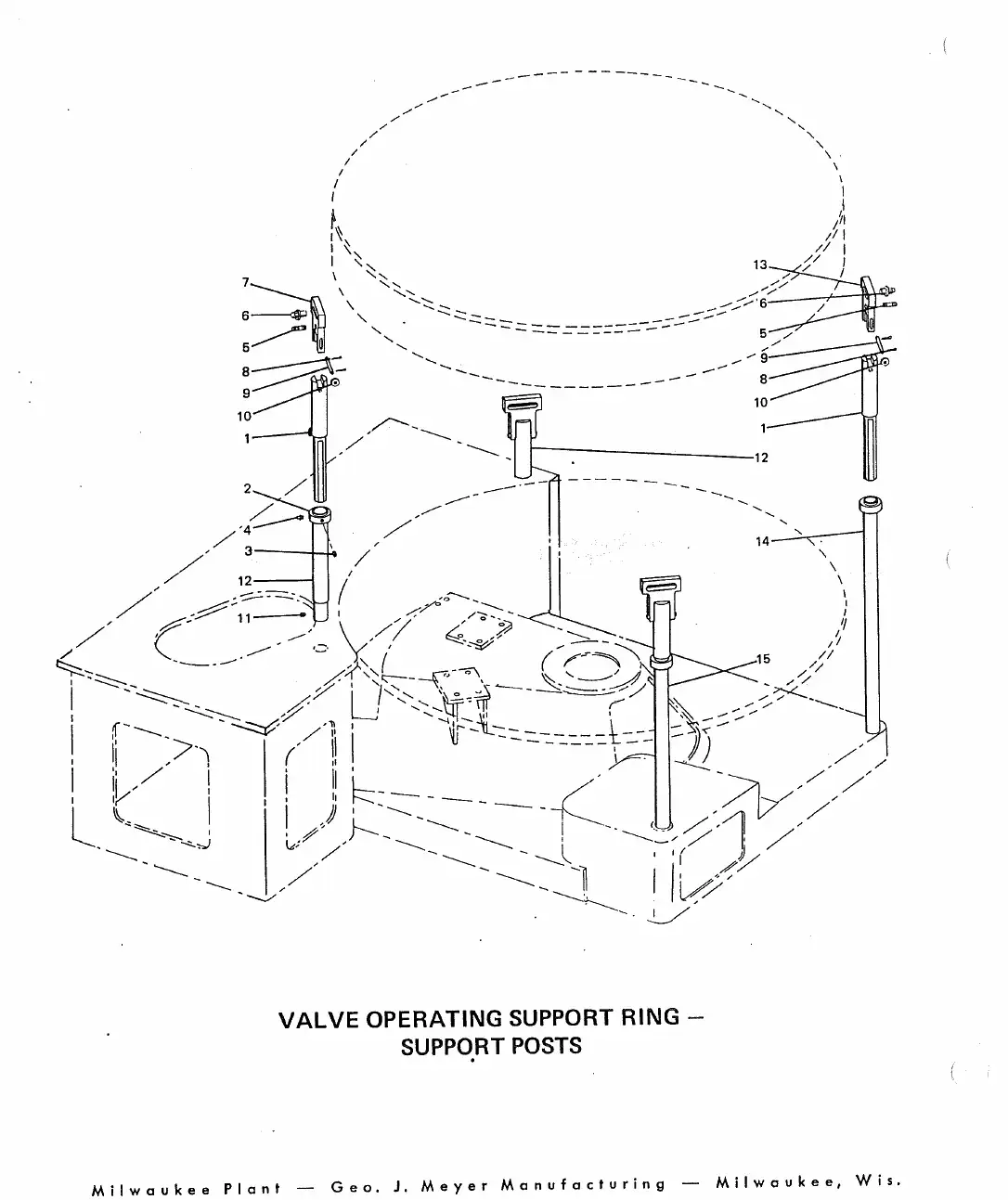

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
2	H-2265H2265	Bracket ring support	Request
4	H-2135H2135	Ring support	Request
5	131-6084	Ring, valve oper support LH	Ask us
1	902-3382	Plate, snift cam assembly	Ask us
15	102-0436	Screw, socket	Ask us
16	102-02941020294	Screw, round head slot	Request
2	131-6929	Plate, snift	Ask us
3	000-3456	Flat, snift cam clamp	Ask us
18	000-3080	Hose, transparent	Ask us
5	102-03851020385	Washer, lock	Request
19	102-1174	Screw, fill head 8-32	Ask us
6	102-01751020175	Screw, flat head slot	Request
20	HH-2833	Bracket, snift drip pan-std	Ask us
7	900-8493	Bracket, snift cam- bracket	Ask us
21	902-3544	Pan, snift drip	Ask us
22	902-3300	Cam, neutral psi	Ask us
23	H-1840	Bracket, RH adj nut cam	Ask us
24	HH-157HH157	U-bolt, valve closer	Request
9	102-03401020340	Nut, hex jam	Request
10	102-0711	Nut, wing	Ask us
27	102-00891020089	Bolt, hex head	Request
12	RR-329RR329	Screw, replaced by	Request
28	102-06631020663	Washer, lock external	Request
13	900-8497	Bracket, snift pan and	Ask us
30	102-08641020864	Screw, square hd cup pt	Request
1	902-3099	Closer, valve-assembly closer	Ask us
2	902-2848	Bracket, valve closer	Ask us
3	H-478H478	Bracket, valve closer	Request
16	131-64561316456	Bracket, valve closer hinge	Request
6	HH-1854	Spring, valve closer	Request
7	102-05741020574	Pin, cotter	Request
8	102-07431020743	Screw, socket head cap	Request
20	102-03881020388	Washer, lock	Request
10	102-0888	Lockwasher	Ask us
22	102-00781020078	Hex head bolt	Request
23	102-04161020416	Washer, flat	Request
1	900-5132	Bracket, vent tube	Ask us
16	HH-3644	Latch, blow-off	Ask us
2	H-903	Bracket, vent tube trigger assembly	Ask us
4	102-03871020387	Washer, lock	Request
17	HH-3647	Plate, latch	Ask us
5	RR-272RR272	Washer	Request
18	HH-3648	Pin, latch	Ask us
6	130-8607	Stud, pin	Ask us
19	102-06281020628	Pin, cotter	Request
7	130-8618	Pin, lift	Ask us
20	102-03331020333	Nut, hex	Request
21	102-10111021011	Pins, cotter	Request
10	102-09771020977	Screw, socket head cap	Request
23	102-0865	Screw, set square head	Ask us
24	102-03381020338	Nut, hex jam	Request
25	102-00671020067	Bolt, hex head	Request
26	RR-273	Washer	Ask us

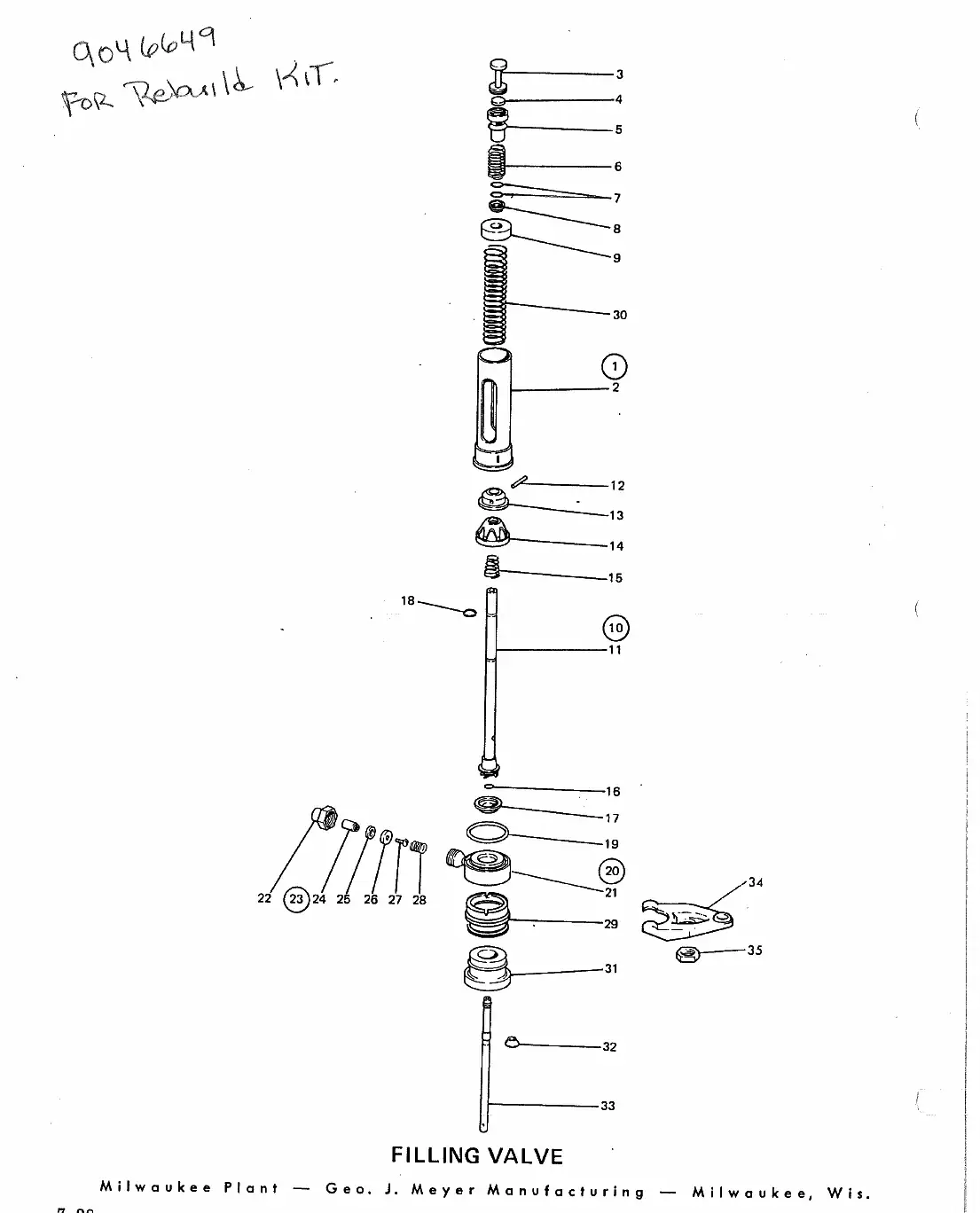

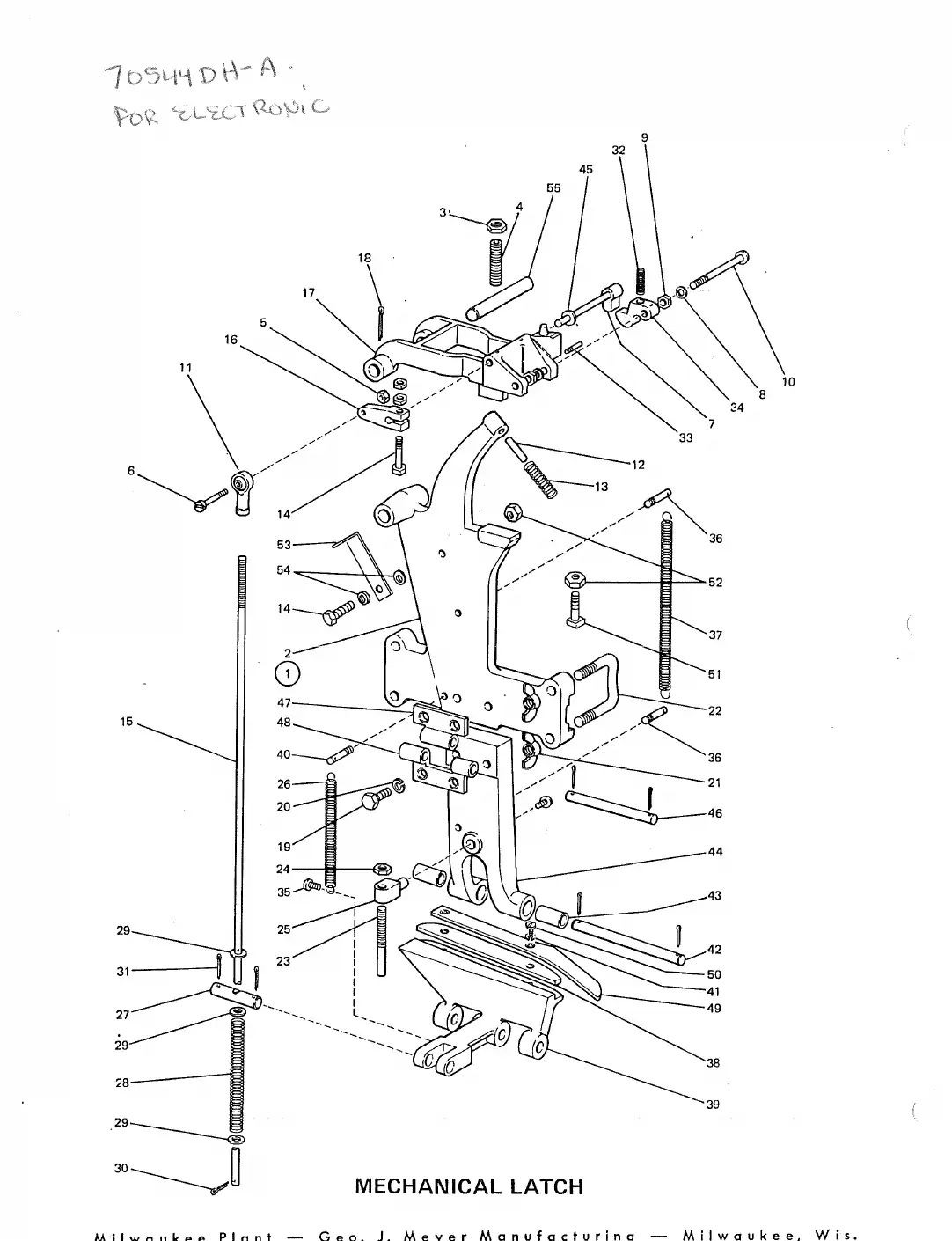

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
28	HH-1784	Spring compensating	Ask us
29	RR-273	Washer, idx odx	Ask us
30	102-0981	Pin, cotter stainless	Ask us
81	102-10111021011	Pins, cotter	Request
3	102-03401020340	Nut, hex jam	Request
32	HH-1161HH1161	Spring, operating latch	Request
4	102-04521020452	Screw, set socket cup point	Request
34	130-9932	Latch, operating stainless	Ask us
5	102-05531020553	Nut, hex	Request
6	102-02921020292	Screw, round head slot	Request
35	102-01831020183	Screw, flat head slot	Request
36	HH-6334	Stud, spring	Ask us
8	102-03871020387	Washer, lock	Request
37	HH-6234HH6234	Spring	Request
9	102-03381020338	Nut, hex jam	Request
38	HH-3152	Strip, oper arm wear	Ask us
39	H-2102	Arm, operating	Ask us
11	100-4044	Bearing heim unibal spher stud, mech latch spring	Ask us
12	HH-2921	Pin, spring retaining	Ask us
42	RR-342	Pin, bottle oper arm	Ask us
43	100-2329	Bushing	Ask us
14	102-00681020068	Bolt, hex head	Request
44	H-2637	Bracket, lower hinged	Ask us
15	HH-9077	Arm, bottle oper latch adv	Ask us
45	RR-272RR272	Washer	Request
16	HH-2609	Lever, oper	Ask us
46	HH-6331	Pin, hitiged	Ask us
47	H-2793	Hinge section, upper	Ask us
18	102-05741020574	Pin, cotter	Request
48	H-2794	Hinge section, lower	Ask us
19	102-00731020073	Bolt, hex head	Request
50	102-02871020287	Screw, phillips hd	Request
20	102-03881020388	Washer, lock	Request
21	102-0711	Nut, wing stainless 312-18 unc	Ask us
51	102-1420	Screw, set square head cup stainless	Ask us
22	HH-157HH157	U-bolt, valve closer	Request
52	102-03321020332	Nut, hex	Request
24	HH-0339	Nut, hex jam stainless	Ask us
25	HH-3290	Lug, stop	Ask us
54	102-04151020415	Washer, flat	Request
26	HH-6204HH6204	Spring, mechanical latch opener	Request
55	HH-2456	Pin, mech latch swing bracket	Ask us

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	902-1794	Hanger, stirrup assembly	Ask us
10	DFC-1231DFC1231	Stand, flange	Request
11	HH-3662	Shim	Ask us
8	HH-7709	Gasket, hanger	Ask us
12	HH-1218	Pin, oil drip plate stud	Ask us
13	H-579H579	Plate, drip oil	Request
5	HH-7696	Stud	Ask us
14	100-25451002545	Bearing, main hanger	Request
15	HH-7693HH7693	Gasket, housing bearing su	Request
8	131-5506	Ring, half	Ask us
17	100-25471002547	Seal, main bearing	Request
9	902-4329	Gear	Ask us

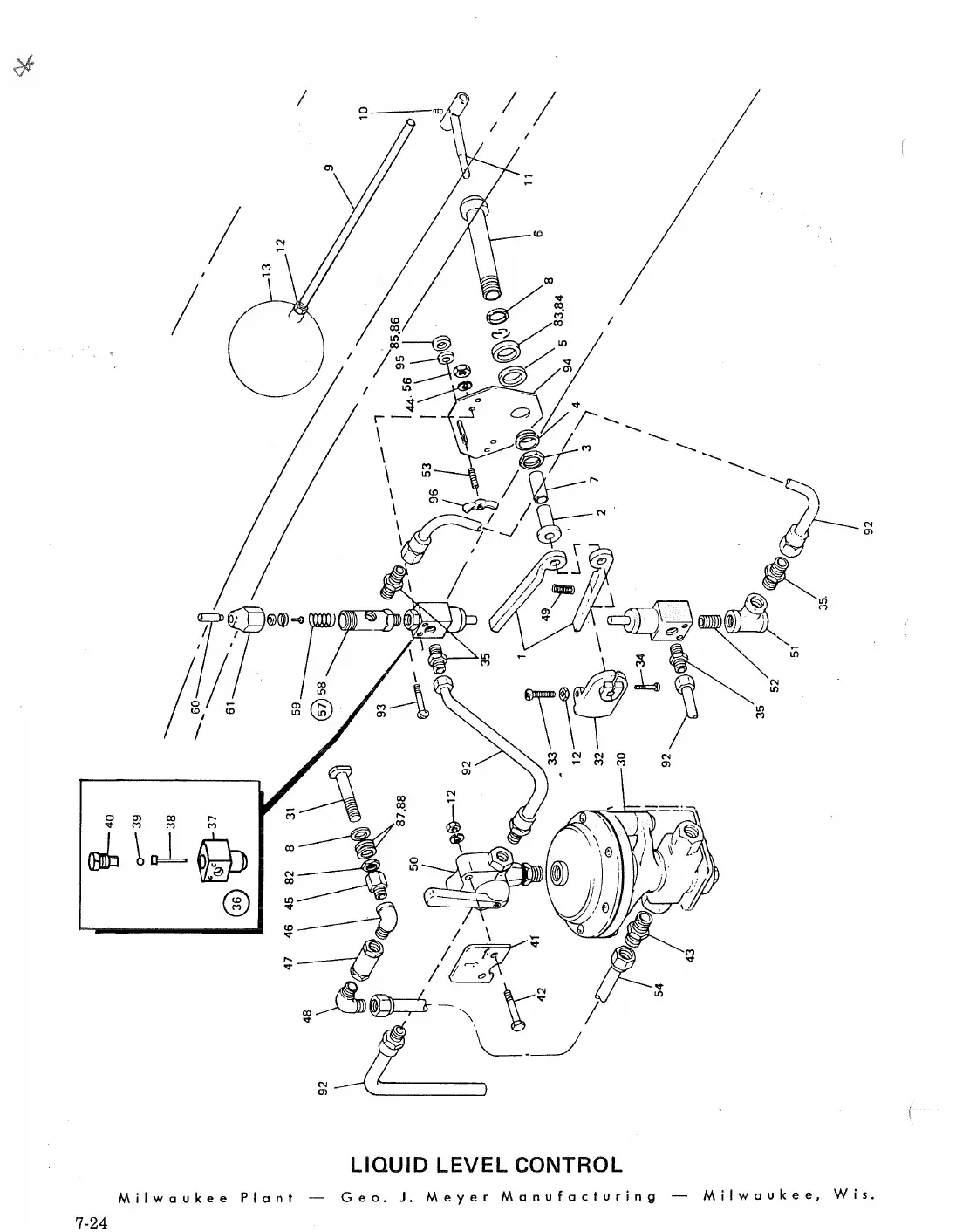

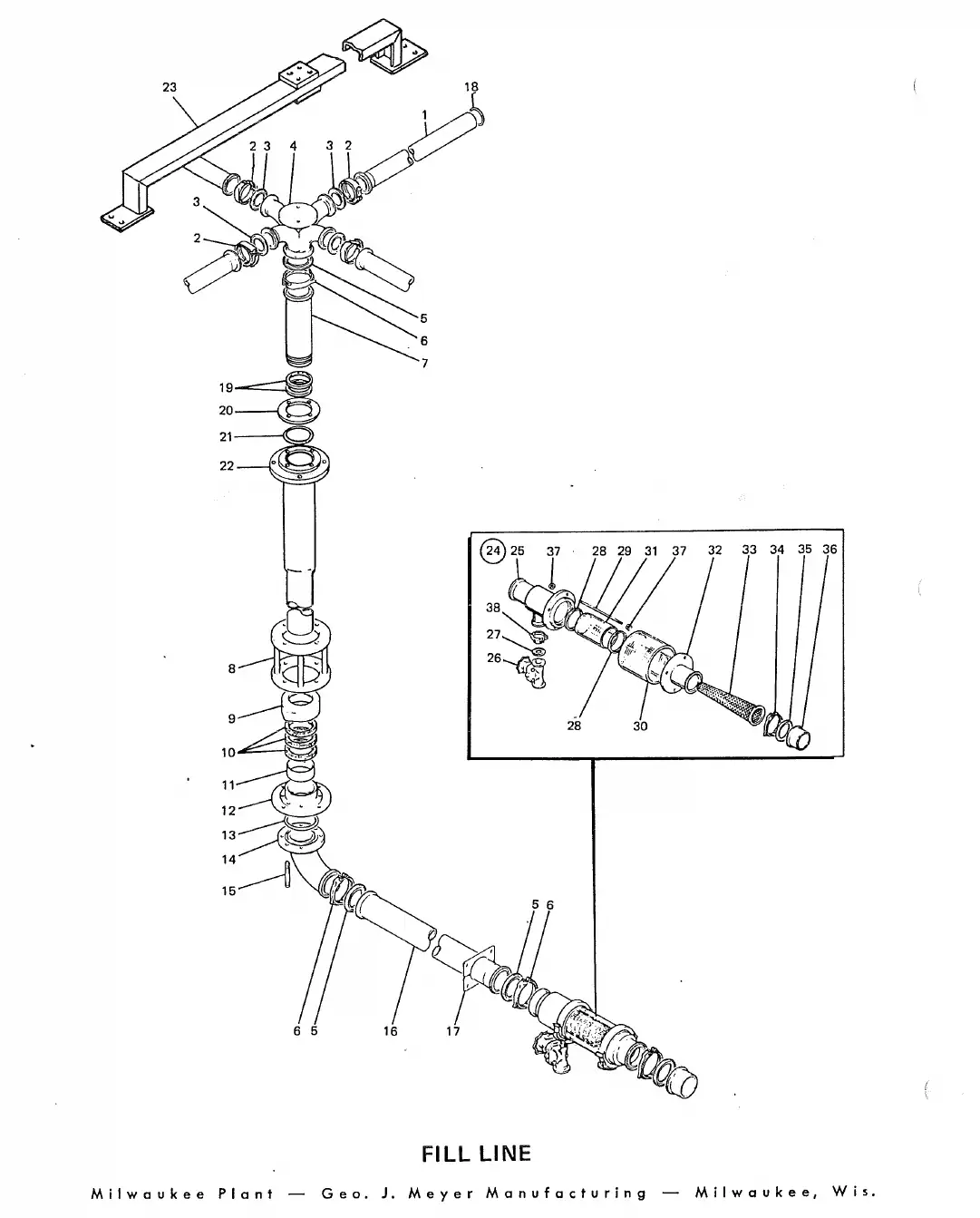

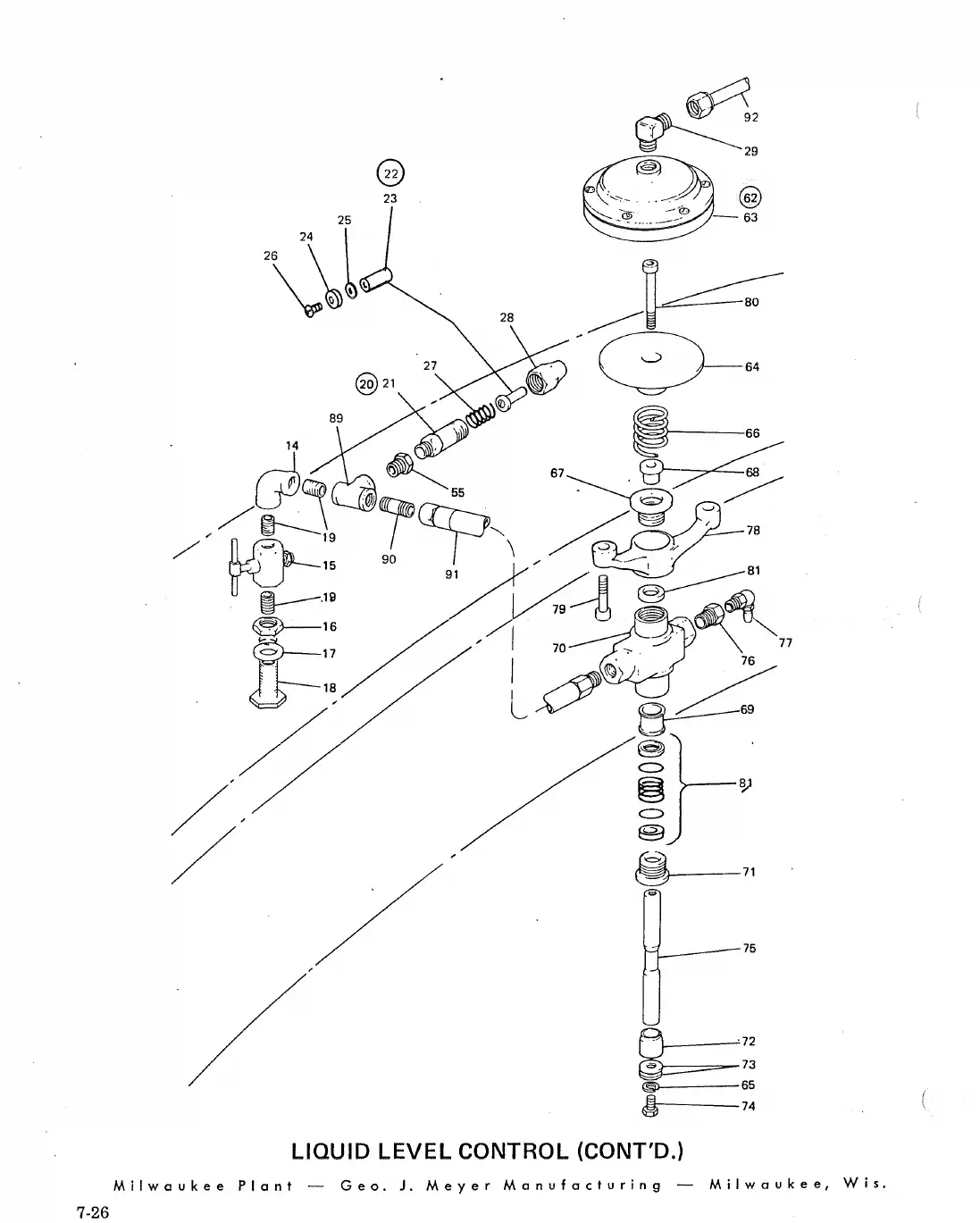

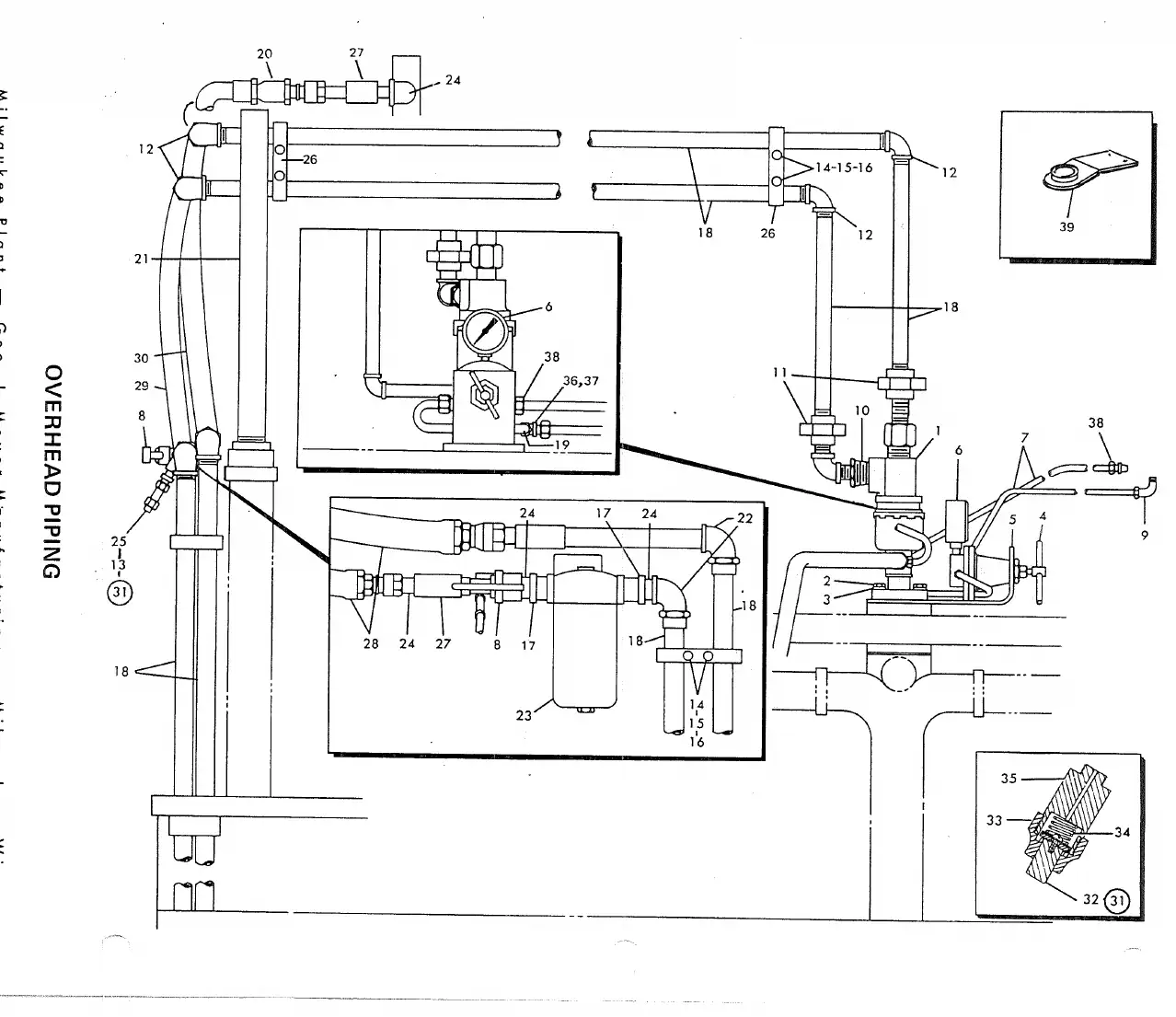

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
19	100-94931009493	Ring, quad	Request
20	131-5513	Plate, o-ring seal	Ask us
21	100-41511004151	O-ring, product supply	Request
1	900-0979	Line, bowl supply	Ask us
22	902-1795	Line, vert supply	Ask us
2	100-21421002142	Clamp, hinged sanitary	Request
23	902-1797	Support, product line	Ask us
3	100-21331002133	Gasket, tri-clamp tube	Request
4	900-0394	Cross, bowl supply	Ask us
5	100-00281000028	Gasket, tri-clamp	Request
6	100-00271000027	Clamp, hinged sanitary	Request
26	100-0216	Valve	Ask us
7	902-1796	Line, vert supply	Ask us
27	100-2131	Gasket, clamp	Ask us
8	HH-8594	Support, inlet assembly	Ask us
28	131-4873	Gasket, sight glass	Ask us
9	HH-8589HH8589	Stuffing box	Request
29	HH-2153	Stud, 312-24 stainless	Ask us
10	130-85551308555	Packing, ring bevel joint	Request
11	HH-8590HH8590	Bushing	Request
381	131-4374	Guard, sight glass	Ask us
12	HH-8580	Gland	Ask us
382	902-1140	Ferrule flange seat	Ask us
13	100-25021002502	O-ring	Request
83	902-1143	Strainer assembly	Ask us
14	HH-8579	Elbow	Ask us
15	HH-6627HH6627	Stud	Request
16	HH-8587	Line, horizontal supply	Ask us
86	100-0025	Ferrule	Ask us
87	102-0585	Nut, hex head	Ask us
18	100-40251004025	O-ring	Request
388	100-21411002141	Clamp, hinged sanitary	Request

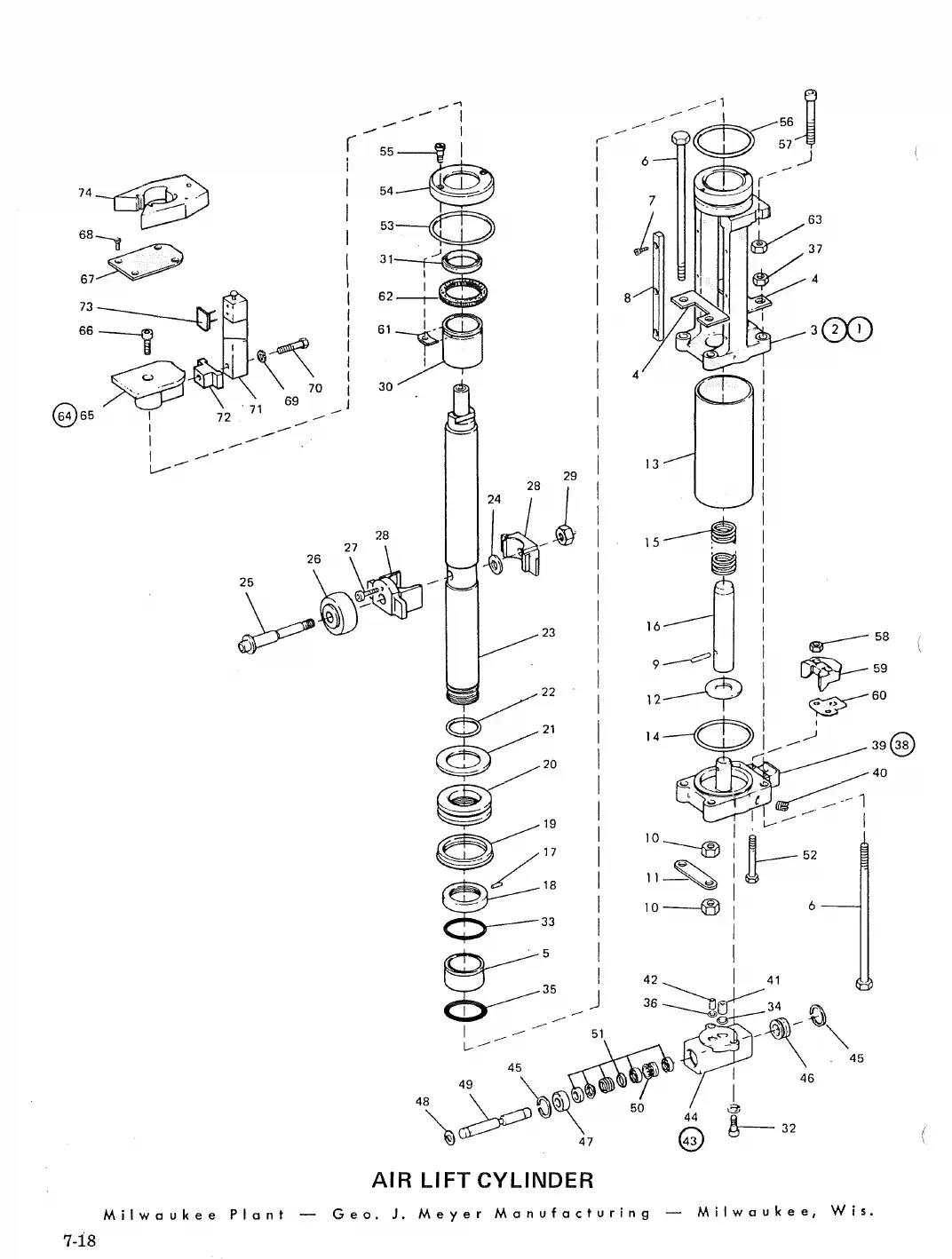

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
39	131-5481	Bottom, cylinder	Ask us
40	100-9971	Plug, pipe-slotted head	Ask us
41	131-55001315500	Bushing, spool valve	Request
42	HH-7510	Bushing, bottom exhaust	Ask us
3	131-75211317521	Housing, lift cylinder	Request
43	902-0115	Valve, spool assembly	Ask us
44	131-6806	Housing, spool valve	Ask us
6	102-20831022083	Bolt, hex head	Request
45	100-73091007309	Ring, spirolox	Request
7	102-1268	Screw, binder 1381-6805 ring	Ask us
8	131-5489	Strip, wear	Ask us
47	131-68021316802	Bushing, spool valve	Request
9	102-20821022082	Pin, roll slotted	Request
48	100-73081007308	Ring, retaining	Request
10	101-0284	Nut, hex	Ask us
49	HH-7014HH7014	Stem, spool valve	Request
50	131-3341	Lantern, spool valve	Ask us
12	131-5490	Washer, flat	Ask us
51	902-3638	Repair kit, valve	Ask us
13	131-5482	Cylinder, air 102-0081 bolt	Ask us
14	100-41541004154	O-ring	Request
53	100-95611009561	Ring, quad	Request
15	131-8370	Spring, compression	Ask us
54	131-54251315425	Retainer, dust seal	Request
16	131-75561317556	Guide, air cylinder spring positive pull	Request
55	102-2087	Screw, shoulder	Ask us
17	101-0288	Pin, groove	Ask us
56	100-25071002507	O-ring	Request
18	131-54831315483	Locknut, piston rod	Request
57	102-1648	Screw, socket head cap	Ask us
19	HH-6675HH6675	U-cup, lift cylinder	Request
58	102-03331020333	Nut, hex	Request
20	131-75191317519	Piston, cylinder lift	Request
59	H-1880H1880	Clamp, air lift manifold	Request
21	100-94151009415	Bumper	Request
60	131-73981317398	Gasket, header airlift man	Request
22	100-41561004156	O-ring	Request
23	134-09761340976-R	Rod, piston, reman	Request
62	131-7515	Sell, rod wiper	Ask us
24	HH-7065HH7065	Shim	Request
63	102-22661022266	Nut, hex nylock insert type	Request
25	902-17899021789	Stud, cam roller	Request
26	131-75171317517	Cam, roller	Request
27	102-2278	Screw, socket head shoe	Ask us
28	131-54231315423	Clamp, cam roller	Request
66	102-15521021552	Screw, socket head cap	Request
29	102-0283	Nut, hex head jam s8t wear plate	Ask us
68	102-2304	Screw, flat head mach	Ask us
31	100-9432	Wiper, rod	Ask us
69	102-08511020851	Washer, lock	Request
82	102-2281	Screw, socket head cap	Ask us
33	101-00951010095	Rod, wiper ring	Request
384	100-4032	O-ring	Ask us
35	102-4027	O-ring adapter yas	Ask us
36	100-25061002506	O-ring	Request
88	902-5297	Bottom, cylinder assembly	Ask us

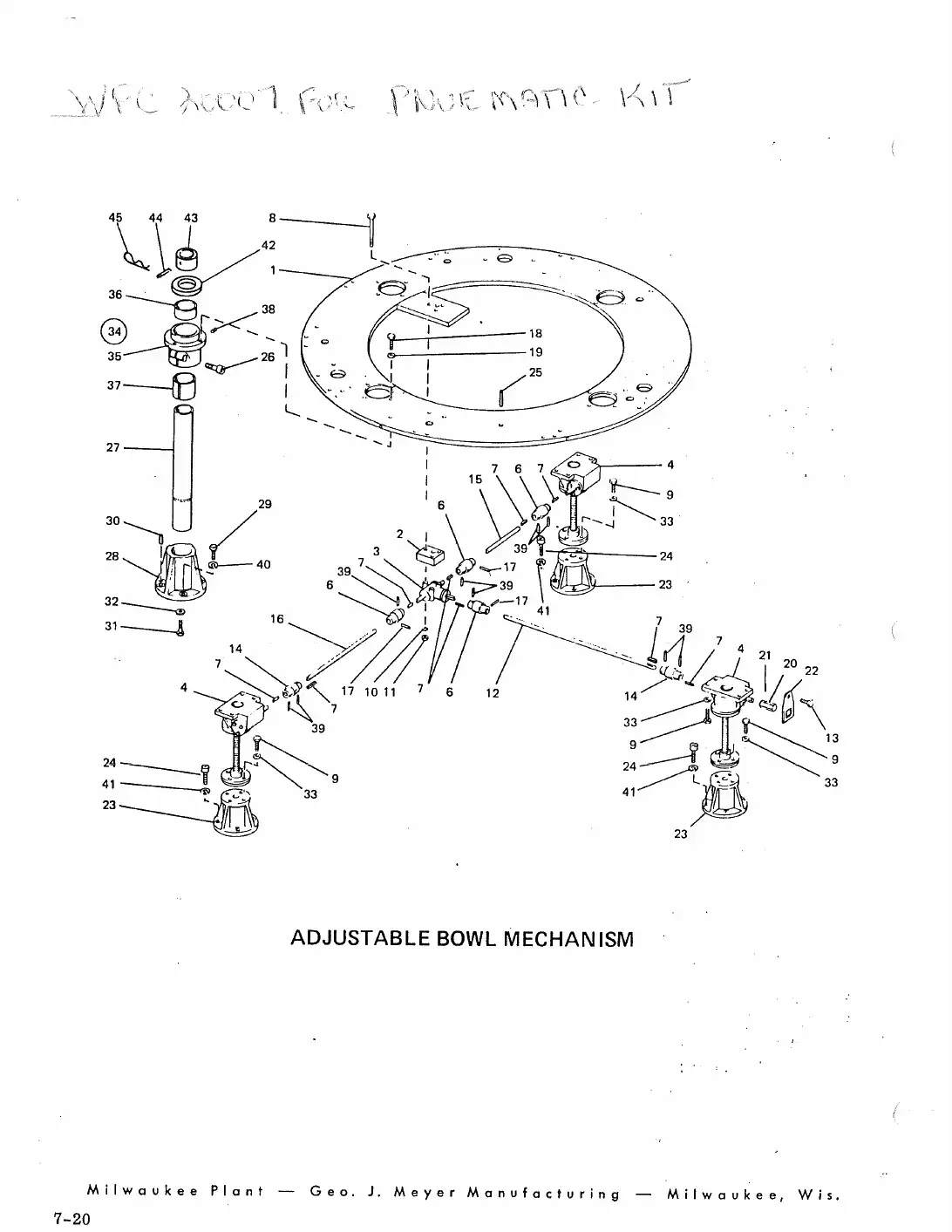

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
23	131-5458	Support, jack	Ask us
24	102-2227	Screw, socket head cap	Ask us
25	102-2103	Pin, dowel	Ask us
1	902-1779	Support, filler bowl	Ask us
26	102-2071	Screw, socket head	Ask us
3	100-93301009330	Gearbox, three way bowl lift	Request
28	131-5460	Support, guide post	Ask us
4	100-93281009328	Jactuator	Request
29	102-2230	Screw, socket head cap	Ask us
80	102-1445	Pin, dowel	Ask us
7	000-1624	Key, shaft square	Ask us
81	102-2232	Screw, socket head cap	Ask us
8	102-20941022094	Bolt, hex head	Request
82	102-04201020420	Washer, flat	Request
9	102-22241022224	Screw, socket hd cap	Request
83	102-03911020391	Washer, lock	Request
10	102-03871020387	Washer, lock	Request
34	902-1780	Housing guide post	Ask us
11	102-03321020332	Nut, hex	Request
12	131-54531315453	Shaft, jack adjusting	Request
85	131-5462	Housing, guide post	Ask us
13	102-00671020067	Bolt, hex head	Request
86	131-54651315465	Bushing, guide post housing	Request
14	131-67801316780	Coupling shaft	Request
15	131-54521315452	Shaft, jack adjusting	Request
88	102-2070	Screw, set 25-20	Ask us
16	131-54541315454	Shaft jack adjusting	Request
89	102-04251020425	Set screw	Request
17	102-09861020986	Pin, roll slotted	Request
40	102-03921020392	Washer, lock	Request
18	100-9758	Screw, cap	Ask us
41	102-03901020390	Washer, lock	Request
19	102-04181020418	Washer, flat	Request
20	131-39881313988	Nut, drive adjustable bowl mechanism	Request
21	102-0464	Screw, set 25-20	Ask us

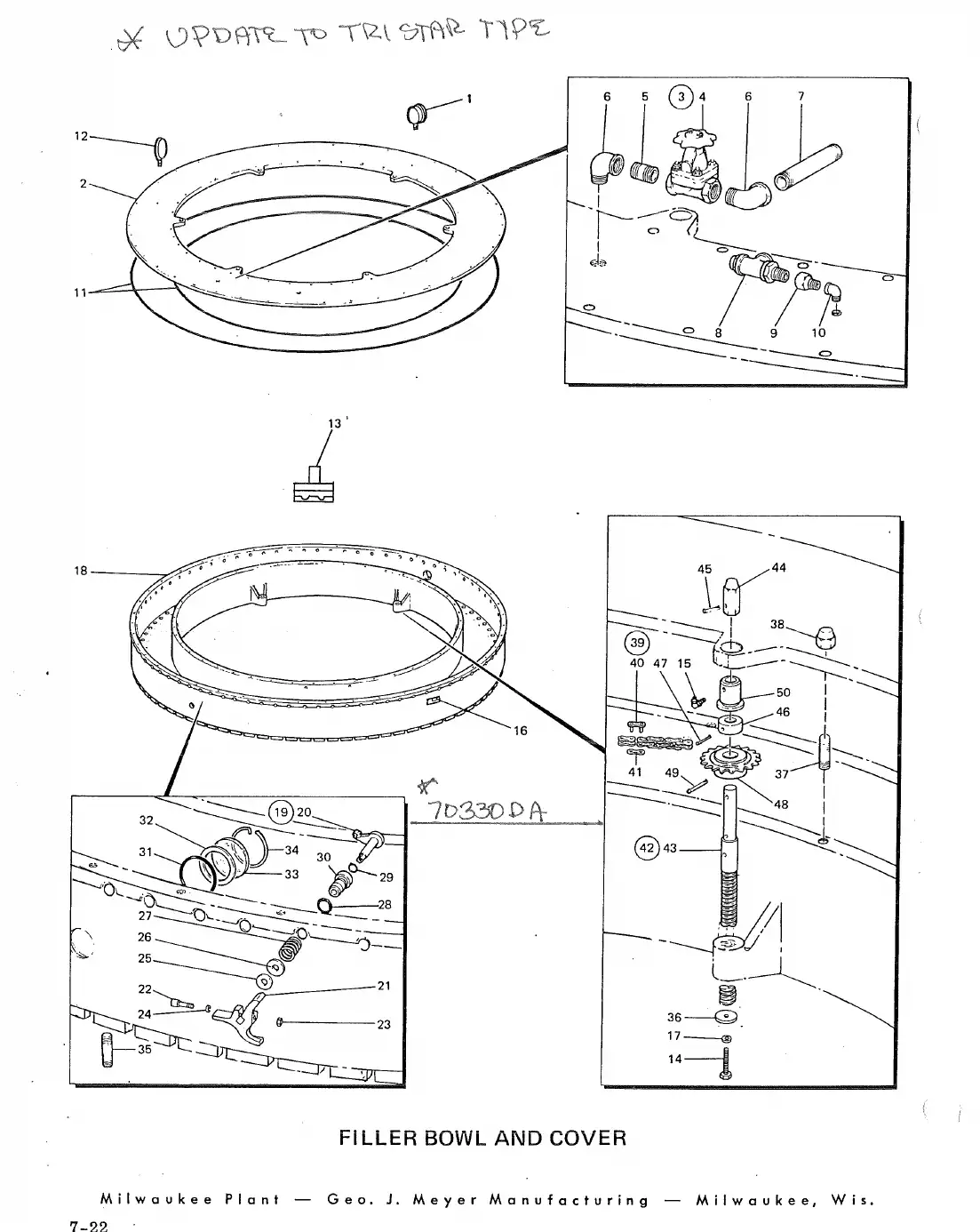

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
25	RR-348RR348	Washer, valve lever outside	Request
26	HH-1005HH1005	Washer, spring	Request
27	HH-5696HH5696	Spring, valve lever	Request
28	101-00881010088	O-ring	Request
2	HH-8327	Cover, bowl	Ask us
29	100-25111002511	O-ring, edpm, dash	Request
3	HH-6326	Drain, bowl-assembly	Ask us
30	131-74941317494	Bushing, valve lever filler bowl	Request
4	100-7648	Valve, stainless	Ask us
81	100-25071002507	O-ring	Request
5	100-61131006113	Nipple, close	Request
6	100-6512	Elbow, street	Ask us
7	100-75581007558	Nipple	Request
34	100-97751009775	Ring, retaining	Request
8	100-4121	Valve, safety blow-off stud	Ask us
9	HH-6406	Adapter, valve	Ask us
386	132-2094	Washer	Ask us
10	100-46601004660	Elbow, street 90 deg	Request
87	130-85471308547	Stud, bowl cover	Request
11	000-2682	Packing, square rubber fee	Ask us
38	130-85621308562	Nut, dome	Request
12	100-93951009395-1	Thermometer, filler bowl digital	Request
39	101-21031012103	Chain, roller	Request
13	HH-3191	Baffle, standard parts	Ask us
14	102-00671020067	Bolt, hex head	Request
40	101-21041012104	Link, offset	Request
15	100-4286	Fitting, grease	Ask us
41	101-21051012105	Clip, link roller chain	Request
16	101-2237	Numbers, valve	Ask us
42	HH-8974	Lift screw-assembly	Ask us
17	102-03871020387	Washer, lock	Request
18	H-2718	Bowl, filler	Ask us
43	HH-1248	Screw, bowl cover lift	Ask us
19	902-7497	Lever valve-assembly	Ask us
44	HH-8971	Nut, lift screw	Ask us
45	100-32171003217	Pin, roll	Request
21	132-30881323088	Lever, valve operating outside	Request
47	100-32181003218	Pin, roll	Request
48	HH-8972HH8972	Sprocket cover lift screw	Request
23	102-03321020332	Nut, hex	Request
49	100-32191003219	Pin, roll	Request
24	102-23011022301	Washer, lock collar	Request
50	HH-8321	Bushing	Ask us

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
24	132-64031326403	Retainer, seat snift valve	Request
25	RR-647RR647	Seat, snift valve	Request
1	HH-8695HH8695	Lever, oper liquid level control	Request
26	102-23571022357	Screw, round head	Request
2	HH-2410HH2410	Gland, packing	Request
3	HH-2414HH2414	Nut, lock stuffing box	Request
28	RR-88RR88	Nut, snift valve	Request
4	HH-8692HH8692	Retainer, bushing mounting	Request
29	100-1467	Elbow, comp	Ask us
5	HH-8693HH8693	Spacer, mounting plate liq level	Request
80	100-47681004768	Valve, diaphragm	Request
6	131-63321316332	Box stuffing	Request
7	102-14831021483	Packing	Request
81	HH-2407	Port, charging	Ask us
8	RR-228RR228	Gasket, air inlet valve bo	Request
382	HH-8696HH8696	Plate, operating liq level	Request
9	HH-2515HH2515	Float lever control valve	Request
83	102-07731020773	Screw, fillister hd	Request
10	102-04371020437	Screw, set socket cup point	Request
34	102-07751020775	Screw, fillister hd	Request
85	100-09251000925	Fitting, tube adapter bras	Request
11	HH-2409HH2409	Stem, valve operating	Request
36	HH-8698HH8698	Valve, air body assembly OEM	Request
12	102-0363	Nut, hex 25-20	Ask us
387	HH-8697	Body, air valve	Ask us
14	100-53721005372	Elbow, 90 deg	Request
88	HH-2421	Trigger, air check	Ask us
15	100-79931007993	Valve, on/off, female male	Request
89	100-77711007771	Ball float	Request
16	HH-457HH457	Nut	Request
17	HH-8263HH8263	Gasket, valve	Request
41	130-11831301183	Plate, operator	Request
18	HH-8814	Adapter, blow-off valve	Ask us
42	102-00671020067	Bolt, hex head	Request
19	100-61101006110	Nipple, close	Request
43	100-09271000927	Fitting, tube adapter	Request
20	HH-167HH167	Valve, clean out assembly	Request
44	102-03871020387	Washer, lock	Request
21	RR-115RR115	Valve, body clean out-sell HH3486	Request
45	HH-8948	Adapter	Ask us
22	902-98279029827	Insert, snift valve assembly B-2	Request
46	100-46601004660	Elbow, street 90 deg	Request
47	100-53761005376	Valve, check	Request

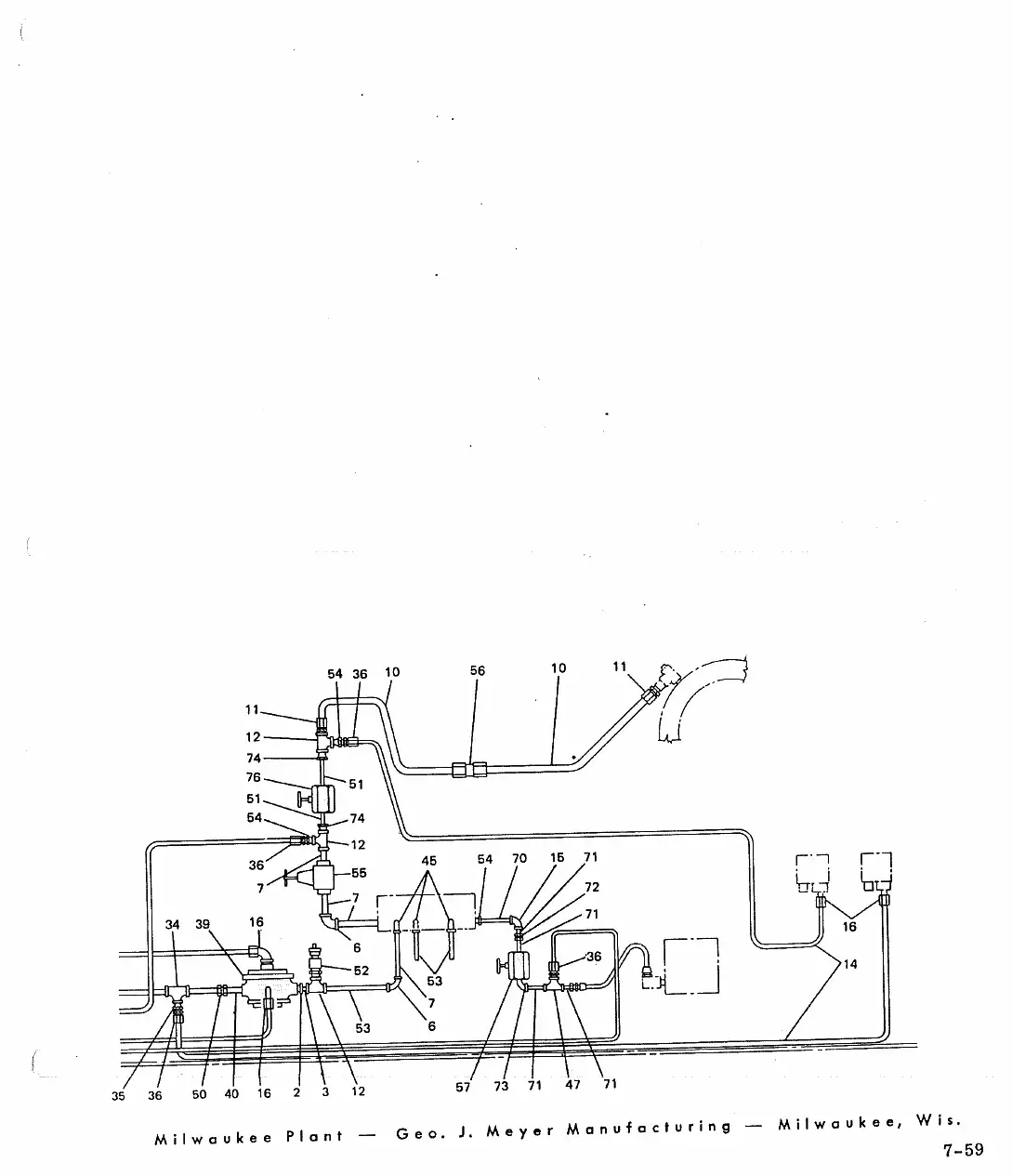

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
48	100-14691001469	Elbow, tube male	Request
72	131-68171316817	Spacer, diaphragm 2-WAY valve	Request
49	HH-2416HH2416	Spring, operating	Request
73	102-04161020416	Washer, flat	Request
50	900-01679000167	Valve, run / charge	Request
74	102-1666	Screw, hex head 312-18	Ask us
51	100-08801000880	Tee, pipe	Request
75	100-96671009667	Elbow, street	Request
52	100-0889	Nipple, close	Ask us
76	100-14311001431	Bushing, reducing hex	Request
53	102-10001021000	Stud, tap end	Request
77	100-07761000776	Fitting, grease ptf	Request
54	000-1769	Tubing, hopper	Ask us
78	100-97701009770	Yoke	Request
79	102-21991022199	Screw, allen cap	Request
66	102-05531020553	Nut, hex	Request
80	102-21781022178	Screw, socket head cap	Request
57	HH-3485HH3485	Valve, body clean out 52V family	Request
81	902-3638	Repair kit, valve	Ask us
82	101-01741010174	Nut, hex jam	Request
58	HH-3486HH3486	Valve, body clean out family	Request
83	132-8231	Spacer, bracket	Ask us
59	131-75851317585	Spring, compression conical	Request
84	132-8232	Spacer, bracket	Ask us
60	902-98279029827	Insert, snift valve assembly B-2	Request
85	132-8233	Spacer, bracket	Ask us
61	RR-88RR88	Nut, snift valve	Request
86	132-8234	Spacer, bracket	Ask us
62	902-35209023520	Valve, level control	Request
87	132-8235	Spacer, bracket	Ask us
88	132-82361328236	Spacer	Request
638	100-9764	Diaphragm assembly	Ask us
89	100-53711005371	Tee	Request
64	100-97651009765	Piston, diaphragm valve	Request
90	100-41021004102	Nipple	Request
65	102-03881020388	Washer, lock	Request
91	900-1240	Hose, blow-off	Ask us
66	100-97621009762	Spring, diaphragm ret	Request
92	000-1760	Tubing, hopper	Ask us
67	131-68181316818	Bushing	Request
93	102-02931020293	Screw, round head slot	Request
68	100-97711009771	Bearing, large flange	Request
94	HH-8691HH8691	Plate, mounting	Request
69	100-53541005354	Spacer, packer spool valve	Request
95	HH-8694	Spacer	Ask us
70	100-97691009769	Body	Request
96	102-0711	Nut, wing	Ask us
71	100-97721009772	Bearing, small flange	Request

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
1	902-5467	Valve, filling assembly	Ask us
19	100-25201002520	O-ring	Request
20	902-99889029988	Snift, block assembly R-11A clamp on	Request
2	902-7467	Cage, valve spring parts	Ask us
8	132-64011326401	Cap, charging valve	Request
21	132-29251322925	Snift, block R-11A	Request
4	100-93201009320	Seal, charging cap	Request
22	RR-88RR88	Nut, snift valve	Request
23	902-98279029827	Insert, snift valve assembly B-2	Request
6	HH-7049HH7049	Spring, valve charging	Request
24	132-64021326402	Stem, snift valve	Request
9	132-63991326399	Collar, guide	Request
25	RR-647RR647	Seat, snift valve	Request
10	902-9910	Stem, valve assembly inc	Ask us
27	102-23571022357	Screw, round head	Request
28	HH-7503HH7503	Spring, snift valve	Request
11	902-3701	Stem, valve	Ask us
12	101-24851012485	Pin, groove	Request
30	131-69891316989	Spring, post valve R-11 series	Request
13	132-6400	Guide, valve	Ask us
16	100-98521009852	O-ring, (special)	Request

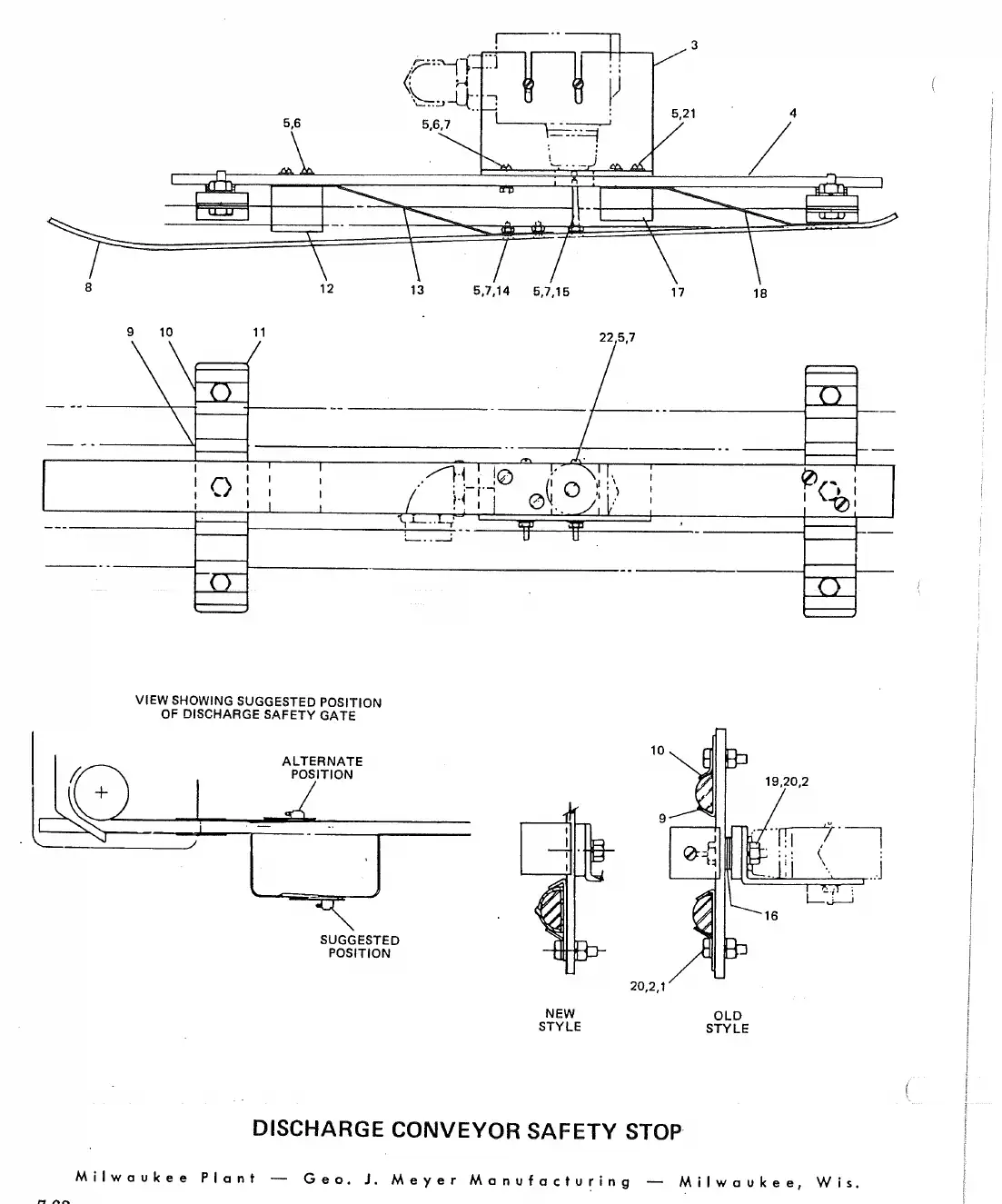

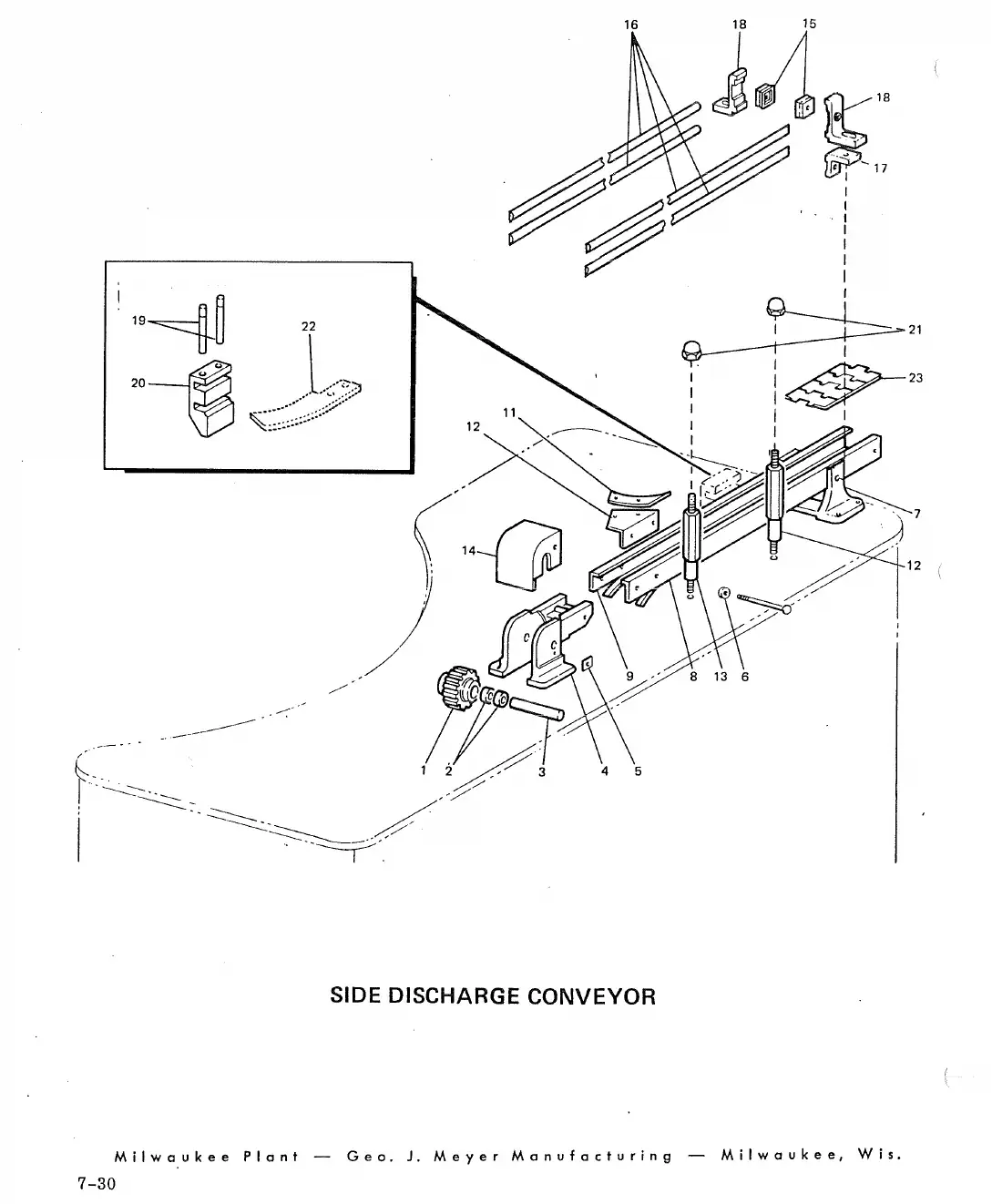

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
11	130-8839	Strip, wear	Ask us
1	902-3705	Sprocket, conveyor drive	Ask us
14	X-6228	Cover	Ask us
2	100-2345	Bushings oilite	Ask us
18	T-1015	Bracket, adj	Ask us
19	CL-127CL127	Pin, lock crowner star Meyer	Request
38	HH-1187	Pin, sprocket discharge strip	Ask us
4	X-6583	Bracket, conveyor end 181-2 support	Ask us
21	HH-238	Nut, dome	Ask us
5	HH-1186	Plate, lock	Ask us
6	HH-1734	Washer rex	Ask us
7	131-1909	Bracket, conveyor support	Ask us
23	101-1793	Chain, erecif sab	Ask us
9	X-6581	Channel, discharge rear conv link	Ask us

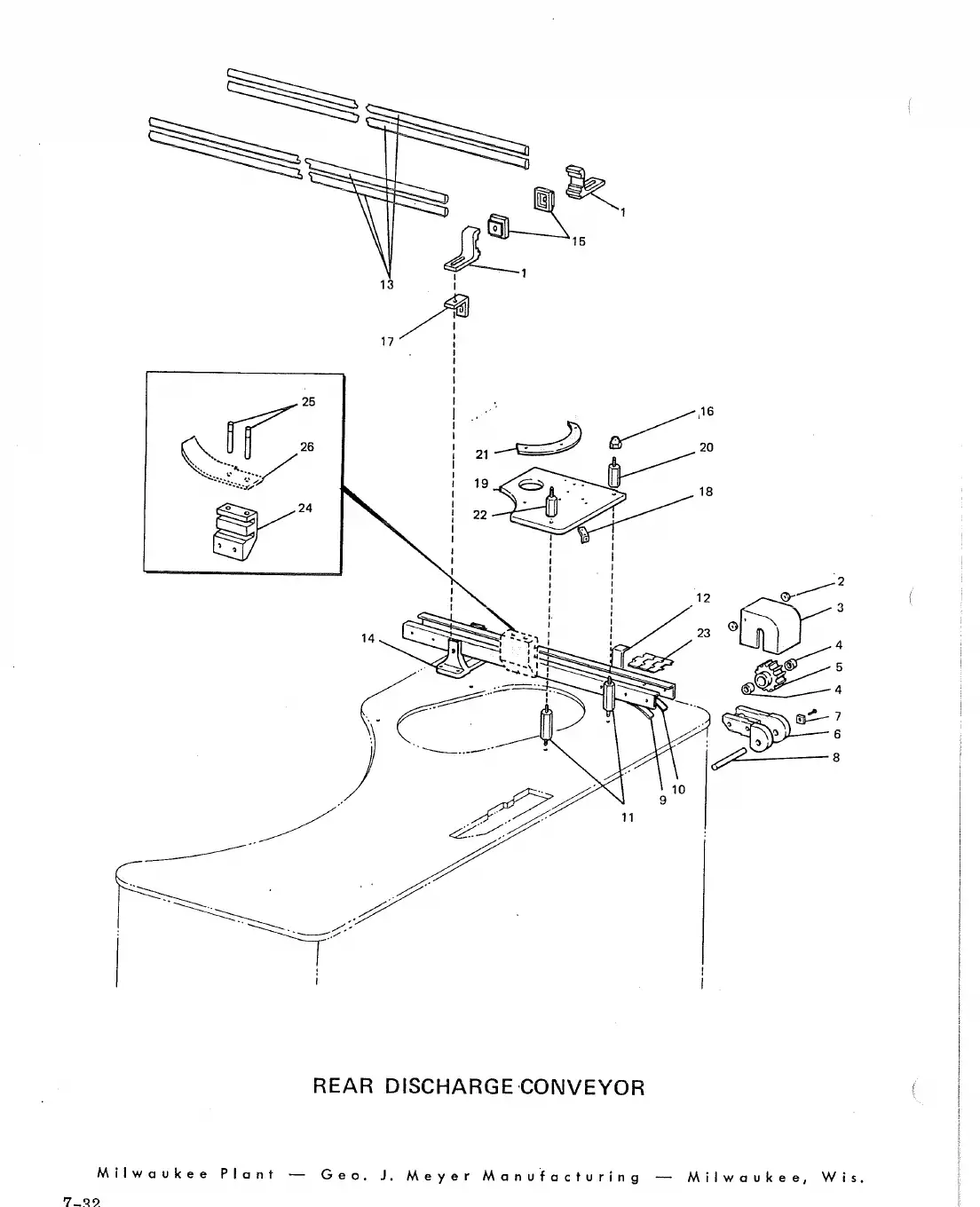

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
18	000-1421	Rail, bottle guide spec length	Ask us
15	131-1912	Cap, retaining stainless	Ask us
16	HH-238	Nut, dome	Ask us
17	T-1016	Slide, adj rail	Ask us
3	130-8969	Cover card end bracket	Ask us
18	HH-1264HH1264	Bracket, crowner grease line all me	Request
4	100-2345	Bushing-oilite	Ask us
5	902-3705	Sprocket, conveyor drive	Ask us
20	130-8129	Nut, crowner	Ask us
22	130-8174	Spacer, bottle guide	Ask us
23	101-1793	Chain, conveyor rex	Ask us
6	DFC-950	Bracket, conveyor end specify no link	Ask us
7	HH-1186	Plate, lock chain	Ask us
8	HH-1187	Pin, sprocket c708a stainless specify	Ask us
9	X-6600	Channel, rear conveyor link	Ask us
11	HH-1232	Stud, bottle support	Ask us
25	CL-127CL127	Pin, lock crowner star Meyer	Request
12	X-6598	Bracket, crown discharge	Ask us

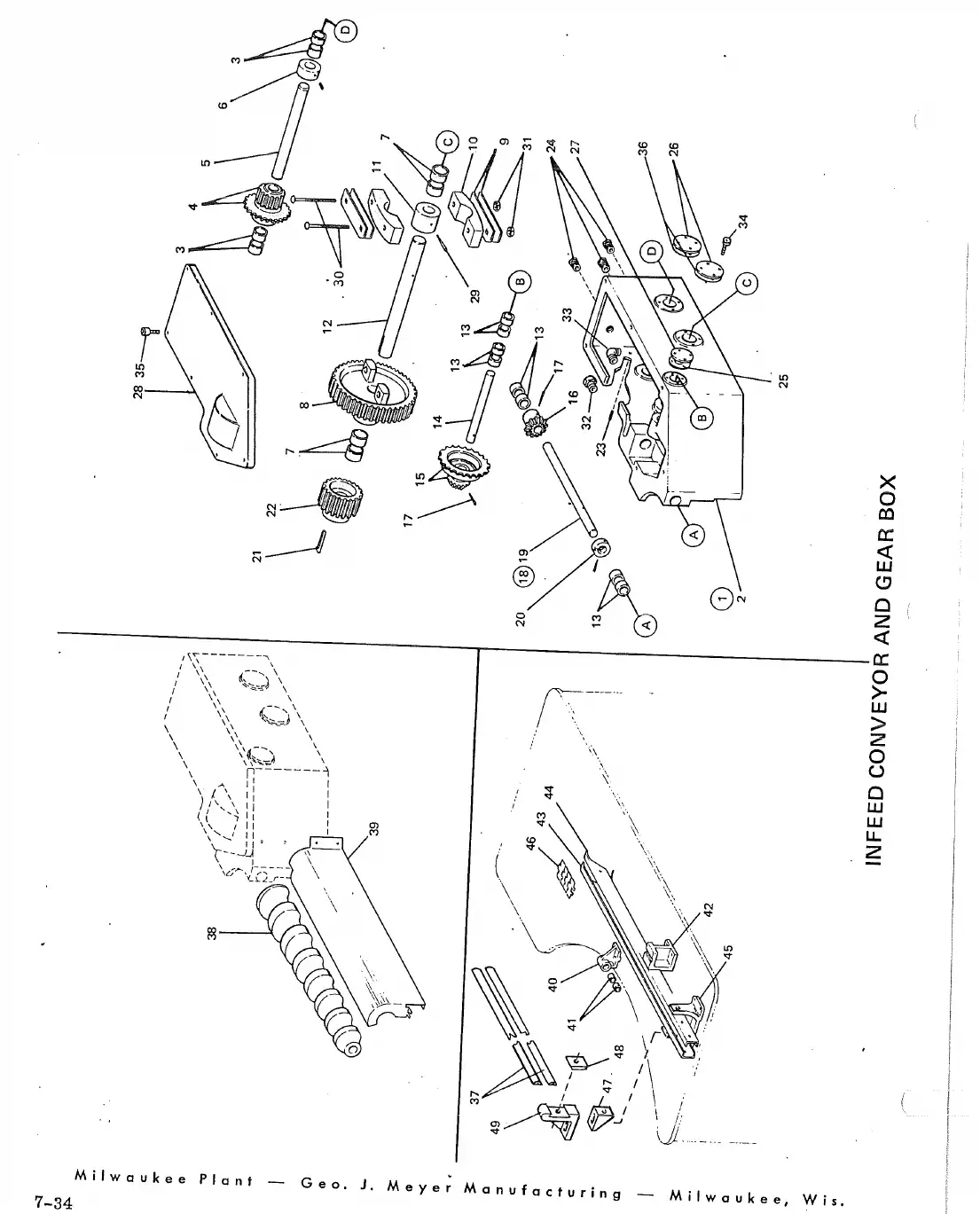

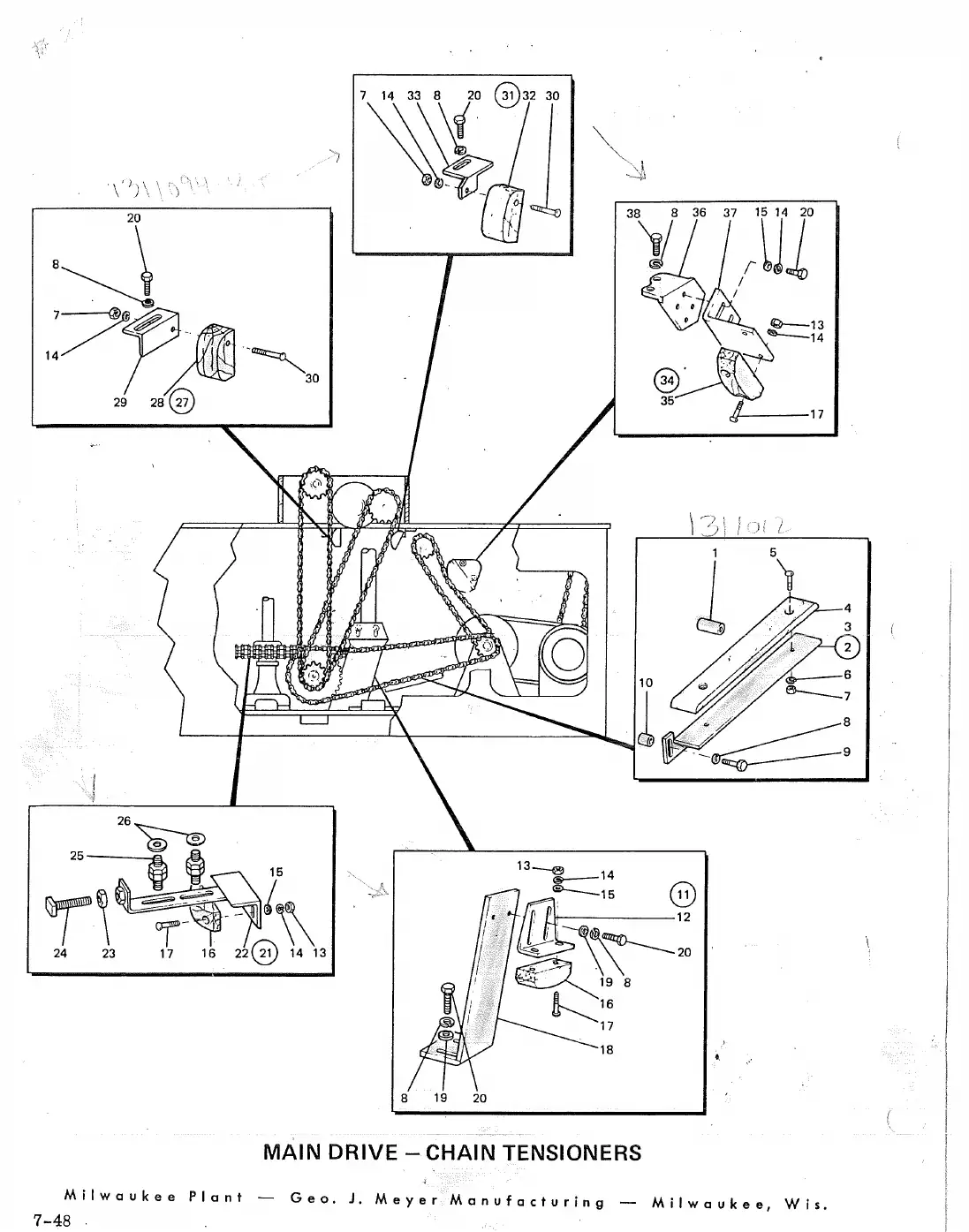

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
25	HH-8986	Gasket, shaft cover	Ask us
26	DFC-621	Cover, shaft	Ask us
27	DFC-620	Cover, shaft	Ask us
28	DFC-619	Cover, gear box	Ask us
1	HH-1716	Box, timing screw gear	Ask us
29	102-14971021497	Pin, taper	Request
30	102-0858	Bolt, carr	Ask us
31	102-03401020340	Nut, hex jam	Request
2	DFC-721	Box, timing screw gear	Ask us
32	100-09231000923	Fitting, tube	Request
3	100-23621002362	Bushing, sleeve	Request
33	100-1465	Ell, comp	Ask us
4	HH-1608	Sprocket pinion assembly	Ask us
34	102-1313	Screw, socket head cap	Ask us
5	HH-1611	Shaft, conveyor drive	Ask us
35	102-07431020743	Screw, socket head cap	Request
6	100-0747	Collar, set	Ask us
86	HH-8987	Gasket, shaft cover	Ask us
37	000-1421	Rail, half round spec lgth	Ask us
7	100-23641002364	Bushing, sleeve	Request
8	DFC-689DFC689	Gear, conveyor drive	Request
89	HH-1789	Guard, timing screw	Ask us
9	HH-7504	Plate, friction block	Ask us
40	900-8959	Bearing, timing screw	Ask us
10	RS-146RS146	Block, friction infeed gearbox	Request
11	H-1918	Hub, friction clutch	Ask us
41	100-2345	Bushings	Ask us
12	HH-1612	Shaft, conveyor drive	Ask us
42	DFC-788	Bracket, mounting	Ask us
43	HH-3095	Channel, rear infeed conveyor	Ask us
14	HH-1461	Shaft, feed screw drive	Ask us
44	HH-3094	Channel, front infeed conveyor	Ask us
15	HH-1464	Sprocket mitre gear assembly	Ask us
16	HH-641HH641	Gear, mitre infeed gearbox	Request
46	100-06631000663	Chain, flat top	Request
17	102-05721020572	Pin, taper	Request
18	HH-1688	Shaft, timing screw chain	Ask us
20	HH-1686	Collar, shaft chain	Ask us
21	102-17251021725	Key, replaces	Request
47	T-1016	Slide, adj rail	Ask us
48	T-1018	Cap, retaining	Ask us
23	102-0893	Stud	Ask us
49	T-1015	Bracket, adj rail	Ask us
24	HH-1046	Adapter, grease line	Ask us

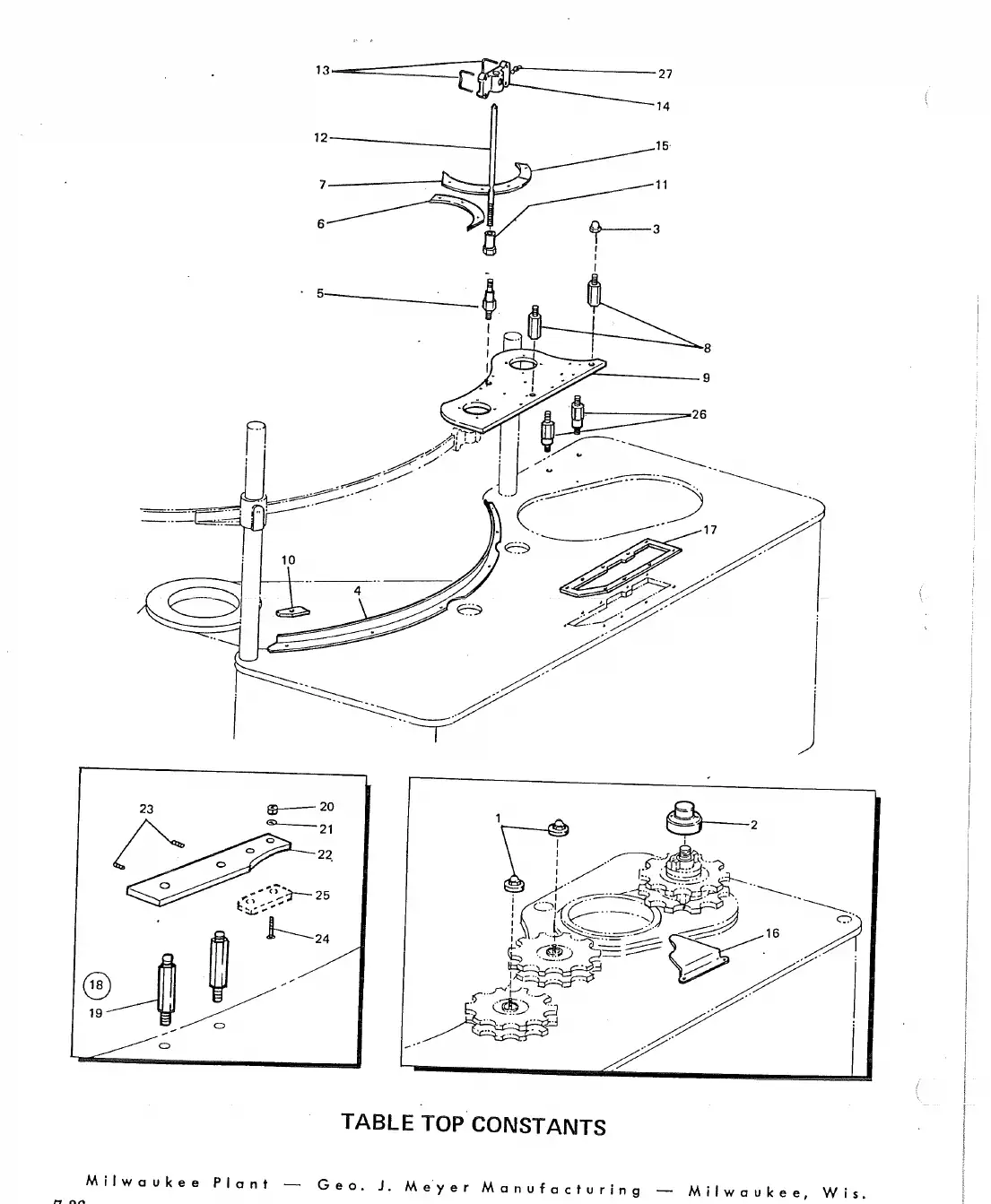

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	900-5423	Gate, adj	Ask us
6	102-03401020340	Nut, hex jam	Request
8	102-04251020425	Set screw	Request
9	HH-6721	Pin, pivot	Ask us
3	100-3229	Fitting, grease 1380-9674 liner	Ask us
4	102-04191020419	Washer, flat	Request
5	HH-1854	Spring	Request
14	130-9676	Liner, safety gate	Ask us
15	102-0936	Screw, flat head	Ask us

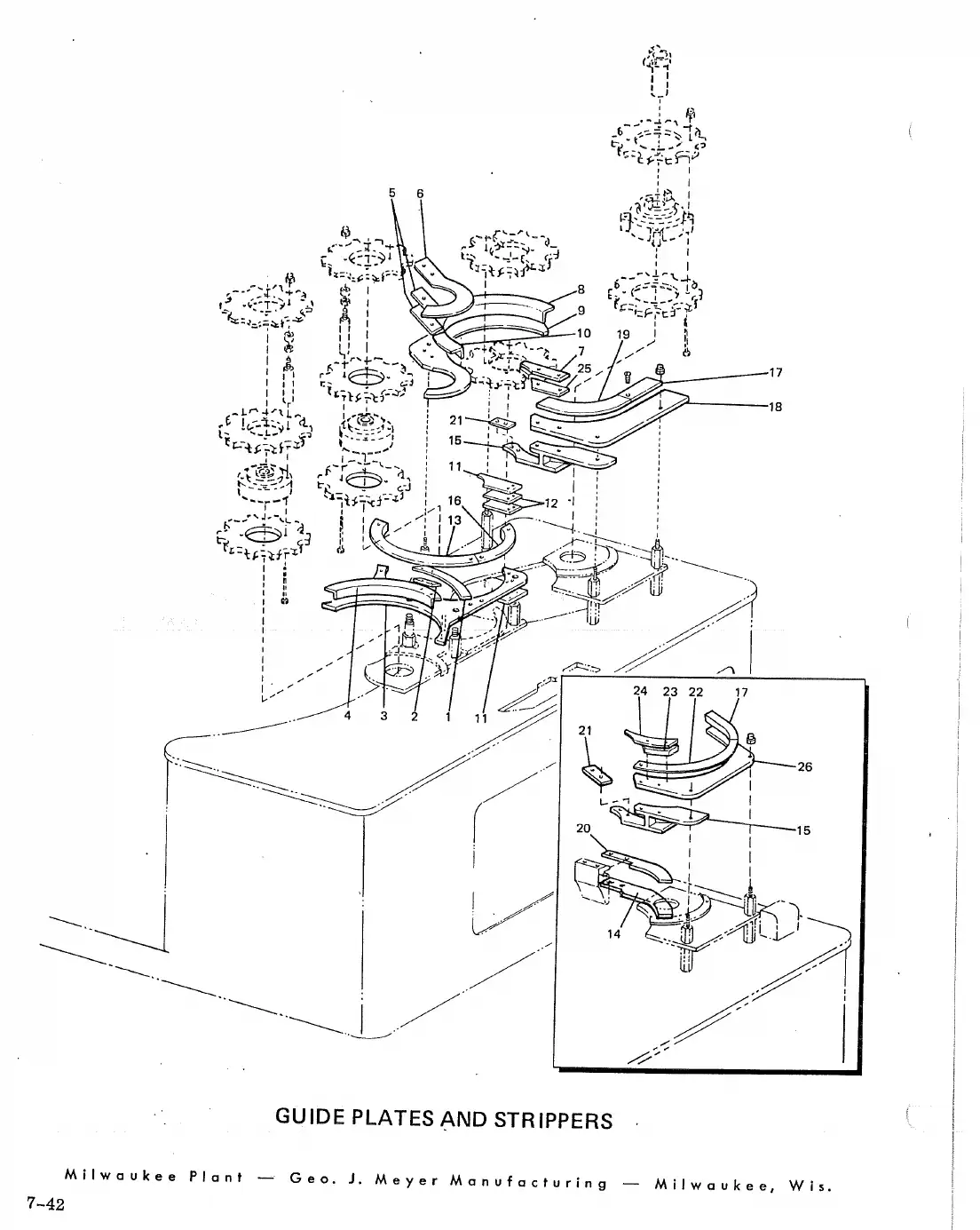

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
8	HH-134	Nut, dome	Ask us
9	CL-127CL127	Pin, lock crowner star Meyer	Request
11	102-1511	Screw, square head set 375-16	Ask us
1	102-01101020110	Bolt, hex head	Request
12	102-03401020340	Nut, hex jam	Request
18	DFC-29	Bushing, crowner discharge	Ask us
8	DFC-1223	Hub, filler star	Ask us
15	131-2416	Hub, crowner discharge	Ask us
5	102-03411020341	Nut, hex jam	Request
16	102-01091020109	Bolt, hex head	Request
17	102-0523	Screw, square head set 375-16	Ask us

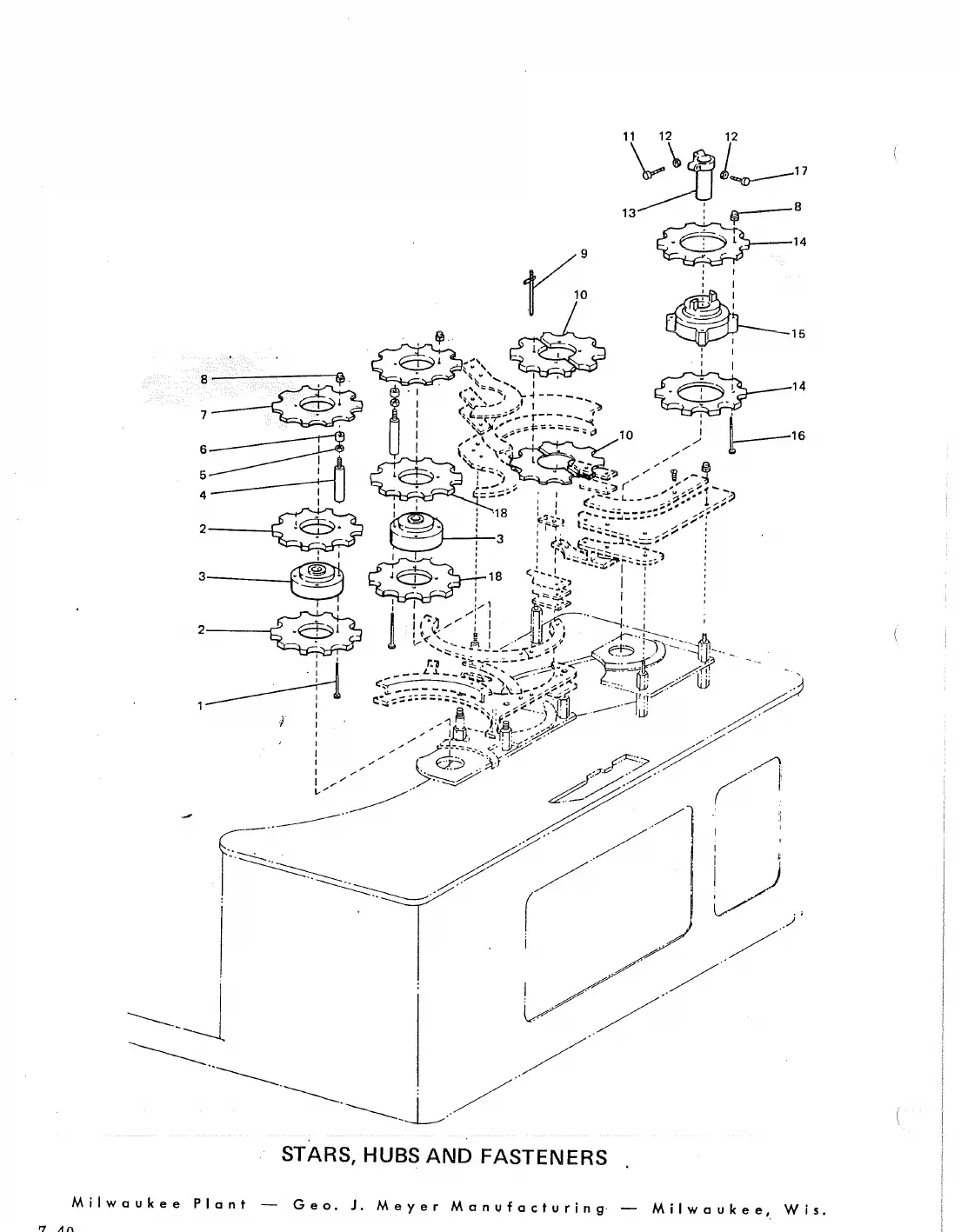

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
46	102-0495	Screw, head	Ask us
47	HH-982	Shaft, pinion drive	Ask us
1	100-09231000923	Fitting, tube	Request
48	131-8959	Key, bevel gear	Ask us
49	902-8239	Gear-assembly pinion and	Ask us
3	DFC-872	Cover, drive shaft ring gear ordered	Ask us
4	102-0199	Screw, flat	Ask us
50	DFC-1269DFC1269	Washer, bevel gear thrust	Request
6	HH-7318HH7318	Bushing, shaft drive horiz & vert	Request
51	HH-6710HH6710	Bushing, bearing main drive	Request
7	HH-7319HH7319	Bushing, shaft drive horiz & vert	Request
52	100-1481	Elbow	Ask us
8	DFC-893	Quill, drive shaft	Ask us
53	HH-6712	Screw	Ask us
9	DFC-1271	Bracket, main drive	Ask us
10	HH-6418HH6418	Shim, quill adjusting	Request
55	102-05871020587	Nut, hex jam	Request
11	HH-6419HH6419	Shim, quill adjusting	Request
56	DFC-873	Cover, star shaft	Ask us
12	HH-6420HH6420	Shim, quill adjusting	Request
138	HH-7068HH7068	Shim, adjustable main dr quill	Request
58	HH-7323	Bearing, star shaft	Ask us
14	DFC-818	Sprocket, main drive	Ask us
59	HH-7322	Bearing, star shaft	Ask us
15	DFC-231	Flange	Ask us
60	DFC-599DFC599	Dog star drive	Request
16	RS-1022	Stud	Ask us
61	DFC-600DFC600	Sprocket, starwheel drive	Request
17	102-03721020372	Washer, flat	Request
62	102-0533	Key	Ask us
18	102-03411020341	Nut, hex jam	Request
19	HH-6417HH6417	Ball, float	Request
64	100-25051002505	O-ring	Request
20	HH-7065HH7065	Shim	Request
65	100-08711000871	Plug, pipe	Request
21	HH-6421HH6421	Shim, shaft end thrust washer	Request
66	900-1362	Bearing, star shaft	Ask us
22	HH-6422HH6422	Shim, shaft end thrust washer	Request
67	130-5352	Collar, star shaft	Ask us
23	HH-6423	Shim	Ask us
68	RR-464RR464	Washer, thrust starwheel	Request
24	102-0538	Stud	Ask us
26	102-00881020088	Hex head bolt	Request
71	102-0529	Screw, square headset	Ask us
27	102-03801020380	Washer, lock	Request
28	HH-1906	Washer	Ask us
73	102-0326	Nut, hex jam 312-18	Ask us
30	102-0485	Screw, socket head set	Ask us
75	HH-1885	Collar, thrust	Ask us
81	102-00891020089	Bolt, hex head	Request
76	102-0492	Screw, socket head	Ask us
83	100-2725	Coupling, bras	Ask us
78	132-9101	Flange, sprocket adj	Ask us
34	102-2801	Screw, hex head	Ask us
79	132-9100	Sprocket	Ask us
35	102-0379	Lockwasher sprocket, inf screw	Ask us
36	902-8264	Bearing, drive pinion	Ask us
81	132-9099	Sprocket, inf screw	Ask us
87	102-05411020541	Pin, cotter	Request
82	132-9097	Washer, main shaft	Ask us
38	HH-1335HH1335	Nut, pinion drive	Request
83	102-04471020447	Screw, set socket cup point	Request
39	000-0467	Key, stud	Ask us
40	HH-6354HH6354	Gear, pinion drive	Request
86	102-00921020092	Bolt, hex head	Request
42	102-03821020382	Washer, lock	Request
43	102-00511020051	Bolt, hex head	Request
44	000-16500001650-1.5	Key, square	Request

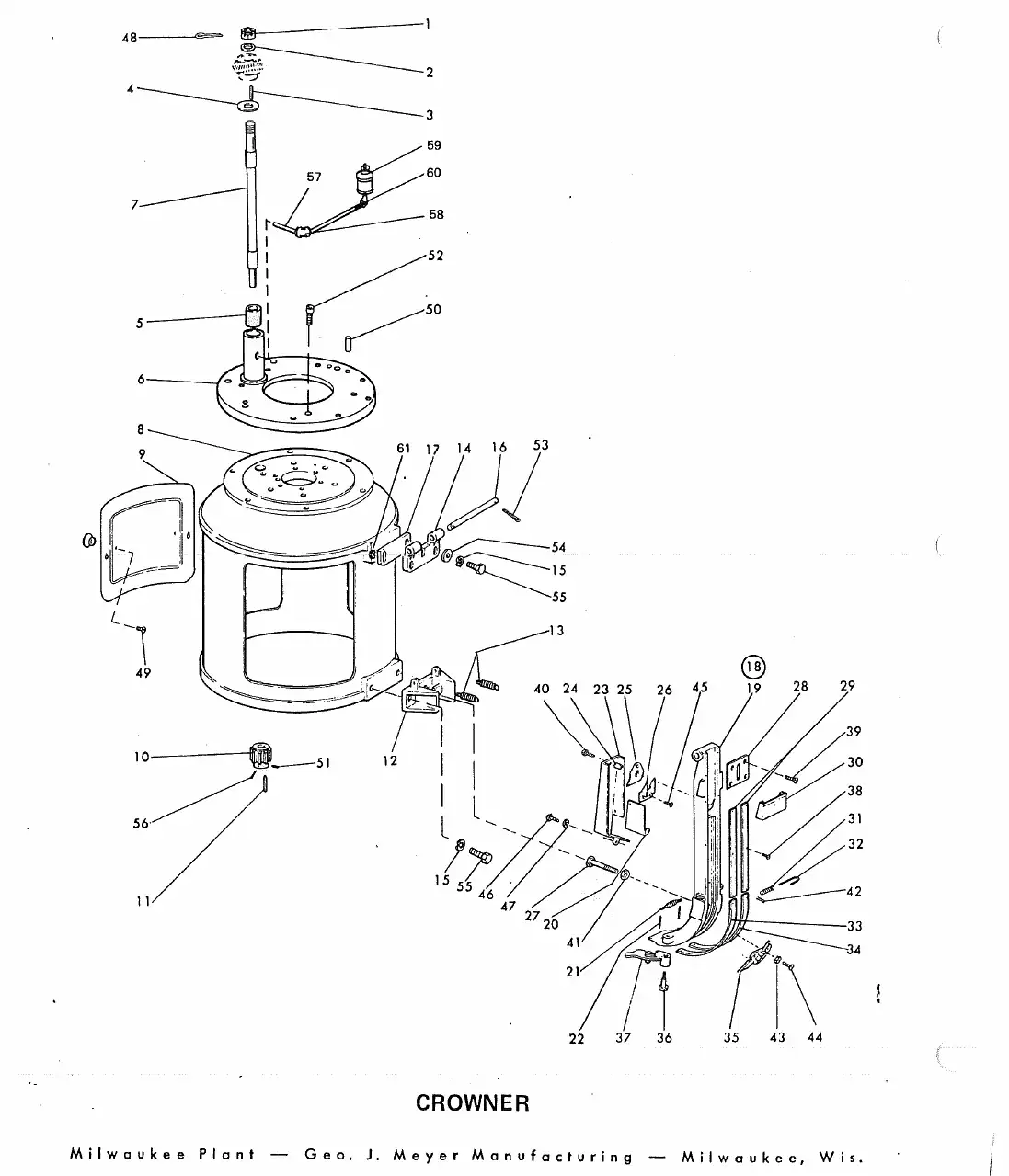

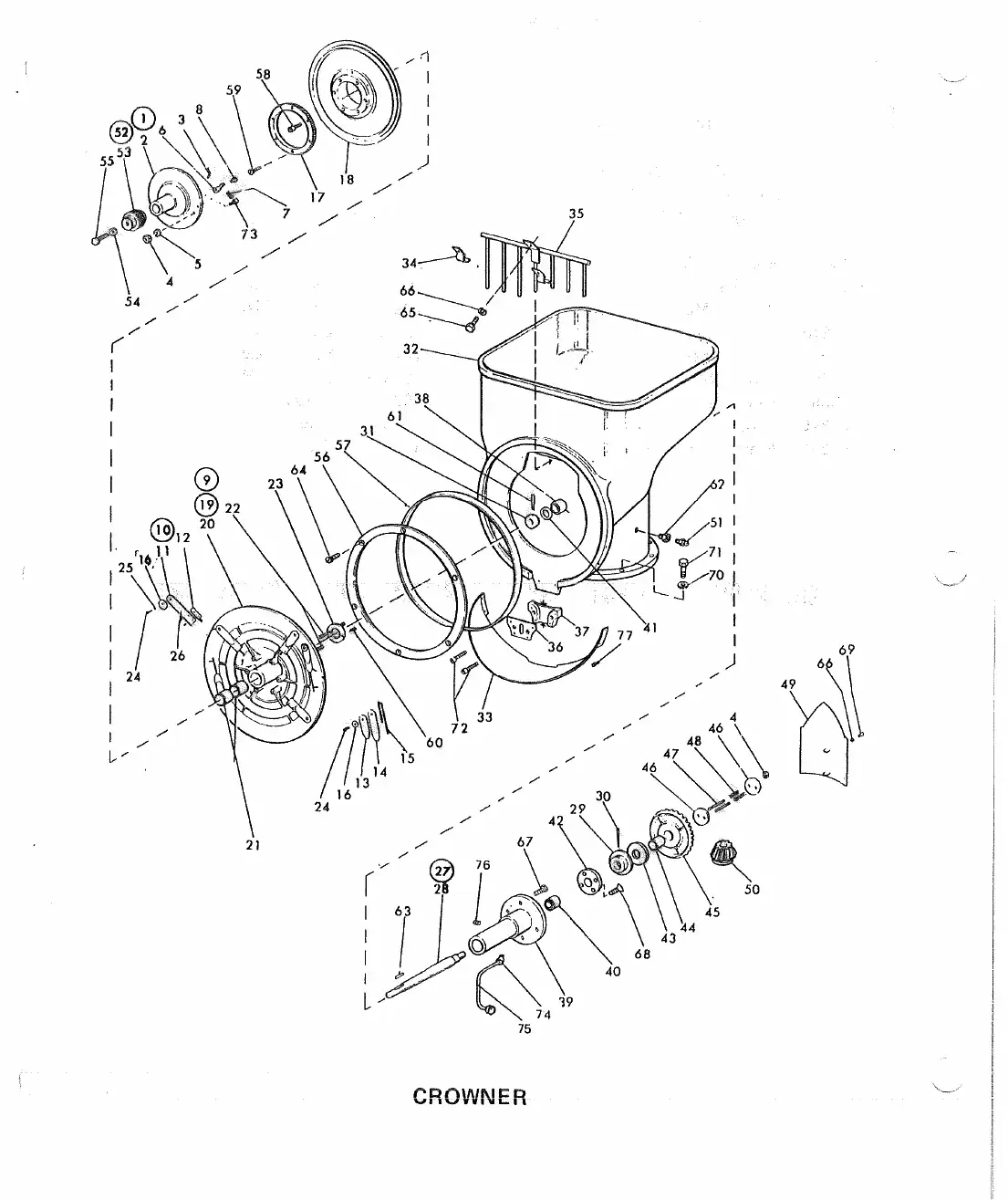

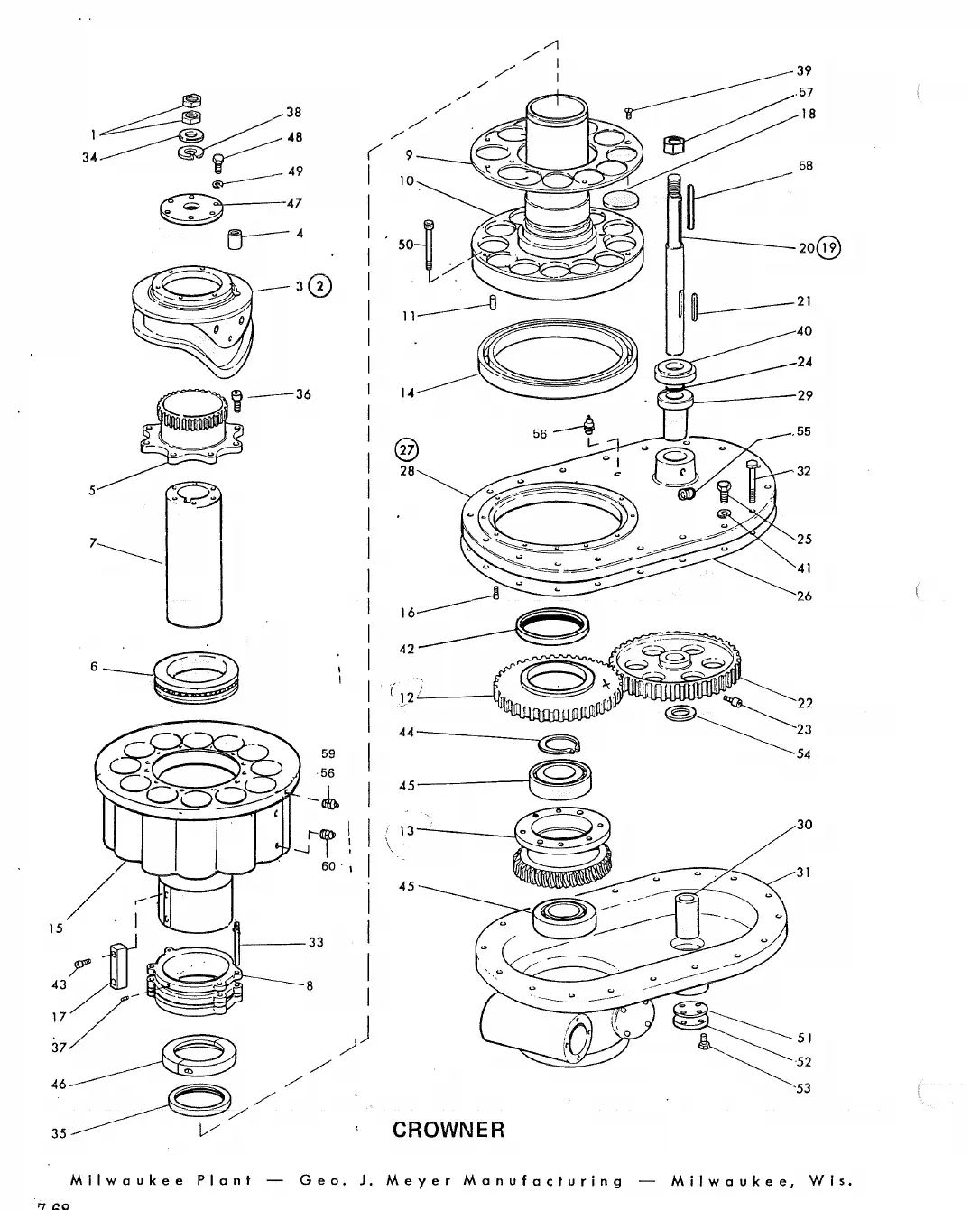

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	102-00271020027	Bolt, hex head	Request
2	102-03801020380	Washer, lock	Request
19	100-7880	Bearing	Ask us
3	102-0321	Nut, hex 375-16	Ask us
20	100-0296	Sprocket tooth	Ask us
4	130-1780	Handwheel	Ask us
21	102-0319	Nut, hex 250-20	Ask us
5	904-1668	Tachometer	Ask us
22	102-0838	Lockwasher, external tooth	Ask us
6	102-0243	Screw, round head	Ask us
7	102-03871020387	Washer, lock	Request
24	900-7853	Lock, speed control	Ask us
8	130-5579	Bracket	Ask us
25	100-32171003217	Pin, roll	Request
9	100-7017	Clamp plate, motor mount	Ask us
10	102-1007	Bolt, hex head	Ask us
11	102-03921020392	Washer, lock	Request
12	102-03901020390	Washer, lock	Request
13	102-01011020101	Bolt, hex head	Request
15	100-4229	Seal, rotary	Ask us
16	100-4230	Hose, air	Ask us
31	100-3736	Lockwasher, external tooth	Ask us
32	100-37161003716	Nut, lock	Request
33	132-8582	Spacer	Ask us
13	100-37671003767	Bearing, ball drive shaft	Request
14	102-13621021362	Screw, socket head cap	Request
15	100-08041000804	Seal, oil	Request
16	000-1633	Key square	Ask us
2	000-16280001628	Key, square	Request
8	102-10291021029	Key, belt drive conversion	Request
18	100-7198	Clutch, fawick type	Ask us
5	102-0478	Screw, set	Ask us
20	100-08711000871	Plug, pipe	Request
6	102-00761020076	Bolt, hex head	Request
21	101-0081	Fitting, grease relief	Ask us
7	102-03881020388	Washer, lock	Request
22	100-09231000923	Fitting, tube	Request
8	102-03331020333	Nut, hex	Request
23	102-02941020294	Screw, round head slot	Request
9	100-08721000872	Plug, pipe square head	Request
125	102-00581020058	Bolt, hex head	Request
11	102-1035	Key stock square lockwasher	Ask us
12	130-0708	Cap, brg end	Ask us
27	102-0054	Screw, hex head	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
21	902-4366	Tensioner, star drive	Ask us
22	HH-3109	Bracket, chain tensioner	Ask us
23	102-1681	Nut, jam	Ask us
24	102-0765	Screw, square head set	Ask us
25	HH-1465	Stud	Ask us
26	102-0373	Washer	Ask us
25	102-0545	Bolt, carriage drive assembly	Ask us
46	102-0379	Lockwasher	Ask us
28	132-1954	Shoe, chain tensioner	Ask us
29	HH-1215	Support, chain tensioner	Ask us
30	102-1494	Bolt, carriage	Ask us
31	902-4354	Tensioner, conveyor	Ask us
14	102-03891020389	Washer, lock	Request
38	HH-2307	Bracket, takeup support	Ask us
15	102-04171020417	Washer, flat	Request
16	132-19551321955	Shoe, chain takeup	Request
17	102-16521021652	Bolt, carriage	Request
36	DFC-662	Bracket, takeup	Ask us
20	102-00891020089	Bolt, hex head	Request
37	131-9205	Bracket, chain tensioner	Ask us
38	102-0974	Screw, hex head	Ask us
4	100-0295	Chain, roller	Ask us
5	100-37571003757	Link, connecting three str	Request
6	100-32891003289	Link, connecting single strand	Request
7	100-51011005101	Link, connecting silent	Request
2	100-0648	Chain, roller	Ask us
8	100-6241	Link, connecting	Ask us
3	100-5164	Chain, roller	Ask us
1	902-8098	Brake-assembly inc	Ask us
115	HH-6354HH6354	Gear, pinion drive	Request
16	101-1098	Drum, brake	Ask us
2	132-3754	Shaft, brake	Ask us
18	100-1951	Brake element assembly	Ask us
3	902-8264	Bearing, drive pinion	Ask us
19	902-8110	Support, brake assembly	Ask us
4	DFC-654	Bracket, drive pinion bearing plate	Ask us
5	HH-7318HH7318	Bushing, shaft drive horiz & vert	Request
21	100-27621002762	Ring, retaining	Request
6	HH-7319HH7319	Bushing, shaft drive horiz & vert	Request
92	100-27631002763	Seal, oil shaft	Request
7	100-2106	Plug pipe pt bushing	Ask us
25	131-0867	Cover	Ask us
26	102-03871020387	Washer, lock	Request
27	102-00661020066	Bolt, hex head	Request
98	100-4762	Fitting, grease relief	Ask us
13	102-1356	Key, square	Ask us
99	HH-1335HH1335	Nut, pinion drive	Request
14	102-1355	Key, square	Ask us
30	102-05411020541	Pin, cotter	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
23	902-2429	Bracket, inner explosion	Ask us
2	902-3210	Guard, inner explosion	Ask us
8	902-3211	Guard, inner explosion grippers and without explosion	Ask us
4	102-04151020415	Washer, flat	Request
5	102-04181020418	Washer, flat	Request
24	HH-5293	Bracket, inner guard	Ask us
6	102-2167	Screw, hex head 500-18 assembly	Ask us
7	102-02951020295	Screw, round head slot	Request
8	902-3216	Guard, explosion	Ask us
25	HH-2270	Guard, inner explosion	Ask us
25	902-3217	Guard, explosion	Ask us
25	902-3218	Guard, explosion	Ask us
26	HH-2272	Stiffener, inner guard	Ask us
9	102-03891020389	Washer, lock	Request
10	102-0365	Nut, hex stainless 875-16	Ask us
27	102-0290	Screw, round head 190-24	Ask us
28	102-03861020386	Washer, lock	Request
29	102-05531020553	Nut, hex	Request
138	902-3387	Guard, outer	Ask us
80	102-05971020597	Screw, socket head cap	Request
81	902-3394	Guard, upper front exp	Ask us
83	902-1918	Guard, stiffener outer	Ask us
18	102-04161020416	Washer, flat	Request
385	131-6692	Strip, backup	Ask us
19	102-03881020388	Washer, lock	Request
86	102-0288	Screw, round head stainless 190-24	Ask us
20	102-0711	Nut, wing stainless 812-18	Ask us
21	102-00901020090	Bolt, hex head	Request
22	902-2985	Support, outer explosion	Ask us
89	102-04141020414	Washer, flat	Request

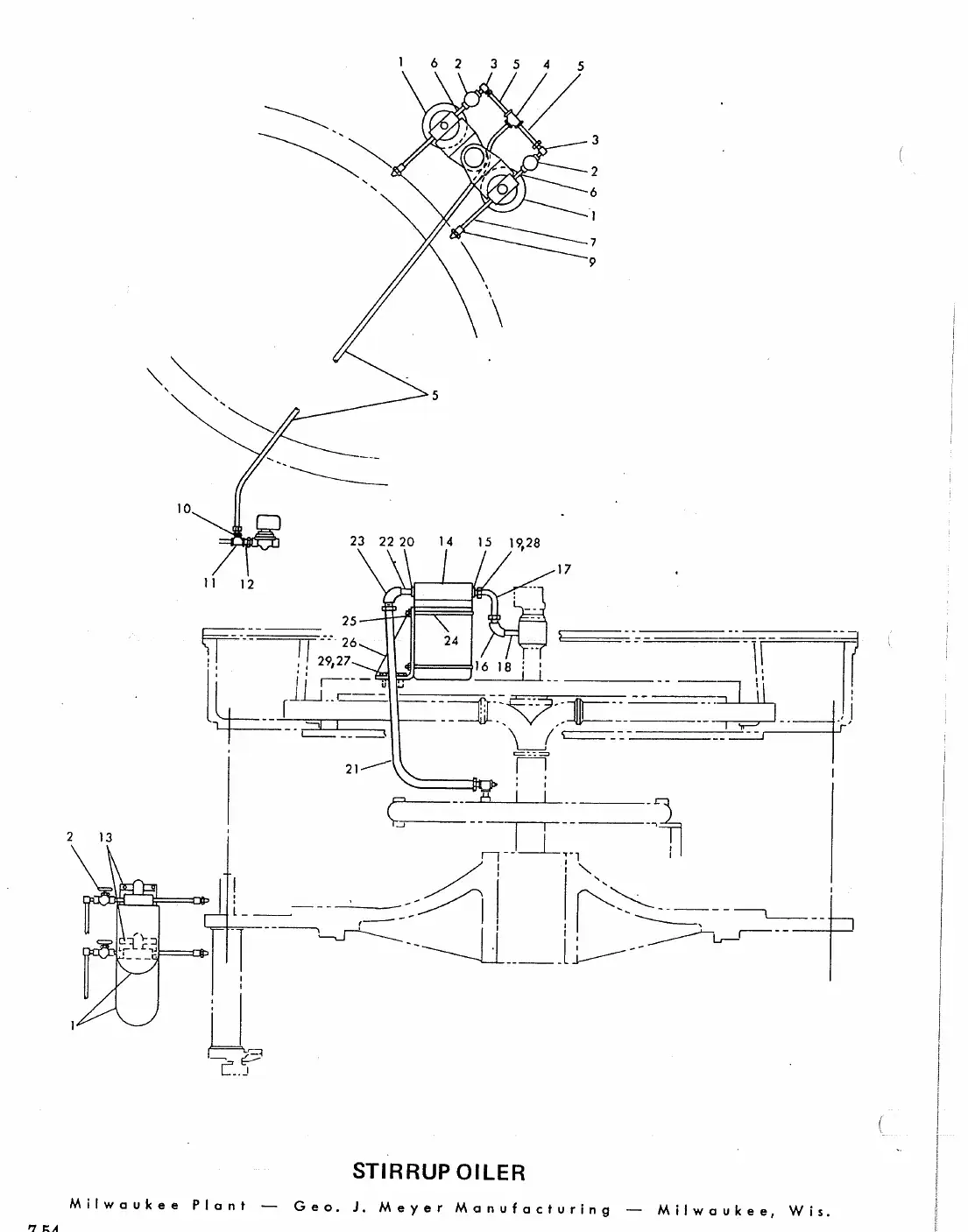

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
14	904-1536	Lubricator	Ask us
15	100-1491	Bushing	Ask us
16	100-08561000856	Elbow	Request
1	100-9881	Lubricator, oil fog	Ask us
17	000-3386	Hose	Ask us
2	101-0166	Valve, control needle	Ask us
18	100-08921000892	Nipple	Request
3	101-0104	Elbow, male conn	Ask us
19	101-0109	Coupling, hose	Ask us
4	100-3110	Tee	Ask us
20	100-1490	Bushing	Ask us
5	000-1760	Tubing, hopper	Ask us
21	900-4249	Hose assembly	Ask us
22	100-0893	Nipple, close	Ask us
6	100-08901000890	Nipple	Request
23	100-08571000857	Elbow	Request
7	100-1443	Pipe, bras	Ask us
8	100-2726	Coupling	Ask us
25	102-03321020332	Nut, hex	Request
9	100-0195	Nozzle, male vee jet	Ask us
26	904-0529	Bracket	Ask us
10	100-09251000925	Fitting, tube adapter bras	Request
27	102-01001020100	Bolt, hex head	Request
11	100-08801000880	Tee, pipe	Request
28	100-3078	Clamp	Ask us
12	100-0889	Nipple, bras	Ask us
29	102-03901020390	Washer, lock	Request
13	100-9235	Clamp	Ask us

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
49	100-0929	Connector, male tube	Ask us
20	100-4736	Connector, female	Ask us
21	902-1758	Support overhead piping	Ask us
1	100-6178	Joint, passage	Ask us
22	100-8919	Elbow	Ask us
2	102-00931020093	Bolt, hex head	Request
23	100-31421003142-1	Filter, housing	Request
3	102-03891020389	Washer, lock	Request
24	100-61121006112	Nipple	Request
4	100-29651002965	Regulator, pressure pilot	Request
25	100-54921005492	Tee	Request
5	130-6290	Plate, mounting	Ask us
6	100-46181004618	Gauge, pressure	Request
27	100-9326	Reducer, pipe	Ask us
7	000-1769	Tubing, round specify length	Ask us
28	100-4735	Connector, hose	Ask us
8	100-4830	Valve, globe	Ask us
29	000-2831	Hose	Ask us
9	100-1470	Elbow, comp	Ask us
10	100-5739	Bushing	Ask us
31	HH-167HH167	Valve, clean out assembly	Request
11	100-49091004909	Union	Request
12	100-5727	Elbow, insert	Ask us
18	100-8906	Bushing	Ask us
33	RR-88RR88	Nut, snift valve	Request
14	102-00801020080	Bolt, hex head	Request
34	HH-7503HH7503	Spring, snift valve	Request
15	102-03881020388	Washer, lock	Request
35	RR-115RR115	Valve, body clean out-sell HH3486	Request
16	102-03331020333	Nut, hex	Request
36	100-61111006111	Nipple, close	Request
17	100-89111008911	Bushing, reducing hex	Request
37	100-08821000882	Tee	Request
18	000-0807	Pipe, std ips specify length	Ask us
38	100-09271000927	Fitting, tube adapter	Request
39	HH-8690HH8690	Bracket, diaphragm valve-mount	Request

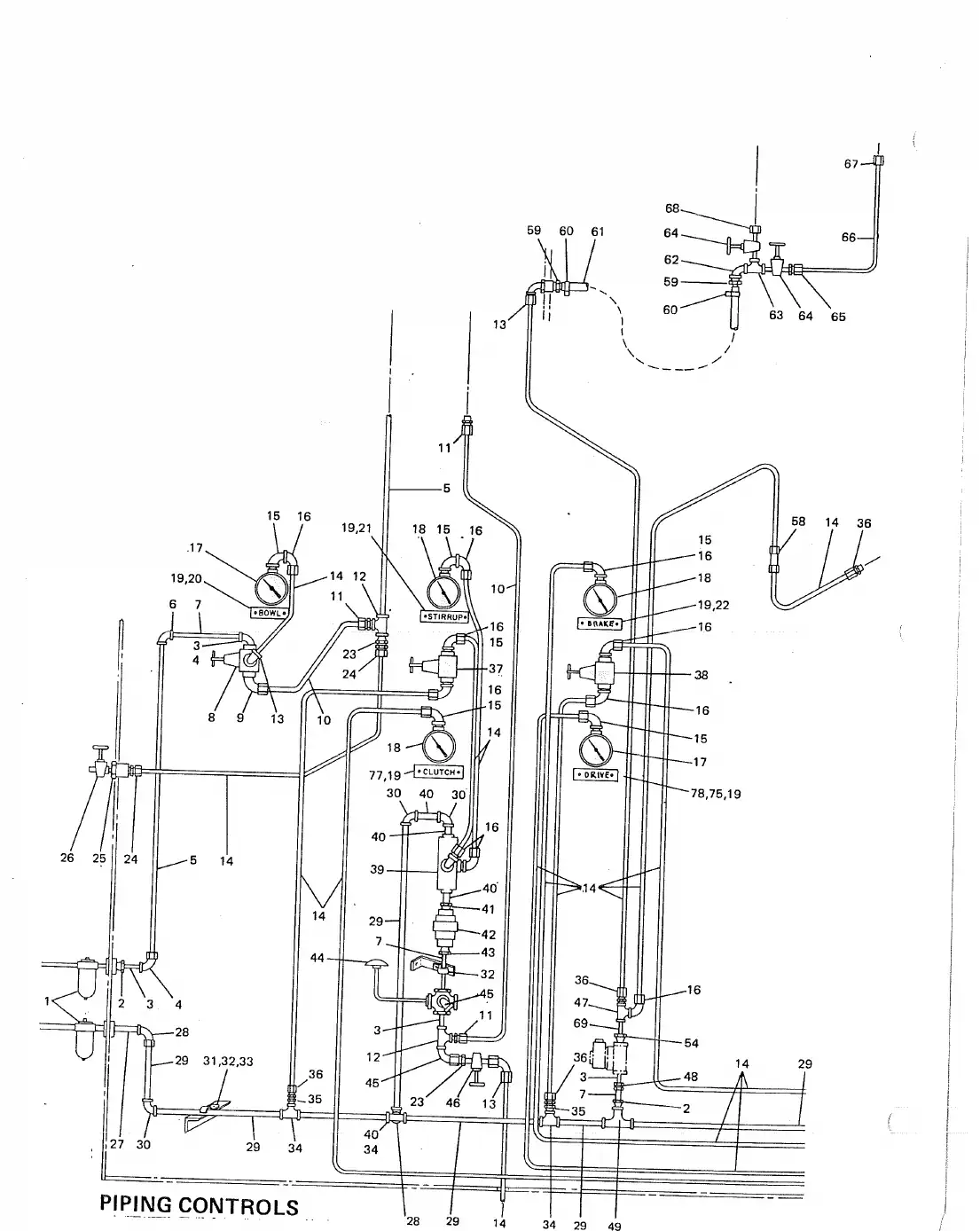

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
39	100-47101004710	Regulator, air	Request
40	100-0893	Nipple, close npt	Ask us
41	100-1490	Bushing, npt	Ask us
42	100-2850	Valve, check npt	Ask us
1	100-3141	Filter, air	Ask us
43	100-1491	Bushing, pt	Ask us
2	100-14371001437	Bushing, reducing hex	Request
44	900-7844	Valve, stirrup air control	Ask us
3	100-08921000892	Nipple	Request
45	100-14841001484	Elbow, street	Request
4	100-2747	Elbow, union npt	Ask us
46	100-2928	Cock, air npt	Ask us
5	000-0808	Pipe, npt	Ask us
47	100-08811000881	Tee	Request
6	100-08561000856	Elbow, npt	Request
48	100-21551002155	Union, pipe	Request
7	100-09001000900	Nipple	Request
49	100-2875	Tee, union run npt	Ask us
8	100-47091004709	Regulator	Request
50	100-21561002156	Union, brz npt	Request
9	100-1477	Compact fitting ell npt	Ask us
51	100-2731	Pipe, nipple	Ask us
52	100-8663	Valve, adj relief npt	Ask us
10	000-1846	Tube, spec lgth	Ask us
53	100-09031000903	Nipple	Request
11	100-0935	Con fit npt	Ask us
54	100-1485	Bushing, npt	Ask us
55	101-2303	Regulator, 2-125 npt	Ask us
13	100-1467	Conn fit ptx	Ask us
56	100-1639	Union, tube	Ask us
14	000-1760	Tube, spec lgth	Ask us
57	100-8929	Valve, flow control	Ask us
15	100-0854	Elbow, npt	Ask us
58	100-1636	Union, tube tube	Ask us
16	100-14681001468	Elbow, tube male bras	Request
59	100-5317	Coupling, hose	Ask us
60	100-5498	Clamp, hose	Ask us
18	100-3387	Gauge, press	Ask us
61	000-2902	Hose, rubber	Ask us
19	102-1986	Screw, round head	Ask us
62	100-2979	Elbow, street npt	Ask us
20	100-80001008000	Nameplate, co	Request
63	100-54901005490	Tee	Request
21	100-79991007999	Nameplate, lift cylinders	Request
65	131-91161319116	Fitting, tube male br	Request
23	100-1436	Bushing, pt	Ask us
66	000-17510001751	Tubing	Request
24	100-09251000925	Fitting, tube adapter bras	Request
25	HH-1046	Adapter, grease line conn fit pt	Ask us
26	131-14181311418	Air cock	Request
27	100-3629	Nipple	Ask us
28	100-2748	Union, ell	Ask us
69	100-14421001442	Nipple, pipe	Request
29	000-0818	Pipe, npt spec	Ask us
70	100-14411001441	Nipple, pipe	Request
30	100-08571000857	Elbow	Request
71	100-14401001440	Nipple	Request
32	100-0357	Clamp, union	Ask us
33	102-00661020066	Bolt, hex head	Request
73	100-1482	Elbow, street brz	Ask us
74	100-14341001434	Bushing, reducing hex	Request
34	100-08841000884	Tee	Request
35	100-1439	Bushing, pt	Ask us
76	101-0110	Valve, flow control	Ask us
86	100-09261000926	Fitting, tube adapter	Request
77	100-80011008001	Nameplate, opener red	Request
87	100-29651002965	Regulator, pressure pilot	Request
78	100-8002	Plate, name-drive	Ask us
38	100-2966	Regulator, air	Ask us
7	100-08831000883	Tee	Request
8	100-08741000874	Plug, pipe square. head	Request
9	100-0901	Nipple	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
34	HH-4117	Bearing, floating rake	Ask us
35	HH-4113	Baffle, rake	Ask us
1	902-0107	Disc crown selector	Ask us
38	100-71711007171	Bearing, outer	Request
2	DFC-36DFC36	Disc, driving	Request
40	100-71721007172	Bearing, needle roller	Request
3	000-3151	Wire	Ask us
41	100-72521007252	Felt, seal	Request
4	102-03321020332	Nut, hex	Request
5	102-03871020387	Washer, lock	Request
43	CL-490CL490	Plate, clutch	Request
6	HH-858	Pawl, ratchet	Ask us
44	CL-502CL502	Hopper shaft gear bushing	Request
7	RR-160RR160	Spring, rachet	Request
8	HH-860	Pin, pawl	Ask us
46	CL-117CL117	Retaining washer	Request
9	900-4682	Disc and handwheel	Ask us
47	CL-519	Stud, spring retaining	Ask us
48	CL-504CL504	Spring, hopper shaft clutch	Request
49	900-0154	Cover, hopper gear	Ask us
50	CL-528	Pinion, crowner bevel	Ask us
10	900-54209005420	Agitator, Crown assembly	Request
51	100-47661004766	Fitting, grease straight ptf	Request
52	CL-227	Nut, selector disc adj	Ask us
12	CL-124	Angle, agitator	Ask us
53	CL-104	Nut, selector dis adj	Ask us
13	CL-310CL310	Spring, helper	Request
54	102-08961020896	Nut, hex jam	Request
14	CL-265CL265	Spring	Request
55	102-17991021799	Bolt, hex head	Request
15	CL-109CL109	Spring, agitator hand	Request
56	LC-71LC71	Rear Crown selector	Request
57	CL-150CL150	Selector disc insert	Request
17	HH-865	Ratchet, tooth	Ask us
58	102-07941020794	Screw, socket head cap	Request
18	DFC-35	Handwheel, crown selector	Ask us
59	102-01781020178	Screw, flat head slot	Request
19	900-4681	Disc, crown selector	Ask us
60	102-07951020795	Screw, fillister hd	Request
61	102-12401021240	Pin, taper #4	Request
62	HH-1046	Adapter	Ask us
21	100-23631002363	Bearing	Request
63	000-16280001628	Key, square	Request
64	102-01831020183	Screw, flat head slot	Request
293	CL-556CL556	Collar, selector disc	Request
65	102-00901020090	Bolt, hex head	Request
24	102-07971020797	Screw, round head	Request
66	102-03891020389	Washer, lock	Request
25	102-0798	Washer, lock	Ask us
67	102-01011020101	Bolt, hex head	Request
26	102-0934	Rivet, flat head	Ask us
68	102-01911020191	Screw, flat head slot	Request
27	900-7698	Shaft, selector disc	Ask us
69	102-02941020294	Screw, round head slot	Request
70	102-03901020390	Washer, lock	Request
71	102-1812	Bolt, hex head	Ask us
28	131-1107	Shaft	Ask us
72	102-09771020977	Screw, socket head cap	Request
29	CL-517	Disc clutch	Ask us
73	HH-859HH859	Holder, spring	Request
74	100-55801005580	Elbow, compression tube	Request
31	131-1242	Collar, hopper drive shaft	Ask us
75	000-1755	Tubing, round	Ask us
76	102-04661020466	Screw, set socket cup point	Request
32	130-0471	Hopper, crown	Ask us
77	102-02851020285	Screw, round head slot	Request
33	HH-1167	Shield, crown	Ask us
2	102-2054	Washer, bevel pinion jet assembly	Ask us
38	102-02861020286	Screw, round head slot	Request
6	900-0020	Bracket, crown hopper 190-24	Ask us
39	102-01821020182	Screw, flat head slot	Request
7	130-0079	Shaft, hopper drive	Ask us
40	102-0289	Screw, round head	Ask us
9	900-0342	Door	Ask us
41	102-13941021394	Nut, hex finished	Request
42	102-05621020562	Pin, cotter	Request
43	102-14601021460	Nut, hex	Request
45	102-2961	Screw, flat head	Ask us
15	102-14431021443	Washer, lock	Request
46	102-02871020287	Screw, phillips hd	Request
47	102-03861020386	Washer, lock	Request
48	102-0667	Pin, cotter	Ask us
49	102-02951020295	Screw, round head slot	Request
50	102-1445	Pin, dowel	Ask us
51	102-04251020425	Set screw	Request
52	102-15171021517	Screw, socket head cap	Request
53	102-13841021384	Pin, cotter	Request
54	CL-102CL102	Washer, flat	Request
55	102-1492	Bolt hex head	Ask us
56	102-10931021093	Pin, taper	Request
57	100-1748	Nipple, pipe	Ask us
58	100-0807	Elbow	Ask us
59	100-1737	Oiler, sight feed	Ask us
60	100-17521001752	Nipple	Request
61	100-34821003482	O-ring	Request
1	CL-500	Nut, elevating screw lock	Ask us
28	130-1563	Cover, worm drive housing	Ask us
84	102-22001022200	Washer, flat	Request
6	101-1937	Bearing, ball	Ask us
85	101-1936	Oil seal	Ask us
36	102-1136	Screw, socket head	Ask us
8	132-4347	Hub, crowner star leg	Ask us
87	102-04581020458	Screw, set socket cup point	Request
11	102-1416	Pin, dowel	Ask us
88	102-1564	Washer lock	Ask us
41	102-03821020382	Washer, lock	Request
15	132-9001	Spool	Ask us
42	101-1945	Oil seal	Ask us
16	102-0780	Screw, socket head cap	Ask us
43	102-1673	Screw, socket head	Ask us
44	100-17361001736	Ring, retaining ext beveled	Request
46	132-4315	Oil seal retainer	Ask us
19	900-0158	Shaft and gear, crowner	Ask us
50	102-2308	Screw, socket	Ask us
51	130-9461	Gasket	Ask us
22	130-1559	Gear, crowner star driven cover	Ask us
23	102-0486	Screw, socket head set	Ask us
53	102-1811	Bolt hex head, 312-18x	Ask us
24	100-25051002505	O-ring	Request
55	100-1481	Elbow, street	Ask us
25	102-1417	Bolt, hex head	Ask us
56	100-6628	Fitting, relief	Ask us
26	130-2494	Gasket, crowner	Ask us
57	102-0949	Nut, hex	Ask us
27	900-0338	Housing, worm drive assembly	Ask us
58	000-1633	Key	Ask us
59	101-1537	Fitting, lube	Ask us
1	900-0860	Crank, crowning-assembly hh- flange	Ask us
2	102-09541020954	Key	Request
27	902-2766	Drive, worm gear assembly	Ask us
28	131-87761318776	Worm, crowner drive 12 hd quart	Request
30	131-03251310325	Shim, worm gear	Request
83	100-98891009889	Seal, oil	Request
34	HH-2107	Pin, crankshaft	Ask us
37	102-00891020089	Bolt, hex head	Request
38	100-98901009890	Bearing	Request
18	902-8236	Crank, crowner assembly	Ask us
39	102-0449	Screw, socket head set	Ask us
40	102-1815	Screw, hex head	Ask us
14	DFC-1322	Bearing, crowner crank	Ask us
15	102-05731020573	Screw, socket head cap	Request
41	102-1581	Screw, socket head 250-20	Ask us
16	102-0140	Screw, flat head 250	Ask us
42	102-18141021814	Screw, cap hex head	Request
17	902-8237	Crankshaft, crowner	Ask us
44	102-0139	Screw, flat head 250-20	Ask us
19	102-0438	Screw socket head set	Ask us
45	102-0436	Screw, socket head set	Ask us
20	HH-2179	Gasket, rubber	Ask us
21	HH-1147	Spring, crowner crank	Ask us
46	102-03911020391	Washer, lock	Request
22	HH-1101	Collar, spring	Ask us
23	102-05721020572	Pin, taper	Request
48	DFC-675	Handle, crank	Ask us
24	100-2016	O-ring	Ask us
1	902-5377	Crowning head assembly	Ask us
28	CL-239CL239	Key, Crown throat bracket	Request
29	LC-146LC146	Bracket, Crown throat	Request
80	CL-534CL534	Screw, Crown rest latch	Request
81	102-05961020596	Washer, lock	Request
2	CL-236CL236	Crowning sleeve & bkt ass	Request
83	CL-434CL434	Shim, roller bracket	Request
3	902-5351	Roller bracket assembly	Ask us
84	102-18031021803	Bolt, hex head	Request
85	CL-327CL327	Spacer, Crown throat	Request
4	131-7500	Bracket, roller only	Ask us
6	902-53299025329	Stud, cam roller assembly	Request
7	102-27041022704	Nut, hex jam	Request
8	100-07761000776	Fitting, grease ptf	Request
37	902-39819023981	Crown, rest assembly type 2 12 hd	Request
9	102-25461022546	Washer, lock internal	Request
10	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request
11	130-16011301601-WP	Nut, retainer Meyer crowner head	Request
13	102-0599	Screw, socket head cap	Ask us
39	CL-415CL415	Spring, Crown rest	Request
40	100-20151002015	Magnet, Crown rest	Request
14	CL-527CL527	Ring, compensating latch	Request
41	CL-495CL495	Knob, Crown rest	Request
15	CL-431CL431	Spring, compensating	Request
43	902-8403	Crown throat ass, inc	Ask us
16	CL-156CL156	Cup, grease retaining	Request
44	CL-564	Spring, crown throat	Ask us
18	102-17811021781	Pin, dowel	Request
45	CL-761	Segment, inner throat	Ask us
19	CL-520CL520	Latch, compensating	Request
20	CL-507CL507	Spring, plunger	Request
46	132-4286	Segment, outer throat	Ask us
21	CL-445CL445	Plunger, crowner type 2	Request
47	CL-548	Ring, inner throat segment	Ask us
48	902-4790	Mechanism, spring loading	Ask us
22	100-24061002406	O-ring	Request
238	CL-444CL444	Nut, throat retaining	Request
50	132-09731320973	Spring, compression outer	Request
24	CL-446CL446	Bushing, guide	Request
51	132-09781320978	Spring, compression inner	Request
25	HH-5156	Pin, contact	Ask us
52	131-8473	Guide, spring	Ask us
58	102-2259	Bolt, hex head	Ask us
26	102-01901020190	Screw, flat head slot	Request
27	102-01921020192	Screw, flat head slot	Request
55	102-2261	Screw, set 250-20 dog pt	Ask us
21	HH-5743	Gasket	Ask us
2	RR-510	Body, snift valve cleaner	Ask us
4	RR-507RR507	Valve, snift cleaner rev	Request
5	SW-9212	Gasket	Ask us
26	131-2986	Bushing, restrictor	Ask us
6	RR-530	Spring, snift valve cleaner	Ask us
27	HH-1846	Gasket	Ask us
7	RR-509	Plunger, valve	Ask us
28	100-2703	Gun, grease	Ask us
8	RR-508RR508	Nut	Request
9	RR-256	Gasket	Ask us
29	100-7650	Gun	Ask us
30	902-0198	Tool, spool valve	Ask us
12	100-7626	Handle, speed	Ask us
13	100-7672	Socket	Ask us
14	HH-5131	Tool, bottle gripper rem- container	Ask us
15	900-2861	Valve, washout assembly container	Ask us
16	CL-607	Wrench, throat retainer- grease	Ask us
17	CL-286CL286	Gage, crowner height	Request
