Meyer 24-72 valve bottle filler parts manual

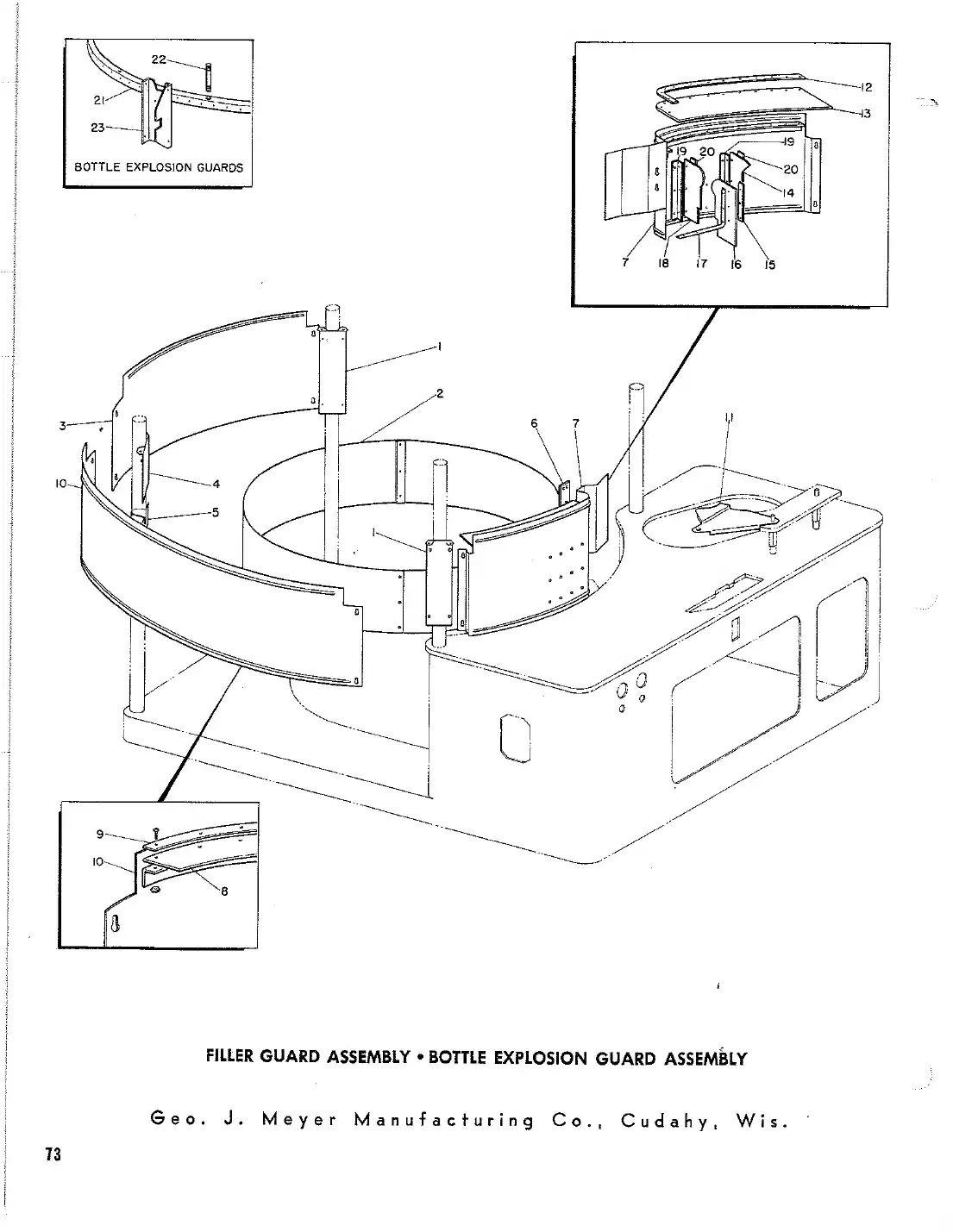

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
4	1006960100-6960	Handle, door -national lock	Ask us
11	1300921130-0921	Handle, manhole	Ask us
13	1006959100-6959	Gasket, manhole	Ask us
28	9000728900-0728	Base, filler	Ask us
31	1000775100-0775	Fitting, grease male ptf	Request
7	100-96771009677	Handle	Request
20	902-1978	Door, front-assembly	Ask us

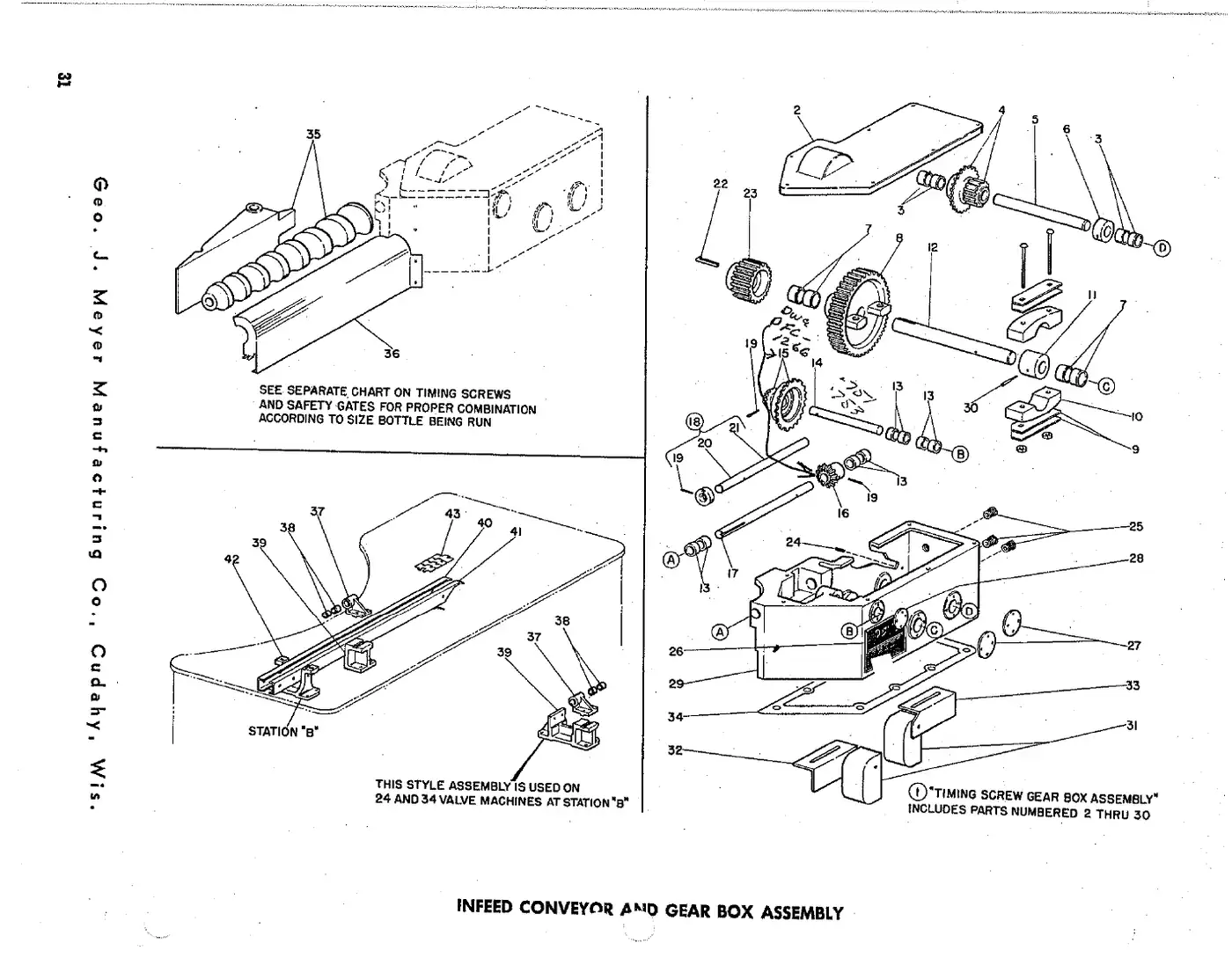

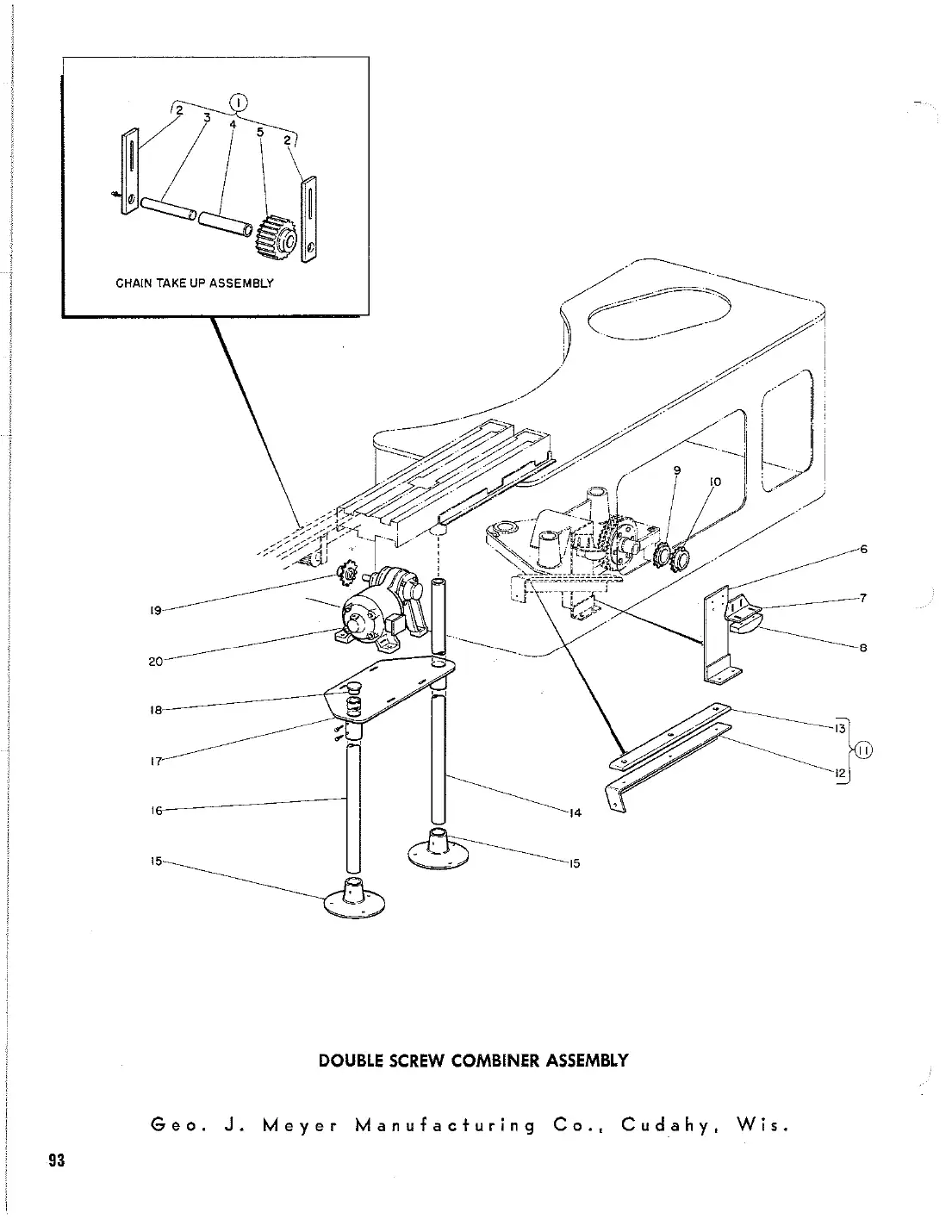

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full size

Ref	Part number	Description
31	1006996100-6996	Bearing, needle	Request
35	1000663100-0663	Chain, flat top	Request
35	1007075100-7075	Chain, conveyor-whitney c708a	Ask us

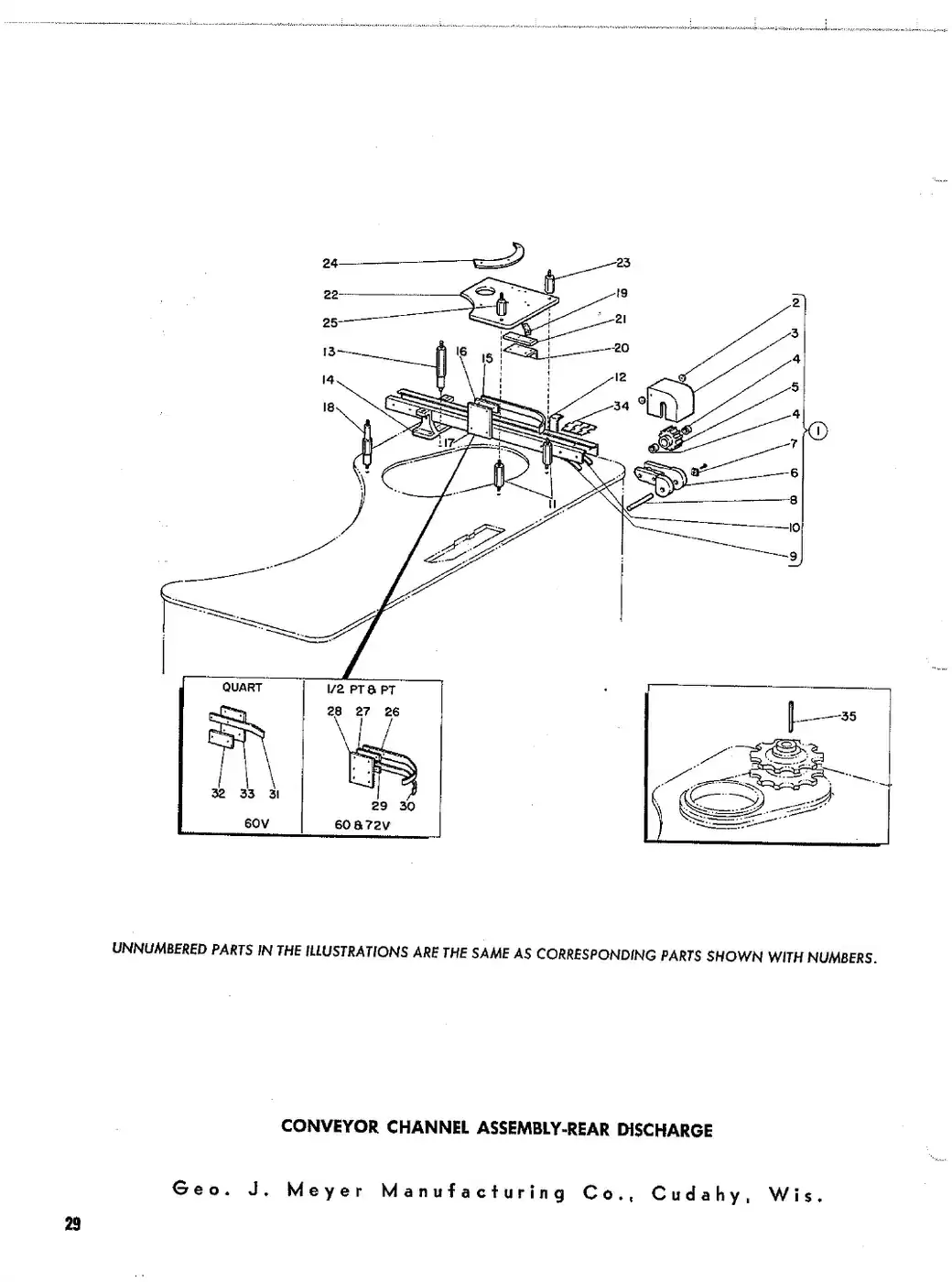

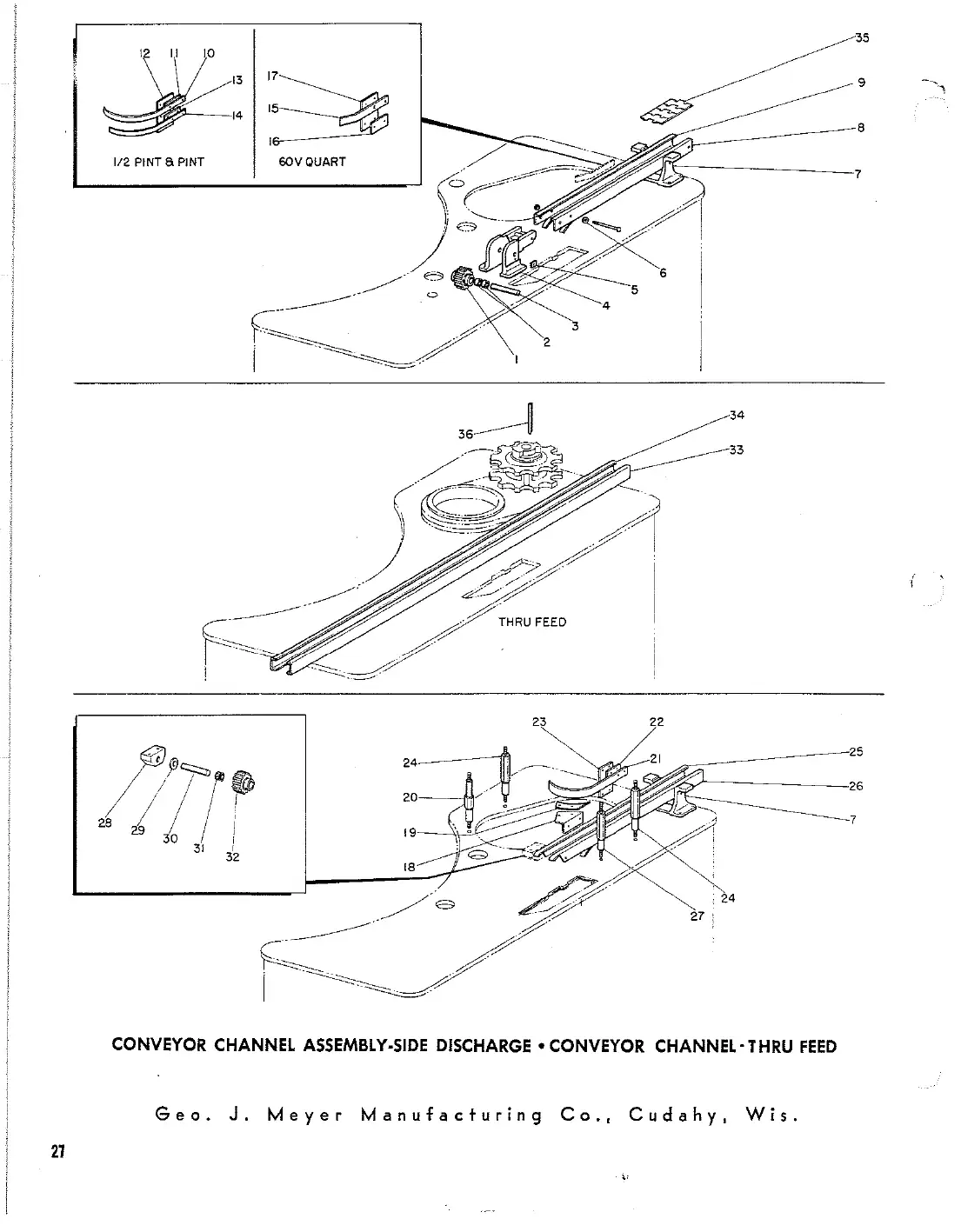

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
4	1002345100-2345	Bushing oilite	Ask us
5	902-8705	Sprocket, conveyor drive rex chain	Ask us
9	1310369131-0369	Channel, rear conveyor	Ask us
10	1310368131-0368	Channel, front conveyor	Ask us
22	1309054130-9054	Plate, bottle support	Ask us
34	1000663100-0663	Chain, flat top	Request
351	000-1633	Key square	Ask us
5	902-3705	Sprocket, conveyor drive rex chain	Ask us
34	1007075100-7075	Chain, conveyor-whitney c708a	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

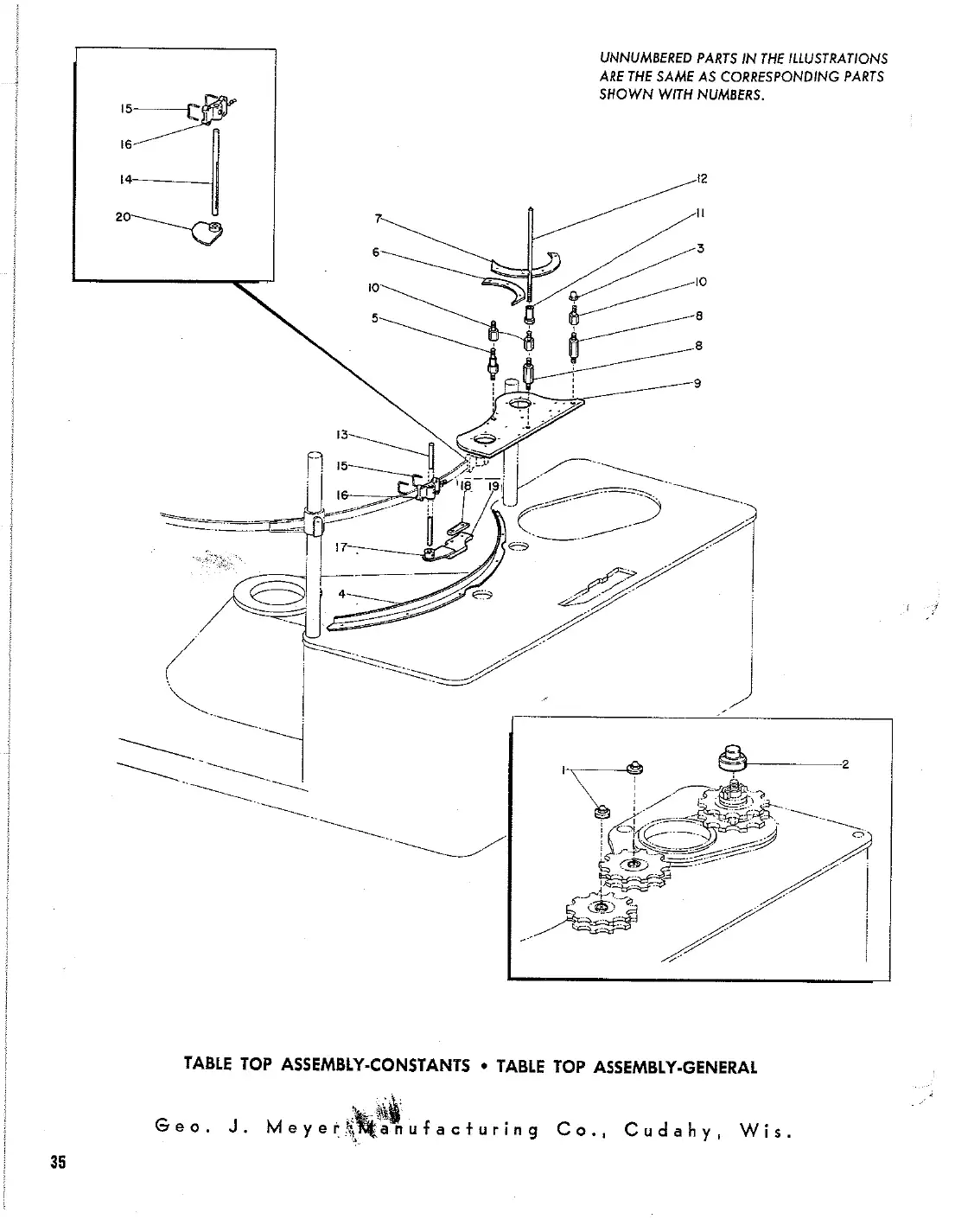

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
12	1004024100-4024	O-ring-linear 11-214	Ask us
21	1021470102-1470	Key, nose square	Ask us
2	900-5423	Gate, adj	Ask us
3	102-00981020098	Bolt, hex head	Request
6	102-03401020340	Nut, hex jam	Request
7	130-1356	Extension, safety gate	Ask us
10	130-9684	Gate, adj safety	Ask us
11	102-1465	Nut hex finished	Ask us
13	130-9676	Liner, safety gate	Ask us
14	130-9675	Liner gate extension	Ask us
15	102-0936	Screws flat head	Ask us
17	130-9674	Liner safety gate	Ask us
4	102-04191020419	Washer, flat	Request
8	102-04251020425	Set screw	Request

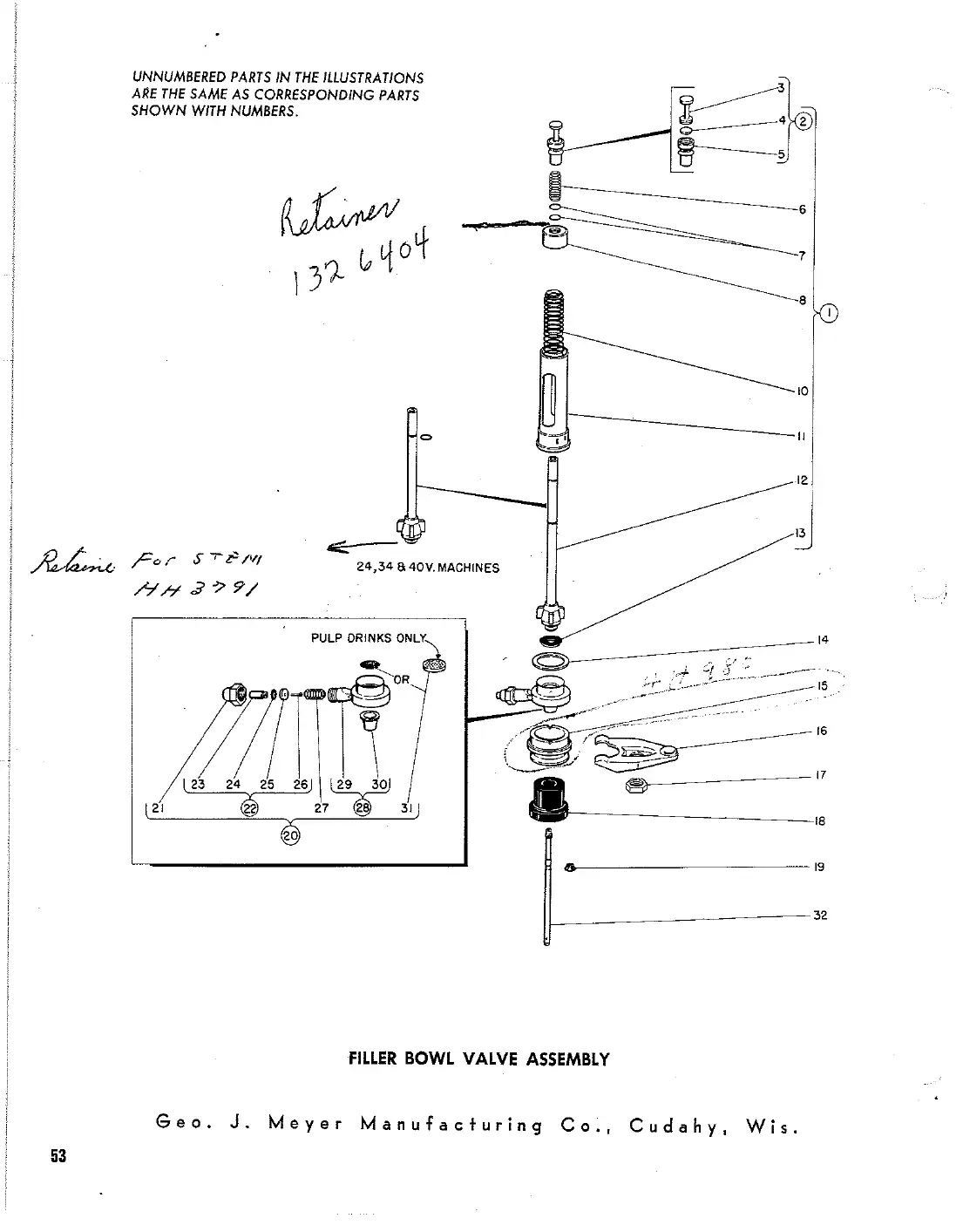

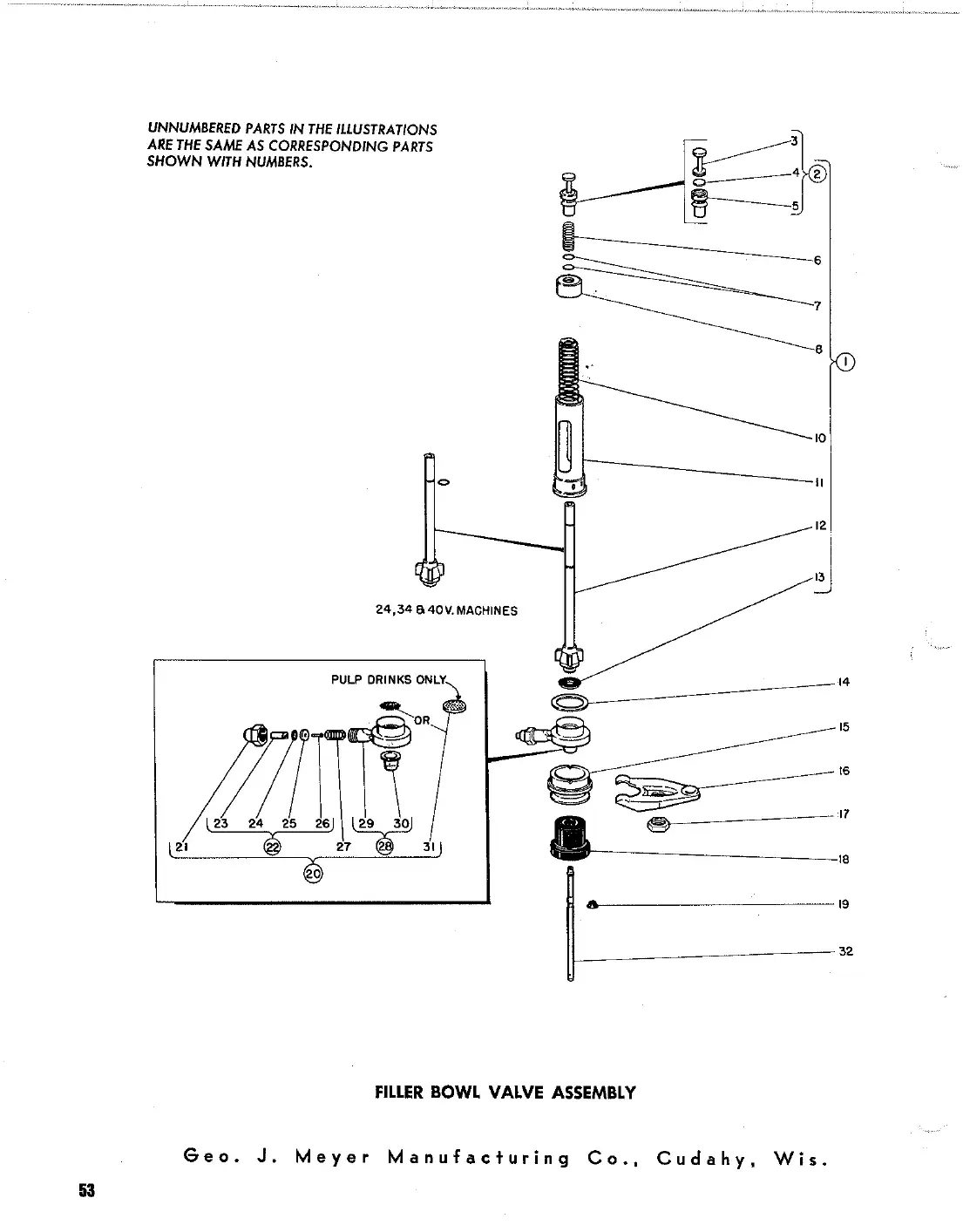

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full sizeOpen full size

Ref	Part number	Description
16	1006118100-6118	Tubing-hopper- specify lgth	Ask us
19	1021000102-1000	Stud, tap end	Request
25	1000890100-0890	Nipple	Request
26	1000881100-0881	Tee	Request
29	1020332102-0332	Nut, hex	Request
32	100-47681004768	Valve, diaphragm	Request
33	100-7230	Fitting, comp / /16 ell	Ask us
35	1004101100-4101	Nipple, close sch	Request
36	1005371100-5371	Tee	Request
7	1021483102-1483	Packing	Request
38	100-53721005372	Elbow, 90 deg	Request
43	102-01041020104	Bolt, hex head	Request
44	1021502102-1502	Lockwasher	Ask us
1	1306290130-6290	Pressure regulator	Ask us
1	1002965100-2965	Regulator, pressure pilot	Request
1	1004618100-4618	Gauge, pressure	Request
1	1000889100-0889	Bras nipple	Ask us
1	1000880100-0880	Tee, pipe	Request
1	1000874100-0874	Plug, pipe square. head	Request
1	0001760000-1760	Hopper tubing	Ask us
2	1001431100-1431	Bushing, reducing hex	Request
2	1000925100-0925	Fitting, tube adapter bras	Request
1	1001467100-1467	Compression elbow	Ask us
3	100-53541005354	Spacer, packer spool valve	Request
4	100-5349	Stem	Ask us
5	100-5352	Packer spacer spring	Ask us
7	100-53501005350	Diaphram	Request
20	102-0711	Nut, wing	Ask us
30	102-07751020775	Screw, fillister hd	Request
39	102-08251020825	Pin, taper filler dwg	Request
1	100-53511005351	Packing, spoool valve	Request
6	100-97621009762	Spring, diaphragm ret	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Parts for this assembly, from the original Meyer parts lists.

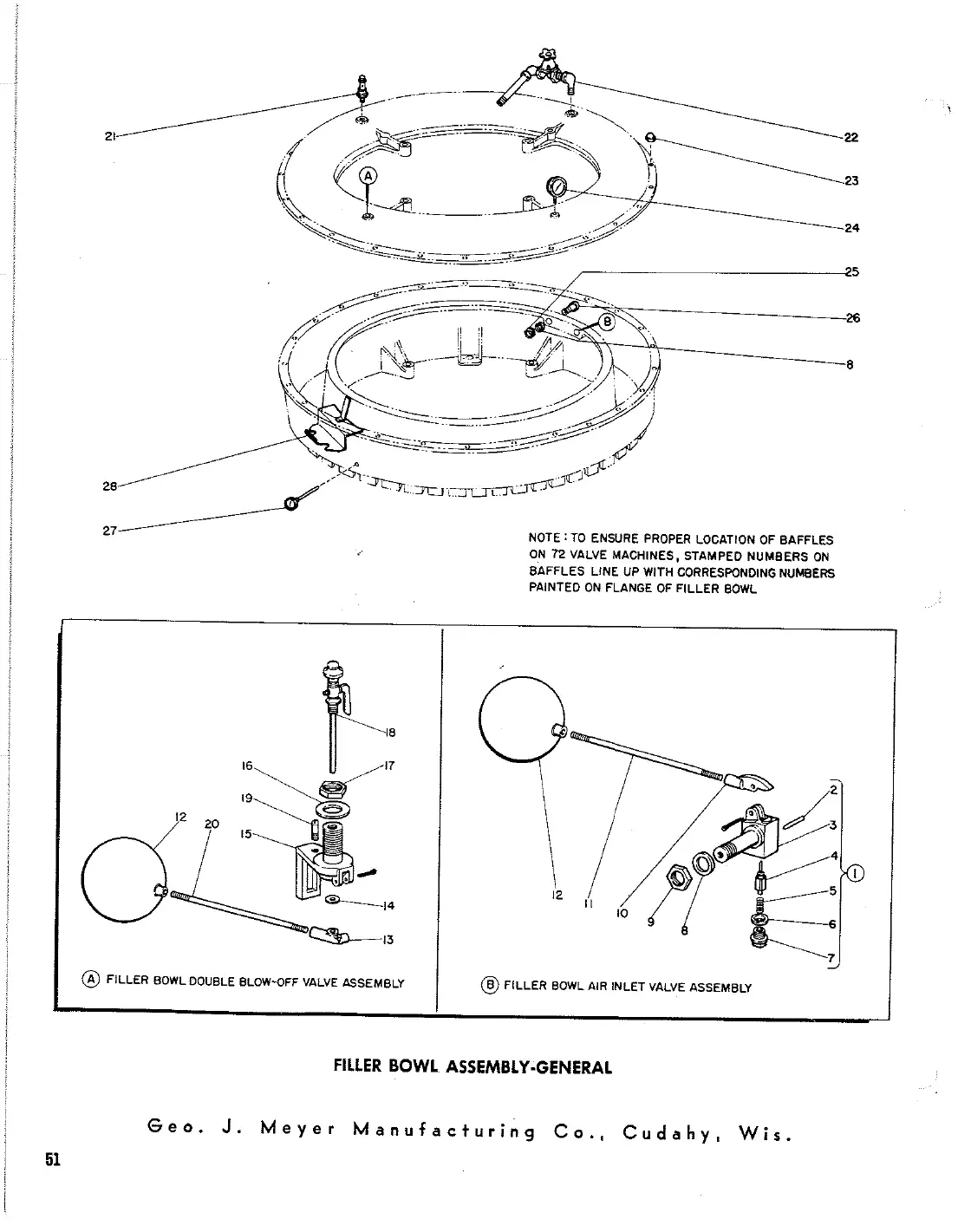

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full sizeOpen full size

Ref	Part number	Description
2	1000648100-0648	Chain-diamond 148	Ask us
3	1003288100-3288	Link, half link single strand	Request
4	1003289100-3289	Link, connecting single strand	Request
18	1002507100-2507	O-ring	Request
20	131-1050	Glass, sight	Ask us
22	1005406100-5406	Numbers-general etching specify nos required	Ask us
37	1002511100-2511	O-ring, edpm, dash	Request
13	130-85471308547	Stud, bowl cover	Request
19	131-1767	Gasket, sight glass	Ask us
20	131-33601313360	Sight glass	Request
21	100-97751009775	Ring, retaining	Request
18	900-9592	Cock, blow-off valve-assembly	Ask us
21	100-4121	Valve, safety kunckle	Ask us
21	130-85621308562	Nut, dome	Request
24	100-3387	Gauge-marsh bott conn eng metric	Ask us

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
4	100-27631002763	Seal, oil shaft	Request
8	1021165102-1165	Key, vertical shaft	Request
12	1020734102-0734	Key, gib head square	Request
15	130-66801306680	Flange, bevel gear	Request
1	130-53211305321	Bearing, starshaft	Request
9	102-10661021066	Key, square	Request

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
5	130-7259	Cap, ring support pipe	Ask us
22	900-60709006070	Bracket blow off assembly	Request
28	130-8618	Pin, lift	Ask us
34	130-86171308617	Pin, valve closer hinge	Request
85	130-8603	Washer	Ask us
16	130-0056	Bracket, roller	Ask us
13	900-7754	Sliding air valve closer ass	Ask us
27	130-8607	Pin, stud	Ask us
30	130-86191308619	Spring, trigger	Request

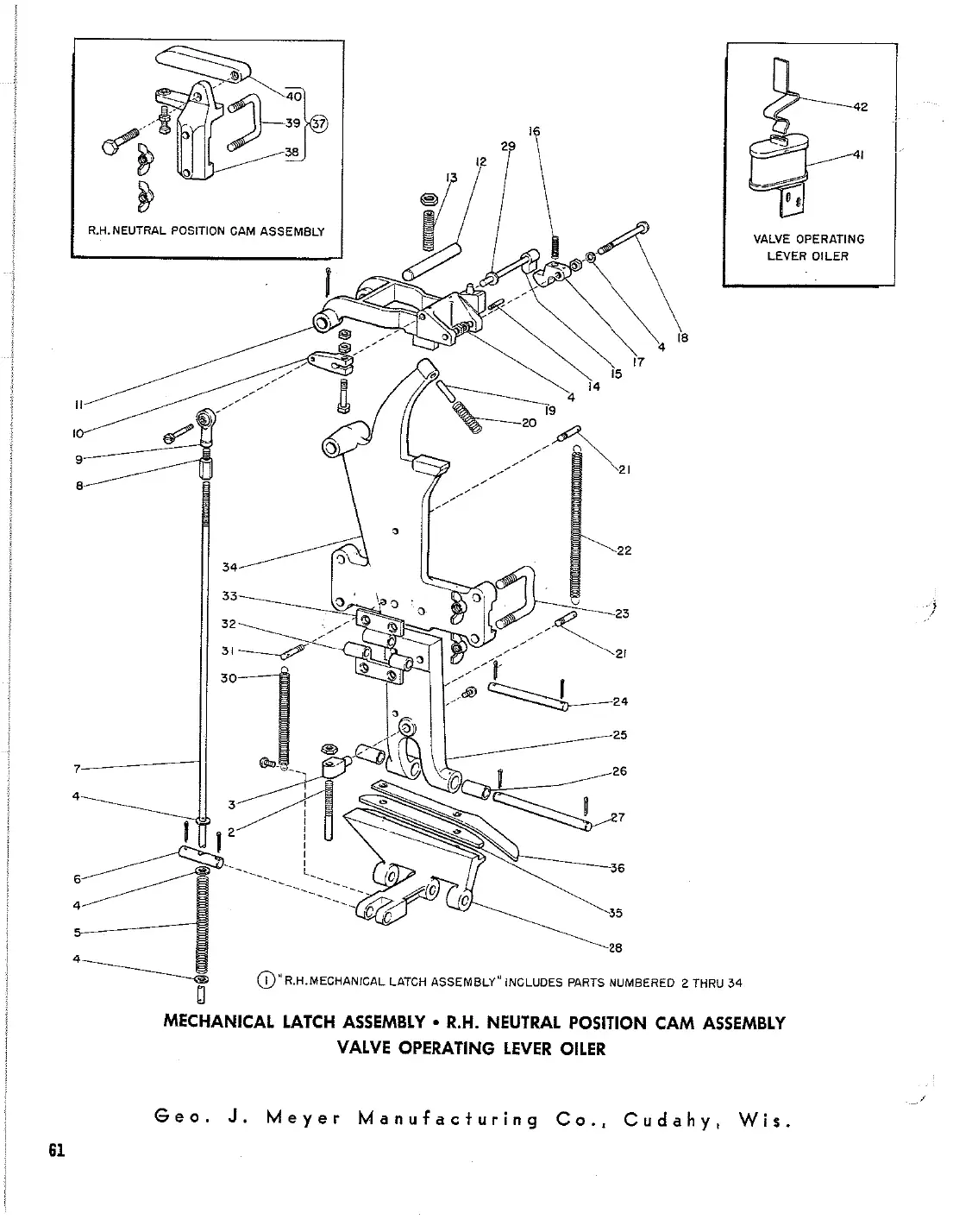

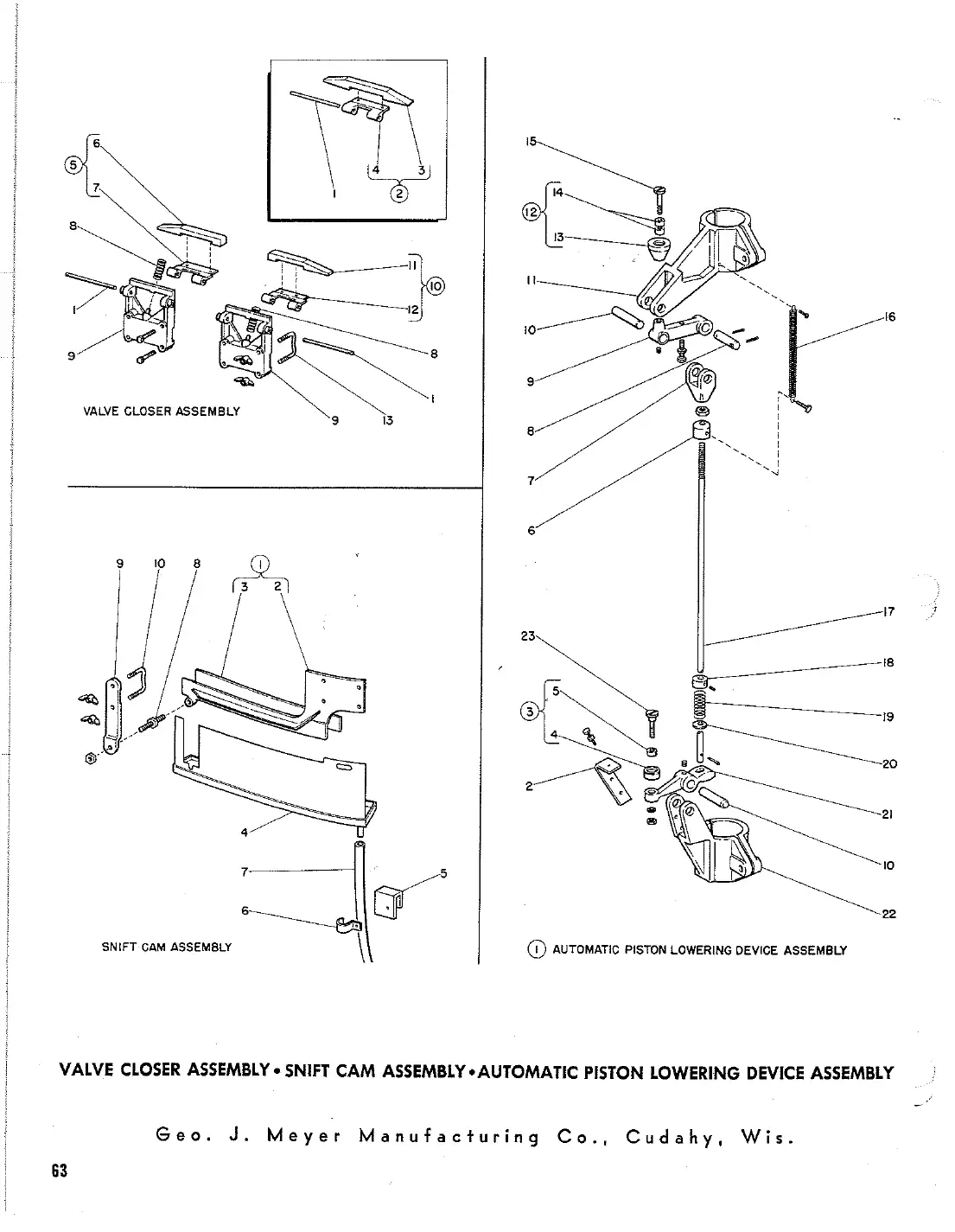

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

Ref	Part number	Description
9	1004044100-4044	Bearing --heim unibal spherical	Ask us
13	1020491102-0491	Screw, set-socket head cup point	Ask us
17	130-9932	Latch, operating	Ask us
26	100-2329	Bushings--oilite	Ask us
1	130-86171308617	Pin, valve closer hinge	Request
6	100-7016	Clamp, pipe appleton	Ask us
9	130-8386	Bracket, snift cam adjusting	Ask us
9	9007825900-7825	Device, auto piston lowering assembly	Ask us
5	100-2327	2327 bushing oilite cut	Ask us
18	100-0748	Collar, set	Ask us
19	130-86191308619	Spring, trigger	Request

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

Ref	Part number	Description
1	130-86171308617	Pin, valve closer hinge	Request
6	100-7016	Clamp, pipe appleton	Ask us
9	130-8386	Bracket, snift cam adjusting	Ask us
9	9007825900-7825	Device, auto piston lowering assembly qt	Ask us
5	100-2327	2327 bushing- oilite cut	Ask us
18	100-0748	Collar, set	Ask us
19	130-86191308619	Spring, trigger	Request

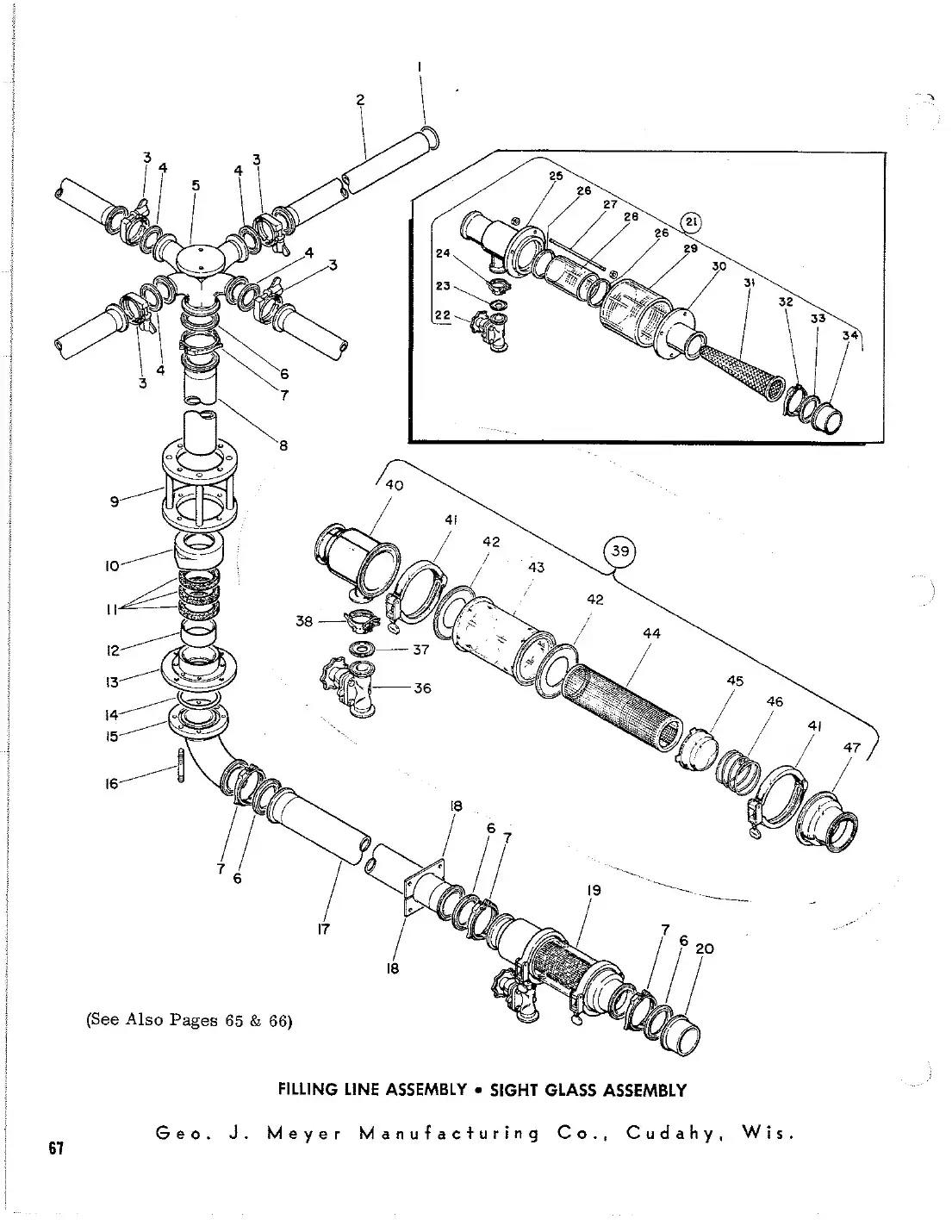

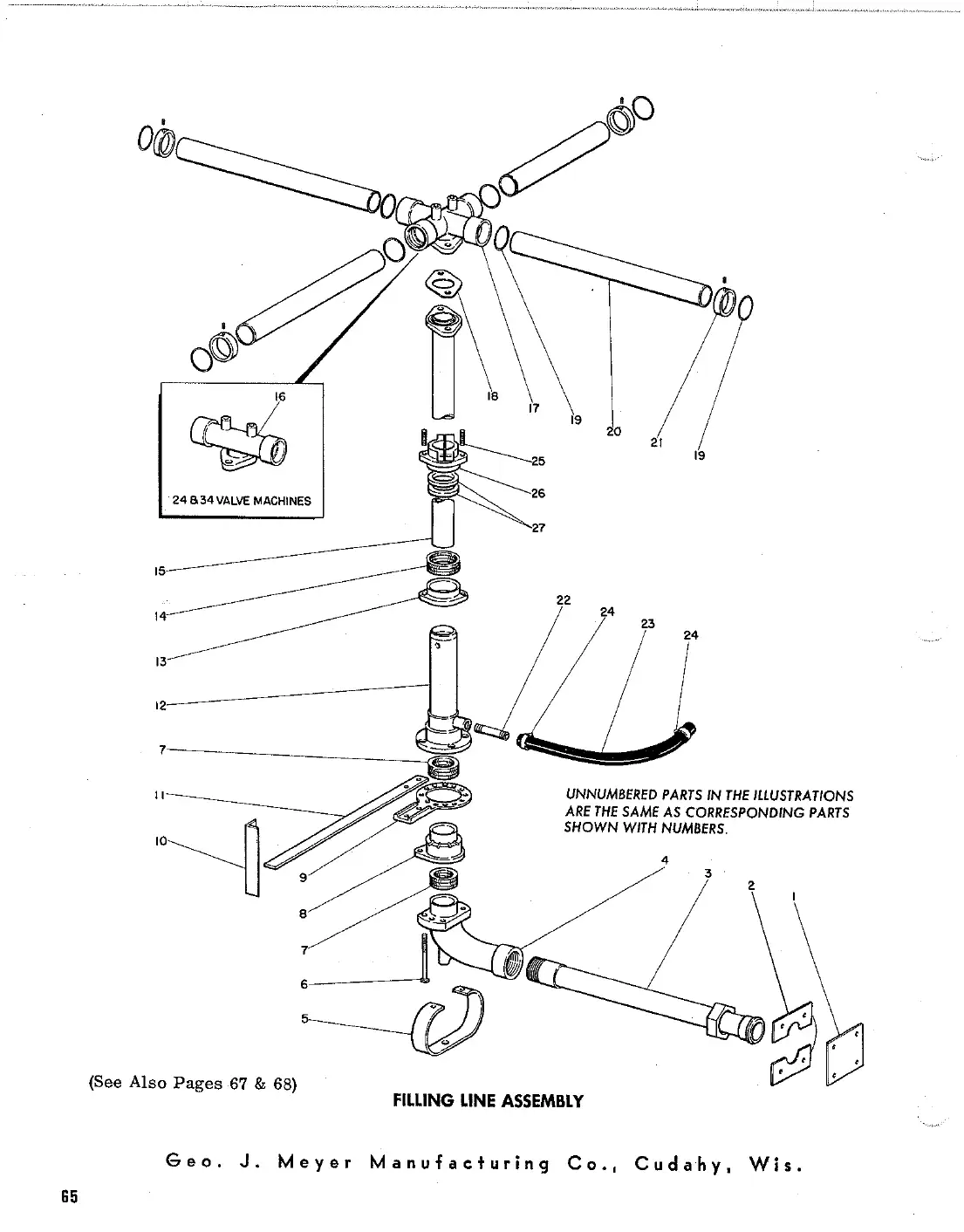

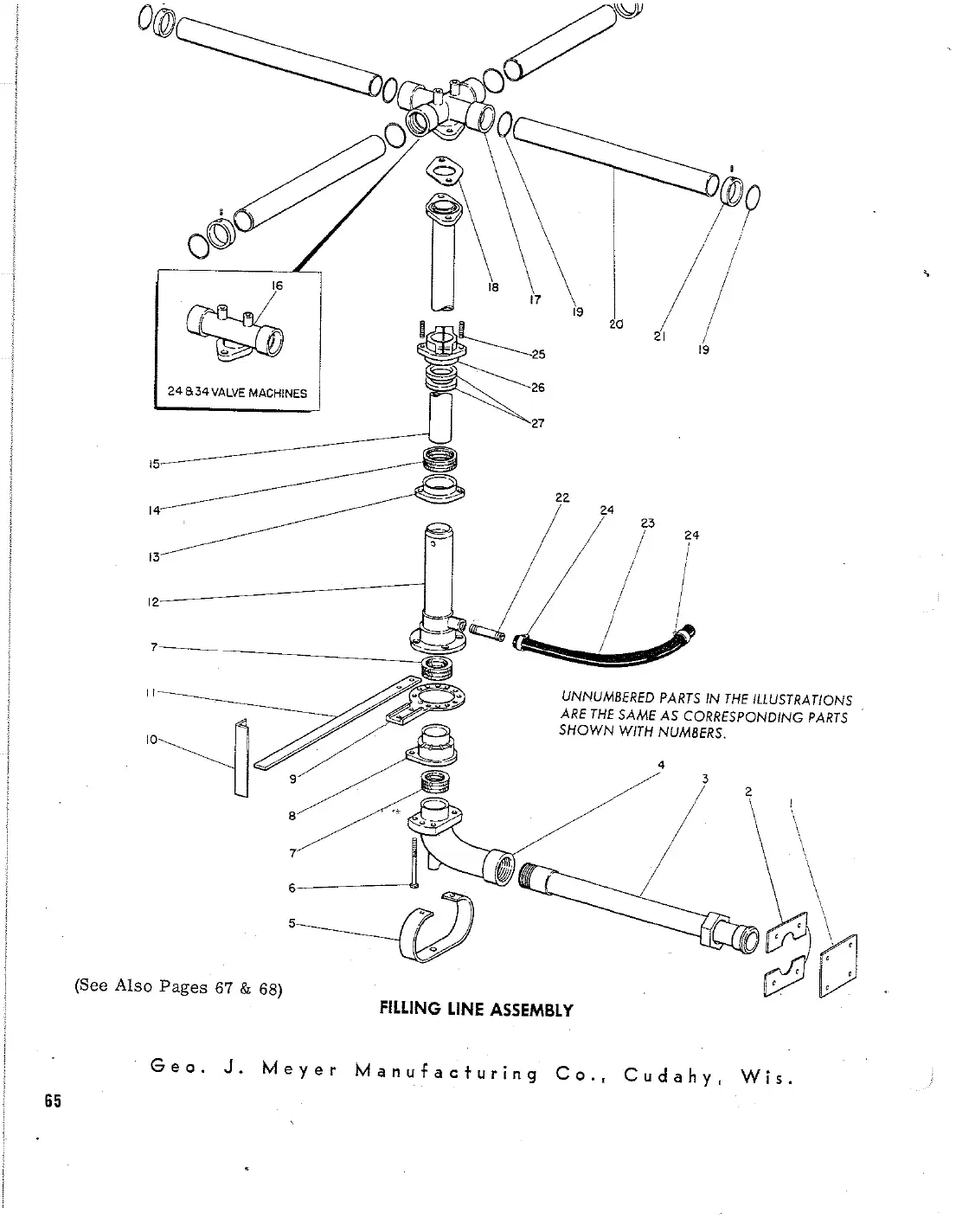

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
19	1004025100-4025	O-ring	Request
30	1003316100-3316	Nut, union tri-cover	Ask us
33	1000892100-0892	Nipple	Request
34	1007648100-7648	Valve, diaphragm	Ask us
36	1005659100-5659	Glass, sight	Ask us
22	1000216100-0216	Valve, diaphragm	Ask us
24	1002141100-2141	Clamp, hinged sanitary	Request
25	9004705900-4705	Drain ferrule ass	Ask us
30	9004706900-4706	Flange seat ferrule ass	Ask us
31	9001459900-1459	Strainer assembly	Ask us
32	1002142100-2142	Clamp, hinged sanitary	Request
33	1002133100-2133	Gasket, tri-clamp tube	Request
34	1002138100-2138	Ferrule	Ask us
14	130-85561308556	Packing, ring bevel joint	Request
23	1002131100-2131	Fated gasket	Ask us

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full sizeOpen full size

Ref	Part number	Description
2	1002968100-2968	Gauge, dual dial	Ask us
3	1004709100-4709	Regulator	Request
6	1003141100-3141	Filter- fulflo	Ask us
7	1002965100-2965	Regulator, pressure pilot	Request
9	1002850100-2850	Valve, check strataflo	Ask us
10	1002709100-2709	Cock, stream walworth	Ask us
12	1002967100-2967	Gauge, bowl -marsh dual dial	Ask us
17	1003482100-3482	O-ring	Request
22	1005606100-5606	Valve asco solenoid cat	Ask us
24	1303193130-3193	Cock, air essex chrome	Ask us
29	1005898100-5898	Clamp, hose sherman	Ask us
1	130-7260	Washer	Ask us
2	130-7258	Cap, pipe column	Ask us
15	100-53761005376	Valve, check	Request
16	100-31421003142-1	Filter, housing	Request
23	100-3817	100-381 valve, globe	Ask us
1	100-37561003756	Chain, three strand	Request
4	100-5164	Chain, silent	Ask us
3	100-0648	Chain, single strand roller-diamond	Ask us
6	100-32891003289	Link, connecting single strand	Request
7	100-32881003288	Link, half link single strand	Request
8	100-37571003757	Link, connecting three str	Request
10	100-51011005101	Link, connecting silent	Request
2	1020954102-0954	Key	Request
35	1002016100-2016	O-ring-linear 11-216	Ask us
4	1311418131-1418	Air cock	Request
8	1004710100-4710	Regulator, air	Request
3	100-76361007636	Chain, roller single	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
2	1020954102-0954	Key	Request
35	1002016100-2016	O-ring- linear 11-216	Ask us
34	102-05721020572	Pin, taper	Request
14	130-0492	Bushing, star drive shaft	Ask us
28	9006715900-6715	Drive, worm gear-assembly	Ask us
34	1310325131-0325	Shim, worm gear	Request
38	9007232900-7232	Worm front cap assembly	Ask us
40	1310828131-0828	Cap, worm front	Ask us
41	1003350100-3350	Seal, oil garlock	Ask us

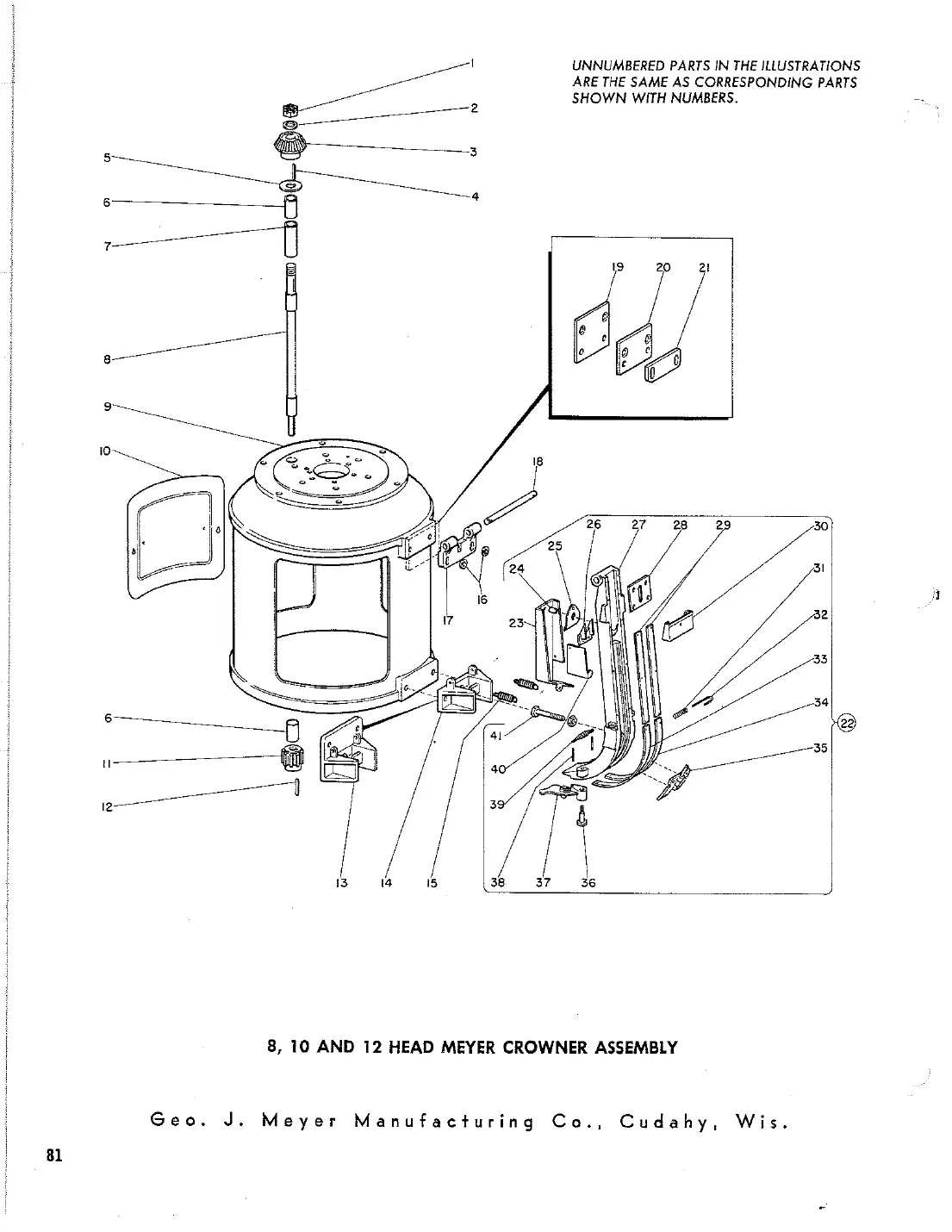

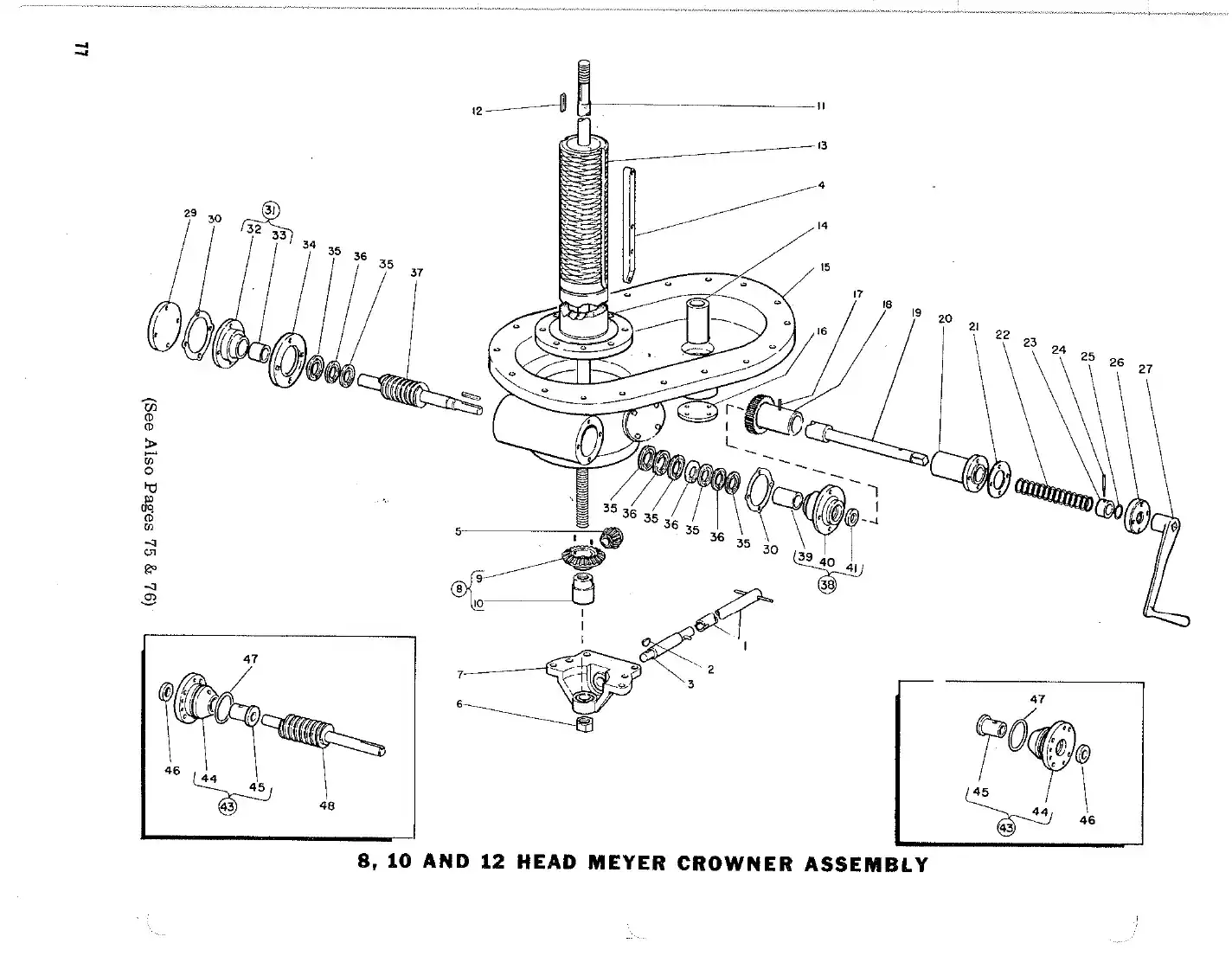

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full size

Ref	Part number	Description
25	1002016100-2016	O-ring	Ask us
28	9006715900-6715	Drive, worm gear-assembly	Ask us
34	1310325131-0325	Shim, worm gear	Request
38	9007232900-7232	Worm front cap assembly	Ask us
40	1310828131-0828	Cap, worm front	Ask us
41	1003350100-3350	Seal, oil garlock	Ask us
47	1002503100-2503	O-ring linear 11-233	Ask us
14	130-0492	Bushing, star drive shaft	Ask us
24	102-05721020572	Pin, taper	Request
6	1001738100-1738	Bearing, crowner filler	Request
18	1020948102-0948	Screw, socket head cap	Request
28	1002505100-2505	O-ring	Request
3	902-3279	Cam, crowning	Ask us
20	102-13921021392	Pin, dowel	Request
23	102-1390	Screw, cap socket head	Ask us
29	130-0493	Bushing, star drive shaft	Ask us
11	900-54209005420	Agitator, Crown assembly	Request
20	1002363100-2363	Bearing	Request
45	900-2931	Insert, standard selector-assembly	Ask us
47	130-6574	Insert, selector dimension lang	Ask us
45	900-2932	Insert, tan standard selector assembly	Ask us
47	130-6575	Insert, selector dimension	Ask us
45	900-2933	Insert, tan standard selector assembly	Ask us
47	130-6576	Insert, selector dimension	Ask us
49	1001737100-1737	Oiler, sight feed figure	Ask us
8	131-8674	Spool	Ask us
4	902-0107	Crown selector disc pawl-assembly	Ask us
27	102-08251020825	Pin, taper filler dwg	Request
34	100-74511007451	Bearing	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

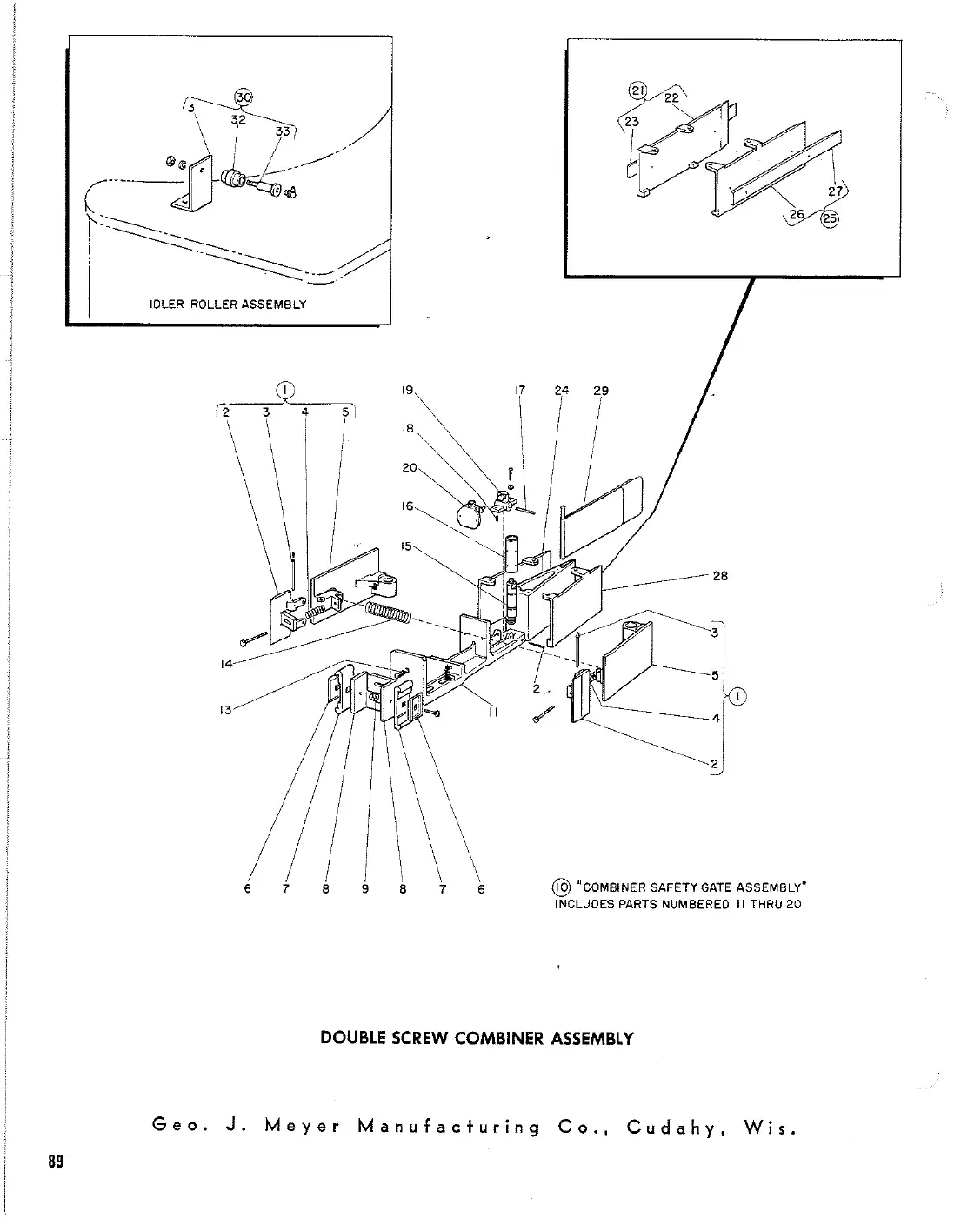

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
7	1007158100-7158	Bearing, ball-nd	Ask us
7	1002345100-2345	Bushing oilite	Ask us
77	1309682130-9682	Gate, adjustable safety	Ask us
7	1002351100-2351	Bushing- oilite	Ask us
7	1007531100-7531	Chain-amer std spec no link	Ask us
7	1021397102-1397	Pin, taper	Ask us
7	102-13381021338	Key, square	Request
39	1000663100-0663	Chain, flat top	Request

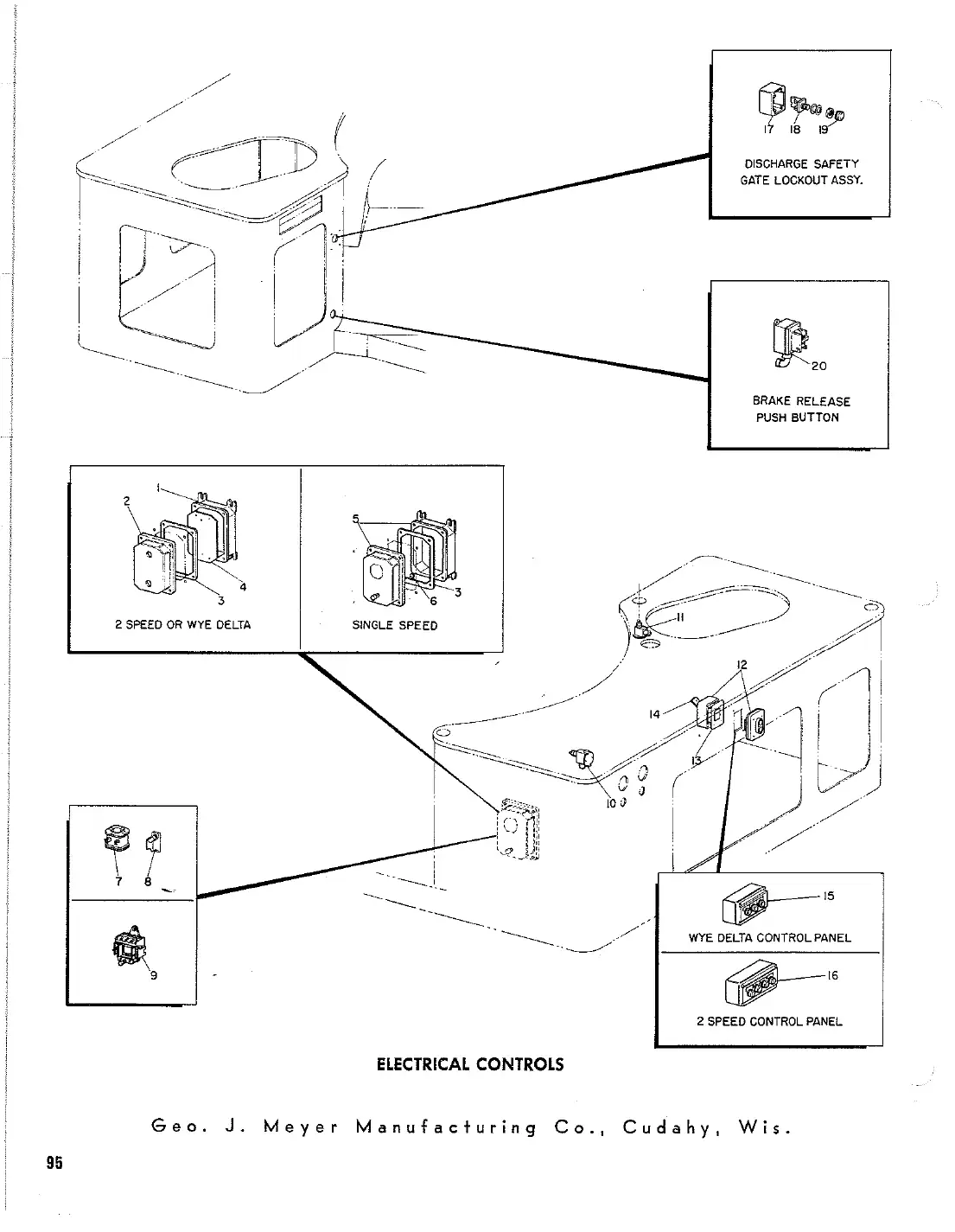

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.
