Meyer free-standing crowner parts manual

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full size

Ref	Part number	Description
10	DFC-603	Hub, drive pulley	Ask us
12	102-00901020090	Bolt, hex head	Request
13	102-03891020389	Washer, lock	Request
18	100-1465	Ell, comp	Ask us
3	102-03911020391	Washer, lock	Request
5	102-05971020597	Screw, socket head cap	Request
21	102-04561020456	Screw, set socket cup point	Request
6	100-33461003346	Seal, oil	Request
22	HH-5684	Sprocket, crowner	Ask us
7	HH-1000HH1000	Spacer, ball bearing	Request
8	100-37161003716	Nut, lock	Request
9	100-3736	Lockwasher skf	Ask us
25	HH-1001	Spacer, ball bearing	Ask us

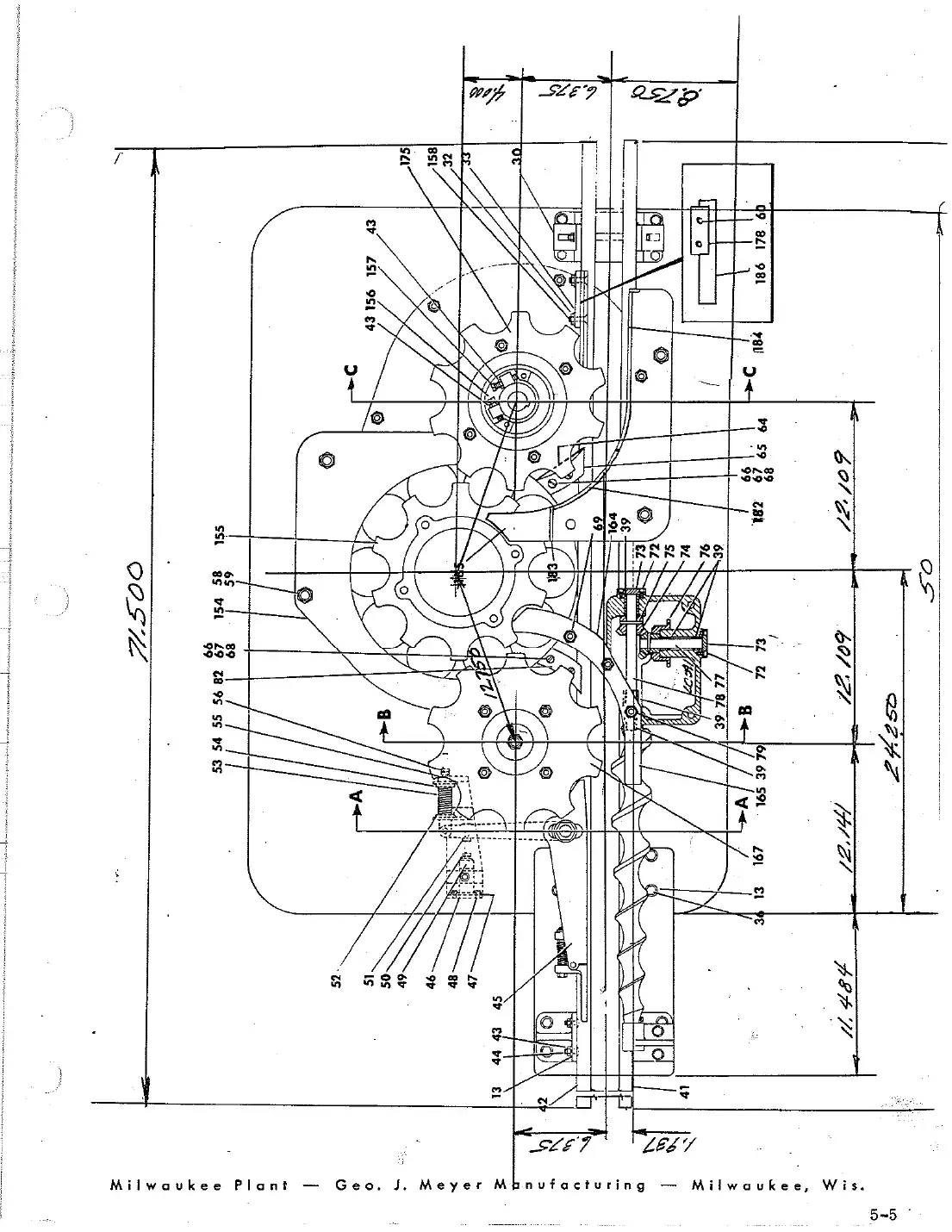

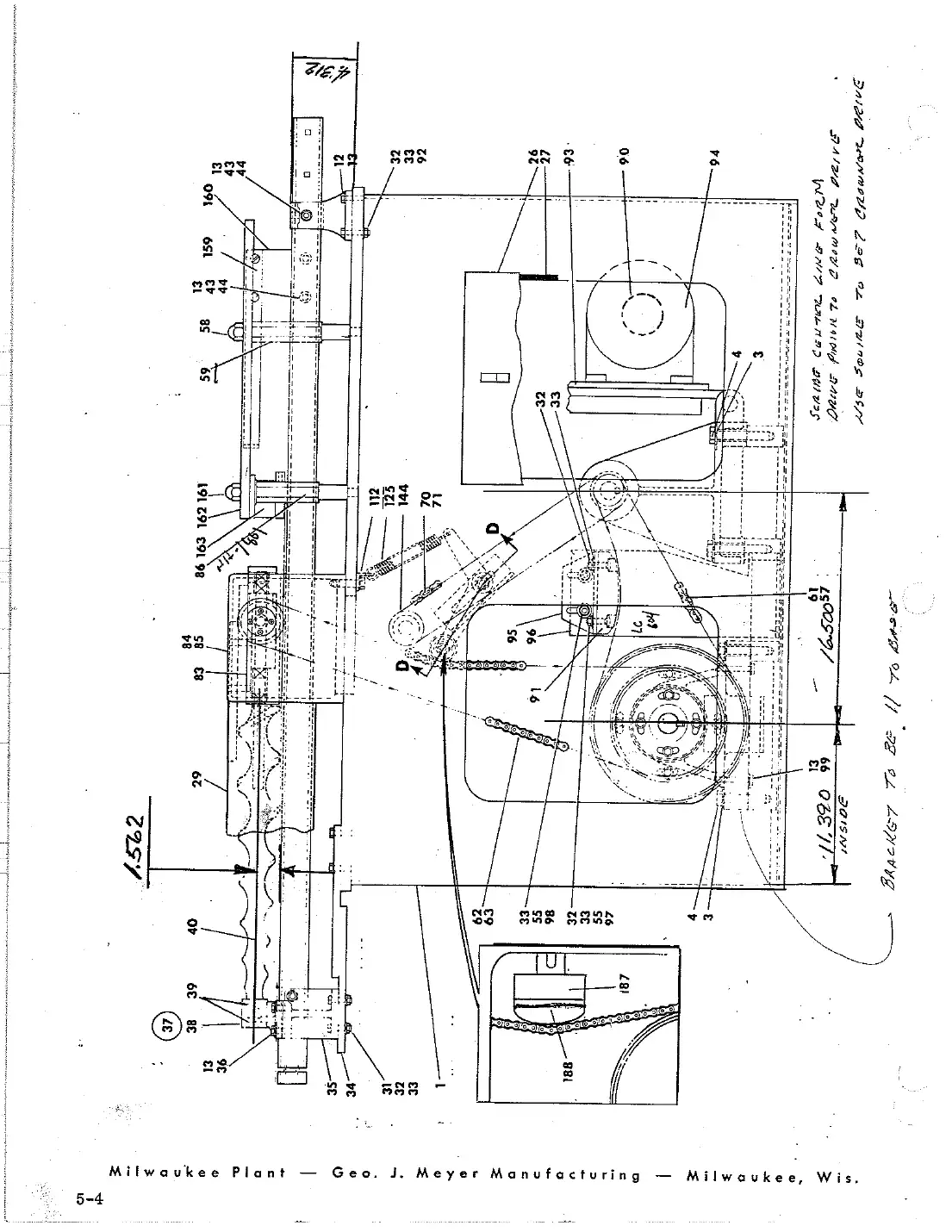

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
26	902-2694	Door complete	Ask us
27	000-3378	Gasket-flat	Ask us
43	102-03401020340	Nut, hex jam	Request
45	900-5423	Gate infeed safety	Ask us
47	102-03861020386	Washer, lock	Request
31	102-00911020091	Bolt, hex head	Request
32	102-22661022266	Nut, hex nylock insert type	Request
49	100-0079	Switch, limit	Ask us
33	102-03891020389	Washer, lock	Request
50	102-0709	Screw	Ask us
51	102-0585	Nut, hex 312-24 stainless	Ask us
52	131-0229	Cap, safety gate spring front	Ask us
36	102-00901020090	Bolt, hex head	Request
54	131-0230	Cap, safety gate spring rear	Ask us
55	102-04171020417	Washer, flat	Request
56	102-0584	Nut, hex jam stainless	Ask us
58	HH-238	Nut, dome	Ask us
39	100-2345	Bearing	Ask us
60	CL-127CL127	Pin, lock crowner star Meyer	Request
60	100-34211003421	Fitting, grease taper thd	Request
87	900-8959	Bearing bracket	Ask us
62	100-32891003289	Link, connecting single strand	Request
63	100-0648	Chain, diamond	Ask us
66	102-01951020195	Screw, flat head slot	Request
67	102-03871020387	Washer, lock	Request
68	102-03321020332	Nut, hex	Request
70	100-51011005101	Link, connecting silent	Request

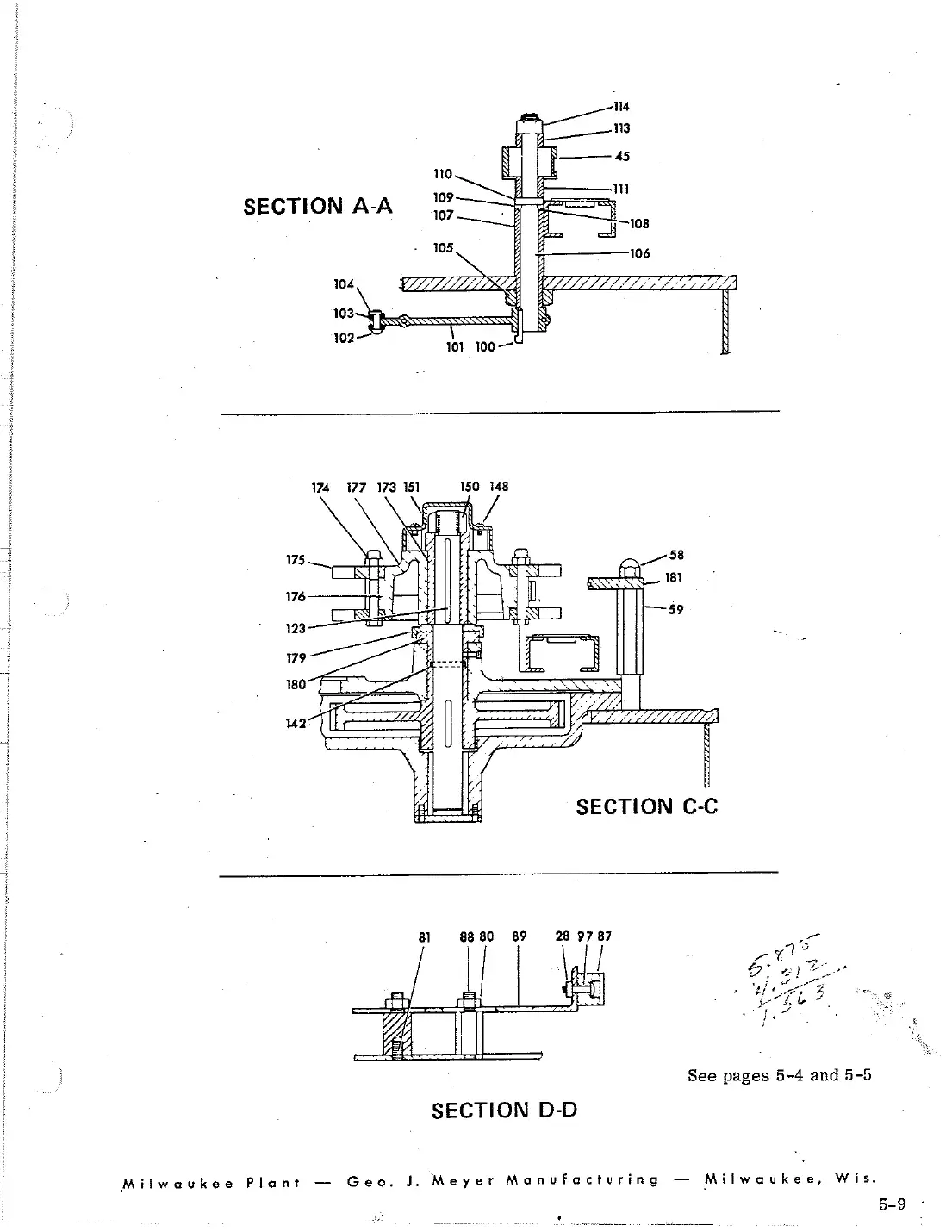

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
71	100-5164	Chain, silent	Ask us
91	132-19551321955	Shoe, chain takeup	Request
72	102-0707	Screw, socket head	Ask us
92	102-00931020093	Bolt, hex head	Request
74	HH-641HH641	Gear, mitre infeed gearbox	Request
75	102-05721020572	Pin, taper	Request
97	102-16521021652	Bolt, carriage	Request
98	102-00891020089	Bolt, hex head	Request
99	102-1842	Screw, hex head	Ask us
80	102-0323	Nut, 625-11 stl	Ask us
100	102-1470	Key, nose	Ask us
101	DFC-665	Lever, safety gate	Ask us
102	102-1471	Rivet, round head	Ask us
104	102-1467	Pin, cotter	Ask us
106	HH-1037	Post, safety gate	Ask us
85	102-11441021144	Screw, socket head cap	Request
107	HH-1033	Stand, safety gate	Ask us
108	100-4024	O-ring, linear 11-214	Ask us
110	HH-1036	Pin, safety gate	Ask us
111	HH-6782	Block lower clamping	Ask us

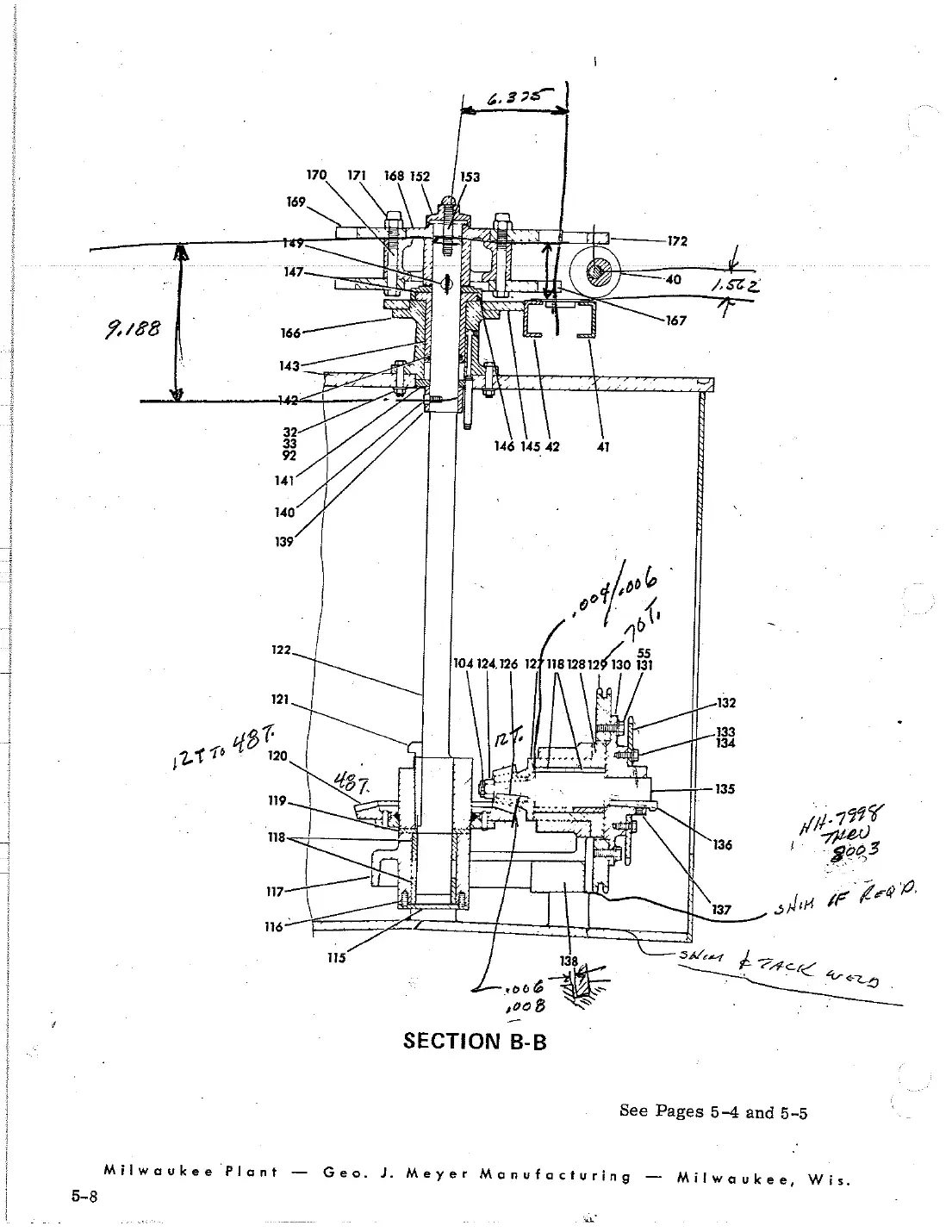

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
148	102-00751020075	Bolt, hex head	Request
113	HH-6730	Block, upper clamping	Ask us
114	102-1465	Nut, hex 875-14 stainless	Ask us
150	102-16761021676	Nut, hex full finish	Request
115	DFC-872	Cover, drive shaft	Ask us
151	DFC-68	Cover, crowner hub	Ask us
116	102-0199	Screw, flat head 312-18x	Ask us
153	131-31271313127	Stud	Request
118	100-23921002392	Bushing, stock	Request
119	DFC-870DFC870	Washer thrust	Request
120	HH-7074HH7074	Gear, spiral bevel	Request
156	102-0523	Screw, set	Ask us
157	102-1511	Screw, set	Ask us
161	HH-238	Nut, dome	Ask us
124	102-05351020535	Nut, castle	Request
126	HH-5603HH5603	Key, nose tapered	Request
127	H-2058	Washer, bev pin thrust bottle groups 4-6	Ask us
131	102-00901020090	Bolt, hex head	Request
168	DFC-1223	Hub, filler star	Ask us
170	102-01101020110	Bolt, hex head	Request
173	DFC-29	Bushing, discharge	Ask us
174	HH-134	Nut, dome	Ask us
176	102-01091020109	Bolt, hex head	Request
137	102-0446	Screw, set 375-16	Ask us
189	HH-1885	Collar, thrust bushing	Ask us
140	102-07081020708	Screw, socket head cap	Request
141	DFC-913	Washer, thrust	Ask us
142	100-25051002505	O-ring	Request
143	900-1362	Flange bushing	Ask us
146	130-5352	Collar, star drive shaft	Ask us
147	RR-464RR464	Washer, thrust starwheel	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
6	HH-1854	Spring	Request
7	102-03401020340	Nut, hex jam	Request
8	100-3229	Fitting, grease	Ask us
9	HH-6721	Pivot pin, safety gate	Ask us
1	130-9684	Gate, timing screw	Ask us
10	102-07951020795	Screw, fillister hd	Request
2	130-1356	Gate, extension	Ask us
11	130-9674	Liner, safety gate bottle	Ask us
4	102-04191020419	Washer, flat	Request
13	130-9676	Liner, safety gate-quart	Ask us
5	102-04251020425	Set screw	Request
14	102-0936	Screw, flat head	Ask us

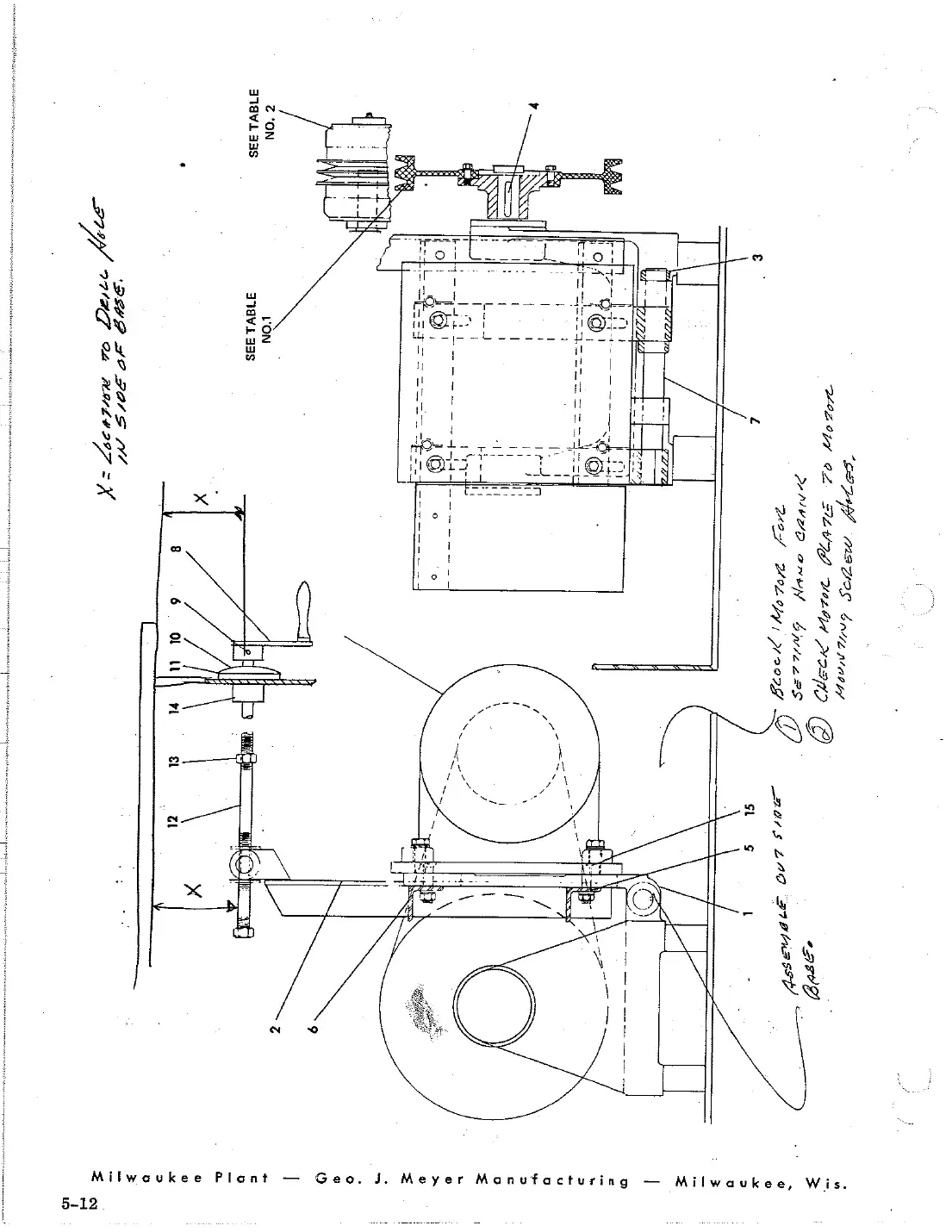

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
14	100-0751	Collar, set	Ask us
3	100-0755	Collar, set plate	Ask us
4	000-16280001628	Key, square	Request
9	102-1124	Pin, taper plate	Ask us

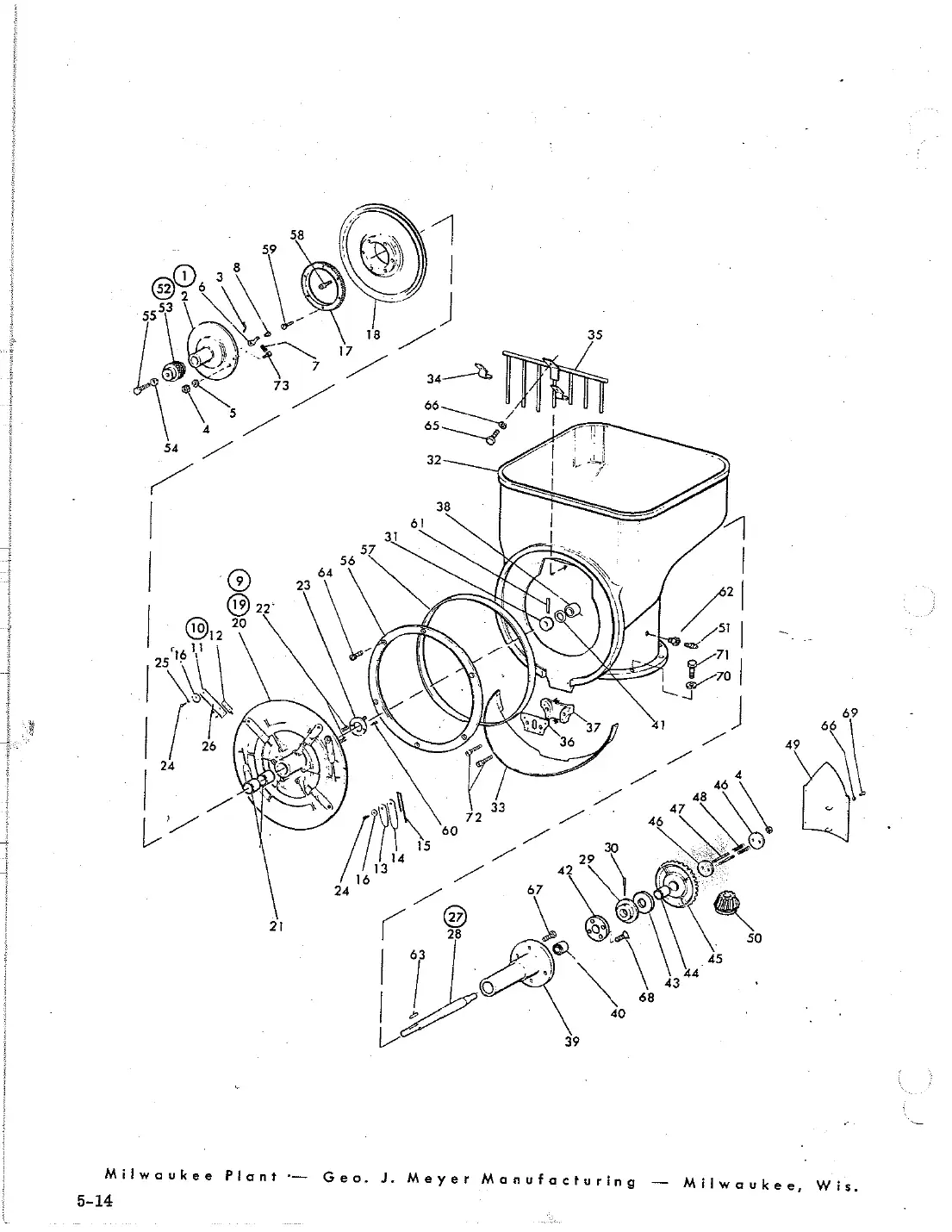

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
80	102-12401021240	Pin, taper #4	Request
31	131-1242	Collar, hopper drive shaft	Ask us
32	130-0471	Hopper, crown	Ask us
1	902-0107	Disc, crown selector his pet mouting rake	Ask us
2	DFC-36DFC36	Disc, driving	Request
38	100-71711007171	Bearing, outer	Request
8	000-3151	Wire	Ask us
39	131-1106	Bracket	Ask us
4	102-03321020332	Nut, hex	Request
40	100-71721007172	Bearing, needle roller	Request
5	102-03871020387	Washer, lock	Request
41	100-72521007252	Felt, seal	Request
6	HH-858	Pawl, ratchet	Ask us
42	131-1243	Washer, thrust	Ask us
7	RR-160RR160	Spring, rachet	Request
43	CL-490CL490	Plate, clutch	Request
8	HH-860	Pin, pawl	Ask us
44	CL-502CL502	Hopper shaft gear bushing	Request
9	900-4682	One rotor ass	Ask us
45	LC-167	Gear, hopper bevel	Ask us
46	CL-117CL117	Retaining washer	Request
47	CL-519	Stud, spring retaining	Ask us
48	CL-504CL504	Spring, hopper shaft clutch	Request
10	900-54209005420	Agitator, Crown assembly	Request
49	900-0154	Cover hopper gear	Ask us
50	CL-528	Pinion, crowner bevel	Ask us
51	100-47661004766	Fitting, grease straight ptf	Request
52	CL-227	Nut, selector disc adj	Ask us
13	CL-310CL310	Spring, helper	Request
14	CL-265CL265	Spring	Request
15	CL-109CL109	Spring, agitator hand	Request
54	102-08961020896	Nut, hex jam	Request
16	HH-3937HH3937	Washer, spring agitator	Request
55	102-17991021799	Bolt, hex head	Request
17	HH-865	Ratchet, tooth	Ask us
56	LC-71LC71	Rear Crown selector	Request
57	CL-150CL150	Selector disc insert	Request
19	900-4681	Disc crown selector	Ask us
58	102-07941020794	Screw, socket head cap	Request
59	102-01781020178	Screw, flat head slot	Request
60	102-07951020795	Screw, fillister hd	Request
21	100-23631002363	Bearing	Request
22	RR-243RR243	Spring	Request
63	000-16280001628	Key, square	Request
24	102-07971020797	Screw, round head	Request
64	102-01831020183	Screw, flat head slot	Request
65	102-00901020090	Bolt, hex head	Request
25	102-0798	Washer, lock	Ask us
66	102-03891020389	Washer, lock	Request
26	102-0934	Rivet, flat head	Ask us
67	102-01011020101	Bolt, hex head	Request
68	102-01911020191	Screw, flat head slot	Request
27	900-7698	Shaft, selector disc	Ask us
69	102-02941020294	Screw, round head slot	Request
70	102-03901020390	Washer, lock	Request
71	102-1812	Bolt, hex head	Ask us
72	102-09771020977	Screw, socket head cap	Request
73	HH-859HH859	Holder, spring	Request

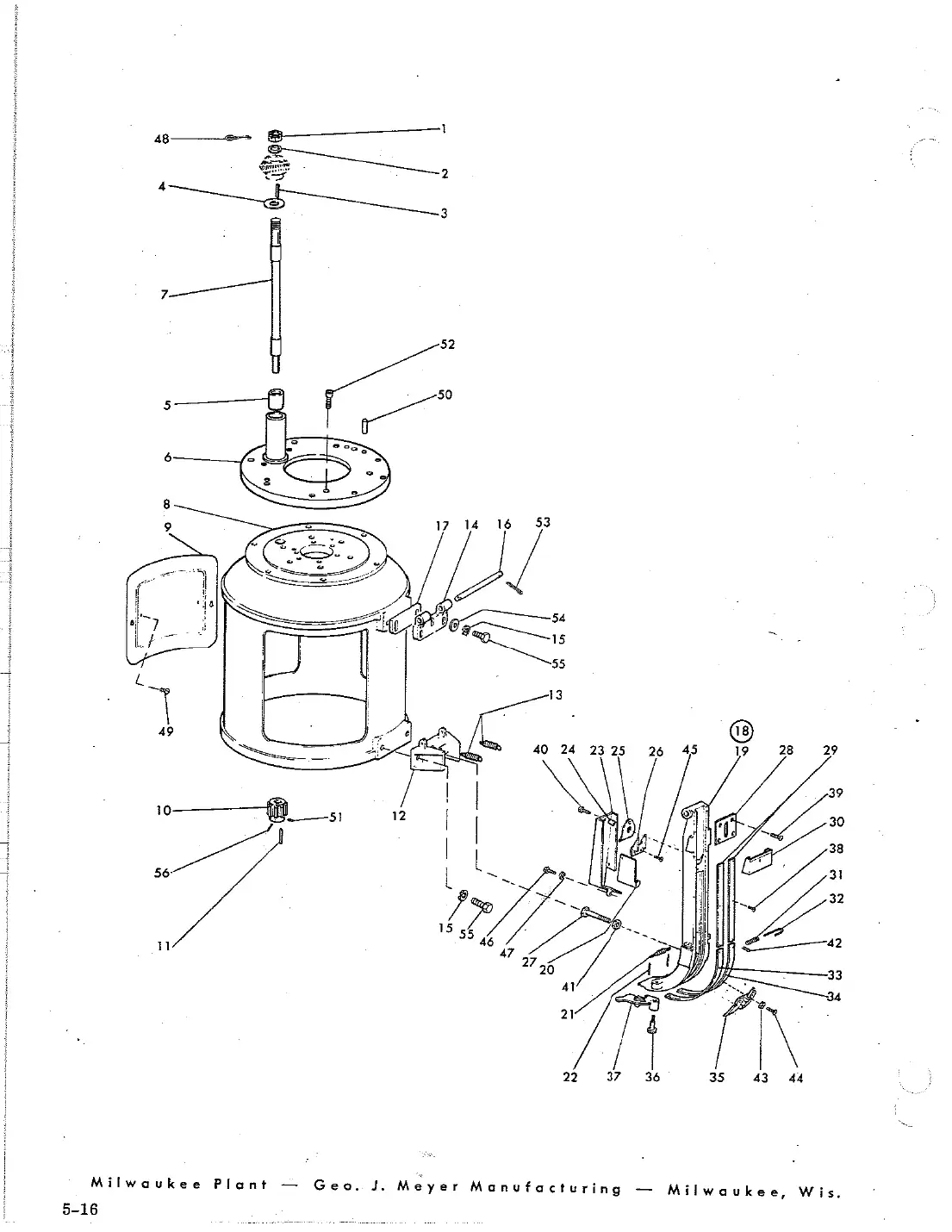

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
2	102-2054	Washer, bevel pinion nozzle	Ask us
6	900-0020	Bracket, crown hopper	Ask us
88	102-02861020286	Screw, round head slot	Request
89	102-01821020182	Screw, flat head slot	Request
7	130-0079	Shaft, hopper drive 190-24	Ask us
40	102-0289	Screw, round head	Ask us
9	900-0342	Door 190-24	Ask us
41	102-13941021394	Nut, hex finished	Request
42	102-05621020562	Pin, cotter	Request
43	102-14601021460	Nut, hex	Request
44	102-07951020795	Screw, fillister hd	Request
15	102-14431021443	Washer, lock	Request
45	102-2961	Screw, flat head	Ask us
46	102-02871020287	Screw, phillips hd	Request
47	102-03861020386	Washer, lock	Request
48	102-0667	Pin, cotter	Ask us
49	102-02951020295	Screw, round head slot	Request
50	102-1445	Pin, dowel	Ask us
51	102-04251020425	Set screw	Request
52	102-15171021517	Screw, socket head cap	Request
53	102-13841021384	Pin, cotter	Request
55	102-1492	Bolt hex head	Ask us

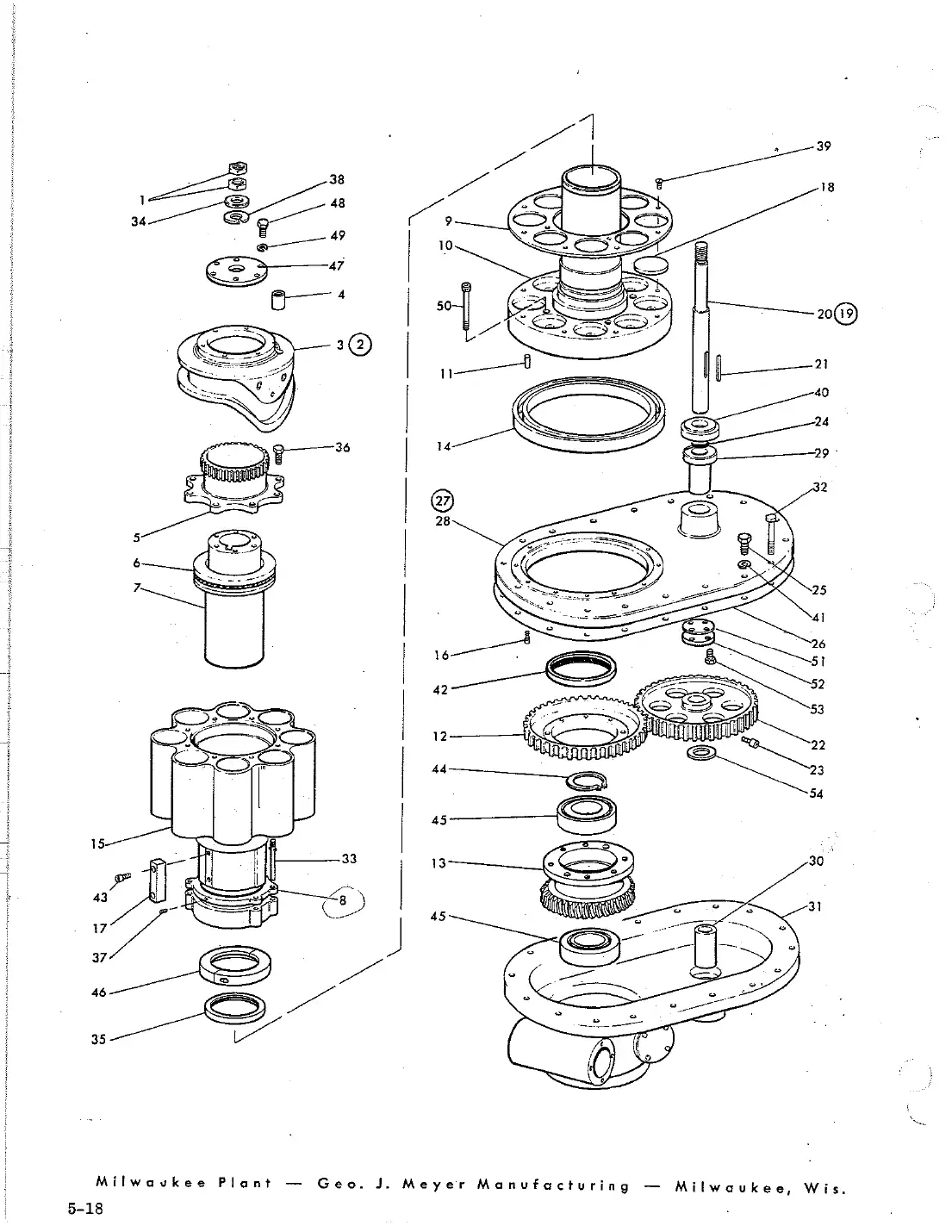

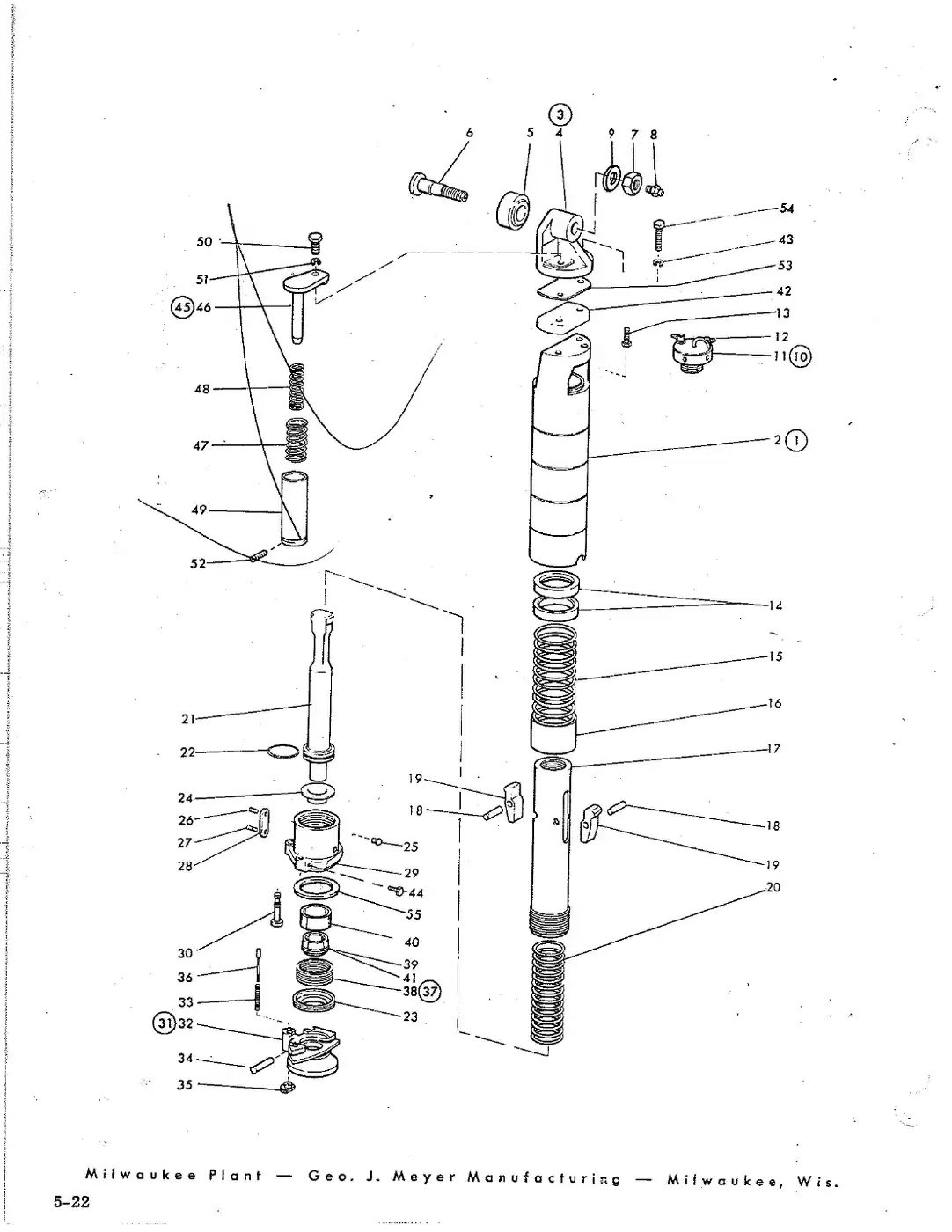

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	CL-500	Nut, elevating screw lock	Ask us
27	900-0338	Housing, worm drive assembly	Ask us
29	130-0493	Bushing, upper	Ask us
6	101-1937	Bearing, ball bolt	Ask us
33	132-4352	Pin, crowner star-lock	Ask us
84	102-22001022200	Washer, flat	Request
35	101-1936	Oil seal	Ask us
36	102-1136	Screw, socket head	Ask us
11	102-1416	Pin, dowel	Ask us
37	102-04581020458	Screw, set socket cup point	Request
88	102-1564	Washer lock	Ask us
39	102-01911020191	Screw, flat head slot	Request
41	102-03821020382	Washer, lock	Request
42	101-1945	Oil seal	Ask us
43	102-1673	Screw, socket head	Ask us
19	900-0158	Shaft and gear, crowner	Ask us
44	100-17361001736	Ring, retaining ext beveled	Request
45	101-1944	Bearing	Ask us
22	130-1559	Gear, crowner star driven	Ask us
49	102-03901020390	Washer, lock	Request
23	102-0486	Screw, socket head set	Ask us
50	102-2308	Screw, socket head	Ask us
24	100-25051002505	O-ring	Request
25	102-1417	Bolt, hex head	Ask us
53	102-1811	Bolt hex head 312-18x	Ask us

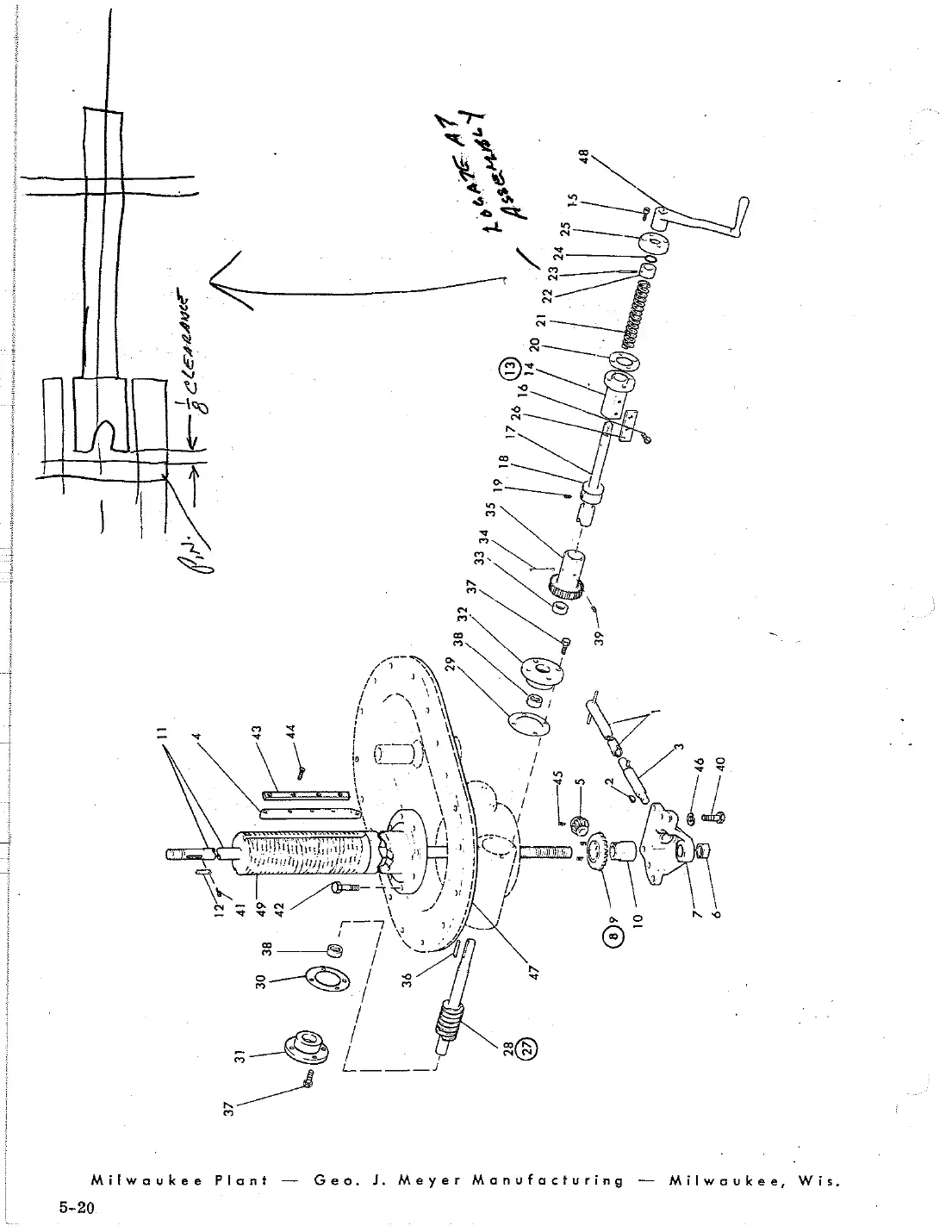

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
2	102-09541020954	Key	Request
27	902-2766	Drive, worm gear assembly	Ask us
28	131-87761318776	Worm, crowner drive 12 hd quart	Request
30	131-03251310325	Shim, worm gear	Request
31	131-64141316414	Cap, worm gear	Request
82	131-64121316412	Cap, worm front	Request
33	100-98891009889	Seal, oil	Request
84	HH-2107	Pin, crankshaft	Ask us
37	102-00891020089	Bolt, hex head	Request
38	100-98901009890	Bearing	Request
18	902-8236	Crank, crowner assembly	Ask us
89	102-0449	Screw, socket head set	Ask us
40	102-1815	Screw, hex head	Ask us
15	102-05731020573	Screw, socket head cap	Request
41	102-1581	Screw, socket head 250-20	Ask us
16	102-0140	Screw, flat head 250	Ask us
42	102-18141021814	Screw, cap hex head	Request
17	902-8237	Crankshaft, crowner	Ask us
43	132-4312	Key, hold down plate	Ask us
19	102-0438	Screw socket head set	Ask us
45	102-0436	Screw, socket head set	Ask us
20	HH-2179	Gasket, rubber	Ask us
21	HH-1147	Spring, crowner crank	Ask us
46	102-03911020391	Washer, lock	Request
22	HH-1101	Collar, set	Ask us
47	130-2494	Gasket, crowner	Ask us
23	102-05721020572	Pin, taper	Request
48	900-0860	Handle, crank	Ask us
24	100-2016	O-ring	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.
