Meyer 32, 40 and 48 valve filler parts manual

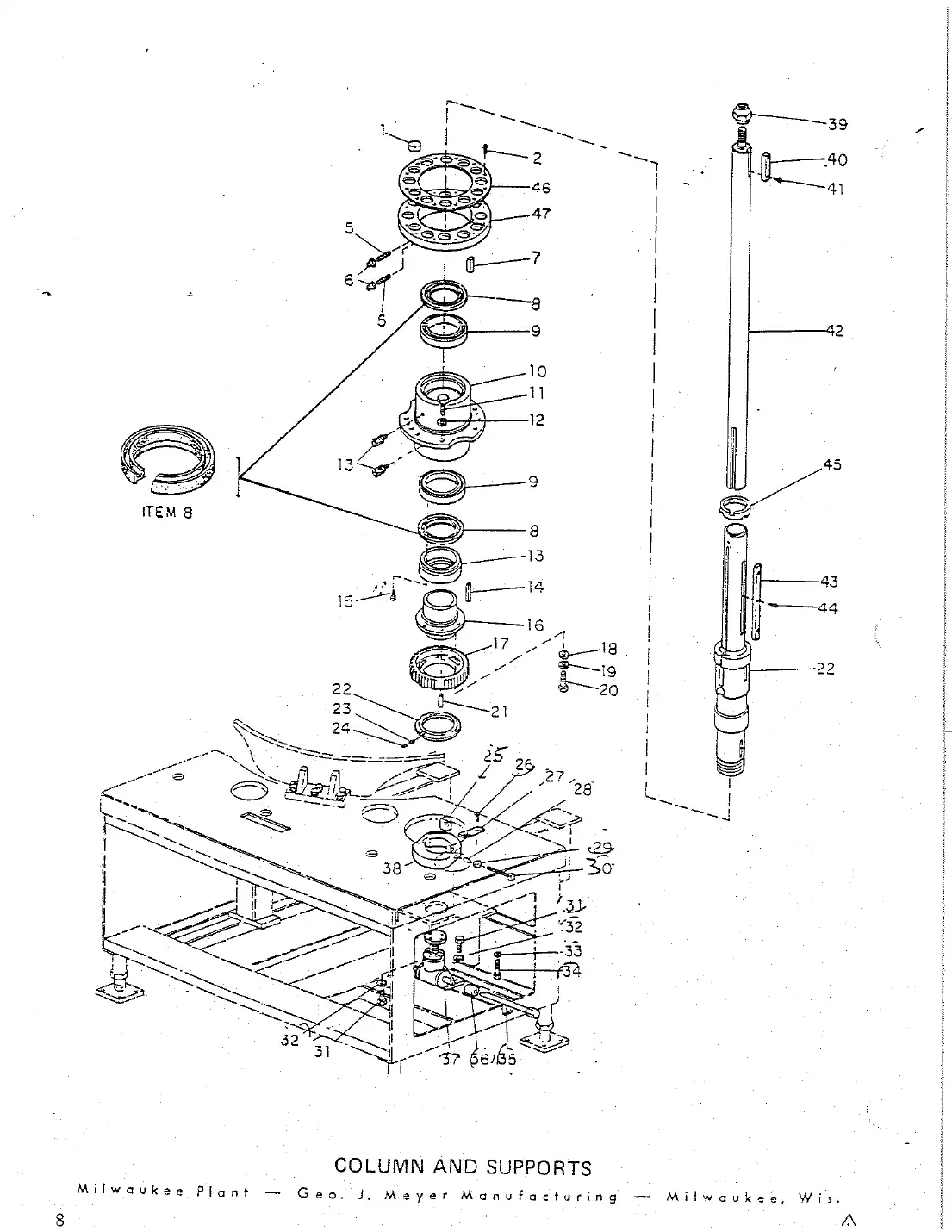

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
17	102-00441020044	Bolt, hex head	Request
18	104-6368	Bearing	Ask us
19	100-09231000923	Fitting, tube	Request
2	135-12171351217-1	Cladding, tabletop	Request
4	102-0757	Washer, flat	Ask us
22	104-62951046295-MSST	Nut, hex modified	Request
5	102-03811020381	Washer, lock	Request
6	102-00411020041	Bolt, hex head	Request
25	102-03801020380	Washer, lock	Request
26	102-2011	Washer, flat	Ask us
9	102-04151020415	Washer, flat	Request
27	102-00261020026	Bolt, hex head	Request
10	102-0887	Lockwasher	Ask us
11	102-18461021846	Bolt, hex head	Request
29	102-0321	Nut, hex	Ask us
31	102-03221020322	Nut, hex	Request
14	102-0029	Screw, hex head	Ask us
32	102-03281020328	Nut, hex jam	Request
33	102-03721020372	Washer, flat	Request
34	102-03891020389	Washer, lock	Request
34	903-8226	Hanger valve screw	Ask us
34	903-82279038227-1	Hanger, rebuilt 48 valve	Request
10	102-03871020387	Washer, lock	Request
85	102-00881020088	Hex head bolt	Request

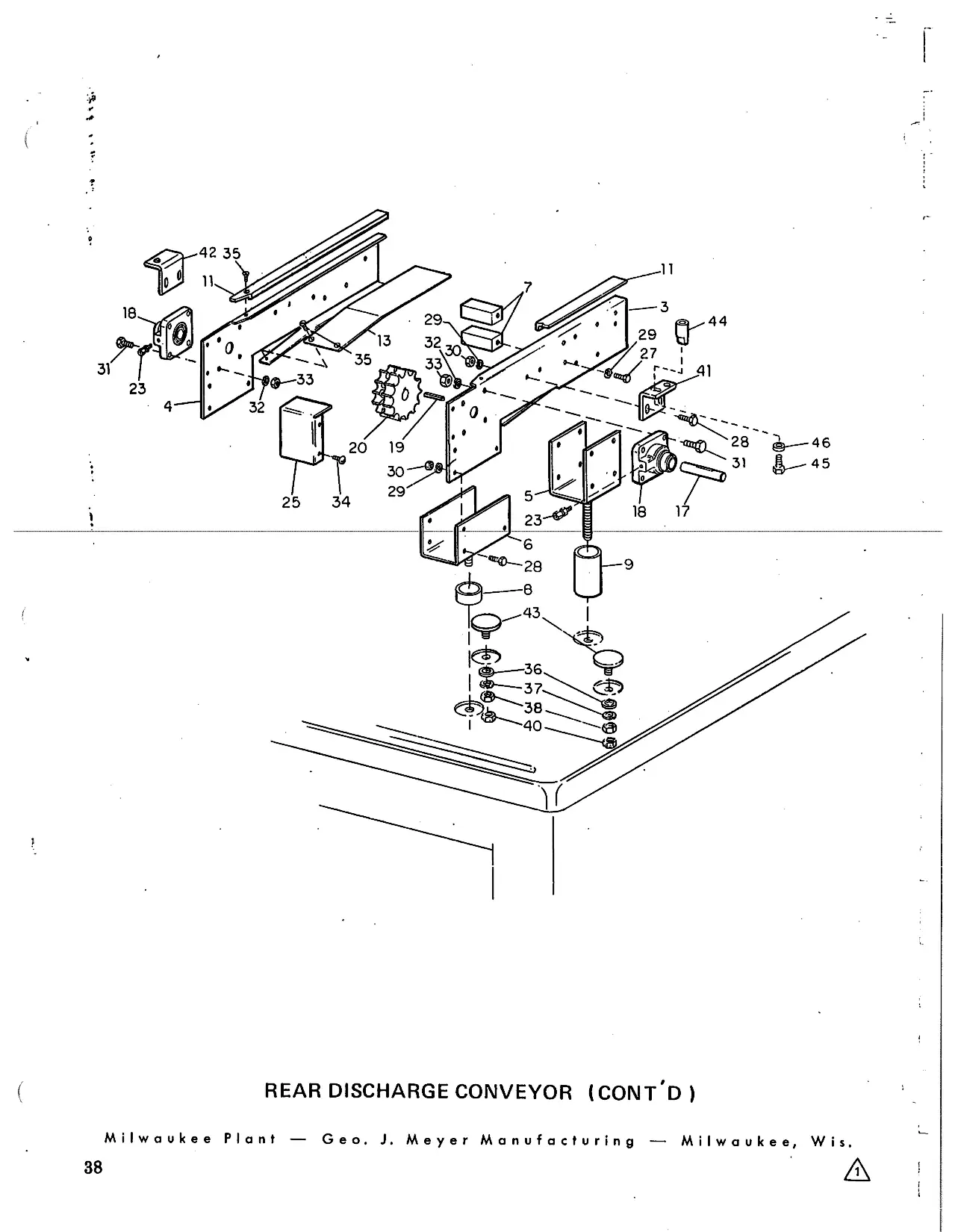

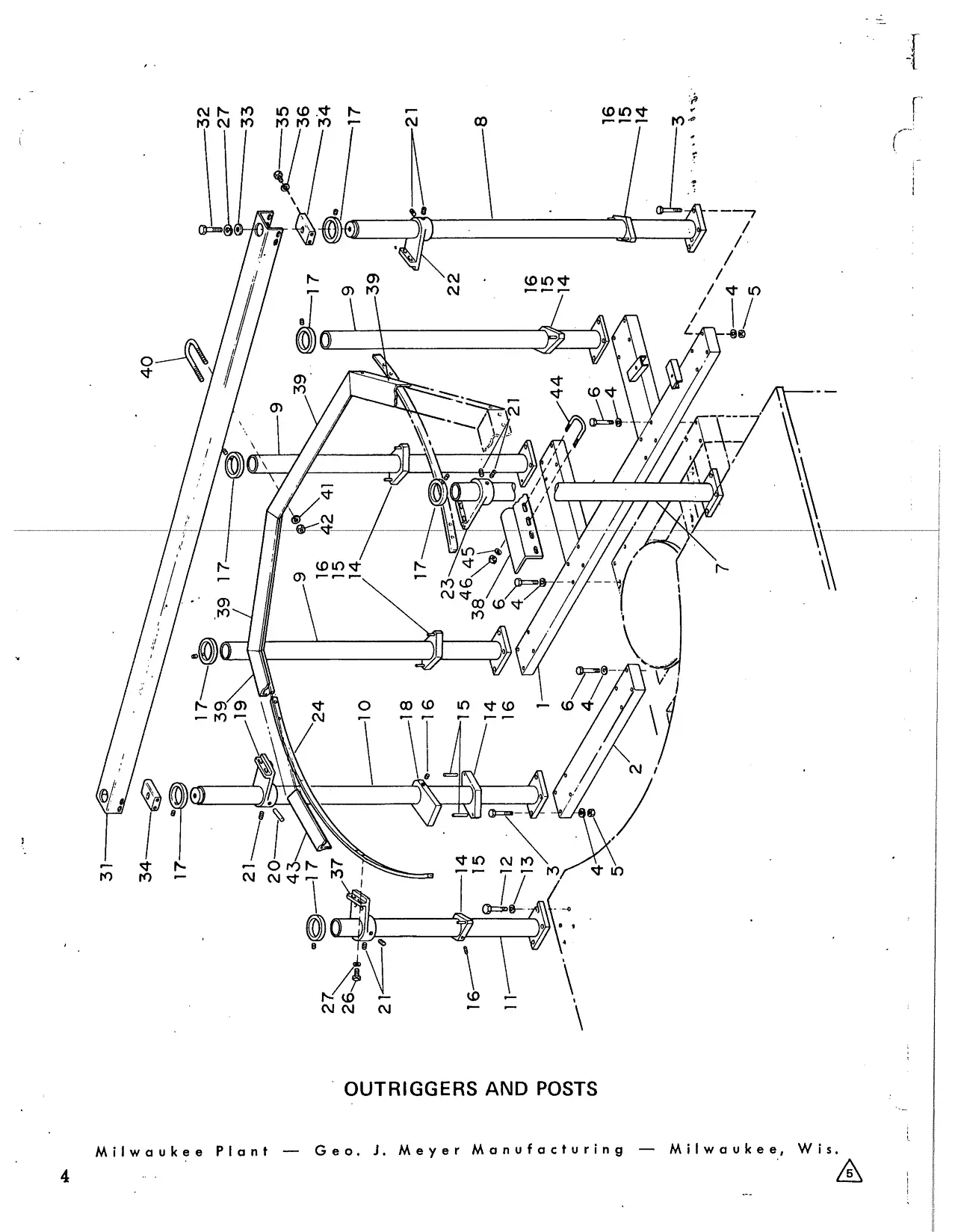

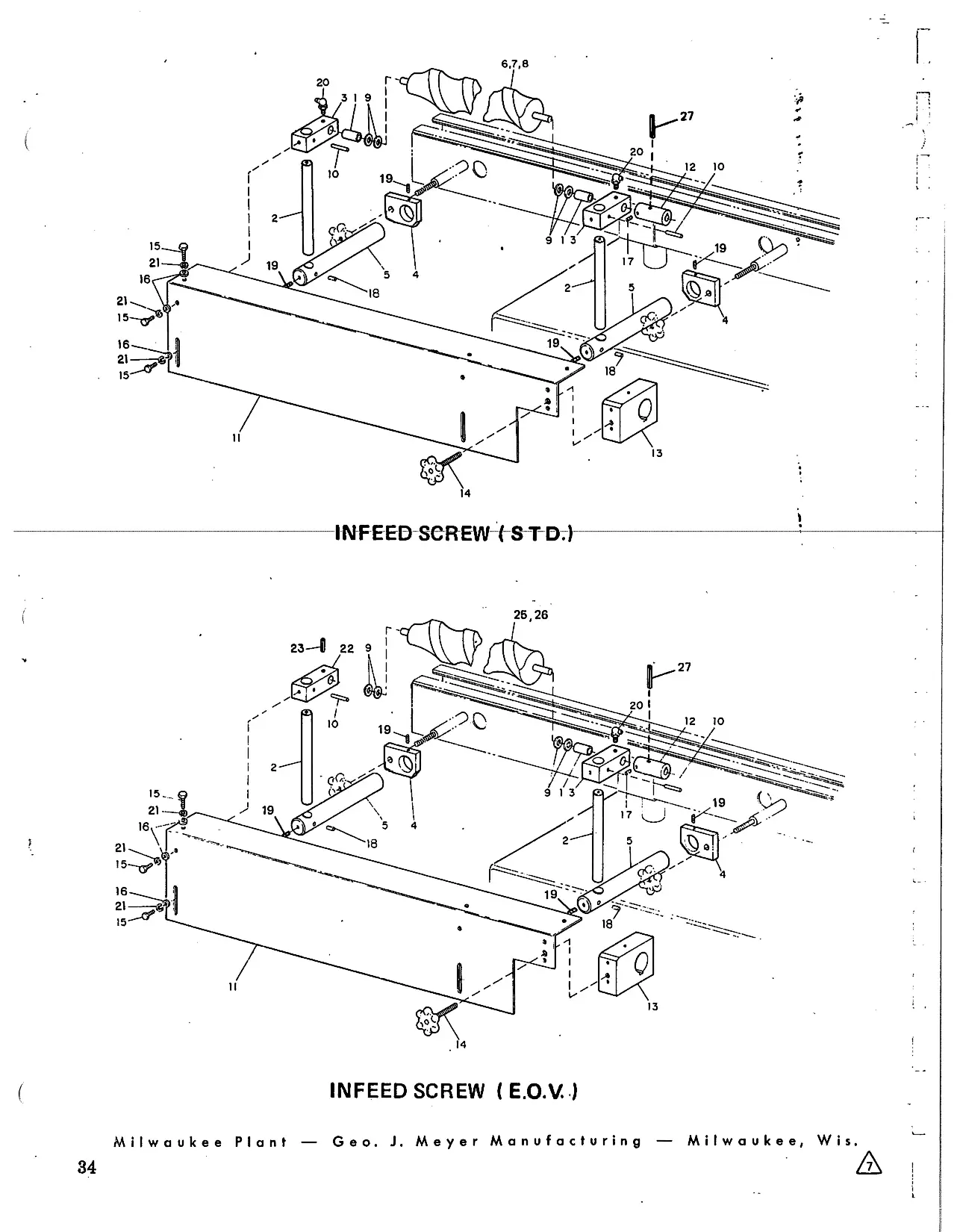

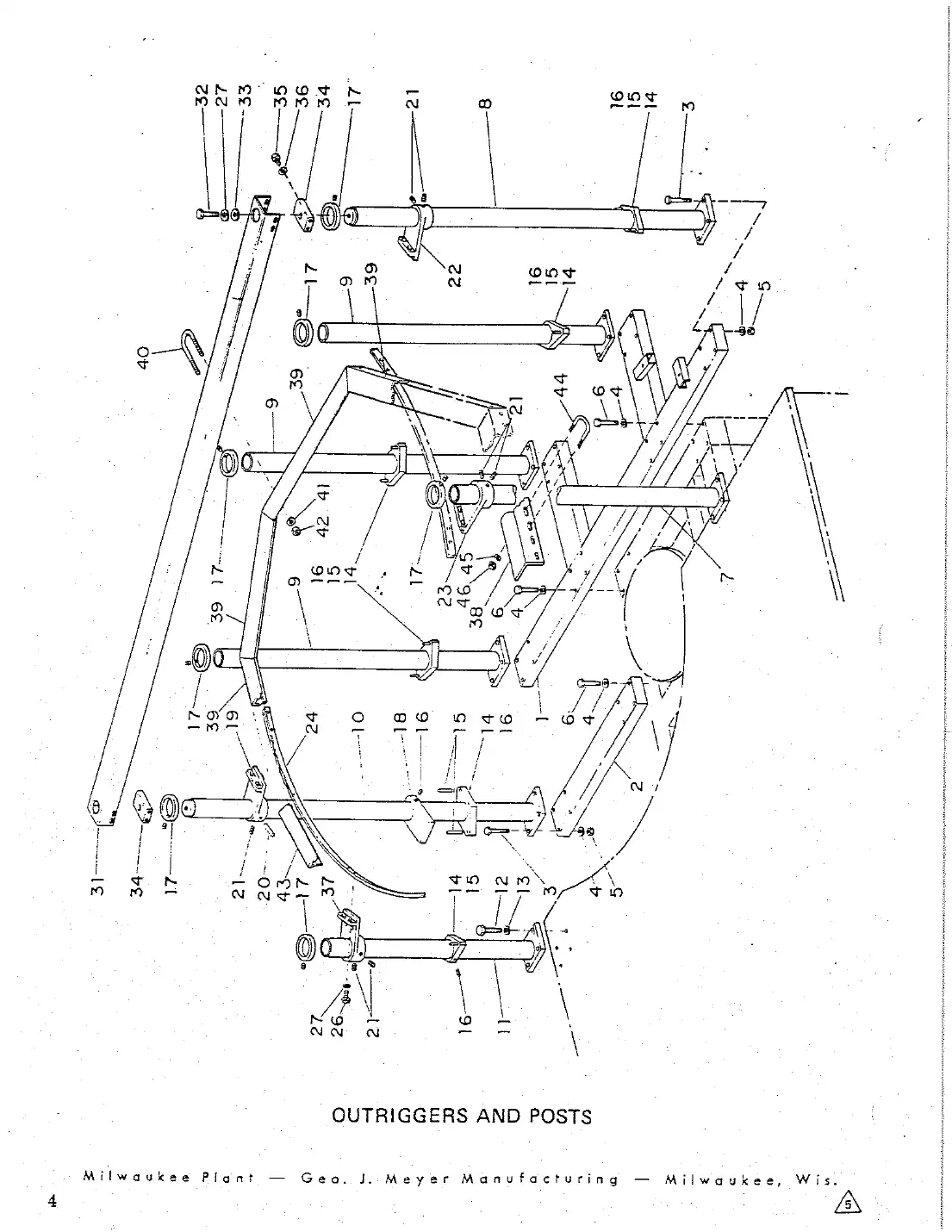

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	903-84229038422-1	Outrigger, rear	Request
3	102-00981020098	Bolt, hex head	Request
24	135-07601350760	Rail, movable valve operators	Request
4	102-03801020380	Washer, lock	Request
26	102-00901020090	Bolt, hex head	Request
5	102-03341020334	Nut, hex	Request
27	102-03891020389	Washer, lock	Request
6	102-0034	Screw, hex head	Ask us
82	102-00931020093	Bolt, hex head	Request
33	102-04171020417	Washer, flat	Request
34	133-81651338165	Block, support tube cover	Request
85	102-00751020075	Bolt, hex head	Request
11	903-84359038435	Post, support rail	Request
36	102-03881020388	Washer, lock	Request
12	102-00911020091	Bolt, hex head	Request
38	135-0748	Bar, tie	Ask us
15	102-09861020986	Pin, roll slotted	Request
40	133-68461336846	U-bolt	Request
16	102-19111021911	Screw, set sh nylock	Request
17	104-61931046193	Collar, 48V	Request
42	102-03331020333	Nut, hex	Request
18	133-9238	Base	Ask us
44	133-93841339384	U-bolt	Request
45	102-03871020387	Washer, lock	Request
21	102-04471020447	Screw, set socket cup point	Request
46	102-03321020332	Nut, hex	Request

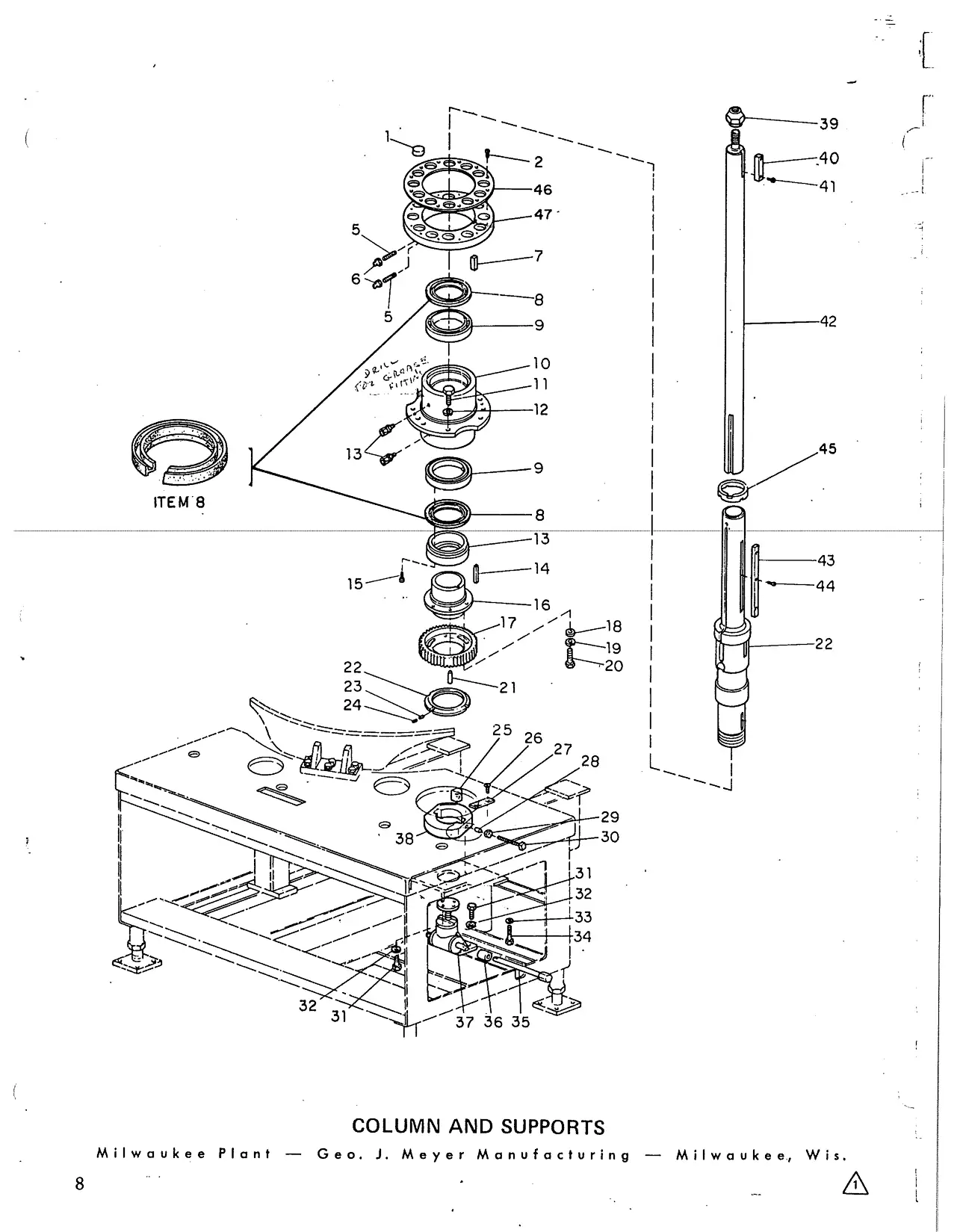

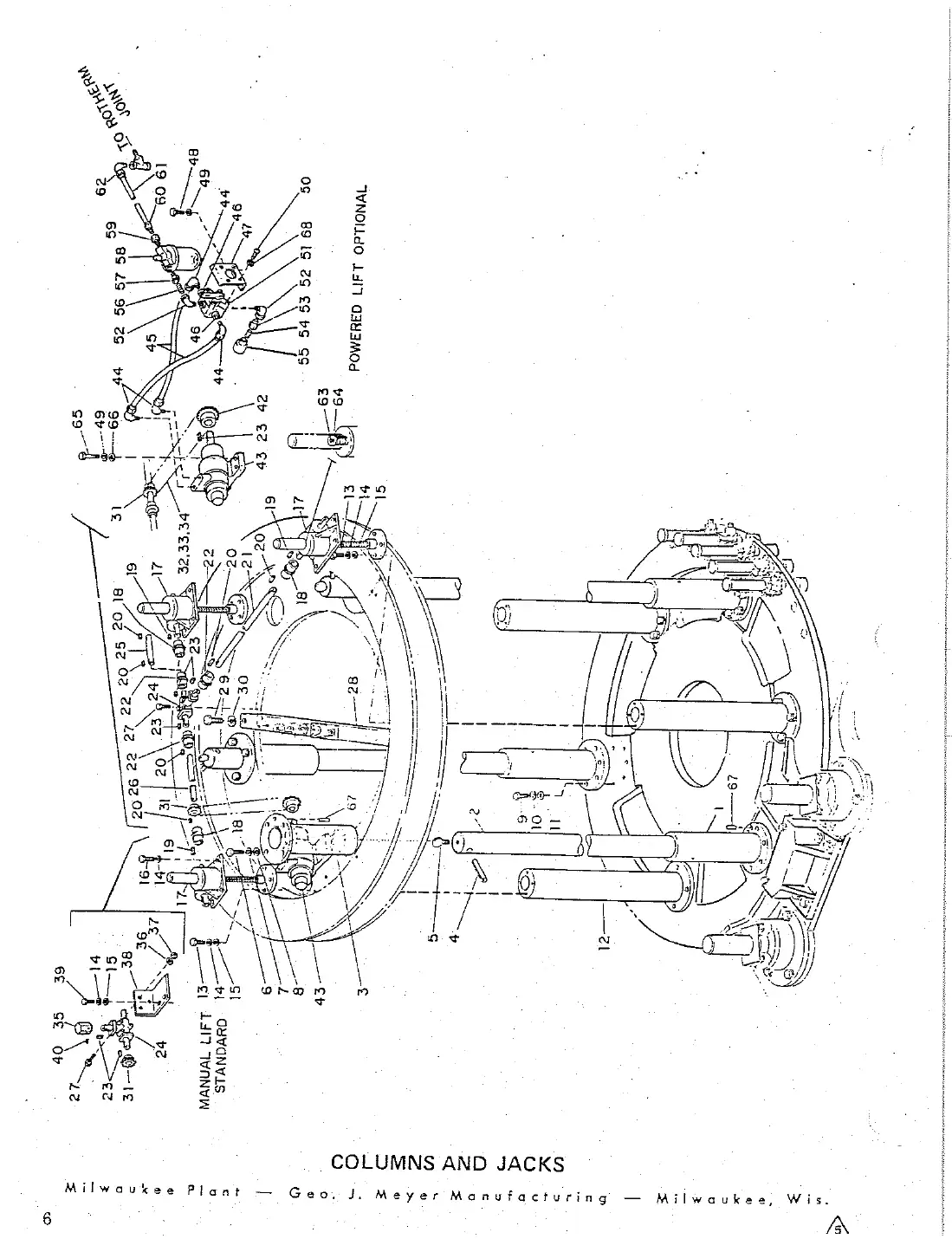

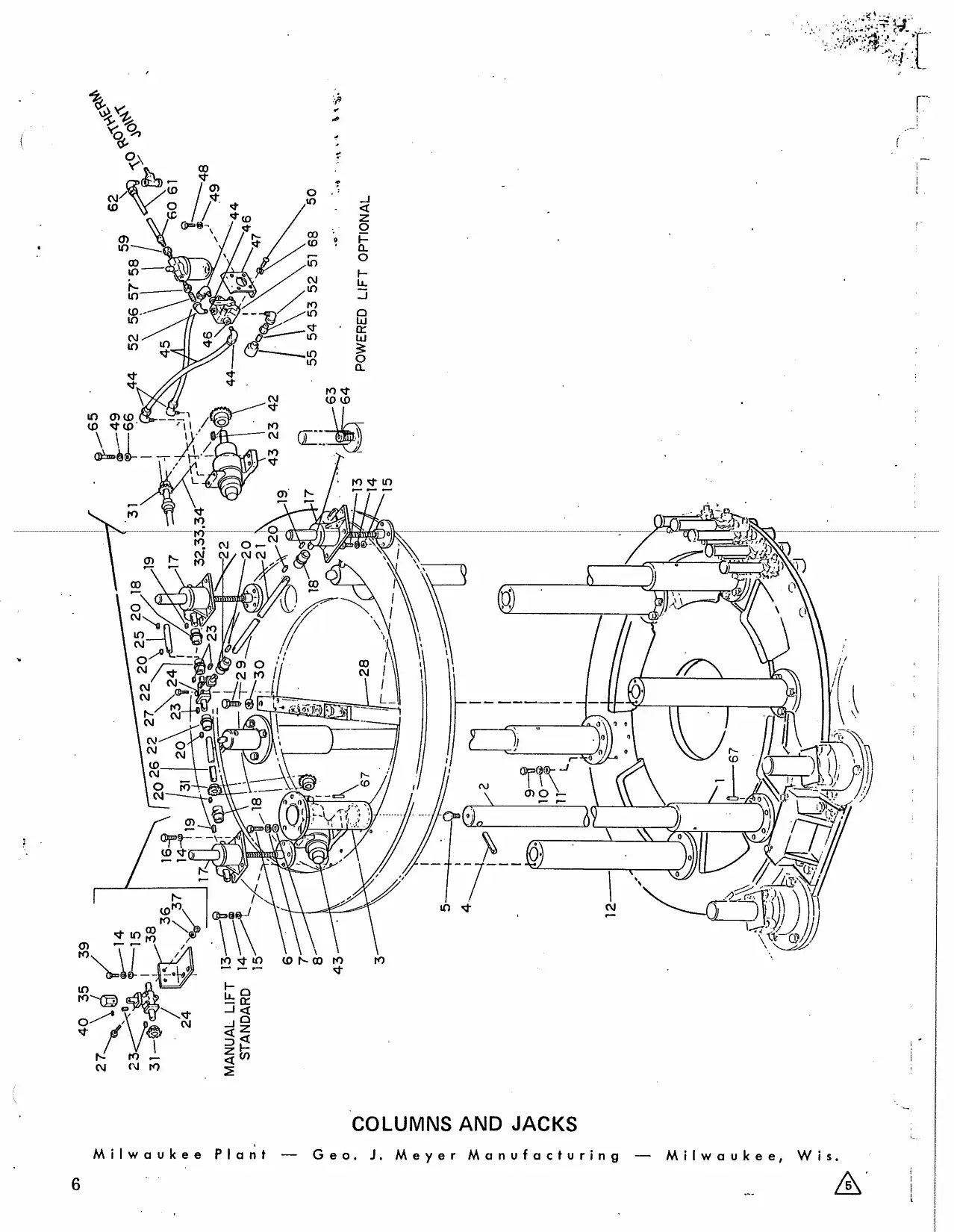

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
33	100-63501006350	Link, offset	Request
384	100-82691008269	Link, connecting	Request
36	102-0887	Lockwasher	Ask us
87	102-03321020332	Nut, hex	Request
3	903-81459038145	Column, bowl support assembly	Request
39	102-1841	Screw, hex head	Ask us
5	102-28821022882	Bolt, hex head brz	Request
40	102-04251020425	Set screw	Request
6	102-01031020103	Bolt, hex head	Request
42	1046013104-6013	Sprocket, roller chain bowl lift	Request
7	102-03901020390	Washer, lock	Request
43	104-50951045095	Motor, air bowl lift	Request
8	102-04181020418	Washer, flat	Request
44	100-88741008874	Fitting, tube 90 deg elbow	Request
45	000-32230003223	Tube, polyflo	Request
46	100-14321001432	Bushing, reducing hex	Request
11	102-09391020939	Washer, flat	Request
12	133-92231339223	Column, jack support 32V bottle fill	Request
48	102-00731020073	Bolt, hex head	Request
13	102-00891020089	Bolt, hex head	Request
49	102-03881020388	Washer, lock	Request
14	102-03891020389	Washer, lock	Request
50	102-07971020797	Screw, round head	Request
15	102-20021022002	Washer, flat	Request
51	104-51461045146	Valve, 4 way	Request
16	102-00901020090	Bolt, hex head	Request
52	100-96661009666	Elbow, street 90 deg ips	Request
17	104-6141	Jack	Ask us
538	100-89071008907	Bushing, reducing hex female	Request
18	104-60111046011	Coupling, bowl lift shaft	Request
54	100-61101006110	Nipple, close	Request
19	000-3393	Key muffler	Ask us
20	000-16250001625	Key, square	Request
21	133-91611339161	Shaft, jack reservior elevating	Request
56	100-27381002738	Nipple, pipe	Request
22	104-60121046012	Coupling, bowl lift shaft	Request
57	100-14341001434	Bushing, reducing hex	Request
23	000-1629	Key	Ask us
58	101-01871010187	Washer, lock	Request
24	100-93301009330	Gearbox, three way bowl lift	Request
59	100-14351001435	Bushing, reducing hex	Request
25	133-91601339160	Shaft, jack 32 valve	Request
60	100-88751008875	Fitting, tube adapter	Request
26	133-91591339159	Shaft, jack reservoir elevating	Request
27	102-07861020786	Bolt, hex head	Request
28	903-84079038407	Support, channel product line	Request
63	135-06401350640	Stop, jacuator	Request
64	102-01911020191	Screw, flat head slot	Request
30	102-03921020392	Washer, lock	Request
66	102-04161020416	Washer, flat	Request
67	102-2103	Pin, dowel	Ask us
68	102-03861020386	Washer, lock	Request
36	102-03871020387	Washer, lock	Request
29	102-23501022350	Bolt, hex head	Request
65	102-00761020076	Bolt, hex head	Request
32	100-82681008268	Chain, roller	Request

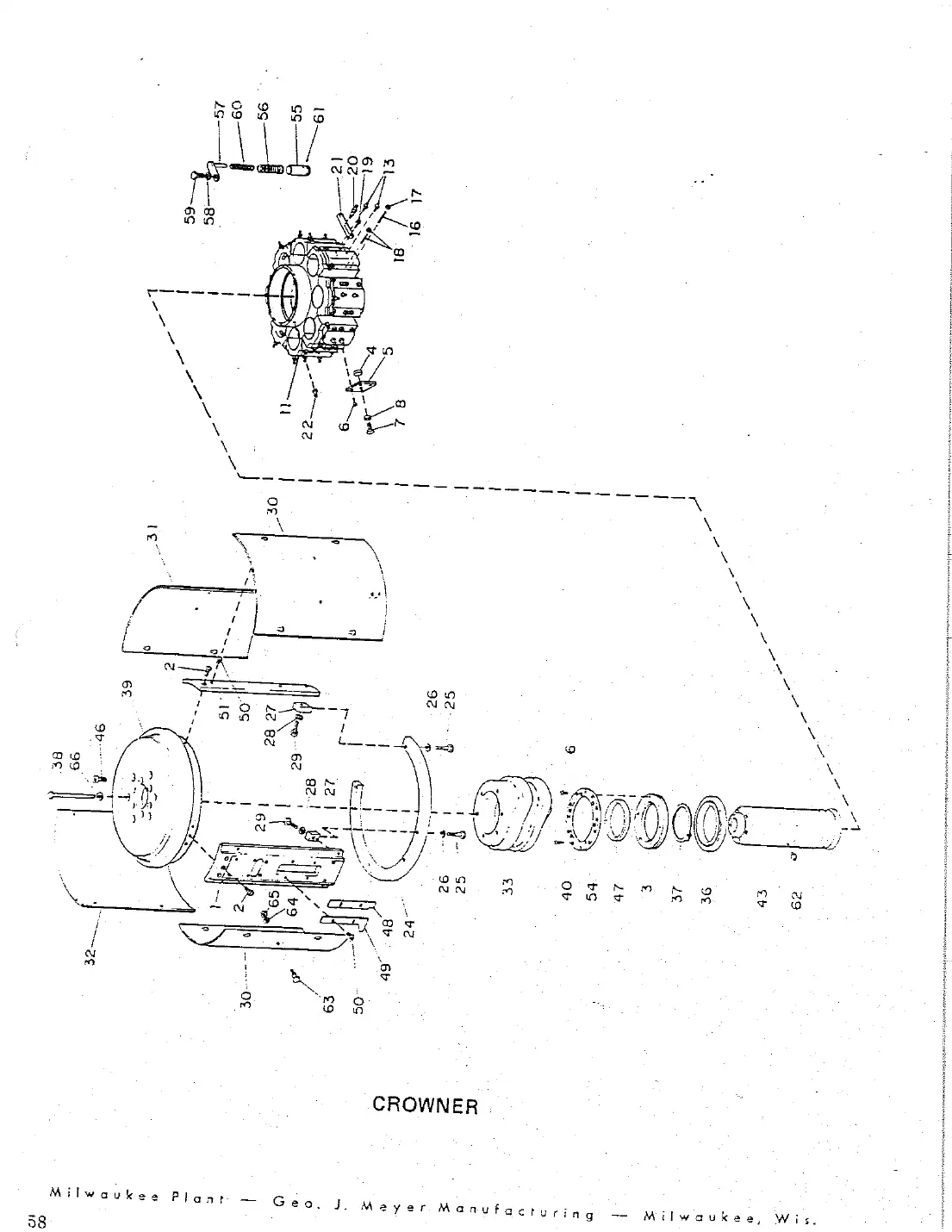

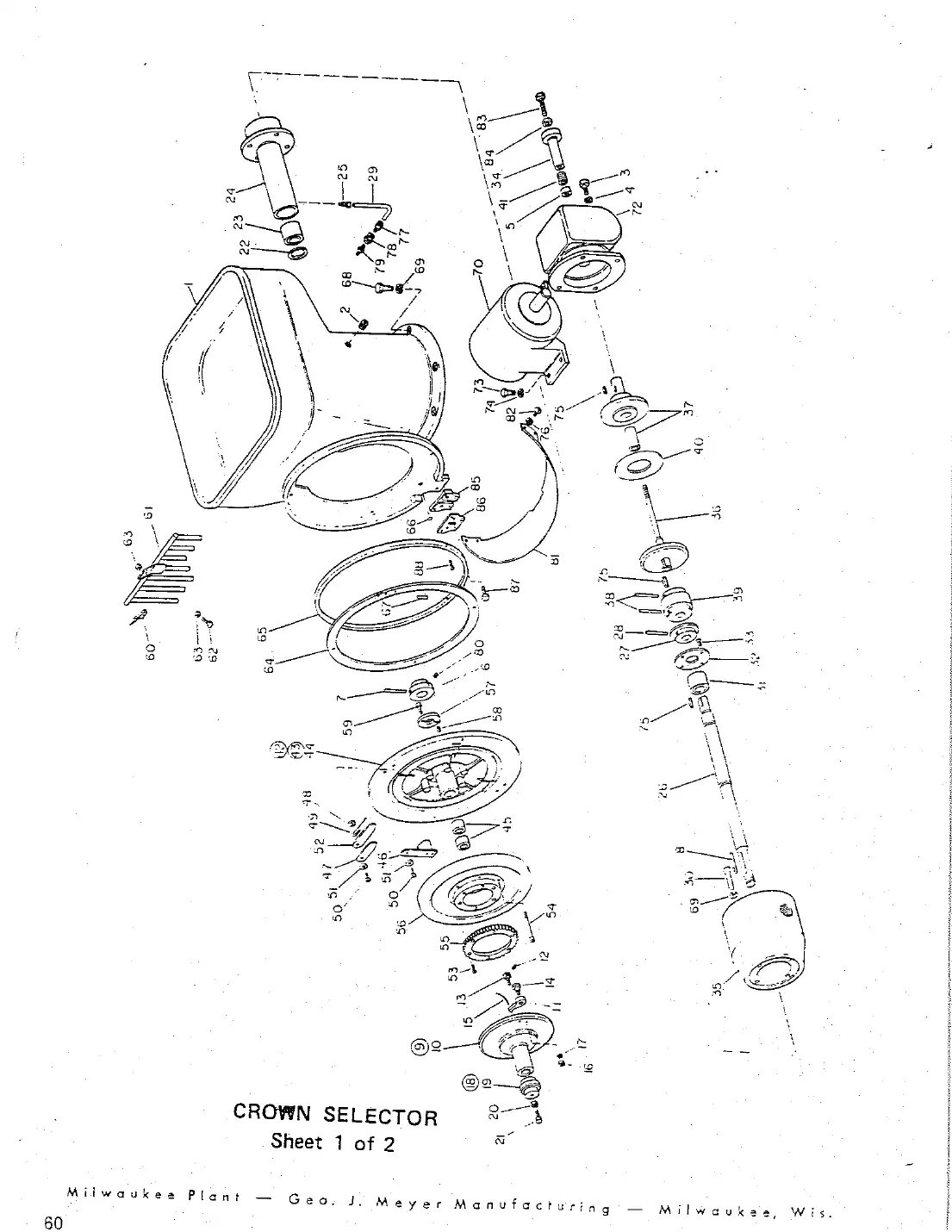

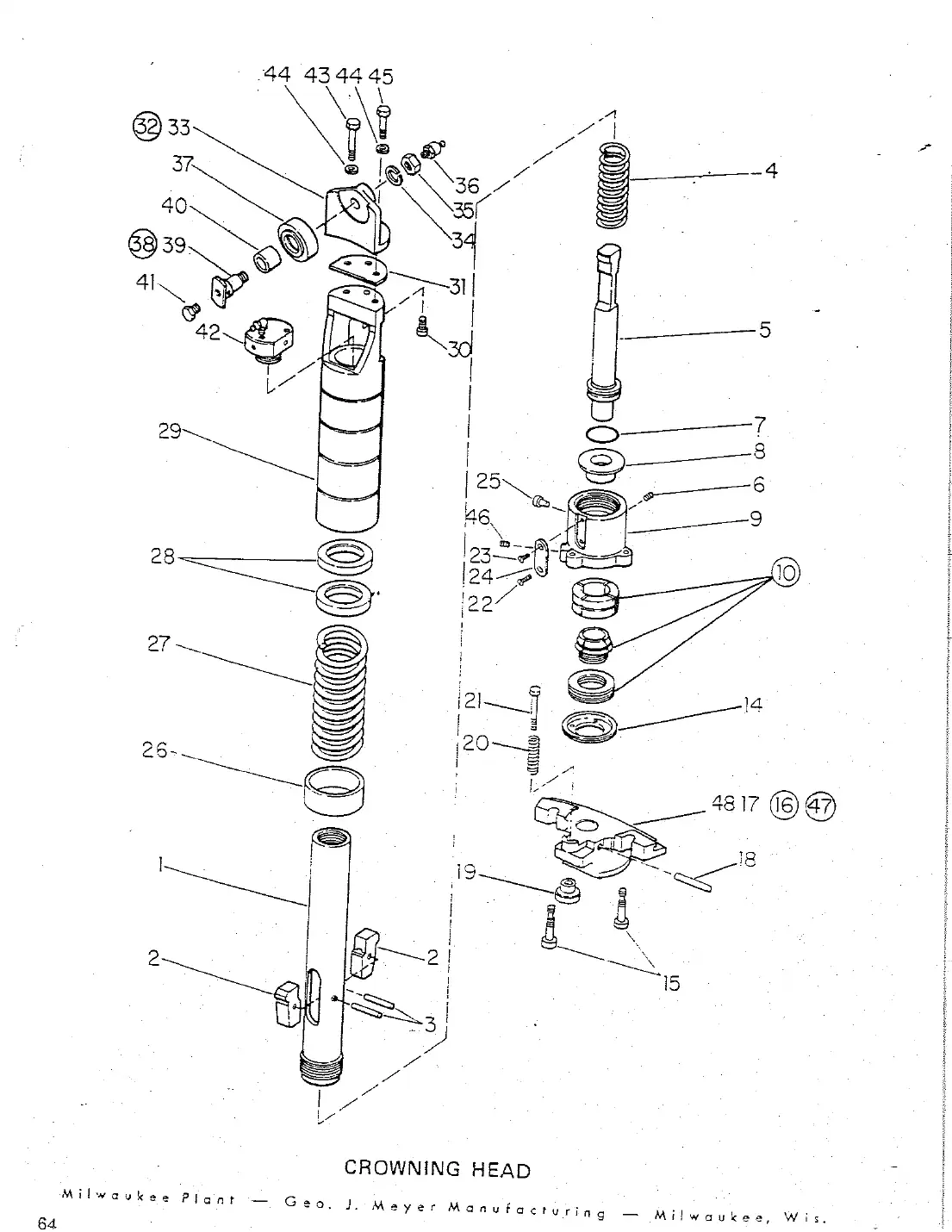

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
28	134-3783	Plug, locking	Ask us
29	102-03291020329	Nut, hex jam	Request
30	102-26231022623	Bolt, square hd	Request
81	102-00271020027	Bolt, hex head	Request
32	102-03801020380	Washer, lock	Request
2	102-01911020191	Screw, flat head slot	Request
33	102-03901020390	Washer, lock	Request
5	100-2720	Nipple	Ask us
34	102-01031020103	Bolt, hex head	Request
6	100-39411003941	Fitting, grease female str	Request
35	903-8507	Shaft	Ask us
7	000-16690001669-2.62	Key, square	Request
36	1046283104-6283	Coupling, column/support closure	Request
8	101-06201010620	Seal, oil closer column lower	Request
9	101-19211011921	Bearing, roller closer column	Request
88	134-3723	Ring, anti-rotation	Ask us
10	134-41831344183	Housing, bearing closure column	Request
89	102-23411022341	Nut, hex nylock	Request
12	102-03811020381	Washer, lock	Request
40	134-20521342052	Key, elevating sleeve	Request
13	134-17721341772	Spacer, crowner small family	Request
41	102-14061021406	Screw, socket head cap	Request
42	134-37261343726	Shaft, static 8 head crowner	Request
15	102-08541020854	Screw, socket head cap	Request
43	134-41951344195	Key, closure column	Request
44	102-07081020708	Screw, socket head cap	Request
18	102-03721020372	Washer, flat	Request
20	102-00411020041	Bolt, hex head	Request
21	102-07141020714	Pin, taper	Request
22	904-30689043068	Column, crowner assembly 32-8 filler	Request
23	RR-516RR516	Plug, lock	Request
24	102-04661020466	Screw, set socket cup point	Request
25	134-37241343724	Key, anti rotation crowner column	Request
26	102-01921020192	Screw, flat head slot	Request
27	134-37251343725	Plate, keeper anti-rotation	Request
11	102-00421020042	Bolt, hex head	Request
17	134-17601341760	Gear, closure drive sm family	Request

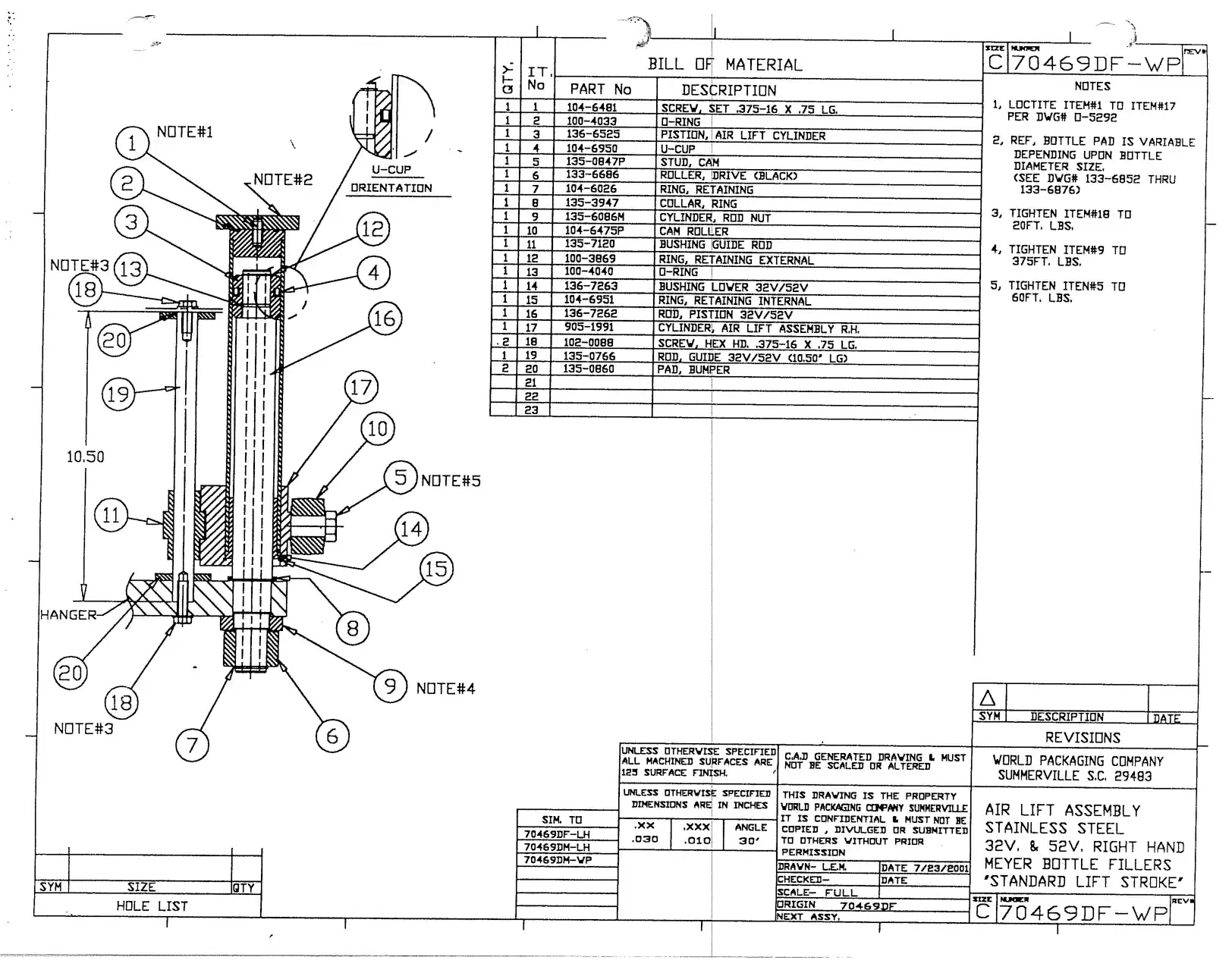

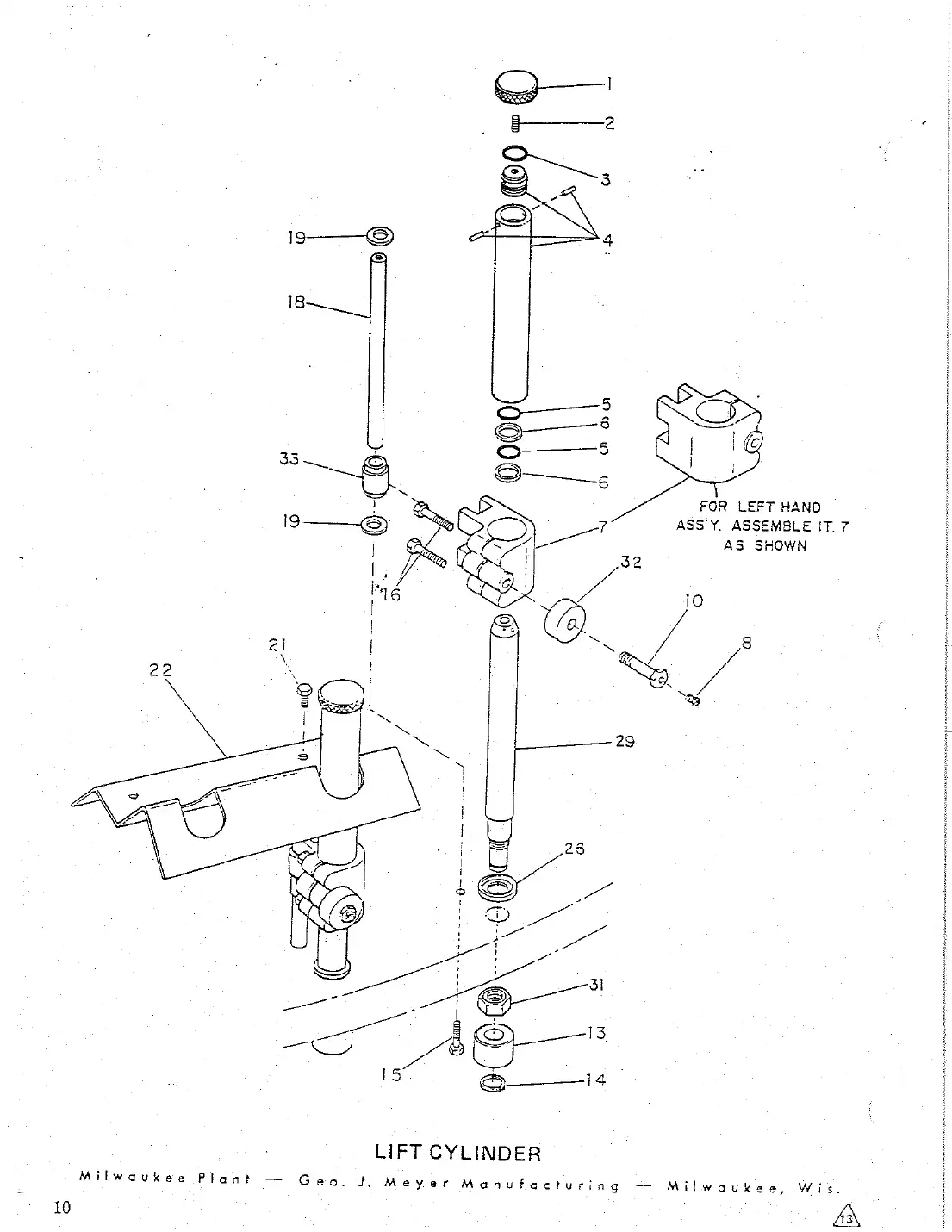

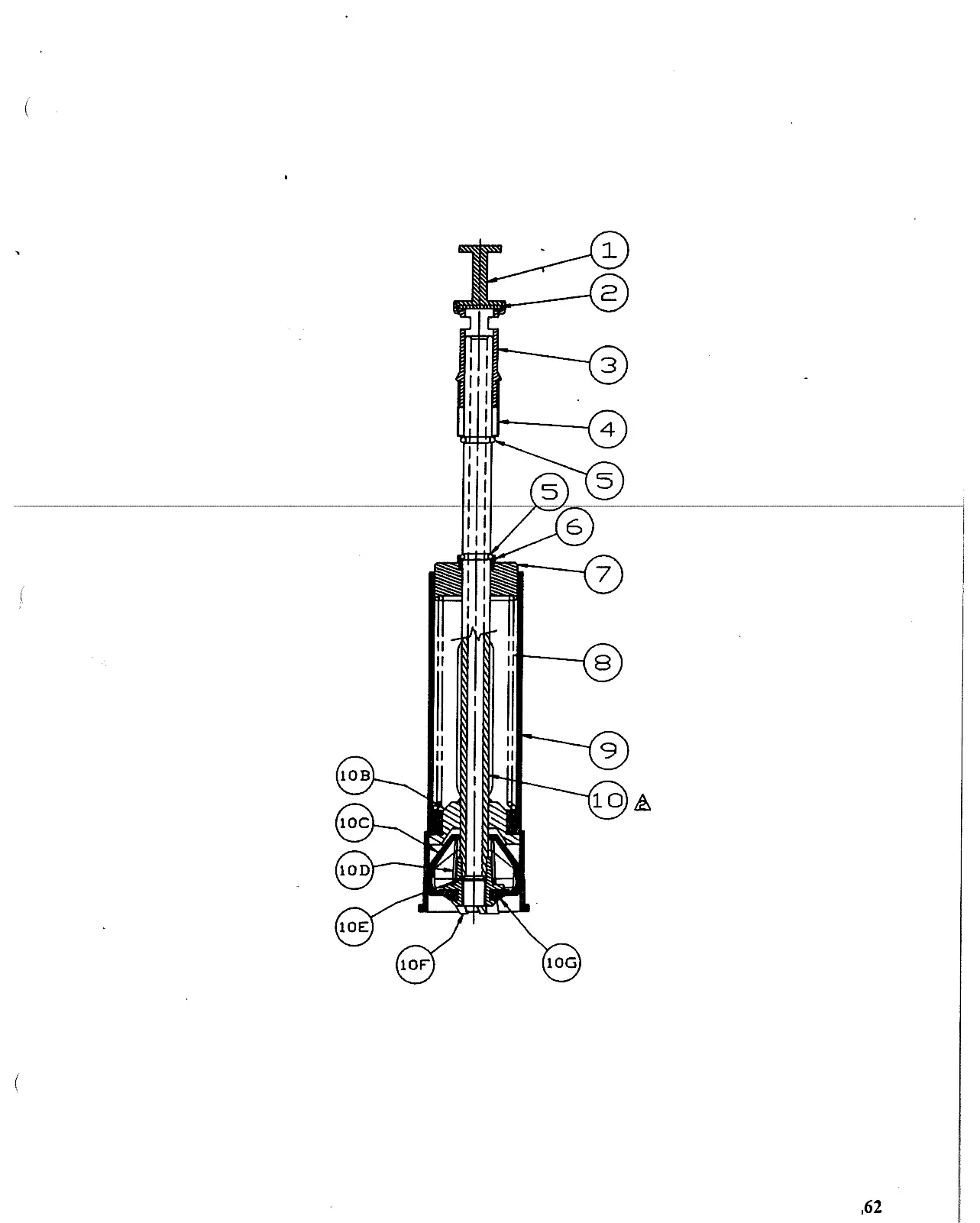

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
15	102-00901020090	Bolt, hex head	Request
16	102-11421021142	Screw, socket head cap	Request
18	135-07661350766	Rod, guide	Request
2	104-64811046481	Screw, set socket cup point pt	Request
21	102-00881020088	Hex head bolt	Request
3	100-40331004033	O-ring	Request
5	1046264104-6264	O-ring	Request
6	104-6270	Ring, piston	Ask us
26	135-39471353947	Collar, lift cylinder pist	Request
7	135-0846	Hub, cylinder	Ask us
29	135-6087	Piston	Ask us
8	1046320104-6320	Fitting grease	Request
81	135-60861356086	Nut, lock piston rod	Request
32	104-6475	Follower, cam	Ask us
33	135-71201357120	Bushing, guide rod	Request
14	104-60261046026	Ring, retaining	Request

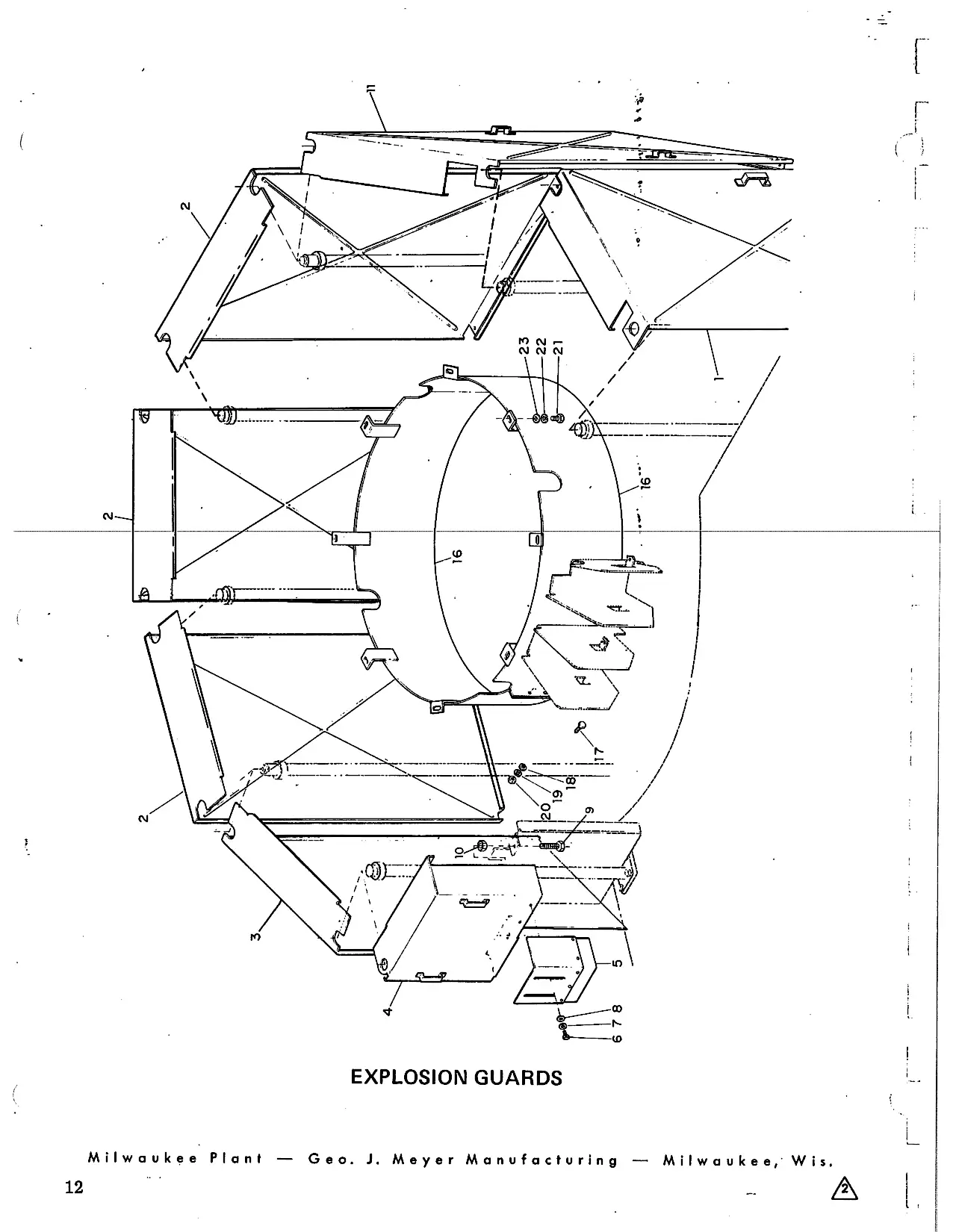

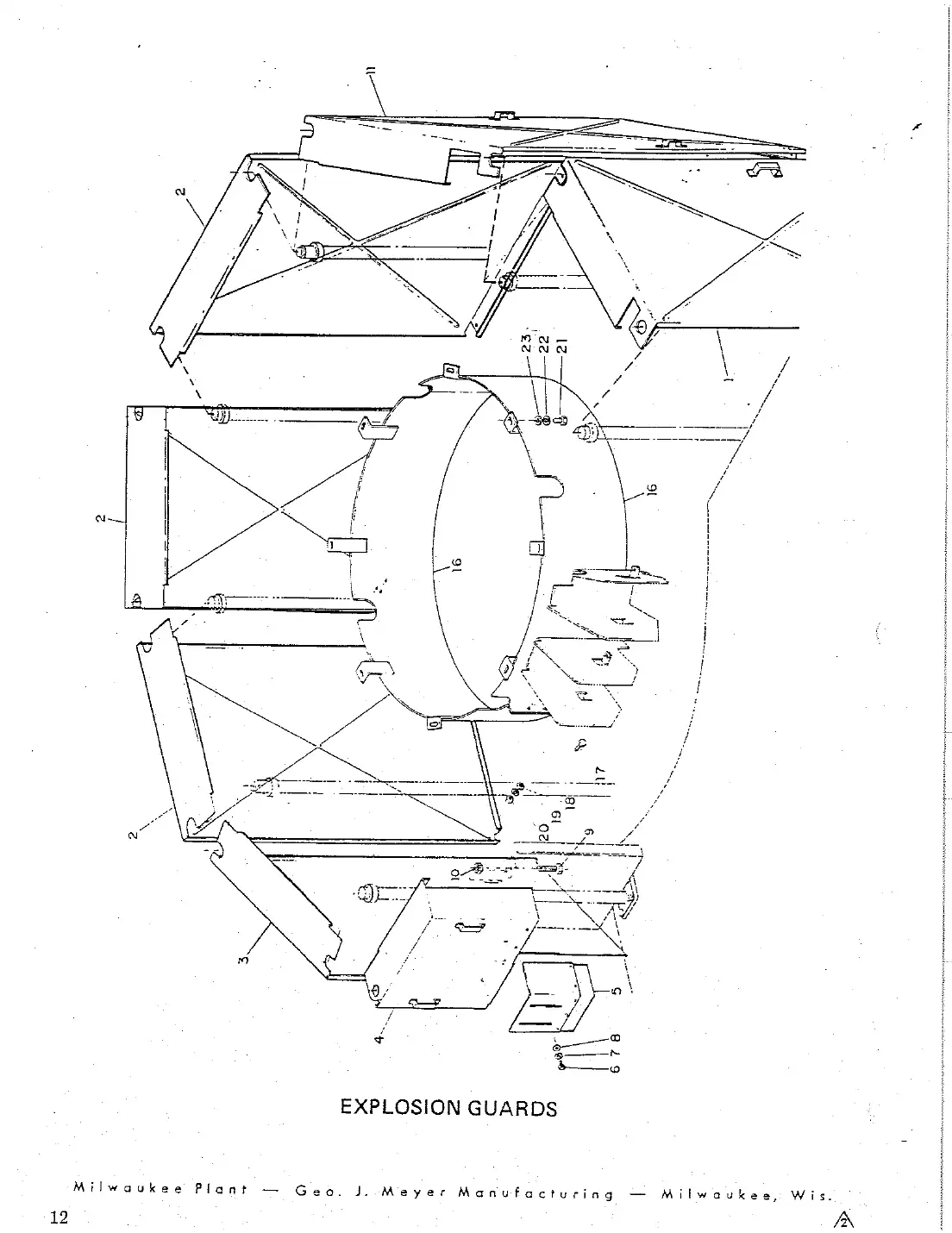

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
9	102-13621021362	Screw, socket head cap	Request
10	102-03331020333	Nut, hex	Request
1	903-82169038216-1	Guard, outer explosion	Request
16	902-82429028242-1A	Guard, plate	Request
2	903-82179038217-1	Guard, outer explosion	Request
17	102-00651020065	Bolt, hex head	Request
18	102-04151020415	Washer, flat	Request
4	903-84309038430-1	Guard, infeed	Request
19	102-0887	Lockwasher	Ask us
5	903-82199038219-1	Infeed, adjustable	Request
20	102-03321020332	Nut, hex	Request
7	102-03871020387	Washer, lock	Request
22	102-03891020389	Washer, lock	Request
23	102-20021022002	Washer, flat	Request
21	102-00881020088	Hex head bolt	Request

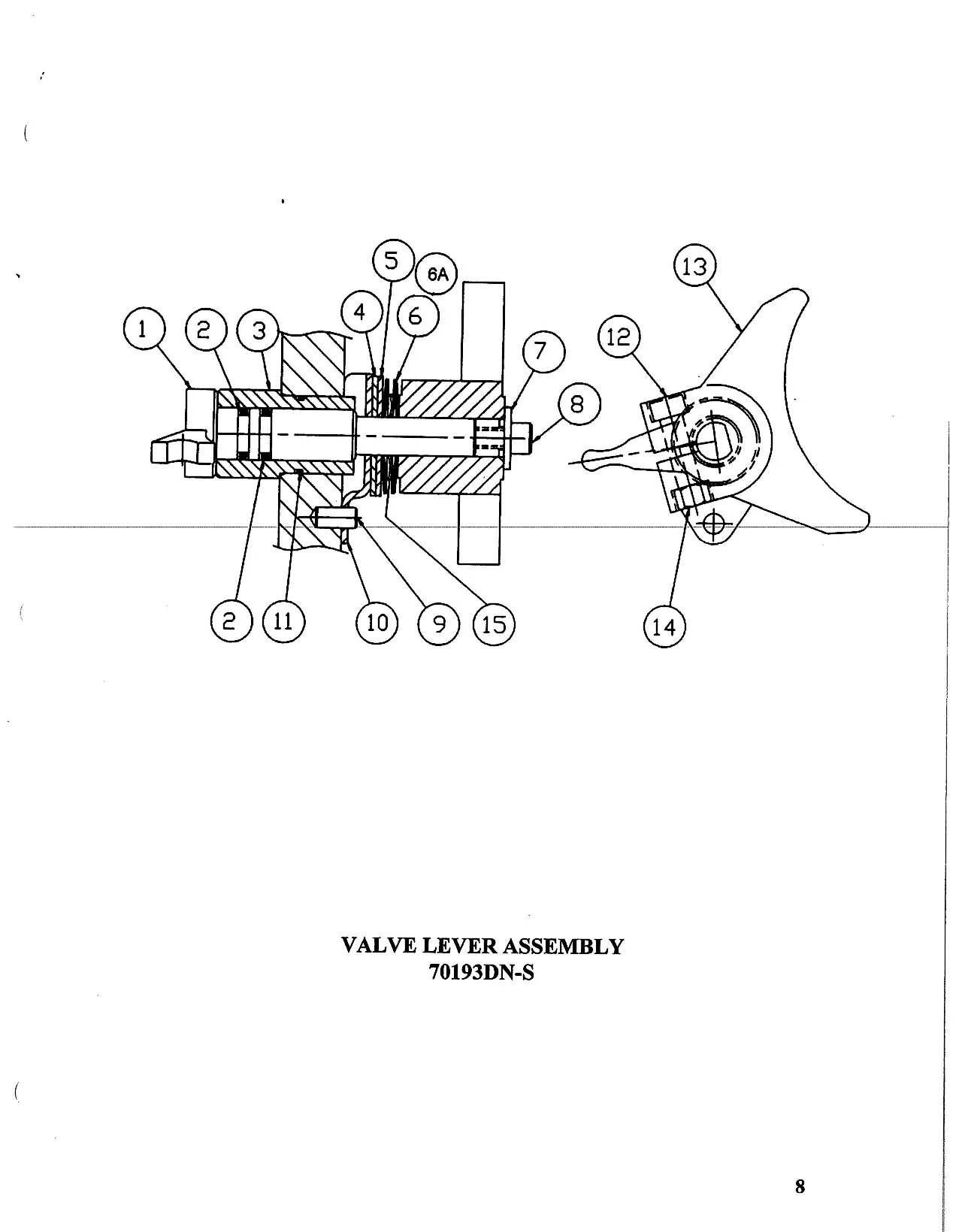

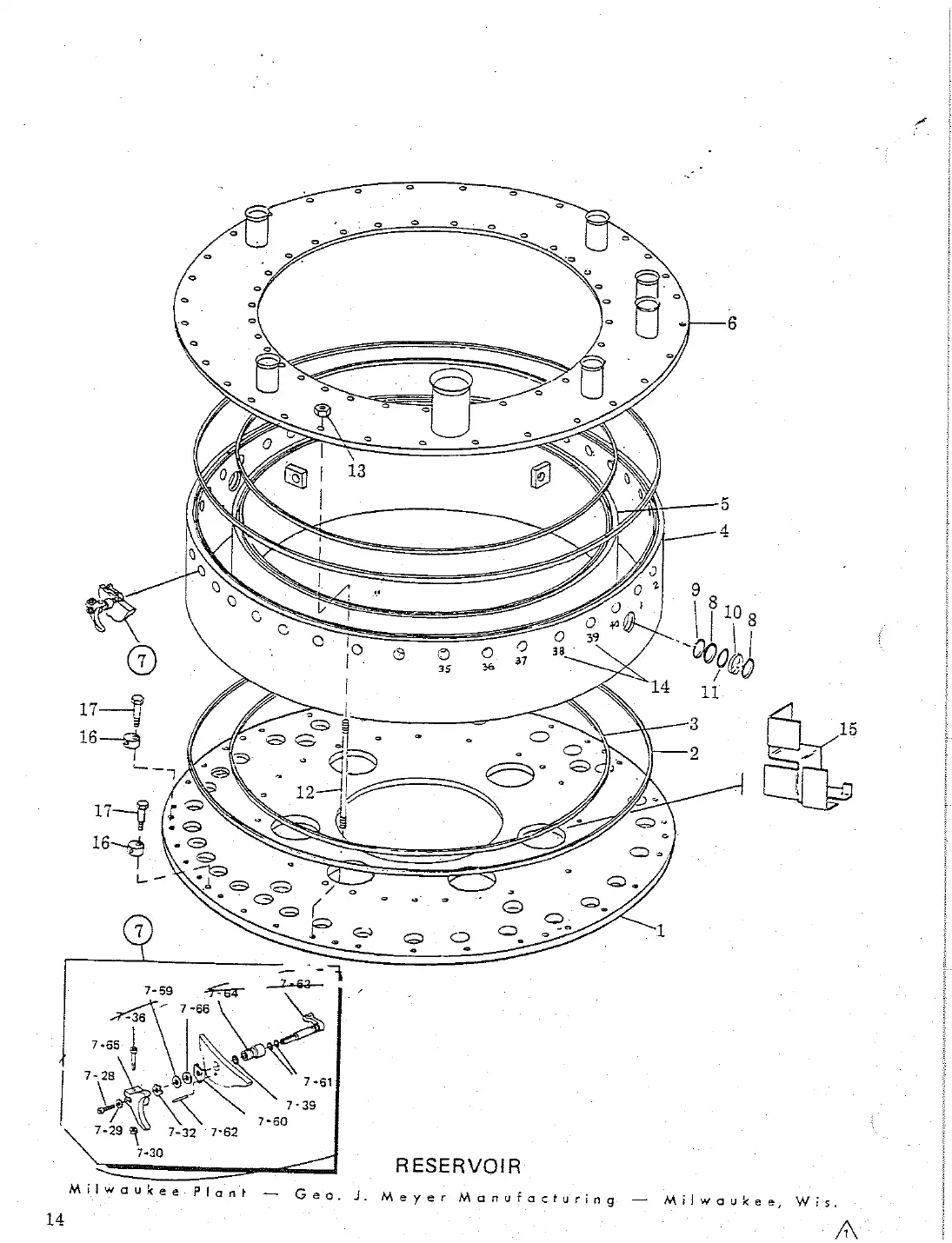

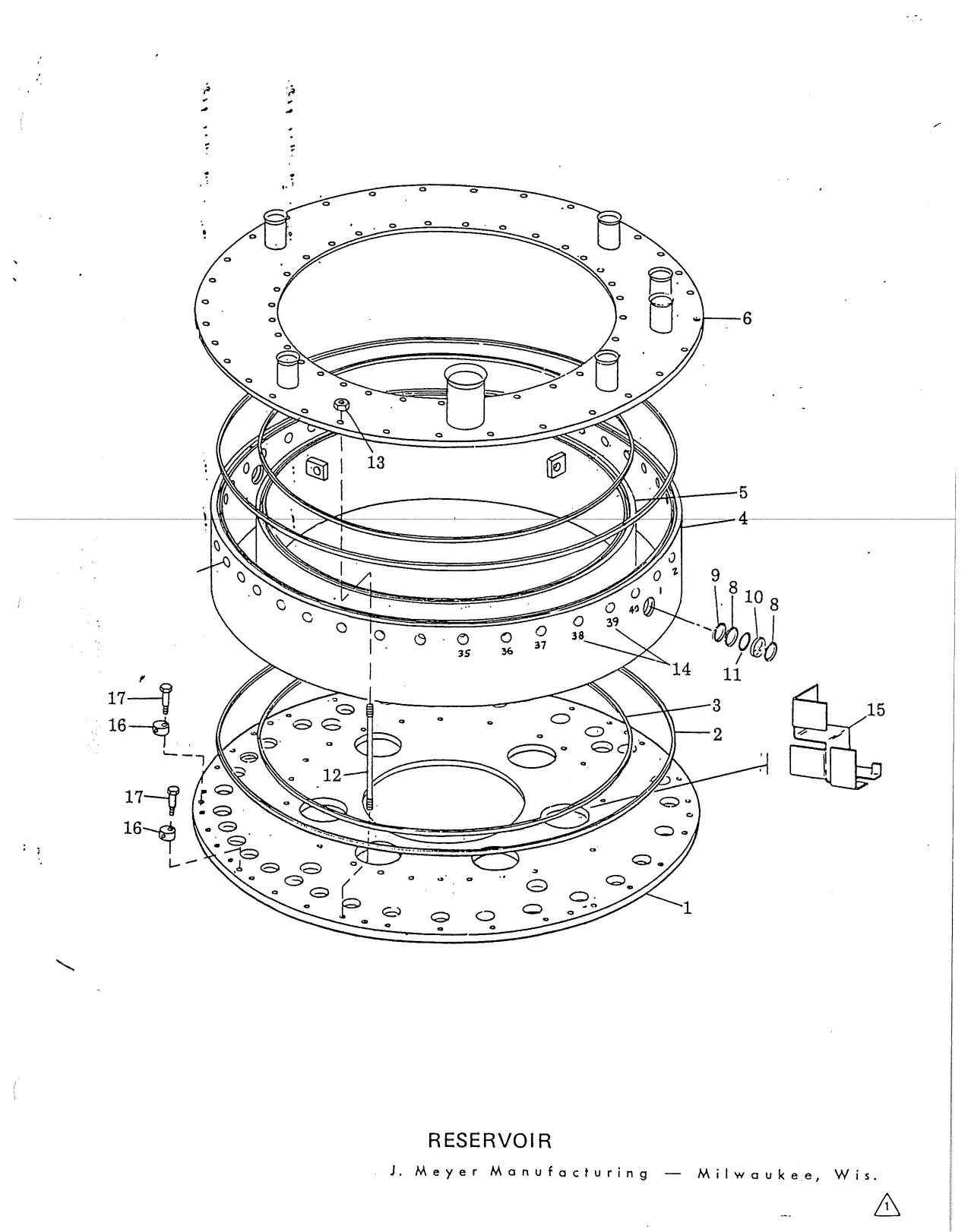

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
7-82	104-51961045196	Washer, wave	Request
7-36	102-13021021302	Screw, socket head cap	Request
7-39	1045093104-5093	O-ring	Request
7-61	100-25111002511	O-ring, edpm, dash	Request
2	000-2682	Gasket, outer specify length	Ask us
7-62	102-12731021273	Pin, dowel	Request
7-64	135-08651350865	Bushing, valve lever	Request
7-65	135-09601350960	Lever, valve operating	Request
7-66	135-08431350843	Washer	Request
5	903-94019039401	Ring, inner, 48V family	Request
8	131-1767	Gasket, sight glass	Ask us
9	100-97751009775	Ring, retaining	Request
11	100-25071002507	O-ring	Request
12	133-9146	Stud	Ask us
14	101-2237	Number, set	Ask us
7-28	102-0707	Screw, socket head	Ask us
15	133-91671339167	Baffle, reservoir, 48V	Request
7-29	102-04151020415	Washer, flat	Request
16	135-40361354036	Positioner, bowl	Request
17	102-17881021788	Screw, shoulder soc hd	Request
10	131-33601313360	Sight glass	Request
13	102-24101022410	Nut, hex astm	Request
11	100-7648	Valve, diaphragm \)	Ask us
12	100-61131006113	Nipple, close	Request
14	100-46561004656	Bushing, reducing hex	Request
2	104-60081046008	Cap, thermometer	Request
16	100-89111008911	Bushing, reducing hex	Request
8	100-21421002142	Clamp, hinged sanitary	Request
17	104-63601046360-DT-10	Thermometer, digital, sani flow	Request
18	100-53721005372	Elbow, 90 deg	Request
8	100-96671009667	Elbow, street	Request
10	100-00341000034	Cap, solid end	Request

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

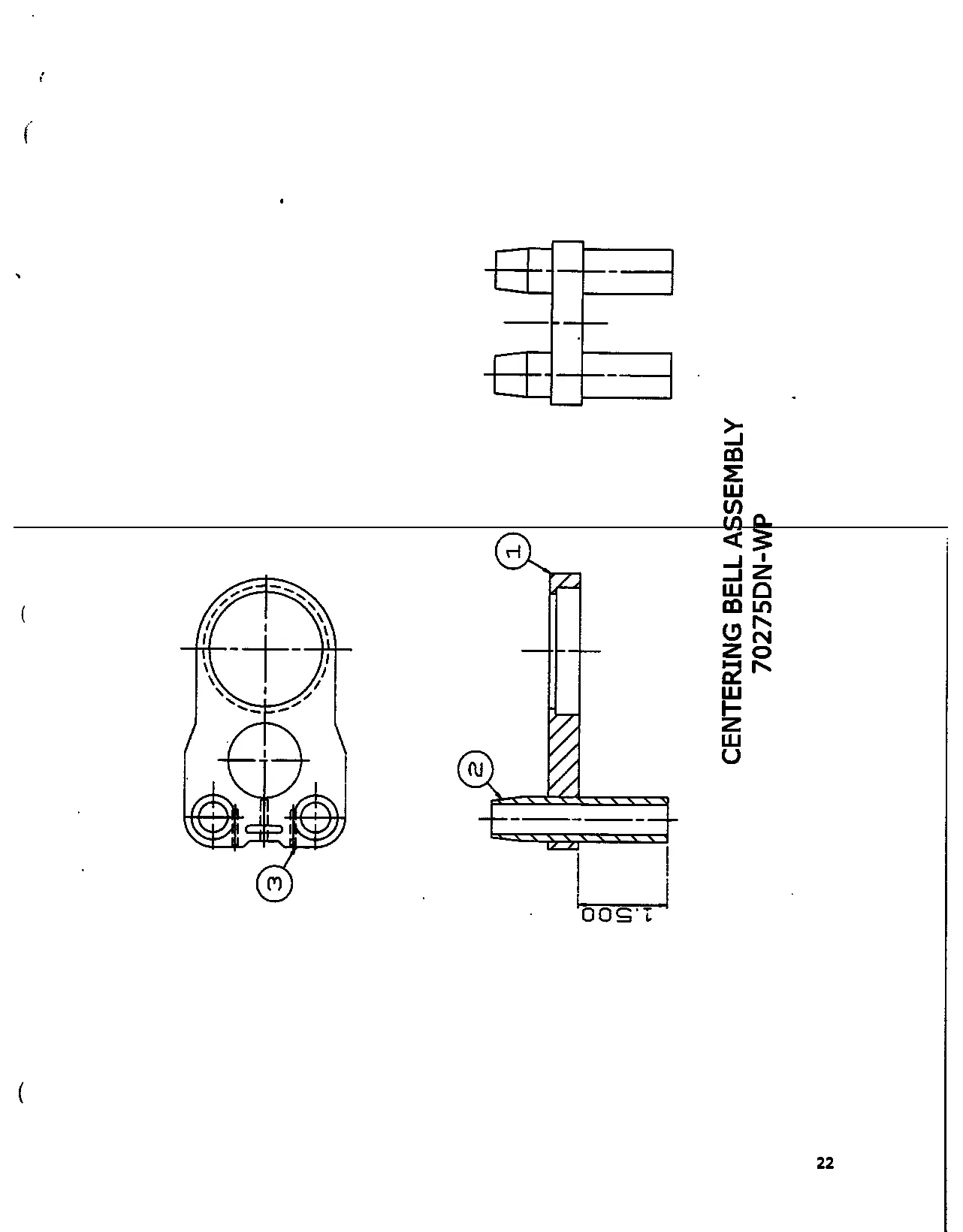

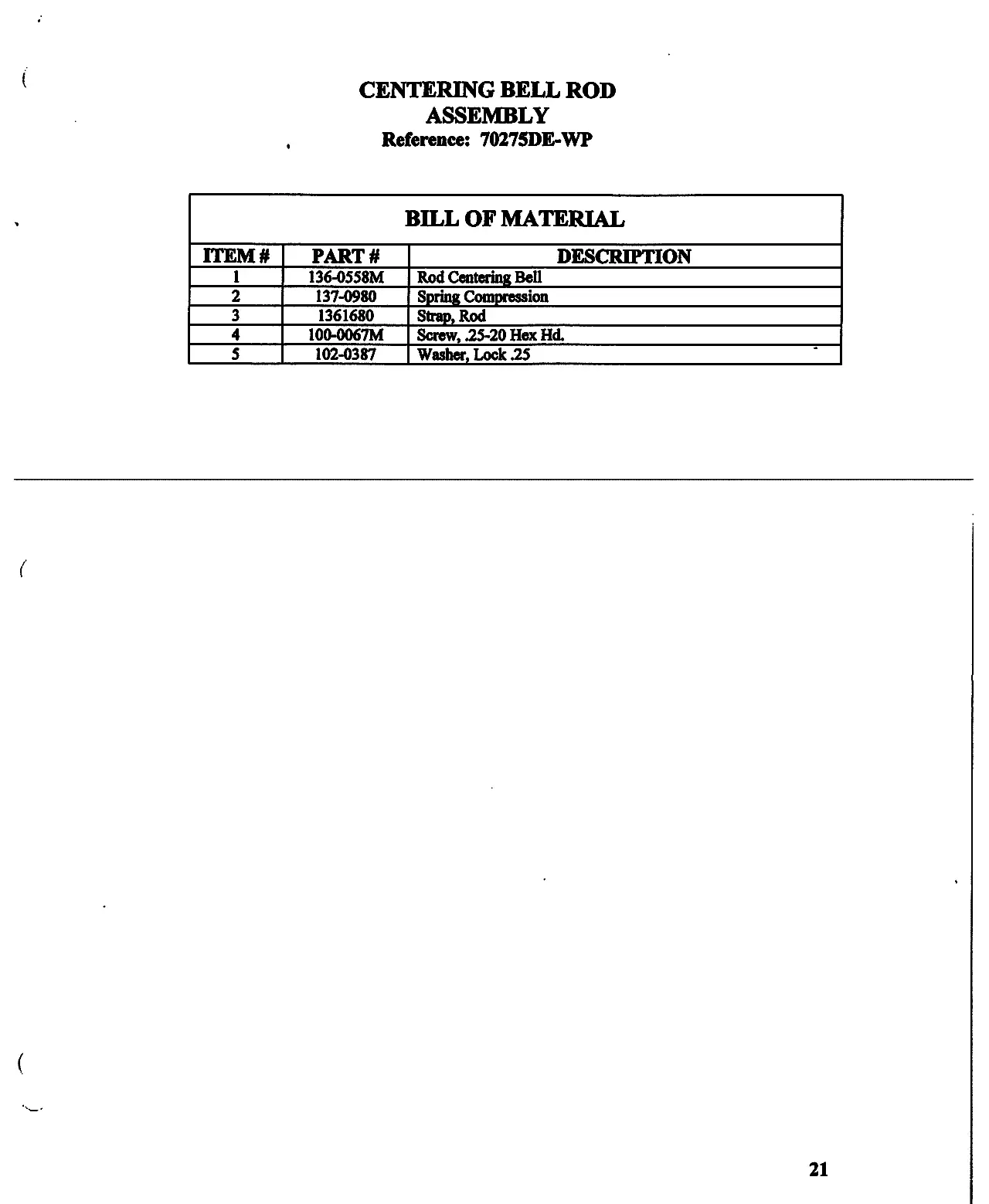

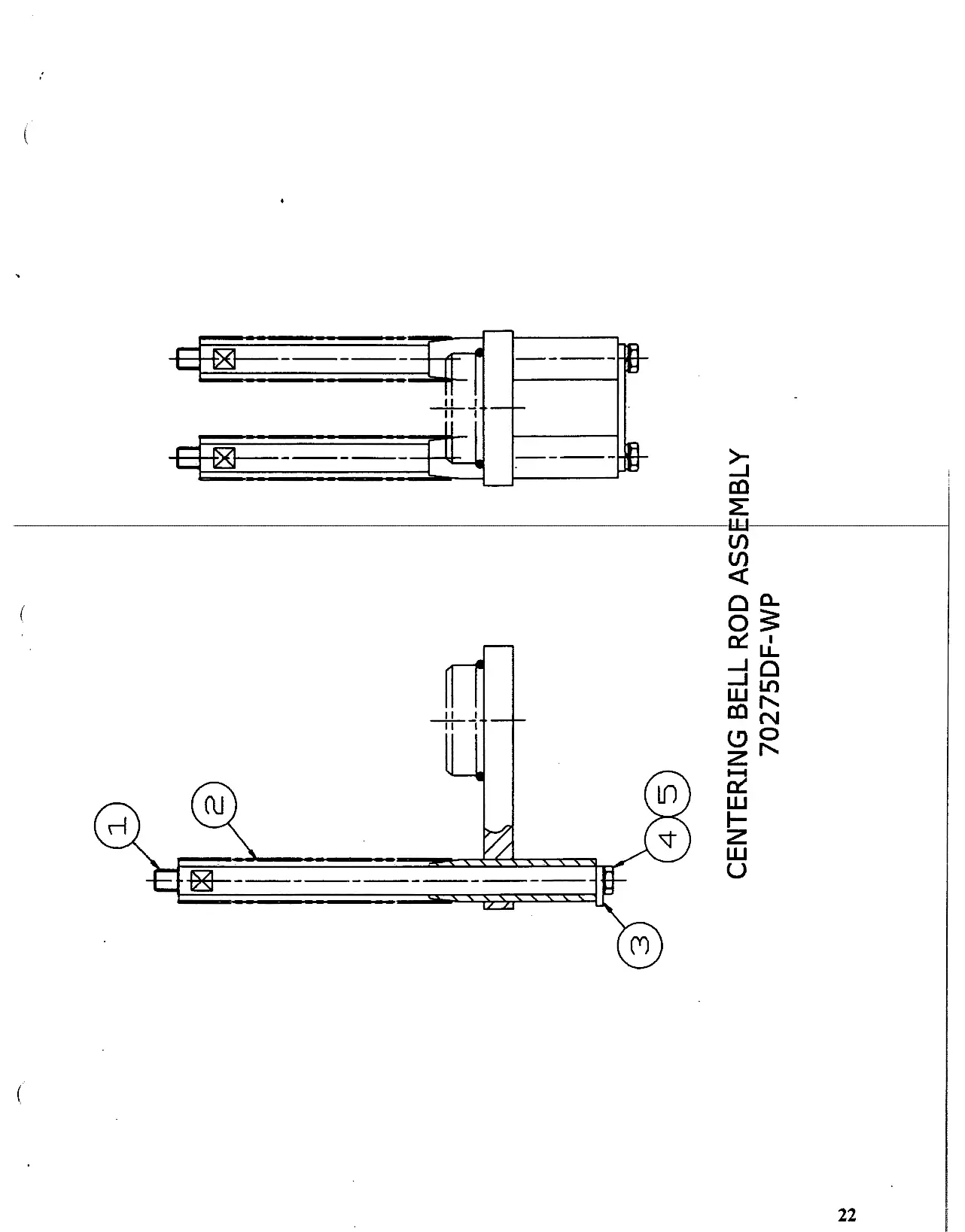

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Open full size

Ref	Part number	Description
4	133-68151336815	Strap, centering bell family	Request
5	102-0887	Lockwasher	Ask us
6	102-00671020067	Bolt, hex head	Request
2	135-19451351945	Spring, centering device	Request
3	135-1227	Support, bushing bell	Ask us

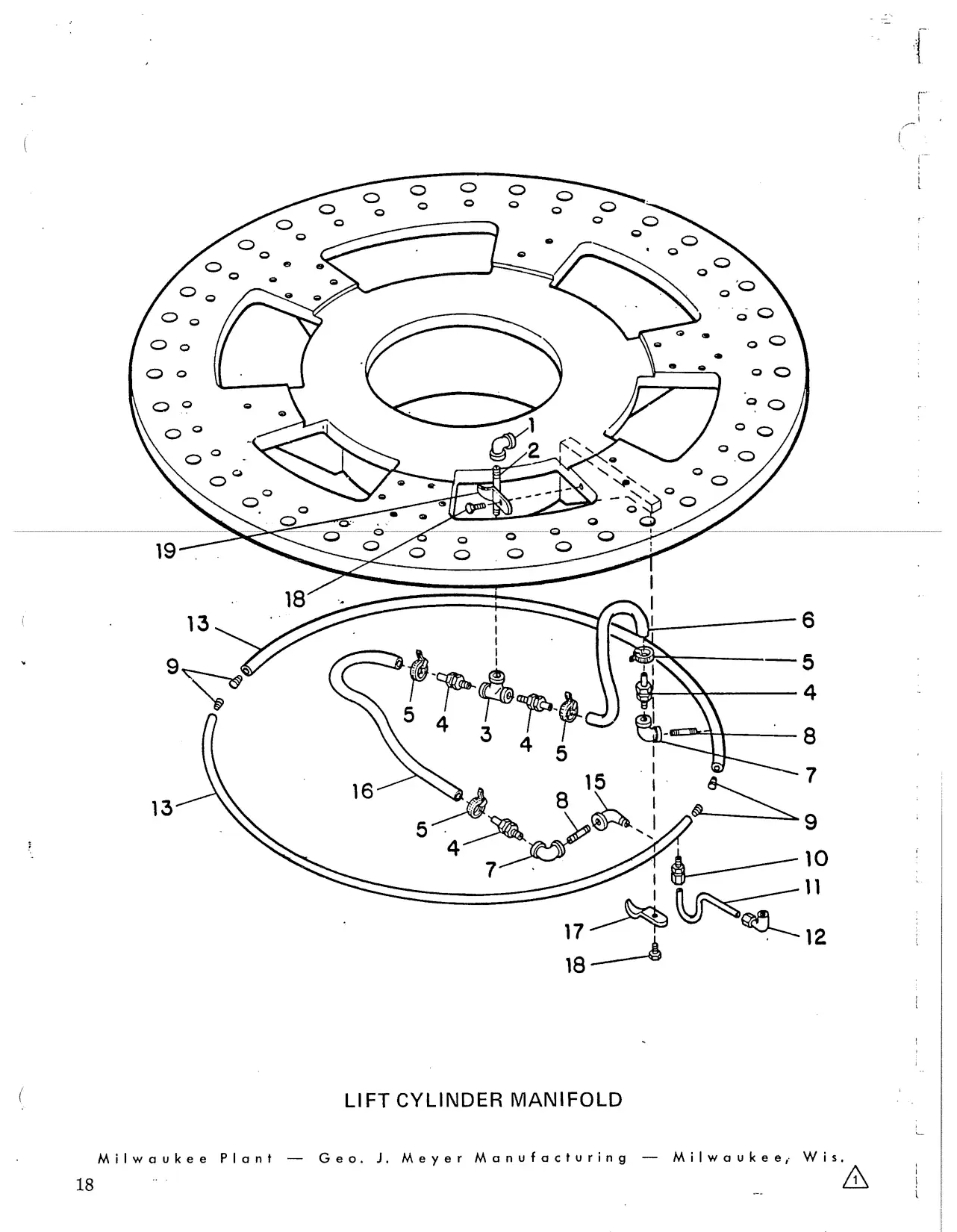

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full sizeOpen full size

Ref	Part number	Description
9	100-11531001153	Plug, pipe countersunk	Request
10	100-09271000927	Fitting, tube adapter	Request
12	100-14721001472	Elbow, tube	Request
1	100-08571000857	Elbow	Request
2	100-3630	Nipple header, air valve std	Ask us
3	100-08841000884	Tee	Request
4	101-01081010108	Fitting, barbed	Request
16	000-34890003489	Tubing, CO2/air braided hose	Request
5	100-30771003077	Clamp, hose clamp	Request
17	100-32001003200	Clamp, air lift manifold	Request
7	100-3976	Elbow, reducing	Ask us
18	102-00121020012	Hex head bolt	Request
8	100-2734	Nipple	Ask us
19	100-3199	Clamp	Ask us
11	133-91661339166	Tube, air lifts	Request

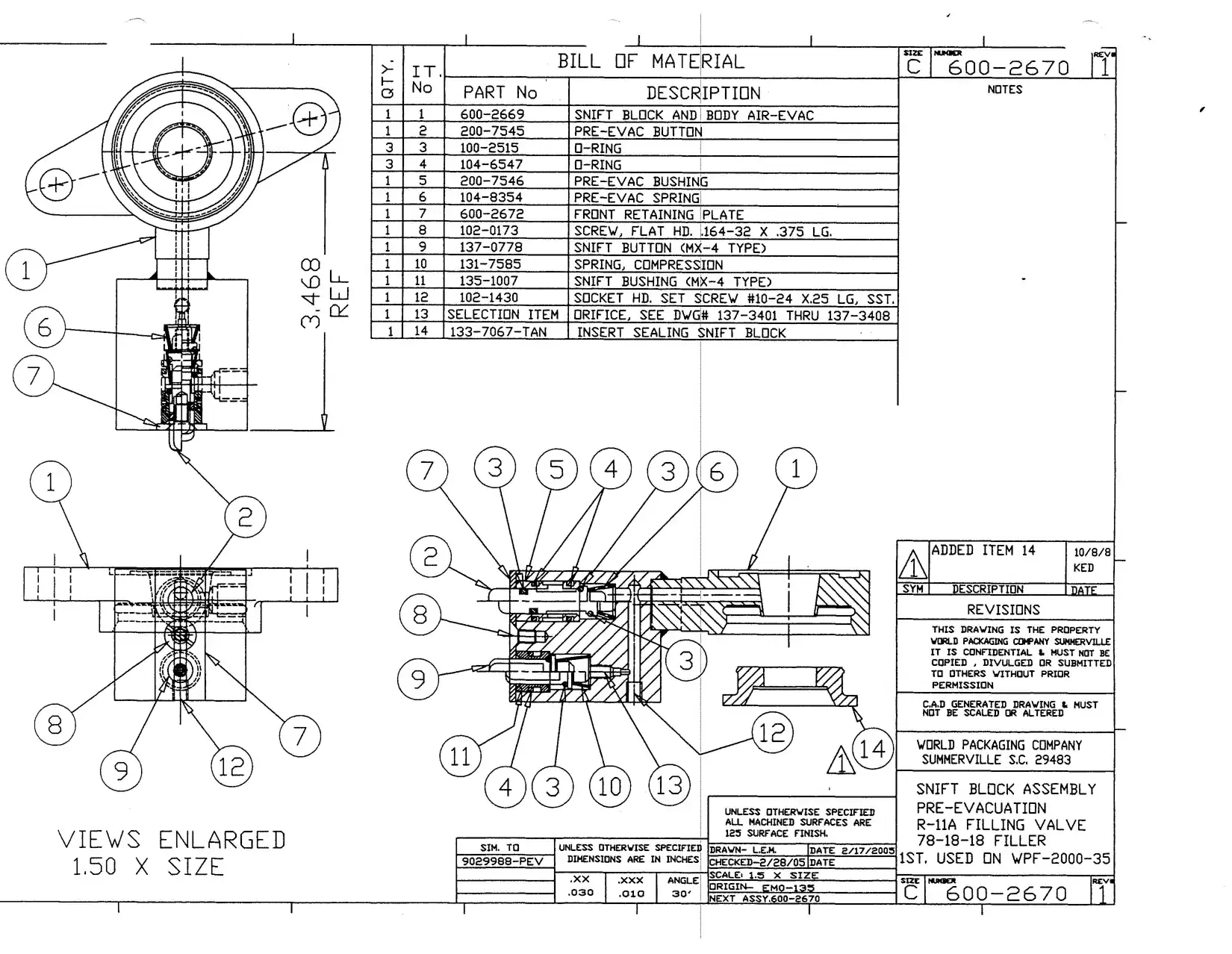

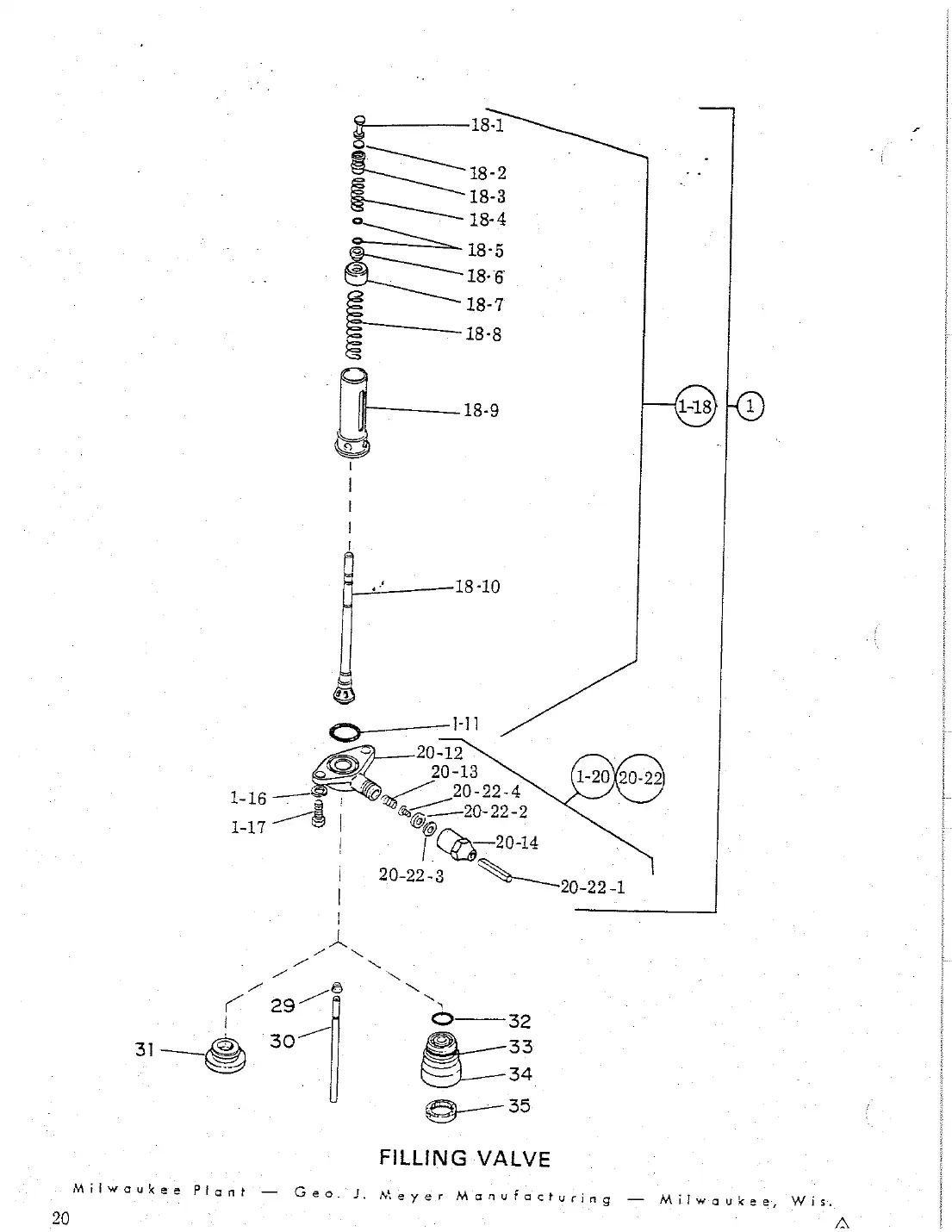

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
20-12	133-70661337066	Snift, block valve R-11A	Request
1-1	104-51091045109	O-ring, valve assembly R11/R19, R20, MX	Request
20-14	133-81231338123	Nut, snift, fillers	Request
1-16	102-03891020389	Washer, lock	Request
20-22	903-9507	Insert, snift block assembly	Ask us
1-17	102-00891020089	Bolt, hex head	Request
18-1	132-64011326401	Cap, charging valve	Request
20-22-3	RR-647RR647	Seat, snift valve	Request
18-2	100-93201009320	Seal, charging cap	Request
22-4	102-23571022357	Screw, round head	Request
18-3	132-88111328811	Body, charging valve	Request
129	131-88651318865	Spreader, vent tube	Request
18-5	100-34821003482	O-ring	Request
18-6	132-64041326404	Retainer, O-ring	Request
18-7	132-63991326399	Collar, guide	Request
32	101-0107	O-ring	Ask us
18-8	131-69891316989	Spring, post valve R-11 series	Request
33	100-40331004033	O-ring	Request
18-9	902-7467	Cage, valve spring	Ask us
34	135-1636	Insert, ctrg cup	Ask us
18-10	903-8686	Stem, valve assembly	Ask us
35	133-7991	Sealing, rubber	Ask us

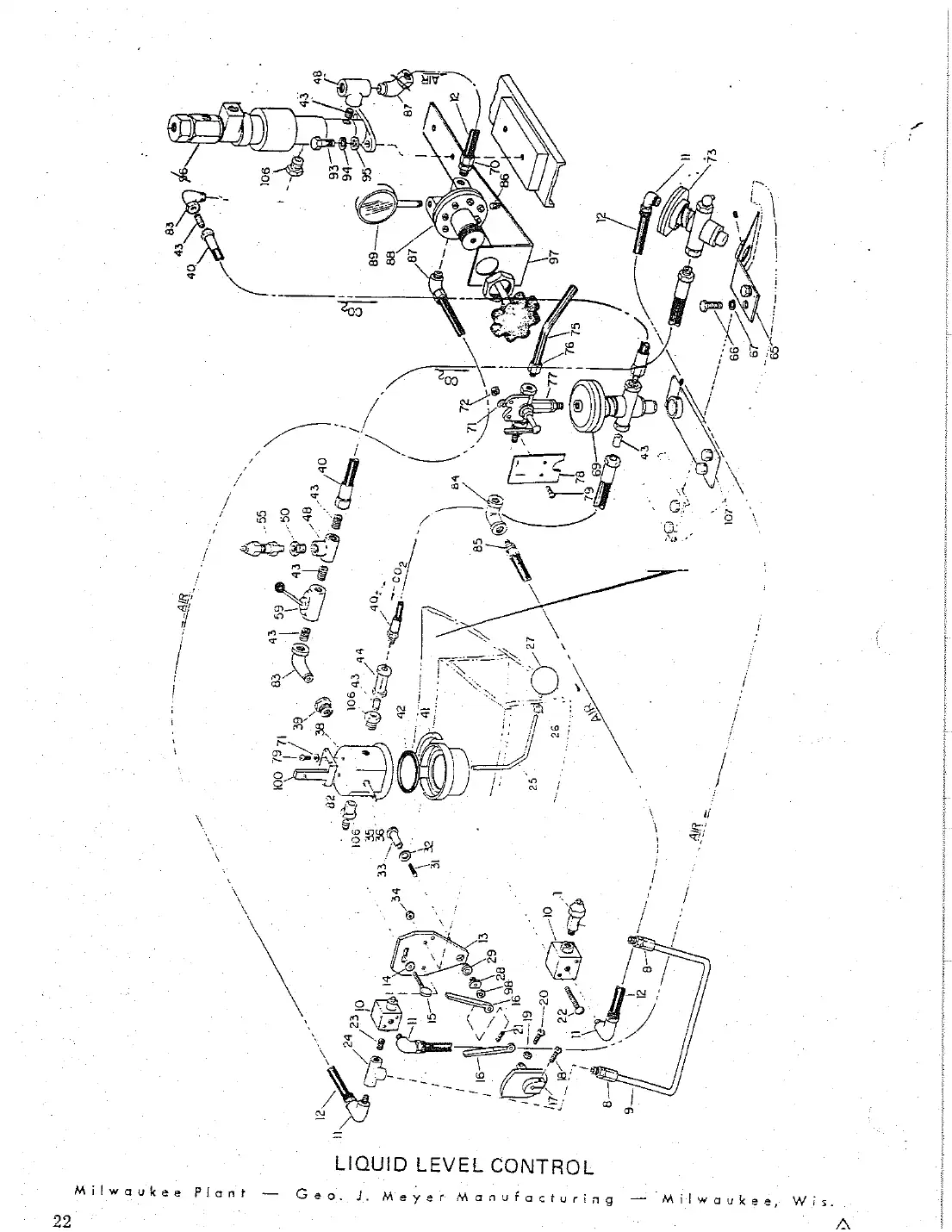

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
42	100-21351002135	Gasket, tri clamp	Request
43	100-61101006110	Nipple, close	Request
44	100-53761005376	Valve, check	Request
1	HH-3485HH3485	Valve, body clean out 52V family	Request
48	100-53711005371	Tee	Request
8	100-09231000923	Fitting, tube	Request
50	100-46581004658	Bushing, reducing hex	Request
9	000-17490001749	Tubing	Request
55	HH-167HH167	Valve, clean out assembly	Request
10	HH-8698HH8698	Valve, air body assembly OEM	Request
59	100-79931007993	Valve, on/off, female male	Request
11	100-53251005325	Elbow, male connector	Request
65	HH-8690HH8690	Bracket, diaphragm valve-mount	Request
12	000-35190003519	Tubing, poly-flo	Request
66	102-01001020100	Bolt, hex head	Request
13	HH-8691HH8691	Plate, mounting	Request
67	102-03901020390	Washer, lock	Request
14	102-04151020415	Washer, flat	Request
69	100-47681004768	Valve, diaphragm	Request
15	102-21001022100	Screw, thumb	Request
70	100-09261000926	Fitting, tube adapter	Request
16	HH-8695HH8695	Lever, oper liquid level control	Request
71	102-0887	Lockwasher	Ask us
17	HH-8696HH8696	Plate, operating liq level	Request
73	902-35209023520	Valve, level control	Request
18	102-07751020775	Screw, fillister hd	Request
75	000-17500001750	Tubing	Request
19	102-03321020332	Nut, hex	Request
20	102-07731020773	Screw, fillister hd	Request
77	900-01679000167	Valve, run / charge	Request
21	HH-2416HH2416	Spring, operating	Request
22	102-02931020293	Screw, round head slot	Request
79	102-02951020295	Screw, round head slot	Request
23	100-61091006109	Nipple, close	Request
82	100-87241008724	Plug, pipe square head	Request
24	100-54901005490	Tee	Request
83	100-46601004660	Elbow, street 90 deg	Request
84	100-08531000853	Elbow	Request
26	102-03381020338	Nut, hex jam	Request
85	100-09251000925	Fitting, tube adapter bras	Request
27	104-60211046021	Float, ball	Request
86	100-08711000871	Plug, pipe	Request
28	HH-2410HH2410	Gland, packing	Request
87	100-14681001468	Elbow, tube male bras	Request
29	HH-8692HH8692	Retainer, bushing mounting	Request
88	100-29651002965	Regulator, pressure pilot	Request
31	102-1433	Wick, climax strand	Ask us
89	100-46181004618	Gauge, pressure	Request
32	RR-228RR228	Gasket, air inlet valve bo	Request
93	102-00911020091	Bolt, hex head	Request
33	133-69761336976	Box, stuffing liquid level	Request
94	102-03891020389	Washer, lock	Request
34	102-05531020553	Nut, hex	Request
95	102-20021022002	Washer, flat	Request
85	133-69751336975	Stem, float control	Request
96	100-48261004826	Rotary, joint 3 passage	Request
97	130-6290	Bracket, mounting	Ask us
38	133-69731336973	Housing, float level control	Request
98	HH-2414HH2414	Nut, lock stuffing box	Request
39	100-89121008912	Bushing, reducing hex	Request
100	135-11631351163	Bracket, liquid level cont	Request
40	900-1240	Hose assembly bushing	Ask us
41	100-21441002144	Clamp, hinged sanitary	Request
48	100-5871	Tee	Ask us
71	102-03871020387	Washer, lock	Request
78	130-11831301183	Plate, operator	Request
25	135-71251357125	Lever, float	Request
36	102-04371020437	Screw, set socket cup point	Request
106	100-89081008908	Bushing, reducing hex	Request

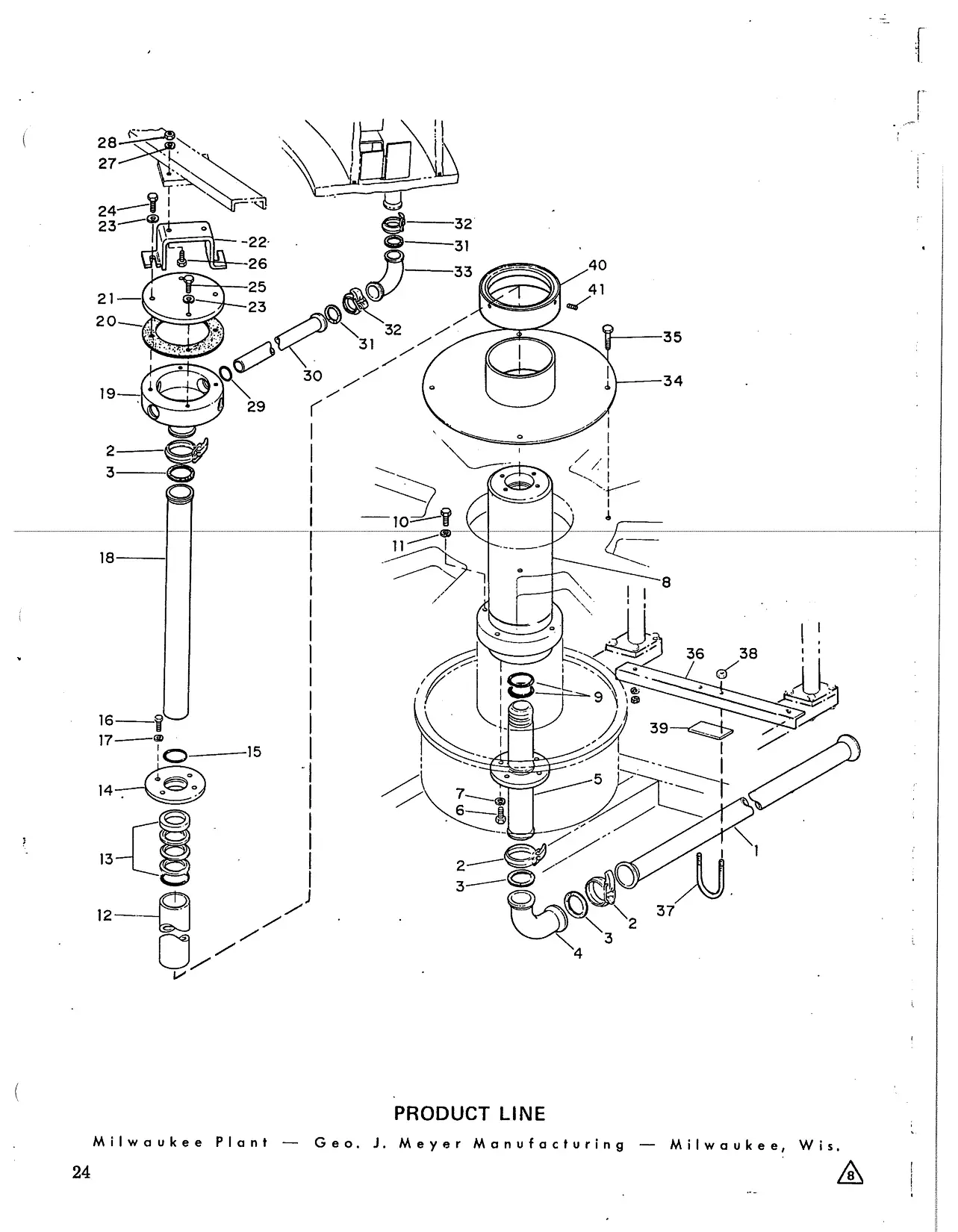

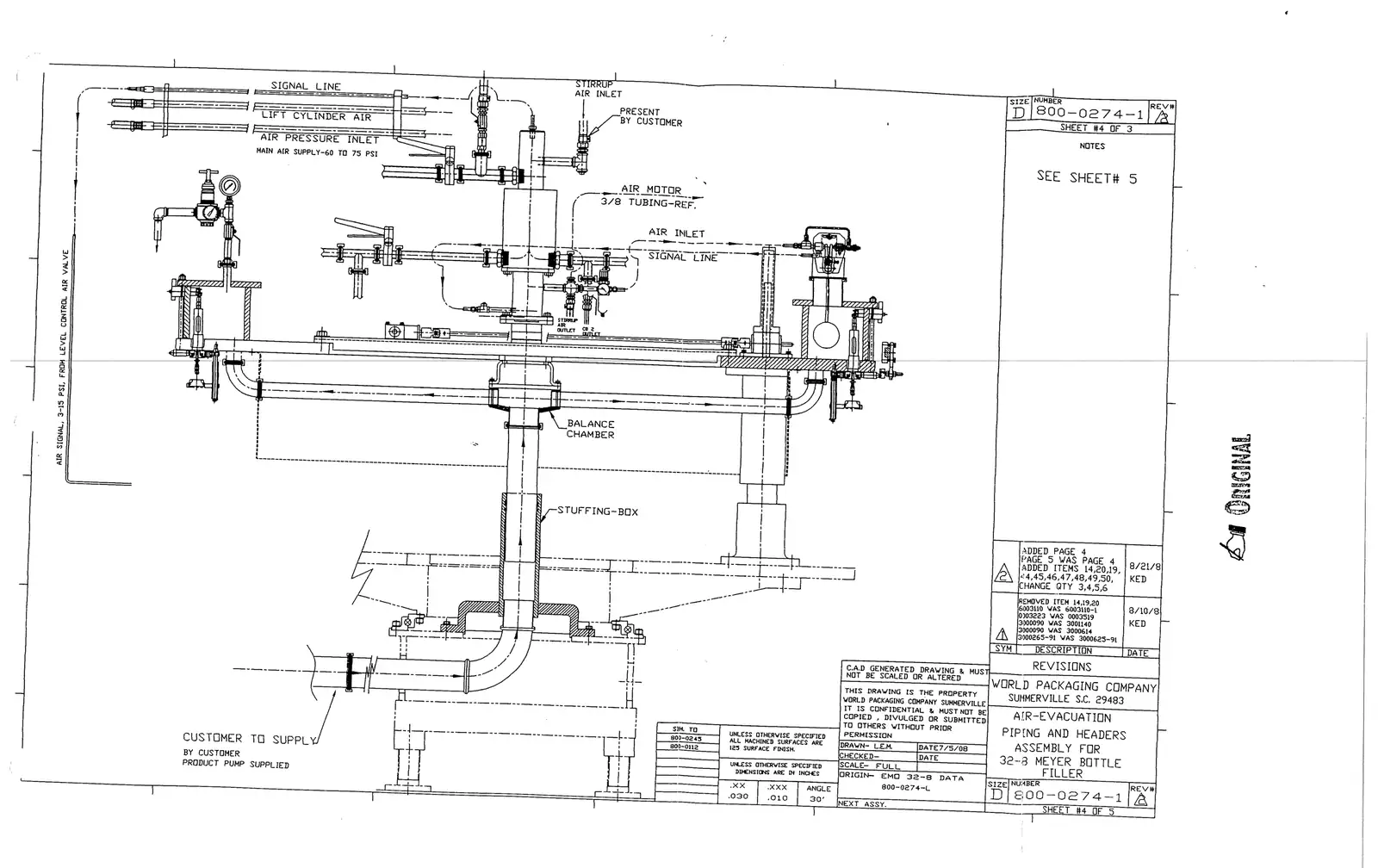

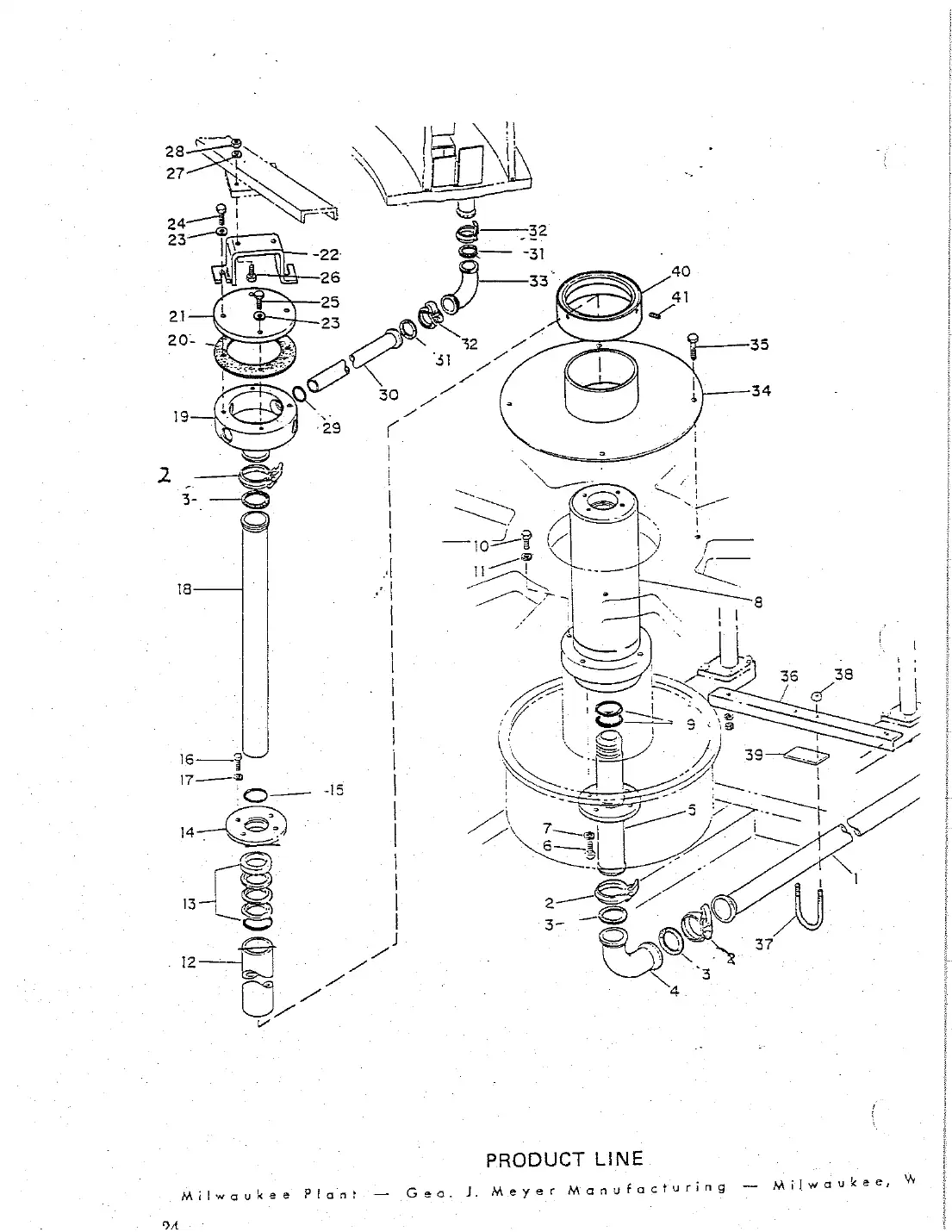

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full size

Ref	Part number	Description
22	133-91361339136	Spacer, rotating element 32V	Request
23	102-03881020388	Washer, lock	Request
1	902-12419021241	Product supply line 48V fille	Request
24	102-00781020078	Hex head bolt	Request
2	100-00271000027	Clamp, hinged sanitary	Request
25	102-00761020076	Bolt, hex head	Request
3	100-00281000028	Gasket, tri-clamp	Request
26	102-01021020102	Bolt, hex head	Request
4	100-41481004148	Elbow, 90 deg	Request
27	102-03901020390	Washer, lock	Request
5	9042634904-2634	Line, supply for 60-12 qt & pt	Request
28	102-03351020335	Nut, hex	Request
6	102-00911020091	Bolt, hex head	Request
29	1004025100-4025	O-ring	Request
380	104-61431046143	Ferrule, rotating element	Request
8	903-81889038188	Center column machining, 48V	Request
31	100-21331002133	Gasket, tri-clamp tube	Request
9	100-41631004163	O-ring, product line lower	Request
32	104-63821046382	Clamp, hinged san thin	Request
10	102-0030	Screw, hex head	Ask us
33	100-41461004146	Elbow, 90 deg	Request
11	102-03801020380	Washer, lock	Request
34	135-47351354735	Flange, cover	Request
12	132-20911322091	Bushing, stuffing box gland	Request
35	102-00641020064	Bolt, hex head	Request
13	101-25231012523	Packing, v ring set	Request
386	135-06711350671	Angle, support	Request
14	903-89869038986	Bushing, stuffing box	Request
88	102-03401020340	Nut, hex jam	Request
16	102-07101020710	Bolt, hex head	Request
39	000-35110003511	Sheet	Request
17	102-03871020387	Washer, lock	Request
40	904-48279044827	Collar dwg bom	Request
18	104-61421046142	Vertical supply line	Request
19	903-81489038148	Balance, chamber -outlets	Request
2	102-0711	Nut, wing	Ask us
85	102-04181020418	Washer, flat	Request
3	131-83801318380	U-bolt	Request
8	102-18021021802	Screw, socket head cap	Request
87	102-01011020101	Bolt, hex head	Request
7	102-0887	Lockwasher	Ask us
88	000-3936	Rod, treaded specify length	Ask us
8	102-03321020332	Nut, hex	Request
89	102-03861020386	Washer, lock	Request
9	102-10751021075	Socket head cap screw	Request
90	102-05531020553	Nut, hex	Request
10	000-3080	Hose specify length	Ask us
91	100-5324	Connector	Ask us
13	102-1420	Screw, socket head set	Ask us
92	000-35190003519	Tubing, poly-flo	Request
14	102-0297	Screw, hex head	Ask us
93	100-3085	Connector	Ask us
18	133-9311	Bracket	Ask us
94	000-17490001749	Tubing	Request
19	102-08641020864	Screw, square hd cup pt	Request
102	135-0953	Bracket, snift cam	Ask us
103	135-0968	Track, valve closer	Ask us
21	H-1840	Bracket	Ask us
104	135-0961	Cladding, valve closer	Ask us
23	102-06631020663	Washer, lock external	Request
106	135-0964	Cladding, valve closer	Ask us
24	133-91711339171	Cam, neutral RH	Request
107	135-0954	Track, valve closer	Ask us
108	135-0962	Cladding, valve closer	Ask us
28	104-6235	Cylinder	Ask us
109	135-0957	Trace, valve closer	Ask us
34	102-03891020389	Washer, lock	Request
40	102-03341020334	Nut, hex	Request
111	135-0955	Track, valve closer	Ask us
45	133-6759	Cam, plate liner track	Ask us
46	133-93831339383	U-bolt	Request
115	102-01841020184	Screw, flat head slot	Request
48	102-00891020089	Bolt, hex head	Request
116	100-14661001466	Elbow, tube male	Request
76	102-05741020574	Pin, cotter	Request
118	100-09241000924	Fitting, tube adapter	Request
119	100-14401001440	Nipple	Request
78	H-478H478	Bracket, valve closer	Request
122	104-6238	Lubricator	Ask us
79	130-86171308617	Pin, valve closer hinge	Request
123	100-14421001442	Nipple, pipe	Request
80	104-63671046367	Spring, valve closer	Request
124	100-1465	Connector	Ask us
10	102-00801020080	Bolt, hex head	Request
15	100-25121002512	O-ring, upper lift cylinder	Request
42	104-61301046130	Sealant, rtv	Request

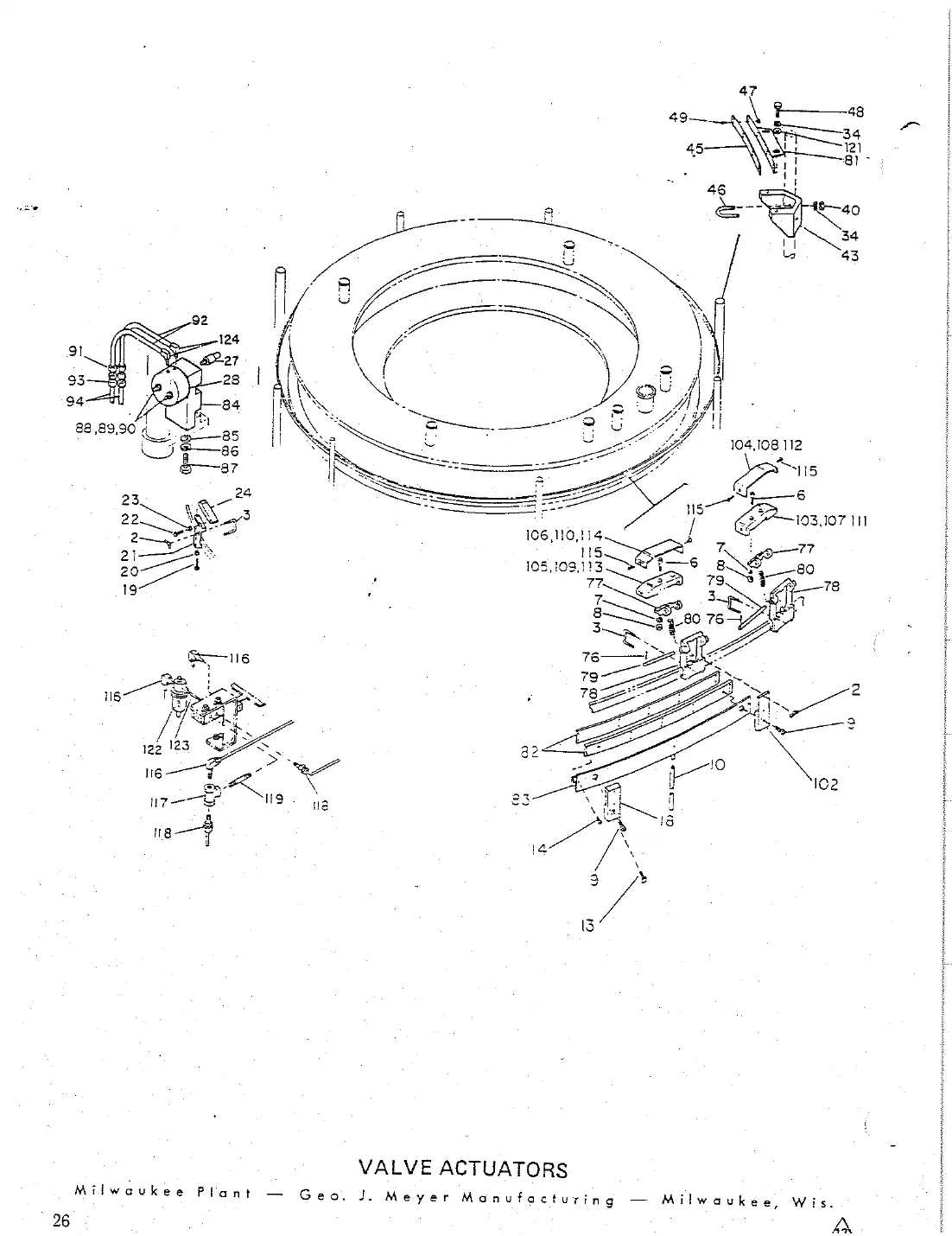

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
5	1045116104-5116	Valve, ports	Request
7	102-00711020071	Hex head bolt	Request
8	102-04151020415	Washer, flat	Request
9	102-03871020387	Washer, lock	Request
1	903-8730	Lever valve	Ask us
10	102-05731020573	Screw, socket head cap	Request
11	102-03321020332	Nut, hex	Request
2	135-1049	Pin	Ask us
18	102-03381020338	Nut, hex jam	Request
20	102-20021022002	Washer, flat	Request
4	903-8734	Bracket	Ask us
23	102-03891020389	Washer, lock	Request
13	102-00681020068	Bolt, hex head	Request
1	903-8399	Bracket, cam mounting	Ask us
16	104-5155	Spring, compression	Ask us
3	133-6736	Base, cam mounting	Ask us
18	000-0807	Flat	Ask us
4	133-6739	Shaft, cam holder	Ask us
19	102-1940	Pin, roll	Ask us
5	135-0881	Track, bottom cam	Ask us
20	135-08481350848	Shaft, lock bottle filler	Request
7	133-7461	Rod, cam adjusting	Ask us
23	102-03881020388	Washer, lock	Request
8	133-67401336740	Rod	Request
24	135-0647	Strap	Ask us
9	131-83801318380	U-bolt	Request
30	104-6311	Spring, extension	Ask us
10	102-0711	Nut, wing	Ask us
11	133-6745	Shield	Ask us
12	104-5183	Ring, retaining track	Ask us

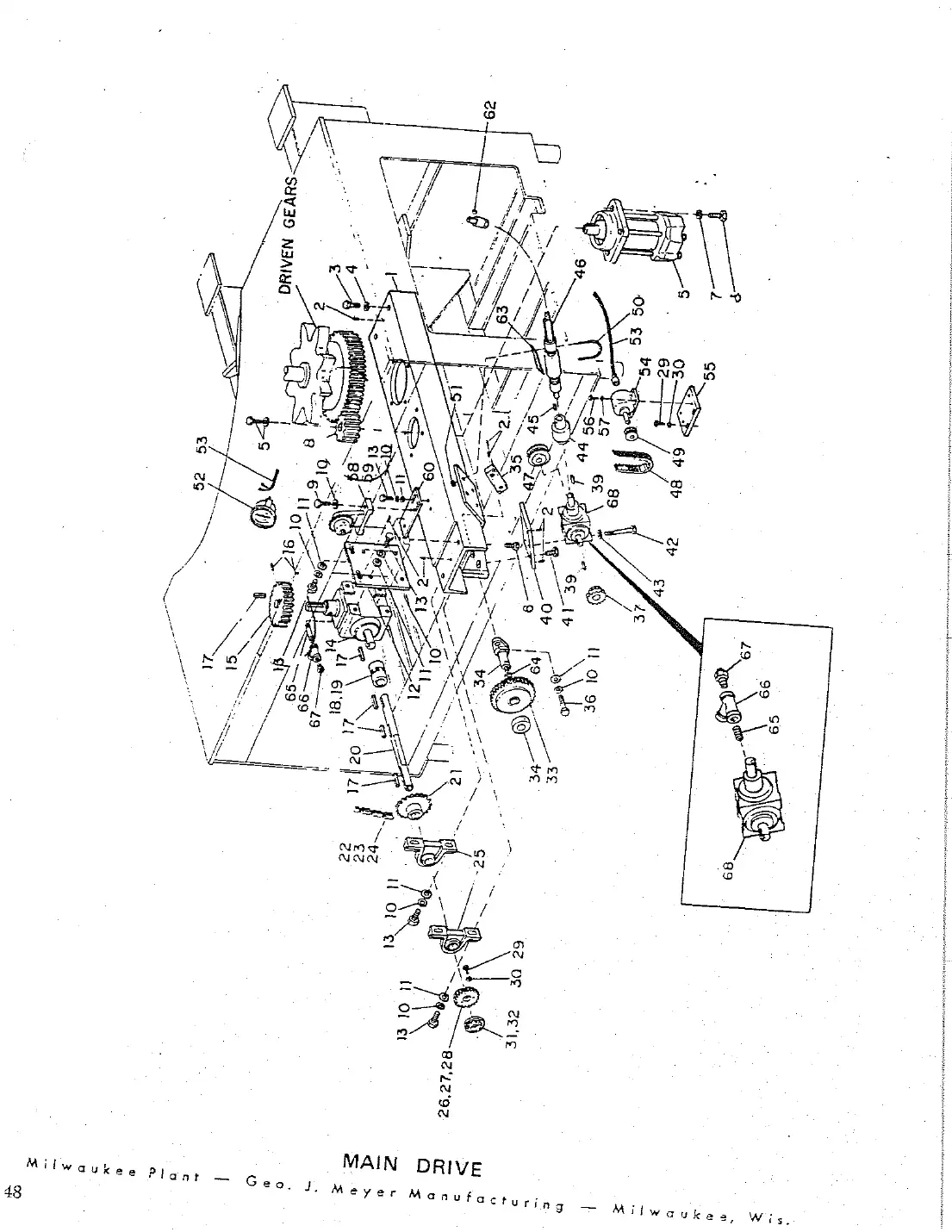

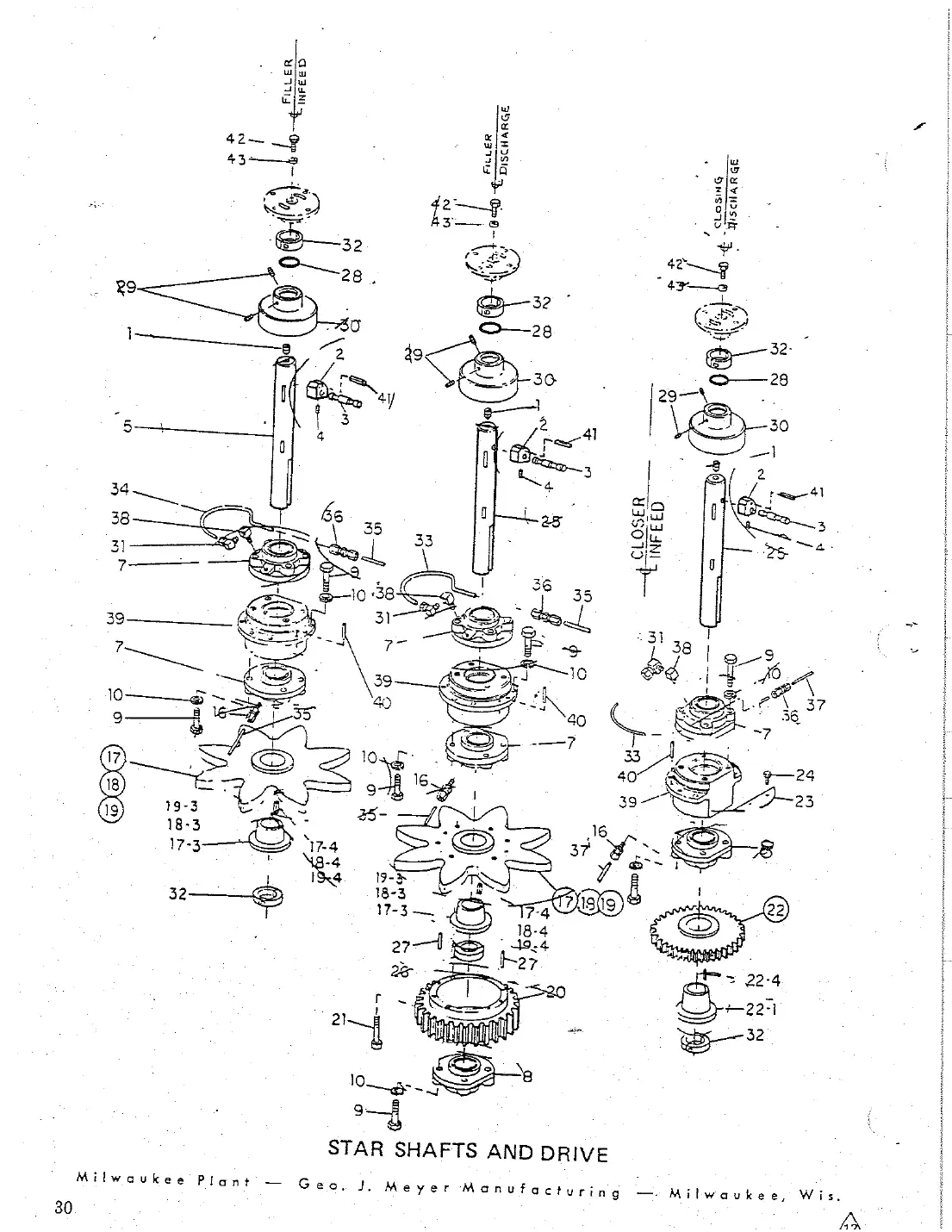

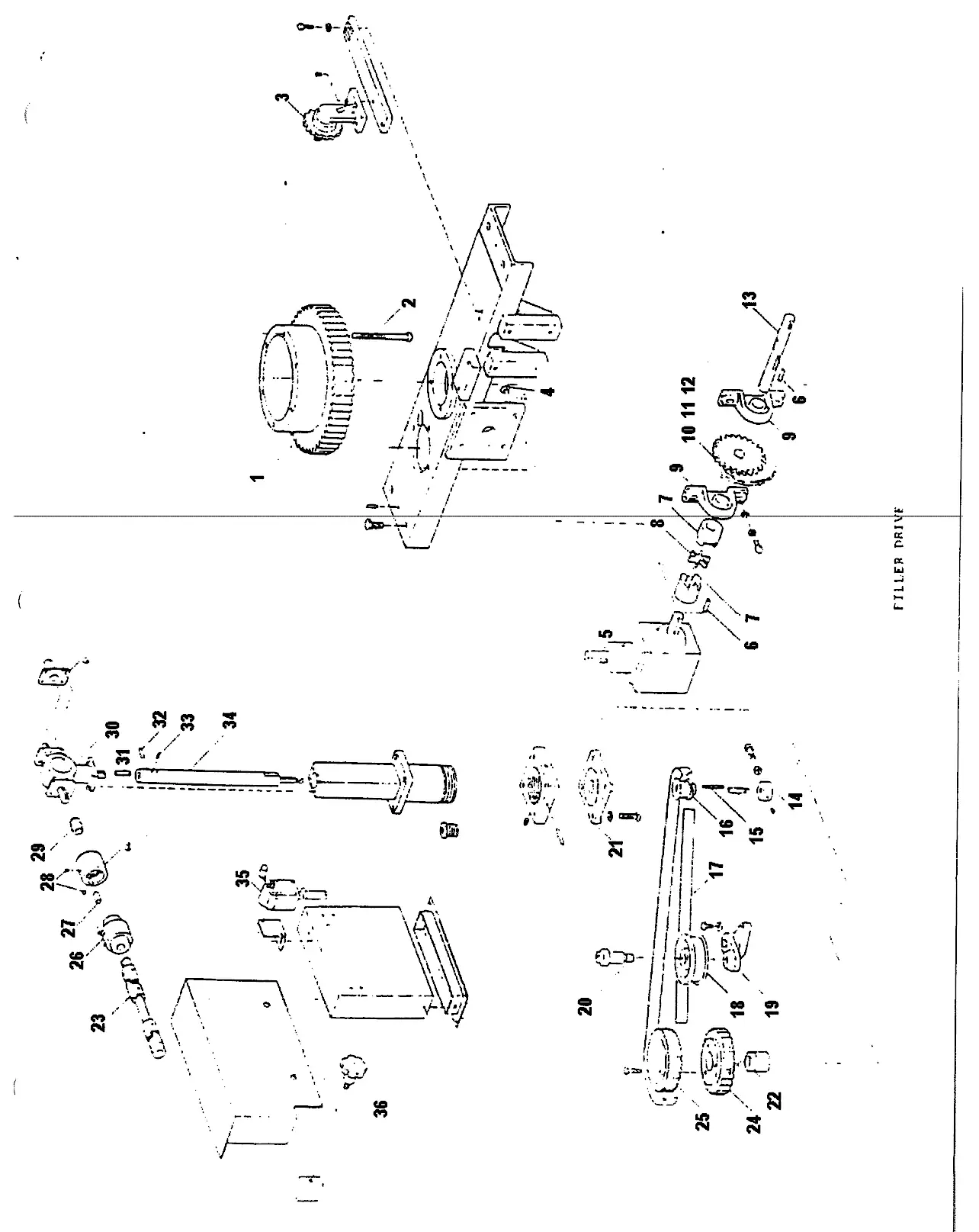

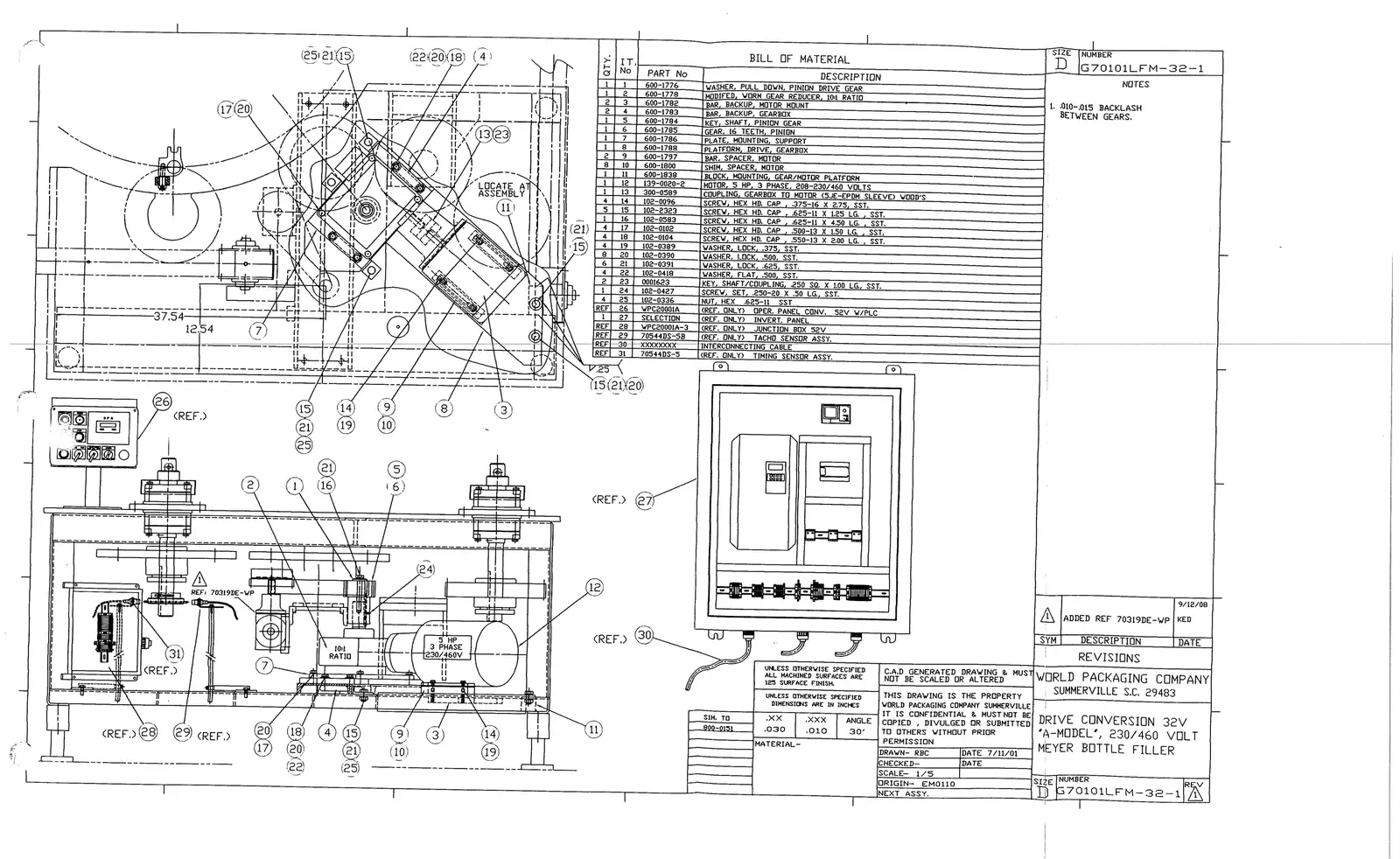

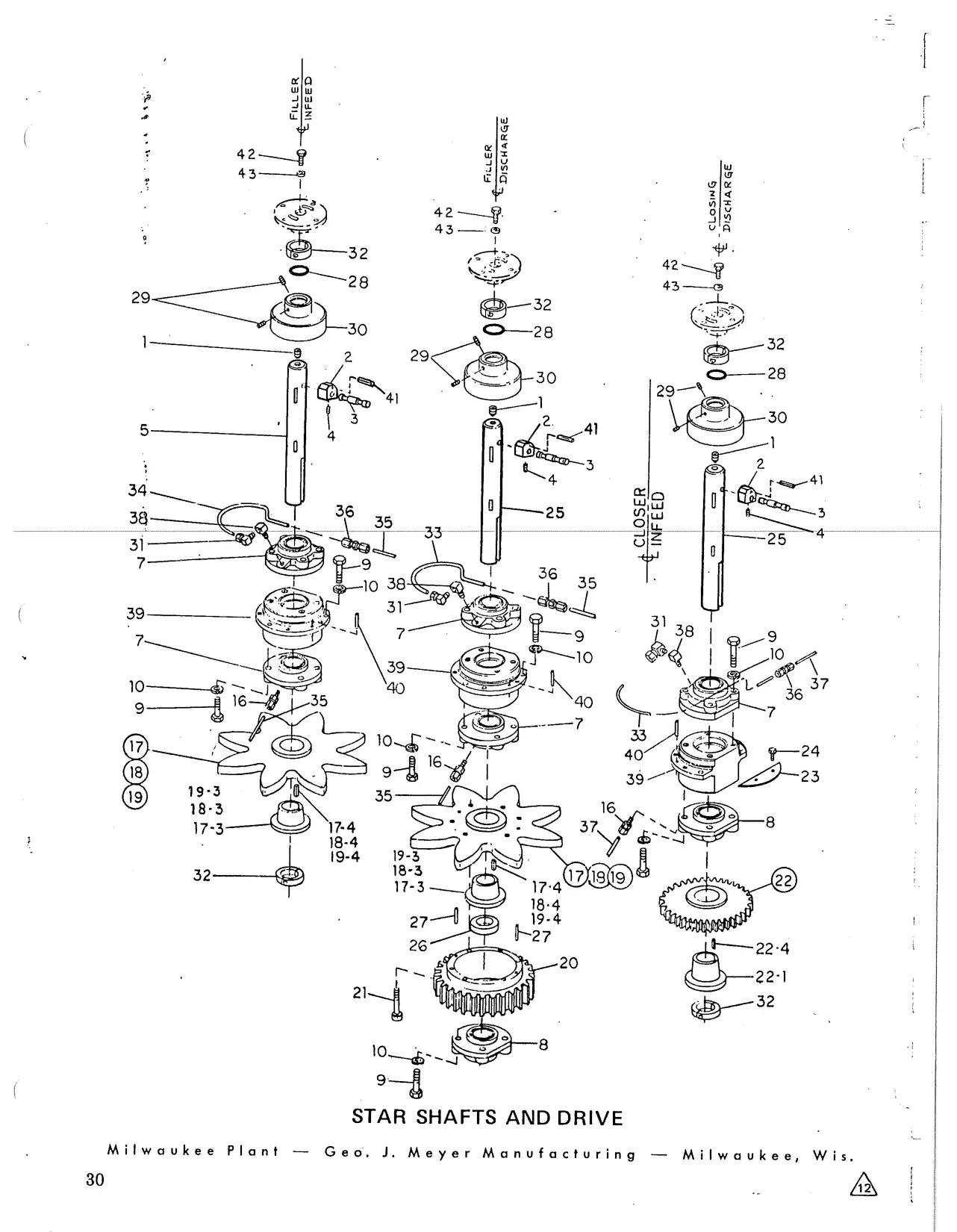

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

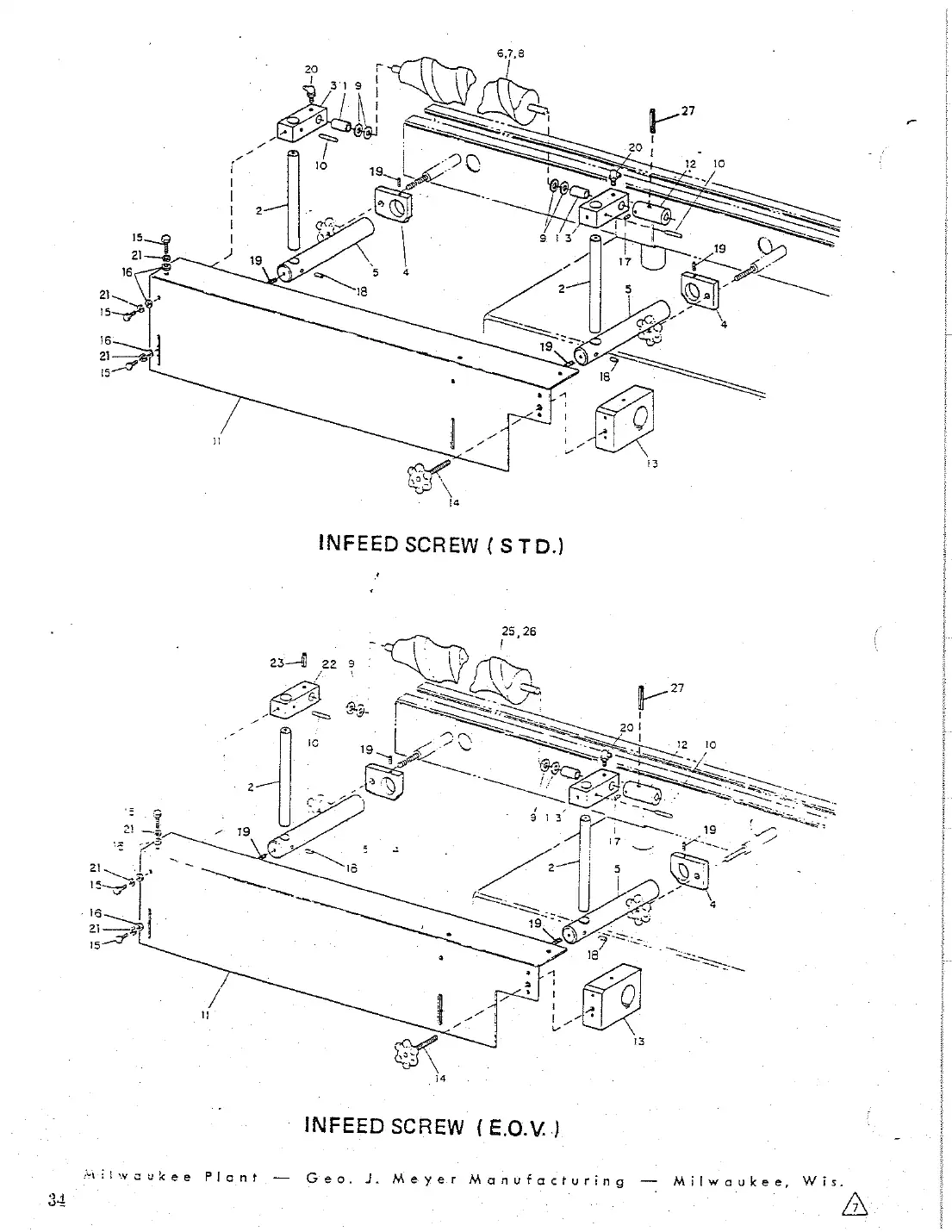

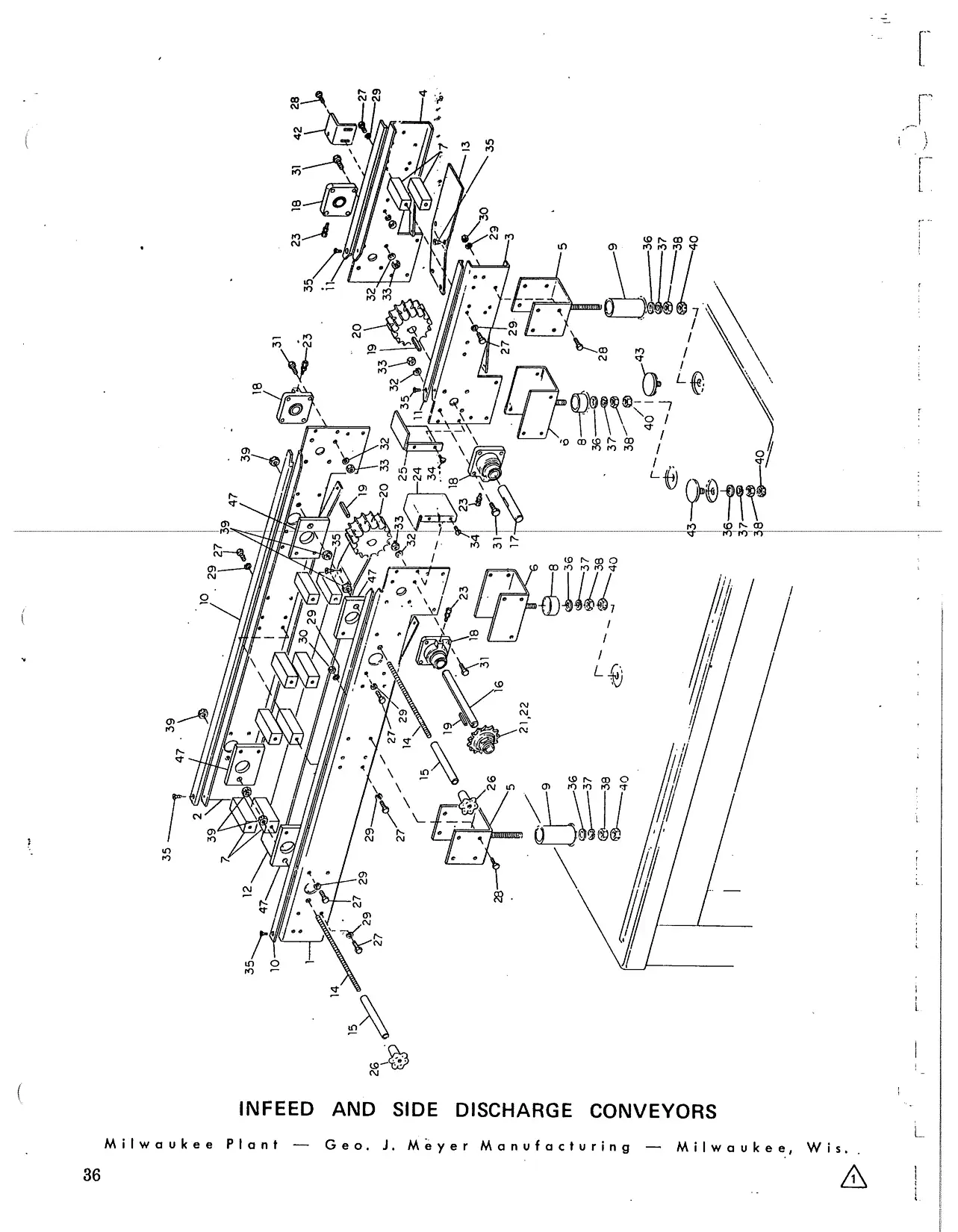

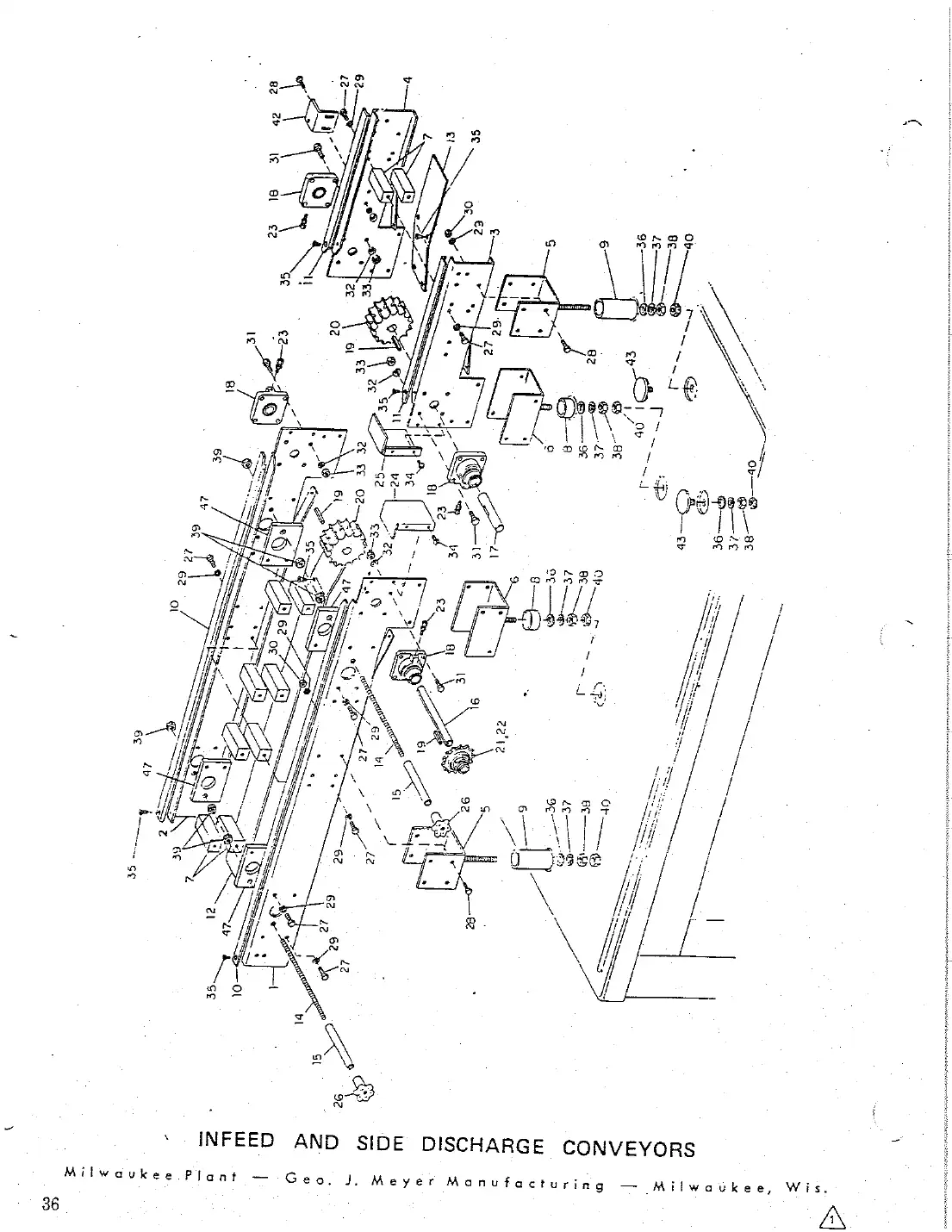

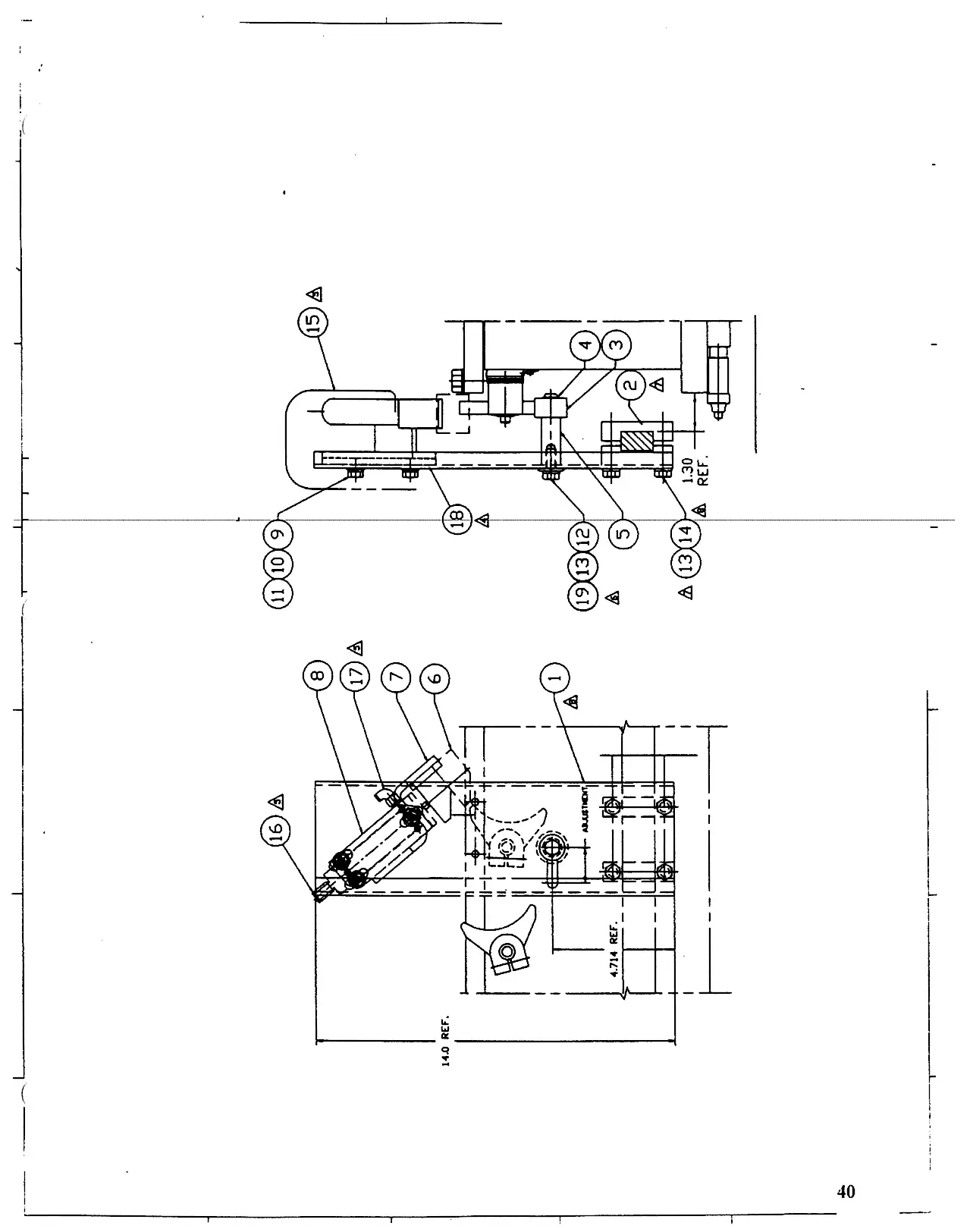

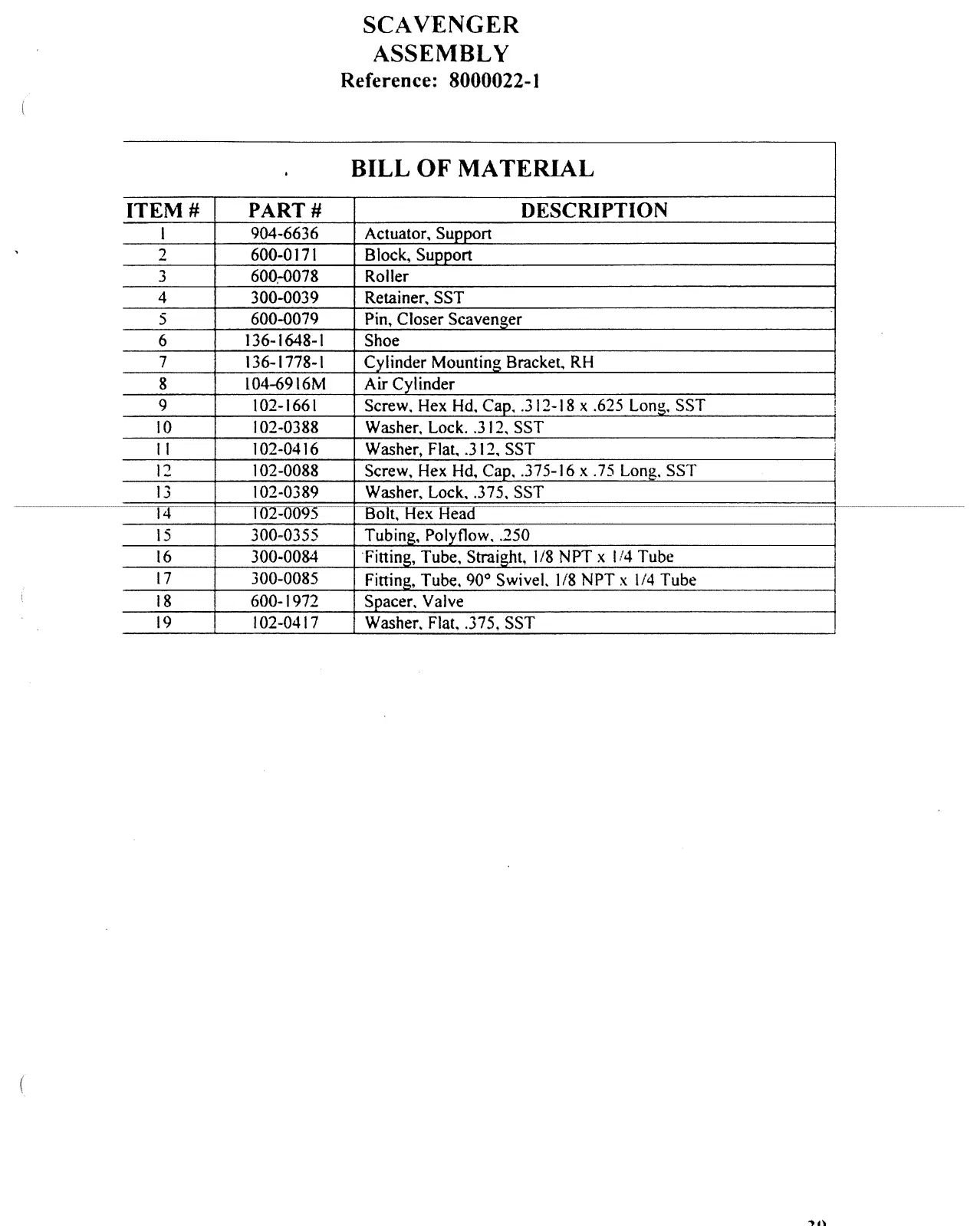

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
7	102-24491022449	Washer, flat	Request
3	135-17581351758-2	Wearplate, infeed closure	Request

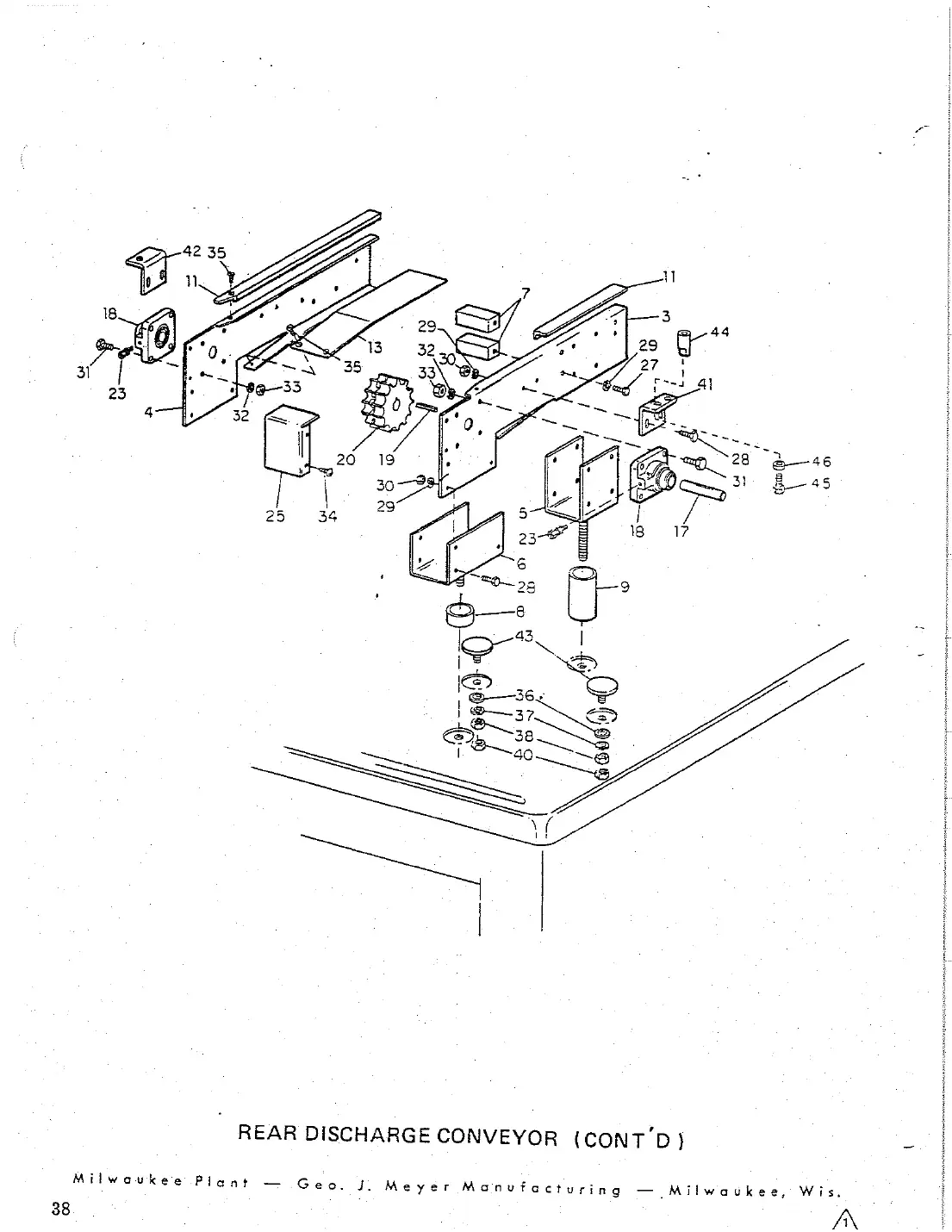

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full sizeOpen full sizeOpen full sizeOpen full sizeOpen full sizeOpen full size

Ref	Part number	Description
15	102-00671020067	Bolt, hex head	Request
16	102-04151020415	Washer, flat	Request
17	102-1913	Screw, set	Ask us
18	102-2438	Pin, roll	Ask us
20	102-1921	Fitting, grease	Ask us
21	102-03871020387	Washer, lock	Request
9	104-60231046023	Bearing, thrust washer	Request
23	102-18511021851	Pin, roll	Request
10	102-18541021854	Pin, roll slotted	Request
27	102-23611022361	Pin, roll	Request
14	102-01871020187	Screw, flat head	Request
15	102-03861020386	Washer, lock	Request
16	102-05531020553	Nut, hex	Request
17	102-0188	Screw, flat head	Ask us
5	102-03881020388	Washer, lock	Request
6	102-0383	Nut, hex	Ask us
22	HH-1865HH1865	Spring, valve, closer	Request
9	133-6848	Rod, guide	Ask us
23	102-03891020389	Washer, lock	Request
10	102-1551	Screw, socket head	Ask us
24	102-00821020082	Bolt, hex head	Request
25	102-00761020076	Bolt, hex head	Request
5	135-17631351763	Wearstrip, side discharge	Request
7	102-24491022449	Washer, flat	Request
8	102-02021020202	Screw, flat head slot	Request

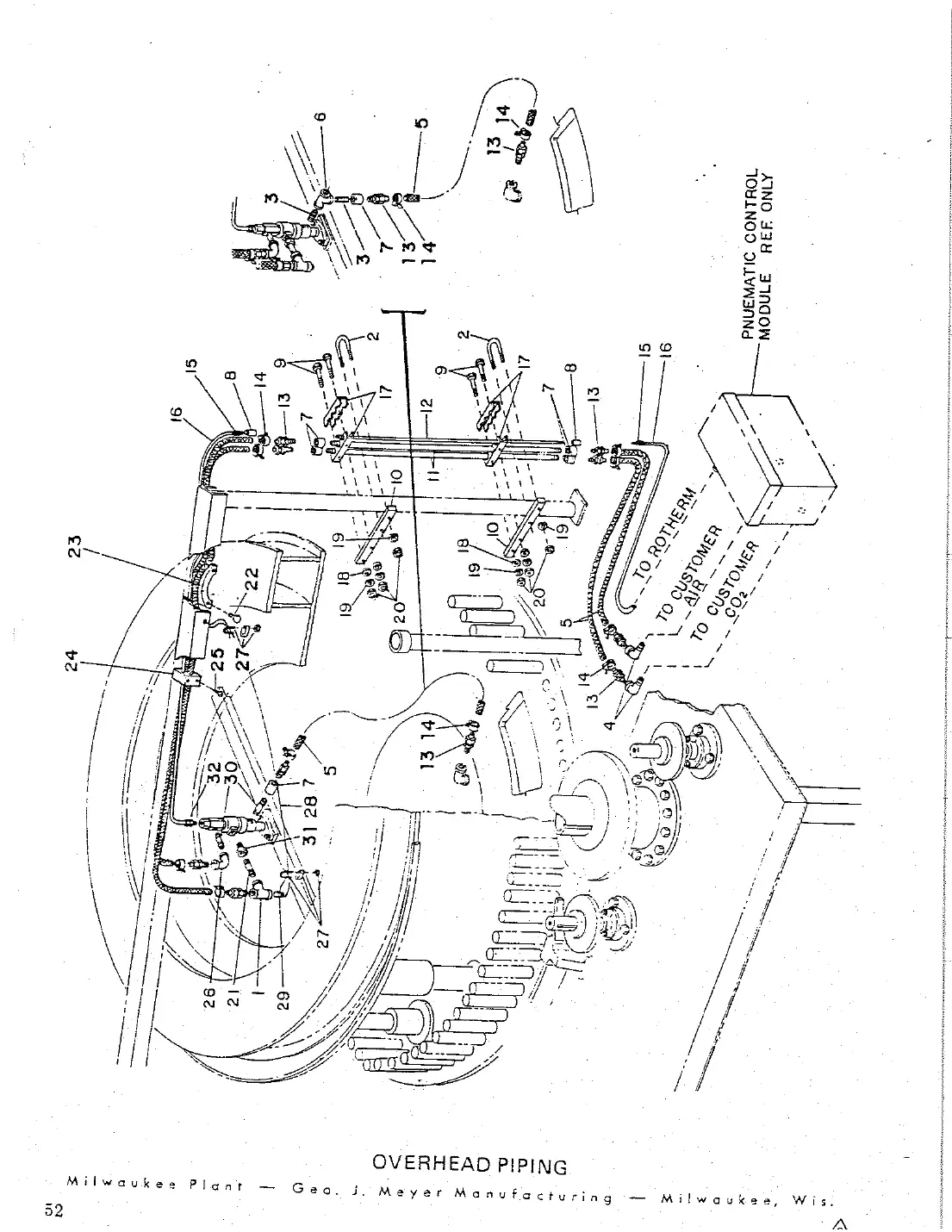

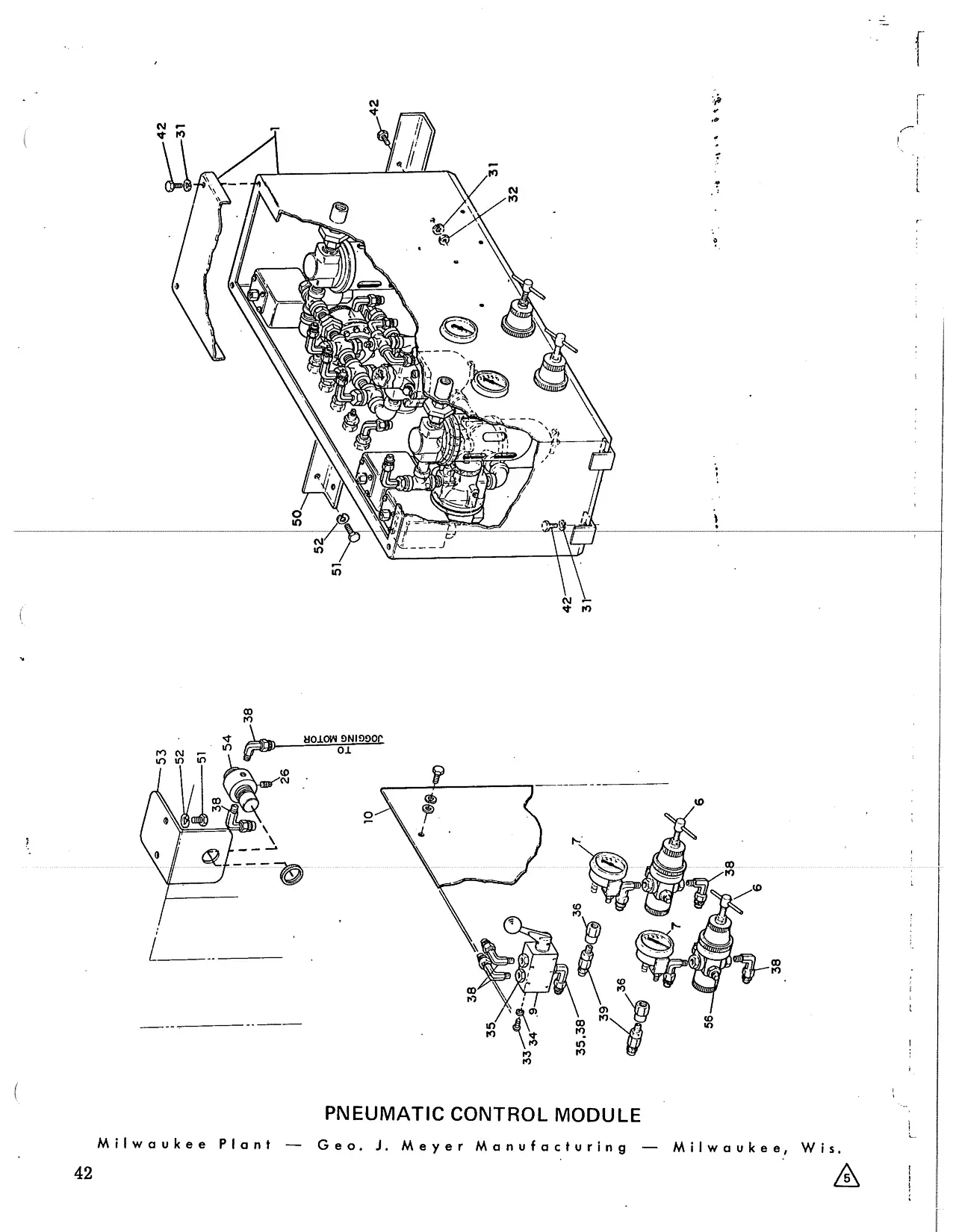

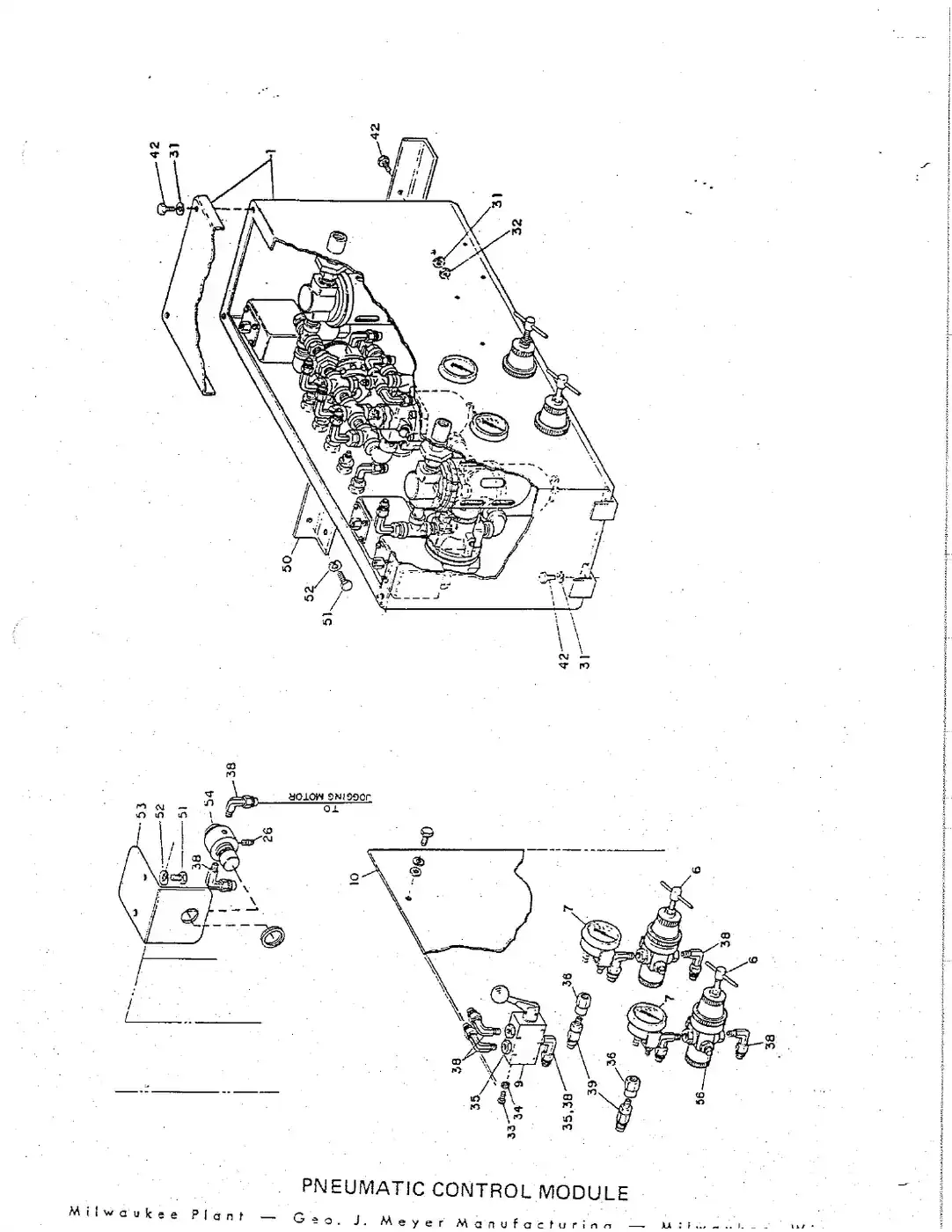

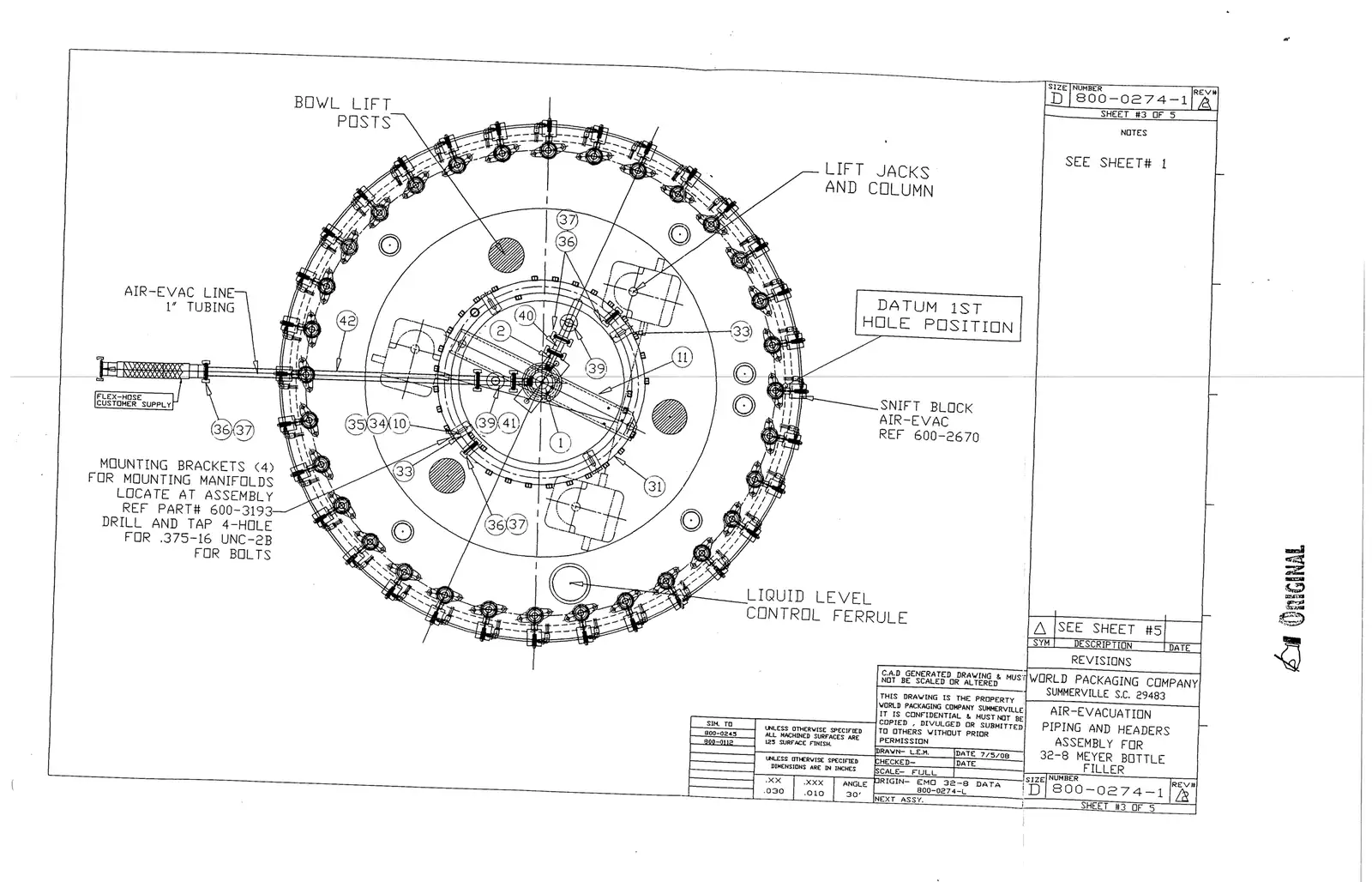

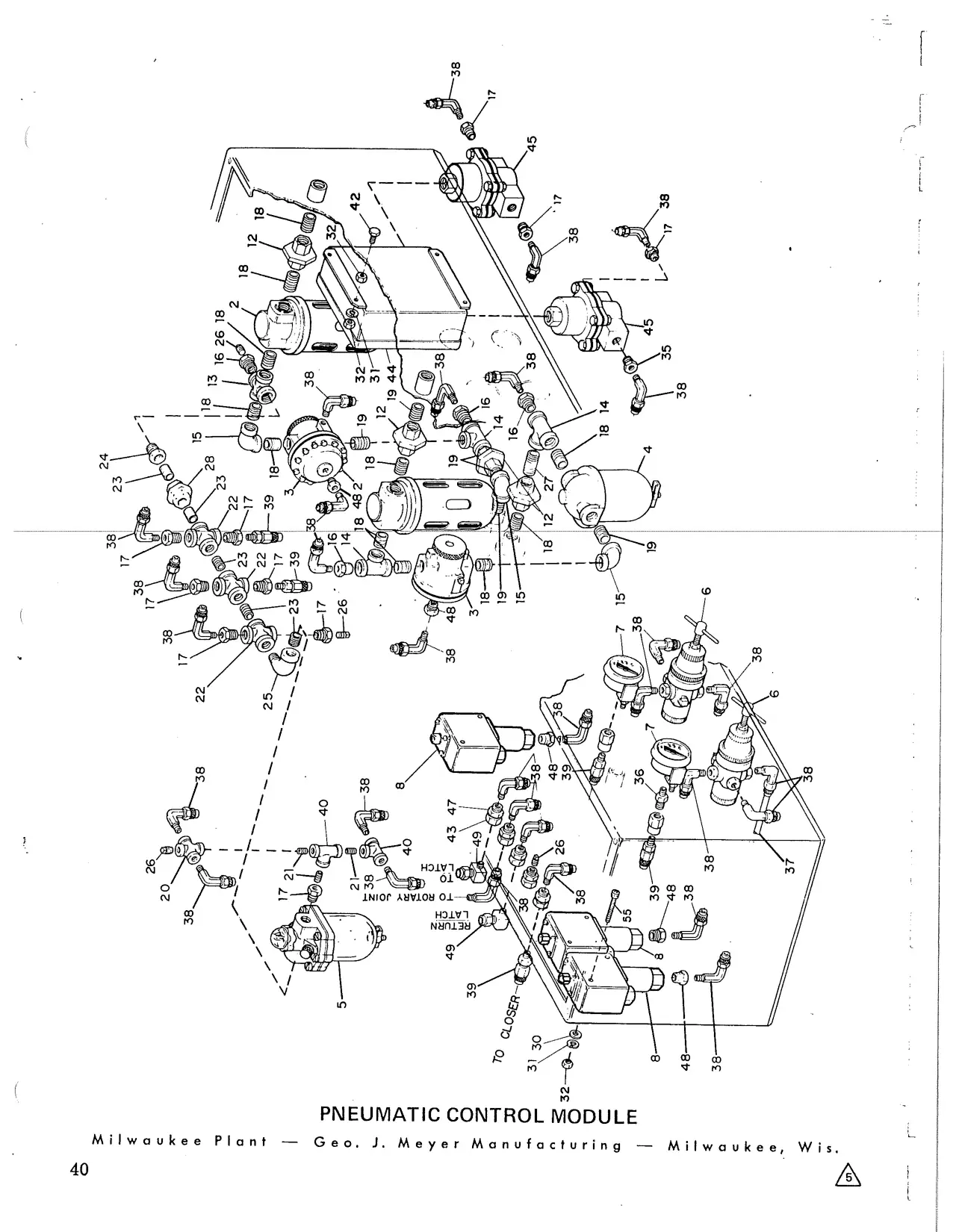

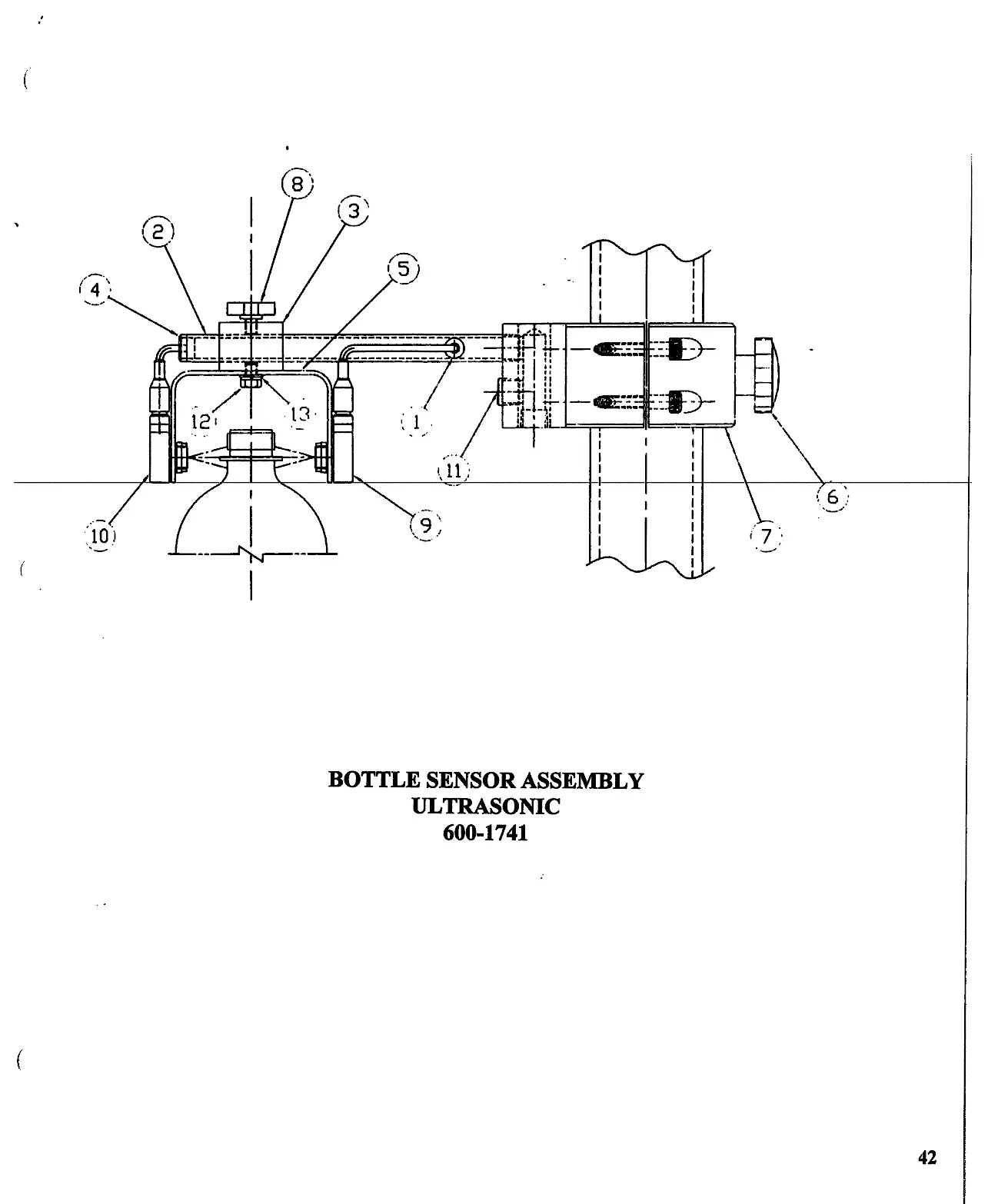

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
27	100-3629	Nipple	Ask us
28	100-21551002155	Union, pipe	Request
80	102-04151020415	Washer, flat	Request
31	102-03871020387	Washer, lock	Request
32	102-03321020332	Nut, hex	Request
3	100-47101004710	Regulator, air	Request
33	102-02781020278	Screw, round head slot	Request
4	100-31421003142-1	Filter, housing	Request
34	102-03851020385	Washer, lock	Request
5	101-01871010187	Washer, lock	Request
35	100-14311001431	Bushing, reducing hex	Request
6	1045198104-5198	Regulator	Request
36	100-27881002788	Bushing, reducing bell	Request
7	101-06751010675	Gauge, pressure assembly	Request
9	104-6086	Valve, port	Ask us
39	100-5324	Fitting, connector	Ask us
10	903-86999038699	Ledge, rest door	Request
40	100-08801000880	Tee, pipe	Request
42	102-00671020067	Bolt, hex head	Request
43	HH-1046	Adapter	Ask us
13	100-27571002757	Cross, pipe	Request
14	100-08841000884	Tee	Request
15	100-08571000857	Elbow	Request
47	102-1512	Nut, hex	Ask us
16	100-6937	Bushing bushing	Ask us
49	100-1465	Elbow, compression	Ask us
18	100-0893	Nipple, close	Ask us
19	100-3628	Nipple	Ask us
51	102-00881020088	Hex head bolt	Request
52	102-03891020389	Washer, lock	Request
21	100-0889	Nipple, close	Ask us
22	100-2756	Cross	Ask us
54	1046058104-6058	Button, push	Ask us
23	100-08921000892	Nipple	Request
55	102-11441021144	Screw, socket head cap	Request
56	100-08721000872	Plug, pipe square head	Request
25	100-14841001484	Elbow, street	Request
10	102-03881020388	Washer, lock	Request
11	102-03331020333	Nut, hex	Request
1	000-35190003519	Tubing, poly-flo	Request
13	102-05531020553	Nut, hex	Request
3	1045119104-5119	Cylinder, air infeed gate assembly	Request
14	102-1531	Screw, hex head	Ask us
4	133-8031	Screw, shoulder	Ask us
15	102-02921020292	Screw, round head slot	Request
5	102-0827	Pin	Ask us
16	000-1758	Tubing specify length	Ask us
6	102-04181020418	Washer, flat	Request
7	133-6664	Gate valve, solenoid	Ask us
8	102-0344	Nut, hex	Ask us
19	102-00781020078	Hex head bolt	Request
9	903-8352	Bracket, mounting	Ask us
20	102-03861020386	Washer, lock	Request
26	100-08711000871	Plug, pipe	Request
2	101-3020	Filter	Ask us
88	100-53251005325	Elbow, male connector	Request
24	100-14371001437	Bushing, reducing hex	Request

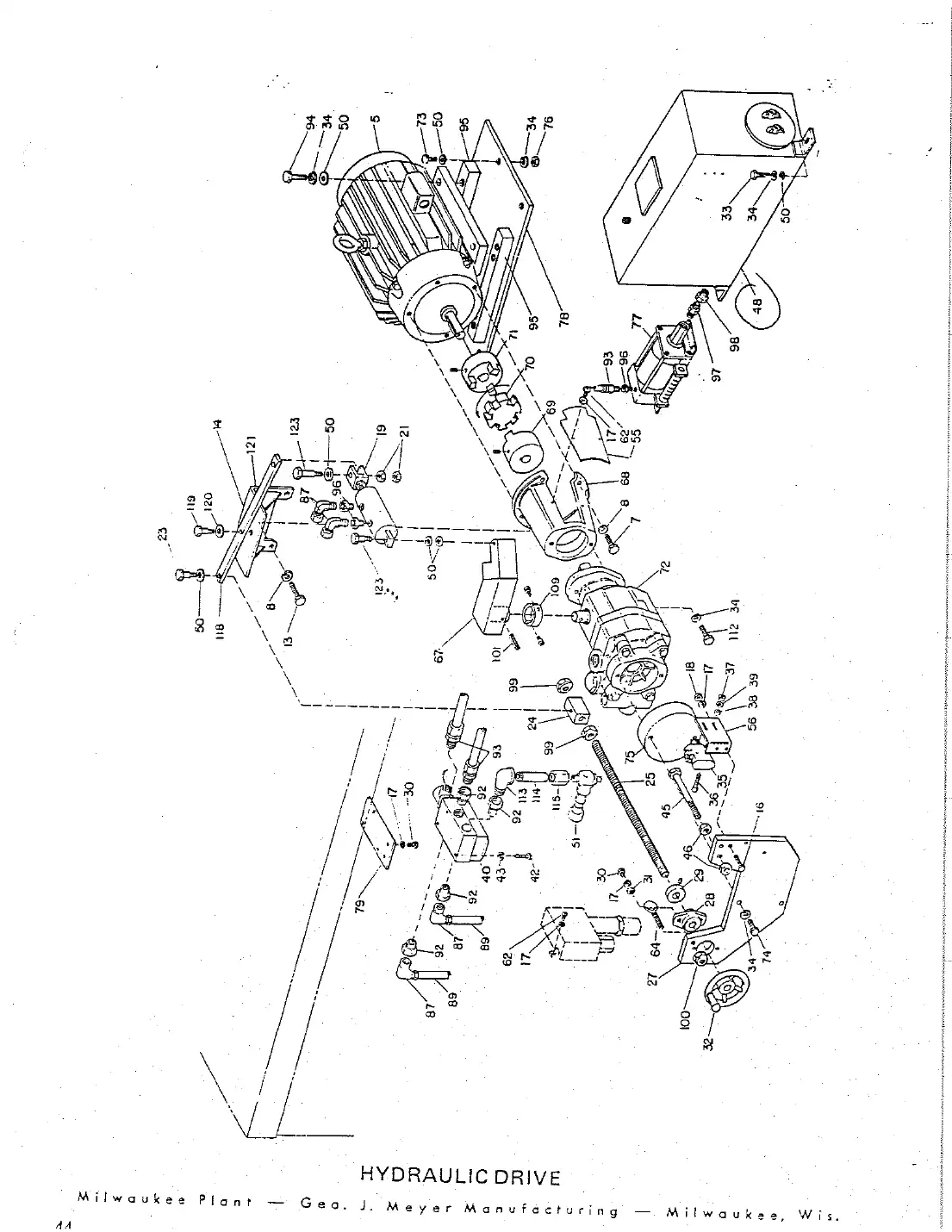

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
56	135-0667	Bracket, micro switch	Ask us
62	102-0243	Screw, round head	Ask us
64	102-2887	Screw, thumb	Ask us
7	102-01011020101	Bolt, hex head	Request
8	102-03901020390	Washer, lock	Request
70	104-63281046328	Insert jaw coupling	Request
13	102-01021020102	Bolt, hex head	Request
16	102-0005	Screw, hex head	Ask us
17	102-0378	Lockwasher	Ask us
73	102-0028	Screw, hex head	Ask us
18	102-0319	Nut, hex	Ask us
74	102-00331020033	Bolt, hex head	Request
19	1046225104-6225	Cylinder, air	Request
21	102-0320	Nut, hex	Ask us
76	102-0321	Nut, hex	Ask us
23	102-1828	Screw, shoulder	Ask us
77	104-6371	Pump, air driven	Ask us
24	133-9994	Collar	Ask us
25	133-5240	Rod, threaded	Ask us
79	135-1043	Plate, solenoid mounting	Ask us
27	135-0664	Bracket, speed control	Ask us
87	100-53251005325	Elbow, male connector	Request
28	104-60361046036	Bearing flange 52V family hydraulic drive mo	Request
29	100-0750	Collar, set bushing	Ask us
30	102-00661020066	Bolt, hex head	Request
31	102-04151020415	Washer, flat	Request
32	135-0666	Handwheel tap eee spacer, motor	Ask us
96	100-14311001431	Bushing, reducing hex	Request
84	102-03801020380	Washer, lock	Request
97	104-6374	Nipple, hex	Ask us
98	101-0325	Bushing	Ask us
100	102-22661022266	Nut, hex nylock insert type	Request
37	102-0549	Nut, hex	Ask us
101	102-09861020986	Pin, roll slotted	Request
38	102-0413	Washer, flat	Ask us
39	102-0376	Lockwasher	Ask us
112	102-00271020027	Bolt, hex head	Request
113	100-1481	Elbow	Ask us
42	102-02931020293	Screw, round head slot	Request
114	100-27151002715	Nipple, pipe	Request
43	102-03861020386	Washer, lock	Request
115	100-2725	Coupling	Ask us
45	102-0589	Screw, hex head	Ask us
48	104-6224	Tank, oil	Ask us
120	102-04181020418	Washer, flat	Request
51	104-6483	Valve, flow control	Ask us

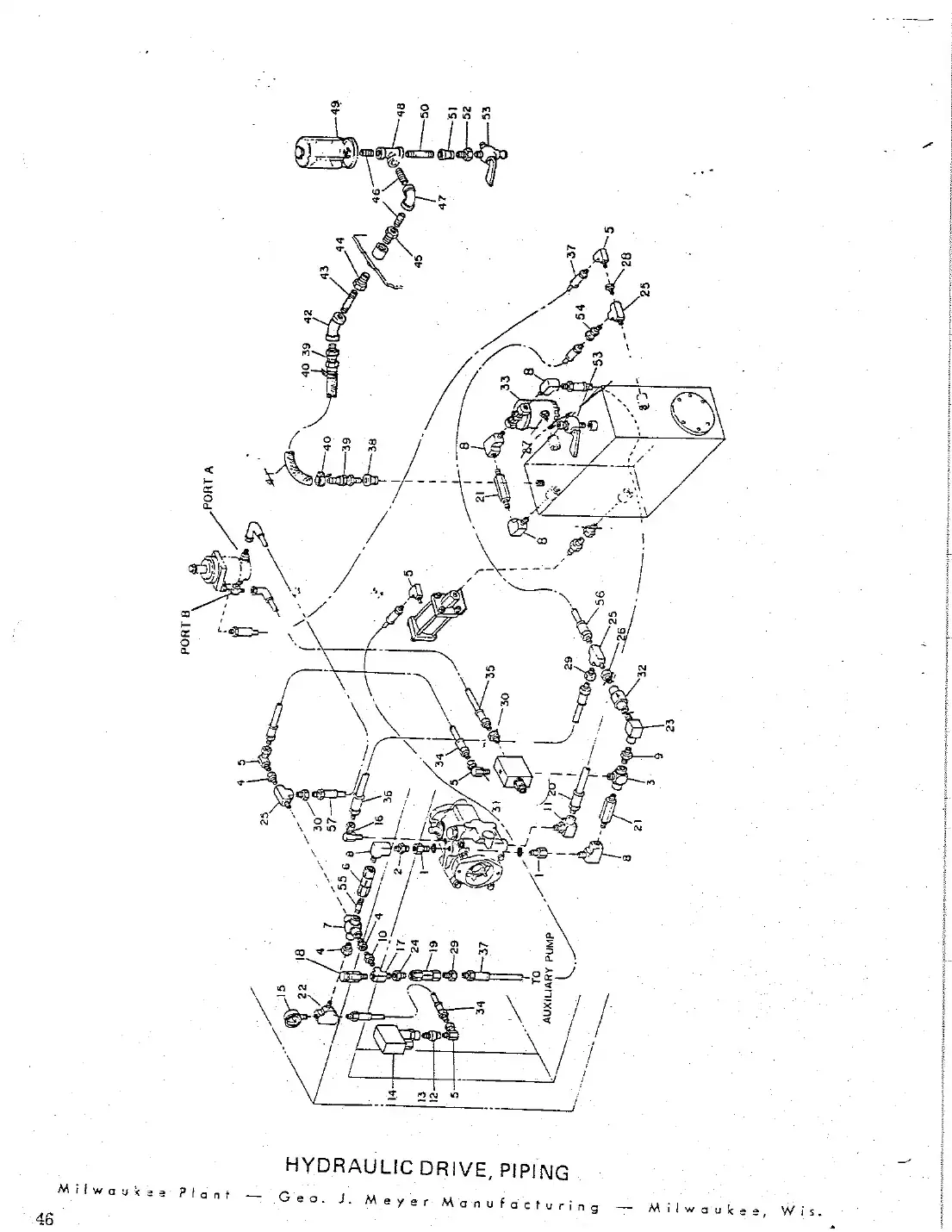

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
29	104-6066	Adapter, union str	Ask us
1	101-0420	Adapter	Ask us
2	104-6126	Nipple, hex balance	Ask us
4	104-6105	Bushing, reducer	Ask us
33	104-6055	Filter	Ask us
5	104-6097	Adapter, union	Ask us
84	1046076104-6076	Hose, pressure	Ask us
6	104-6054	Valve, check	Ask us
7	104-6110	Cross	Ask us
36	104-6118	Hose, pressure	Ask us
8	104-6092	Ell, street	Ask us
37	104-6404	Hose, pressure	Ask us
10	104-6373	Nipple, hex	Ask us
89	101-01081010108	Fitting, barbed	Request
40	100-30771003077	Clamp, hose clamp	Request
12	104-6133	Snubber	Ask us
41	000-34890003489	Tubing, CO2/air braided hose	Request
15	104-6085	Gauge, pressure	Ask us
44	101-2537	Coupling	Ask us
16	104-6115	Adapter, union	Ask us
17	104-6094	Tee, service	Ask us
46	100-1795	Nipple, close	Ask us
18	104-6102	Bleed	Ask us
19	1046053104-6053	Valve, check	Request
49	101-29801012980	Oil, resevoir	Request
22	100-5493	Tee	Ask us
24	104-6108	Bushing, reducer	Ask us
53	100-2582	Peteock	Ask us
25	104-6355	Tee, street	Ask us
35	101-3529	Nipple	Ask us

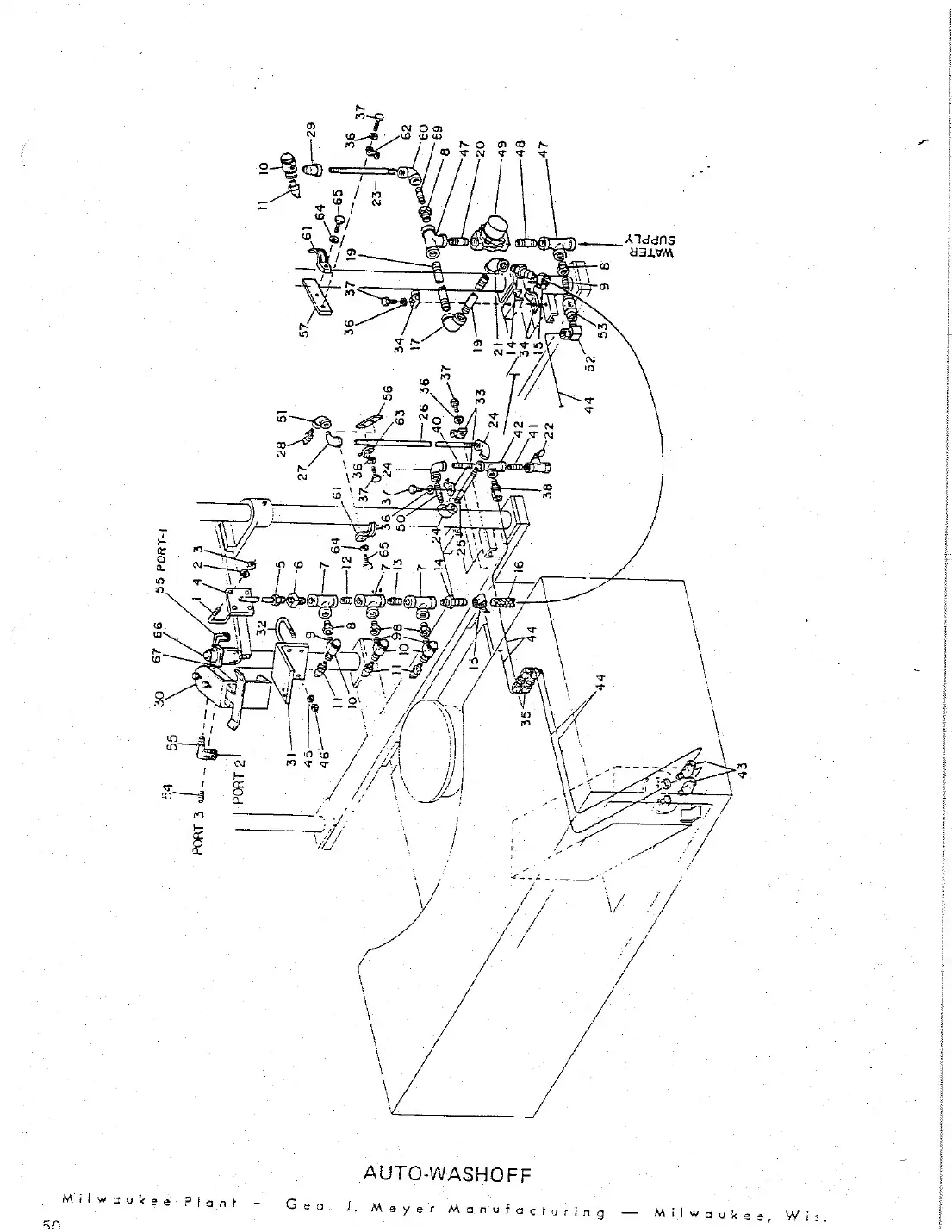

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full size

Ref	Part number	Description
1	903-8695	Channel	Ask us
34	903-8983	Tensioner	Ask us
85	135-0887	Plate, nut	Ask us
3	102-0692	Screw, hex head	Ask us
36	102-0030	Screw, hex head	Ask us
5	903-8948	Motor, hydraulic	Ask us
37	104-6340	Gear, spur	Ask us
6	102-0039	Screw, hex head	Ask us
389	000-1624	Key	Ask us
7	102-03811020381	Washer, lock	Request
40	135-0885	Plate, feed screw	Ask us
41	102-00871020087	Bolt, hex head	Request
9	102-00261020026	Bolt, hex head	Request
10	102-03801020380	Washer, lock	Request
43	102-0379	Lockwasher	Ask us
11	102-2011	Washer, flat	Ask us
44	104-6418	Coupling, torque limit	Ask us
12	135-08861350886-1	Plate, mounitng conveyer gearox	Request
14	104-64741046474	Gearbox	Request
15	134-0863	Gear, pinion	Ask us
48	104-6297	Belt, gear	Ask us
17	000-16280001628	Key, square	Request
18	104-63311046331	Coupling, hydraulic drive 32 family	Request
51	102-23901022390	Nut, hex	Request
19	104-63321046332	Insert	Request
20	135-0882	Shaft, drive	Ask us
53	104-6308	Cable	Ask us
21	104-63361046336	Sprocket, chain conveyor drive	Request
54	104-6309	Generation	Ask us
23	101-21051012105	Clip, link roller chain	Request
56	102-0703	Screw, sochd	Ask us
24	101-21041012104	Link, offset	Request
57	102-03861020386	Washer, lock	Request
25	104-63371046337	Bearing, pillow block	Request
58	104-62601046260	Sprocket	Request
26	135-0866	Gear	Ask us
59	903-89849038984	Tightener, fixed angle	Request
28	135-0868	Gear	Ask us
29	102-0005	Screw, hex head	Ask us
30	102-0878	Lockwasher	Ask us
31	104-6339	Hub, adjusting	Ask us
65	100-0889	Nipple, close	Ask us
82	104-6338	Bushing, split taper	Ask us
66	100-08801000880	Tee, pipe	Request
33	903-8687	Gear, idler assembly	Ask us
67	100-6628	Fitting, relief	Ask us
33	100-7017	Clamp	Ask us
84	100-0357	Clamp	Ask us
35	100-1637	Union	Ask us
1	HH-157HH157	U-bolt, valve closer	Request
36	102-03871020387	Washer, lock	Request
2	102-03881020388	Washer, lock	Request
87	102-00661020066	Bolt, hex head	Request
3	102-03331020333	Nut, hex	Request
38	100-09271000927	Fitting, tube adapter	Request
4	903-8504	Bracket	Ask us
40	100-14421001442	Nipple, pipe	Request
5	100-89081008908	Bushing, reducing hex	Request
41	100-08901000890	Nipple	Request
6	100-89111008911	Bushing, reducing hex	Request
42	100-08811000881	Tee	Request
7	100-5493	Tee	Ask us
43	100-14721001472	Elbow, tube	Request
8	100-1438	Bushing	Ask us
44	000-1769	Tubing specify length	Ask us
9	100-08911000891	Nipple	Request
45	102-03891020389	Washer, lock	Request
10	104-6372	Valve, diaphragm check	Ask us
46	102-03341020334	Nut, hex	Request
11	104-51871045187	Nozzle, wash-off	Request
47	100-08841000884	Tee	Request
12	100-61131006113	Nipple, close	Request
48	100-0893	Nipple, close	Ask us
13	100-3628	Nipple valve, solenoid	Ask us
14	101-01081010108	Fitting, barbed	Request
50	100-14411001441	Nipple, pipe	Request
15	100-30771003077	Clamp, hose clamp	Request
51	100-3971	Elbow, reducer	Ask us
16	000-34890003489	Tubing, CO2/air braided hose	Request
52	100-1471	Elbow, compression	Ask us
17	100-08571000857	Elbow	Request
53	100-2847	Check ball	Ask us
19	000-0818	Pipe	Ask us
54	100-08721000872	Plug, pipe square head	Request
55	100-14661001466	Elbow, tube male	Request
21	100-2833	Elbow	Ask us
56	135-1821	Bar, support	Ask us
22	101-2335	Ball valve	Ask us
23	000-2930	Pipe	Ask us
24	100-0854	Elbow	Ask us
60	100-0855	Elbow	Ask us
25	100-1453	Nipple	Ask us
61	100-7015	Clamp, pipe	Ask us
26	000-0796	Pipe	Ask us
62	100-7016	Clamp, pipe	Ask us
27	100-1482	Elbow, street	Ask us
28	104-6381	Nozzle, spray	Ask us
64	102-00741020074	Bolt, hex head	Request
29	100-1483	Elbow, street	Ask us
66	104-6238	Lubricator	Ask us
67	100-1445	Nipple	Ask us
32	133-68461336846	U-bolt	Request

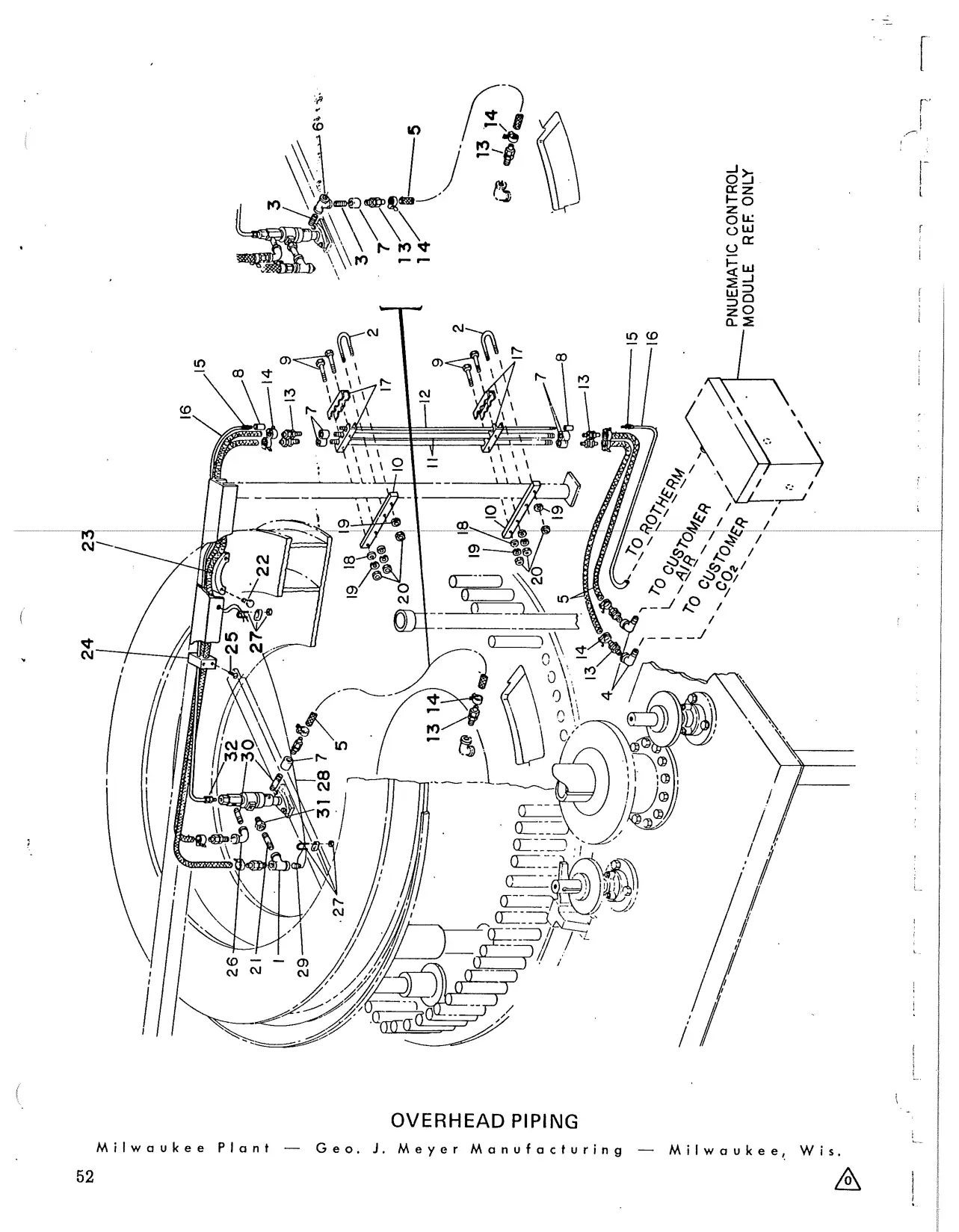

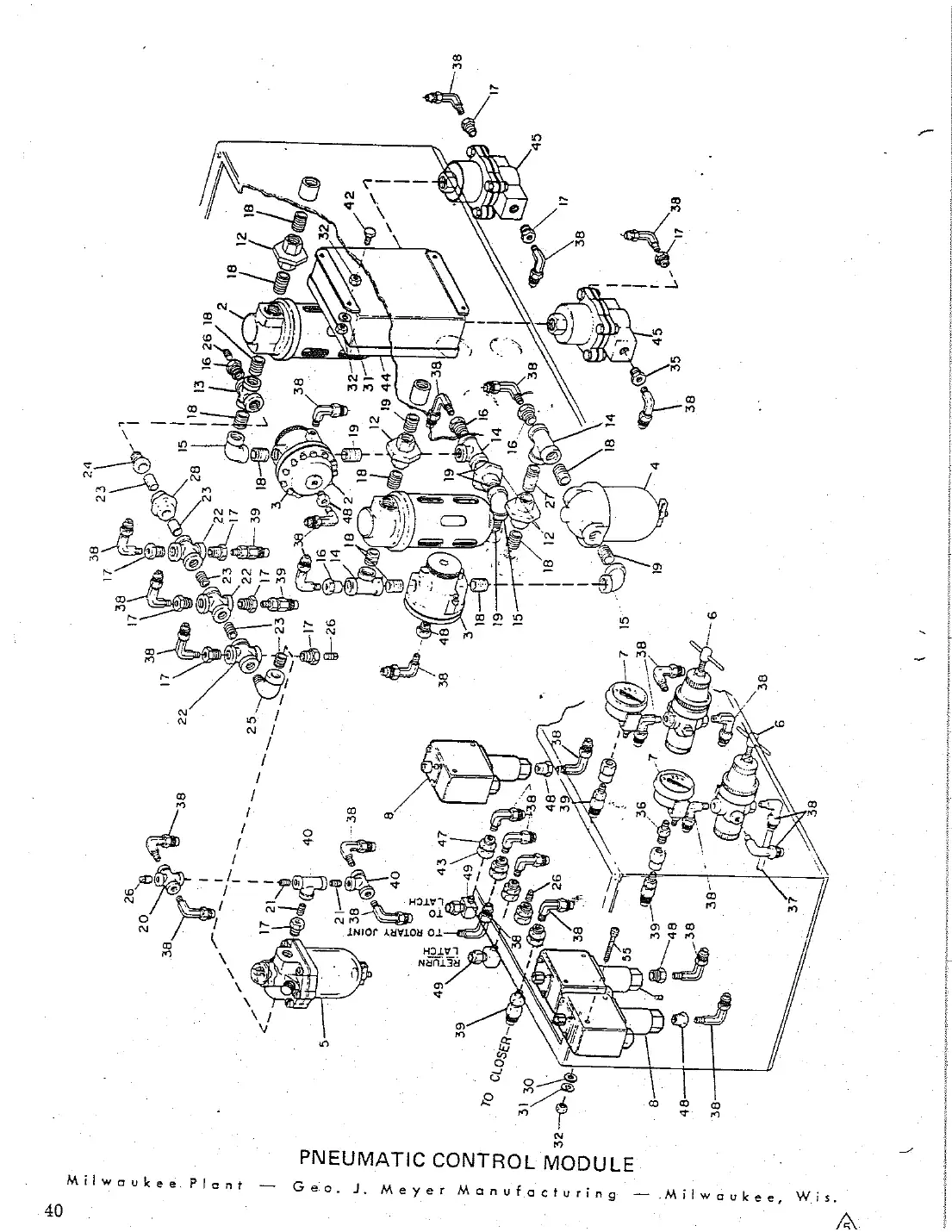

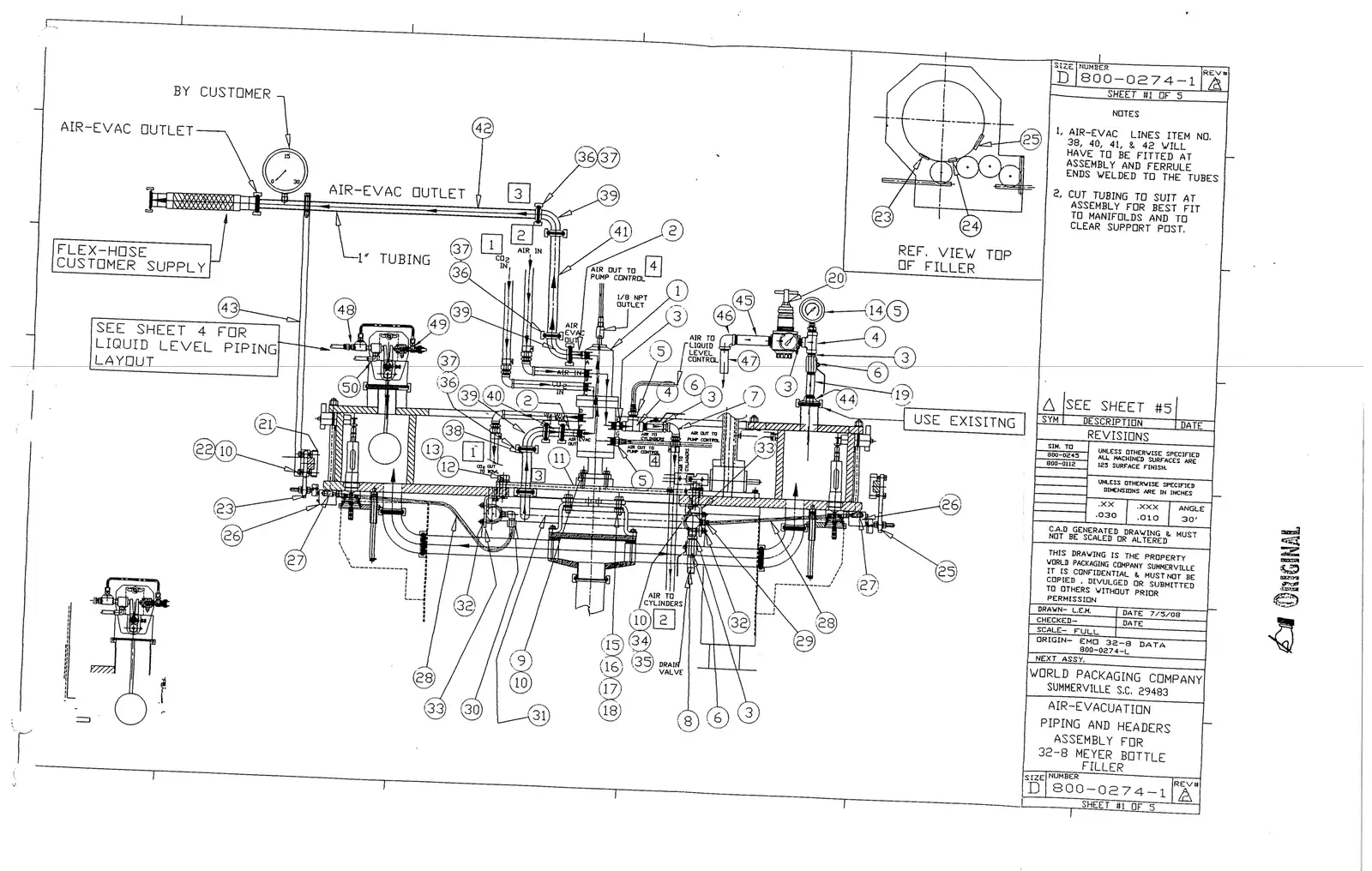

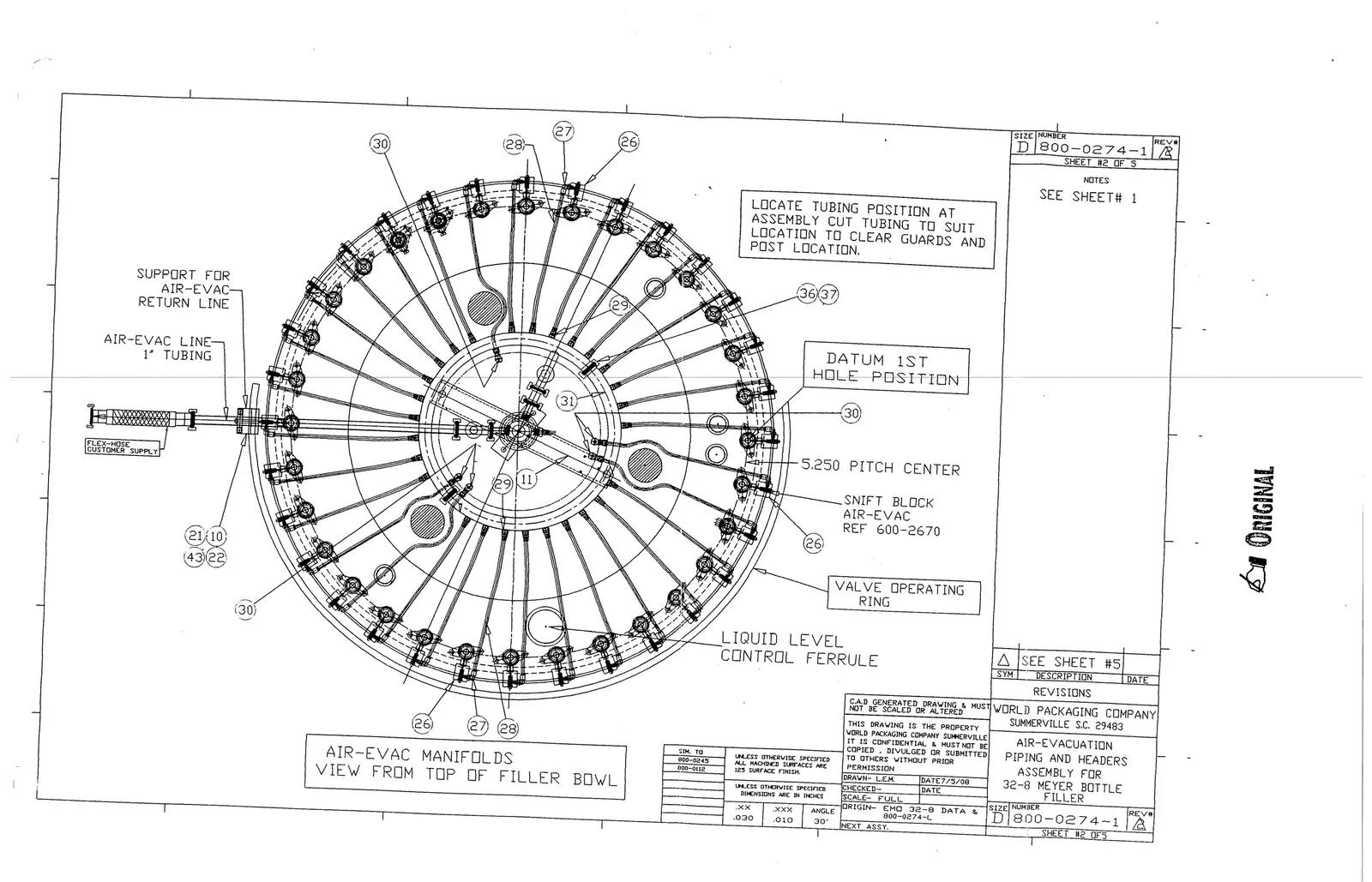

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
15	100-09251000925	Fitting, tube adapter bras	Request
16	000-35190003519	Tubing, poly-flo	Request
1	100-5493	Tee	Ask us
18	102-04161020416	Washer, flat	Request
19	102-03881020388	Washer, lock	Request
3	100-61121006112	Nipple	Request
20	102-03331020333	Nut, hex	Request
4	100-96671009667	Elbow, street	Request
21	100-75581007558	Nipple	Request
5	000-34890003489	Tubing, CO2/air braided hose	Request
22	102-2330	Screw	Ask us
6	100-54921005492	Tee	Request
23	133-0310	Shoe	Ask us
7	100-9326	Coupling, reducing	Ask us
24	133-9100	Tube, holder	Ask us
8	100-89641008964	Coupling, pipe straight	Request
25	102-02871020287	Screw, phillips hd	Request
9	102-00821020082	Bolt, hex head	Request
26	100-1014	Elbow	Ask us
27	100-0585	Clamp, wire rope	Ask us
11	000-0807	Pipe specify length	Ask us
28	100-4122	Cable specify length	Ask us
12	000-0788	Pipe specify length	Ask us
29	100-48561004856	Plug, pipe square hd	Request
13	101-01081010108	Fitting, barbed	Request
14	100-30771003077	Clamp, hose clamp	Request
31	100-1490	Reducer	Ask us
32	100-09261000926	Fitting, tube adapter	Request
2	133-68461336846	U-bolt	Request
6	000-17500001750	Tubing	Request
8	102-12551021255	Washer, flat	Request
2	100-09231000923	Fitting, tube	Request
4	100-39411003941	Fitting, grease female str	Request
5	100-16351001635	Coupling, tube	Request
12	100-47661004766	Fitting, grease straight ptf	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
8	135-09411350941-1	Guard, mount	Request
9	135-09401350940-1	Guard, infeed conveyor drive	Request
2	102-02951020295	Screw, round head slot	Request
11	102-01911020191	Screw, flat head slot	Request
4	903-87009038700-1	Door, front and side 32V	Request
12	903-86989038698-1	Panel, front	Request
5	102-0887	Lockwasher	Ask us
8	000-17500001750	Tubing	Request
8	102-12551021255	Washer, flat	Request
2	100-09231000923	Fitting, tube	Request
9	102-16471021647	Bolt, hex head	Request
3	100-1465	Elbow, compression	Ask us
10	100-4204	Fitting, grease	Ask us
4	100-39411003941	Fitting, grease female str	Request
11	100-2725	Coupling	Ask us
12	100-47661004766	Fitting, grease straight ptf	Request
15	104-62651046265	Label, do not operate without guards	Request
16	104-6266	Nameplate not operate	Ask us
17	100-7449	Nameplate elect serial	Ask us
21	101-3502	Nameplate patents	Ask us
22	135-0767	Nameplate	Ask us
14	132-8688	Nameplate	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
26	102-03871020387	Washer, lock	Request
28	102-03881020388	Washer, lock	Request
29	102-00751020075	Bolt, hex head	Request
33	134-1731	Cam	Ask us
2	102-02081020208	Screw, flat head slot	Request
36	101-3256	Bearing, ball	Ask us
37	101-3257	Ring, retainer	Ask us
5	132-3962	Plate, lock screw	Ask us
6	102-15521021552	Screw, socket head cap	Request
40	102-1673	Screw, socket head	Ask us
7	102-01011020101	Bolt, hex head	Request
43	904-3009	Sleeve, elevating	Ask us
8	102-03411020341	Nut, hex jam	Request
46	102-13531021353	Screw, socket head cap	Request
47	101-3255	Seal, oil	Ask us
47	904-3134	Guard, chute support	Ask us
47	904-3389	Head LH	Ask us
13	100-4413	Fitting, grease head head	Ask us
50	102-02951020295	Screw, round head slot	Request
54	134-1785	Cover, retainer	Ask us
16	134-1812	Stud	Ask us
55	131-8473	Guide, spring	Ask us
17	102-0320	Nut, hex	Ask us
56	132-09731320973	Spring, compression outer	Request
18	101-3293	Pin, taper	Ask us
18	101-3366	Pin, taper	Ask us
37	134-2304	Holder, spring	Ask us
58	102-14431021443	Washer, lock	Request
20	100-47661004766	Fitting, grease straight ptf	Request
21	134-1761	Key, crown head head	Ask us
60	132-09781320978	Spring, compression inner	Request
22	100-4203	Fitting, grease head	Ask us
61	102-2261	Screw, set	Ask us
62	100-6628	Fitting, relief	Ask us
64	102-04151020415	Washer, flat	Request
65	102-03321020332	Nut, hex	Request
25	102-00671020067	Bolt, hex head	Request
66	102-03811020381	Washer, lock	Request

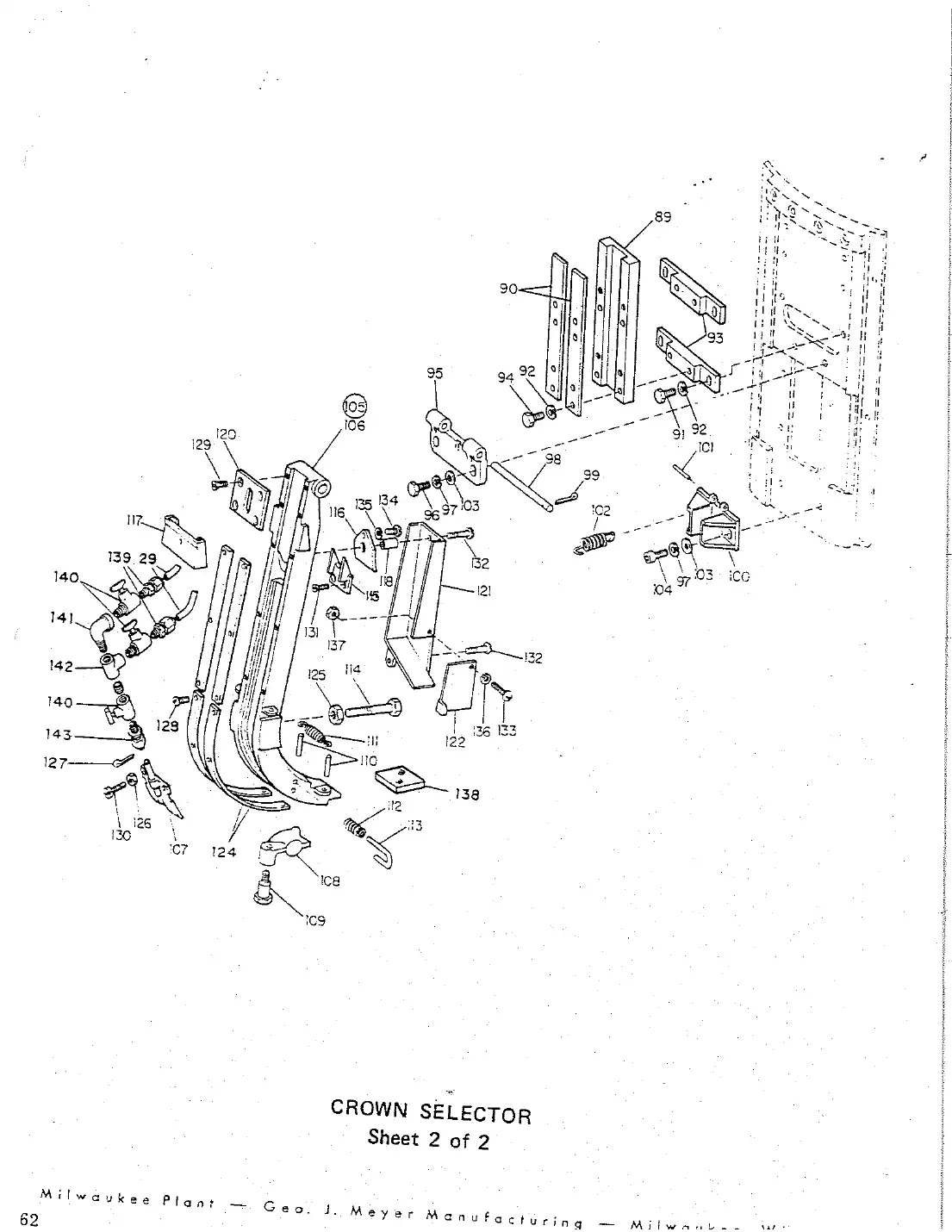

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full size

Ref	Part number	Description
86	904-2767	Tension face plate and shaft	Ask us
37	904-2768	Tension face plate hub and brg	Ask us
38	102-05721020572	Pin, taper	Request
1	130-0471	Hopper, crown	Ask us
39	101-3240	Coupling	Ask us
2	100-11531001153	Plug, pipe countersunk	Request
40	134-1550	Disc, friction face	Ask us
3	102-00891020089	Bolt, hex head	Request
41	101-32411013241	Spring, die 14 hd crowner	Request
4	102-03881020388	Washer, lock	Request
42	900-4682	Selector disc and	Ask us
5	101-3239	Bearing, thrust handwheel assembly	Ask us
6	131-1242	Collar, locking	Ask us
7	102-12401021240	Pin, taper #4	Request
43	900-4681	Disc crown selector	Ask us
8	000-16280001628	Key, square	Request
9	902-0107	Disc, crown selector	Ask us
44	130-8510	Disc, selector	Ask us
45	100-23631002363	Bearing	Request
10	DFC-36DFC36	Disc, driving	Request
46	900-54209005420	Agitator, Crown assembly	Request
11	HH-858	Pawl	Ask us
47	CL-310CL310	Spring, helper	Request
48	102-0798	Washer	Ask us
13	HH-859HH859	Holder, spring	Request
49	CL-109CL109	Spring, agitator hand	Request
14	HH-860	Pin, paw	Ask us
30	102-07971020797	Screw, round head	Request
15	000-3151	Wire specify length	Ask us
51	HH-3937HH3937	Washer, spring agitator	Request
16	102-03321020332	Nut, hex	Request
52	CL-265CL265	Spring	Request
17	102-03871020387	Washer, lock	Request
53	102-01781020178	Screw, flat head slot	Request
18	CL-227	Nut, selector disc	Ask us
54	102-07941020794	Screw, socket head cap	Request
33	HH-865	Ratchet	Ask us
56	DFC-35	Handwheel	Ask us
19	CL-104	Nut, selector drive adjusting	Ask us
37	CL-556CL556	Collar, selector disc	Request
20	102-08961020896	Nut, hex jam	Request
58	RR-243RR243	Spring	Request
21	102-17991021799	Bolt, hex head	Request
59	102-07951020795	Screw, fillister hd	Request
22	100-72521007252	Felt, seal	Request
60	HH-4117	Bearing, floating rake	Ask us
23	100-71711007171	Bearing, outer	Request
61	HH-4113	Rake, floating	Ask us
24	131-1106	Bracket	Ask us
62	102-00271020027	Bolt, hex head	Request
25	100-34851003485	Connector, male	Request
63	102-0321	Nut, hex	Ask us
26	134-1524	Shaft, selector drive	Ask us
64	LC-71LC71	Rear Crown selector	Request
65	CL-150CL150	Selector disc insert	Request
66	100-34821003482	O-ring	Request
27	CL-517	Die	Ask us
67	102-12331021233	Pin, dowel	Request
68	102-1812	Bolt, hex	Ask us
29	000-1755	Tubing, round specify length	Ask us
63	102-03901020390	Washer, lock	Request
30	102-01031020103	Bolt, hex head	Request
31	100-71721007172	Bearing, needle roller	Request
32	131-1243	Washer, gear thrust	Ask us
72	101-3400	Reducer motor	Ask us
33	102-01911020191	Screw, flat head slot	Request
72	101-3308	Reducer motor	Ask us
34	134-15431341543	Knob	Request
35	134-15451341545	Housing	Request
73	102-00261020026	Bolt, hex head	Request
114	134-15521341552	Latch, screw chute adjustable	Request
115	LC-86LC86	Ejector, reverse Crown	Request
116	CL-224CL224	Deflector, Crown hopper	Request
76	102-03861020386	Washer, lock	Request
117	CL-288CL288	Cover, Crown chute	Request
77	100-09231000923	Fitting, tube	Request
118	CL-225	Spacer, crown chute	Ask us
78	HH-1046	Adapter, grease line	Ask us
119	CL-94	Guide, upper crown	Ask us
79	100-47661004766	Fitting, grease straight ptf	Request
120	CL-289CL289	Plate chute top	Request
80	102-04661020466	Screw, set socket cup point	Request
81	HH-1167	Shield crowner	Ask us
122	HH-1134	Door, crown chute box	Ask us
82	102-02851020285	Screw, round head slot	Request
123	CL-365CL365	Guide, lower Crown chute LH	Request
83	134-1559	Screw, knob adj LH not shown	Ask us
84	102-03411020341	Nut, hex jam	Request
125	102-13941021394	Nut, hex finished	Request
87	102-0196	Screw, flat head	Ask us
126	102-14601021460	Nut, hex	Request
88	102-0185	Screw, flat head	Ask us
127	102-05621020562	Pin, cotter	Request
128	102-02861020286	Screw, round head slot	Request
129	102-01821020182	Screw, flat head slot	Request
91	102-00651020065	Bolt, hex head	Request
131	102-2961	Screw, flat head	Ask us
132	102-0289	Screw, round head	Ask us
94	102-00691020069	Bolt, hex head	Request
133	102-02781020278	Screw, round head slot	Request
134	102-02871020287	Screw, phillips hd	Request
96	102-1492	Bolt, hex head	Ask us
97	102-14431021443	Washer, lock	Request
136	102-03851020385	Washer, lock	Request
98	CL-90CL90	Crown wiper arm stud	Request
137	102-05521020552	Nut, hex machine	Request
99	102-13841021384	Pin, cotter	Request
100	134-3846	Bracket, crown chute	Ask us
189	131-91161319116	Fitting, tube male br	Request
101	HH-6334	Stud, spring	Ask us
140	130-3193	Cock, air	Ask us
102	CL-92CL92	Spring, Crown chute	Request
103	CL-102CL102	Washer, flat	Request
142	100-2979	Elbow, street	Ask us
104	134-1558	Screw, crown chute bracket	Ask us
143	131-0847	Connector, tube	Ask us
107	CL-121CL121	Nozzle, Crown chute	Request
109	CL-91CL91	Stud, Crown wiper arm	Request
86	900-2932	Insert selector	Ask us
110	CL-93CL93	Wiper, arm spring pin	Request
111	CL-85CL85	Spring guide latch	Request
112	HH-1131HH1131	Spring Crown latch	Request
113	HH-1132HH1132	Latch screw	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
26	CL-156CL156	Cup, grease retaining	Request
27	CL-431CL431	Spring, compensating	Request
28	CL-527CL527	Ring, compensating latch	Request
29	134-19681341968	Sleeve, bracket crowning head	Request
2	CL-520CL520	Latch, compensating	Request
3	102-17811021781	Pin, dowel	Request
4	CL-507CL507	Spring, plunger	Request
5	CL-445CL445	Plunger, crowner type 2	Request
8	102-04251020425	Set screw	Request
7	100-24061002406	O-ring	Request
8	CL-446CL446	Bushing, guide	Request
31	CL-434CL434	Shim, roller bracket	Request
9	LC-146LC146	Bracket, Crown throat	Request
9	LC-147LC147	Bracket, Crown throat	Request
10	CL-604	Throat, crown assembly	Ask us
14	CL-444CL444	Nut, throat retaining	Request
15	CL-534CL534	Screw, Crown rest latch	Request
84	102-25461022546	Washer, lock internal	Request
35	102-27041022704	Nut, hex jam	Request
36	100-47661004766	Fitting, grease straight ptf	Request
38	902-53299025329	Stud, cam roller assembly	Request
39	131-88251318825	Stud, cam roller crowner	Request
40	131-88241318824	Bushing, cam roller	Request
41	100-72991007299	Plug, pipe	Request
18	100-20151002015	Magnet, Crown rest	Request
19	CL-495CL495	Knob, Crown rest	Request
44	102-05961020596	Washer, lock	Request
21	CL-380CL380	Latch, Crown rest	Request
45	102-2251	Screw, hex head	Ask us
22	102-01921020192	Screw, flat head slot	Request
46	102-28051022805	Screw, set socket cup point	Request
23	102-01901020190	Screw, flat head slot	Request
24	CL-492CL492	Key, Crown throat bracket	Request
24	CL-239CL239	Key, Crown throat bracket	Request
48	134-4076	Crown rest head type	Ask us
48	134-4077	Crown rest head type	Ask us
25	HH-5156	Pin, contact	Ask us
48	1344078134-4078	Crown rest head type	Ask us

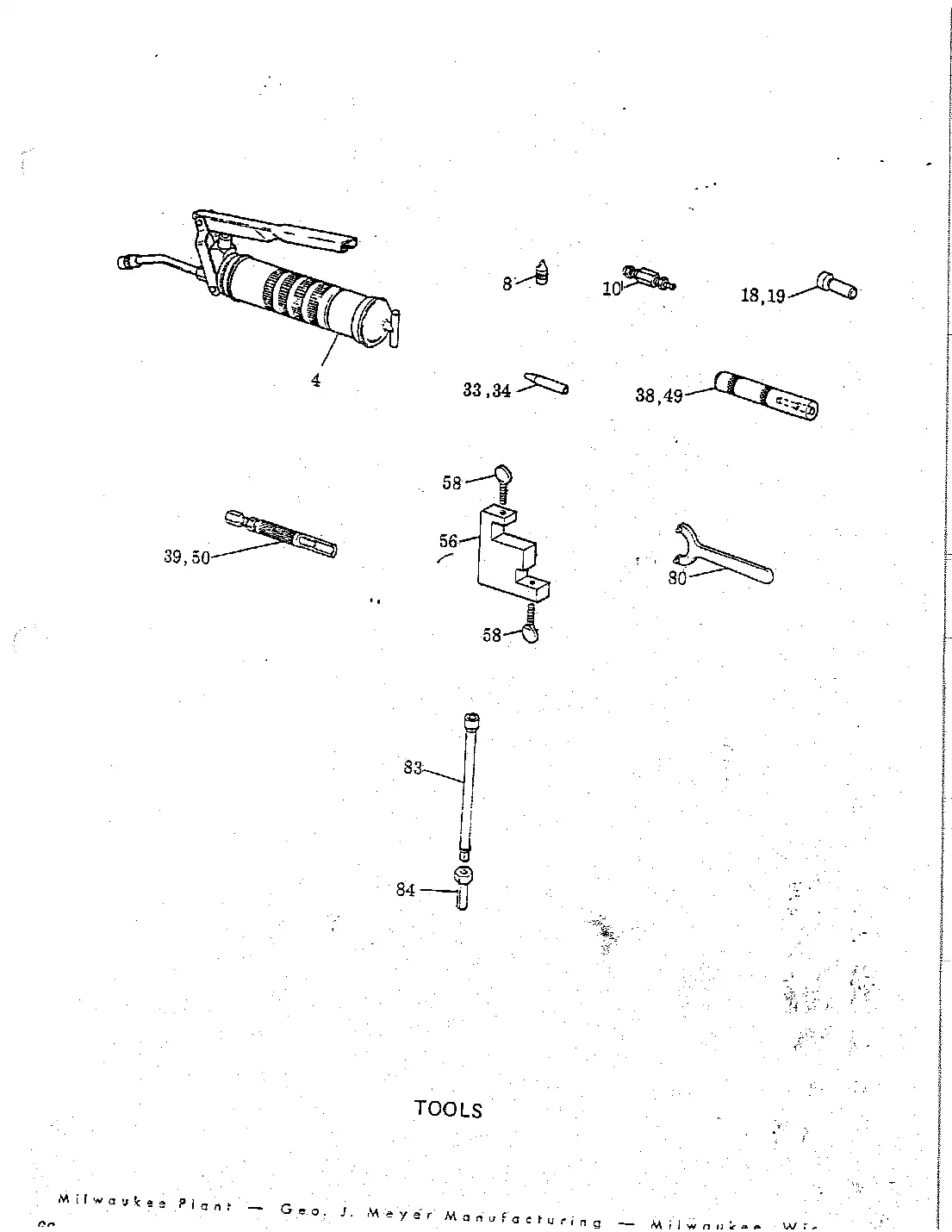

10	904-5012	Snirt valve cleaner adapt	Ask us
18	135-10441351044	Tool, drive oin valve lever	Request
19	135-10451351045	Tool, sizing pin valve lever bushing	Request
1	101-3202	Grease molub-alloy	Ask us
33	135-1225	Spreader assembler vent tube	Ask us
34	135-1226	O-ring/spring assembler	Ask us
38	131-7125	Tool, sleeve installation	Ask us
2	100-9884	Grease texaco molytex lock nut	Ask us
39	902-3734	Tool, sleeve adj vent tube	Ask us
3	100-6179	Oil, range solid gage	Ask us
4	100-7650	Gun, lubricant general type crowner head	Ask us
5	100-7670	Oil, cepheus	Ask us
7	903-8827	Oil, hydraulic- mobil dte	Ask us
50	900-8623	Tool, sleeve adj vent tube	Ask us
50	101-3245	Oil, hydraulic-mobil dte	Ask us
58	102-1306	Screw, thumb poy	Ask us
8	101-2631	Fitting, lub flush type	Ask us
80	CL-607	Wrench, spanner crown	Ask us
9	131-4196	Detergent, myrex	Ask us
83	100-7553	Detergent, myrex	Ask us
83	100-7550	Detergent, myrex	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	903-84229038422-1	Outrigger, rear	Request
2	903-87059038705-1	Outrigger, left side	Request
3	102-00981020098	Bolt, hex head	Request
24	135-07601350760	Rail, movable valve operators	Request
4	102-03801020380	Washer, lock	Request
26	102-00901020090	Bolt, hex head	Request
5	102-03341020334	Nut, hex	Request
27	102-03891020389	Washer, lock	Request
81	133-92291339229	Cover	Request
82	102-00931020093	Bolt, hex head	Request
88	102-04171020417	Washer, flat	Request
85	102-00751020075	Bolt, hex head	Request
11	903-84359038435	Post, support rail	Request
36	102-03881020388	Washer, lock	Request
12	102-00911020091	Bolt, hex head	Request
15	102-09861020986	Pin, roll slotted	Request
40	133-68461336846	U-bolt	Request
716	102-19111021911	Screw, set sh nylock	Request
41	102-03881020388	Washer, lock	Request
17	104-61931046193	Collar, 48V	Request
42	102-03331020333	Nut, hex	Request
44	133-93841339384	U-bolt	Request
45	102-03871020387	Washer, lock	Request
21	102-04471020447	Screw, set socket cup point	Request
46	102-03321020332	Nut, hex	Request

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
2	100-93201009320	Seal, charging cap	Request
3	132-88111328811	Body, charging valve	Request
4	HH-7211HH7211	Spring, charging valve	Request
5	100-34821003482	O-ring	Request
6	132-64041326404	Retainer, O-ring	Request
7	132-63991326399	Collar, guide	Request
9	904-72969047296	Cage, spring filling valve R-11/R-19	Request
10	903-95369039536-WPC	Stem, assembly R11A valve	Request
10B	135-84301358430	Guide, valve stem	Request
10C	136-99971369997	Cage, secondary filling valve	Request
10D	131-62841316284	Spring, secondary	Request
10D	9046650904-6650	Kit, valve rebuild R11/ R19 bolt on	Request

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full sizeOpen full sizeOpen full sizeOpen full sizeOpen full size

Ref	Part number	Description
8	102-31061023106	Screw, socket head cap	Request
8	104-5093V1045093-V	O-ring	Request
8	102-32251023225	Screw, socket head cap	Request
8	135-09601350960	Lever, valve operating	Request
8	102-23901022390	Nut, hex	Request
40	600-3117-16003117-1	Line, air-evac return	Request
41	600-3115-16003115-1	Line, CIP return 32V	Request
7	100-07791000779	Elbow, 90 degree	Request
20	300-06683000668	Valve, relief	Request
