Meyer 60 and 72 valve can filler parts manual

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
6	HH-1344	Screw, jack	Ask us
7	131-1859	Plate, base support	Ask us
8	102-00651020065	Bolt, hex head	Request
9	102-03871020387	Washer, lock	Request
1	902-0970	Door, center	Ask us
2	902-2694	Door	Ask us
2-3	000-3378	Gasket	Ask us
12	100-9786	Plate, legal	Ask us
3	902-3648	Door, side	Ask us
13	100-9930	Nameplate	Ask us
5	904-4012	Door	Ask us
15	102-2322	Screw, drive	Ask us
32	134-2377	Bracket, safety ring	Ask us
33	102-02941020294	Screw, round head slot	Request
34	100-7016	Clamp, conduit	Ask us
36	102-0037	Screw, hex head	Ask us
37	102-03921020392	Washer, lock	Request
1	131-7439	Post, support	Ask us
38	102-0337	Nut, hex	Ask us
2	131-7070	Spacer, support	Ask us
39	102-04201020420	Washer, flat	Request
3	131-6555	Stud, spacer support	Ask us
40	102-00901020090	Bolt, hex head	Request
4	131-7495	Shim, spacer support	Ask us
41	102-03891020389	Washer, lock	Request
5	131-7471	Bracket, operator ring	Ask us
42	102-00911020091	Bolt, hex head	Request
6	131-7481	Ring, mech latch	Ask us
43	102-04171020417	Washer, flat	Request
7	902-4224	Post, support screw	Ask us
8	131-6758	Brace, support post	Ask us
45	102-09861020986	Pin, roll slotted	Request
9	131-6759	Brace, support post	Ask us
46	134-1028	Brace, support post	Ask us
10	902-4223	Post, support	Ask us
48	904-0549	Spacer, cam spool valve	Ask us
12	131-7482	Ring, valve closer	Ask us
49	HH-157HH157	U-bolt, valve closer	Request
15	131-3084	Washer, flat	Ask us
50	102-03331020333	Nut, hex	Request
16	902-1939	Bracket, opener assembly	Ask us
51	102-04161020416	Washer, flat	Request
53	102-00671020067	Bolt, hex head	Request
54	102-04151020415	Washer, flat	Request
55	100-9235	Clamp	Ask us
19	000-1858	Spacer, tube	Ask us
56	102-16471021647	Bolt, hex head	Request
57	132-2667	Disc, ring bracket	Ask us
58	102-00881020088	Hex head bolt	Request
22	904-44299044429	Assembly, snift cam & 70V can filler	Request
59	102-03341020334	Nut, hex	Request
22-1	904-44269044426	Plate, snift & can filler	Request
60	135-1240	Bracket, mounting exhaust tray	Ask us
22-2	134-42111344211	Cam plate snift & can rem	Request
61	904-4241	Cover, exhaust tray	Ask us
22-3	102-01741020174	Screw, flat head slot	Request
62	904-4240	Tray, exhaust	Ask us
23	904-0633	Pan, snift drip	Ask us
63	102-1150	Screw, pan head	Ask us
24	000-3080	Hose	Ask us
64	104-6401	Wool, steel	Ask us
25	131-9893	Bracket, snift cam	Ask us
65	134-8234	Spacer	Ask us
26	132-7575	Bracket, closer	Ask us
66	134-4298	Spacer, ring support	Ask us
27	902-1784	Bracket, closer angle	Ask us
67	134-4299	Spacer, ring support	Ask us
28	131-54691315469	Pin track	Request
68	134-4300	Spacer, ring support	Ask us
29	131-54681315468	Spring	Request
30	131-54671315467	Track, valve opener	Request
70	134-4302	Spacer, ring support	Ask us
31	102-05741020574	Pin, cotter	Request
5	100-07751000775	Fitting, grease male ptf	Request
6	102-04261020426	Screw, set socket cup point	Request
7	102-00661020066	Bolt, hex head	Request
9	131-8376	Bracket, latch	Ask us
10	131-8378	Hanger, lower	Ask us
11	102-0711	Nut, wing	Ask us
12	131-83801318380	U-bolt	Request
13	102-03321020332	Nut, hex	Request
14	102-03411020341	Nut, hex jam	Request
16	100-3870	Ring, retaining	Ask us
17	131-5680	Hinge, valve	Ask us
18	131-8377	Bracket, sense	Ask us
20	102-10121021012	Nut, hex, jam	Request
21	131-8373	Screw, mounting	Ask us
24	102-2164	Screw, head	Ask us
25	102-2163	Screw, flat head	Ask us
26	131-6536	Stud, sensor	Ask us
28	131-8382	Pin, hinge	Ask us
29	102-09781020978	Screw, socket head cap	Request
30	102-00761020076	Bolt, hex head	Request
31	102-03881020388	Washer, lock	Request
33	131-8379	Spring, hinge	Ask us
34	102-00681020068	Bolt, hex head	Request
36	902-4662	Trigger	Ask us
37	102-1313	Screw, socket	Ask us
38	131-6600	Clamp, tri	Ask us
39	131-7187	Bar, wear	Ask us
40	132-4485	Bracket, pix	Ask us
41	101-0154	Bearing	Ask us
42	102-12541021254	Pin, roll	Request
2	102-02871020287	Screw, phillips hd	Request
3	102-03861020386	Washer, lock	Request
14	102-6265	Label, guards	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

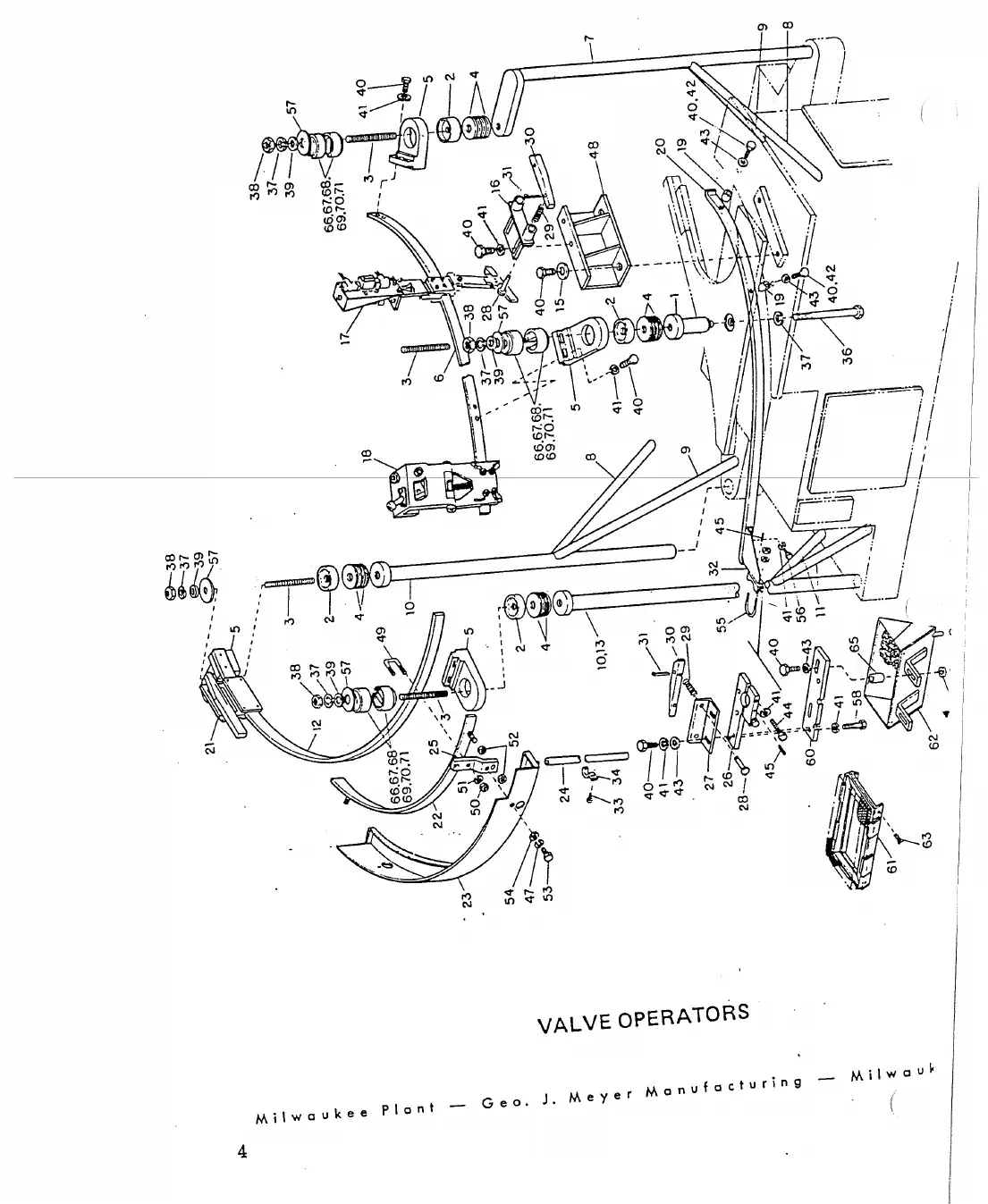

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
17	HH-1854	Spring, valve close	Request
18	HH-157HH157	U-bolt, valve closer	Request
1	131-6597	Bracket, vent tube blow	Ask us
19	102-0711	Nut, wing	Ask us
20	902-3292	Lock, neutral	Ask us
2	131-6601	Trigger, vent tube blow- cam	Ask us
22	102-04311020431	Screw, set socket cup point	Request
3	130-86191308619	Spring, trigger	Request
23	102-03381020338	Nut, hex jam	Request
24	102-07431020743	Screw, socket head cap	Request
5	131-6598	Pin, trigger neutral	Ask us
25	102-03861020386	Washer, lock	Request
6	131-6600	Clamp, trigger	Ask us
26	102-03871020387	Washer, lock	Request
7	102-1313	Screw, socket head	Ask us
28	102-04261020426	Screw, set socket cup point	Request
8	102-00681020068	Bolt, hex head	Request
29	131-7187	Bar, wear	Ask us
30	102-2217	Screw, socket head set	Ask us
10	131-6602	Shaft trigger	Ask us
31	102-03361020336	Nut, hex	Request
11	100-07751000775	Fitting, grease male ptf	Request
32	102-04171020417	Washer, flat	Request
12	131-6599	Retainer, trigger	Ask us
33	102-04271020427	Screw, set socket cup point	Request
13	102-10111021011	Pins, cotter	Request
34	102-01831020183	Screw, flat head slot	Request
14	130-86171308617	Pin, valve closer hinge	Request
15	130-8603	Washer, flat	Ask us
6	134-60011346001	Track, valve closer	Request
7	131-9902	Plate	Ask us
8	102-05741020574	Pin, cotter	Request
1	134-6002	Bracket, valve closer	Ask us
10	131-64561316456	Bracket, valve closer hinge	Request
3	102-0707	Screw, socket head	Ask us
4	102-00781020078	Hex head bolt	Request

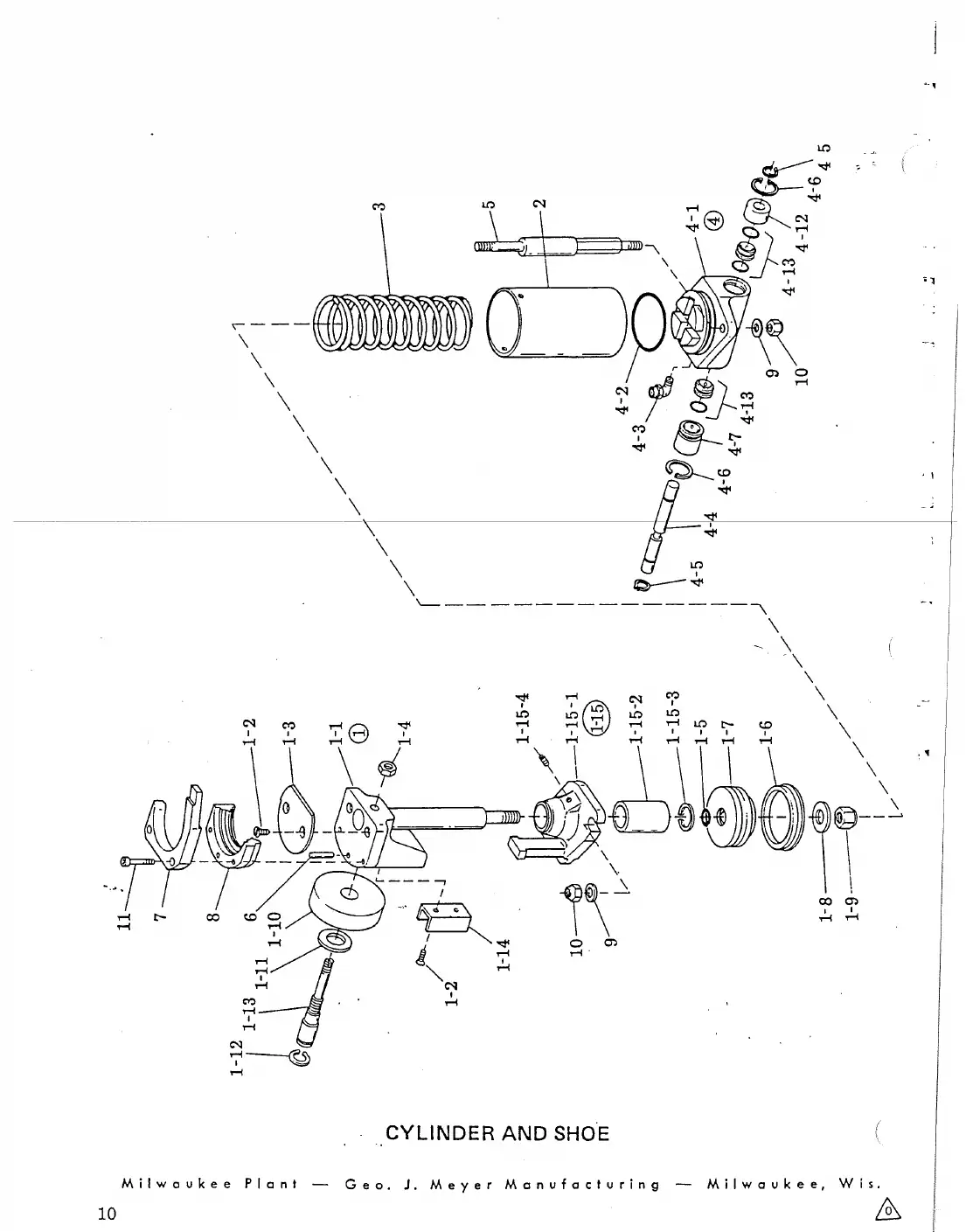

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1-15-4	100-08711000871	Plug, pipe	Request
3	131-76311317631	Spring, lift cylinder	Request
1-1	904-2874	Rod assembly, shoe	Ask us
4	902-43179024317-R	Cylinder, bottom assembly can filler rem	Request
1-2	102-01831020183	Screw, flat head slot	Request
4-2	101-01181010118	O-ring	Request
1-3	131-42971314297	Plate, wearstrip wear lift	Request
4-3	101-32471013247	Elbow, tube 90 deg	Request
4-4	HH-7014HH7014	Stem, spool valve	Request
1-5	100-81331008133	O-ring	Request
4-5	100-73081007308	Ring, retaining	Request
1-6	101-01151010115	U-cup, airlift cylinder	Request
4-6	100-73091007309	Ring, spirolox	Request
1-7	131-7582	Piston	Ask us
4-7	131-68051316805	Ring, exhaust port	Request
1-8	102-04181020418	Washer, flat	Request
4-12	131-68021316802	Bushing, spool valve	Request
1-9	102-22671022267	Nut, hex nylock insert type	Request
4-13	904-44319044431	Kit, repair spool valves	Request
1-10	131-75811317581	Roller, stirrup cam	Request
5	134-02911340291	Rod, tie short stroke cylinder	Request
1-11	102-2268	Washer, flat	Ask us
1-12	100-38671003867	Ring, retaining external	Request
1-13	131-75841317584	Pin, roller eccentric	Request
1-14	131-75791317579	Bearing, insert cylinder cap	Request
9	102-20021022002	Washer, flat	Request
1-15	904-4582	Cap, cylinder assembly	Ask us
10	102-22661022266	Nut, hex nylock insert type	Request
1-15-1	134-4354	Cap, cylinder	Ask us
11	102-22231022223	Screw, socket head cap	Request
1-15-3	101-36391013639	Ring, snap	Request
2	131-75801317580	Cylinder, air lift body can filler	Request
1	904-4583	Piston assembly	Ask us
4-1	131-7578	Cylinder, bottom	Ask us
1-4	102-23741022374	Nut, lock	Request

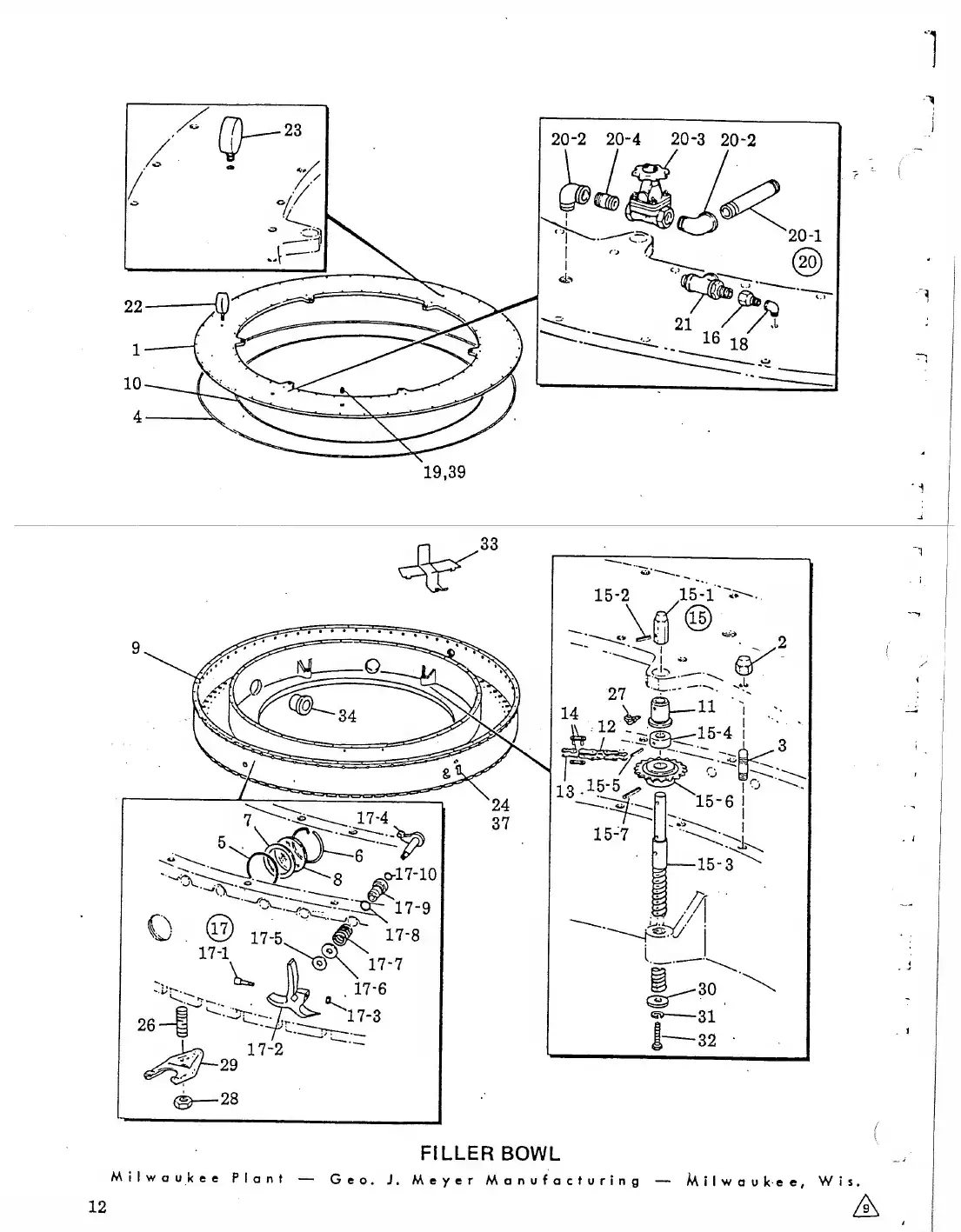

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
17-6	HH-1005HH1005	Washer, spring	Request
17-7	HH-5696HH5696	Spring, valve lever	Request
17-8	101-00881010088	O-ring	Request
17-9	131-74941317494	Bushing, valve lever filler bowl	Request
1	HH-8328	Cover, bowl	Ask us
17-10	100-25111002511	O-ring, edpm, dash	Request
2	130-85621308562	Nut, dome	Request
18	100-46601004660	Elbow, street 90 deg	Request
3	130-85471308547	Stud, bowl cover	Request
19	100-48561004856	Plug, pipe square hd	Request
4	000-2682	Gasket, outside	Ask us
20	HH-6326	Drain, bowl assembly	Ask us
5	100-25071002507	O-ring	Request
20-1	100-75581007558	Nipple	Request
6	100-97751009775	Ring, retaining	Request
20-2	100-6512	Elbow	Ask us
7	131-1767	Gasket, sight glass	Ask us
20-3	100-7648	Valve	Ask us
8	131-33601313360	Sight glass	Request
20-4	100-61131006113	Nipple, close	Request
21	100-4121	Valve, safety blow-off	Ask us
22	100-3387	Gauge	Ask us
11	HH-8321	Bushing	Ask us
23	100-93951009395-1	Thermometer, filler bowl digital	Request
12	101-21031012103	Chain, roller	Request
24	101-2237	Numbers, valve	Ask us
13	101-21041012104	Link, offset	Request
26	HH-149	Stud, valve clamp	Ask us
15	HH-8974	Screw, lift assembly	Ask us
28	102-1525	Nut, hex	Ask us
15-1	HH-8971	Nut, lift screw	Ask us
29	132-15451321545	Clamp, valve	Request
15-2	100-32171003217	Pin, roll	Request
30	HH-220	Washer, stop	Ask us
15-3	HH-1248	Screw, bowl cover lift	Ask us
31	102-03871020387	Washer, lock	Request
15-4	HH-169	Collar, cover lift screw	Ask us
32	102-00671020067	Bolt, hex head	Request
15-5	100-32181003218	Pin, roll	Request
33	131-7562	Baffle	Ask us
15-6	HH-8972HH8972	Sprocket cover lift screw	Request
34	130-6039	Ferrule	Ask us
15-7	100-32191003219	Pin, roll	Request
35	HH-8327	Cover, bowl	Ask us
16	HH-6406	Adapter, valve	Ask us
36	131-8769	Bowl	Ask us
17	904-5659	Lever, valve assembly	Ask us
17-1	134-70851347085	Bolt, valve lever	Request
39	101-3062	Plug, pipe	Ask us
17-2	135-8465	Lever, valve opener	Ask us
17-3	102-23901022390	Nut, hex	Request
17-4	131-74931317493	Lever, valve inside	Request
17-5	RR-348RR348	Washer, valve lever outside	Request
14	101-21051012105	Clip, link roller chain	Request
27	100-4286	Fitting grease	Ask us

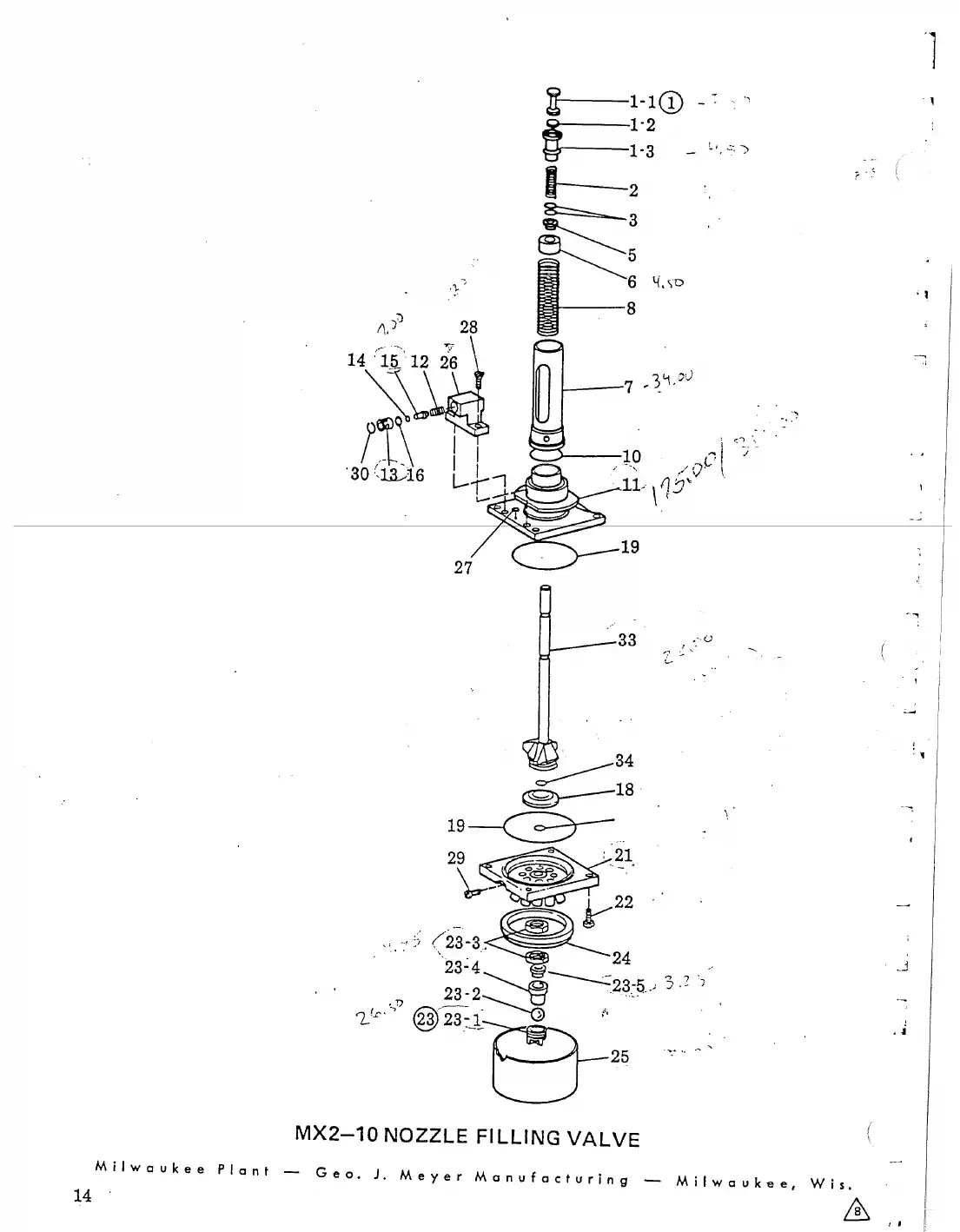

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
18	135-08281350828	Seal, liquid valve	Request
19	104-63141046314	O-ring, starshaft	Request
20	100-40251004025	O-ring	Request
21	904-4034	Valve head assembly	Ask us
1	HH-7170	Valve, charging assembly	Ask us
22	102-07431020743	Screw, socket head cap	Request
1-1	132-64011326401	Cap, charging valve	Request
23	904-5674	Ball, check assembly	Ask us
1-2	100-93201009320	Seal, charging cap	Request
23-1	135-5716	Cage, ball check	Ask us
1-3	132-88111328811	Body, charging valve	Request
23-2	104-64861046486	Ball, check	Request
2	HH-7211HH7211	Spring, charging valve	Request
23-3	135-0825	Nut, check ball	Ask us
3	100-34821003482	O-ring	Request
23-4	135-85251358525	Seal, check ball	Request
5	132-64041326404	Retainer, O-ring	Request
23-5	135-8526	Insert, check ball	Ask us
6	132-63991326399	Collar, guide	Request
10	100-25201002520	O-ring	Request
27	100-25181002518	O-ring	Request
11	135-0839	Bonnet	Ask us
28	102-01841020184	Screw, flat head slot	Request
12	131-75851317585	Spring, compression conical	Request
29	102-2371	Screw, pan head	Ask us
13	135-10071351007	Bushing, snift valve	Request
30	104-63701046370	Ring, retaining filling valve	Request
14	100-40381004038	O-ring	Request
33	904-56209045620	Stem, valve assembly MX2	Request
15	135-10061351006	Stem, snift valve	Request
34	104-65471046547	O-ring	Request
8	HH-6487HH6487	Spring, post valve MX-2	Request
26	135-1121	Body, snift valve	Ask us

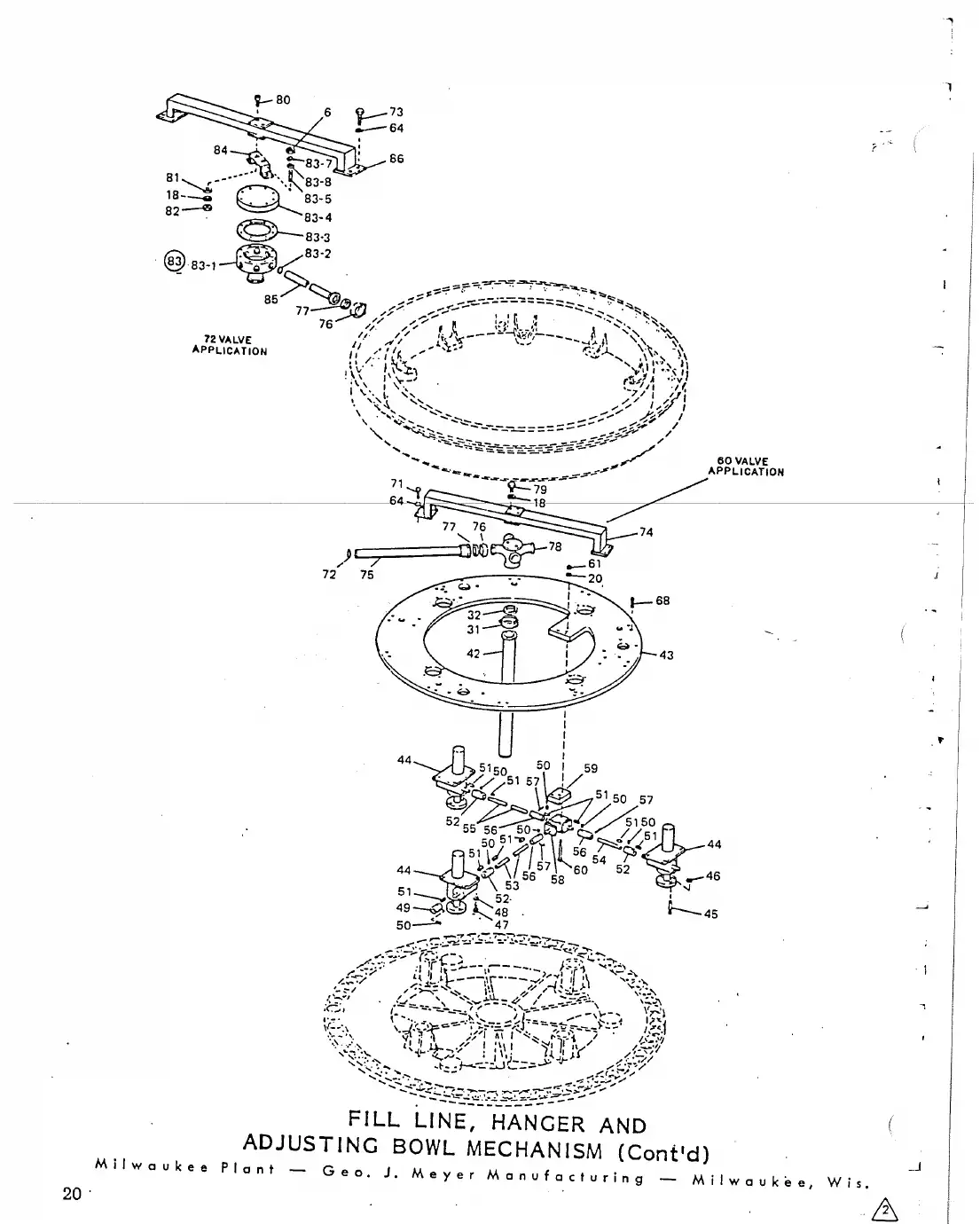

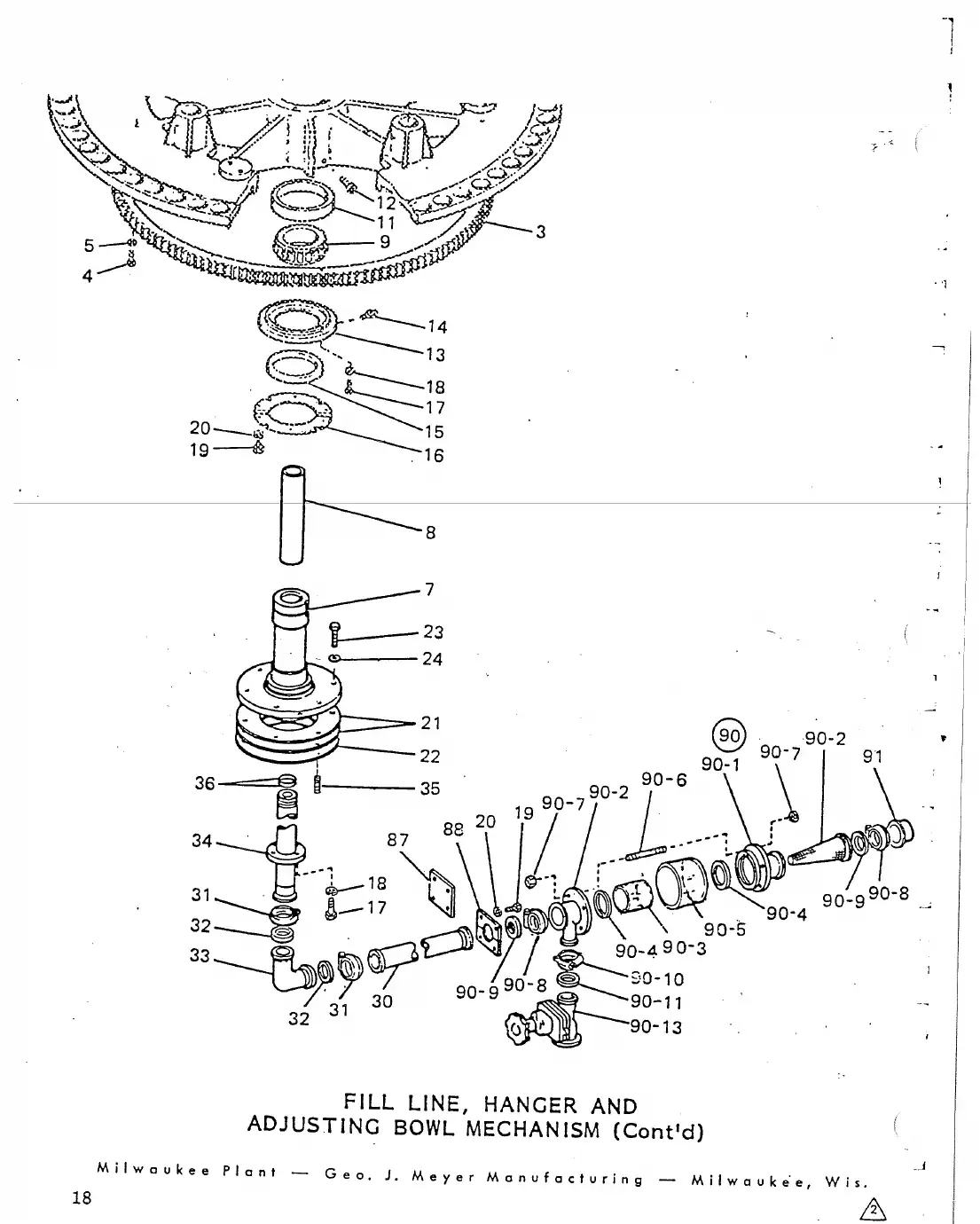

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
21	131-8923	Shim	Ask us
23	102-00611020061	Bolt, hex head	Request
24	102-0383	Lockwasher	Ask us
25	101-0459	Bearing, washer	Ask us
26	101-0458	Nut, bearing	Ask us
1-1	134-0073	Hanger, stirrup	Ask us
1-2	131-5864	Post, guide	Ask us
28	101-3104	Seal, face	Ask us
1-3	102-2123	Pin, taper	Ask us
29	134-0075	Cap, top bearing	Ask us
2	904-2005	Hanger post assembly	Ask us
30	HH-8587	Line, horizontal supply-a	Ask us
2-1	134-0074	Hanger, stirrup	Ask us
31	100-00271000027	Clamp, hinged sanitary	Request
32	100-00281000028	Gasket, tri-clamp	Request
33	100-41481004148	Elbow, 90 deg	Request
3	902-4329	Gear	Ask us
34	904-2166	Line, vertical supply	Ask us
4	102-0048	Screw, hex head	Ask us
35	100-2716	Nipple	Ask us
5	102-03821020382	Washer, lock	Request
36	100-41631004163	O-ring, product line lower	Request
37	101-25231012523	Packing, v ring set	Request
38	132-3116	Bushing, stuffing box	Ask us
8	132-20911322091	Bushing, stuffing box gland	Request
39	100-25121002512	O-ring, upper lift cylinder	Request
9	101-0461	Cone, bearing	Ask us
40	102-00711020071	Hex head bolt	Request
10	101-0460	Cone, bearing	Ask us
41	100-6628	Fitting, pressure relief	Ask us
11	101-04621010462	Bearing, cone filler	Request
42	902-7375	Line, vertical supply	Ask us
12	102-1944	Screw, socket head	Ask us
43	902-2283	Plate, support adj bowl	Ask us
13	134-1079	Retainer, oil seal	Ask us
44	100-9534	Screw, jack	Ask us
14	100-4762	Fitting, pressure relief	Ask us
45	131-6843	Pin, jack release	Ask us
15	101-04631010463	Seal, 72V can filler	Request
46	100-99951009995	Ring, retaining	Request
16	132-2876	Plate, oil seal	Ask us
17	102-00891020089	Bolt, hex head	Request
18	102-03891020389	Washer, lock	Request
19	102-00651020065	Bolt, hex head	Request
50	102-04251020425	Set screw	Request
20	102-03871020387	Washer, lock	Request
51	000-1624	Key	Ask us
52	131-67801316780	Coupling shaft	Request
74	902-1797	Support, product line	Ask us
53	131-6112	Shaft, jack	Ask us
75	900-0979	Line, bowl supply	Ask us
76	100-21421002142	Clamp, hinged sanitary	Request
55	131-6113	Shaft, jack	Ask us
77	100-21331002133	Gasket, tri-clamp tube	Request
56	131-67811316781	Coupling shaft	Request
78	900-0394	Cross, bowl supply	Ask us
57	102-18541021854	Pin, roll slotted	Request
79	102-05731020573	Screw, socket head cap	Request
58	100-93301009330	Gearbox, three way bowl lift	Request
59	131-54511315451	Spacer, block	Request
81	102-04171020417	Washer, flat	Request
60	102-20941022094	Bolt, hex head	Request
82	102-03341020334	Nut, hex	Request
61	102-03321020332	Nut, hex	Request
83	902-4269	Chamber, balance	Ask us
62	902-4490	Housing, guide post assembly	Ask us
83-1	902-4268	Chamber, balance	Ask us
62-1	100-9354	Bushing, plain	Ask us
83-2	100-40251004025	O-ring	Request
62-2	131-8286	Housing, guide	Ask us
83-3	131-7528	Gasket, balance chamber	Ask us
62-3	102-19201021920	Fitting, grease	Request
63	102-1835	Screw, hex head	Ask us
83-4	131-7529	Cover, balance chamber	Ask us
64	102-03901020390	Washer, lock	Request
83-5	102-1281	Stud	Ask us
66	132-4468	Shim-half	Ask us
83-7	102-03881020388	Washer, lock	Request
83-8	102-04161020416	Washer, flat	Request
68	102-21601022160	Pin, dowel	Request
84	131-7527	Hanger, balance chamber	Ask us
69	134-4311	Cap, guide post	Ask us
85	902-4270	Line, bowl supply	Ask us
70	100-9757	Screw, socket head	Ask us
86	902-4235	Support, product line	Ask us
87	131-1815	Cover, closed end	Ask us
88	131-1816	Cover, split	Ask us
73	102-01021020102	Bolt, hex head	Request
89	131-5502	Cover, pinion hole	Ask us
90	902-1137	Glass, sight assembly	Ask us
90-12	902-1143	Strainer assembly	Ask us
90-1	902-1140	Ferrule flange seat	Ask us
90-13	100-0216	Valve	Ask us
90-2	902-1141	Ferrule flange seat ferrule	Ask us
90-3	131-4371	Glass, sight	Ask us
92	134-4304	Spacer, guide post	Ask us
90-5	131-4374	Guard, sight glass	Ask us
93	134-4306	Collar, guide post	Ask us
90-6	HH-2153	Stud	Ask us
94	134-4307	Collar, guide post	Ask us
90-7	102-0585	Nut, hex	Ask us
95	134-4308	Collar, guide post	Ask us
96	134-4309	Collar, guide post	Ask us
97	134-4310	Collar, guide post	Ask us
90-10	100-21411002141	Clamp, hinged sanitary	Request
98	134-4400	Collar, guide post	Ask us
90-11	100-2131	Gasket, clamp	Ask us
99	134-4470	Washer, guide post	Ask us
6	102-23561022356	Pin, dowel	Request
47	102-0907	Screw, hex head	Ask us
48	102-03911020391	Washer, lock	Request
380	102-10751021075	Socket head cap screw	Request
65	131-8275	Shim-half	Ask us
83-6	102-03331020333	Nut, hex	Request
71	100-9759	Screw, socket head 1381-1815 cover	Ask us
91	100-0025	Ferrule	Ask us
90-4	131-4873	Gasket, sight glass 376	Ask us

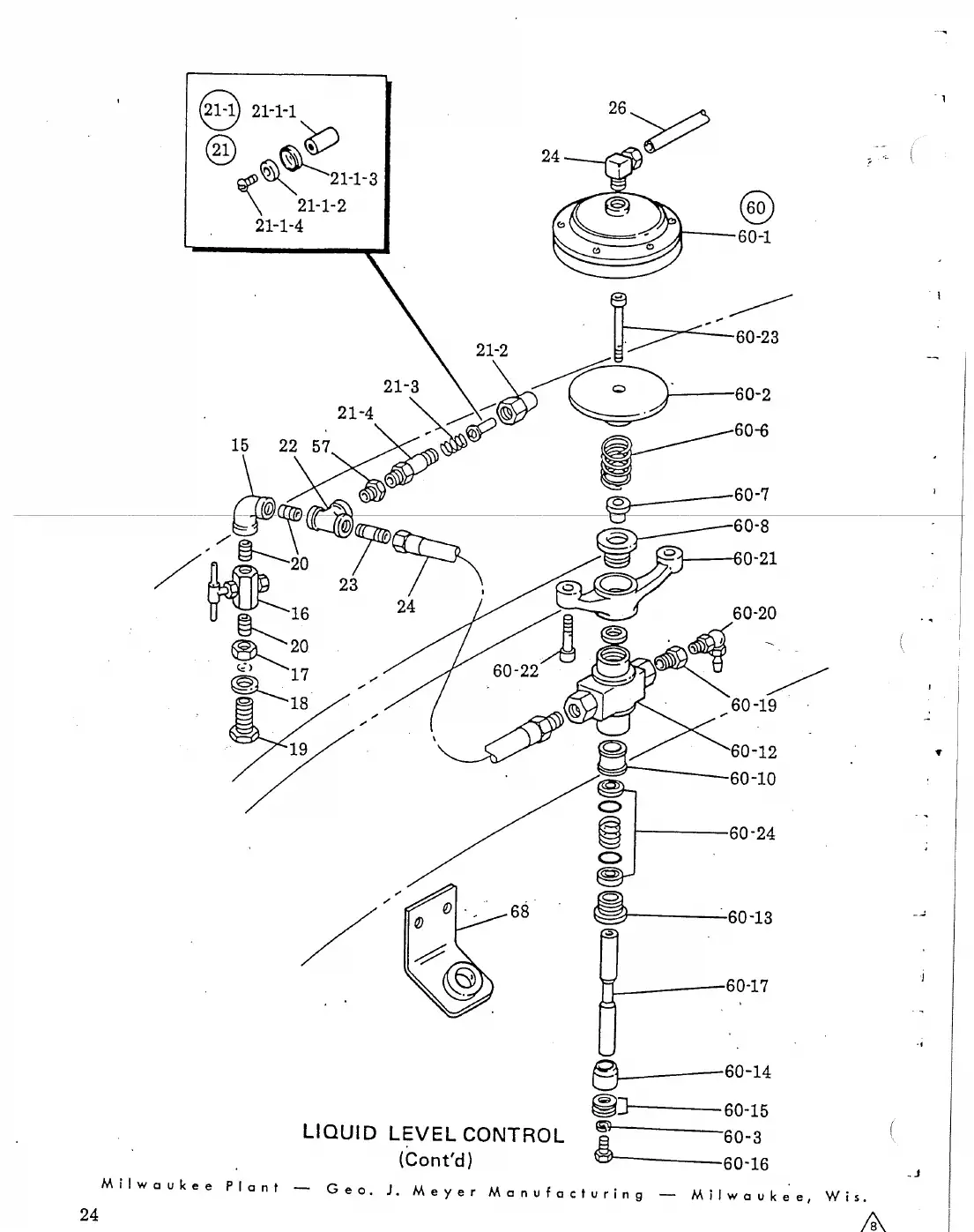

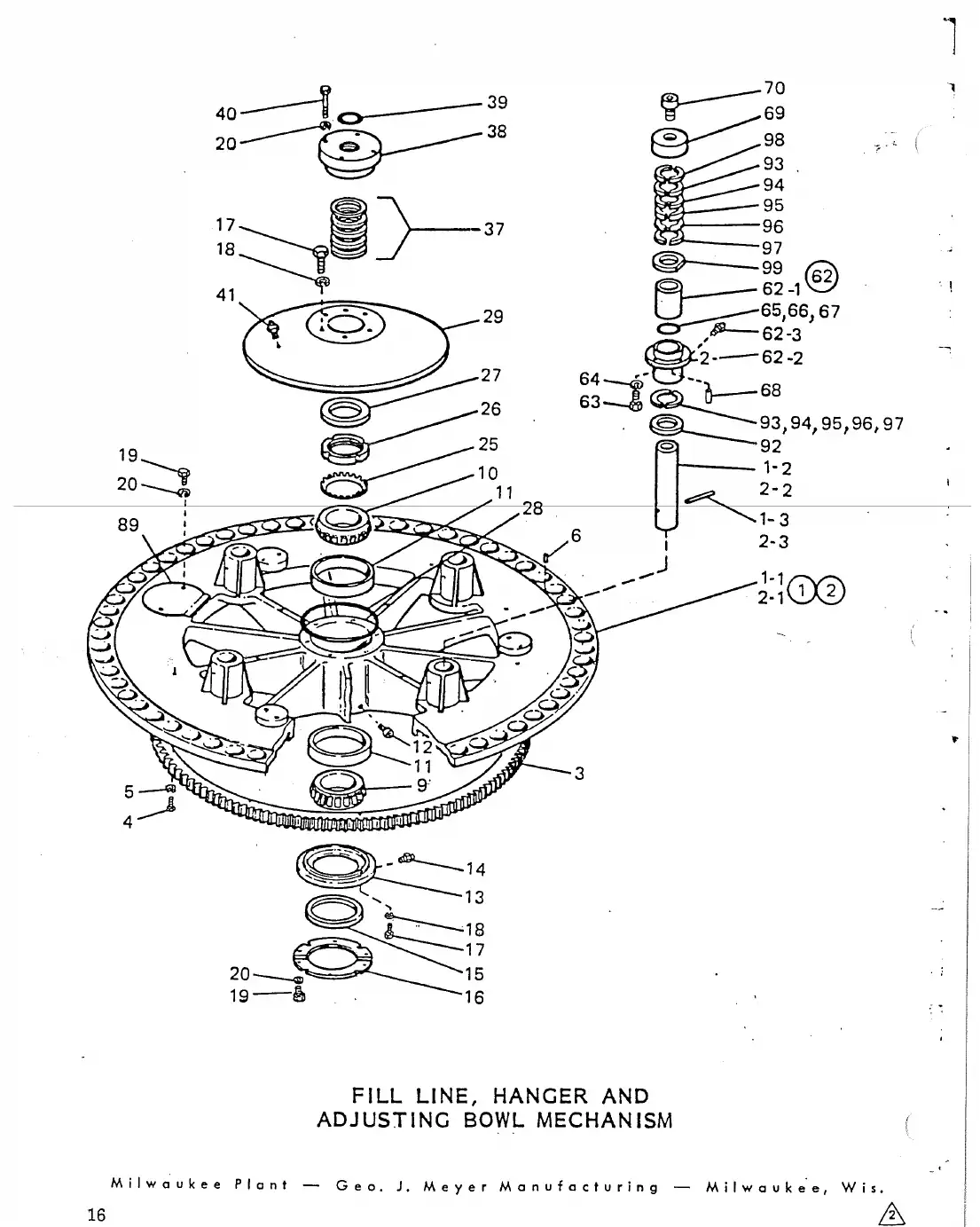

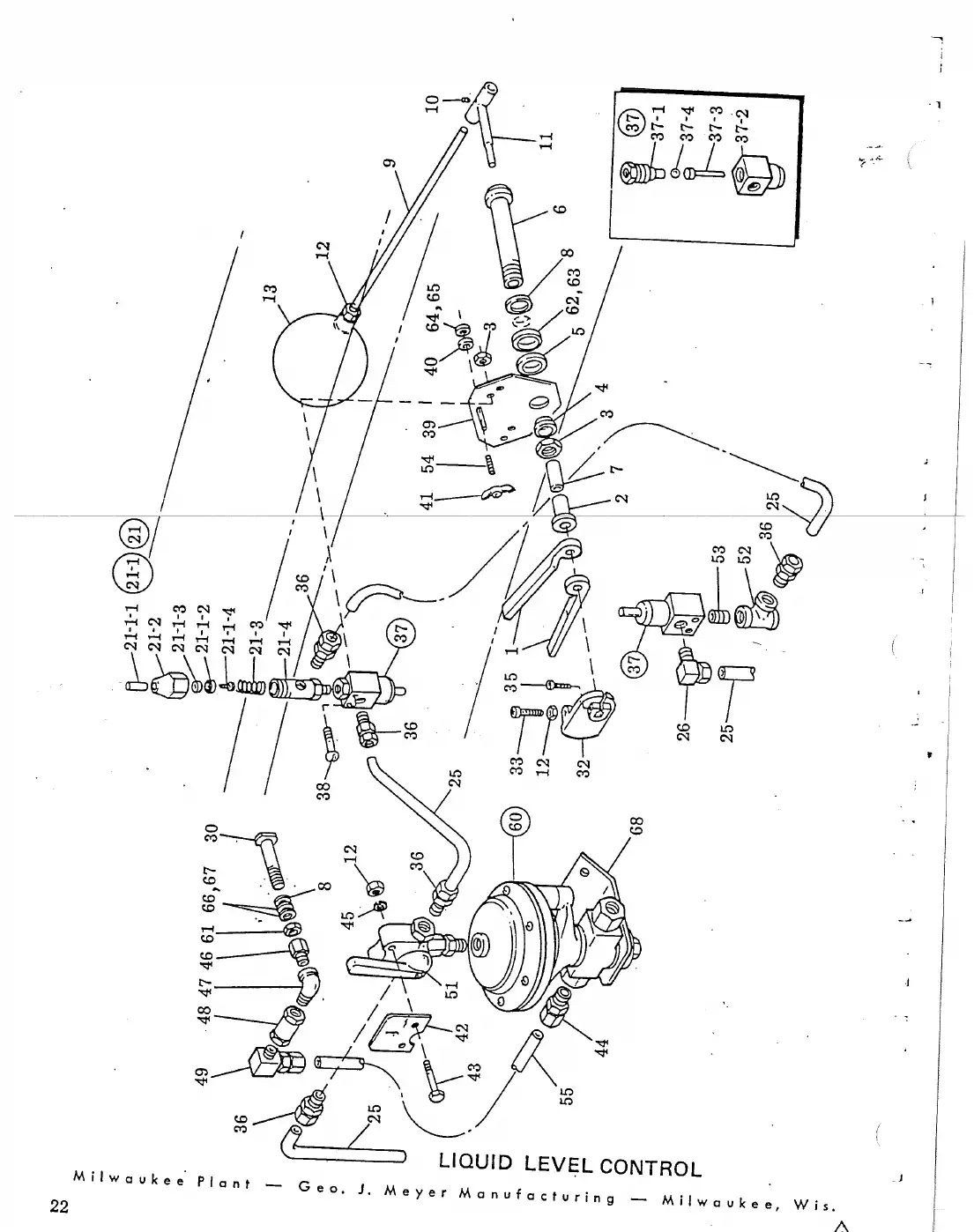

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full size

Ref	Part number	Description
30	HH-2407	Port, charging	Ask us
32	HH-8696HH8696	Plate, operating liq level	Request
1	HH-8695HH8695	Lever, oper liquid level control	Request
33	102-07731020773	Screw, fillister hd	Request
2	HH-2410HH2410	Gland, packing	Request
35	102-07751020775	Screw, fillister hd	Request
3	HH-2414HH2414	Nut, lock stuffing box	Request
36	100-09251000925	Fitting, tube adapter bras	Request
4	HH-8692HH8692	Retainer, bushing mounting	Request
5	HH-8693HH8693	Spacer, mounting plate liq level	Request
37-1	131-35551313555	Cage, ball air valve assembly	Request
6	131-63321316332	Box stuffing	Request
37-2	HH-8697	Body, air valve	Ask us
37-3	100-77711007771	Ball float	Request
8	RR-228RR228	Gasket, air inlet valve bo	Request
37-4	HH-2421	Trigger, air check	Ask us
9	HH-2515HH2515	Float lever control valve	Request
38	102-02931020293	Screw, round head slot	Request
10	102-04371020437	Screw, set socket cup point	Request
39	HH-8691HH8691	Plate, mounting	Request
11	HH-2409HH2409	Stem, valve operating	Request
40	HH-8694	Spacer	Ask us
12	102-0363	Nut, hex	Ask us
41	102-0711	Nut, wing	Ask us
42	130-11831301183	Plate, operator	Request
15	100-53721005372	Elbow, 90 deg	Request
16	100-79931007993	Valve, on/off, female male	Request
44	100-09271000927	Fitting, tube adapter	Request
17	HH-457HH457	Nut	Request
45	102-03871020387	Washer, lock	Request
18	HH-8263HH8263	Gasket, valve	Request
46	HH-8948	Adapter	Ask us
19	HH-8814	Adapter, blow-off valve	Ask us
47	100-46601004660	Elbow, street 90 deg	Request
20	100-61101006110	Nipple, close	Request
48	100-53761005376	Valve, check	Request
21	HH-167HH167	Valve, clean out assembly	Request
49	100-14691001469	Elbow, tube male	Request
21-1	902-98279029827	Insert, snift valve assembly B-2	Request
50	HH-2416HH2416	Spring, operating	Request
21-1-1	132-64021326402	Stem, snift valve	Request
51	900-01679000167	Valve, run / charge	Request
21-1-2	134-6403	Retainer, snift valve	Ask us
52	100-08801000880	Tee, pipe	Request
53	100-0889	Nipple, close	Ask us
21-1-3	RR-647RR647	Seat, snift valve	Request
54	102-10001021000	Stud, tap end	Request
21-1-4	102-23571022357	Screw, round head	Request
55	000-1769	Tubing	Ask us
21-2	RR-88RR88	Nut, snift valve	Request
57	131-1419	Bushing, reducer	Ask us
21-3	131-75851317585	Spring, compression conical	Request
58	102-05531020553	Nut, hex	Request
21-4	RR-115RR115	Valve, body clean out-sell HH3486	Request
59	HH-3485HH3485	Valve, body clean out 52V family	Request
22	100-53711005371	Tee	Request
23	100-41021004102	Nipple	Request
24	900-1240	Hose, blow-off	Ask us
25	000-1760	Tubing specify	Ask us
59-4	132-64031326403	Retainer, seat snift valve	Request
26	100-1467	Elbow	Ask us
27	100-47681004768	Valve, diaphragm	Request
59-6	HH-3486HH3486	Valve, body clean out family	Request
60	902-35209023520	Valve, level control	Request
60-20	100-07761000776	Fitting, grease ptf	Request
60-1	100-9764	Diaphragm assembly	Ask us
60-21	100-97701009770	Yoke	Request
60-2	100-97651009765	Piston, diaphragm valve	Request
60-22	102-21991022199	Screw, allen cap	Request
60-3	102-03881020388	Washer, lock	Request
60-23	102-21781022178	Screw, socket head cap	Request
60-6	100-97621009762	Spring, diaphragm ret	Request
60-24	902-3638	Kit, diaphragm valve	Ask us
60-7	131-6816	Spacer repair	Ask us
60-8	100-97711009771	Bearing, large flange	Request
61	101-01741010174	Nut, hex jam	Request
60-10	100-53541005354	Spacer, packer spool valve	Request
62	132-8231	Spacer, bracket	Ask us
60-12	100-97691009769	Body	Request
63	132-8232	Spacer, bracket	Ask us
60-13	100-97721009772	Bearing, small flange	Request
64	132-8233	Spacer, bracket	Ask us
60-14	131-68171316817	Spacer, diaphragm 2-WAY valve	Request
65	132-8234	Spacer, bracket	Ask us
60-15	102-04161020416	Washer, flat	Request
66	132-8235	Spacer, bracket	Ask us
60-16	102-1666	Screw, hex head	Ask us
67	132-82361328236	Spacer	Request
60-17	100-9767	Stem	Ask us
68	HH-8690HH8690	Bracket, diaphragm valve-mount	Request
60-19	100-14311001431	Bushing, reducing hex	Request
37	HH-8698HH8698	Valve, air body assembly OEM	Request
7	102-14831021483	Packing	Request
13	HH-300HH300	Ball, float	Request
43	102-00671020067	Bolt, hex head	Request

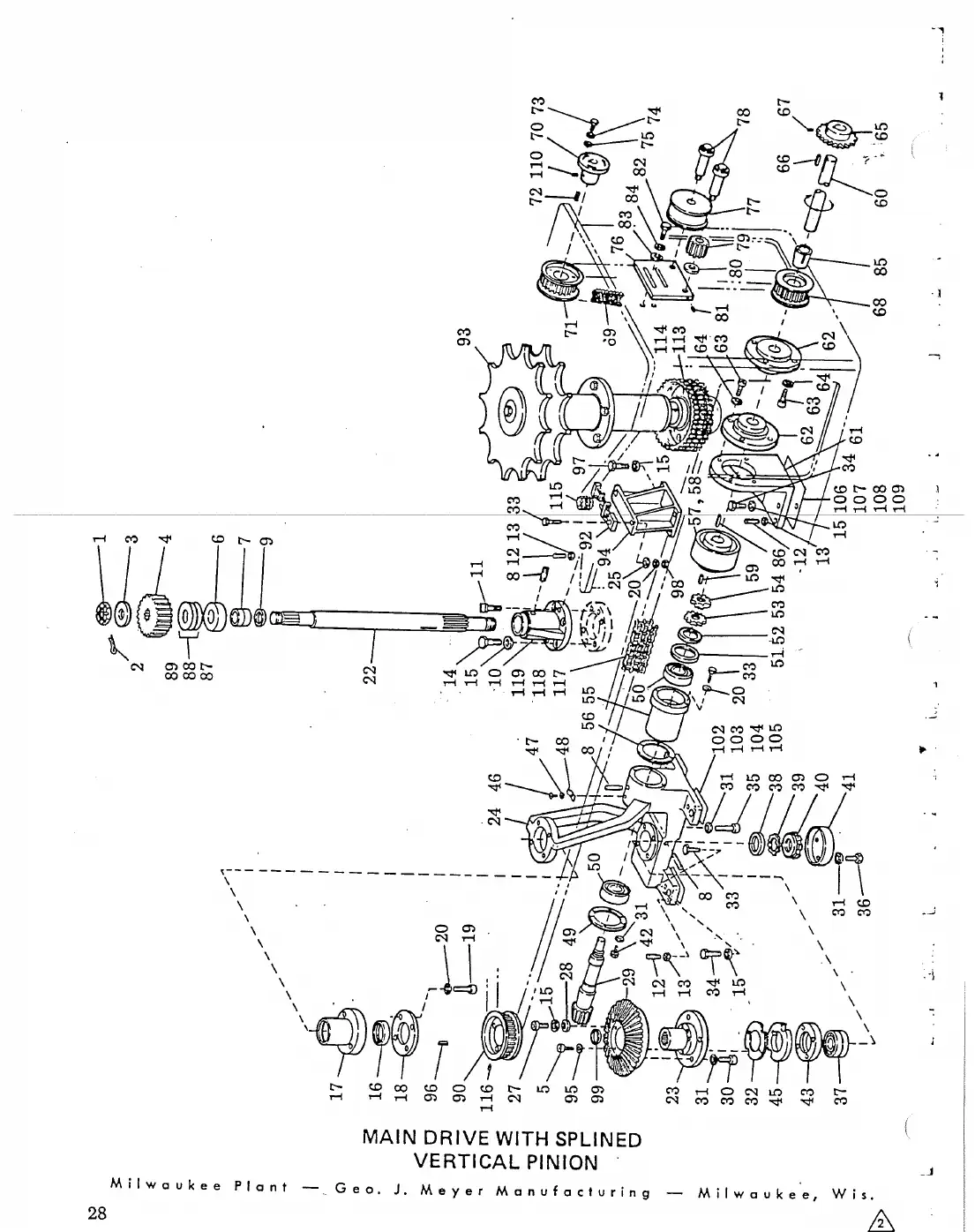

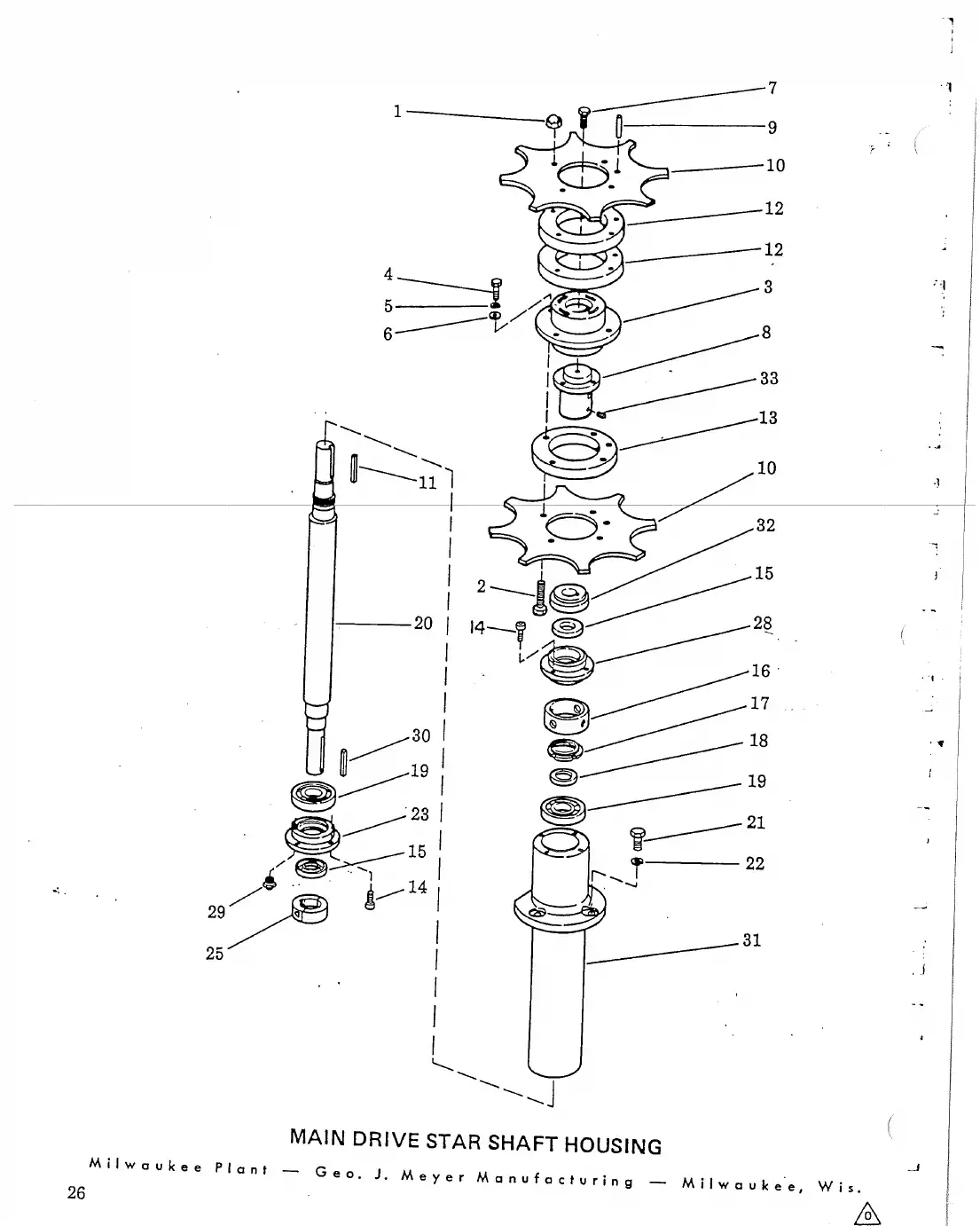

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
14	102-13621021362	Screw, socket head cap	Request
15	101-0621	Seal, oil	Ask us
16	132-4391	Spacer, bearing	Ask us
17	101-0623	Locknut, bearing	Ask us
1	HH-134	Nut, dome	Ask us
18	132-4390	Spacer, bearing	Ask us
2	102-1412	Bolt, hex head	Ask us
19	101-2296	Bearing, ball	Ask us
3	131-85611318561	Hub, star infeed can filler	Request
20	132-6227	Shaft, filler infeed	Ask us
4	102-00891020089	Bolt, hex head	Request
21	102-01011020101	Bolt, hex head	Request
5	102-03891020389	Washer, lock	Request
22	102-03901020390	Washer, lock	Request
6	102-04171020417	Washer, flat	Request
23	132-4393	Cap, bearing end btm	Ask us
7	102-01001020100	Bolt, hex head	Request
8	132-6228	Hub, adapter	Ask us
28	132-4392	Cap, bearing end top	Ask us
9	131-69091316909	Pin, star locating filler	Request
29	100-6628	Fitting, relief grease	Ask us
30	000-16390001639-3.5	Key, square	Request
11	000-16280001628	Key, square	Request
31	132-6235	Housing, star drive	Ask us
12	131-8291	Spacer, star	Ask us
32	132-6185	Spacer, star hub	Ask us
5	102-03881020388	Washer, lock	Request
25	132-6257	Collar split	Ask us
13	132-64311326431-1	Spacer	Request
33	102-04271020427	Screw, set socket cup point	Request

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
30	102-2789	Screw, socket head	Ask us
31	102-0379	Lockwasher	Ask us
32	131-79451317945	Shim, bevel gear can filler	Request
33	102-0028	Bolt, hex head	Ask us
34	102-0039	Bolt, hex head	Ask us
1	HH-1335HH1335	Nut, pinion drive	Request
35	102-21781022178	Screw, socket head cap	Request
2	102-05411020541	Pin, cotter	Request
36	102-00151020015	Bolt, hex head	Request
3	102-22001022200	Washer, flat	Request
37	101-01851010185	Bearing	Request
4	132-7529	Pinion	Ask us
38	101-01861010186	Washer	Request
5	102-0813	Screw, socket head	Ask us
39	101-01811010181	Washer, lock	Request
6	131-89211318921	Washer, pinion	Request
40	101-01821010182	Nut, lock	Request
41	902-45159024515	Cap, grease retainer	Request
8	100-2716	Nipple	Ask us
42	102-00121020012	Hex head bolt	Request
43	131-79471317947	Ring, bearing retainer	Request
10	131-8657	Housing	Ask us
45	134-15421341542	Plate, bevel gear support	Request
12	131-7013	Pin, taper	Ask us
47	102-0384	Lockwasher	Ask us
13	102-0320	Nut, hex	Ask us
48	100-6940	Clamp	Ask us
14	102-00511020051	Bolt, hex head	Request
49	131-8773	Cover	Ask us
50	101-0180	Bearing	Ask us
16	101-01881010188	Seal, oil johns-manviele	Request
51	101-0183	Seal	Ask us
52	131-7951	Spacer	Ask us
53	101-01871010187	Washer, lock	Request
19	102-2910	Screw, socket head	Ask us
54	100-37171003717	Nut, lock bearing	Request
20	102-03801020380	Washer, lock	Request
55	131-7952	Housing	Ask us
22	132-75241327524	Shaft, verticle pinion	Request
56	131-7953	Shim	Ask us
23	132-6405	Hub bevel gear	Ask us
57	101-0131	Coupling	Ask us
24	131-7934	Housing	Ask us
58	101-0202	Cover	Ask us
25	102-0371	Washer, flat	Ask us
27	102-1432	Screw, socket	Ask us
28	131-7946	Washer	Ask us
61	902-4388	Bracket	Ask us
29	902-5122	Gear assembly	Ask us
62	100-02361000236	Bearing, flange piloted	Request
63	102-1390	Screw, socket head	Ask us
64	102-14431021443	Washer, lock	Request
92	904-43989044398	Tensioner assembly	Request
65	100-9704	Sprocket shaft, star assembly	Ask us
66	000-16500001650-1.5	Key, square	Request
94	904-3530	Support, tensioner	Ask us
67	102-0474	Screw, socket head	Ask us
95	102-0378	Lockwasher	Ask us
68	101-2979	Sprocket	Ask us
69	101-2109	Belt timing	Ask us
97	102-0037	Bolt, hex head	Ask us
70	200-6932	Hub	Ask us
98	102-0358	Nut, hex	Ask us
71	132-8249	Sprocket	Ask us
99	101-07861010786	Ring, retaining	Request
72	000-1624	Key	Ask us
102	132-85031328503	Shim, main drive shaft can filler	Request
73	102-2898	Screw, hex head shim	Ask us
74	102-04171020417	Washer, flat	Request
104	132-8505	Shim, main drive	Ask us
75	102-20021022002	Washer, flat	Request
105	132-8506	Shim, main drive	Ask us
76	134-1806	Bracket	Ask us
106	132-85131328513	Shim, brg support bracket can filler	Request
77	101-2985	Pulley	Ask us
107	132-85141328514	Shim, brg support bracket can filler	Request
78	134-1805	Shaft-w/collar	Ask us
108	132-85151328515	Shim, brg support bracket can filler	Request
79	104-5051	Pulley	Ask us
109	132-85161328516	Shim, brg support bracket can filler	Request
80	131-71091317109	Spacer, roller	Request
110	102-1472	Screw, socket-head set	Ask us
81	102-0824	Screw, socket head set	Ask us
113	134-4134	Sprocket, star	Ask us
82	102-16101021610	Bolt, hex head	Request
83	102-04181020418	Washer, flat	Request
84	102-03901020390	Washer, lock	Request
115	904-3644	Sprocket, idler	Ask us
85	101-2397	Bushing, w/key	Ask us
116	102-0495	Screw, socket head set	Ask us
117	100-37561003756	Chain, three strand	Request
87	131-8979	Shim	Ask us
118	100-37571003757	Link, connecting three str	Request
88	131-89801318980	Shim	Request
119	100-6266	Link, offset	Ask us
89	131-8981	Shim	Ask us
90	HH-6708	Sprocket	Ask us
90	HH-5939	Sprocket	Ask us
1	902-5115	Header, air	Ask us
1	902-5116	Header, air	Ask us
4	100-1485	Elbow	Ask us
6	131-7964	Clamp, tube	Ask us
7	102-02951020295	Screw, round head slot	Request
8	131-7962	Clamp	Ask us
9	102-03891020389	Washer, lock	Request
10	102-00891020089	Bolt, hex head	Request
11	100-4587	Tie, cable self-lock	Ask us
12	100-2571	Cock, air	Ask us
13	134-3757	Clamp, tube	Ask us
37	101-0195	Bearing	Ask us
7	101-02011010201	Bearing, verticle pinion shaft	Request
9	134-16201341620	Spacer, bearing	Request
11	102-0523	Screw, square head	Ask us
46	102-0269	Screw, round head	Ask us
15	102-03811020381	Washer, lock	Request
18	131-86631318663	Retainer, oil seal	Request
59	000-16390001639-3.5	Key, square	Request
103	132-8504	Shim, main drive	Ask us
414	101-2175	Bushing, taper lock	Ask us

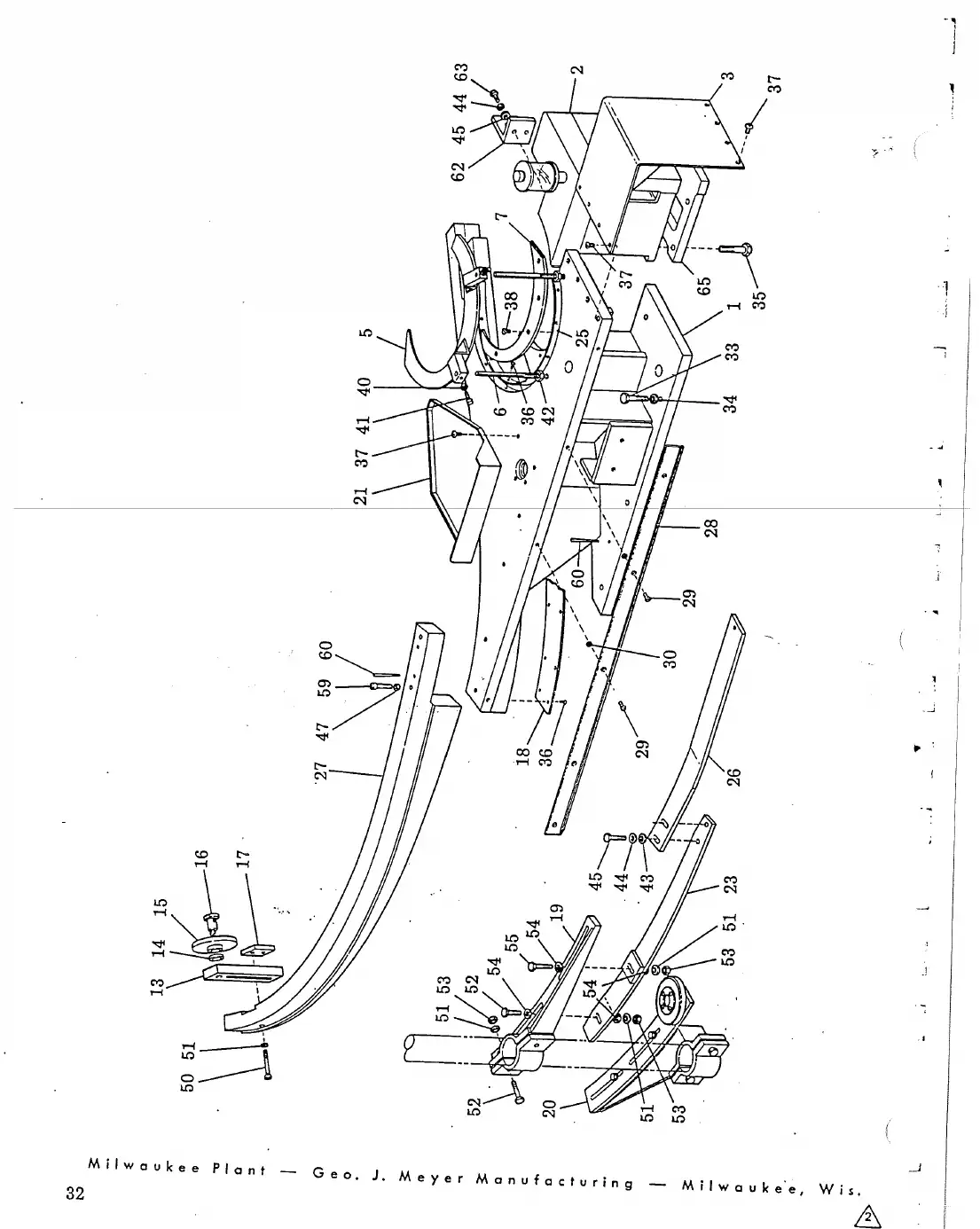

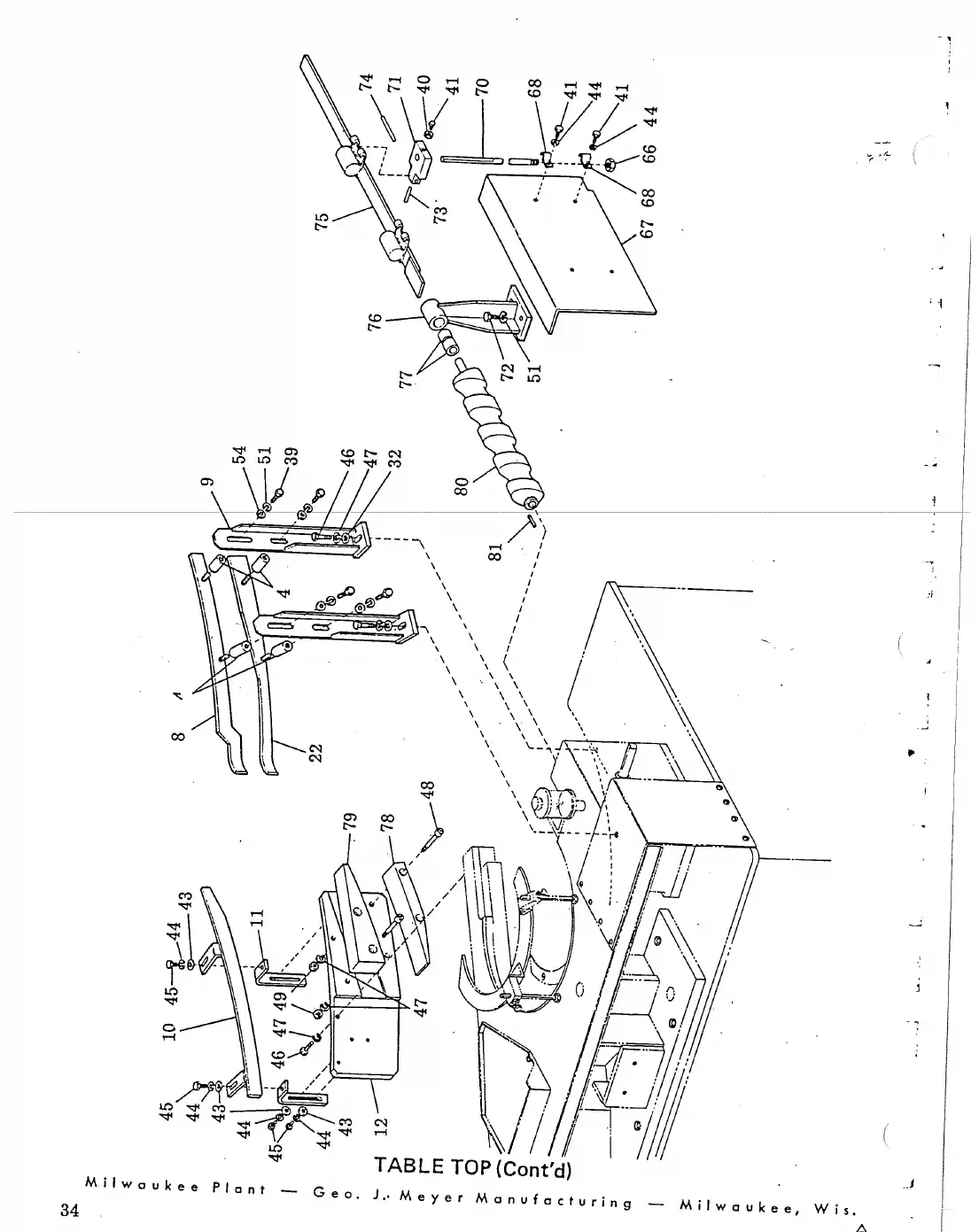

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full size

Ref	Part number	Description
27	131-7139	Cam, pull down	Ask us
27	904-1539	Cam, pull down	Ask us
1	904-3072	Guide, can	Ask us
3	904-3253	Cover, guide can	Ask us
32	102-04181020418	Washer, flat	Request
4	134-0322	Spacer, infeed guide	Ask us
33	102-2009	Bolt, hex head	Ask us
5	902-3735	Bracket, infeed hold down	Ask us
34	102-03911020391	Washer, lock	Request
6	131-6919	Stud, infeed hold down	Ask us
35	102-01041020104	Bolt, hex head	Request
7	134-2169	Strip, infeed	Ask us
36	102-01831020183	Screw, flat head slot	Request
8	902-8880	Guide, outer can infeed	Ask us
37	102-02941020294	Screw, round head slot	Request
9	904-2243	Bracket	Ask us
38	102-01911020191	Screw, flat head slot	Request
10	904-3250	Guide, inner can infeed	Ask us
39	102-00871020087	Bolt, hex head	Request
1	131-7085	Bracket, inner guide 40102-0338 nut	Ask us
12	134-2594	Support, uplift cam	Ask us
41	102-1421	Screw, square head set	Ask us
13	131-71081317108	Bracket, bowl support roller	Request
42	102-0742	Nut, jam	Ask us
14	131-71091317109	Spacer, roller	Request
43	102-00671020067	Bolt, hex head	Request
15	131-07311310731	Roller, bowl contact	Request
44	102-03871020387	Washer, lock	Request
16	131-71041317104	Pin, bowl contact roller for all fil	Request
45	102-04151020415	Washer, flat	Request
197	131-7107	Plate, locking	Ask us
46	102-01011020101	Bolt, hex head	Request
47	102-03901020390	Washer, lock	Request
18	134-2165	Plate, wear cam roller	Ask us
48	102-14131021413	Screw, socket head cap	Request
49	102-03351020335	Nut, hex	Request
19	131-7592	Bracket, can guide	Ask us
50	102-1648	Screw, socket head	Ask us
51	102-03891020389	Washer, lock	Request
52	102-00921020092	Bolt, hex head	Request
21	132-6169	Pan, scavenger	Ask us
53	102-03341020334	Nut, hex	Request
22	902-8881	Guide, lower	Ask us
54	102-04171020417	Washer, flat	Request
23	902-4343	Guide, discharge outer	Ask us
55	102-00951020095	Bolt, hex head	Request
59	102-14871021487	Socket head cap screw	Request
60	131-7013	Pin, taper	Ask us
73	102-09841020984	Pin, roll	Request
63	102-00661020066	Bolt, hex head	Request
74	102-1859	Pin, roll	Ask us
65	134-1809	Spacer, gearbox	Ask us
75	904-3026	Bracket, hold down	Ask us
66	102-1512	Nut, hex jam	Ask us
76	904-2990	Bracket, timing screw	Ask us
67	904-3025	Guard, timing screw	Ask us
77	100-2345	Bushing	Ask us
68	100-7016	Clamp	Ask us
78	134-1962	Ramp, stirrup shoe	Ask us
69	102-00651020065	Bolt, hex head	Request
70	134-1803	Stud, infeed hold down bkt	Ask us
80-4	102-04291020429	Screw, set socket cup point	Request
72	102-00891020089	Bolt, hex head	Request
81	000-1624	Key	Ask us
40	102-03381020338	Nut, hex jam	Request
19	131-7582	Bracket, can guide	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description

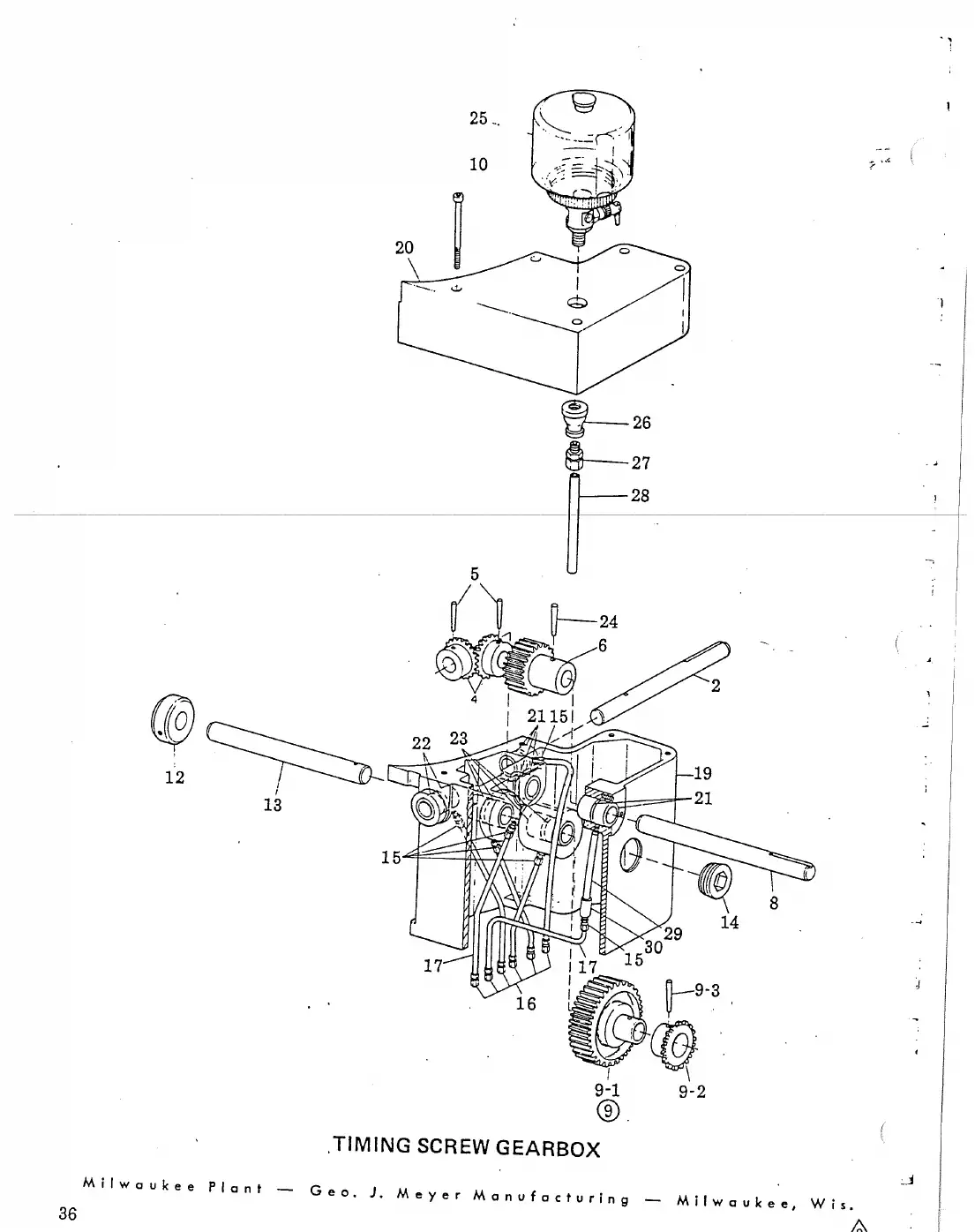

14	100-11541001154	Plug, pipe, internal hex drive	Request
15	100-09231000923	Fitting, tube	Request
16	100-16351001635	Coupling, tube	Request
17	000-17500001750	Tubing	Request
2	HH-6773	Shaft, drive	Ask us
19	H-2704	Box, gear	Ask us
4	HH-1545	Gear, mitre	Ask us
20	134-2080	Cover, gear box	Ask us
5	102-1397	Pin, taper	Ask us
21	100-2345	Bushing, sleeve	Ask us
6	HH-6718	Pinion, conveyor drive	Ask us
22	HH-6774HH6774	Bushing	Request
8	200-6931	Shaft	Ask us
23	100-23621002362	Bushing, sleeve	Request
24	102-14901021490	Pin, taper	Request
9-1	131-6242	Gear, conveyor drive	Ask us
25	100-49271004927	Oiler, gravity feed	Request
26	100-27901002790	Bushing, reducing hex	Request
27	100-09221000922	Fitting, tube adapter	Request
10	102-08291020829	Screw, socket head cap	Request
28	000-17470001747	Tubing	Request
12	100-0747	Collar, set	Ask us
29	100-2719	Nipple	Ask us
13	HH-6722	Shaft, intermediate	Ask us
30	100-2725	Coupling	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description

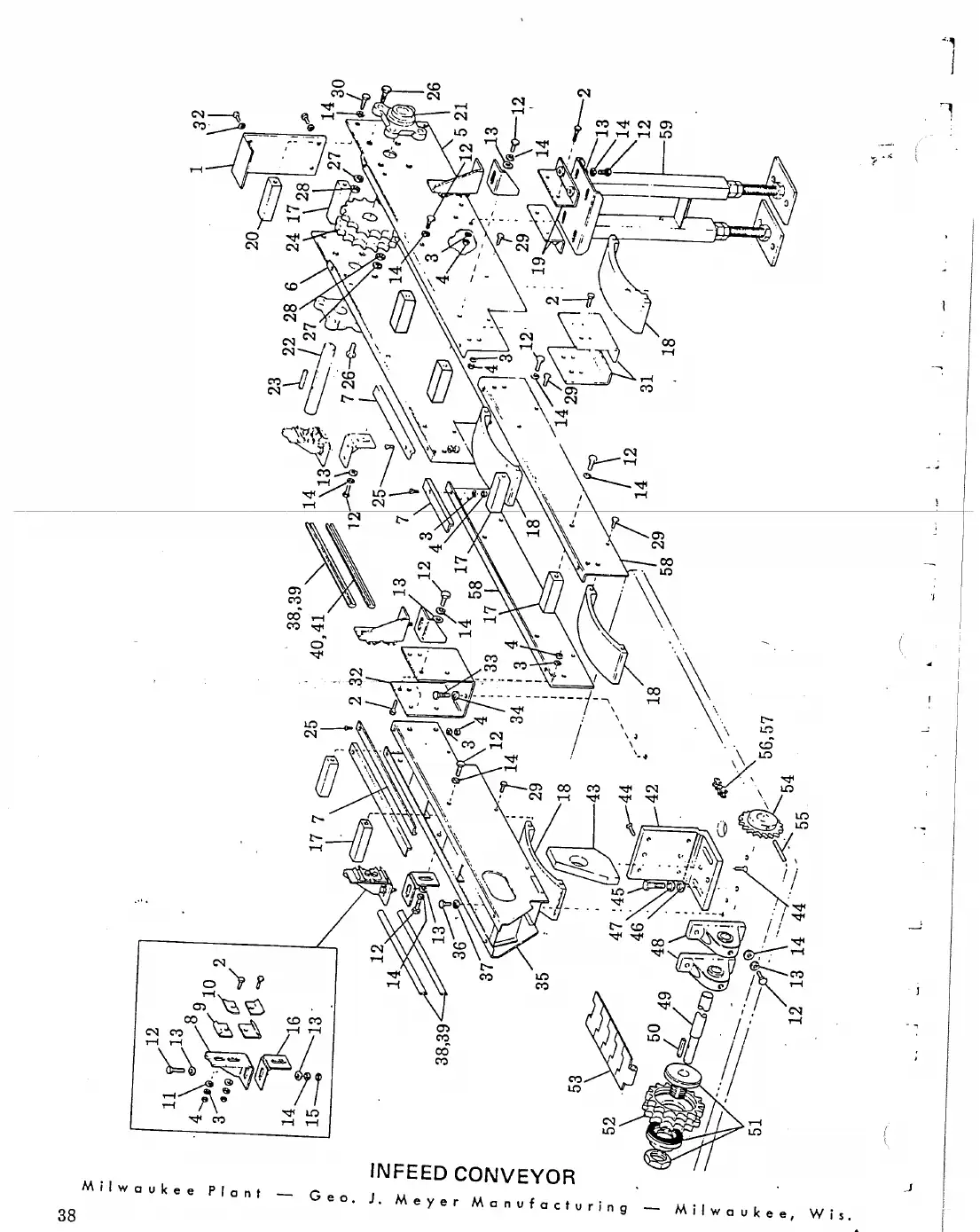

29	102-2296	Screw, hex head	Ask us
30	102-00871020087	Bolt, hex head	Request
31	903-2962	Tie, side support	Ask us
1	133-1387	Cover, end	Ask us
32	134-1745	Bracket, base mounting	Ask us
2	102-00671020067	Bolt, hex head	Request
33	102-01001020100	Bolt, hex head	Request
3	102-03871020387	Washer, lock	Request
34	102-03901020390	Washer, lock	Request
4	102-03321020332	Nut, hex	Request
35	904-2989	Frame, conveyor	Ask us
5	133-1386	Channel, side	Ask us
36	102-00751020075	Bolt, hex head	Request
6	133-1385	Channel, side	Ask us
37	102-03881020388	Washer, lock	Request
7	000-36980003698	Wearstrip, filler conveyor out	Request
38	000-1421	Rail, guide	Ask us
8	131-1517	Bracket, guide rail	Ask us
39	000-3326	Cover, guide rail	Ask us
9	131-5696	Bracket, guide rail	Ask us
10	131-1718	Bracket, guide rail	Ask us
11	102-04151020415	Washer, flat	Request
42	904-3142	Bracket, conv drive shaft	Ask us
12	102-00891020089	Bolt, hex head	Request
13	102-04171020417	Washer, flat	Request
44	102-02081020208	Screw, flat head slot	Request
714	102-03891020389	Washer, lock	Request
45	102-0907	Screw, hex head	Ask us
15	102-03341020334	Nut, hex	Request
16	133-1251	Support, guide rail bracket	Ask us
47	102-03911020391	Washer, lock	Request
17	133-0435	Spacer, side channel	Ask us
48	100-0222	Bearing, pillow block	Ask us
18	133-0310	Shoe, return 7201-0104 shaft	Ask us
19	903-2961	Tie, side support	Ask us
50	000-1624	Key	Ask us
20	133-1358	Spacer, end cover	Ask us
51	100-9695	Limiter, torque	Ask us
21	101-06021010602	Bearing, conveyor	Request
52	131-84431318443	Sprocket, dwg inde	Request
22	133-2356	Shaft	Ask us
53	100-3599	Chain	Ask us
24	100-5125	Sprocket	Ask us
55	100-1852	Pin, roll	Ask us
25	102-01931020193	Screw, flat head slot	Request
56	101-21031012103	Chain, roller	Request
26	102-1492	Screw, hex head	Ask us
57	101-21051012105	Clip, link roller chain	Request
27	102-14431021443	Washer, lock	Request
58	133-0291	Frame, side	Ask us
28	102-15331021533	Nut, hex	Request
59	904-3369	Support, conveyor	Ask us
46	102-04191020419	Washer, flat	Request
23	000-16250001625	Key, square	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description

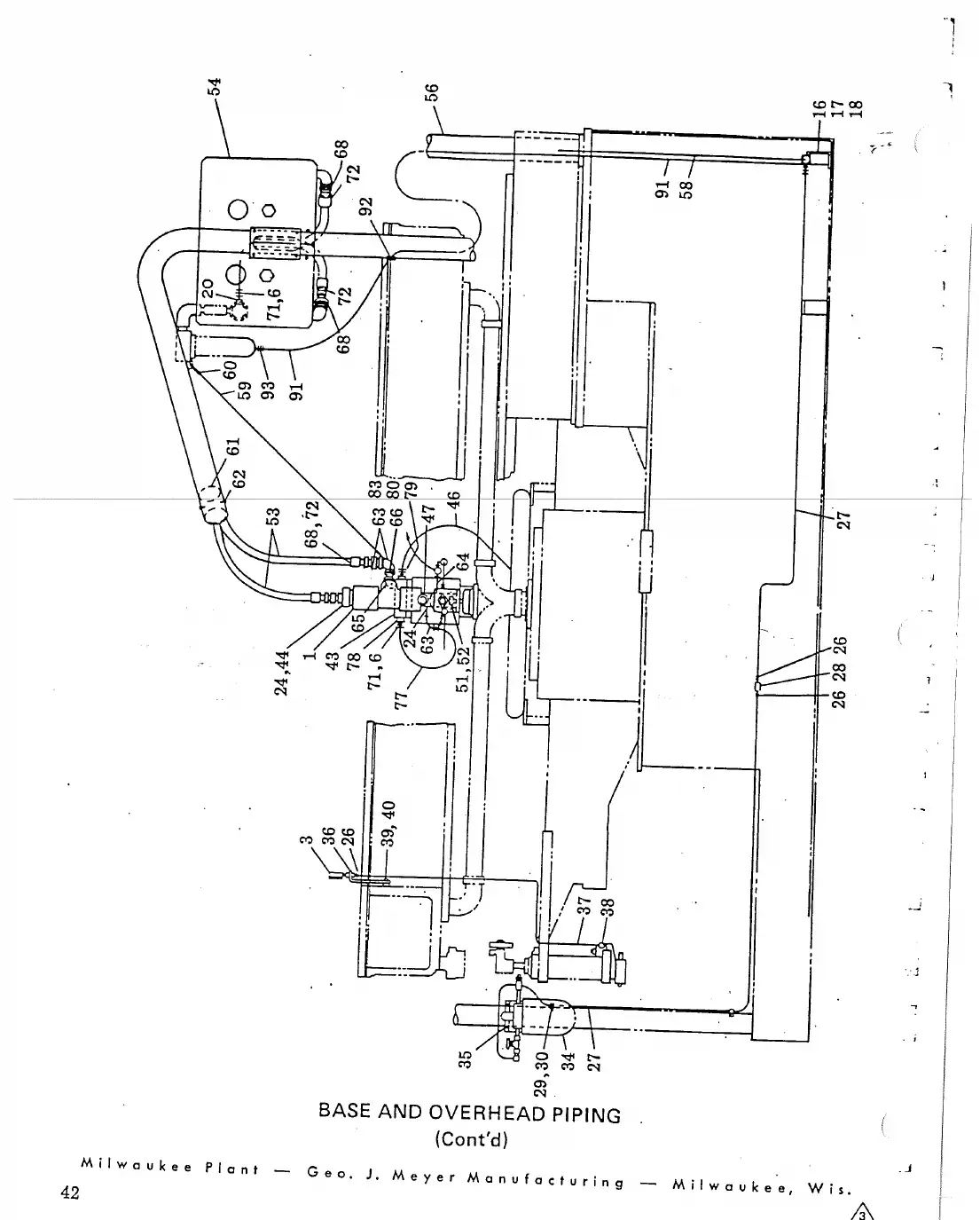

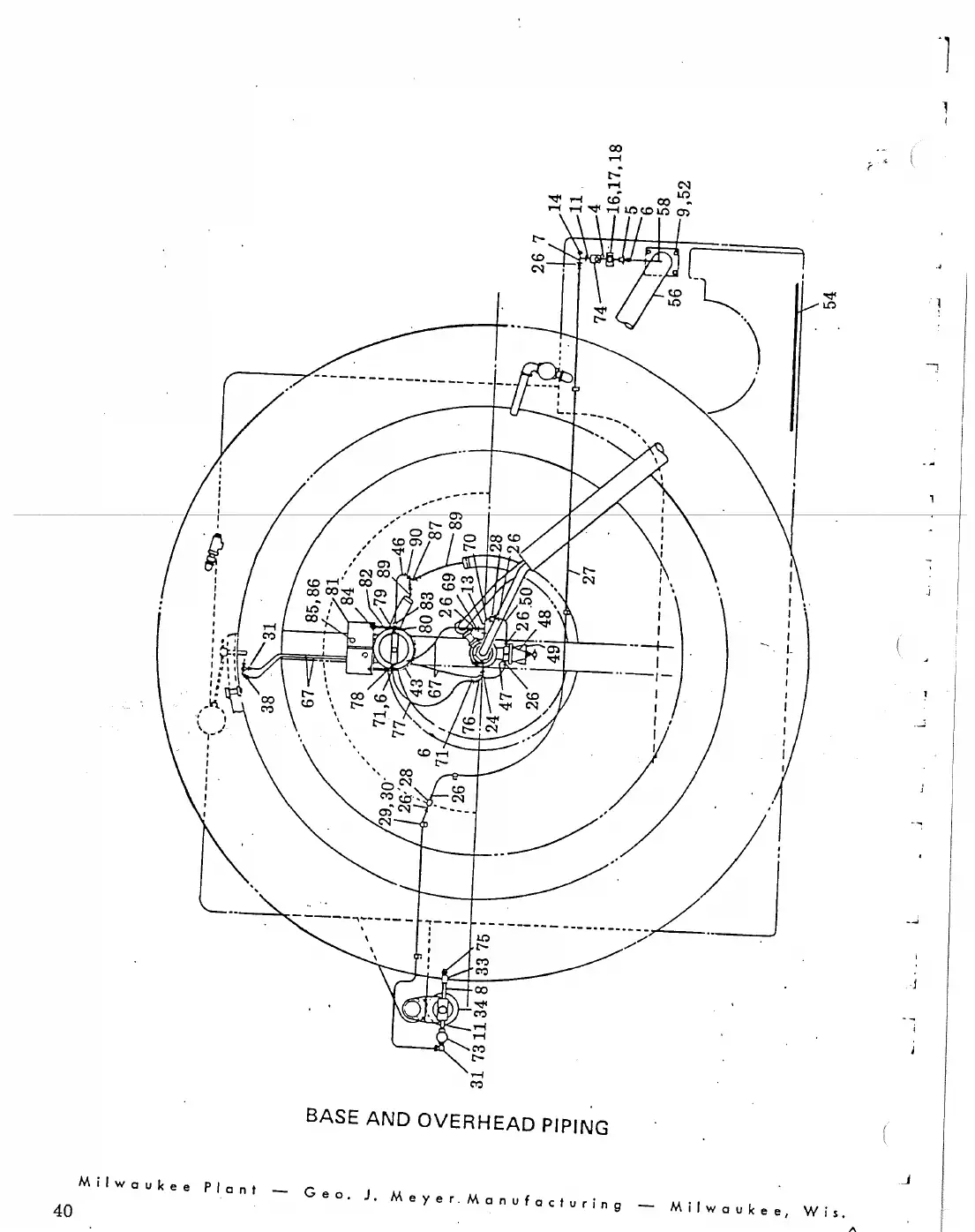

52	102-03891020389	Washer, lock	Request
53	000-34890003489	Tubing, CO2/air braided hose	Request
56	902-4278	Pipe, overhead	Ask us
3	100-3387	Gauge, pressure	Ask us
58	100-7197	Hose	Ask us
4	100-1445	Nipple	Ask us
59	100-4122	Cable	Ask us
5	100-27921002792	Coupling, reducer	Request
60	100-0585	Clamp, cable	Ask us
6	101-0109	Coupling, hose	Ask us
61	131-75651317565	Plug, overhead piping	Request
7	100-08811000881	Tee	Request
62	102-02851020285	Screw, round head slot	Request
8	000-0796	Pipe elbow	Ask us
9	102-00901020090	Bolt, hex head	Request
64	100-2734	Nipple	Ask us
11	100-08901000890	Nipple	Request
65	100-5739	Bushing	Ask us
13	100-08821000882	Tee	Request
66	100-0905	Nipple	Ask us
14	100-08721000872	Plug, pipe square head	Request
67	000-35190003519	Tubing, poly-flo	Request
17	100-0356	Clamp	Ask us
69	100-14321001432	Bushing, reducing hex	Request
18	102-00651020065	Bolt, hex head	Request
70	100-0855	Elbow	Ask us
20	100-14371001437	Bushing, reducing hex	Request
71	100-3078	Clamp, hose	Ask us
24	100-08921000892	Nipple	Request
72	101-0106	Clamp	Ask us
26	101-0105	Connector, male	Ask us
73	101-0166	Valve, needle	Ask us
74	100-9872	Valve, solenoid	Ask us
28	100-14351001435	Bushing, reducing hex	Request
75	101-0195	Nozzle	Ask us
29	100-6940	Clamp, fitting	Ask us
76	100-08561000856	Elbow	Request
30	102-0267	Screw, round head	Ask us
77	000-3386	Hose	Ask us
31	101-0104	Elbow, male connector	Ask us
78	100-1491	Bushing	Ask us
33	100-2726	Coupling	Ask us
79	100-1490	Bushing	Ask us
34	100-9881	Lubricator, oil fog	Ask us
80	100-0893	Nipple, close	Ask us
81	904-0529	Bracket	Ask us
36	HH-6560	Bracket	Ask us
82	132-7556	U-clamp	Ask us
83	100-08571000857	Elbow	Request
84	102-03321020332	Nut, hex	Request
39	102-0290	Screw, round head bolt	Ask us
40	102-03861020386	Washer, lock	Request
86	102-03901020390	Washer, lock	Request
43	904-1536	Lubricator, constant density	Ask us
87	101-2595	Wye	Ask us
44	100-2793	Coupling, reducing	Ask us
89	900-4252	Hose	Ask us
46	900-4249	Hose assembly	Ask us
90	100-2729	Coupling	Ask us
47	100-46181004618	Gauge, pressure	Request
48	100-29651002965	Regulator, pressure pilot	Request
49	130-6290	Plate mounting aoa grommet	Ask us
93	100-5324	Connector	Ask us
51	102-00911020091	Bolt, hex head	Request
7	102-04201020420	Washer, flat	Request
8	100-8433	Locknut	Ask us
9	102-00921020092	Bolt, hex head	Request
10	102-0365	Nut, hex	Ask us
1	131-3418	Bracket, can guard	Ask us
11	102-04171020417	Washer, flat	Request
2	131-5221	Support, cam follower	Ask us
3	100-8443	Fitting, drive type	Ask us
13	131-5723	Washer, clamp	Ask us
4	131-3417	Roller, stabilizing	Ask us
14	102-2069	Screw, slotted round head	Ask us
5	131-3425	Spacer	Ask us
15	102-03871020387	Washer, lock	Request
6	100-0675	Cam, bearing follower	Ask us

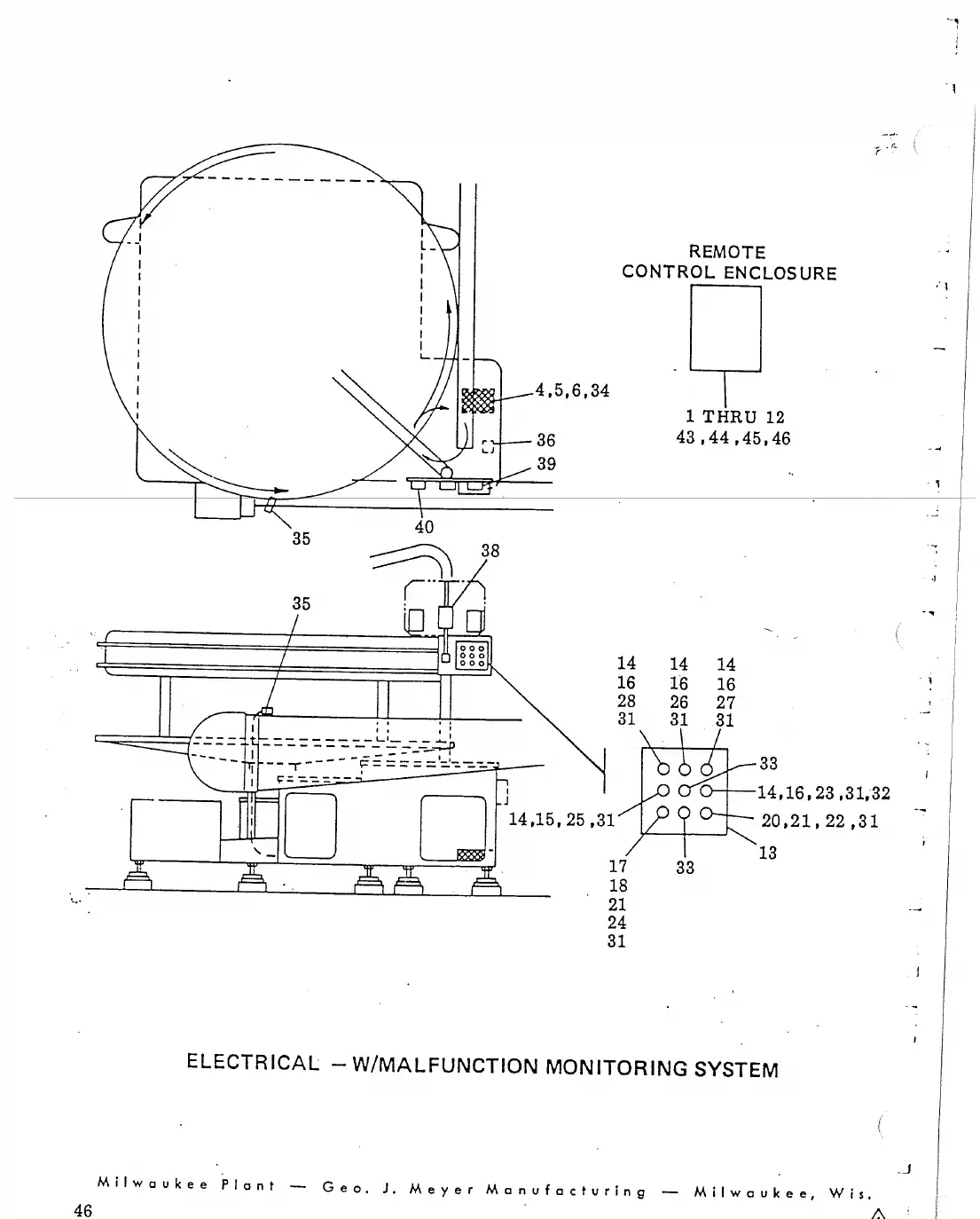

22	100-6942	Plate, legend power	Ask us
23	103-5788	Plate, legend mal	Ask us
24	200-8231	Plate, legend hung can	Ask us
1	100-5227	Enclosure, control rest	Ask us
2	100-3155	Relay, control with time	Ask us
25	100-7411	Plate, legend filler	Ask us
3	100-3157	Relay, control	Ask us
4	100-0190	Block, terminal pressure	Ask us
5	100-0191	Plate, barrier plate	Ask us
6	100-0193	Clip, retaining air pressure low	Ask us
7	100-6987	Nameplate, electrical	Ask us
28	200-8234	Plate, legend bowl	Ask us
31	100-0400	Gasket, nameplate	Ask us
9	130-9710	Screwlug, grounding	Ask us
32	103-5296	Bulb, flatwasher element	Ask us
34	100-3496	Enclosure, control	Ask us
12	100-3515	Fuse-fnmlo switch, limit hung can	Ask us
13	100-3131	Enclosure, pushbutton	Ask us
14	103-5012	Light, pilot-without lens solenoid	Ask us
15	103-5016	Lens, pilot light green	Ask us
38	100-0039	Switch, air pressure aps	Ask us
39	200-6611	Switch, pressure psi	Ask us
17	103-5013	Pushbutton operator	Ask us
40	200-6612	Switch pressure dps	Ask us
43	100-6718	Clip, fuse pulling	Ask us
18	103-5022	Lens, pushbutton	Ask us
44	103-51491035149	Relay, 8 pin pl	Request
45	103-5545	Socket, octal base relay	Ask us
20	103-5055	Operator, selector pos sok switch	Ask us
21	103-5001	Biock, contact	Ask us
22	100-9874	Bracket	Ask us
23	100-2966	Regulator	Ask us
24	134-22941342294	U-bolt, pipe	Request
25	100-3636	Nipple	Ask us
1	131-7566	Panel, instrument	Ask us
27	100-79991007999	Nameplate, lift cylinders	Request
2	100-1485	Elbow, street	Ask us
28	100-80001008000	Nameplate, co	Request
3	100-4917	Valve, check	Ask us
29	102-1571	Screw, round head drive	Ask us
5	100-2710	Cock, three-way	Ask us
33	102-00681020068	Bolt, hex head	Request
7	100-31421003142-1	Filter, housing	Request
8	101-0189	Wrench	Ask us
35	102-04151020415	Washer, flat	Request
10	100-08841000884	Tee	Request
39	102-1849	Pin, roll	Ask us
11	100-1439	Bushing	Ask us
40	101-06751010675	Gauge, pressure assembly	Request
12	100-14421001442	Nipple, pipe	Request
41	100-2748	Elbow	Ask us
13	100-7138	Elbow, union	Ask us
42	101-3020	Filter	Ask us
42	100-14411001441	Nipple, pipe	Request
15	100-3634	Nipple	Ask us
44	100-6937	Bushing	Ask us
16	100-3970	Elbow	Ask us
45	100-14311001431	Bushing, reducing hex	Request
47	102-03341020334	Nut, hex	Request
20	100-53251005325	Elbow, male connector	Request
21	100-47101004710	Regulator, air	Request
6	101-01081010108	Fitting, barbed	Request
63	100-3975	Elbow	Ask us
9	102-00981020098	Bolt, hex head	Request
35	100-9235	Clamp	Ask us
85	102-01001020100	Bolt, hex head	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.
