Meyer 52, 65 and 78 valve A-Model filler parts manual

The A-Model is one of the series Meyer built around its 52, 65 and 78 valve fillers. Several assemblies, including the level control and crowner hub, are specific to the A-Model.

Search all parts Submit a parts inquiry Call 843-851-3217

29assemblies

1,216part numbers

777in our parts list

52, 65 and 78 valve A-Modelmodels covered

How to use this manual. Find the assembly, match the reference number on the drawing to the parts list, and request the part. Parts marked Request are in our parts list; for the rest, ask us and we will track them down. Always give your machine model and serial number when ordering.

Drawings and part numbers come from original Geo. J. Meyer parts manuals and our own parts records, shown for identification. Descriptions are simplified. World Packaging is an independent supplier of Meyer filler parts.

Assemblies in this manual

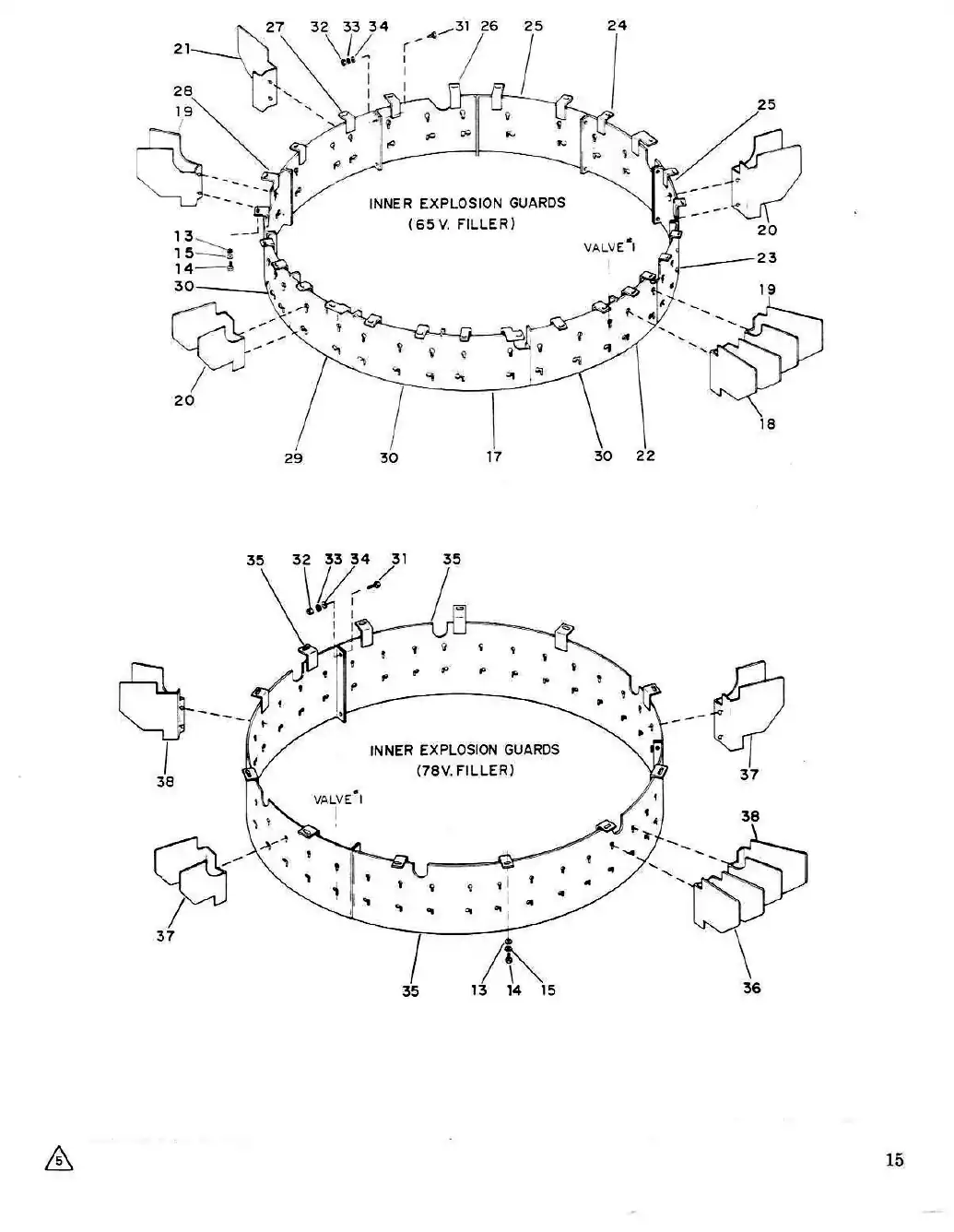

Base and Hanger

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer A-Model filler base and hanger drawing

Open full size

Ref	Part number	Description
24	102-03821020382	Washer, lock	Request
28	100-09231000923	Fitting, tube	Request
9	102-0757	Washer, flat	Ask us
30	102-00801020080	Bolt, hex head	Request
10	102-03811020381	Washer, lock	Request
31	102-03881020388	Washer, lock	Request
11	102-00411020041	Bolt, hex head	Request
33	102-03331020333	Nut, hex	Request
34	102-04161020416	Washer, flat	Request
37	102-16741021674	Bolt, hex head	Request
23	102-00511020051	Bolt, hex head	Request
38	102-03321020332	Nut, hex	Request
39	102-18461021846	Bolt, hex head	Request
40	102-03871020387	Washer, lock	Request

Base Closing Machine

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer A-Model filler base closing machine drawing

Open full size

Ref	Part number	Description
21	102-03291020329	Nut, hex jam	Request
22	102-0054	Screw, hex head	Ask us
23	135-09701350970	Clip, collar	Request
25	102-27201022720	Pin, roll	Request
26	102-14301021430	Screw, set	Request
27	102-23611022361	Pin, roll	Request
3	101-31831013183	Jacuator, closure	Request
28	102-16611021661	Bolt, hex head	Request
4	135-1670	Joint	Ask us
29	102-03881020388	Washer, lock	Request
5	135-0969	Bracket	Ask us
380	102-1457	Screw, socket head	Ask us
6	102-25041022504	Key, square	Request
81	102-03861020386	Washer, lock	Request
7	133-8099	Shaft, adjusting	Ask us
82	102-04141020414	Washer, flat	Request
33	102-00651020065	Bolt, hex head	Request
9	102-0323	Nut, hex	Ask us
10	102-03821020382	Washer, lock	Request
13	102-03801020380	Washer, lock	Request
14	102-0030	Screw, hex head	Ask us
15	100-09231000923	Fitting, tube	Request
16	134-3751	Plate, keeper anti-rotation	Ask us
387	135-1220	Cladding-RH not shown	Ask us
17	134-3753	Key, anti-rotation	Ask us
18	134-37521343752-1	Ring, anti rotation closer column sp	Request
19	102-03811020381	Washer, lock	Request
20	102-00401020040	Bolt, hex head	Request
39	135-1221	Cladding-LH not shown	Ask us

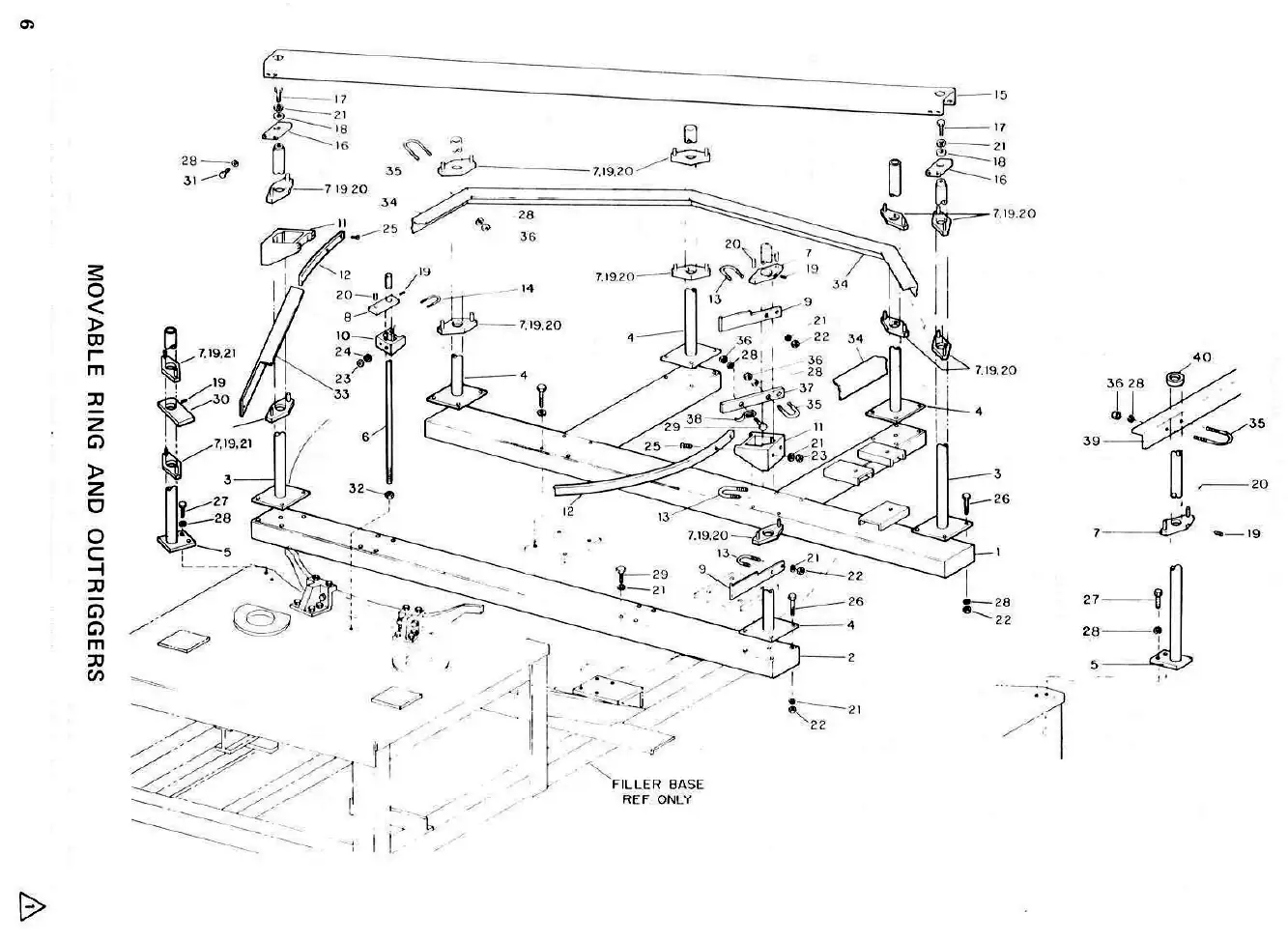

Movable Ring and Outriggers

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Meyer A-Model filler movable ring and outriggers drawing

Open full size

Ref	Part number	Description
19	102-19111021911	Screw, set sh nylock	Request
20	102-09861020986	Pin, roll slotted	Request
21	102-03891020389	Washer, lock	Request
22	102-03341020334	Nut, hex	Request
1	903-84239038423-SS	Outrigger, assembly post	Request
23	102-03321020332	Nut, hex	Request
2	903-88189038818-SS	Outrigger, assembly	Request
24	102-03871020387	Washer, lock	Request
3	903-83219038321	Post, support	Request
25	102-00921020092	Bolt, hex head	Request
4	903-83209038320	Post, support bowl ring	Request
36	102-00981020098	Bolt, hex head	Request
27	102-00781020078	Hex head bolt	Request
6	135-40381354038	Rod, support 52V a-model	Request
28	102-03881020388	Washer, lock	Request
7	133-92361339236-SST	Plate, mounting outer guard doors	Request
29	102-00891020089	Bolt, hex head	Request
380	133-9238	Base, bottle gage	Ask us
31	102-00751020075	Bolt, hex head	Request
32	102-08461020846	Nut, hex head	Request
11	133-93521339352	Bracket, moveable ring	Request
84	135-0755	Bar, tie	Ask us
12	133-93311339331	Rail, movable 52V family a model	Request
35	133-68461336846	U-bolt	Request
13	133-93831339383	U-bolt	Request
86	102-03331020333	Nut, hex	Request
14	133-93841339384	U-bolt	Request
38	100-3201	Clamp, pipe	Ask us
16	133-81651338165	Block, support tube cover	Request
17	102-00931020093	Bolt, hex head	Request
18	102-04171020417	Washer, flat	Request

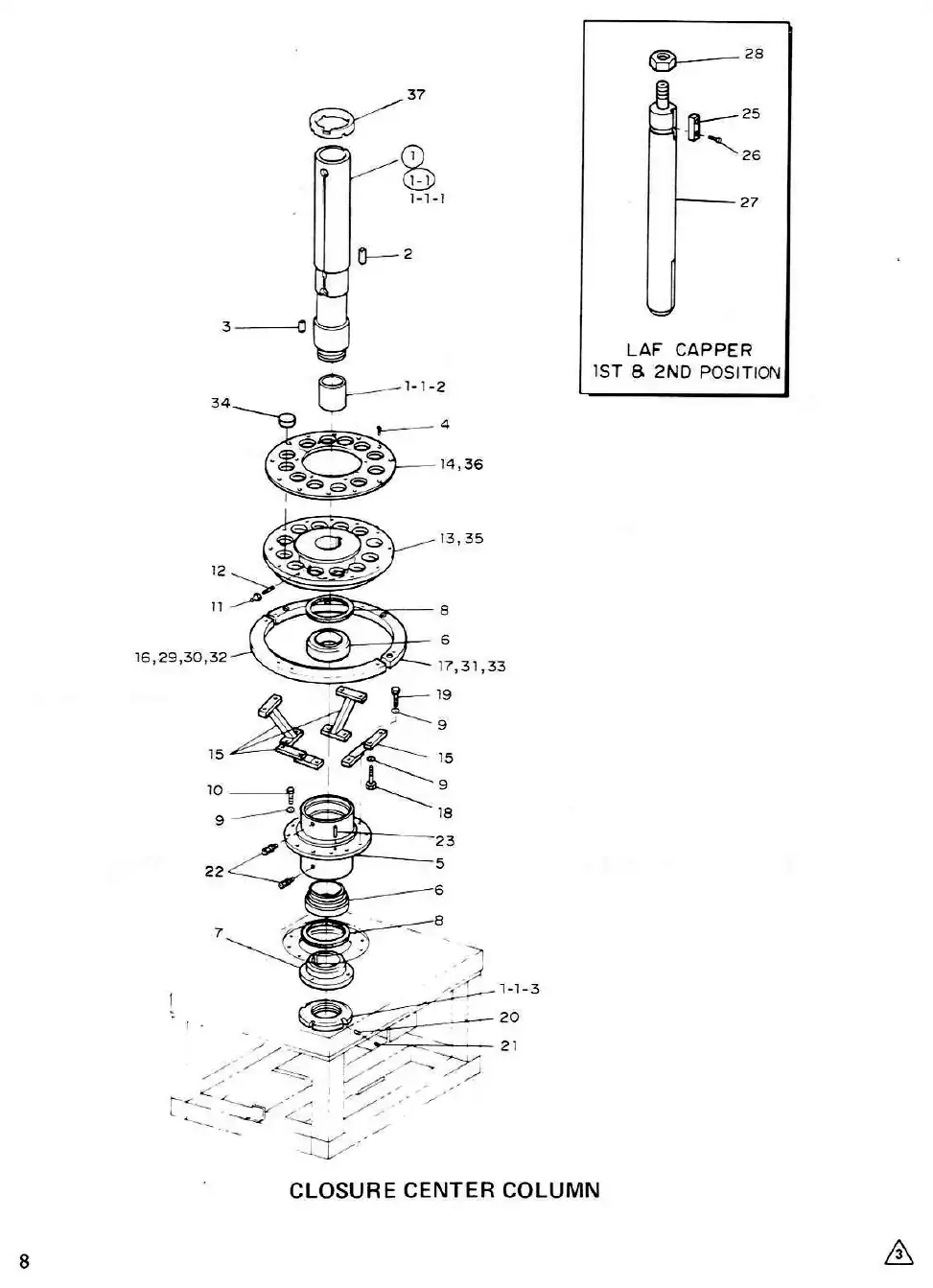

Closure Center Column

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer A-Model filler closure center column drawing

Open full size

Ref	Part number	Description
19	102-01021020102	Bolt, hex head	Request
20	RR-516RR516	Plug, lock	Request
21	102-28071022807	Screw, set socket cup point	Request
22	100-09231000923	Fitting, tube	Request
23	102-18531021853	Pin, roll	Request
25	134-16101341610	Key, elevating sleeve Meyer crowner and cappers	Request
1-1-2	134-41261344126	Bushing, closer column sta	Request
26	102-14041021404	Socket head cap screw	Request
1-1-3	133-89501338950	Nut, lock closure column 52 family	Request
27	134-1584	Column, center laf capper	Ask us
2	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
28	134-1617	Nut, laf capper	Ask us
30	135-4047	Rail, support front	Ask us
4	102-01911020191	Screw, flat head slot	Request
5	135-28141352814-SST	Housing, bearing closure column 65V	Request
31	135-0874	Rail, support rear	Ask us
6	101-19211011921	Bearing, roller closer column	Request
7	903-8003	Spacer, lower	Ask us
32	135-0875	Rail, support front	Ask us
8	101-06201010620	Seal, oil closer column lower	Request
2	102-08511020851	Washer, lock	Request
33	135-0876	Rail, support rear	Ask us
10	102-00411020041	Bolt, hex head	Request
11	100-39411003941	Fitting, grease female str	Request
12	100-27241002724	Nipple	Request
15	135-2875	Bracket, rail support plate	Ask us
16	135-2878	Rail, support front plate	Ask us
17	135-2877	Rail, support rear plate	Ask us
18	102-00401020040	Bolt, hex head	Request

Columns and Jacks

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer A-Model filler columns and jacks drawing

Open full size

Ref	Part number	Description
40	100-89071008907	Bushing, reducing hex female	Request
2	000-1629	Key specify length	Ask us
41	104-51461045146	Valve, 4 way	Request
3	104-50951045095	Motor, air bowl lift	Request
42	000-1769	Tubing specify length	Ask us
4	102-03881020388	Washer, lock	Request
43	100-1471	Elbow	Ask us
5	102-04161020416	Washer, flat	Request
44	100-61101006110	Nipple, close	Request
6	102-00761020076	Bolt, hex head	Request
45	100-96661009666	Elbow, street 90 deg ips	Request
7	102-14781021478	Screw, socket head cap	Request
46	133-77711337771	Bracket, valve columns	Request
8	102-03921020392	Washer, lock	Request
47	102-05971020597	Screw, socket head cap	Request
9	104-60111046011	Coupling, bowl lift shaft	Request
48	102-00731020073	Bolt, hex head	Request
10	100-93301009330	Gearbox, three way bowl lift	Request
49	102-00421020042	Bolt, hex head	Request
50	102-03811020381	Washer, lock	Request
51	102-0757	Washer, flat	Ask us
16	903-8022	Channel, product line	Ask us
53	104-6141	Jactuator	Ask us
18	000-16250001625	Key, square	Request
54	102-00891020089	Bolt, hex head	Request
55	102-20021022002	Washer, flat	Request
56	133-90721339072	Plate, jack adjusting	Request
21	104-60121046012	Coupling, bowl lift shaft	Request
57	133-91831339183	Pin, slide cover bowl	Request
23	102-03891020389	Washer, lock	Request
58	903-83359038335	Flange, bowl column upper	Request
24	102-23181022318	Screw, thumb	Request
59	133-9986	Flange	Ask us
25	000-3393	Key	Ask us
60	903-83369038336	Flange, column sub-assembl	Request
26	102-00901020090	Bolt, hex head	Request
61	133-99981339998	Column, cover lift 52V filler	Request
27	100-82681008268	Chain, roller	Request
62	101-01371010137	Lubricator	Request
28	100-63501006350	Link, offset	Request
63	100-14411001441	Nipple, pipe	Request
29	100-82691008269	Link, connecting	Request
64	100-27381002738	Nipple, pipe	Request
30	102-03321020332	Nut, hex	Request
65	100-88751008875	Fitting, tube adapter	Request
31	102-03871020387	Washer, lock	Request
66	100-89091008909	Bushing, reducing hex	Request
32	102-07861020786	Bolt, hex head	Request
67	100-88741008874	Fitting, tube 90 deg elbow	Request
33	104-60171046017	Sprocket, roller chain	Request
68	100-89081008908	Bushing, reducing hex	Request
69	135-06401350640	Stop, jacuator	Request
70	102-01911020191	Screw, flat head slot	Request
36	104-60131046013	Sprocket, roller chain bowl lift	Request
71	102-23501022350	Bolt, hex head	Request
37	100-53711005371	Tee	Request
72	102-25461022546	Washer, lock internal	Request
38	000-32230003223	Tube, polyflo	Request
73	102-2103	Dowel	Ask us
39	100-14681001468	Elbow, tube male bras	Request
74	102-04271020427	Screw, set socket cup point	Request
75	102-24521022452	Pin, taper	Request

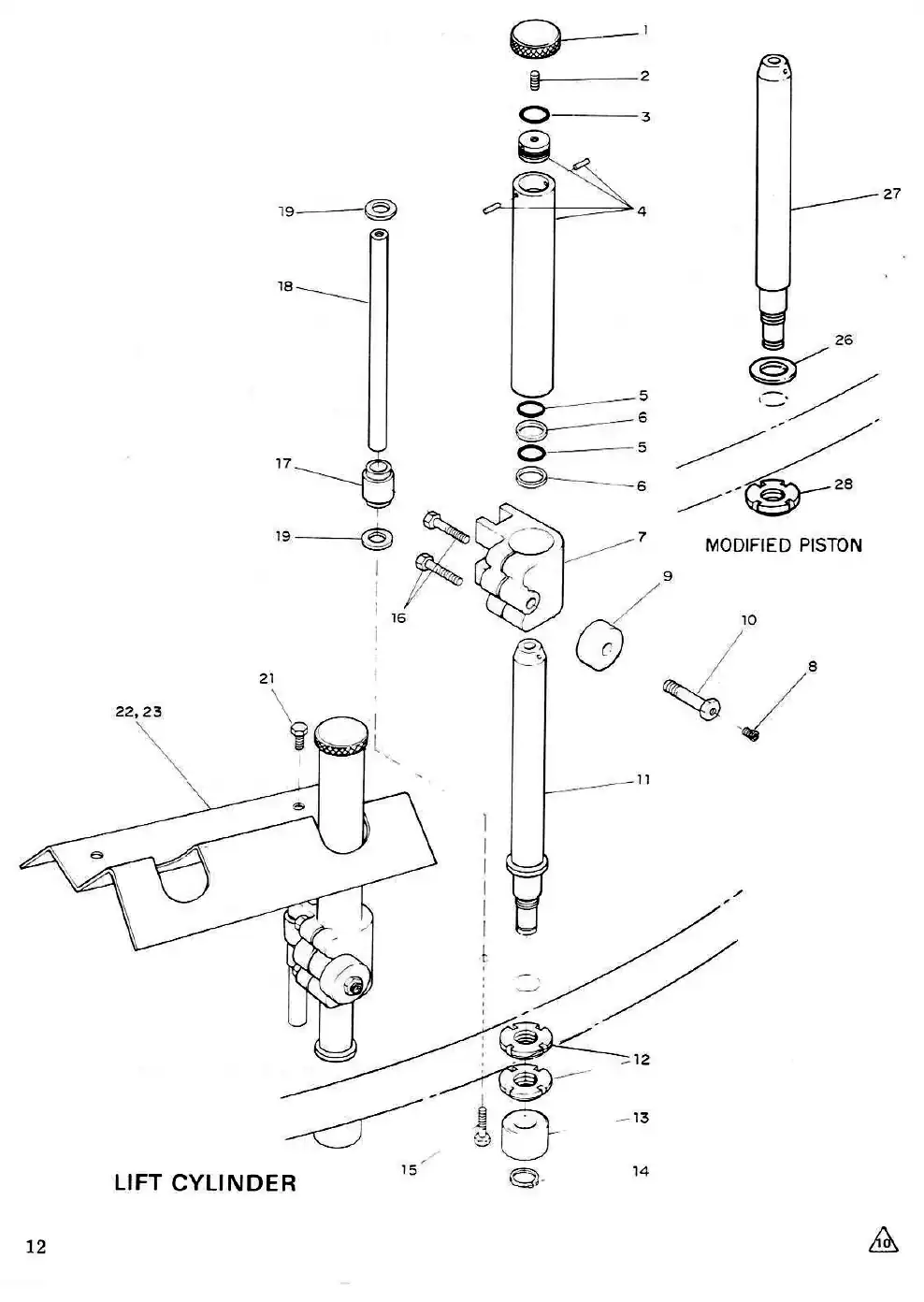

Lift Cylinder

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Ref	Part number	Description
14	104-60261046026	Ring, retaining	Request
2	102-0449	Screw, socket head set	Ask us
16	102-11421021142	Screw, socket head cap	Request
3	100-40331004033	O-ring	Request
18	135-07661350766	Rod, guide	Request
5	104-62641046264	O-ring	Request
19	135-08601350860	Pad, bumper	Request
6	104-6270	Ring, piston	Ask us
21	102-00881020088	Hex head bolt	Request
7	135-0846	Cylinder	Ask us
22	133-5254	Guard, cylinder valve	Ask us
8	104-63201046320	Fitting grease	Request
9	104-6341	Follower, cam o--5	Ask us
10	135-08471350847	Screw, cam follower btl lift	Request
11	133-6851	Piston guard, cylinder valve	Ask us
12	135-0987	Nut, lock	Ask us

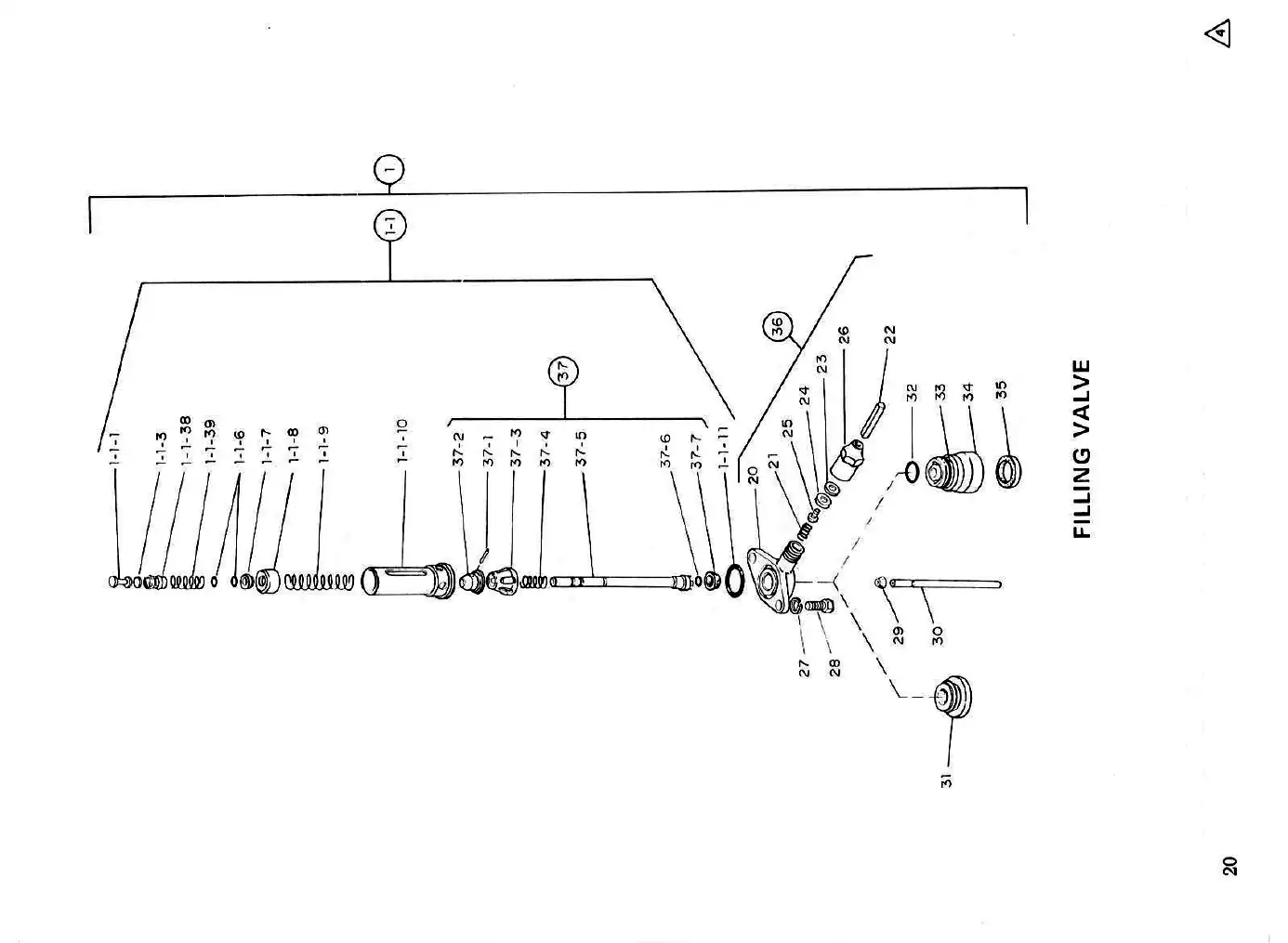

Valve

Contents

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
31	102-00671020067	Bolt, hex head	Request
32	102-03321020332	Nut, hex	Request
33	102-03871020387	Washer, lock	Request
12	102-02951020295	Screw, round head slot	Request
34	102-04171020417	Washer, flat	Request
13	102-04151020415	Washer, flat	Request
14	102-00881020088	Hex head bolt	Request
15	102-03891020389	Washer, lock	Request

Reservoir

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
14	133-9189	Ring, outer	Ask us
14	104-61301046130	Sealant, rtv	Request
2	000-2682	Gasket, outer ring	Ask us
3	131-1767	Gasket, sight glass	Ask us
4	100-97751009775	Ring, retaining	Request
5	131-33601313360	Sight glass	Request
6	100-25071002507	O-ring	Request
7	102-1837	Screw, hex head ring	Ask us
8	102-03901020390	Washer, lock	Request
9	135-0656	Baffle, inlet	Ask us
18	133-9146	Stud	Ask us
19	135-40361354036	Positioner, bowl	Request
10-1	135-08641350864	Lever, valve inside RH	Request
20	102-17881021788	Screw, shoulder soc hd	Request
10-2	100-25111002511	O-ring, edpm, dash	Request
10-3	135-08651350865	Bushing, valve lever	Request
10-5	135-08711350871	Stop, reservoir spacer	Request
10-6	102-12731021273	Pin, dowel	Request
21-4	104-50931045093	O-ring	Request
10-7	135-08431350843	Washer	Request
10-8	135-08691350869	Washer, keyed reservoir assembly	Request
10-9	104-51961045196	Washer, wave	Request
10-10	102-13021021302	Screw, socket head cap	Request
10-11	135-09601350960	Lever, valve operating	Request
10-12	102-04151020415	Washer, flat	Request
10-13	102-0707	Screw, nylock	Ask us
10-14	102-23901022390	Nut, hex	Request
11	101-2237	Number, set specify	Ask us
12	102-24101022410	Nut, hex astm	Request
11	100-7648	Valve, diaphragm	Ask us
12	100-61131006113	Nipple, close	Request
13	100-3387	Gauge, pressure	Ask us
1	100-21331002133	Gasket, tri-clamp tube	Request
14	100-46561004656	Bushing, reducing hex	Request
2	104-60081046008	Cap, thermometer	Request
16	100-89111008911	Bushing, reducing hex	Request
3	100-21421002142	Clamp, hinged sanitary	Request
17	104-63601046360-DT-10	Thermometer, digital, sani flow	Request
4	104-5145	Valve, safety	Ask us
18	100-53721005372	Elbow, 90 deg	Request
8	100-96671009667	Elbow, street	Request
19	100-4103	Nipple	Ask us
9	000-0816	Pipe	Ask us
20	100-5493	Tee	Ask us
10	100-00341000034	Cap, solid end	Request
21	101-3528	Nipple	Ask us
8	100-08821000882	Tee	Request
9	100-1438	Bushing	Ask us
10	100-32001003200	Clamp, air lift manifold	Request
1	133-99731339973-SST	Manifold, airlift 52V a model	Request
11	100-14721001472	Elbow, tube	Request
12	102-00121020012	Hex head bolt	Request
19	101-01081010108	Fitting, barbed	Request
2	133-9975	Air header valve	Ask us
20	100-30771003077	Clamp, hose clamp	Request
3	133-91661339166	Tube, air lifts	Request
21	000-34890003489	Tubing, CO2/air braided hose	Request
4	100-11531001153	Plug, pipe countersunk	Request
22	100-1014	Elbow	Ask us
5	100-0929	Fitting	Ask us
23	100-3630	Nipple	Ask us
6	100-09271000927	Fitting, tube adapter	Request
7	100-08911000891	Nipple	Request

Filling Valve

Contents

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Meyer A-Model filler filling valve drawing

Open full size

Ref	Part number	Description
25	102-23571022357	Screw, round head	Request
26	133-81231338123	Nut, snift, fillers	Request
27	102-03891020389	Washer, lock	Request
28	102-00891020089	Bolt, hex head	Request
31	X-12929	Insert, snift block	Ask us
32	101-02071010207	O-ring	Request
33	100-40331004033	O-ring	Request
34	135-1636	Insert, centering cup	Ask us
35	133-7991	Sealing, rubber	Ask us
1-1-3	100-93201009320	Seal, charging cap	Request
1-1-6	100-34821003482	O-ring	Request
1-1-7	132-64041326404	Retainer, O-ring	Request
37	903-8686	Stem, valve assembly	Ask us
1-1-8	132-63991326399	Collar, guide	Request
1-1-9	131-69891316989	Spring, post valve R-11 series	Request
87-1	101-24851012485	Pin, groove	Request
1-1-10	902-7467	Cage, valve spring	Ask us
37-2	132-6400	Guide, valve	Ask us
1-1-11	104-51091045109	O-ring, valve assembly R11/R19, R20, MX	Request
20	133-70661337066	Snift, block valve R-11A	Request
37-4	131-62841316284	Spring, secondary	Request
21	133-71471337147	Spring, snift	Request
87-5	903-86859038685	Stem, valve	Request
22	133-81241338124	Stem, snift valve 52, 65, 78 valve	Request
87-6	100-98521009852	O-ring, (special)	Request
23	RR-647RR647	Seat, snift valve	Request
37-7	132-39861323986	Seal, liquid R-11	Request
24	132-64031326403	Retainer, seat snift valve	Request
1-1-38	132-88111328811	Body, charging valve	Request
1-1-39	HH-7211HH7211	Spring, charging valve	Request

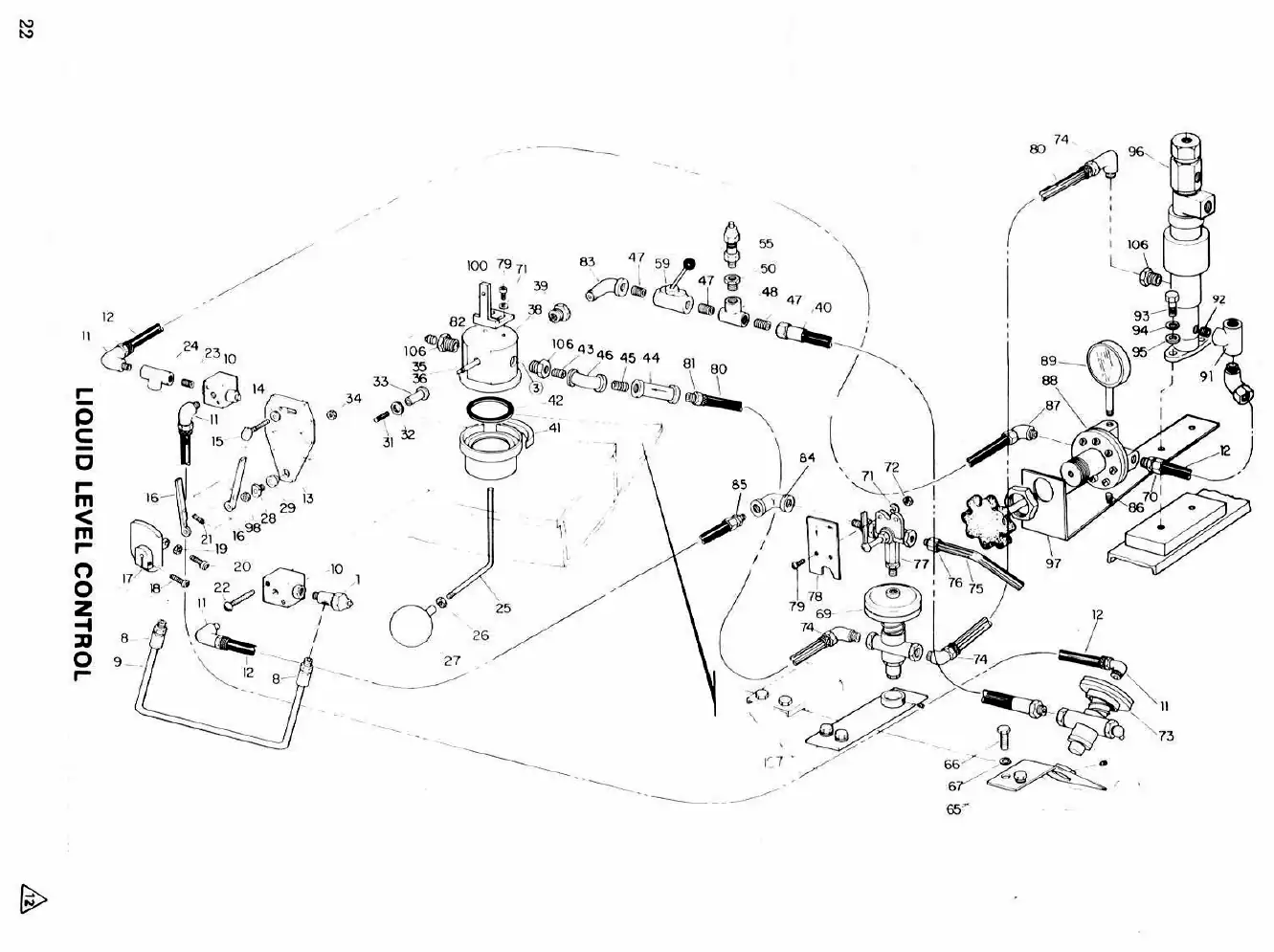

Liquid Level Control

Contents

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Meyer A-Model filler liquid level control drawing

Open full size

Ref	Part number	Description
46	100-53721005372	Elbow, 90 deg	Request
47	100-61101006110	Nipple, close	Request
48	100-53711005371	Tee	Request
1	HH-3485HH3485	Valve, body clean out 52V family	Request
50	1004658100-4658	Bushing, reducing hex	Request
8	100-09231000923	Fitting, tube	Request
55	HH-167HH167	Valve, clean out assembly	Request
9	000-17490001749	Tubing	Request
59	100-79931007993	Valve, on/off, female male	Request
10	HH-8698HH8698	Valve, air body assembly OEM	Request
65	HH-8690HH8690	Bracket, diaphragm valve-mount	Request
11	100-53251005325	Elbow, male connector	Request
66	102-01001020100	Bolt, hex head	Request
12	000-35190003519	Tubing, poly-flo	Request
67	102-03901020390	Washer, lock	Request
13	HH-8691HH8691	Plate, mounting	Request
69	100-47681004768	Valve, diaphragm	Request
14	102-04151020415	Washer, flat	Request
70	100-09261000926	Fitting, tube adapter	Request
15	102-21001022100	Screw, thumb	Request
71	102-03871020387	Washer, lock	Request
16	HH-8695HH8695	Lever, oper liquid level control	Request
72	102-03321020332	Nut, hex	Request
17	HH-8696HH8696	Plate, operating liq level	Request
73	902-35209023520	Valve, level control	Request
18	102-07751020775	Screw, fillister hd	Request
74	100-14681001468	Elbow, tube male bras	Request
75	000-17500001750	Tubing	Request
20	102-07731020773	Screw, fillister hd	Request
77	900-01679000167	Valve, run / charge	Request
22	102-02931020293	Screw, round head slot	Request
78	130-11831301183	Plate, operator	Request
23	100-61091006109	Nipple, close	Request
79	102-02951020295	Screw, round head slot	Request
24	100-54901005490	Tee	Request
80	000-32230003223	Tube, polyflo	Request
81	100-09271000927	Fitting, tube adapter	Request
26	102-03381020338	Nut, hex jam	Request
82	100-87241008724	Plug, pipe square head	Request
27	104-60211046021	Float, ball	Request
83	100-46601004660	Elbow, street 90 deg	Request
28	HH-2410HH2410	Gland, packing	Request
84	100-08531000853	Elbow	Request
29	HH-8692HH8692	Retainer, bushing mounting	Request
85	100-09251000925	Fitting, tube adapter bras	Request
31	102-1433	Wick, climax strand	Ask us
86	100-08711000871	Plug, pipe	Request
32	RR-228RR228	Gasket, air inlet valve bo	Request
33	133-69761336976	Box, stuffing liquid level	Request
88	100-29651002965	Regulator, pressure pilot	Request
34	102-05531020553	Nut, hex	Request
89	100-46181004618	Gauge, pressure	Request
35	133-69751336975	Stem, float control	Request
36	102-04371020437	Screw, set socket cup point	Request
38	133-69731336973	Housing, float level control	Request
93	102-00911020091	Bolt, hex head	Request
39	100-89121008912	Bushing, reducing hex	Request
94	102-03891020389	Washer, lock	Request
40	900-1240	Hose assembly	Ask us
95	102-20021022002	Washer, flat	Request
41	100-21441002144	Clamp, hinged sanitary	Request
96	100-48261004826	Rotary, joint 3 passage	Request
42	100-21351002135	Gasket, tri clamp	Request
97	130-6290	Bracket, mounting	Ask us
98	HH-2414HH2414	Nut, lock stuffing box	Request
44	100-53761005376	Valve, check	Request
100	135-11631351163	Bracket, liquid level cont	Request
106	100-89081008908	Bushing, reducing hex	Request
1	1046382104-6382	Clamp, hinged san thin	Request
2	100-21331002133	Gasket, tri-clamp tube	Request
3	100-41461004146	Elbow, 90 deg	Request
4	104-6029	Ferrule assembly	Ask us
5	100-40251004025	O-ring	Request
6	102-00921020092	Bolt, hex head	Request
8	903-8345	Box, stuffing	Ask us
9	903-8514	Ferrule flange assembly	Ask us
11	104-62341046234	Packing, V-ring	Request
12	133-5872	Gland	Ask us
15	104-60301046030	Ferrule, 52V family	Request
16	100-41491004149	Elbow, 90 deg	Request
17	102-01041020104	Bolt, hex head	Request
19	100-25081002508	O-ring	Request
20	100-41571004157	O-ring	Request
21	104-62331046233	Line, vertical supply upper	Request
22	903-8001	Chamber, balance	Ask us
23	133-8033	Gasket, balance chamber	Ask us
24	133-8034	Cover, balance chamber	Ask us
25	133-8035	Spacer	Ask us
26	102-03881020388	Washer, lock	Request
27	102-00781020078	Hex head bolt	Request
28	102-03351020335	Nut, hex	Request
30	102-00761020076	Bolt, hex head	Request
31	133-9135	U-bolt	Ask us
33	102-03341020334	Nut, hex	Request
34	903-85479038547-1	Guard, bearing	Request
35	102-00641020064	Bolt, hex head	Request
36	000-35110003511	Sheet	Request
7	102-00711020071	Hex head bolt	Request

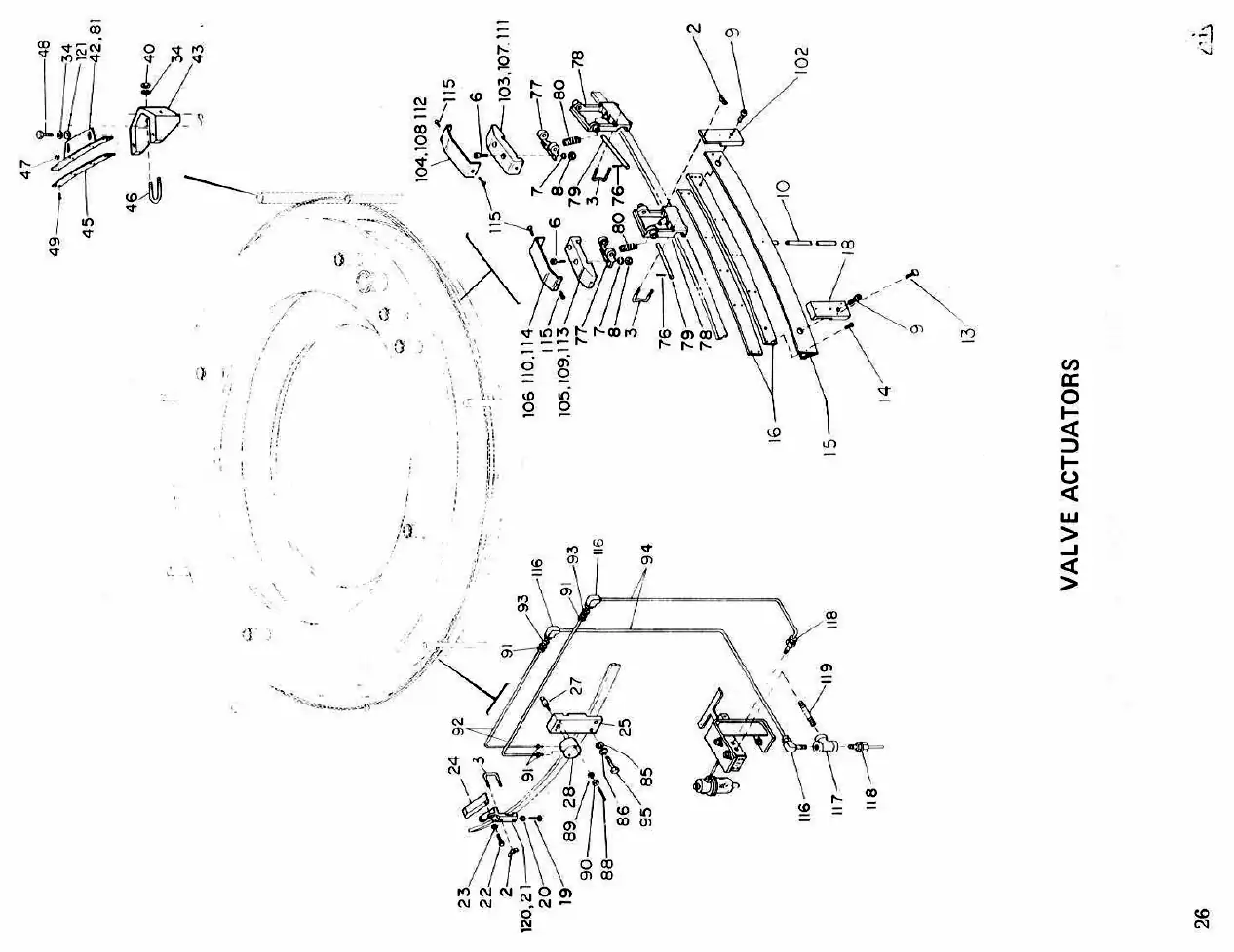

1	903-8730	Lever valve	Ask us
10	102-05731020573	Screw, socket head cap	Request
17	102-00691020069	Bolt, hex head	Request
2	135-1049	Pin	Ask us
3	102-19191021919	Screw, set	Request
4	903-8734	Bracket	Ask us
21	100-14661001466	Elbow, tube male	Request
5	1045116104-5116	Valve, ports	Request
22	100-14421001442	Nipple, pipe	Request
6	104-6238	Lubricator	Ask us
46	133-93831339383	U-bolt	Request
48	102-00891020089	Bolt, hex head	Request
49	102-01751020175	Screw, flat head slot	Request
2	102-0711	Nut, wing	Ask us
76	102-05741020574	Pin, cotter	Request
3	131-83801318380	U-bolt	Request
77	131-64561316456	Bracket, valve closer hinge	Request
6	102-13021021302	Screw, socket head cap	Request
78	H-478H478	Bracket, valve closer	Request
79	130-86171308617	Pin, valve closer hinge	Request
80	104-63671046367	Spring, valve closer	Request
9	102-10751021075	Socket head cap screw	Request
85	102-04181020418	Washer, flat	Request
10	000-3080	Hose specify length	Ask us
13	102-1420	Screw, socket head set	Ask us
87	102-01011020101	Bolt, hex head	Request
14	102-0297	Screw, round head	Ask us
88	000-3936	Rod, threaded specify length	Ask us
89	102-03861020386	Washer, lock	Request
91	100-5324	Connector	Ask us
93	100-3085	Connector	Ask us
18	133-9311	Bracket	Ask us
95	102-01091020109	Bolt, hex head	Request
19	102-08641020864	Screw, square hd cup pt	Request
102	135-0953	Bracket	Ask us
20	102-03401020340	Nut, hex jam	Request
103	135-0968	Track, valve closer RH	Ask us
104	135-0961	Cladding, valve closer	Ask us
22	102-00901020090	Bolt, hex head	Request
105	135-0958	Track, valve closer LH	Ask us
23	102-06631020663	Washer, lock external	Request
106	135-0964	Cladding, valve closer	Ask us
24	133-91711339171	Cam, neutral RH	Request
107	135-0954	Track, valve closer	Ask us
108	135-0962	Cladding, valve closer	Ask us
109	135-0957	Track, valve closer LH	Ask us
110	135-0965	Cladding, valve closer	Ask us
111	135-0955	Track, valve closer RH	Ask us
112	135-0963	Cladding, valve closer RH	Ask us
28	104-6235	Cylinder	Ask us
113	135-0956	Track, valve closer LH	Ask us
114	135-0966	Cladding, valve closer LH	Ask us
115	102-01841020184	Screw, flat head slot	Request
117	100-08811000881	Tee	Request
118	100-09241000924	Fitting, tube adapter	Request
45	133-6759	Liner, cam plate	Ask us
119	100-14401001440	Nipple	Request
121	102-12551021255	Washer, flat	Request

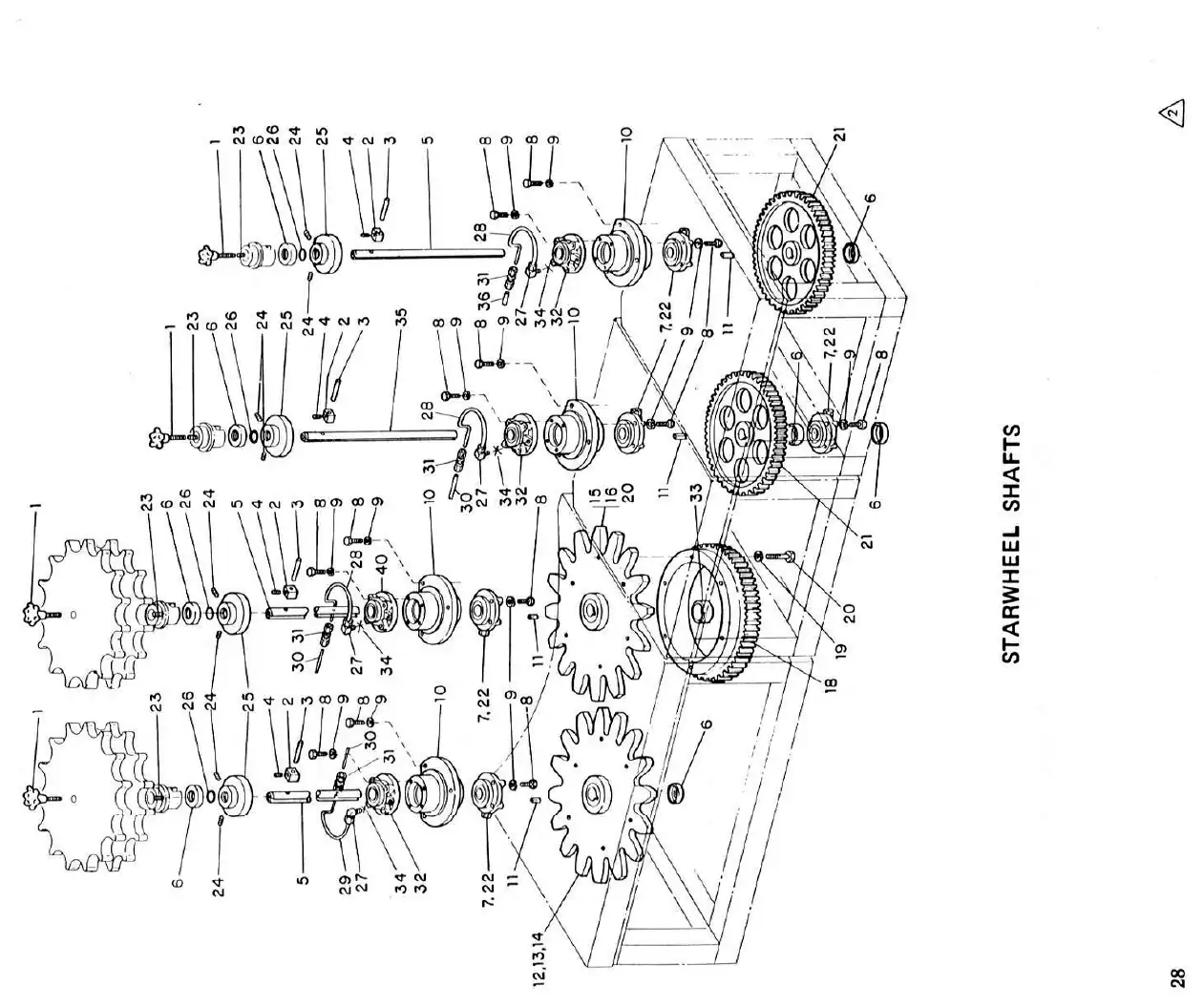

20	102-21881022188	Screw, socket head cap	Request
21	133-99881339988	Gear, driven closer column	Request
3	102-13921021392	Pin, dowel	Request
4	102-04661020466	Screw, set socket cup point	Request
5	134-40861344086	Shaft, starwheel infeed discharge	Request
23	102-04551020455	Screw, set socket cup point	Request
6	101-00671010067	Collar, shaft	Request
24	102-04471020447	Screw, set socket cup point	Request
7	104-60281046028	Bearing	Request
25	904-43259044325-WP	Cover, splash guard	Request
8	102-0039	Screw, hex head	Ask us
26	101-35961013596	O-ring	Request
27	100-1465	Elbow	Ask us
10	135-17661351766	Hub, star shaft bearing	Request
11	102-10671021067	Key	Request
31	100-16351001635	Coupling, tube	Request
32	133-93041339304	Bearing, flange	Request
33	000-20930002093	Spacer, main drive gear 52V family	Request
34	100-72981007298	Fitting, elbow body connecting	Request
35	134-4084	Shaft	Ask us

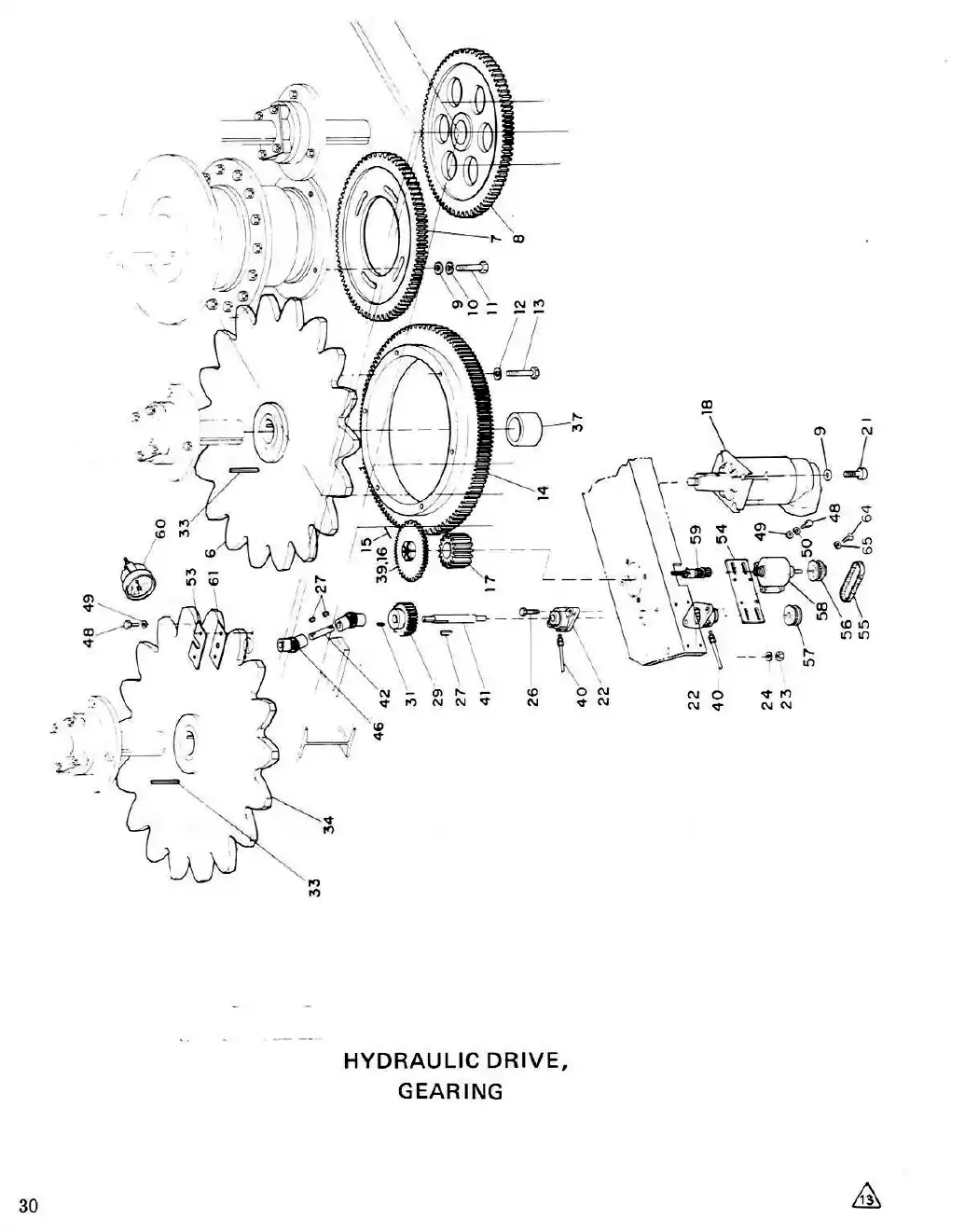

Hydraulic Drive Gearing

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Ref	Part number	Description
31	000-16250001625	Key, square	Request
37	000-20930002093	Spacer, main drive gear 52V family	Request
7	133-80021338002-P	Gear, closure drive	Request
40	100-09231000923	Fitting, tube	Request
9	102-0757	Washer, flat	Ask us
41	135-09491350949	Shaft, feed screw drive	Request
10	102-03811020381	Washer, lock	Request
11	102-00431020043	Bolt, hex head	Request
48	102-00041020004	Bolt, hex head	Request
49	102-0369	Washer, flat	Ask us
50	102-0378	Lockwasher	Ask us
55	104-6297	Belt, tachometer	Ask us
18	101-3179	Motor, hydraulic	Ask us
21	102-0039	Screw, hex head	Ask us
58	104-6309	Generation, tachometer	Ask us
22	104-60331046033	Bearing, infeed screw shaft	Request
59	104-6308	Cable, tachometer	Ask us
23	102-0321	Nut, hex	Ask us
24	102-03801020380	Washer, lock	Request
26	102-0029	Bolt, hex head	Ask us
62	102-0588	Nut, hex	Ask us
29	133-80421338042	Gear, feed screw drive	Request
64	102-02871020287	Screw, phillips hd	Request
65	102-03861020386	Washer, lock	Request

Infeed Screw By-Pass Screw and Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

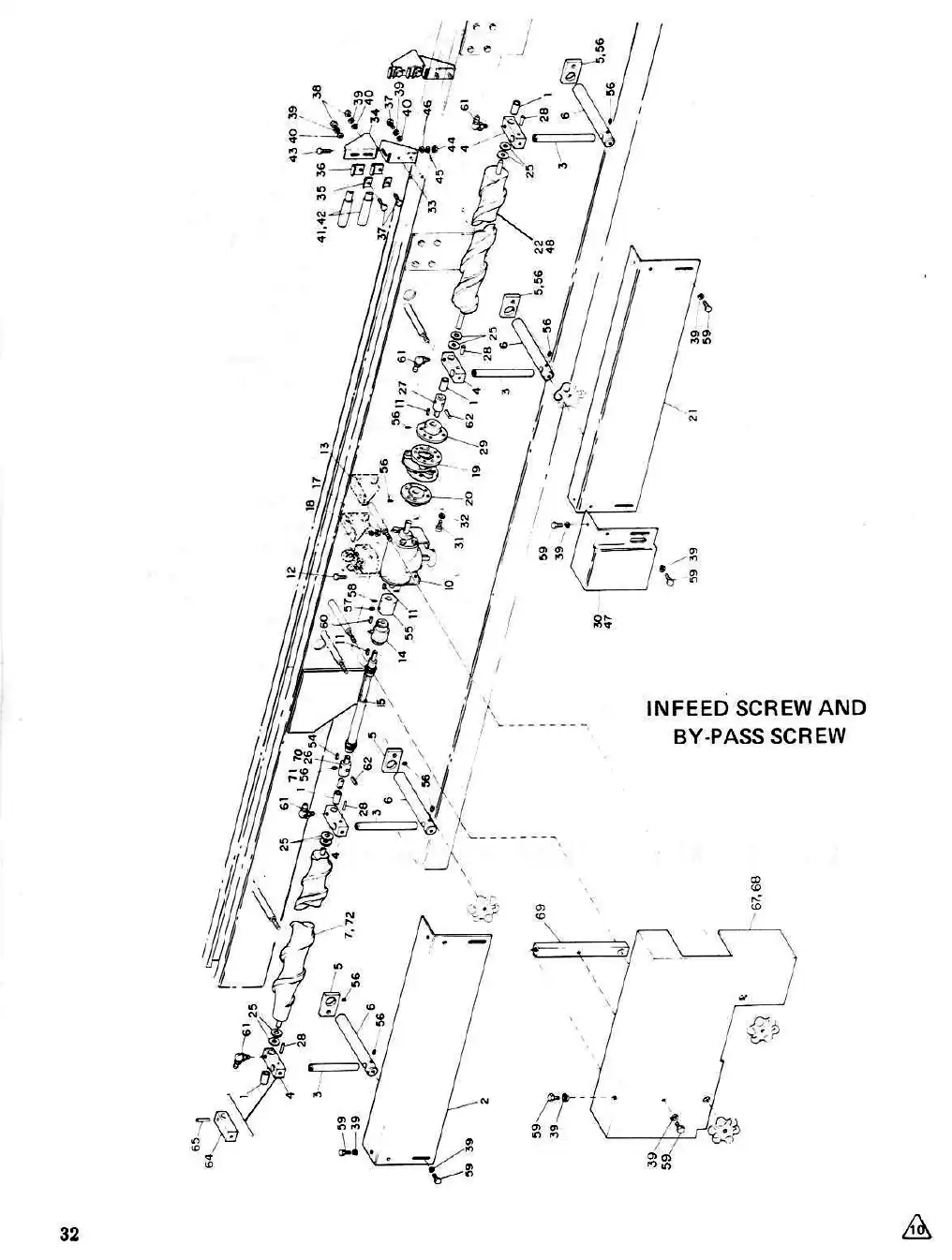

Meyer A-Model filler infeed screw by-pass screw and drive drawing

Open full size

Ref	Part number	Description
35	131-1718	Clip, guide rail	Ask us
36	131-5696	Clip guide rail	Ask us
37	102-00671020067	Bolt, hex head	Request
38	102-03321020332	Nut, hex	Request
89	102-03871020387	Washer, lock	Request
41	000-1421	Half round	Ask us
42	000-3326	Strip, wear	Ask us
43	102-00891020089	Bolt, hex head	Request
44	102-03341020334	Nut, hex	Request
45	102-03891020389	Washer, lock	Request
46	102-04171020417	Washer, flat	Request
56	102-04251020425	Set screw	Request
57	102-04351020435	Screw, set socket cup point	Request
58	102-14301021430	Screw, set	Request
59	102-00651020065	Bolt, hex head	Request
60	000-1641	Key	Ask us
61	102-1921	Fitting, grease	Ask us
62	102-23611022361	Pin, roll	Request
25	104-60231046023	Bearing, thrust washer	Request
65	102-18511021851	Pin, roll	Request
66	102-2438	Pin, roll	Ask us
31	102-13621021362	Screw, socket head cap	Request
32	102-03881020388	Washer, lock	Request
15	102-06681020668	Pin, dowel	Request
16	104-5155	Spring, compression	Ask us
1	903-8399	Bracket, cam mounting-RH shown	Ask us
17	102-03381020338	Nut, hex jam	Request
2	133-6735	Base, cam mounting	Ask us
3	133-6736	Base, cam mounting	Ask us
19	102-1940	Pin, roll	Ask us
4	133-6739	Shaft, cam holder	Ask us
20	135-08481350848	Shaft, lock bottle filler	Request
5	135-0881	Track, cam-bottom-RH shown	Ask us
6	135-0880	Track, cam-top-RH shown	Ask us
7	133-7461	Rod, cam adj	Ask us
24	135-0647	Strap	Ask us
8	133-67401336740	Rod	Request
30	104-6311	Spring, extension	Ask us
9	131-83801318380	U-bolt	Request
10	102-0711	Nut, wing	Ask us
11	133-6745	Shield	Ask us
12	104-5183	Ring, retaining	Ask us
13	102-00681020068	Bolt, hex head	Request

Centering Bell

Contents

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Ref	Part number	Description
4	133-68151336815	Strap, centering bell family	Request
5	102-03871020387	Washer, lock	Request
6	102-00671020067	Bolt, hex head	Request
2	135-19451351945	Spring, centering device	Request
3	135-1227	Support, bushing bell	Ask us
3	135-1228	Support, bushing	Ask us

Discharge Safety Gate

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Ref	Part number	Description
2	133-8107	Bracket, support-r shown	Ask us
3	133-8106	Bracket, guide- shown	Ask us
4	H-2793	Hinge	Ask us
5	H-2794	Hinge	Ask us
6	HH-6331	Pin, hinge	Ask us
7	903-8052	Gate	Ask us
8	133-8108	Clevis	Ask us
9	102-2103	Pin, dowel	Ask us
10	133-8848	Spring, compression	Ask us
11	133-8110	Rod, threaded	Ask us
12	102-00891020089	Bolt, hex head	Request
13	102-02081020208	Screw, flat head slot	Request
14	102-04171020417	Washer, flat	Request
15	102-03891020389	Washer, lock	Request
16	102-03341020334	Nut, hex	Request
17	102-00651020065	Bolt, hex head	Request
20	102-17071021707	Screw, round hd machine	Request
21	102-04141020414	Washer, flat	Request
22	102-03861020386	Washer, lock	Request
24	135-0752	Bracket, support-l not	Ask us
11	102-0339	Nut, hex jam	Ask us
12	102-0188	Screw, flat head	Ask us
14	133-6848	Rod, guide	Ask us
15	102-03881020388	Washer, lock	Request
16	102-13251021325	Screw, socket head cap	Request
20	102-00761020076	Bolt, hex head	Request
8	102-05531020553	Nut, hex	Request
22	HH-1865HH1865	Spring, valve, closer	Request
10	102-00821020082	Bolt, hex head	Request
24	135-0748	Channel, guide-l not shown	Ask us
25	102-04161020416	Washer, flat	Request

Bottle Stop

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Ref	Part number	Description
10	102-05531020553	Nut, hex	Request
12	102-03381020338	Nut, hex jam	Request
2	903-8352	Bracket, mounting--r shown	Ask us
15	102-0344	Nut, hex	Ask us
3	102-04181020418	Washer, flat	Request
16	102-02921020292	Screw, round head slot	Request
4	133-6664	Gate	Ask us
5	133-8031	Screw, shoulder	Ask us
38	000-35190003519	Tubing, poly-flo	Request
6	104-51191045119	Cylinder, air infeed gate assembly	Request
39	100-5324	Fitting	Ask us
7	102-0827	Pin	Ask us
40	000-1758	Tube specify length	Ask us
8	102-1531	Screw, hex head	Ask us
41	100-1465	Elbow	Ask us
9	102-03861020386	Washer, lock	Request
42	102-00781020078	Hex head bolt	Request

RH Filler Shown

Contents

Parts for this assembly, from the original Meyer parts lists.

Meyer A-Model filler rh filler shown drawing

Open full size

Ref	Part number	Description
10	100-27151002715	Nipple, pipe	Request
11	100-14661001466	Elbow, tube male	Request
12	000-17500001750	Tubing	Request
1	133-90071339007	Bracket, mounting pressure control	Request
13	100-1465	Elbow	Ask us
2	101-06751010675	Gauge, pressure assembly	Request
14	102-03861020386	Washer, lock	Request
3	104-51981045198	Regulator	Request
15	102-14601021460	Nut, hex	Request
4	104-6058	Valve, air push button	Ask us
16	102-03881020388	Washer, lock	Request
5	100-14321001432	Bushing, reducing hex	Request
17	102-00751020075	Bolt, hex head	Request
6	100-08721000872	Plug, pipe square head	Request
7	100-08711000871	Plug, pipe	Request
8	100-2726	Coupling nameplate auto hyd drive	Ask us
9	100-2725	Coupling	Ask us

Main Discharge Conveyor

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

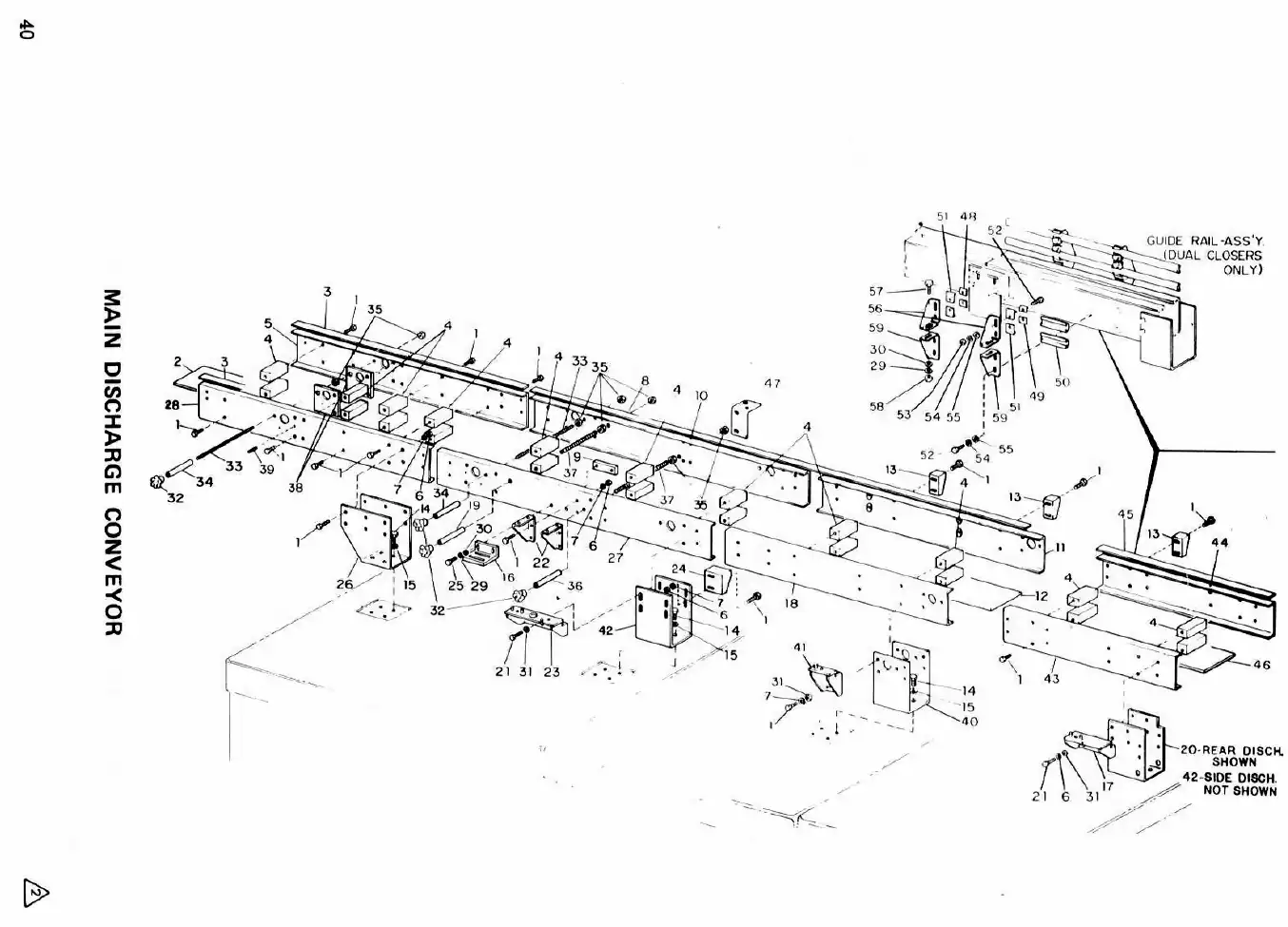

Meyer A-Model filler main discharge conveyor drawing

Open full size

Ref	Part number	Description
32	104-6215	Knob, hand	Ask us
1	102-00761020076	Bolt, hex head	Request
35	102-03411020341	Nut, hex jam	Request
3	000-36980003698	Wearstrip, filler conveyor out	Request
4	135-17501351750	Spacer	Request
39	102-20821022082	Pin, roll slotted	Request
6	102-03341020334	Nut, hex	Request
7	102-03881020388	Washer, lock	Request
13	135-2880	Bracket, rod support	Ask us
14	102-01001020100	Bolt, hex head	Request
15	102-03901020390	Washer, lock	Request
48	131-1718	Clip, guide rail	Ask us
49	000-1421	Half round specify length	Ask us
50	000-3326	Strip, wear specify length	Ask us
51	131-5696	Bracket, guide rail	Ask us
21	102-01011020101	Bolt, hex head	Request
52	102-00671020067	Bolt, hex head	Request
53	102-03321020332	Nut, hex	Request
54	102-03871020387	Washer, lock	Request
55	102-04151020415	Washer, flat	Request
25	102-00881020088	Hex head bolt	Request
26	134-4515	Bracket, mounting	Ask us
57	102-00891020089	Bolt, hex head	Request
29	102-03891020389	Washer, lock	Request
30	102-04171020417	Washer, flat	Request
31	102-04161020416	Washer, flat	Request
62	102-0181	Screw, flat head	Ask us
8	102-02871020287	Screw, phillips hd	Request

Conveyor with Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

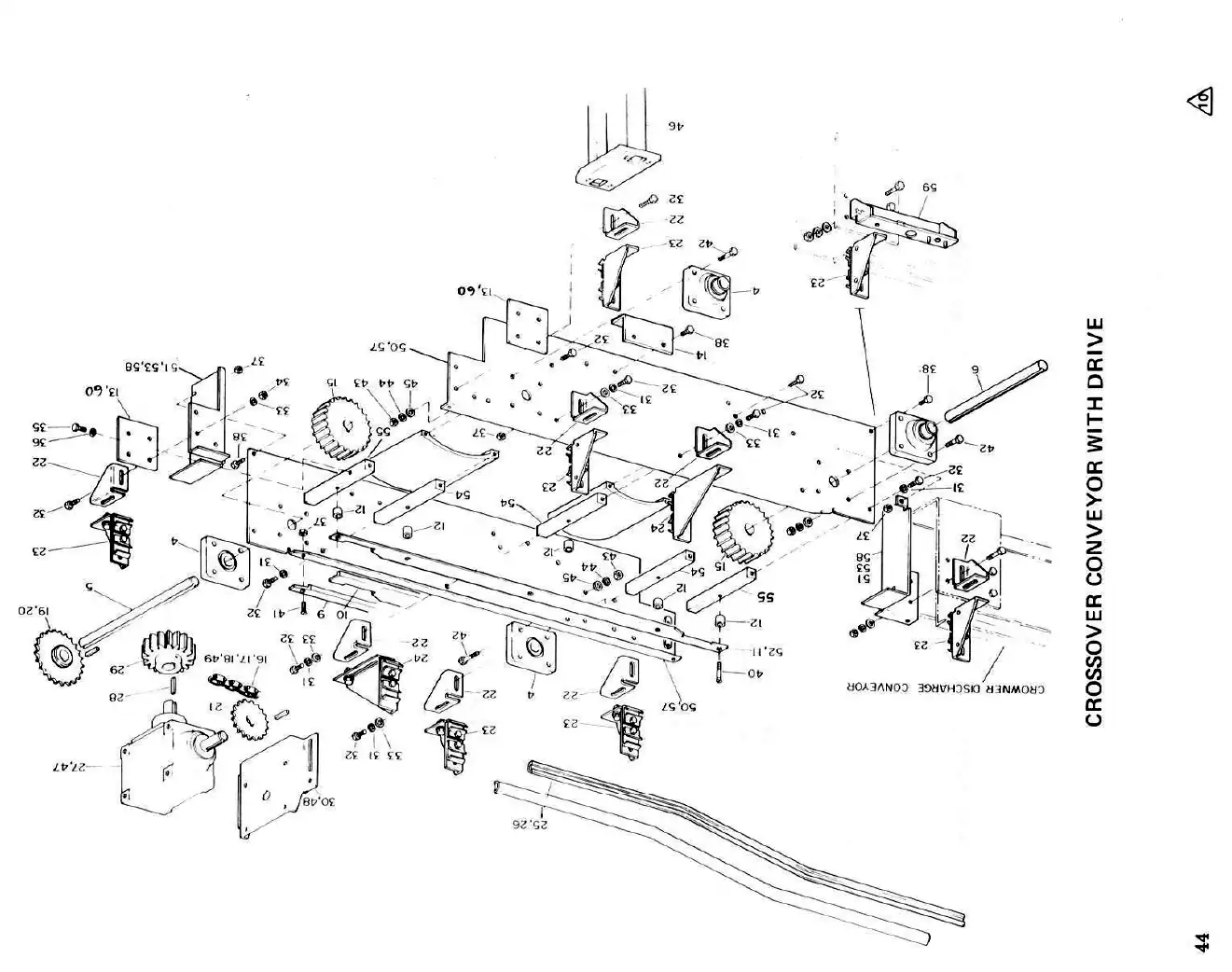

Meyer A-Model filler conveyor with drive drawing

Open full size

Ref	Part number	Description
31	102-03891020389	Washer, lock	Request
32	102-00881020088	Hex head bolt	Request
33	102-04171020417	Washer, flat	Request
34	102-22661022266	Nut, hex nylock insert type	Request
4	101-06021010602	Bearing, conveyor	Request
35	102-00751020075	Bolt, hex head	Request
36	102-04161020416	Washer, flat	Request
37	102-23901022390	Nut, hex	Request
9	000-36980003698	Wearstrip, filler conveyor out	Request
38	102-16471021647	Bolt, hex head	Request
41	102-01911020191	Screw, flat head slot	Request
42	102-1492	Screw, hex head	Ask us
13	133-6652	Support, tie used with closing	Ask us
43	102-15331021533	Nut, hex	Request
44	102-14431021443	Washer, lock	Request
14	903-2961	Support, tie	Ask us
45	102-09391020939	Washer, flat	Request
16	100-5126	Chain used with closing machine	Ask us
17	100-5127	Link, connecting closing machine	Ask us
18	100-5128	Link, offset	Ask us
48	903-8397	Bracket, gear box mounting used with	Ask us
19	100-9695	Limiter, torque closing machine	Ask us
21	100-98941009894	Sprocket, discharge conveyor	Request
22	133-1251	Support, guide rail used with closing machine	Ask us
26	000-3326	Cover, guide rail specify length shown used with closing machine	Ask us
27	104-60411046041	Gearbox, rear discharge	Request
28	000-16280001628	Key, square	Request
29	133-8114	Gear, driven	Ask us
30	903-8274	Bracket, mounting used with	Ask us
57	903-8955	Frame, side shown used	Ask us

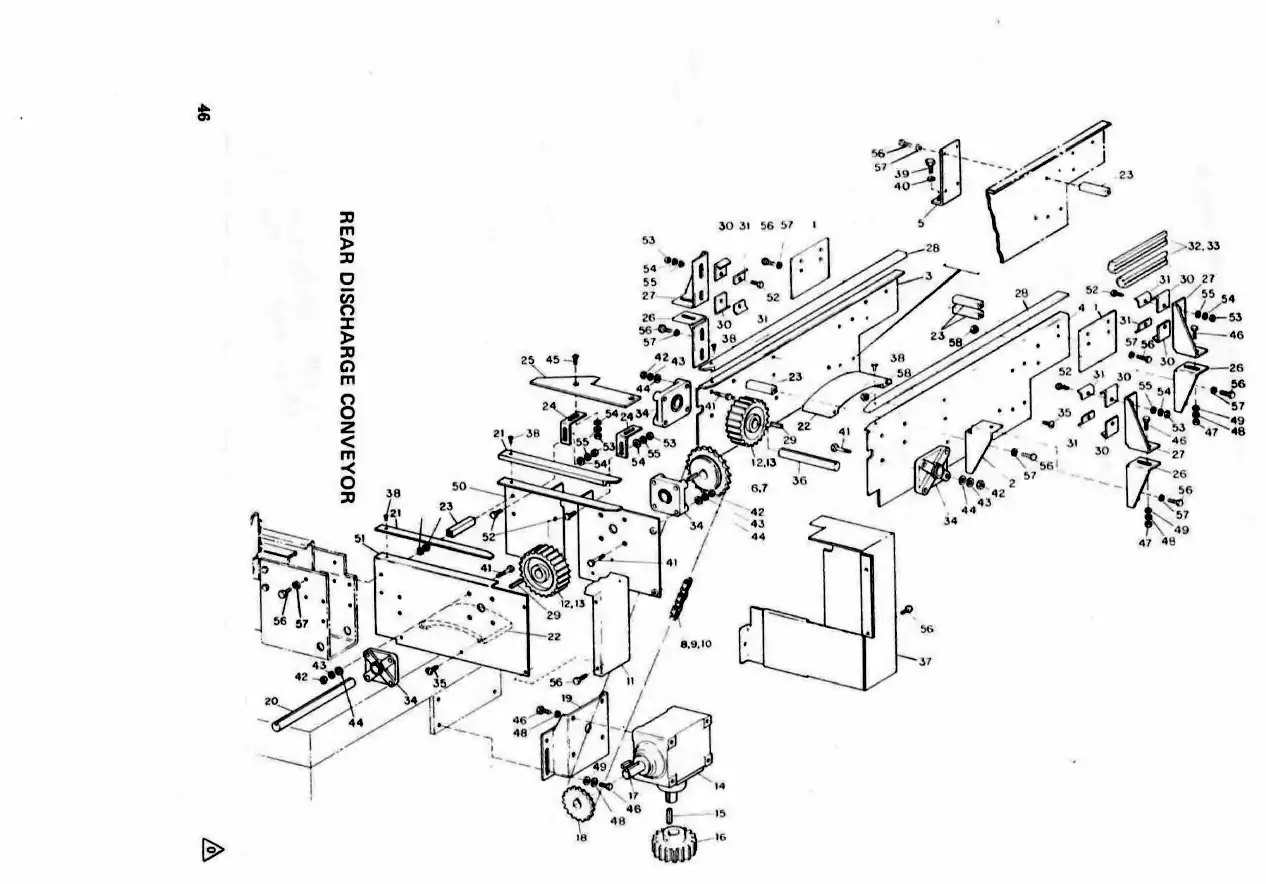

Rear Discharge Conveyor

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Meyer A-Model filler rear discharge conveyor drawing

Open full size

Ref	Part number	Description
30	131-5696	Bracket, guide rail	Ask us
31	131-1718	Clip	Ask us
32	000-1421	Round- length	Ask us
4	135-38441353844	Frame, side rear discharge	Request
33	000-3326	Cover	Ask us
34	101-06021010602	Bearing, conveyor	Request
6	100-9695	Limiter, torque	Ask us
85	102-2330	Screw, self tap	Ask us
36	133-1525	Shaft, idler	Ask us
8	101-21051012105	Clip, link roller chain	Request
9	101-21031012103	Chain, roller	Request
88	102-0181	Screw, flat head	Ask us
10	101-21041012104	Link, offset	Request
89	102-01001020100	Bolt, hex head	Request
40	102-03901020390	Washer, lock	Request
41	102-1492	Screw, hex head	Ask us
42	102-15331021533	Nut, hex	Request
14	104-60411046041	Gearbox, rear discharge	Request
43	102-14431021443	Washer, lock	Request
15	000-16280001628	Key, square	Request
44	102-09391020939	Washer, flat	Request
16	133-8114	Gear	Ask us
45	102-01921020192	Screw, flat head slot	Request
46	102-00881020088	Hex head bolt	Request
18	100-98941009894	Sprocket, discharge conveyor	Request
47	102-03401020340	Nut, hex jam	Request
19	903-8274	Bracket, mounting	Ask us
48	102-03891020389	Washer, lock	Request
49	102-20021022002	Washer, flat	Request
21	000-36980003698	Wearstrip, filler conveyor out	Request
22	133-59791335979	Shoe, return	Request
23	135-17501351750	Spacer	Request
52	102-00671020067	Bolt, hex head	Request
53	102-03321020332	Nut, hex	Request
54	102-03871020387	Washer, lock	Request
55	102-04151020415	Washer, flat	Request
56	102-00751020075	Bolt, hex head	Request
57	102-03881020388	Washer, lock	Request
29	000-1624	Key, square specify length	Ask us
58	102-03331020333	Nut, hex	Request

Pneumatic Control Module

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

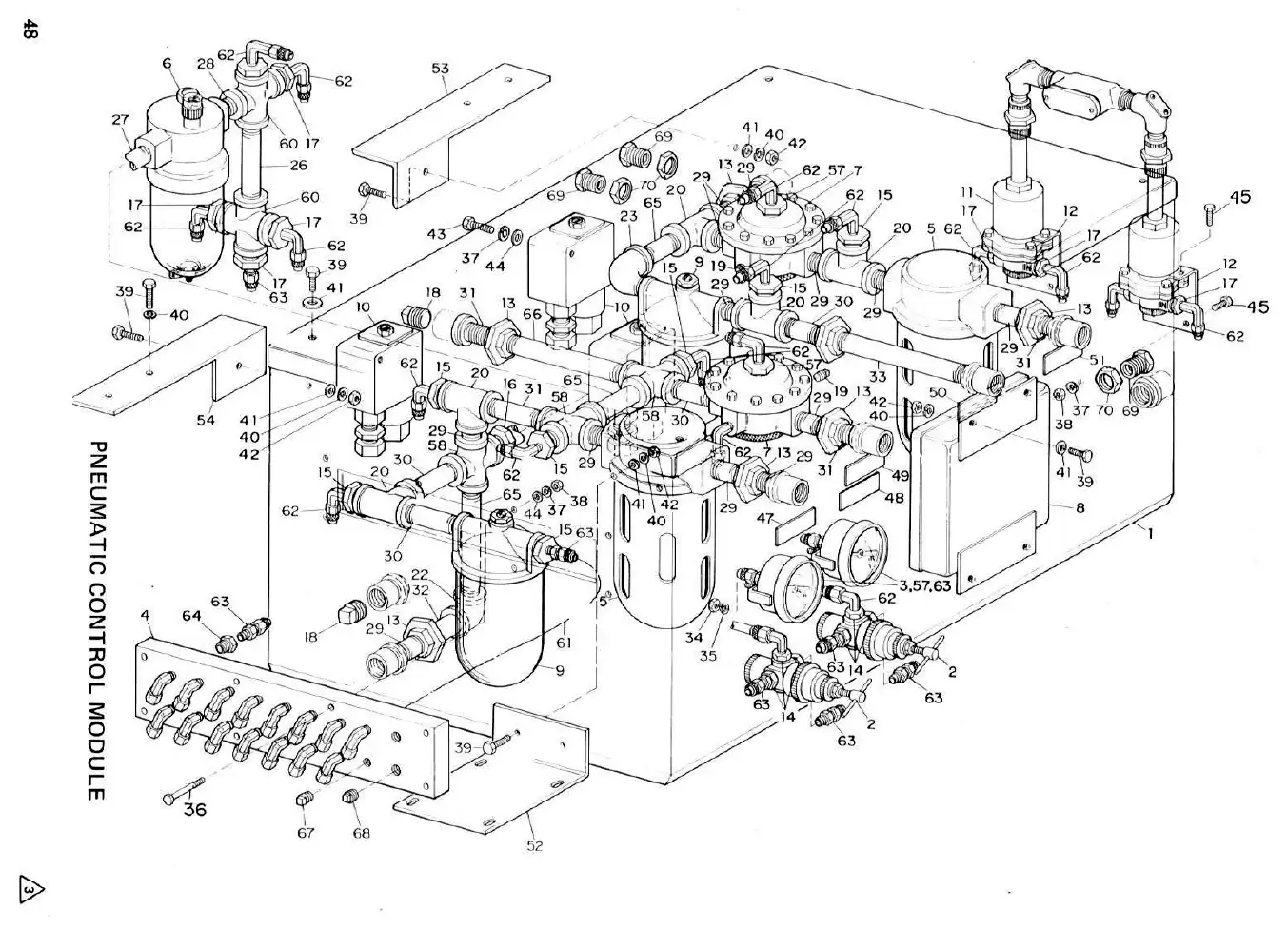

Meyer A-Model filler pneumatic control module drawing

Open full size

Ref	Part number	Description
35	102-03861020386	Washer, lock	Request
36	102-00711020071	Hex head bolt	Request
87	102-03871020387	Washer, lock	Request
38	102-03321020332	Nut, hex	Request
2	1045198104-5198	Regulator	Request
89	102-1841	Screw, hex head	Ask us
3	101-06751010675	Gauge, pressure assembly	Request
40	102-03891020389	Washer, lock	Request
41	102-20021022002	Washer, flat	Request
5	101-3020	Filter	Ask us
42	102-03341020334	Nut, hex	Request
6	101-01371010137	Lubricator	Request
43	102-00671020067	Bolt, hex head	Request
7	100-47101004710	Regulator, air	Request
44	102-04151020415	Washer, flat	Request
8	100-5817	Box, junction	Ask us
45	102-00681020068	Bolt, hex head	Request
9	100-31421003142-1	Filter, housing	Request
13	100-21561002156	Union nameplates	Request
14	100-14331001433	Bushing, reducing hex	Request
15	100-6937	Bushing, reducer	Ask us
16	100-14371001437	Bushing, reducing hex	Request
57	100-14311001431	Bushing, reducing hex	Request
18	100-0875	Plug, pipe	Ask us
19	100-08711000871	Plug, pipe	Request
60	100-2756	Cross	Ask us
20	100-08841000884	Tee	Request
61	000-35190003519	Tubing, poly-flo	Request
22	100-08571000857	Elbow	Request
62	100-53251005325	Elbow, male connector	Request
23	100-1485	Elbow, street	Ask us
63	100-5324	Connector	Ask us
24	100-14661001466	Elbow, tube male	Request
64	100-27881002788	Bushing, reducing bell	Request
26	100-09001000900	Nipple	Request
65	100-3634	Nipple	Ask us
28	100-08921000892	Nipple	Request
67	100-08721000872	Plug, pipe square head	Request
29	100-0893	Nipple, close	Ask us
68	100-08731000873	Plug, pipe square. head	Request
30	100-3628	Nipple	Ask us
69	HH-1046	Adapter	Ask us
31	100-3630	Nipple	Ask us
70	102-1512	Nut, jam	Ask us
33	100-3636	Nipple	Ask us
34	102-14601021460	Nut, hex	Request

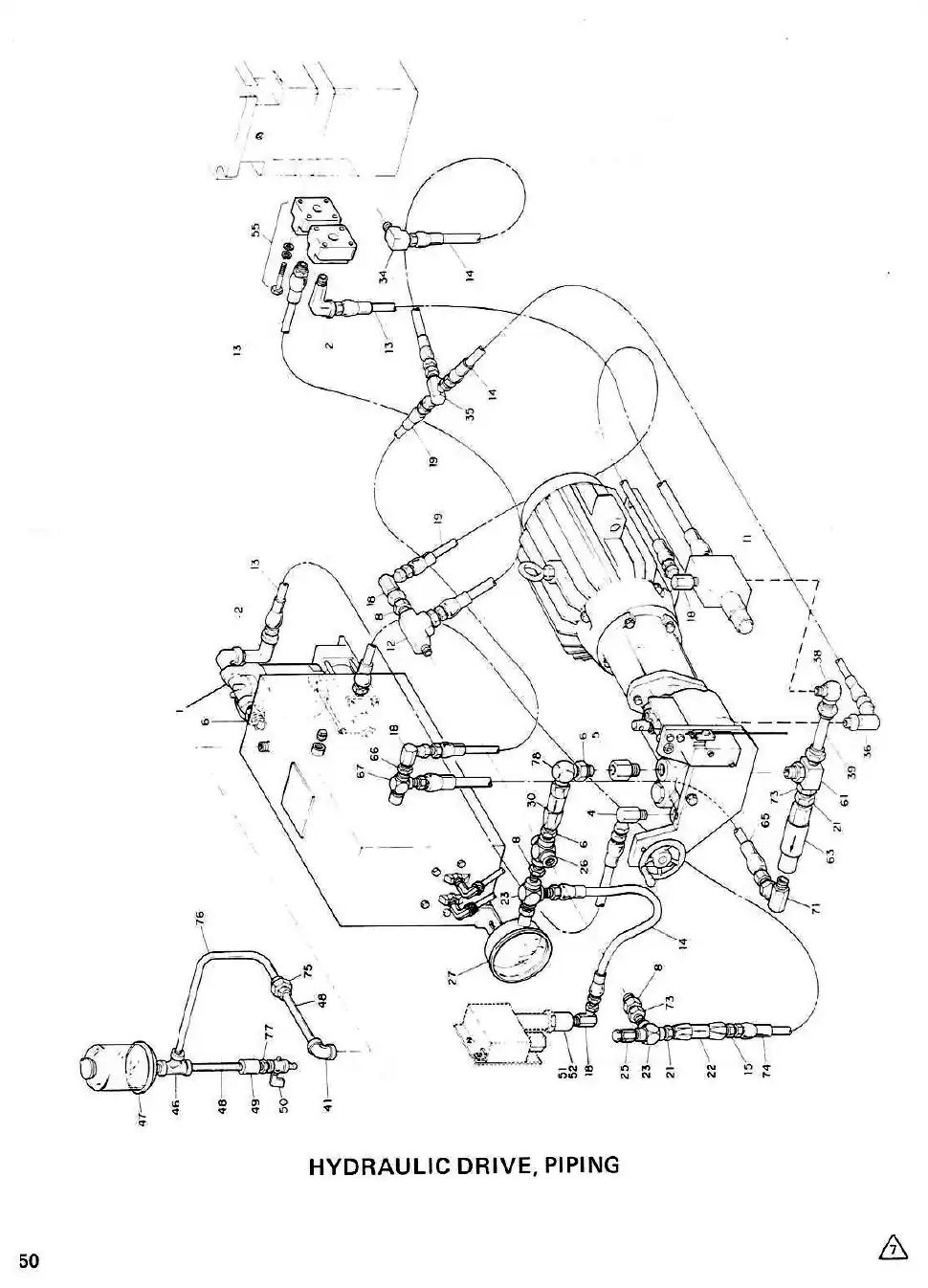

Hydraulic Drive Piping

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Meyer A-Model filler hydraulic drive piping drawing

Open full size

Ref	Part number	Description
386	104-6115	Union	Ask us
1	104-6055	Filter, oil	Ask us
41	100-5727	Elbow	Ask us
46	100-54921005492	Tee	Request
2	104-6092	Elbow, street	Ask us
47	101-29801012980	Oil, resevoir	Request
5	101-0420	Adapter	Ask us
49	100-97071009707	Coupling	Request
6	104-6126	Nipple	Ask us
50	100-2582	Cock, pet	Ask us
8	1046105104-6105	Bushing, reducer	Ask us
51	104-6133	Snubber, pressure	Ask us
13	104-60771046077	Hose, pressure hydraulic drive 52V	Request
14	1046076104-6076	Hose, pressure	Ask us
15	104-6066	Union	Ask us
18	104-6097	Union	Ask us
19	104-6118	Hose, pressure	Ask us
67	104-6355	Tee, street	Ask us
21	1046108104-6108	Bushing, reducer	Ask us
22	104-60531046053	Valve, check	Request
73	104-6373	Nipple, hex	Ask us
23	104-6094	Tee, service	Ask us
74	1046404104-6404	Hose	Ask us
25	1046102104-6102	Valve, bleed	Ask us
75	100-49091004909	Union	Request
26	104-6110	Cross, female	Ask us
27	104-6085	Gage, pressure	Ask us
77	100-8906	Bushing, reducer	Ask us
30	104-6054	Valve, check	Ask us

Hydraulic Drive Motor

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

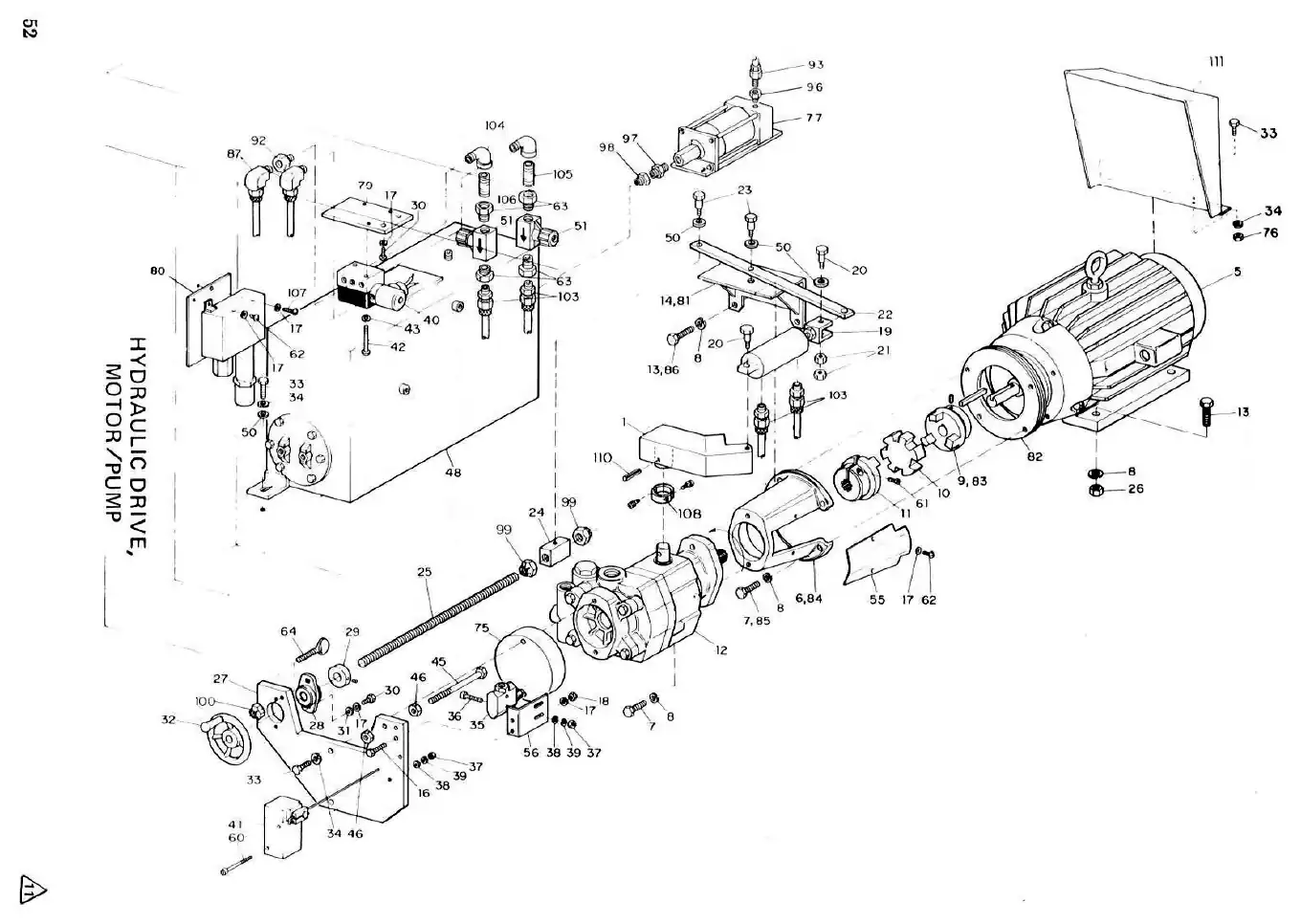

Meyer A-Model filler hydraulic drive motor drawing

Open full size

Ref	Part number	Description
43	102-03861020386	Washer, lock	Request
45	102-0589	Screw, hex head	Ask us
1	903-8696	Lever assembly	Ask us
46	102-03221020322	Nut, hex	Request
48	104-6224	Tank, oil	Ask us
50	102-2011	Washer, flat	Ask us
6	135-0669	Flange, mounting	Ask us
7	102-01011020101	Bolt, hex head	Request
8	102-03901020390	Washer, lock	Request
55	135-0670	Shield	Ask us
9	104-6228	Coupling, jaw	Ask us
56	135-0667	Bracket, micro switch	Ask us
10	104-6230	Insert, jaw coupling	Ask us
60	102-2366	Screw	Ask us
61	102-14041021404	Socket head cap screw	Request
12	101-3181	Pump, variable volume	Ask us
62	102-0243	Screw, round head	Ask us
13	102-01021020102	Bolt, hex head	Request
63	100-14351001435	Bushing, reducing hex	Request
64	102-2887	Screw, thumb	Ask us
16	102-0005	Screw, hex head	Ask us
77	104-6371	Pump, air driven	Ask us
17	102-0378	Lockwasher	Ask us
79	135-1043	Plate, solenoid mounting	Ask us
18	102-0319	Nut, hex	Ask us
19	104-62251046225	Cylinder, air	Request
20	102-2417	Screw, shoulder	Ask us
21	102-0320	Nut	Ask us
22	135-0665	Bar, pivot	Ask us
23	102-1828	Screw, shoulder	Ask us
85	102-01031020103	Bolt, hex head	Request
24	133-9994	Collar	Ask us
86	102-01041020104	Bolt, hex head	Request
25	133-5240	Rod, threaded	Ask us
87	100-53251005325	Elbow, male connector	Request
26	102-03351020335	Nut, hex	Request
92	100-14331001433	Bushing, reducing hex	Request
27	135-0664	Bracket, speed control	Ask us
93	100-5324	Connector	Ask us
28	104-60361046036	Bearing flange 52V family hydraulic drive mo	Request
96	100-14311001431	Bushing, reducing hex	Request
29	100-0750	Collar, set	Ask us
97	104-6374	Nipple, hex	Ask us
30	102-00661020066	Bolt, hex head	Request
98	101-0325	Bushing	Ask us
31	102-04151020415	Washer, flat	Request
99	102-22671022267	Nut, hex nylock insert type	Request
82	135-0666	Handwheel	Ask us
100	102-22661022266	Nut, hex nylock insert type	Request

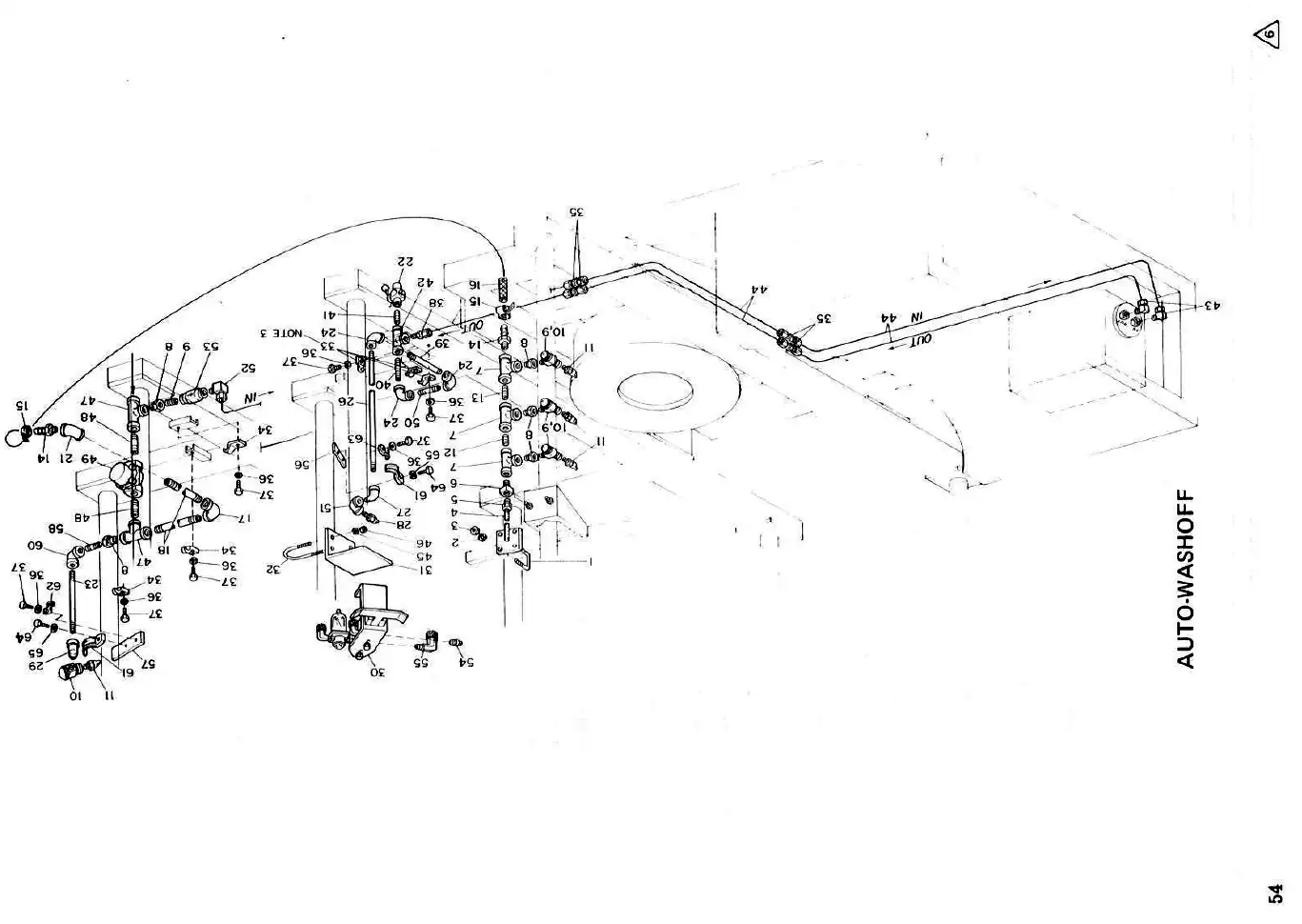

103	101-0105	Connector	Ask us
104	100-1482	Elbow, street	Ask us
105	100-14411001441	Nipple, pipe	Request
106	100-14401001440	Nipple	Request
87	102-0549	Nut, hex round head	Ask us
38	102-0413	Washer, flat mes gores	Ask us
39	102-0376	Lockwasher soe	Ask us
42	102-02931020293	Screw, round head slot	Request
33	100-7017	Clamp	Ask us
84	100-0357	Clamp	Ask us
35	100-1637	Union	Ask us
86	102-03871020387	Washer, lock	Request
2	102-03881020388	Washer, lock	Request
3	102-03331020333	Nut, hex	Request
88	100-09271000927	Fitting, tube adapter	Request
4	903-8504	Bracket	Ask us
5	100-89081008908	Bushing, reducing hex	Request
40	100-14421001442	Nipple, pipe	Request
6	100-89111008911	Bushing, reducing hex	Request
41	100-08901000890	Nipple	Request
7	100-5493	Tee	Ask us
42	100-08811000881	Tee	Request
8	100-1438	Bushing	Ask us
43	100-14721001472	Elbow, tube	Request
9	100-08911000891	Nipple	Request
44	000-1769	Tubing spec length	Ask us
10	104-6372	Diaphragm valve, check	Ask us
45	102-03891020389	Washer, lock	Request
11	104-51871045187	Nozzle, wash-off	Request
46	102-03341020334	Nut, hex	Request
12	100-61131006113	Nipple, close	Request
47	100-08841000884	Tee	Request
13	100-3628	Nipple	Ask us
48	100-0893	Nipple, close	Ask us
14	101-01081010108	Fitting, barbed	Request
15	100-30771003077	Clamp, hose clamp	Request
16	000-34890003489	Tubing, CO2/air braided hose	Request
51	100-3971	Reducer, elbow	Ask us
17	100-08571000857	Elbow	Request
52	100-1471	Fitting, elbow	Ask us
18	000-0808	Pipe specify length	Ask us
53	100-2847	Ball, check	Ask us
21	100-2833	Elbow	Ask us
54	100-08721000872	Plug, pipe square head	Request
22	101-2335	Valve, ball	Ask us
55	100-14661001466	Elbow, tube male	Request
23	000-2930	Pipe specify length	Ask us
56	135-1821	Bar, support	Ask us
24	100-0854	Elbow	Ask us
26	000-0796	Pipe specify length	Ask us
58	100-27381002738	Nipple, pipe	Request
60	100-0855	Elbow	Ask us
28	104-6381	Nozzle, spray	Ask us
61	100-7015	Pipe, clamp	Ask us
29	100-1483	Elbow, street	Ask us
62	100-7016	Pipe, clamp	Ask us
64	102-00741020074	Bolt, hex head	Request

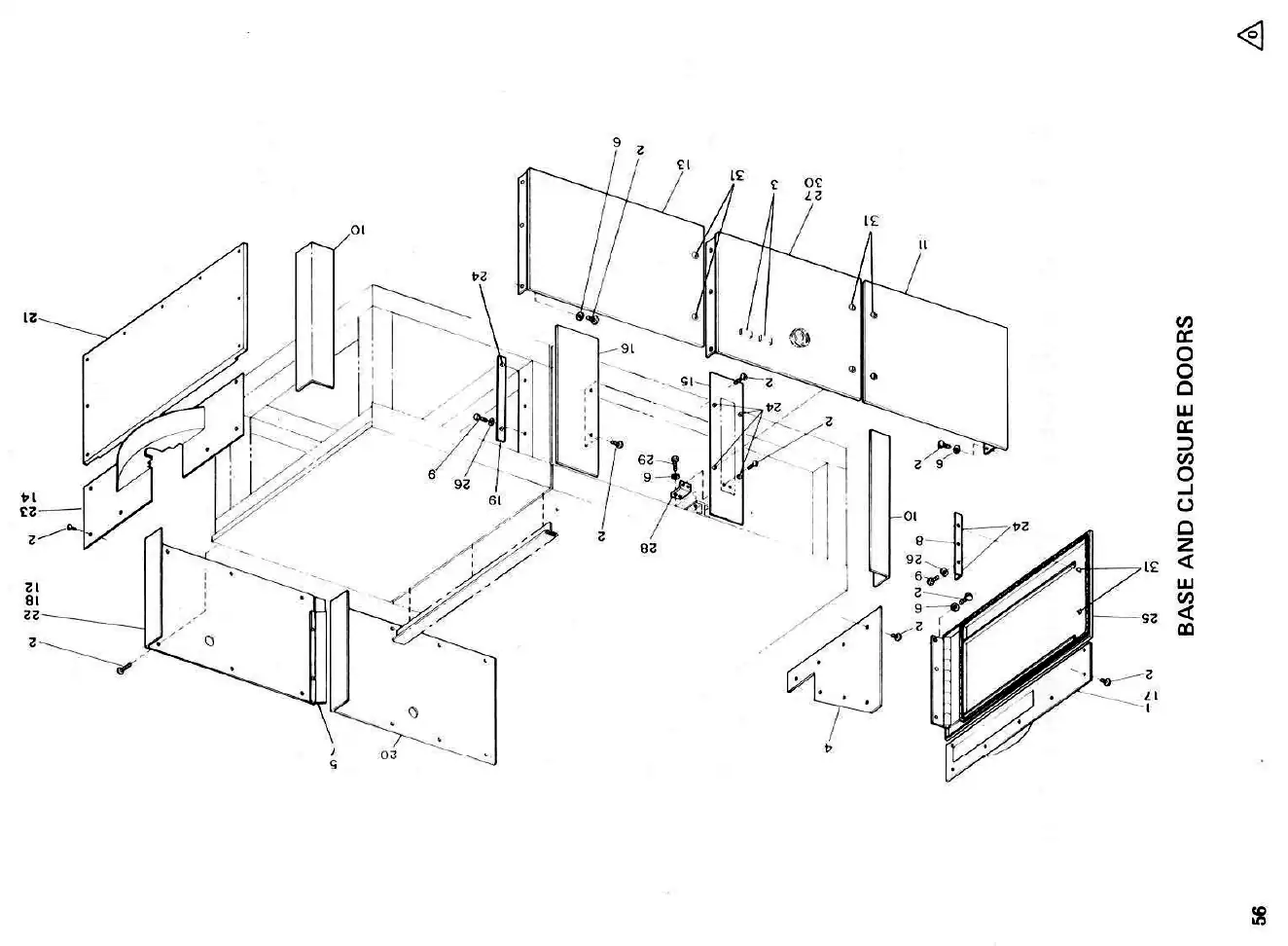

Base and Closure Doors

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer A-Model filler base and closure doors drawing

Open full size

Ref	Part number	Description
1	903-8092	Cover, gear filler end RH closing machine	Ask us
2	102-02951020295	Screw, round head slot	Request
6	102-03871020387	Washer, lock	Request
9	102-00881020088	Hex head bolt	Request
26	102-03891020389	Washer, lock	Request
29	102-16741021674	Bolt, hex head	Request
1	903-8327	Guard, out expl-RH w/wo closure not shown	Ask us
2	903-8392	Guard, out explosion closure shown	Ask us
3	903-8326	Guard, out explosion	Ask us
6	102-0302	Screw, round head w/closure not shown	Ask us
7	102-0888	Lockwasher	Ask us
8	102-03331020333	Nut, hex	Request
9	102-04161020416	Washer, flat	Request
4	000-17500001750	Tubing	Request
5	100-14321001432	Bushing, reducing hex	Request
7	HH-1046	Adapter	Ask us
1	1046086104-6086	Valve	Ask us
8	102-02781020278	Screw, round head slot	Request
3	100-14661001466	Elbow, tube male	Request
19	102-04141020414	Washer, flat	Request
20	102-01001020100	Bolt, hex head	Request
22	102-03901020390	Washer, lock	Request
23	102-18461021846	Bolt, hex head	Request
25	102-04151020415	Washer, flat	Request
12	102-02871020287	Screw, phillips hd	Request
9	102-12551021255	Washer, flat	Request
10	102-16471021647	Bolt, hex head	Request
2	100-09231000923	Fitting, tube	Request
4	100-39411003941	Fitting, grease female str	Request
5	100-16351001635	Coupling, tube	Request
13	100-1465	Elbow male	Ask us

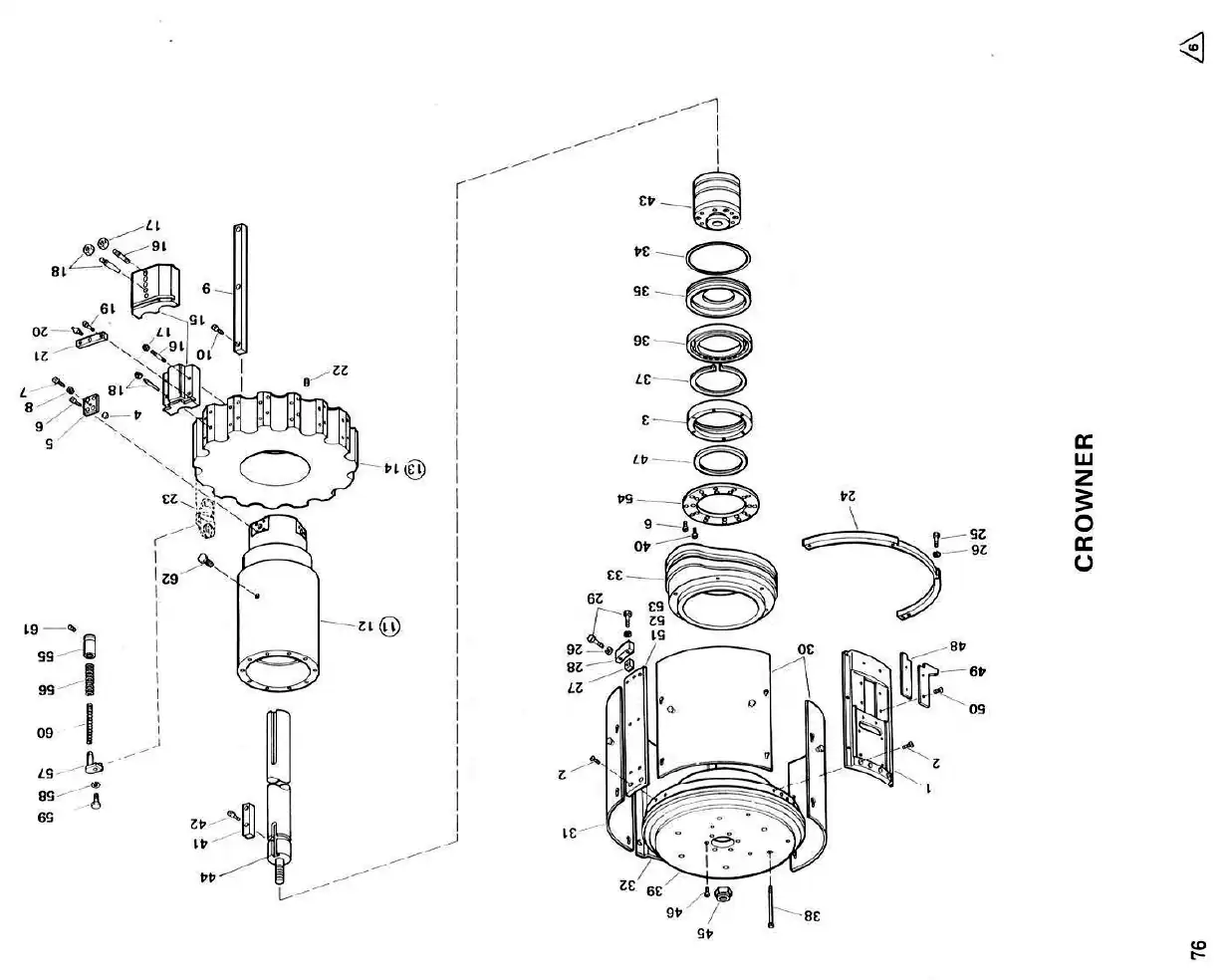

Capper

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
9	104-64721046472	Lubricator, automatic	Request
10	102-00431020043	Bolt, hex head	Request
11	102-0039	Screw, hex head	Ask us
4	1046244104-6244	Seal, oil	Request
13	102-03811020381	Washer, lock	Request
5	1046245104-6245	Bearing, disconnect gear	Request
14	102-0757	Washer, flat	Ask us

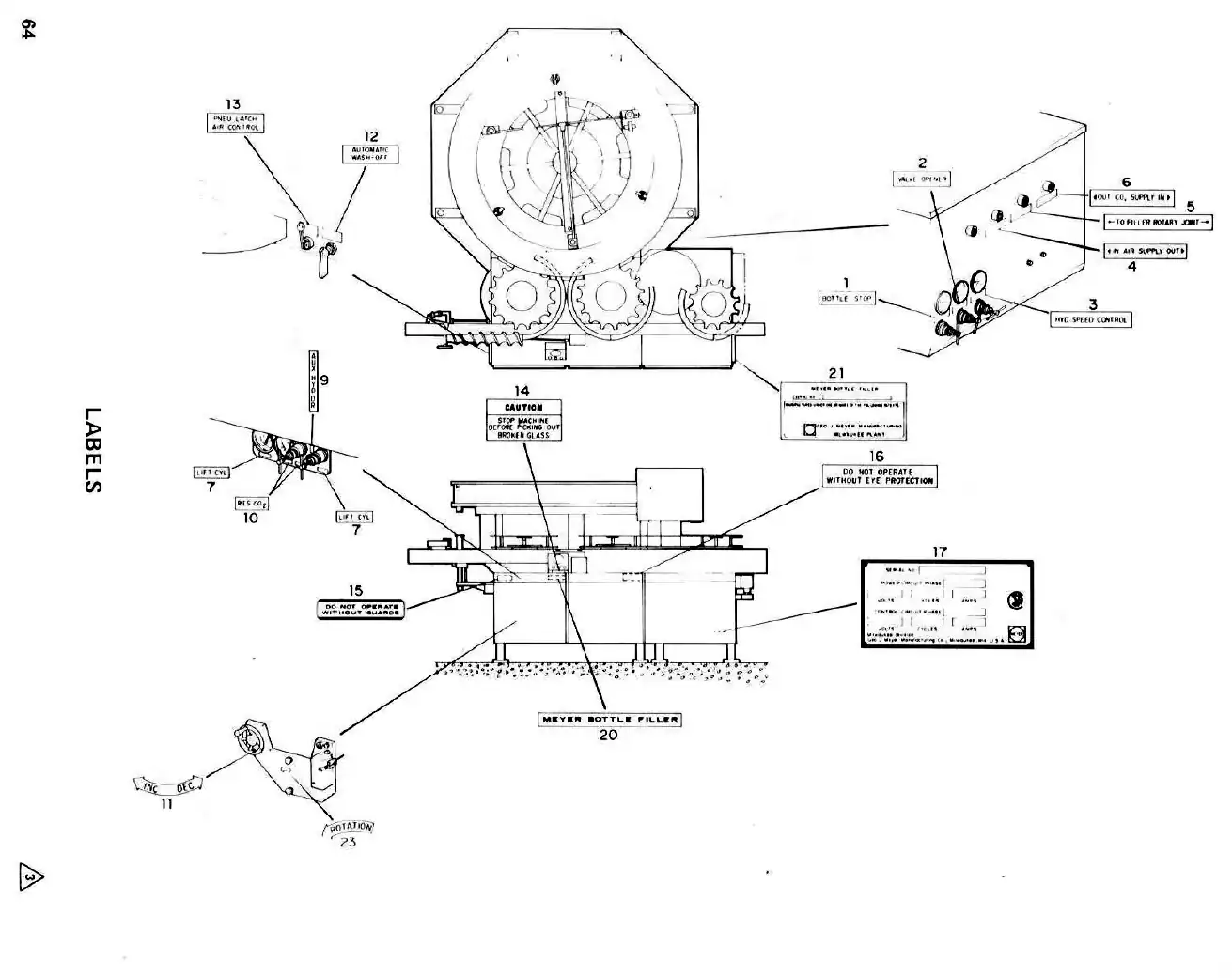

14	132-8688	Nameplate caution stop machine	Ask us
15	104-62651046265	Label, do not operate without guards	Request
16	104-6266	Nameplate not operate	Ask us
17	100-7449	Nameplate elect serial	Ask us
21	101-3502	Nameplate patents	Ask us
22	135-0767	Nameplates	Ask us

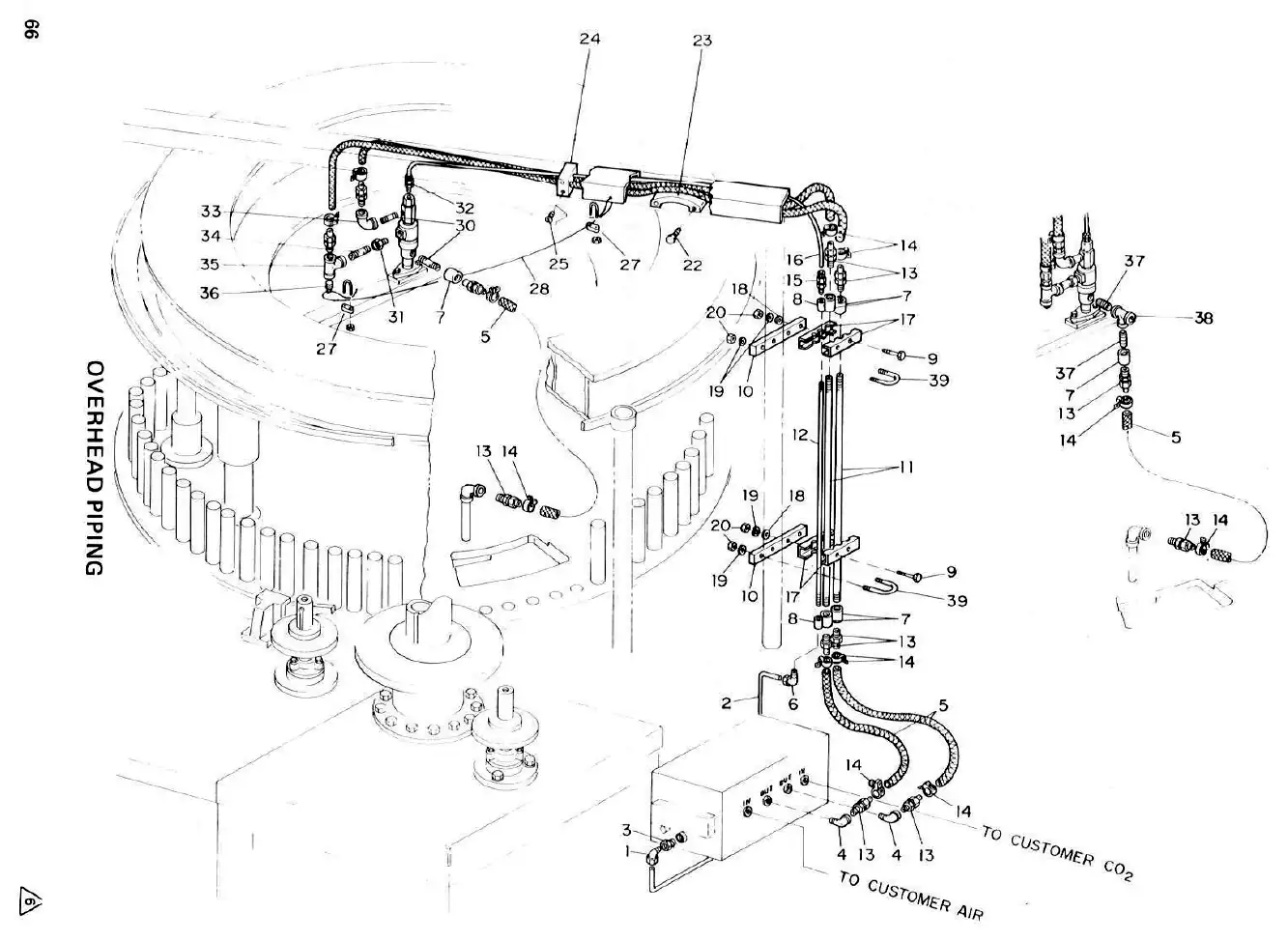

Overhead Piping

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Meyer A-Model filler overhead piping drawing

Open full size

Ref	Part number	Description
18	102-04161020416	Washer, flat	Request
1	100-14681001468	Elbow, tube male bras	Request
19	102-03881020388	Washer, lock	Request
2	000-1760	Tubing specify length	Ask us
20	102-03331020333	Nut, hex	Request
38	100-46561004656	Bushing, reducing hex	Request
22	102-2330	Screw, hex head	Ask us
4	100-96671009667	Elbow, street	Request
23	133-0310	Shoe	Ask us
5	000-34890003489	Tubing, CO2/air braided hose	Request
24	133-9100	Holder, tube	Ask us
6	100-1467	Elbow	Ask us
25	102-02871020287	Screw, phillips hd	Request
7	100-9326	Coupling, reducer	Ask us
27	100-0585	Clamp, wire rope	Ask us
8	100-89641008964	Coupling, pipe straight	Request
28	100-4122	Cable	Ask us
9	102-00821020082	Bolt, hex head	Request
30	000-0807	Pipe specify length	Ask us
31	100-1490	Bushing, reducer	Ask us
32	100-09261000926	Fitting, tube adapter	Request
12	000-0788	Pipe specify length	Ask us
33	100-3975	Elbow	Ask us
13	101-01081010108	Fitting, barbed	Request
34	100-75581007558	Nipple	Request
14	100-30771003077	Clamp, hose clamp	Request
35	100-5493	Tee	Ask us
15	100-5324	Connector	Ask us
36	100-48561004856	Plug, pipe square hd	Request
16	000-35190003519	Tubing, poly-flo	Request
39	133-68461336846	U-bolt	Request

Table Top Attachments

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

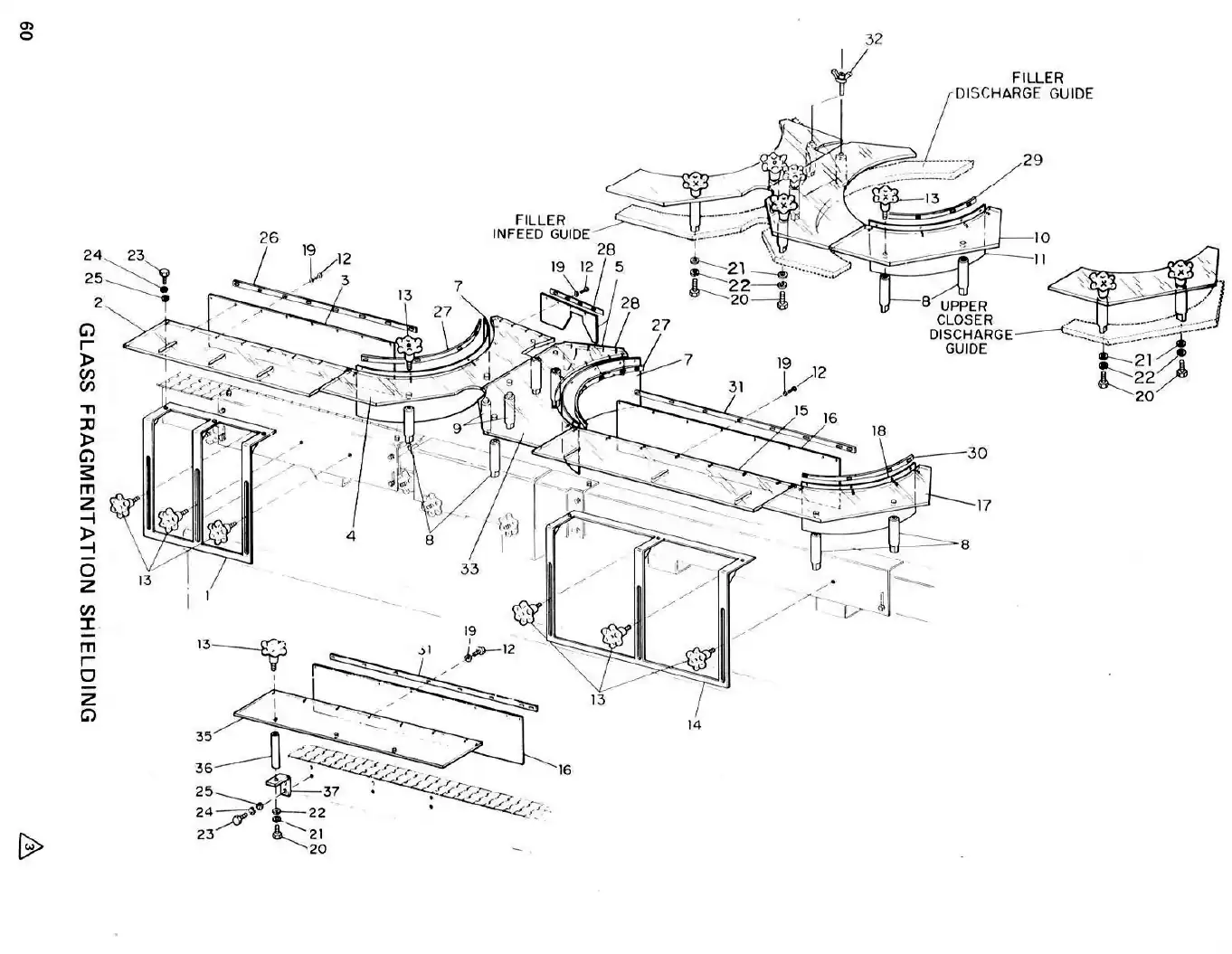

Meyer A-Model filler table top attachments drawing

Open full size

Ref	Part number	Description
11	102-01041020104	Bolt, hex head	Request
12	102-04181020418	Washer, flat	Request
1	135-1753	Spacer, support bar	Ask us
13	102-03901020390	Washer, lock	Request
2	135-2820	Spacer, support bar	Ask us
14	102-04171020417	Washer, flat	Request
3	135-1754	Spacer, guide mounting	Ask us
15	102-03891020389	Washer, lock	Request
4	135-1935	Spacer, guide mounting	Ask us
16	102-00901020090	Bolt, hex head	Request
17	102-00921020092	Bolt, hex head	Request
18	102-00931020093	Bolt, hex head	Request
19	102-03871020387	Washer, lock	Request
8	135-2817	Rod, support fill dis	Ask us
20	102-04151020415	Washer, flat	Request
9	135-2818	Rod, support closer	Ask us
21	102-00711020071	Hex head bolt	Request
22	102-12731021273	Pin, dowel	Request
23	135-5449	Spacer, support	Ask us
5	135-2873	Strip, wear closer	Ask us
6	135-2874	Strip, wear closer	Ask us
1	135-2821	Strip, wear fill inf	Ask us
7	102-24491022449	Washer, flat	Request
8	102-24451022445	Screw, flat head soc	Request
3	135-28721352872	Wearstrip, filler discharge	Request
9	135-4049	Strip, wear closer	Ask us

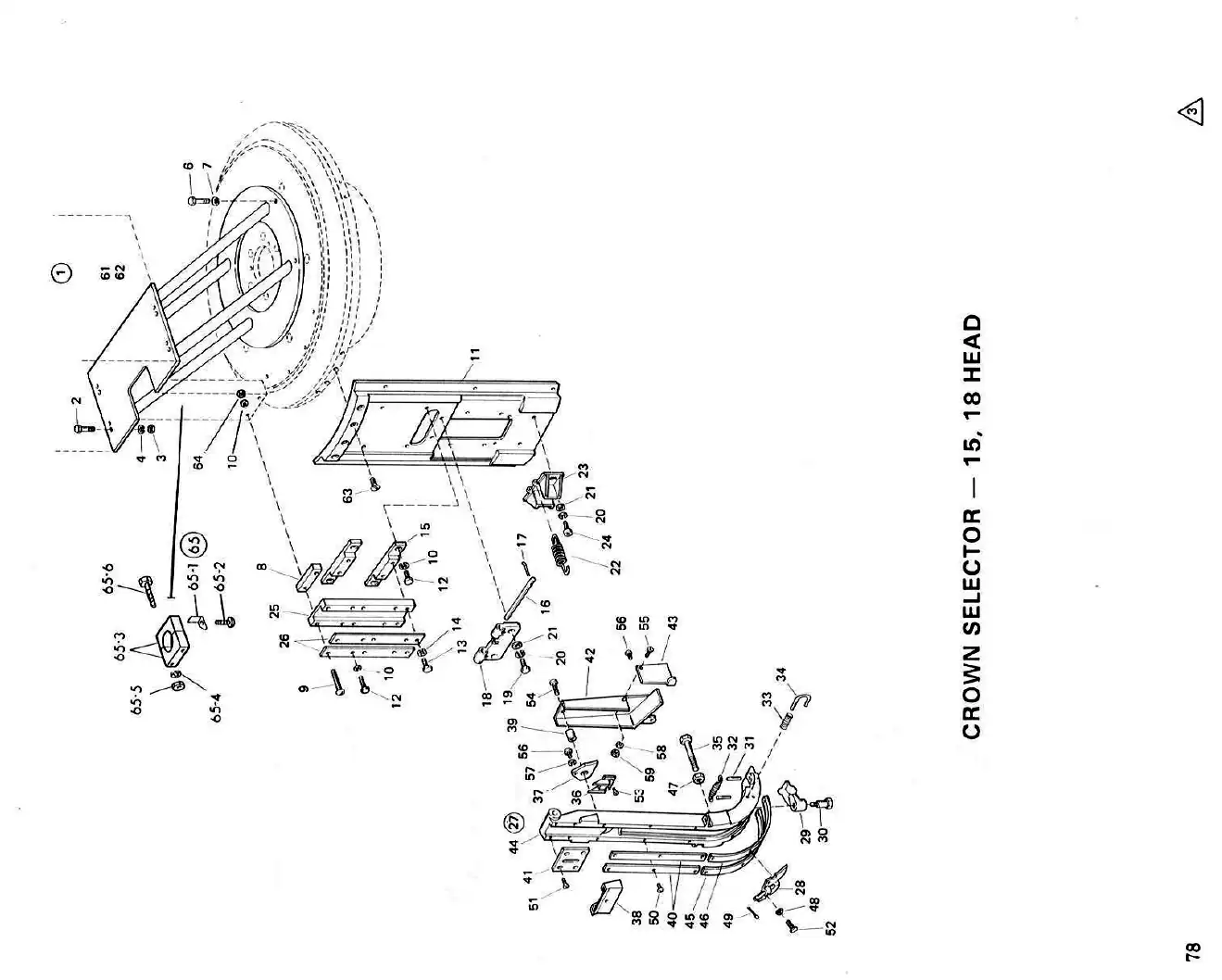

Crown Selector 12 Head

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

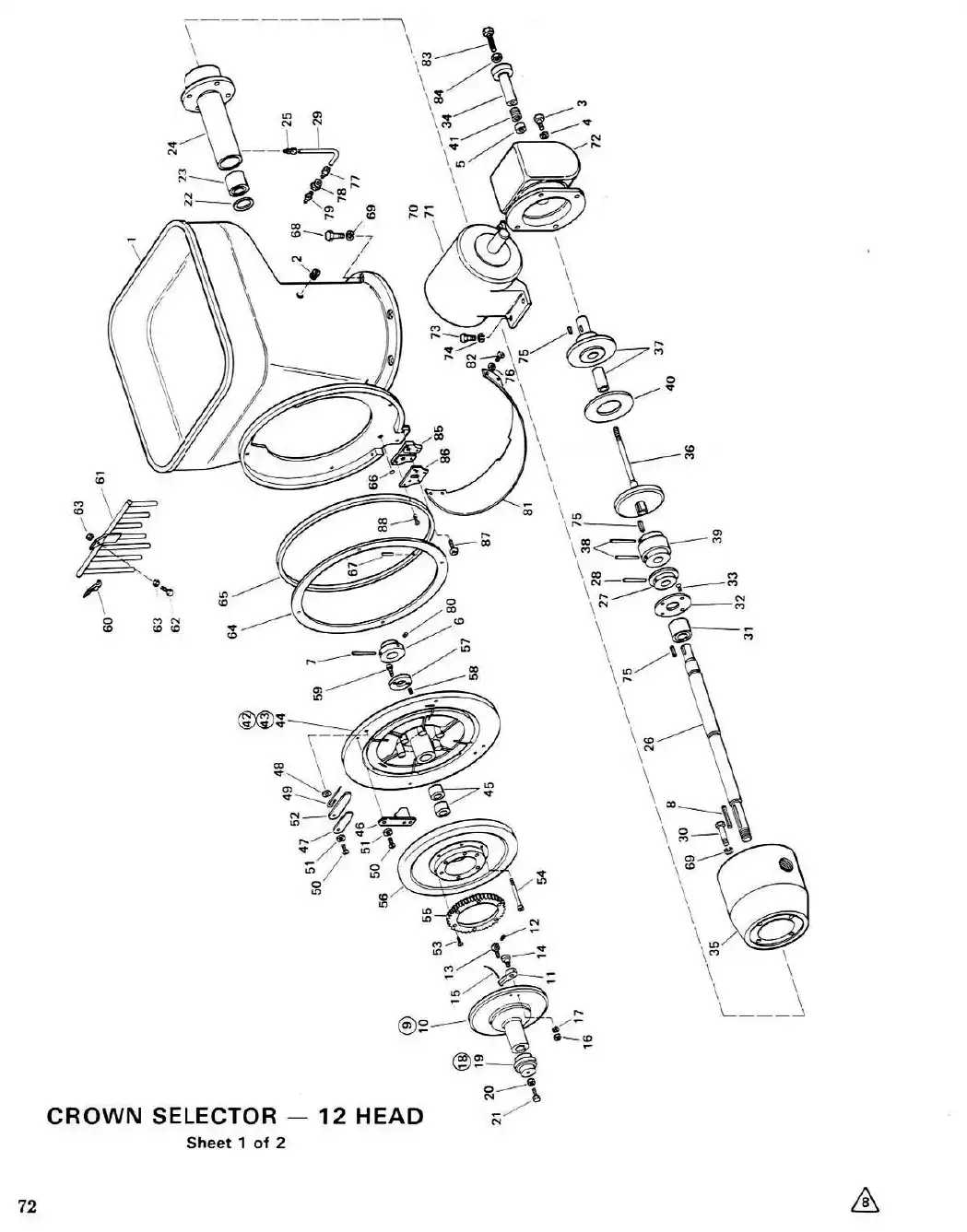

Meyer A-Model filler crown selector 12 head drawing

Open full size

Ref	Part number	Description
35	134-15451341545	Housing	Request
386	904-2767	Plate and shaft, tension face	Ask us
37	904-2768	Plate hub and brg tension face	Ask us
1	130-0471	Hopper, crown	Ask us
88	102-05721020572	Pin, taper	Request
2	100-11531001153	Plug, pipe countersunk	Request
39	101-3240	Coupling	Ask us
3	102-00891020089	Bolt, hex head	Request
40	134-1550	Disc, friction face	Ask us
4	102-03891020389	Washer, lock	Request
41	101-32411013241	Spring, die 14 hd crowner	Request
5	101-3239	Bearing, thrust	Ask us
42	900-4682	Selector disc and	Ask us
6	131-1242	Collar, locking handwheel assembly	Ask us
7	102-12401021240	Pin, taper #4	Request
8	000-16280001628	Key, square	Request
43	900-4681	Disc crown selector	Ask us
9	902-0107	Disc crown selector ass	Ask us
44	130-8510	Disc, selector	Ask us
10	DFC-36DFC36	Disc, driving	Request
45	100-23631002363	Bearing	Request
11	HH-858	Pawl	Ask us
46	900-54209005420	Agitator, Crown assembly	Request
12	RR-160RR160	Spring, rachet	Request
47	CL-310CL310	Spring, helper	Request
13	HH-859HH859	Holder, spring	Request
48	102-0798	Lockwasher	Ask us
14	HH-860	Pin, pawl	Ask us
49	CL-109CL109	Spring, agitator hand	Request
15	000-3151	Wire specify length	Ask us
50	102-07971020797	Screw, round head	Request
16	102-03321020332	Nut, hex	Request
51	HH-3937HH3937	Washer, spring agitator	Request
17	102-03871020387	Washer, lock	Request
52	CL-265CL265	Spring	Request
18	CL-227	Nut, selector disc	Ask us
53	102-01781020178	Screw, flat head slot	Request
54	102-07941020794	Screw, socket head cap	Request
55	HH-865	Ratchet	Ask us
19	CL-104	Nut, selector drive adjusting handwheel	Ask us
20	102-08961020896	Nut, hex jam	Request
57	CL-556CL556	Collar, selector disc	Request
21	102-17991021799	Bolt, hex head	Request
58	RR-243RR243	Spring	Request
22	100-72521007252	Felt, seal	Request
59	102-07951020795	Screw, fillister hd	Request
23	100-71711007171	Bearing, outer	Request
60	HH-4117	Bearing, floating rake	Ask us
61	HH-4113	Rake, floating assembly	Ask us
25	100-34851003485	Connector, male	Request
62	102-00271020027	Bolt, hex head	Request
26	134-1524	Shaft, selector drive assembly	Ask us
63	102-0321	Nut, hex	Ask us
29	000-1755	Tubing, round specify length	Ask us
64	LC-71LC71	Rear Crown selector	Request
30	102-01031020103	Bolt, hex head	Request
65	CL-150CL150	Selector disc insert	Request
31	100-71721007172	Bearing, needle roller	Request
66	100-34821003482	O-ring	Request
32	131-1243	Washer, gear thrust	Ask us
67	102-12331021233	Pin, dowel	Request
33	102-01911020191	Screw, flat head slot	Request
68	102-1812	Bolt, hex head	Ask us
34	134-15431341543	Knob	Request
69	102-03901020390	Washer, lock	Request
70	103-0555	Motor	Ask us
71	103-5438	Control, drive	Ask us
72	101-3242	Reducer	Ask us
73	102-00261020026	Bolt, hex head	Request

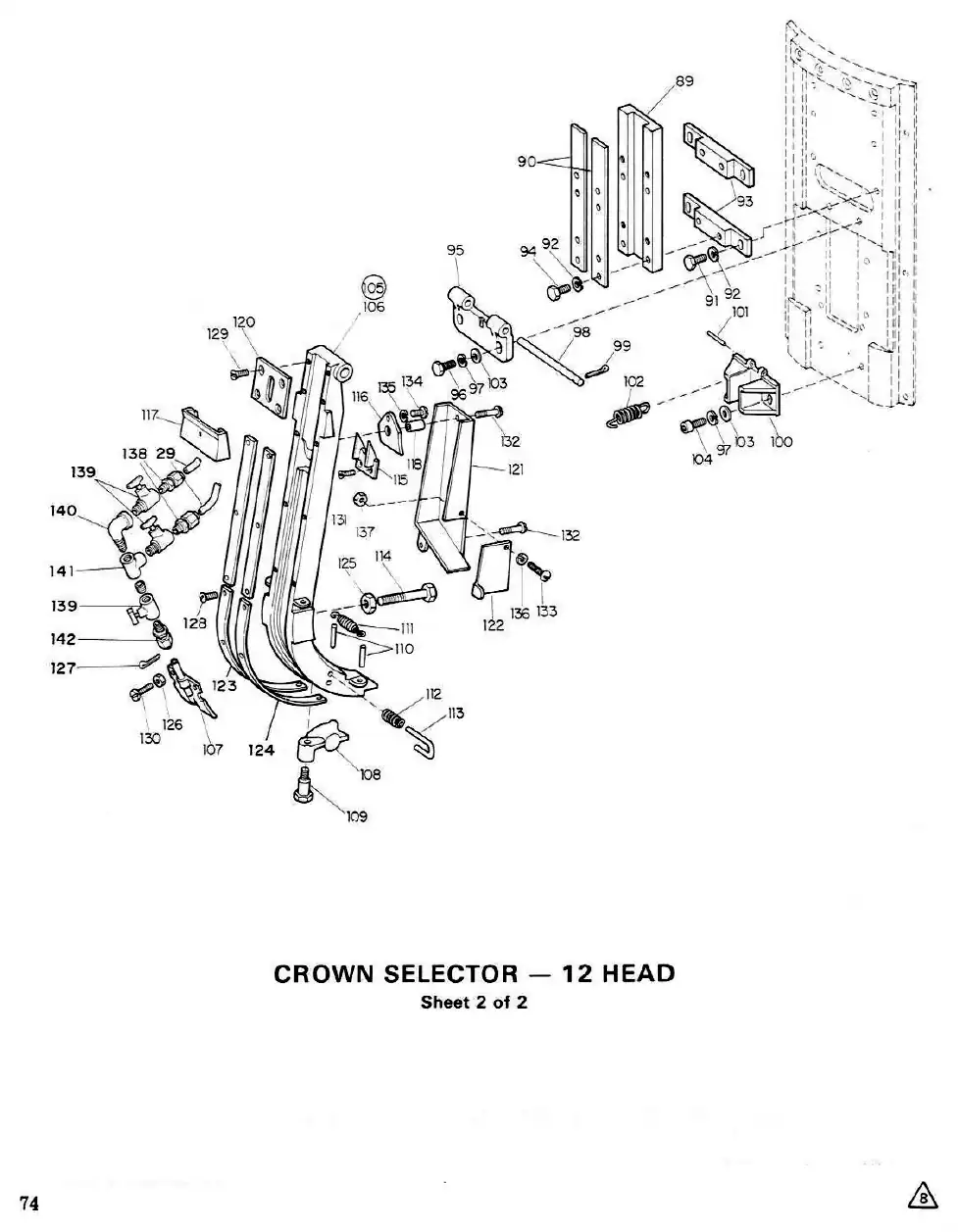

115	LC-86LC86	Ejector, reverse Crown	Request
74	102-03801020380	Washer, lock	Request
116	CL-224CL224	Deflector, Crown hopper	Request
117	CL-288CL288	Cover, Crown chute	Request
76	102-03861020386	Washer, lock	Request
118	CL-225	Spacer, crown chute	Ask us
77	100-09231000923	Fitting, tube	Request
119	CL-94	Guide, upper crown	Ask us
78	HH-1046	Adapter, grease line	Ask us
120	CL-289CL289	Plate chute top	Request
79	1004766100-4766	Fitting, grease straight ptf	Request
121	CL-145	Box, crown chute	Ask us
80	102-04661020466	Screw, set socket cup point	Request
122	HH-1134	Door, crown chute box	Ask us
81	HH-1167	Shield, crowner	Ask us
123	CL-365CL365	Guide, lower Crown chute LH	Request
82	102-02851020285	Screw, round head slot	Request
124	CL-366CL366	Guide, lower Crown chute RH	Request
83	134-1559	Screw, knob adj	Ask us
125	102-13941021394	Nut, hex finished	Request
84	102-03411020341	Nut, hex jam	Request
126	102-14601021460	Nut, hex	Request
127	102-05621020562	Pin, cotter	Request
128	102-02861020286	Screw, round head slot	Request
87	102-09781020978	Screw, socket head cap	Request
129	102-01821020182	Screw, flat head slot	Request
88	102-01841020184	Screw, flat head slot	Request
131	102-2961	Screw, flat head	Ask us
90	134-1556	Cover, crown chute extension	Ask us
132	102-0289	Screw, round head	Ask us
91	102-00651020065	Bolt, hex head	Request
133	102-02781020278	Screw, round head slot	Request
134	102-02871020287	Screw, phillips hd	Request
94	102-00691020069	Bolt, hex head	Request
136	102-03851020385	Washer, lock	Request
95	134-1553	Bracket, chute hinge	Ask us
137	102-05521020552	Nut, hex machine	Request
96	102-1492	Bolt, hex head	Ask us
138	131-91161319116	Fitting, tube male br	Request
97	102-14431021443	Washer, lock	Request
139	130-3193	Cock, air	Ask us
98	CL-90CL90	Crown wiper arm stud	Request
99	102-13841021384	Pin, cotter	Request
141	100-2979	Elbow, street	Ask us
100	134-3846	Bracket, crown chute	Ask us
142	131-0847	Connector, tube	Ask us
101	HH-6334	Stud, spring	Ask us
102	CL-92CL92	Spring, Crown chute	Request
103	CL-102CL102	Washer, flat	Request
104	134-1558	Screw, crown chute bracket	Ask us
107	CL-121CL121	Nozzle, Crown chute	Request
108	134-15511341551	Arm, crowner wiper 12 hd	Request
109	CL-91CL91	Stud, Crown wiper arm	Request
110	CL-93CL93	Wiper, arm spring pin	Request
111	CL-85CL85	Spring guide latch	Request
112	HH-1131HH1131	Spring Crown latch	Request
118	HH-1132HH1132	Latch screw	Request
114	134-15521341552	Latch, screw chute adjustable	Request
2	102-0029	Screw, hex head	Ask us
3	102-2692	Nut, hex	Ask us
4	102-1691	Lockwasher	Ask us
5	904-3335	Support	Ask us
44	LC-85	Chute, crown	Ask us
6	102-01021020102	Bolt, hex head	Request
7	102-03811020381	Washer, lock	Request
8	134-1562	Spacer, crown chute	Ask us
9	102-1675	Screw, round head	Ask us
62	101-1966	Tube, crown turner	Ask us
64	102-2683	Nut, hex	Ask us
65	904-4736	Clamp, tube assembly	Ask us
65-1	134-4642	Stop, clamp	Ask us
65-2	102-02951020295	Screw, round head slot	Request
65-3	134-4643	Block, clamp	Ask us
65-6	102-07101020710	Bolt, hex head	Request

Crowner

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Ref	Part number	Description
29	102-00771020077	Bolt, hex head	Request
33	134-2160	Cam	Ask us
34	101-32381013238	O-ring	Request
2	102-02081020208	Screw, flat head slot	Request
3	134-16091341609	Retainer, bearing	Request
36	101-19991011999	Bearing, ball 20 hd crowner	Request
37	101-19971011997	Ring, retainer beveled, external ser	Request
5	132-3962	Plate, lock screw	Ask us
40	102-1830	Screw, socket head	Ask us
9	134-16111341611	Key, column & spool hub	Request
41	134-16101341610	Key, elevating sleeve Meyer crowner and cappers	Request
10	102-14061021406	Screw, socket head cap	Request
47	101-32371013237	Seal, oil	Request
16	134-1812	Hes bor dithen	Ask us
17	102-0320	Nut, hex	Ask us
18	101-3293	Pin, taper-w/nut	Ask us
19	102-23481022348	Screw, socket head cap	Request
20	100-47661004766	Fitting, grease straight ptf	Request
21	134-1761	Key, crown head	Ask us
21	134-2415	Key, crown head head boxdose ane	Ask us
22	102-0488	Screw, socket head set ont	Ask us
64	102-10041021004	Bolt, hex head	Request
25	102-00761020076	Bolt, hex head	Request
65	102-04141020414	Washer, flat	Request
26	102-03881020388	Washer, lock	Request
66	102-03861020386	Washer, lock	Request

Crowning Head

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer A-Model filler crowning head drawing

Open full size

Ref	Part number	Description
21	CL-239CL239	Key, Crown throat bracket	Request
24	CL-156CL156	Cup, grease retaining	Request
1	LC-149LC149	Sleeve, compensating	Request
25	CL-431CL431	Spring, compensating	Request
2	CL-520CL520	Latch, compensating	Request
26	CL-527CL527	Ring, compensating latch	Request
3	102-17811021781	Pin, dowel	Request
27	134-19681341968	Sleeve, bracket crowning head	Request
4	CL-507CL507	Spring, plunger	Request
5	CL-445CL445	Plunger, crowner type 2	Request
28	102-0599	Screw, socket head	Ask us
29	CL-434CL434	Shim, roller bracket	Request
6	102-04251020425	Set screw	Request
6	100-24061002406	O-ring	Request
8	CL-446CL446	Bushing, guide	Request
31	134-23051342305	Bracket, cam roller Meyer crowner	Request
9	LC-146LC146	Bracket, Crown throat	Request
82	102-25461022546	Washer, lock internal	Request
10	CL-604	Throat, crown assembly	Ask us
33	102-27041022704	Nut, hex jam	Request
10-1	CL-763	Spring, outer throat	Ask us
34	100-47661004766	Fitting, grease straight ptf	Request
35	131-88231318823	Roller, crowner cam	Request
10-1-1	CL-522	Segment, outer throat	Ask us
36	902-53299025329	Stud, cam roller assembly	Request
10-1-2	CL-564	Spring, throat	Ask us
36-1	131-88251318825	Stud, cam roller crowner	Request
10-2	CL-761	Ring, inner throat	Ask us
36-2	131-88241318824	Bushing, cam roller	Request
36-3	100-72991007299	Plug, pipe	Request
10-2-2	CL-548	Ring, inner throat segment	Ask us
38	102-18031021803	Bolt, hex head	Request
11	CL-444CL444	Nut, throat retaining	Request
39	102-05961020596	Washer, lock	Request
40	102-2251	Screw, hex head	Ask us
41	102-28051022805	Screw, set socket cup point	Request
12	CL-534CL534	Screw, Crown rest latch	Request
44	LC-147LC147	Bracket, Crown throat	Request
45	CL-242CL242	Screw, Crown rest latch	Request
14	134-1565	Rest, crown	Ask us
15	100-20151002015	Magnet, Crown rest	Request
16	CL-495CL495	Knob, Crown rest	Request
17	CL-415CL415	Spring, Crown rest	Request
48	134-2412	Sleeve and bracket	Ask us
18	CL-380CL380	Latch, Crown rest	Request
19	102-01921020192	Screw, flat head slot	Request
20	102-01901020190	Screw, flat head slot	Request
50	134-2386	Bracket, cam roller	Ask us
58	134-3540	Nut, throat retaining	Ask us
51	134-2413	Sleeve and bracket LH type crowning head	Ask us
56	CL-492CL492	Key, Crown throat bracket	Request
57	CL-461CL461	Plunger, Crown type 3 and type 6	Request

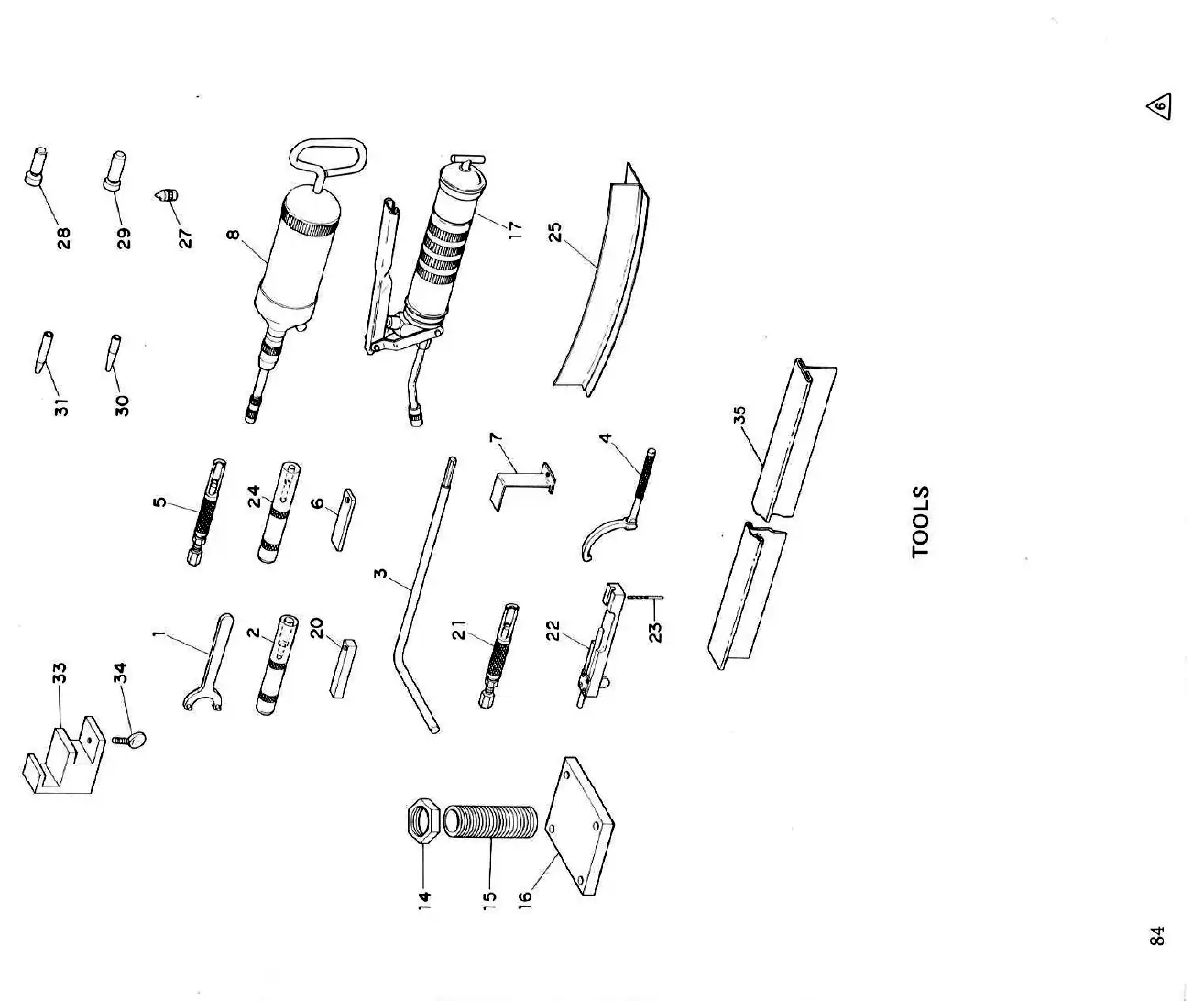

13	131-4196	Detergent, myrex bag	Ask us
13	100-7550	Detergent, myrex drum	Ask us
1	CL-607	Wrench, spanner crown	Ask us
14	104-62951046295-MSST	Nut, hex modified	Request
2	131-7125	Tool, sleeve installation	Ask us
17	100-7650	Gun, lubricant general	Ask us
21	900-8623	Tool, sleeve adj adj vent tube	Ask us
5	902-3734	Tool, sleeve adj vent tube valve	Ask us
9	101-3202	Grease molub alloy 823-0, valve	Ask us
27	101-2631	Fitting, lub flush type	Ask us
29	135-10451351045	Tool, sizing pin valve lever bushing	Request
10	100-9884	Grease texaco molytex	Ask us
80	135-1225	Vent tube spreader assembler	Ask us
31	135-1226	Valve stem o-ring/spring ass	Ask us
11	100-8655	Grease matchless	Ask us
34	102-1306	Screw, thumb	Ask us
12	903-8827	Oil, hydraulic mobil	Ask us
386	104-61301046130	Sealant, rtv	Request
386	101-3245	Oil, hydraulic mobil dte	Ask us

Catalog drawings for this filler

Cleaner exploded drawings and part numbers from our parts catalog for assemblies used on this filler.

Need a part for your A-Model filler?

More than 300,000 Meyer parts in inventory, same-day shipping on stocked parts, and technicians with 40+ years of Meyer experience.

Call 843-851-3217 Submit a parts inquiry
