Meyer 60-12 quart filler parts manual

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
21	100-96771009677	Handle	Request
22	000-3378	Flat	Ask us
23	902-2694	Door, rear assembly	Ask us
23	902-1970	—	Ask us
1	101-0193	Cart, lubrication	Ask us
26	HH-1344	Screw, filler jack eee	Ask us
28	902-4891	Header, grease-ass	Ask us
5	HH-2457	Cover, drain hole	Ask us
6	902-1978	Door, side assembly	Ask us
30	100-39411003941	Fitting, grease female str	Request
31	100-4204	Fitting, grease	Ask us
82	HH-2445	Gasket, grease header pee	Ask us
33	902-7983	Trough, drain ass	Ask us
9	HH-5830	Cover, manhole ass	Ask us
34	X-6256	Cover, filler base	Ask us
35	131-2918	Guide, drain	Ask us
10	DFC-333	Cover, manhole	Ask us
36	X-6501	Guide, drain	Ask us
11	130-0921	Handle, manhole	Ask us
87	902-2696	Door, brake-ass	Ask us
12	102-0756	Pin, roll	Ask us
18	100-6959	Gasket, manhole	Ask us
14	DFC-1200	Latch, manhole cover	Ask us
40	102-02951020295	Screw, round head slot	Request
16	902-1974	Door, cone assembly	Ask us
41	102-1690	Screw, drive	Ask us
42	100-3197	Clamp	Ask us
17	102-1491	Pin, taper	Ask us
43	000-3080	Tube, plastic	Ask us
44	100-9787	Plate, legal	Ask us
19	X-6235	Base, filler	Ask us
45	100-9929	Plate, name sake ear	Ask us

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
26	102-03321020332	Nut, hex	Request
27	102-03871020387	Washer, lock	Request
28	131-54691315469	Pin track	Request
1	132-3081	Cam assembly	Ask us
29	102-04171020417	Washer, flat	Request
2	102-08091020809	Bolt, hex head	Request
30	102-03891020389	Washer, lock	Request
3	902-1788	Opener, spool valve	Ask us
381	131-5471	Bracket	Ask us
32	X-6852	Ring, support	Ask us
4	902-1787	Bracket	Ask us
34	102-0099	Bolt, hex head	Ask us
7	102-04521020452	Screw, set socket cup point	Request
37	102-00881020088	Hex head bolt	Request
38	131-54431315443	Support, bearing pos pull dn	Request
8	102-03401020340	Nut, hex jam	Request
39	102-21931022193	Nut, hex	Request
9	102-05741020574	Pin, cotter	Request
40	102-00401020040	Bolt, hex head	Request
41	102-03811020381	Washer, lock	Request
11	102-0371	Washer, flat	Ask us
42	902-38399023839	Cam, roller bracket	Request
12	102-0816	Screw, cap hex head 375-16 ass	Ask us
18	131-54391315439	Bearing, roller hanger support	Request
14	102-00891020089	Bolt, hex head	Request
44	102-03281020328	Nut, hex jam	Request
45	102-05251020525	Screw, set square hd	Request
16	102-03341020334	Nut, hex	Request
46	102-07151020715	Washer, flat	Request
17	131-3099	Bolt 250-20	Ask us
47	102-16041021604	Screw, socket head cap	Request
48	902-6105	Guard, bottle filler	Ask us
20	902-1784	Bracket	Ask us
52	102-00871020087	Bolt, hex head	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

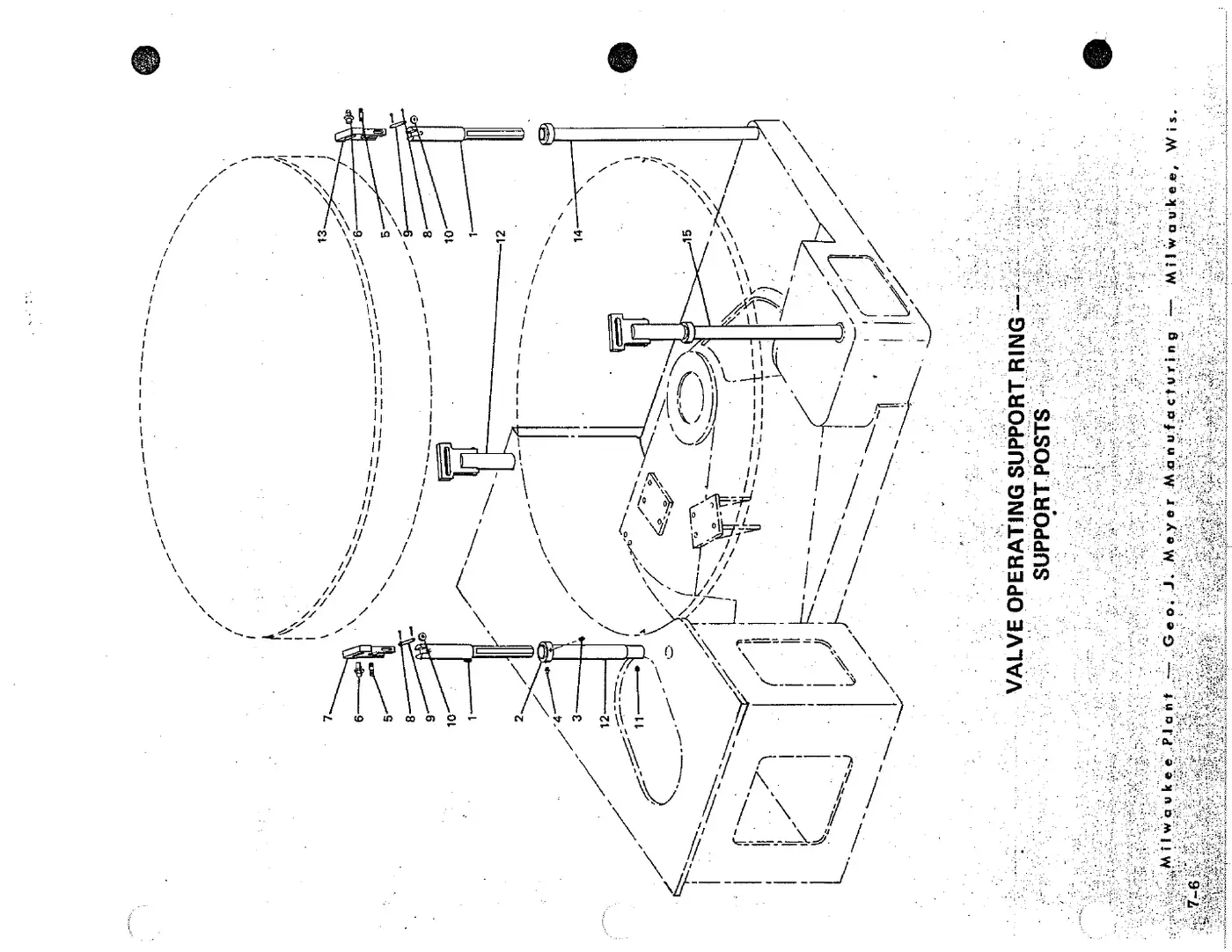

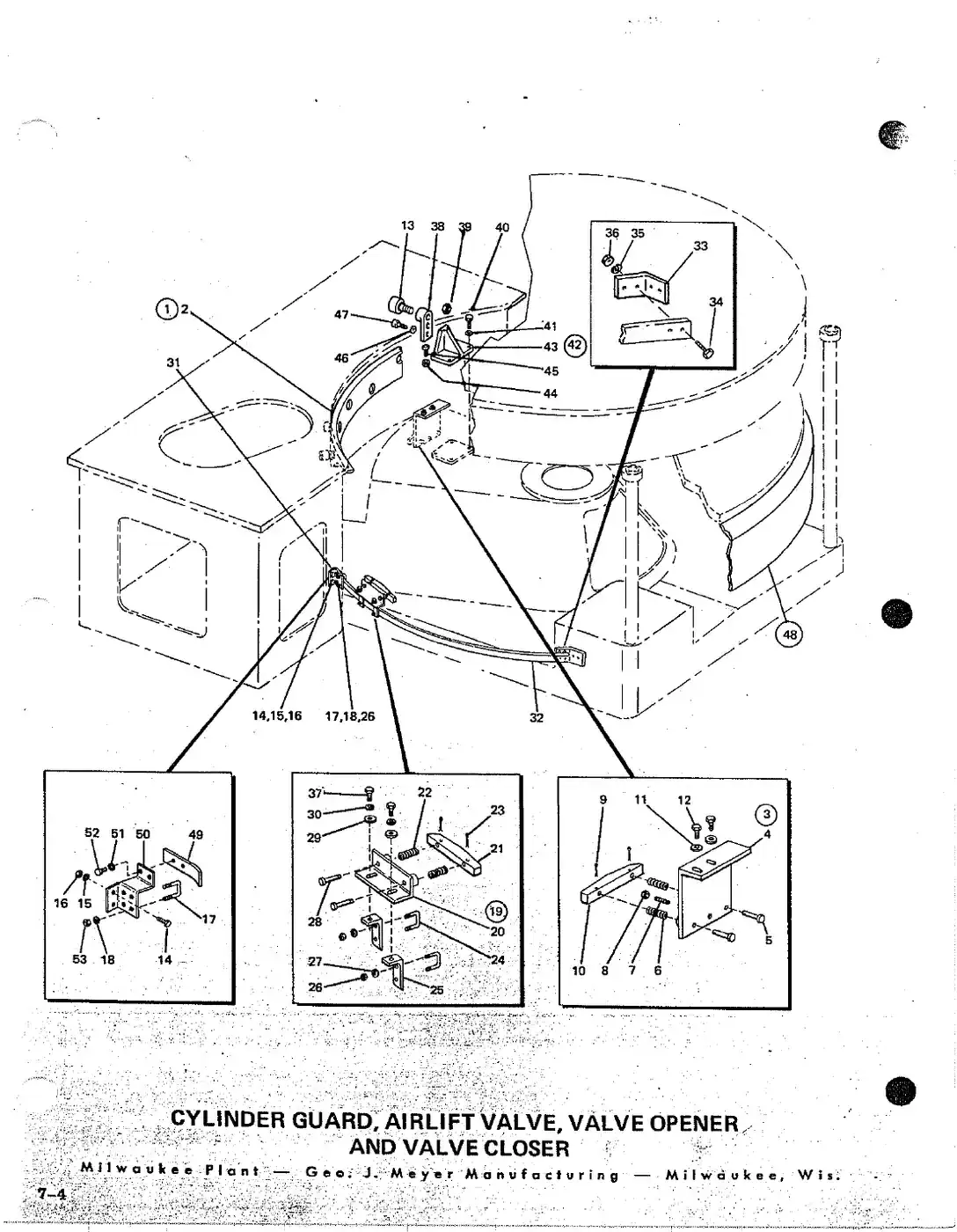

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
1	900-5132	Bracket, vent tube	Ask us
14	130-8603	Washer	Ask us
15	HH-157HH157	U-bolt, valve closer	Request
16	HH-3644	Latch, blow-off	Ask us
2	H-903	Bracket, vent tube trigger assembly	Ask us
8	HH-1854	Spring, valve closer ref and ani	Request
4	102-03871020387	Washer, lock	Request
17	HH-3647	Plate, latch	Ask us
5	RR-272RR272	Washer	Request
18	HH-3648	Pin, latch ook	Ask us
6	130-8607	Stud, pin	Ask us
19	102-06281020628	Pin, cotter	Request
20	102-03331020333	Nut, hex	Request
10	102-09771020977	Screw, socket head cap	Request
23	102-0865	Screw, set square head	Ask us
24	102-03381020338	Nut, hex jam	Request
25	102-00671020067	Bolt, hex head	Request
26	RR-273	Washer cae	Ask us
7	130-8618	Pin, lift	Ask us
9	130-86191308619	Spring, trigger	Request

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

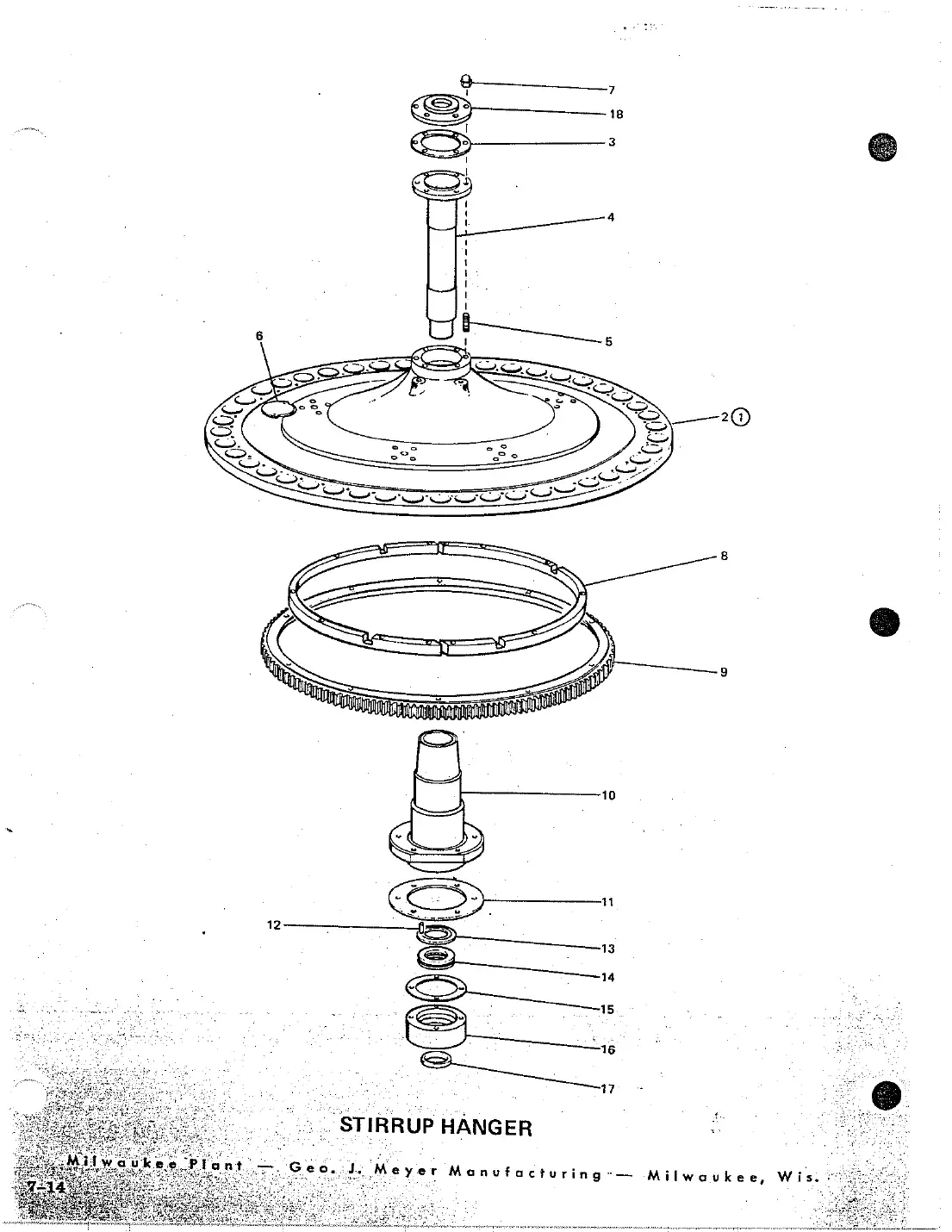

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	902-1794	Hanger, stirrup assembly	Ask us
10	DFC-1231DFC1231	Stand, flange	Request
11	HH-3662	Shim	Ask us
3	HH-7709	Gasket, hanger	Ask us
12	HH-1218	Pin, oil drip plate stud	Ask us
5	HH-7696	Stud	Ask us
14	100-25451002545	Bearing, main hanger	Request
15	HH-7693HH7693	Gasket, housing bearing su	Request
16	H-574	Support, ball thr brg	Ask us
8	131-5506	Ring, half	Ask us
17	100-25471002547	Seal, main bearing	Request
9	902-4329	Gear	Ask us

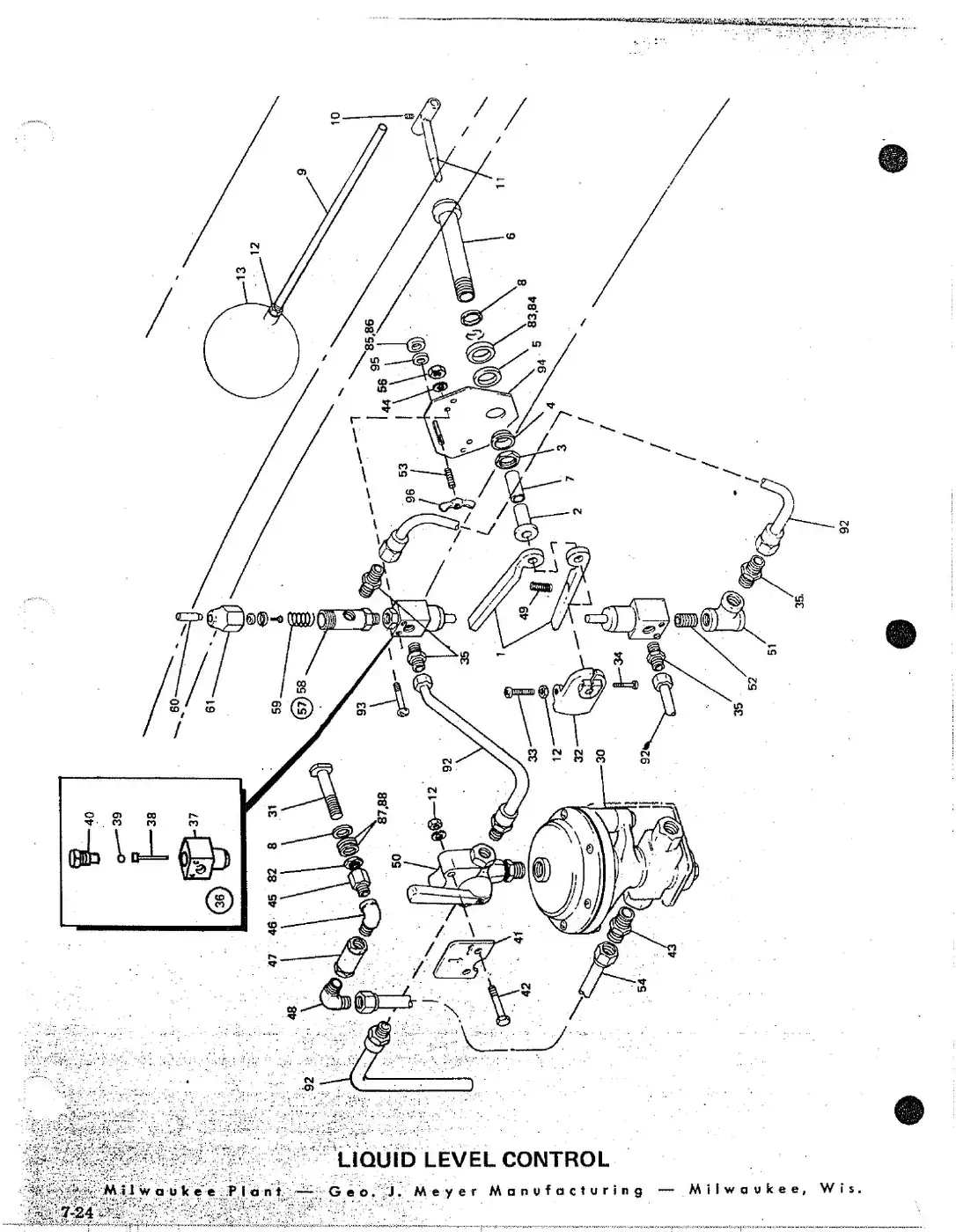

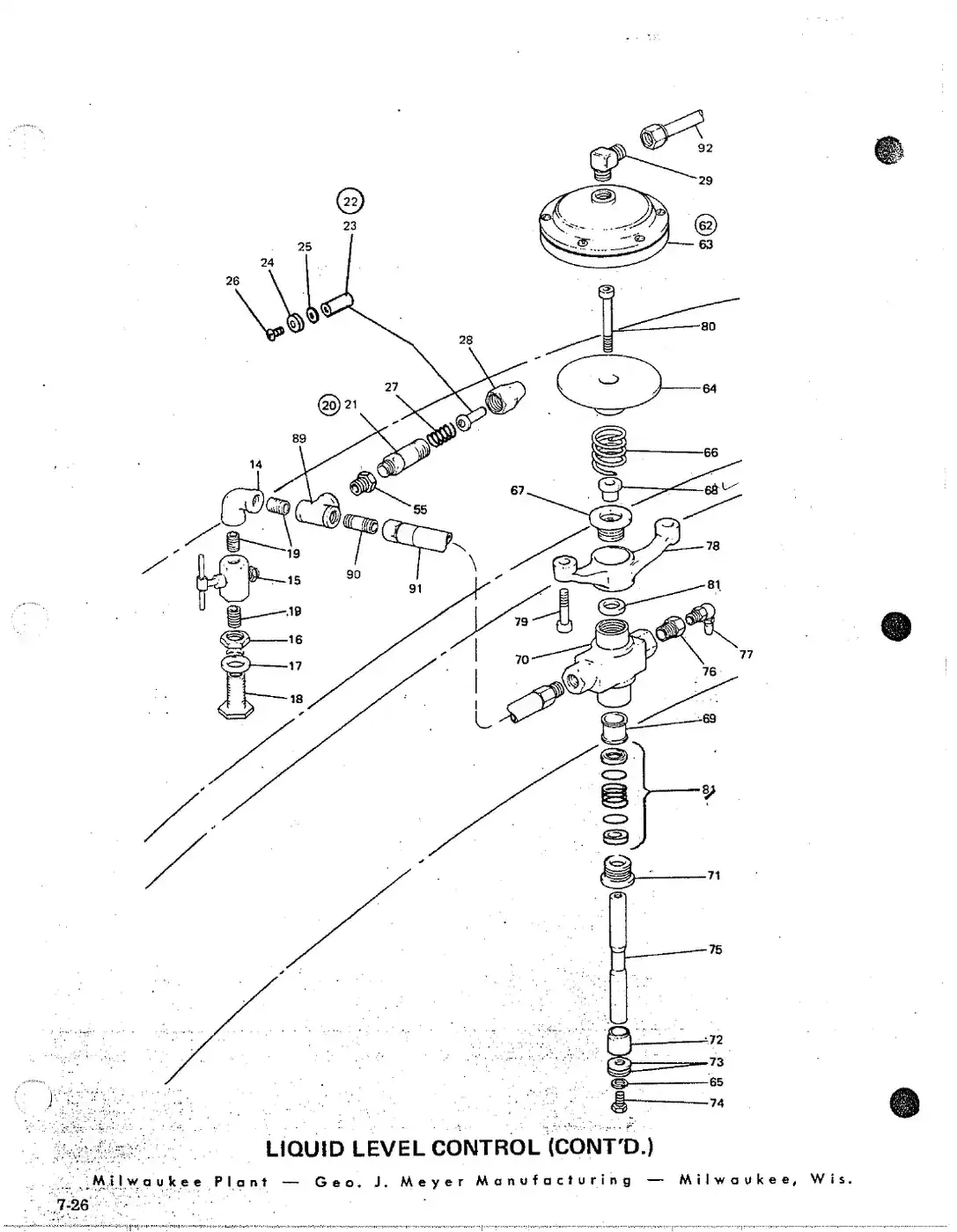

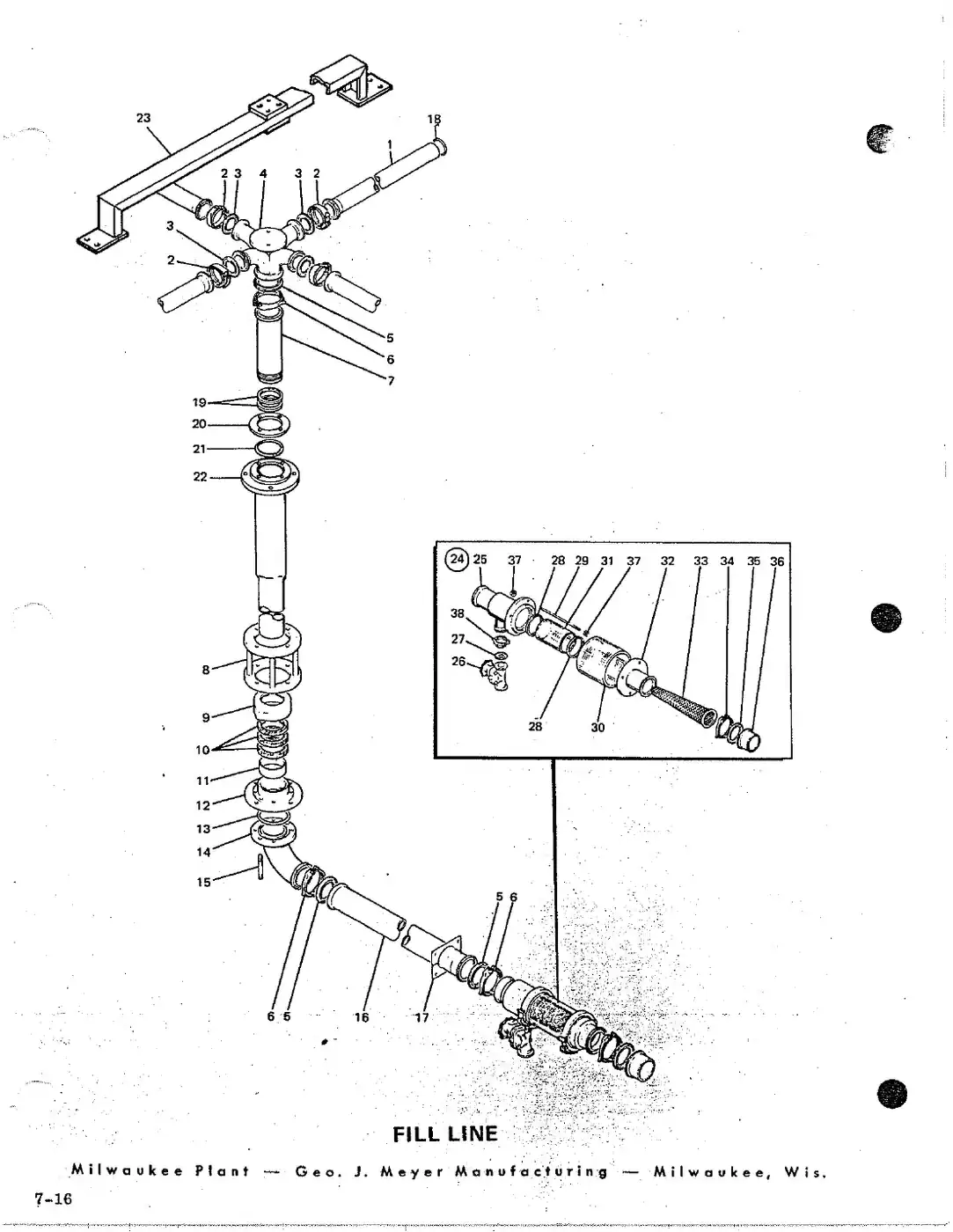

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full size

Ref	Part number	Description
19	100-94931009493	Ring, quad	Request
20	131-5513	Plate, o-ring seal	Ask us
21	100-41511004151	O-ring, product supply	Request
1	900-0979	Line, bow supply	Ask us
22	902-1795	Line, vert supply	Ask us
2	100-21421002142	Clamp, hinged sanitary	Request
23	902-1797	Support, product line	Ask us
3	100-21331002133	Gasket, tri-clamp tube	Request
4	900-0394	Cross, bowl supply	Ask us
5	100-00281000028	Gasket, tri-clamp	Request
25	902-1141	Ferrule flange seat	Ask us
6	100-00271000027	Clamp, hinged sanitary	Request
26	100-0216	Valve	Ask us
7	902-1796	Line, vert supply gasket	Ask us
8	HH-8594	Support, inlet assembly	Ask us
81	131-4374	Guard, sight glass	Ask us
12	HH-8580	Gland	Ask us
32	902-1140	Ferrule flange seat	Ask us
13	100-25021002502	O-ring	Request
83	902-1143	Strainer assembly	Ask us
14	HH-8579	Elbow	Ask us
15	HH-6627HH6627	Stud	Request
36	100-0025	Ferrule	Ask us
17	131-1816	Flange, split	Ask us
37	102-0585	Nut, hex head stainless	Ask us
18	100-40251004025	O-ring	Request
88	100-21411002141	Clamp, hinged sanitary	Request
28	131-4373	Gasket, sight glass	Ask us
9	HH-8589HH8589	Stuffing box	Request
10	130-85551308555	Packing, ring bevel joint	Request
11	HH-8590HH8590	Bushing	Request
16	HH-8587	Line, horizontal supply	Ask us

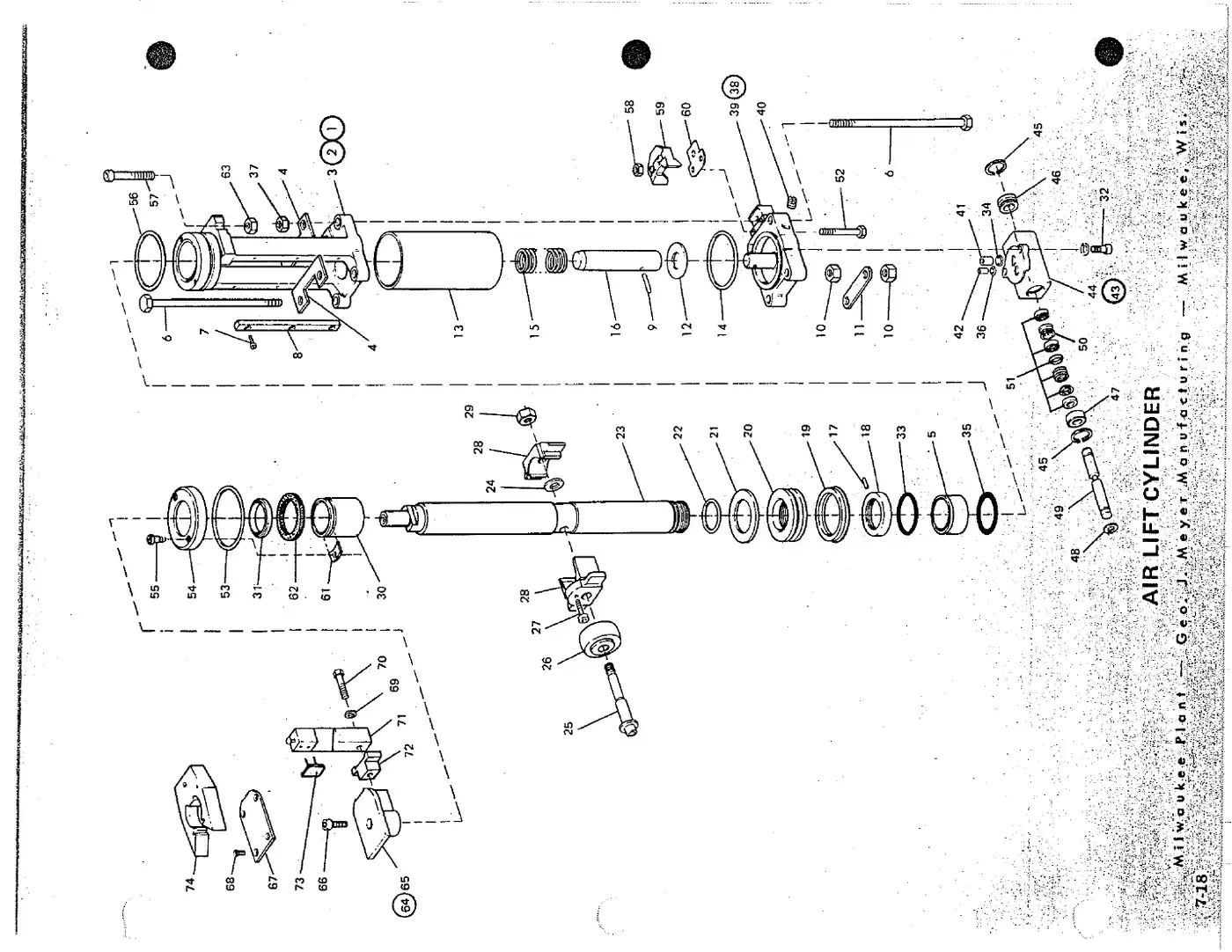

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full sizeOpen full size

Ref	Part number	Description
39	131-5481	Bottom, cylinder	Ask us
40	100-9971	Plug, pipe-slotted head	Ask us
42	HH-7510	Bushing, bottom exhaust	Ask us
43	902-0115	Valve, spool assembly	Ask us
5	131-75181317518	Bushing, lift cylinder	Request
44	131-6806	Housing, spool valve	Ask us
45	100-73091007309	Ring, spirolox	Request
7	102-1268	Screw, binder	Ask us
46	131-68051316805	Ring, exhaust port	Request
8	131-5489	Strip, wear	Ask us
47	131-68021316802	Bushing, spool valve	Request
9	102-20821022082	Pin, roll slotted	Request
48	100-73081007308	Ring, retaining	Request
49	HH-7014HH7014	Stem, spool valve	Request
50	131-3341	Lantern, spool valve	Ask us
51	902-3638	Repair kit, valve	Ask us
52	102-00811020081	Bolt, hex head	Request
14	100-41541004154	O-ring	Request
53	100-95611009561	Ring, quad	Request
15	131-8370	Spring, compression	Ask us
54	131-54251315425	Retainer, dust seal	Request
16	131-75561317556	Guide, air cylinder spring positive pull	Request
17	101-0288	Pin, groove	Ask us
56	100-25071002507	O-ring	Request
18	131-54831315483	Locknut, piston rod	Request
57	102-1648	Screw, socket head cap	Ask us
58	102-03331020333	Nut, hex	Request
20	131-75191317519	Piston, cylinder lift	Request
59	H-1880H1880	Clamp, air lift manifold	Request
21	100-94151009415	Bumper	Request
60	131-73981317398	Gasket, header airlift man	Request
22	100-41561004156	O-ring	Request
23	134-09761340976-R	Rod, piston, reman	Request
62	131-7515	Sell, rod wiper	Ask us
24	HH-7065HH7065	Shim	Request
63	102-22661022266	Nut, hex nylock insert type	Request
25	902-17899021789	Stud, cam roller	Request
64	902-4465	Shoe, stirrup assembly	Ask us
26	131-75171317517	Cam, roller	Request
27	102-2278	Screw, socket head shoe	Ask us
28	131-54231315423	Clamp, cam roller	Request
29	102-0283	Nut, hex head jam 84-3608 wear plate	Ask us
80	131-75571317557	Bushing, upper positive pull-down	Request
68	102-2304	Screw, flat head mach	Ask us
31	100-9432	Wiper, rod	Ask us
69	102-08511020851	Washer, lock	Request
82	102-2281	Screw, socket head cap	Ask us
33	101-00951010095	Rod, wiper ring	Request
34	100-4032	O-ring	Ask us
38	902-5297	Bottom, cylinder assembly	Ask us
24	102-2227	Screw, socket head cap	Ask us
25	102-2103	Pin, dowel	Ask us
1	902-1779	Support, filler bow	Ask us
26	102-2071	Screw, socket head	Ask us
8	100-93301009330	Gearbox, three way bowl lift	Request
4	100-93281009328	Jactuator	Request
29	102-2230	Screw, socket head cap	Ask us
30	102-1445	Pin, dowel	Ask us
7	000-1624	Key, shaft square	Ask us
31	102-2232	Screw, socket head cap	Ask us
8	102-20941022094	Bolt, hex head	Request
32	102-04201020420	Washer, flat	Request
9	102-22241022224	Screw, socket hd cap	Request
33	102-03911020391	Washer, lock	Request
10	102-03871020387	Washer, lock	Request
34	902-1780	Housing guide post	Ask us
11	102-03321020332	Nut, hex	Request
35	131-5462	Housing, guide post	Ask us
13	102-00671020067	Bolt, hex head	Request
88	102-2070	Screw, set 25-20	Ask us
16	131-54541315454	Shaft jack adjusting	Request
39	102-04251020425	Set screw	Request
17	102-09861020986	Pin, roll slotted	Request
40	102-03921020392	Washer, lock	Request
18	100-9758	Screw, cap	Ask us
41	102-03901020390	Washer, lock	Request
19	102-04181020418	Washer, flat	Request
21	102-0464	Screw, set 25-20	Ask us
22	131-59641315964	Lock, drive nut adjustable bowl	Request
41	131-55001315500	Bushing, spool valve	Request
3	131-75211317521	Housing, lift cylinder	Request
12	131-5490	Washer, flat	Ask us
55	102-2087	Screw, shoulder	Ask us
35	102-4027	O-ring	Ask us
86	100-25061002506	O-ring	Request
23	131-5458	Support, jack	Ask us
27	131-5466	Post, guide	Ask us
28	131-5460	Support, guide post	Ask us
6	131-67811316781	Coupling shaft	Request
14	131-67801316780	Coupling shaft	Request

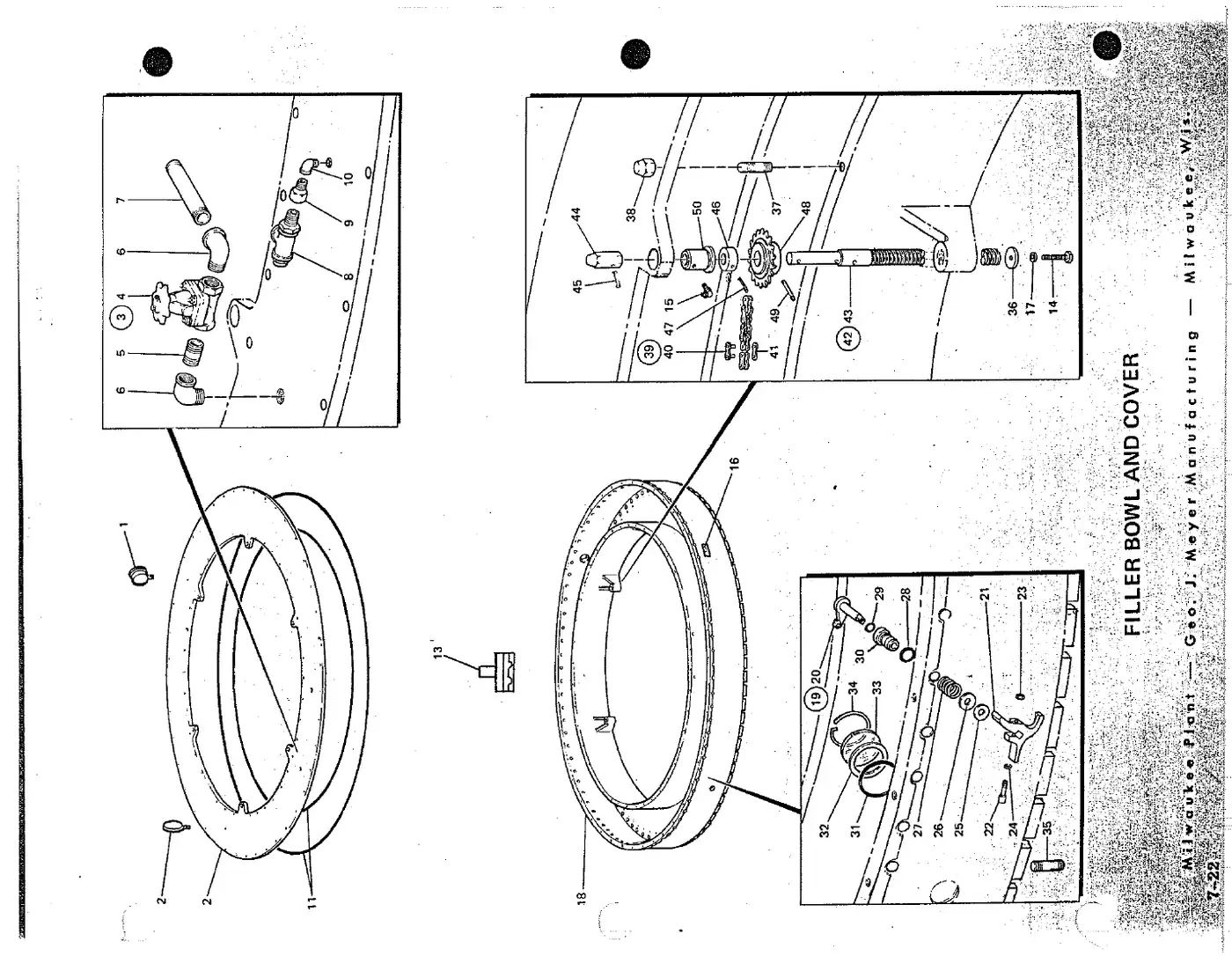

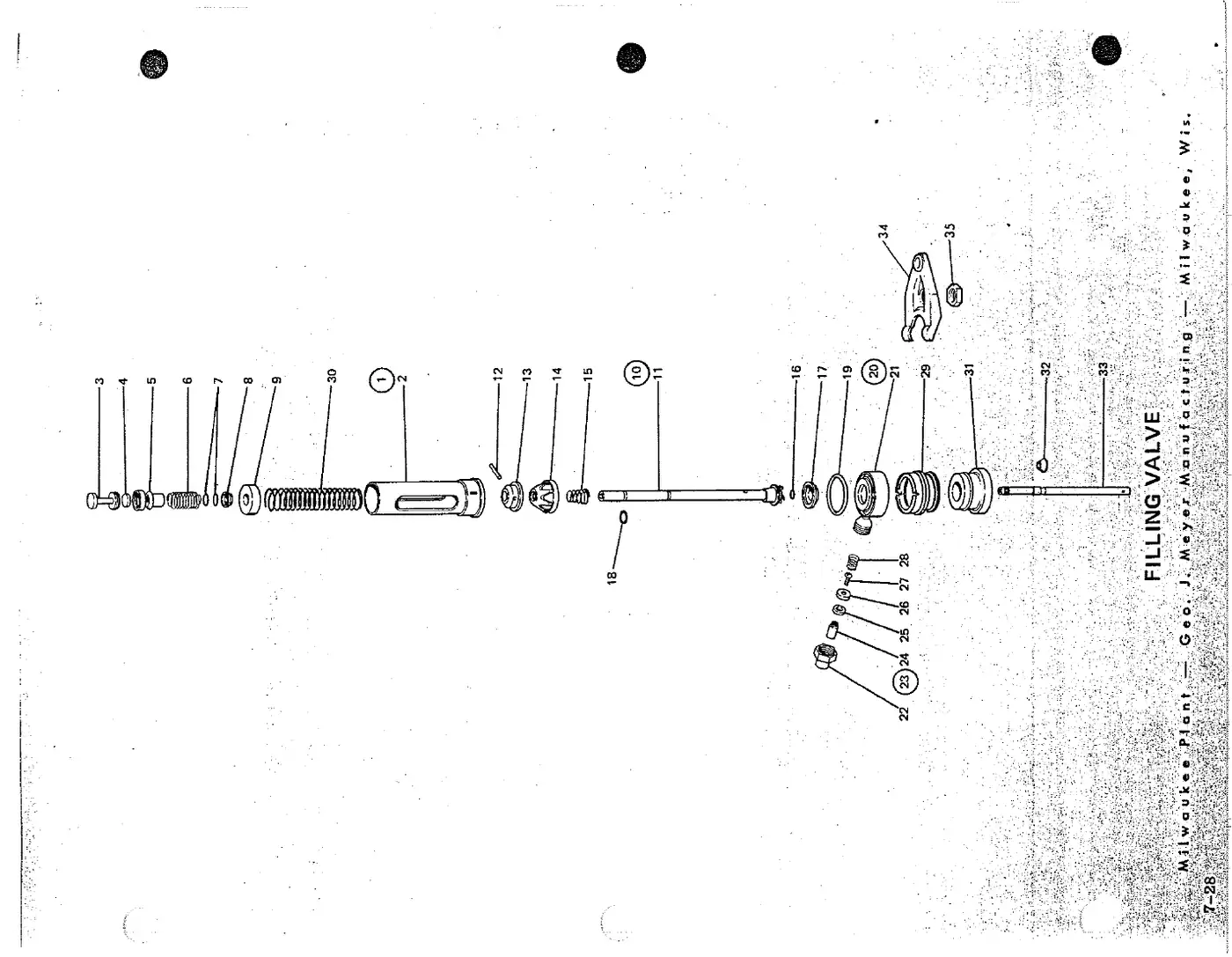

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
25	RR-348RR348	Washer, valve lever outside	Request
27	HH-5696HH5696	Spring, valve lever	Request
1	100-3387	Gauge	Ask us
28	101-00881010088	O-ring	Request
2	HH-8327	Cover, bowl	Ask us
29	100-25111002511	O-ring, edpm, dash	Request
3	HH-6326	Drain, bowl-assembly	Ask us
4	100-7648	Valve, stainless	Ask us
31	100-25071002507	O-ring	Request
5	100-61131006113	Nipple, close	Request
6	100-6512	Elbow, street	Ask us
7	100-75581007558	Nipple	Request
34	100-97751009775	Ring, retaining	Request
8	100-4121	Valve, safety blow-off	Ask us
35	HH-149	Stud, valve clamp	Ask us
9	HH-6406	Adapter, valve	Ask us
36	132-2094	Washer	Ask us
10	100-46601004660	Elbow, street 90 deg	Request
87	130-85471308547	Stud, bowl cover	Request
11	000-2682	Packing, square rubber fee	Ask us
38	130-85621308562	Nut, dome	Request
12	100-93951009395-1	Thermometer, filler bowl digital	Request
89	101-21031012103	Chain, roller	Request
18	HH-3191	Baffle, standard parts	Ask us
14	102-00671020067	Bolt, hex head	Request
40	101-21041012104	Link, offset	Request
15	100-4286	Fitting, grease	Ask us
41	101-21051012105	Clip, link roller chain	Request
16	101-2237	Numbers, valve	Ask us
42	HH-8974	Lift screw-assembly	Ask us
17	102-03871020387	Washer, lock	Request
43	HH-1248	Screw, bowl covex lift	Ask us
19	902-7497	Lever valve-assembly	Ask us
44	HH-8971	Nut, lift screw	Ask us
45	100-32171003217	Pin, roll	Request
46	HH-169	Collar, lift screw cover	Ask us
21	132-30881323088	Lever, valve operating outside	Request
47	100-32181003218	Pin, roll	Request
48	HH-8972HH8972	Sprocket cover lift screw	Request
23	102-03321020332	Nut, hex	Request
49	100-32191003219	Pin, roll	Request
24	102-23011022301	Washer, lock collar	Request
50	HH-8321	Bushing	Ask us
26	HH-1005HH1005	Washer, spring	Request
30	131-74941317494	Bushing, valve lever filler bowl	Request
17	102-0887	Lockwasher	Ask us
18	H-2718	Bowl, filler	Ask us
20	131-74931317493	Lever, valve inside	Request
23	102-0832	Nut	Ask us

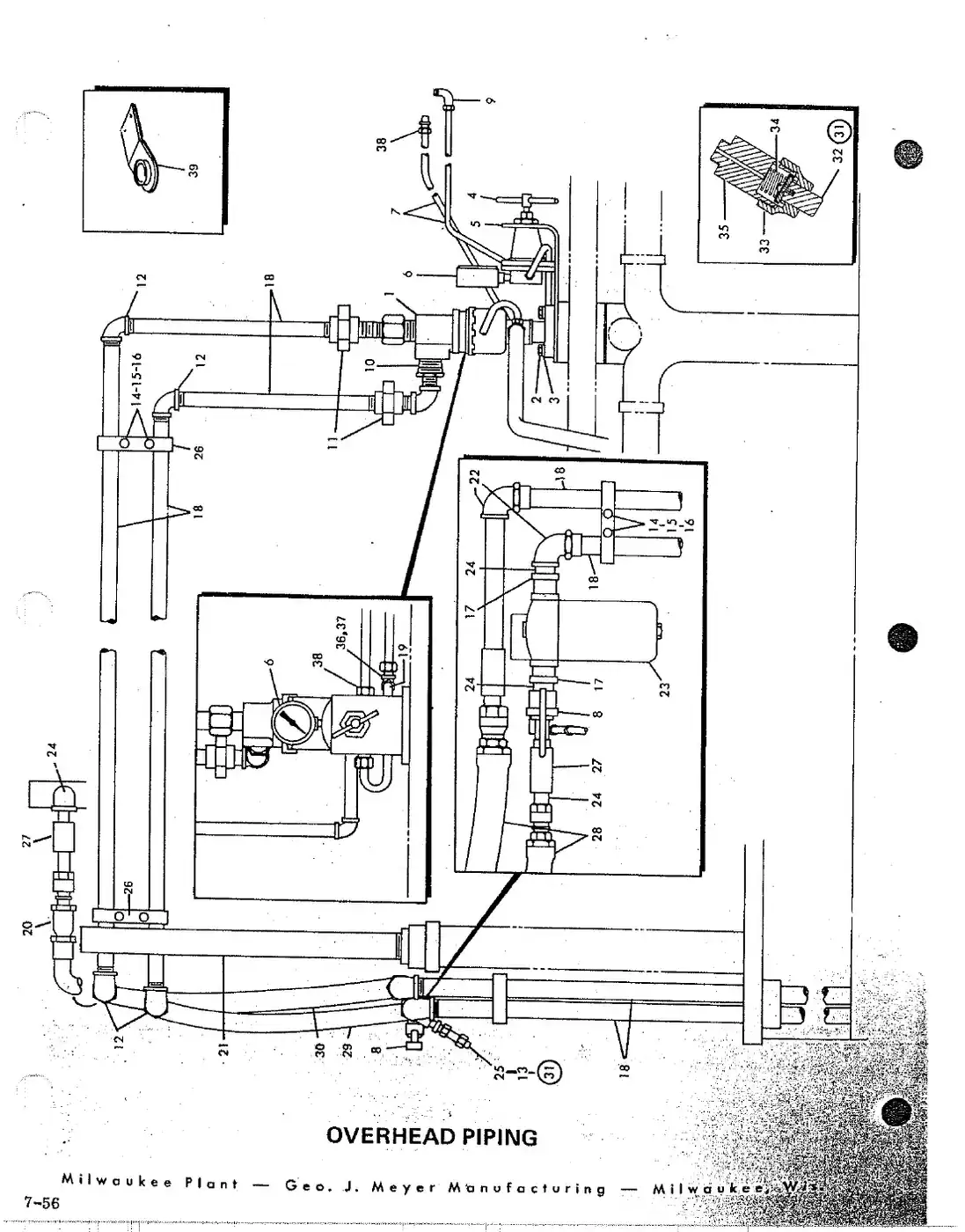

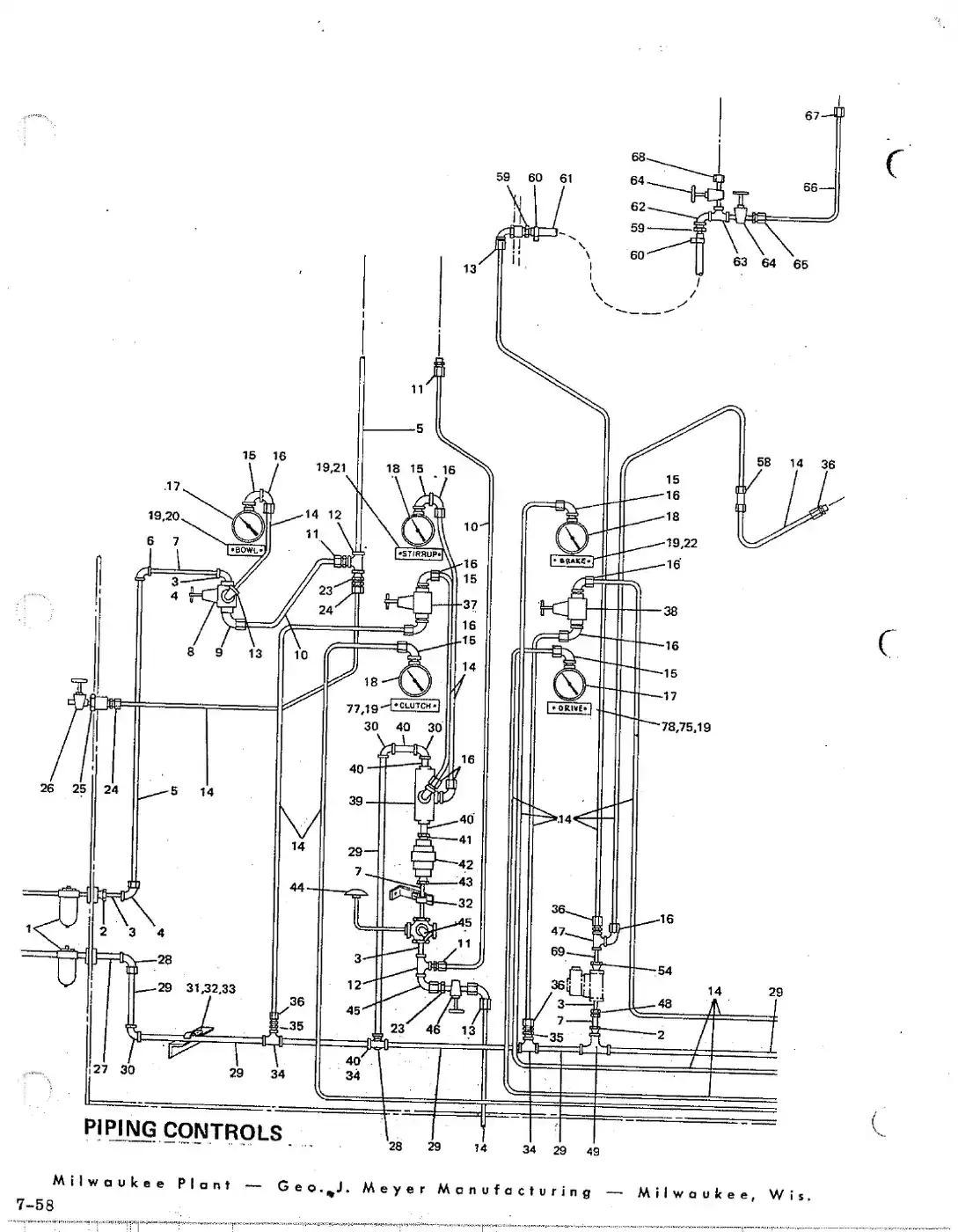

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
24	132-64031326403	Retainer, seat snift valve	Request
25	RR-647RR647	Seat, snift valve	Request
1	HH-8695HH8695	Lever, oper liquid level control	Request
26	102-23571022357	Screw, round head	Request
2	HH-2410HH2410	Gland, packing	Request
38	HH-2414HH2414	Nut, lock stuffing box	Request
28	RR-88RR88	Nut, snift valve	Request
4	HH-8692HH8692	Retainer, bushing mounting	Request
29	100-1467	Elbow, comp	Ask us
5	HH-8693HH8693	Spacer, mounting plate liq level	Request
30	100-47681004768	Valve, diaphragm	Request
7	102-14831021483	Packing	Request
81	HH-2407	Port, charging	Ask us
8	RR-228RR228	Gasket, air inlet valve bo	Request
382	HH-8696HH8696	Plate, operating liq level	Request
9	HH-2515HH2515	Float lever control valve	Request
33	102-07731020773	Screw, fillister hd	Request
10	102-04371020437	Screw, set socket cup point	Request
34	102-07751020775	Screw, fillister hd	Request
35	100-09251000925	Fitting, tube adapter bras	Request
11	HH-2409HH2409	Stem, valve operating	Request
36	HH-8698HH8698	Valve, air body assembly OEM	Request
12	102-0363	Nut, hex 25-20	Ask us
18	HH-300HH300	Ball, float	Request
37	HH-8697	Body, air valve	Ask us
14	100-53721005372	Elbow, 90 deg	Request
88	HH-2421	Trigger, air check	Ask us
15	100-79931007993	Valve, on/off, female male	Request
89	100-77711007771	Ball float	Request
16	HH-457HH457	Nut	Request
17	HH-8263HH8263	Gasket, valve	Request
41	130-11831301183	Plate, operator	Request
18	HH-8814	Adapter, blow-off valve	Ask us
42	102-00671020067	Bolt, hex head	Request
19	100-61101006110	Nipple, close	Request
43	100-09271000927	Fitting, tube adapter	Request
20	HH-167HH167	Valve, clean out assembly	Request
44	102-03871020387	Washer, lock	Request
21	RR-115RR115	Valve, body clean out-sell HH3486	Request
45	HH-8948	Adapter	Ask us
22	902-98279029827	Insert, snift valve assembly B-2	Request
46	100-46601004660	Elbow, street 90 deg	Request
47	100-53761005376	Valve, check	Request
40	131-35551313555	Cage, ball air valve assembly	Request

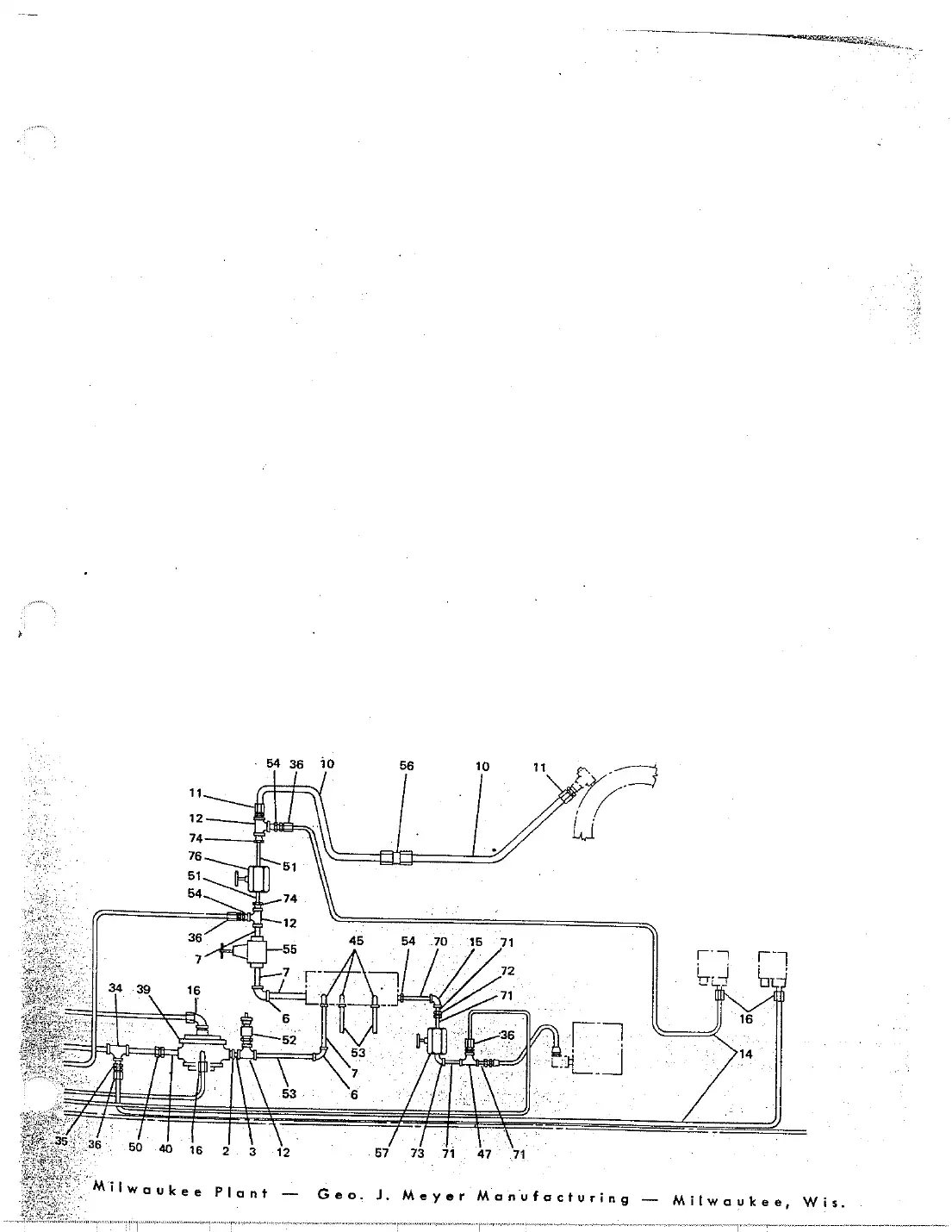

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
48	100-14691001469	Elbow, tube male	Request
72	131-68171316817	Spacer, diaphragm 2-WAY valve	Request
49	HH-2416HH2416	Spring, operating	Request
73	102-04161020416	Washer, flat	Request
50	900-01679000167	Valve, run / charge	Request
74	102-1666	Screw, hex head 312-18	Ask us
51	100-08801000880	Tee, pipe	Request
75	100-96671009667	Elbow, street	Request
52	100-0889	Nipple, close	Ask us
76	100-14311001431	Bushing, reducing hex	Request
53	102-10001021000	Stud, tap end	Request
77	100-07761000776	Fitting, grease ptf	Request
54	000-1769	Tubing, hopper	Ask us
78	100-97701009770	Yoke	Request
79	102-21991022199	Screw, allen cap	Request
56	102-05531020553	Nut, hex	Request
80	102-21781022178	Screw, socket head cap	Request
57	HH-3485HH3485	Valve, body clean out 52V family	Request
81	902-3638	Repair kit, valve	Ask us
82	101-01741010174	Nut, hex jam	Request
58	HH-3486HH3486	Valve, body clean out family	Request
60	902-98279029827	Insert, snift valve assembly B-2	Request
85	132-8233	Spacer, bracket	Ask us
61	RR-88RR88	Nut, snift valve	Request
86	132-8234	Spacer, bracket	Ask us
62	902-35209023520	Valve, level control	Request
87	132-8235	Spacer, bracket	Ask us
88	132-82361328236	Spacer	Request
68	100-9764	Diaphragm assembly	Ask us
89	100-53711005371	Tee	Request
64	100-97651009765	Piston, diaphragm valve	Request
90	100-41021004102	Nipple	Request
65	102-03881020388	Washer, lock	Request
91	900-1240	Hose, blow-off	Ask us
88	100-97621009762	Spring, diaphragm ret	Request
92	000-1760	Tubing, hopper	Ask us
93	102-02931020293	Screw, round head slot	Request
94	HH-8691HH8691	Plate, mounting	Request
95	HH-8694	Spacer	Ask us
96	102-0711	Nut, wing	Ask us
71	100-97721009772	Bearing, small flange	Request
59	131-75851317585	Spring, compression conical	Request
84	132-8232	Spacer, bracket ees	Ask us
89	100-5871	Tee	Ask us
67	131-68181316818	Bushing	Request
70	100-97691009769	Body	Request

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
1	902-5467	Valve, filling assembly	Ask us
18	100-34821003482	O-ring	Request
19	100-25201002520	O-ring	Request
20	902-99889029988	Snift, block assembly R-11A clamp on	Request
2	902-7467	Cage, valve spring parts	Ask us
3	132-64011326401	Cap, charging valve	Request
21	132-29251322925	Snift, block R-11A	Request
4	100-93201009320	Seal, charging cap	Request
22	RR-88RR88	Nut, snift valve	Request
23	902-98279029827	Insert, snift valve assembly B-2	Request
8	132-64041326404	Retainer, O-ring	Request
24	132-64021326402	Stem, snift valve	Request
25	RR-647RR647	Seat, snift valve	Request
10	902-9910	Stem, valve assembly inc	Ask us
26	132-64031326403	Retainer, seat snift valve	Request
27	102-23571022357	Screw, round head	Request
28	HH-7503HH7503	Spring, snift valve	Request
11	902-3701	Stem, valve	Ask us
12	101-24851012485	Pin, groove	Request
30	131-69891316989	Spring, post valve R-11 series	Request
15	131-62841316284	Spring, secondary	Request
16	100-98521009852	O-ring, (special)	Request
17	132-39861323986	Seal, liquid R-11	Request
9	132-63991326399	Collar, guide	Request
13	132-6400	Guide, valve	Ask us

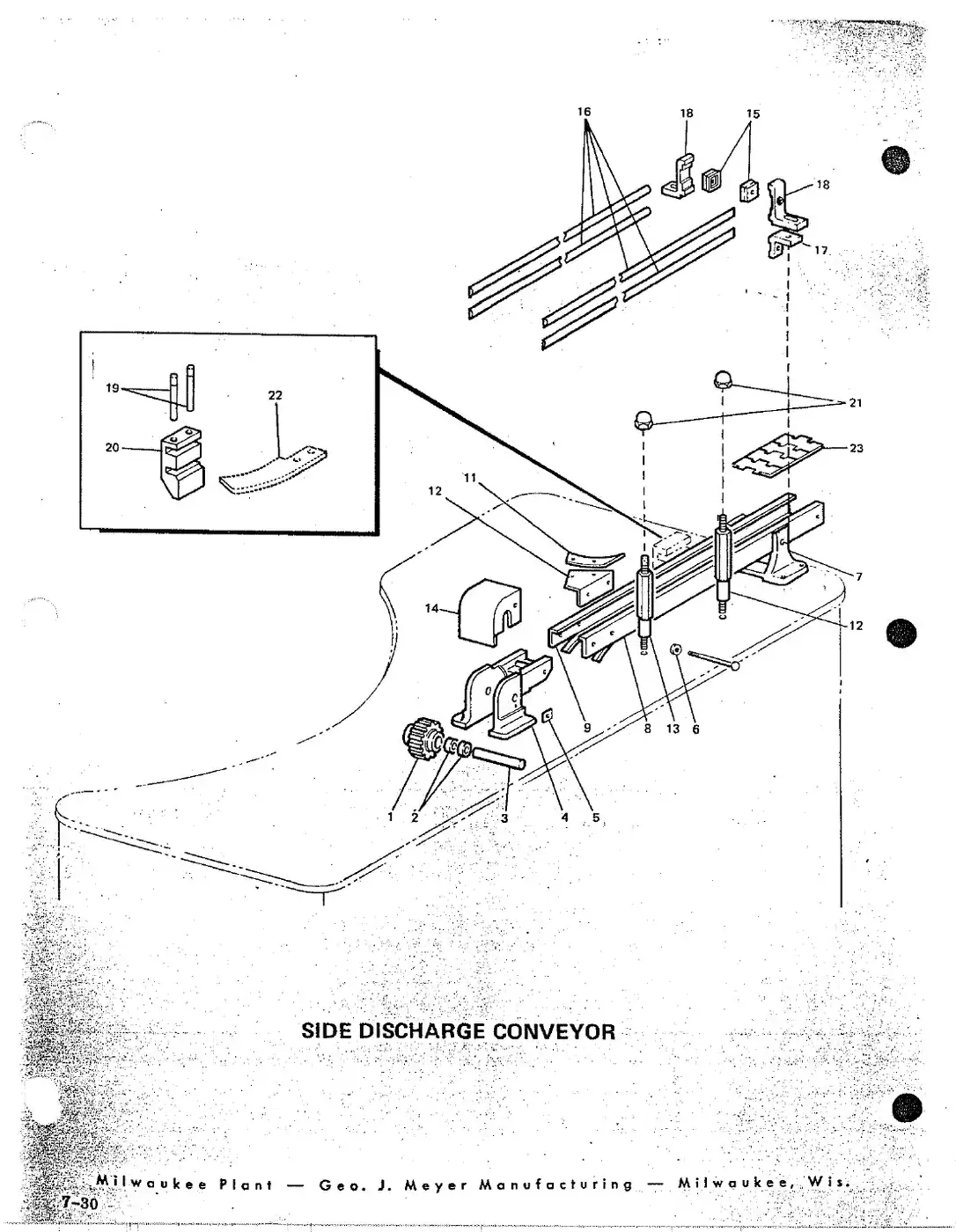

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
12	130-8175	Stud, crowner guide	Ask us
1	902-3705	Sprocket, conveyor drive	Ask us
14	X-6228	Cover	Ask us
16	000-1421	Rail, bottle guide spec	Ask us
17	T-1016	Slide, adj	Ask us
2	100-2345	Bushings oilite oase bracket, adj	Ask us
3	HH-1187	Pin, sprocket	Ask us
4	X-6583	Bracket conveyor end	Ask us
20	131-2801	Support, discharge stripper	Ask us
21	HH-238	Nut, dome	Ask us
6	HH-1734	Washer	Ask us
23	101-1793	Chain, conveyor rex	Ask us
9	X-6581	Channel, discharge rear conv link	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
13	000-1421	Rail, bottle guide spec length	Ask us
15	131-1912	Cap, retaining stainless ees	Ask us
16	HH-238	Nut, dome	Ask us
1	T-1015	Bracket, adj rail slide	Ask us
2	HH-1734	Washer ket ear	Ask us
3	130-8969	Cover, guard end bracket	Ask us
18	HH-1264HH1264	Bracket, crowner grease line all me	Request
4	100-2345	Bushing-oilite	Ask us
5	902-3705	Sprocket, conveyor drive	Ask us
20	130-8129	Nut, crowner	Ask us
22	130-8174	Spacer, bottle guide	Ask us
23	101-1793	Chain, conveyor rex	Ask us
6	DFC-950	Bracket, conveyor end specify no link	Ask us
7	HH-1186	Plate, lock chain	Ask us
8	HH-1187	Pin, sprocket c708a stainless specify	Ask us
9	X-6600	Channel, rear conveyor link	Ask us
24	131-2801	Support, discharge stripper	Ask us
11	HH-1232	Stud, bottle support pin	Ask us
12	X-6598	Bracket, crown discharge	Ask us

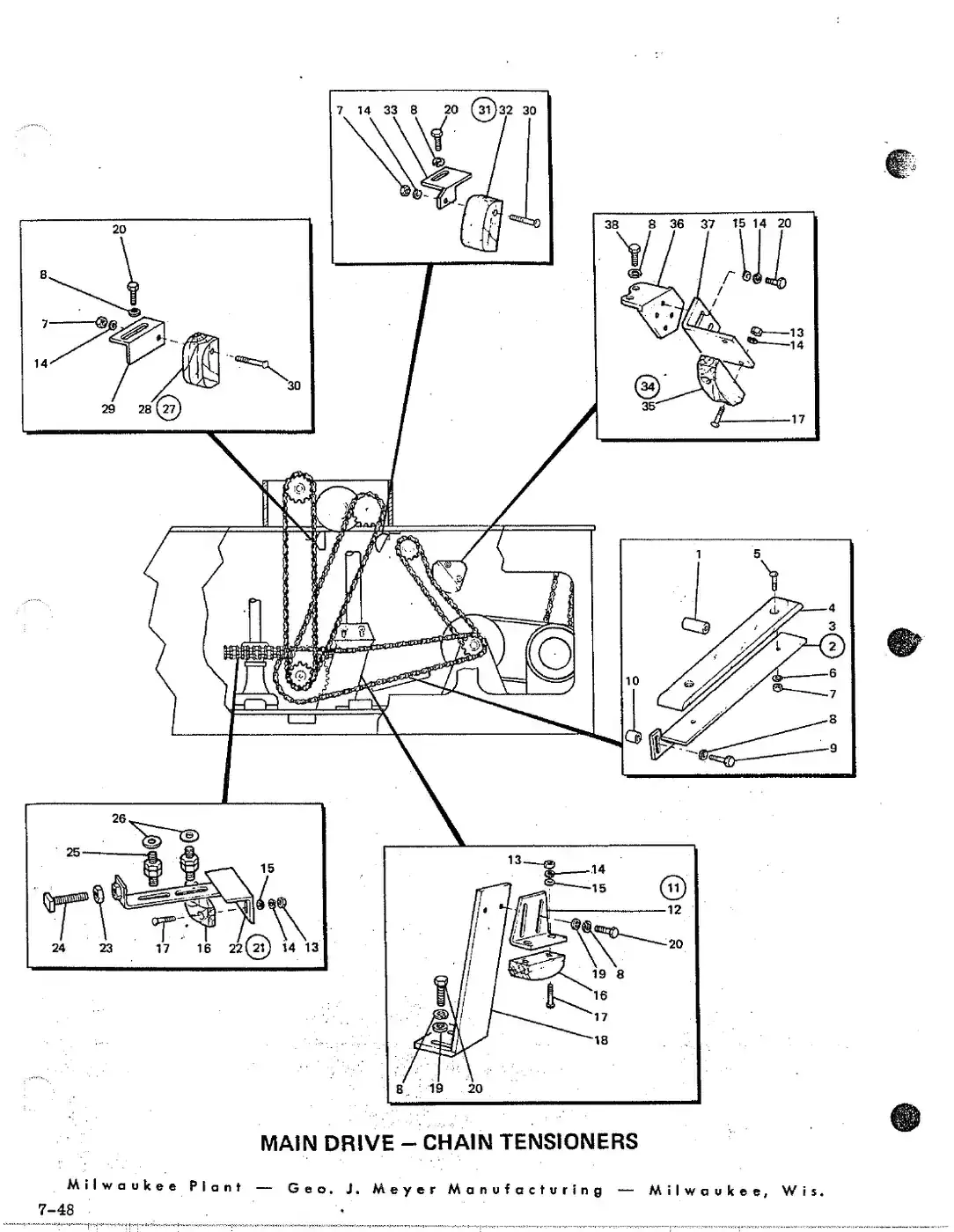

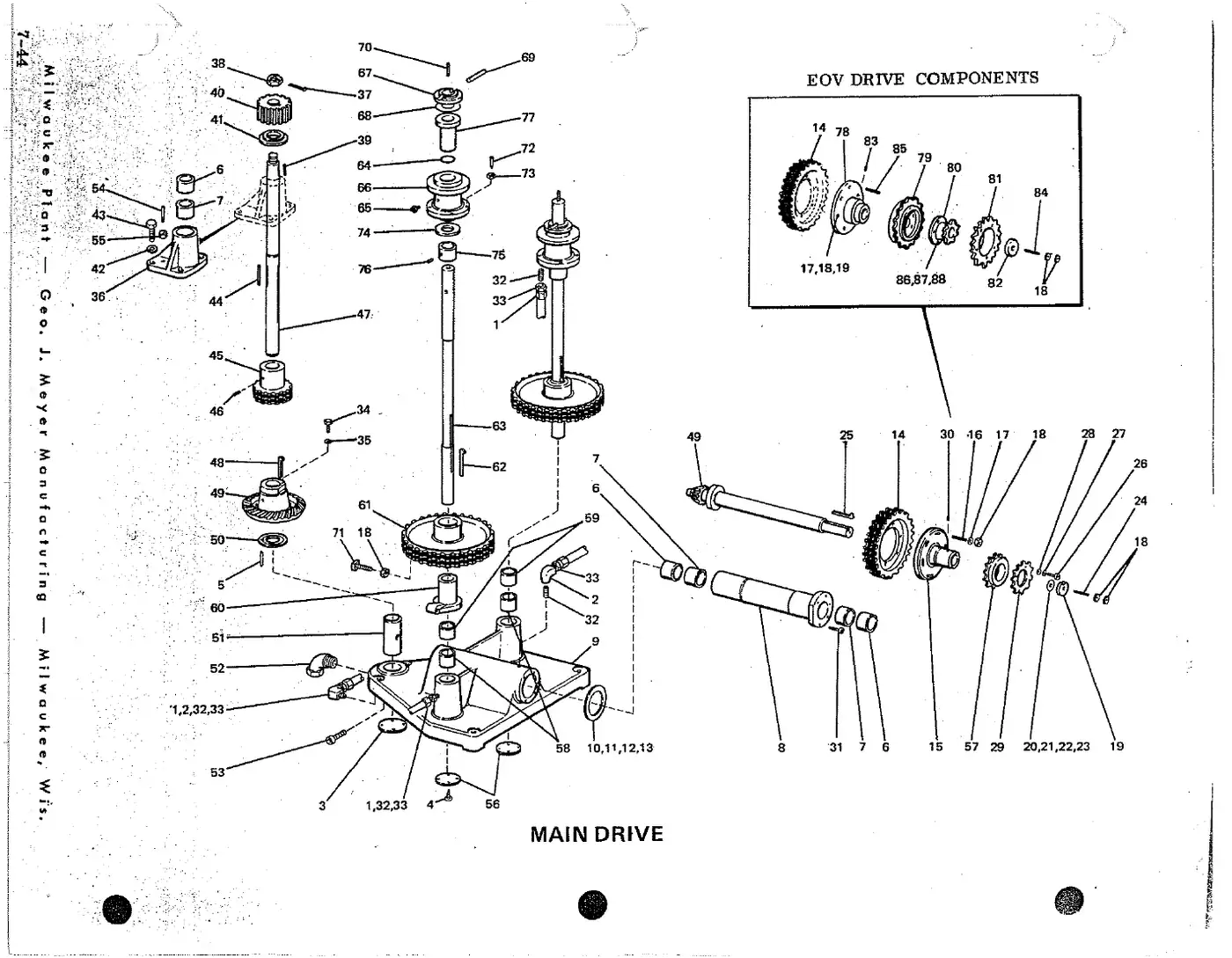

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
25	HH-8986	Gasket, shaft cover	Ask us
26	DFC-621	Cover, shaft mogg	Ask us
27	DFC-620	Cover, shaft	Ask us
28	DFC-619	Cover, gear box	Ask us
1	HH-1716	Box, timing screw gear	Ask us
29	102-14971021497	Pin, taper	Request
30	102-0858	Bolt, carr	Ask us
31	102-03401020340	Nut, hex jam	Request
2	DFC-721	Box, timing screw gear	Ask us
32	100-09231000923	Fitting, tube	Request
3	100-23621002362	Bushing, sleeve	Request
33	100-1465	Ell, comp	Ask us
4	HH-1608	Sprocket pinion assembly	Ask us
34	102-1313	Screw, socket head cap	Ask us
5	HH-1611	Shaft, conveyor drive	Ask us
35	102-07431020743	Screw, socket head cap	Request
6	100-0747	Collar, set	Ask us
36	HH-8987	Gasket, shaft cover	Ask us
37	000-1421	Rail, half round spec lgth	Ask us
7	100-23641002364	Bushing, sleeve	Request
8	DFC-689DFC689	Gear, conveyor drive	Request
39	HH-1789	Guard, timing screw	Ask us
9	HH-7504	Plate, friction block	Ask us
40	900-8959	Bearing, timing screw	Ask us
10	RS-146RS146	Block, friction infeed gearbox	Request
11	H-1918	Hub, friction clutch	Ask us
41	100-2345	Bushings	Ask us
12	HH-1612	Shaft, conveyor drive	Ask us
42	DFC-788	Bracket, mounting	Ask us
43	HH-3095	Channel, rear infeed conveyor	Ask us
14	HH-1461	Shaft, feed screw drive	Ask us
44	HH-3094	Channel, front infeed conveyor	Ask us
15	HH-1464	Sprocket mitre gear assembly	Ask us
16	HH-641HH641	Gear, mitre infeed gearbox	Request
46	100-06631000663	Chain, flat top	Request
18	HH-1688	Shaft, timing screw chain	Ask us
20	HH-1686	Collar, shaft chain	Ask us
21	102-17251021725	Key, replaces	Request
47	T-1016	Slide, adj rail	Ask us
48	T-1018	Cap, retaining ose	Ask us
23	102-0893	Stud	Ask us
49	T-1015	Bracket, adj rail aan bee	Ask us
24	HH-1046	Adapter, grease line oas	Ask us

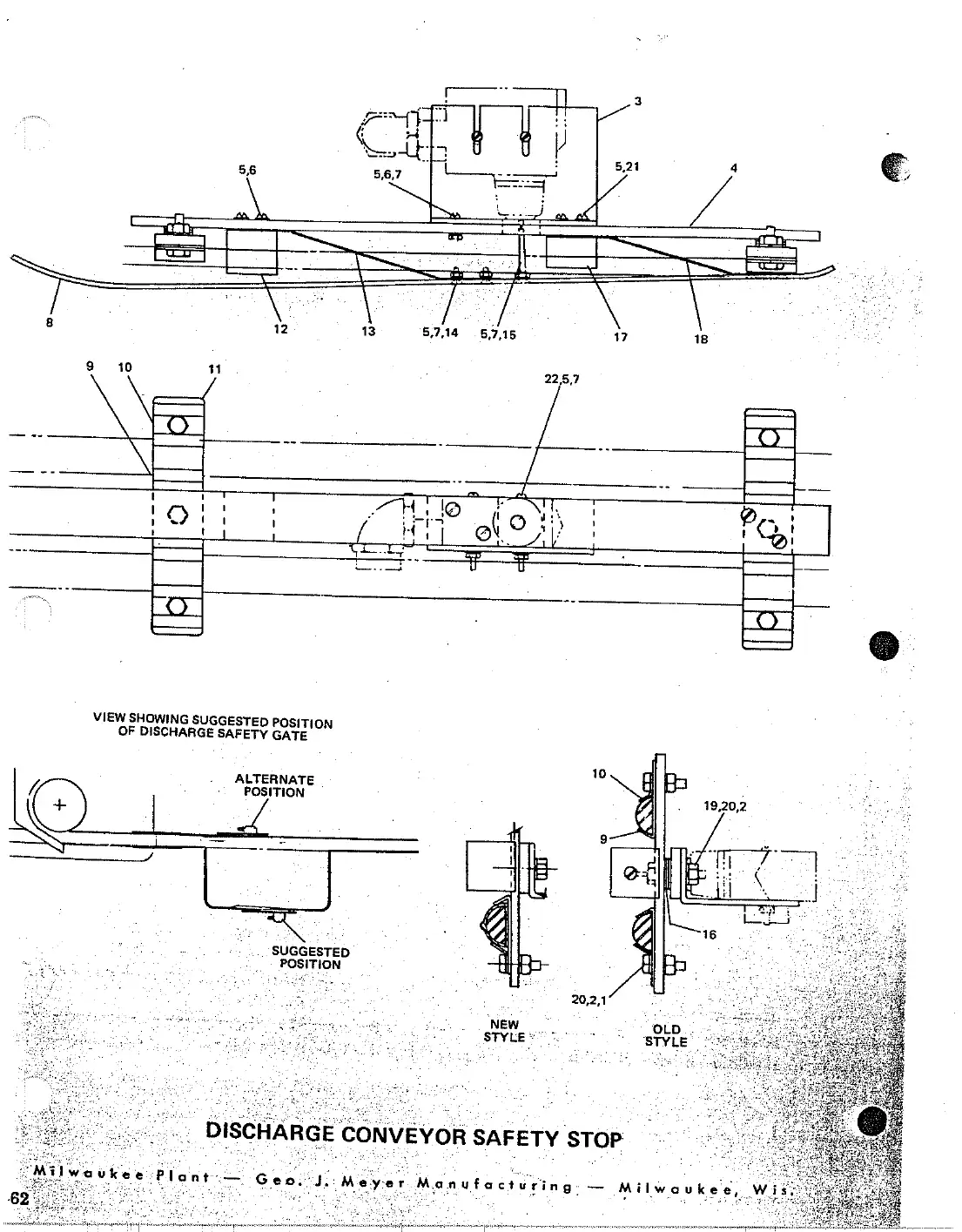

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	900-5423	Gate, adj	Ask us
6	102-03401020340	Nut, hex jam	Request
7	130-1356	Extension, safety gate	Ask us
8	102-04251020425	Set screw	Request
2	130-9684	Gate, adj safety	Ask us
9	HH-6721	Pin, pivot	Ask us
11	130-9675	Liner, safety gate	Ask us
3	100-3229	Fitting, grease	Ask us
12	130-9674	Liner, safety gate	Ask us
4	102-04191020419	Washer, flat	Request
13	102-07951020795	Screw, fillister hd	Request
5	HH-1854	Spring	Request
15	102-0936	Screw, flat head	Ask us

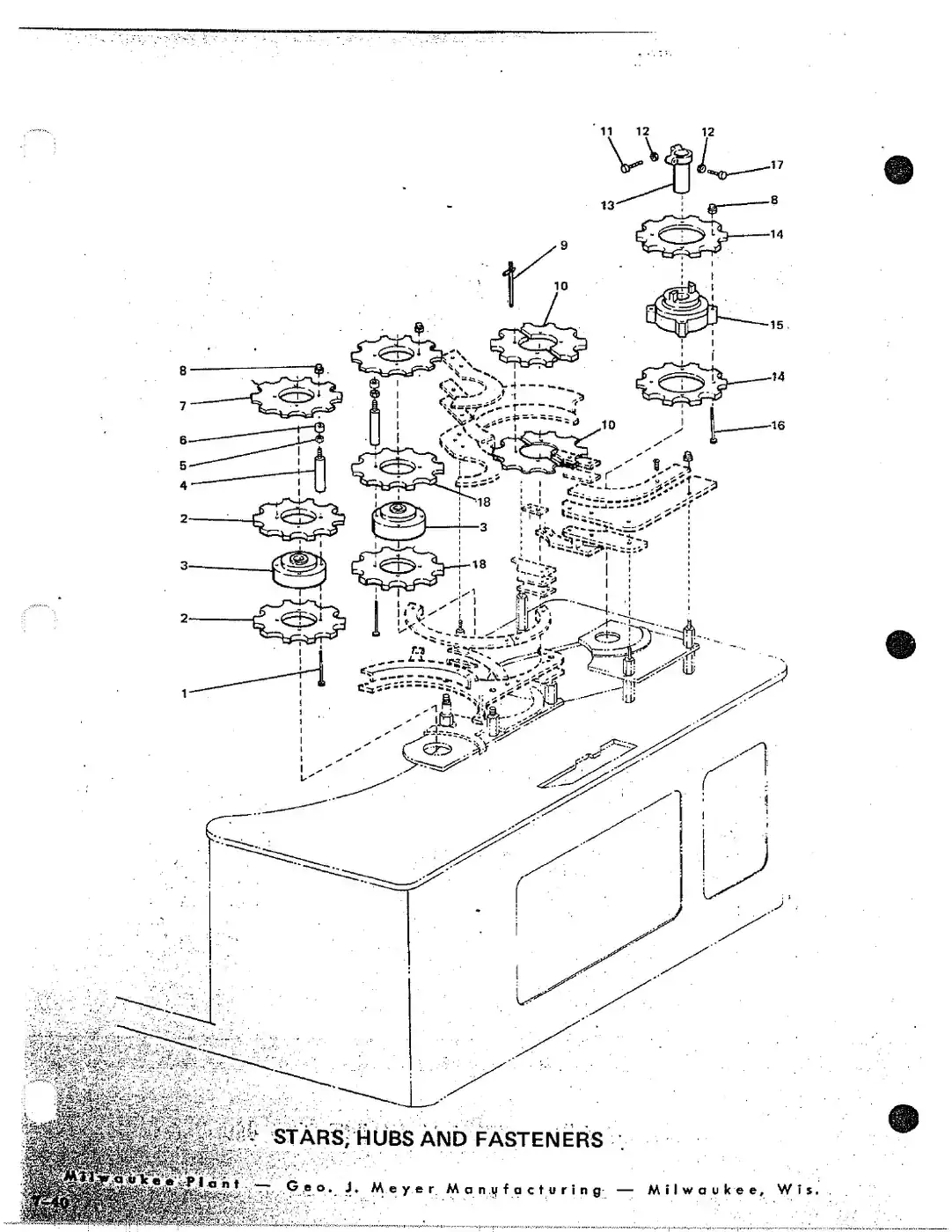

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
8	HH-134	Nut, dome	Ask us
9	CL-127CL127	Pin, lock crowner star Meyer	Request
11	102-1511	Screw, square head set	Ask us
1	102-01101020110	Bolt, hex head	Request
12	102-03401020340	Nut, hex jam	Request
13	DFC-29	Bushing, crowner discharge	Ask us
3	DFC-1223	Hub, filler star	Ask us
15	131-2416	Hub, crowner discharge	Ask us
5	102-03411020341	Nut, hex jam	Request
16	102-01091020109	Bolt, hex head	Request
17	102-0523	Screw, square head set 375-16 mea	Ask us

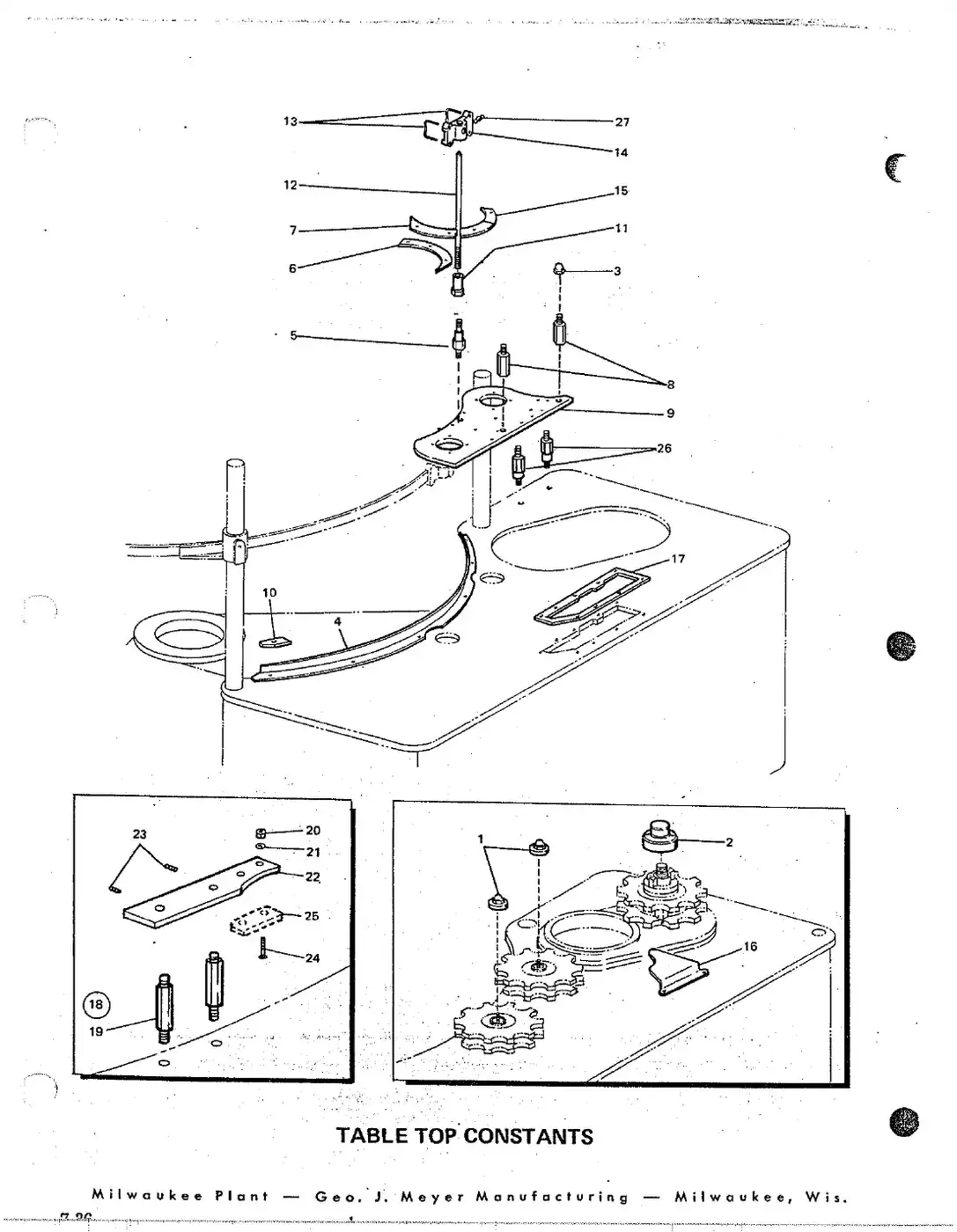

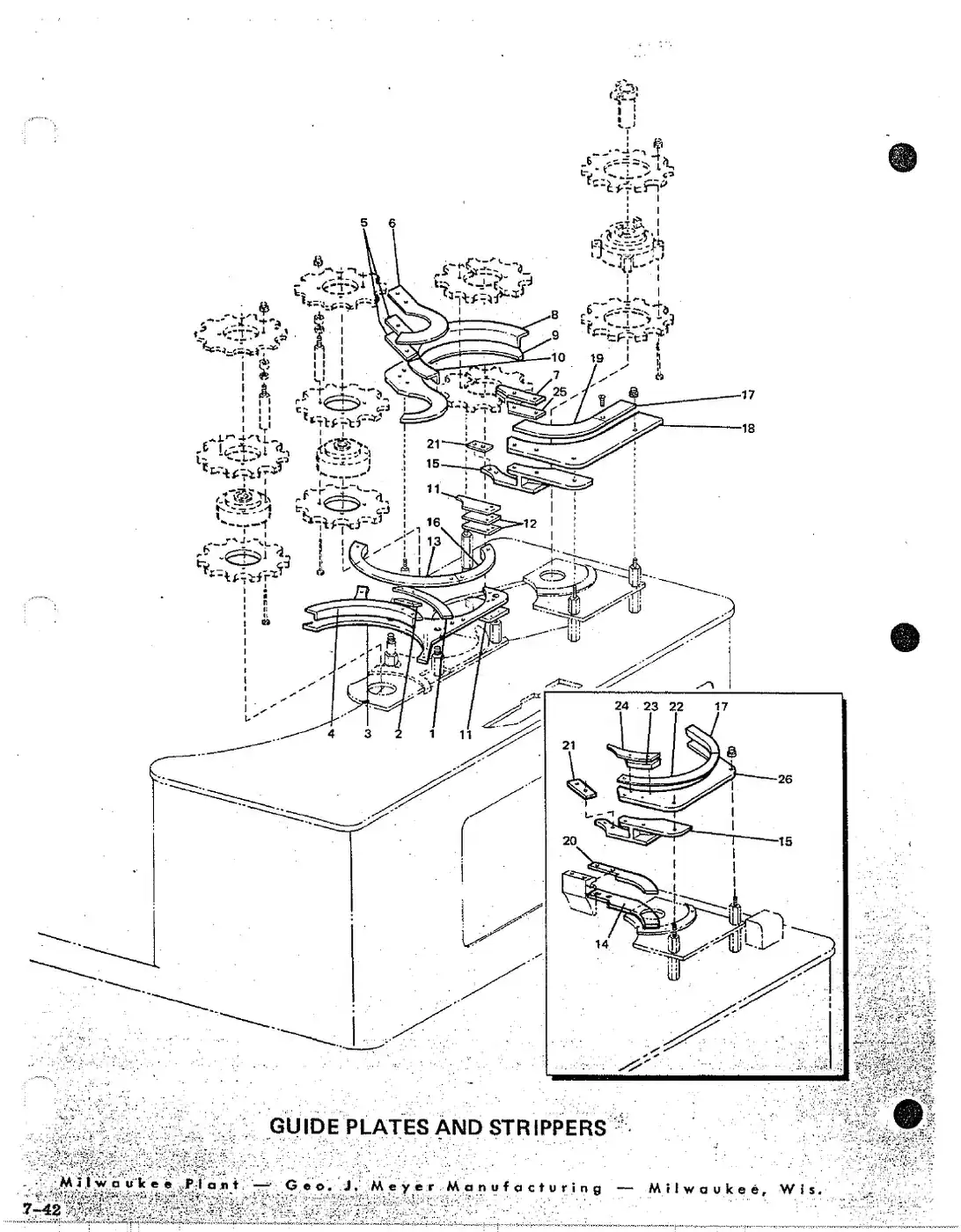

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
15	131-2409	Shoe, crowner stripper	Ask us
18	902-3419	Plate, crowner guide side	Ask us
3	902-5659	Plate	Ask us
3	902-5797	Plate	Ask us
9	902-5704	Plate, crowner guide	Ask us
23	131-2757	Spacer, crowner discharge	Ask us
26	902-3418	Guide, crowner rear discharge	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

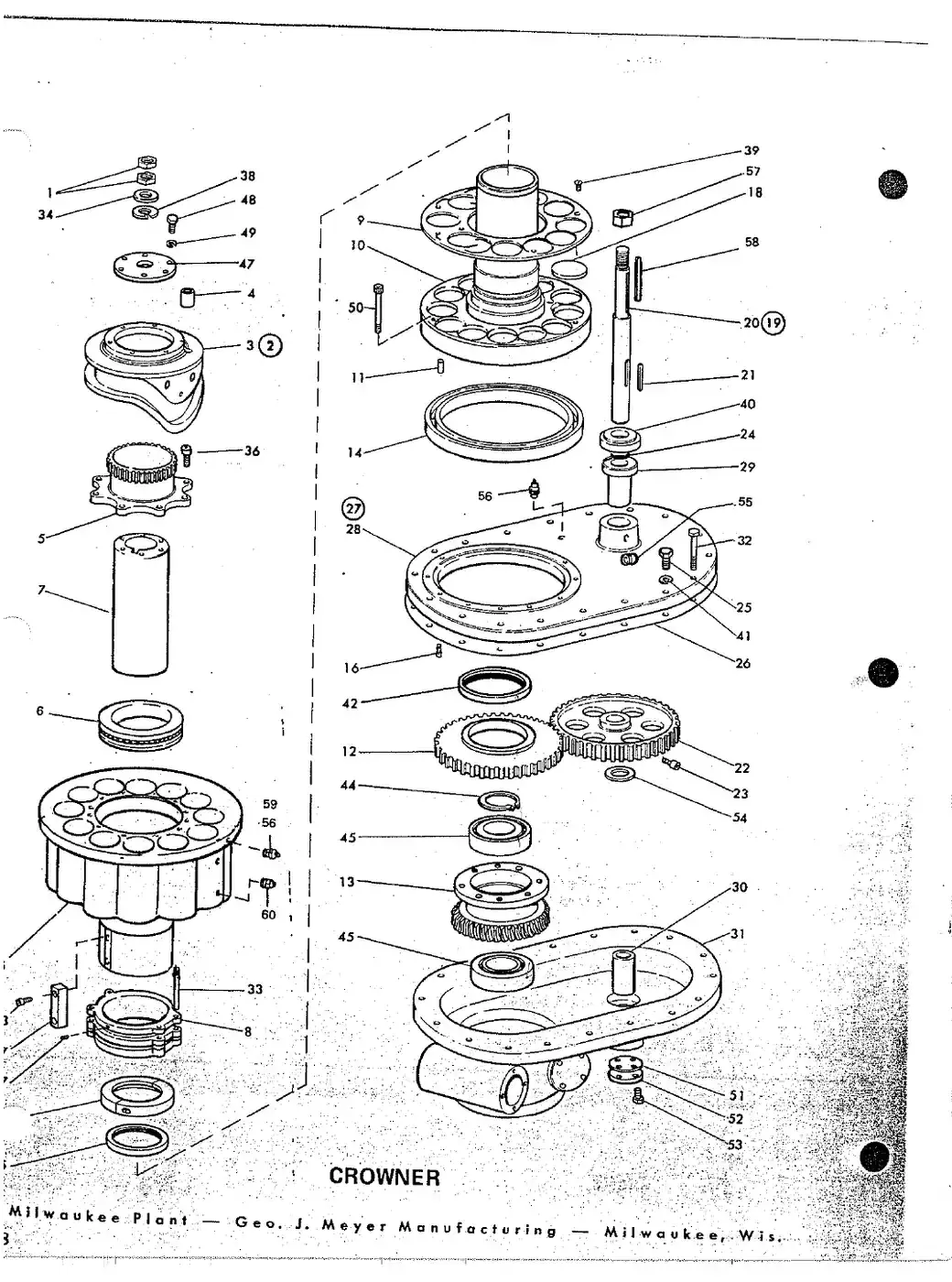

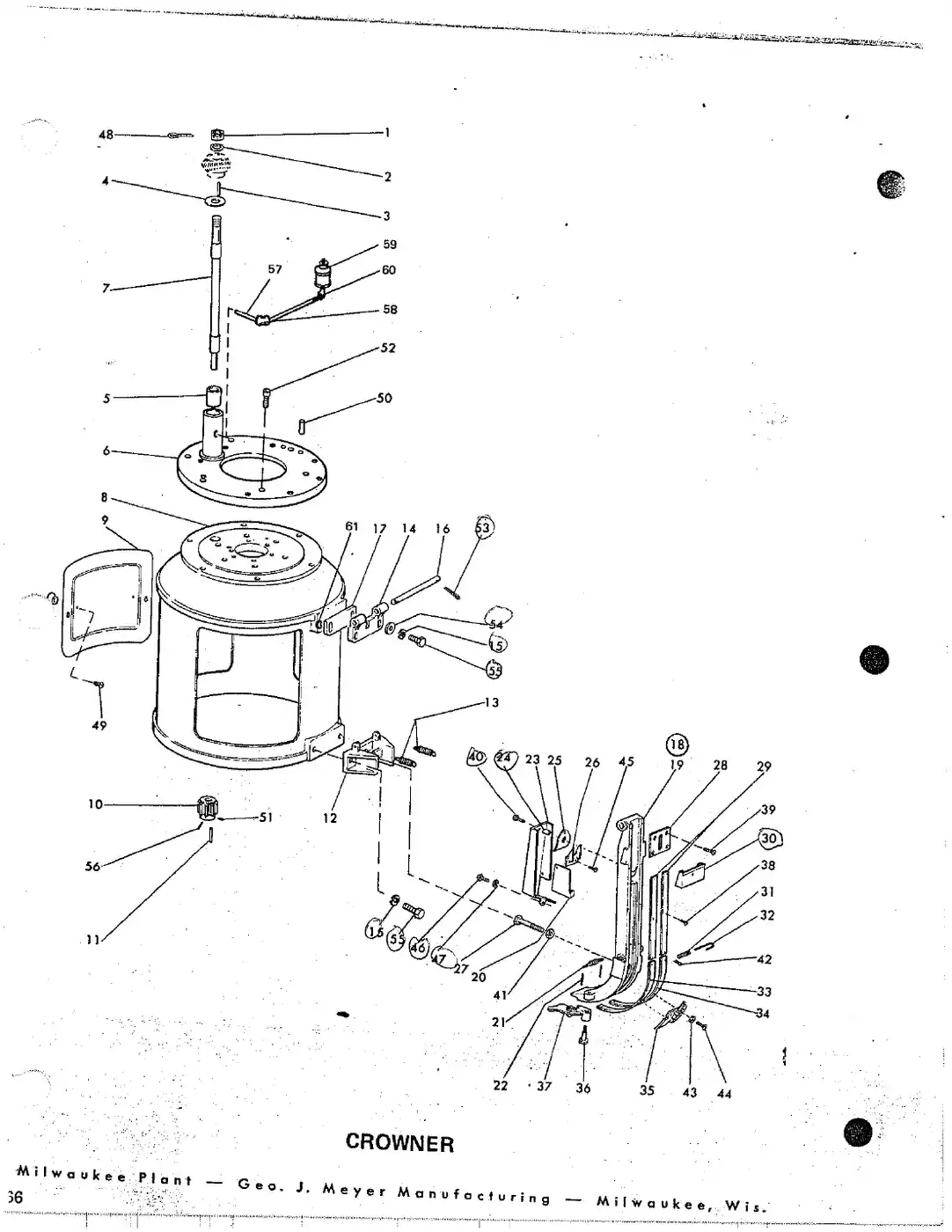

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	102-00271020027	Bolt, hex head	Request
2	102-03801020380	Washer, lock	Request
19	100-7880	Bearing	Ask us
3	102-0321	Nut, hex 375-16	Ask us
20	100-0296	Sprocket tooth	Ask us
4	130-1780	Handwheel	Ask us
21	102-0319	Nut, hex 250-20	Ask us
5	904-1668	Tachometer	Ask us
22	102-0838	Lockwasher, external tooth	Ask us
6	102-0243	Screw, round head	Ask us
7	102-03871020387	Washer, lock	Request
25	100-32171003217	Pin, roll	Request
10	102-1007	Bolt, hex head 750-101	Ask us
12	102-03901020390	Washer, lock	Request
28	130-21651302165	Sprocket, worm drive crowner gearbox	Request
30	132-3979	Sprocket, main drive	Ask us
31	100-3736	Lockwasher, external tooth	Ask us
33	132-8582	Spacer	Ask us
18	100-37671003767	Bearing, ball drive shaft	Request
14	102-13621021362	Screw, socket head cap	Request
15	100-08041000804	Seal, oil	Request
2	000-16280001628	Key, square	Request
3	102-10291021029	Key, belt drive conversion	Request
18	100-7198	Clutch, fawick type	Ask us
5	102-0478	Screw, set	Ask us
20	100-08711000871	Plug, pipe	Request
6	102-00761020076	Bolt, hex head	Request
21	101-0081	Fitting, grease relief	Ask us
7	102-03881020388	Washer, lock	Request
22	100-09231000923	Fitting, tube	Request
8	102-03331020333	Nut, hex	Request
23	102-02941020294	Screw, round head slot	Request
9	100-08721000872	Plug, pipe square head	Request

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
21	902-4366	Tensioner, star drive	Ask us
22	HH-3109	Bracket, chain tensioner	Ask us
23	102-1681	Nut, jam	Ask us
24	102-0765	Screw, square head set	Ask us
25	HH-1465	Stud	Ask us
26	102-0373	Washer	Ask us
5	102-0545	Bolt, carriage drive assembly	Ask us
6	102-0379	Lockwasher	Ask us
7	102-03341020334	Nut, hex	Request
8	102-03891020389	Washer, lock	Request
29	HH-1215	Support, chain tensioner	Ask us
9	102-00961020096	Bolt, hex head	Request
30	102-1494	Bolt, carriage	Ask us
31	902-4354	Tensioner, conveyor	Ask us
32	132-1954	Shoe, chain tensioner	Ask us
88	HH-2307	Bracket, takeup support	Ask us
15	102-04171020417	Washer, flat	Request
16	132-19551321955	Shoe, chain takeup	Request
17	102-16521021652	Bolt, carriage	Request
36	DFC-662	Bracket, takeup	Ask us
0	102-00891020089	Bolt, hex head	Request
37	131-9205	Bracket, chain tensioner	Ask us
38	102-0974	Screw, hex head -lllixl	Ask us
4	100-0295	Chain, roller	Ask us
5	100-37571003757	Link, connecting three str	Request
6	100-32891003289	Link, connecting single strand	Request
1	100-37561003756	Chain, three strand	Request
2	100-0648	Chain, roller	Ask us
8	100-6241	Link, connecting	Ask us
3	100-5164	Chain, roller	Ask us
1	902-8098	Brake-assembly ine	Ask us
15	HH-6354HH6354	Gear, pinion drive	Request
16	101-1098	Drum, brake	Ask us
17	100-8901	Valve, quick release	Ask us
18	100-1951	Brake element assembly	Ask us
3	902-8264	Bearing, drive pinion	Ask us
19	902-8110	Support, brake assembly	Ask us
5	HH-7318HH7318	Bushing, shaft drive horiz & vert	Request
21	100-27621002762	Ring, retaining	Request
6	HH-7319HH7319	Bushing, shaft drive horiz & vert	Request
22	100-27631002763	Seal, oil shaft	Request
7	100-2106	Plug pipe pt bushing	Ask us
24	131-0868	Gasket	Ask us
26	102-03871020387	Washer, lock	Request
27	102-00661020066	Bolt, hex head	Request
12	DFC-611DFC611	Washer, pinion thrust	Request
28	100-4762	Fitting, grease relief	Ask us
29	HH-1335HH1335	Nut, pinion drive	Request
14	102-1355	Key, square	Ask us
380	102-05411020541	Pin, cotter	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
23	902-2429	Bracket, inner explosion	Ask us
2	902-3210	Guard, inner explosion	Ask us
3	902-3211	Guard, inner explosion grippers and without explosion	Ask us
4	102-04151020415	Washer, flat	Request
5	102-04181020418	Washer, flat	Request
24	HH-5293	Bracket, inner guard	Ask us
6	102-2167	Screw, hex head 500-13 assembly	Ask us
7	102-02951020295	Screw, round head slot	Request
8	902-3216	Guard, explosion	Ask us
25	HH-2270	Guard, inner explosion	Ask us
25	902-3217	Guard, explosion	Ask us
25	902-3218	Guard, explosion	Ask us
26	HH-2272	Stiffener, inner guard	Ask us
9	102-03891020389	Washer, lock	Request
10	102-0365	Nut, hex stainless 375-16	Ask us
27	102-0290	Screw, round head 190-24	Ask us
28	102-03861020386	Washer, lock	Request
12	102-0865	Nut, hex 375-16	Ask us
29	102-05531020553	Nut, hex	Request
18	902-3387	Guard, outer	Ask us
30	102-05971020597	Screw, socket head cap	Request
31	902-3394	Guard, upper front exp	Ask us
33	902-1918	Guard, stiffener outer	Ask us
85	131-6692	Strip, backup eee	Ask us
36	102-0288	Screw, round head stainless	Ask us
89	102-04141020414	Washer, flat	Request

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
14	904-1536	Lubricator	Ask us
15	100-1491	Bushing	Ask us
16	100-08561000856	Elbow	Request
1	100-9881	Lubricator, oil fog	Ask us
17	000-3386	Hose	Ask us
2	101-0166	Valve, control needle	Ask us
18	100-08921000892	Nipple	Request
3	101-0104	Elbow, male conn	Ask us
19	101-0109	Coupling, hose	Ask us
4	100-3110	Tee	Ask us
20	100-1490	Bushing	Ask us
5	000-1760	Tubing, hopper	Ask us
21	9004249900-4249	Hose assembly	Ask us
22	100-0893	Nipple, close	Ask us
6	100-08901000890	Nipple	Request
23	100-08571000857	Elbow	Request
7	100-1443	Pipe, bras	Ask us
25	102-03321020332	Nut, hex	Request
9	100-0195	Nozzle, male vee jet	Ask us
26	904-0529	Bracket	Ask us
10	100-09251000925	Fitting, tube adapter bras	Request
27	102-01001020100	Bolt, hex head	Request
11	100-08801000880	Tee, pipe	Request
28	100-3078	Clamp	Ask us
12	100-0889	Nipple, bras	Ask us
29	102-03901020390	Washer, lock	Request
13	100-9235	Clamp	Ask us

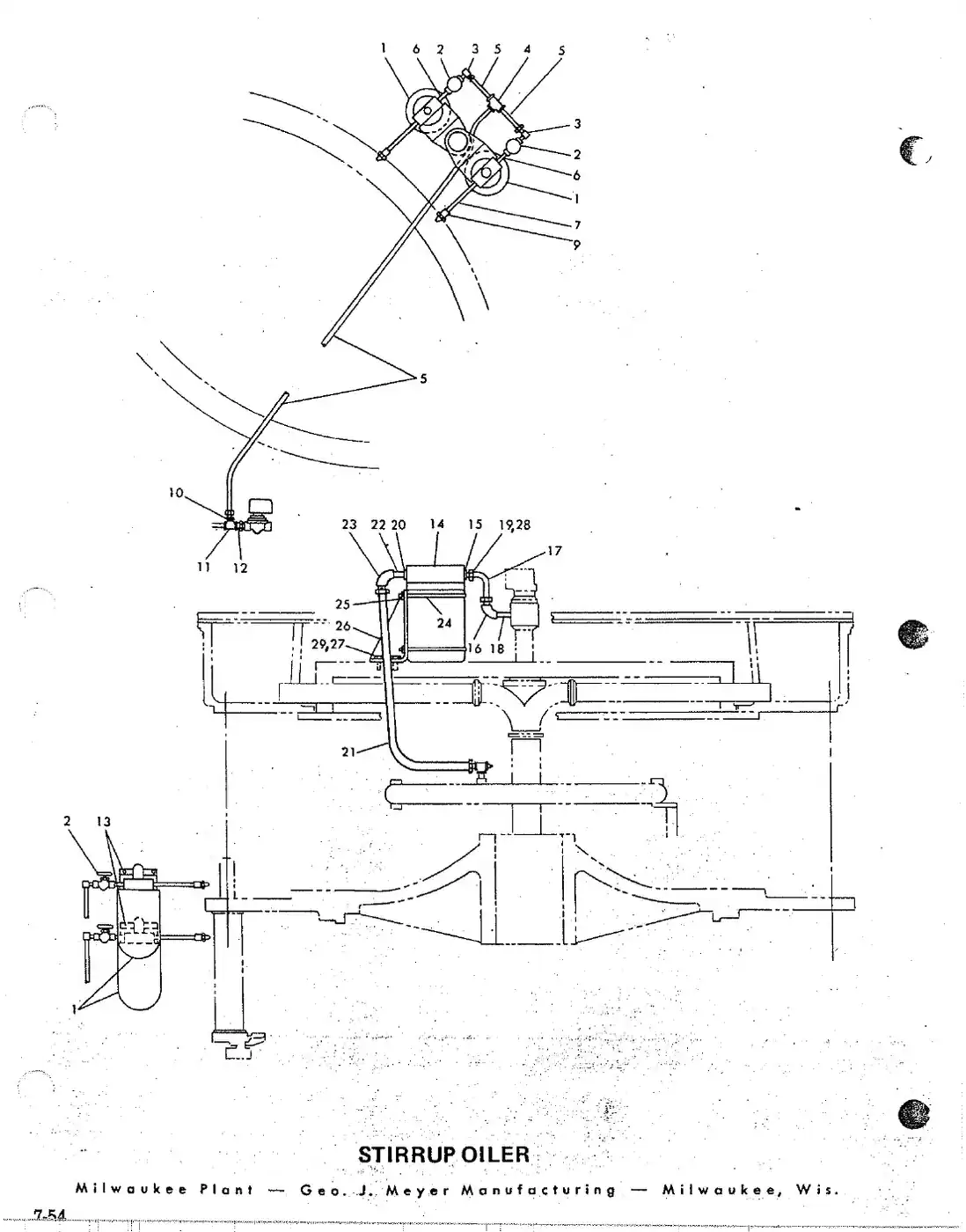

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
19	100-0929	Connector, male tube	Ask us
20	100-4736	Connector, female	Ask us
21	902-1758	Support overhead piping	Ask us
1	100-6178	Joint, passage	Ask us
22	100-8919	Elbow	Ask us
2	102-00931020093	Bolt, hex head	Request
23	100-31421003142-1	Filter, housing	Request
3	102-03891020389	Washer, lock	Request
24	100-61121006112	Nipple	Request
4	100-29651002965	Regulator, pressure pilot	Request
25	100-54921005492	Tee	Request
5	130-6290	Plate, mounting	Ask us
6	100-46181004618	Gauge, pressure	Request
27	100-9326	Reducer, pipe	Ask us
7	000-1769	Tubing, round specify length	Ask us
28	100-4735	Connector, hose	Ask us
8	100-4830	Valve, globe	Ask us
29	000-2831	Hose	Ask us
9	100-1470	Elbow, comp	Ask us
10	100-5739	Bushing	Ask us
31	HH-167HH167	Valve, clean out assembly	Request
11	100-49091004909	Union	Request
12	100-5727	Elbow	Ask us
13	100-8906	Bushing	Ask us
33	RR-88RR88	Nut, snift valve	Request
14	102-00801020080	Bolt, hex head	Request
34	HH-7503HH7503	Spring, snift valve	Request
15	102-03881020388	Washer, lock	Request
35	RR-115RR115	Valve, body clean out-sell HH3486	Request
16	102-03331020333	Nut, hex	Request
36	100-61111006111	Nipple, close	Request
37	100-08821000882	Tee	Request
18	000-0807	Pipe, std ips specify length	Ask us
38	100-09271000927	Fitting, tube adapter	Request
39	HH-8690HH8690	Bracket, diaphragm valve-mount	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
39	100-47101004710	Regulator, air	Request
40	100-0893	Nipple, close npt	Ask us
41	100-1490	Bushing, npt	Ask us
42	100-2850	Valve, check npt	Ask us
1	100-3141	Filter, air	Ask us
43	100-1491	Bushing, pt	Ask us
2	100-14371001437	Bushing, reducing hex	Request
44	900-7844	Valve, stirrup air control	Ask us
3	100-08921000892	Nipple	Request
45	100-14841001484	Elbow, street	Request
4	100-2747	Elbow, union npt	Ask us
46	100-2928	Cock, air npt	Ask us
47	100-08811000881	Tee	Request
6	100-08561000856	Elbow, npt	Request
48	100-21551002155	Union, pipe	Request
7	100-09001000900	Nipple	Request
49	100-2875	Tee, union run npt	Ask us
8	100-47091004709	Regulator	Request
50	100-21561002156	Union, brz npt	Request
9	100-1477	Compact, fitting ell npt	Ask us
51	100-2731	Pipe, nipple	Ask us
52	100-8663	Valve, adj relief npt	Ask us
10	000-1846	Tube, spec lgth	Ask us
53	100-09031000903	Nipple	Request
11	100-0935	Conn fit npt	Ask us
54	100-14351001435	Bushing, reducing hex	Request
12	100-08831000883	Tee	Request
55	101-2303	Regulator, 2-125 npt	Ask us
13	100-1467	Conn, fit ptx	Ask us
56	100-1639	Union, tube	Ask us
14	000-1760	Tube, ood spec lgth	Ask us
57	100-8929	Valve, flow control	Ask us
58	100-1636	Union, tube tube	Ask us
59	100-5317	Coupling, hose	Ask us
60	100-5498	Clamp, hose	Ask us
18	100-3387	Gauge, press	Ask us
61	000-2902	Hose, rubber ood	Ask us
19	102-1986	Screw, rdhd	Ask us
62	100-2979	Elbow, street npt	Ask us
20	100-80001008000	Nameplate, co	Request
63	100-54901005490	Tee	Request
21	100-79991007999	Nameplate, lift cylinders	Request
65	131-91161319116	Fitting, tube male br	Request
23	100-1436	Bushing, pt	Ask us
66	000-17510001751	Tubing	Request
24	100-09251000925	Fitting, tube adapter bras	Request
67	100-09231000923	Fitting, tube	Request
25	HH-1046	Adapter, grease line tube	Ask us
26	131-14181311418	Air cock	Request
68	131-0847	Conn fit, pt	Ask us
27	100-3629	Nipple, tube	Ask us
28	100-2748	Union, ell brz npt	Ask us
69	100-14421001442	Nipple, pipe	Request
29	000-0818	Pipe, npt spec lgth	Ask us
70	100-14411001441	Nipple, pipe	Request
30	100-08571000857	Elbow	Request
31	131-2149	Bracket	Ask us
71	100-14401001440	Nipple	Request
32	100-0357	Clamp, union	Ask us
33	102-00661020066	Bolt, hex head	Request
73	100-1482	Elbow, street brz	Ask us
74	100-14341001434	Bushing, reducing hex	Request
34	100-08841000884	Tee	Request
35	100-1439	Bushing, pt	Ask us
76	101-0110	Valve, flow control npt	Ask us
3B	100-09261000926	Fitting, tube adapter	Request
77	100-80011008001	Nameplate, opener red	Request
78	100-8002	Plate, name-drive	Ask us
78	100-2966	Regulator, air	Ask us

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
4	100-0935	Connector, male eae	Ask us
5	000-1846	Tubing, hopper	Ask us
7	100-08831000883	Tee	Request
8	100-08741000874	Plug, pipe square. head	Request
3	100-08561000856	Elbow	Request
9	100-0901	Nipple bee	Ask us

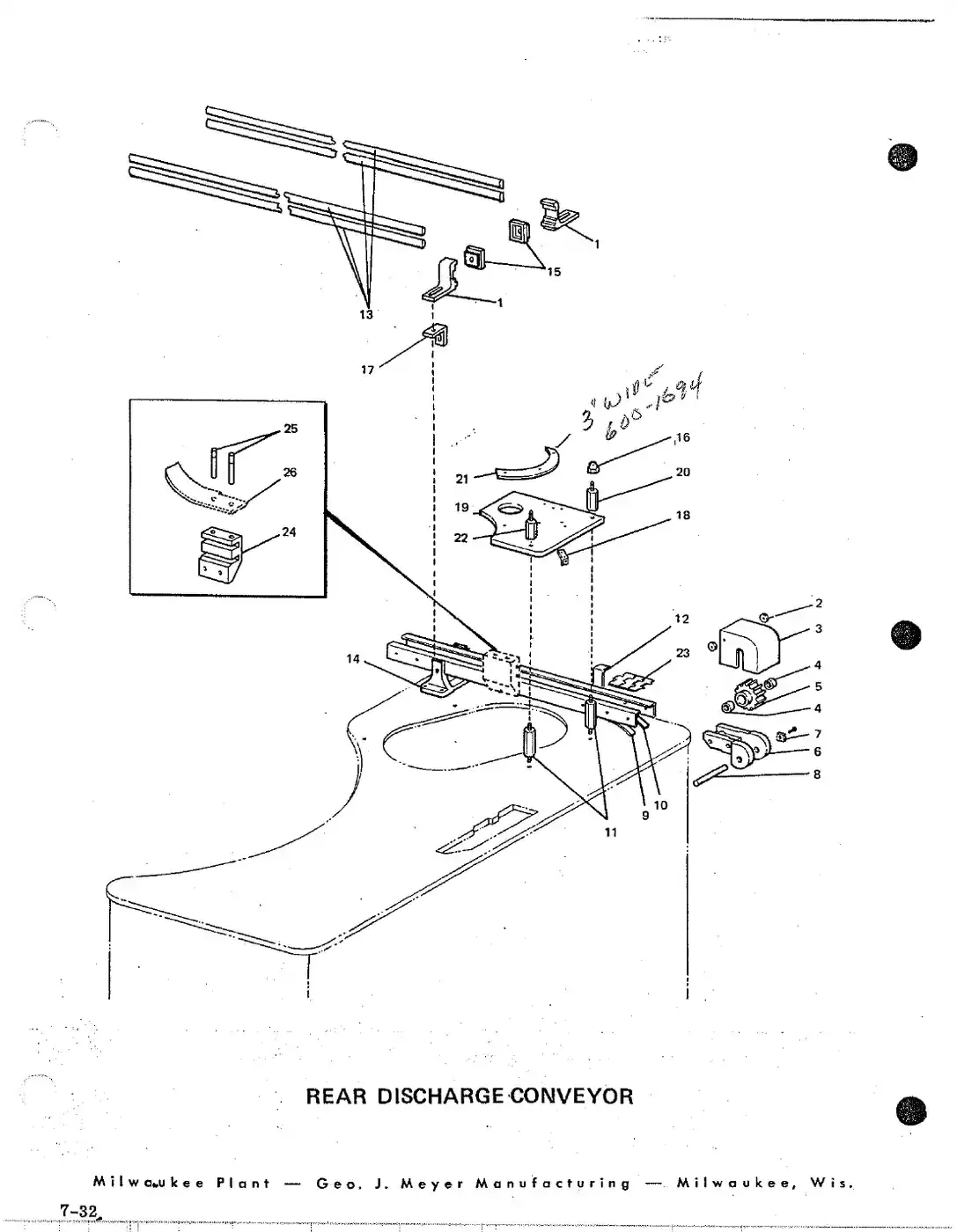

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
10	131-1718	Clip, guide rail	Ask us
1	102-00671020067	Bolt, hex head	Request
14	102-01731020173	Screw, flat head slot	Request
2	102-0363	Nut, hex	Ask us
15	102-0179	Screw, flat head	Ask us
3	131-3409	Bracket, mounting	Ask us
16	102-04151020415	Washer, flat	Request
5	102-03851020385	Washer, lock	Request
6	102-02781020278	Screw, round head slot	Request
19	102-00681020068	Bolt, hex head	Request
7	102-05521020552	Nut, hex machine	Request
20	102-03871020387	Washer, lock	Request
8	131-3401	Shoe	Ask us
21	102-02791020279	Screw, pan head phillips mach	Request
22	102-0284	Screw, round head	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
35	HH-4113	Baffle, rake	Ask us
1	902-0107	Disc crown selector insert, selector	Ask us
38	100-71711007171	Bearing, outer	Request
39	131-1106	Bracket	Ask us
2	DFC-36DFC36	Disc, driving	Request
40	100-71721007172	Bearing, needle roller	Request
3	000-3151	Wire	Ask us
41	100-72521007252	Felt, seal	Request
4	102-03321020332	Nut, hex	Request
42	131-1243	Washer, thrust	Ask us
5	102-03871020387	Washer, lock	Request
43	CL-490CL490	Plate, clutch	Request
44	CL-502CL502	Hopper shaft gear bushing	Request
45	LC-167	Gear, hopper bevel	Ask us
46	CL-117CL117	Retaining washer	Request
9	900-4682	Disc and handwheel, stud	Ask us
49	900-0154	Cover, hopper gear	Ask us
50	CL-528	Pinion, crowner bevel	Ask us
10	900-54209005420	Agitator, Crown assembly	Request
51	100-47661004766	Fitting, grease straight ptf	Request
52	CL-227	Nut, selector disc adj	Ask us
2	CL-124	Angle, agitator	Ask us
53	CL-104	Nut, selector dis adj	Ask us
54	102-08961020896	Nut, hex jam	Request
144	CL-265CL265	Spring	Request
55	102-17991021799	Bolt, hex head	Request
56	LC-71LC71	Rear Crown selector	Request
15	CL-109CL109	Spring, agitator hand	Request
16	HH-3937HH3937	Washer, spring agitator	Request
57	CL-150CL150	Selector disc insert	Request
17	HH-865	Ratchet, tooth	Ask us
58	102-07941020794	Screw, socket head cap	Request
59	102-01781020178	Screw, flat head slot	Request
19	900-4681	Disc, crown selector	Ask us
60	102-07951020795	Screw, fillister hd	Request
61	102-12401021240	Pin, taper #4	Request
62	HH-1046	Adapter	Ask us
21	100-23631002363	Bearing	Request
63	000-16280001628	Key, square	Request
64	102-01831020183	Screw, flat head slot	Request
24	102-07971020797	Screw, round head	Request
67	102-01011020101	Bolt, hex head	Request
25	102-0798	Washer, lock	Ask us
68	102-01911020191	Screw, flat head slot	Request
69	102-02941020294	Screw, round head slot	Request
27	900-7698	Shaft, selector disc	Ask us
29	CL-517	Disc clutch	Ask us
73	HH-859HH859	Holder, spring	Request
14	100-55801005580	Elbow, compression tube	Request
76	102-04661020466	Screw, set socket cup point	Request
77	102-02851020285	Screw, round head slot	Request
2	102-2054	Washer, bevel pinion jet assembly	Ask us
38	102-02861020286	Screw, round head slot	Request
6	900-0020	Bracket, crown hopper 190-24	Ask us
39	102-01821020182	Screw, flat head slot	Request
7	130-0079	Shaft, hopper drive	Ask us
40	102-0289	Screw, round head	Ask us
9	900-0342	Door	Ask us
41	102-13941021394	Nut, hex finished	Request
42	102-05621020562	Pin, cotter	Request
43	102-14601021460	Nut, hex	Request
45	102-2961	Screw, flat head	Ask us
15	102-14431021443	Washer, lock	Request
46	102-02871020287	Screw, phillips hd	Request
47	102-03861020386	Washer, lock	Request
48	102-0667	Pin, cotter	Ask us
49	102-02951020295	Screw, round head slot	Request
50	102-1445	—	Ask us
51	102-04251020425	Set screw	Request
52	102-15171021517	Screw, socket head cap	Request
53	102-13841021384	Pin, cotter	Request
54	CL-102CL102	Washer, flat	Request
55	102-1492	Bolt hex head osoas	Ask us
56	102-10931021093	Pin, taper	Request
57	100-1748	Nipple, pipe	Ask us
58	100-0807	Elbow	Ask us
0	100-17521001752	Nipple	Request
61	100-34821003482	O-ring	Request
1	900-0860	Crank, crowning-assembly	Ask us
25	HH-1342	Flange, crowner crank	Ask us
2	102-09541020954	Key	Request
27	902-2766	Drive, worm gear assembly	Ask us
4	132-4305	Key, pedestal	Ask us
33	100-98891009889	Seal, oil	Request
34	HH-2107	Pin, crankshaft	Ask us
37	102-00891020089	Bolt, hex head	Request
38	100-98901009890	Bearing	Request
138	902-8236	Crank, crowner assembly	Ask us
39	102-0449	Screw, socket head set	Ask us
40	102-1815	Screw, hex head	Ask us
14	DFC-1322	Bearing, crowner crank	Ask us
41	102-1581	Screw, socket head 250-20	Ask us
16	102-0140	Screw, flat head	Ask us
42	102-18141021814	Screw, cap hex head	Request
17	902-8237	Crankshaft, crowner	Ask us
44	102-0139	Screw, flat head	Ask us
19	102-0438	Screw socket head set	Ask us
45	102-0436	Screw, socket head set	Ask us
20	HH-2179	Gasket, rubber	Ask us
21	HH-1147	Spring, crowner crank	Ask us
46	102-03911020391	Washer, lock	Request
22	HH-1101	Collar, spring	Ask us
23	102-05721020572	Pin, taper	Request
48	DFC-675	Handle, crank	Ask us
24	100-2016	O-ring	Ask us
28	130-1563	Cover, worm drive housing	Ask us
34	102-22001022200	Washer, flat	Request
6	101-1937	Bearing, ball	Ask us
85	101-1936	Seal	Ask us
86	102-1136	Screw, socket head	Ask us
37	102-04581020458	Screw, set socket cup point	Request
11	102-1416	Pin, dowel	Ask us
38	102-1564	Washer lock	Ask us
12	132-4351	Gear, crowner star drive	Ask us
41	102-03821020382	Washer, lock	Request
42	101-1945	Oil seal	Ask us
44	100-17361001736	Ring, retaining ext beveled	Request
45	101-1944	Bearing	Ask us
46	132-4315	Oil seal retainer	Ask us
19	900-0158	Shaft and gear, crowner	Ask us
47	132-4316	End cap	Ask us
48	102-1812	Bolt hex head	Ask us
49	102-03901020390	Washer, lock	Request
50	102-2308	Screw, socket head	Ask us
22	130-1559	Gear, crowner star driven cover	Ask us
23	102-0486	Screw, socket head set	Ask us
53	102-1811	Bolt hex head leg	Ask us
24	100-25051002505	O-ring	Request
55	100-1481	Elbow, street	Ask us
25	102-1417	Bolt, hex	Ask us
56	100-6628	Fitting, relief	Ask us
57	102-0949	Nut, hex	Ask us
1	902-5377	Crowning head assembly	Ask us
28	CL-239CL239	Key, Crown throat bracket	Request
80	CL-534CL534	Screw, Crown rest latch	Request
81	102-05961020596	Washer, lock	Request
2	CL-236CL236	Crowning sleeve & bkt ass	Request
33	CL-434CL434	Shim, roller bracket	Request
38	902-5351	Roller bracket assembly	Ask us
34	102-18031021803	Bolt, hex head	Request
85	CL-327CL327	Spacer, Crown throat	Request
7	102-27041022704	Nut, hex jam	Request
8	100-07761000776	Fitting, grease ptf	Request
87	902-39819023981	Crown, rest assembly type 2 12 hd	Request
9	102-25461022546	Washer, lock internal	Request
10	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request
88	131-74061317406	Crown, rest 12 hd qt type 2	Request
13	102-0599	Screw, socket head	Ask us
39	CL-415CL415	Spring, Crown rest	Request
40	100-20151002015	Magnet, Crown rest	Request
14	CL-527CL527	Ring, compensating latch	Request
41	CL-495CL495	Knob, Crown rest	Request
42	CL-380CL380	Latch, Crown rest	Request
43	902-8403	Crown throat ass inc	Ask us
44	CL-564	Spring, crown throat	Ask us
18	102-17811021781	Pin, dowel	Request
45	CL-761	Segment, inner throat	Ask us
19	CL-520CL520	Latch, compensating	Request
20	CL-507CL507	Spring, plunger	Request
21	CL-445CL445	Plunger, crowner type 2	Request
48	902-4790	Mechanism, spring loading	Ask us
22	100-24061002406	O-ring	Request
49	CL-421CL421	Nut, throat retaining	Request
24	CL-446CL446	Bushing, guide	Request
25	HH-5156	Pin, contact	Ask us
53	102-2259	Bolt, hex head	Ask us
26	102-01901020190	Screw, flat head slot	Request
27	102-01921020192	Screw, flat head slot	Request
21	HH-5743	Gasket	Ask us
2	RR-510	Body, snift valve cleaner sleeve	Ask us
3	HH-1846	Gasket	Ask us
4	RR-507RR507	Valve, snift cleaner rev	Request
5	SW-9212	Gasket	Ask us
26	131-2986	Bushing, restrictor	Ask us
6	RR-530	Spring, snift valve cleaner gasket	Ask us
7	RR-509	Plunger, valve	Ask us
28	100-2703	Gun, grease	Ask us
8	RR-508RR508	Nut	Request
9	RR-256	Gasket	Ask us
29	100-7650	Gun	Ask us
30	902-0198	Tool, spool valve	Ask us
12	100-7626	Handle, speed	Ask us
13	100-7672	Socket	Ask us
14	HH-5131	Tool, bottle gripper rem- container mee eer	Ask us
15	900-2861	Valve, washout assembly container one	Ask us
802	100-7553	Myrex drum ene	Ask us
