Meyer parts manual

Meyer Tri-Star filler parts manual

The Tri-Star series covers Meyer's 52, 65 and 78 valve fillers built from the early 1980s, with their own main drive gearing, starwheel shafts and level control.

Search all parts Submit a parts inquiry Call 843-851-3217

47assemblies

1,979part numbers

859in our parts list

52, 65 and 78 valve Tri-Starmodels covered

How to use this manual. Find the assembly, match the reference number on the drawing to the parts list, and request the part. Parts marked Request are in our parts list; for the rest, ask us and we will track them down. Always give your machine model and serial number when ordering.

Drawings and part numbers come from original Geo. J. Meyer parts manuals and our own parts records, shown for identification. Descriptions are simplified. World Packaging is an independent supplier of Meyer filler parts.

Assemblies in this manual

Base and Hanger 16
Cladding & Doors 139
Reservoir RH Assembly 34
Reservoir Cover Fittings 34
System Return Manifold 15
Block Assembly 30

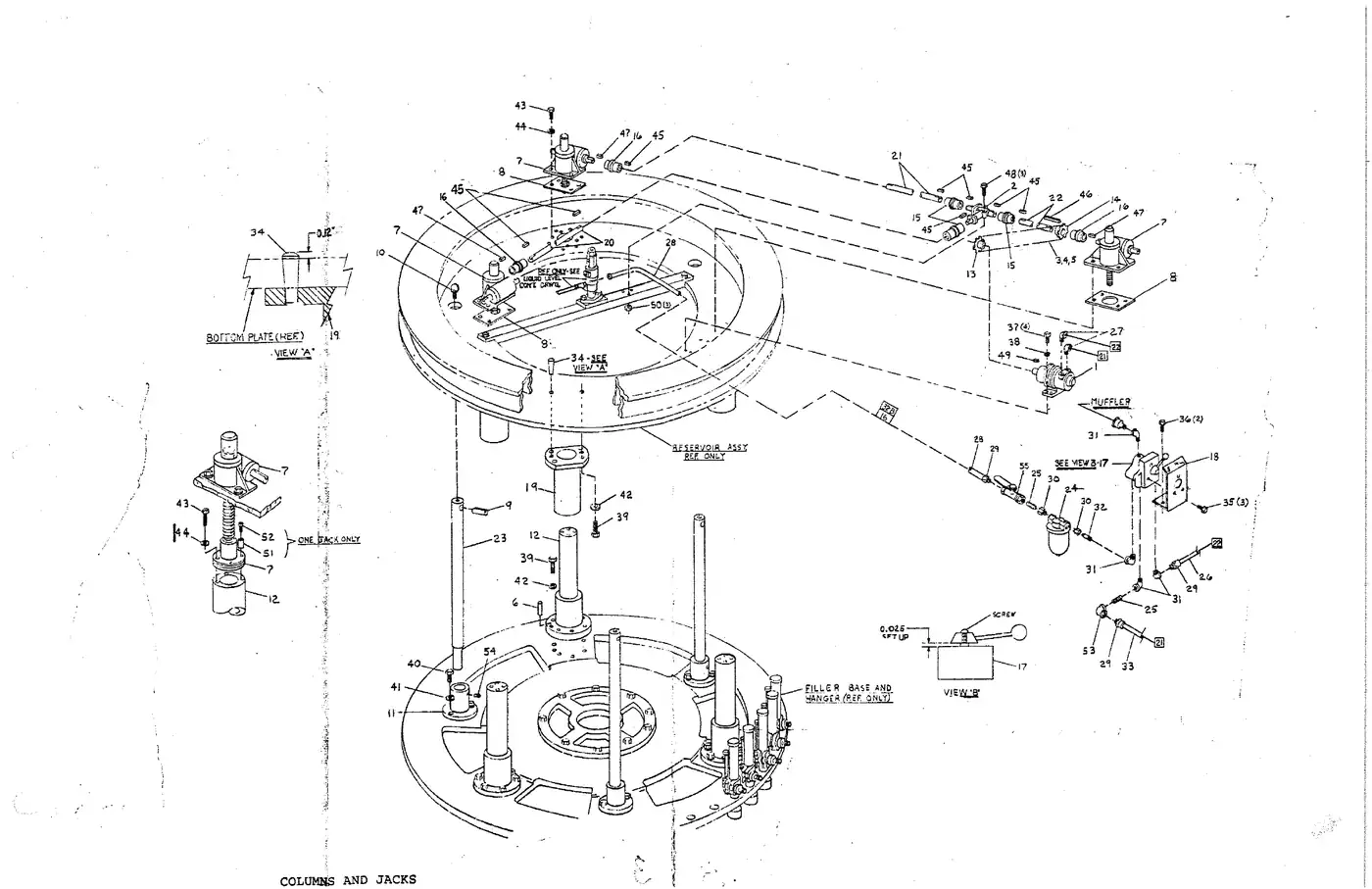

Columns and Jacks 128

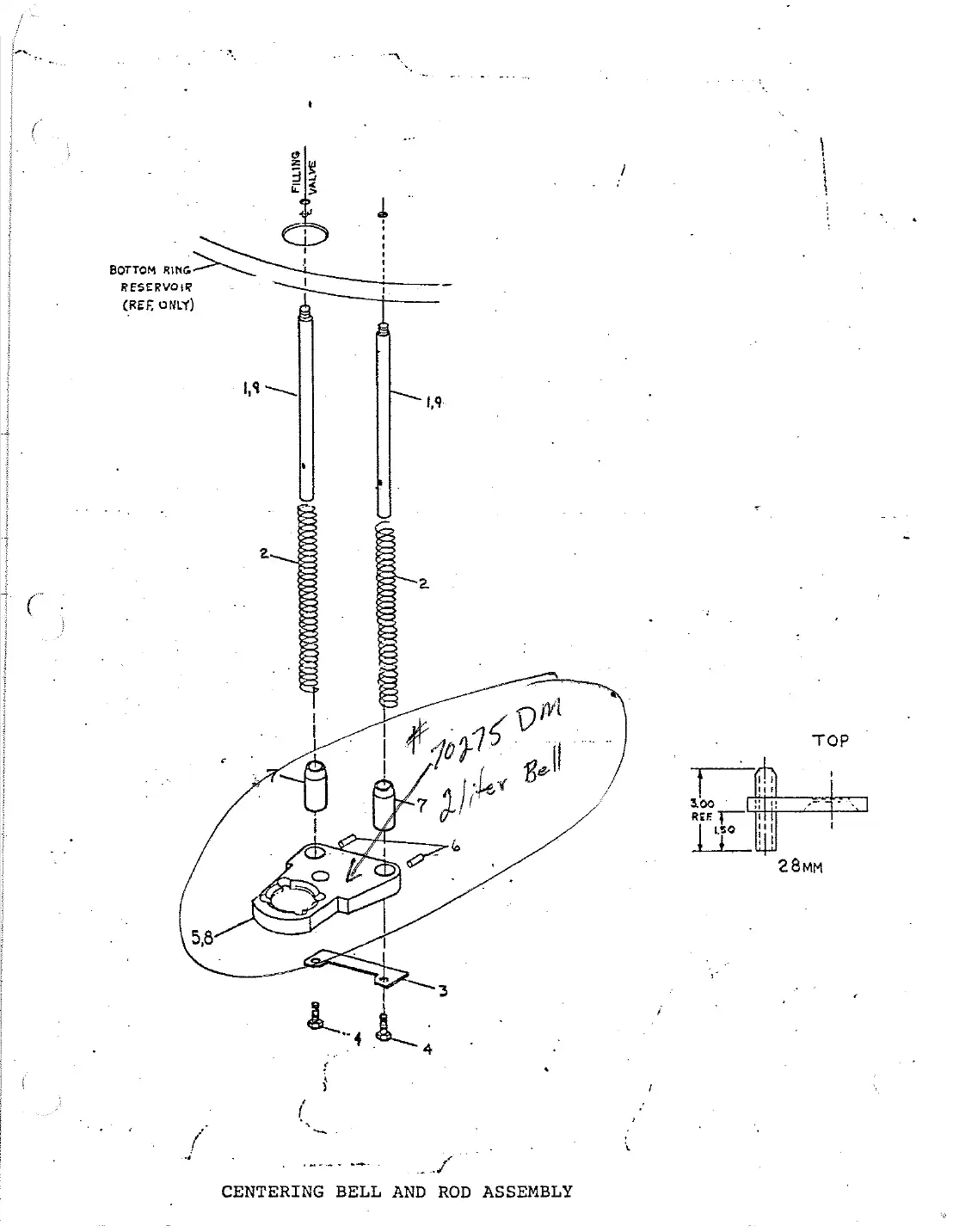

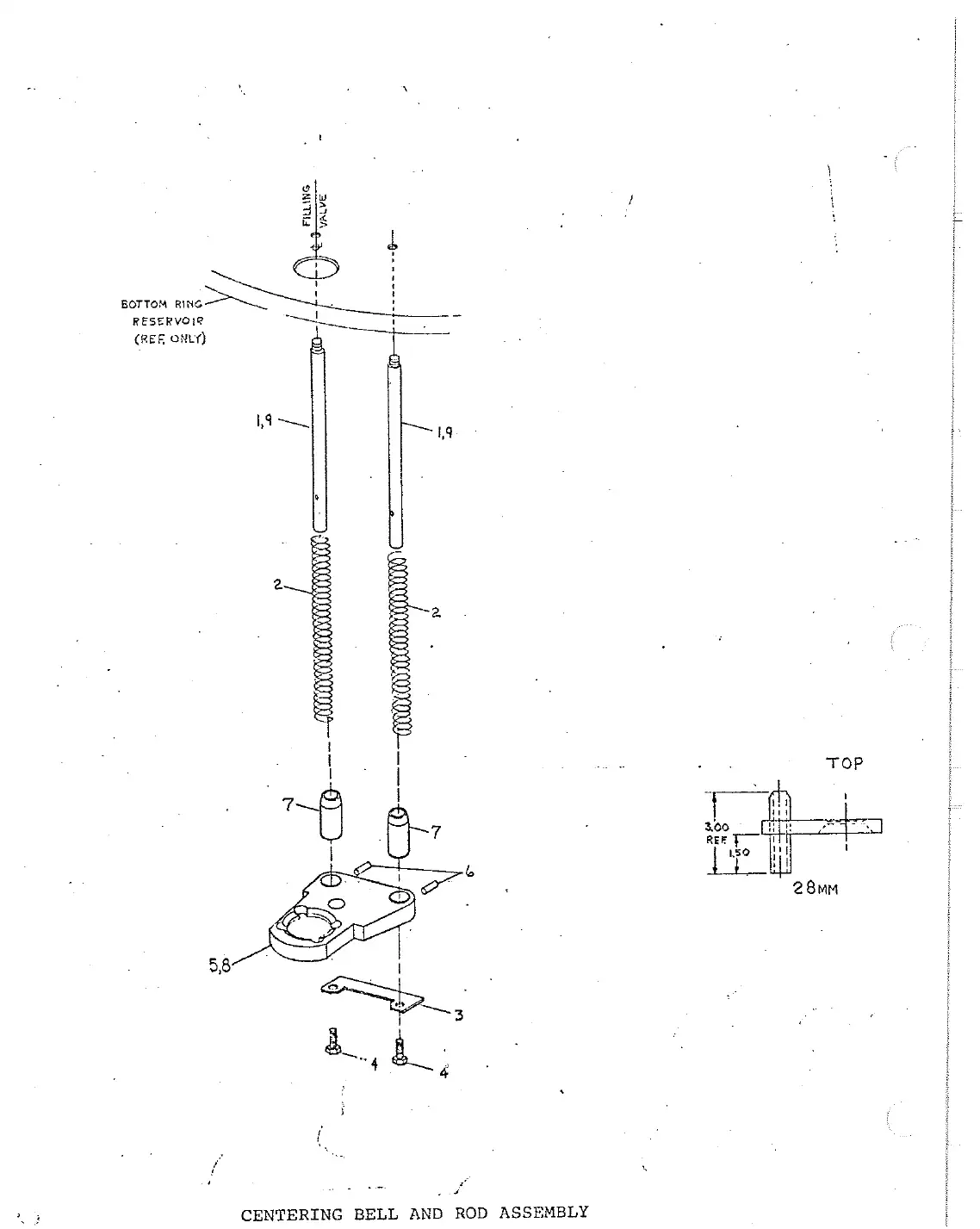

Centering Bell and Rod Assembly 11
Manifold Assembly Airlift 18

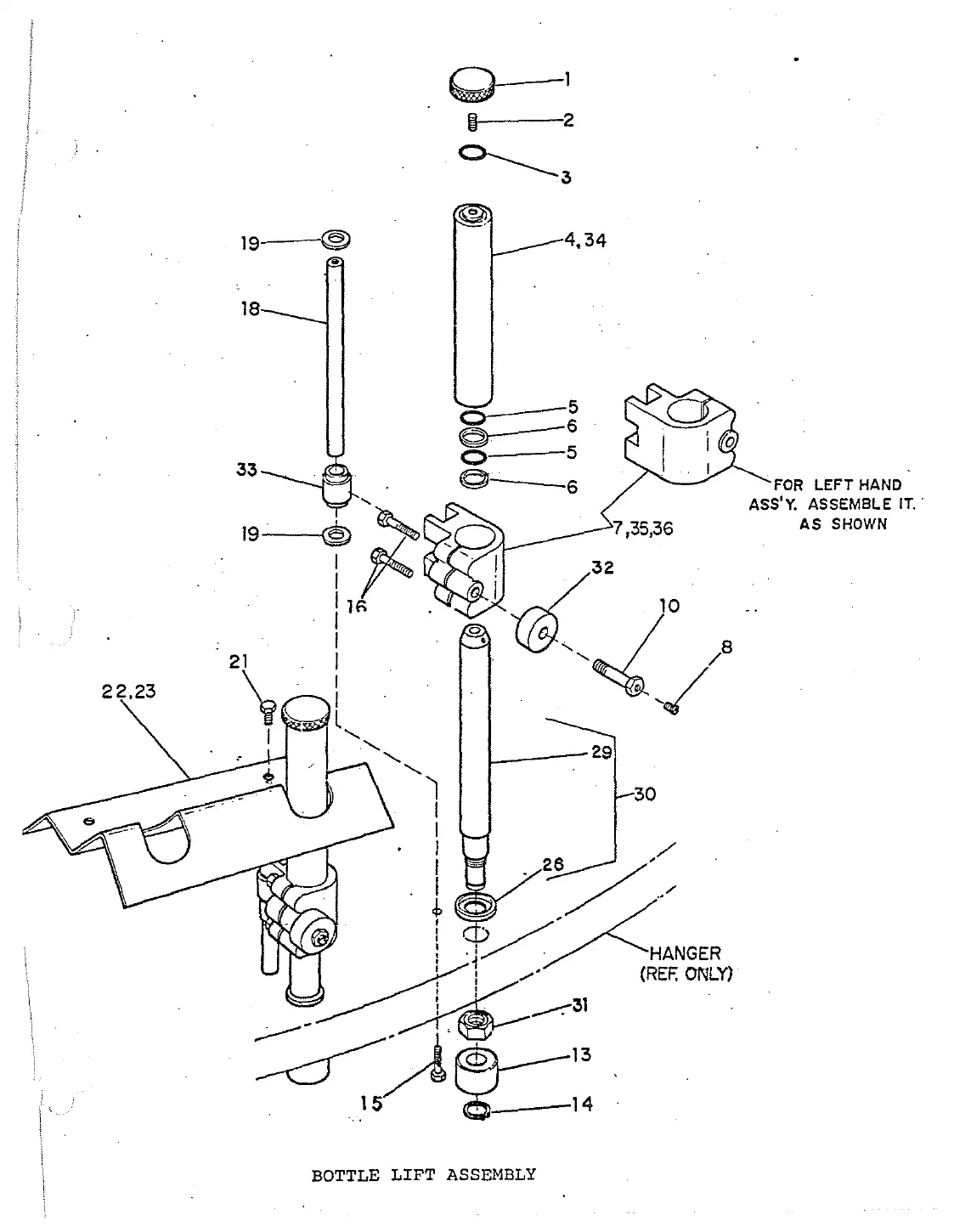

Bottle Lift Assembly 22
Center Column Meyer 48
Stars Shaft Assembly 19
Drive Closer 9
Filler 56

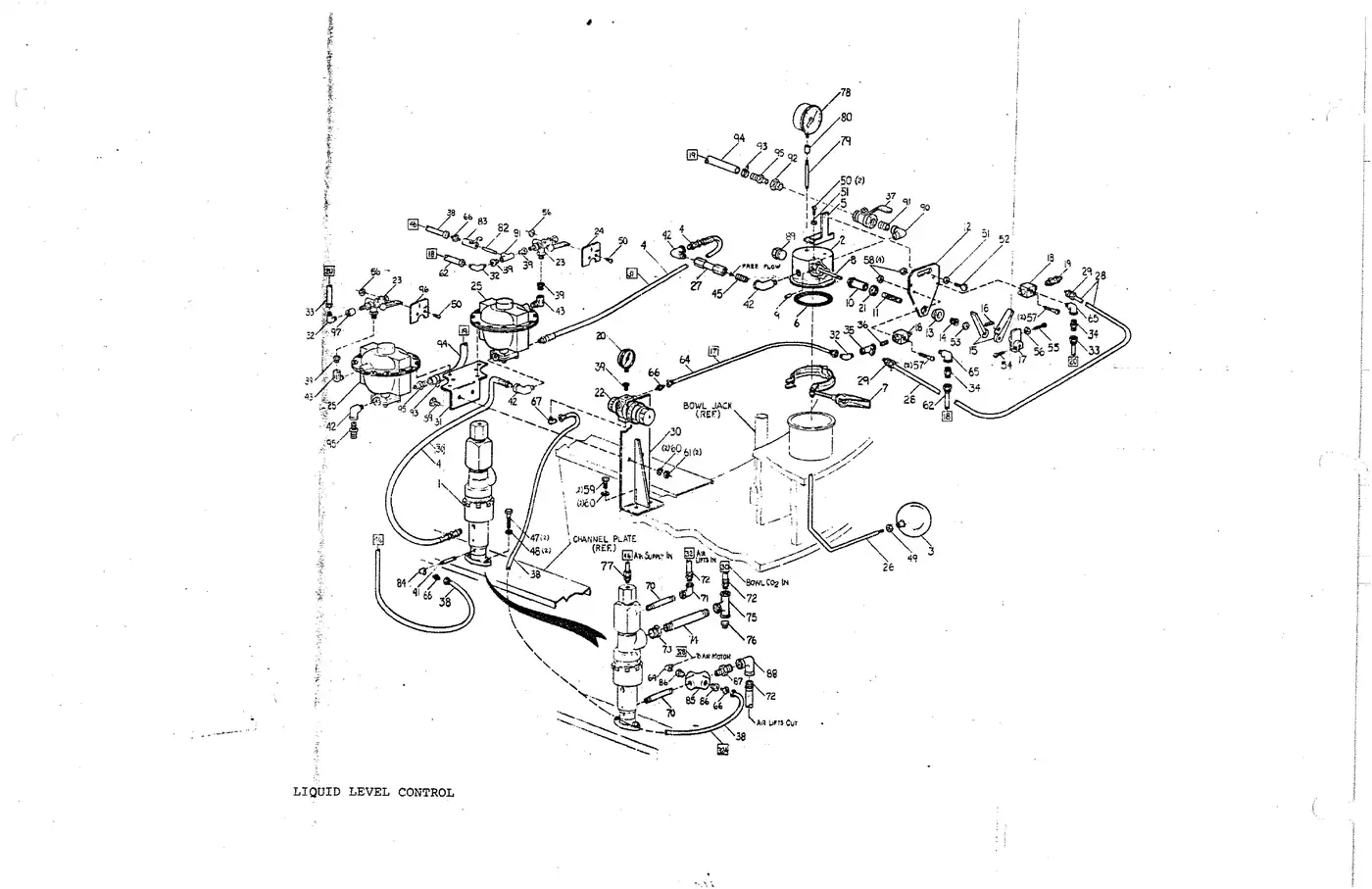

Liquid Level Control 92
Product Line 73
Conveyor W/Rear Discharge 72
Support Attachments 40
Overhead Piping 14
Lower Piping 107
Piston Rod Lubricator 14

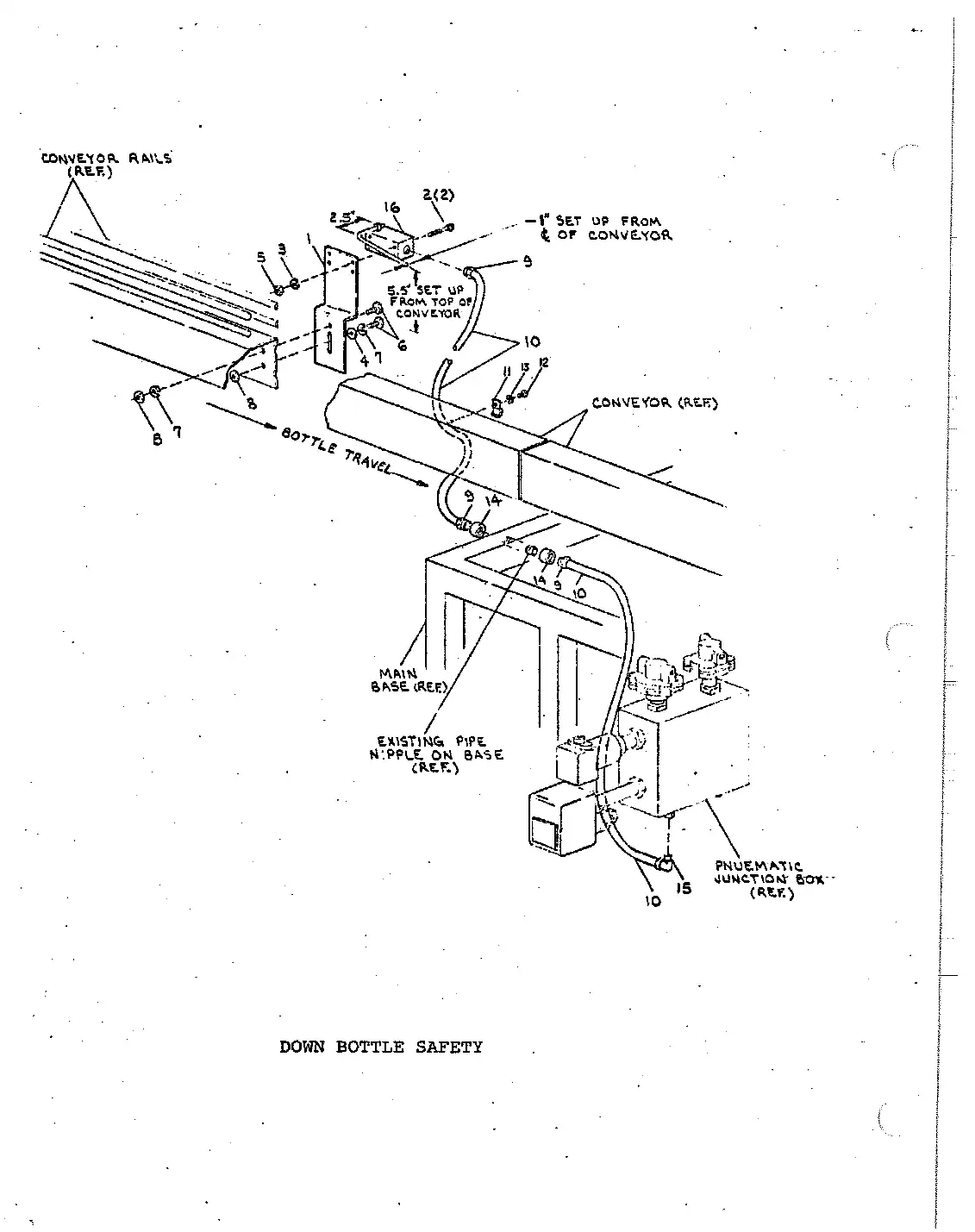

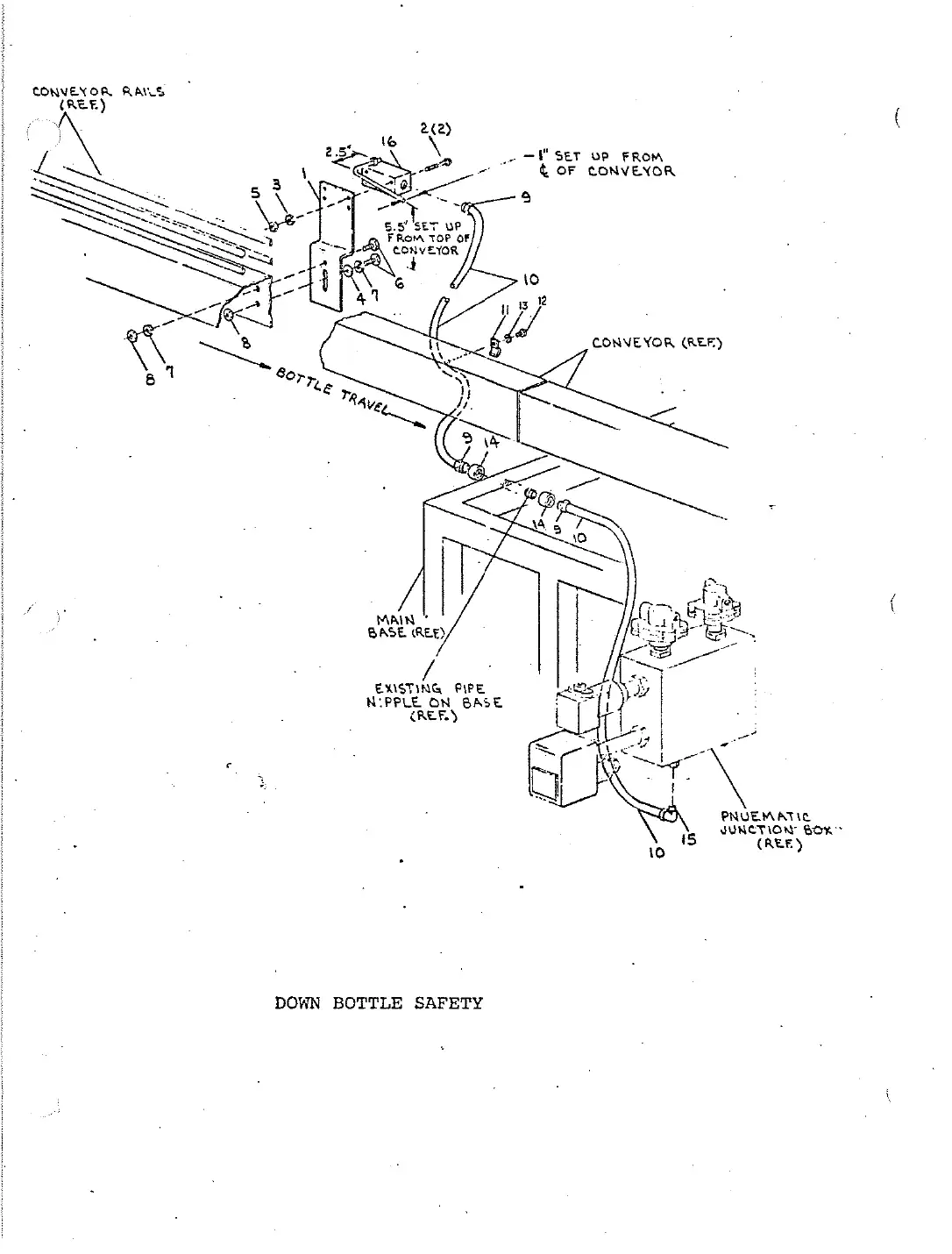

Down Bottle Safety 15
Backup and Switch Table 25
Bottle Stop and Safety Gate 46

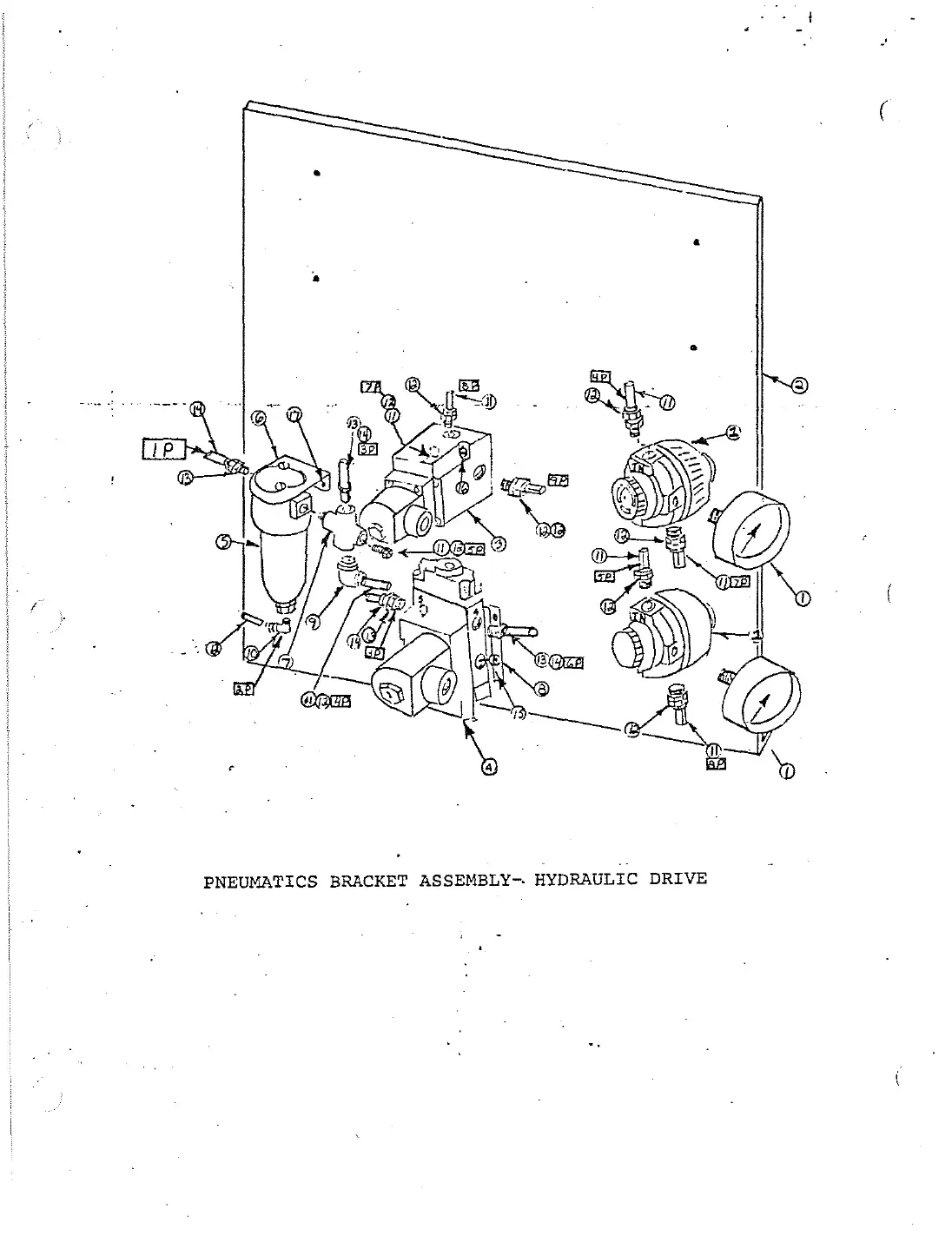

Pneumatics Closer 80
Crown Selector 65
Crowner Turret 51

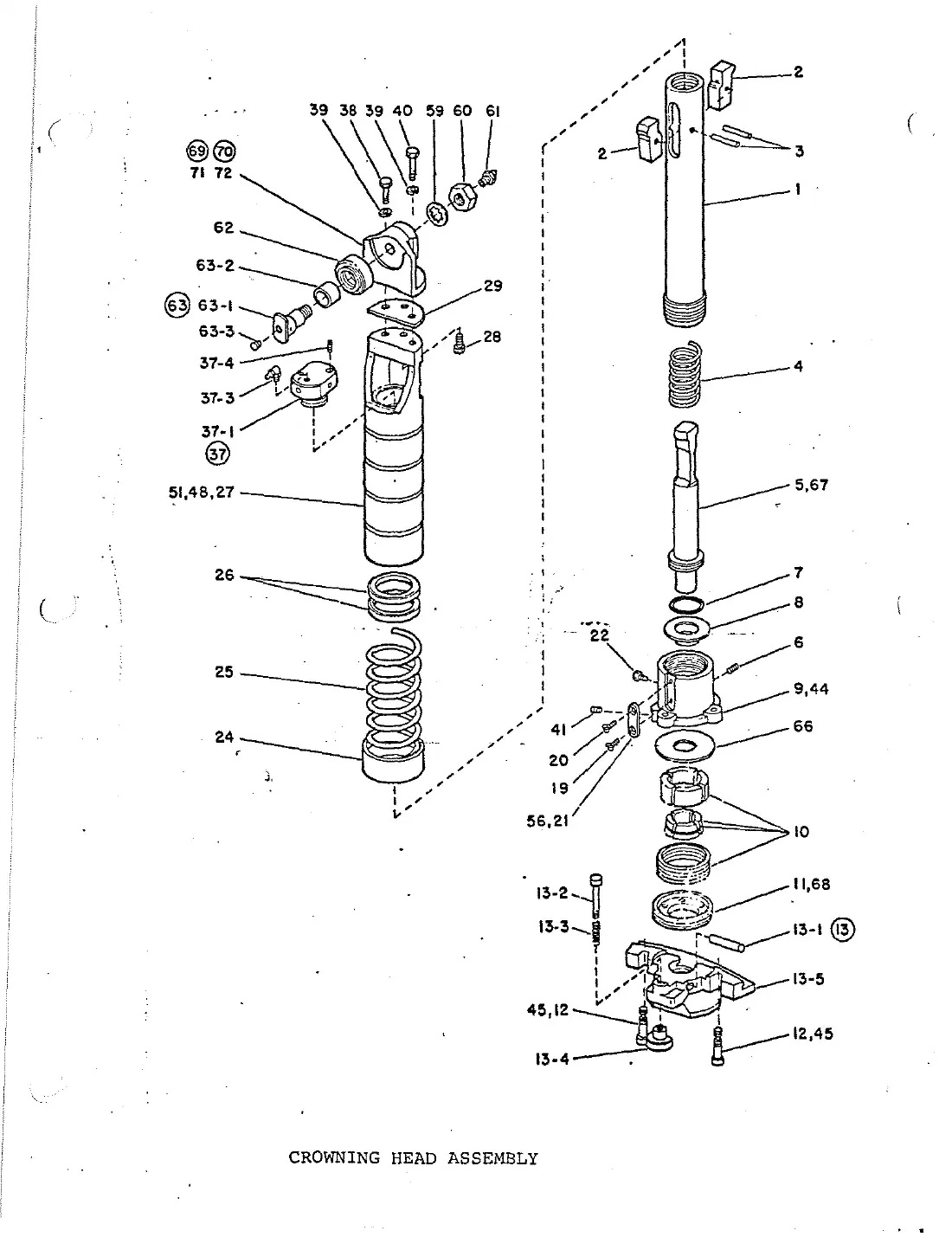

Crowning Head Assembly 52
Outer Guards 47
Inner Explosion Guard 49
Conveyor Guards 12
Drive 35
Adapter, union 34

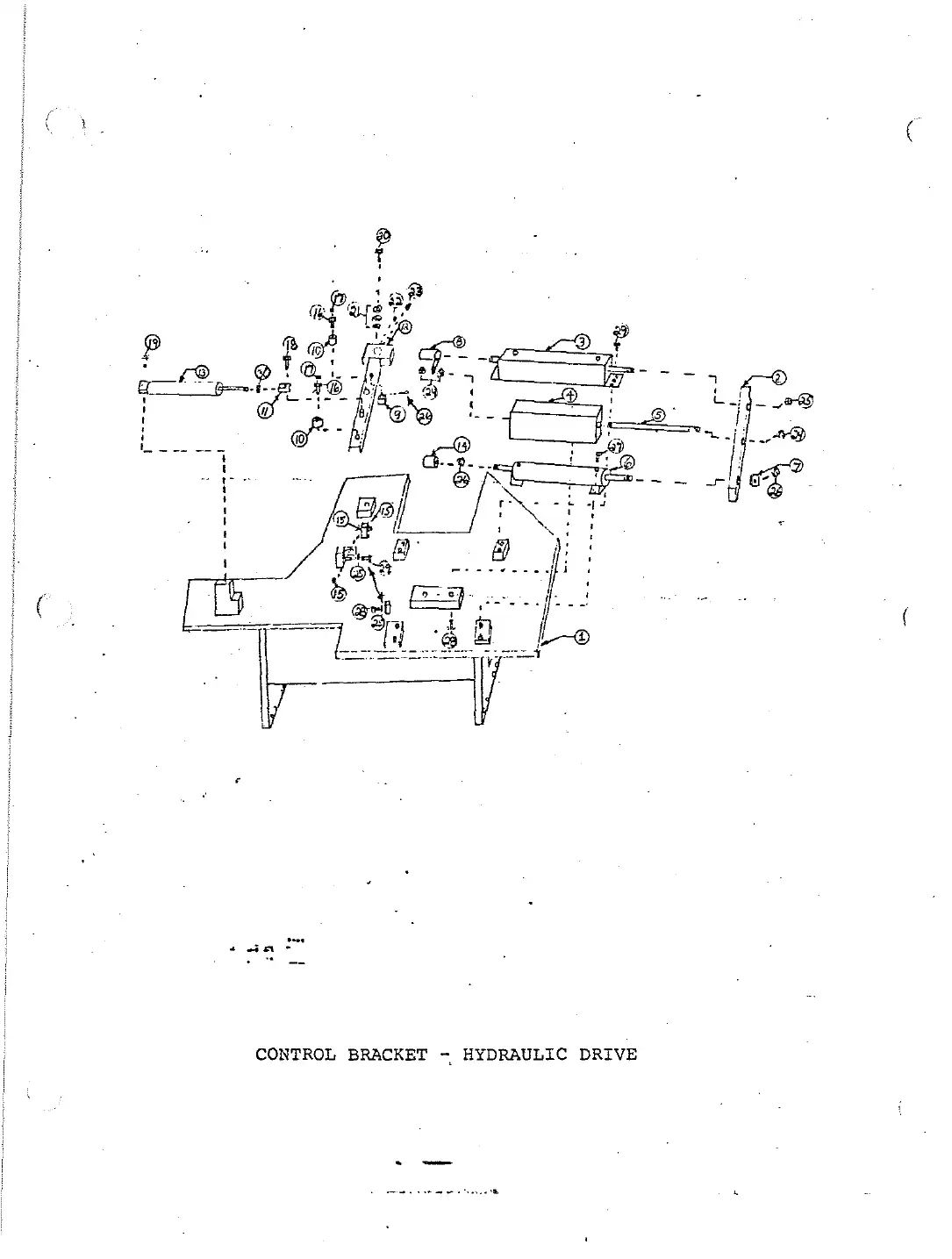

Control Bracket-Hydraulic Drive 25

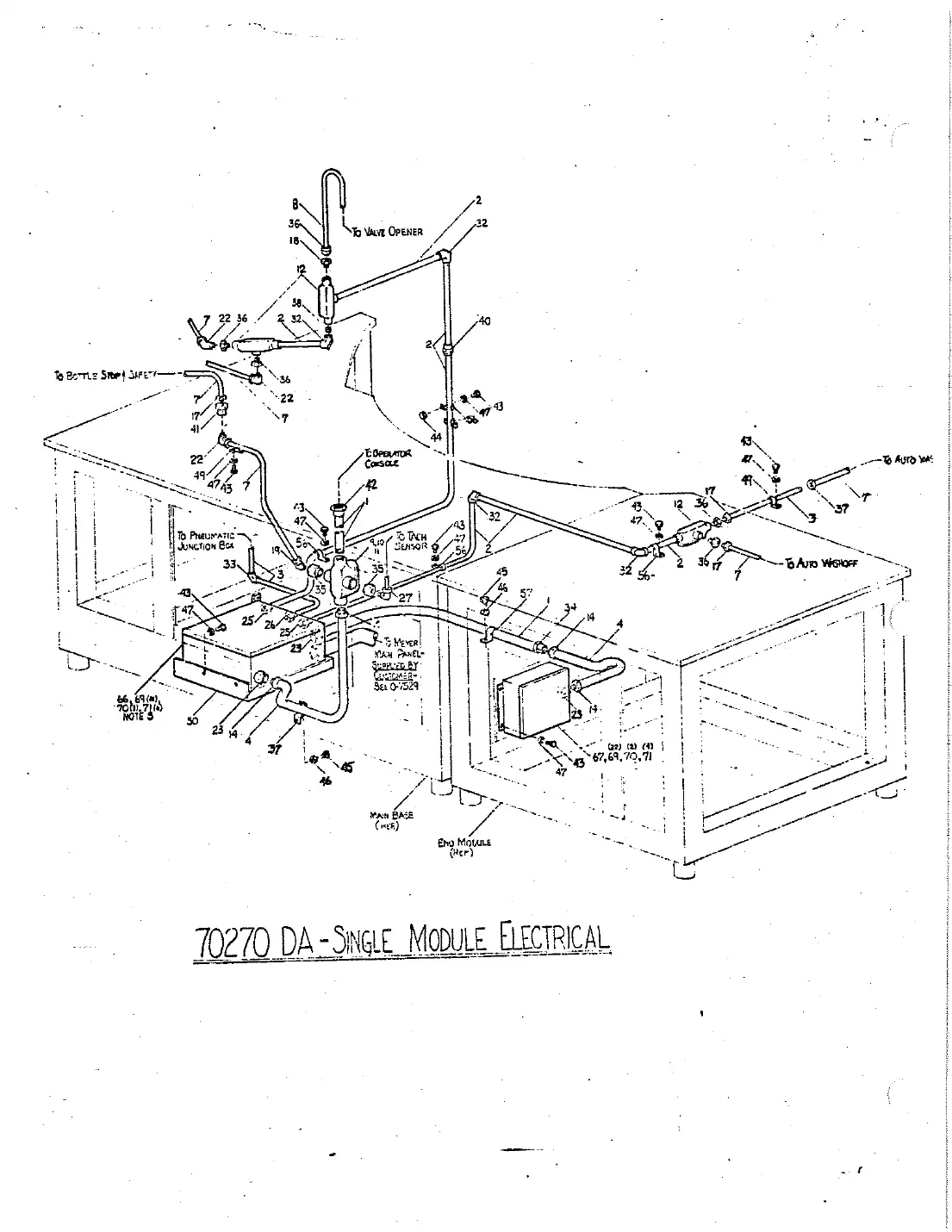

Electrical Assh1Bly-Hydraulic Drive 27
Remote Hydraulic Drive 16
Electrical Hardware with Oeh Crown Selector 103

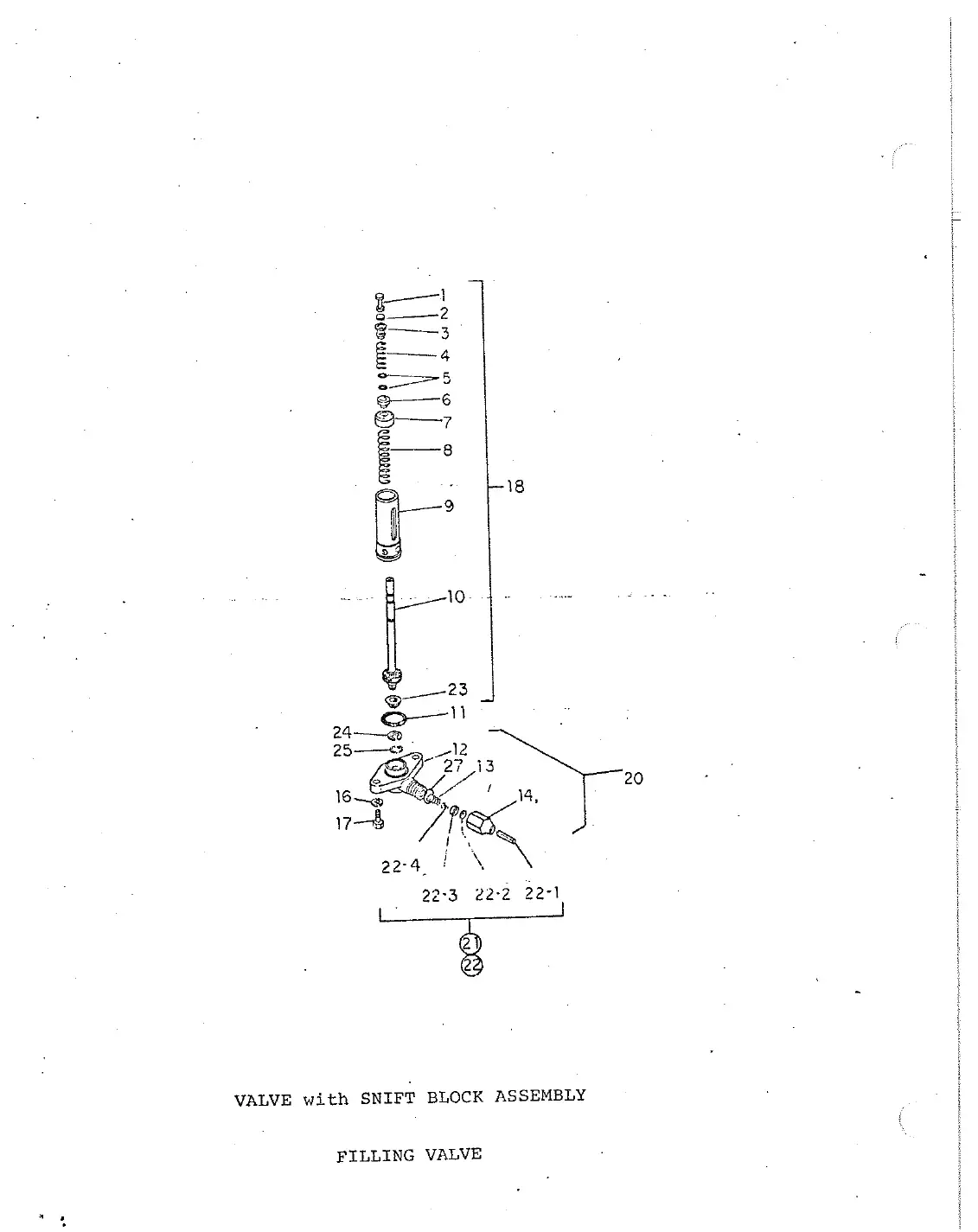

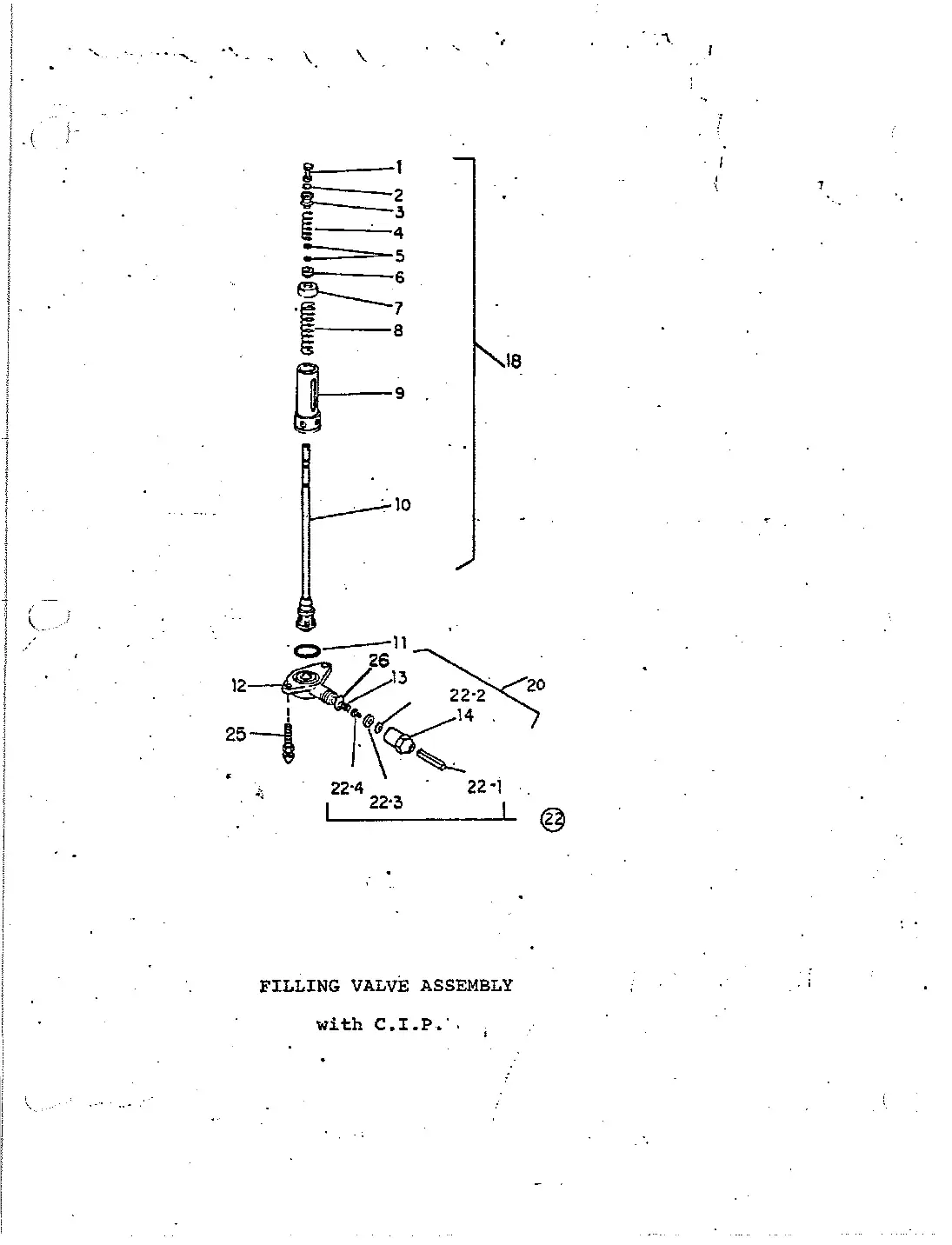

Filling Valve 24

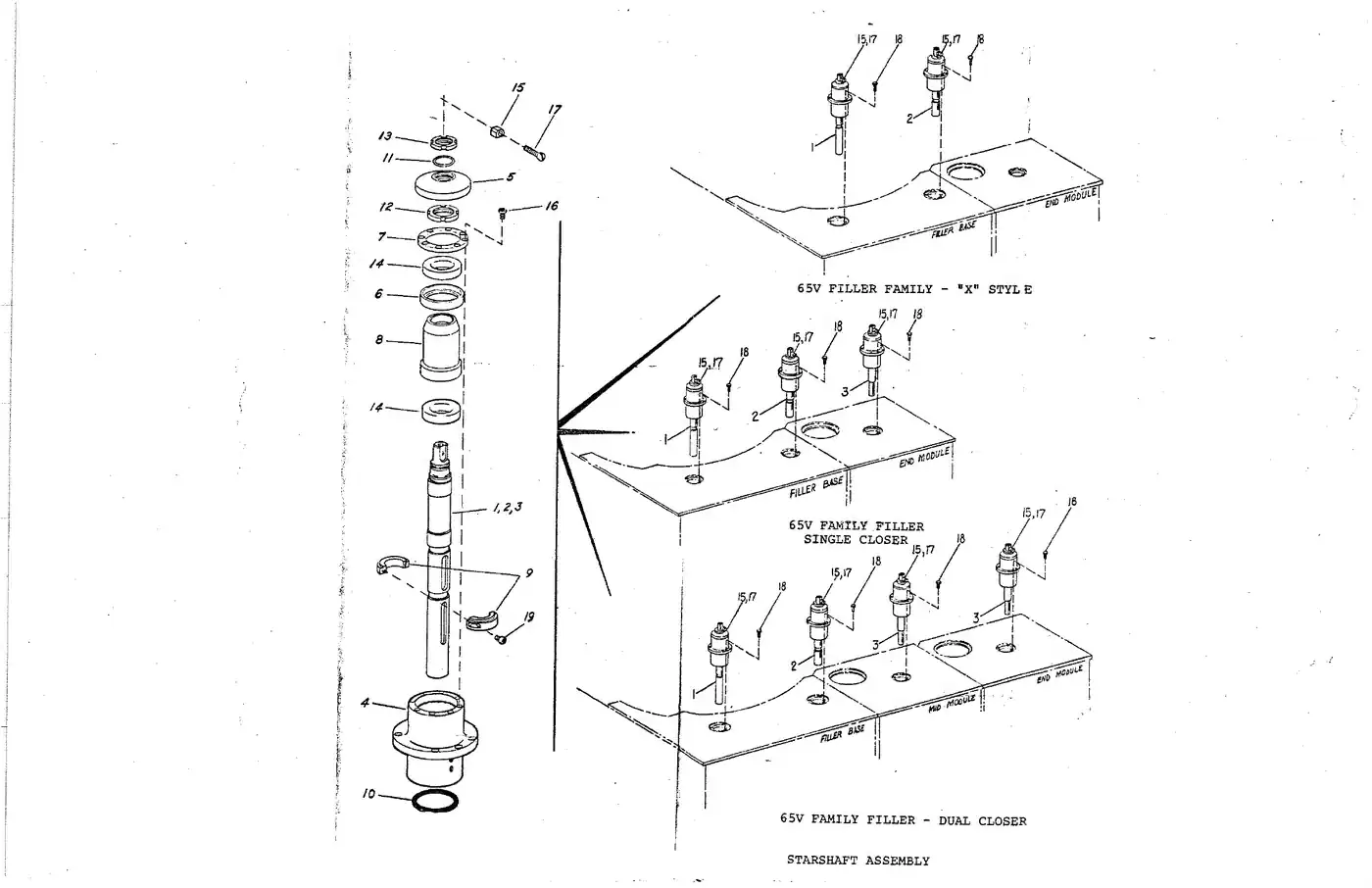

Starshaft Assembly 17
Filler Drive 60
Table Top Attachments Wear Strip 7
Operator Control Station 35

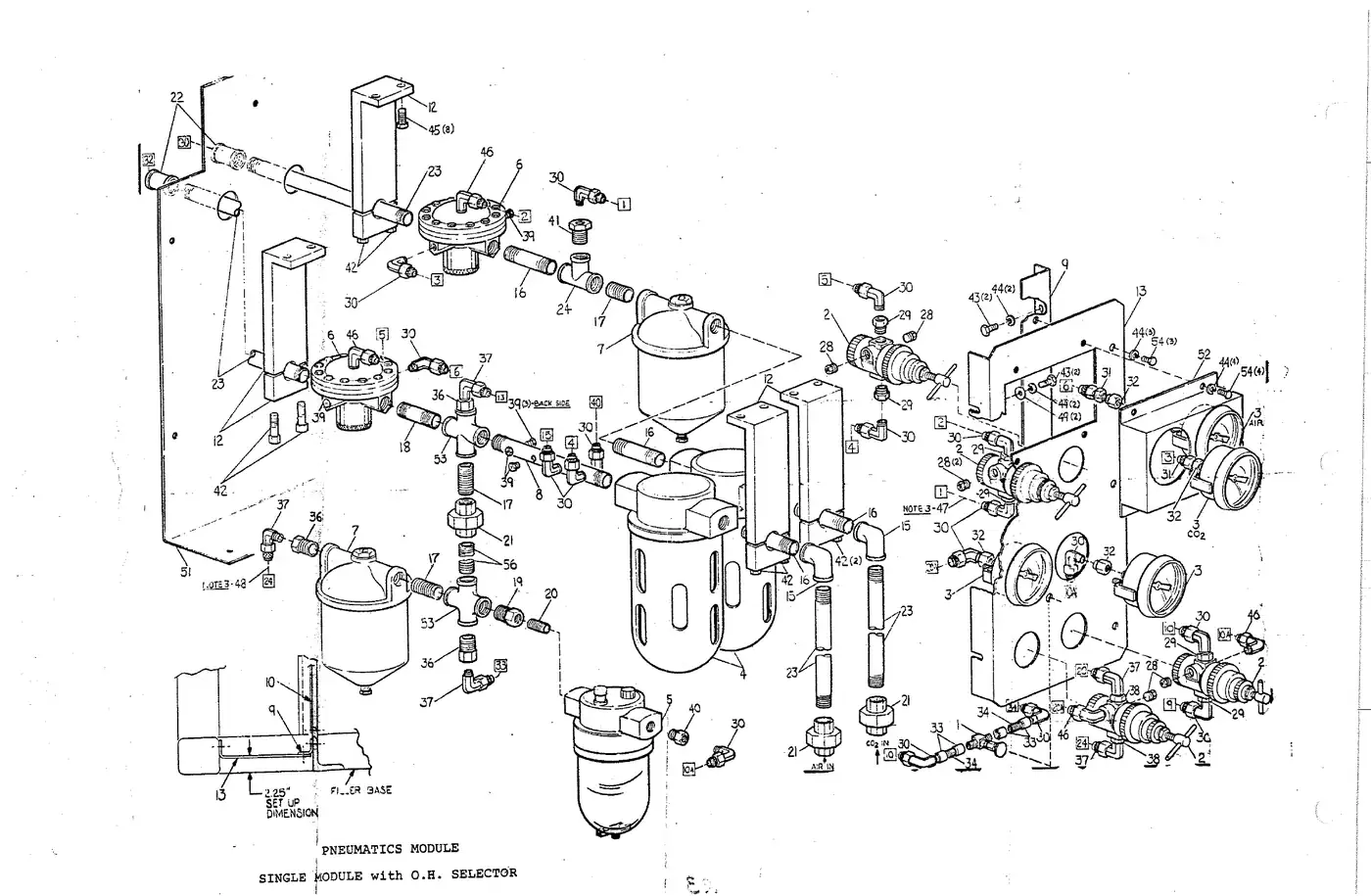

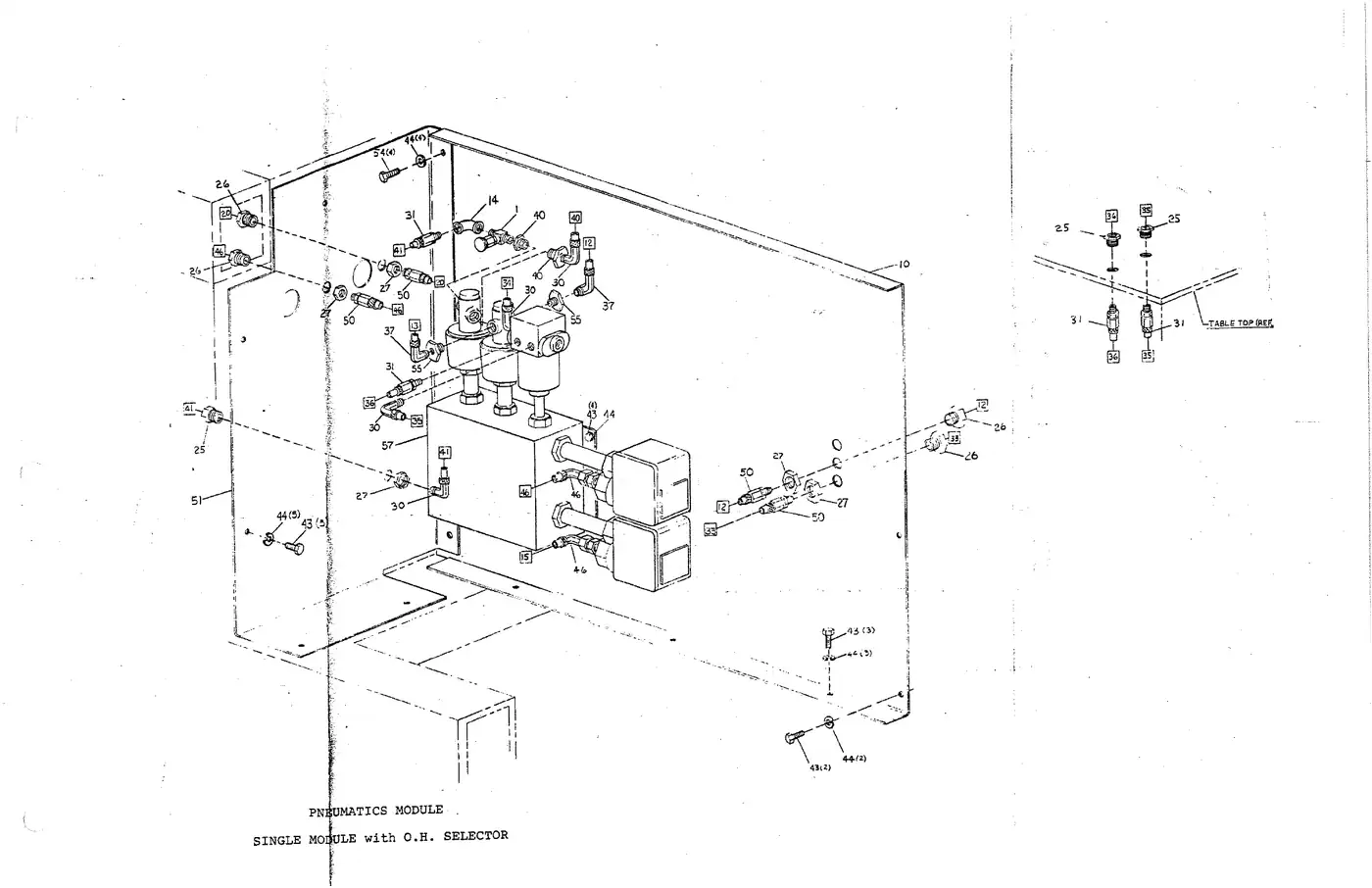

Pneumatics Module 71
Vent Tube Blow Off 23

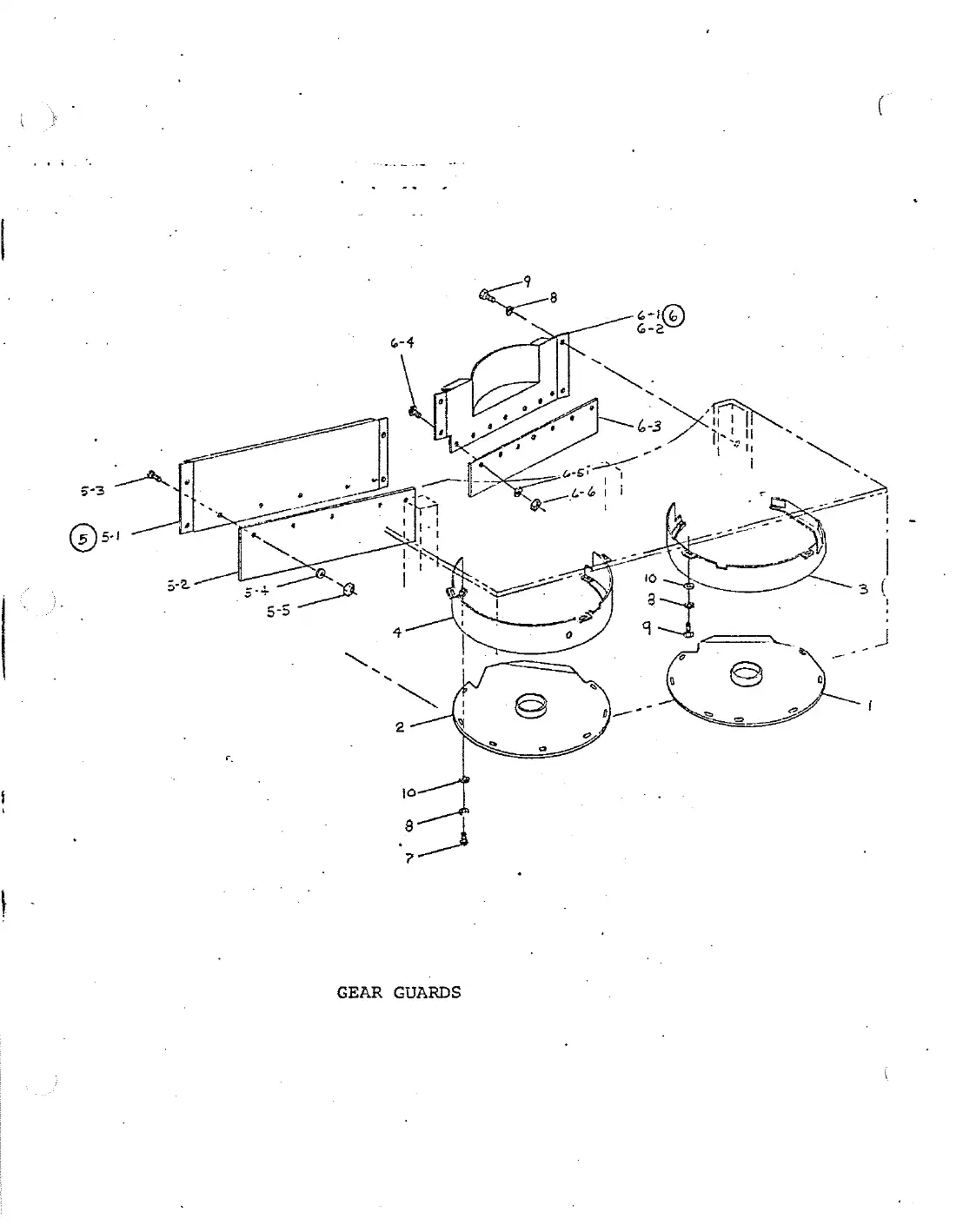

Gear Guards 8
Electrical Hardware with O&H Crown Selector 41

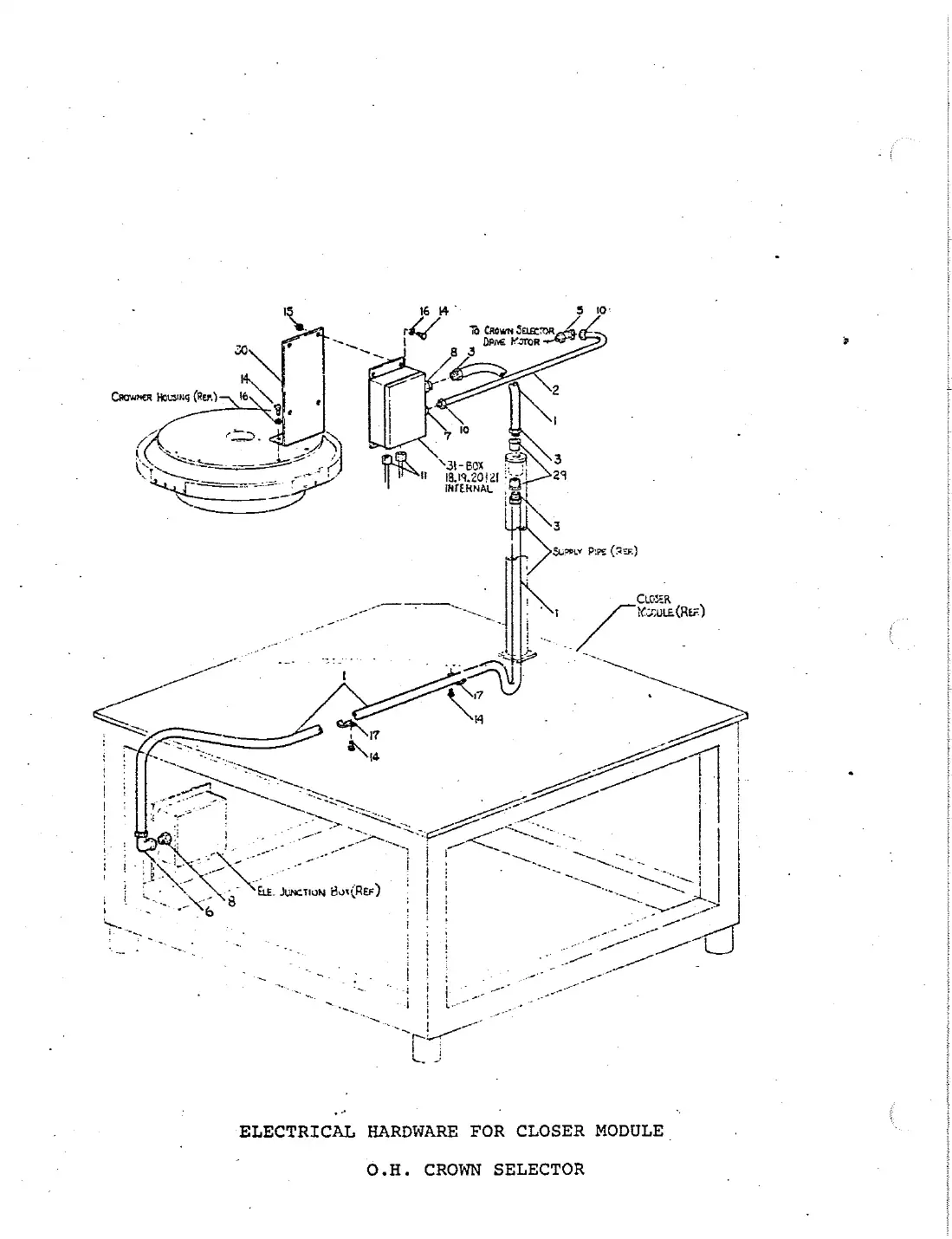

Electrical Hardware for Closer Module 20

Base and Hanger

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

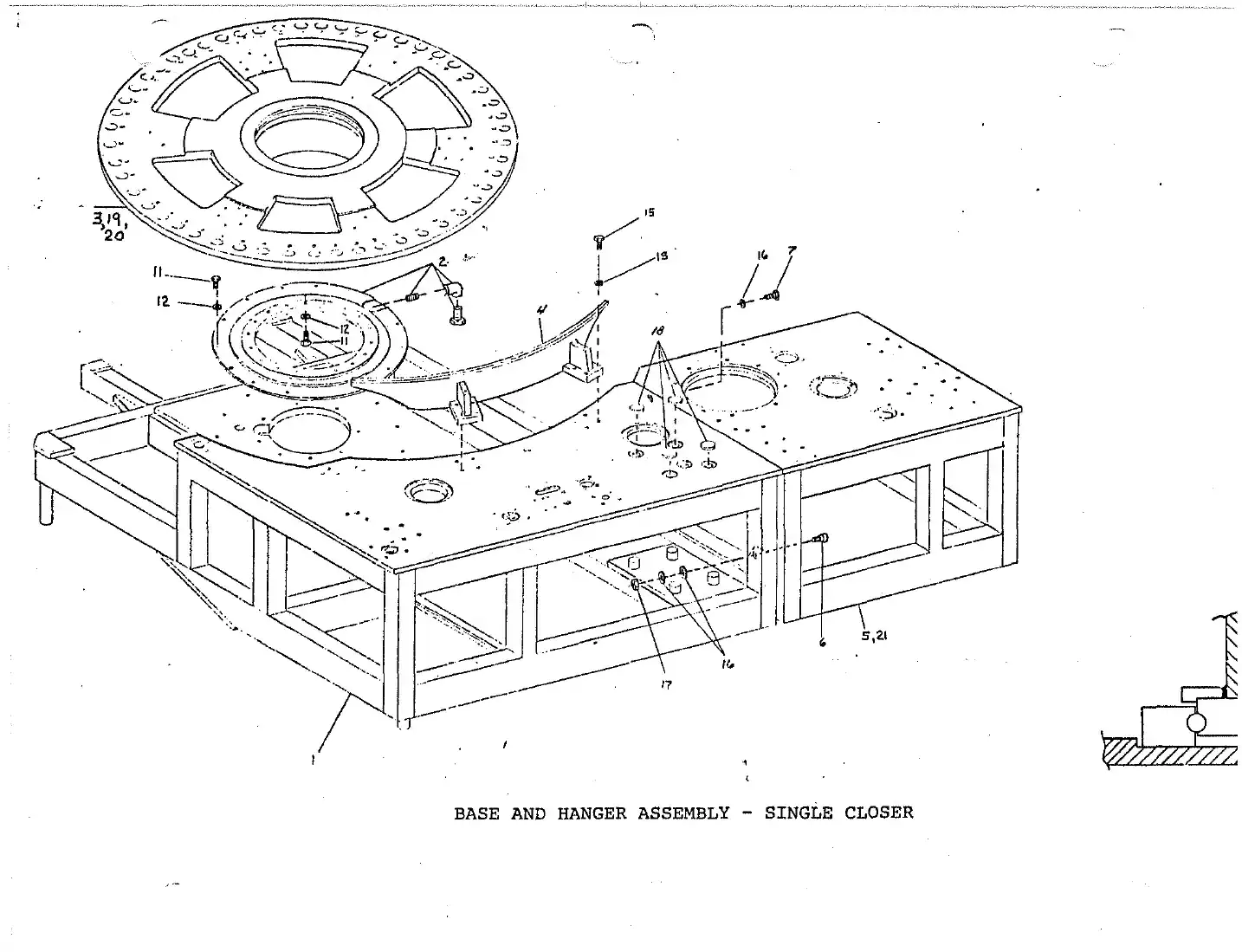

Meyer Tri-Star filler base and hanger drawing

Open full size

Ref	Part number	Description
1	903-9547	Base, main	Ask us
2	903-9837	Bearing, main	Ask us
3	903-9568	Hanger	Ask us
4	903-9886	Cam	Ask us
5	903-9550	Bdule-fnd	Ask us
6	135-8870	Bolt, body	Ask us
7	102-1085	Screw	Ask us
11	102-00511020051	Bolt, hex head	Request
12	102-03821020382	Washer, lock	Request
13	102-04181020418	Washer, flat	Request
15	102-01021020102	Bolt, hex head	Request
16	102-2324	Washer	Ask us
17	102-0337	Nut	Ask us
18	135-8895	Plug	Ask us
19	903-9566	Hanger	Ask us
20	903-9569	Hanger	Ask us

Cladding & Doors

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

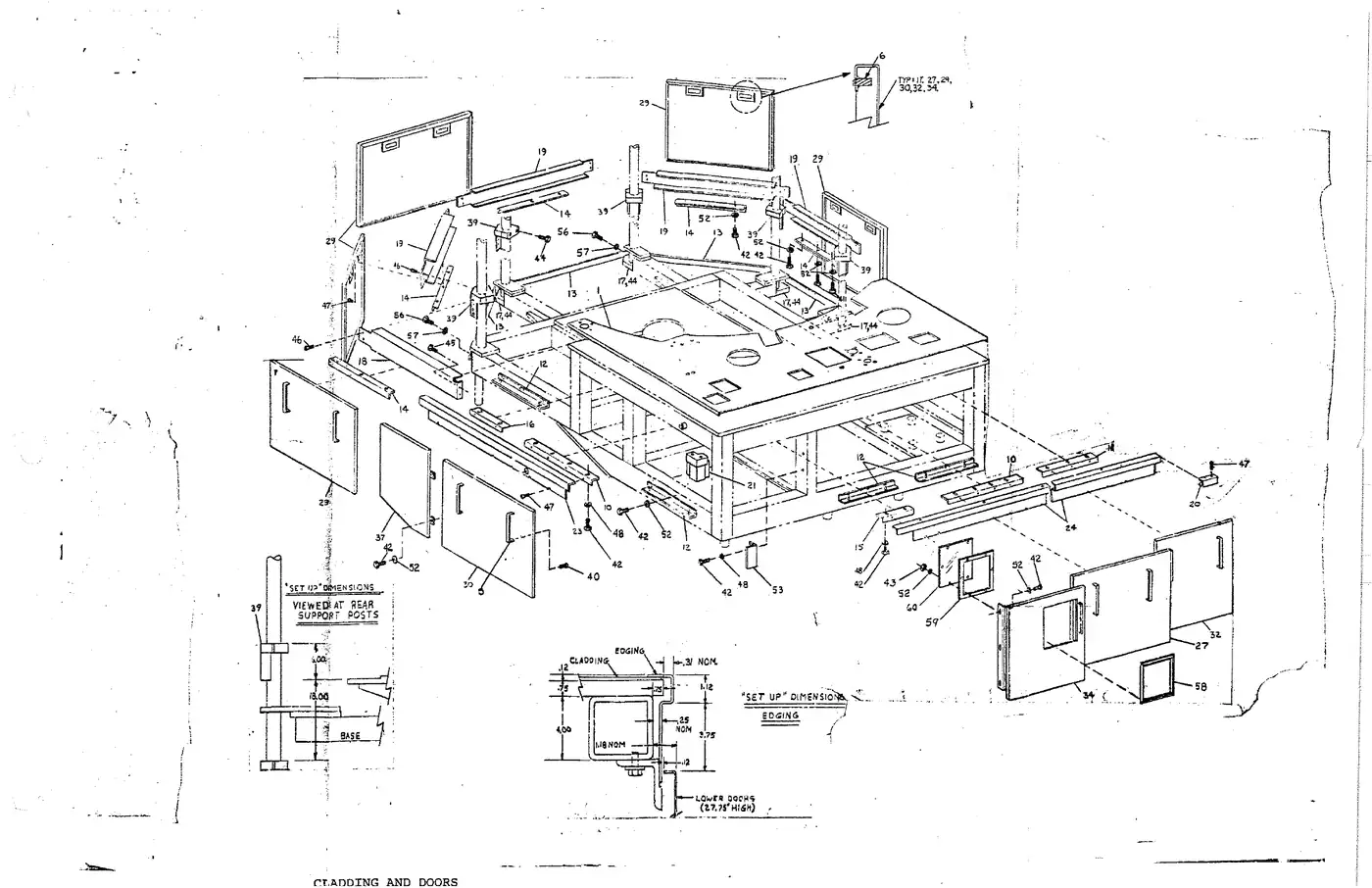

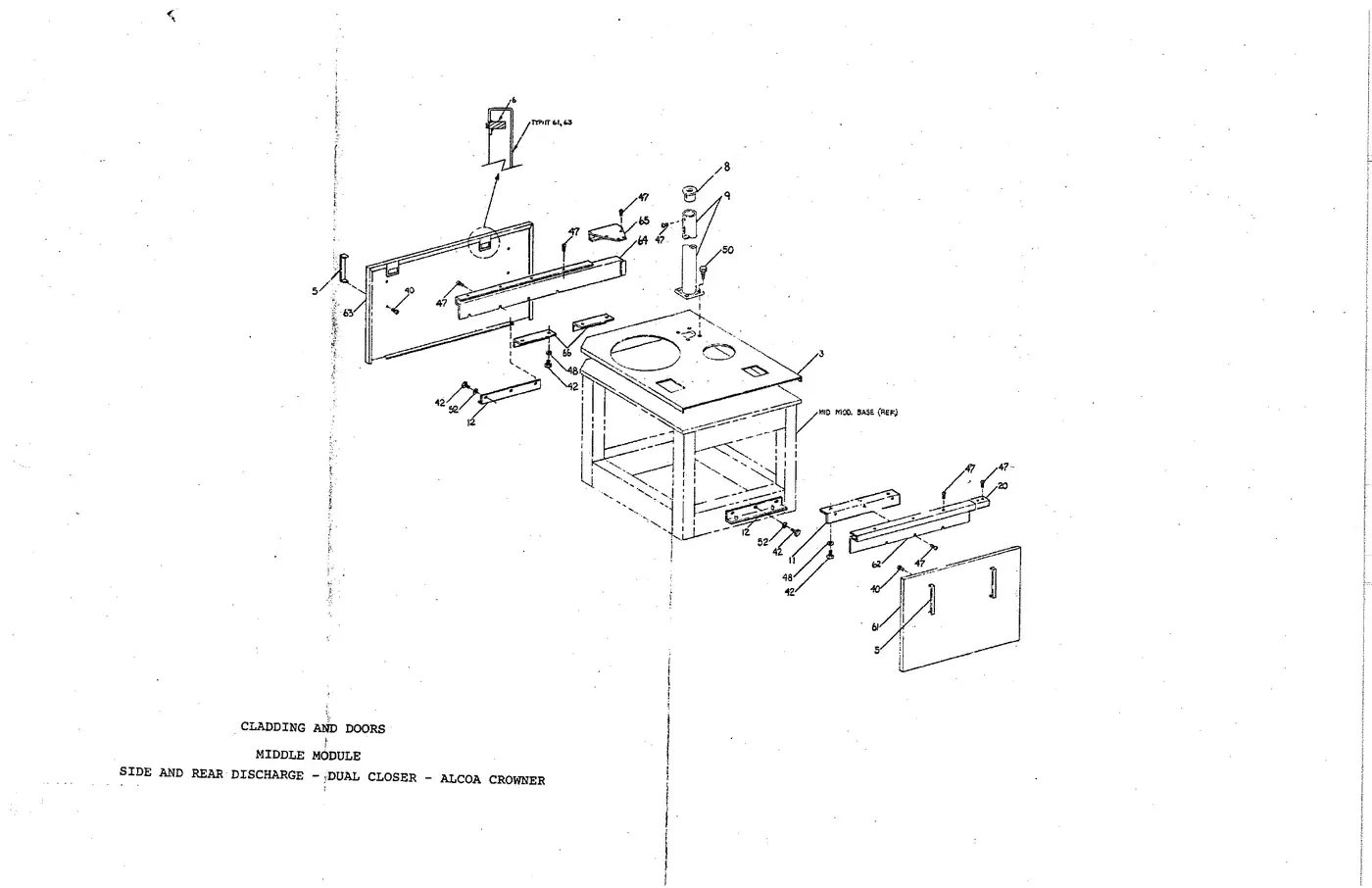

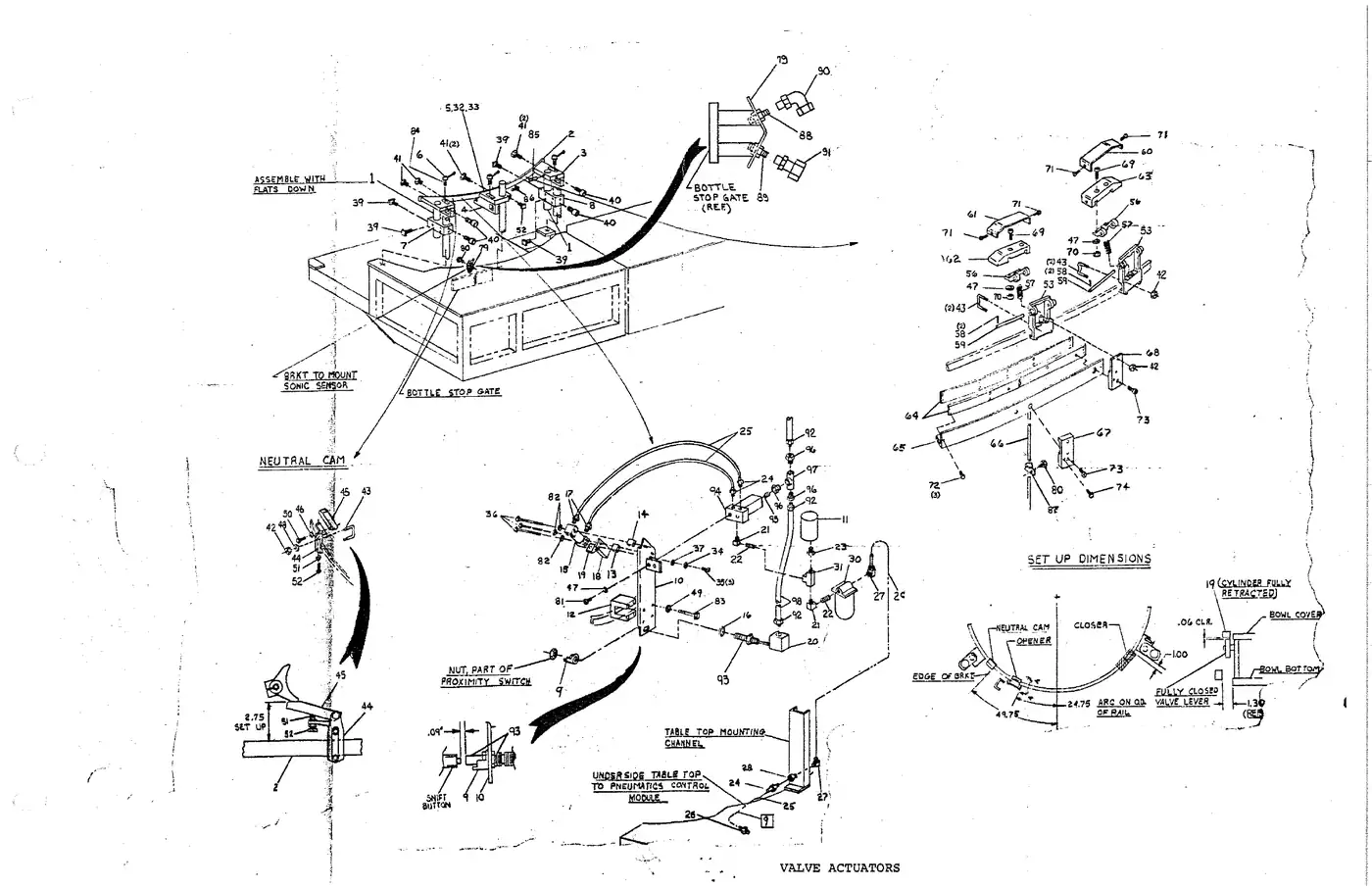

Meyer Tri-Star filler cladding & doors drawing

Open full size

Ref	Part number	Description
30	903-9732	Panel, movable side	Ask us
31	903-9747	Panel, movable end	Ask us
32	903-9723	Panel, movable base	Ask us
1	135-8484	Cladding, tabletop	Ask us
33	903-9744	Panel, movable end	Ask us
34	903-9724	Panel, hinged base	Ask us
3	135-8483	Cladding, middle	Ask us
35	903-9748	Panel, stationary end	Ask us
4	136-0444	Cladding, end	Ask us
36	903-9746	Panel, stationary end	Ask us
37	903-9733	Panel, stationary base	Ask us
38	135-9043	Retainer, edging end	Ask us
7	136-0445	Cladding, end	Ask us
39	903-9715	Bracket, machining	Ask us
8	135-8669	Plate, mounting	Ask us
40	102-02861020286	Screw, round head slot	Request
9	903-9720	Pipe, supply	Ask us
41	102-00681020068	Bolt, hex head	Request
10	135-8668	Angle, back-up	Ask us
42	102-00661020066	Bolt, hex head	Request
11	135-8667	Angle, back-up	Ask us
43	102-03321020332	Nut, hex	Request
12	903-9716	Support, angle	Ask us
44	102-01071020107	Bolt, hex head	Request
13	903-9785	Angle, support rear	Ask us
45	102-13251021325	Screw, socket head cap	Request
14	135-8872	Angle, attachment	Ask us
46	102-2890	Scre, socket head	Ask us
15	135-8663	Retainer, edging	Ask us
47	102-2403	Screw, hex head	Ask us
16	135-8677	Retainer letal ser, back-up	Ask us
17	903-9786	Bracket, mounting	Ask us
18	903-9737	Extension, edging	Ask us
52	102-04151020415	Washer, flat	Request
20	135-9047	Cap, edging	Ask us
53	135-9567	Angle, back-up	Ask us
21	903-9717	Lglding, metal comer	Ask us
56	102-00881020088	Hex head bolt	Request
22	135-8881	Edging, metal end	Ask us
57	102-12551021255	Washer, flat	Request
23	903-9721	Edging, metal side	Ask us
58	903-8983	Tensioner	Ask us
59	135-9557	Gasket, window	Ask us
25	135-8885	Edging, tal eld	Ask us
60	135-9556	Window, door	Ask us
26	135-8879	Edging, letal end	Ask us
61	903-9968	Panel, front	Ask us
27	903-9722	Movable base	Ask us
62	903-9965	Edging, front	Ask us
28	903-9745	Panel, movable end	Ask us
63	903-9967	Panel, rear	Ask us
29	903-9735	Panei, movable lower	Ask us
64	903-9966	Edging, rear	Ask us
65	136-0553	Edging, rear	Ask us
66	136-0554	Back-up angle	Ask us
67	136-0698	Plug	Ask us
50	102-00901020090	Bolt, hex head	Request
51	102-03401020340	Nut, hex jam	Request
52	102-08641020864	Screw, square hd cup pt	Request
1	135-8623	Shaft, adjusting	Ask us
53	H-478H478	Bracket, valve closer	Request
2	135-8610	Rail bvable	Ask us
56	131-64561316456	Bracket, valve closer hinge	Request
3	135-8619	Block mounting	Ask us
57	104-63671046367	Spring, valve closer	Request
4	135-86181358618-1	Clamp, locating	Request
58	102-05741020574	Pin, cotter	Request
5	135-8621	Block bunting	Ask us
59	130-86171308617	Pin, valve closer hinge	Request
6	104-6015	Handle	Ask us
60	135-0961	Cladding, valve closer RH	Ask us
7	903-9661	Block, sliding cladding	Ask us
8	903-9660	Block, sliding cladding	Ask us
9	135-9578	Guard, proximity switch	Ask us
61	135-0964	Cladding, valve closer LH	Ask us
10	903-9879	Support, actuator cladding	Ask us
11	135-8456	Accumulator cladding, valve closer LH	Ask us
12	135-9440	Bracket, clamping	Ask us
62	135-0958	Track, valve closer-LH	Ask us
13	135-8455	Spacer, cylinder mounting track	Ask us
14	135-8454	Spacer, cylinder mounting track	Ask us
63	135-0968	Track, valve closer RH	Ask us
16	102-04201020420	Washer, flat	Request
17	100-88821008882	Fitting, tube elbow	Request
18	133-7945	Guide, follower	Ask us
64	903-9895	Plate, snift cam	Ask us
19	133-7950	Follower	Ask us
65	903-9894	Pan, snift	Ask us
20	135-9919	Adapter	Ask us
66	000-3080	Hose	Ask us
21	104-6097	Elbow bracket	Ask us
22	100-08901000890	Nipple	Request
68	135-0953	Bracket	Ask us
23	100-89121008912	Bushing, reducing hex	Request
69	102-13021021302	Screw, socket head cap	Request
71	102-01841020184	Screw, flat head slot	Request
26	100-3089	Connector	Ask us
72	102-0297	Screw, round head	Ask us
27	101-3753	Elbolv	Ask us
73	102-10751021075	Socket head cap screw	Request
28	135-91391359139	Adapter, cole drg	Request
74	102-1420	Screw, square head set	Ask us
29	000-32230003223	Tube, polyflo	Request
79	135-9618	Bracket, sensor	Ask us
30	104-6238	Lubricator	Ask us
80	102-00651020065	Bolt, hex head	Request
31	104-6094	Tee, service	Ask us
81	102-0296	Screw, round head	Ask us
32	135-8620	Block, mounting	Ask us
82	102-03851020385	Washer, lock	Request
33	135-8622	Block, mounting	Ask us
83	102-00791020079	Bolt, hex head	Request
84	135-9435	Stud	Ask us
35	102-02791020279	Screw, pan head phillips mach	Request
85	102-2411	Pin, doivel	Ask us
36	102-2966	Screw, round head	Ask us
86	102-1511	Screw set	Ask us
37	102-0413	Washer, flat	Ask us
87	104-6686	Clamp	Ask us
39	102-3020	Screw, square head set	Ask us
88	103-58801035880	Sensor, sonic-receiver cr ref	Request
40	102-0446	Screw, socket head set	Ask us
89	103-58791035879	Elbow, adapter lubricator	Request
41	102-1834	Screw, hex head	Ask us
90	100-0444	Connector	Ask us
91	100-0434	Connector	Ask us
43	131-6380	Boli	Ask us
92	100-0433	Connector	Ask us
44	H-1840	Brqc	Ask us
93	103-58811035881	Proximity sensor	Request
45	133-91711339171	Cam, neutral RH	Request
94	103-5841	Valve, solenoid	Ask us
95	100-61121006112	Nipple	Request
47	102-03871020387	Washer, lock	Request
96	100-0195	Bushing	Ask us
48	102-04161020416	Washer, flat	Request
97	100-01701000170	Unilet, body	Request
49	102-03881020388	Washer, lock	Request
5	135-8672	Cabinet, pull	Ask us

Reservoir RH Assembly

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

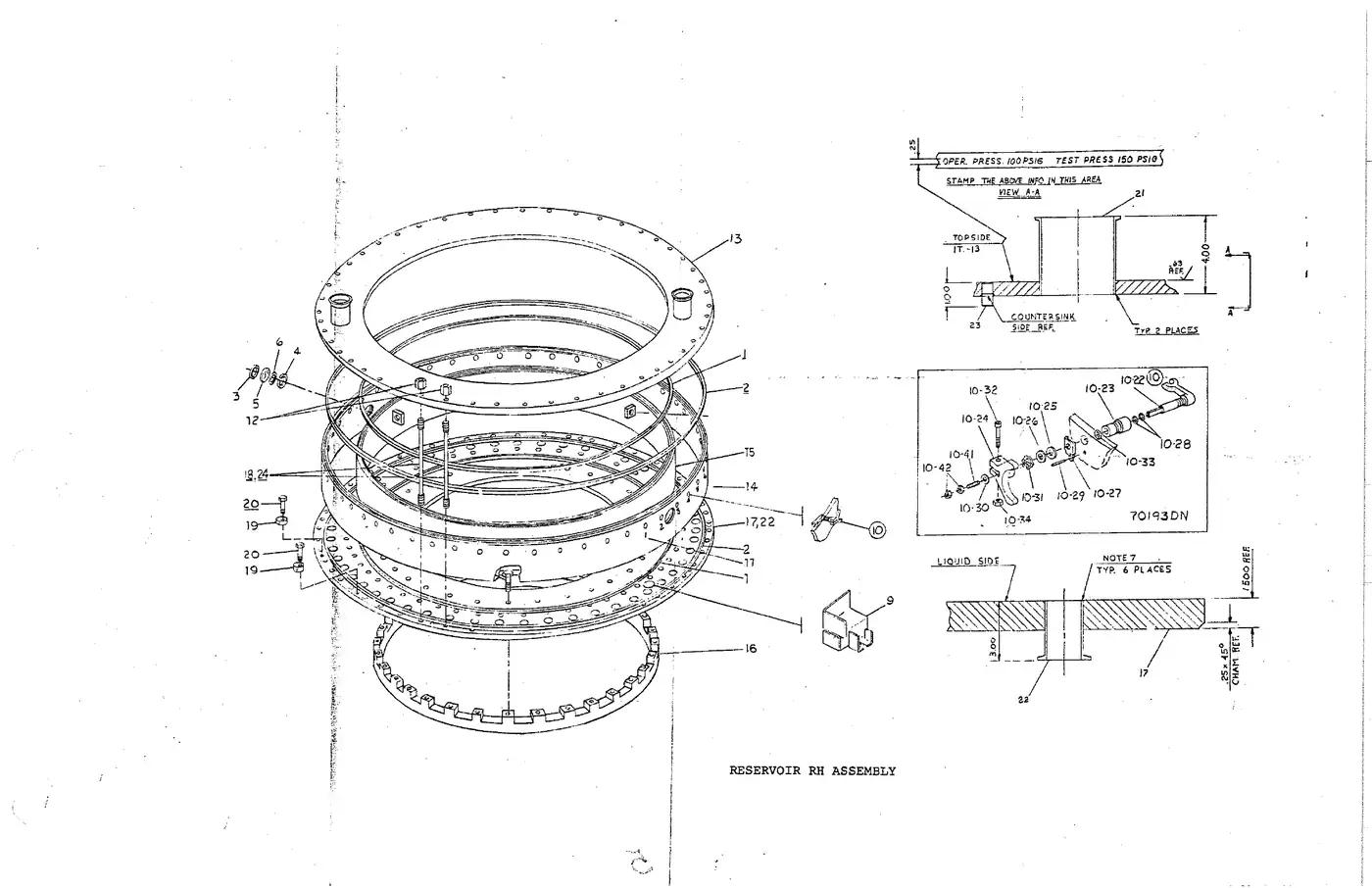

Meyer Tri-Star filler reservoir rh assembly drawing

Open full size

Ref	Part number	Description
10-34	102-23901022390	Nut, hex	Request
10-41	102-0432	Screw, socket head	Ask us
10-42	102-03381020338	Nut, hex jam	Request
11	101-2237	Number set	Ask us
1	000-40680004068	Gasket, filler bowl outer square	Request
12	102-24101022410	Nut, hex astm	Request
13	135-9974	Cover	Ask us
3	136-00531360053	Gasket, sight glass	Request
4	100-97751009775	Ring, retaining	Request
5	131-33601313360	Sight glass	Request
14	133-9189	Ring, outer	Ask us
6	100-25071002507	O-ring	Request
7	102-1837	Screw, hex head ring	Ask us
9	135-0656	Baffle ring, inner	Ask us
10-22	135-08641350864	Lever, valve inside RH	Request
10-23	135-08651350865	Bushing, valve lever	Request
10-24	135-09601350960	Lever, valve operating	Request
17	135-9978	Ring, bottom	Ask us
10-26	135-08691350869	Washer, keyed reservoir assembly	Request
10-27	135-08711350871	Stop, reservoir spacer	Request
18	133-9146	Stud	Ask us
10-28	100-25111002511	O-ring, edpm, dash	Request
19	135-40361354036	Positioner, bowl	Request
10-29	102-12731021273	Pin, dowel	Request
20	102-17881021788	Screw, shoulder soc hd	Request
10-30	102-04151020415	Washer, flat	Request
21	104-5097	Ferrule	Ask us
10-31	104-51961045196	Washer, wave	Request
22	104-5096	Ferrule	Ask us
110-32	102-13021021302	Screw, socket head cap	Request
23	102-2411	Pin	Ask us
10-33	104-50931045093	O-ring	Request
24	136-09951360995	Stud, bowl	Request
10-25	135-08431350843	Washer	Request

Reservoir Cover Fittings

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

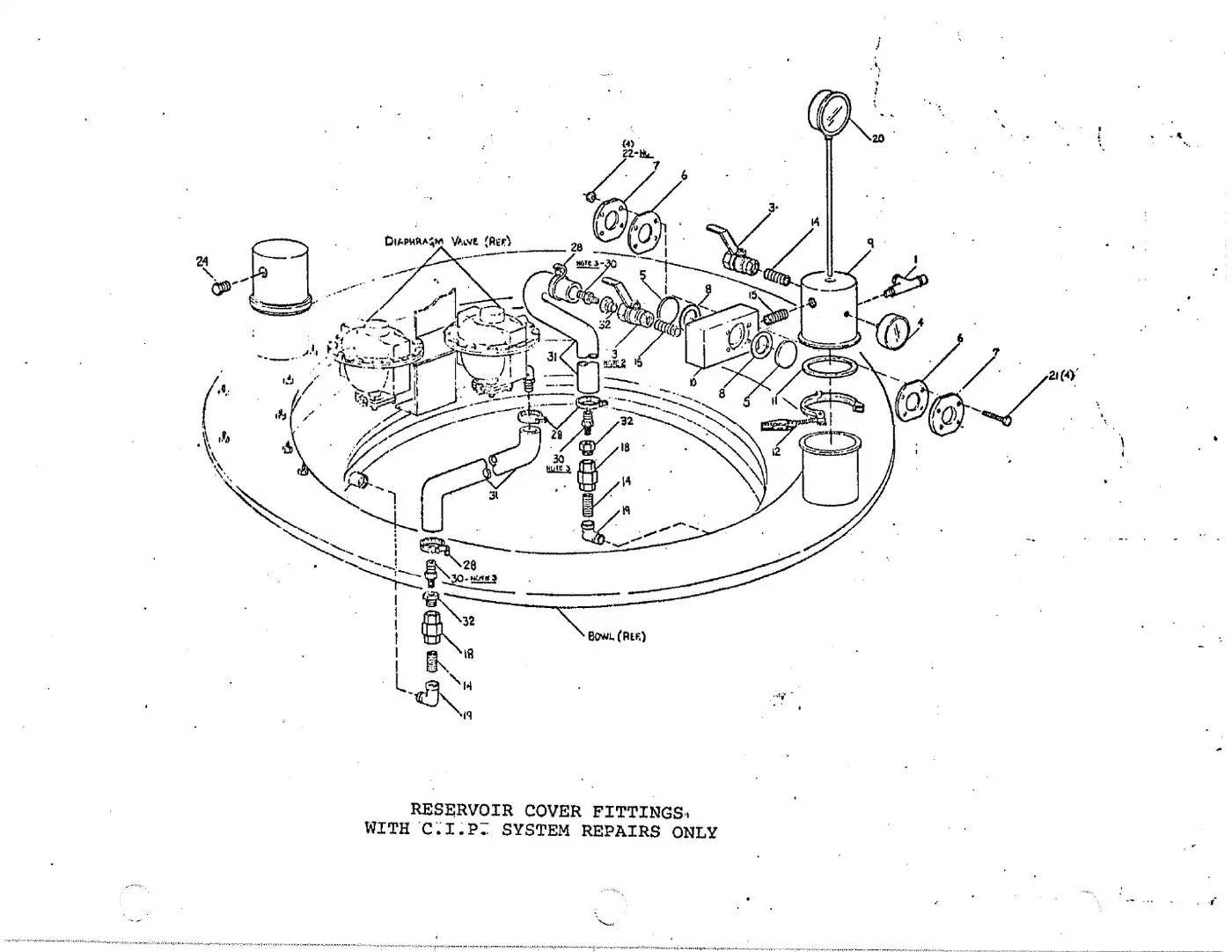

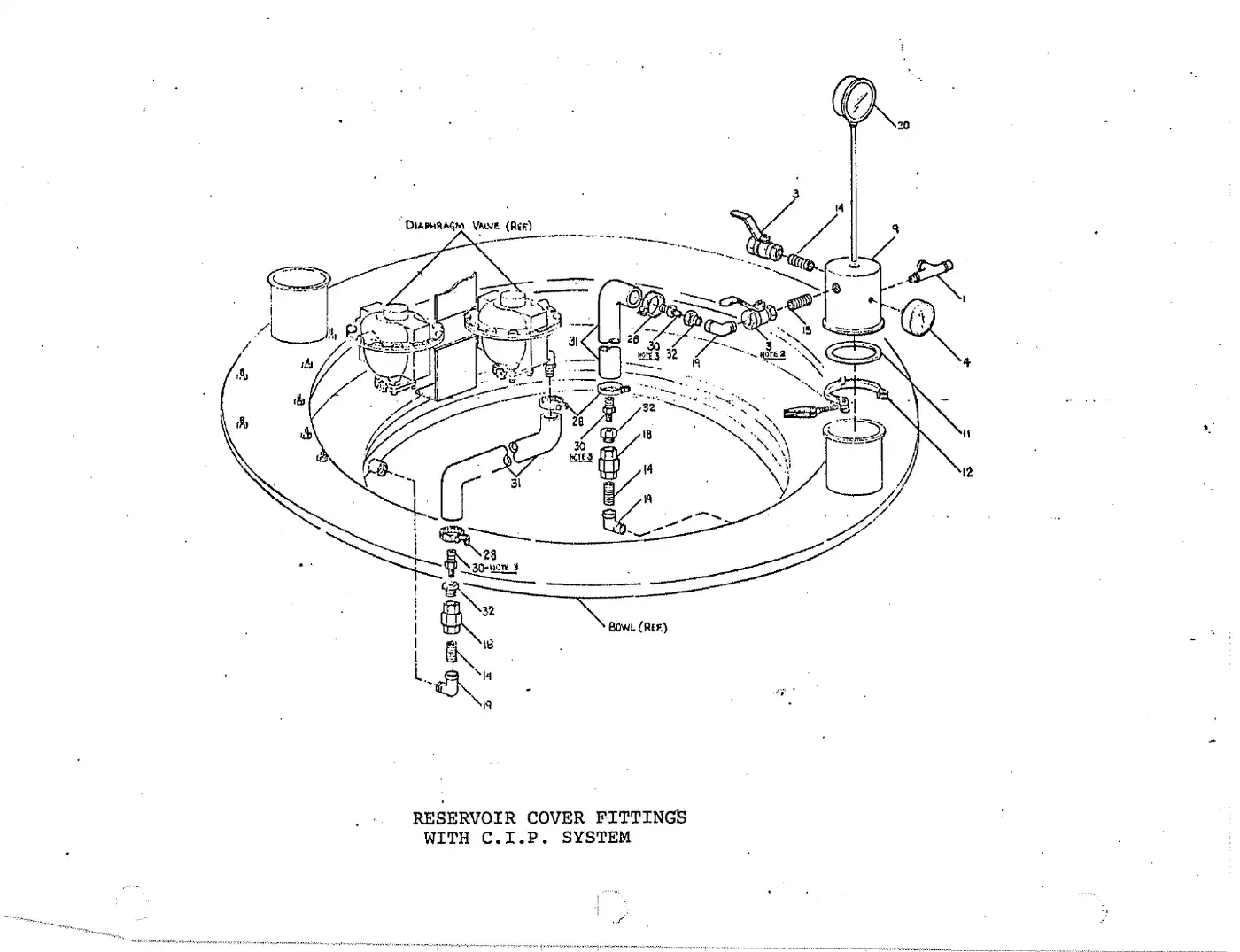

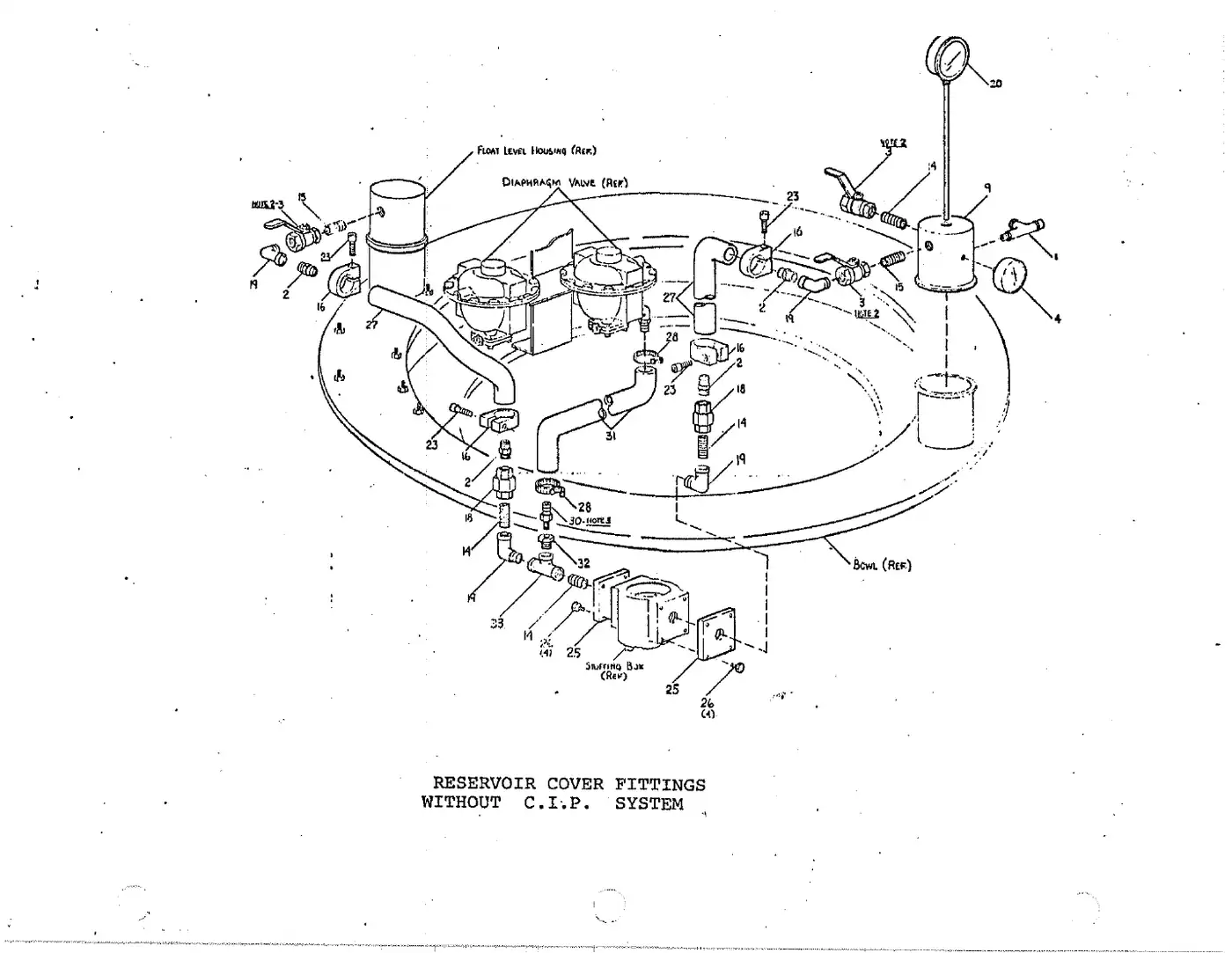

Meyer Tri-Star filler reservoir cover fittings drawing

Open full size

Ref	Part number	Description
1	104-64941046494	Valve, safety	Request
2	104-6556	Connector, hose	Ask us
3	104-6552	Ball valve	Ask us
4	104-6557	Pressure gauge	Ask us
5	135-8605	Sight glass	Ask us
6	135-8604	Gasket, outer sight glass	Ask us
7	135-8606	Cover, sight glass	Ask us
8	135-8603	Gasket, inner sight glass	Ask us
9	135-8599	Housing	Ask us
10	135-8602	Housing sight glass	Ask us
11	100-21351002135	Gasket, tri clamp	Request
12	100-21441002144	Clamp, hinged sanitary	Request
14	100-61131006113	Nipple, close	Request
15	101-3527	Nipple, pipe	Ask us
16	135-9434	Clamp, hose	Ask us
18	100-4910	Union	Ask us
19	100-96671009667	Elbow, street	Request
20	104-63601046360-DT-10	Thermometer, digital, sani flow	Request
21	102-07861020786	Bolt, hex head	Request
22	102-03321020332	Nut, hex	Request
24	100-5024	Plug, pipe hex head	Ask us
25	136-1437	Plate, cover	Ask us
26	102-00891020089	Bolt, hex head	Request
27	000-4154	Hose	Ask us
29	100-57341005734	Elbow, street 90 deg	Request
30	104-6787	Connector, hose	Ask us
31	000-4153	Hose	Ask us
32	100-89111008911	Bushing, reducing hex	Request
33	100-5493	Tee	Ask us
25	100-46561004656	Bushing, reducing hex	Request
26	100-41021004102	Nipple	Request
29	102-00761020076	Bolt, hex head	Request
30	102-03881020388	Washer, lock	Request
37	100-3076	Clamp, hose	Ask us

System Return Manifold

Contents

Parts for this assembly, from the original Meyer parts lists.

Meyer Tri-Star filler system return manifold drawing

Open full size

Ref	Part number	Description
2	104-6543	Tube, drain line	Ask us
3	104-65441046544	Tubing, braided	Request
4	104-6545	Tube, drain line	Ask us
7	135-8625	Elbow	Ask us
8	135-8589	Washer	Ask us
10	905-0741	Hanger	Ask us
11	903-9927	Header, drain	Ask us
11	903-9650	Header, drain	Ask us
12	903-9928	Header, drain	Ask us
12	903-9651	Header, drain	Ask us
12	903-9930	Header, drain	Ask us
14	102-13021021302	Screw, socket head cap	Request
15	102-00911020091	Bolt, hex head	Request
16	100-61091006109	Nipple, close	Request
17	100-4032	O-ring	Ask us

Block Assembly

Contents

Parts for this assembly, from the original Meyer parts lists.

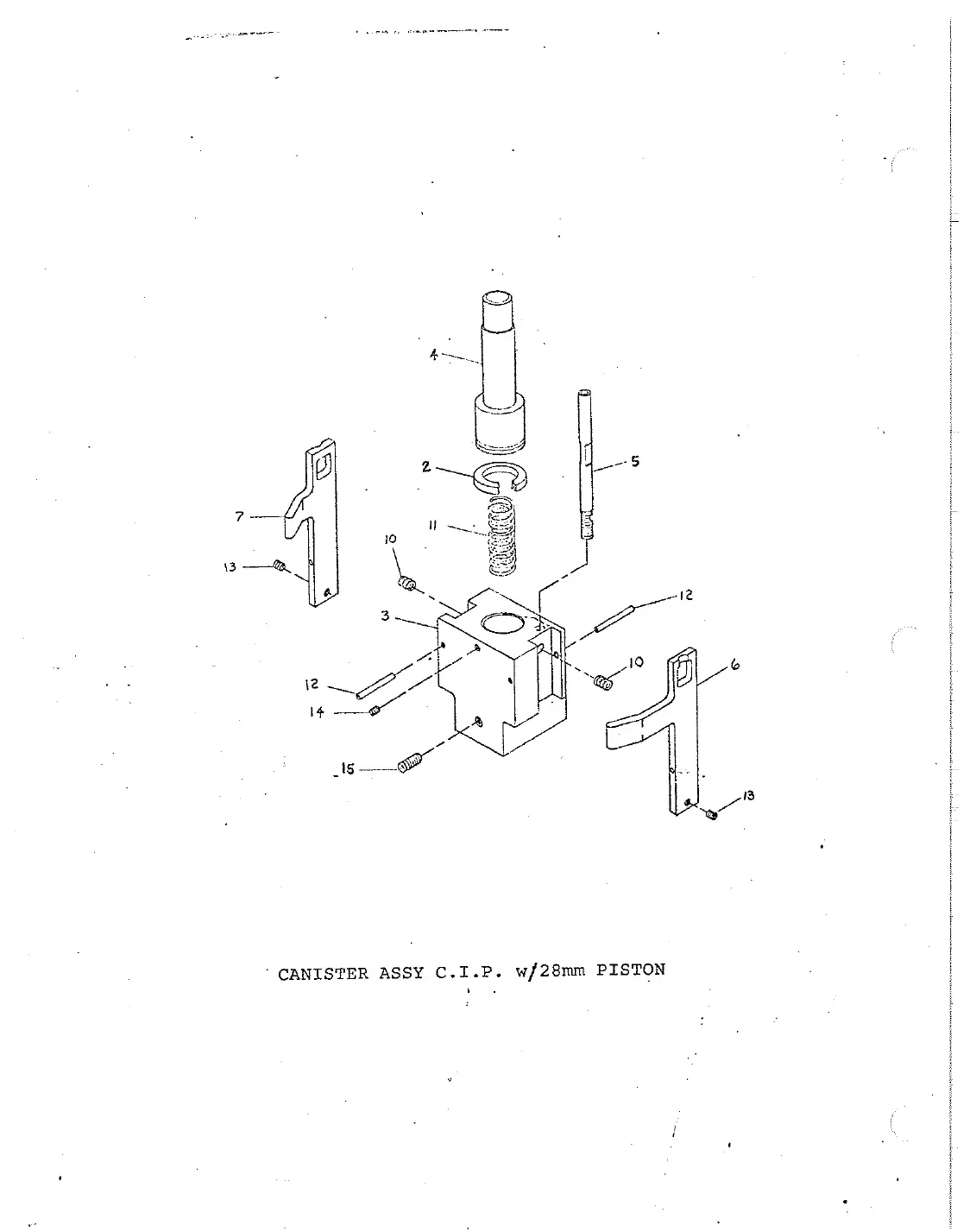

Meyer Tri-Star filler block assembly drawing

Open full size

Ref	Part number	Description
12	133-70661337066	Snift, block valve R-11A	Request
13	133-71471337147	Spring, snift	Request
14	133-81231338123	Nut, snift, fillers	Request
15	RR-88RR88	Nut, snift valve	Request
1	132-64011326401	Cap, charging valve	Request
16	102-03891020389	Washer, lock	Request
2	100-93201009320	Seal, charging cap	Request
17	102-00891020089	Bolt, hex head	Request
3	132-88111328811	Body, charging valve	Request
4	HH-7211HH7211	Spring, charging valve	Request
5	100-34821003482	O-ring	Request
6	132-64041326404	Retainer, O-ring	Request
21	902-98279029827	Insert, snift valve assembly B-2	Request
7	132-63991326399	Collar, guide	Request
8	131-69891316989	Spring, post valve R-11 series	Request
23	133-9226	Cap, charging valve	Ask us
9	902-7467	Cage, valve spring post stem ass	Ask us
25	135-8871	Bolt, catch	Ask us
11	104-51091045109	O-ring, valve assembly R11/R19, R20, MX	Request
2	104-67061046706	Seal, U-cup	Request
3	135-9410	Housing, piston	Ask us
4	135-9409	Piston	Ask us
5	135-9408	Tube, return	Ask us
6	135-9421	Ann, locking RH	Ask us
7	135-9420	Ann, locking LH	Ask us
10	135-94261359426	Spring, compression	Request
12	100-32131003213	Pin, roll	Request
13	102-04261020426	Screw, set socket cup point	Request
14	102-04271020427	Screw, set socket cup point	Request
15	102-3016	Screw, socket head	Ask us

Columns and Jacks

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer Tri-Star filler columns and jacks drawing

Open full size

Ref	Part number	Description
26	000-32230003223	Tube, polyflo	Request
27	100-88741008874	Fitting, tube 90 deg elbow	Request
1	104-50951045095	Motor, air bowl lift	Request
29	100-88751008875	Fitting, tube adapter	Request
2	100-93301009330	Gearbox, three way bowl lift	Request
3	100-82681008268	Chain, roller	Request
31	100-1482	Elbolv, street	Ask us
4	100-63501006350	Link, offset	Request
32	100-1444	Nipple	Ask us
5	100-82691008269	Link, connecting	Request
6	102-21601022160	Pin, dowel	Request
34	102-24521022452	Pin, taper	Request
7	903-99039039903	Jactuator, assembly	Request
8	133-90721339072	Plate, jack adjusting	Request
36	102-00731020073	Bolt, hex head	Request
9	135-96391359639	Pin, slide cover bowl	Request
37	102-00761020076	Bolt, hex head	Request
10	102-23181022318	Screw, thumb	Request
38	102-04161020416	Washer, flat	Request
11	133-9986	Flange, cover	Ask us
39	102-0057	Bolt, hex head	Ask us
12	903-83369038336	Flange, column sub-assembl	Request
40	102-01031020103	Bolt, hex head	Request
13	135-86121358612	Sprocket	Request
41	102-04181020418	Washer, flat	Request
14	135-8613	Sprocket	Ask us
42	102-2268	Washer, flat	Ask us
43	102-00901020090	Bolt, hex head	Request
16	104-65421046542-1	joint	Request
44	102-20021022002	Washer, flat	Request
17	104-65591046559	Valve, 3 way	Request
45	000-16250001625	Key, square	Request
19	903-9659	Flange, support columri	Ask us
47	000-3393	Square	Ask us
20	135-8655	Shaft, adjusting jacks	Ask us
48	102-07861020786	Bolt, hex head	Request
21	135-8656	Shaft, adjusting jacks	Ask us
49	000-1629	Square	Ask us
22	135-8657	Shaft, adjusting jacks	Ask us
50	102-03321020332	Nut, hex	Request
23	133-99981339998	Column, cover lift 52V filler	Request
51	135-9725	Stop, jactuator	Ask us
24	101-01371010137	Lubricator	Request
52	102-07131020713	Screw, socket head cap	Request
25	100-14411001441	Nipple, pipe	Request
53	100-0854	Elbow	Ask us
54	102-04271020427	Screw, set socket cup point	Request
55	100-4828	Ball valve	Ask us
35	102-00651020065	Bolt, hex head	Request
15	104-65411046541	Joint	Request
18	135-8652	Bracket, hand valve	Ask us
51	102-03401020340	Nut, hex jam	Request
52	102-08641020864	Screw, square hd cup pt	Request
1	135-8623	Shaft, adjusting	Ask us
2	135-8610	Rail, movable bracket	Ask us
3	135-8619	Block, mounting	Ask us
57	104-63671046367	Spring, valve closer	Request
4	135-86181358618-1	Clamp, locating	Request
58	102-05741020574	Pin, cotter	Request
5	135-8621	Block, mounting	Ask us
59	130-86171308617	Pin, valve closer hinge	Request
6	104-6015	Handle	Ask us
60	135-0961	Cladding, valve closer RH	Ask us
7	903-9661	Block, sliding cladding	Ask us
8	903-9660	Block, sliding cladding	Ask us
9	135-9578	Guard, proximity switch	Ask us
61	135-0964	Cladding, valve closer LH	Ask us
10	903-9879	Support, actuator cladding	Ask us
11	135-8456	Accumulator cladding, valve closer LH	Ask us
12	135-9440	Bracket, clamping	Ask us
62	135-0958	Track, valve closer-LH	Ask us
13	135-8455	Spacer, cylinder mounting track	Ask us
14	135-8454	Spacer, cylinder mounting track	Ask us
63	135-0968	Track, valve closer RH	Ask us
16	102-04201020420	Washer, flat	Request
17	100-88821008882	Fitting, tube elbow	Request
18	133-7945	Guide, follower	Ask us
64	903-9895	Plate, snift cam	Ask us
19	133-7950	Follower	Ask us
65	903-9894	Pan, snift	Ask us
20	135-9919	Adapter	Ask us
66	000-3080	Hose	Ask us
21	104-6097	Elbow	Ask us
67	133-9311	Bracket	Ask us
22	100-08901000890	Nipple	Request
68	135-0953	Bracket	Ask us
69	102-13021021302	Screw, socket head cap	Request
71	102-01841020184	Screw, flat head slot	Request
26	100-3089	Connector	Ask us
72	102-0297	Screw, round head	Ask us
27	101-3753	Elbow	Ask us
73	102-10751021075	Socket head cap screw	Request
28	135-91391359139	Adapter, cole drg	Request
74	102-1420	Screw, square head set	Ask us
79	135-9618	Bracket, sensor	Ask us
30	104-6238	Lubricator	Ask us
31	104-6094	Tee, service	Ask us
81	102-0296	Screw, round head	Ask us
32	135-8620	Block, mounting	Ask us
82	102-03851020385	Washer, lock	Request
33	135-8622	Block, mounting	Ask us
83	102-00791020079	Bolt, hex head	Request
84	135-9435	Stud	Ask us
35	102-02791020279	Screw, pan head phillips mach	Request
85	102-2411	Pin, dowel	Ask us
36	102-2966	Screw, round head	Ask us
86	102-1511	Screw, head set	Ask us
37	102-0413	Washer, flat	Ask us
87	104-6686	Clamp	Ask us
39	102-3020	Screw, square head set	Ask us
88	103-58801035880	Sensor, sonic-receiver cr ref	Request
40	102-0446	Screw, socket head set	Ask us
89	103-58791035879	Elbow, adapter lubricator	Request
41	102-1834	Screw, hex head	Ask us
90	100-0444	Connector	Ask us
42	102-0323	Nut, hex	Ask us
91	100-0434	Connector	Ask us
43	131-83801318380	U-bolt	Request
92	100-0433	Connector	Ask us
93	103-58811035881	Proximity sensor	Request
45	133-91711339171	Cam, neutral RH	Request
94	103-5841	Valve, solenoid	Ask us
46	102-06631020663	Washer, lock external	Request
95	100-61121006112	Nipple	Request
47	102-03871020387	Washer, lock	Request
96	100-0195	Bushing	Ask us
97	100-01701000170	Unilet, body	Request
98	000-3049	Conduit	Ask us

Centering Bell and Rod Assembly

Contents

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Meyer Tri-Star filler centering bell and rod assembly drawing

Open full size

Ref	Part number	Description
1	135-8608	Rod, centering bell	Ask us
2	135-19451351945	Spring, centering device	Request
3	133-68151336815	Strap, centering bell family	Request
3	133-6816	Strap and valve	Ask us
4	102-00671020067	Bolt, hex head	Request
5	135-9433	Centering bell and	Ask us
6	101-24851012485	Pin, groove	Request
7	135-94221359422	Bushing, centering bell	Request
8	136-0007	Centering bell valve	Ask us
9	136-0058	Rod, centering bell	Ask us
4	102-0667	Screw, hex head	Ask us

Manifold Assembly Airlift

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

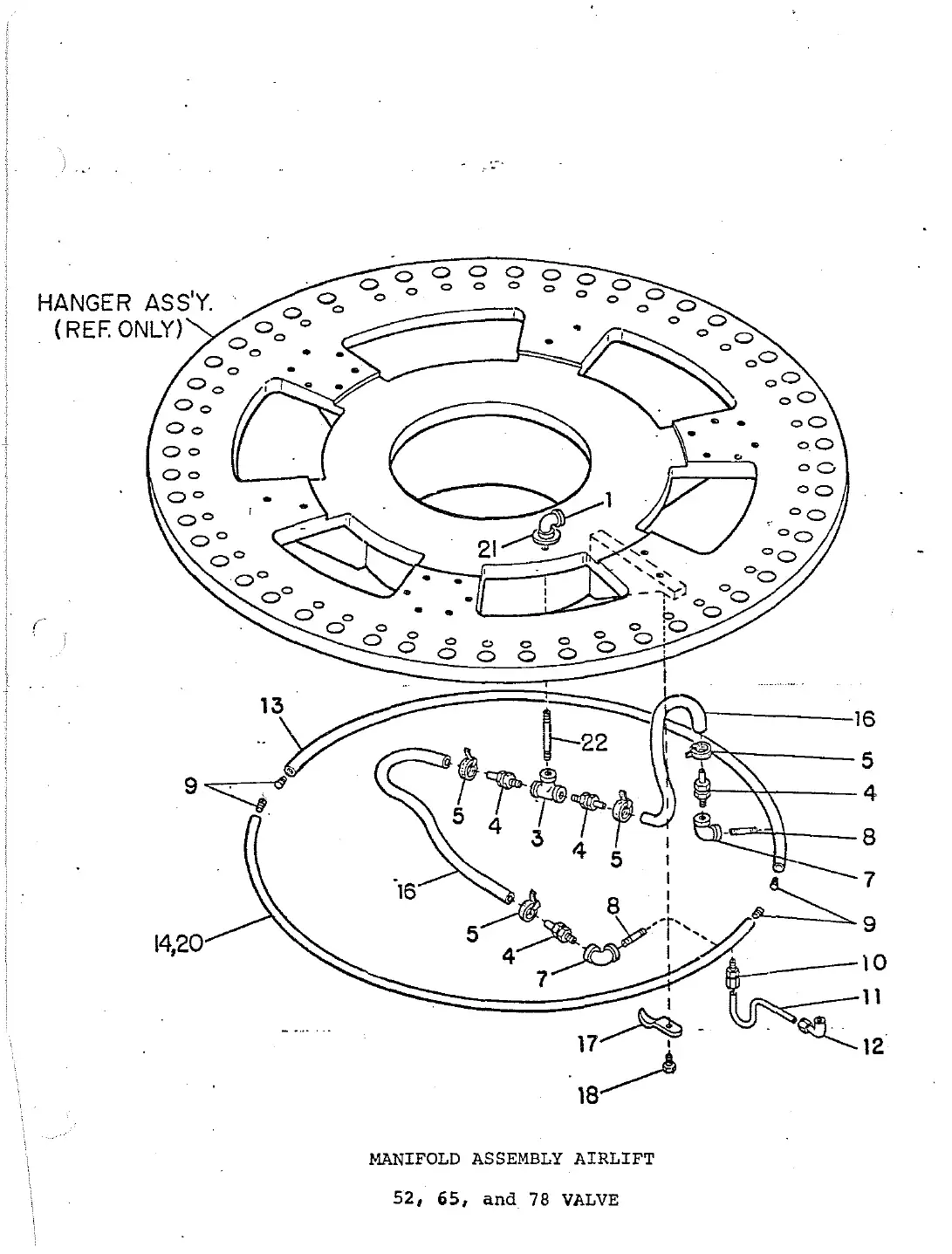

Meyer Tri-Star filler manifold assembly airlift drawing

Open full size

Ref	Part number	Description
13	133-99731339973-SST	Manifold, airlift 52V a model	Request
14	133-9975	Header, air	Ask us
16	000-34890003489	Tubing, CO2/air braided hose	Request
17	100-32001003200	Clamp, air lift manifold	Request
1	100-08571000857	Elbow	Request
3	100-08841000884	Tee	Request
20	135-9390	Header, air	Ask us
4	101-01081010108	Fitting, barbed	Request
5	100-30771003077	Clamp, hose clamp	Request
21	102-2324	Washer, s2v	Ask us
7	100-3976	Elbolv, reducing	Ask us
22	100-3629	Nipple, pipe	Ask us
8	100-2734	Nipple, pipe	Ask us
9	100-11531001153	Plug, pipe countersunk	Request
10	100-09271000927	Fitting, tube adapter	Request
11	133-91661339166	Tube, air lifts	Request
12	100-14721001472	Elbow, tube	Request
18	102-00121020012	Hex head bolt	Request

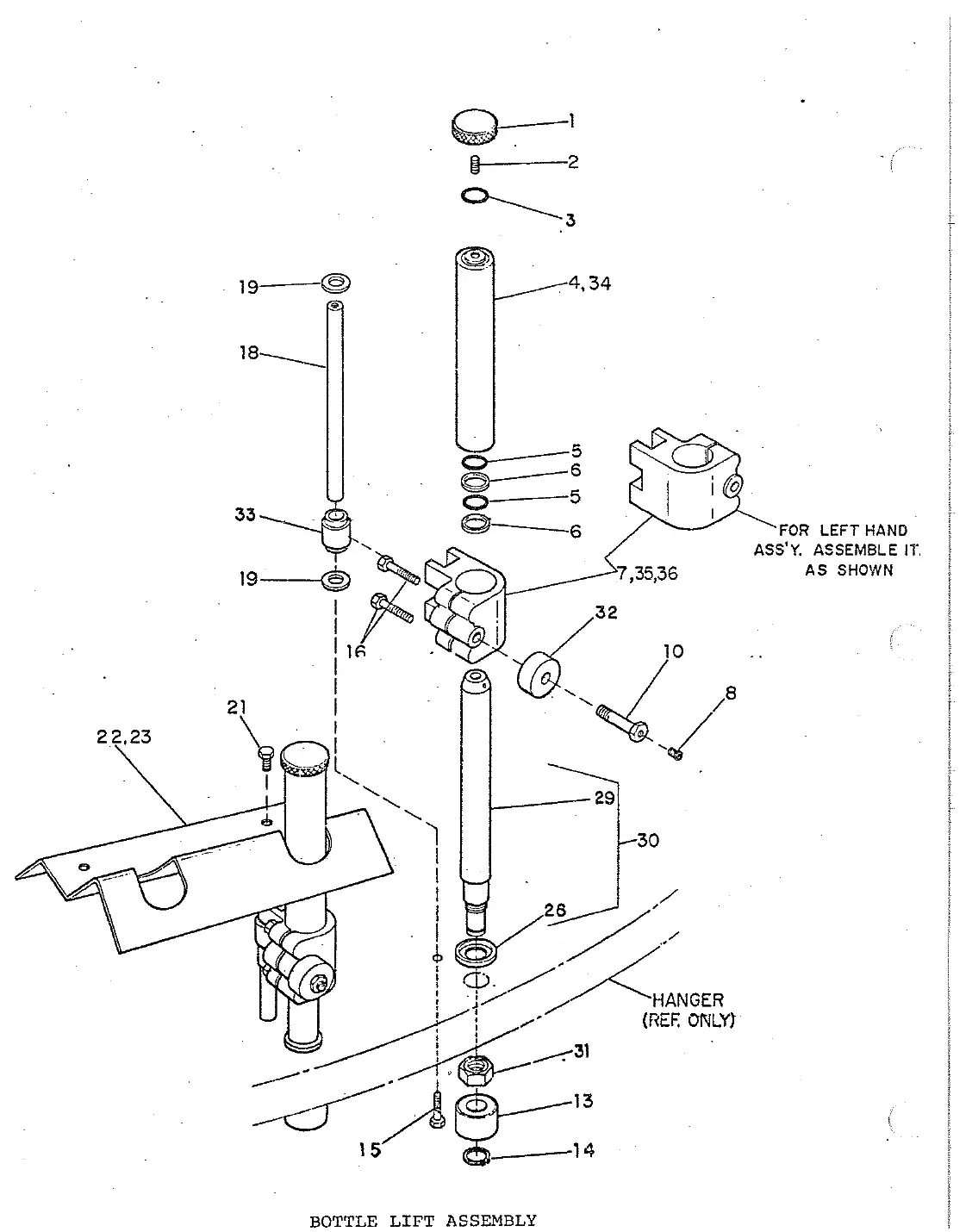

Bottle Lift Assembly

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Ref	Part number	Description
16	102-11421021142	Screw, socket head cap	Request
17	133-6675	Bushing, guide	Ask us
18	135-07661350766	Rod, guide	Request
19	135-08601350860	Pad, bumper	Request
21	102-00881020088	Hex head bolt	Request
22	133-5254	Guard, cylinder	Ask us
3	100-40331004033	O-ring	Request
3	133-52571335257	Guard, lift cylinder 78V	Request
5	104-62641046264	O-ring	Request
23	133-5256	Guard, cylinder	Ask us
26	135-39471353947	Collar, lift cylinder pist	Request
8	104-63201046320	Fitting grease	Request
27	133-6851	Piston w/o shoulder	Ask us
9	104-6341	Cam follower piston	Ask us
10	135-08471350847	Screw, cam follower btl lift	Request
11	135-5434	Piston	Ask us
31	135-60861356086	Nut, lock piston rod	Request
12	135-0987	Cylinder rod nut	Ask us
32	104-6475	Cam follower	Ask us
13	133-66861336686	Roller, driving airlift cylinder	Request
14	104-60261046026	Ring, retaining	Request
34	903-95749039574-KIT	Fiberglass to lift cylinder	Request

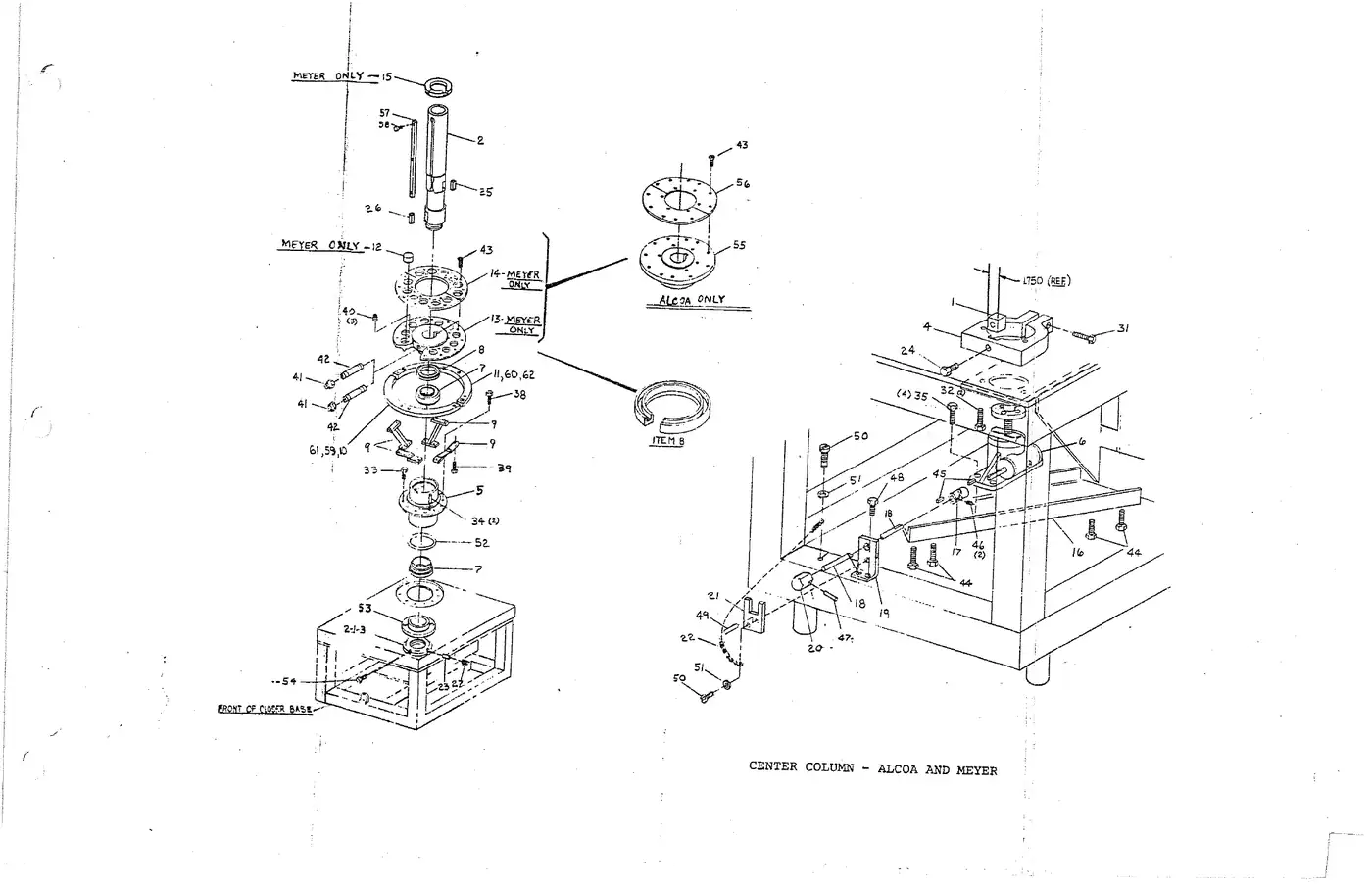

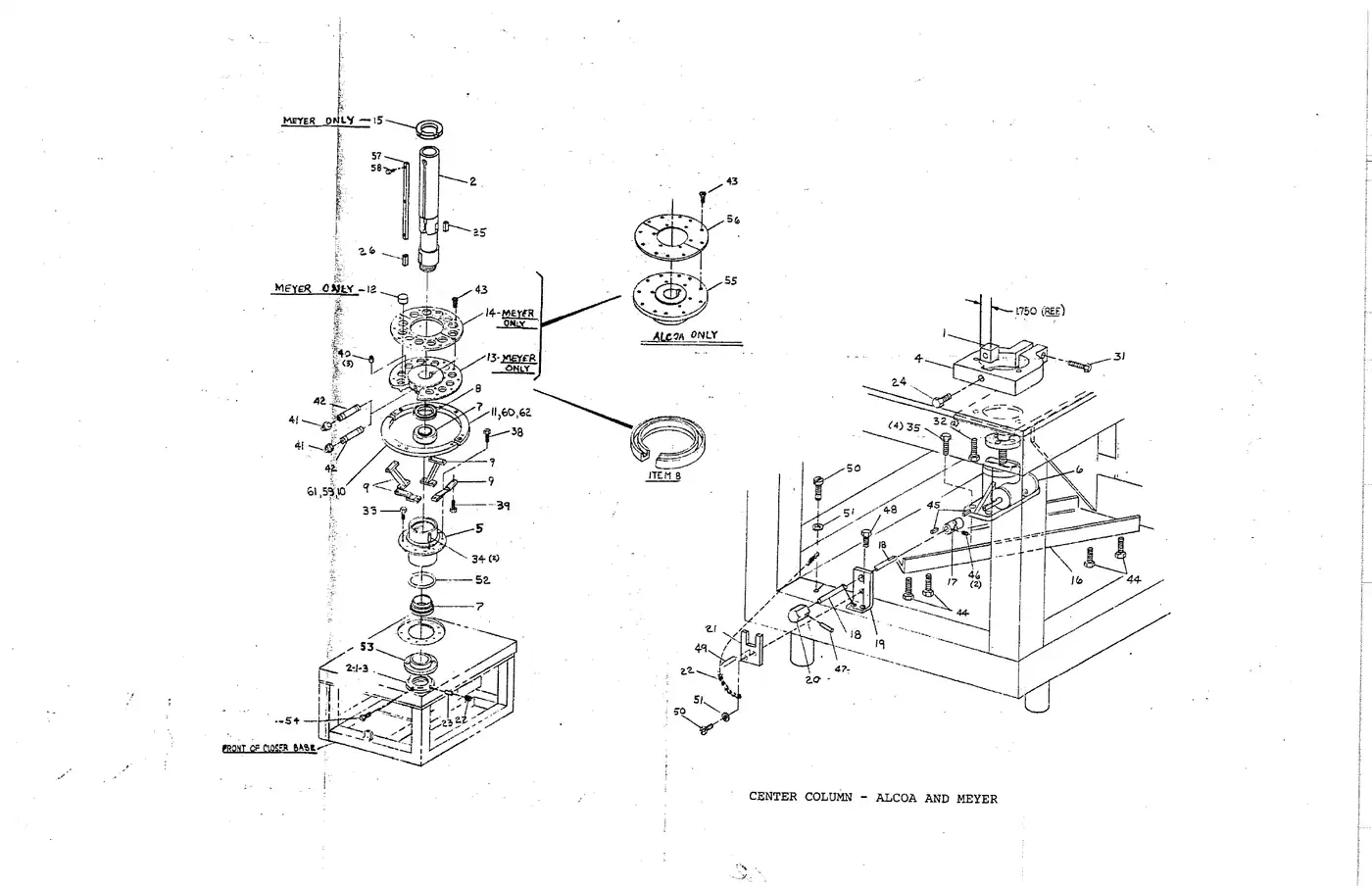

Center Column Meyer

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Ref	Part number	Description
24	102-1836	Screw, hex head lap	Ask us
25	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
27	102-04281020428	Screw, set socket cup point	Request
31	102-2142	Screw, socket head cap	Ask us
33	102-01031020103	Bolt, hex head	Request
1	135-8475	Key, anti-rotation	Ask us
34	102-21601022160	Pin, dowel	Request
2	903-9575	Coluilul, closer	Ask us
35	102-00271020027	Bolt, hex head	Request
4	135-8474	Ring, anti-rotation	Ask us
38	102-01021020102	Bolt, hex head	Request
5	903-9571	Housing, bearing	Ask us
6	104-64951046495	Jactuator, rise	Request
7	101-19211011921	Bearing, roller closer column	Request
41	100-39411003941	Fitting, grease female str	Request
8	101-06201010620	Seal, oil closer column lower	Request
42	100-27241002724	Nipple	Request
9	135-2875	Bracket, rail support	Ask us
43	102-01911020191	Screw, flat head slot	Request
11	135-2877	Support, guide	Ask us
45	000-3393	Key	Ask us
12	131-7610	Pad, bottle head	Ask us
46	102-14301021430	Screw, set	Request
47	102-23611022361	Pin, roll	Request
48	102-16611021661	Bolt, hex head	Request
13	135-6594	Plate, cushion head	Ask us
49	102-27201022720	Pin, roll	Request
50	102-1457	Screw, fillister head	Ask us
51	102-04141020414	Washer, flat	Request
14	134-65961346596	Wearplate, crowner 15 hd	Request
52	104-65781046578	O-ring	Request
53	903-96209039620	Spacer, lower closure disconnect gr	Request
54	102-2070	Scre, set full dog	Ask us
15	903-9582	Support, crowner stand wheel	Ask us
55	134-65911346591	Plate, cushion closure sol	Request
16	135-9423	Base, jack support	Ask us
56	134-65921346592	Plate, wear solid	Request
17	135-1670	Joint	Ask us
57	134-16111341611	Key, column & spool hub	Request
58	102-05731020573	Screw, socket head cap	Request
19	135-0969	Bracket, crowner	Ask us
59	135-4047	Rail support	Ask us
20	133-81011338101	Extension, hex shaft drive element	Request
60	135-08471350847	Screw, cam follower btl lift	Request
21	135-9981	Clip, anti-rotation	Ask us
61	135-4046	Rail support	Ask us
22	000-4099	Chain, spash	Ask us
62	135-0876	Rail support	Ask us

Stars Shaft Assembly

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

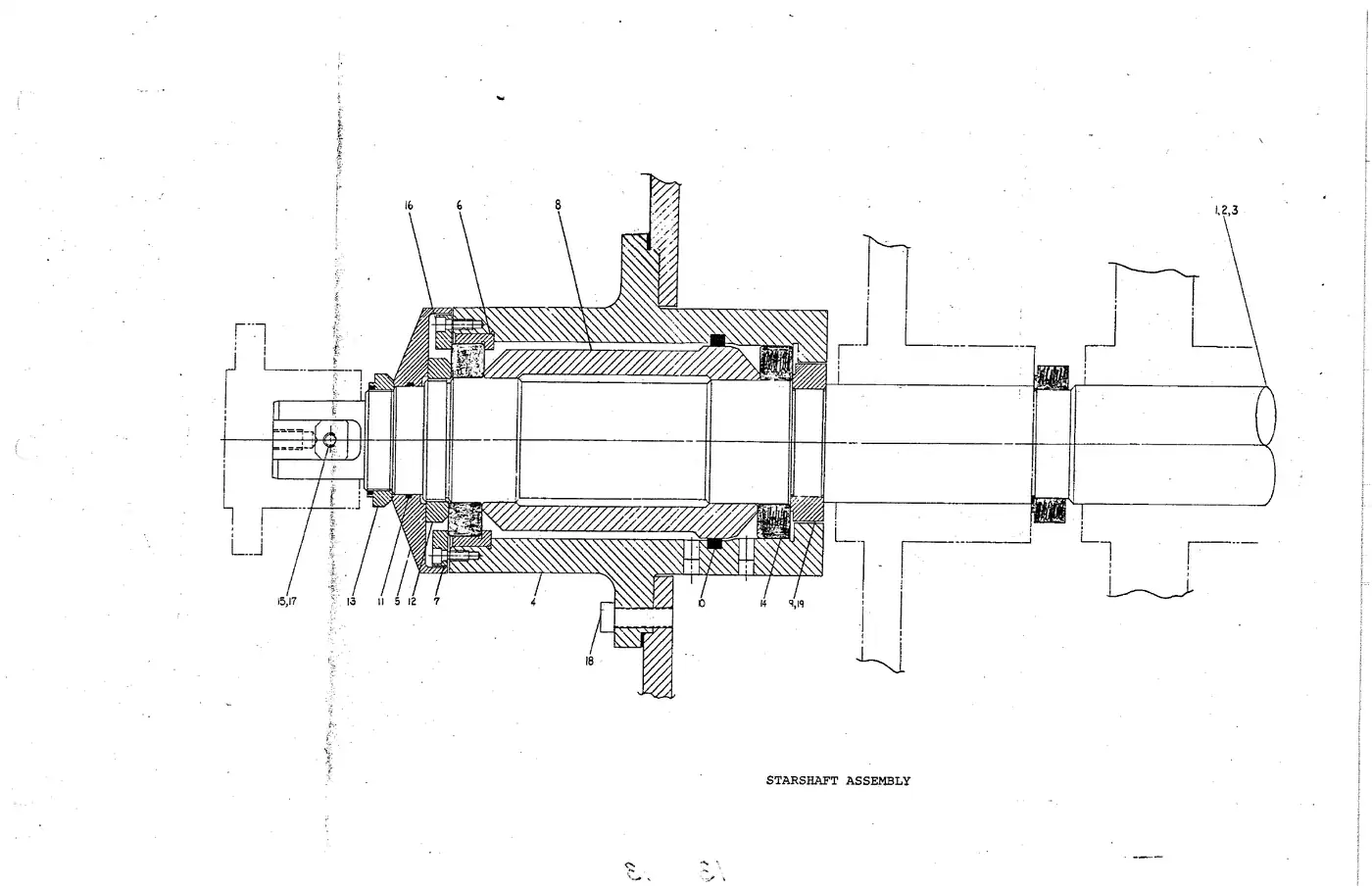

Meyer Tri-Star filler stars shaft assembly drawing

Open full size

Ref	Part number	Description
9	135-95631359563	Collar, clamp-type, for	Request
10	104-65191046519	O-ring, starwheel housing	Request
11	104-6520	O-ring	Ask us
1	135-84971358497	Shaft, filler infeed star	Request
12	104-65161046516	Nut, lock	Request
2	135-84371358437	Shaft, filler discharge star	Request
13	104-65171046517	Locknut	Request
3	135-84981358498	Shaft, closer discharge star	Request
14	104-65181046518	Bearing	Request
4	903-9585	Housing, bearing	Ask us
15	135-84381358438	Lug, drive starshaft	Request
5	135-8442	Shield, bearing	Ask us
16	102-09771020977	Screw, socket head cap	Request
6	135-8424	Adapter, bearing ntg	Ask us
17	102-00901020090	Bolt, hex head	Request
7	135-84391358439	Ring, retaining tristar bearing	Request
18	102-01021020102	Bolt, hex head	Request
8	135-8440	Spacer, bearing	Ask us
19	102-12361021236	Screw, socket head cap	Request

Drive Closer

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

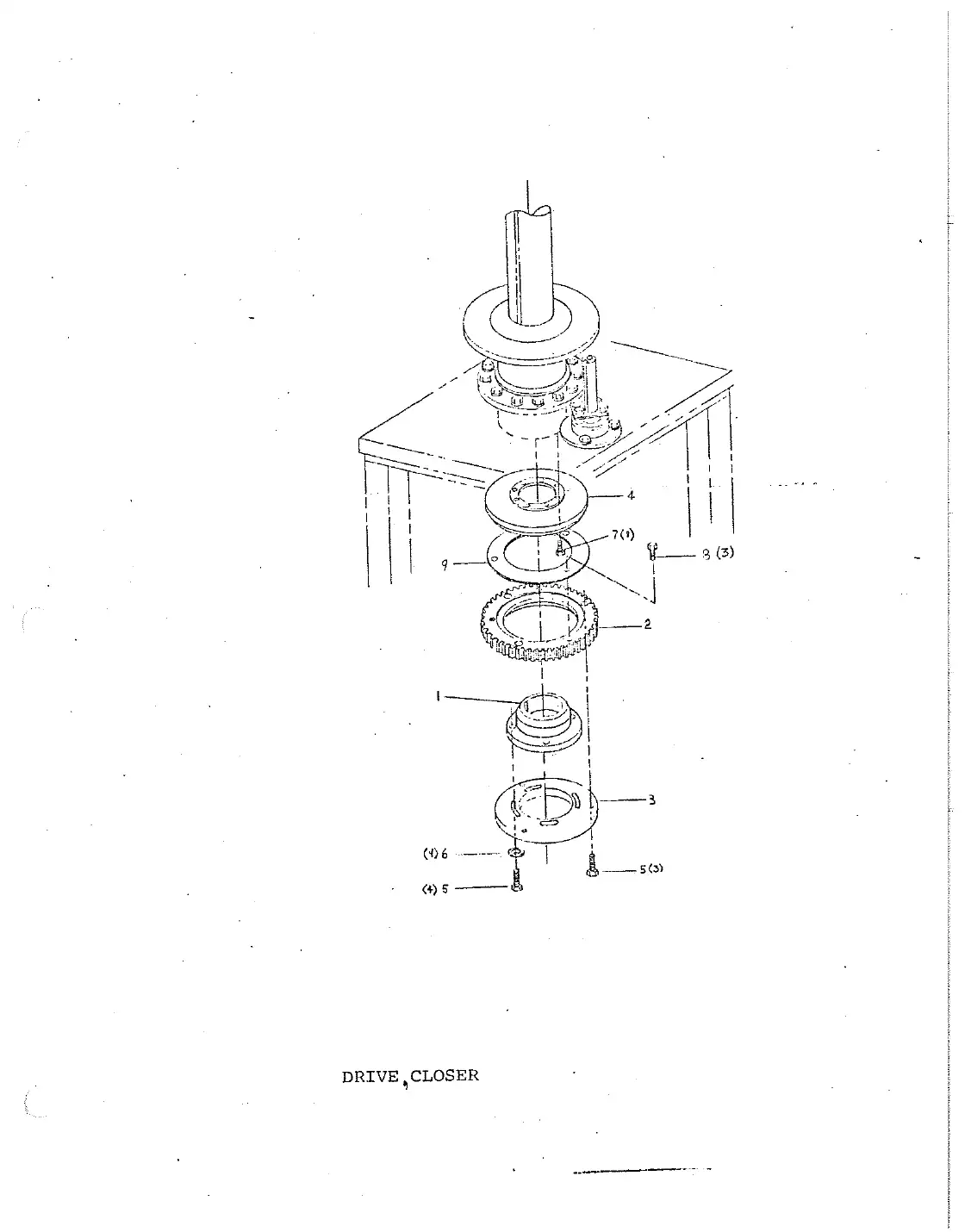

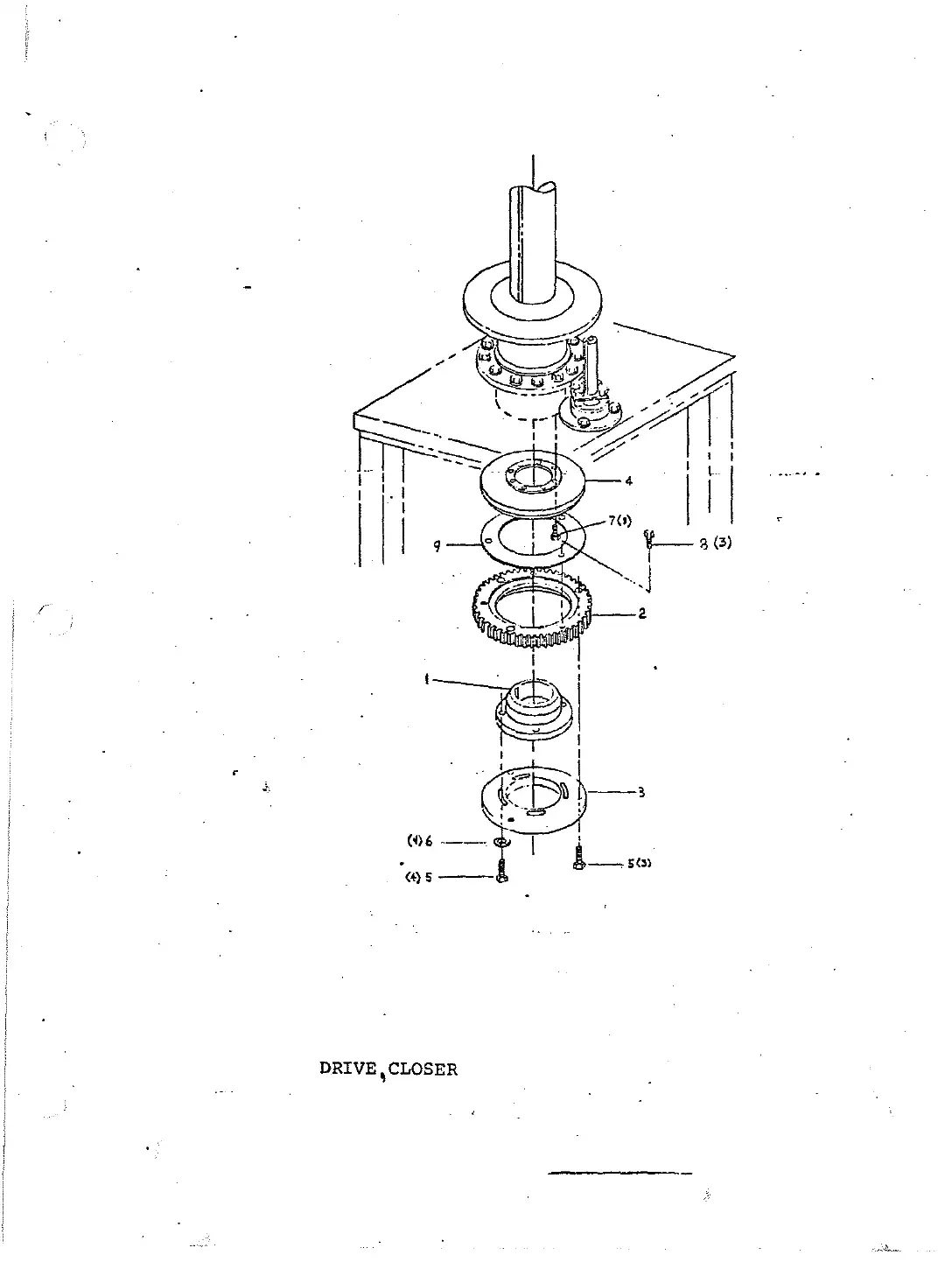

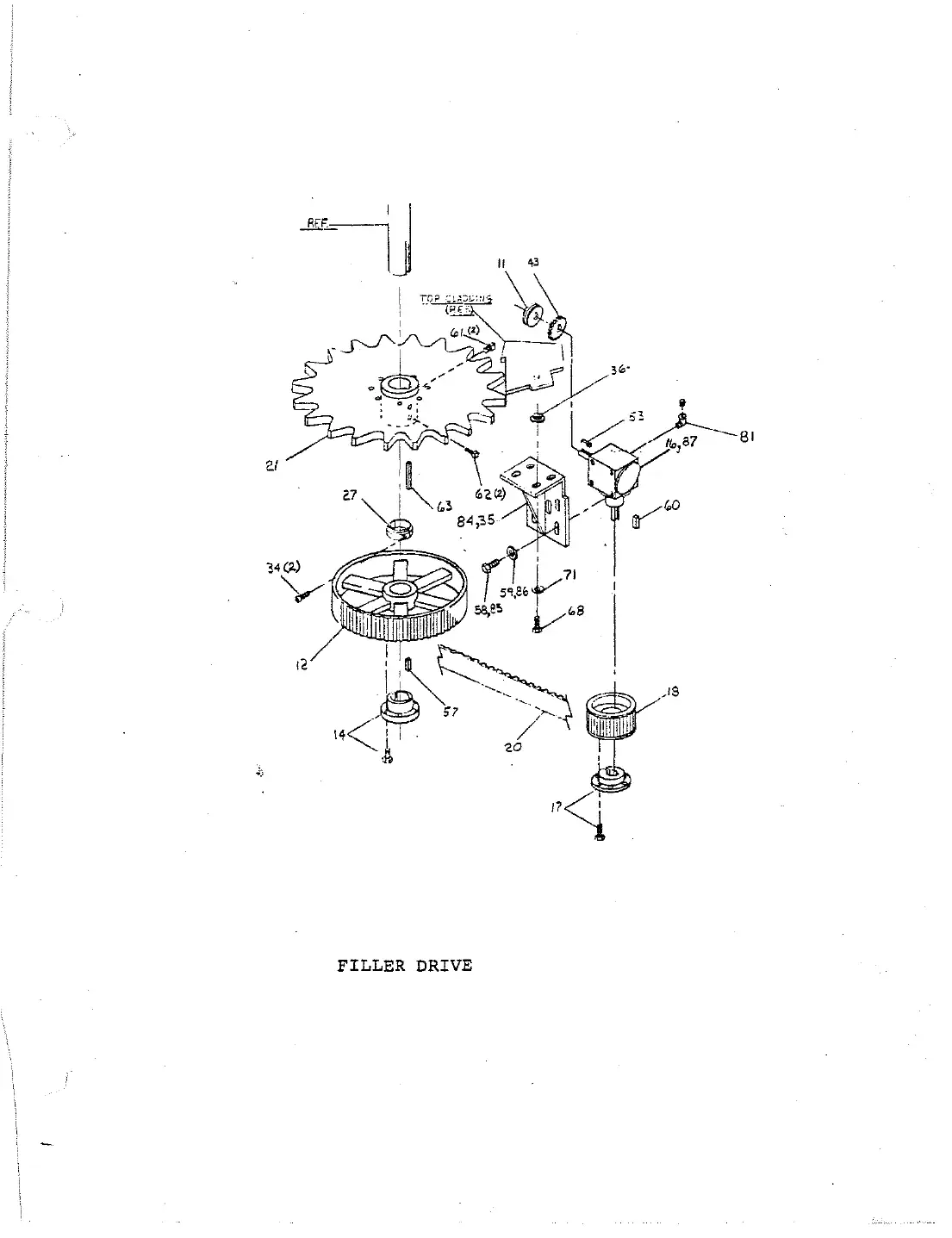

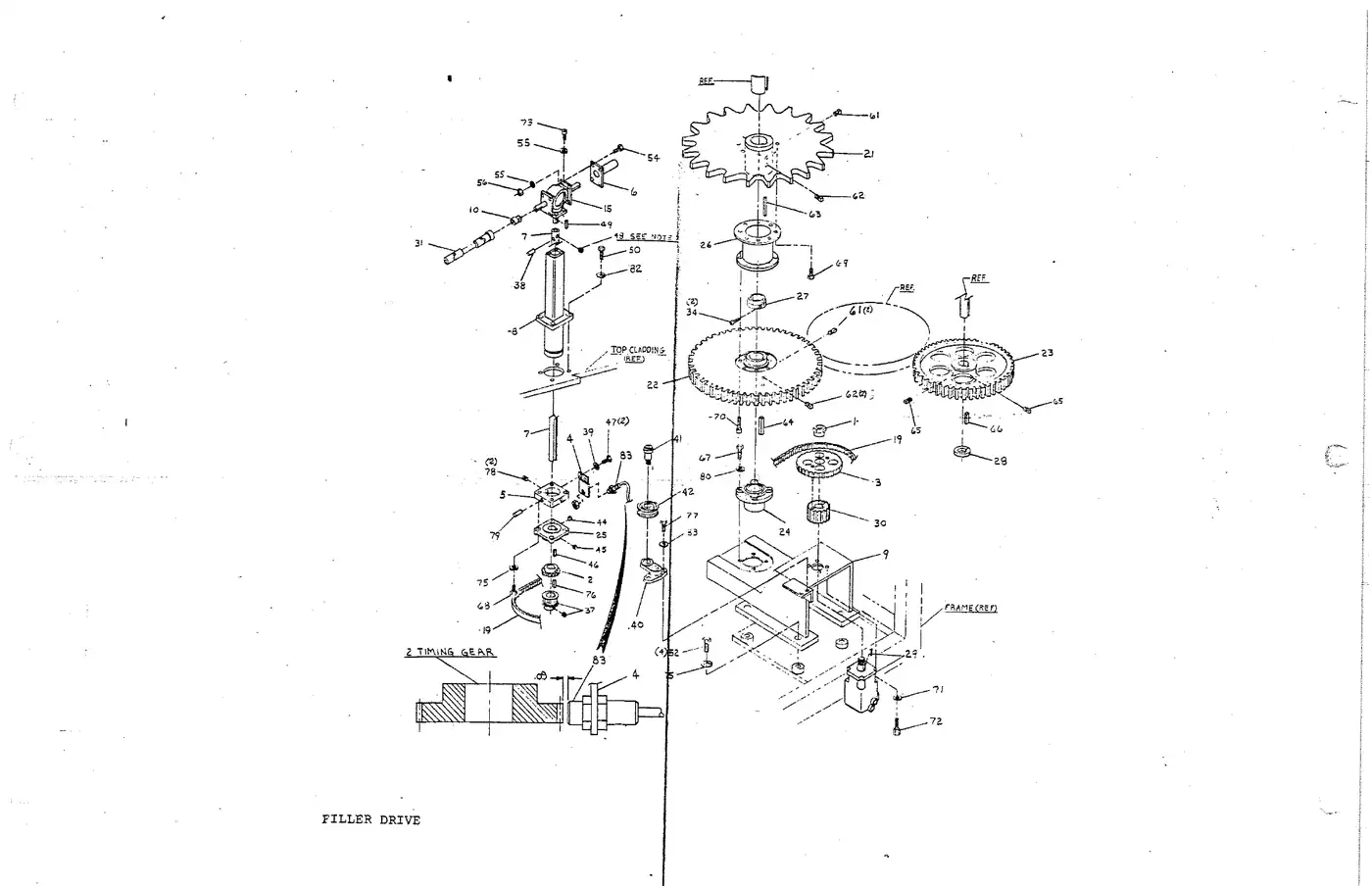

Meyer Tri-Star filler drive closer drawing

Open full size

Ref	Part number	Description
1	903-96209039620	Spacer, lower closure disconnect gr	Request
2	135-84431358443	Gear, driven closer column	Request
3	135-8445	Plate, drive closer	Ask us
4	135-8446	Plate, retaining	Ask us
5	102-01021020102	Bolt, hex head	Request
6	102-04181020418	Washer, flat	Request
7	102-00271020027	Bolt, hex head	Request
8	102-00671020067	Bolt, hex head	Request
9	135-9232	Retainer, closer	Ask us

Filler

Contents

Parts for this assembly, from the original Meyer parts lists.

Ref	Part number	Description
39	102-0378	Lockwasher	Ask us
40	104-65761046576	Tensioner	Request
41	104-65751046575	Shaft, tightener	Request
42	104-65771046577	Idler pulley	Request
1	135-84791358479	Nut, hex drive hydraulic 52V filler	Request
43	100-3046	Sprocket	Ask us
2	135-84811358481	Sprocket, worm drive crowner gearbox	Request
44	102-0477	Screw, set	Ask us
3	903-95879039587	Sprocket, HTD timing screw drive 52V	Request
45	102-04761020476	Screw, pt set cup th	Request
46	000-16280001628	Key, square	Request
46	903-9589	Drive gear ass screw, hex head	Ask us
9	903-9541	Bracket, support	Ask us
54	102-00671020067	Bolt, hex head	Request
55	102-03871020387	Washer, lock	Request
56	102-03321020332	Nut, hex	Request
10	104-64761046476	Coupling, keyless	Request
57	000-16690001669-2.62	Key, square	Request
11	104-6506	Limiter, torque	Ask us
12	104-6498	Sprocket	Ask us
14	104-64991046499	Bushing, quick disconnect keyway	Request
61	102-05251020525	Screw, set square hd	Request
62	102-0524	Screw, set	Ask us
19	104-6502	Belt, timing pitch	Ask us
65	102-0527	Screw, set	Ask us
66	000-16500001650-1.5	Key, square	Request
67	102-0692	Screw, hex head	Ask us
20	104-65051046505	Belt, timing	Request
68	102-0039	Screw, hex head	Ask us
21	903-9577	Gear, ass epicycloidal	Ask us
69	102-0038	Screw, hex head	Ask us
70	102-00431020043	Bolt, hex head	Request
71	102-0757	Washer, flat	Ask us
22	903-95819039581	Gear, driven tristar	Request
72	135-8427	Screw, hex head	Ask us
23	133-99881339988	Gear, driven closer column	Request
73	102-07431020743	Screw, socket head cap	Request
24	100-02381000238	Bearing, flange medium duty	Request
75	102-03811020381	Washer, lock	Request
25	100-02291000229	Bearing	Request
26	903-9686	Spacer, driven gear	Ask us
77	102-00261020026	Bolt, hex head	Request
27	135-95631359563	Collar, clamp-type, for	Request
28	101-00671010067	Collar, shaft	Request
79	102-24371022437	Pin, roll	Request
29	104-6625	Fotor, hydraulic /- tllo	Ask us
30	135-69011356901	Gear, pinion drive	Request
81	100-14841001484	Elbow, street	Request
31	903-98529039852	Shaft, assembly infeed screw	Request
82	102-03901020390	Washer, lock	Request
33	102-0371	Washer, flat 103-58 sensor tach indicator	Ask us
34	102-12361021236	Screw, socket head cap	Request
84	903-9986	Bracket, gearbox	Ask us
36	135-8676	Washer, stand-off	Ask us
86	102-2011	Washer	Ask us
87	104-6769	Gearbox, ratio	Ask us

Liquid Level Control

Contents

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Meyer Tri-Star filler liquid level control drawing

Open full size

Ref	Part number	Description
39	100-46581004658	Bushing, reducing hex	Request
40	100-53711005371	Tee	Request
41	100-4103	Nipple, close	Ask us
42	100-57341005734	Elbow, street 90 deg	Request
1	100-48261004826	Rotary, joint 3 passage	Request
43	100-46601004660	Elbow, street 90 deg	Request
2	135-8598	Ilousing, float	Ask us
45	100-61121006112	Nipple	Request
3	104-60211046021	Float, ball	Request
4	133-7908	Hose, liquid level	Ask us
5	135-11631351163	Bracket, liquid level cont	Request
47	102-00911020091	Bolt, hex head	Request
6	100-21351002135	Gasket, tri clamp	Request
48	102-20021022002	Washer, flat	Request
7	100-21441002144	Clamp, hinged sanitary	Request
8	133-6955	Stem, valve operating	Ask us
51	102-04151020415	Washer, flat	Request
9	102-04371020437	Screw, set socket cup point	Request
52	102-21001022100	Screw, thumb	Request
10	133-69761336976	Box, stuffing liquid level	Request
53	HH-2414HH2414	Nut, lock stuffing box	Request
11	102-14831021483	Packing	Request
54	102-07751020775	Screw, fillister hd	Request
12	HH-8691HH8691	Plate, mounting	Request
55	102-07731020773	Screw, fillister hd	Request
13	HH-8692HH8692	Retainer, bushing mounting	Request
56	102-03321020332	Nut, hex	Request
14	HH-2410HH2410	Gland, packing	Request
57	102-02931020293	Screw, round head slot	Request
15	HH-8695HH8695	Lever, oper liquid level control	Request
58	102-05531020553	Nut, hex	Request
16	HH-2416HH2416	Spring, operating	Request
59	102-00751020075	Bolt, hex head	Request
17	HH-8696HH8696	Plate, operating liq level	Request
60	102-03881020388	Washer, lock	Request
61	102-03331020333	Nut, hex	Request
19	HH-3485HH3485	Valve, body clean out 52V family	Request
62	000-35190003519	Tubing, poly-flo	Request
20	100-46181004618	Gauge, pressure	Request
21	RR-228RR228	Gasket, air inlet valve bo	Request
22	104-51311045131	Regulator	Request
65	100-86371008637	Elbow, street 90 deg	Request
23	900-01679000167	Valve, run / charge	Request
66	101-0470	Connector, ale	Ask us
24	130-11831301183	Plate, operator	Request
67	101-3752	Fitting	Ask us
25	104-51261045126	Valve, diaphragm	Request
68	100-4661	Coupling, half pipe	Ask us
26	135-71251357125	Lever, float	Request
69	100-88741008874	Fitting, tube 90 deg elbow	Request
27	104-67941046794	Valve, check	Request
28	000-17490001749	Tubing	Request
70	100-92951009295	Nipple	Request
29	100-34851003485	Connector, male	Request
71	100-3975	Elbow, reducing	Ask us
30	904-5906	Bracket, ftg liquid level	Ask us
72	101-01081010108	Fitting, barbed	Request
31	904-5907	Plate, valve mounting	Ask us
73	100-1490	Bushing, reducing	Ask us
32	100-53251005325	Elbow, male connector	Request
74	100-75581007558	Nipple	Request
75	100-5493	Tee set	Ask us
34	100-5324	Fitting, connector	Ask us
76	100-48561004856	Plug, pipe square hd	Request
35	100-54901005490	Tee	Request
77	101-0472	Straight fitting	Ask us
36	100-61091006109	Nipple, close	Request
78	100-67581006758	Gauge, pressure	Request
37	104-6552	Valve, ball	Ask us
79	100-41051004105	Nipple	Request
80	100-9669	Coupling	Ask us
81	100-3074	Clamp, hose	Ask us
82	104-6787	Connector, hose	Ask us
83	104-6788	Hose	Ask us
84	136-1417	Plate, legend	Ask us
85	104-6789	Plug	Ask us
86	100-96671009667	Elbow, street	Request
87	100-61131006113	Nipple, close	Request
88	100-89111008911	Bushing, reducing hex	Request
49	102-03381020338	Nut, hex jam	Request
50	102-02951020295	Screw, round head slot	Request
60	102-0588	Tube	Ask us
64	900-3519	Connector, elbow	Ask us
18	HH-8698HH8698	Valve, air body assembly OEM	Request
78	100-3387	Tee, pipe	Ask us
27	104-6791	Valve chack	Ask us
82	100-41021004102	Nipple	Request
84	100-53721005372	Elbow, 90 deg	Request
85	101-33051013305	Cross, female pipe	Request
86	100-89081008908	Bushing, reducing hex	Request
88	100-89281008928	Elbow, 90 deg	Request
46	100-5739	Bushing, reducer	Ask us

Product Line

Contents

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

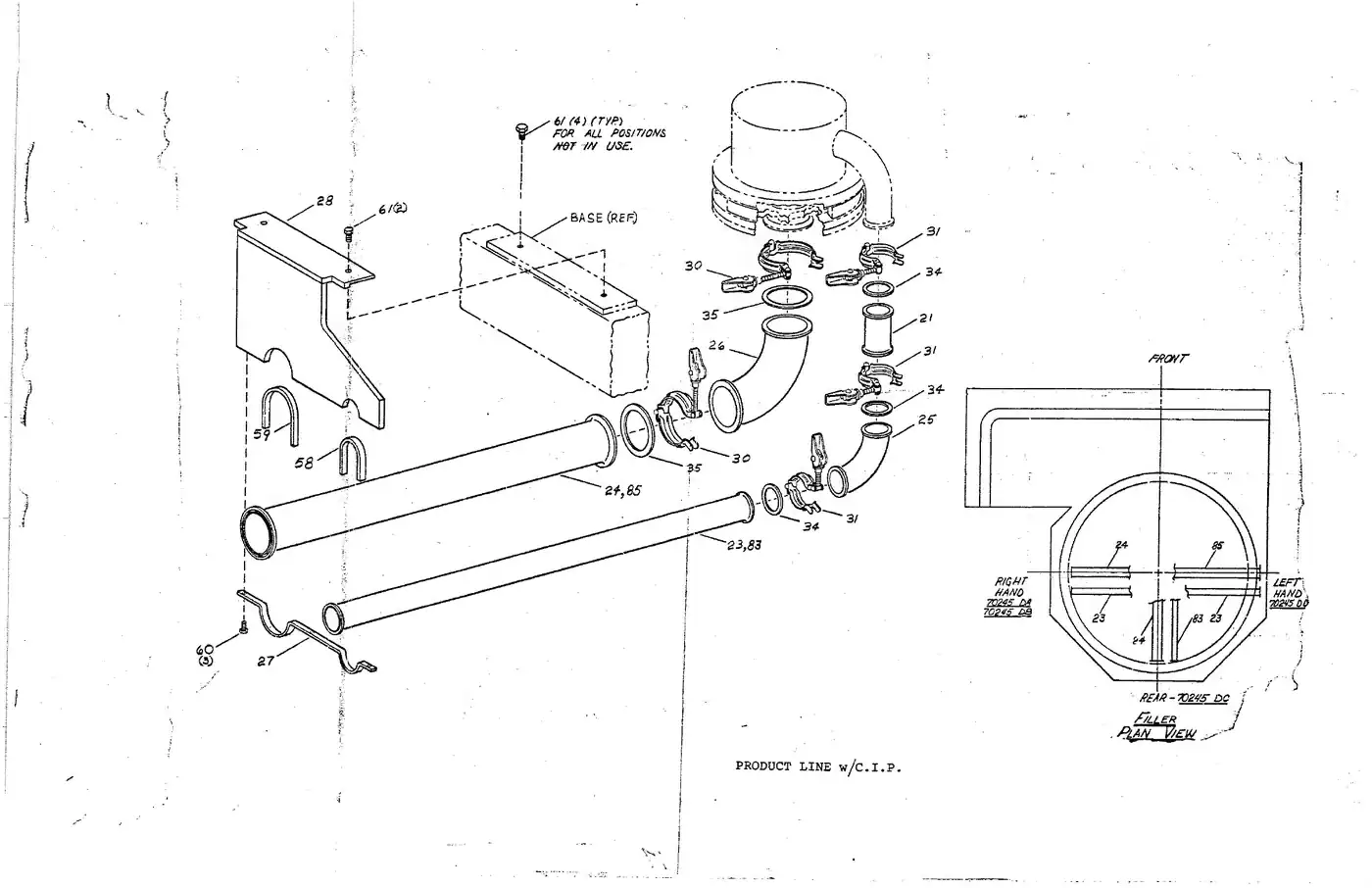

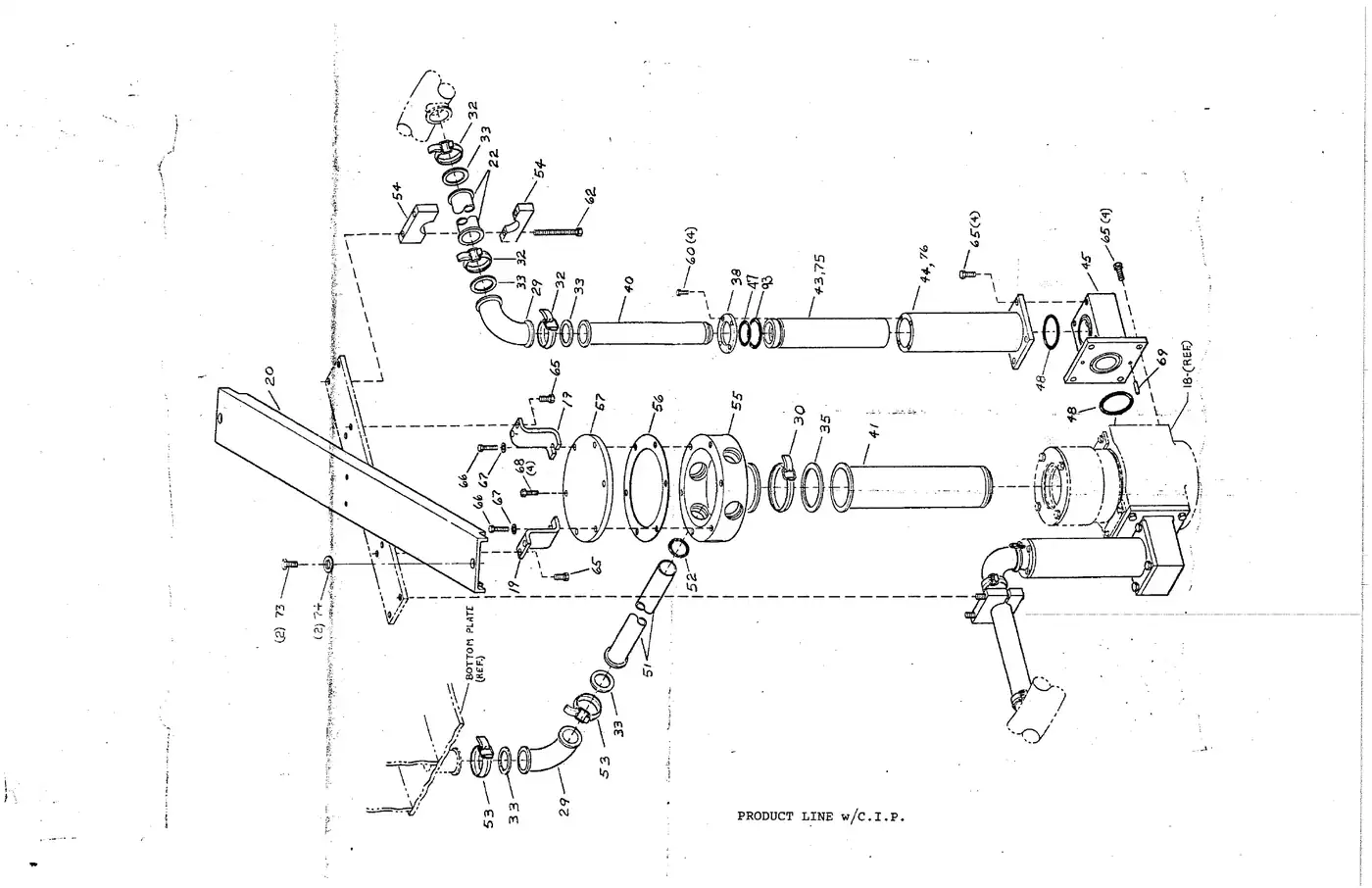

Meyer Tri-Star filler product line drawing

Open full size

Ref	Part number	Description
53	104-63821046382	Clamp, hinged san thin	Request
54	135-8632	Clamp, drain tube	Ask us
55	903-8001	Clamper, balance	Ask us
4	903-9647	Ferrule	Ask us
56	135-0028	Gasket, balance clarnh	Ask us
57	133-8034	Cover, balance clamper	Ask us
13	903-9662	Tube, drain	Ask us
58	000-35110003511	Sheet	Request
15	136-0003	Gland, o-ring- lower	Ask us
16	136-0014	Gland, o-ring-lower	Ask us
60	102-00671020067	Bolt, hex head	Request
17	135-8627	Tube, chain inner	Ask us
61	102-16101021610	Bolt, hex head	Request
18	903-9640	Tube, nain outer	Ask us
62	102-0570	Screw, hex	Ask us
19	135-8635	Spacer, clip	Ask us
63	102-01031020103	Bolt, hex head	Request
20	903-9668	Channel 102-007 screw, hex	Ask us
21	903-9693	Ferrule	Ask us
65	102-00891020089	Bolt, hex head	Request
22	903-9694	Ferrule	Ask us
66	102-00781020078	Hex head bolt	Request
23	903-9697	Ferrule	Ask us
67	102-04161020416	Washer, flat	Request
24	903-9696	Ferrule, 02-0076 screw	Ask us
25	100-4147	Ferrule, elbow	Ask us
69	102-19241021924	Pin, dowel	Request
26	100-41491004149	Elbow, 90 deg	Request
70	102-00901020090	Bolt, hex head	Request
28	903-9692	Support	Ask us
72	136-0008	Stand-off	Ask us
29	100-41461004146	Elbow, 90 deg	Request
73	102-0057	Screw, hex	Ask us
30	100-21441002144	Clamp, hinged sanitary	Request
74	102-2268	Washer	Ask us
1	100-2143	Clamp	Ask us
75	135-9615	Bushing	Ask us
32	100-21421002142	Clamp, hinged sanitary	Request
76	903-9892	Flange, side support	Ask us
33	100-21331002133	Gasket, tri-clamp tube	Request
78	136-0002	Gland, o-ring-upper	Ask us
34	100-21341002134	Gasket, tri-clamp tube	Request
35	100-21351002135	Gasket, tri clamp	Request
80	135-9584	Cover plate, hnhole	Ask us
36	135-85791358579	Bushing, product line	Request
81	102-04481020448	Screw, set socket cup point	Request
38	135-8878	Cover	Ask us
82	102-00951020095	Bolt, hex head	Request
39	135-8584	Cover	Ask us
83	903-9936	Ferrule	Ask us
40	903-9742	Ferrule, slide	Ask us
85	903-9938	Ferrule	Ask us
41	903-9743	Ferrule plain slide	Ask us
86	104-67071046707	O-ring	Request
42	135-8583	Bushing	Ask us
87	104-67081046708	O-ring	Request
43	135-8877	Bushing	Ask us
88	104-67091046709	O-ring	Request
44	903-9670	Flange, slide support	Ask us
89	104-67101046710	O-ring	Request
45	903-9672	Block	Ask us
90	104-67111046711	O-ring	Request
46	104-65651046565	O-ring	Request
47	104-6568	O-ring	Ask us
92	104-67131046713	O-ring, Rotherm	Request
48	104-65661046566	O-ring	Request
93	104-67141046714	O-ring	Request
49	104-65641046564	O-ring	Request
50	104-65631046563	Bushing, reducing hex	Request
51	104-6029	Ferrule ass	Ask us
52	100-40251004025	O-ring	Request
68	102-00761020076	Bolt, hex head	Request
91	104-67121046712	O-ring, product inlet	Request

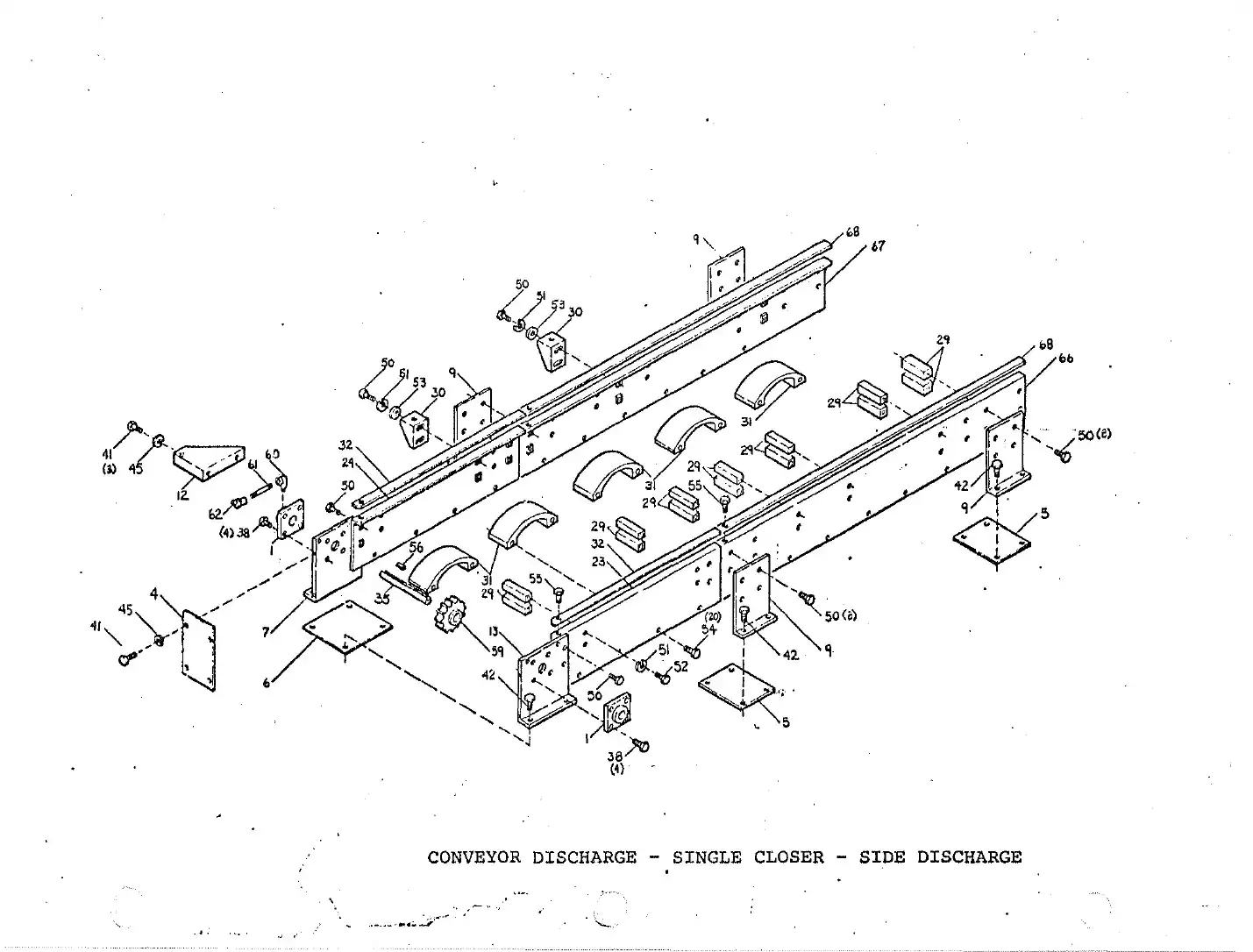

Conveyor W/Rear Discharge

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

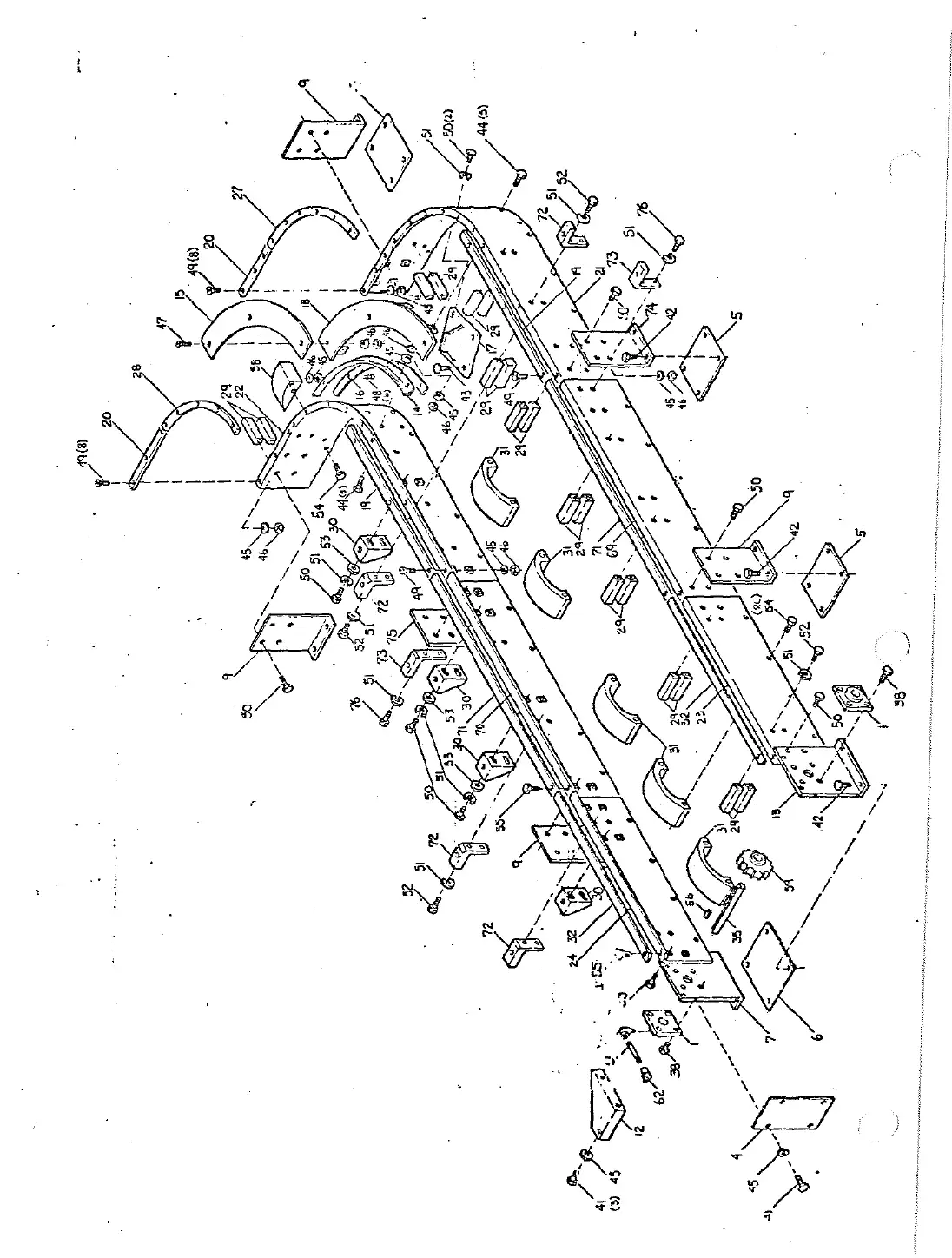

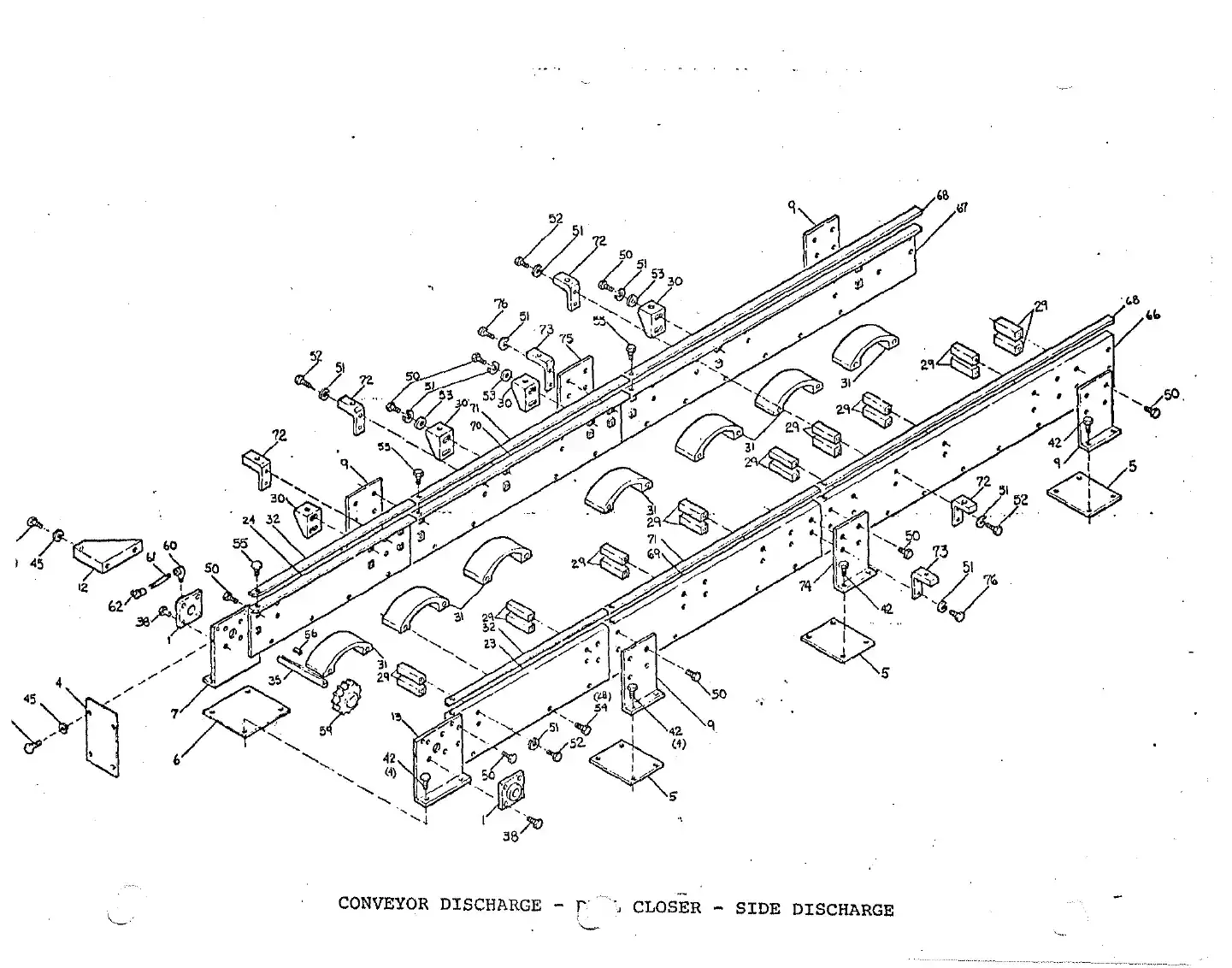

Meyer Tri-Star filler conveyor w/rear discharge drawing

Open full size

Ref	Part number	Description
37	135-8523	Sprocket, chain	Ask us
38	102-1492	Screw, hex head	Ask us
41	102-00651020065	Bolt, hex head	Request
42	102-1834	Screw, hex head	Ask us
43	102-01011020101	Bolt, hex head	Request
1	101-06021010602	Bearing, conveyor	Request
44	102-00671020067	Bolt, hex head	Request
3	135-8518	Cover, drive end	Ask us
45	102-03871020387	Washer, lock	Request
4	135-8517	Cover, idler end	Ask us
46	102-03321020332	Nut, hex	Request
5	135-8590	Base, conveyor bkt	Ask us
47	102-01911020191	Screw, flat head slot	Request
6	135-8591	Base, conveyor bkt	Ask us
48	102-0194	Screw, flat head	Ask us
7	903-9613	Side, conveyor bkt	Ask us
49	102-01931020193	Screw, flat head slot	Request
8	903-9614	Side, conveyor bkt	Ask us
50	102-00751020075	Bolt, hex head	Request
9	903-9610	Side, conveyor bkt	Ask us
51	102-03881020388	Washer, lock	Request
10	903-9657	Bracket, drive end	Ask us
52	102-00761020076	Bolt, hex head	Request
11	903-9636	Cover, drive top washer	Ask us
12	135-8522	Cover, idler top	Ask us
54	102-2296	Scre self tap	Ask us
55	102-0181	Screw, flat head	Ask us
14	135-8596	Rail, lower wear strip	Ask us
56	102-13321021332	Key, square	Request
15	135-8595	Wear strip, loi	Ask us
57	102-0468	Screw, socket head	Ask us
16	135-8597	Wear strip-anti lift	Ask us
58	135-9118	Ramp, chain return	Ask us
17	903-9616	Support, rear discharge	Ask us
59	100-93711009371	Sprocket, filler conveyor flextop ch	Request
18	903-9749	Return, way support	Ask us
60	100-86371008637	Elbow, street 90 deg	Request
19	135-8592	Wear strip-upper	Ask us
61	100-2718	Nipple	Ask us
62	100-4204	Fitting, grease	Ask us
2	903-9632	Frame, outer rear discharge	Ask us
63	101-21031012103	Chain, roller	Request
22	903-9631	Frame, inner rear discharge	Ask us
64	101-21041012104	Link, offset	Request
23	903-9625	Frame, outer	Ask us
65	101-21051012105	Clip, link roller chain	Request
24	903-9626	Frame, inner	Ask us
66	903-9932	Frame, outer-side discharge	Ask us
25	903-9621	Frame, outer	Ask us
67	903-9931	Frame, inner-side discharge	Ask us
26	903-9624	Frame, inner	Ask us
68	000-36980003698	Wearstrip, filler conveyor out	Request
27	100-8953	Ear strip, outer	Ask us
69	903-9934	Frame, outer dual close	Ask us
28	100-8954	Wear strip, inner	Ask us
70	903-9933	Frame, inner dual close	Ask us
29	135-17501351750	Spacer	Request
30	135-2880	Bracket, support rod	Ask us
72	136-0447	Bracket, guide support	Ask us
31	133-59791335979	Shoe, return	Request
73	136-0448	Bracket, guide support	Ask us
74	903-9963	Side conveyor bracket-outer	Ask us
75	903-9964	Side conveyor bracket-inner	Ask us
34	133-1523	Shaft, infeed conveyor	Ask us
76	102-00781020078	Hex head bolt	Request
35	133-1526	Shaft, discharge conveyor	Ask us
5	135-2873	Strip, wear closer	Ask us
6	135-2874	Strip, wear closer	Ask us
7	102-24491022449	Washer, flat	Request
8	102-02021020202	Screw, flat head slot	Request
9	135-4049	Strip, wear doser	Ask us
53	102-04161020416	Washer, flat	Request

Support Attachments

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

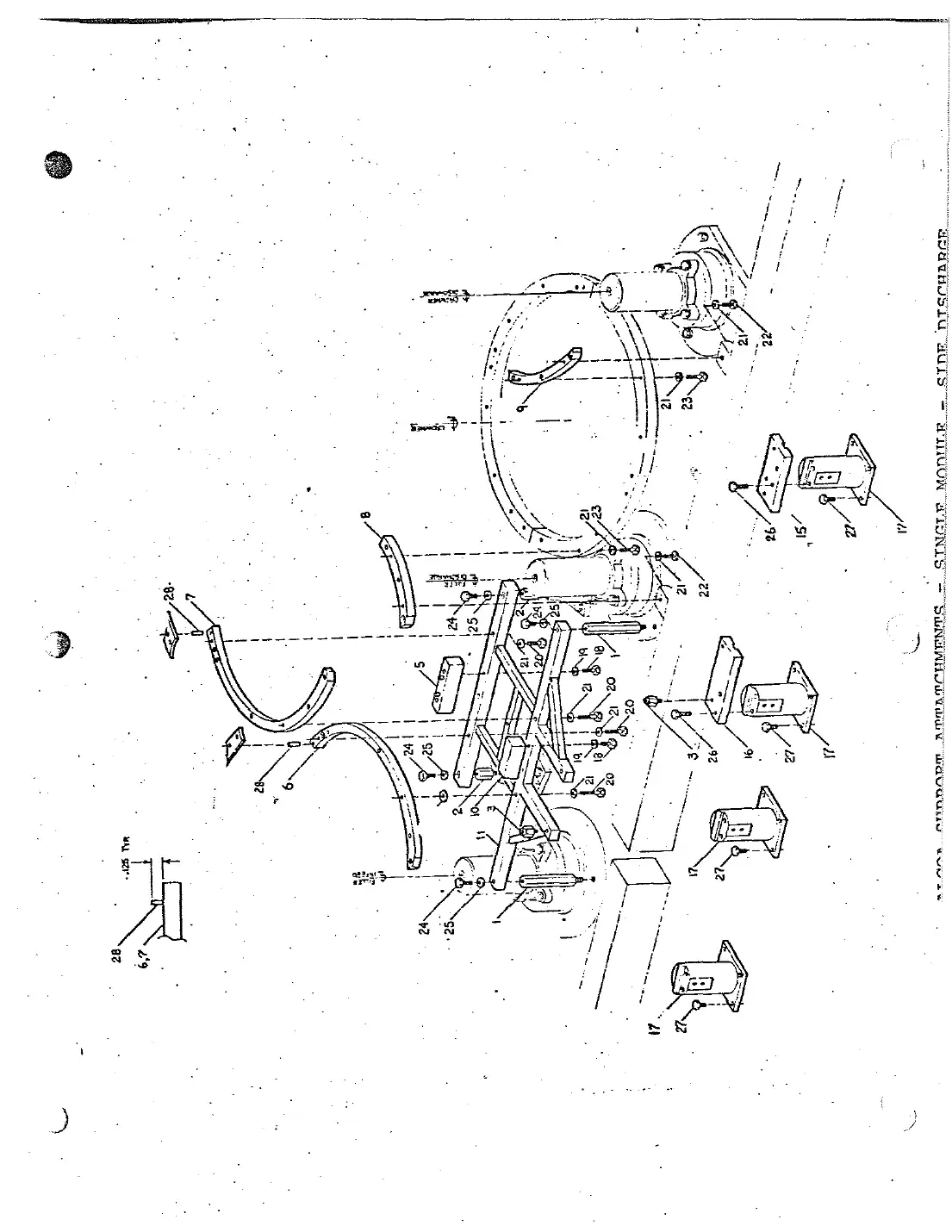

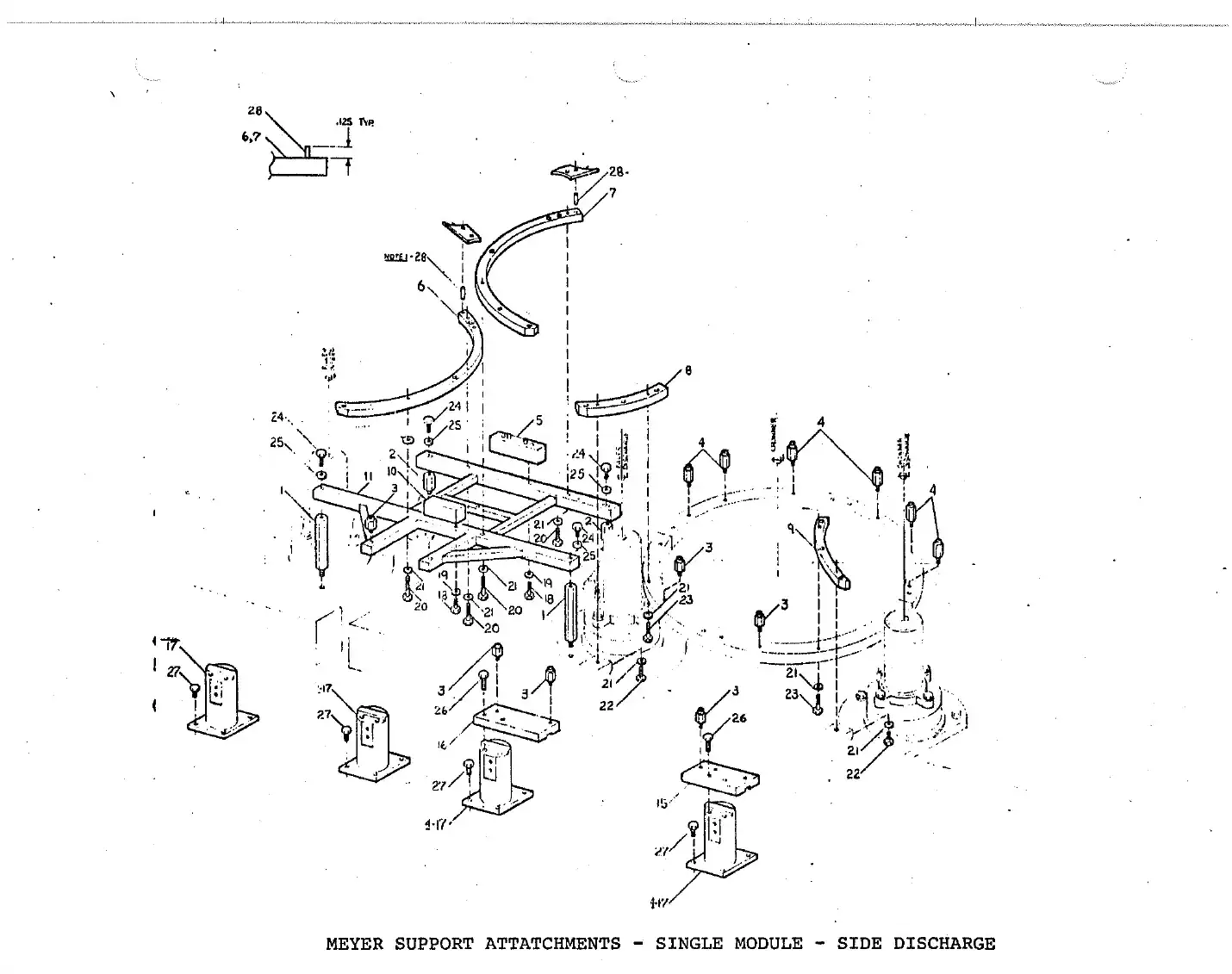

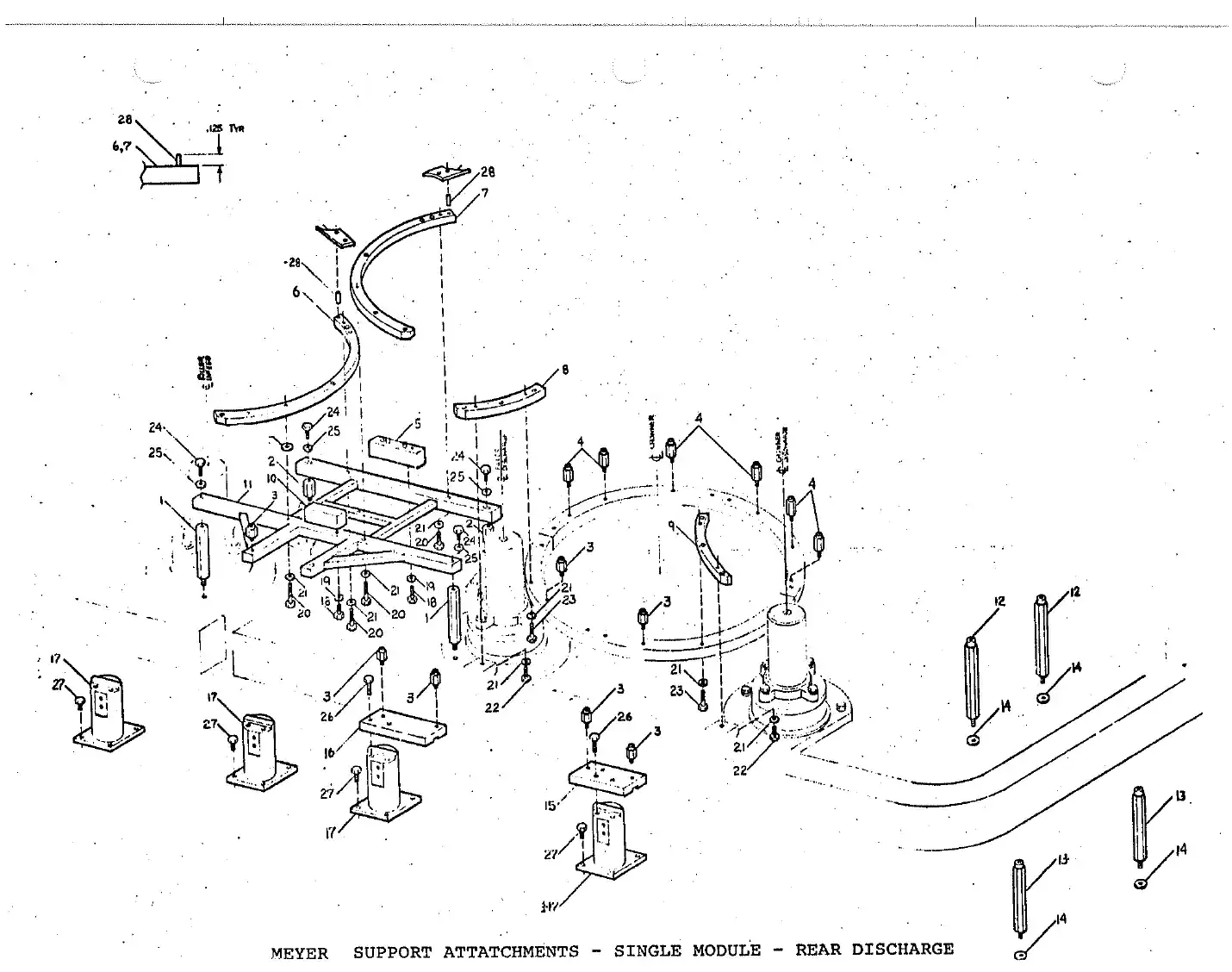

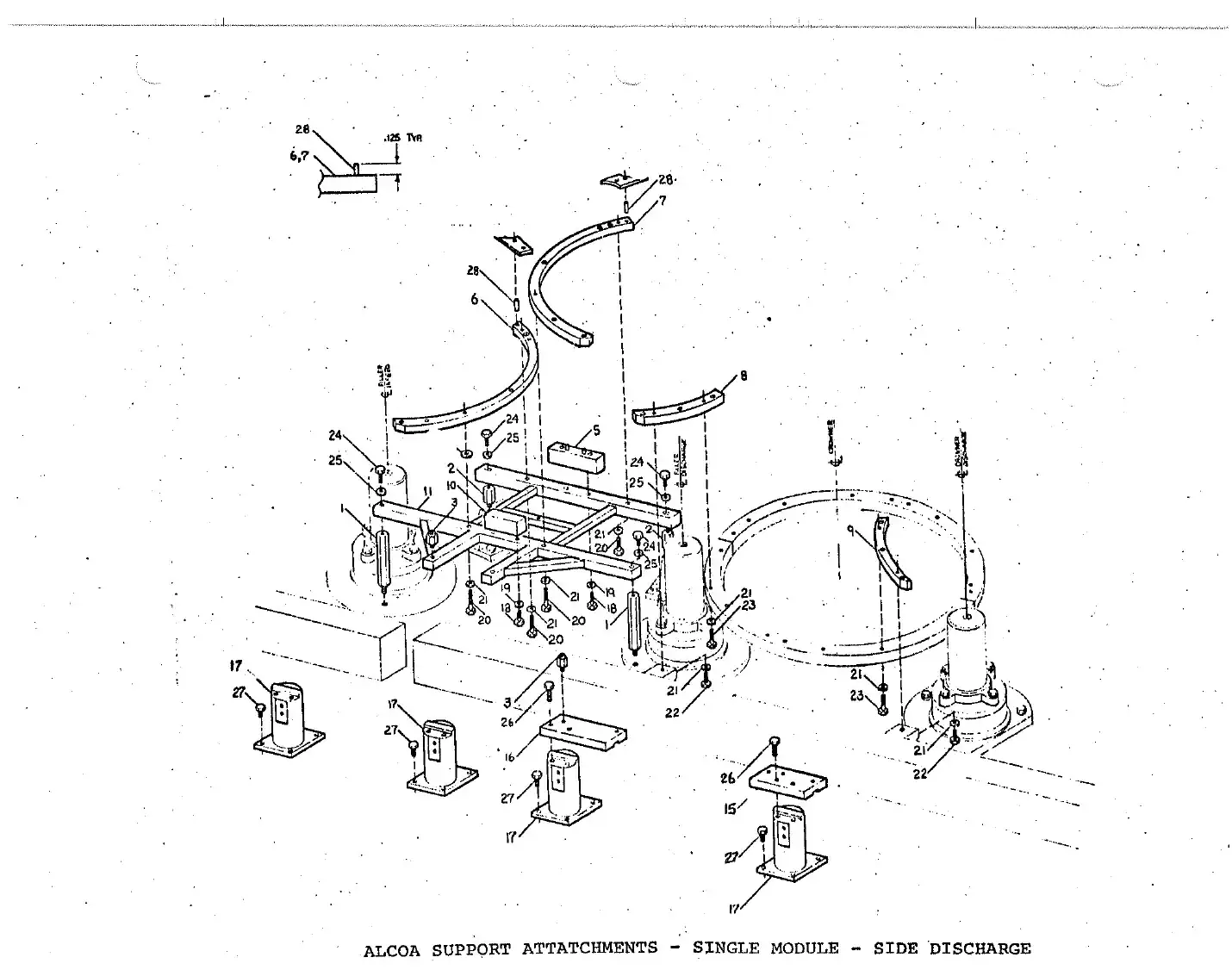

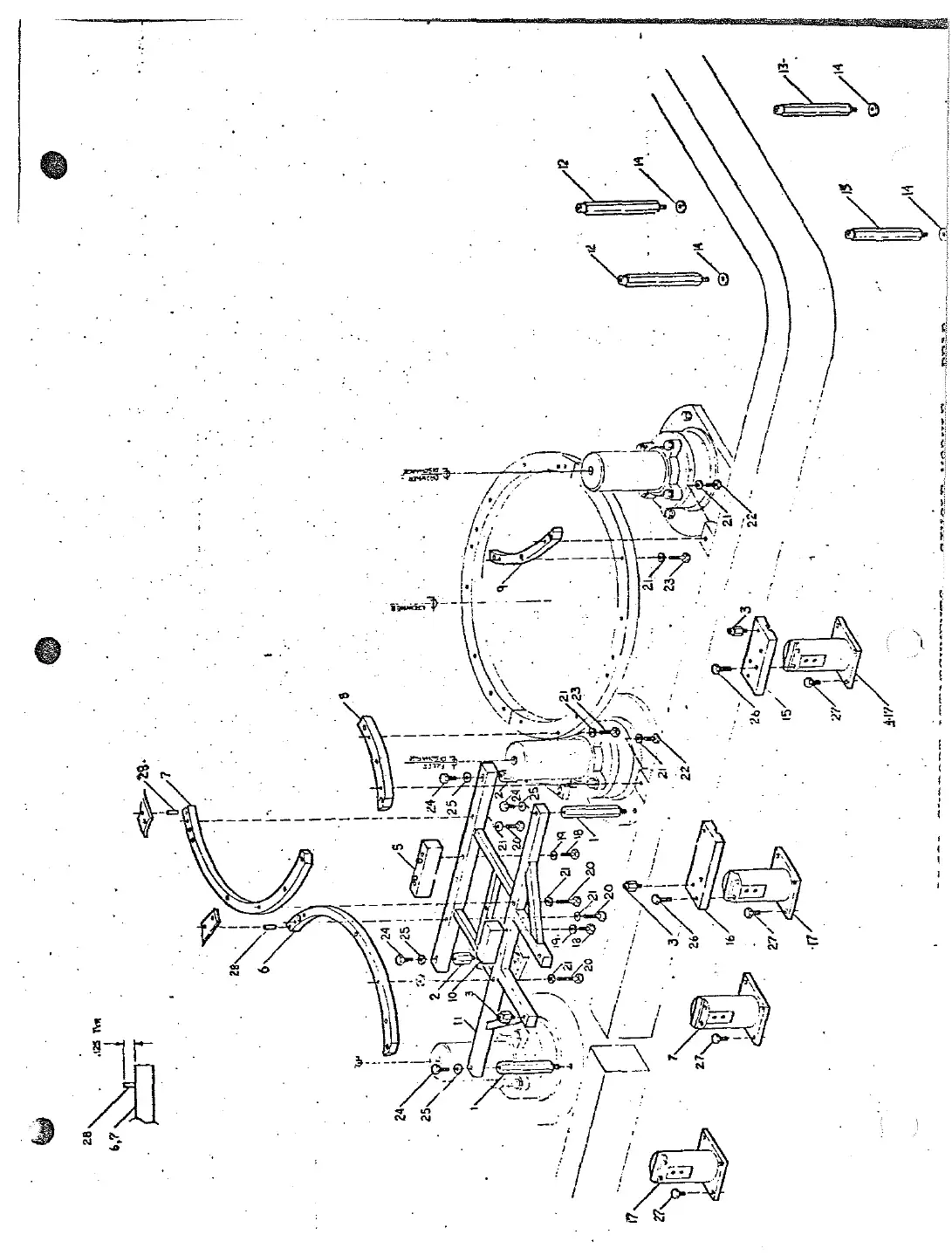

Meyer Tri-Star filler support attachments drawing

Open full size

Ref	Part number	Description
14	135-8873	Washer, guide llpport post	Ask us
15	135-8876	Plate, support guide	Ask us
1	135-1753	Spacer, support	Ask us
16	135-8892	Plate	Ask us
2	135-2820	Spacer, support	Ask us
17	903-96459039645	Stand, pillar bearing block	Request
3	135-1754	Spacer	Ask us
18	102-00711020071	Hex head bolt	Request
4	135-1935	Spacer	Ask us
19	102-04151020415	Washer, flat	Request
5	903-9432	Support, spacer	Ask us
20	102-00931020093	Bolt, hex head	Request
6	135-2816	Rod, support	Ask us
21	102-04171020417	Washer, flat	Request
7	135-2817	Rod, support	Ask us
22	102-00901020090	Bolt, hex head	Request
8	135-2818	Rod, support crolvner	Ask us
23	102-00921020092	Bolt, hex head	Request
9	135-2819	Rod, support crolvner	Ask us
24	102-01041020104	Bolt, hex head	Request
25	102-04181020418	Washer, flat	Request
26	102-01031020103	Bolt, hex head	Request
27	102-1635	Screw, hex head cap	Ask us
28	102-12731021273	Pin, dowel	Request
29	903-9962	Pillar ular part	Ask us
1	905-0629	Support, bearing block-LH	Ask us
13	102-17531021753	Screw, soc hd set	Request
14	135-9117	Bar tie bearing block	Ask us
3	102-03901020390	Washer, lock	Request
15	102-03891020389	Washer, lock	Request
4	102-01011020101	Bolt, hex head	Request
16	102-00891020089	Bolt, hex head	Request
5	903-9900	Coupling ass bearing blk	Ask us
6	135-9635	Pin, shear transfer screw s2v	Ask us
7	104-60231046023	Bearing, thrust washer	Request
8	100-2339	Bearing, sleeve transfer scre	Ask us
9	100-34831003483	Fitting, grease ptf straight	Request
19	102-23481022348	Screw, socket head cap	Request
20	136-0978	Tie bar	Ask us
10	135-5449	Spacer, support infeed	Ask us

Overhead Piping

Contents

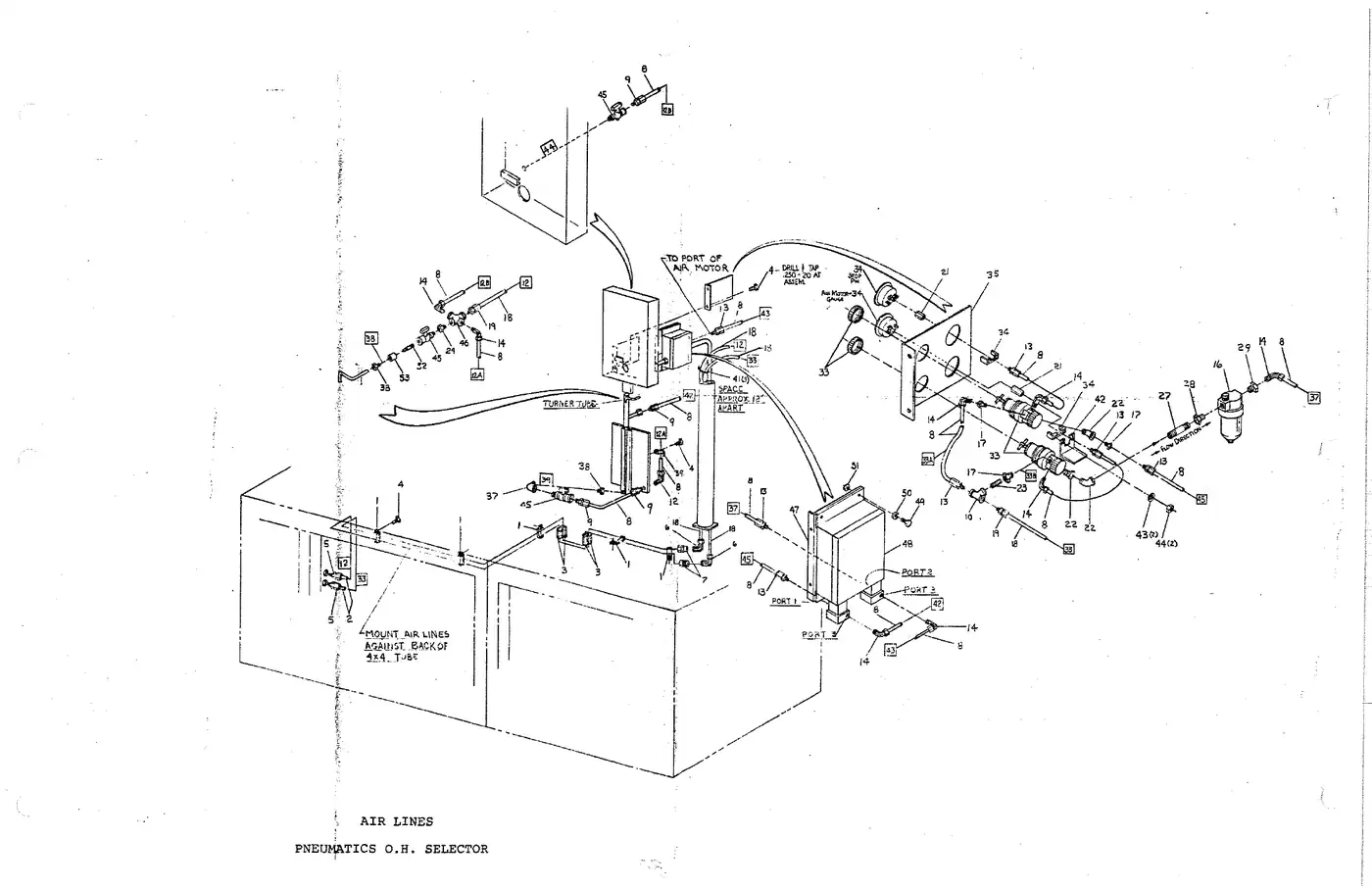

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

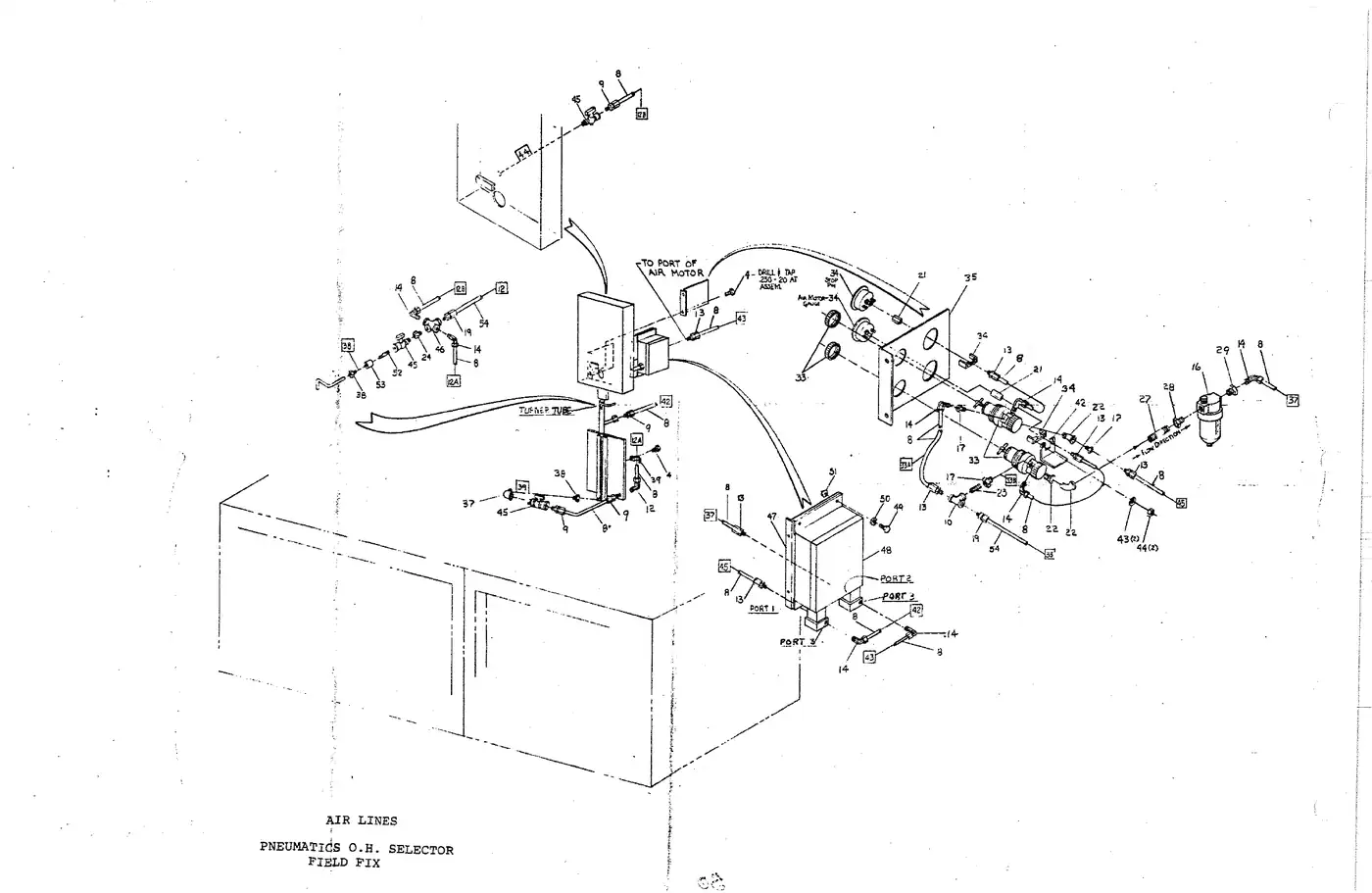

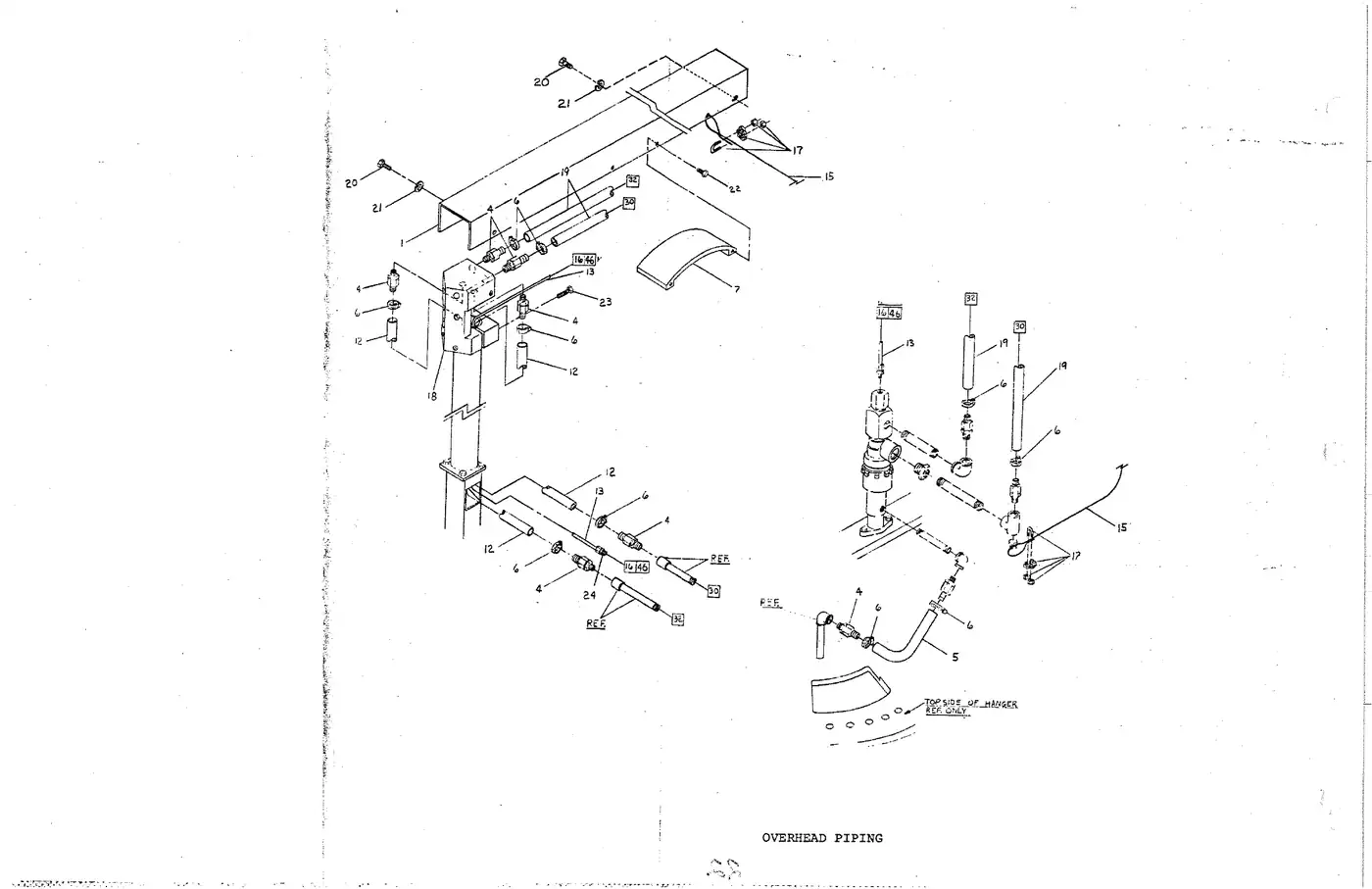

Meyer Tri-Star filler overhead piping drawing

Open full size

Ref	Part number	Description
1	135-8880	Cover, tube bridge	Ask us
17	100-0535	Clamp	Ask us
4	101-01081010108	Fitting, barbed	Request
18	903-9700	Bracket, bridge hount	Ask us
5	000-34890003489	Tubing, CO2/air braided hose	Request
6	100-30771003077	Clamp, hose clamp	Request
20	102-00881020088	Hex head bolt	Request
7	133-0310	Shoe, support	Ask us
21	102-03891020389	Washer, lock	Request
22	102-2330	Screw, thread	Ask us
13	000-32230003223	Tube, polyflo	Request
23	102-01071020107	Bolt, hex head	Request
15	100-4122	Cable	Ask us
24	101-0471	Fitting, straight	Ask us

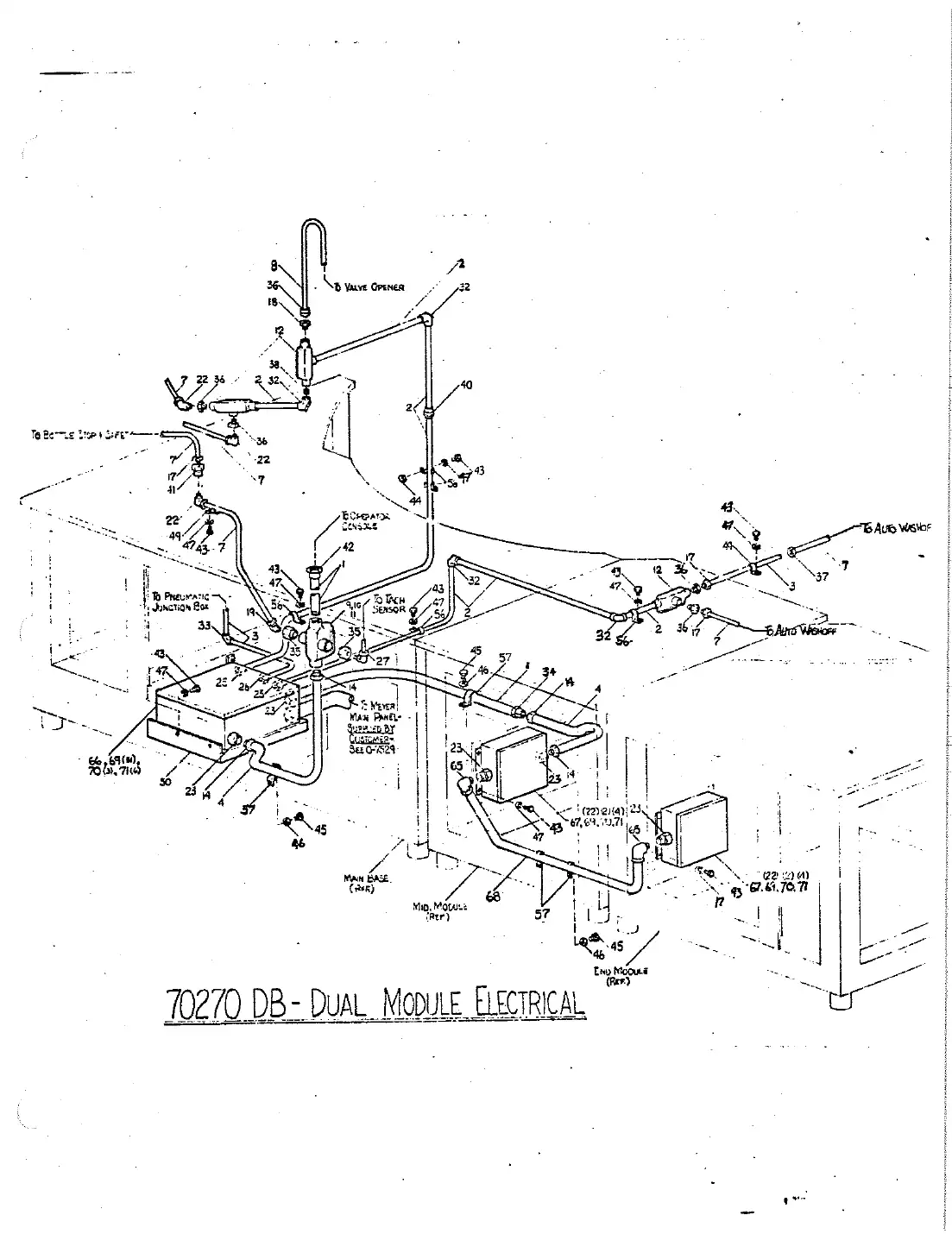

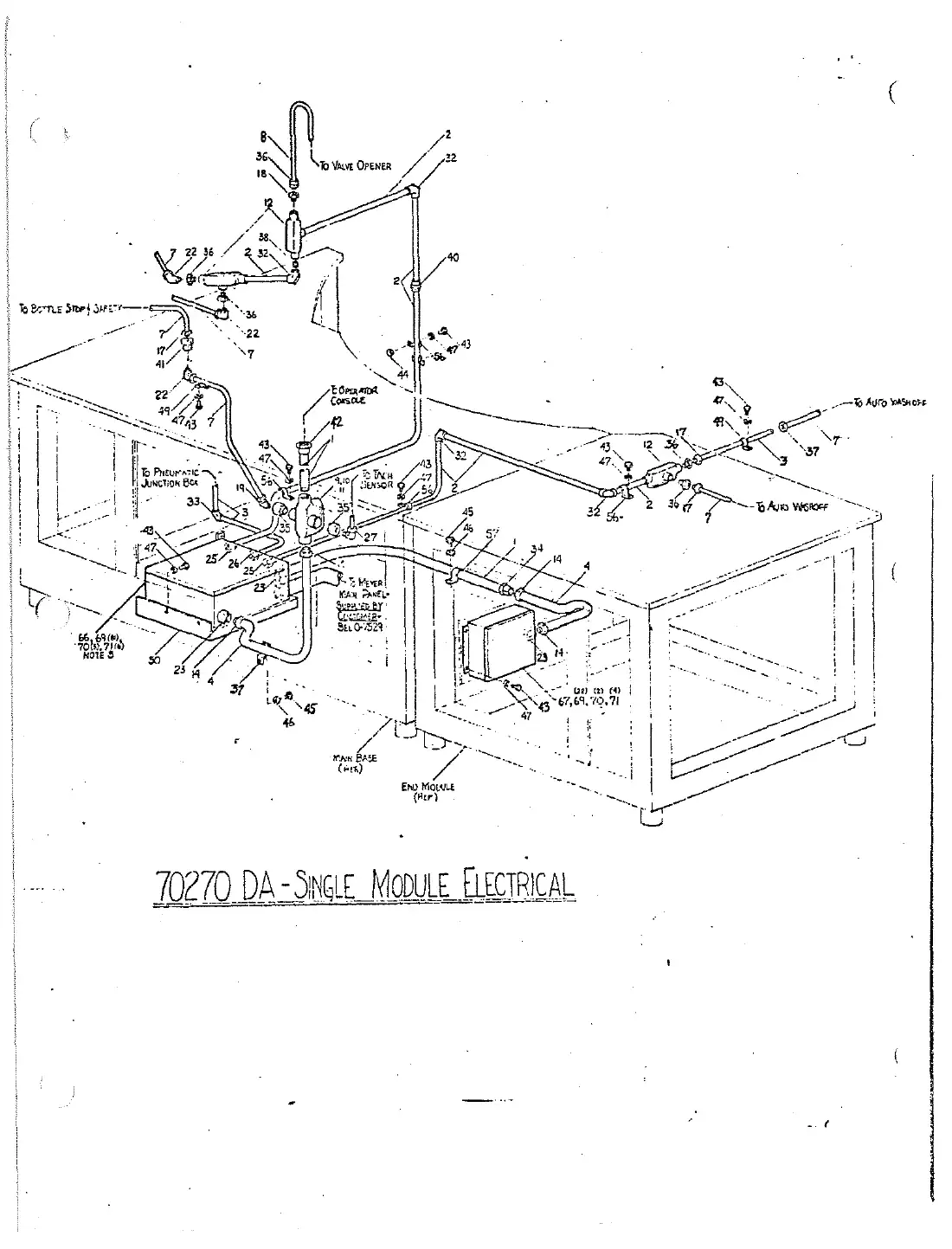

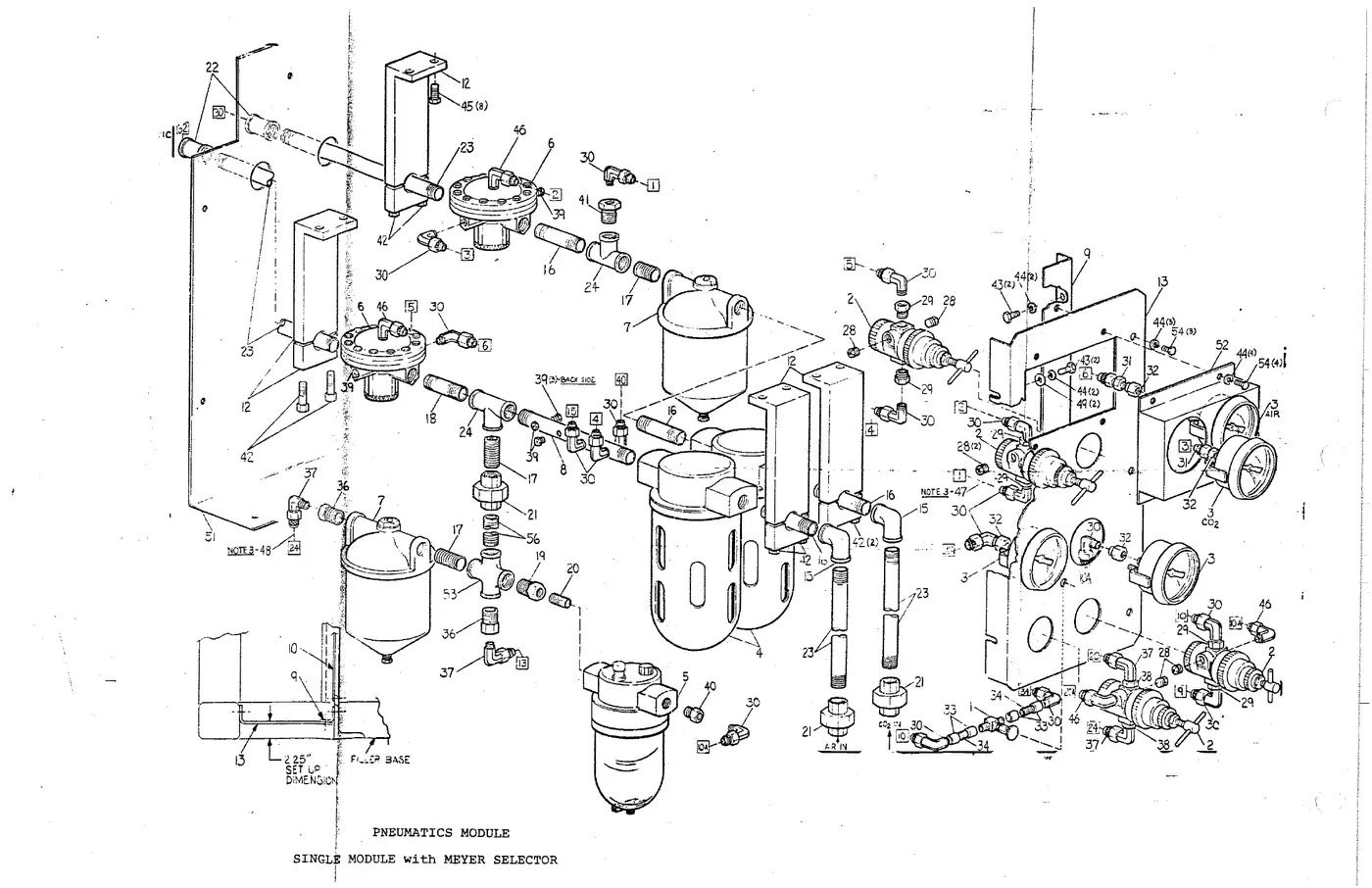

Lower Piping

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Ref	Part number	Description
17	104-6688	Clamp	Ask us
18	102-00671020067	Bolt, hex head	Request
19	136-0031	Hanger, tube	Ask us
20	102-00681020068	Bolt, hex head	Request
21	102-03871020387	Washer, lock	Request
1	135-9126	Block, manifold	Ask us
22	102-00691020069	Bolt, hex head	Request
2	102-00751020075	Bolt, hex head	Request
23	102-03321020332	Nut, hex	Request
3	102-04161020416	Washer, flat	Request
24	101-0546	Connector, straight	Ask us
4	104-6699	Elbow	Ask us
25	101-01081010108	Fitting, barbed	Request
5	104-6095	Adapter, hose	Ask us
26	100-30771003077	Clamp, hose clamp	Request
6	101-0420	Adapter, o-ring	Ask us
27	000-34890003489	Tubing, CO2/air braided hose	Request
7	104-6484	Connector	Ask us
28	104-67151046715	Connector, male	Request
9	101-3530	Nipple, pipe	Ask us
29	136-0032	Hanger, tube	Ask us
10	104-6092	Elbow	Ask us
30	102-04151020415	Washer, flat	Request
11	104-6126	Nipple, hex	Ask us
31	000-4129	Tube	Ask us
12	104-6054	Valve, check	Ask us
13	104-6703	Nipple, quick release	Ask us
14	104-6702	Coupler, quick release	Ask us
15	104-6669	Hose	Ask us
35	100-0356	Clamp	Ask us
16	104-6716	Hose	Ask us
36	102-07431020743	Screw, socket head cap	Request
37	136-0037	Hanger, tube	Ask us
38	136-0052	Support, tube	Ask us
26	135-91391359139	Adapter, cole drg	Request
27	102-1512	Nut, jam	Ask us
28	100-87241008724	Plug, pipe square head	Request
1	104-6483	Valve	Ask us
29	100-14331001433	Bushing, reducing hex	Request
2	104-51981045198	Regulator	Request
30	100-53251005325	Elbow, male connector	Request
3	101-06751010675	Gauge, pressure assembly	Request
31	101-04691010469	Fitting, tube adapter br	Request
4	101-3020	Filter	Ask us
32	100-27881002788	Bushing, reducing bell	Request
5	101-01371010137	Lubricator	Request
33	100-4661	Coupling	Ask us
6	100-47101004710	Regulator, air	Request
34	100-0889	Nipple, close	Ask us
7	100-31421003142-1	Filter, housing	Request
35	100-3199	Pipe clamp	Ask us
8	135-8617	Manifold	Ask us
36	100-1439	Bushing	Ask us
9	903-9731	Angle	Ask us
37	101-3753	Fitting, elbow	Ask us
10	903-9556	Panel	Ask us
38	100-2789	Reducer	Ask us
11	102-0468	Screw, set	Ask us
39	100-08711000871	Plug, pipe	Request
12	136-1003	Bracket	Ask us
40	100-1436	Bushing	Ask us
13	903-9888	Panel	Ask us
41	100-6937	Bushing	Ask us
15	100-08571000857	Elbow	Request
16	100-3630	Nipple	Ask us
45	102-00891020089	Bolt, hex head	Request
17	100-0893	Nipple, close	Ask us
46	101-3752	Fitting, elbow	Ask us
47	000-35190003519	Tubing, poly-flo	Request
19	100-2793	Reducer	Ask us
48	000-32230003223	Tube, polyflo	Request
20	100-08921000892	Nipple	Request
21	100-21561002156	Union	Request
50	101-0471	Fitting, elbow	Ask us
22	100-2729	Coupling panel, pneumatic control	Ask us
23	135-9719	Nipple	Ask us
52	135-9579	Bracket, gage	Ask us
24	100-08841000884	Tee	Request
53	100-27571002757	Cross, pipe	Request
25	135-9114	Adapter	Ask us
54	102-00651020065	Bolt, hex head	Request
55	100-27921002792	Coupling, reducer	Request

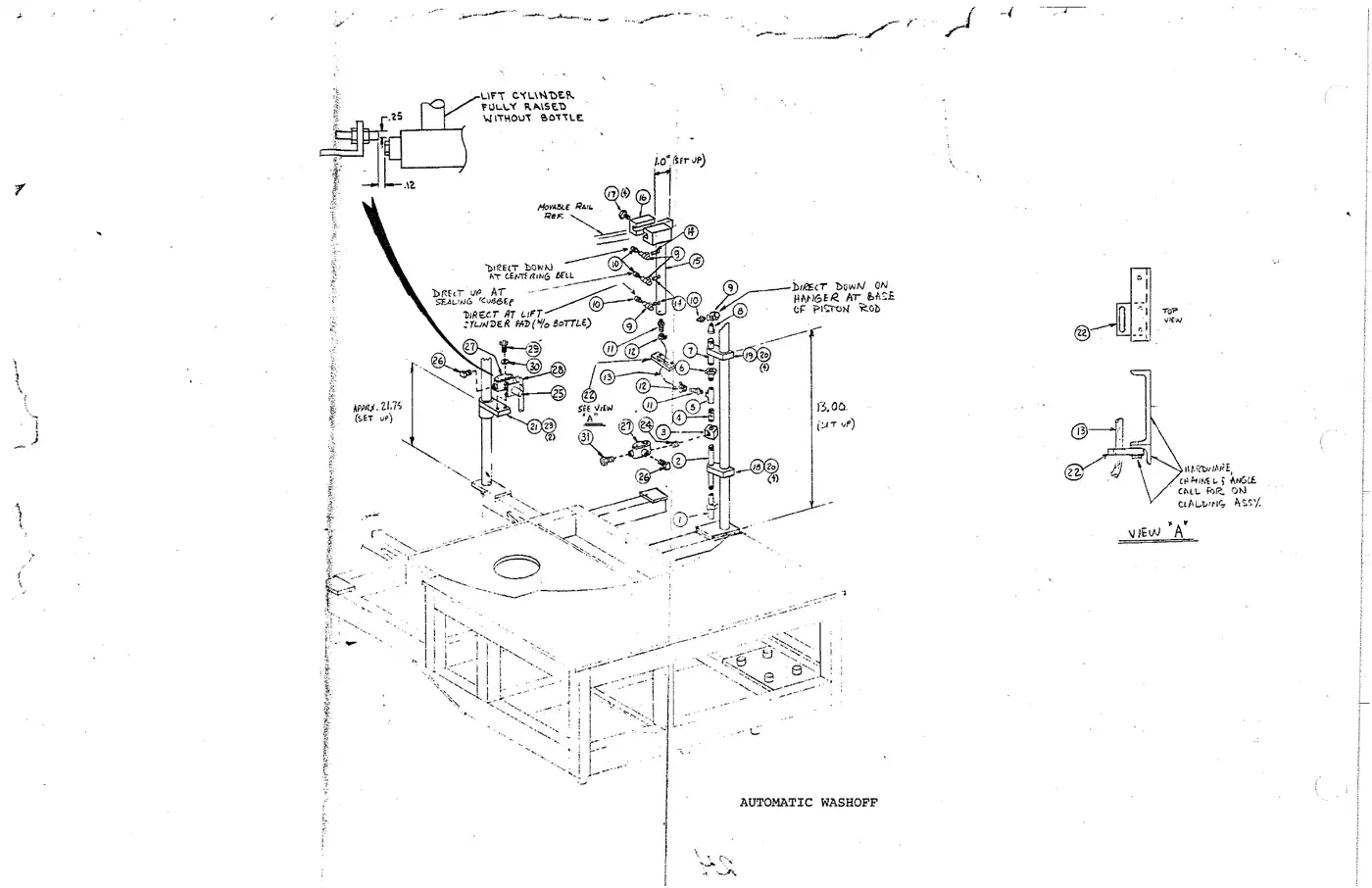

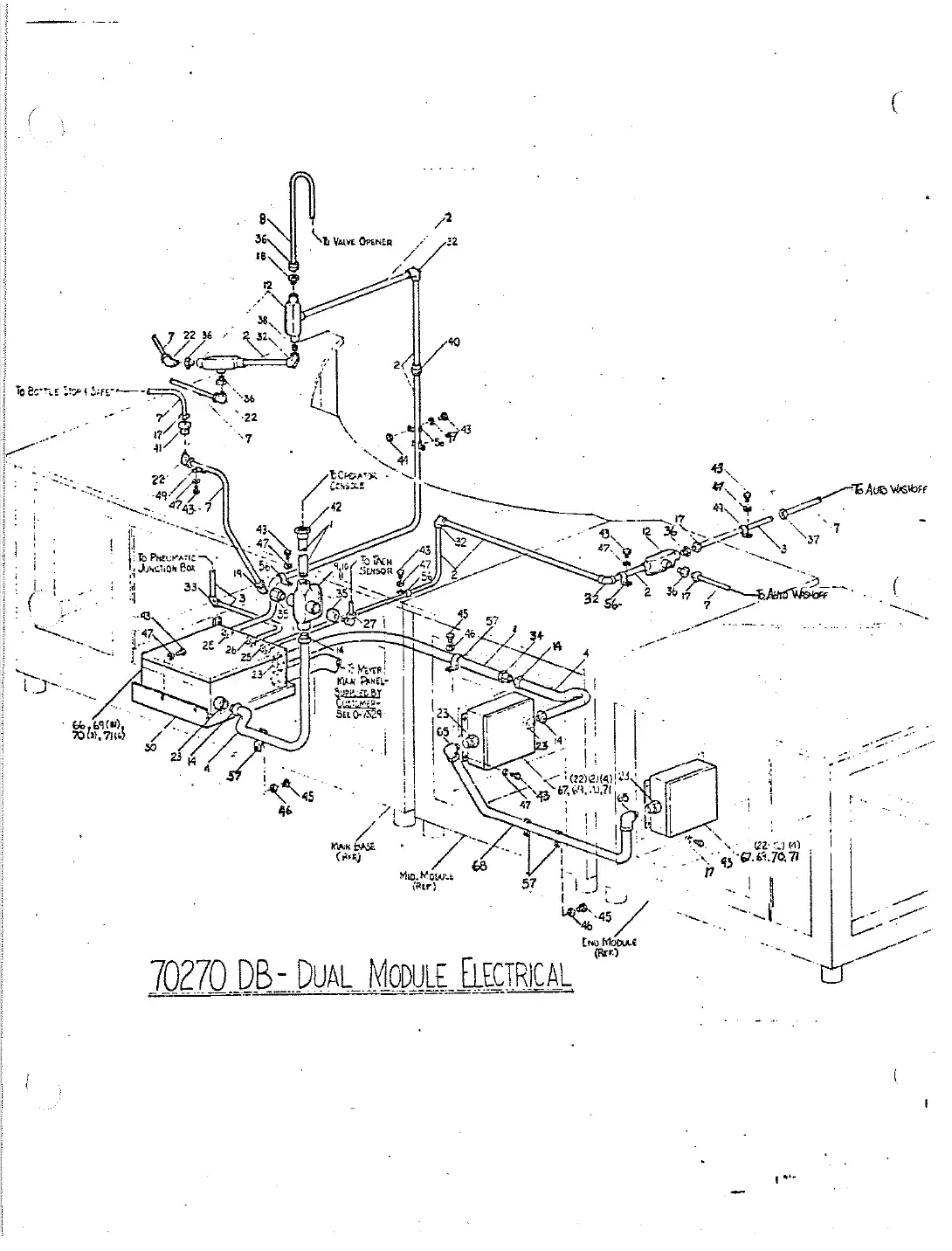

15	903-9666	Manifold, auto ashoff	Ask us
16	135-8626	Bracket, clamping	Ask us
17	102-00781020078	Hex head bolt	Request
18	135-9230	Bracket, post hounted	Ask us
1	100-4910	Union, female	Ask us
19	135-9231	Bracket, pos bunted	Ask us
2	100-04181000418	Nipple, pipe	Request
20	102-04471020447	Screw, set socket cup point	Request
3	103-5619	Solenoid	Ask us
21	903-9703	Bunting, bracket	Ask us
4	100-61131006113	Nipple, close	Request
22	135-9552	Guide, hose	Ask us
5	100-5493	Tee, pipe	Ask us
23	102-04351020435	Screw, set socket cup point	Request
6	100-89101008910	Bushing, reducing hex	Request
24	100-61121006112	Nipple	Request
7	100-96651009665	Nipple, pipe	Request
25	103-5835	Sensor proximity	Ask us
8	100-96661009666	Elbow, street 90 deg ips	Request
26	103-5488	Plug close	Ask us
9	104-6372	Valve, diaphragm	Ask us
27	100-0164	Unilet w/cover	Ask us
10	104-51871045187	Nozzle, wash-off	Request
28	100-0449	Connector	Ask us
31	100-0434	Connector	Ask us

Piston Rod Lubricator

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

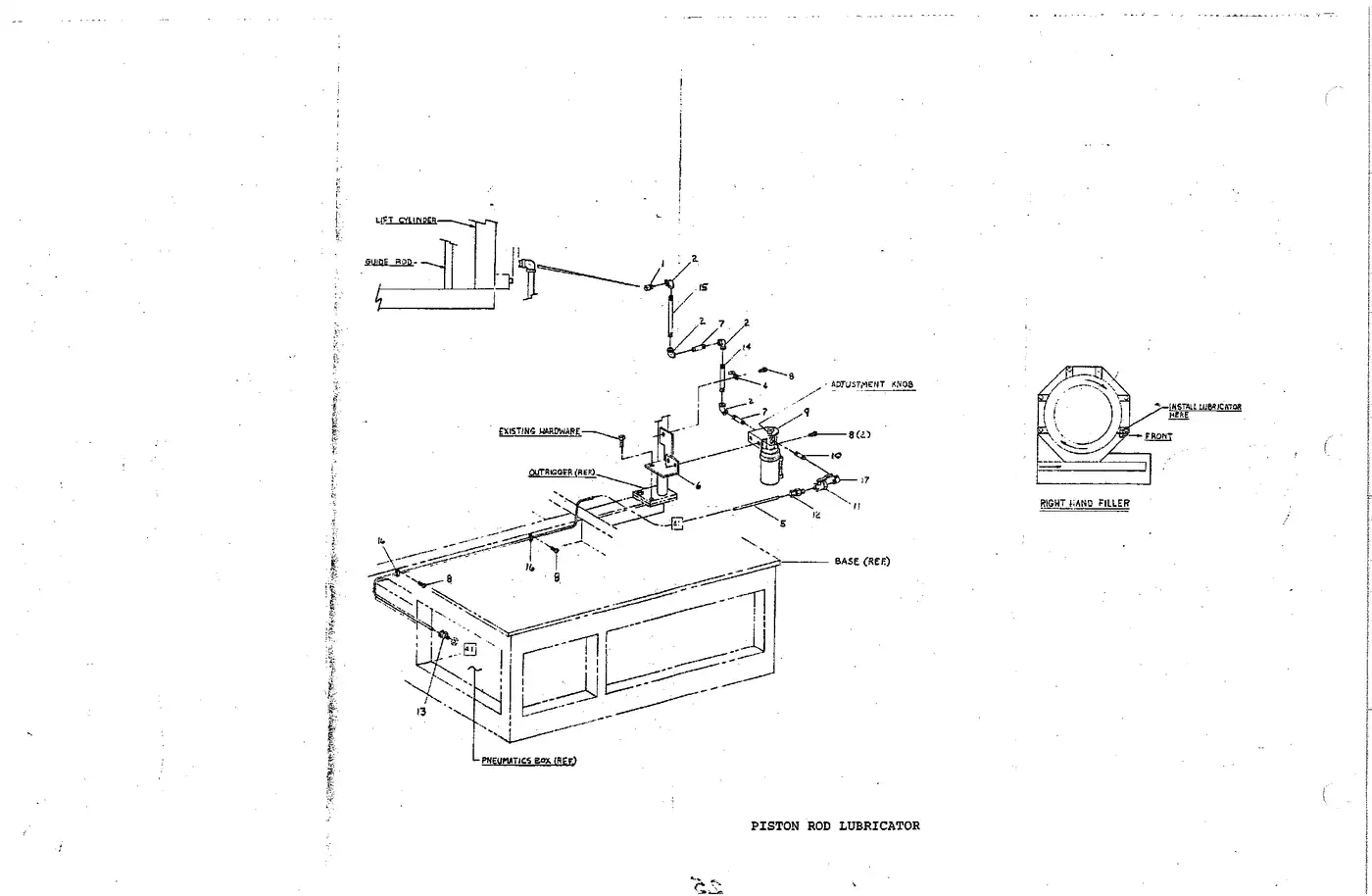

Meyer Tri-Star filler piston rod lubricator drawing

Open full size

Ref	Part number	Description
1	101-0195	V-nozzle	Ask us
2	100-0854	Elbow, pipe	Ask us
4	100-7017	Clip, pipe	Ask us
5	000-1758	Tube, hopper	Ask us
6	135-9998	Bracket	Ask us
7	100-14421001442	Nipple, pipe	Request
11	100-4828	Valve, ball	Ask us
12	100-09241000924	Fitting, tube adapter	Request
13	100-09231000923	Fitting, tube	Request
15	100-1453	Nipple, pipe	Ask us
16	100-6940	Clamp	Ask us
17	104-6096	Elbow, street	Ask us
8	102-02951020295	Screw, round head slot	Request
9	100-9881	Lubricator	Ask us

Down Bottle Safety

Contents

Parts for this assembly, from the original Meyer parts lists.

Ref	Part number	Description
1	135-9553	Bracket	Ask us
2	102-17071021707	Screw, round hd machine	Request
3	102-03861020386	Washer, lock	Request
4	102-04151020415	Washer, flat	Request
5	102-05531020553	Nut, hex	Request
6	102-00671020067	Bolt, hex head	Request
7	102-03871020387	Washer, lock	Request
8	102-03321020332	Nut, hex	Request
9	100-0434	Connector	Ask us
10	000-3668	Conduit	Ask us
11	104-6686	Clamp	Ask us
12	102-02941020294	Screw, round head slot	Request
14	100-0209	Coupling	Ask us
15	100-0444	Connector	Ask us
16	100-9177	Limit switch	Ask us

Backup and Switch Table

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Ref	Part number	Description
14	102-03871020387	Washer, lock	Request
15	102-03321020332	Nut, hex	Request
16	102-04151020415	Washer, flat	Request
1	TT-3241	Table, accumulating	Ask us
17	102-0485	Screw, socket head cup	Ask us
2	TT-3239	Table, guide rail	Ask us
18	102-00671020067	Bolt, hex head	Request
3	135-9991	Clamp, rail back	Ask us
4	135-9992	Bracket, guide rail	Ask us
20	102-1702	Scre, round head	Ask us
5	135-9971	Support, table back	Ask us
6	903-9921	Stand, leg back	Ask us
22	102-05531020553	Nut, hex	Request
7	135-9944	Legs, accumulating table bracket limit switch	Ask us
9	135-9969	Flange, floor	Ask us
24	102-03891020389	Washer, lock	Request
10	102-01931020193	Screw, flat head slot	Request
25	102-00881020088	Hex head bolt	Request
11	102-0194	Screw, flat head	Ask us
26	100-0444	Connector	Ask us
12	102-0321	Nut, hex	Ask us
27	000-3668	Conduit	Ask us
13	102-0875	Bolt, carriage	Ask us
28	104-6686	Clamp	Ask us
29	100-9127	Limit switch	Ask us

Bottle Stop and Safety Gate

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

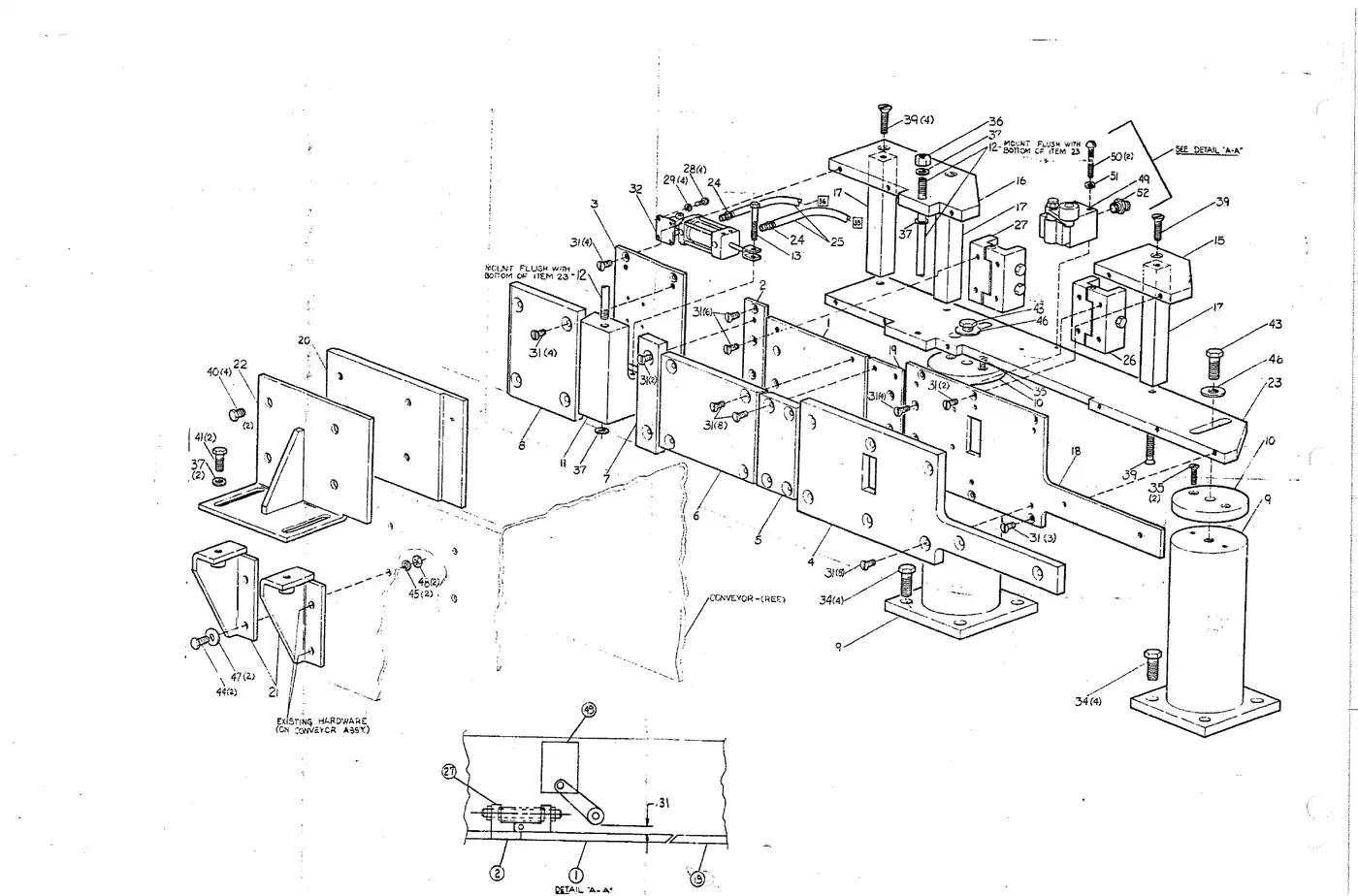

Meyer Tri-Star filler bottle stop and safety gate drawing

Open full size

Ref	Part number	Description
23	135-9024	Plate, base	Ask us
24	101-04691010469	Fitting, tube adapter br	Request
25	000-35190003519	Tubing, poly-flo	Request
1	135-9032	Plate, guide backing	Ask us
26	903-9898	Hinge, assembly	Ask us
2	135-9031	Plate, guide backing	Ask us
27	903-9899	Hinge, assembly	Ask us
3	135-9030	Plate, guide	Ask us
28	102-1096	Screw, socket head cap	Ask us
29	102-03361020336	Nut, hex	Request
5	135-9028	Plate, guide	Ask us
31	102-1184	Screw, flat head	Ask us
6	135-9027	Plate guide	Ask us
32	104-51191045119	Cylinder, air infeed gate assembly	Request
7	135-9026	Plate, guide	Ask us
34	102-01011020101	Bolt, hex head	Request
8	135-9025	Plate guide	Ask us
35	102-0194	Screw, flat head	Ask us
9	903-9780	Pillar	Ask us
36	102-03341020334	Nut, hex	Request
10	135-9023	Pad, pillar	Ask us
37	102-20021022002	Washer, flat	Request
11	135-9022	Stop, bottle	Ask us
39	102-02031020203	Screw, flat head slot	Request
12	135-9021	Rod, pivot	Ask us
40	102-16471021647	Bolt, hex head	Request
13	102-00721020072	Bolt, hex head	Request
41	102-18401021840	Bolt, hex head	Request
15	135-9664	Cover	Ask us
16	135-9036	Cover	Ask us
17	135-9035	Spacer	Ask us
44	102-00751020075	Bolt, hex head	Request
18	135-9034	Plate, guide backing	Ask us
45	102-03881020388	Washer, lock	Request
19	135-9033	Plate, guide backing	Ask us
46	102-04181020418	Washer, flat	Request
20	135-9041	Plate, guide	Ask us
47	102-04161020416	Washer, flat	Request
21	903-9782	Bracket, guide support	Ask us
48	102-0339	Jarn	Ask us
22	903-9784	Support	Ask us
49	103-57921035792	Switch, limit	Request
51	102-03861020386	Washer, lock	Request
52	100-0439	Connector	Ask us
4	135-9029	Plate, guide	Ask us
50	102-17071021707	Screw, round hd machine	Request

Pneumatics Closer

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer Tri-Star filler pneumatics closer drawing

Open full size

Ref	Part number	Description
21	100-2726	Coupling	Ask us
22	100-1483	Street, elbol	Ask us
23	100-08901000890	Nipple	Request
1	104-6682	Clip	Ask us
24	100-46581004658	Bushing, reducing hex	Request
2	000-1769	Tubing hopper	Ask us
25	100-5317	Coupling, hose	Ask us
3	100-1637	Union	Ask us
27	100-27381002738	Nipple, pipe	Request
4	102-00641020064	Bolt, hex head	Request
28	100-14341001434	Bushing, reducing hex	Request
5	100-09271000927	Fitting, tube adapter	Request
29	100-14351001435	Bushing, reducing hex	Request
6	101-3753	Connector	Ask us
32	100-3076	Clamp, hose	Ask us
7	100-3089	Connector	Ask us
33	104-51981045198	Regulator	Request
8	000-35190003519	Tubing, poly-flo	Request
34	101-06751010675	Gauge, pressure assembly	Request
9	101-04691010469	Fitting, tube adapter br	Request
35	135-8660	Bracket, pneulllatic mount	Ask us
10	100-08811000881	Tee	Request
37	100-89261008926	Elbow, 90 deg	Request
12	100-53251005325	Elbow, male connector	Request
38	131-0847	Fitting, street	Ask us
13	101-0470	Connector	Ask us
39	100-6940	Clamp, tube	Ask us
14	101-3752	Connector	Ask us
41	100-4586	Wire tie	Ask us
16	101-01371010137	Lubricator	Request
42	136-0006	Bracket, oiler	Ask us
17	100-14321001432	Bushing, reducing hex	Request
43	102-0413	Washer, flat	Ask us
18	000-32230003223	Tube, polyflo	Request
44	102-05521020552	Nut, hex machine	Request
19	101-0471	Connector, poly flo	Ask us
45	130-3193	Valve, airlock	Ask us
46	100-2754	Cross, bras	Ask us
47	135-9663	Bracket, junction box	Ask us
48	903-9955	Junction box ass	Ask us
50	102-03871020387	Washer, lock	Request
51	102-03321020332	Nut, hex	Request
53	100-4661	Coupling	Ask us
26	903-9828	Door, movable RH	Ask us
1	135-8672	Cabinet, pull	Ask us
28	903-9834	Door, movable LH	Ask us
2	104-6571	Latch, t-handle	Ask us
29	903-9833	Door, movable RH	Ask us
30	903-9831	Guard, explosion	Ask us
4	903-9727	Pin, hinge panel	Ask us
32	135-9235	Shield, explosion guards	Ask us
6	903-9787	Bracket mounting	Ask us
34	135-9393	Shield, explosion guards	Ask us
35	102-08461020846	Nut, hex head	Request
36	102-00681020068	Bolt, hex head	Request
9	903-9715	Bracket machining	Ask us
37	102-01071020107	Bolt, hex head	Request
10	903-9700	Bracket, machining	Ask us
38	102-1836	Screw, hex head cap	Ask us
11	903-9699	Bracket, machining	Ask us
39	102-00901020090	Bolt, hex head	Request
12	903-9758	Support	Ask us
40	102-00751020075	Bolt, hex head	Request
13	903-9768	Support, door	Ask us
42	102-03341020334	Nut, hex	Request
43	102-01011020101	Bolt, hex head	Request
15	903-9772	Support, frame	Ask us
44	102-20021022002	Washer, flat	Request
16	903-9774	Support machining	Ask us
45	102-2890	Screw, socket head cap	Ask us
46	102-0296	Screw, round head	Ask us
18	903-9776	Channel, support	Ask us
49	903-9866	Rod, holding	Ask us
19	903-9897	Support, bridge	Ask us
51	903-9890	Pin, hinge	Ask us
52	903-9889	Pin, hinge	Ask us
54	135-9617	Clip, door latch	Ask us
23	903-9813	Door, movable washer	Ask us
24	903-9826	Door, movable	Ask us
56	102-03861020386	Washer, lock	Request

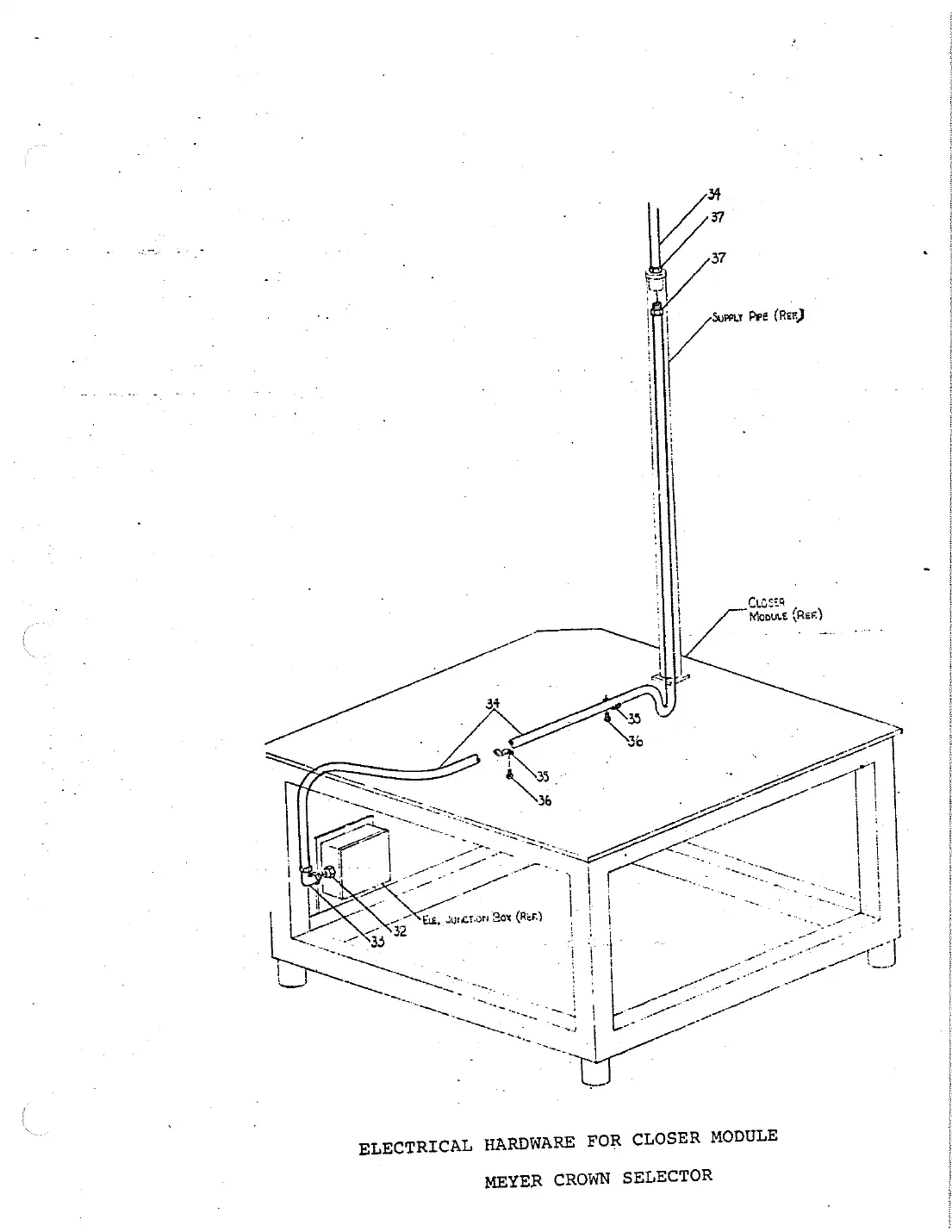

Crown Selector

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Ref	Part number	Description
25-16	903-8901	Olute ejec	Ask us
1	903-9920	Selector	Ask us
25-17	CL-365CL365	Guide, lower Crown chute LH	Request
2	102-0029	Bolt, hex head	Ask us
25-18	CL-366CL366	Guide, lower Crown chute RH	Request
3	102-2692	Nut, hex	Ask us
25-19	102-13941021394	Nut, hex finished	Request
4	102-1691	Washer, lock	Ask us
25-20	102-14601021460	Nut, hex	Request
5	904-3335	Support, welded	Ask us
25-21	102-05621020562	Pin, cotter	Request
6	102-01021020102	Bolt, hex head	Request
25-22	102-02861020286	Screw, round head slot	Request
7	102-03811020381	Washer, lock	Request
25-23	102-01821020182	Screw, flat head slot	Request
8	134-1562	Spacer, selector	Ask us
25-24	102-07951020795	Screw, fillister hd	Request
9	102-1675	Scre round head latch	Ask us
25-25	102-0289	Screw, round head latch	Ask us
10	102-03871020387	Washer, lock	Request
25-26	102-02781020278	Screw, round head slot	Request
11	102-2683	Nut, hex	Ask us
25-27	102-02871020287	Screw, phillips hd	Request
12	136-00491360049	Plate, filler drive filler	Request
25-28	102-03861020386	Washer, lock	Request
13	102-00651020065	Bolt, hex head	Request
25-29	102-03851020385	Washer, lock	Request
14	102-00691020069	Bolt, hex head	Request
25-30	102-05521020552	Nut, hex machine	Request
25-31	136-00171360017	Plate, chute extension	Request
25-32	102-04141020414	Washer, flat	Request
17	CL-90CL90	Crown wiper arm stud	Request
25-33	136-00191360019	Upper crowm guide for crownchute	Request
18	102-13841021384	Pin, cotter	Request
25-34	136-00201360020	Upper Crown guide	Request
19	134-1553	Bracket, chute hinge	Ask us
26	135-9633	Chute, crol	Ask us
20	102-1492	Bolt, hex head	Ask us
27	134-1558	Screw, crolm chute bkt	Ask us
21	102-14431021443	Washer, lock	Request
30	101-1966	Turner tube	Ask us
23	135-9555	Spring, chute	Ask us
31	904-4736	Tube clamp assembly	Ask us
24	134-3846	Bracket, chute guide	Ask us
31-1	134-4642	Stop, clamp	Ask us
25	903-99029039902	Chute, Crown	Request
31-2	102-02951020295	Screw, round head slot	Request
31-3	134-4643	Block, clamp	Ask us
25-1	CL-121CL121	Nozzle, Crown chute	Request
25-2	134-15511341551	Arm, crowner wiper 12 hd	Request
31-5	102-03321020332	Nut, hex	Request
25-3	CL-91CL91	Stud, Crown wiper arm	Request
31-6	102-07101020710	Bolt, hex head	Request
25-4	CL-93CL93	Wiper, arm spring pin	Request
33	HH-6334	Stud, spring	Ask us
25-5	CL-85CL85	Spring guide latch	Request
35	903-9814	Frame, decorative strip	Ask us
36	903-9815	Frame, decorative strip	Ask us
25-8	134-15521341552	Latch, screw chute adjustable	Request
38	100-1943	Fitting, alemite	Ask us
25-9	CL-224CL224	Deflector, Crown hopper	Request
44	103-5908	Sensor, proximity	Ask us
25-10	CL-288CL288	Cover, Crown chute	Request
46	129-0238	Clamp, cabl	Ask us
25-13	CL-289CL289	Plate chute top	Request

Crowner Turret

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer Tri-Star filler crowner turret drawing

Open full size

Ref	Part number	Description
24	135-8893	Bar, tie front-right	Ask us
25	135-8894	Bar, tie rear-right	Ask us
26	135-8889	Support, crowner guards	Ask us
27	135-8887	Support, crown chute	Ask us
1	134-16091341609	Retainer, bearing	Request
28	135-9106	Cover, front ili	Ask us
2	134-4002	Plug, locking	Ask us
29	135-9107	Cover, front RH	Ask us
30	135-9108	Cover, rear RH	Ask us
5	135-9968	Cam, crowner head	Ask us
31	135-9109	Cover, rear ili	Ask us
6	101-32381013238	O-ring	Request
32	135-8672	Pull, cabinet	Ask us
7	134-15761341576	Deflector, oil	Request
33	102-2371	Screw, pan head	Ask us
8	101-19991011999	Bearing, ball 20 hd crowner	Request
36	100-6628	Setting, relief	Ask us
9	101-19971011997	Ring, retainer beveled, external ser	Request
37	102-00881020088	Hex head bolt	Request
11	904-2777	Sleeve, elevating	Ask us
38	102-03411020341	Nut, hex jam	Request
12	134-1617	Nut, crolmer	Ask us
39	102-01021020102	Bolt, hex head	Request
40	102-15521021552	Screw, socket head cap	Request
14	134-1575	Cover, retainer	Ask us
41	102-10041021004	Bolt, hex head	Request
15	131-8473	Guide, spring	Ask us
42	102-04141020414	Washer, flat	Request
16	132-09731320973	Spring, compression outer	Request
43	102-2261	Screw, socket set nylock	Ask us
17	134-2304	Holder, spring	Ask us
44	102-2259	Screw, socket head cap	Ask us
18	132-09781320978	Spring, compression inner	Request
45	102-1830	Screw, socket head cap	Ask us
19	135-8888	Housing, crolmer	Ask us
46	102-3022	Screw, hex head cap	Ask us
47	102-13531021353	Screw, socket head cap	Request
21	904-6070	Hub spool ass head	Ask us
48	102-00681020068	Bolt, hex head	Request
49	102-04151020415	Washer, flat	Request
50	102-02081020208	Screw, flat head slot	Request
23	135-8891	Bar, tie crowner guards	Ask us
51	102-02941020294	Screw, round head slot	Request
52	135-8451	Column center	Ask us
54	134-16101341610	Key, elevating sleeve Meyer crowner and cappers	Request
55	102-14041021404	Socket head cap screw	Request
56	903-9976	Elev sieve assemb	Ask us
57	903-9973	Hub spool assemb	Ask us
57	903-9975	Hub spool assemb	Ask us
58	136-09801360980	Retainer, crowner turret	Request
59	102-00271020027	Bolt, hex head	Request

Crowning Head Assembly

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Ref	Part number	Description
2S	CL-431CL431	Spring, compensating	Request
26	CL-527CL527	Ring, compensating latch	Request
27	134-19681341968	Sleeve, bracket crowning head	Request
1	LC-149LC149	Sleeve, compensating	Request
28	102-0599	Screw, socket head cap	Ask us
2	CL-520CL520	Latch, compensating	Request
29	CL-434CL434	Shim, roller bracket	Request
3	102-17811021781	Pin, dowel	Request
37	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request
4	CL-507CL507	Spring, plunger	Request
37-1	130-16011301601-WP	Nut, retainer Meyer crowner head	Request
5	CL-445CL445	Plunger, crowner type 2	Request
37-3	100-07761000776	Fitting, grease ptf	Request
37-4	102-04311020431	Screw, set socket cup point	Request
7	100-24061002406	O-ring	Request
38	102-18031021803	Bolt, hex head	Request
8	CL-446CL446	Bushing, guide	Request
39	102-05961020596	Washer, lock	Request
9	LC-146LC146	Bracket, Crown throat	Request
40	102-2251	Serie, hex head	Ask us
10	CL-658CL658	Throat, Crown assembly	Request
41	102-28051022805	Screw, set socket cup point	Request
11	CL-444CL444	Nut, throat retaining	Request
44	LC-147LC147	Bracket, Crown throat	Request
12	CL-534CL534	Screw, Crown rest latch	Request
45	CL-242CL242	Screw, Crown rest latch	Request
13	904-5765	Cro rest ass-type	Ask us
48	134-2412	Sleeve and bracket	Ask us
51	134-2413	Sleeve and bracket	Ask us
56	CL-492CL492	Key, Crown throat bracket	Request
59	102-25461022546	Washer, lock internal	Request
60	102-27041022704	Nut, hex jam	Request
61	100-47661004766	Fitting, grease straight ptf	Request
13-1	100-20151002015	Magnet, Crown rest	Request
62	131-88231318823	Roller, crowner cam	Request
13-2	CL-380CL380	Latch, Crown rest	Request
63	902-53299025329	Stud, cam roller assembly	Request
13-3	CL-415CL415	Spring, Crown rest	Request
63-1	131-88251318825	Stud, cam roller crowner	Request
13-4	CL-495CL495	Knob, Crown rest	Request
63-2	131-88241318824	Bushing, cam roller	Request
13-5	134-1565	Cro rest-type	Ask us
63-3	100-72991007299	Plug, pipe	Request
65	134-2386	Bracket, cam roller	Ask us
66	CL-327CL327	Spacer, Crown throat	Request
67	CL-461CL461	Plunger, Crown type 3 and type 6	Request
68	CL-421CL421	Nut, throat retaining	Request
68	134-7316	Crolm rest roller, cam assembly	Ask us
22	HH-5156	Pin, contact	Ask us
71	134-74201347420	Bracket, cam roller	Request
24	CL-156CL156	Cup, grease retaining	Request
72	134-7421	Bracket, cam roller	Ask us

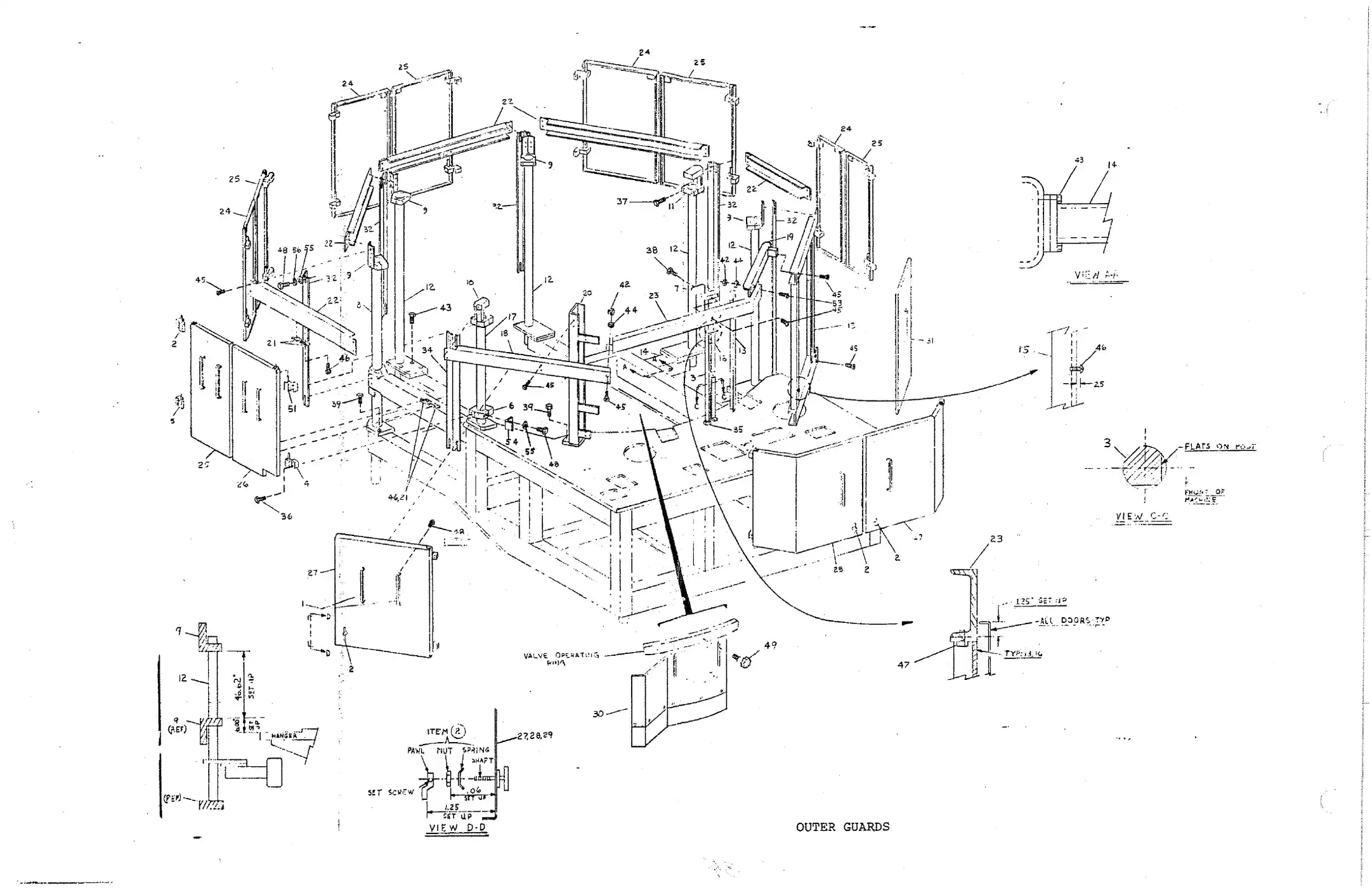

Outer Guards

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Ref	Part number	Description
25	903-9827	Door, movable LH	Ask us
26	903-9828	Door, movable RH	Ask us
27	903-9835	Door, movable front	Ask us
1	135-8672	Cabinet, pull	Ask us
28	903-9834	Door, movable LH	Ask us
2	104-6571	Latch, t-hancile	Ask us
29	903-9833	Door, movable RH	Ask us
30	903-9831	Guard, explos ion	Ask us
4	903-9727	Pin, hinge	Ask us
31	903-9832	Panel, movable	Ask us
5	903-9726	Pin, hinge	Ask us
32	135-9235	Shield, explosion guards	Ask us
6	903-9787	Bracket, mounting	Ask us
34	135-9393	Shield, explosion guards	Ask us
7	135-8973	Bar, clamp	Ask us
35	102-08461020846	Nut, hex head	Request
8	903-9756	Support, machining	Ask us
36	102-00681020068	Bolt, hex head	Request
9	903-9715	Bracket, machining	Ask us
37	102-01071020107	Bolt, hex head	Request
10	903-9700	Bracket machining	Ask us
38	102-1836	Screw, hex head cap	Ask us
11	903-9699	Bracket, machining	Ask us
39	102-00901020090	Bolt, hex head	Request
12	903-9758	Support	Ask us
40	102-00751020075	Bolt, hex head	Request
13	903-9768	Support, door	Ask us
42	102-03341020334	Nut, hex	Request
14	903-9764	Outrigger, support	Ask us
43	102-01011020101	Bolt, hex head	Request
15	903-9772	Support frarne	Ask us
44	102-20021022002	Washer, flat	Request
16	903-9774	Support, machining	Ask us
45	102-2890	Screw, socket head cap	Ask us
17	903-9754	Support, machining	Ask us
46	102-0296	Screw, round head	Ask us
18	903-9776	Channel, support	Ask us
49	903-9866	Rod, holding	Ask us
19	903-9897	Support, bridge	Ask us
51	903-9890	Pin, hinge	Ask us
52	903-9889	Pin, hinge	Ask us
52	135-9128	Clip, guide screw	Ask us
54	135-9617	Door latch	Ask us
23	903-9813	Door, movable	Ask us
55	102-04141020414	Washer, flat	Request
24	903-9826	Door, movable	Ask us
56	102-03861020386	Washer, lock	Request

Inner Explosion Guard

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

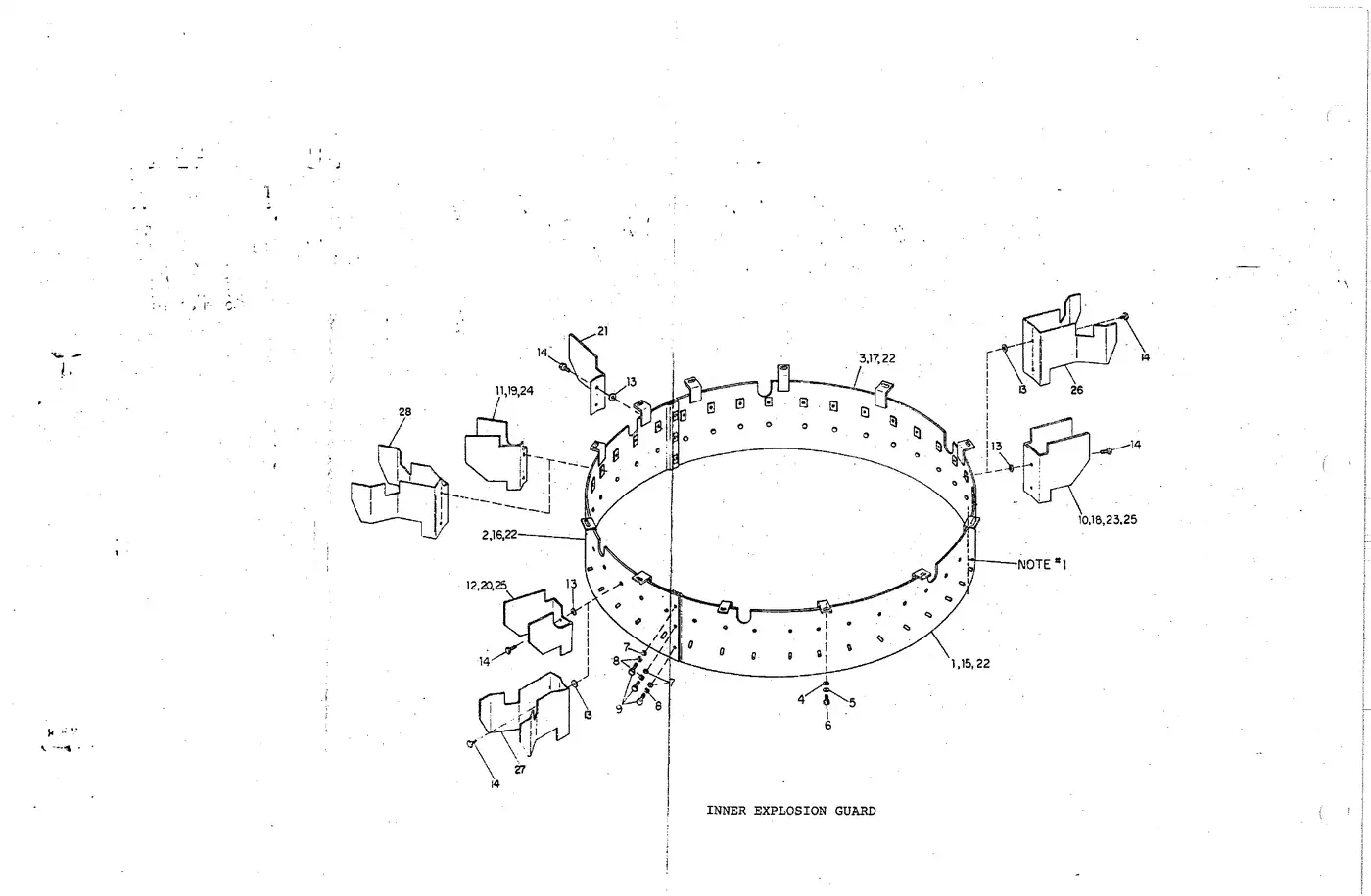

Meyer Tri-Star filler inner explosion guard drawing

Open full size

Ref	Part number	Description
13	102-24491022449	Washer, flat	Request
14	102-16611021661	Bolt, hex head	Request
1	903-9528	Guard, inner explosion	Ask us
15	903-9531	Guard, inner explosion	Ask us
2	903-9529	Guard, inner explosion	Ask us
16	903-9532	Guard, inner explosion	Ask us
17	903-9533	Guard, inner explosion	Ask us
4	102-04171020417	Washer, flat	Request
5	102-03891020389	Washer, lock	Request
6	102-00881020088	Hex head bolt	Request
7	102-04151020415	Washer, flat	Request
8	102-03871020387	Washer, lock	Request
22	903-9534	Guard, inner explosion	Ask us
9	102-02951020295	Screw, round head slot	Request
26	136-0056	Guard, bottle	Ask us
27	136-0059	Guard, bottle	Ask us
28	136-0062	Guard, bottle	Ask us

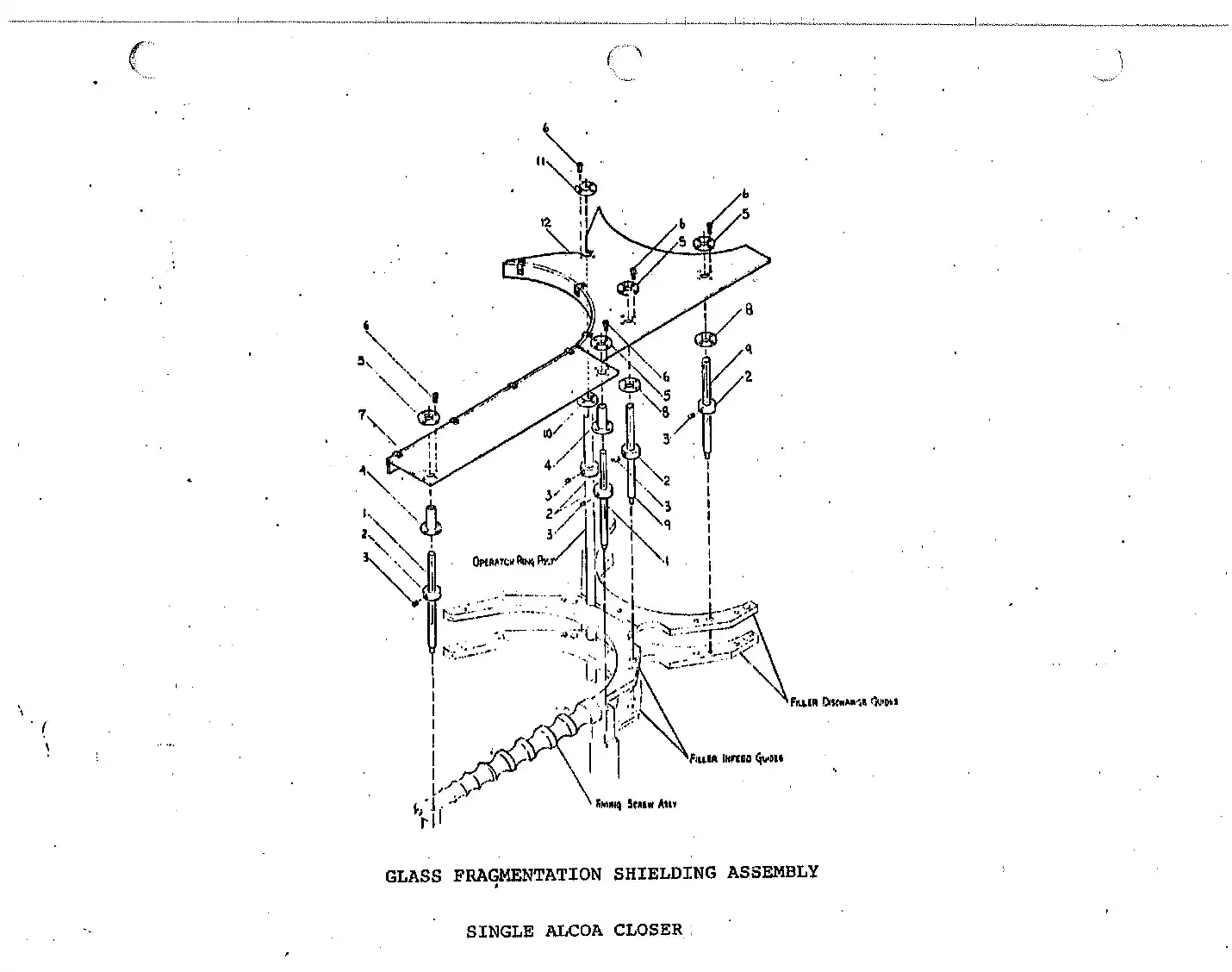

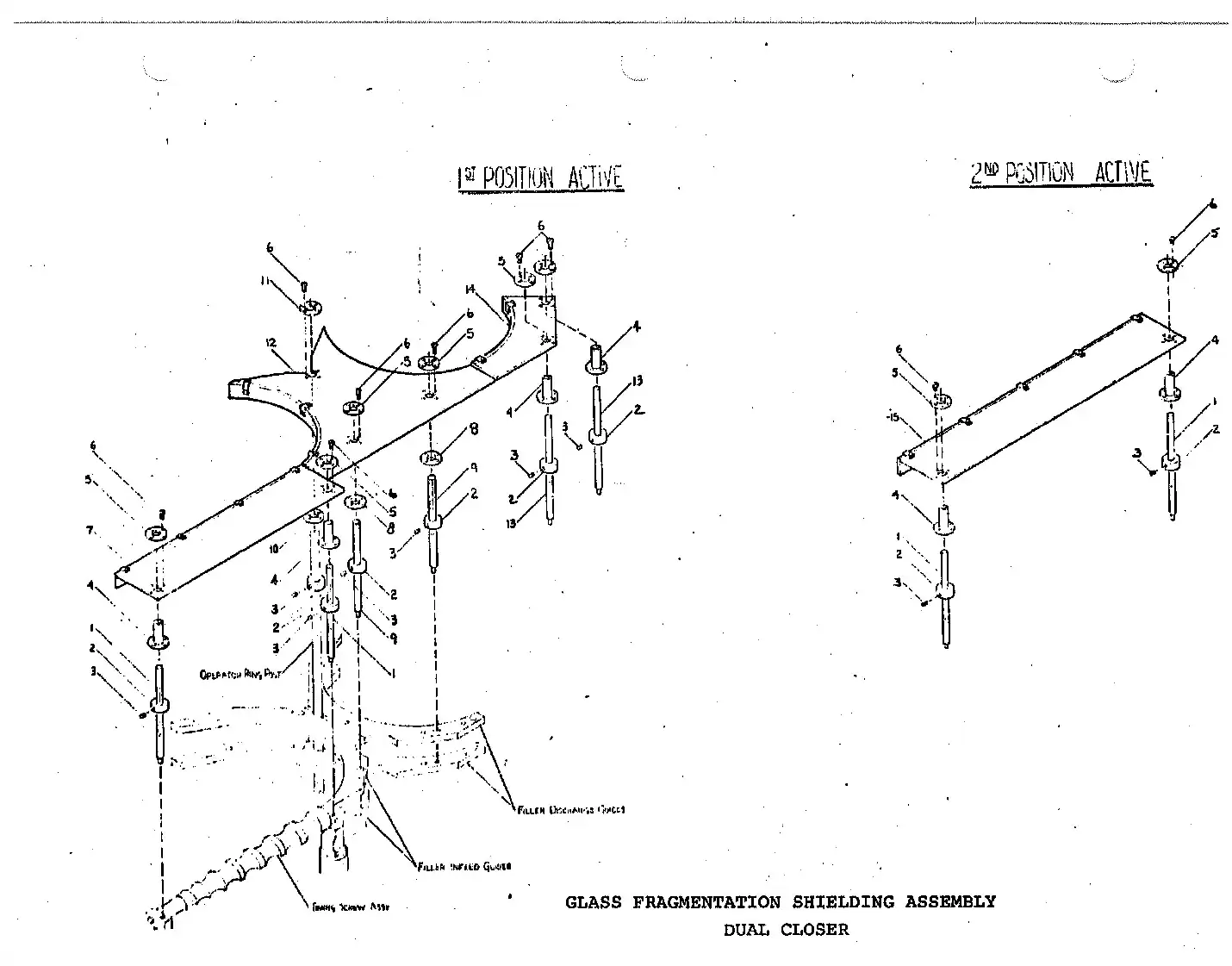

1	135-9397	Bar fragmentation shield	Ask us
2	135-9398	Nut block	Ask us
3	102-2326	Nut, hex jam	Ask us
4	102-1842	Screw, hex head	Ask us
5	135-9399	Post fragmentation shield	Ask us
6	102-0707	Screw, socket head	Ask us
7	135-9401	Collar shaft	Ask us
8	903-9848	Slide fragmentation shield	Ask us
9	903-9849	Fragmentation shield	Ask us
10	102-0185	Screw, flo head	Ask us
11	135-9403	Plate top	Ask us
12	102-00891020089	Bolt, hex head	Request
13	135-9400	Post, fragmentation shield	Ask us
14	135-9402	Slide fragmentation shield	Ask us
15	903-9850	Fragmentation shield	Ask us
16	135-9404	Plate bottom	Ask us
17	135-9405	Plate top	Ask us
18	903-9851	Fragmentation shield	Ask us
19	135-9576	Post, fragmentation shield	Ask us
8	102-00651020065	Bolt, hex head	Request
9	102-16741021674	Bolt, hex head	Request
1	903-9865	Guard, plate outer	Ask us
11	102-1746	Lockwasher	Ask us
3	903-9864	Guard, piston rod	Ask us
13	102-12551021255	Washer, flat	Request
4	135-9437	Bracket, piston rod	Ask us
5	135-9432	Plate, shield back water	Ask us
15	135-9583	Bracket, guard	Ask us
6	903-9858	Angle, water shield	Ask us
16	135-8672	Pull, cabinet	Ask us
7	903-9857	Angle, water shield	Ask us
17	102-02861020286	Screw, round head slot	Request

Conveyor Guards

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Meyer Tri-Star filler conveyor guards drawing

Open full size

Ref	Part number	Description
10	102-02851020285	Screw, round head slot	Request
1	903-9777	Cover, timing screw	Ask us
11	102-04151020415	Washer, flat	Request
2	903-9778	Cover, discharge	Ask us
12	135-9571	Clip, adjusting	Ask us
3	135-9570	Bracket iollllting	Ask us
13	102-00941020094	Bolt, hex head	Request
4	102-00671020067	Bolt, hex head	Request
14	135-9569	Knob, conv guard	Ask us
5	102-03871020387	Washer, lock	Request
15	102-1635	Screlv, hex head cap	Ask us

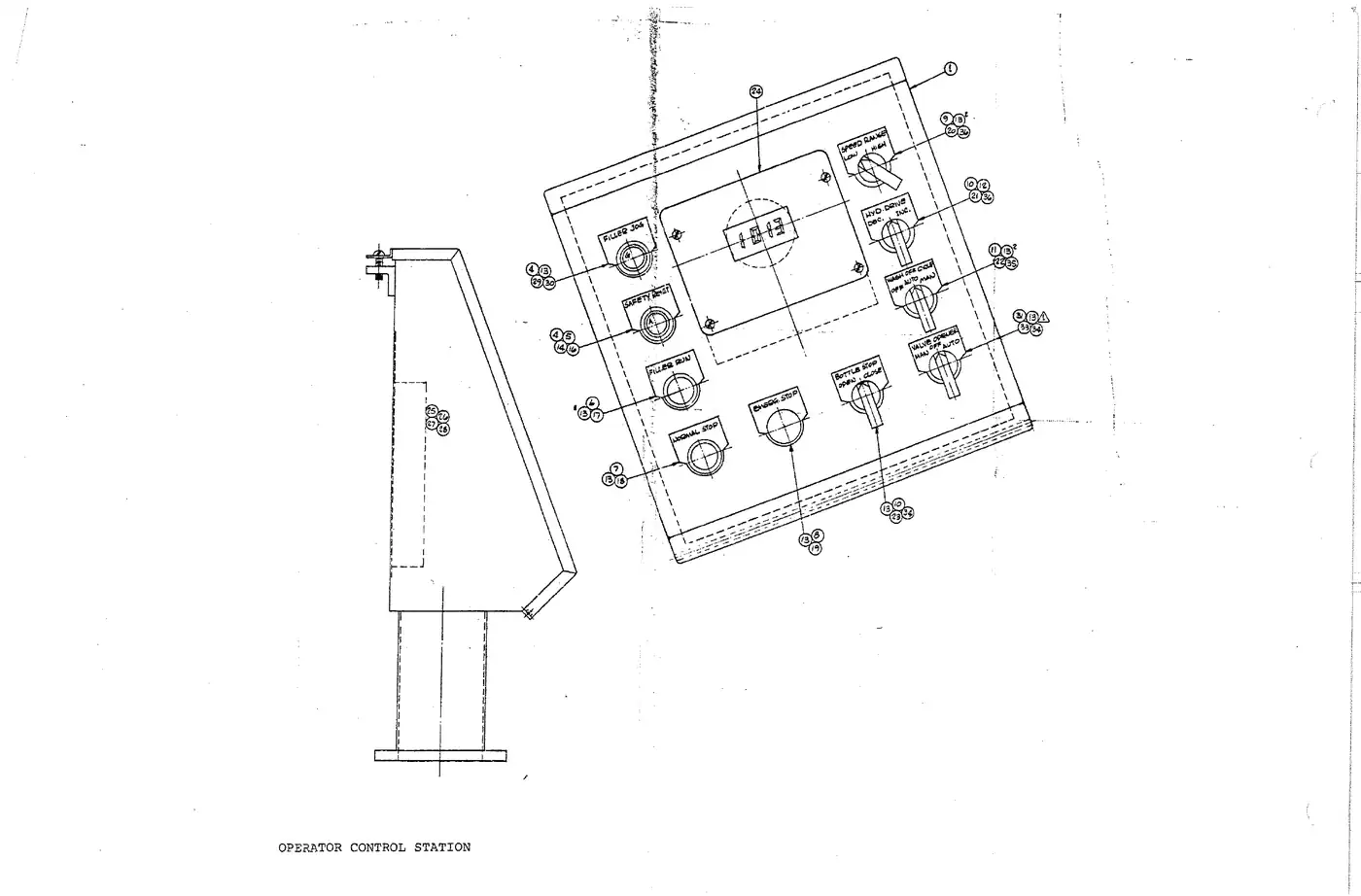

7	904-5780	Operator console	Ask us

Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
22	135-6635	Coupling, half spline	Ask us
23	104-6230	Insert, type	Ask us
24	104-6228	Coupling, jaw type	Ask us
1	903-9795	Base, chain	Ask us
25	903-9679	Block, linkage	Ask us
26	135-8645	Rod, linkage	Ask us
27	135-8644	Pin, linkage	Ask us
6	135-9110	Bracket, pressure sid tch	Ask us
31	102-03351020335	Nut, hex	Request
7	135-9111	Bracket, electric box	Ask us
32	102-1287	Screw, shoulder	Ask us
8	135-9116	Angle, mounting	Ask us
33	102-10751021075	Socket head cap screw	Request
9	104-6641	Exchange, heat	Ask us
34	102-01011020101	Bolt, hex head	Request
10	104-6660	Valve, temperature actuated	Ask us
35	102-03901020390	Washer, lock	Request
36	102-03891020389	Washer, lock	Request
37	102-00891020089	Bolt, hex head	Request
13	104-6704	Lever, vibration	Ask us
38	102-04171020417	Washer, flat	Request
14	903-9811	Stand, lount	Ask us
39	102-00901020090	Bolt, hex head	Request
15	903-9823	Reservoir, oil	Ask us
40	102-00121020012	Hex head bolt	Request
16	104-6371	Pump, air driven	Ask us
41	102-04151020415	Washer, flat	Request
42	102-0243	Screw, round head	Ask us
18	135-9999	Piston, pump	Ask us
43	102-01001020100	Bolt, hex head	Request
19	102-2446	Pin, roll	Ask us
20	135-8648	Handle, pump	Ask us
45	135-0670	Shield, flange	Ask us
21	135-0669	Flange machining	Ask us
46	102-0378	Locl, washer	Ask us

Adapter, union

Contents

Parts for this assembly, from the original Meyer parts lists.

Meyer Tri-Star filler adapter, union drawing

Open full size

Ref	Part number	Description
19	104-6697	Adapter, union	Ask us
20	104-6097	Union	Ask us
21	104-6096	Elbow, street	Ask us
1	104-6636	Valve relief	Ask us
22	104-6094	Tee	Ask us
2	104-6782	Valve directional	Ask us
23	104-6696	Nipple, reducing	Ask us
24	104-6700	Adapter, union	Ask us
4	104-6663	Valve, check pilot	Ask us
25	104-6122	Union, straight	Ask us
5	104-6643	Valve, control	Ask us
26	104-6123	Elbow, female	Ask us
6	104-6785	Valve, needle mual	Ask us
27	100-0280	Coupling	Ask us
7	104-6656	Valve, flm control	Ask us
28	104-6103	Connector, ale	Ask us
8	135-9112	Manifold, oil	Ask us
29	135-9982	Tube, drive	Ask us
9	903-9797	Bracket, control	Ask us
30	135-9983	Tube, drive	Ask us
10	104-6651	Hose	Ask us
31	135-9984	T-ube, drive	Ask us
11	104-6066	Fitting pipe	Ask us
34	104-6647	Hose	Ask us
12	100-41051004105	Nipple	Request
35	104-6649	Hose	Ask us
36	104-6650	Hose	Ask us
14	104-6673	Gage, pressure	Ask us
37	104-6652	Hose	Ask us
15	104-6672	Valve, check	Ask us
39	104-6648	Hose	Ask us
40	102-07101020710	Bolt, hex head	Request
41	104-6783	Sub plate	Ask us
42	104-6786	Fil ter	Ask us

Control Bracket-Hydraulic Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Ref	Part number	Description
13	104-6634	Cylinder, oil	Ask us
14	135-8646	Follower, cam	Ask us
15	100-8380	Switch, micro	Ask us
1	903-9674	Bracket, mounting	Ask us
16	135-08471350847	Screw, cam follower btl lift	Request
2	135-8638	Bar, adjustment	Ask us
17	100-1618	Cap, pipe	Ask us
3	104-6642	Cylinder, oil	Ask us
18	102-1828	Screw, shoulder	Ask us
4	903-9678	Plate, mounting	Ask us
19	102-3026	Scre, shoulder hex	Ask us
5	135-8639	Rod, adj adjustment	Ask us
20	102-3025	Screw, shoulder hex	Ask us
6	104-6635	Cylinder	Ask us
21	102-2268	Washer, flat	Ask us
7	135-8647	Nut, retaining	Ask us
23	100-8337	Fitting, grease	Ask us
8	903-9684	Follower cam roller	Ask us
24	102-1396	Nut, hex jam	Ask us
9	135-8644	Pin, linkage	Ask us
25	102-03411020341	Nut, hex jam	Request
11	135-9125	Clevis, hydraulic drive	Ask us
27	102-00751020075	Bolt, hex head	Request
12	903-9677	Control, pump	Ask us
28	102-01001020100	Bolt, hex head	Request

Electrical Assh1Bly-Hydraulic Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Ref	Part number	Description
13	100-0206	Hub	Ask us
14	100-0435	Connector	Ask us
15	100-0440	Connector	Ask us
16	000-3667	Sealtite	Ask us
17	103-5178	Vitch, lirni	Ask us
2	100-5817	Electrical box	Ask us
18	100-01411000141	Nipple, conduit close	Request
3	100-3496	Electrical box	Ask us
19	100-0444	Elbow	Ask us
4	104-6782	Valves, solenoid	Ask us
20	100-0205	Hub	Ask us
5	104-6639	Valve, solenoid air	Ask us
21	100-0434	Connector, straight	Ask us
6	104-6640	Valve, solenoid air	Ask us
22	000-3668	Sealtite	Ask us
7	100-0164	Unilet tee	Ask us
23	103-5488	Plug	Ask us
8	100-0171	Unilet cross	Ask us
24	104-6654	Valve	Ask us
9	100-8380	Swi tch, micro	Ask us
25	100-0195	Bushing	Ask us
10	100-0208	Hub, conduit	Ask us
26	100-0147	Nipple, close	Ask us
11	100-0447	Connector sealtite	Ask us
27	102-0297	Screw round	Ask us
12	000-3665	Sealtite	Ask us
28	104-67811046781	Solenoid valve for 52V tristar	Request

Remote Hydraulic Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

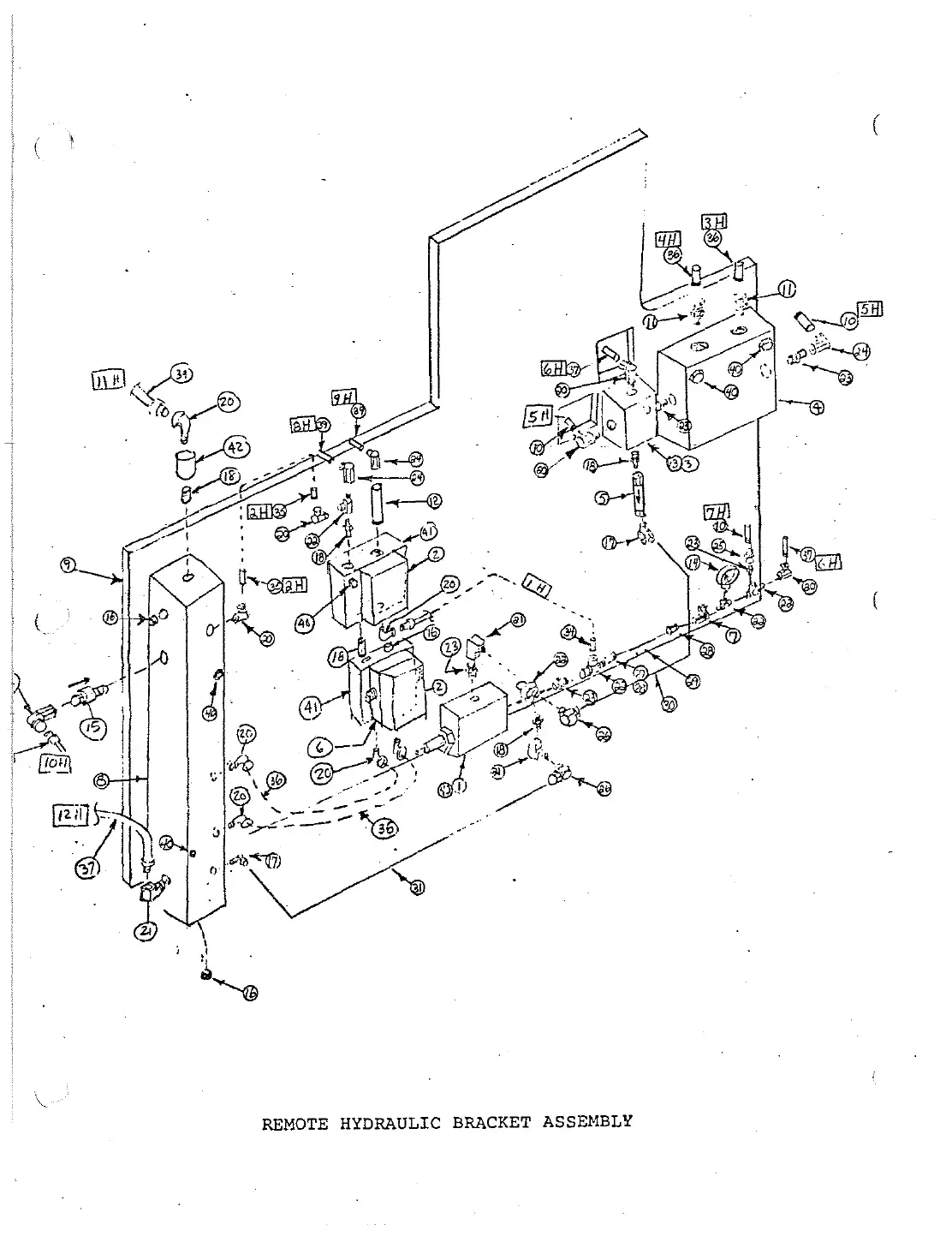

Meyer Tri-Star filler remote hydraulic drive drawing

Open full size

Ref	Part number	Description
1	104-6659	Regulator	Ask us
2	903-9799	Bracket	Ask us
3	104-6640	Valve	Ask us
4	104-6639	Valve	Ask us
5	104-6658	Filter	Ask us
6	104-6655	Bracket	Ask us
7	100-2754	Cross	Ask us
8	100-0701	Plug	Ask us
9	100-1482	Elbow	Ask us
11	101-0470	Fitting, polyflo	Ask us
12	000-35190003519	Tubing, poly-flo	Request
13	101-0471	Fitting, polyflo	Ask us
14	000-32230003223	Tube, polyflo	Request
15	102-02791020279	Screw, pan head phillips mach	Request
16	102-02921020292	Screw, round head slot	Request
17	102-0289	Screw, round head	Ask us

Electrical Hardware with Oeh Crown Selector

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer Tri-Star filler electrical hardware with oeh crown selector drawing

Open full size

Ref	Part number	Description
29	101-0988	Grommet	Ask us
30	101-0989	Nut, compression	Ask us
31	103-5488	Plug	Ask us
32	100-9825	Elbol	Ask us
1	000-2744	Conduit, sealtite	Ask us
33	100-9824	Elbow, corner	Ask us
2	000-2746	Conduit	Ask us
34	100-0212	Coupling, conduit	Ask us
3	000-2745	Conduit-liz	Ask us
35	100-0198	Bushing	Ask us
4	000-3665	Conduit, sealtite	Ask us
36	100-0195	Bushing	Ask us
5	000-3666	Conduit, sealtite	Ask us
37	100-0449	Connector, sealtite	Ask us
6	100-0114	Coil, overload	Ask us
38	100-61131006113	Nipple, close	Request
7	000-3668	Conduit, sealtite	Ask us
39	135-9919	Adapter	Ask us
8	000-3049	Conduit	Ask us
40	103-5443	Connector, female	Ask us
9	100-8119	Unilet	Ask us
41	135-91151359115	Adapter	Request
10	100-0189	Cover	Ask us
42	135-9973	Adapter	Ask us
11	100-0185	Gasket screw, socket head cup	Ask us
12	100-01701000170	Unilet, body	Request
13	100-0164	Unilet	Ask us
45	102-00751020075	Bolt, hex head	Request
14	100-0437	Connector, sealtite	Ask us
46	102-04161020416	Washer, flat	Request
15	100-0436	Connector, sealtite	Ask us
47	102-03871020387	Washer, lock	Request
16	100-92901009290	Nipple	Request
48	100-32001003200	Clamp, air lift manifold	Request
17	100-0434	Connector sealtite	Ask us
49	100-3198	Clamp, pipe	Ask us
50	903-9838	Bracket, ntg	Ask us
51	102-17071021707	Screw, round hd machine	Request
52	102-03861020386	Washer, lock	Request
21	102-0873	Washer, plain	Ask us
53	102-05531020553	Nut, hex	Request
22	100-0444	Connector, sealtite	Ask us
54	102-0267	Screw, round head	Ask us
23	100-0432	Connector	Ask us
55	100-4586	Tie, self locking	Ask us
24	100-0431	Connector, conduit	Ask us
56	100-3199	Clalljp, pipe	Ask us
25	100-0430	Connector, conduit	Ask us
57	100-3201	Clamp, pipe	Ask us
26	100-0429	Conn ctor, conduit	Ask us
58	129-0238	Cable	Ask us
27	100-7454	Connector, cable	Ask us
59	102-02941020294	Screw, round head slot	Request
28	101-0998	Connector, grip cord	Ask us
20	103-5795	Block, contact	Ask us
21	103-5794	Block, contact	Ask us
22	103-5621	Block, contact	Ask us
1	903-9770	Enclosure off-auto-man	Ask us
4	103-5806	Operator, ilium	Ask us
23	103-5473	Block, contact	Ask us
5	103-5809	Lens, arnber bottle stop open	Ask us
6	103-5813	Operator, green close	Ask us
7	103-5812	Operator, red	Ask us
24	103-5822	Tach indicator	Ask us
8	103-5815	Operator, m-h red	Ask us
25	129-1133	Flatwasher, solid-state	Ask us
9	103-5896	Operator, sel	Ask us
26	100-6717	Block, terminal	Ask us
27	100-6720	Plate, barrier	Ask us
28	100-0193	Clip, retaining	Ask us
29	103-5808	Lens, illum	Ask us
30	103-5821	Plate, legend	Ask us
31	103-5886	Operator, sel	Ask us
34	103-5892	Cap, operating level	Ask us
35	103-5895	Cap, operating level	Ask us
36	103-5894	Cap, operating level	Ask us
10	102-00651020065	Bolt, hex head	Request
11	100-09231000923	Fitting, tube	Request
12	102-16471021647	Bolt, hex head	Request
13	100-16351001635	Coupling, tube	Request

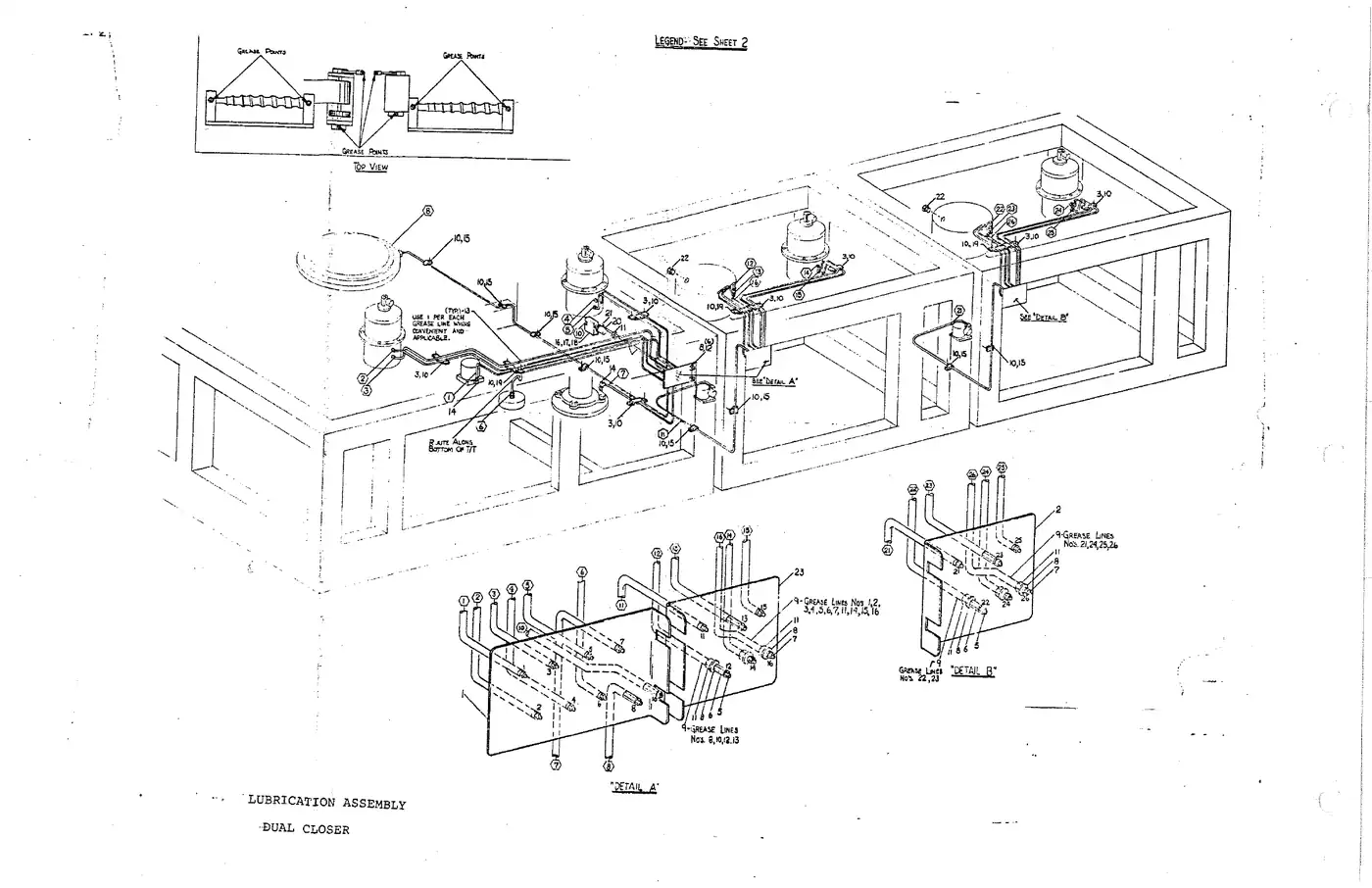

1	135-9130	Grease panel 100-i465 connector ell	Ask us
2	135-9132	Grease panel	Ask us
15	100-6940	Clip	Ask us
3	100-7327	Clip	Ask us
16	135-96381359638-1	Block, grease drive gear 65V	Request
4	104-6680	Clip	Ask us
17	102-00721020072	Bolt, hex head	Request
18	102-0835	Lockwasher	Ask us
6	100-2725	Coupling	Ask us
19	104-6679	Clip	Ask us
7	100-39411003941	Fitting, grease female str	Request
20	104-64721046472	Lubricator, automatic	Request
8	102-12551021255	Washer, flat	Request
21	100-7246	Elbow	Ask us
9	000-17500001750	Tubing	Request
22	100-6628	Relief fitting	Ask us
23	135-9131	Grease panel	Ask us

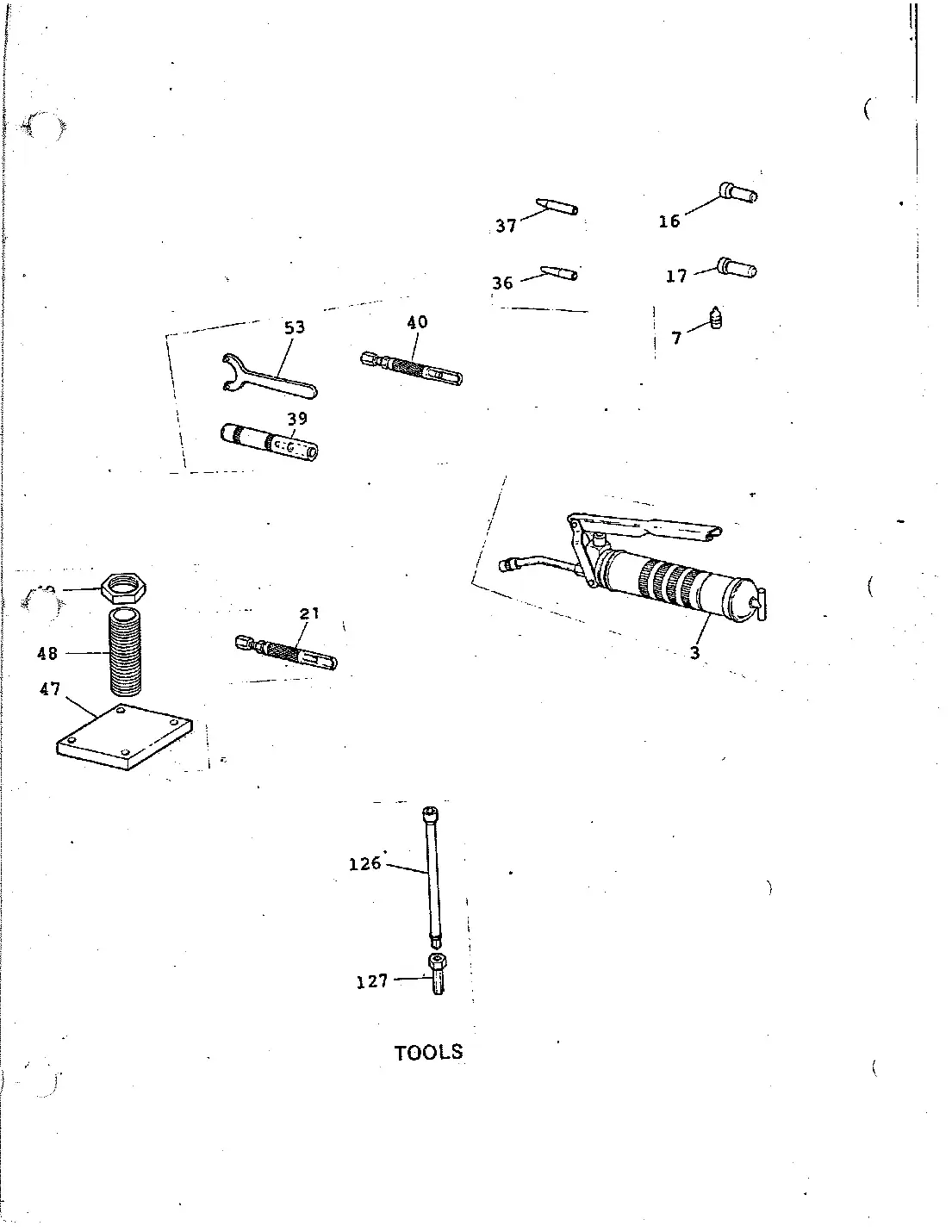

36	135-1225	Tool, spreader installation	Ask us
37	135-1226	Tool, o-ripg/spring ass	Ask us
39	131-7125	Tool, sleeve installation	Ask us
47	135-99871359987-3	Pad, leg, leg support	Request
48	135-99881359988-1MSST	Rod, threaded base leg	Request
48	131-4196	Detergent, myrex bag	Ask us

Filling Valve

Contents

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

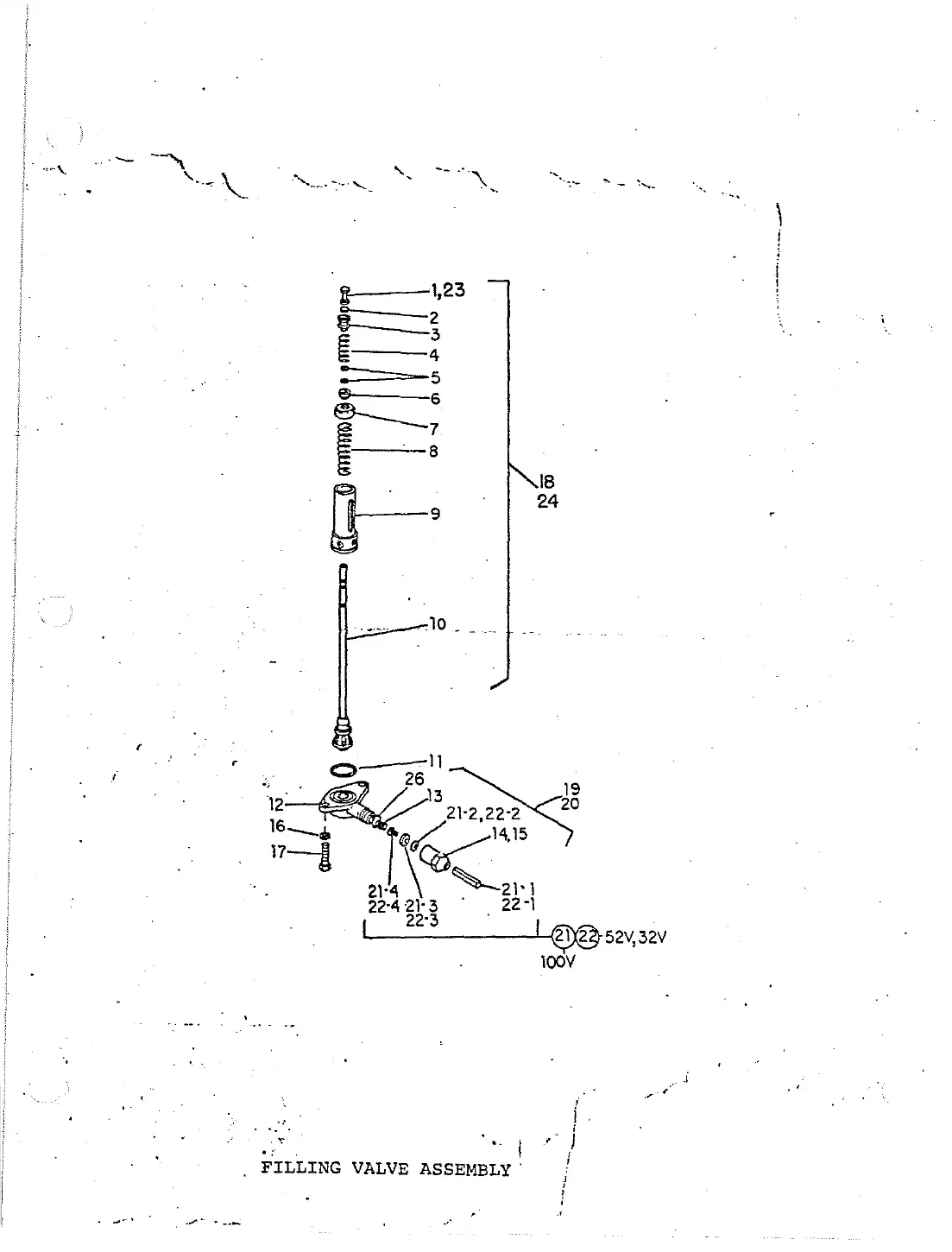

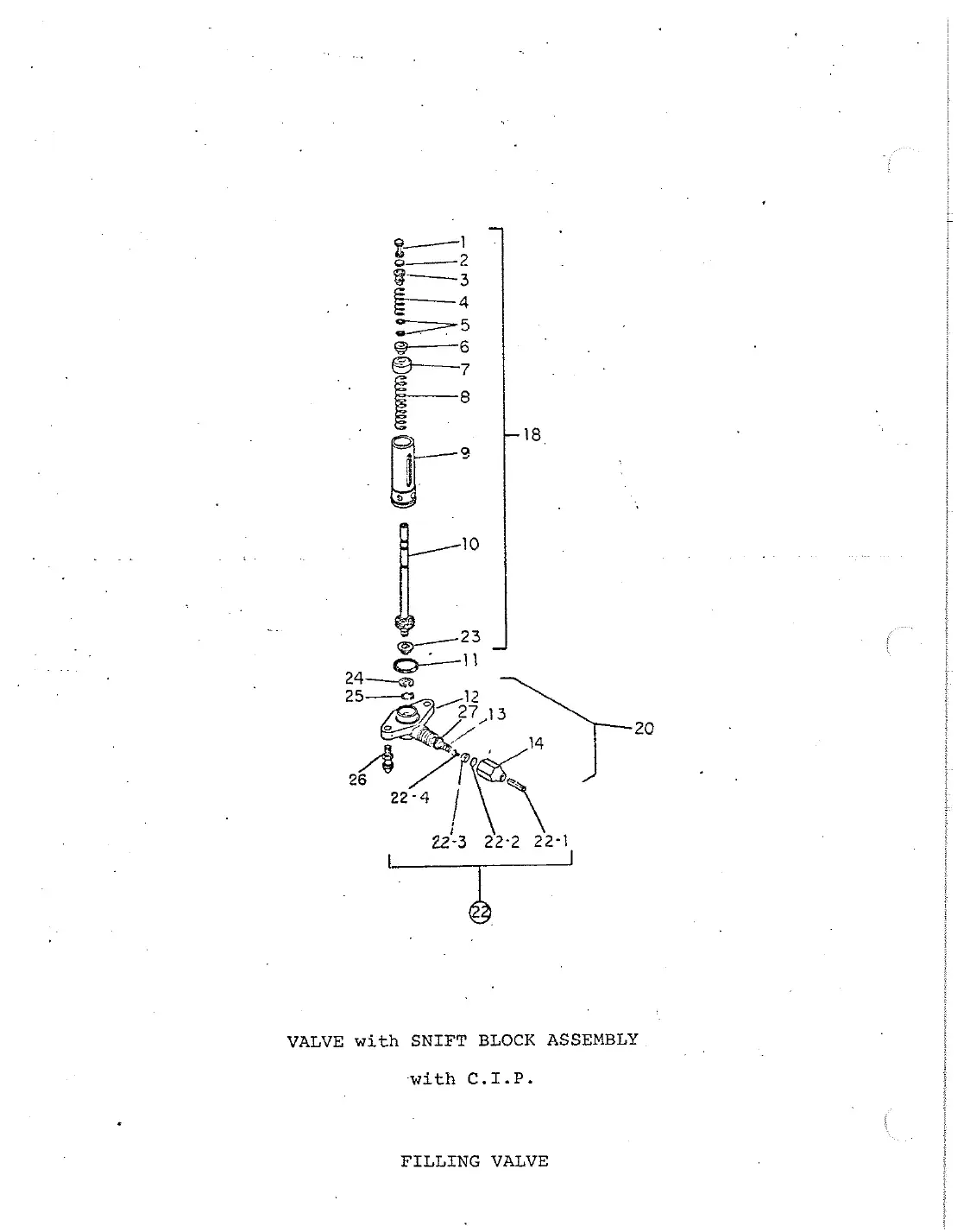

Meyer Tri-Star filler filling valve drawing

Open full size

Ref	Part number	Description
13	133-71471337147	Spring, snift	Request
14	133-81231338123	Nut, snift, fillers	Request
16	102-03891020389	Washer, lock	Request
17	102-00891020089	Bolt, hex head	Request
1	132-64011326401	Cap, charging valve	Request
2	100-93201009320	Seal, charging cap	Request
3	132-88111328811	Body, charging valve	Request
4	HH-7211HH7211	Spring, charging valve	Request
22	903-9507	Snift valve insert	Ask us
6	132-64041326404	Retainer, O-ring	Request
23	HH-7723HH7723	Seal, valve seat	Request
7	132-63991326399	Collar, guide	Request
9	RR-475RR475	Cage, spring filling valve	Request
27	100-81331008133	O-ring	Request
2	104-67061046706	Seal, U-cup	Request
3	135-9410	Housing, piston	Ask us
4	135-9409	Piston	Ask us
5	135-9408	Tube, return	Ask us
7	135-9420	Arm, locking LH	Ask us
10	135-94261359426	Spring, compression	Request
11	131-69891316989	Spring, post valve R-11 series	Request
12	100-32131003213	Pin, roll	Request
14	102-04271020427	Screw, set socket cup point	Request
15	102-3016	Screw, socket head	Ask us

Starshaft Assembly

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Meyer Tri-Star filler starshaft assembly drawing

Open full size

Ref	Part number	Description
10	104-65191046519	O-ring, starwheel housing	Request
11	104-6520	O-ring	Ask us
1	135-84971358497	Shaft, filler infeed star	Request
12	104-65161046516	Nut, lock	Request
2	135-84371358437	Shaft, filler discharge star	Request
13	104-65171046517	Locknut	Request
3	135-84981358498	Shaft, closer discharge star	Request
14	104-65181046518	Bearing	Request
4	903-9585	Housing, bearing	Ask us
15	135-84381358438	Lug, drive starshaft	Request
5	135-8442	Shield, bearing	Ask us
16	102-09771020977	Screw, socket head cap	Request
6	135-8424	Adapter, bearing mounting	Ask us
17	102-00901020090	Bolt, hex head	Request
7	135-84391358439	Ring, retaining tristar bearing	Request
18	102-01021020102	Bolt, hex head	Request
8	135-8440	Spacer, bearing	Ask us

Filler Drive

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Meyer Tri-Star filler filler drive drawing

Open full size

Ref	Part number	Description
39	102-0378	Lockwasher	Ask us
40	104-65761046576	Tensioner	Request
41	104-65751046575	Shaft, tightener	Request
42	104-65771046577	Idler pulley	Request
1	135-84791358479	Nut, hex drive hydraulic 52V filler	Request
43	100-3046	Sprocket	Ask us
2	135-84811358481	Sprocket, worm drive crowner gearbox	Request
44	102-0477	Screw, set	Ask us
3	903-95879039587	Sprocket, HTD timing screw drive 52V	Request
45	102-04761020476	Screw, pt set cup th	Request
46	000-16280001628	Key, square	Request
47	102-00041020004	Bolt, hex head	Request
5	135-84991358499	Nut, support stand screw drive	Request
49	000-1624	Key	Ask us
6	903-98619039861	Cover, gear box shaft	Request
50	102-01021020102	Bolt, hex head	Request
9	903-9541	Bracket, support	Ask us
54	102-00671020067	Bolt, hex head	Request
55	102-03871020387	Washer, lock	Request
10	104-64761046476	Coupling, keyless	Request
57	000-16690001669-2.62	Key, square	Request
11	104-6506	Limiter, torque	Ask us
12	104-6498	Sprocket	Ask us
14	104-64991046499	Bushing, quick disconnect keyway	Request
15	104-6510	Gearbox, ratio screw	Ask us
62	102-0524	Screw, set	Ask us
19	104-6502	Belt, timing pitch	Ask us
65	102-0527	Screw, set	Ask us
66	000-16500001650-1.5	Key, square	Request
67	102-0692	Screw, hex head	Ask us
20	104-65051046505	Belt, timing	Request
68	102-0039	Screw, hex head	Ask us
21	903-9577	Gear, ass epicycloidal	Ask us
69	102-0038	Screw, hex head	Ask us
70	102-00431020043	Bolt, hex head	Request
71	102-0757	Washer, flat	Ask us
22	903-95819039581	Gear, driven tristar	Request
23	133-99881339988	Gear, driven closer column	Request
73	102-07431020743	Screw, socket head cap	Request
24	100-02381000238	Bearing, flange medium duty	Request
75	102-03811020381	Washer, lock	Request
25	100-02291000229	Bearing	Request
26	903-9686	Spacer, driven gear assembly screw	Ask us
28	101-00671010067	Collar, shaft	Request
79	102-24371022437	Pin, roll	Request
29	104-6625	Motor, hydraulic	Ask us
80	102-03821020382	Washer, lock	Request
30	135-69011356901	Gear, pinion drive	Request
81	100-14841001484	Elbow, street	Request
31	903-98529039852	Shaft, assembly infeed screw	Request
82	102-03901020390	Washer, lock	Request
33	102-0371	Washer, flat	Ask us
83	103-5823	Sensor tach indicator	Ask us
34	102-12361021236	Screw, socket head cap	Request
84	903-9986	Bracket, gearbox	Ask us
85	102-00261020026	Bolt, hex head	Request
36	135-8676	Washer, stand-off	Ask us
86	102-2011	Washer	Ask us
87	104-6769	Gearbox, ratio	Ask us
38	102-22211022221	Pin, dowel	Request

Table Top Attachments Wear Strip

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Meyer Tri-Star filler table top attachments wear strip drawing

Open full size

Ref	Part number	Description
1	135-2821	Strip, wear filler infeed	Ask us
3	135-28721352872	Wearstrip, filler discharge	Request
5	135-2873	Strip, wear closer	Ask us
6	135-2874	Strip, wear closer	Ask us
7	102-24491022449	Washer, flat	Request
8	102-02021020202	Screw, flat head slot	Request
9	135-4049	Strip, wear closer	Ask us

Operator Control Station

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

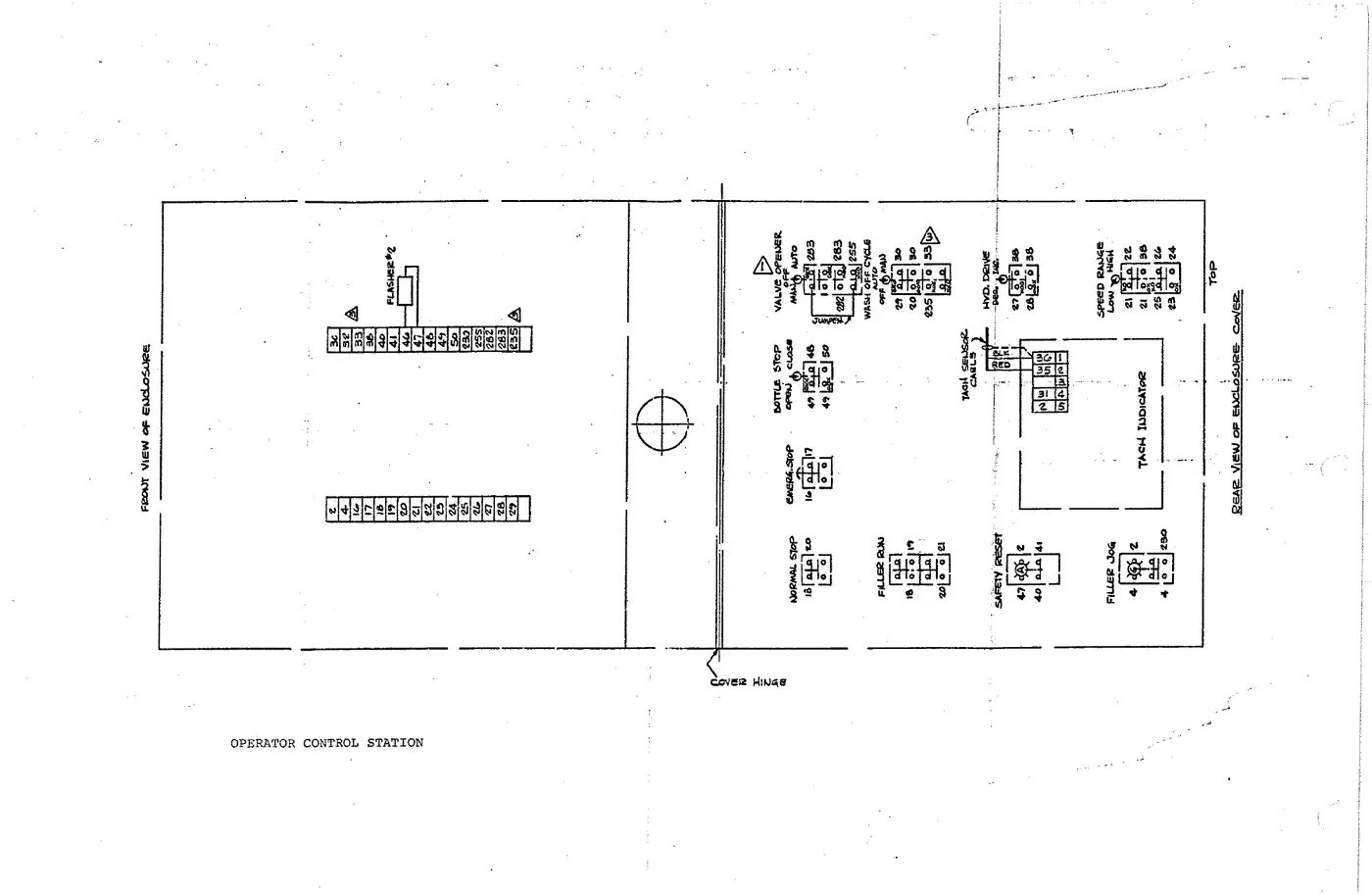

Meyer Tri-Star filler operator control station drawing

Open full size

Ref	Part number	Description
21	103-5794	Block, contact	Ask us
22	103-5621	Block, contact	Ask us
1	903-9770	Enclosure off-auto-man	Ask us
4	103-5806	Operator, illum	Ask us
23	103-5473	Block, contact	Ask us
5	103-5809	Lens, chamber bottle stop open	Ask us
6	103-5813	Operator, green close	Ask us
7	103-5812	Operator, red	Ask us
24	103-5822	Tach indicator	Ask us
8	103-5815	Operator, m-h red	Ask us
9	103-5896	Operator, sel	Ask us
26	100-6717	Block, terminal	Ask us
11	103-5888	Operator, sel	Ask us
28	100-0193	Clip, retaining	Ask us
29	103-5808	Lens, illum	Ask us
13	103-5275	Block, contact	Ask us
30	103-5821	Plate, legend	Ask us
31	103-5886	Operator, sel	Ask us
34	103-5892	Cap, operating level	Ask us
18	103-5800	Block, contact	Ask us
35	103-5895	Cap, operating level	Ask us
36	103-5894	Cap, operating level	Ask us
1	905-0629	Support, bearing block-LH screw cap	Ask us
14	135-9117	Bar tie bearing block	Ask us
3	102-03901020390	Washer, lock	Request
15	102-03891020389	Washer, lock	Request
4	102-01011020101	Bolt, hex head	Request
16	102-00891020089	Bolt, hex head	Request
5	903-9900	Coupling ass bearing blk	Ask us
6	135-9635	Pin, shear transfer screw	Ask us
7	104-60231046023	Bearing, thrust washer	Request
8	100-2339	Bearing, sleeve transfer screw	Ask us
9	100-34831003483	Fitting, grease ptf straight	Request
49	102-23481022348	Screw, socket head cap	Request
20	136-0978	Tie bar	Ask us

Pneumatics Module

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

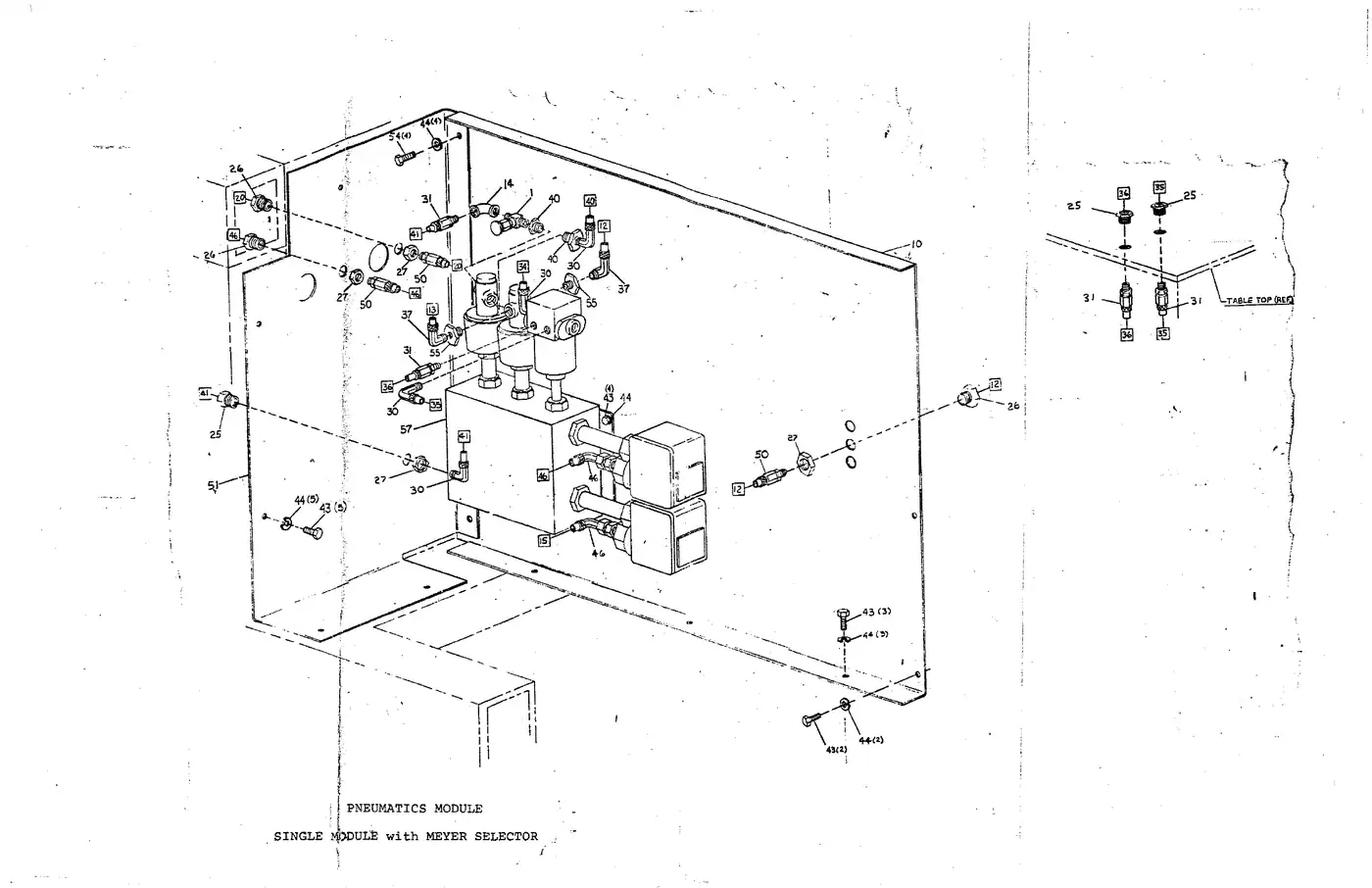

Meyer Tri-Star filler pneumatics module drawing

Open full size

Ref	Part number	Description
26	135-91391359139	Adapter, cole drg	Request
28	100-87241008724	Plug, pipe square head	Request
29	100-14331001433	Bushing, reducing hex	Request
30	100-53251005325	Elbow, male connector	Request
31	101-04691010469	Fitting, tube adapter br	Request
1	104-6483	Valve	Ask us
32	100-27881002788	Bushing, reducing bell	Request
2	104-51981045198	Regulator	Request
33	100-4661	Coupling	Ask us
3	101-06751010675	Gauge, pressure assembly	Request
34	100-0889	Nipple, close	Ask us
4	101-3020	Filter	Ask us
36	100-1439	Bushing	Ask us
5	101-01371010137	Lubricator	Request
37	101-3753	Fitting, elbow male	Ask us
6	100-47101004710	Regulator, air	Request
38	100-2789	Reducer	Ask us
7	100-31421003142-1	Filter, housing	Request
39	100-08711000871	Plug, pipe	Request
8	135-8617	Manifold	Ask us
40	100-1436	Bushing	Ask us
9	903-9731	Angle	Ask us
41	100-6937	Bushing	Ask us
42	102-00911020091	Bolt, hex head	Request
43	102-00671020067	Bolt, hex head	Request
44	102-03871020387	Washer, lock	Request
14	100-08531000853	Elbow	Request
15	100-08571000857	Elbow	Request
46	101-3752	Fitting, elbow male	Ask us
16	100-3630	Nipple	Ask us
47	000-35190003519	Tubing, poly-flo	Request
17	100-0893	Nipple, close	Ask us
48	000-32230003223	Tube, polyflo	Request
18	100-3629	Nipple	Ask us
49	102-04151020415	Washer, flat	Request
19	100-2793	Reducer	Ask us
50	101-0471	Fitting, elbow male	Ask us
20	100-08921000892	Nipple	Request
21	100-21561002156	Union	Request
52	135-9579	Bracket, gage	Ask us
22	100-2729	Coupling	Ask us
53	100-27571002757	Cross, pipe	Request
54	102-00651020065	Bolt, hex head	Request
24	100-08841000884	Tee	Request
55	100-27921002792	Coupling, reducer	Request
25	135-9114	Adapter	Ask us
56	100-3636	Nipple	Ask us
15	903-9666	Manifold, auto washoff	Ask us
16	135-8626	Bracket, clamping	Ask us
19	135-9231	Bracket, post mount	Ask us
3	103-5619	Ven solenoid	Ask us
20	102-04471020447	Screw, set socket cup point	Request
21	903-9703	Mounting, bracket	Ask us
4	100-61131006113	Nipple, close	Request
22	135-9552	Guide, hose	Ask us
23	102-04351020435	Screw, set socket cup point	Request
6	100-89101008910	Bushing, reducing hex	Request
24	100-61121006112	Nipple	Request
7	100-96651009665	Nipple, pipe	Request
25	103-5835	Sensor proximity	Ask us
8	100-96661009666	Elbow, street 90 deg ips	Request
26	103-5488	Plug close	Ask us
9	104-6372	Valve, diaphragm unilet w/cover	Ask us
10	104-51871045187	Nozzle, wash-off	Request
28	100-0449	Connector	Ask us
11	101-01081010108	Fitting, barbed	Request
29	102-00751020075	Bolt, hex head	Request
12	100-30771003077	Clamp, hose clamp	Request
30	102-04161020416	Washer, flat	Request
13	000-34890003489	Tubing, CO2/air braided hose	Request
14	100-61111006111	Nipple, close	Request

Vent Tube Blow Off

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

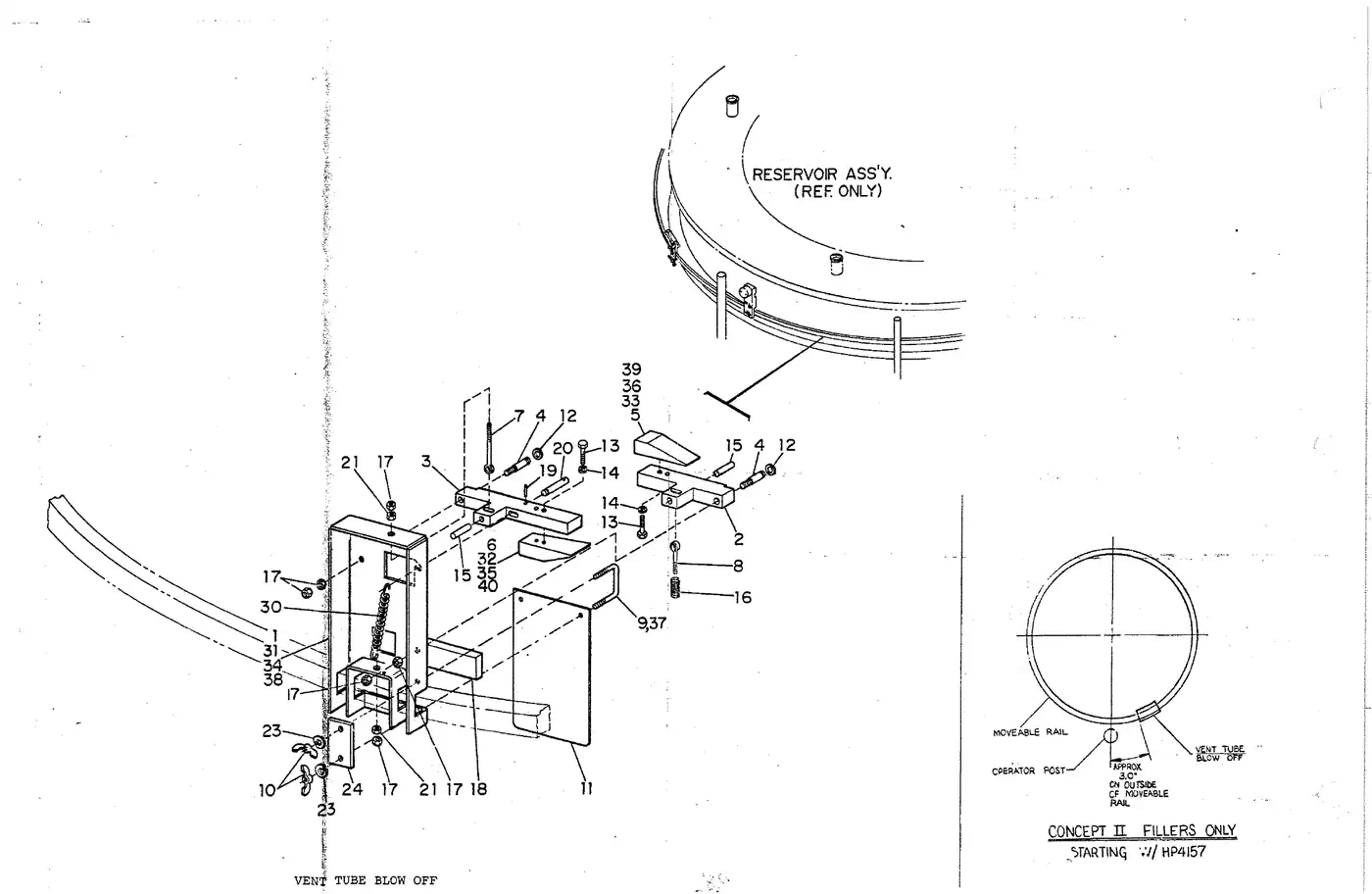

Meyer Tri-Star filler vent tube blow off drawing

Open full size

Ref	Part number	Description
1	903-8399	Bracket, cam mounting	Ask us
2	133-6735	Base cam mounting	Ask us
3	133-6736	Base cam mounting	Ask us
4	133-6739	Shaft cam holder	Ask us
5	135-0881	Bottom track cam	Ask us
6	135-0880	Top track cam	Ask us
7	133-7461	Rod cam adj	Ask us
8	133-67401336740	Rod	Request
9	131-83801318380	U-bolt	Request
10	102-0711	Wing nut	Ask us
11	133-6745	Shield	Ask us
12	104-5183	Retaining ring	Ask us
13	102-00681020068	Bolt, hex head	Request
14	102-03871020387	Washer, lock	Request
15	102-06681020668	Pin, dowel	Request
16	104-5155	Compression spring	Ask us
19	102-1940	Roll pin	Ask us
20	135-08481350848	Shaft, lock bottle filler	Request
21	102-03321020332	Nut, hex	Request
24	135-0647	Strap	Ask us
30	104-6311	Extension spring	Ask us
34	903-9855	Cam mounting bracket	Ask us
37	135-9429	U-bolt	Ask us

Gear Guards

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

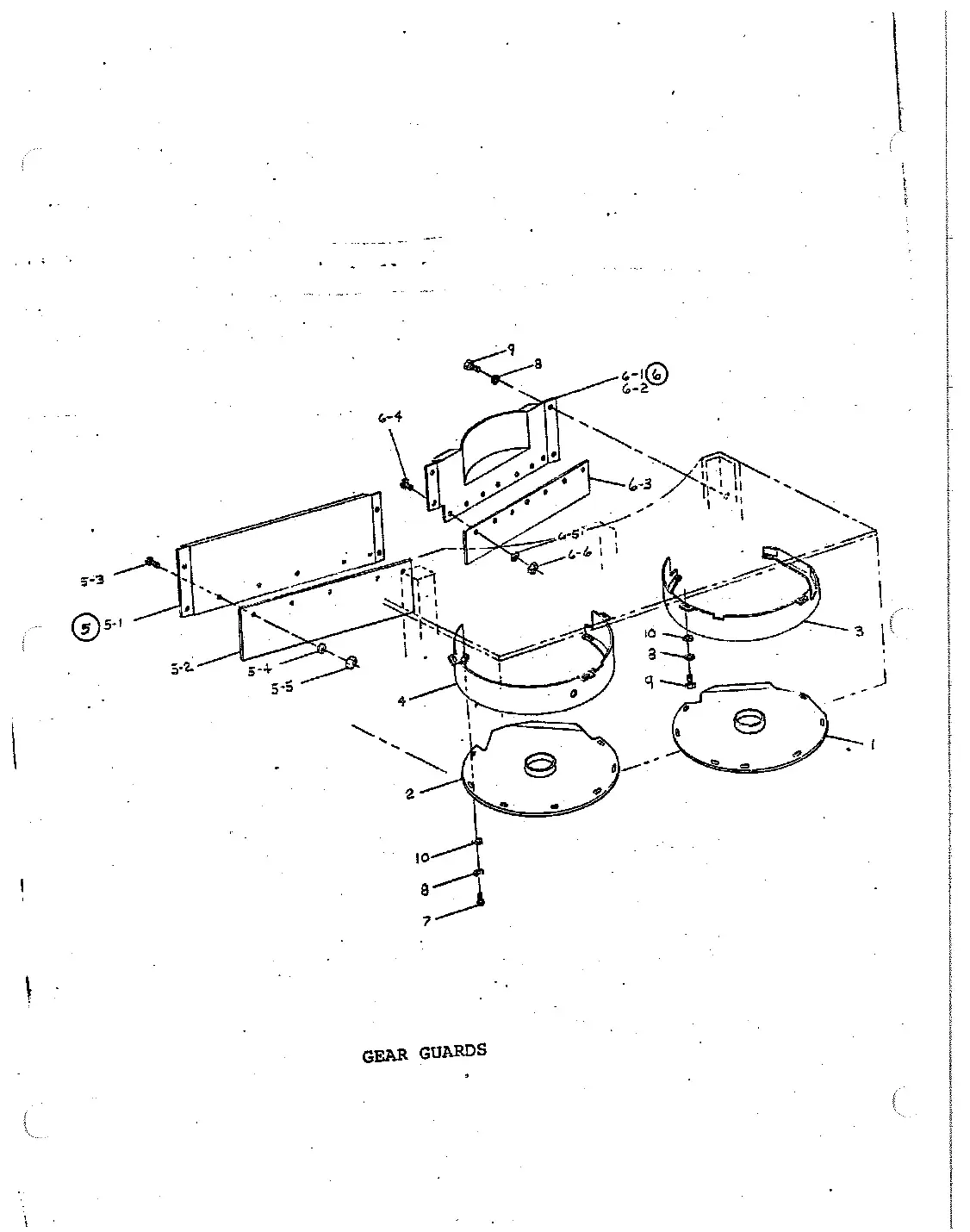

Meyer Tri-Star filler gear guards drawing

Open full size

Ref	Part number	Description
6-1	000-1546	Sheet, stainless	Ask us
6-4	102-0288	Screw, round head	Ask us
6-5	102-04141020414	Washer, flat	Request
6-6	102-05531020553	Nut, hex	Request
7	102-02951020295	Screw, round head slot	Request
8	102-03871020387	Washer, lock	Request
9	102-00671020067	Bolt, hex head	Request
10	102-04151020415	Washer, flat	Request

Electrical Hardware with O&H Crown Selector

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Meyer Tri-Star filler electrical hardware with o&h crown selector drawing

Open full size

Ref	Part number	Description
29	101-0988	Grommet	Ask us
31	103-5488	Plug	Ask us
32	100-9825	Elbow, corner	Ask us
1	000-2744	Conduit, sealtite elbow	Ask us
2	000-2746	Conduit	Ask us
34	100-0212	Coupling, conduit	Ask us
35	100-0198	Bushing	Ask us
4	000-3665	Conduit, sealtite	Ask us
36	100-0195	Bushing	Ask us
5	000-3666	Conduit, sealtite	Ask us
37	100-0449	Connector, sealtite	Ask us
6	100-0114	Coil, overload	Ask us
38	100-61131006113	Nipple, close	Request
7	000-3668	Conduit, sealtite	Ask us
39	135-9919	Adapter	Ask us
8	000-3049	Conduit	Ask us
40	103-5443	Connector, female	Ask us
9	100-8119	Unilet	Ask us
41	135-91151359115	Adapter	Request
10	100-0189	Cover	Ask us
42	135-9973	Adapter	Ask us
32	100-01701000170	Unilet, body	Request
13	100-0164	Unilet	Ask us
45	102-00751020075	Bolt, hex head	Request
46	102-04161020416	Washer, flat	Request
15	100-0436	Connector, sealtite	Ask us
47	102-03871020387	Washer, lock	Request
16	100-92901009290	Nipple	Request
48	100-32001003200	Clamp, air lift manifold	Request
49	100-3198	Clamp, pipe	Ask us
18	100-0433	Connector, sealtite	Ask us
50	903-9838	Bracket, mounting	Ask us
21	102-0873	Washer, plain	Ask us
53	102-05531020553	Nut, hex	Request
22	100-0444	Connector, sealtite screw	Ask us
55	100-4586	Tie, self locking	Ask us
56	100-3199	Clamp, pipe	Ask us
25	100-0430	Connector, conduit clamp	Ask us
26	100-0429	Connector, conduit	Ask us
59	102-02941020294	Screw, round head slot	Request
28	101-0998	Connector, grip cord	Ask us

Electrical Hardware for Closer Module

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer Tri-Star filler electrical hardware for closer module drawing

Open full size

Ref	Part number	Description
18	100-0190	Block, terminal	Ask us
19	100-0191	Plate, barrier	Ask us
20	100-0193	Clip, retaining	Ask us
1	000-3666	Conduit, sealtite	Ask us
21	000-2765	Channel, terminal block	Ask us
2	000-3668	Conduit, sealtite	Ask us
3	100-0436	Connector	Ask us
5	100-0439	Connector	Ask us
31	103-5910	Junction box	Ask us
32	100-0432	Connector, hub uniseal	Ask us
7	100-0434	Connector	Ask us
33	100-0447	Connector, sealtite	Ask us
8	100-0431	Connector, hub uniseal	Ask us
34	000-3665	Conduit, sealtite	Ask us
106	100-0429	Connector, hub uniseal	Ask us
35	100-3201	Clamp, pipe	Ask us
36	102-00751020075	Bolt, hex head	Request
14	102-04271020427	Screw, set socket cup point	Request
37	100-0437	Connector	Ask us
15	102-03321020332	Nut, hex	Request

Catalog drawings for this filler

Cleaner exploded drawings and part numbers from our parts catalog for assemblies used on this filler.

Need a part for your Tri-Star filler?

More than 300,000 Meyer parts in inventory, same-day shipping on stocked parts, and technicians with 40+ years of Meyer experience.

Call 843-851-3217 Submit a parts inquiry
