Meyer 72-12 quart filler parts manual

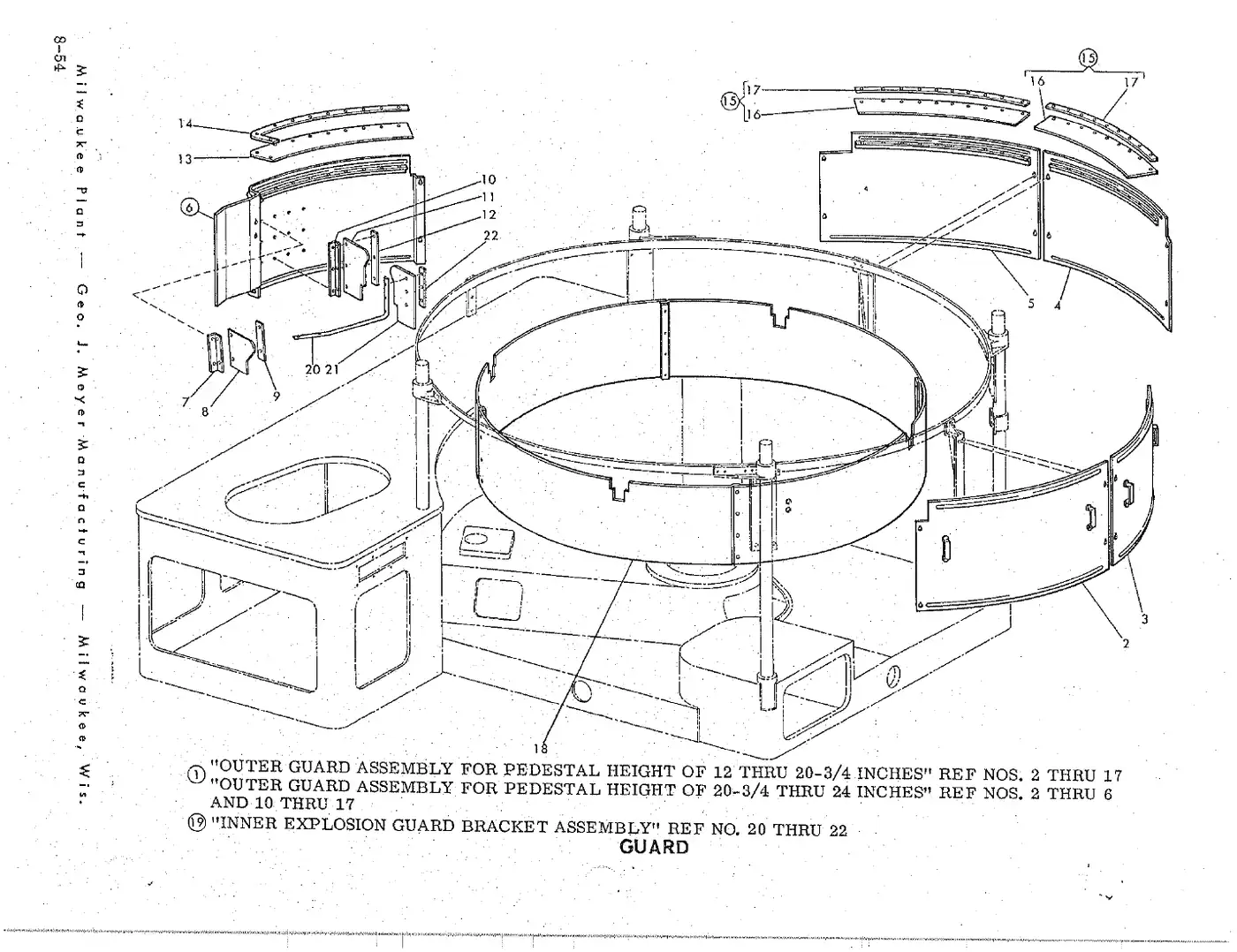

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
26	100-6960	Latch, door	Ask us
31	100-3197	Clamp, pipe	Ask us
15	102-0756	Pin, roll	Ask us
19	130-0921	Handle, manhole cover assembly	Ask us
20	102-09961020996	Pin, roll slotted	Request

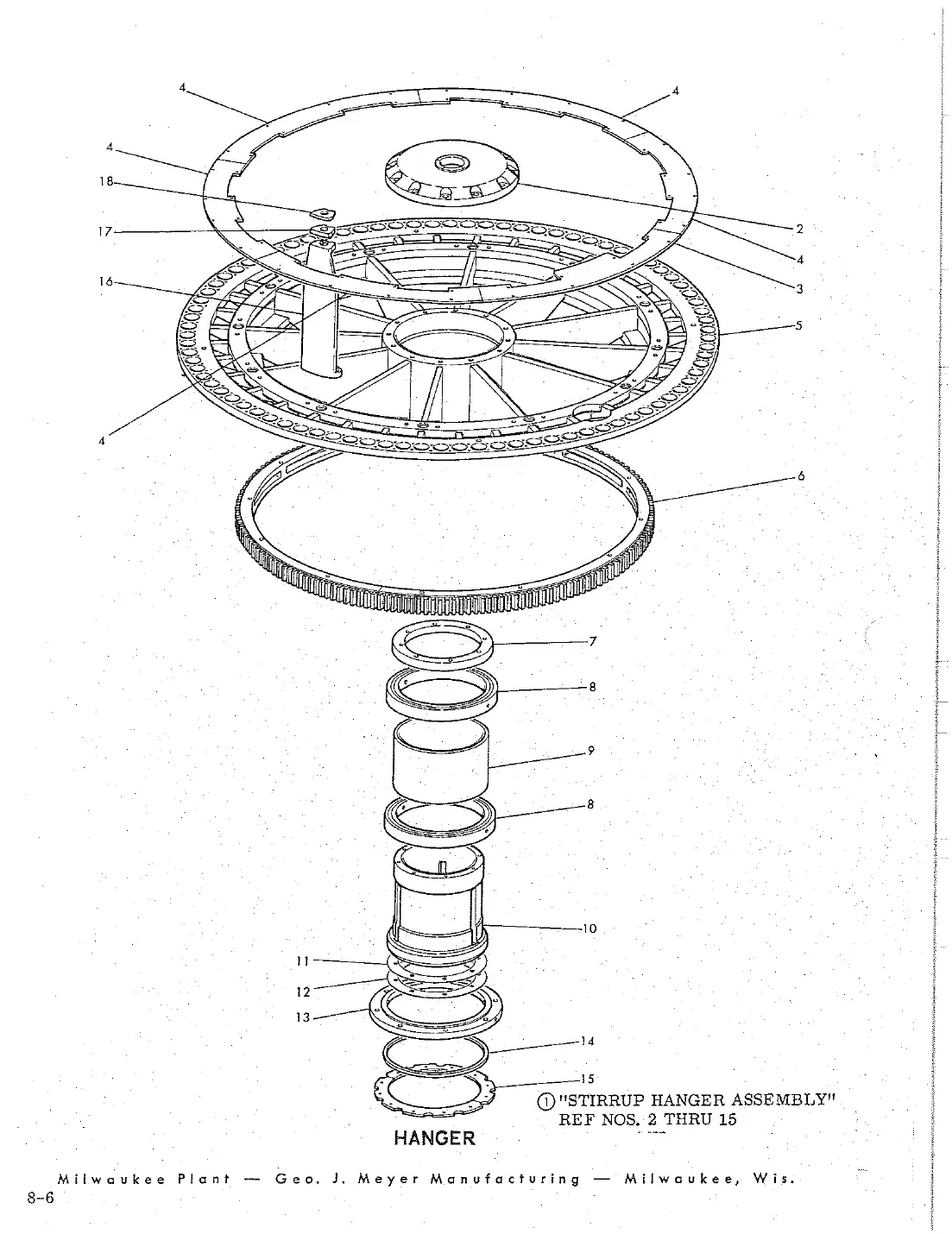

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
11	130-7115	Shim	Ask us
12	130-7116	Shim	Ask us
13	131-1003	Cap, bottom bearing	Ask us
2	130-0946	Cap, top bearing	Ask us
14	100-70461007046	Seal, main bearing	Request
15	131-1030	Plate, seal cover	Ask us
8	100-44121004412	Bearing, main hanger / 84V	Request
10	131-0998	Column, center	Ask us

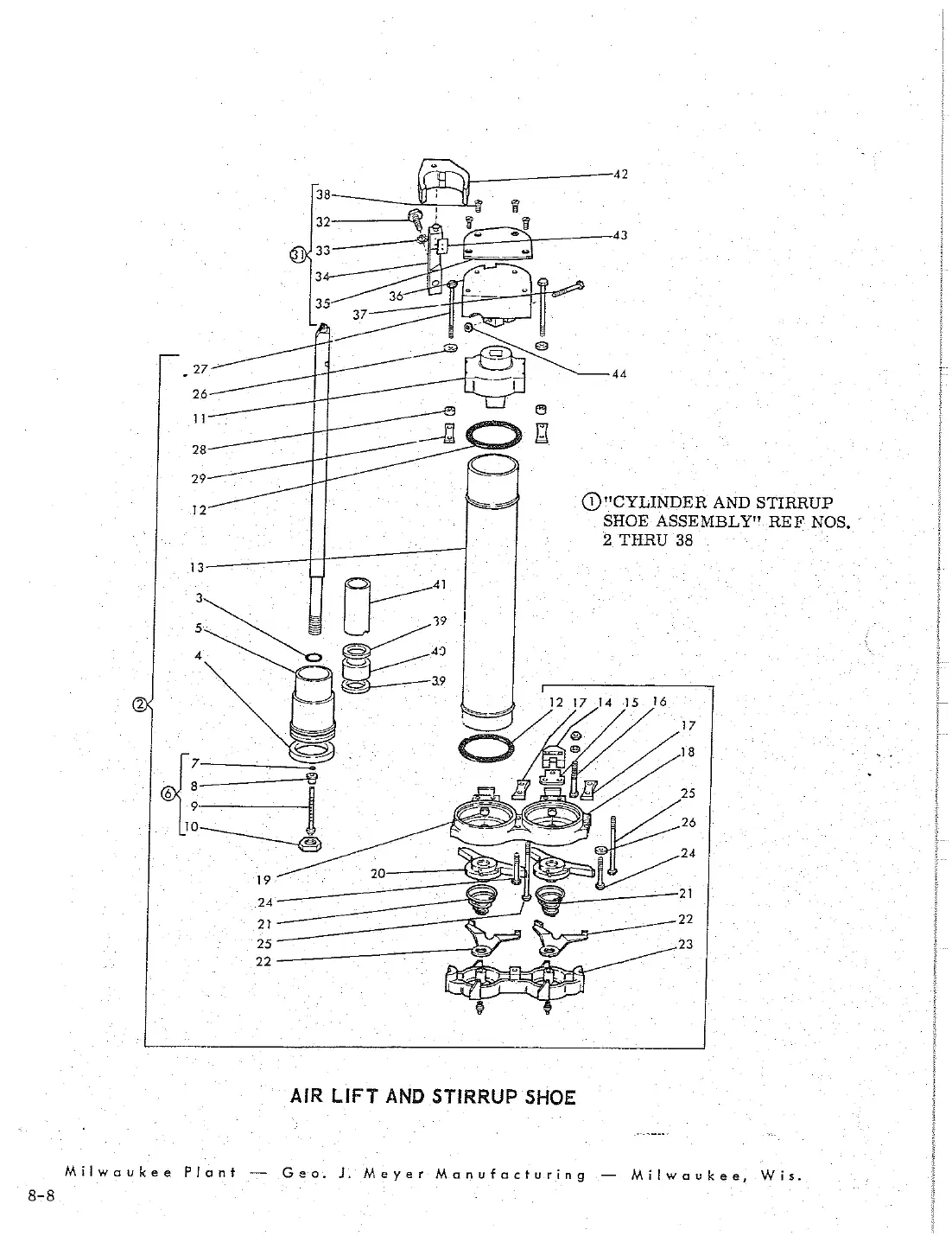

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
14	100-2327	Bushings, oilite	Ask us
18	100-0748	Collar, set	Ask us
19	130-86191308619	Spring, trigger	Request

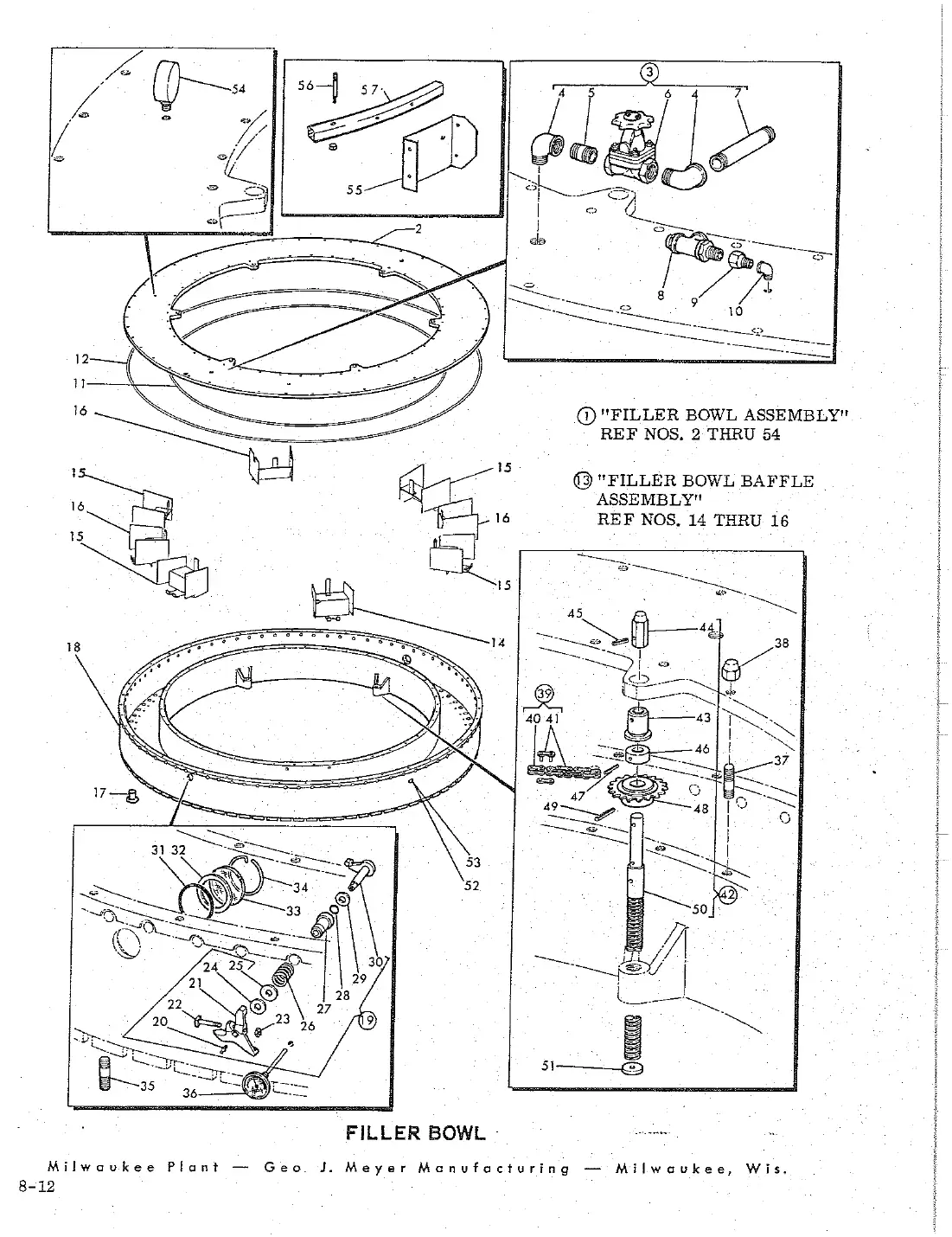

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

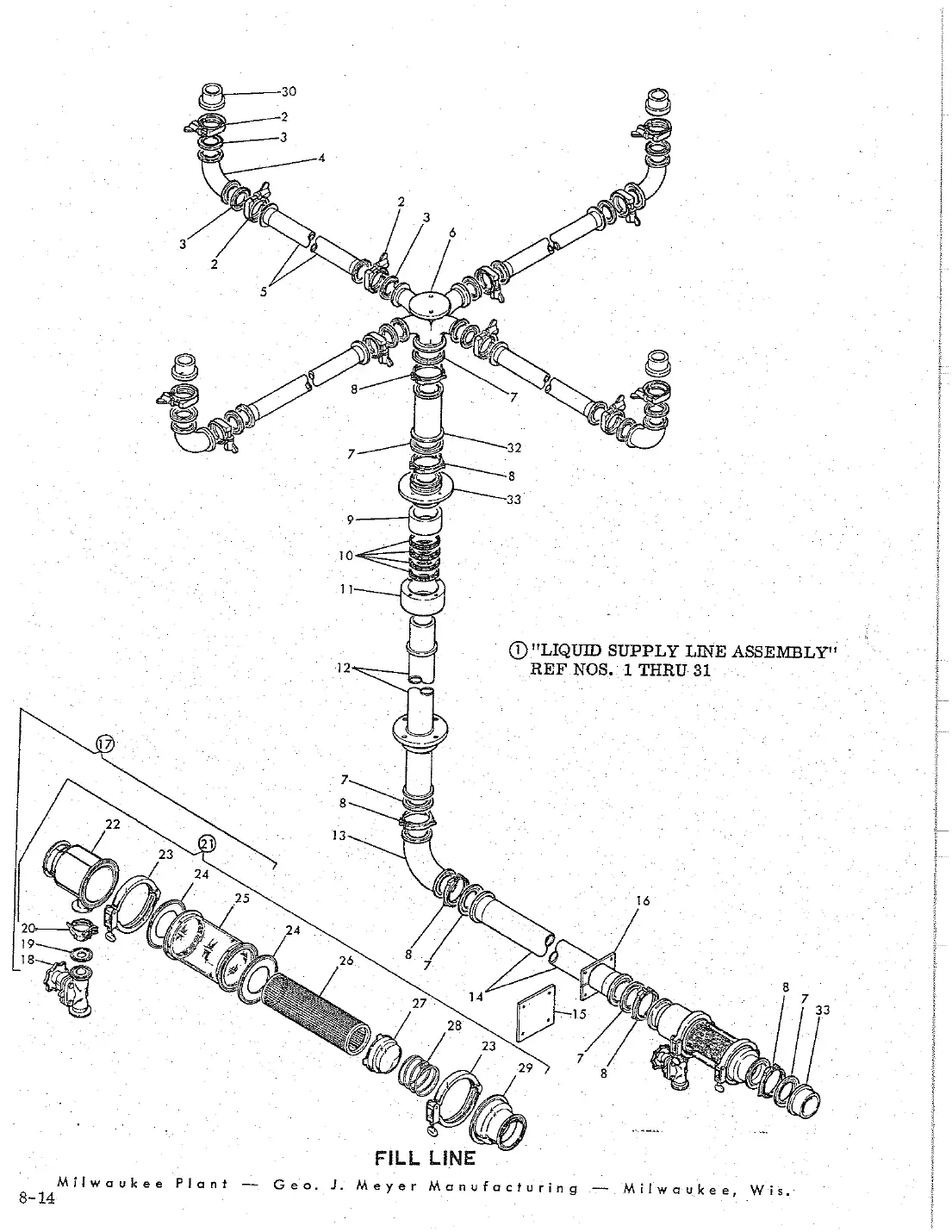

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
2	100-21421002142	Clamp, hinged sanitary	Request
3	100-21331002133	Gasket, tri-clamp tube	Request
4	100-41461004146	Elbow, 90 deg	Request
5	900-0347	Line body assembly	Ask us
6	900-0394	Cross filter screen and cage	Ask us
7	100-00281000028	Gasket, tri-clamp	Request
8	100-00271000027	Clamp, hinged sanitary	Request
10	130-85571308557	Packing ring bevel joint	Request
30	130-6039	Ferrule	Ask us
15	131-1815	Cover	Ask us
31	100-0025	Ferrule	Ask us
18	100-0216	Valve, diaphragm gland	Ask us
20	100-21411002141	Clamp, hinged sanitary	Request

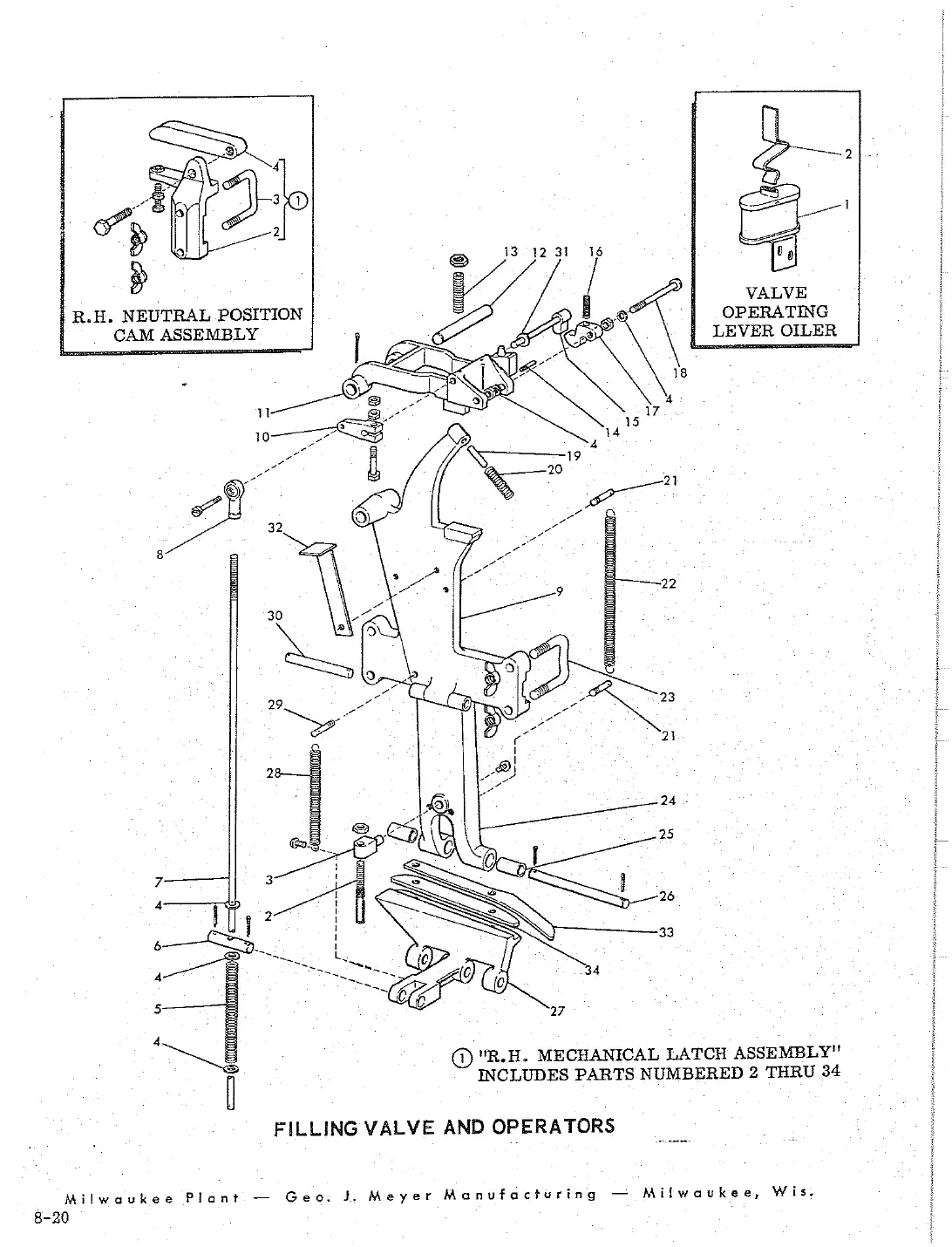

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full sizeOpen full size

Ref	Part number	Description
3	100-7835	Seat, charging valve	Ask us
6	100-34821003482	O-ring	Request
25	100-2329	Bushing oilite	Ask us
8	100-4044	Bearing heim unibal pin, bottle operate arm	Ask us
13	102-04521020452	Screw, set socket cup point	Request
32	130-1663	Latch, holding	Ask us

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

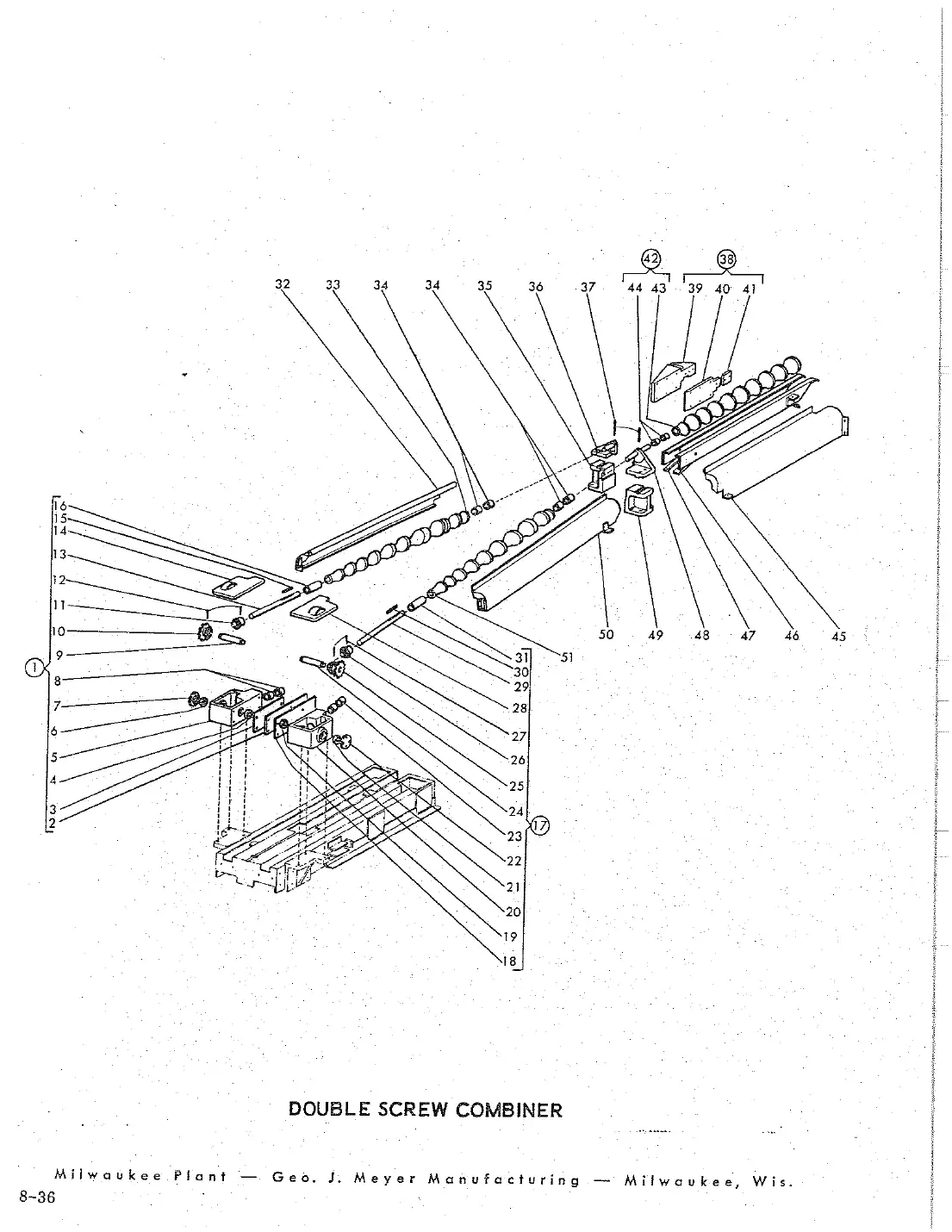

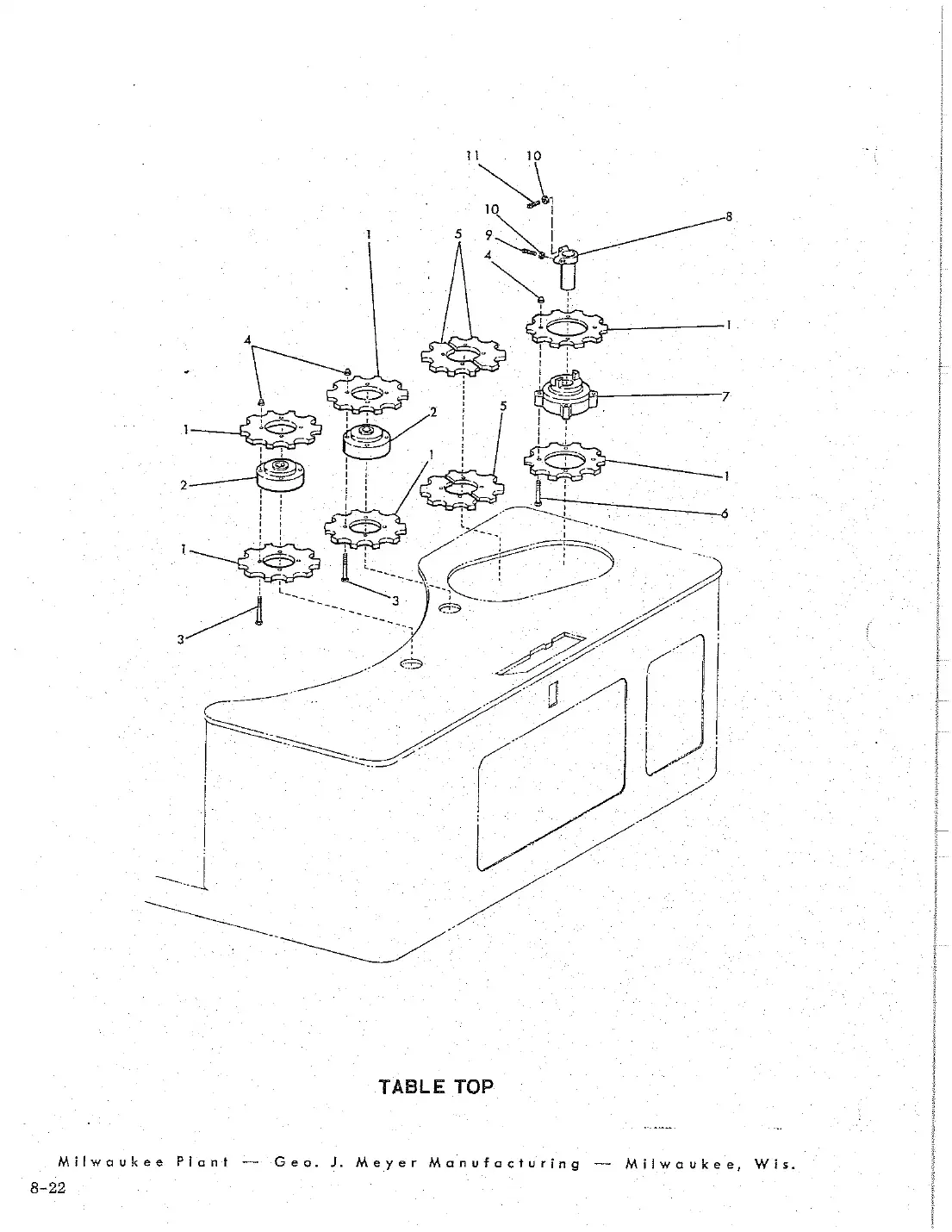

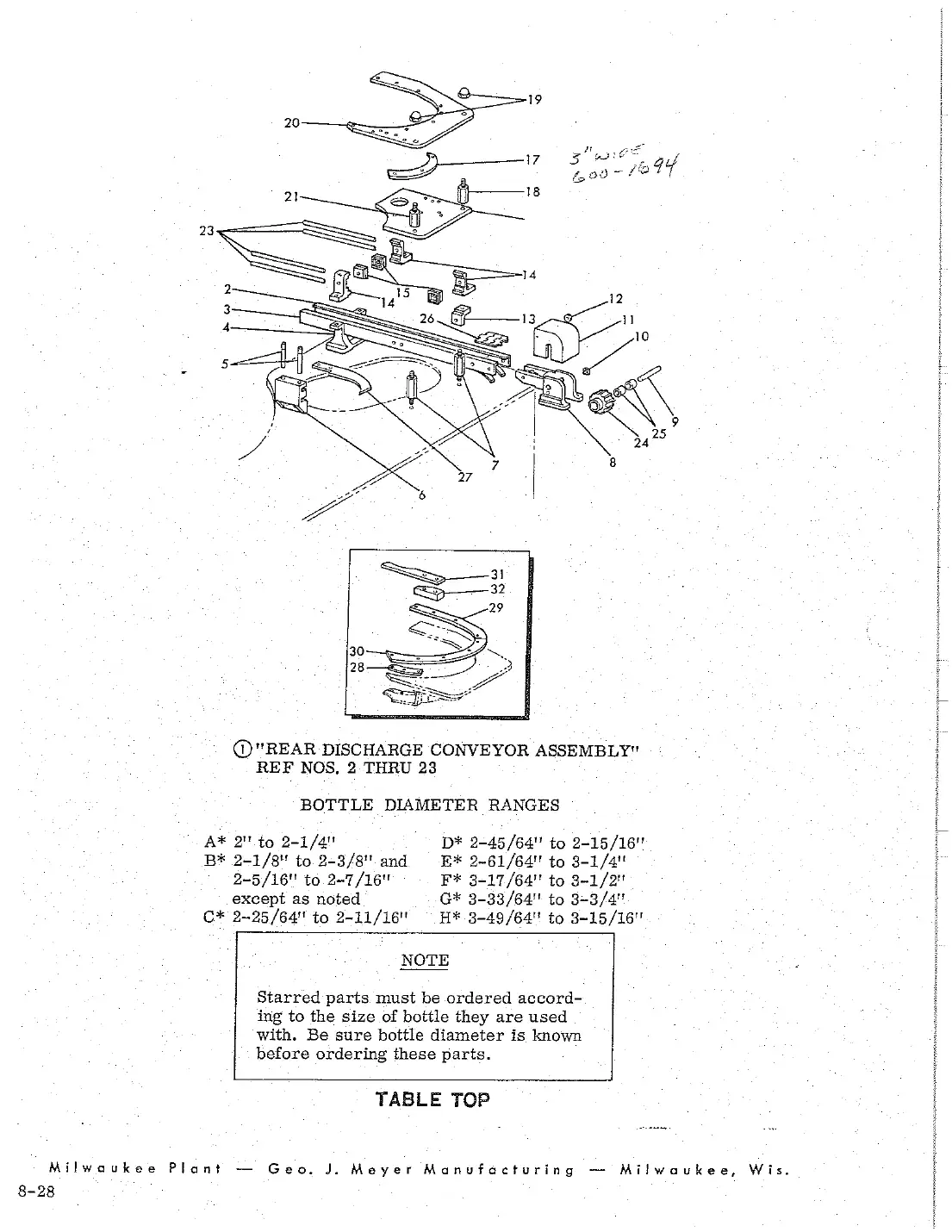

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
3	102-01101020110	Bolt, hex head	Request
6	102-01091020109	Bolt, hex head	Request
7	131-2734	Star, filler infeed dis- bushing	Ask us
9	102-1511	Screw, set square head	Ask us
11	102-0523	Screw, set square head	Ask us
4	130-8839	Strip, crowner wear	Ask us
28	131-2757	Spacer crowner discharge	Ask us
11	130-8175	Stud, crowner guide guide-b	Ask us
18	131-1912	Cap, retaining guide-f	Ask us
21	131-2801	Support, stripper insert	Ask us
24	100-2345	Bushings oilite guide-b	Ask us
11	130-8969	Cover, guard end bracket insert	Ask us
18	130-8129	Nut, crowner guide-e	Ask us
21	130-8174	Spacer, bottle guide insert	Ask us
30	100-7075	Chain, table top whitney insert	Ask us
4	131-1909	Bracket, conveyor thru	Ask us
7	100-06631000663	Chain, flat top	Request
18	900-5423	Gate, adjustable	Ask us
19	102-00981020098	Bolt, hex head	Request
20	102-04191020419	Washer, flat	Request
22	102-03401020340	Nut, hex jam	Request
23	130-1356	Extension, safety gate	Ask us
24	102-04251020425	Set screw	Request
26	130-9684	Gate adjustable safety	Ask us
27	130-9675	Liner, extension	Ask us
28	130-9674	Liner	Ask us
29	102-07951020795	Screw, fillister hd	Request
30	102-1465	Nut, hex	Ask us
5	100-23641002364	Bushing, sleeve	Request
6	100-23621002362	Bushing, sleeve	Request
14	102-14951021495	Key, gib timing screw gear	Request
22	102-0858	Bolt, carriage 375-16	Ask us
23	900-89819008981	Conveyor drive sprocket&pinion assembly	Request
27	100-0747	Collar, set	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
42	102-10931021093	Pin, taper	Request
43	102-0893	Stud 375-16 stainless	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

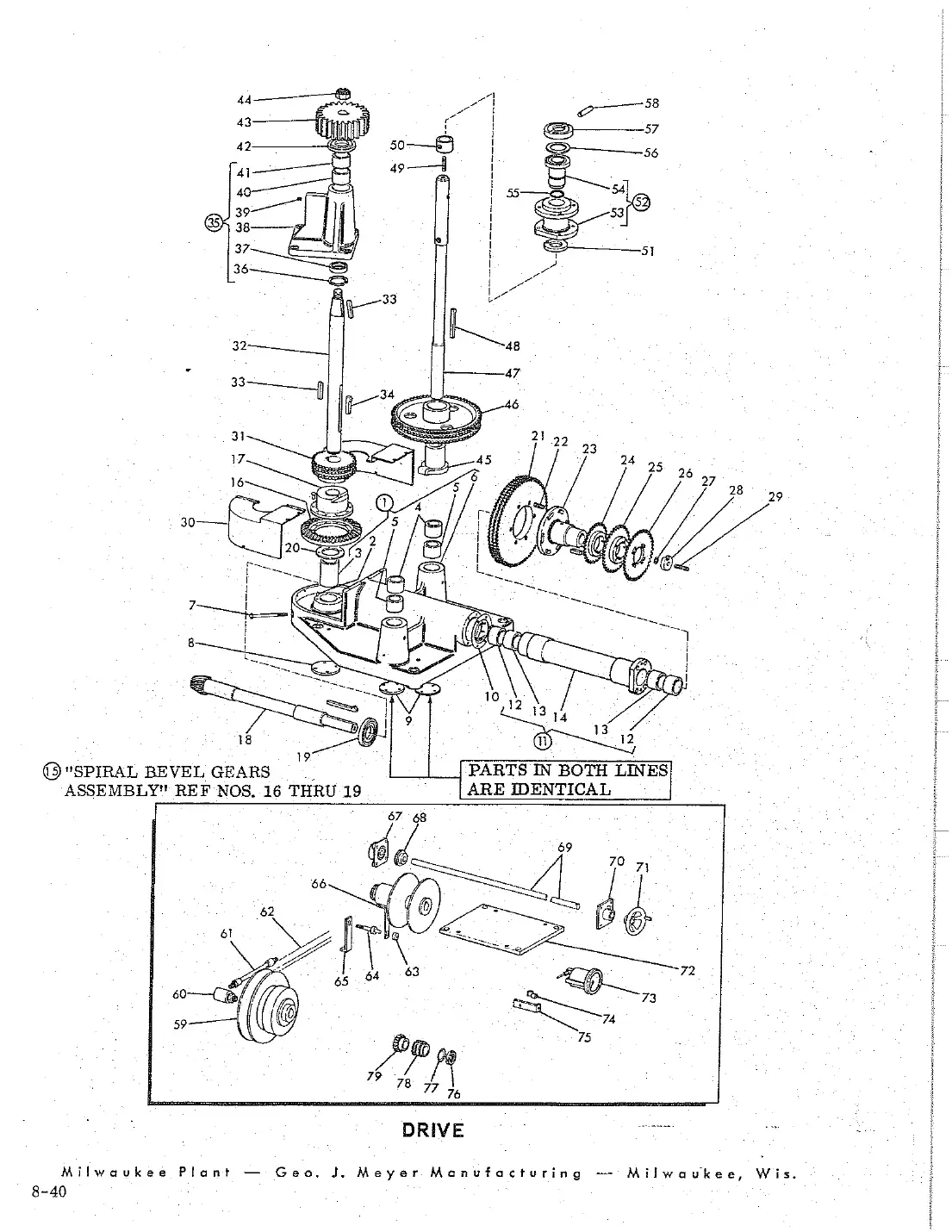

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
9	130-2401	Drum, brake	Ask us
10	100-0806	Clutch	Ask us
2	130-0708	Cap, bearing end	Ask us
3	100-08041000804	Seal, oil	Request
4	100-0803	Bearing, ball	Ask us
5	102-13581021358	Key, round	Request
14	102-13601021360	Key, round	Request
6	130-0546	Shaft, brake	Ask us
15	102-1359	Pin, dowel	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
36	100-27621002762	Ring, retaining	Request
87	100-27631002763	Seal, oil shaft	Request
39	100-2106	Plug, pipe	Ask us
6	130-0706	Housing	Ask us
47	130-60331306033	Shaft, starwheel	Request
15	900-57359005735	Gear, spiral assembly	Request
54	130-53211305321	Bearing, starshaft	Request
55	100-25051002505	O-ring	Request
17	130-95381309538	Flange, bevel gear	Request
18	131-10841311084	Shaft & pinion, assembly	Request
60	100-4229	Seal, rotary	Ask us
61	100-4230	Hose, air	Ask us
63	100-0748	Collar, set	Ask us
67	100-7880	Bearing	Ask us
68	100-0296	Sprocket	Ask us
70	900-7853	Lock, tachometer shaft	Ask us
80	900-0876	Cover, bevel gear	Ask us
75	130-5579	Bracket, tachometer cable	Ask us
76	100-37161003716	Nut, lock	Request
82	130-13931301393	Shaft, main vertical	Request
77	100-3736	Washer, lock bearing	Ask us
33	102-14381021438	Key, round	Request
79	130-21651302165	Sprocket, worm drive crowner gearbox	Request
79	900-7231	Drive pinion bracket	Ask us
14	102-1355	Key	Ask us
2	131-06721310672	Gear, pinion drive	Request
16	102-13541021354	Key, round en	Request
17	131-0878	Drum, brake	Ask us
18	100-4118	Valve, quick release	Ask us
19	100-6962	Brake element assembly	Ask us
20	900-72799007279	Support, brake assembly	Request
7	130-0937	Housing, drive pinion bearing	Ask us
23	900-7280	Plate, brake support	Ask us
25	131-0868	Gasket	Ask us
10	131-0865	Washer, brake shaft thrust	Ask us
26	131-0867	Cover	Ask us
12	102-1356	Key nut, hexagon	Ask us
18	100-06631000663	Chain, flat top	Request
19	100-0648	Chain, roller	Ask us
21	100-5164	Chain, silent	Ask us
23	100-37561003756	Chain, three strand	Request
25	100-32891003289	Link, connecting single strand	Request
26	100-32881003288	Link, half link single strand	Request
27	100-37571003757	Link, connecting three str	Request
28	100-6266	Link, roller	Ask us
29	100-51011005101	Link, connecting silent	Request

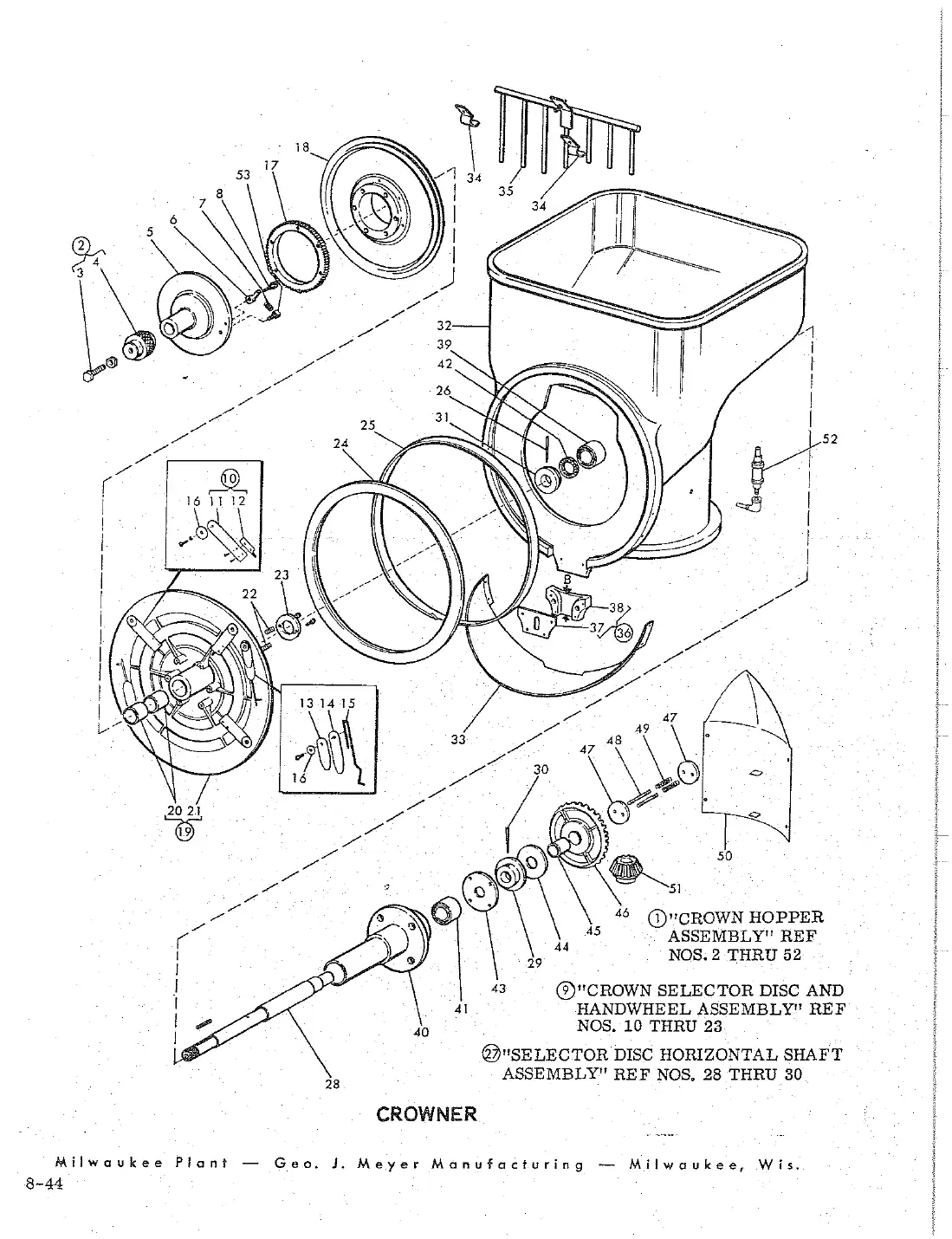

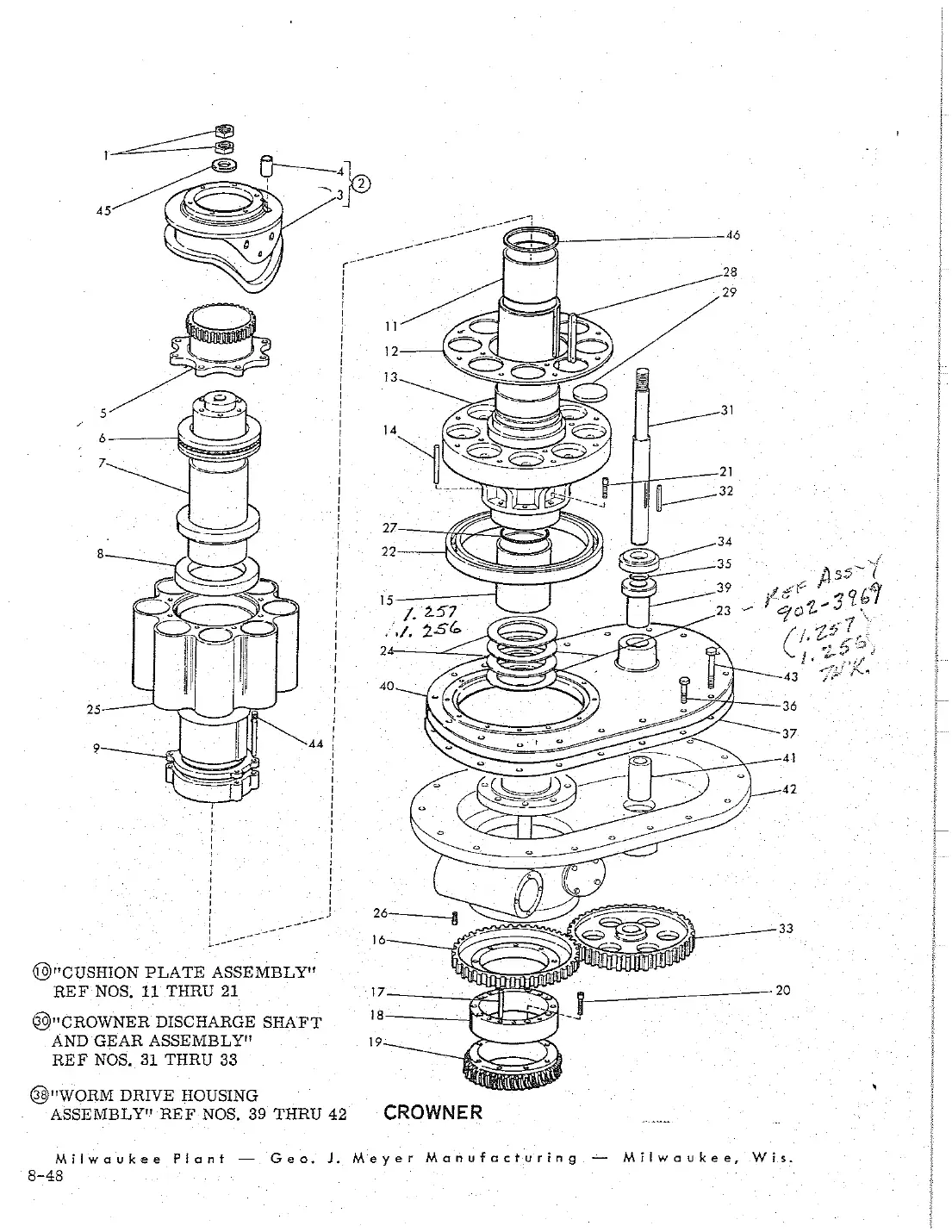

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
26	102-12401021240	Pin, taper #4	Request
27	900-7698	Shaft, selector disc	Ask us
28	131-1107	Shaft	Ask us
31	131-1242	Collar, hopper drive shaft	Ask us
9	900-4682	Disc and handwheel	Ask us
32	130-0471	Hopper, crown	Ask us
10	900-54209005420	Agitator, Crown assembly	Request
89	100-71711007171	Bearing, outer	Request
40	131-1106	Bracket	Ask us
41	100-71721007172	Bearing, needle roller	Request
19	900-4681	Disc, crown selector bushing	Ask us
20	100-23631002363	Bearing	Request
50	900-0154	Cover, hopper gear	Ask us
6	900-0020	Bracket, crown hopper spacer	Ask us
7	130-0079	Shaft, hopper drive chute	Ask us
9	900-0342	Door guide, upper crown	Ask us
26	102-0780	Screw, socket head	Ask us
2	900-0161	Cam, crowner assemb- 3875-16	Ask us
27	100-17391001739	O-ring	Request
80	900-0158	Shaft and gear	Ask us
8	100-71211007121	Oil, seal	Request
385	100-25051002505	O-ring	Request
12	131-2084	Plate, cushion plate wear	Ask us
86	102-0048	Bolt, hex head	Ask us
15	130-0495	Bushing, cushion plate	Ask us
38	900-0338	Housing, worm drive	Ask us
16	130-1561	Gear, crowner star drive assembly	Ask us
18	130-0023	Spacer, cushion plate 1380-0493 bushing	Ask us
20	102-1390	Screw, cap	Ask us
21	102-0941	Screw, socket head	Ask us
1	900-0860	Crank, crowning	Ask us
24	102-05721020572	Pin, taper	Request
25	100-2016	O-ring	Ask us
13	130-0481	Pedestal, crowner	Ask us
34	131-03251310325	Shim, worm gear	Request
19	130-5591	Collar	Ask us
41	100-3350	Seal, oil garlock	Ask us

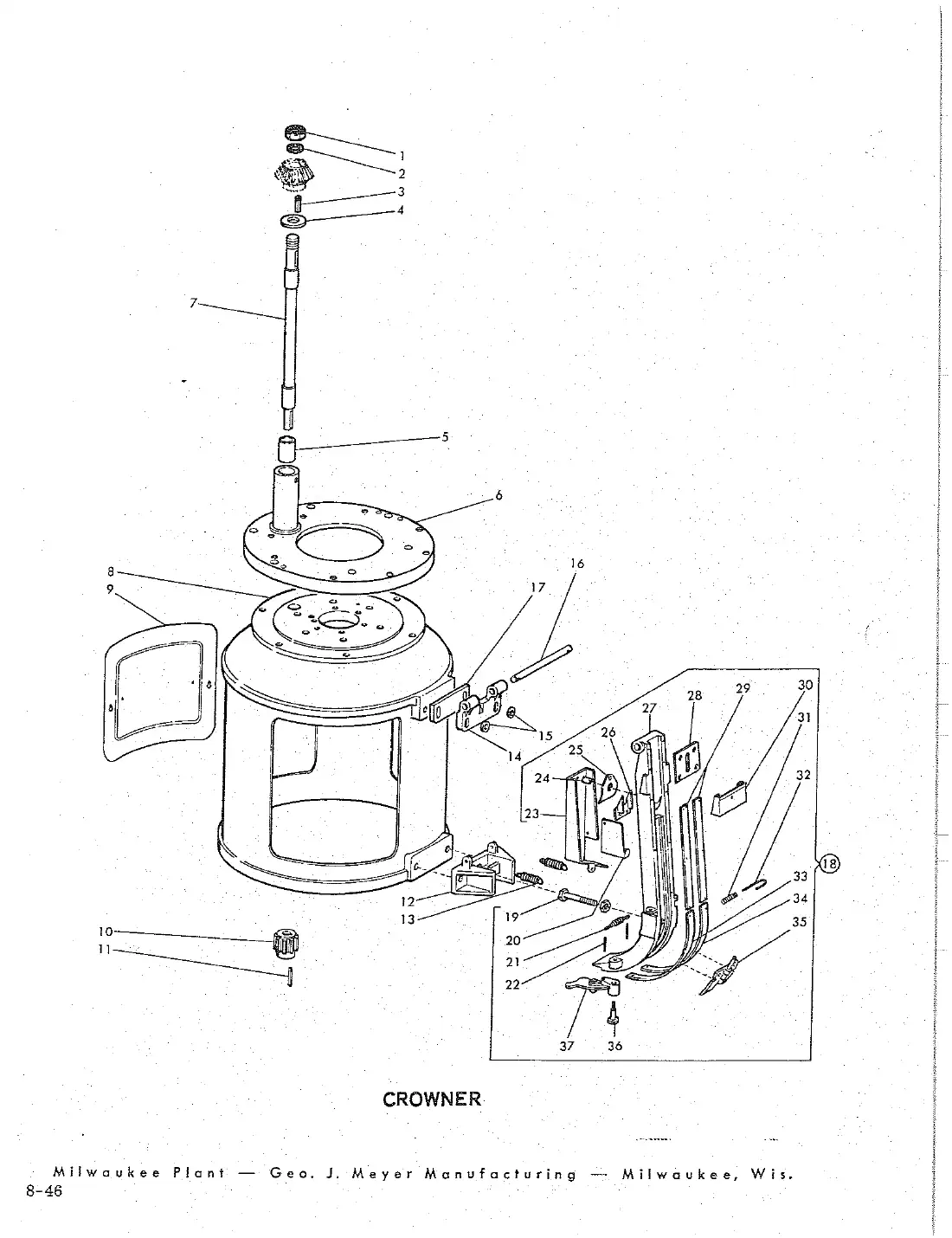

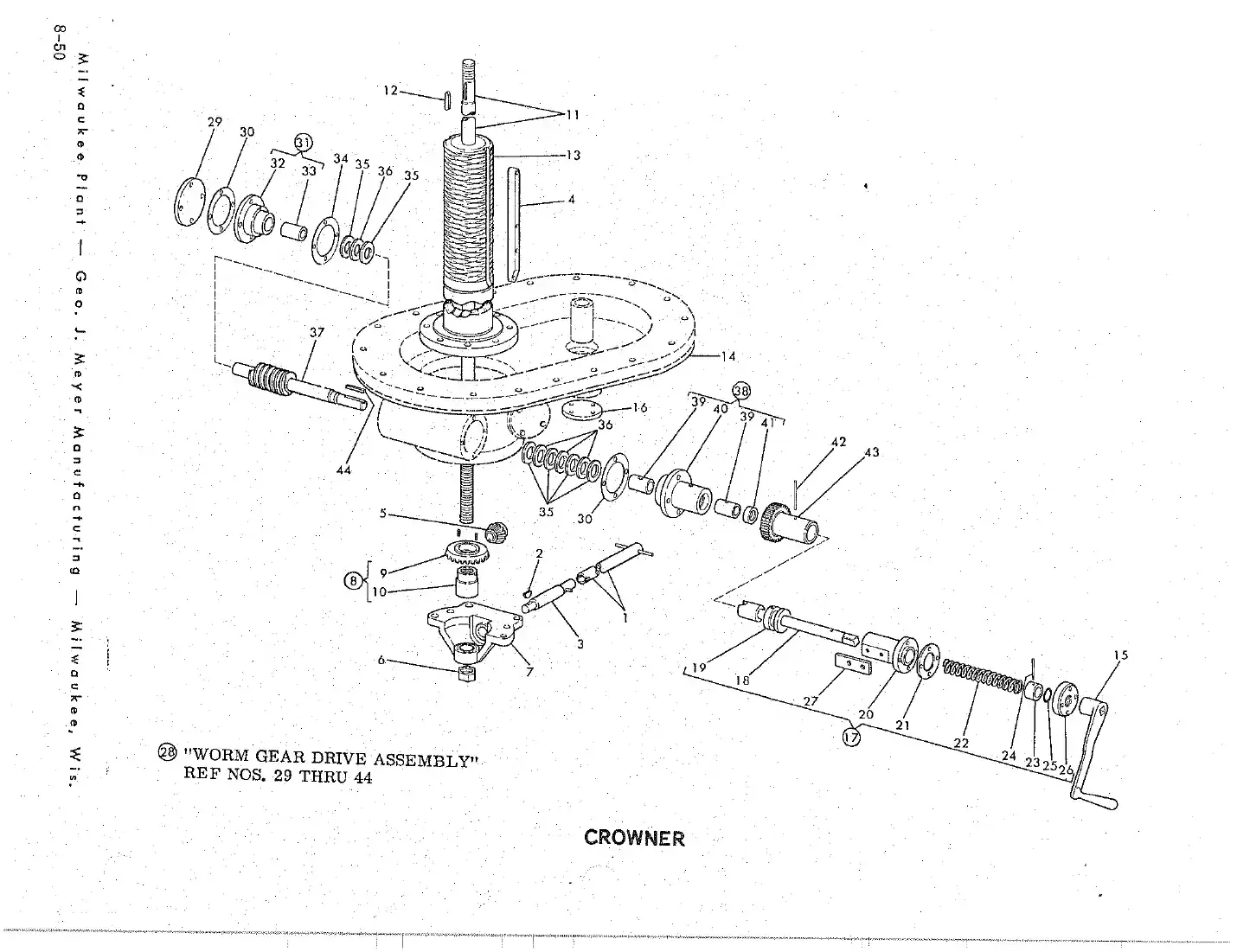

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
24	100-24061002406	O-ring	Request
29	102-01901020190	Screw, flat head slot	Request
30	102-01911020191	Screw, flat head slot	Request
11	102-0599	Screw, socket head cap	Ask us
12	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request
387	100-20151002015	Magnet, Crown rest	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
16	000-2902	Hose	Ask us
2	100-3141	Filter, npt	Ask us
3	131-2149	Bracket, support valve	Ask us
4	100-2850	Valve, check trol assembly	Ask us
5	100-47101004710	Regulator, air	Request
6	100-47091004709	Regulator	Request
7	100-29651002965	Regulator, pressure pilot	Request
20	100-25061002506	O-ring	Request
9	100-0357	Clamp	Ask us
10	100-5498	Clamp 1831-1369 knob, air rod	Ask us
12	100-2966	Regulator	Ask us
23	100-8663	Valve, adj pressure relief	Ask us

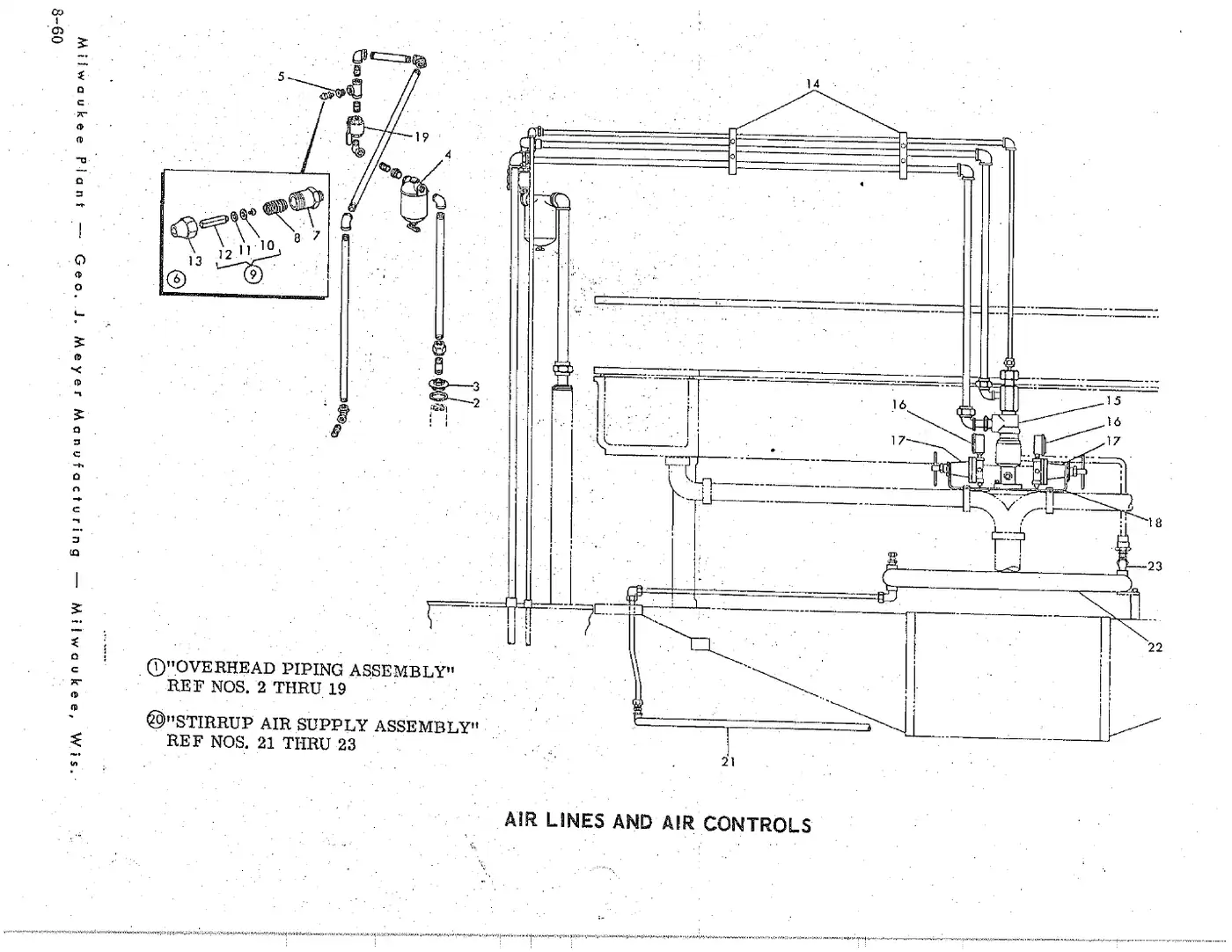

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
3	130-7258	Cap, pipe column	Ask us
4	100-31421003142-1	Filter, housing	Request
16	100-46181004618	Gauge, pressure	Request
17	100-29651002965	Regulator, pressure pilot	Request
5	100-1436	Bushing regulator, pressure	Ask us
19	100-4830	Valve, ball	Ask us
23	100-1310	Strainer sarco	Ask us
