Meyer 90-27 filler parts manual

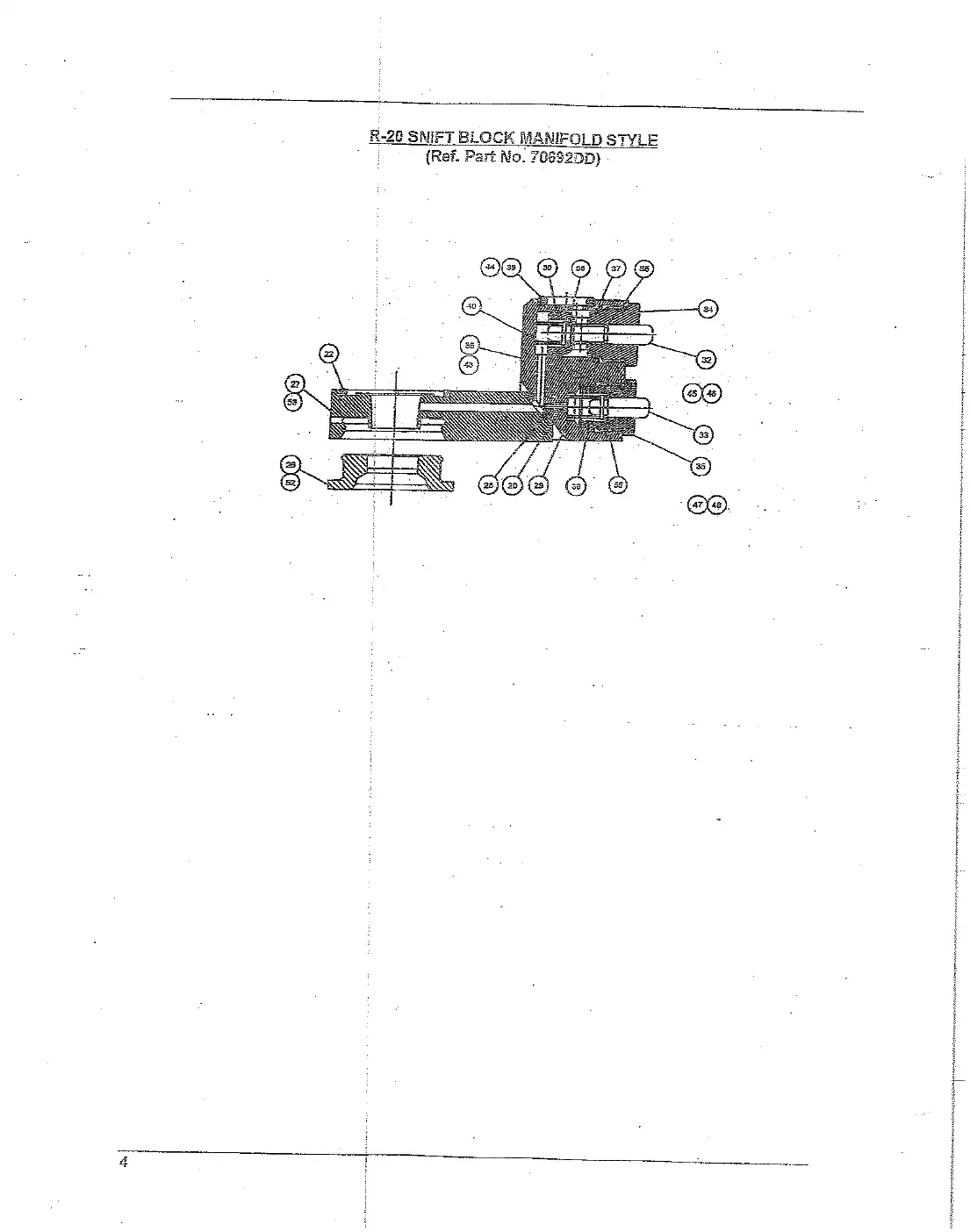

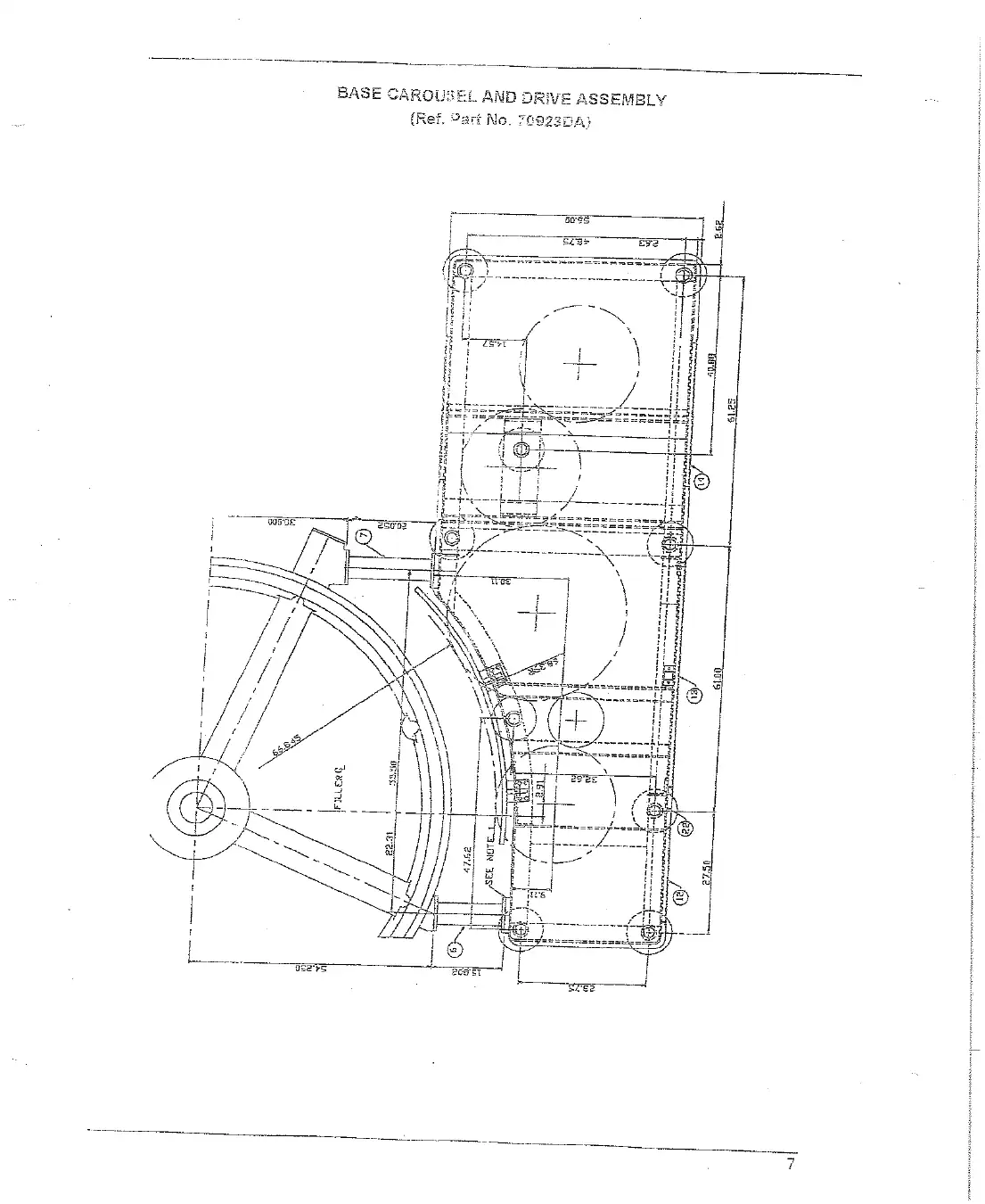

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
30	137-01661370166	Snift, block CIP/pre evac	Request
30	104-85861048586	O-ring	Request
3	137-7003	Leveling screw	Ask us
3	136-86831368683-2	Pad, leg carousel base	Request
9	905-1892	Leveling screw ass, drive base	Ask us
9	904-8556	Door, leit front	Ask us
9	102-15171021517	Screw, socket head cap	Request
25	137-7654	Shim, fai type stainless	Ask us
5	104-83091048309	Screw, socket head cap	Request
7	104-80651048065	Washer, flat	Request
9	102-0475	Washer	Ask us
10	102-03871020387	Washer, lock	Request
1	135-84381358438	Lug, drive starshaft	Request
3	136-63651366365	Bearing, upper	Request
4	137-7310	Shait, crowner discharge	Ask us
9	137-7376	Bearing, upper shaft	Ask us
40	100-0610	Ring, retaining	Ask us
40	102-00901020090	Bolt, hex head	Request
15	102-00921020092	Bolt, hex head	Request
15	102-14431021443	Washer, lock	Request
23	102-20021022002	Washer, flat	Request

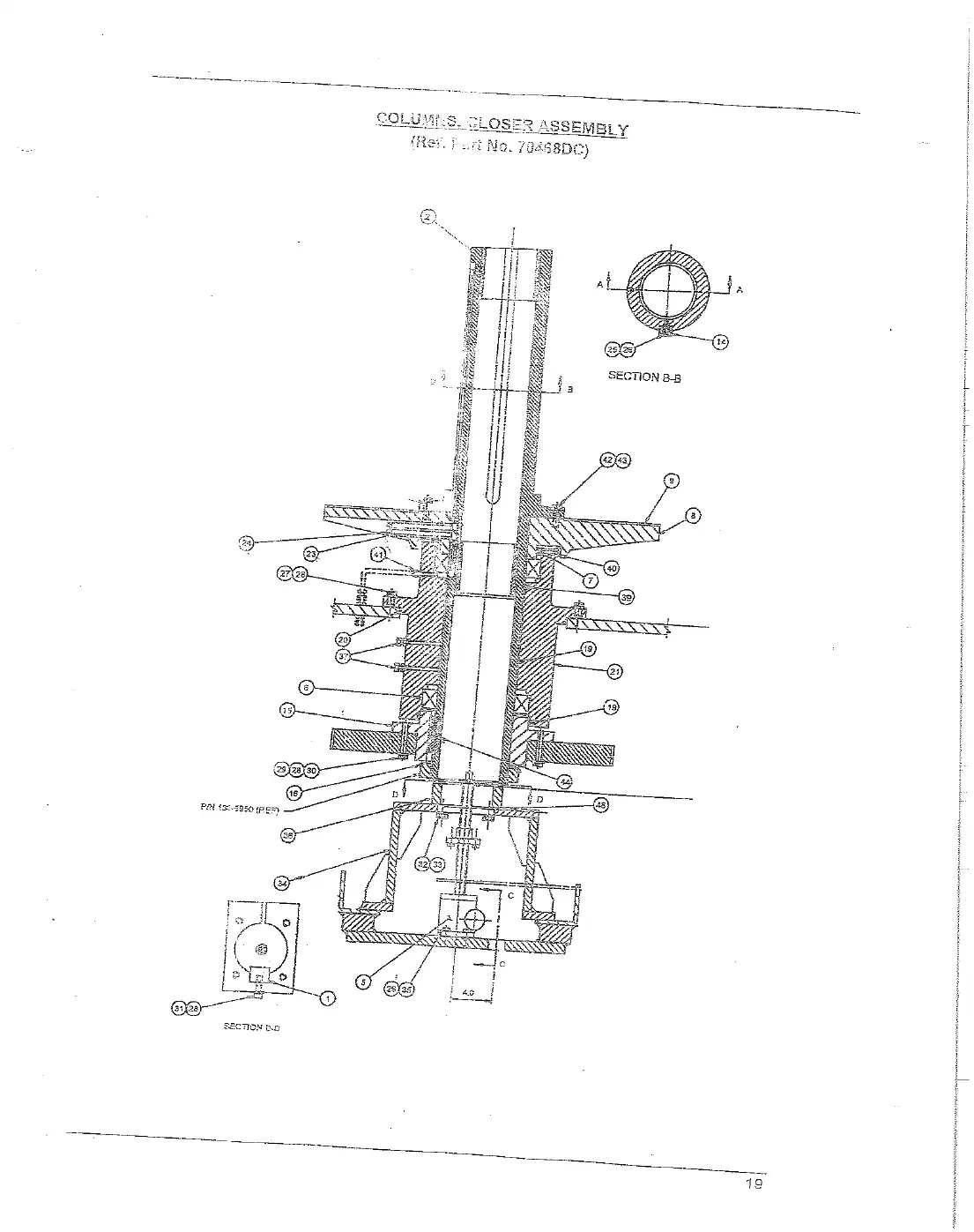

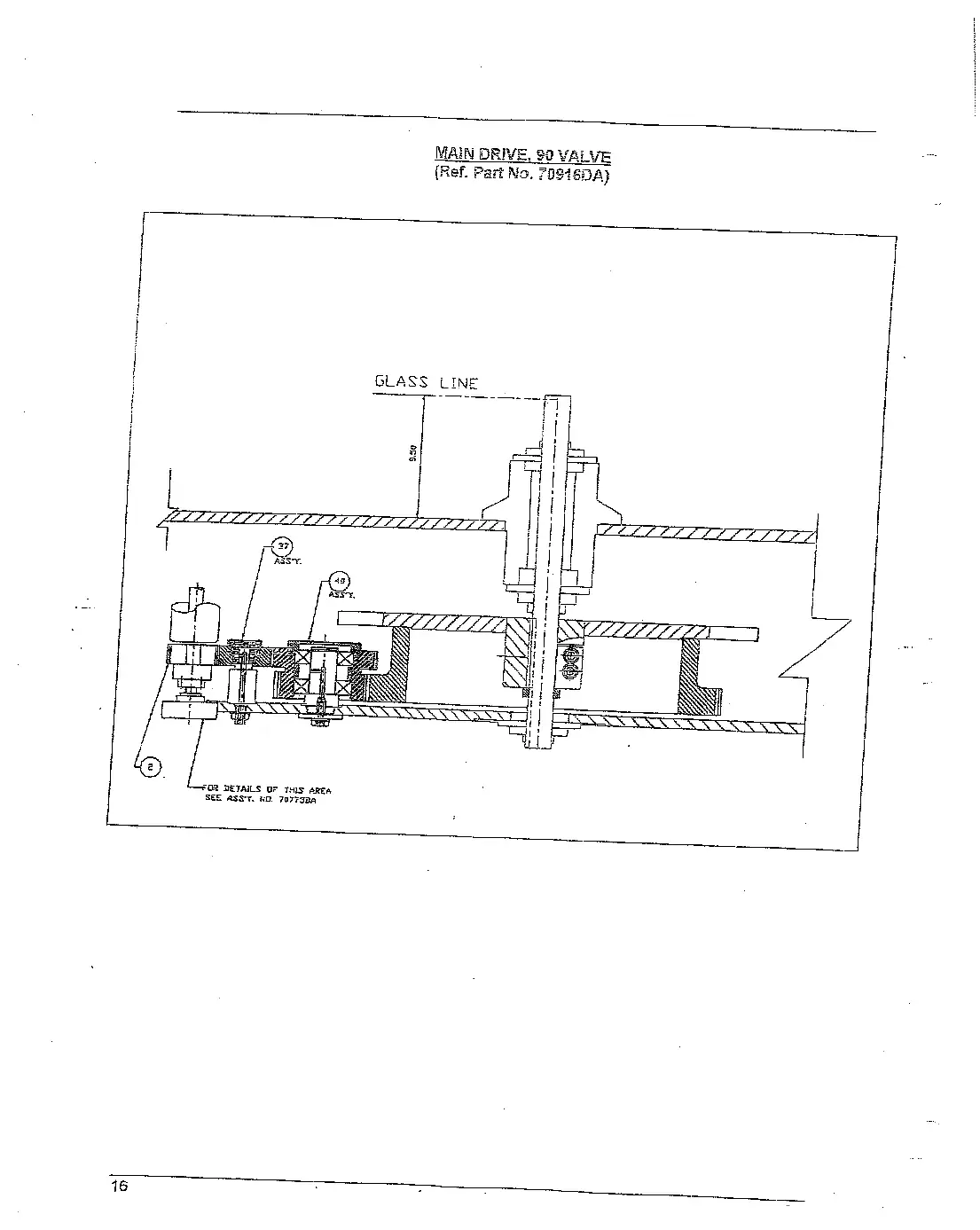

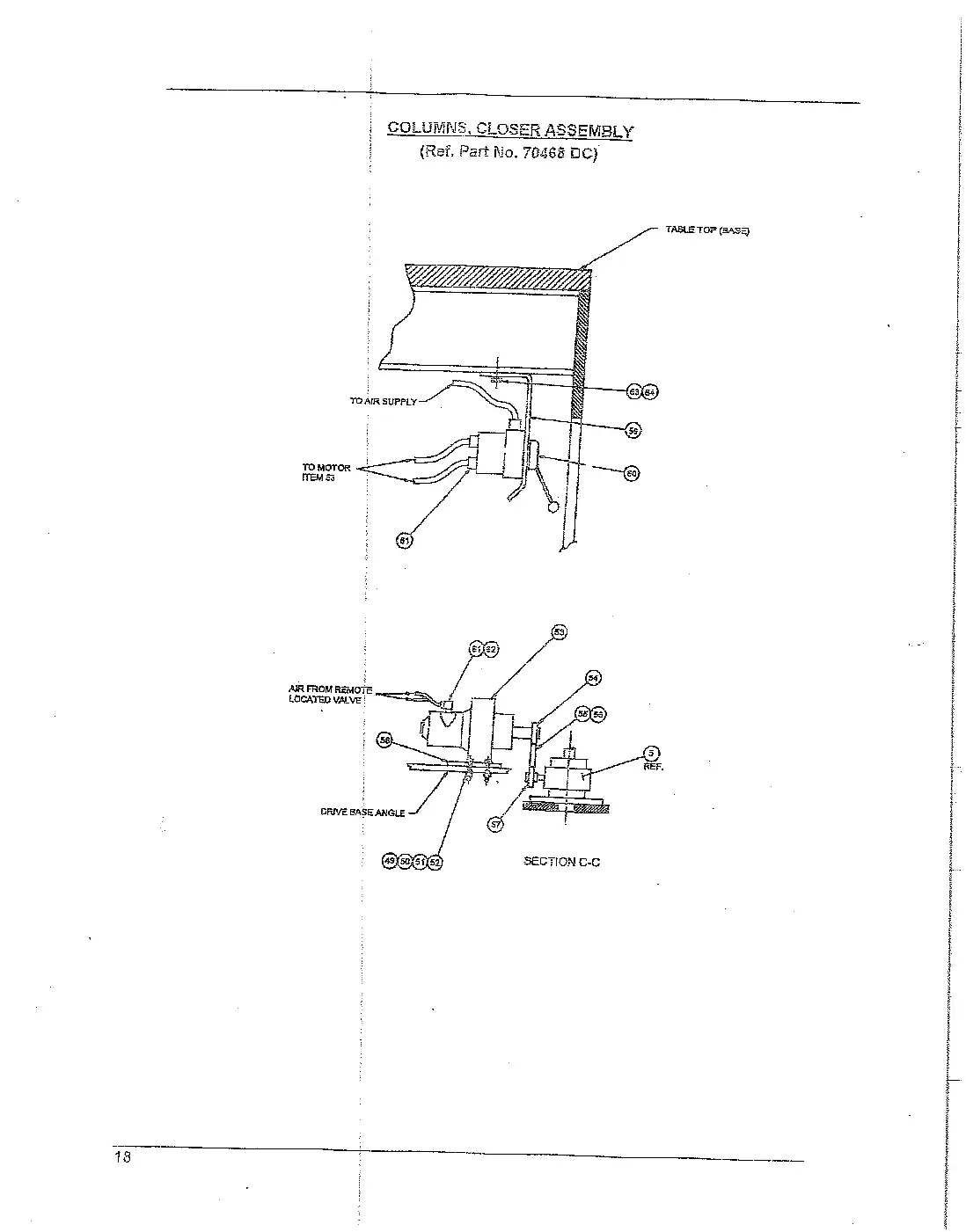

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
2	137-8987	Gear, driven	Ask us
4	102-0383	Washer, lock steel	Ask us
5	137-7385	Mount, gearbox	Ask us
13	104-7331	Collar	Ask us
7	102-03411020341	Nut, hex jam	Request
35	104-70801047080	Collar, shaft 2-PIECE	Request
2	905-21009052100	Column, closer assembly 90V	Request
5	104-64951046495	Jactuator, rise	Request
9	136-6352	Plaie bolt	Ask us
43	102-1199	Washer	Ask us
15	905-11919051191	Spacer, closure column	Request
48	137-42541374254	Bolt, hex head	Request
50	102-04161020416	Washer, flat	Request
82	102-03331020333	Nut, hex	Request
56	100-82691008269	Link, connecting	Request
34	904-7286	Support bolt	Ask us
35	102-00901020090	Bolt, hex head	Request

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full size

Ref	Part number	Description
3	136-9508	Separator	Ask us
7	135-17501351750	Spacer	Request
8	136-6372	Spacer	Ask us
45	102-01921020192	Screw, flat head slot	Request
35	102-2167	Screw, mer cap unc	Ask us
39	102-23451022345	Screw soc. hd	Request
46	102-00891020089	Bolt, hex head	Request
8	133-59791335979	Shoe, return	Request
19	136-9546	Sideframe	Ask us
6	104-51191045119	Cylinder, air infeed gate assembly	Request
13	102-00721020072	Bolt, hex head	Request
13	102-09771020977	Screw, socket head cap	Request
13	102-03351020335	Nut, hex	Request
13	102-00781020078	Hex head bolt	Request
13	136-95871369587	Block, hinge outer explosion guards	Request
25	104-7837	Rod, guide bracket	Ask us
31	102-03341020334	Nut, hex	Request
33	102-01041020104	Bolt, hex head	Request
34	904-7307	Support bracket	Ask us
38	100-34851003485	Connector, male	Request
42	905-18659051865	Pin, hinge outer explosion guards	Request
46	102-07431020743	Screw, socket head cap	Request
46	102-16611021661	Bolt, hex head	Request
46	102-03881020388	Washer, lock	Request
56	HH-6334	Stud, spring	Ask us
59	102-02021020202	Screw, flat head slot	Request
8	104-8493	Tube end	Ask us
14	102-01931020193	Screw, flat head slot	Request
16	102-00881020088	Hex head bolt	Request

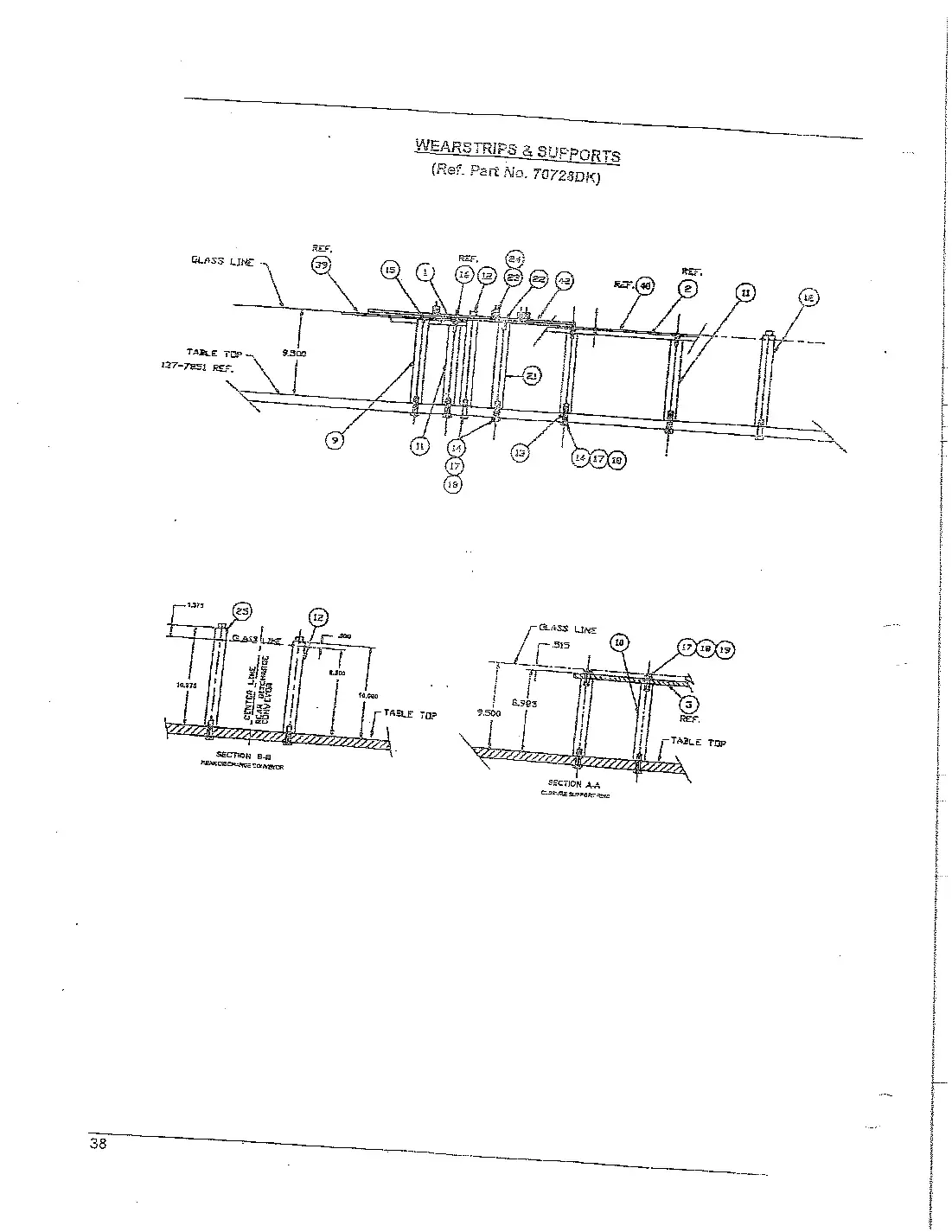

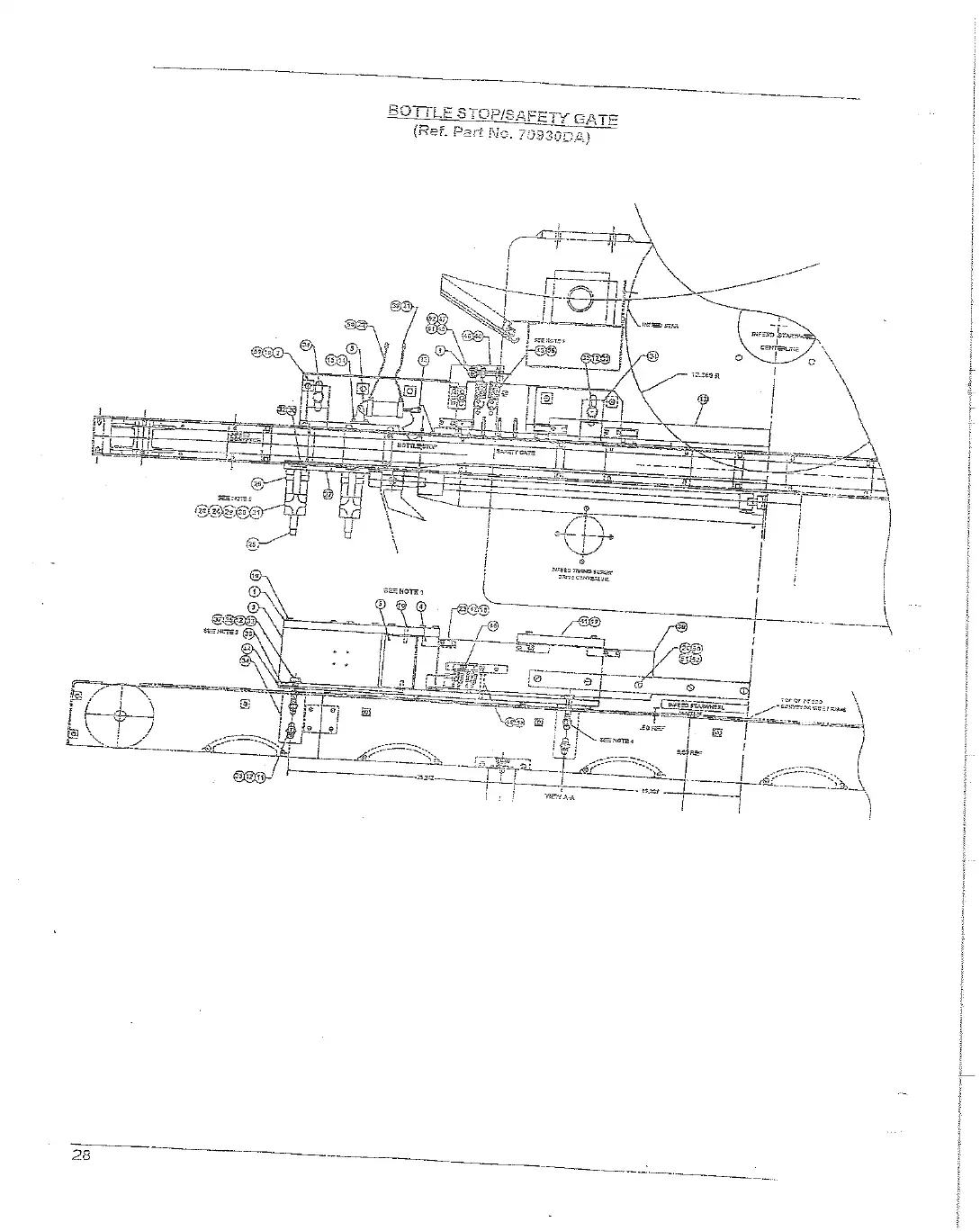

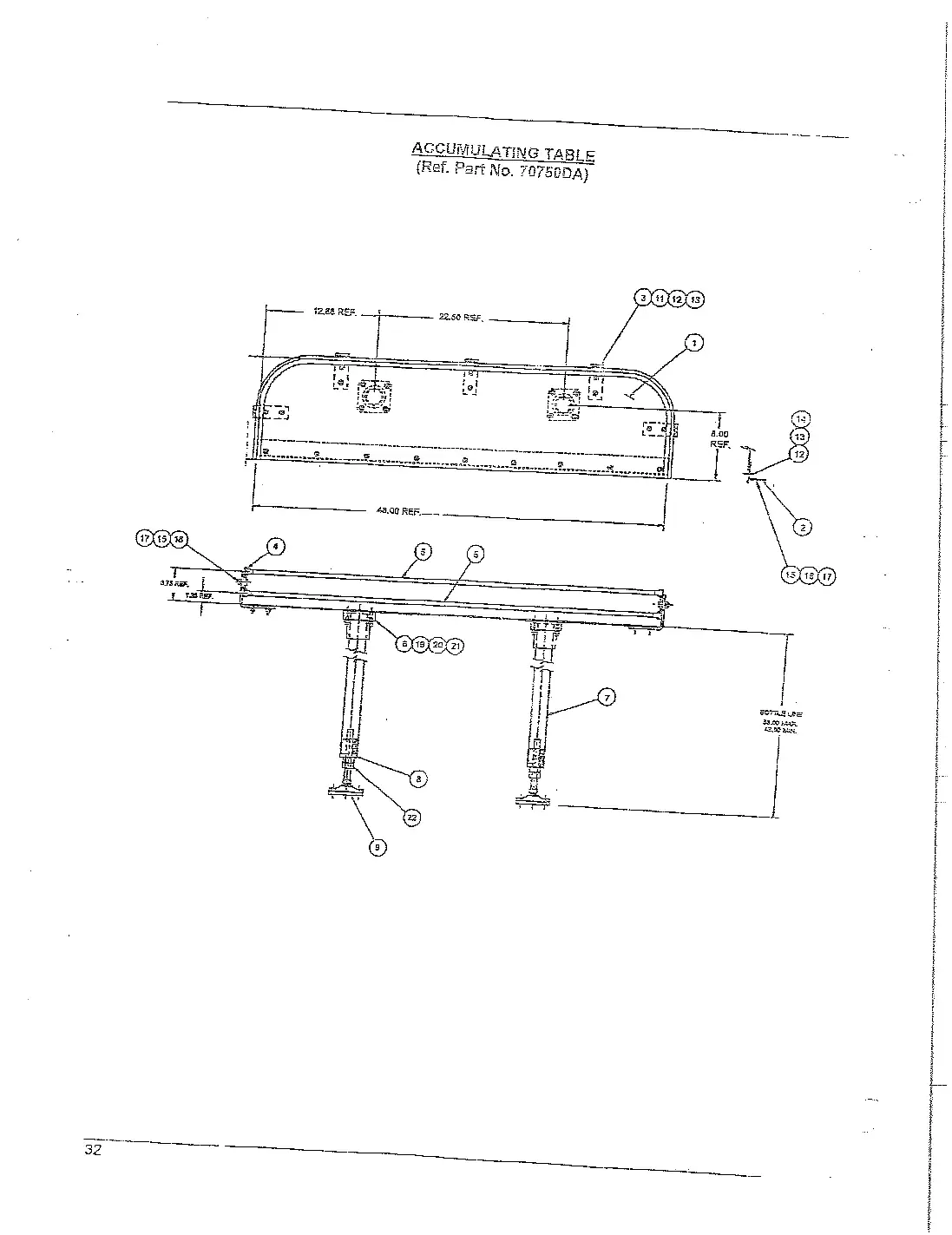

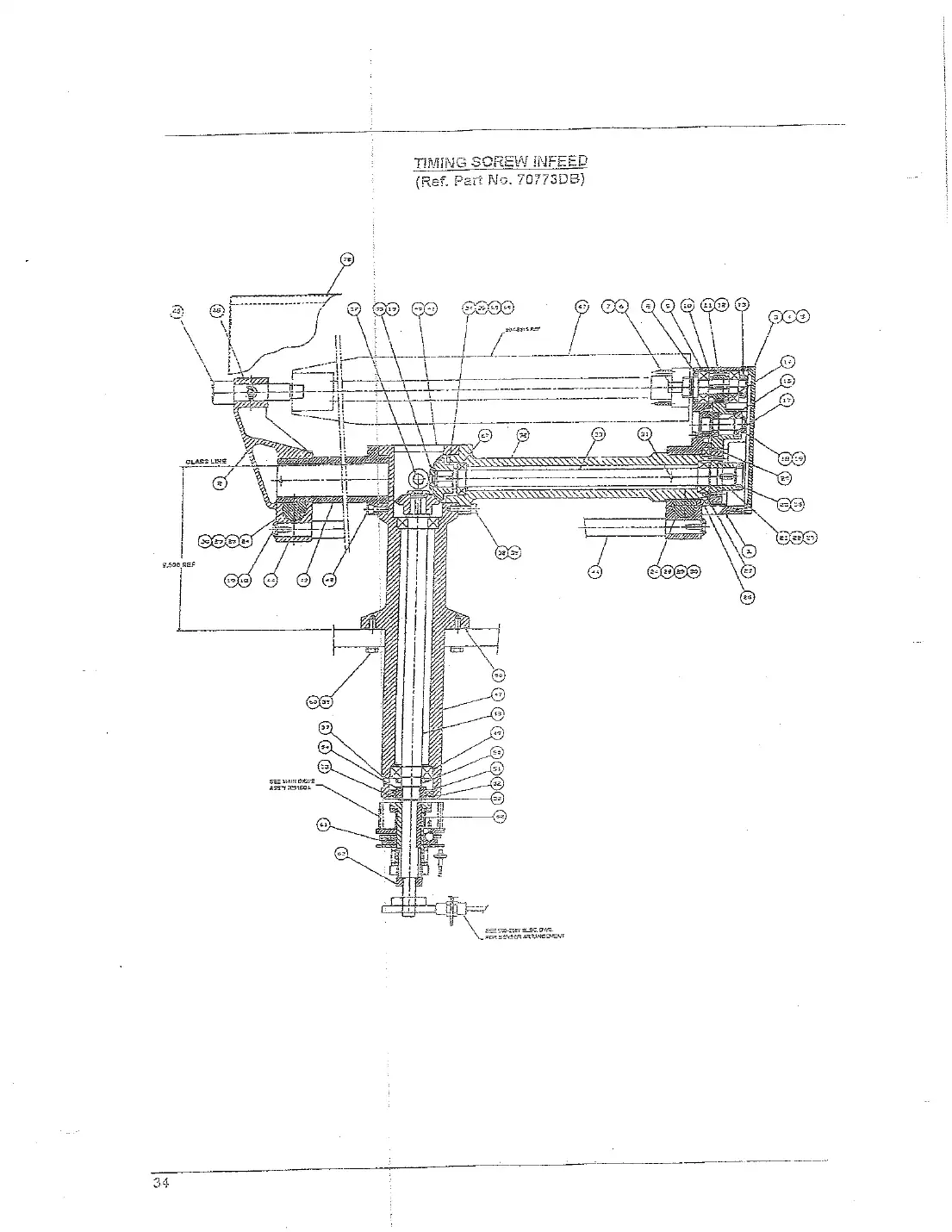

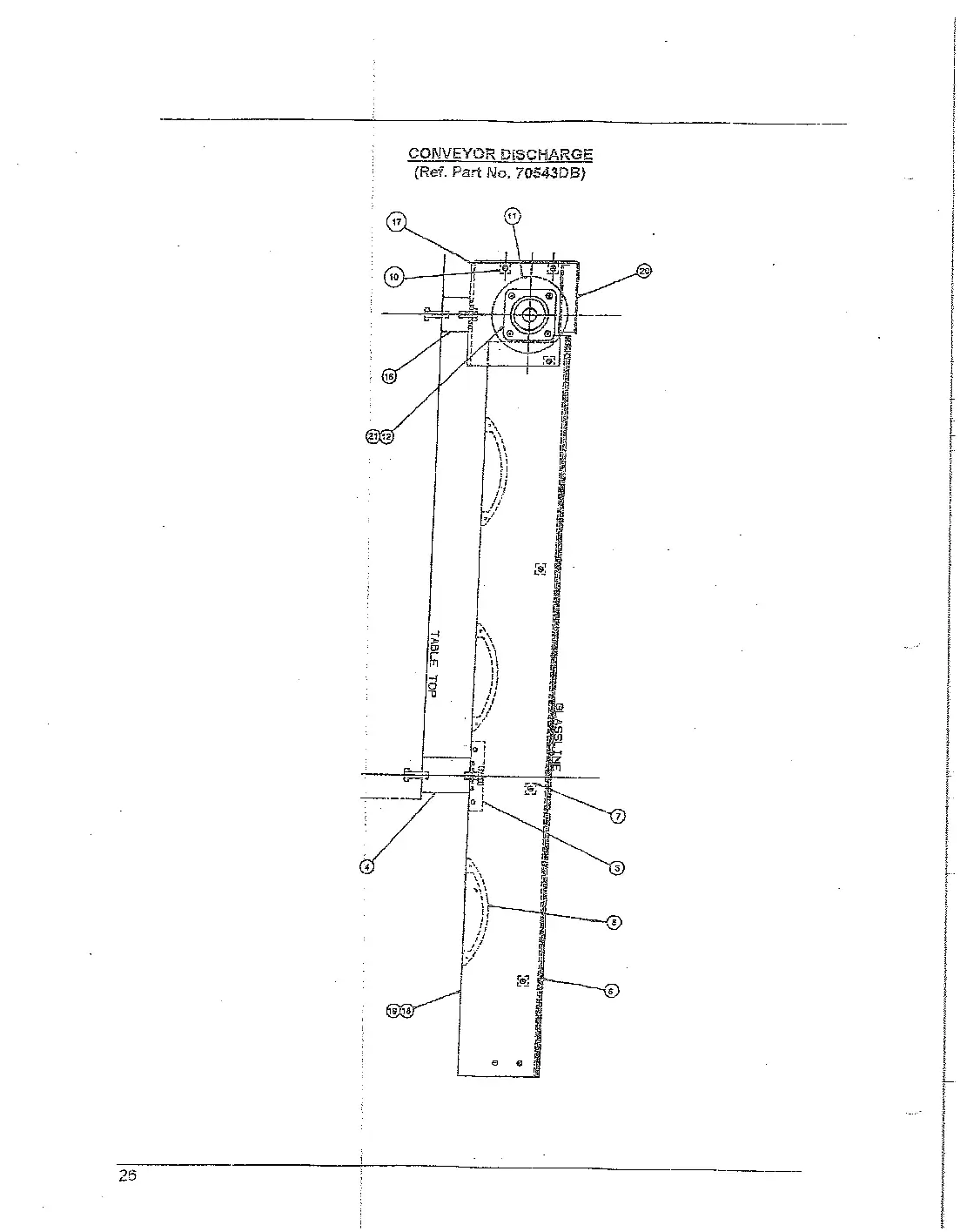

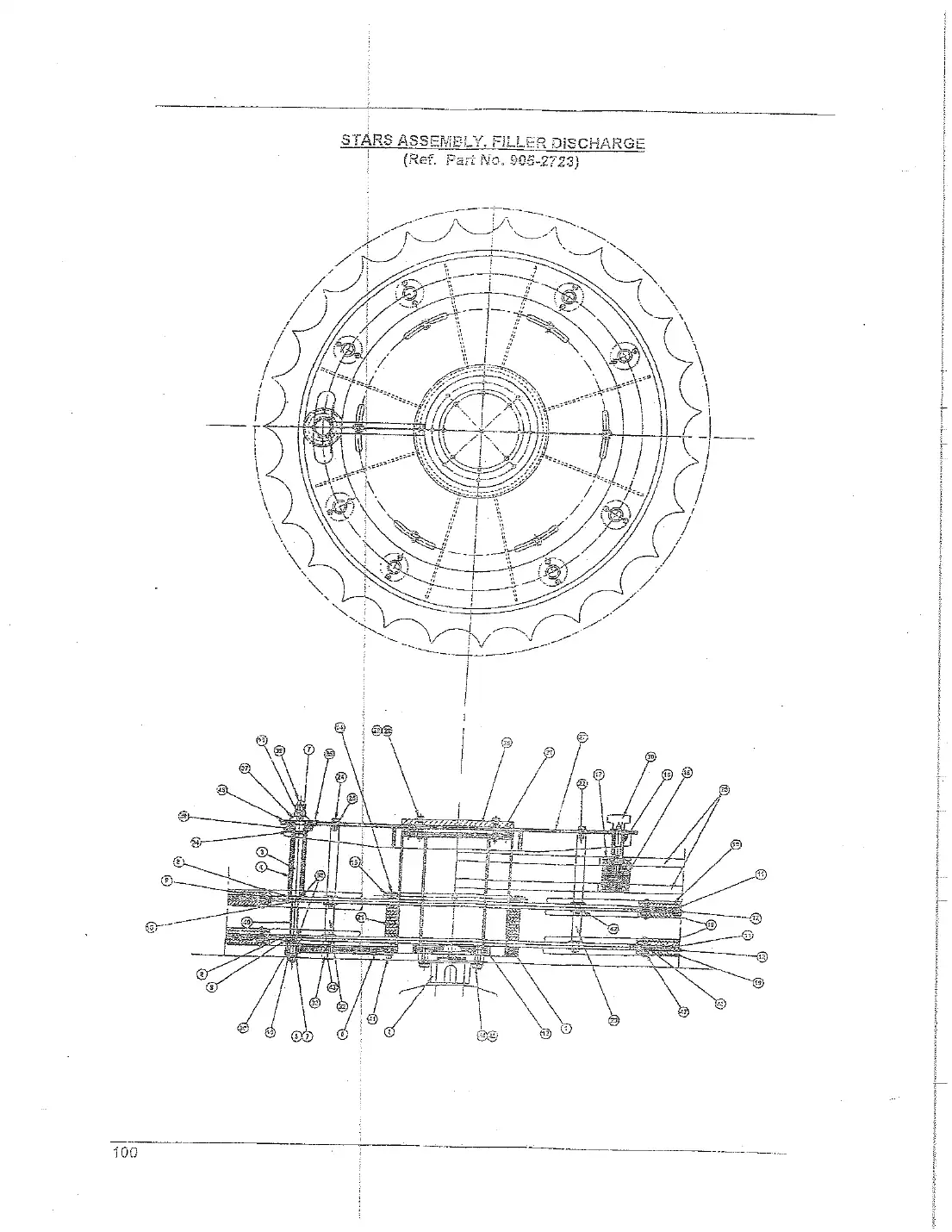

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
23	102-53731025373	Washer, lock	Request
24	137-7409	Kei stainless	Ask us
36	137-7662	Key 8x7x	Ask us
38	102-5068	Screw, socket cap stainless	Ask us
73	102-13841021384	Pin, cotter	Request
74	102-05731020573	Screw, socket head cap	Request
1	137-4003	Support, wearstrip	Ask us
11	137-1861	Support, post	Ask us
12	136-6481	Support, guideplate	Ask us
14	102-03901020390	Washer, lock	Request
23	102-23501022350	Bolt, hex head	Request
25	102-30661023066	Pin, dowel	Request
27	102-0907	Bolt	Ask us
1	135-86121358612	Sprocket	Request
42	000-1772	Tube	Ask us
17	102-04761020476	Screw, pt set cup th	Request
18	102-00781020078	Hex head bolt	Request
19	905-18279051827	Flange & column sub-assembly, 90V filler	Request
2	0004068000-4068	Gasket, filler bowl outer square	Request
4	135-09471350947	Bushing, valve lever OEM 90V	Request
6	135-08641350864	Lever, valve inside RH	Request
8	135-08711350871	Stop, reservoir spacer	Request
10	135-08691350869	Washer, keyed reservoir assembly	Request
3	135-09601350960	Lever, valve operating	Request
3	102-31061023106	Screw, socket head cap	Request
3	102-32251023225	Screw, socket head cap	Request
18	136-00531360053	Gasket, sight glass	Request
24	100-97751009775	Ring, retaining	Request
24	104-5097	Ferrule	Ask us
27	104-8226	Valve, sure	Ask us
29	104-8640	Number set	Ask us
5	102-03891020389	Washer, lock	Request
8	102-02951020295	Screw, round head slot	Request

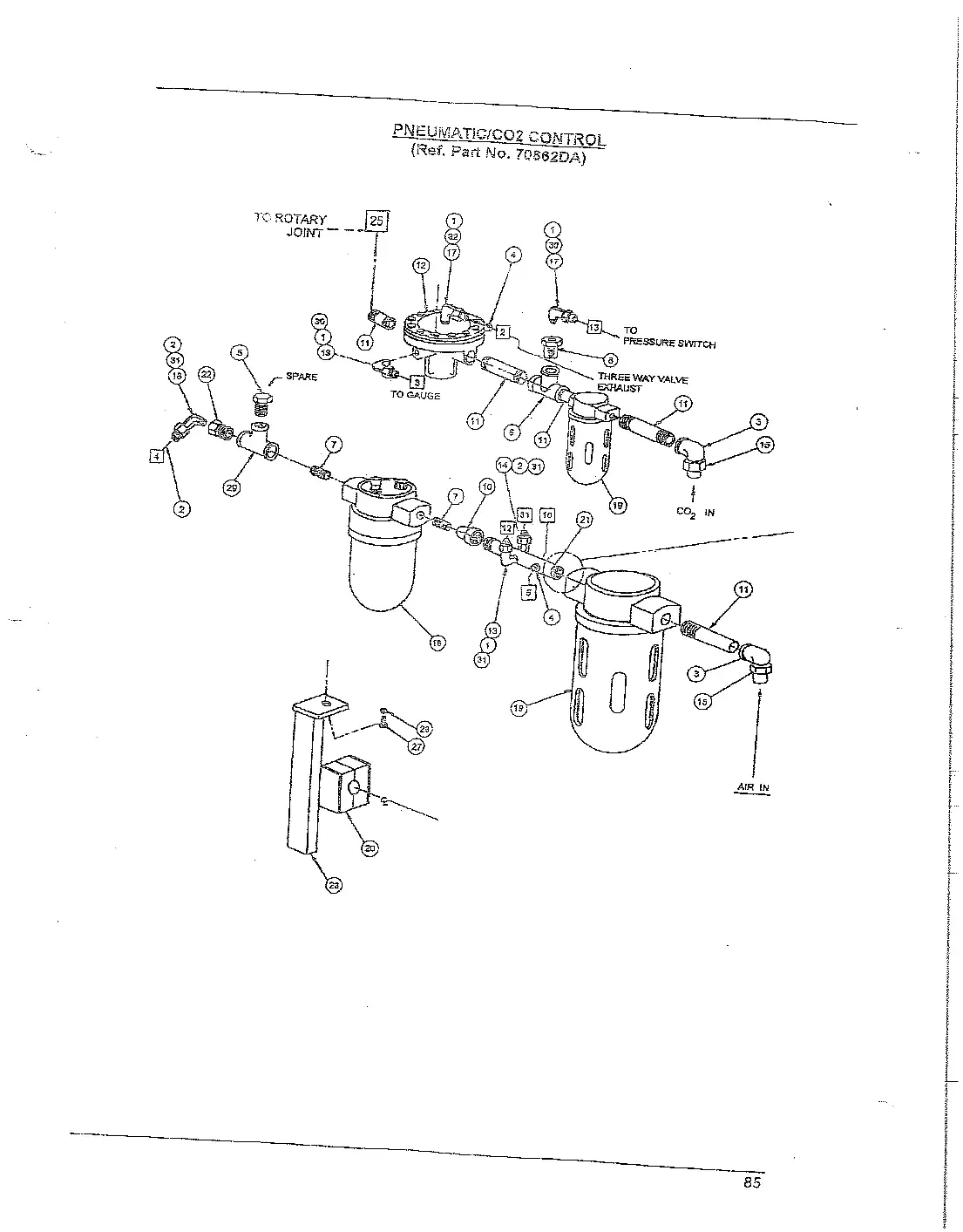

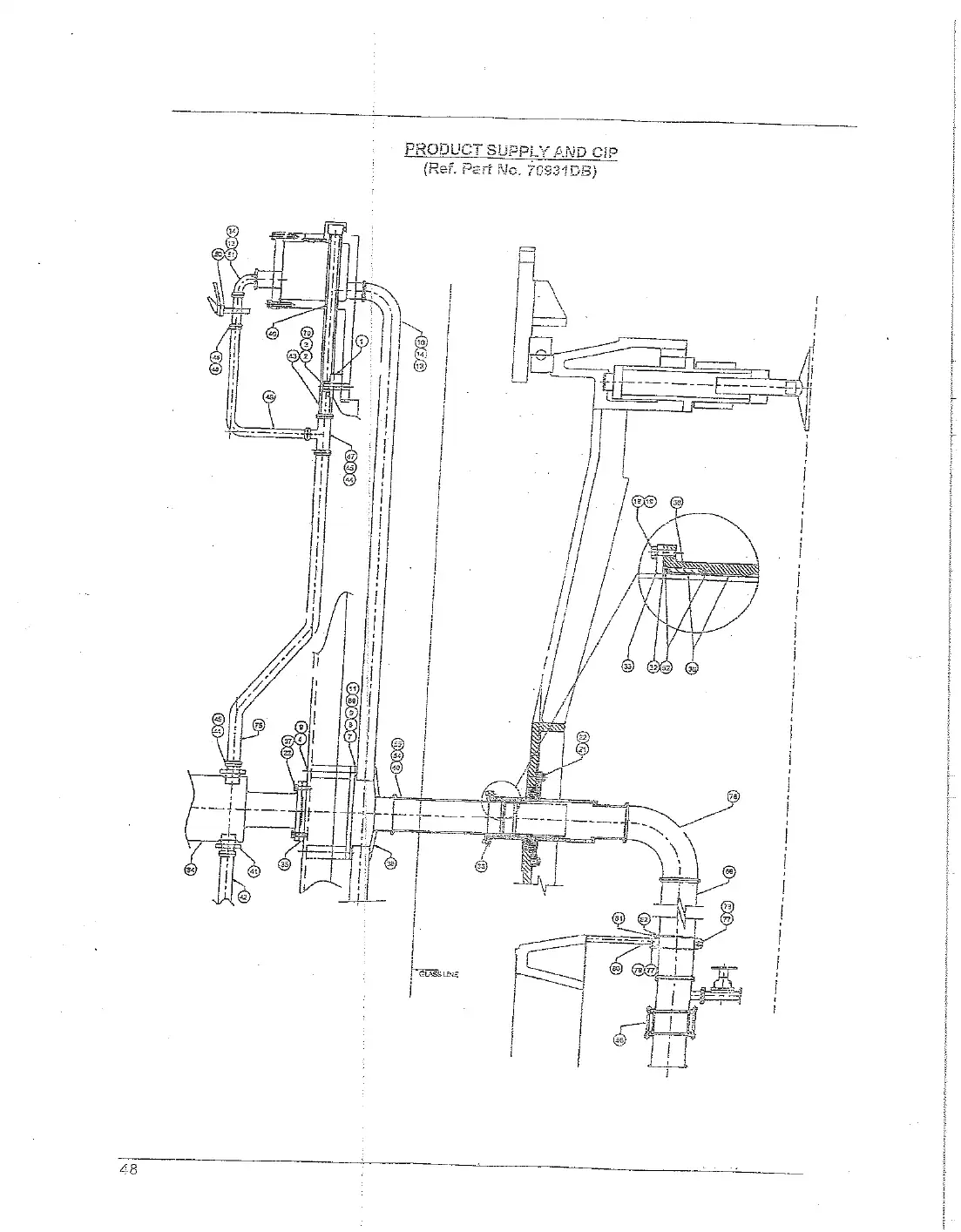

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
3	102-03921020392	Washer, lock	Request
8	102-00901020090	Bolt, hex head	Request
19	102-03871020387	Washer, lock	Request
21	102-01011020101	Bolt, hex head	Request
30	137-79731377973	Bearing, product column	Request
30	137-01131370113-10WP	Tube, inner medium	Request
40	136-8590	Cip/pre-evac line	Ask us
46	100-40331004033	O-ring	Request
54	100-21351002135	Gasket, tri clamp	Request
56	905-2006	Sight glass ass w/ strainer mesh	Ask us
78	102-04171020417	Washer, flat	Request
80	000-0807	Ips, ips sch s6f	Ask us
82	104-8487	Cushion clamp assembly stainless	Ask us

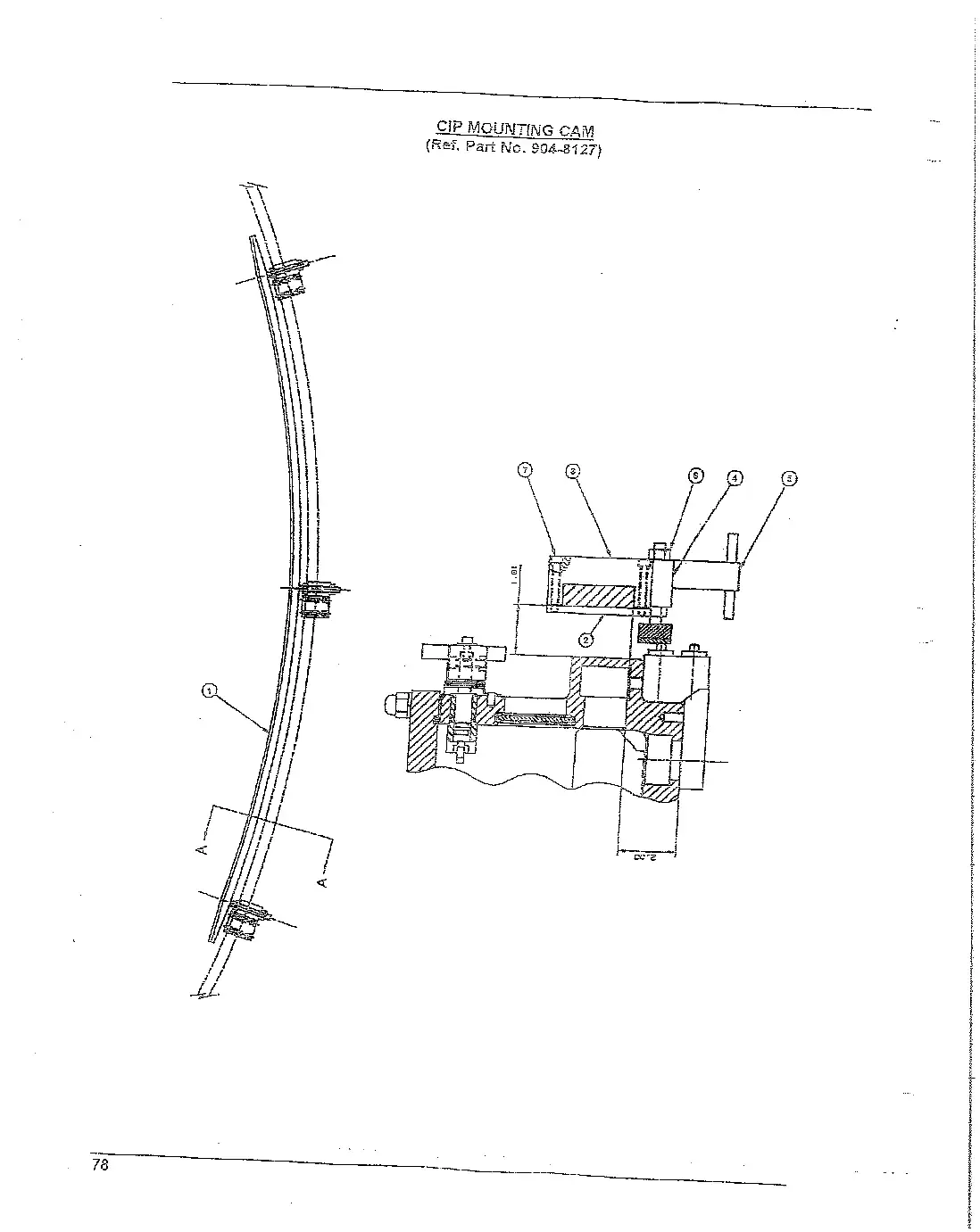

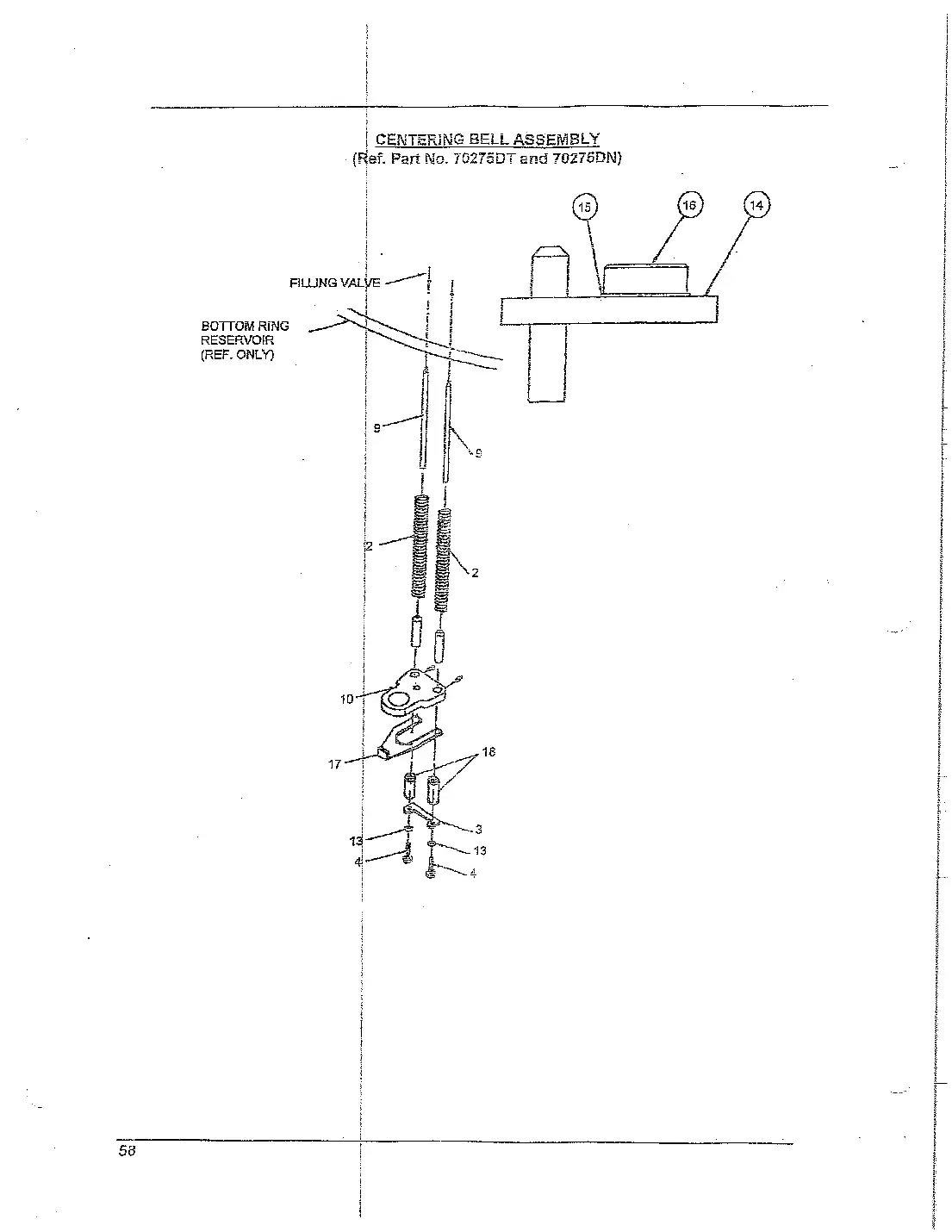

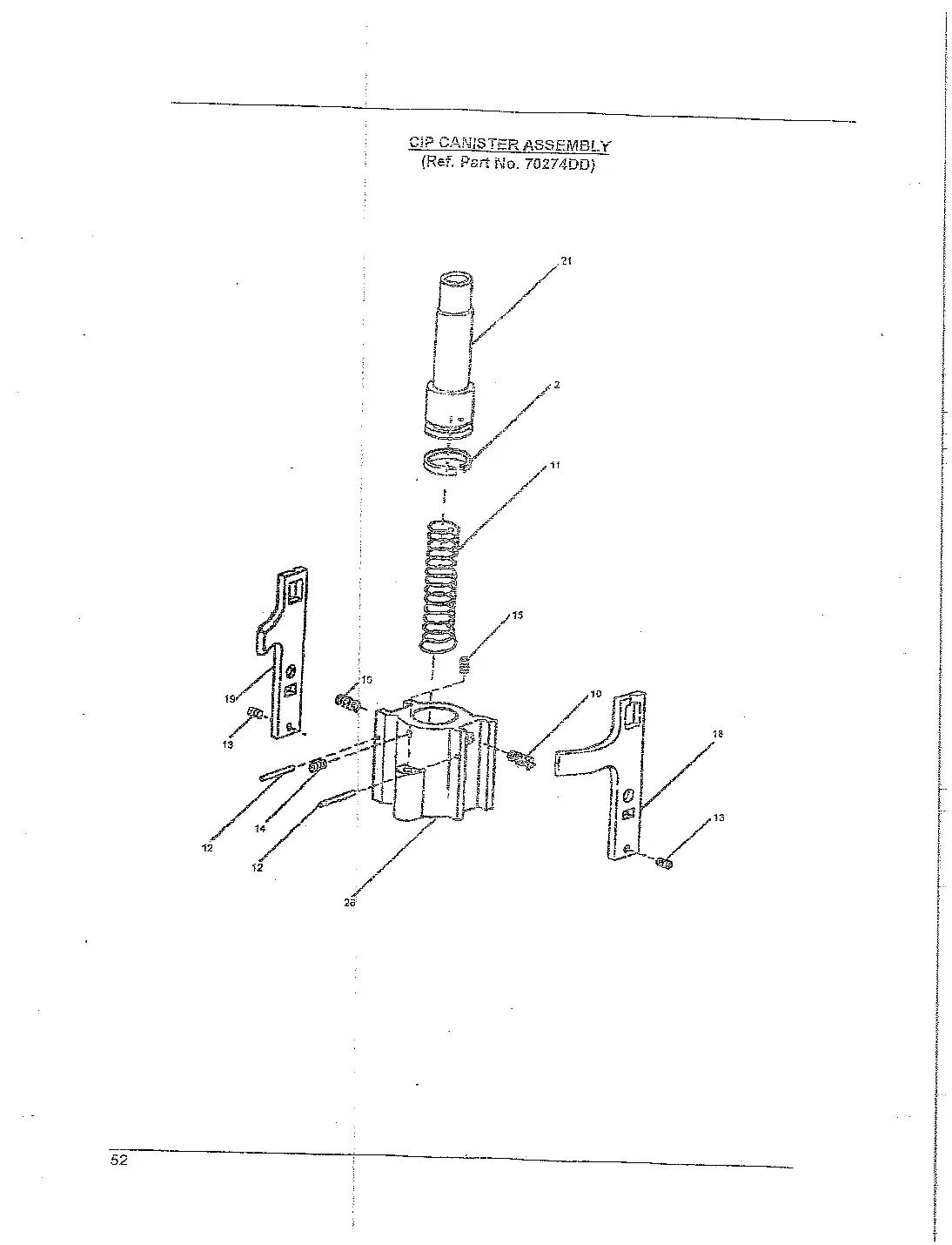

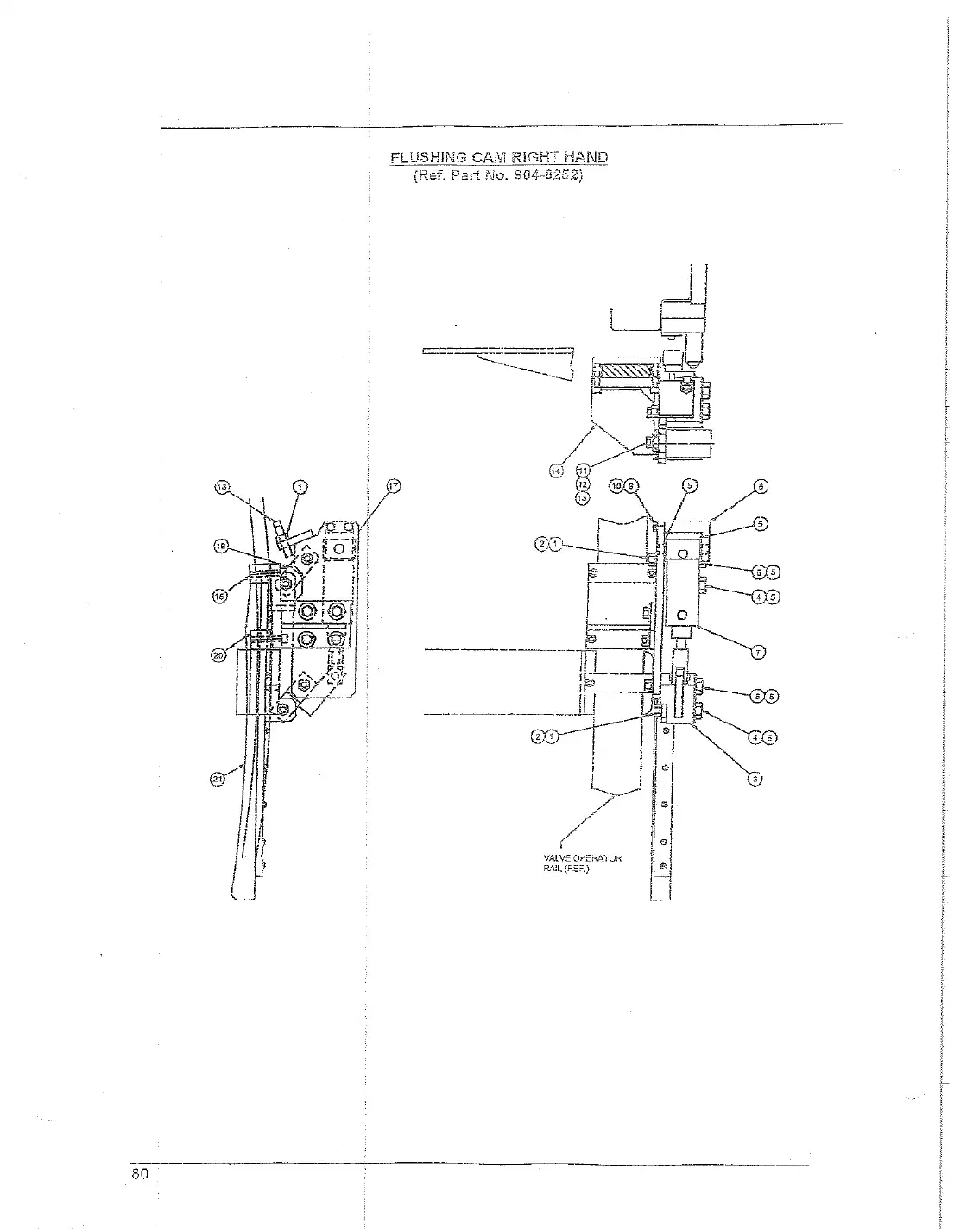

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
2	1046706104-6706	Seal, U-cup	Request
11	131-69891316989	Spring, post valve R-11 series	Request
11	102-04261020426	Screw, set socket cup point	Request
19	136-3469	Arm LH	Ask us
24	136-39951363995	Piston	Request
26	136-95801369580-1	Canister CIP	Request
3	100-40401004040	O-ring	Request
6	101-02081010208	O-ring, lift cylinders	Request
10	102-04621020462	Screw, set socket cup point	Request
2	137-09801370980	Spring, centering bell	Request
3	133-1680	Strap	Ask us
70	136-34381363438	Bell, centering	Request
10	136-73221367322	Centering bell	Request
13	102-03871020387	Washer, lock	Request
3	137-1832	Post	Ask us
14	102-03891020389	Washer, lock	Request
10	100-41571004157	O-ring	Request
4	904-77299047729-2	Closer, valve assembly. 60V reman	Request
5	904-77309047730-1	Cam, snift assembly 90V rail	Request
14	102-03401020340	Nut, hex jam	Request
42	102-00901020090	Bolt, hex head	Request
4	137-1123	Screw	Ask us
5	102-10751021075	Socket head cap screw	Request
8	102-03321020332	Nut, hex	Request
9	102-0475	Washer	Ask us
70	102-13621021362	Screw, socket head cap	Request
12	102-10121021012	Nut, hex, jam	Request
14	102-1512	Nut	Ask us
2	104-78151047815	Spring, compression	Request
3	137-07291370729	Support, plate closer cam	Request
4	137-07351370735	Pin, valve closer cam	Request
6	102-04271020427	Screw, set socket cup point	Request
7	102-00771020077	Bolt, hex head	Request
8	102-03881020388	Washer, lock	Request
2	137-25441372544	Clamp, bracket	Request
3	137-39761373976	Shaft, filler dischrg star	Request
1	904-8408	Bracket	Ask us
6	104-85591048559	Cylinder	Request
15	137-0501	Roller	Ask us
16	137-25091372509	Pin, closer scavenger 65V	Request
17	100-38651003865	Ring, retaining external	Request

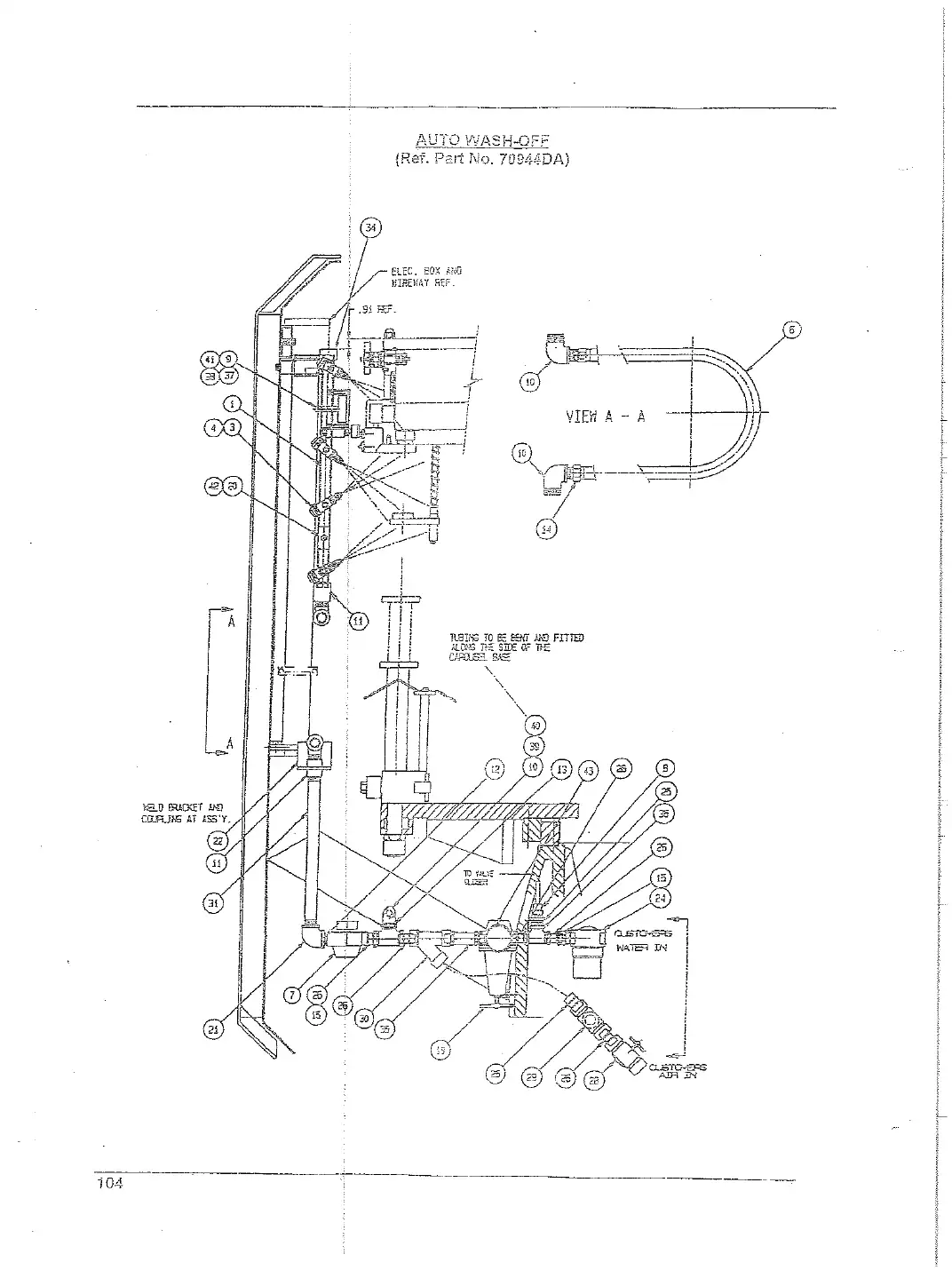

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
2	137-5987	—	Ask us
6	102-03401020340	Nut, hex jam	Request
7	102-17531021753	Screw, soc hd set	Request
3	904-8255	Pivot assembly	Ask us
3	137-1024	Shoulder belt	Ask us
8	137-1023	Shoulder belt	Ask us
8	137-1000	Clamp	Ask us
40	102-03871020387	Washer, lock	Request
13	102-04161020416	Washer, flat	Request
13	904-8256	Support	Ask us
13	904-8375	Support plate	Ask us
18	102-0972	Screw	Ask us
7	904-7469	Pivotassembly sosos	Ask us
4	104-8130	Spray nozzle	Ask us
2	000-1772	Tube, stainless	Ask us
1	100-53701005370	Elbow	Request
6	000-0795	Pipe, stainless ips	Ask us
8	100-8967	Coupling, stainless	Ask us
12	104-7951	Valve, needle stainless	Ask us
14	102-1274	Screw, socket head cap	Ask us
2	102-09781020978	Screw, socket head cap	Request
20	100-34871003487	Connector, straight male pipe/tube	Request
22	100-53711005371	Tee	Request
23	000-32230003223	Tube, polyflo	Request
33	100-89641008964	Coupling, pipe straight	Request
2	904-5907	Bracket	Ask us
48	104-6484	Cap	Ask us
3	102-00791020079	Bolt, hex head	Request
8	136-9894	Hose	Ask us
6	102-00751020075	Bolt, hex head	Request
54	000-3510	Tube	Ask us
60	100-57341005734	Elbow, street 90 deg	Request
12	102-02851020285	Screw, round head slot	Request
67	104-67941046794	Valve, check	Request
16	104-73551047355	Valve, ball	Request
63	104-7871	Connector	Ask us
47	104-8196	Gauge	Ask us
18	136-6532	Housing	Ask us
20	102-04151020415	Washer, flat	Request
22	102-21001022100	Screw, thumb	Request
7	104-7007	Cousier	Ask us
72	104-7915	Coupler	Ask us
25	102-05531020553	Nut, hex	Request
75	1046789104-6789	Pug	Ask us
78	100-34851003485	Connector, male	Request
28	102-03381020338	Nut, hex jam	Request
29	135-71251357125	Lever, float	Request
81	100-61101006110	Nipple, close	Request
32	100-89081008908	Bushing, reducing hex	Request
85	101-00881010088	O-ring	Request
86	136-6379	Bracket	Ask us
35	101-0470	Connection	Ask us
36	000-1764	Tube round-s	Ask us
89	100-92931009293	Nipple	Request
90	100-7648	Valve	Ask us
41	102-07751020775	Screw, fillister hd	Request
42	102-07731020773	Screw, fillister hd	Request
198	100-54901005490	Tee	Request
4	102-03881020388	Washer, lock	Request
6	102-03891020389	Washer, lock	Request
44	000-34890003489	Tubing, CO2/air braided hose	Request

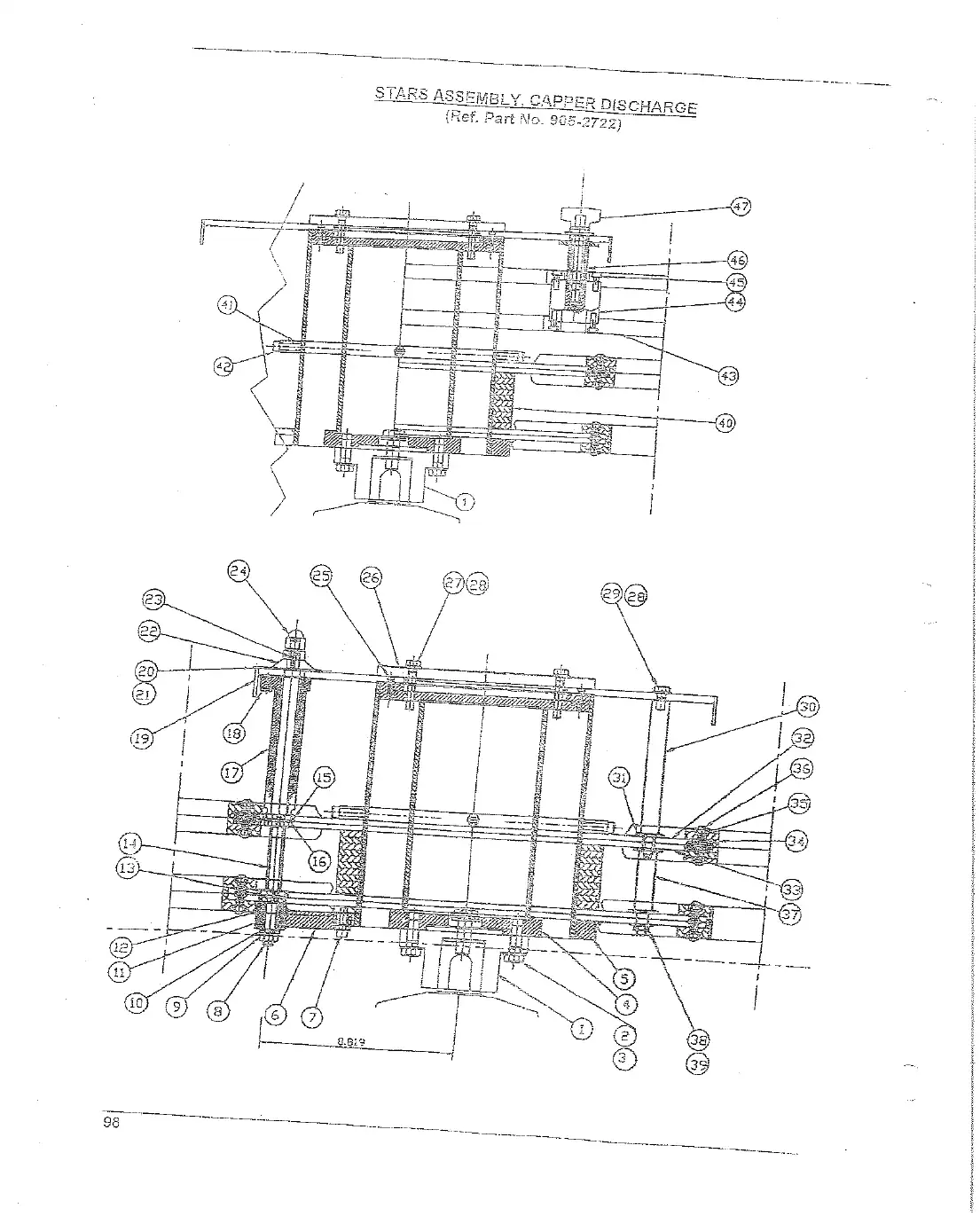

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
28	102-03891020389	Washer, lock	Request
29	102-00891020089	Bolt, hex head	Request
38	102-0365	Nut, 375-46 ssf	Ask us
39	102-0477	Washer, fiai	Ask us
42	102-00901020090	Bolt, hex head	Request
45	102-07431020743	Screw, socket head cap	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full size

Ref	Part number	Description
28	102-00921020092	Bolt, hex head	Request
29	102-03921020392	Washer, lock	Request
42	102-04181020418	Washer, flat	Request
14	101-2537	Full coupling	Ask us
73	100-5493	Tee	Ask us
20	100-67581006758	Gauge, pressure	Request
29	104-6557	Valve, check	Ask us
34	900-0876	Pipe approx	Ask us
45	102-14441021444	Pin, cotter	Request
42	100-89071008907	Bushing, reducing hex female	Request
43	101-06751010675	Gauge, pressure assembly	Request
2	100-7327	Clip, tube	Ask us
7	102-12551021255	Washer, flat	Request
9	102-00651020065	Bolt, hex head	Request
9	102-00721020072	Bolt, hex head	Request
9	102-0378	Washer, lock stainless	Ask us
21	102-03031020303	Screw, bhsc	Request
22	102-0296	Screw, round head slotted 250-20 stainless	Ask us
28	104-65441046544	Tubing, braided	Request
22	103-7112	Solenoid, open frame	Ask us
24	100-3085	Tube fitting npt	Ask us
25	102-00671020067	Bolt, hex head	Request
27	102-03321020332	Nut, hex	Request
28	102-3037	Stud, welding 250-20	Ask us
31	104-6545	Hose, braided w/ fitting stainless	Ask us
37	136-9954	Hose assembly, braided	Ask us
26	102-00681020068	Bolt, hex head	Request
27	102-0478	Waste	Ask us
7	102-00941020094	Bolt, hex head	Request
5	135-08641350864	Lever, valve inside RH	Request
6	400-2511	O-ring	Ask us
3	135-08431350843	Washer	Request
12	135-08691350869	Washer, keyed reservoir assembly	Request
13	104-51961045196	Washer, wave	Request
13	135-09601350960	Lever, valve operating	Request
15	102-13021021302	Screw, socket head cap	Request
19	100-7626	Tool, speed handle	Ask us
22	135-10451351045	Tool, sizing pin valve lever bushing	Request
39	100-34821003482	O-ring	Request
47	104-78421047842	O-ring	Request
50	100-81331008133	O-ring	Request
54	101-00881010088	O-ring	Request
76	100-40331004033	O-ring	Request

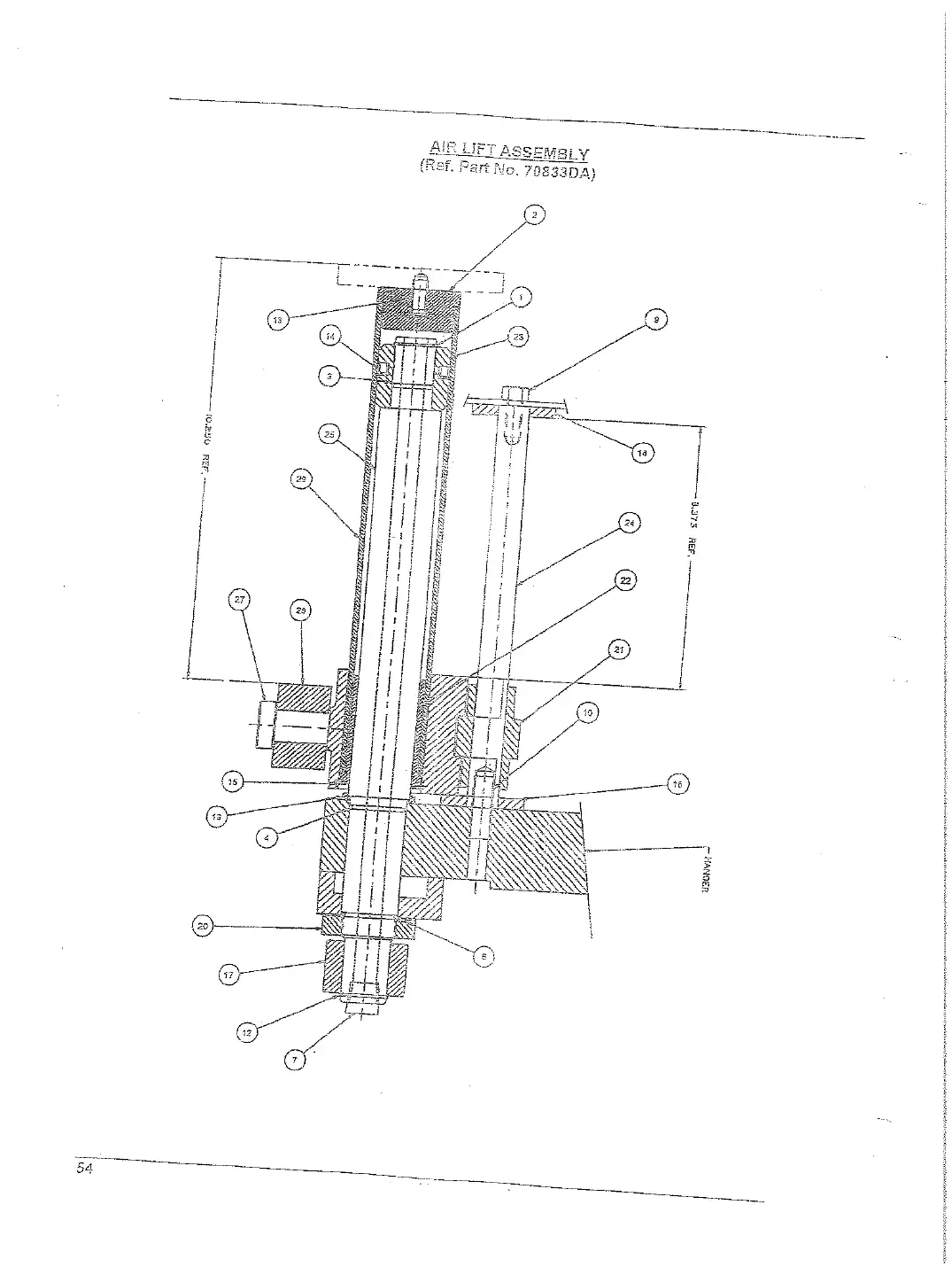

77	136-65251366525	Piston, airlift cylinder	Request
78	104-69501046950	U-cup, lift cylinder	Request
79	133-66861336686	Roller, driving airlift cylinder	Request
81	136-66501366650	Rod, guide 90V	Request
83	135-39471353947	Collar, lift cylinder pist	Request
83	137-36831373683	Roller, cam follower	Request
83	135-71201357120	Bushing, guide rod	Request
87	100-40401004040	O-ring	Request
90	136-17421361742	Bushing, airlift cylinder	Request
98	137-17421371742	Cup, centering	Request
103	104-83041048304	O-ring, balance chamber	Request
405	100-21331002133	Gasket, tri-clamp tube	Request
708	137-1508	Rotary joint repair kit	Ask us
09	137-79731377973	Bearing, product column	Request
