Meyer 90-18 filler parts manual

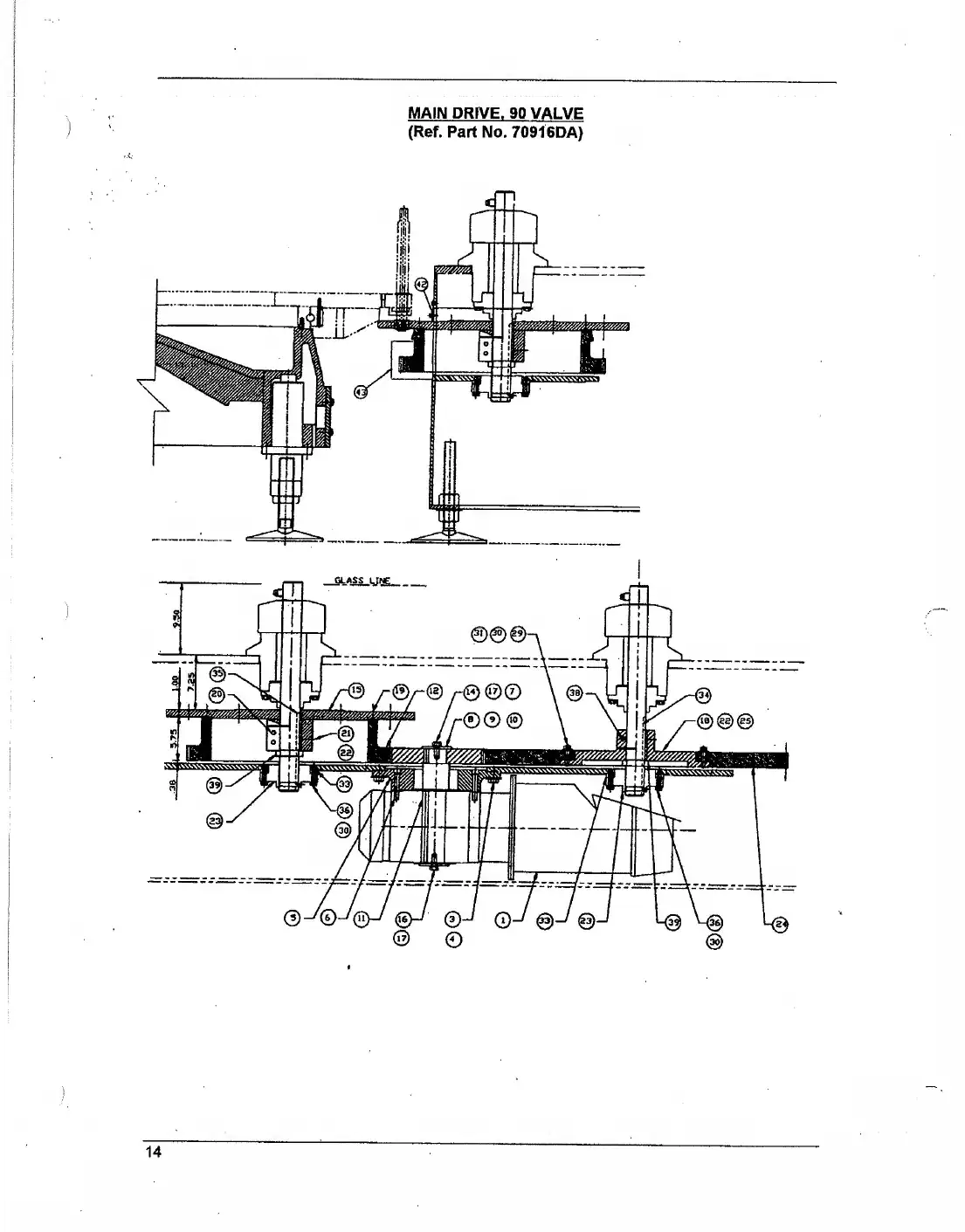

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
3	136-63651366365	Bearing, upper	Request
4	137-7310	Shaft	Ask us
9	137-7376	Bearing, shaft	Ask us
10	100-0610	Ring, retaining ccsc	Ask us
14	102-00901020090	Bolt, hex head	Request
15	102-00921020092	Bolt, hex head	Request
16	102-01021020102	Bolt, hex head	Request
22	102-14431021443	Washer, lock	Request
23	102-20021022002	Washer, flat	Request
25	104-73441047344	O-ring	Request
26	104-87701048770	Bearing, lower	Request
2	137-8987	Gear, driven	Ask us
5	137-7385	Mount, gearbox	Ask us
13	104-7331	Collar	Ask us
20	102-0910	Screw, socket head	Ask us
36	102-01051020105	Bolt, hex head	Request
1	136-63871366387	Key, anti-rotation	Request
2	905-21009052100	Column, closer assembly 90V	Request
6	104-64951046495	Jactuator, rise	Request
87	100-09231000923	Fitting, tube	Request
8	104-65781046578	O-ring	Request
7	101-06201010620	Seal, oil closer column lower	Request
9	136-6352	Plate	Ask us
14	134-1617	Key washer	Ask us
15	905-11919051191	Spacer, closure column	Request
4	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
16	102-30641023064	Washer	Request
19	000-4277	Packing	Ask us
4	102-00791020079	Bolt, hex head	Request
20	000-42650004265	Seal	Request
50	102-04161020416	Washer, flat	Request
25	102-05731020573	Screw, socket head cap	Request
26	102-03891020389	Washer, lock	Request
6	100-82691008269	Link, connecting	Request
28	102-03901020390	Washer, lock	Request
297	102-01081020108	Bolt, hex head	Request
30	102-04181020418	Washer, flat	Request
50	135-8652	Bracket	Ask us
31	102-14871021487	Socket head cap screw	Request
8	104-65591046559	Valve, 3 way	Request
32	102-07991020799	Bolt, hex head	Request
33	102-03911020391	Washer, lock	Request
6	1045119104-5119	Cylinder, air infeed gate assembly	Request
15	102-03861020386	Washer, lock	Request
16	102-09771020977	Screw, socket head cap	Request
19	102-00781020078	Hex head bolt	Request
23	136-95871369587	Block, hinge outer explosion guards	Request
26	1021381102-1381	Screw, socket head cap	Request
29	102-12551021255	Washer, flat	Request
32	102-00891020089	Bolt, hex head	Request
38	100-34851003485	Connector, male	Request
56	HH-6334	Stud, spring	Ask us

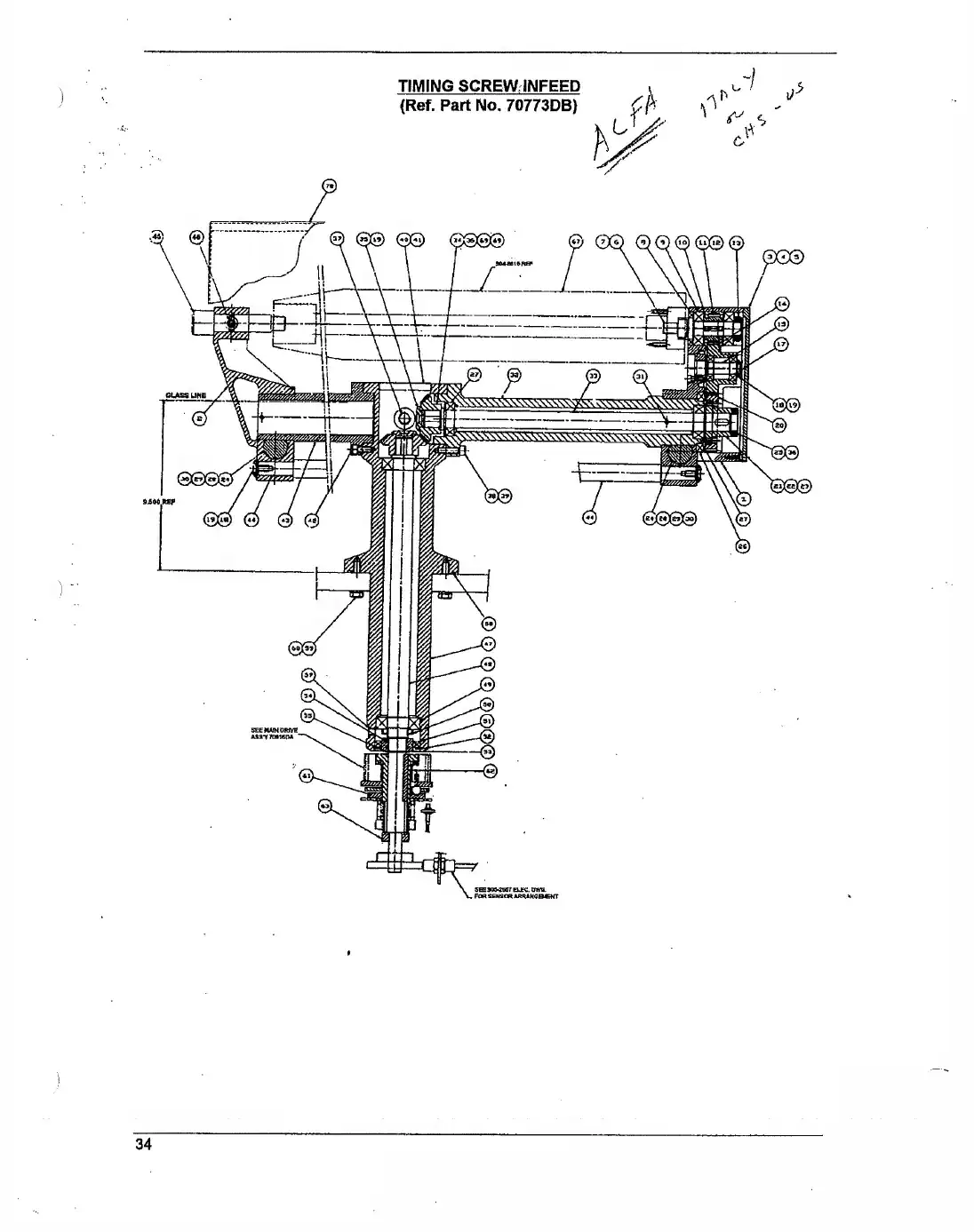

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
8	104-77401047740	Bearing, radial	Request
24	137-7409	Ket stainless 8x7x2000	Ask us
36	137-7662	—	Ask us
38	102-5068	Screw, socket	Ask us
66	904-7854	Hand knob stainless	Ask us
9	136-7228	Sss support post, wearstrip	Ask us
11	137-1867	Support, post csc	Ask us
16	102-13621021362	Screw, socket head cap	Request
22	102-02131020213	Screw, flat head slot	Request
4	104-77221047722	Gearbo 3 way	Request
8	102-0974	Screw	Ask us
9	102-03821020382	Washer, lock	Request
10	104-50951045095	Motor, air bowl lift	Request
4	102-03881020388	Washer, lock	Request
6	1020075102-0075	Bolt, hex head	Request
86	000-1772	Tube round sft	Ask us
9	104-51261045126	Valve, diaphragm	Request
45	104-6704	Valve	Ask us
82	104-7870	Connector	Ask us
16	104-73551047355	Valve, ball	Request
18	136-6532	Housing bushing	Ask us
0	100-97071009707	Coupling	Request
24	102-02031020203	Screw, flat head slot	Request
25	102-05531020553	Nut, hex	Request
20	135-71251357125	Lever, float	Request
30	100-46601004660	Elbow, street 90 deg	Request
31	100-61101006110	Nipple, close	Request
34	137-4151	Plate sscs	Ask us
88	100-49091004909	Union	Request
36	000-1764	Tuberd-s nipplesst	Ask us
98	100-5727	Elbow	Ask us
4	104-8357	Connector	Ask us
9	104-8250	Adapter	Ask us
10	000-32230003223	Tube, polyflo	Request
16	104-6556	Connector	Ask us
21	104-8515	Connector	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
3	102-03901020390	Washer, lock	Request
25	102-0703	Sorew, soo 150-24 bls	Ask us

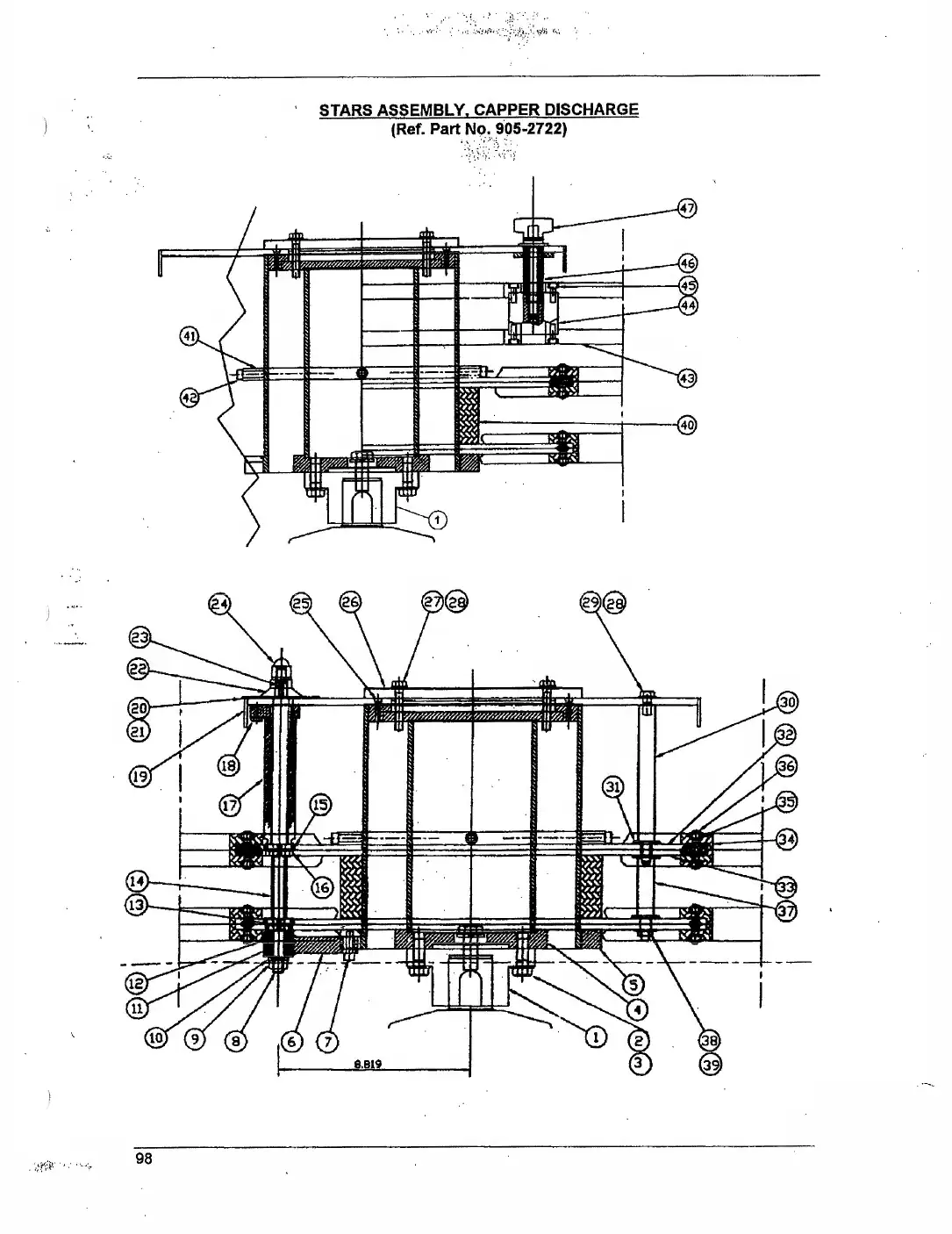

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
20	1020089102-0089	Bolt, hex head	Request
35	102-03641020364	Nut, hex	Request
43	137-9028	Star, urer sscsc c-sscscs	Ask us

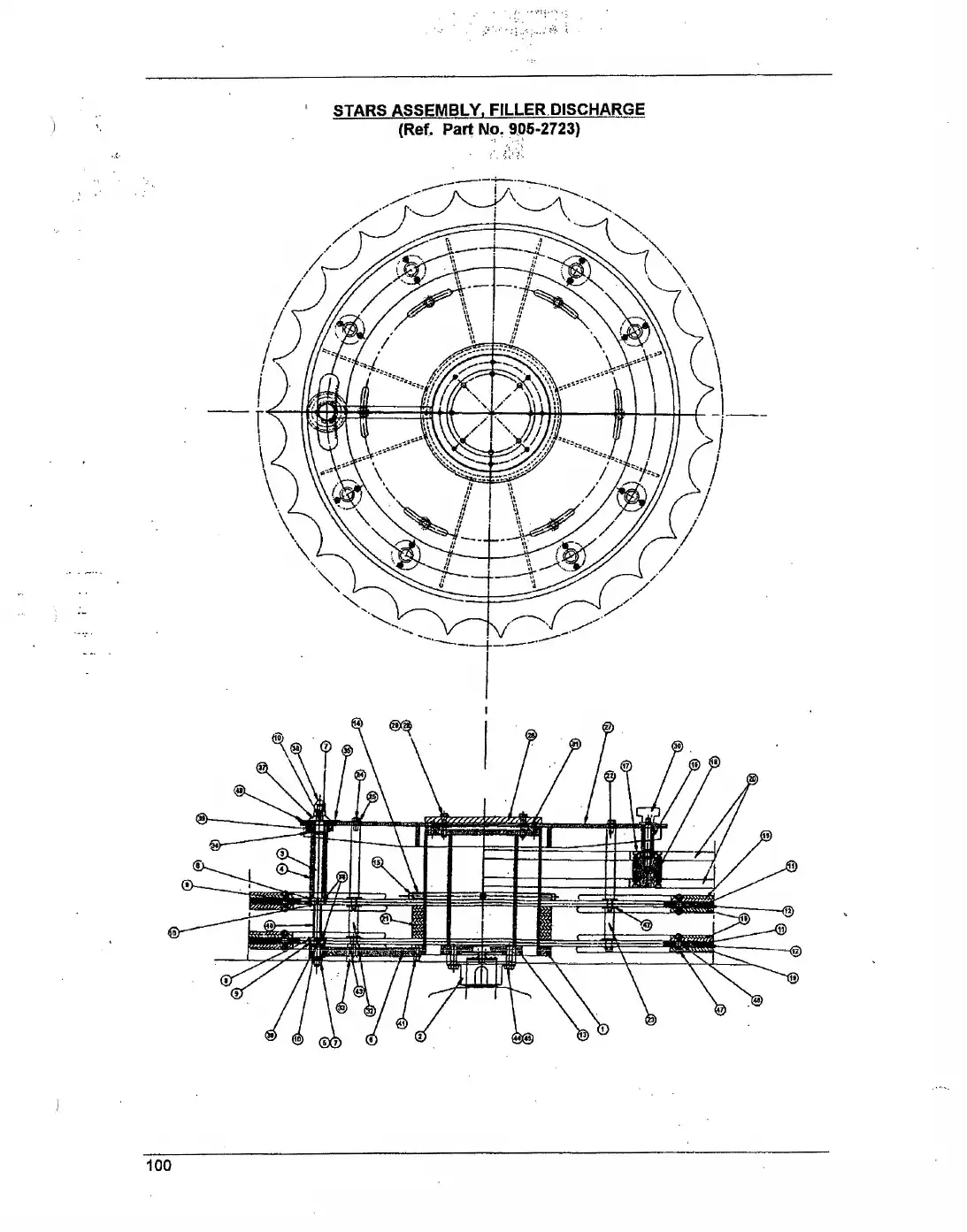

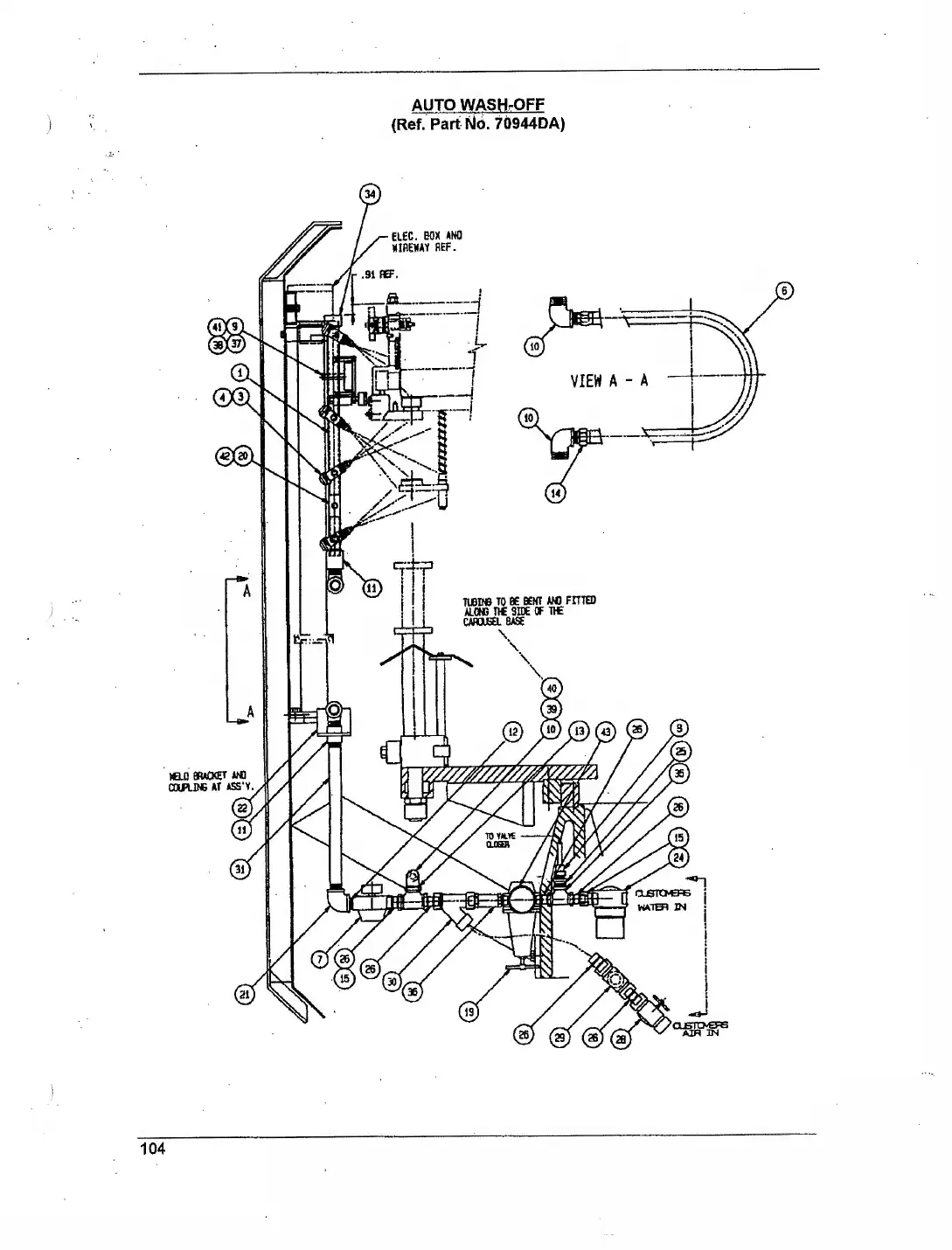

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
43	102-01021020102	Bolt, hex head	Request
460	102-03641020364	Nut, hex	Request
2	100-7327	Clip, tube	Ask us
3	104-6680	Lip, tube	Ask us
7	102-12551021255	Washer, flat	Request
9	102-00651020065	Bolt, hex head	Request
16	1020878102-0878	Ssss washer, lock	Ask us
19	100-7246	Elbow, street malesst	Ask us
21	102-03031020303	Screw, bhsc	Request
26	102-04151020415	Washer, flat	Request
24	100-3086	Sss c2s tube fiting npt	Ask us
25	102-00671020067	Bolt, hex head	Request
28	1023037102-3037	Ssscsc stud, welding 250-20	Ask us
20	102-03871020387	Washer, lock	Request
34	104-6545	Stainless drcho braided /ffitting stainless	Ask us
33	100-53711005371	Tee	Request
36	100-41061004106	Nipple	Request
6	400-2511	O-ring sss	Ask us
9	135-08431350843	Washer	Request
10	135-08711350871	Stop, reservoir spacer	Request
11	102-12731021273	Pin, dowel	Request
13	104-51961045196	Washer, wave	Request
18	102-31061023106	Screw, socket head cap	Request
22	135-10451351045	Tool, sizing pin valve lever bushing	Request
39	100-34821003482	O-ring	Request
46	104-51091045109	O-ring, valve assembly R11/R19, R20, MX	Request
50	100-81331008133	O-ring	Request
2	100-40351004035	O-ring, dro	Request
53	104-80491048049	O-ring	Request
54	137-21151372115	Insert, snift block R-20/21 bolt on	Request
77	136-65251366525	Piston, airlift cylinder	Request
80	104-60261046026	Ring, retaining	Request
89	101-02081010208	O-ring, lift cylinders	Request
90	136-17421361742	Bushing, airlift cylinder	Request
108	137-1508	Rotary joint repairkit	Ask us

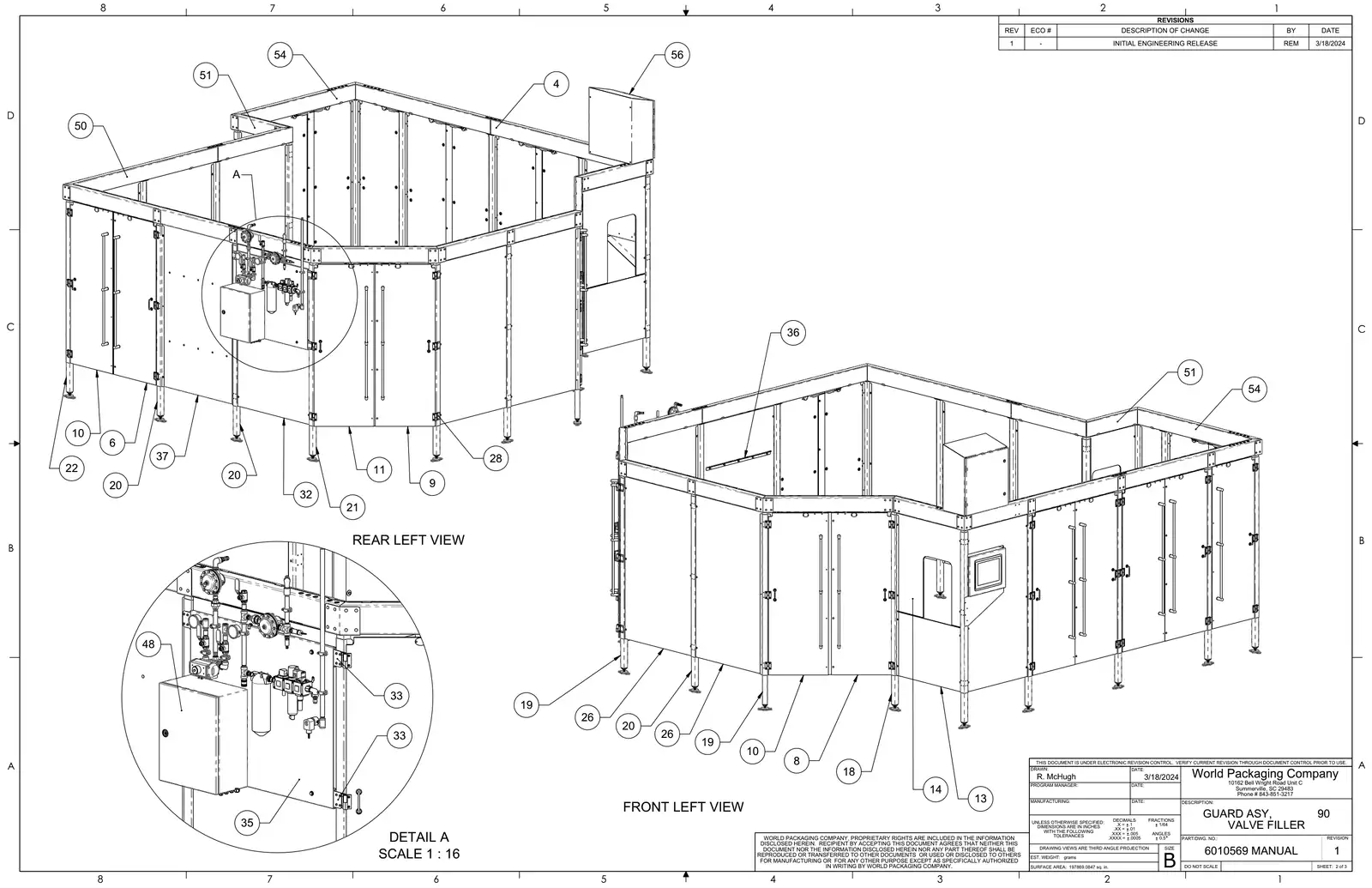

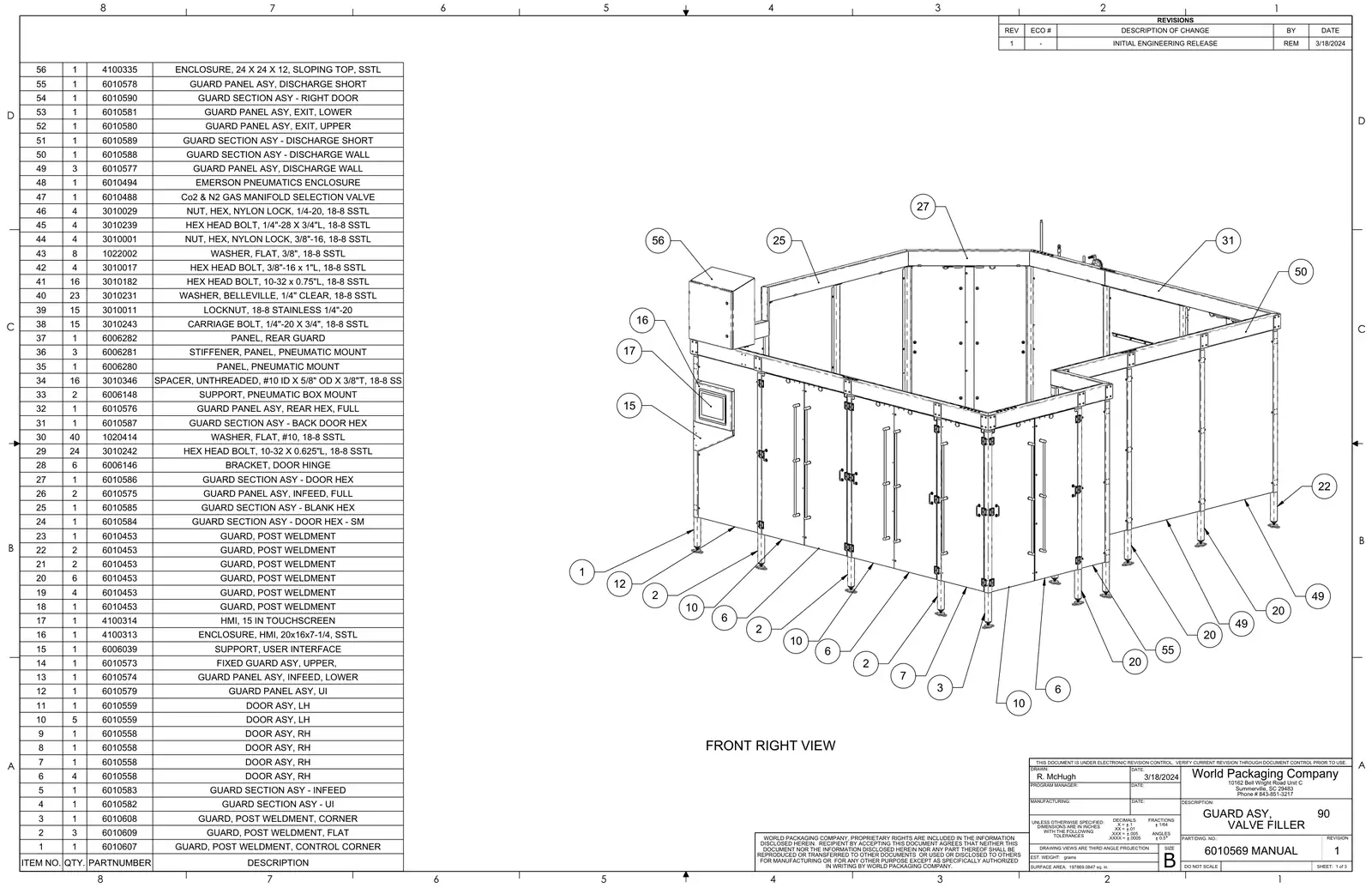

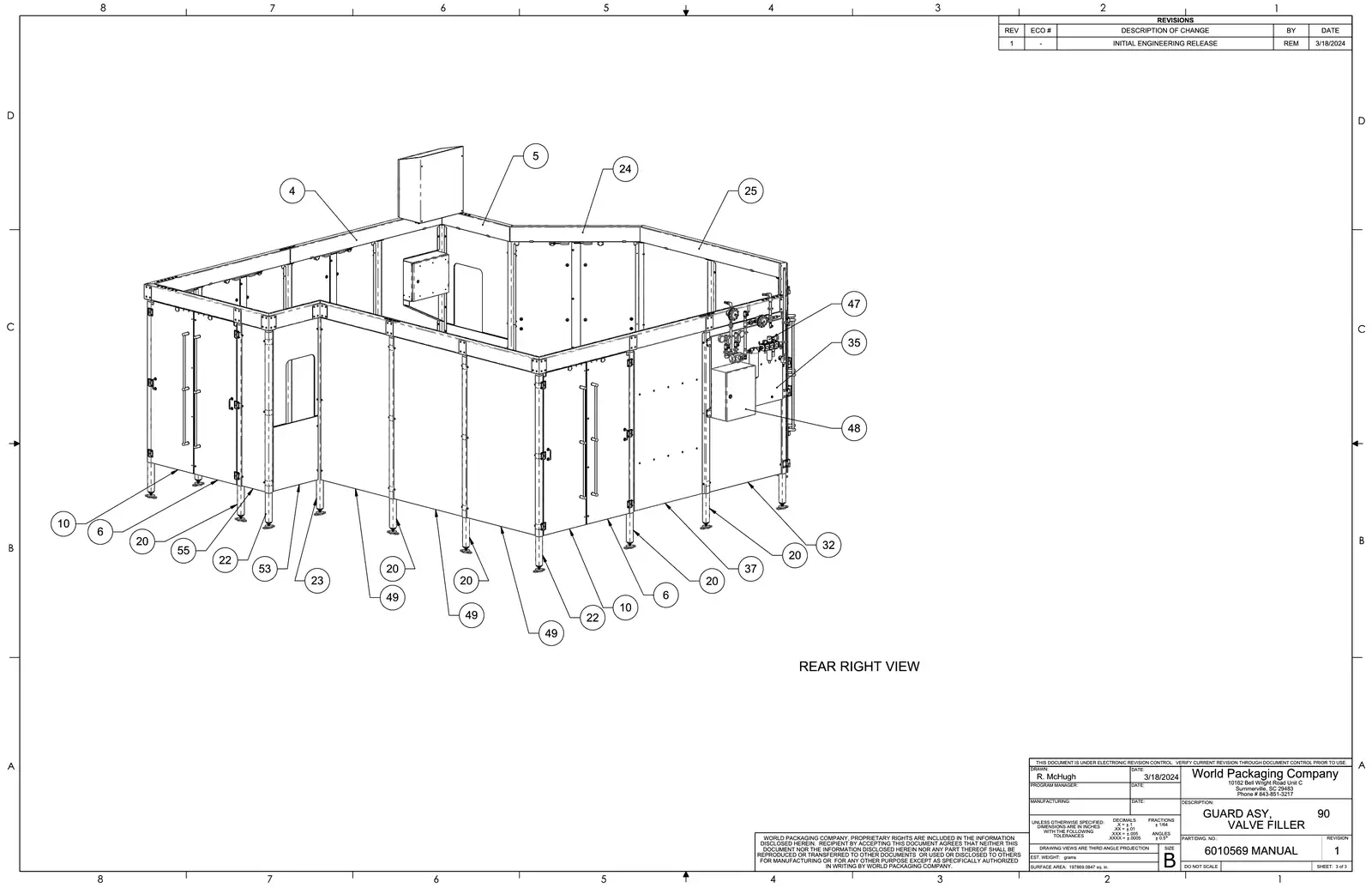

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
1	6010607601-0607	Guard, post weldment, control corner	Request
2	6010609601-0609	Guard, post weldment, flat	Request
3	6010608601-0608	Guard, post weldment, corner	Request
4	6010582601-0582	Guard section assembly UI	Request
5	6010583601-0583	Guard section assembly infeed	Request
6	6010558601-0558	Door assembly, RH	Request
8	6010558601-0558	Door assembly, RH	Request
9	6010558601-0558	Door assembly, RH	Request
10	6010559601-0559	Door assembly, LH	Request
11	6010559601-0559	Door assembly, LH	Request
12	6010579601-0579	Guard panel assembly, UI	Request
13	6010574601-0574	Guard panel assembly, infeed, lower	Request
14	6010573601-0573	Fixed guard assembly, upper	Request
15	6006039600-6039	Support, user interface	Request
17	4100314410-0314	Touchscreen, HMI	Request
18	6010453601-0453	Guard, post weldment	Request
19	6010453601-0453	Guard, post weldment	Request
20	6010453601-0453	Guard, post weldment	Request
21	6010453601-0453	Guard, post weldment	Request
23	6010453601-0453	Guard, post weldment	Request
24	6010584601-0584	Guard section assembly door hex sm	Request
25	6010585601-0585	Guard section assembly blank hex	Request
26	6010575601-0575	Guard panel assembly, infeed, full	Request
27	6010586601-0586	Guard section assembly door hex	Request
28	6006146600-6146	Bracket, door hinge	Request
29	3010242301-0242	Screw, hex	Request
30	1020414102-0414	Washer, flat	Request
31	6010587601-0587	Guard section assembly back door hex	Request
32	6010576601-0576	Guard panel assembly, rear hex, full	Request
33	6006148600-6148	Support, pneumatic box mount	Request
34	3010346301-0346	Spacer, unthreaded	Request
35	6006280600-6280	Panel, pneumatic mount	Request
36	6006281600-6281	Stiffener, panel, pneumatic mount	Request
37	6006282600-6282	Panel, rear guard	Request
38	3010243301-0243	Bolt, carriage	Request
39	3010011301-0011	Locknut	Request
40	3010231301-0231	Washer, belleville	Request
43	1022002102-2002	Washer, flat	Request
44	3010001301-0001	Nut, lock insert	Request
45	3010239301-0239	Screw, hex	Request
46	3010029301-0029	Locknut, insert	Request

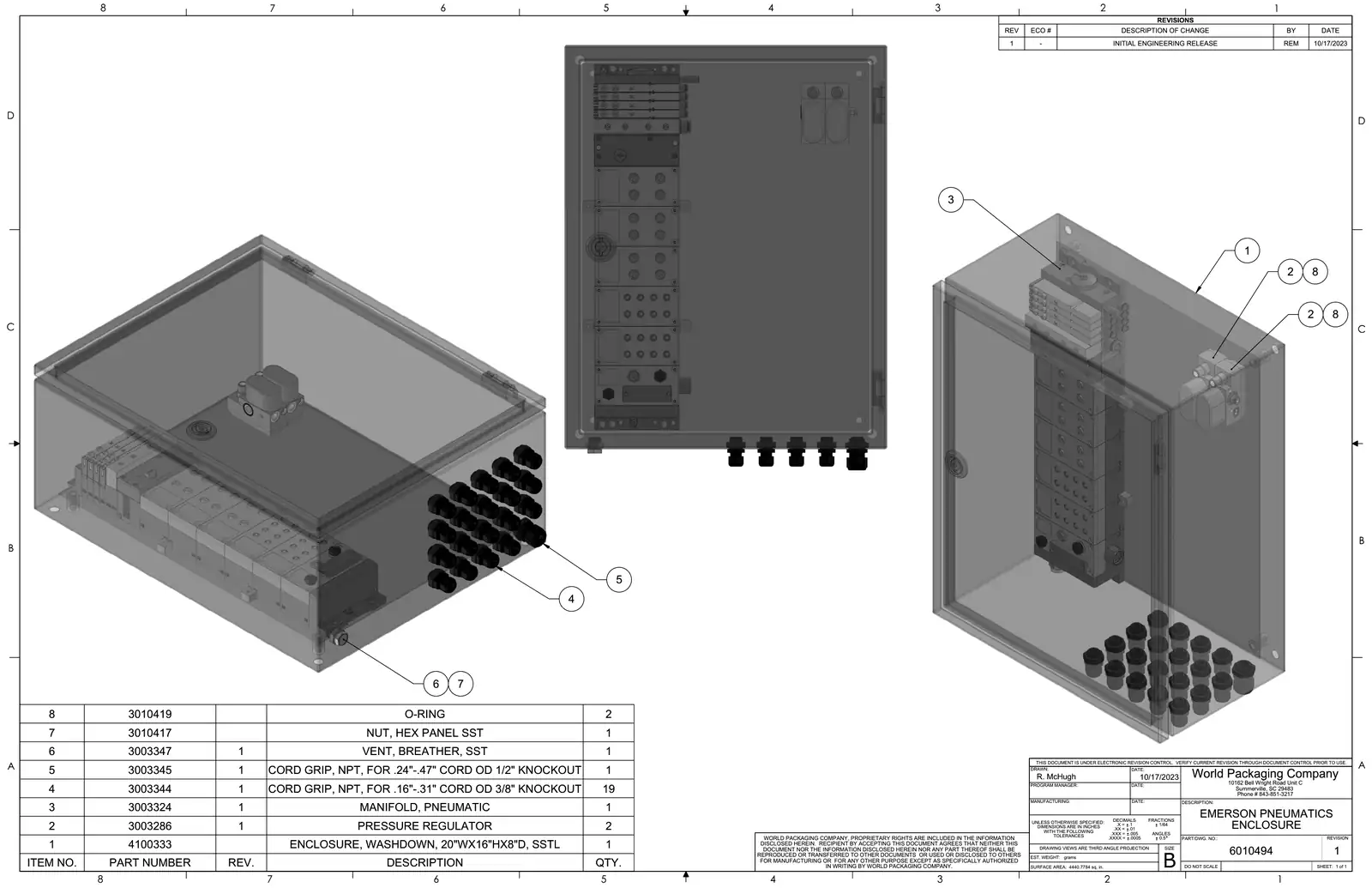

48	6010494601-0494	Emerson pneumatics enclosure	Request
49	6010577601-0577	Guard panel assembly, discharge	Request
50	6010588601-0588	Guard section assembly discharge	Request
51	6010589601-0589	Guard section assembly discharge short	Request
52	6010580601-0580	Guard panel assembly, exit, upper	Request
54	6010590601-0590	Guard section assembly right door	Request
55	6010578601-0578	Guard panel assembly, discharge short	Request
56	4100335410-0335	Enclosure, sloping top	Request

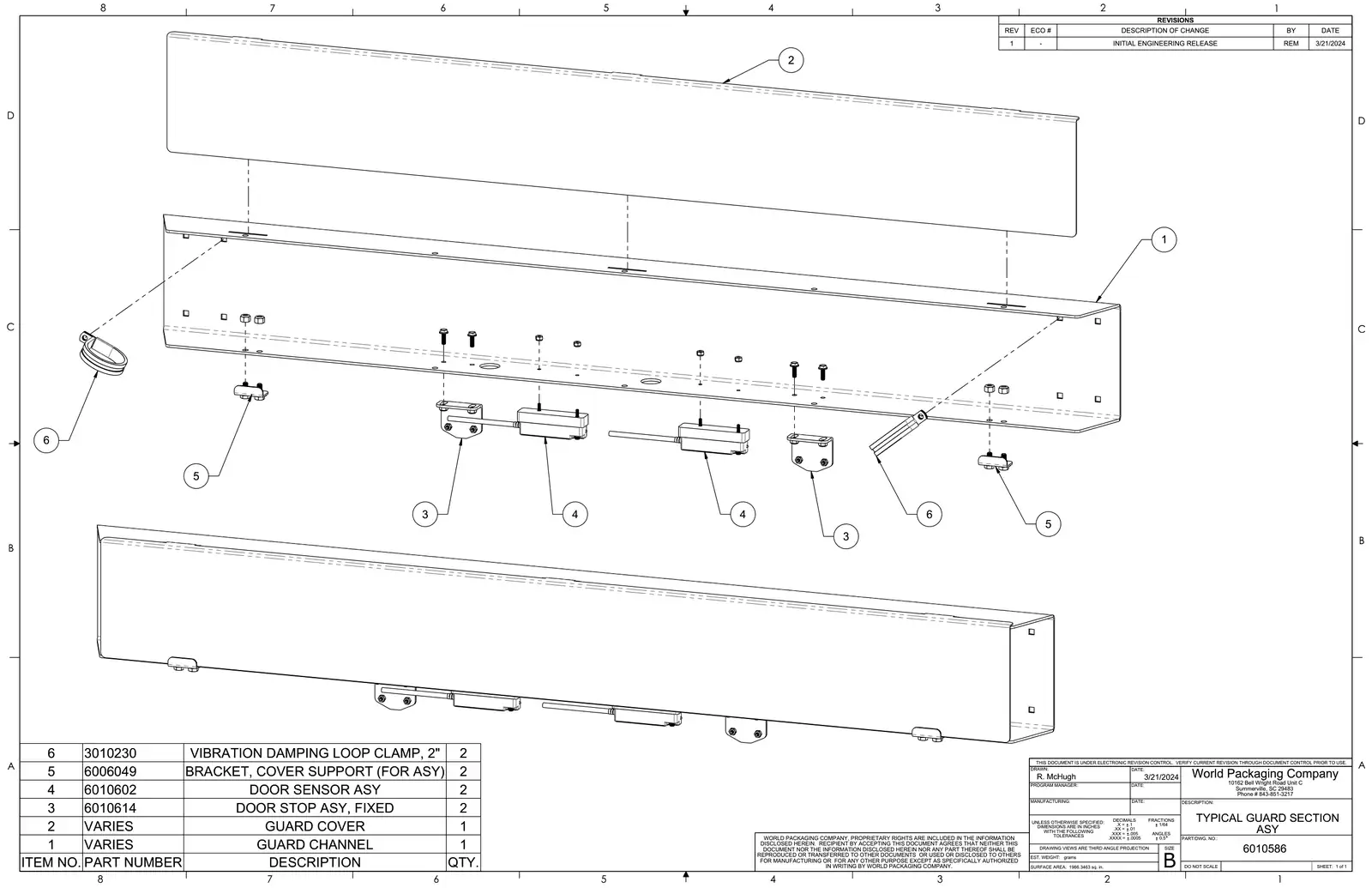

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
3	6010614601-0614	Door stop assembly, fixed	Request
4	6010602601-0602	Door sensor assembly	Request
5	6006049600-6049	Bracket, cover support	Request
6	3010230301-0230	Clamp, vibration damping loop	Request

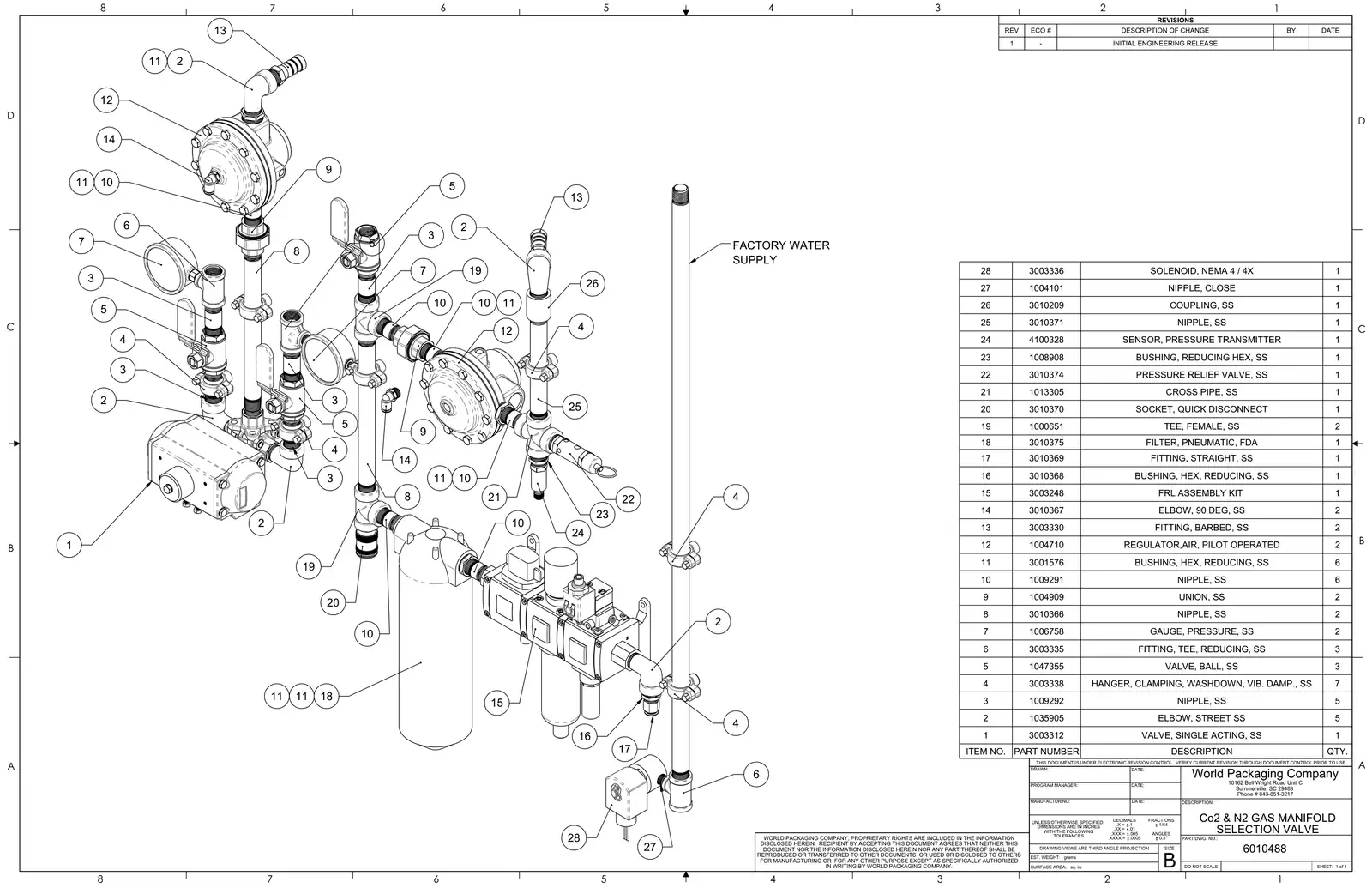

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	1004710100-4710	Regulator, air	Request
2	1035905103-5905	Elbow, street	Request
3	3010374301-0374	Pressure relief valve	Request
4	4100328410-0328	Sensor, pressure transmitter, male, 4-PIN	Request
4	3003338300-3338	Hanger, washdown clamper	Request
5	1000651100-0651	Tee connector	Request
5	1047355104-7355	Valve, ball	Request
6	3003335300-3335	Fitting, tee, reducing	Request
8	3010366301-0366	Nipple, std	Request
9	1004909100-4909	Union	Request
10	1009291100-9291	Nipple	Request
10	1006758100-6758	Gauge, pressure	Request
11	3001576300-1576	Bushing, reducing hex	Request
14	3010369301-0369	Fitting, straight	Request
14	3010367301-0367	Elbow, 90 deg	Request
16	3003312300-3312	Valve, ball 3 way single actuator	Request
18	3010375301-0375	Filter, pneumatic	Request
21	1013305101-3305	Cross, female pipe	Request
23	1008908100-8908	Bushing, reducing hex	Request
25	3010371301-0371	Nipple, std	Request
25	3010370301-0370	Socket, quick disconnect, air	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	4100333410-0333	Enclosure, washdown, wx hx	Request
7	3010417301-0417	Nut, hex panel npsm	Request
8	3010419301-0419	O-ring	Request

Parts for this assembly, from the original Meyer parts lists.

Open full size

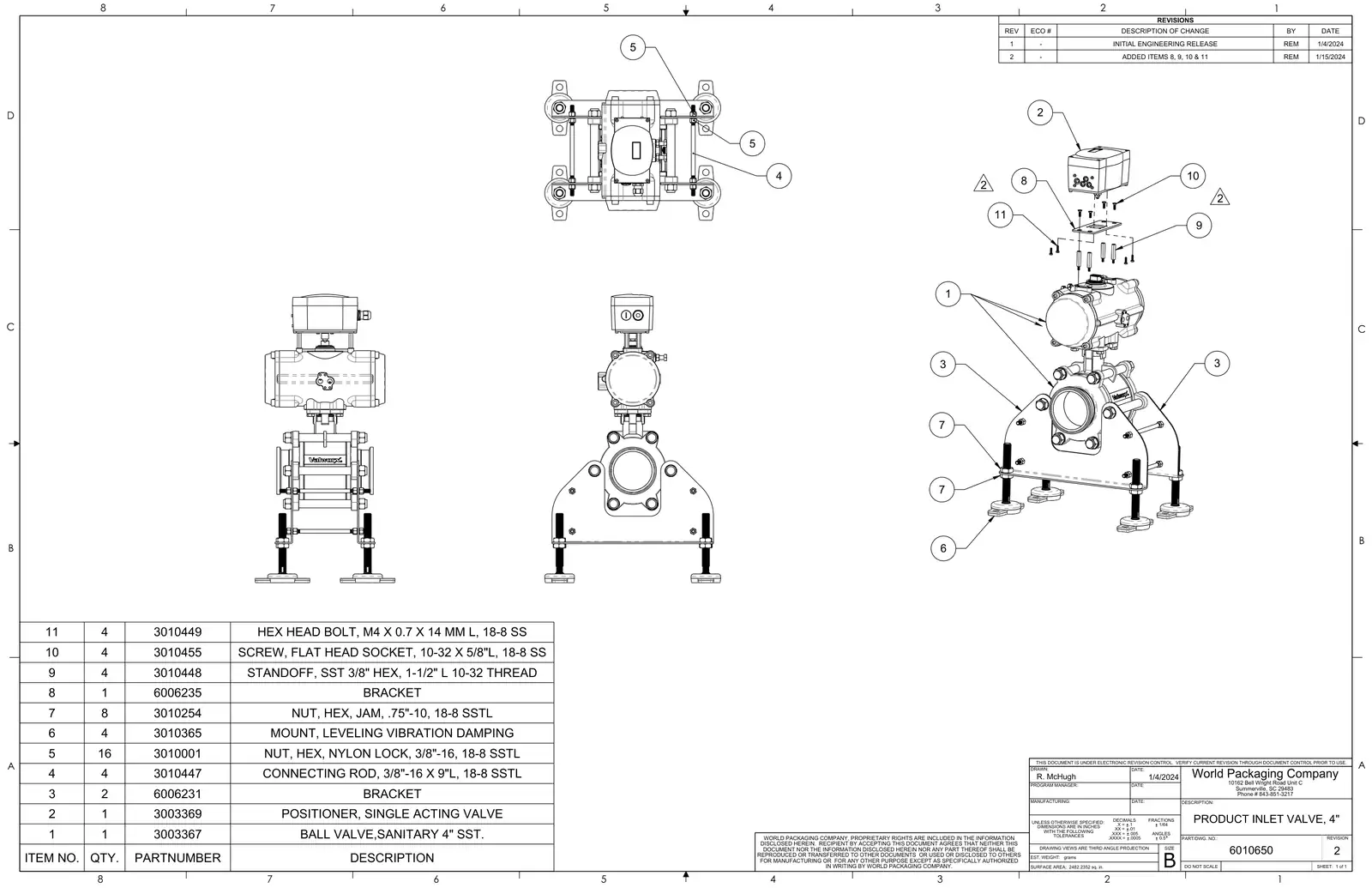

Ref	Part number	Description
1	3003367300-3367	Ball valve,sanitary .	Ask us
2	3003369300-3369	Positioner, single acting valve	Request
3	6006231600-6231	Bracket	Request
4	3010447301-0447	Rod, connecting thread	Request
5	3010001301-0001	Nut, lock insert	Request
6	3010365301-0365	Mount, leveling vibration damping	Request
7	3010254301-0254	Nut, hex, thin	Request
8	6006235600-6235	Bracket	Request
9	3010448301-0448	Standoff, hex, / thread	Request
10	3010455301-0455	Screw, flat head socket, 10-32 x , stainless	Ask us
11	3010449301-0449	Screw, thread	Request

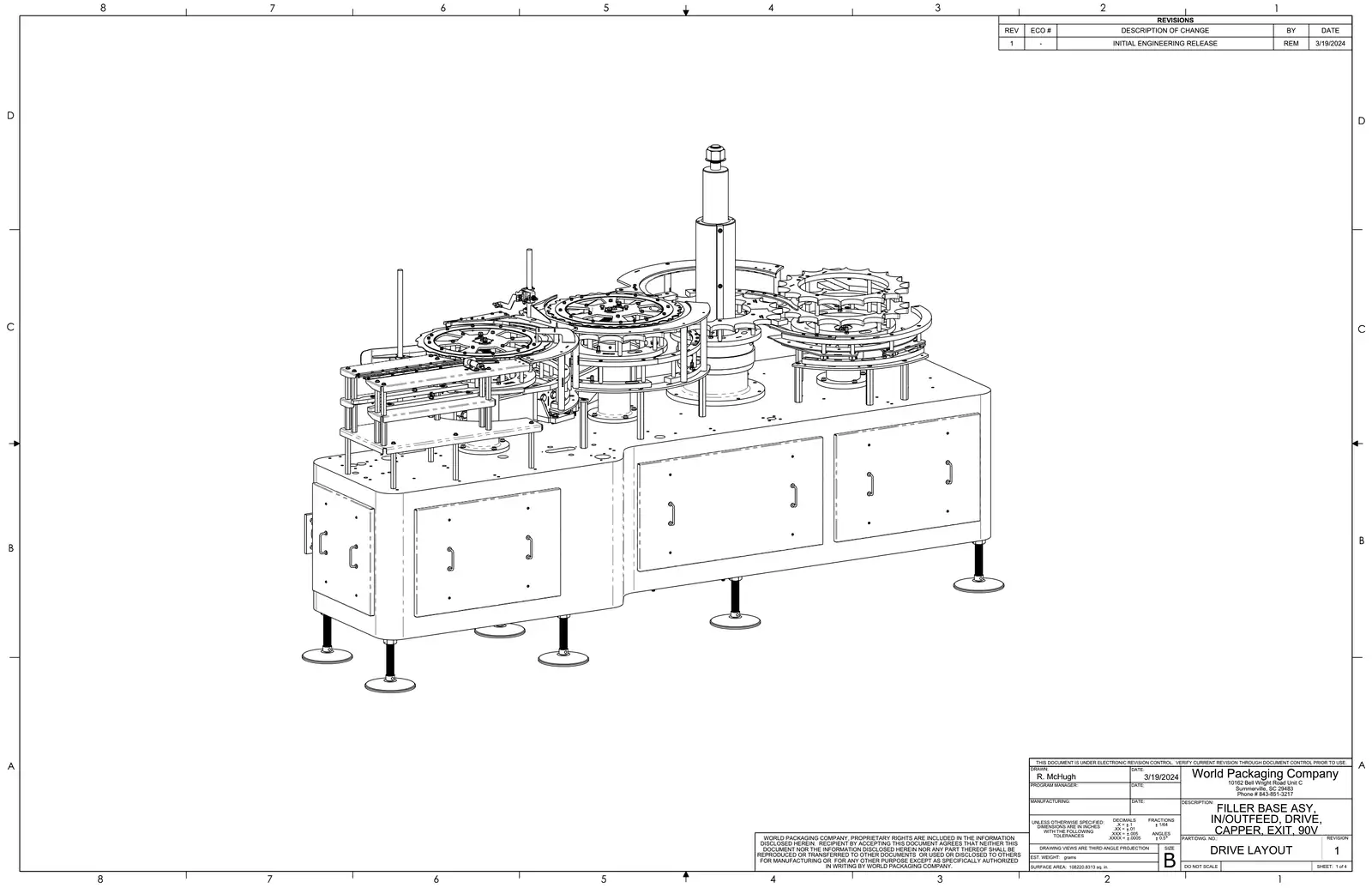

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full sizeOpen full sizeOpen full size

Ref	Part number	Description

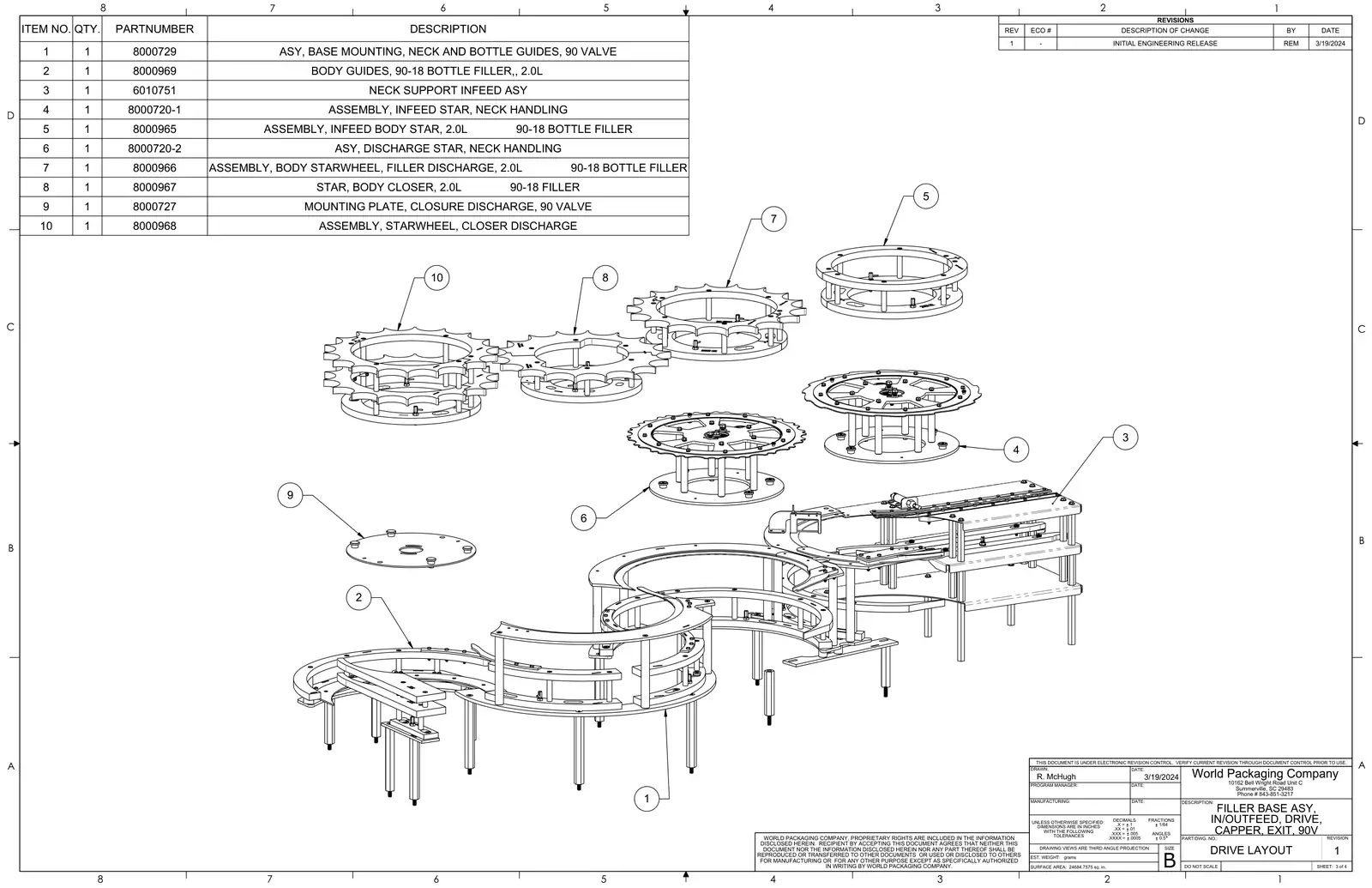

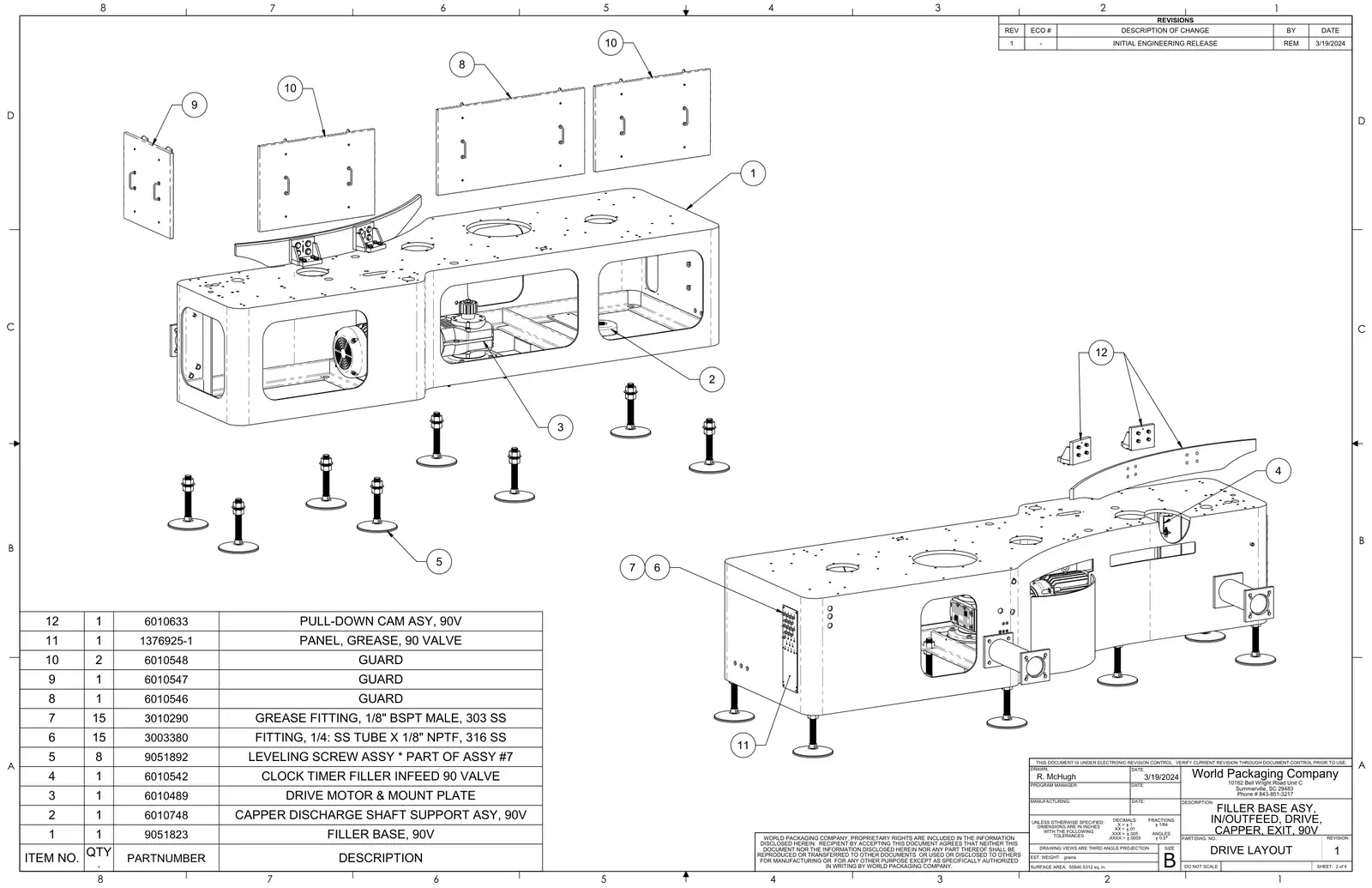

1	8000729800-0729	Assembly, base mounting, neck and bottle guides, 90 valve	Ask us

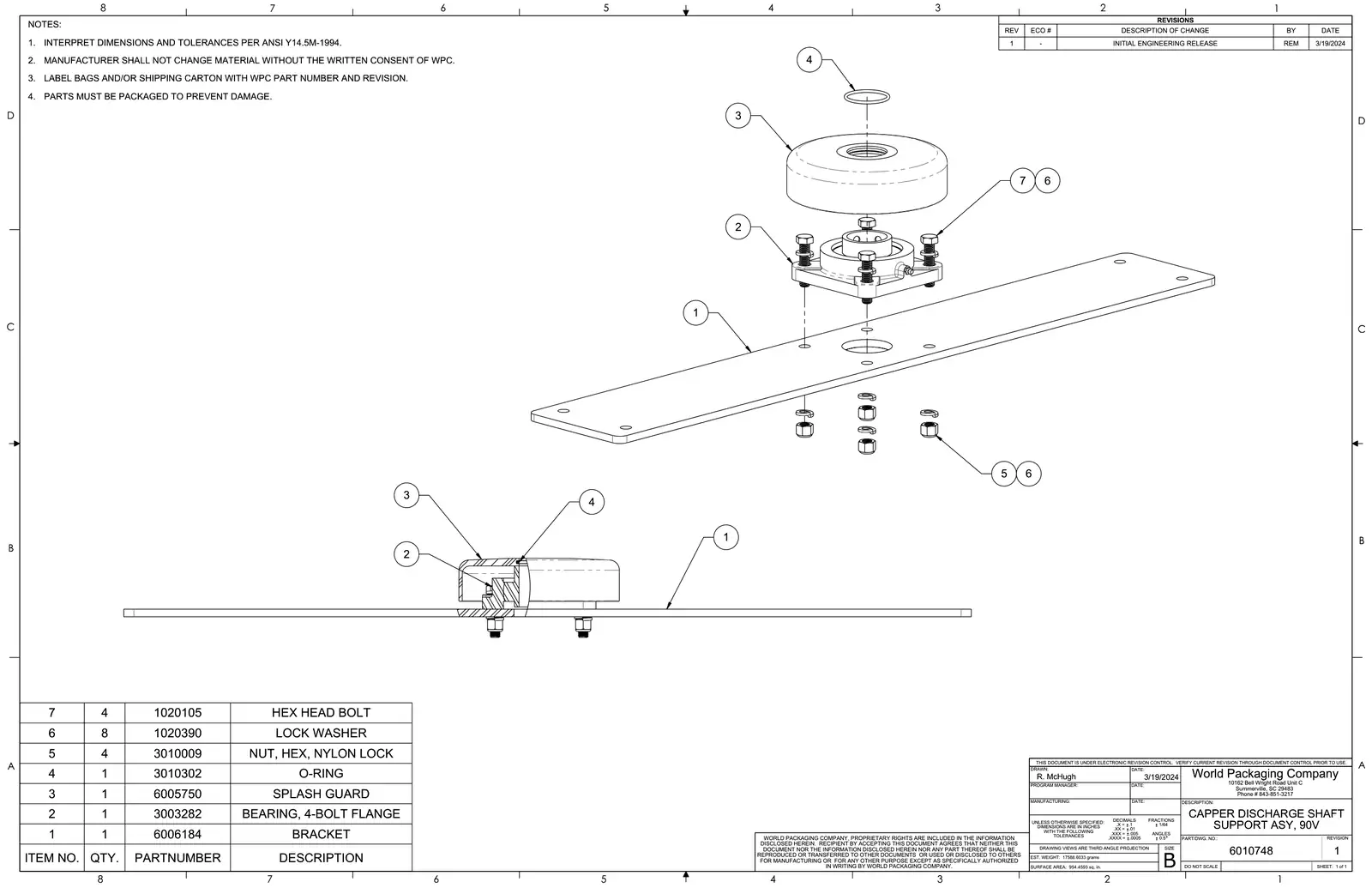

2	6010748601-0748	Capper discharge shaft support assembly	Ask us
2	80009698000969-1	Assembly, body guide filler infeed	Request
3	6010489601-0489	Drive motor & mount plate	Request

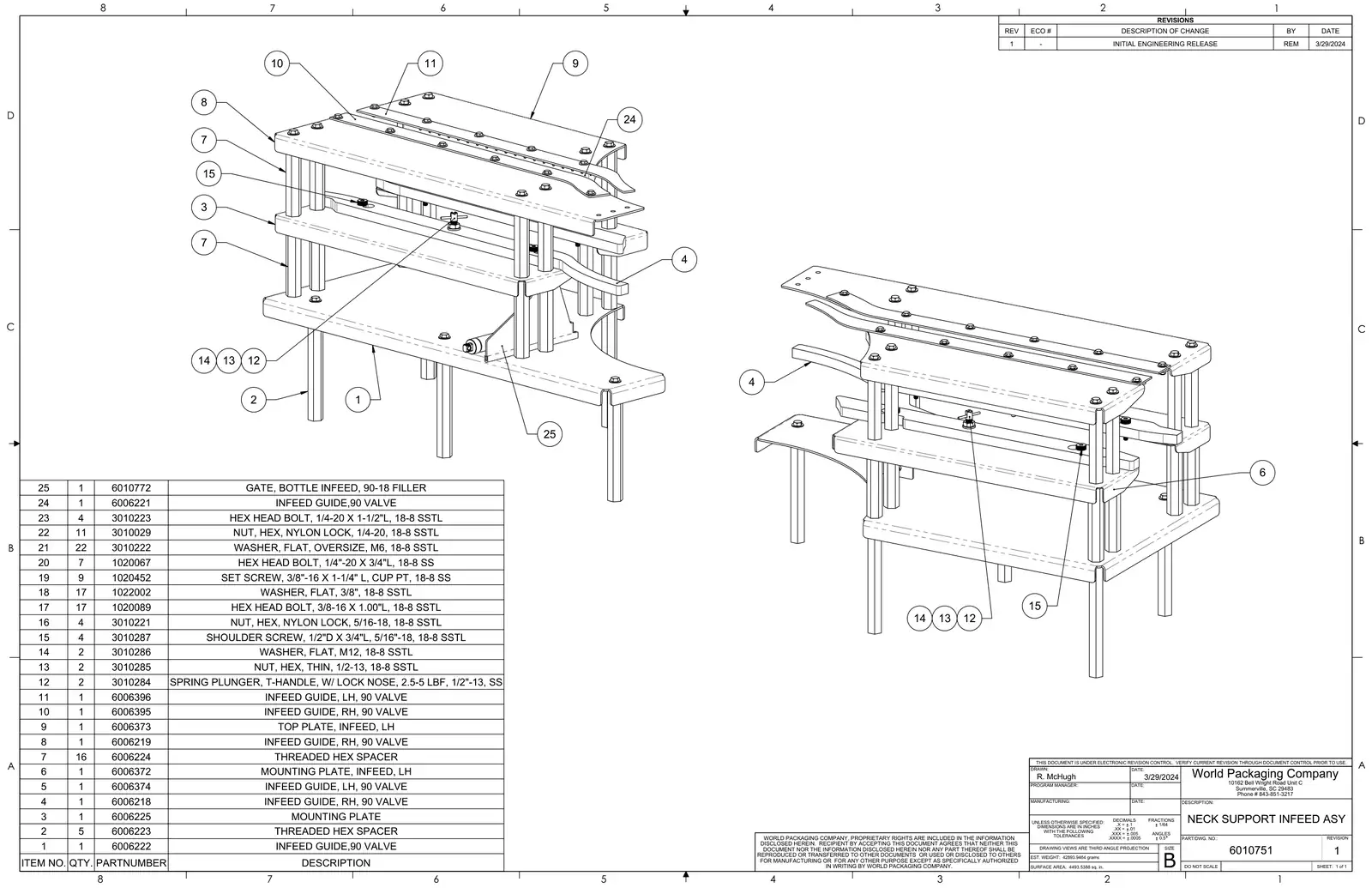

3	6010751601-0751	Neck support infeed assembly	Request
4	6010542601-0542	Clock timer filler infeed 90 valve	Ask us
4	8000720-1	Assembly, infeed star, neck handling	Ask us

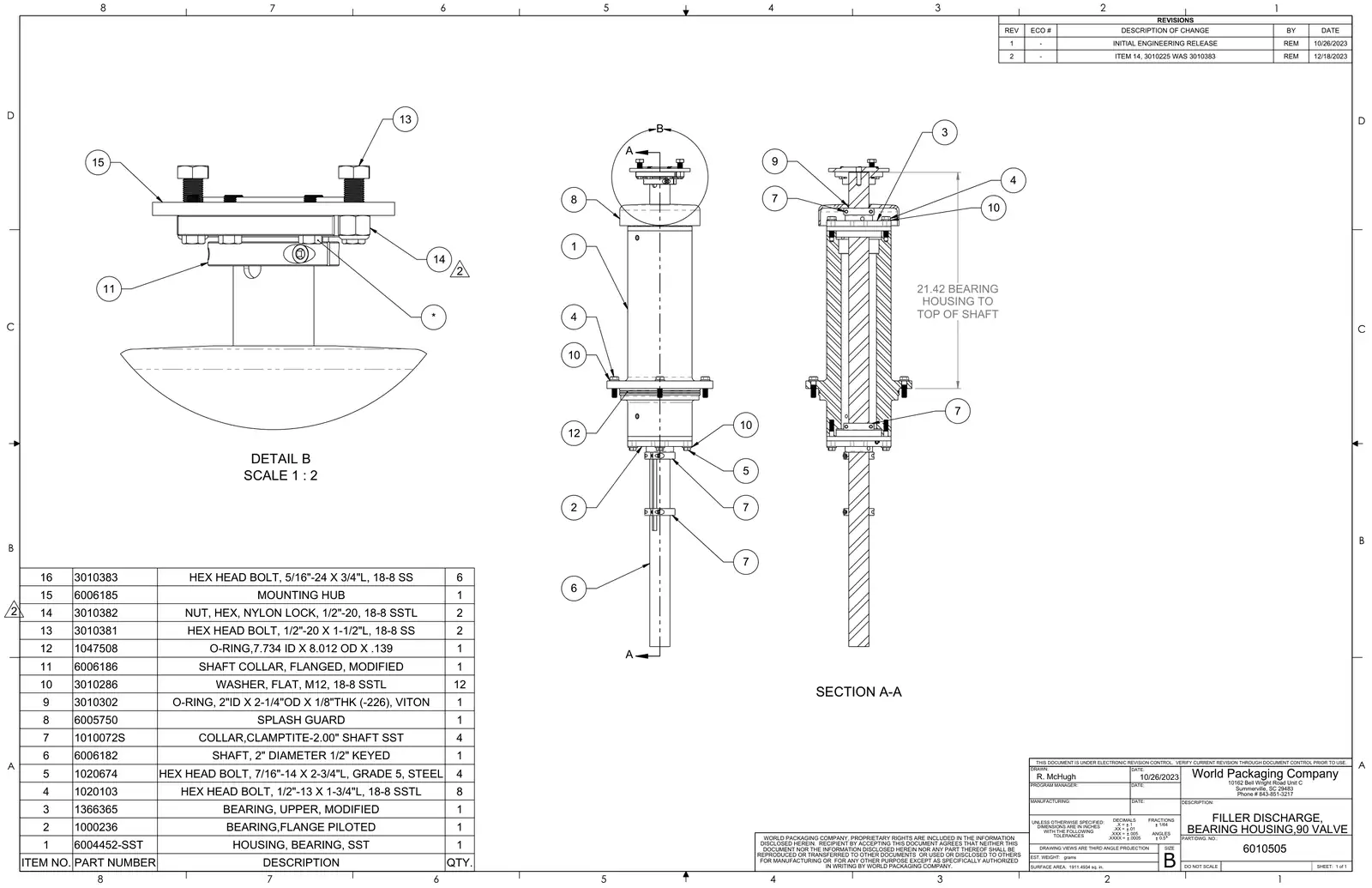

4	6010505601-0505	Filler discharge, bearing HOUSING,90 valve	Ask us
5	8000965800-0965	Assembly, infeed body star	Ask us
6	8000720-2	Assembly, discharge star, neck handling	Ask us
6	6010507601-0507	Capper discharge bearing HOUSING,90 valve	Ask us
7	3010290301-0290	Grease fitting	Request
7	8000966800-0966	Assembly, body starwheel filler dis	Request
7	6010495601-0495	Column	Ask us
8	6010546601-0546	Guard	Ask us
8	8000967800-0967	Star, body closer	Request
8	6010747601-0747	Capper discharge gear assembly, 90V	Request
9	6010547601-0547	Guard	Request
9	8000727800-0727	Mounting plate, closure discharge, 90 valve	Ask us

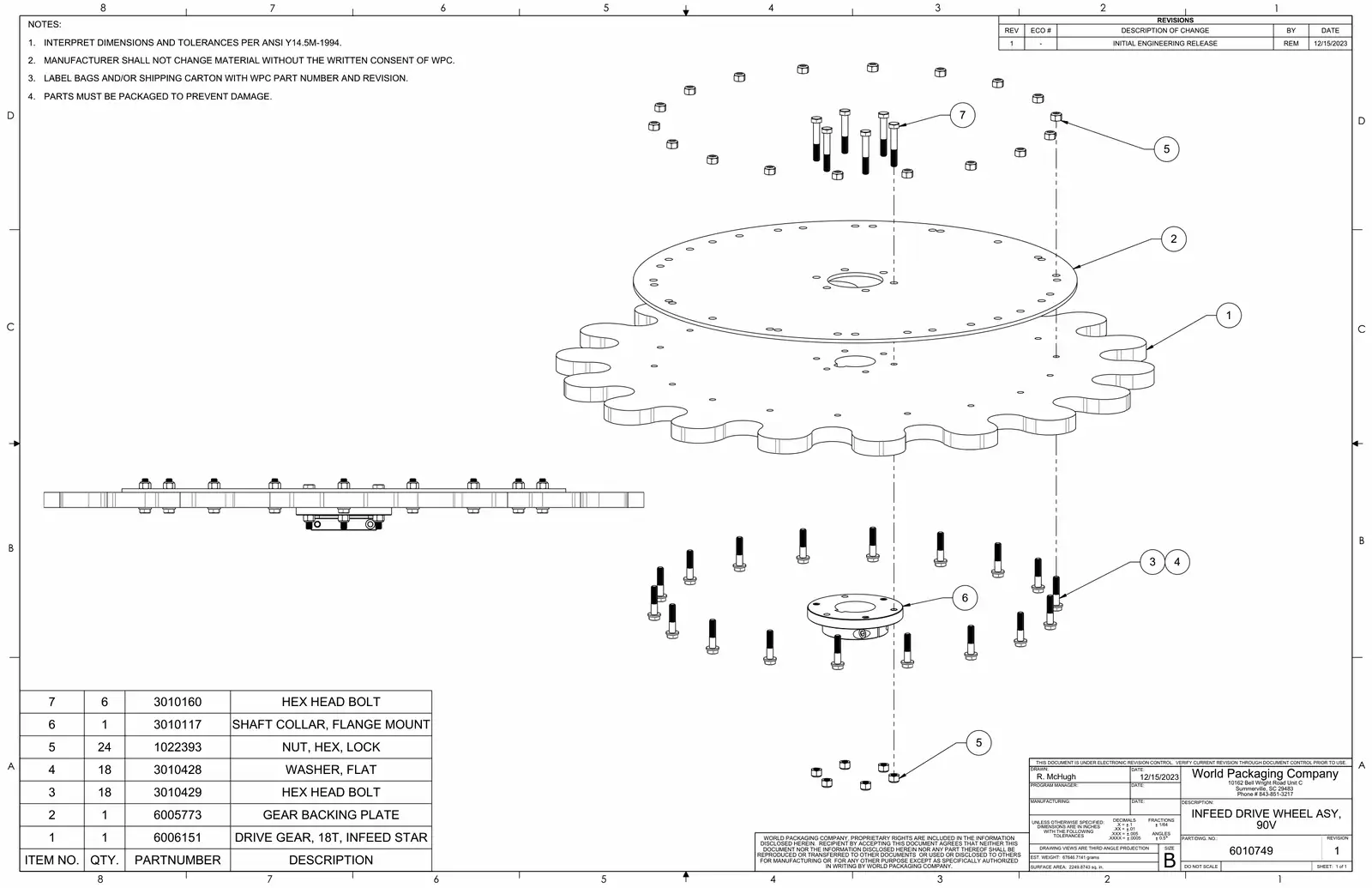

9	6010749601-0749	Infeed drive wheel assembly, 90V	Request
10	6010548601-0548	Guard	Request
10	8000968800-0968	Assembly, starwheel, closer discharge	Ask us
10	6010750601-0750	Discharge drive wheel assembly	Ask us
11	1376925-1	Panel, grease 90 valve	Request
12	6010633601-0633	Pull-down cam assembly, 90V	Request

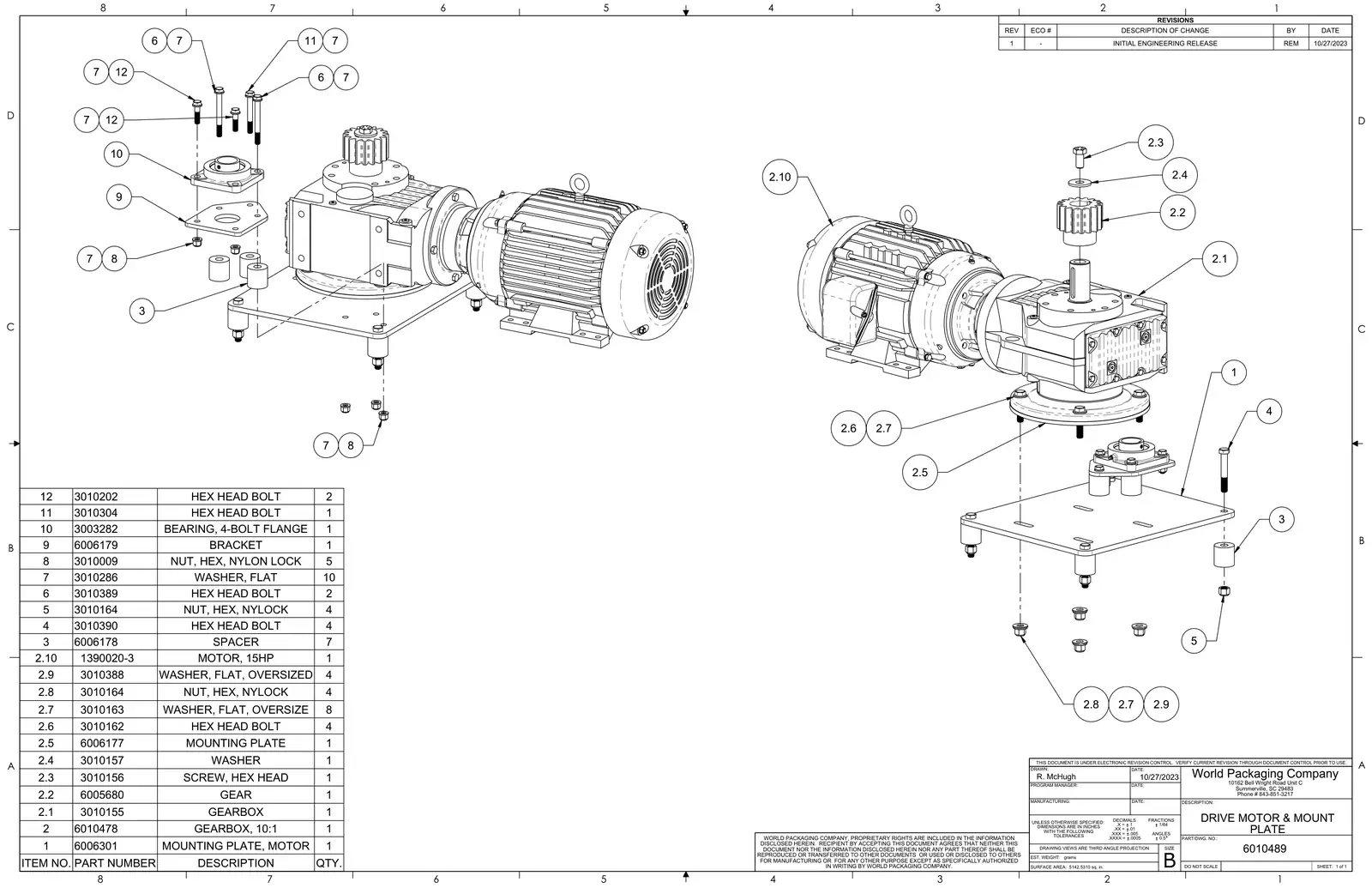

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	6006301600-6301	Mounting plate, motor	Request
3	6006178600-6178	Spacer	Request
4	3010390301-0390	Hex head bolt	Request
5	3010164301-0164	Locknut, insert	Request
6	3010389301-0389	Hex head bolt	Request
7	3010286301-0286	Washer, flat	Request
8	3010009301-0009	Locknut, thread	Request
9	6006179600-6179	Bracket	Request
10	3003282300-3282	Flange, bolt	Request
11	3010304301-0304	Hex head bolt	Request
12	3010202301-0202	Screw, hex	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description

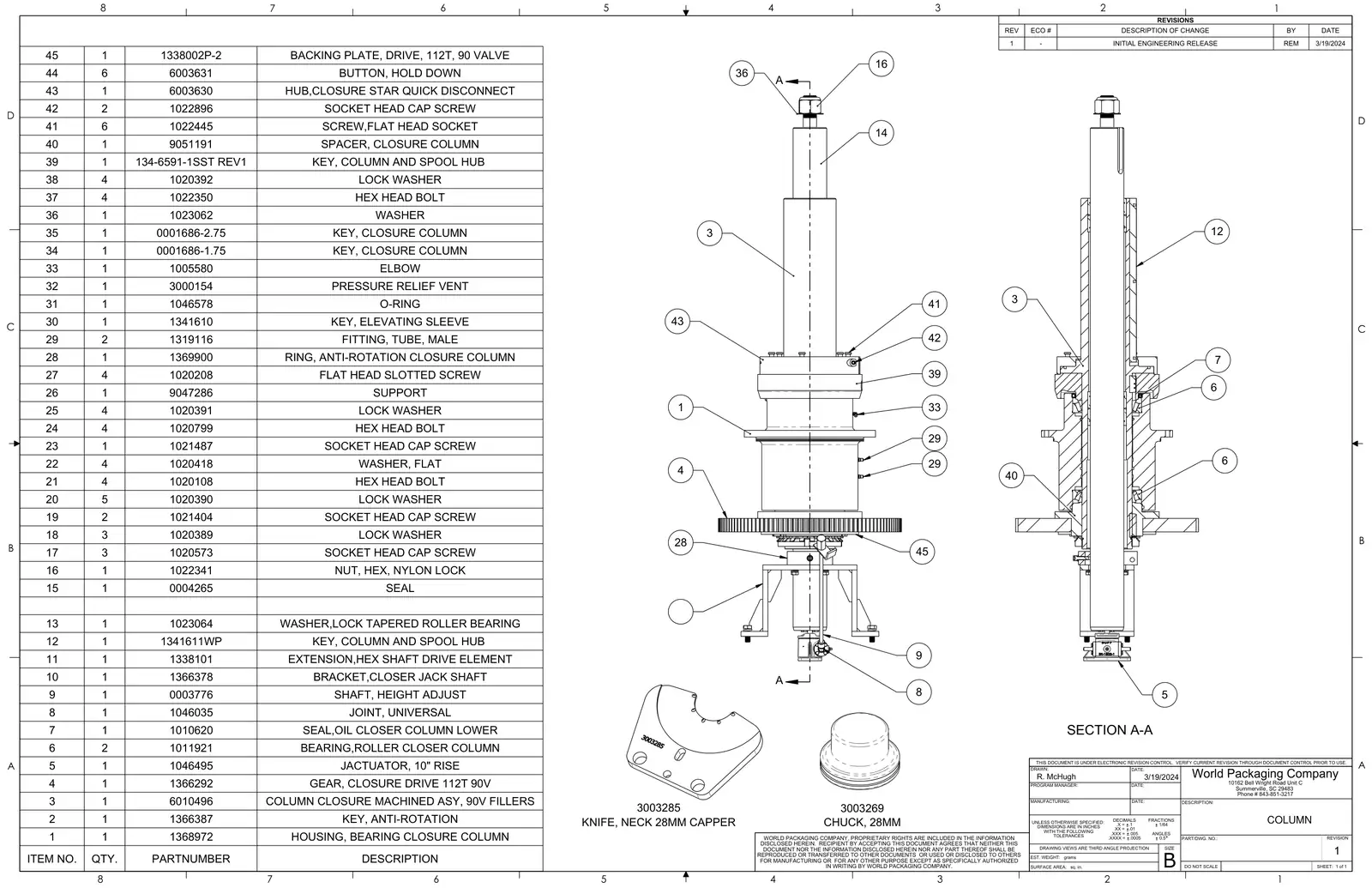

1	1368972136-8972	Housing, bearing closure column	Ask us
2	1366387136-6387	Key, anti-rotation	Request
3	6010496601-0496	Column closure machined assembly, fillers	Ask us
4	13662921366292-P	Gear, closure drive 90V	Request
6	1011921101-1921	Bearing, roller closer column	Request
7	1010620101-0620	Seal, oil closer column lower	Request
8	1046035104-6035	U-joint, bore	Request
9	0003776000-3776	Shaft, height adjust	Ask us
10	1366378136-6378	Bracket, closer jack shaft 90V filler family	Request
11	1338101133-8101	Extension, hex shaft drive element	Request
12	1341611WP	Key, column&spool hub	Request
13	1023064102-3064	Washer	Request
15	0004265000-4265	Seal	Request
16	1022341102-2341	Nut, hex nylock	Request
17	1020573102-0573	Screw, socket head cap	Request
18	1020389102-0389	Washer, lock	Request
19	1021404102-1404	Socket head cap screw	Request
20	1020390102-0390	Washer, lock	Request
21	1020108102-0108	Bolt, hex head	Request
22	1020418102-0418	Washer, flat	Request
23	1021487102-1487	Socket head cap screw	Request
24	1020799102-0799	Bolt, hex head	Request
25	1020391102-0391	Washer, lock	Request
26	9047286904-7286	Support	Ask us
27	1020208102-0208	Screw, flat head slot	Request
28	1369900136-9900	Ring, anti-rotation closure column assembly 90V filler	Request
29	1319116131-9116	Fitting, tube male br	Request
31	1046578104-6578	O-ring	Request
32	3000154300-0154	Fitting, relief pipe thread	Request
33	1005580100-5580	Elbow, compression tube	Request
36	1023062102-3062	Washer	Request
37	1022350102-2350	Bolt, hex head	Request
38	1020392102-0392	Washer, lock	Request
39	134-6591-1SST1346591-1SST	Plate, cushion closure solid	Request
40	9051191905-1191	Spacer, closure column	Request
41	1022445102-2445	Screw, flat head soc	Request
42	1022896102-2896	Screw, socket head cap	Request
43	6003630600-3630	Hub,closure star quick disconnect	Ask us
44	6003631600-3631	Button, hold down	Request
45	1338002P-2	Plate, backing drive 90V	Request

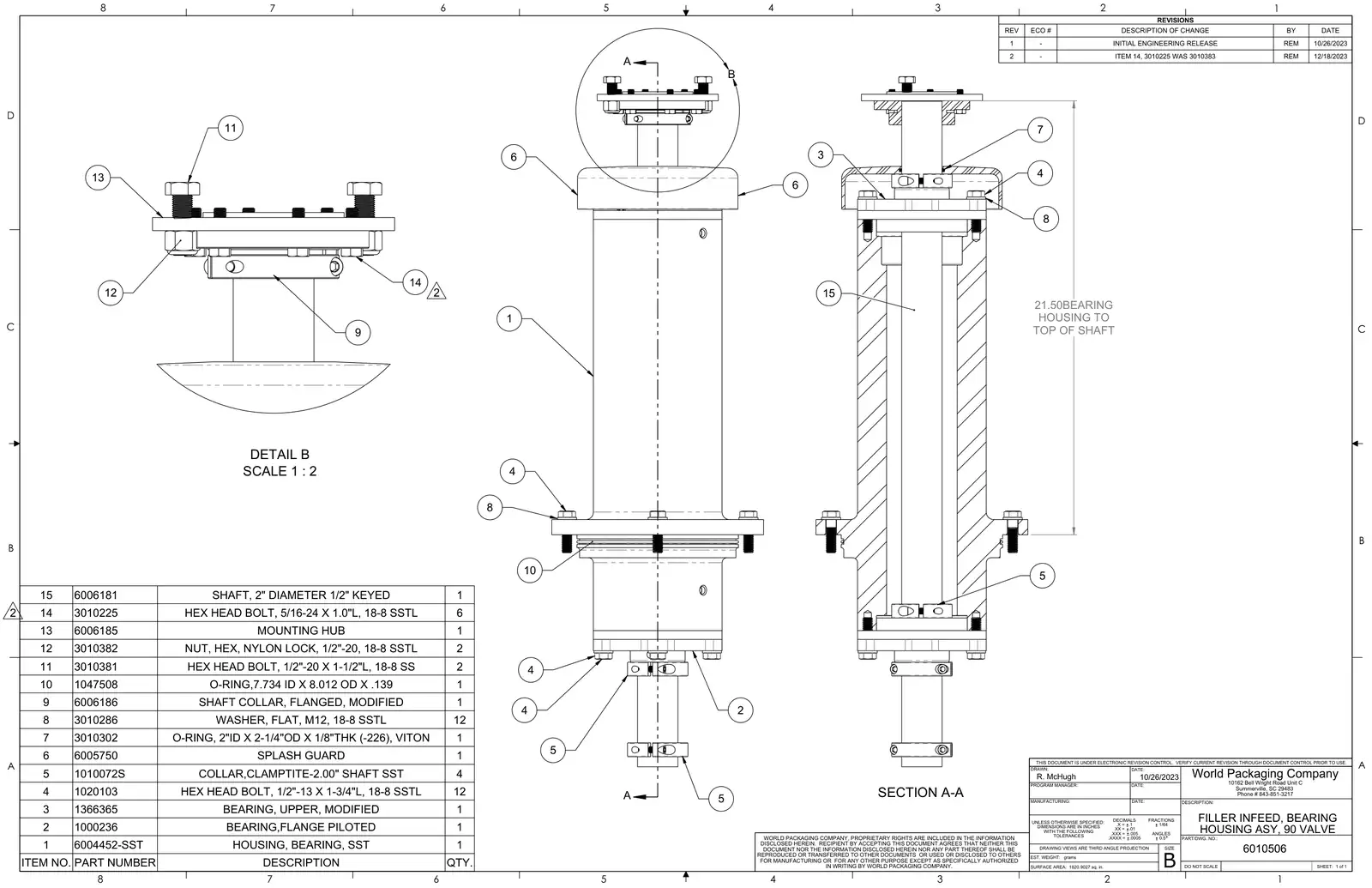

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	6004452-SST	Housing, bearing extended starshaft	Request
2	3010382301-0382	Nut, hex, nylon lock	Ask us
2	1000236100-0236	Bearing, flange piloted	Request
3	1366365136-6365	Bearing, upper	Request
4	1020103102-0103	Bolt, hex head	Request
5	1020674102-0674	Hex head bolt, x , grade 5, steel	Ask us
6	6006182600-6182	Shaft, diameter keyed	Request
7	1010072S	Collar, clamptite shaft	Request
8	6005750600-5750	Guard, splash	Request
9	3010302301-0302	O-ring	Request
10	3010286301-0286	Washer, flat	Request
11	6006186600-6186	Hub, drive, shaft collar, flanged, modified	Request
12	1047508104-7508	O-ring	Request
13	3010381301-0381	Hex head bolt, x , stainless	Ask us
15	6006185600-6185	Mounting hub	Request
16	3010383301-0383	Hex head bolt, x , stainless	Ask us

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	6004452-SST	Housing, bearing extended starshaft	Request
2	3010225301-0225	Hex head bolt	Request
2	1000236100-0236	Bearing, flange piloted	Request
3	1366365136-6365	Bearing, upper	Request
4	1020103102-0103	Bolt, hex head	Request
5	1010072S	Collar, clamptite shaft	Request
6	6005750600-5750	Guard, splash	Request
7	3010302301-0302	O-ring	Request
8	3010286301-0286	Washer, flat	Request
9	6006186600-6186	Hub, drive, shaft collar, flanged, modified	Request
10	1047508104-7508	O-ring	Request
11	3010381301-0381	Hex head bolt, x , stainless	Ask us
12	3010382301-0382	Nut, hex, nylon lock	Ask us
13	6006185600-6185	Mounting hub	Request
15	6006181600-6181	Shaft, diameter keyed	Request

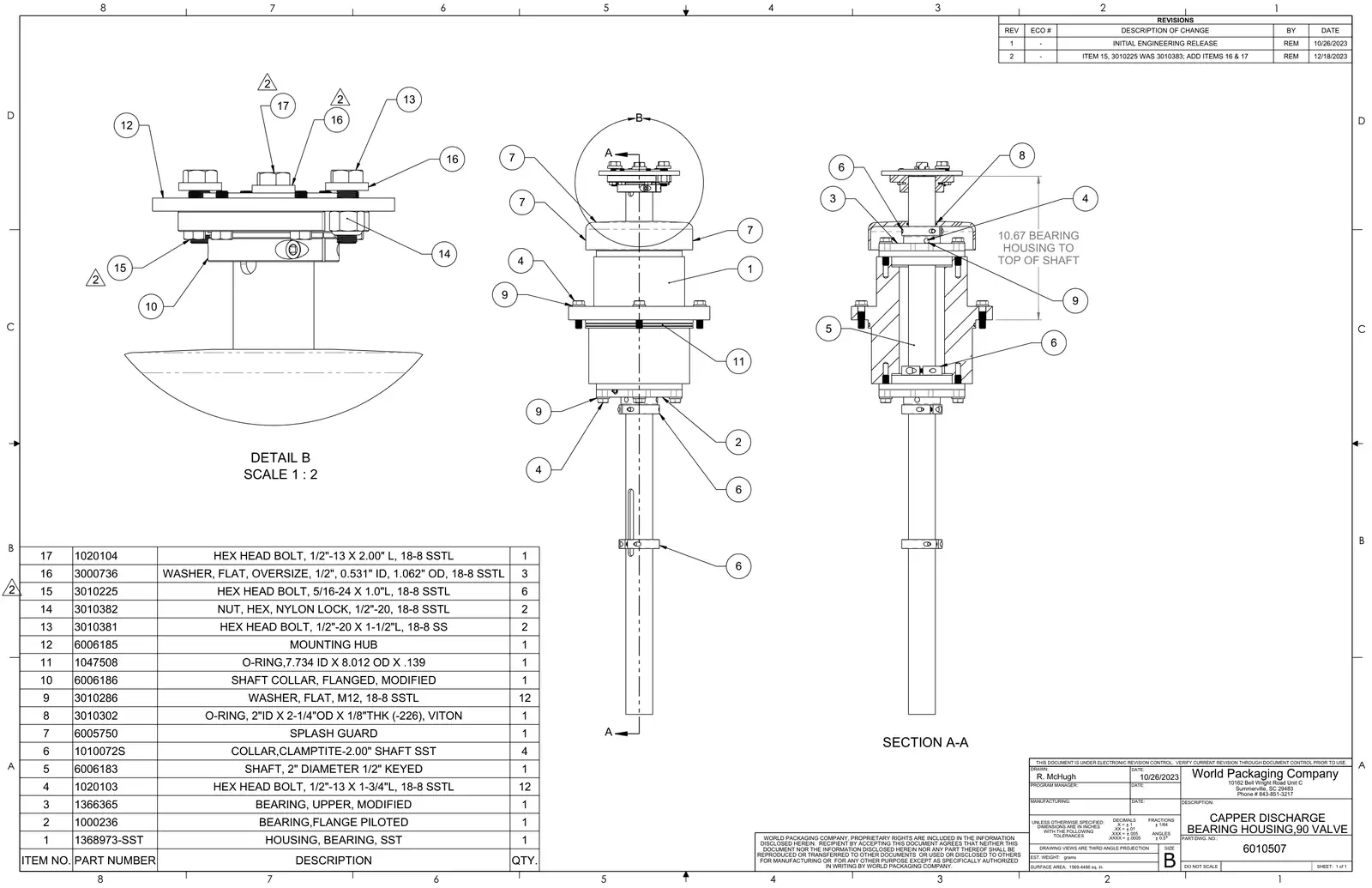

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	1368973-SST	Housing, bearing	Ask us
2	3010225301-0225	Hex head bolt	Request
2	1000236100-0236	Bearing, flange piloted	Request
3	1366365136-6365	Bearing, upper	Request
4	1020103102-0103	Bolt, hex head	Request
6	1010072S	Collar, clamptite shaft	Request
7	6005750600-5750	Guard, splash	Request
8	3010302301-0302	O-ring	Request
9	3010286301-0286	Washer, flat	Request
10	6006186600-6186	Hub, drive, shaft collar, flanged, modified	Request
11	1047508104-7508	O-ring	Request
12	6006185600-6185	Mounting hub	Request
13	3010381301-0381	Hex head bolt, x , stainless	Ask us
14	3010382301-0382	Nut, hex, nylon lock	Ask us
16	3000736300-0736	Washer, flat	Request
17	1020104102-0104	Bolt, hex head	Request

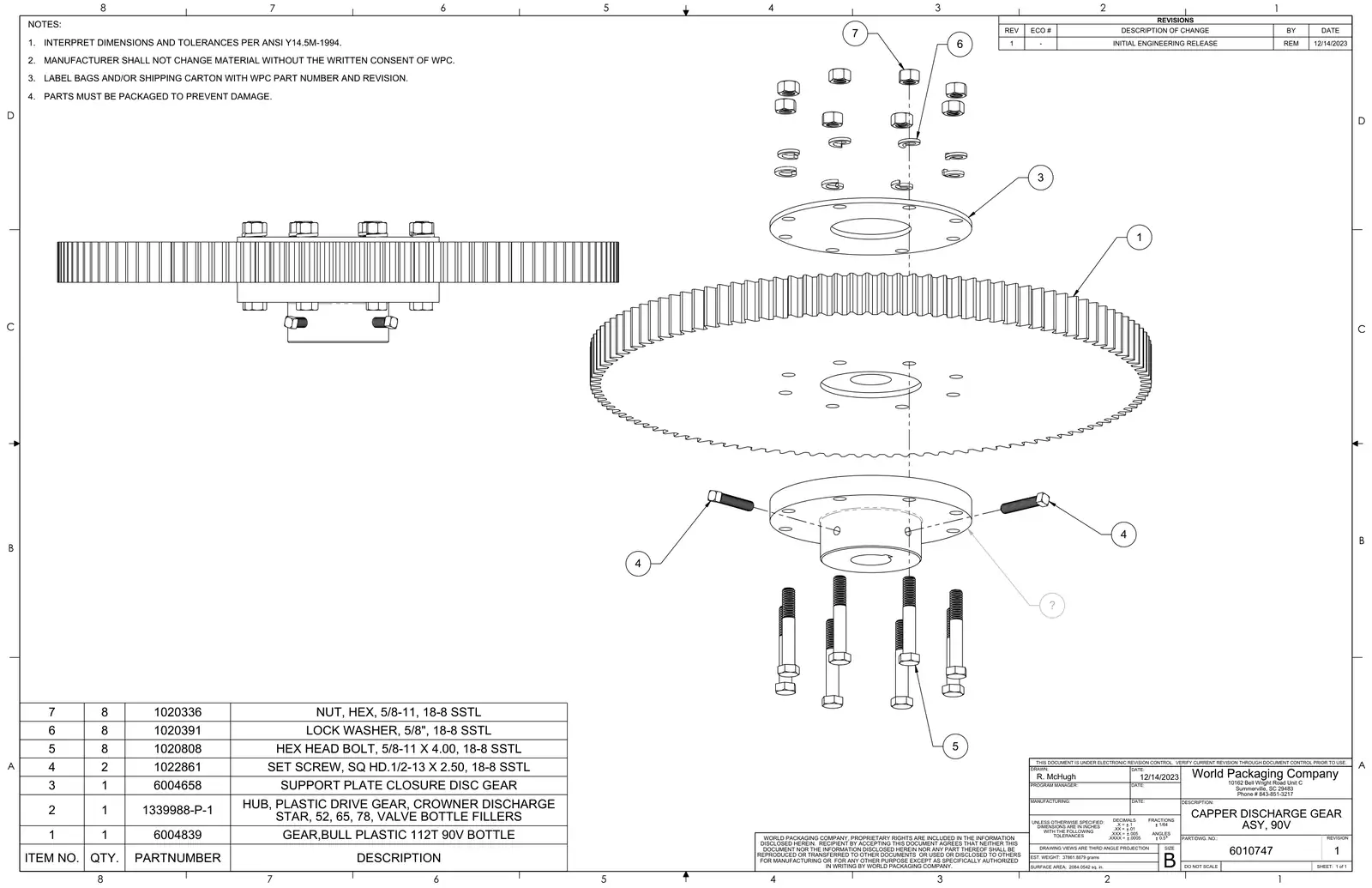

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	6004839600-4839	Gear, bull plastic 90V bottle	Request
2	1339988-P-1	Hub, driven gear closer column	Request
3	6004658600-4658	Plate, support closure disc gear	Request
5	1020808102-0808	Bolt, hex head	Request
6	1020391102-0391	Washer, lock	Request
7	1020336102-0336	Nut, hex	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	6006184600-6184	Bracker	Request
2	3003282300-3282	Flange, bolt	Request
3	6005750600-5750	Guard, splash	Request
4	3010302301-0302	O-ring	Request
5	3010009301-0009	Locknut, thread	Request
6	1020390102-0390	Washer, lock	Request
7	1020105102-0105	Bolt, hex head	Request

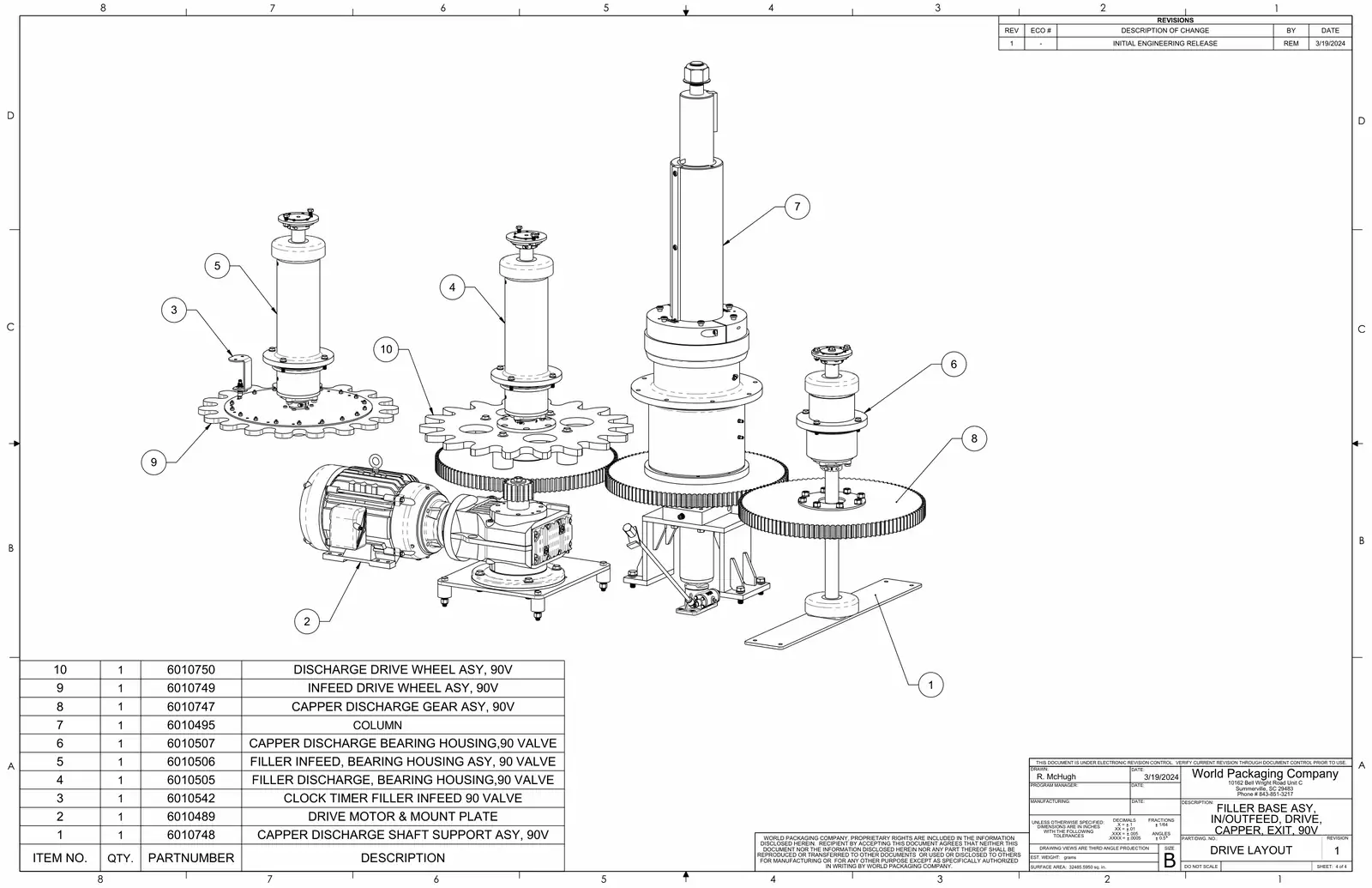

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	6006151600-6151	Drive gear, infeed star	Request
2	6005773600-5773	Plate, gear backing	Request
3	3010429301-0429	Hex head bolt, /, part. thrd	Request
4	3010428301-0428	Washer, flat	Request
5	1022393102-2393	Nut, hex nylock	Request
6	3010117301-0117	Shaft collar, set screw	Request
7	3010160301-0160	Screw, hex	Request

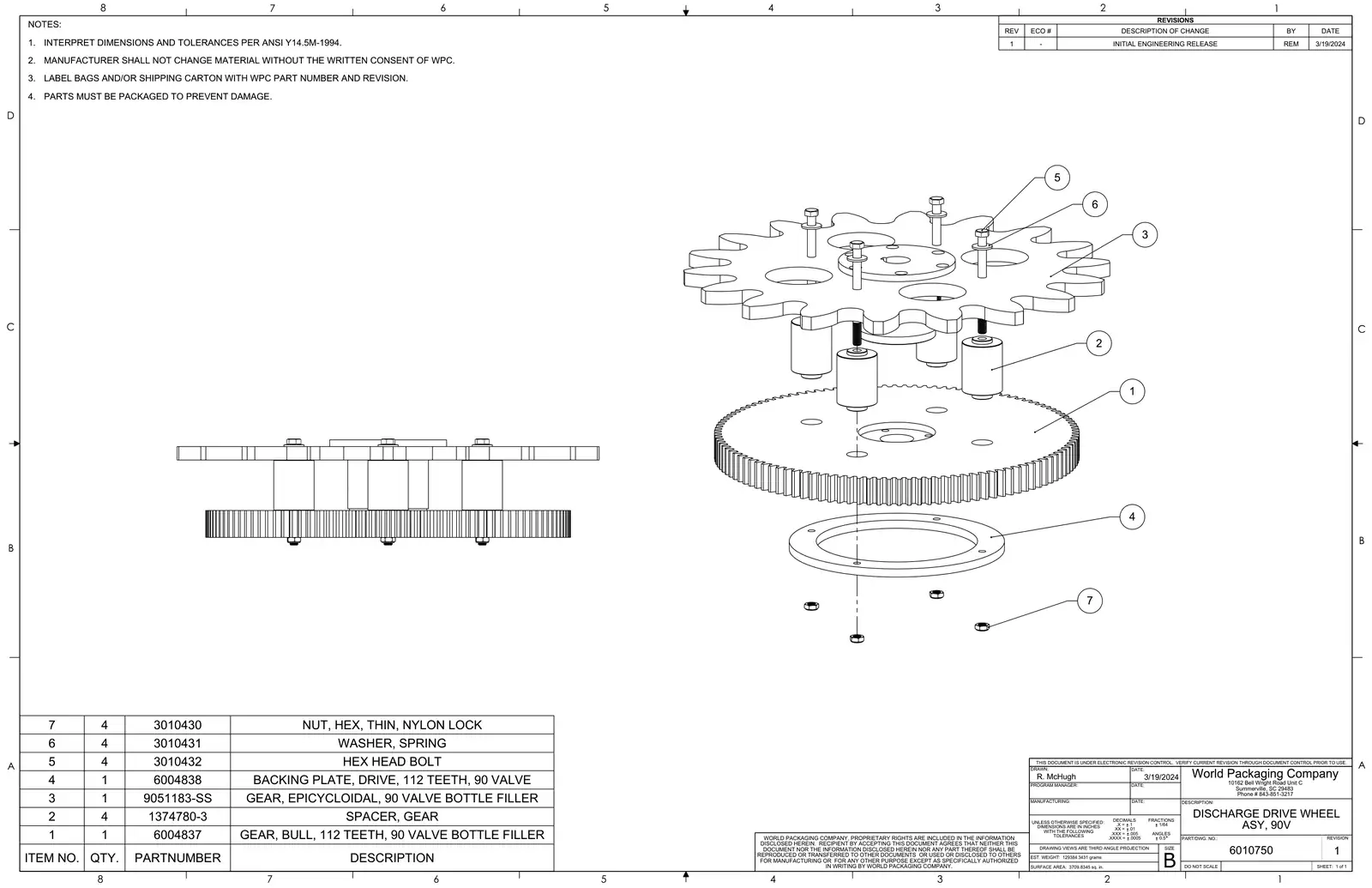

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	6004837600-4837	Gear, bull plastic 90V	Request
2	1374780-3	Spacer, gear	Request
3	9051183-SS	Gear, epicycloidal 90V concept	Request
4	6004838600-4838	Backing, plate drive	Request
6	3010431301-0431	Washer, spring	Request
7	3010430301-0430	Nut, hex, thin, nylon lock	Ask us

Parts for this assembly, from the original Meyer parts lists.

Open full size

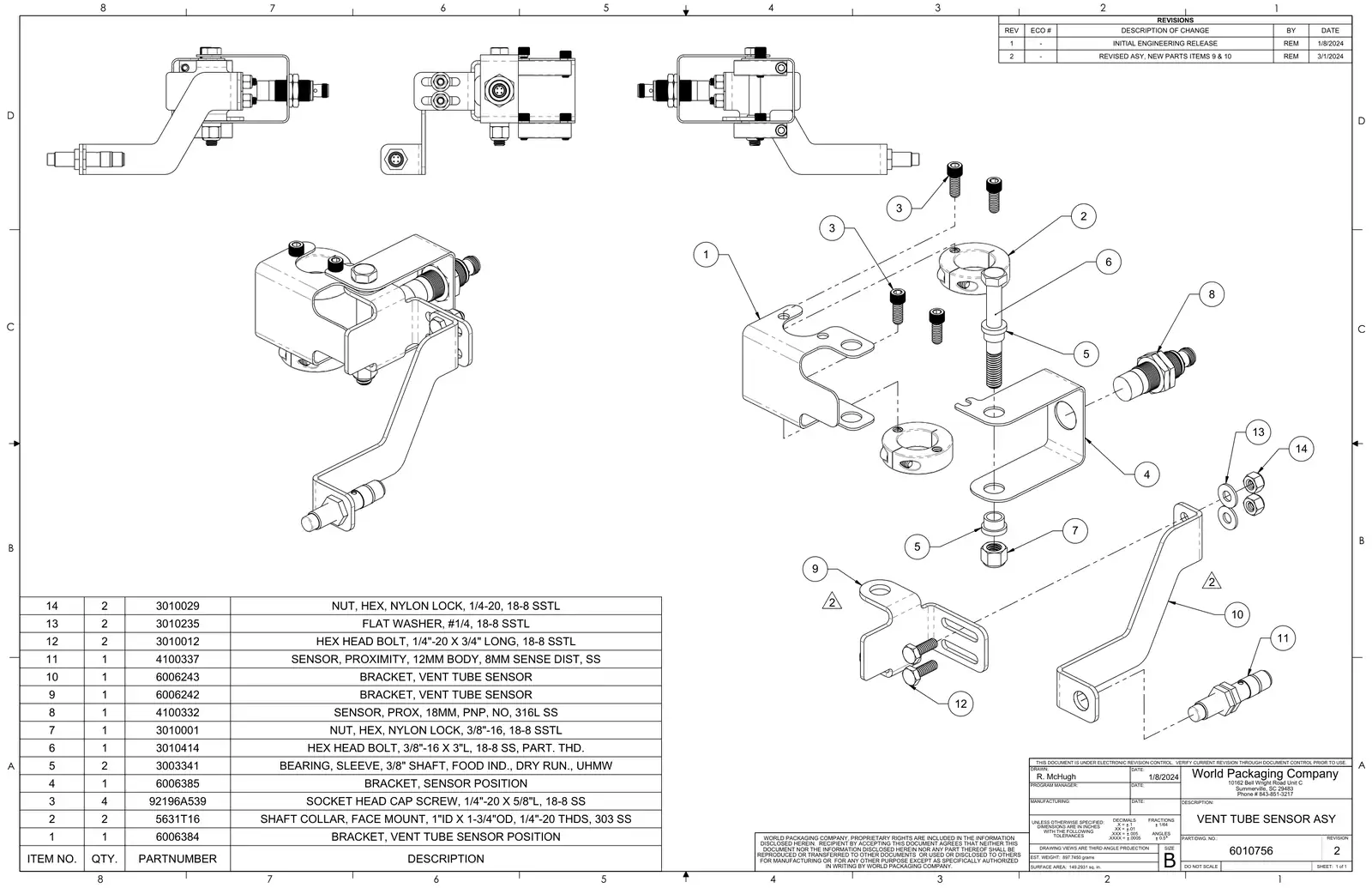

Ref	Part number	Description
1	6006384600-6384	Bracket, vent tube sensor position	Request
2	5631T16	Shaft collar, face mount, id x od, thds, 303 stainless	Ask us
3	92196A539	Socket head cap screw, x , stainless	Ask us
4	6006385600-6385	Bracket, sensor position	Request
6	3010414301-0414	Bolt, hh	Request
7	3010001301-0001	Nut, lock insert	Request
8	4100332410-0332	Sensor, proximity	Request
9	6006242600-6242	Bracket, vent tube sensor	Request
10	6006243600-6243	Bracket, vent tube sensor	Request
11	4100337410-0337	Sensor, proximity, body, sense dist	Request
12	3010012301-0012	Hex head bolt	Request
13	3010235301-0235	Washer, flat	Request
14	3010029301-0029	Locknut, insert	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	6006222600-6222	Infeed guide, 90 valve	Request
2	6006223600-6223	Threaded hex spacer	Request
3	6006225600-6225	Mounting plate	Request
4	6006218600-6218	Infeed guide, RH, 90 valve	Request
5	6006374600-6374	Infeed guide, LH, 90 valve	Request
6	6006372600-6372	Mounting plate, infeed, LH	Request
7	6006224600-6224	Threaded hex spacer	Request
8	6006219600-6219	Infeed guide, RH, 90 valve	Request
9	6006373600-6373	Top plate, infeed, LH	Request
10	6006395600-6395	Infeed guide, RH, 90 valve	Request
11	6006396600-6396	Infeed guide, LH, 90 valve	Request
12	3010284301-0284	Spring plunger, T-handle, with lock	Request
13	3010285301-0285	Nut, hex, thin	Request
14	3010286301-0286	Washer, flat	Request
15	3010287301-0287	Shoulder screw	Request
16	3010221301-0221	Nut, hex, lock	Request
17	1020089102-0089	Bolt, hex head	Request
18	1022002102-2002	Washer, flat	Request
19	1020452102-0452	Screw, set socket cup point	Request
20	1020067102-0067	Bolt, hex head	Request
22	3010029301-0029	Locknut, insert	Request
23	3010223301-0223	Hex head bolt	Request
24	6006221600-6221	Infeed guide, 90 valve	Request
25	6010772601-0772	Gate, bottle infeed, 90-18 filler	Request

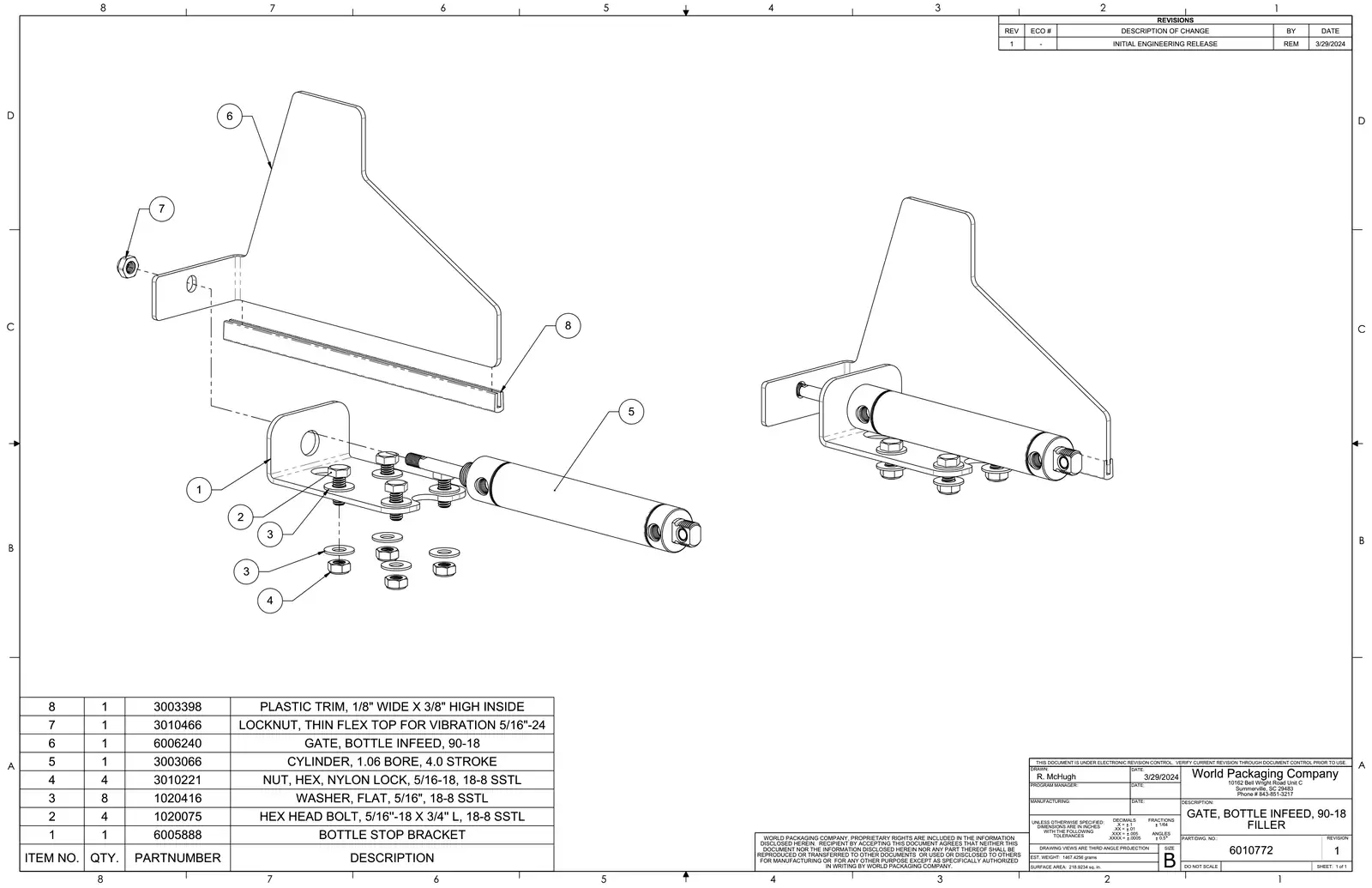

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	6005888600-5888	Bottle stop bracket	Request
2	1020075102-0075	Bolt, hex head	Request
3	1020416102-0416	Washer, flat	Request
4	3010221301-0221	Nut, hex, lock	Request
6	6006240600-6240	Gate, bottle infeed, 90-18	Request
7	3010466301-0466	Locknut, thin flex top for vibration	Request
8	3003398300-3398	Plastic trim, inside	Request

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	70522CB-WP	90 valve base	Request
2	1368289136-8289	Bearing, main hanger 90V concept	Request
4	6010211601-0211	Horizontal support, outrigger	Ask us
6	6010509601-0509	Mounting bracket	Request
7	6010213601-0213	Horizontal support, small, outrigger	Ask us
8	6010214601-0214	Vertical support, small base outrigger	Request
9	6006199600-6199	Rail, operator, 90 valve	Request
10	6010759601-0759	Mounting bracket assembly, for shaft	Ask us
11	6010537601-0537	Valve closure	Request
12	6010480601-0480	Valve, opener neutral roller	Request
13	8000024-1	Closer, valve right/left hand filler	Request

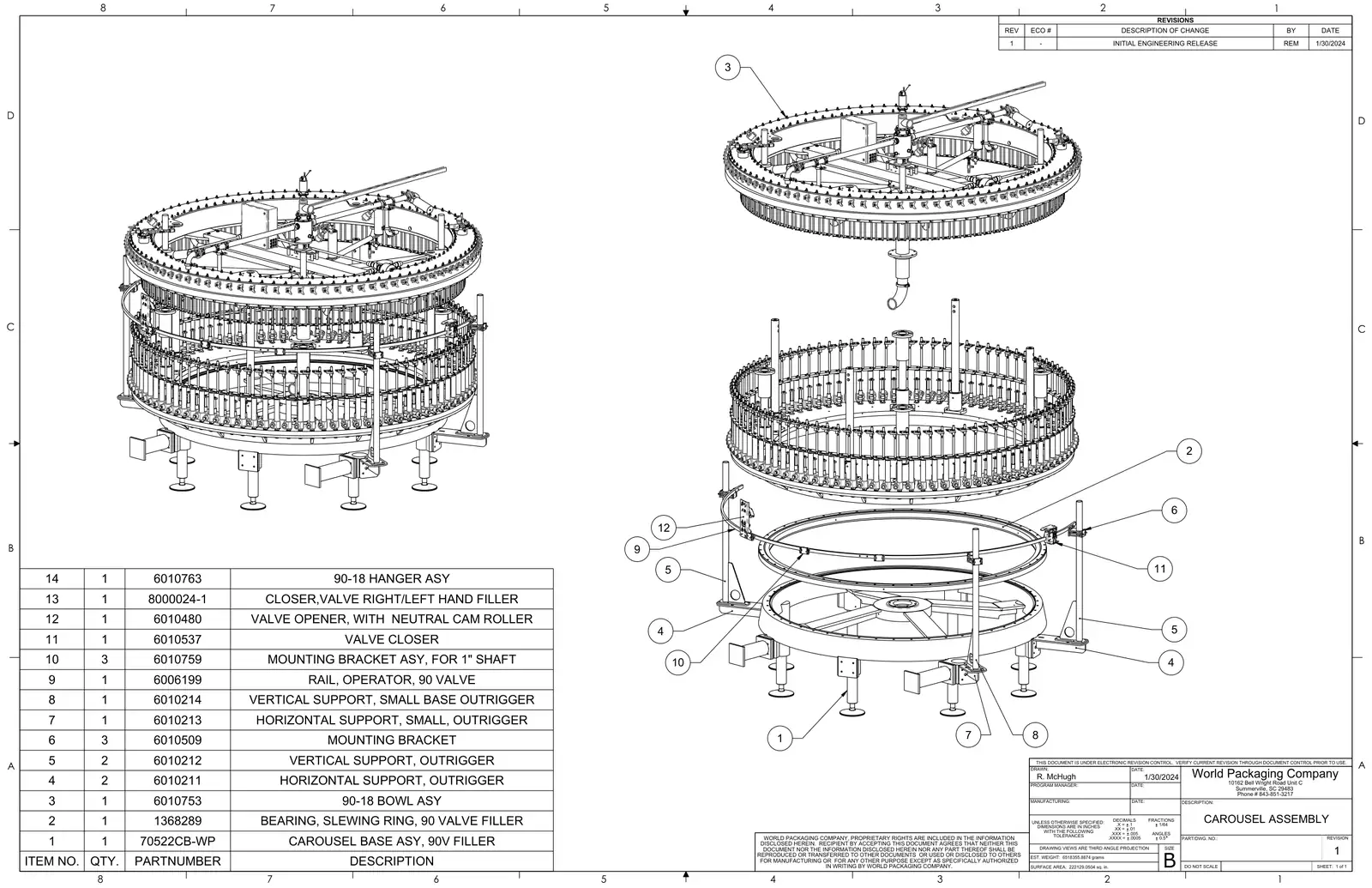

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description

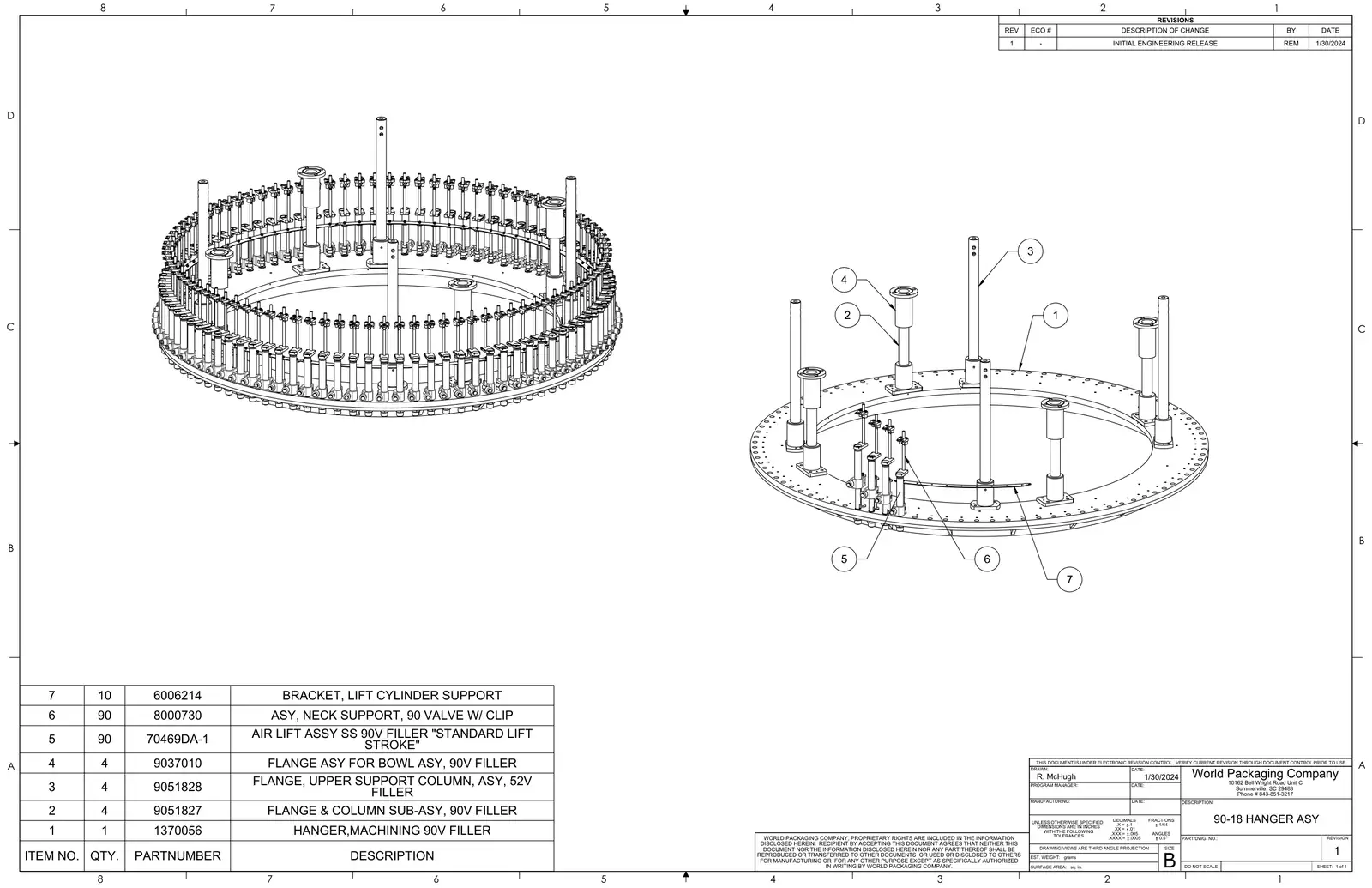

1	1370056137-0056	Hanger,machining filler	Ask us
2	9051827905-1827	Flange & column sub-assembly, 90V filler	Request
3	9051828905-1828	Flange, upper support column, assembly	Ask us
5	70469DA-1	Cylinder, airlift assembly 90V modified	Request
6	8000730800-0730	Assembly, neck support 90V with clip niles	Request
7	6006214600-6214	Bracket, lift cylinder support	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description

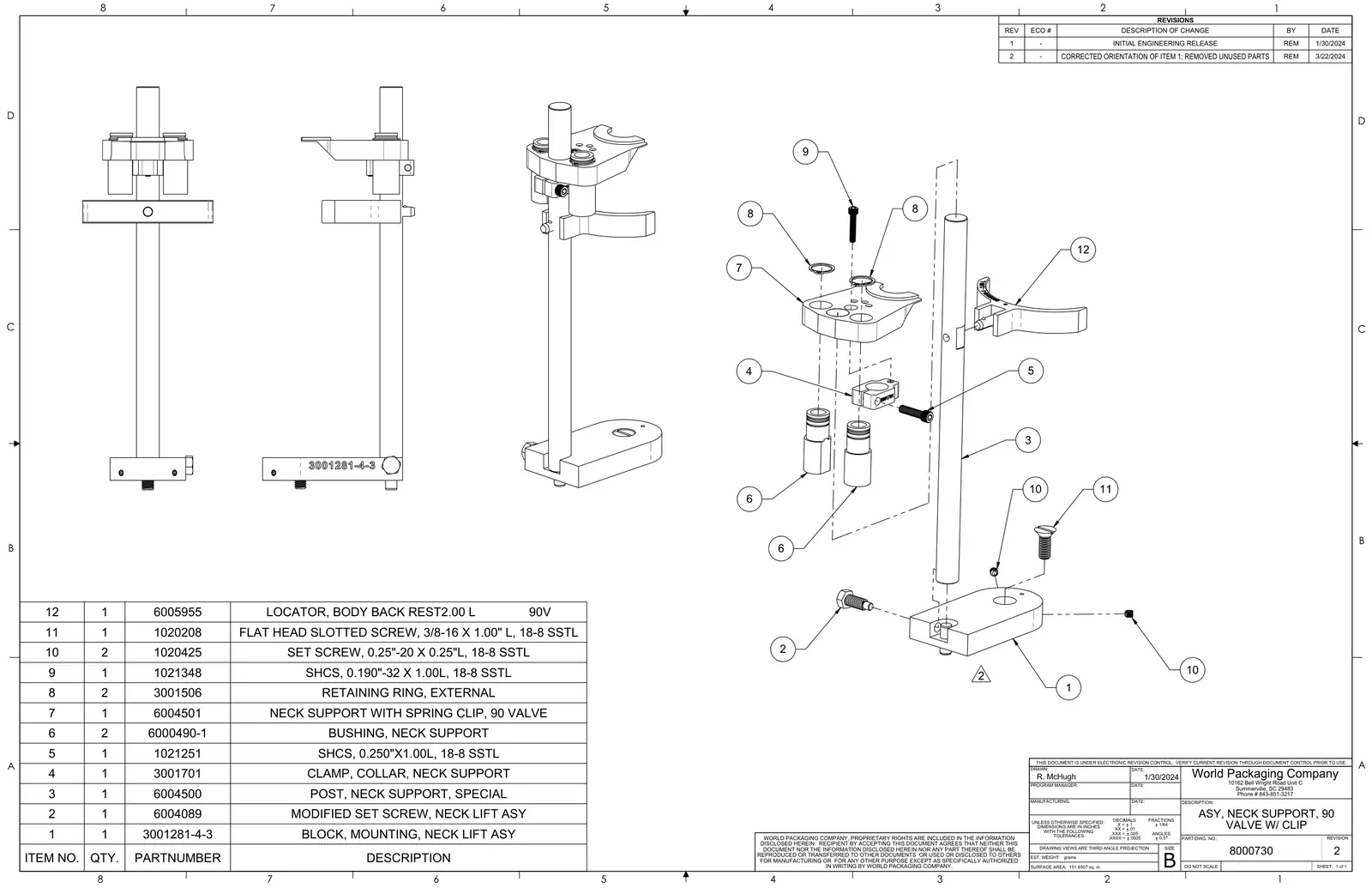

1	3001281-4-3	Base, mounting neck lift	Request
2	6004089600-4089	Screw, set modified neck lift assembly	Request
3	6004500600-4500	Post, neck support special	Request
4	3001701300-1701	Clamp, collar, neck support	Request
5	1021251102-1251	Screw, socket head cap	Request
6	6000490-1	Bushing, neck support	Ask us
7	6004501600-4501	Neck, support with spring cup	Request
8	3001506300-1506	Ring, retaining external	Request
9	1021348102-1348	Socket head cap screw, -32 x	Ask us
10	1020425102-0425	Set screw	Request
11	1020208102-0208	Screw, flat head slot	Request
12	6005955600-5955	Locator, body back rest 90V	Request

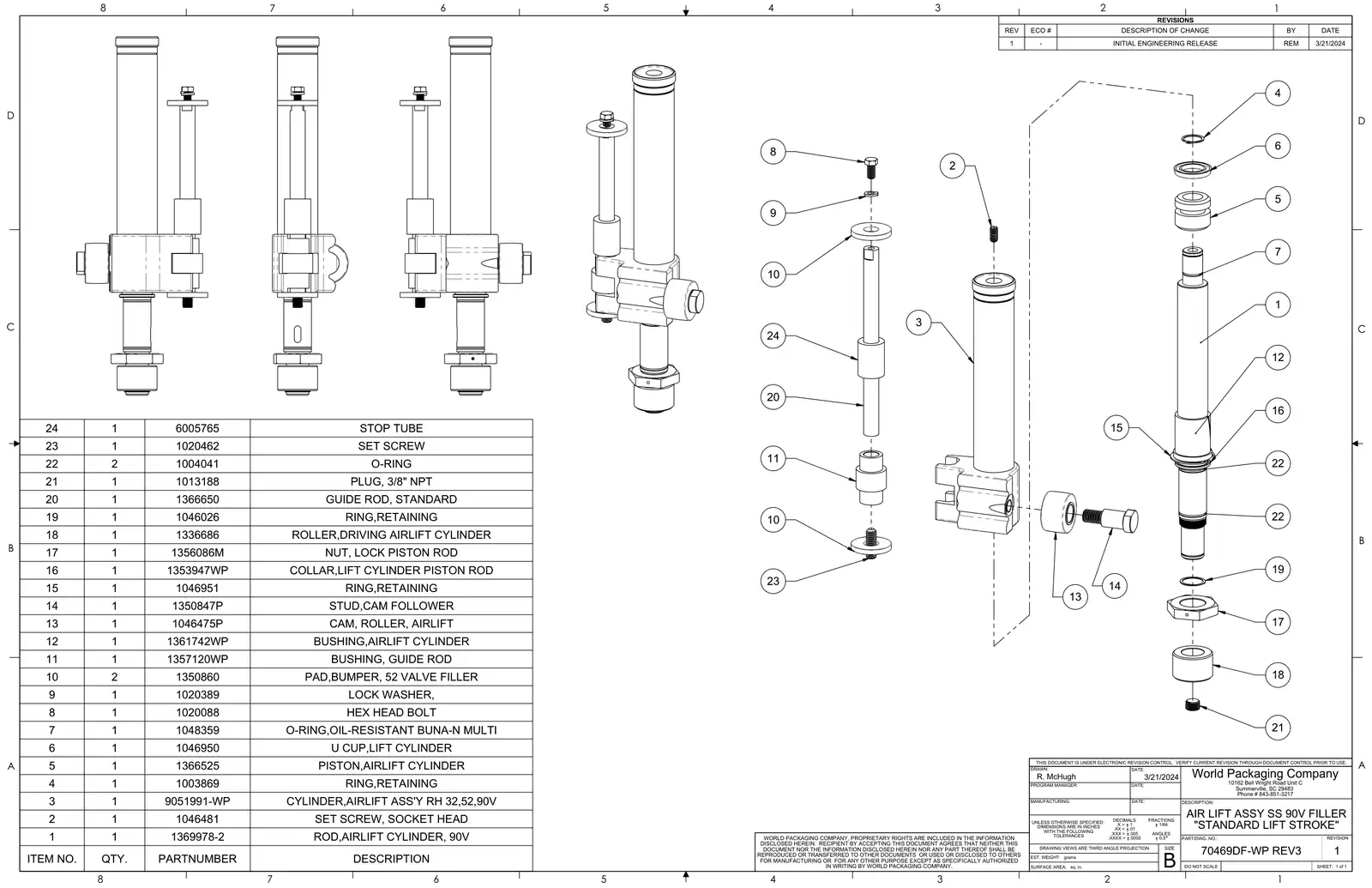

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	1369978-2	Rod, piston air lift cylinder 90V	Request
2	1046481104-6481	Screw, set socket cup point pt	Request
3	9051991-WP9051991WP	Cylinder, airlift assembly RH, 90V	Request
4	1003869100-3869	Ring, retaining	Request
6	1046950104-6950	U-cup, lift cylinder	Request
7	1048359104-8359	O-ring	Request
8	1020088102-0088	Hex head bolt	Request
9	1020389102-0389	Washer, lock	Request
10	1350860135-0860	Pad, bumper	Request
11	1357120WP	Bushing, guide rod	Ask us
12	1361742WP	Bushing,airlift cylinder	Ask us
13	1046475P	Roller, cam	Request
14	1350847P	Stud, cam follower	Request
15	1046951104-6951	Ring, retaining	Request
16	1353947WP	Collar,lift cylinder piston rod	Ask us
18	1336686133-6686	Roller, driving airlift cylinder	Request
19	1046026104-6026	Ring, retaining	Request
20	1366650136-6650	Rod, guide 90V	Request
21	1013188101-3188	Plug, pipe	Request
22	1004041100-4041	O-ring	Request
23	1020462102-0462	Screw, set socket cup point	Request
24	6005765600-5765	Tube, stop	Request

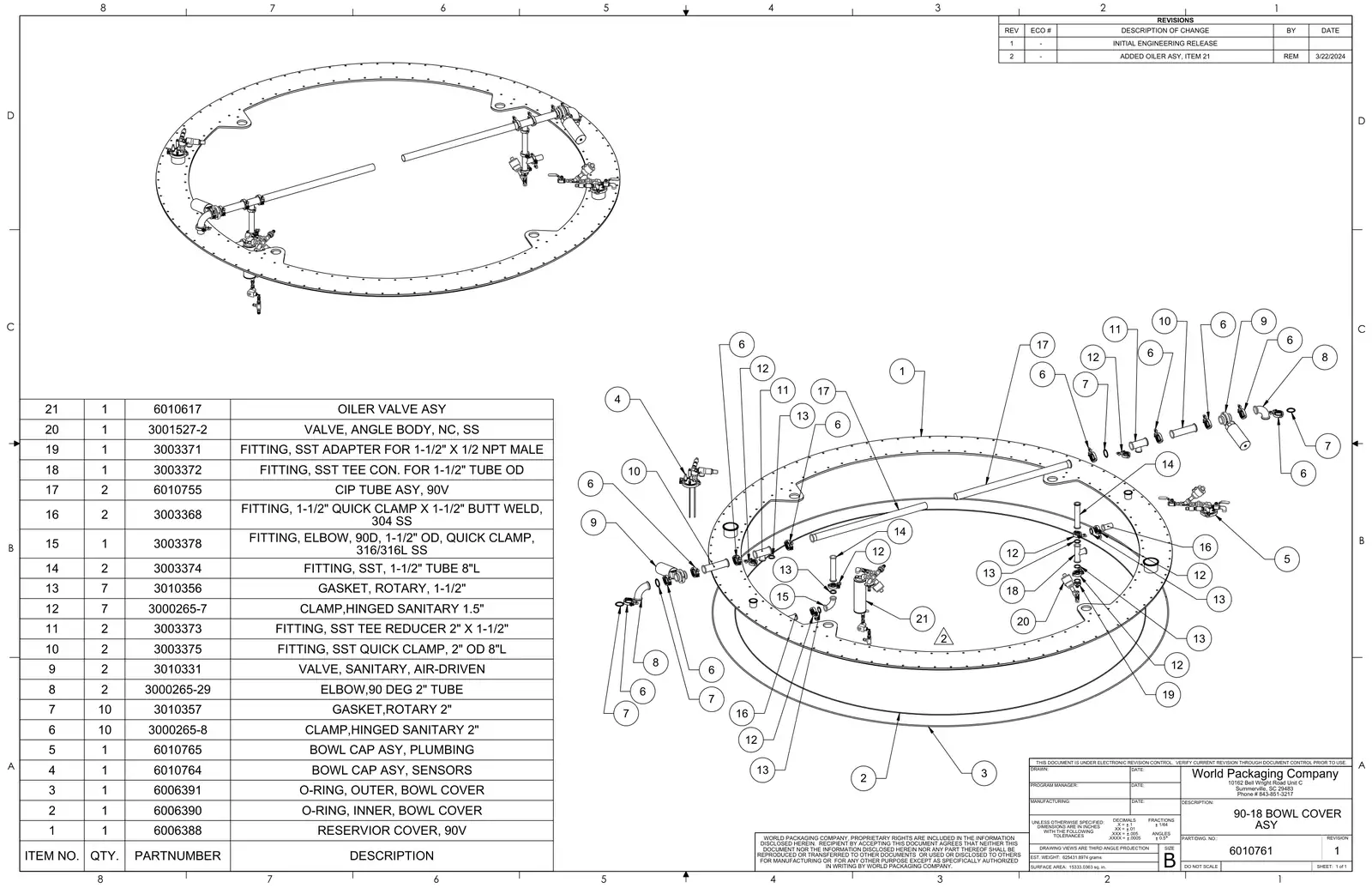

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	6006388600-6388	Reservior cover	Ask us
2	6006390600-6390	O-ring, inner, bowl cover	Ask us
3	6006391600-6391	O-ring, outer, bowl cover	Ask us
4	6010764601-0764	Bowl sensors, temperature and level	Request
5	6010765601-0765	Bowl cap assembly, plumbing	Request
6	3000265-8	Clamp, hinged sanitary	Request
7	3010357301-0357	Gasket,rotary	Ask us
8	3000265-29	Elbow, 90 deg tube	Request
9	3010331301-0331	Valve, sanitary air-driven, tube	Request
10	3003375300-3375	Tube fitting	Request
11	3003373300-3373	Fitting, tee reducer	Request
12	3000265-7	Clamp, hinged sanitary	Request
13	3010356301-0356	Gasket, rotary	Ask us
14	3003374300-3374	Fitting, for / tube	Request
15	3003378300-3378	Fitting, elbow, 90D, od, quick clamp	Ask us
16	3003368300-3368	Fitting, quick clamp x butt weld	Ask us
17	6010755601-0755	CIP tube assembly	Ask us
18	3003372300-3372	Fitting, tee con. for tube od	Ask us
19	3003371300-3371	Fitting, adapter for x npt male	Ask us
20	3001527-2	Valve, angle body	Request
21	6010617601-0617	Oiler valve assembly	Request

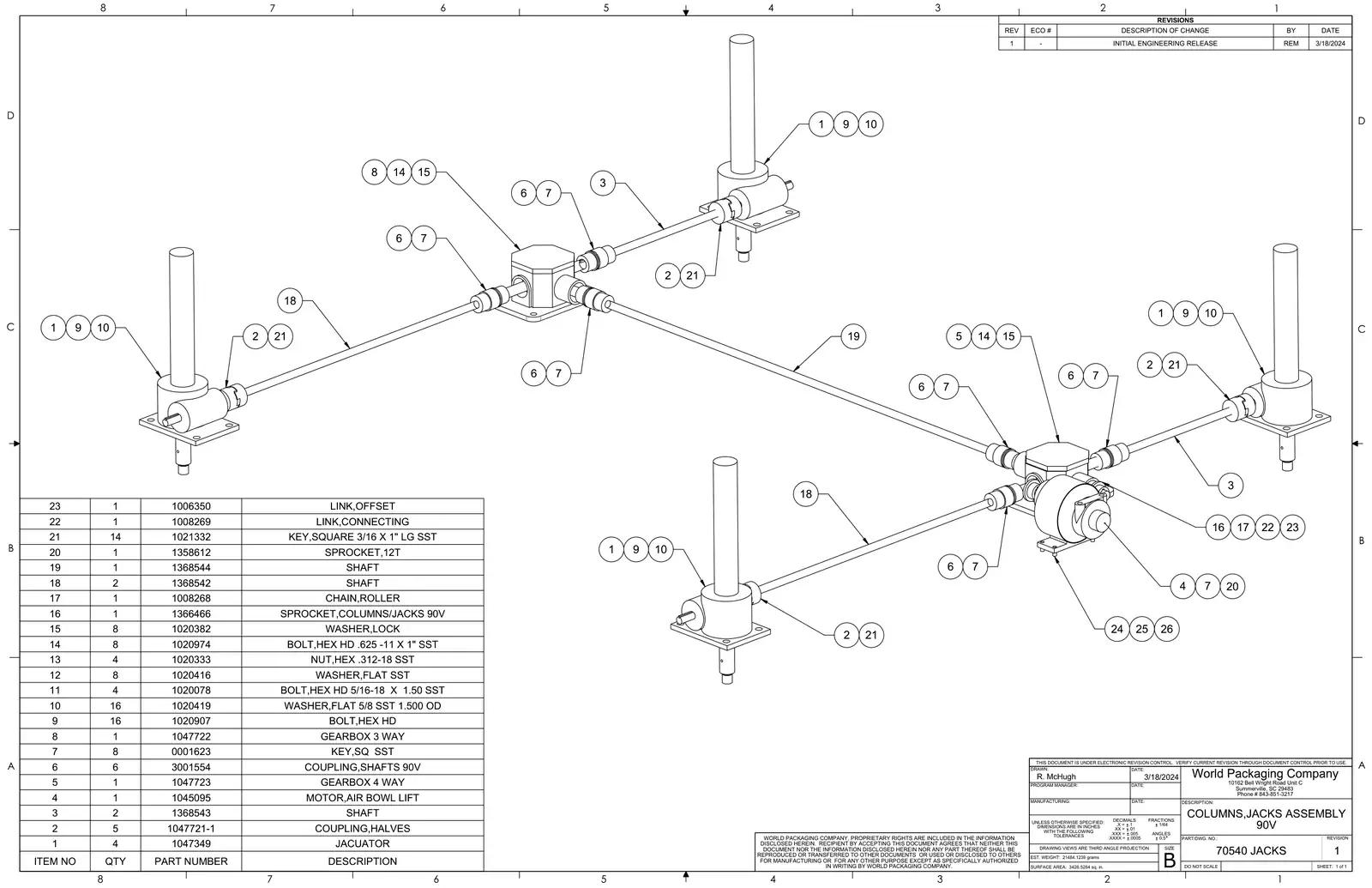

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
1	1047349104-7349	Jacuator	Request
2	1047721-1	Coupling, halves	Request
3	1368543136-8543	Shaft	Ask us
4	1045095104-5095	Motor, air bowl lift	Request
5	1047723104-7723	Gearbox 4 way	Ask us
7	0001623000-1623	Key,sq	Ask us
8	1047722104-7722	Gearbo 3 way	Request
9	1020907102-0907	Bolt,hex head	Ask us
10	1020419102-0419	Washer, flat	Request
11	1020078102-0078	Hex head bolt	Request
12	1020416102-0416	Washer, flat	Request
13	1020333102-0333	Nut, hex	Request
14	1020974102-0974	Bolt,hex head -11 x	Ask us
15	1020382102-0382	Washer, lock	Request
16	1366466136-6466	Sprocket,columns/jacks	Ask us
17	1008268100-8268	Chain, roller	Request
18	1368542136-8542	Shaft	Ask us
19	1368544136-8544	Shaft	Ask us
21	1021332102-1332	Key, square	Request
22	1008269100-8269	Link, connecting	Request
23	1006350100-6350	Link, offset	Request

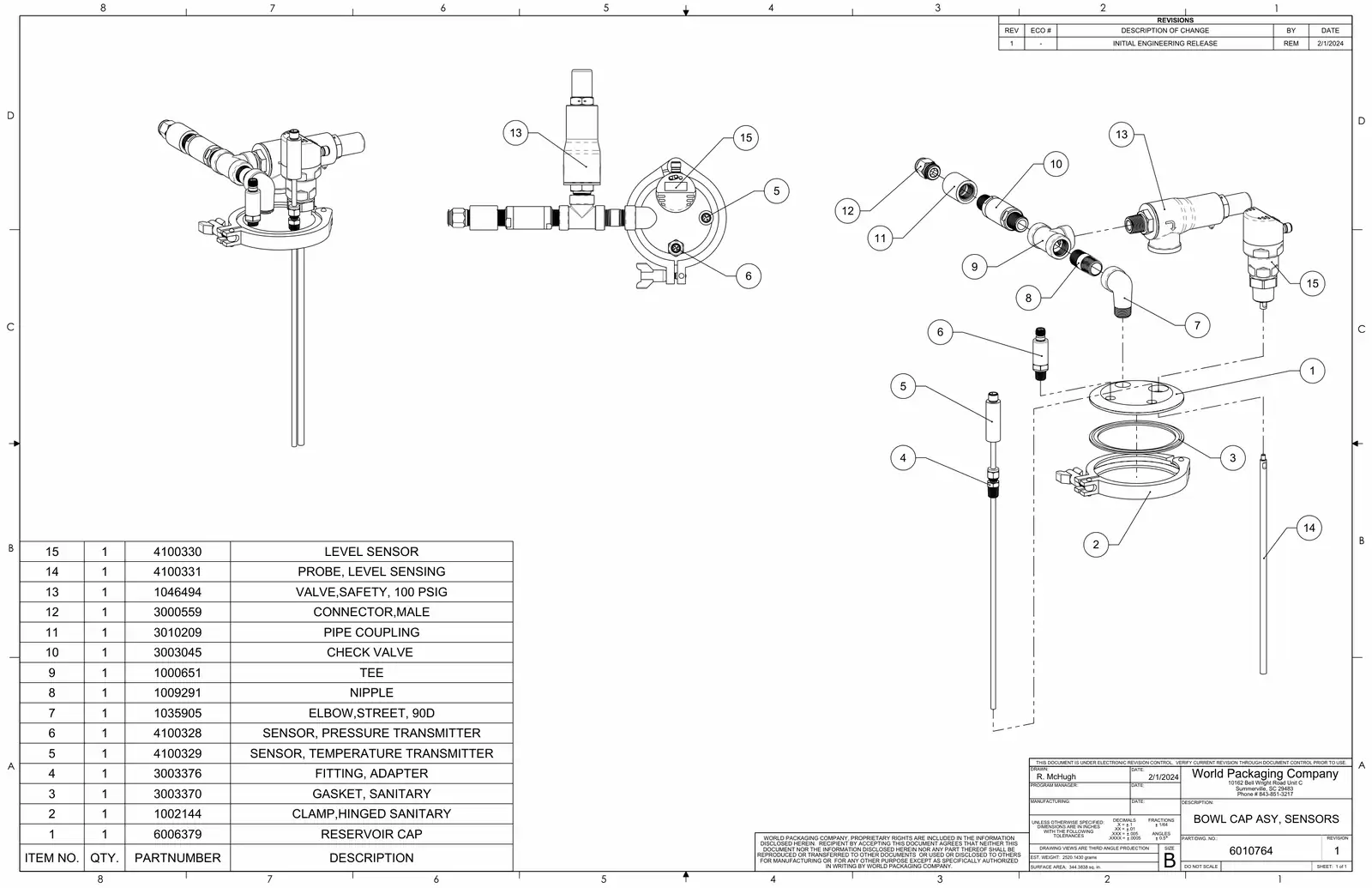

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	6006379600-6379	Reservoir cap	Request
2	1002144100-2144	Clamp, hinged sanitary	Request
3	3003370300-3370	Gasket	Request
4	3003376300-3376	Fitting, adapter for tube	Request
5	4100329410-0329	Sensor, temperature transmitter	Request
6	4100328410-0328	Sensor, pressure transmitter, male, 4-PIN	Request
7	1035905103-5905	Elbow, street	Request
8	1009291100-9291	Nipple	Request
9	1000651100-0651	Tee connector	Request
10	3003045300-3045	Valve, check	Request
11	3010209301-0209	Fitting	Request
12	3000559300-0559	Connector	Request
13	1046494104-6494	Valve, safety	Request
14	4100331410-0331	Probe, level sensing	Request

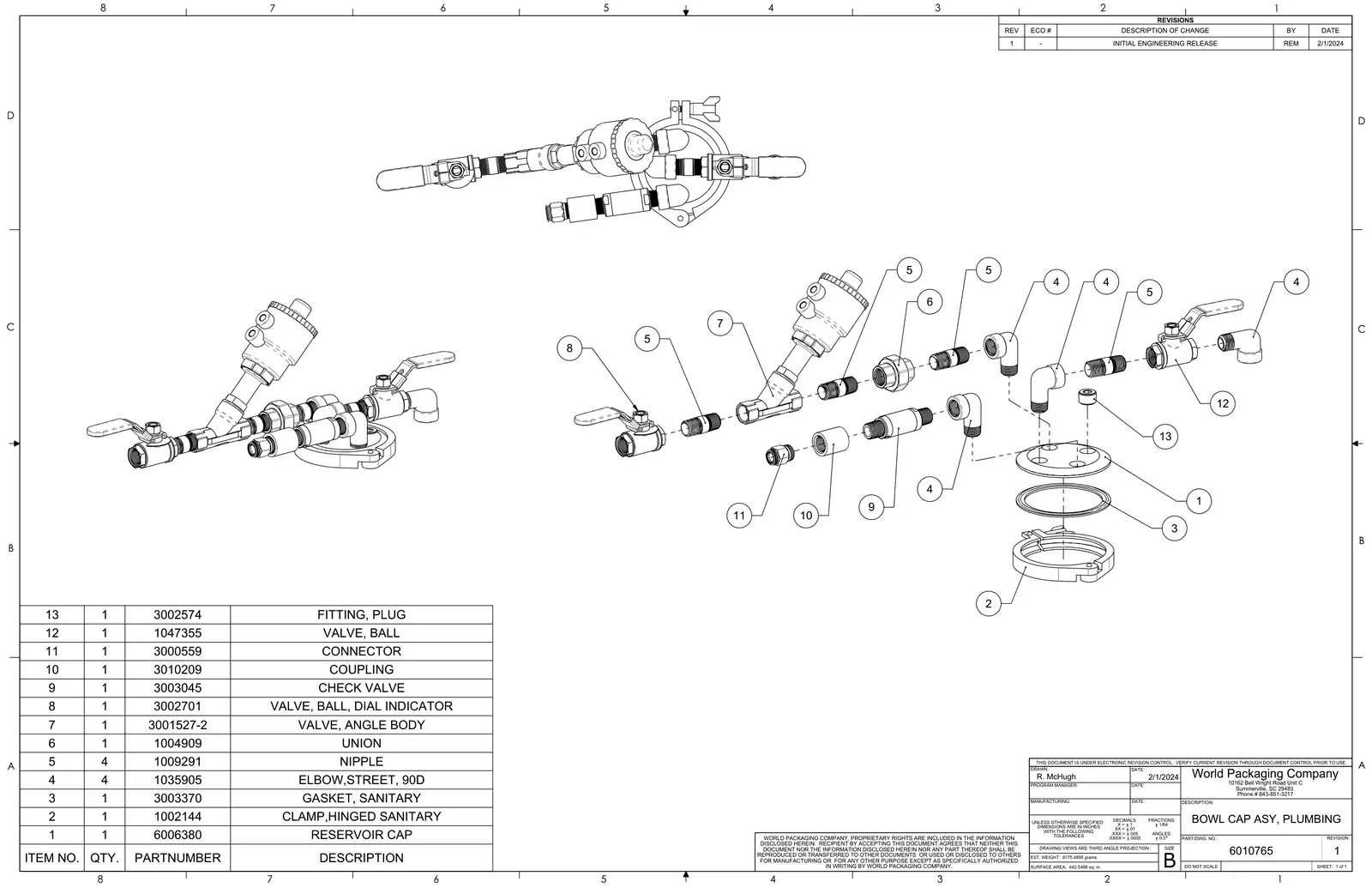

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	6006380600-6380	Reservoir cap	Request
2	1002144100-2144	Clamp, hinged sanitary	Request
3	3003370300-3370	Gasket	Request
4	1035905103-5905	Elbow, street	Request
6	1004909100-4909	Union	Request
7	3001527-2	Valve, angle body	Request
8	3002701300-2701	Valve, ball, with gauge	Request
9	3003045300-3045	Valve, check	Request
10	3010209301-0209	Fitting	Request
11	3000559300-0559	Connector	Request
12	1047355104-7355	Valve, ball	Request
13	3002574300-2574	Fitting, plug, hex drive	Request

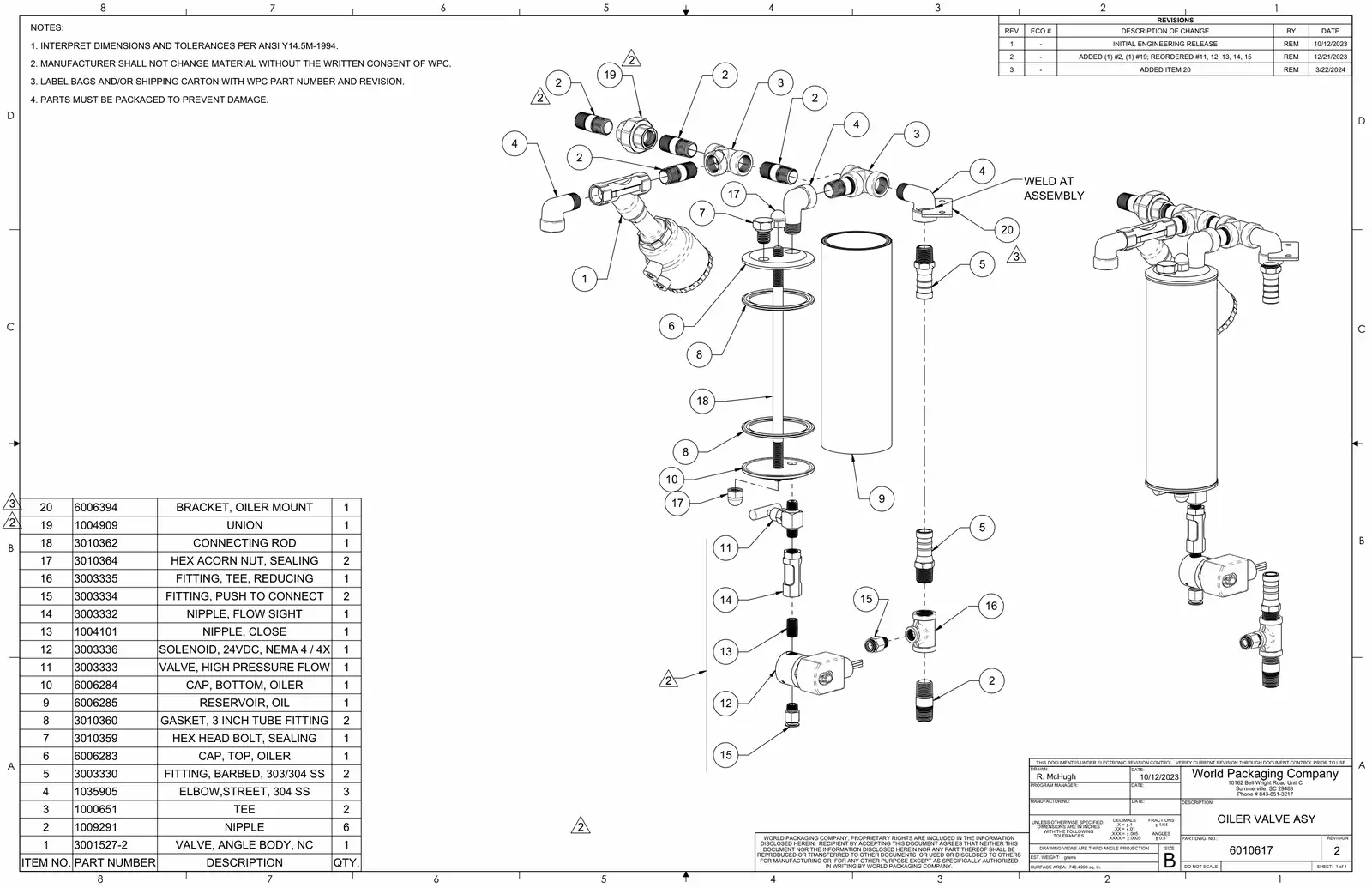

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	3001527-2	Valve, angle body	Request
2	1004909100-4909	Union	Request
2	1009291100-9291	Nipple	Request
3	1000651100-0651	Tee connector	Request
4	1035905103-5905	Elbow, street	Request
5	3003330300-3330	Fitting, barbed, tube	Request
6	6006283600-6283	Cap, solid top, tube, oiler	Request
7	3010359301-0359	Hex head bolt, sealing	Request
8	3010360301-0360	Gasket, tube fitting	Request
9	6006285600-6285	Reservoir, oil	Request
10	6006284600-6284	Cap, solid bottom, tube, oiler	Request
11	3003333300-3333	Valve, high pressure flow	Request
12	3003336300-3336	Solenoid	Request
13	1004101100-4101	Nipple, close sch	Request
14	3003332300-3332	Nipple, flow sight	Request
15	3003334300-3334	Fitting, push to connect	Request
16	3003335300-3335	Fitting, tee, reducing	Request
17	3010364301-0364	Hex acorn nut, sealing	Request
18	3010362301-0362	Connecting rod	Request
20	6006394600-6394	Bracket, oiler mount	Request

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description

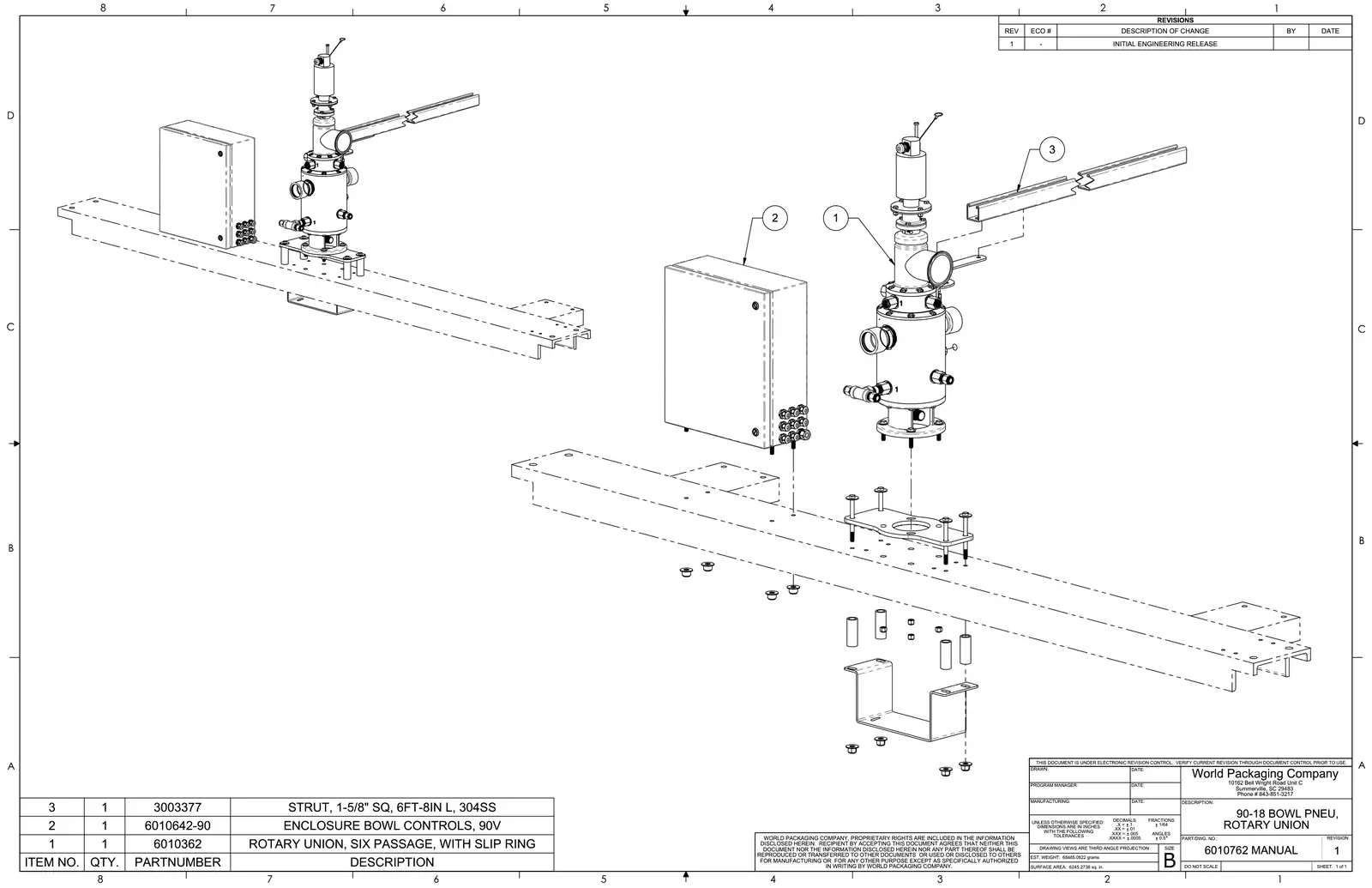

1	6010362601-0362	Rotary union, pass. with slip ring	Request
2	6010642-90	Enclosure bowl controls, 90V	Request
3	3003377300-3377	Strut, sq, 6FT- , 304SS	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description

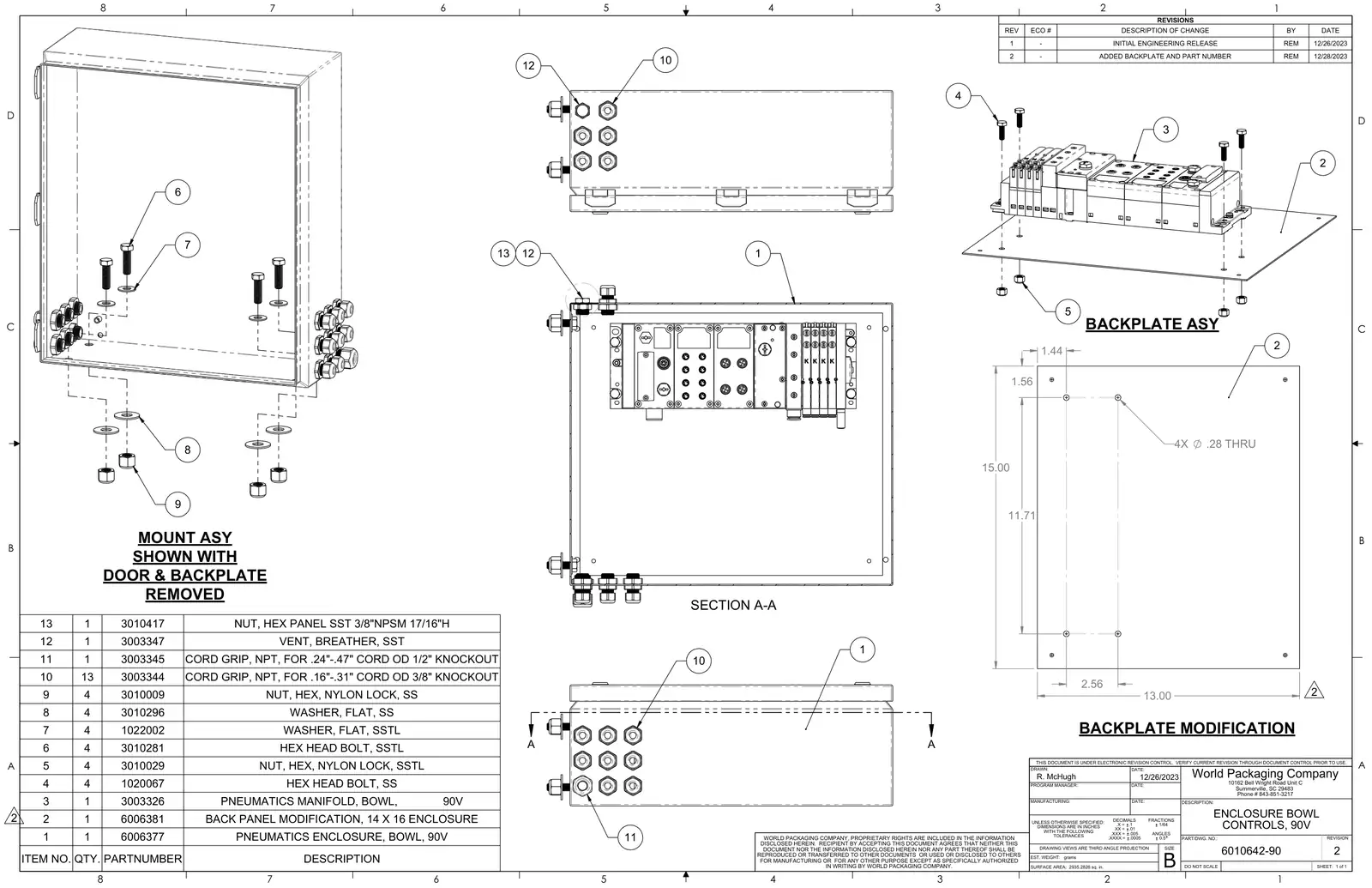

1	6006377600-6377	Pneumatics enclosure	Request
2	6006381600-6381	Back panel modification	Request
3	3003326300-3326	Pneumatics manifold, bowl, 90V	Request
4	1020067102-0067	Bolt, hex head	Request
6	3010281301-0281	Hex head bolt	Request
7	1022002102-2002	Washer, flat	Request
8	3010296301-0296	Washer, flat	Request
9	3010009301-0009	Locknut, thread	Request
10	3003344300-3344	Cord grip, for cord	Request
11	3003345300-3345	Cord grip	Request
12	3003347300-3347	Vent, breather, male	Request
13	3010417301-0417	Nut, hex panel npsm	Request

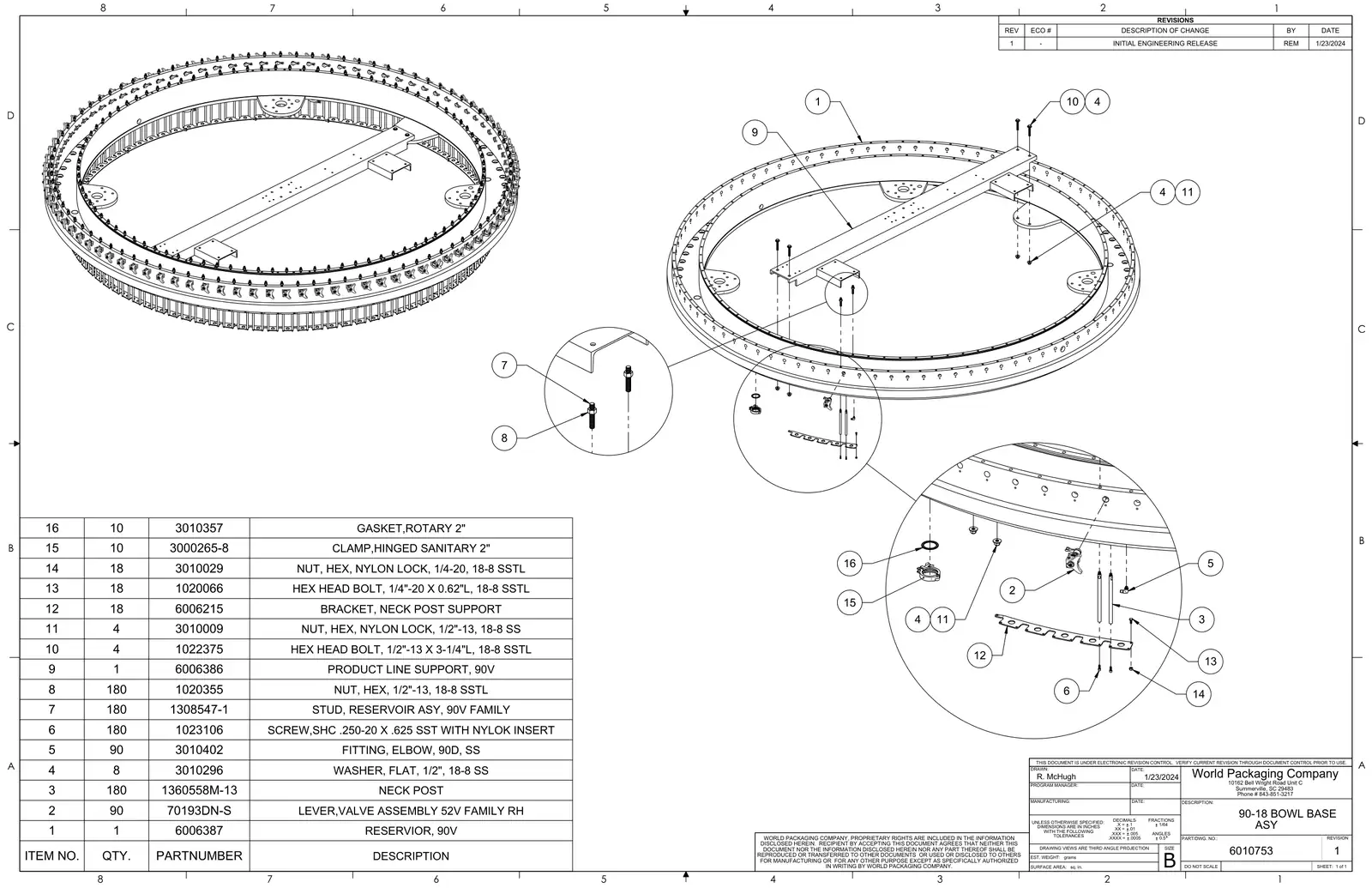

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	6006387600-6387	Reservior	Ask us
2	70193DN-S	Lever, valve assembly 52V family	Request
4	3010296301-0296	Washer, flat	Request
5	3010402301-0402	Fitting, elbow, tube, push	Request
6	1023106102-3106	Screw, socket head cap	Request
7	1308547-1	Stud, reservoir assembly 90V	Request
8	1020355102-0355	Nut, hex	Ask us
9	6006386600-6386	Product line support	Ask us
10	1022375102-2375	Bolt, hex head	Request
11	3010009301-0009	Locknut, thread	Request
12	6006215600-6215	Bracket, neck post support	Request
13	1020066102-0066	Bolt, hex head	Request
14	3010029301-0029	Locknut, insert	Request
16	3010357301-0357	Gasket,rotary	Ask us

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description

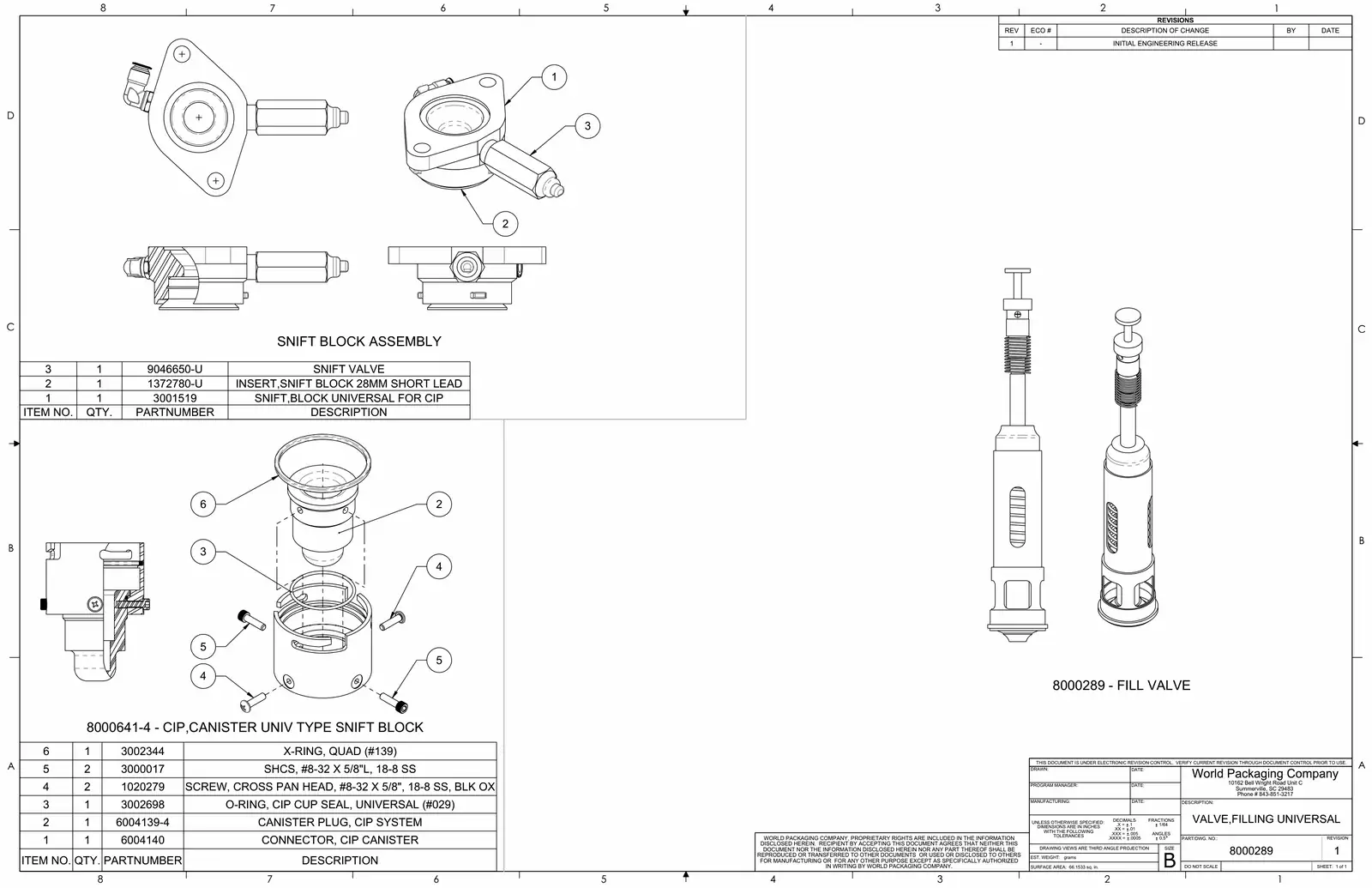

1	3001519300-1519	Snift, block for CIP	Request
1	6004140600-4140	Connector, CIP canister	Ask us
2	1372780-U	Insert, snift block short lead	Request
2	6004139-4	Cannister, plug . .. system	Request
3	9046650-U	Kit, valve rebuild	Request
3	3002698300-2698	O-ring, CIP cup seal	Request
4	1020279102-0279	Screw, pan head phillips mach	Request
6	3002344300-2344	Ring, quad	Request

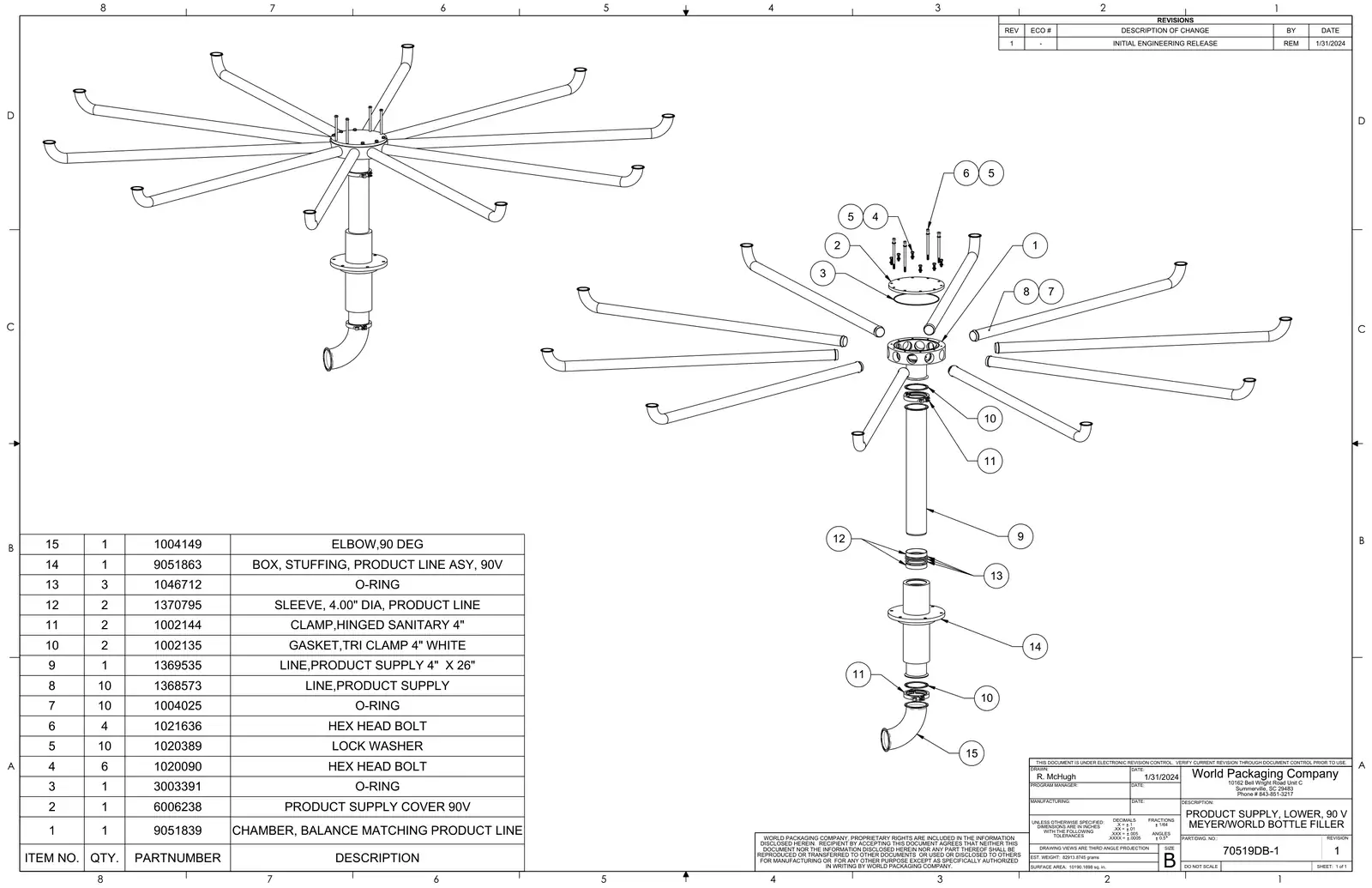

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	9051839905-1839	Chamber, balance matching product line	Ask us
2	6006238600-6238	Product supply cover, Meyer 90V	Request
3	3003391300-3391	O-ring	Ask us
5	1020389102-0389	Washer, lock	Request
6	1021636102-1636	Hex head bolt	Ask us
7	1004025100-4025	O-ring	Request
8	1368573136-8573	Line,product supply	Ask us
9	1369535136-9535	Line, product supply	Request
10	1002135100-2135	Gasket, tri clamp	Request
11	1002144100-2144	Clamp, hinged sanitary	Request
12	1370795137-0795	Sleeve, product line	Request
13	1046712104-6712	O-ring, product inlet	Request
14	9051863905-1863	Box, stuffing, product line assembly	Ask us
