Meyer 65-15 filler parts manual

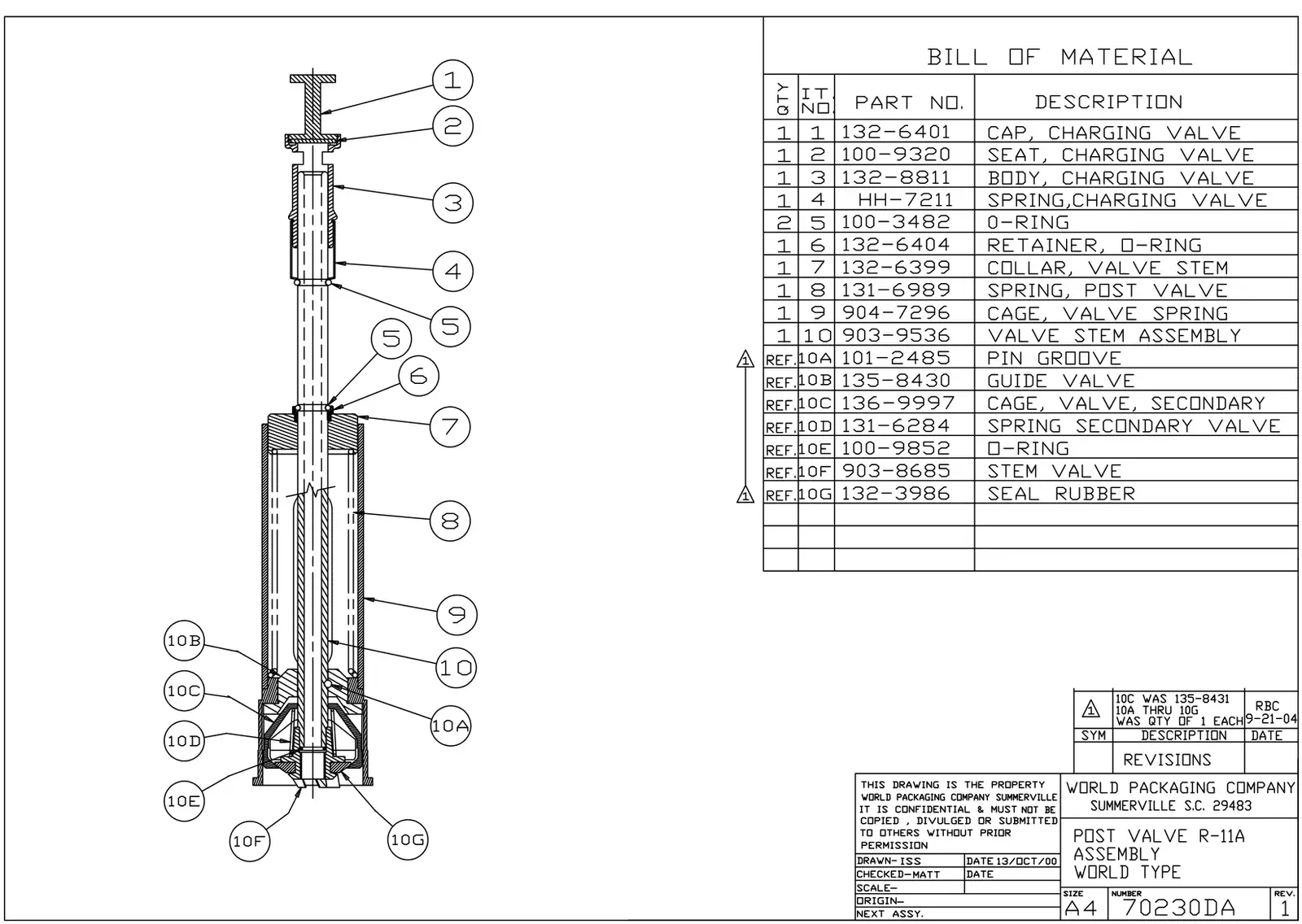

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
1	132-64011326401	Cap, charging valve	Request
2	100-93201009320	Seal, charging cap	Request
3	132-88111328811	Body, charging valve	Request
5	100-34821003482	O-ring	Request
7	132-63991326399	Collar, guide	Request
8	137-36401373640	Spring, valve cage	Request
9	904-75999047599	Cage, spring filling valve R-20/R-21	Request
10	904-78679047867-1	Stem, valve assembly R-20 csd and non	Request

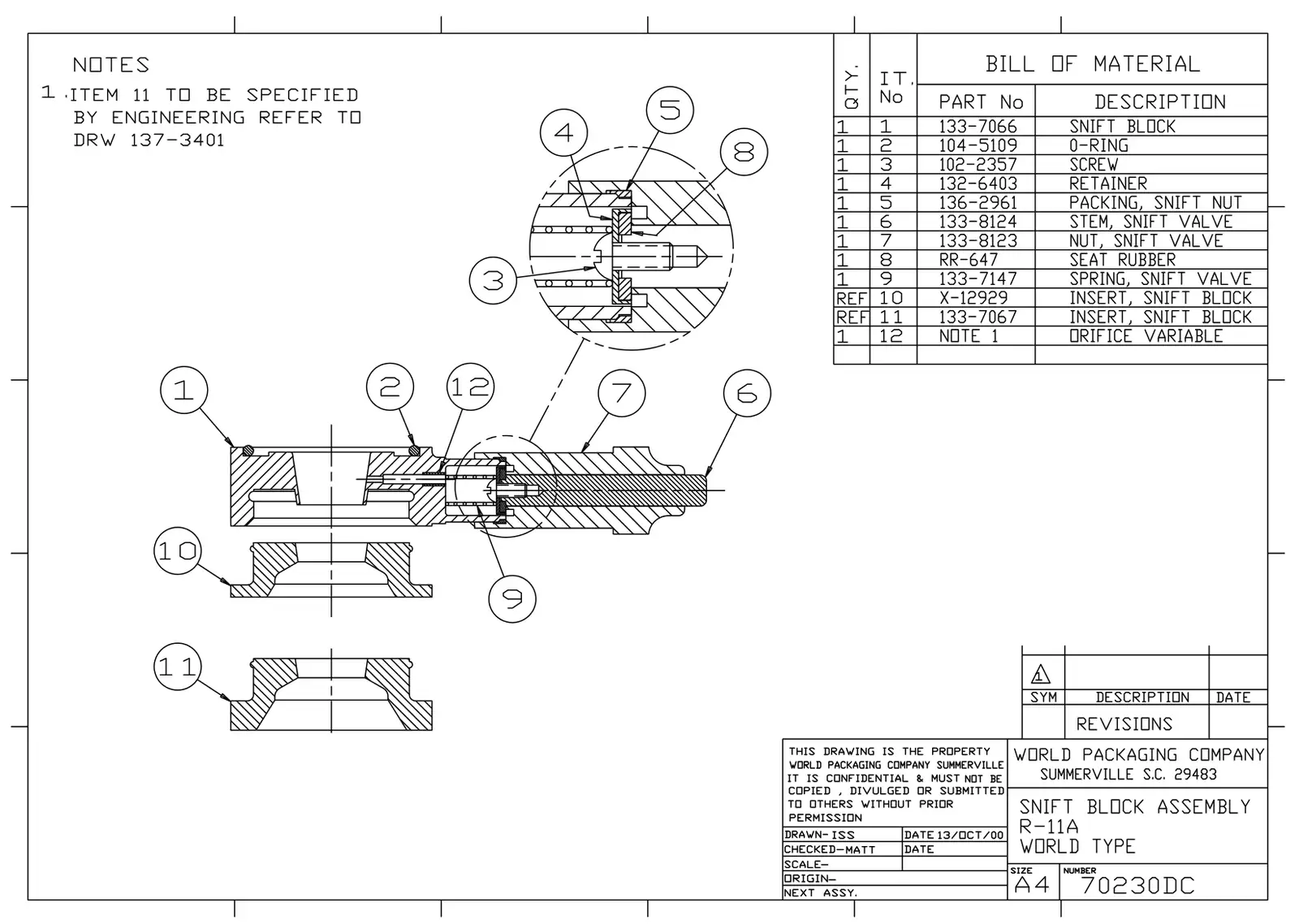

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description

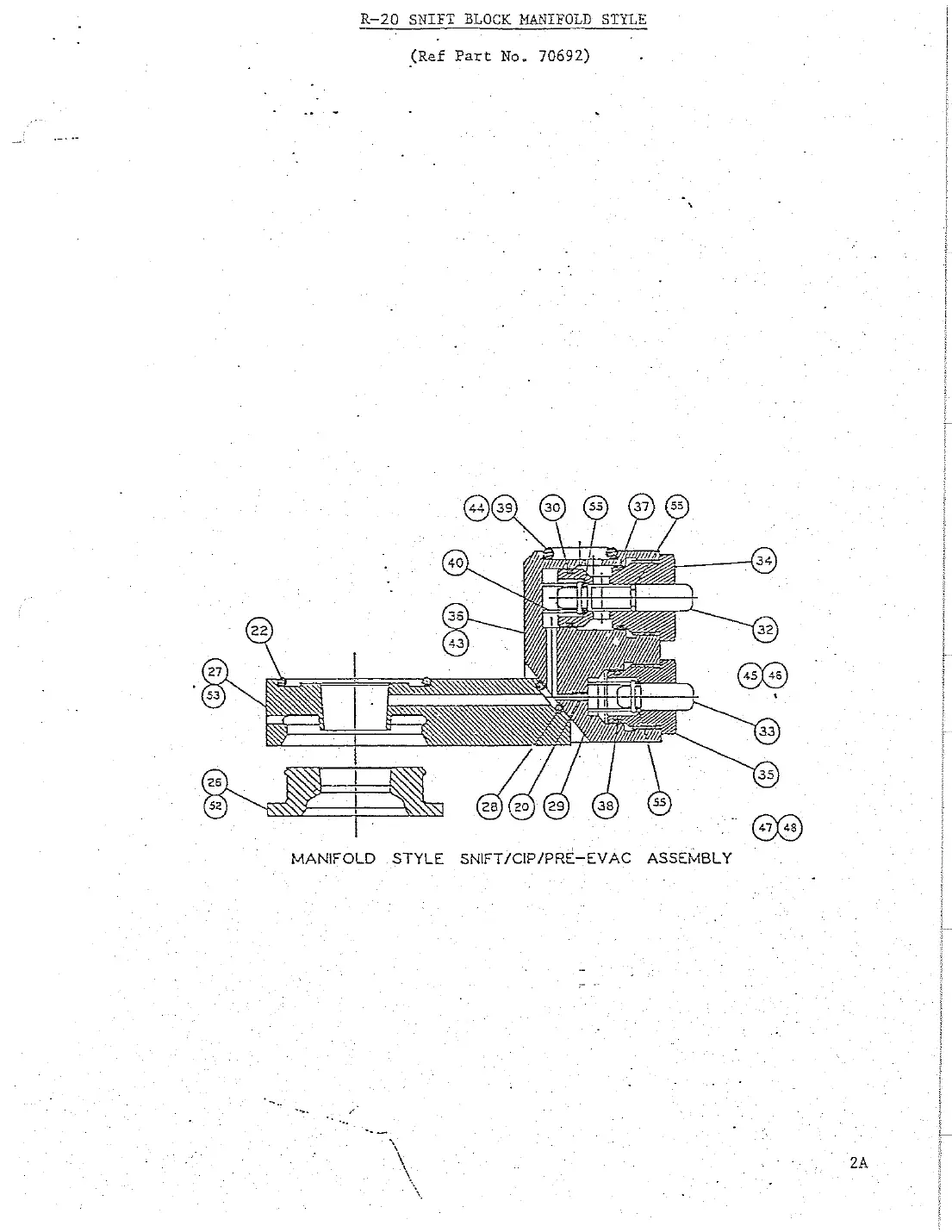

26	137-21151372115	Insert, snift block R-20/21 bolt on	Request
27	137-2310	Block	Ask us
28	104-78421047842	O-ring	Request
32	137-6890	Stem	Ask us
33	137-68111376811	Stem, snift valve	Request
34	137-01111370111	Insert, CIP/pre evac R-20V	Request
36	137-01661370166	Snift, block CIP/pre evac	Request
37	101-00881010088	O-ring	Request
38	100-40351004035	O-ring, dro	Request
40	RR-85RR85	Spring barrel CIP	Request
45	102-23011022301	Washer, lock collar	Request
46	102-13021021302	Screw, socket head cap	Request
47	102-03891020389	Washer, lock	Request
48	136-74321367432-2	Bolt, catch . . . canister special	Request
55	104-85861048586	O-ring	Request

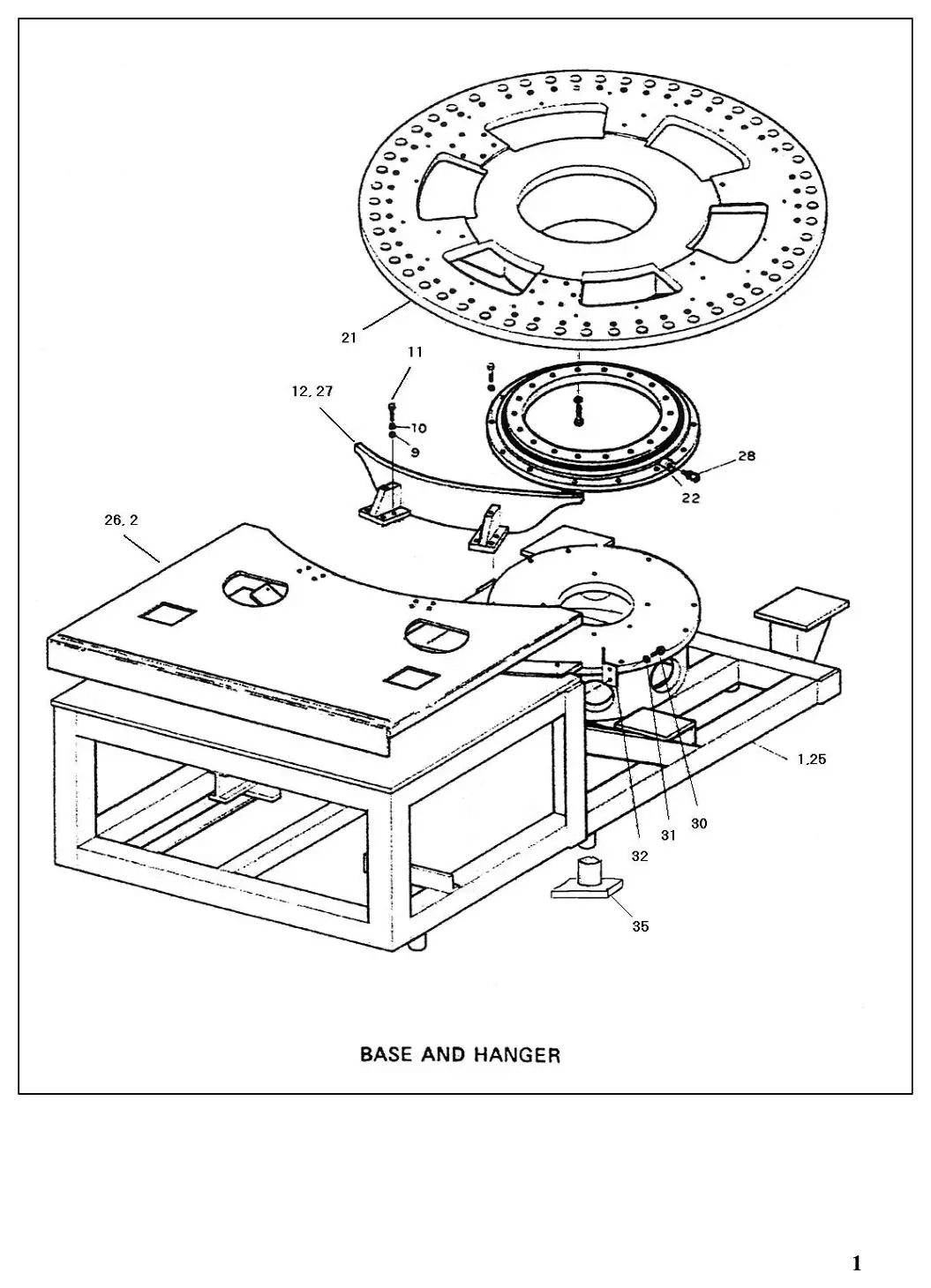

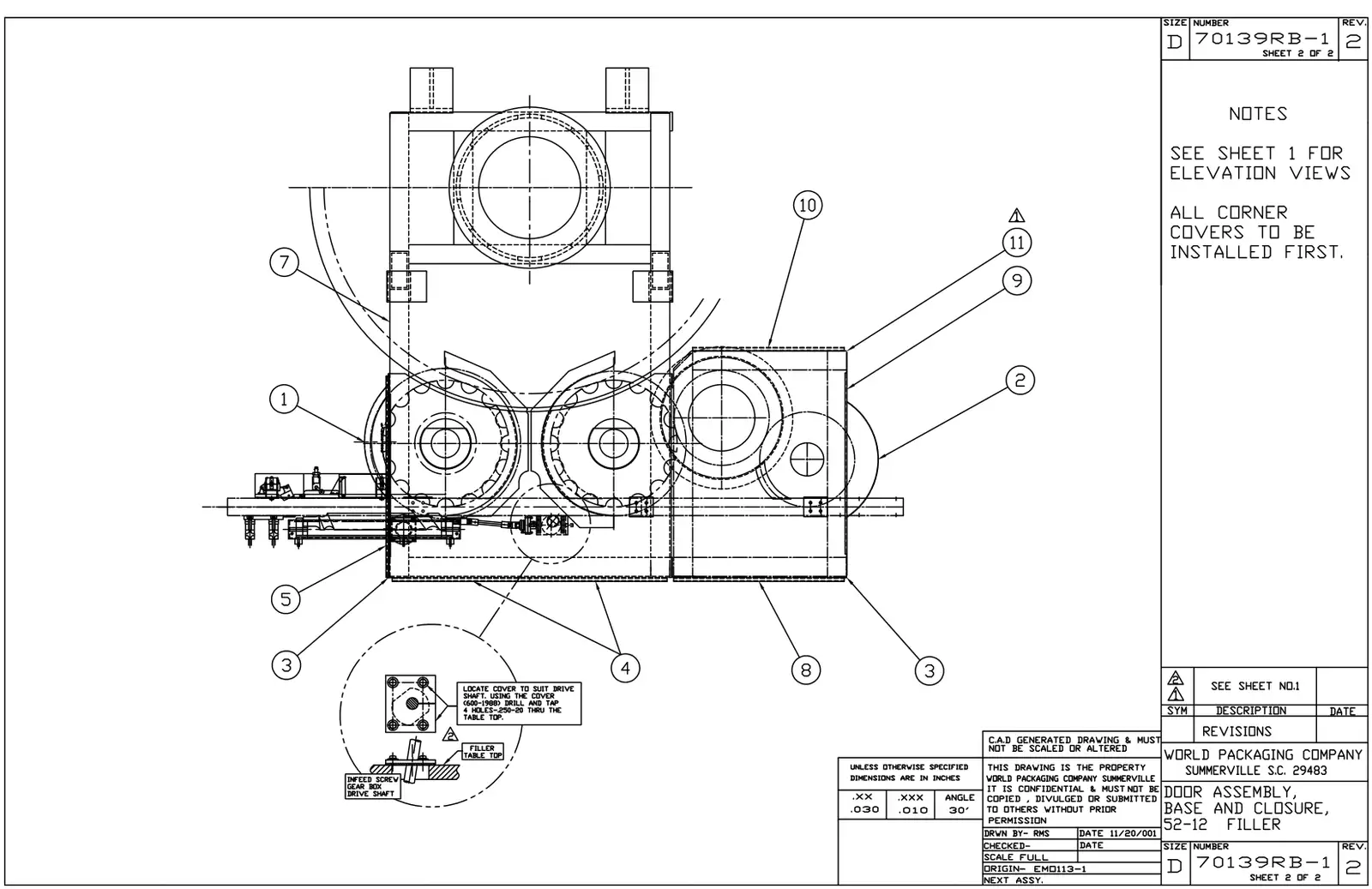

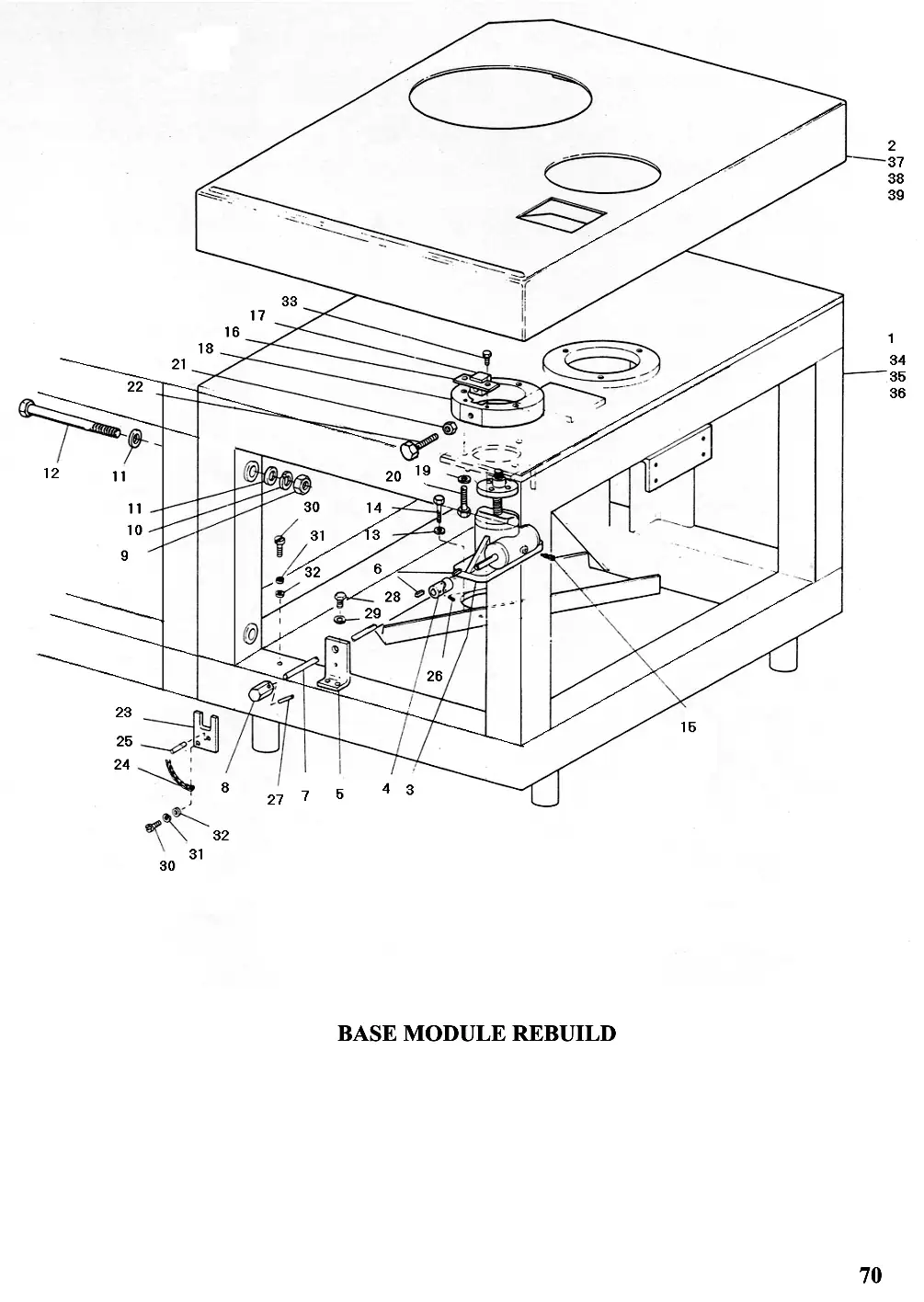

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
1	137-0357	Base	Ask us
3	102-1835	Screw, hex head	Ask us
5	102-04181020418	Washer, flat	Request
6	137-0352	Screw, leveling	Ask us
7	136-86831368683-2	Pad, leg carousel base	Request
9	904-7536	Drive base	Ask us
12	904-7543	Door, front	Ask us
13	904-7544	Door, rear	Ask us
14	905-1892	Leveling screw ass drive base	Ask us
15	137-1746	Guard, washoff	Ask us
16	102-00651020065	Bolt, hex head	Request
7	102-03871020387	Washer, lock	Request
18	903-9886	Cam	Ask us
19	102-01021020102	Bolt, hex head	Request
20	904-7724	Guard, epicycloidal gear	Ask us
21	104-6628	Label, meyer filler serial	Ask us

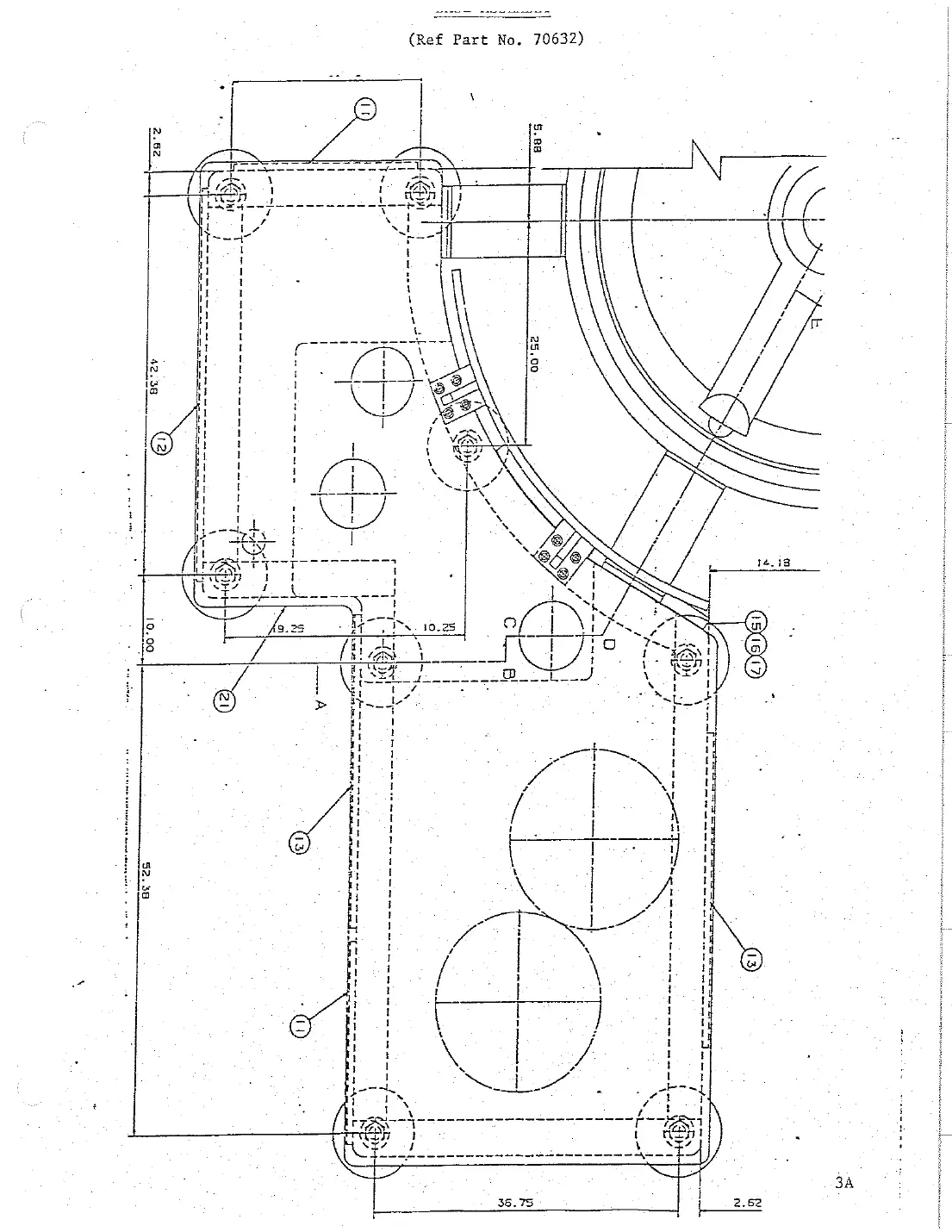

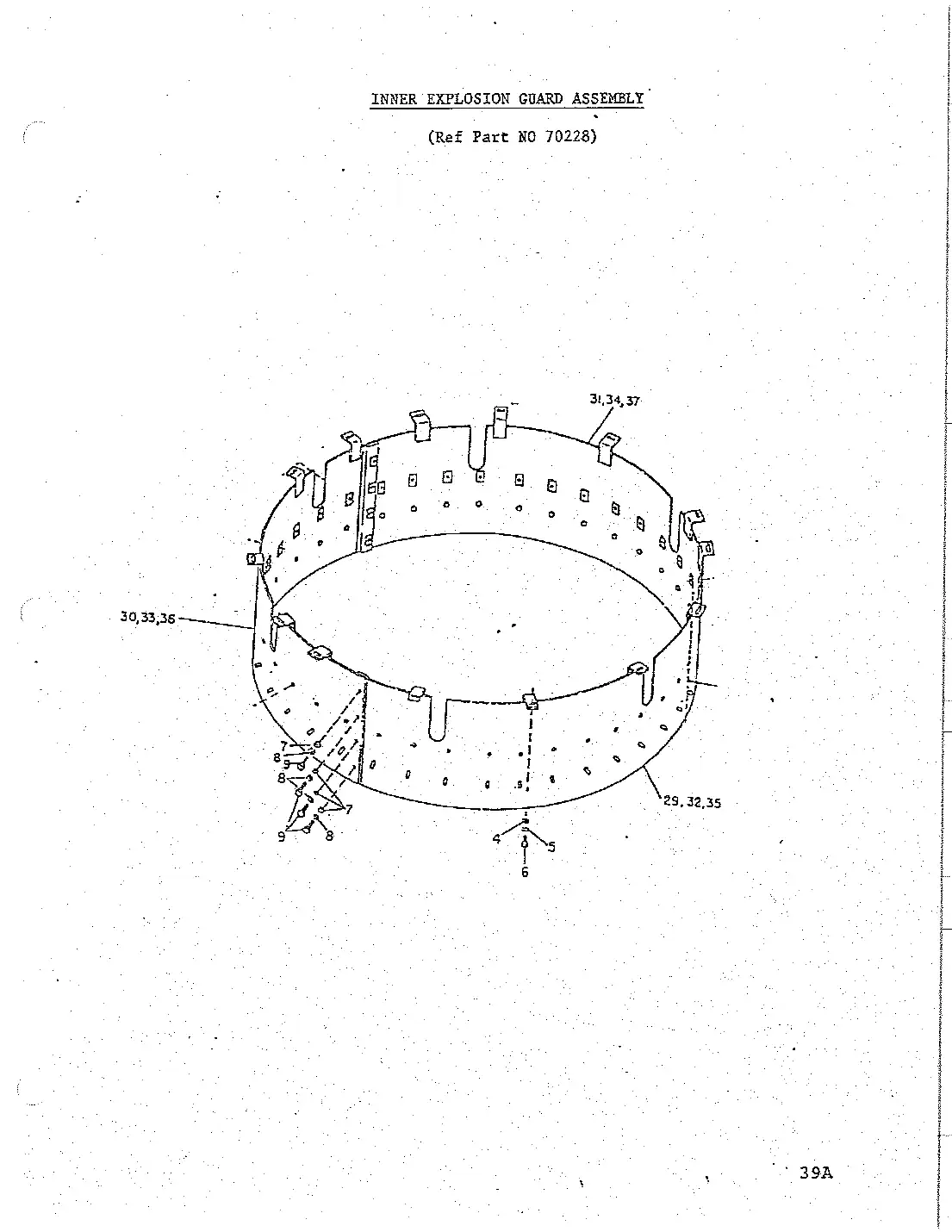

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
2	137-0004	Bar ing	Ask us
3	104-83081048308	Screw, socket head cap	Request
4	104-83071048307	Screw, socket head cap	Request
5	104-80641048064	Washer, flat	Request
6	104-80631048063	Washer, flat	Request
7	137-0364	Guard, inner bearing	Ask us
8	102-04151020415	Washer, flat	Request
9	102-03871020387	Washer, lock	Request
10	102-00651020065	Bolt, hex head	Request

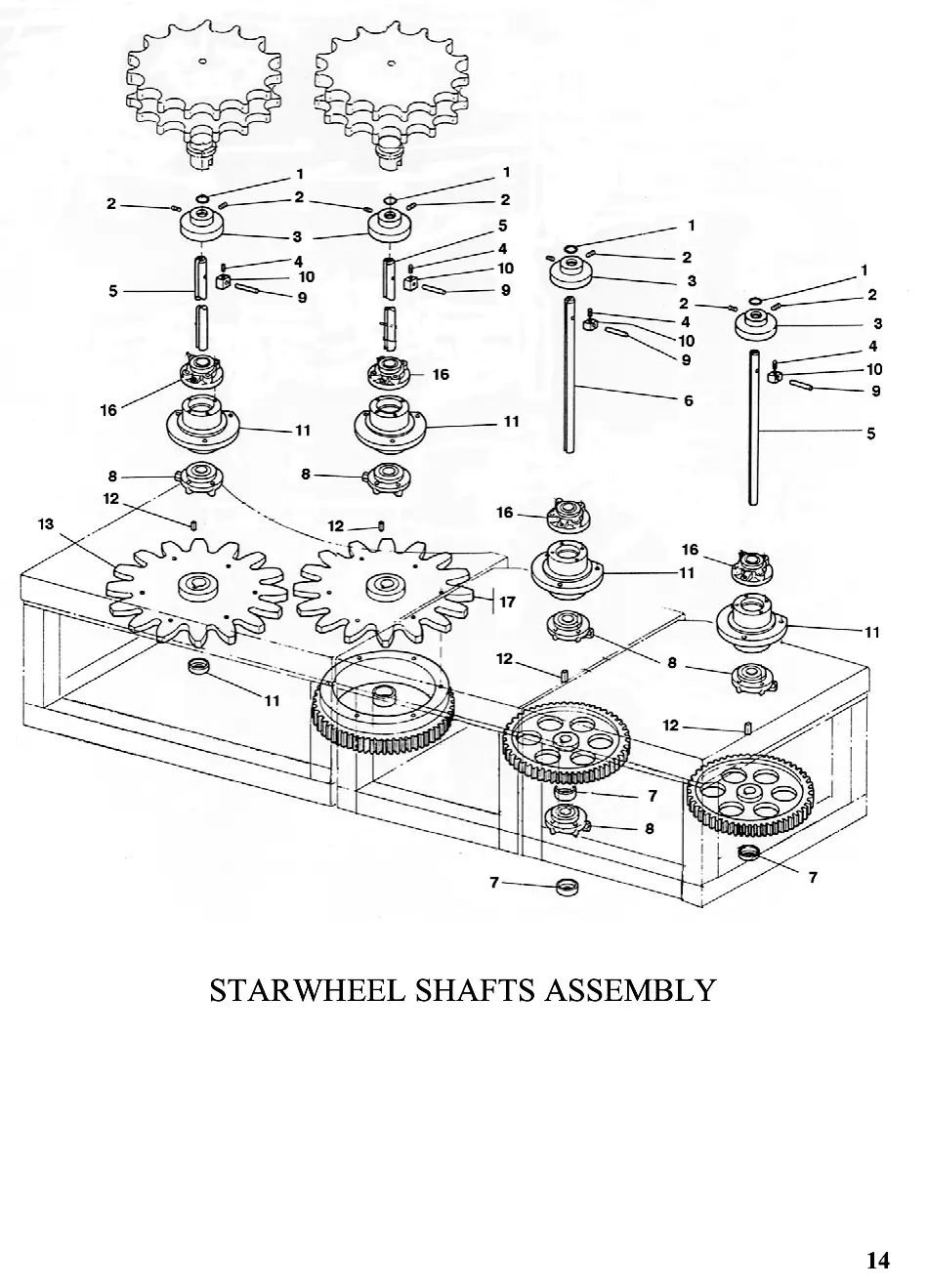

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	136-63481366348	Shaft, starwheel infeed	Request
2	136-62901366290	Shaft, starwheel discharge	Request
3	136-63491366349	Shaft, crowner discharge	Request
5	101-32381013238	O-ring	Request
6	102-01031020103	Bolt, hex head	Request
7	102-0413	Washer, lat	Ask us
8	102-03901020390	Washer, lock	Request
3	136-63651366365	Bearing, upper	Request
10	100-02361000236	Bearing, flange piloted	Request
11	102-0674	Screw, hex head	Ask us
12	102-14431021443	Washer, lock	Request
13	100-38721003872	Ring, retaining external	Request
14	104-73441047344	O-ring	Request
16	135-84381358438	Lug, drive starshaft	Request
7	102-00921020092	Bolt, hex head	Request
18	102-20021022002	Washer, flat	Request
19	102-03891020389	Washer, lock	Request

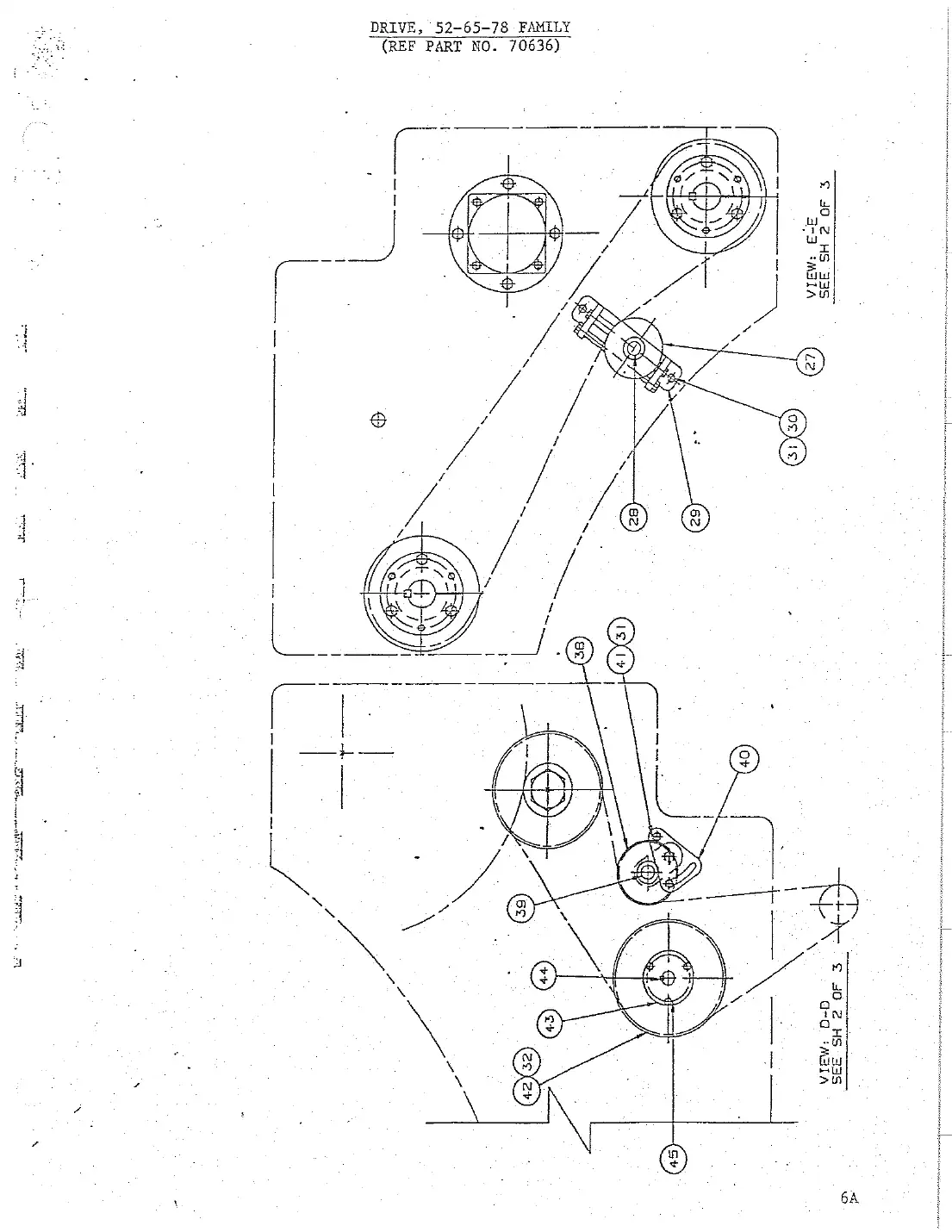

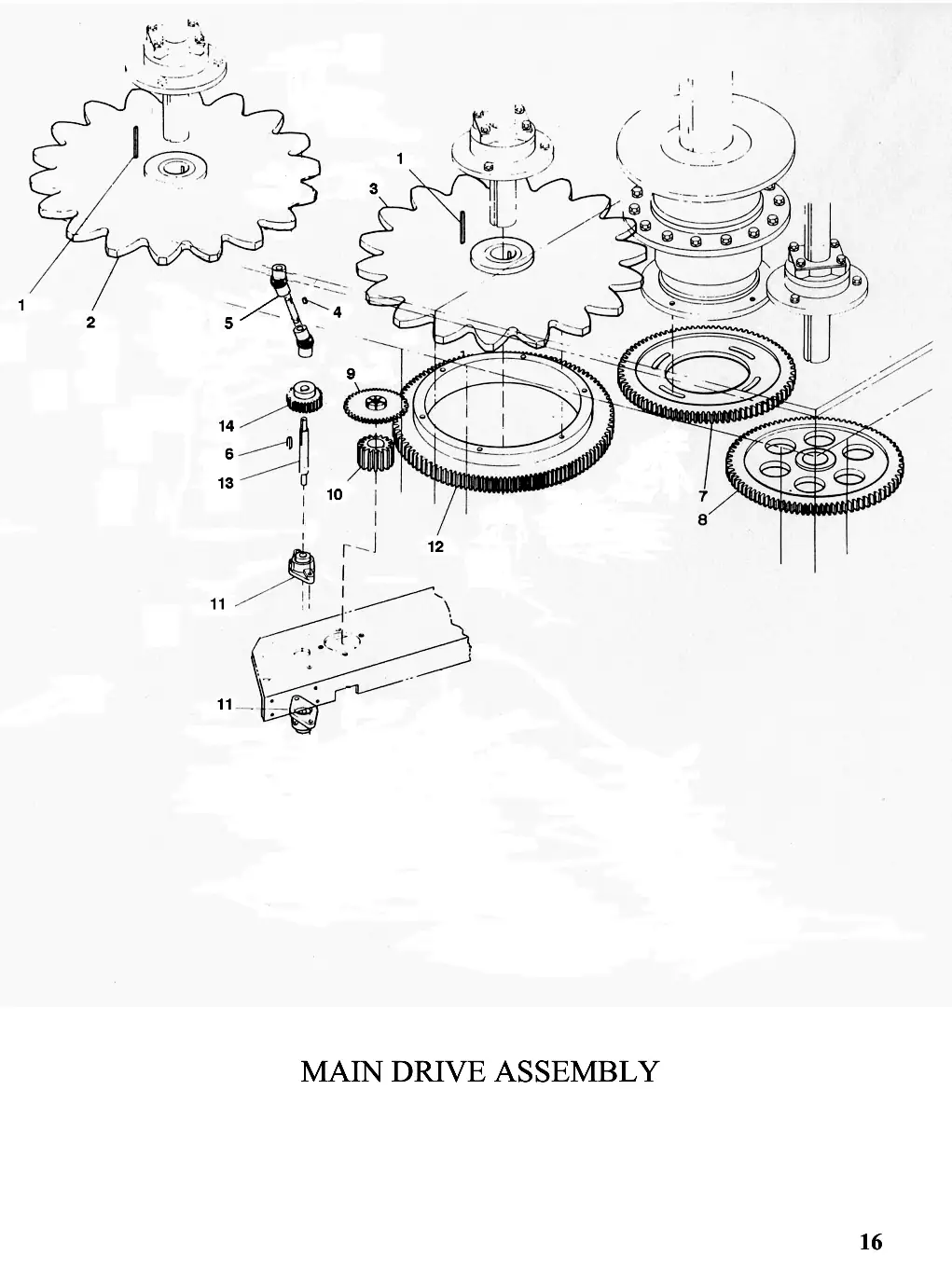

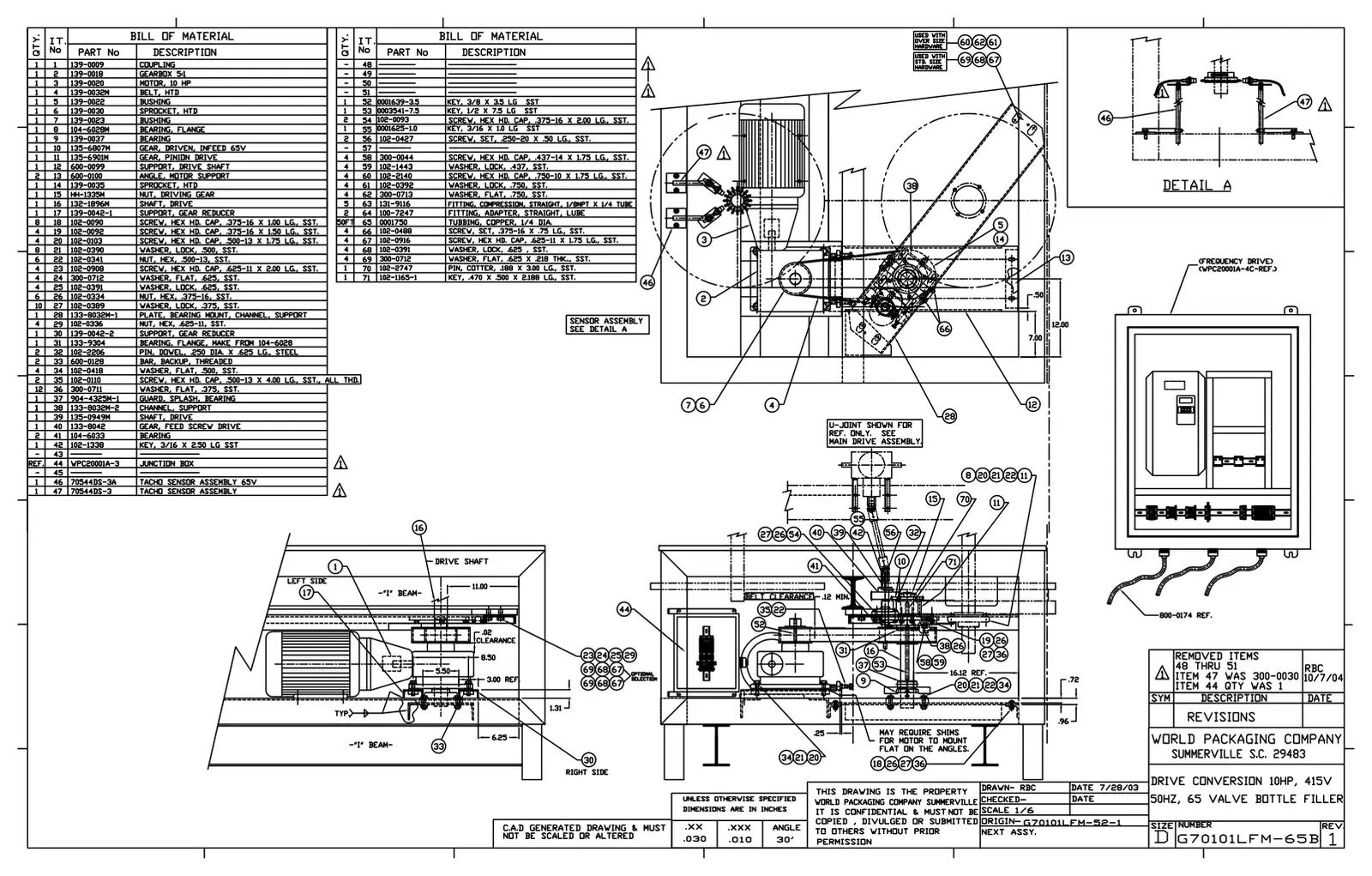

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full size

Ref	Part number	Description
1	104-7855	Motor, hyd	Ask us
37	104-83171048317	Belt, timing	Request
2	137-41651374165	Gear, pinion drive concept	Request
37	104-83621048362	Belt, HTD	Request
3	137-42171374217	Gear, filler drive concept/mil	Request
38	104-73341047334	Idler, tightener	Request
4	104-7331	Collar, shaft	Ask us
39	104-73281047328	Idler shaft	Request
5	102-01031020103	Bolt, hex head	Request
40	104-73351047335	Tightener drive	Request
6	102-03901020390	Washer, lock	Request
41	102-05731020573	Screw, socket head cap	Request
7	100-02361000236	Bearing, flange piloted	Request
42	104-83121048312	Sprocket, HTD	Request
8	102-0674	Screw, hex head	Ask us
9	102-14431021443	Washer, lock	Request
10	904-78459047845	Gear, epicycloidal 65V concept	Request
43	101-39661013966	Bushing, taperlock	Request
44	102-1274	Key, square	Ask us
45	102-00801020080	Bolt, hex head	Request
46	100-02271000227	Bearing, flange-mount	Request
12	102-0910	Screw, socket head	Ask us
47	102-00891020089	Bolt, hex head	Request
13	102-0659	Screw	Ask us
48	137-1740	Shaft, vert	Ask us
14	102-03821020382	Washer, lock	Request
49	137-3891	Sleeve, cup ling	Ask us
15	137-47801374780-3	Spacer, gear	Request
50	104-83141048314	Reducer, right angle gearbox	Request
16	136-00471360047	Gear, closure disconnect	Request
51	904-7541	Bracket, reducer mtd	Ask us
17	133-99881339988	Gear, driven closer column	Request
52	104-83191048319	O-ring	Request
53	104-8315	Coupling, jaw	Ask us
20	104-73321047332	Sprocket, HTD starwheel 65V	Request
54	104-8316	Insert	Ask us
21	104-73371047337	Bushing, taperlock starshaft	Request
55	102-04351020435	Screw, set socket cup point	Request
22	102-1063	Key, square	Ask us
56	137-1972	Adapter, hyd mtr mounting	Ask us
24	104-73331047333	Belt	Request
58	102-1136	Screw, socket head	Ask us
25	100-02331000233	Bearing, flange	Request
26	102-01011020101	Bolt, hex head	Request
27	104-73361047336	Idler, flanged pulley	Request
61	102-04561020456	Screw, set socket cup point	Request
28	104-73271047327	Shaft tightener	Request
62	137-3809	Guard, drive gear	Ask us
29	101-36721013672	Tensioner, belt	Request
66	102-05281020528	Screw, set square hd	Request
31	102-03871020387	Washer, lock	Request

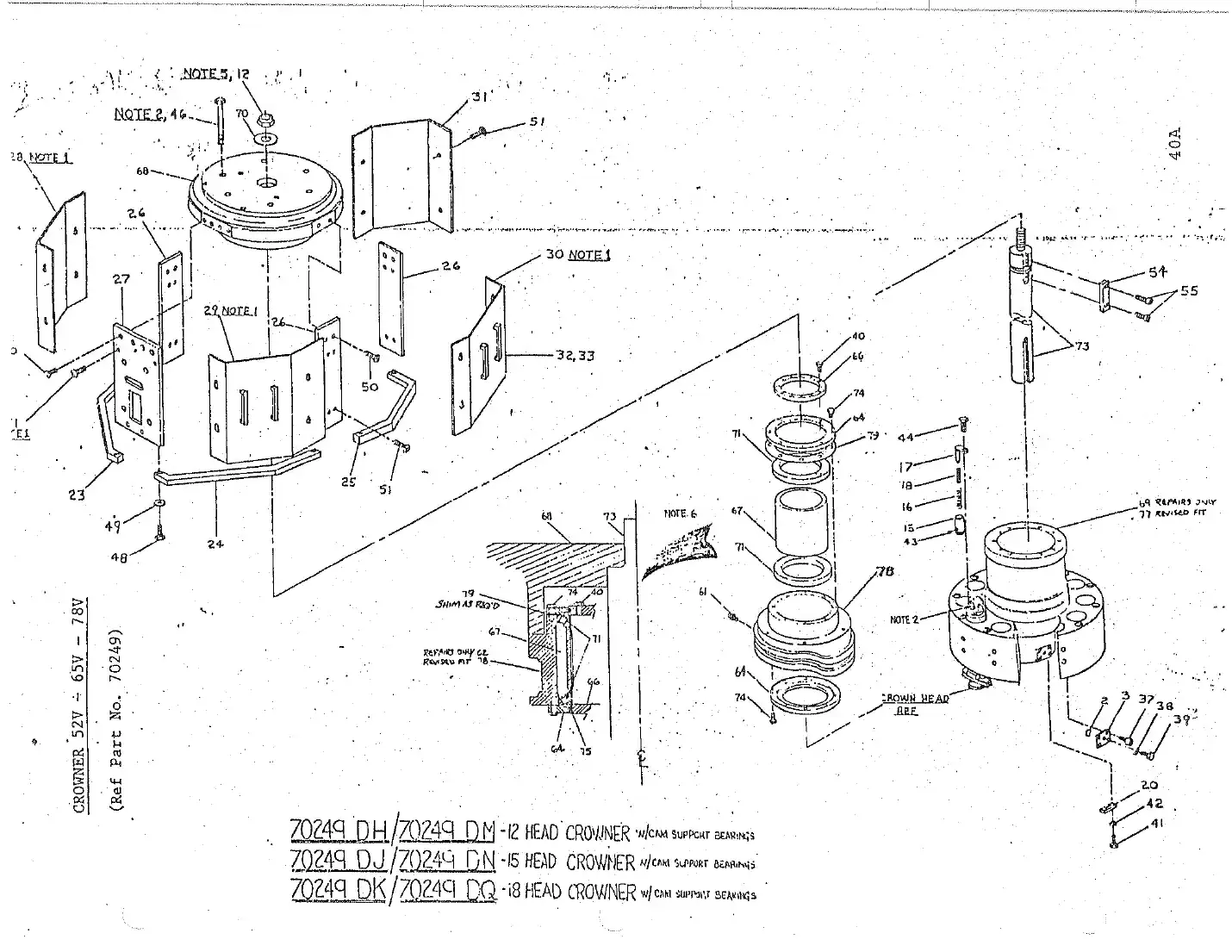

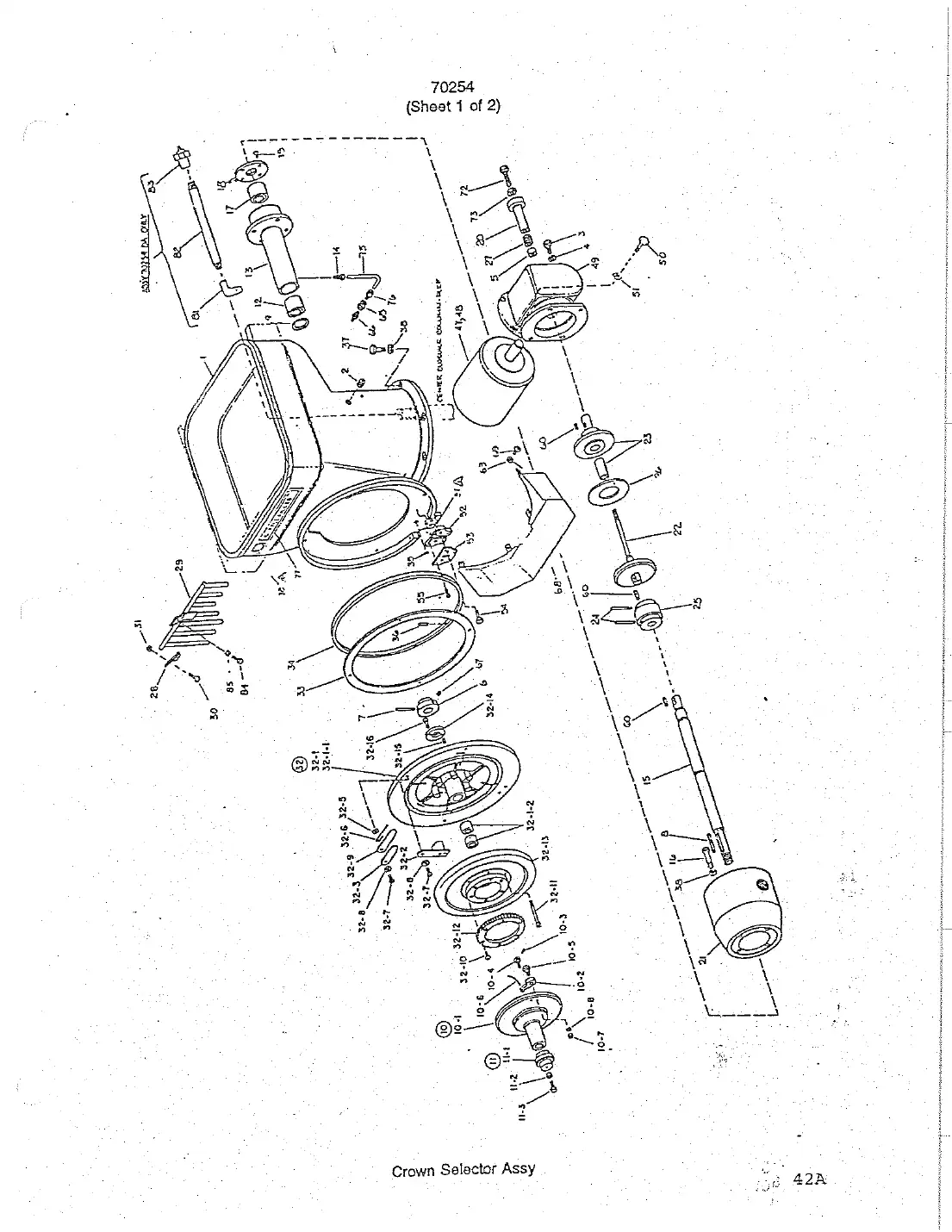

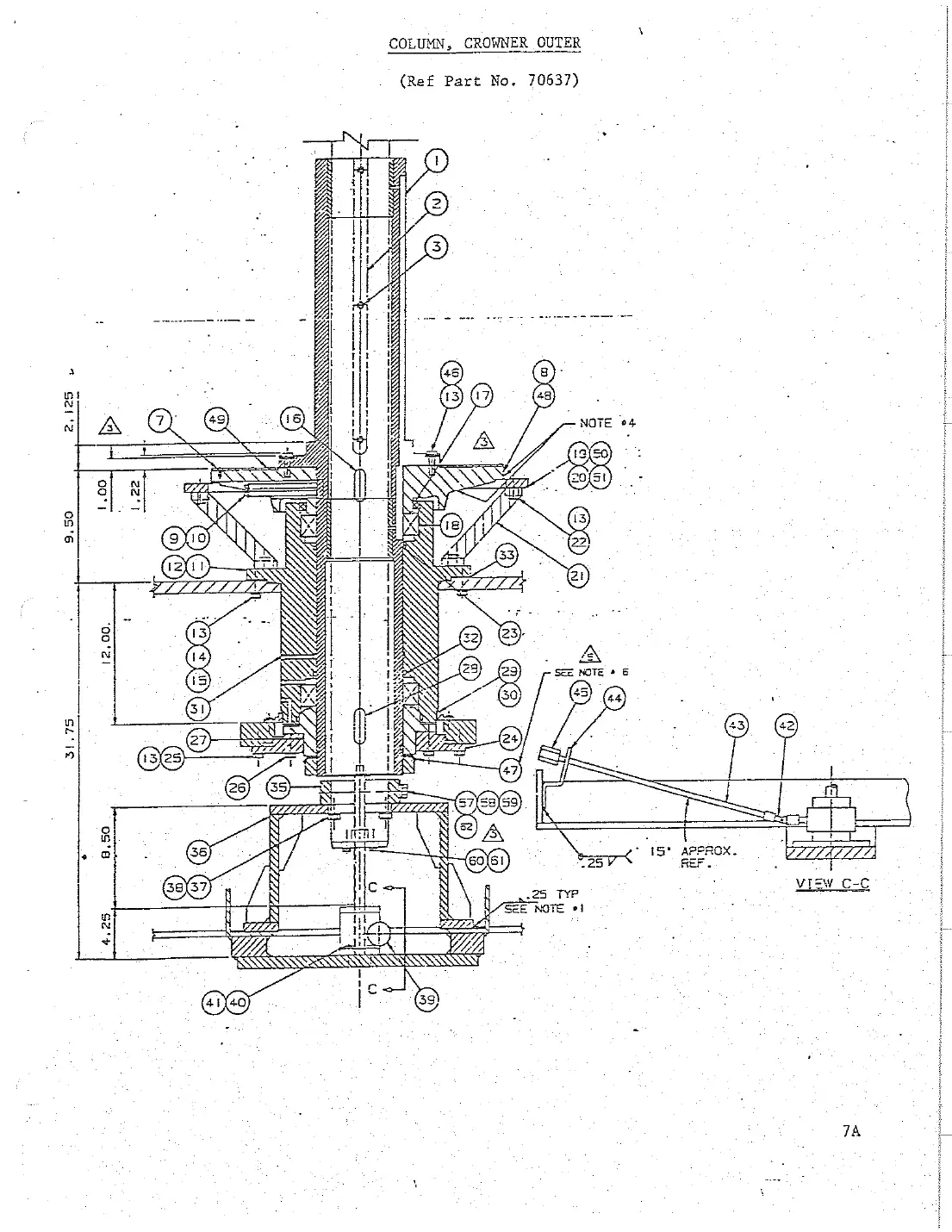

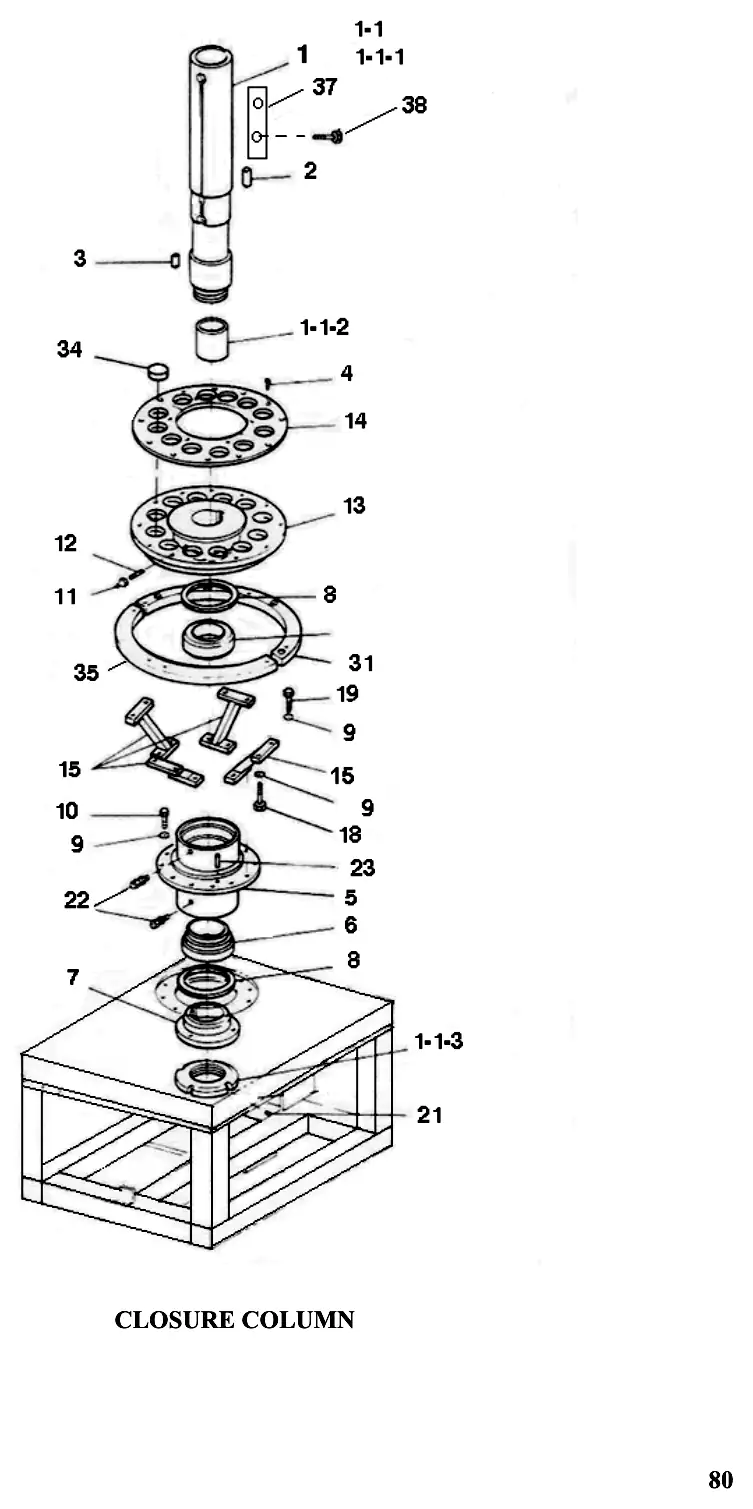

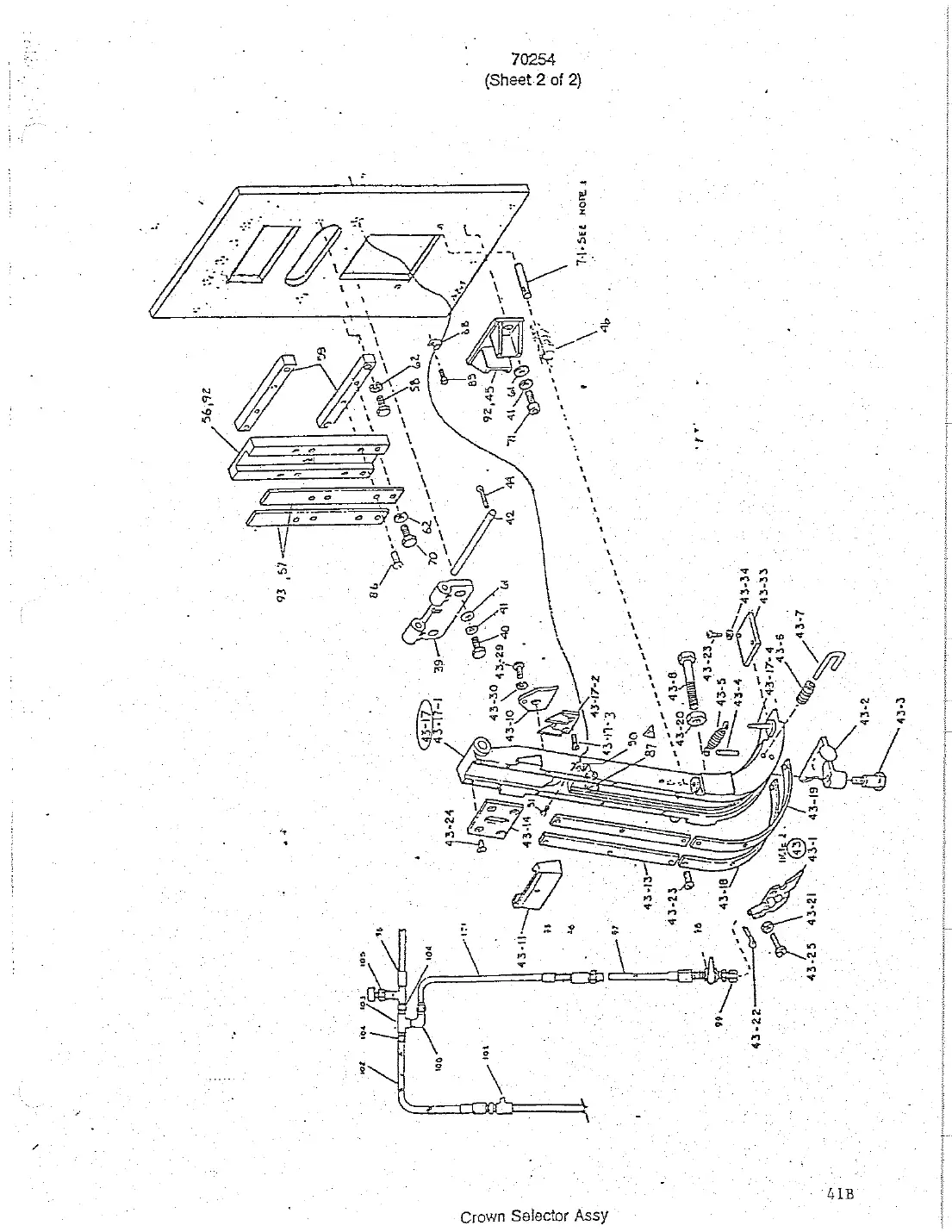

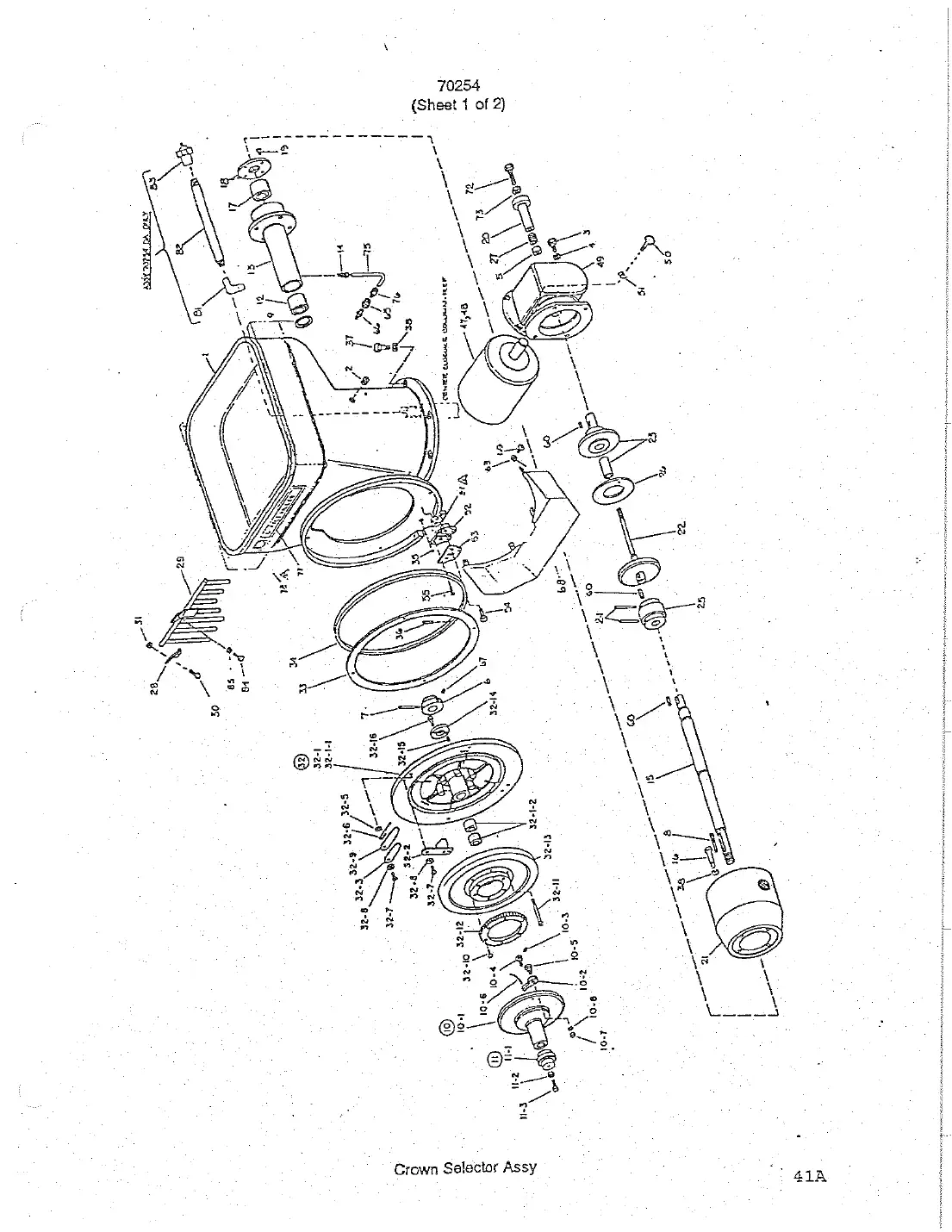

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full size

Ref	Part number	Description
1	905-21009052100	Column, closer assembly 90V	Request
25	102-01001020100	Bolt, hex head	Request
2	134-16111341611	Key, column & spool hub	Request
26	102-1837	Screw, hex	Ask us
3	102-05731020573	Screw, socket head cap	Request
27	903-99509039950	Spacer, lower machining	Request
4	134-65941346594	Cushion, plate crowner 15 hd	Request
28	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
29	903-5592	Seal, labyrinth	Ask us
30	102-00651020065	Bolt, hex head	Request
5	134-65961346596	Wearplate, crowner 15 hd	Request
31	100-08711000871	Plug, pipe	Request
32	000-4277	Packing, purelon	Ask us
6	136-17381361738	Pad, crowner 8, 10, 15, 16, 20 hd	Request
35	136-99001369900	Ring, anti-rotation closure column assembly 90V filler	Request
36	904-7286	Support	Ask us
37	102-07991020799	Bolt, hex head	Request
7	102-01911020191	Screw, flat head slot	Request
38	102-03911020391	Washer, lock	Request
8	102-14111021411	Screw, set dog pt	Request
39	104-64951046495	Jactuator, rise	Request
9	100-27241002724	Nipple	Request
40	102-00901020090	Bolt, hex head	Request
10	100-39411003941	Fitting, grease female str	Request
41	102-03891020389	Washer, lock	Request
11	136-14191361419	Housing, bearing machining	Request
42	104-60351046035	Joint, , bore	Request
12	104-8325	O-ring	Ask us
43	000-3776	Rod, round	Ask us
13	102-01031020103	Bolt, hex head	Request
44	136-63781366378	Bracket, closer jack shaft 90V filler family	Request
14	102-03901020390	Washer, lock	Request
45	133-81011338101	Extension, hex shaft drive element	Request
45	102-04181020418	Washer, flat	Request
46	102-1199	Washer, lock	Ask us
47	102-30641023064	Washer	Request
17	101-06201010620	Seal, oil closer column lower	Request
57	137-42541374254	Bolt, hex head	Request
18	101-19211011921	Bearing, roller closer column	Request
58	102-03921020392	Washer, lock	Request
19	135-2877	Support, guide	Ask us
59	102-04201020420	Washer, flat	Request
20	135-2878	Support, guide	Ask us
60	102-00911020091	Bolt, hex head	Request
21	135-2875	Support, rail	Ask us
22	102-01021020102	Bolt, hex head	Request
62	136-63871366387	Key, anti-rotation	Request
23	104-65781046578	O-ring	Request
24	136-00491360049	Plate, filler drive filler	Request

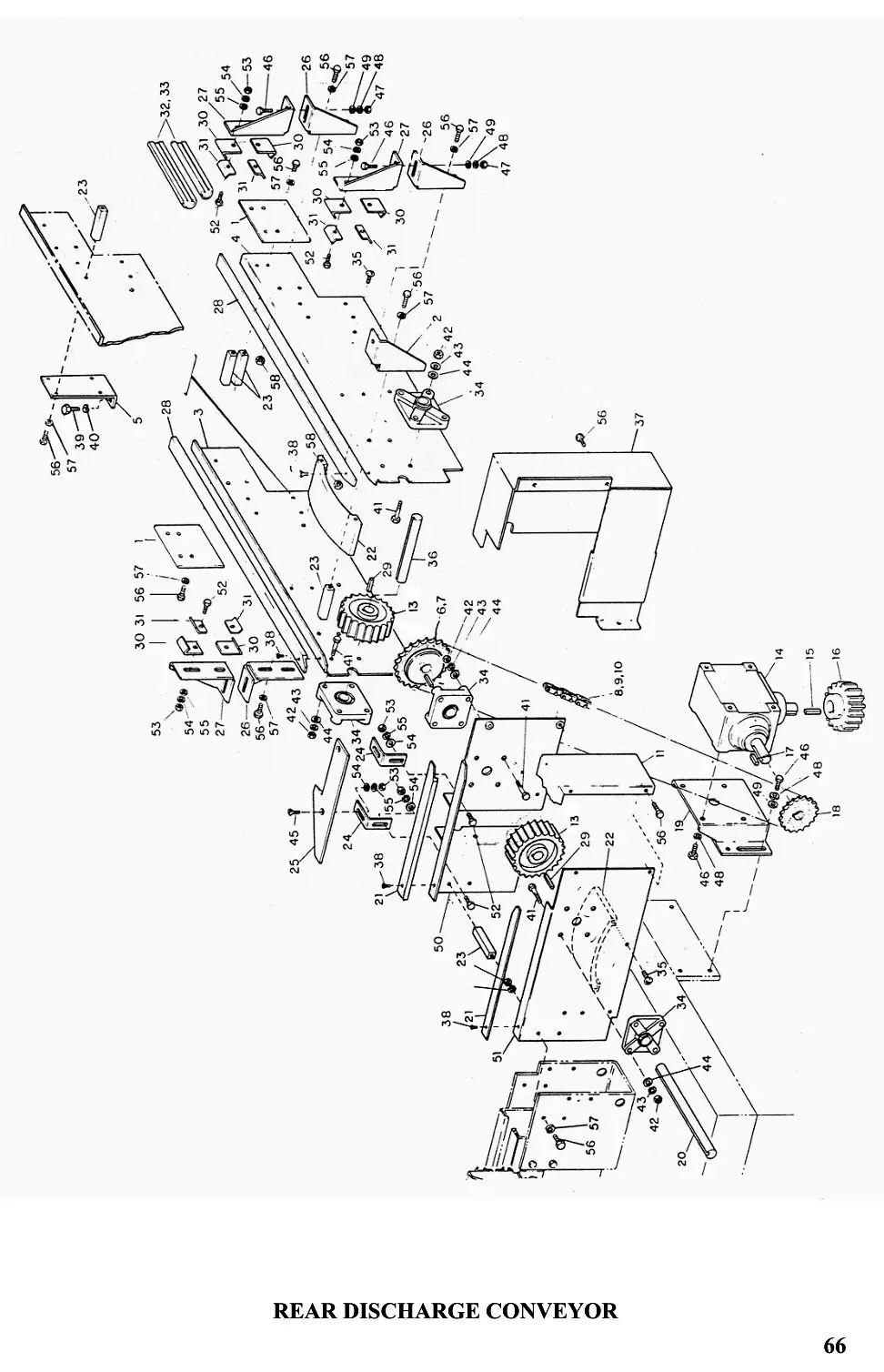

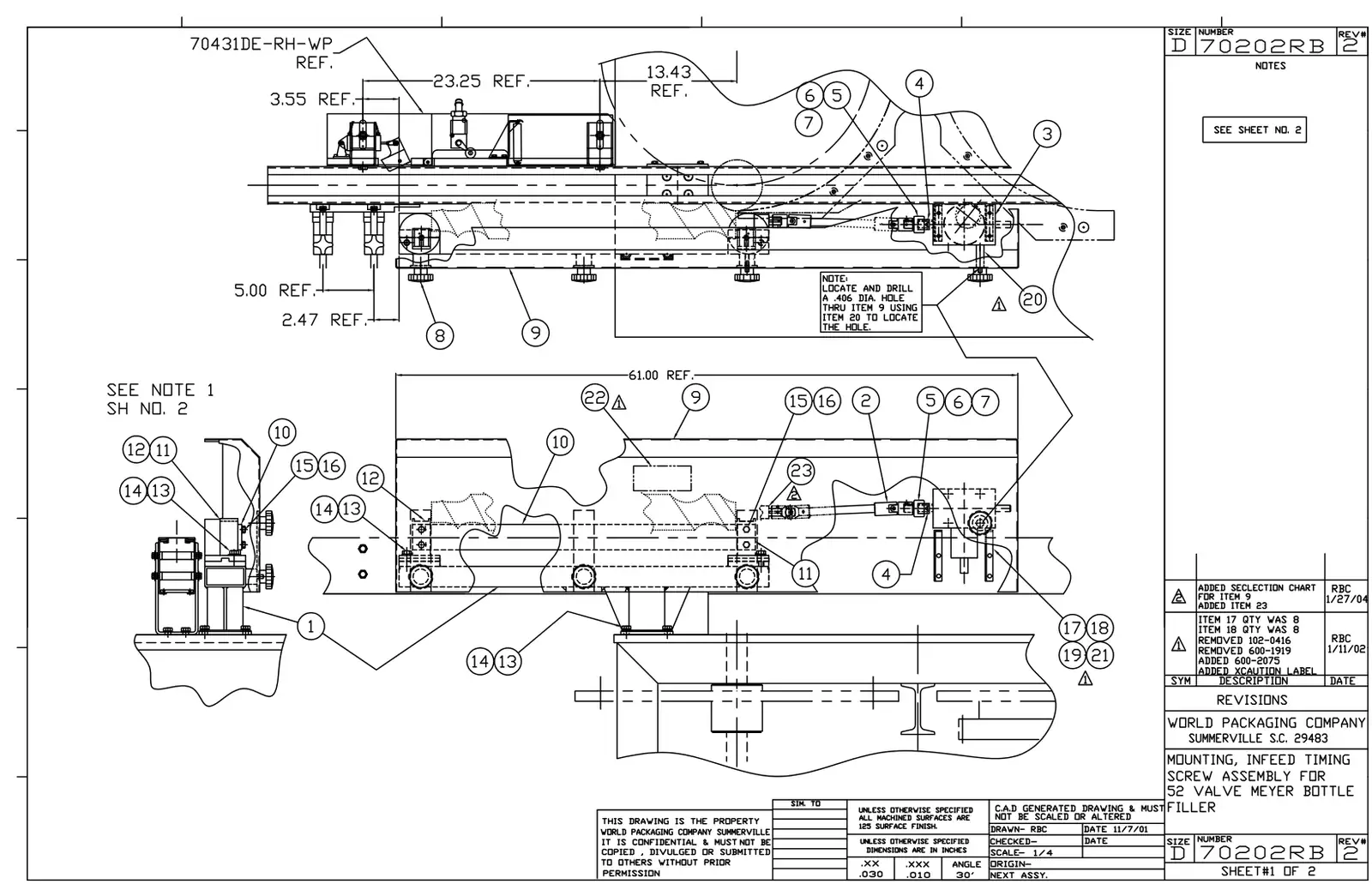

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full size

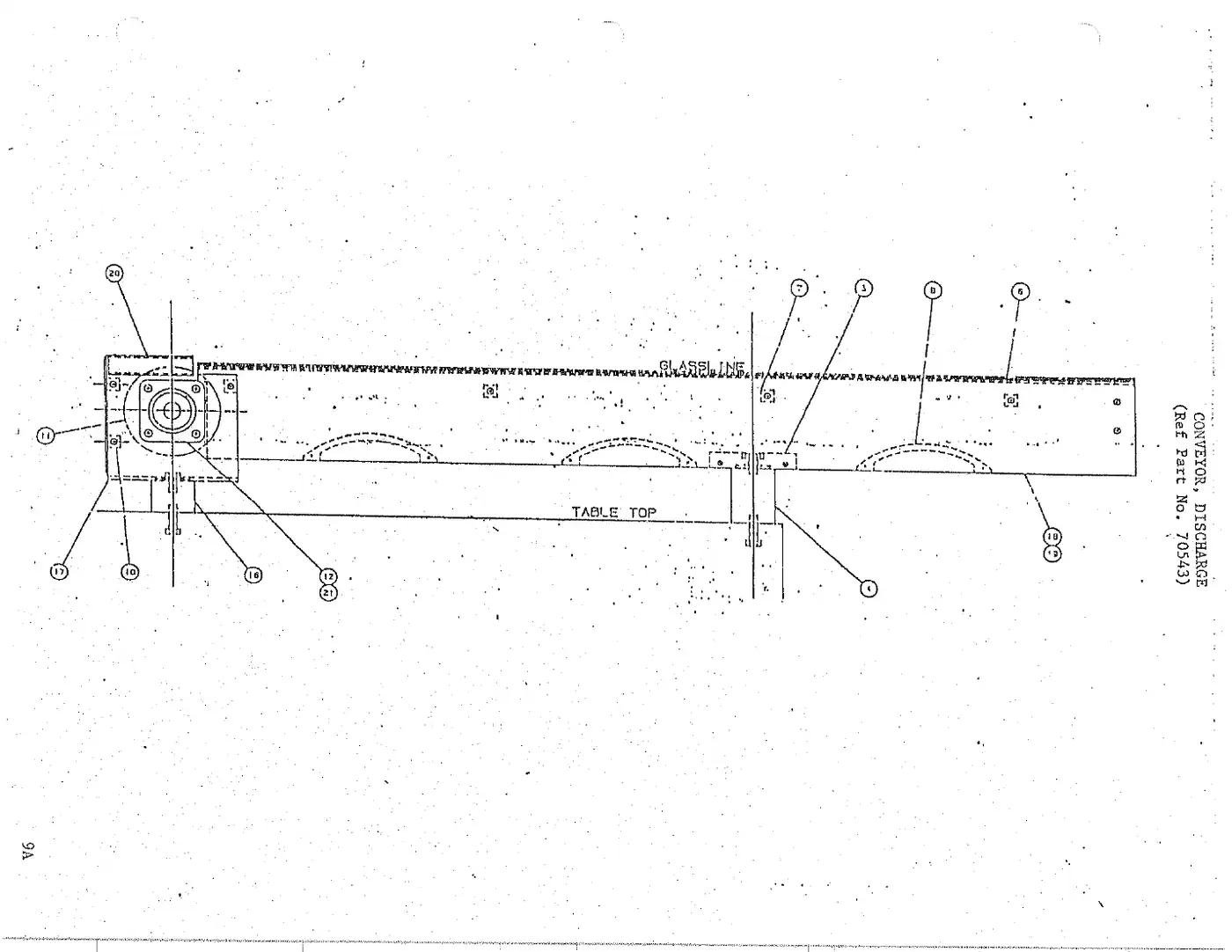

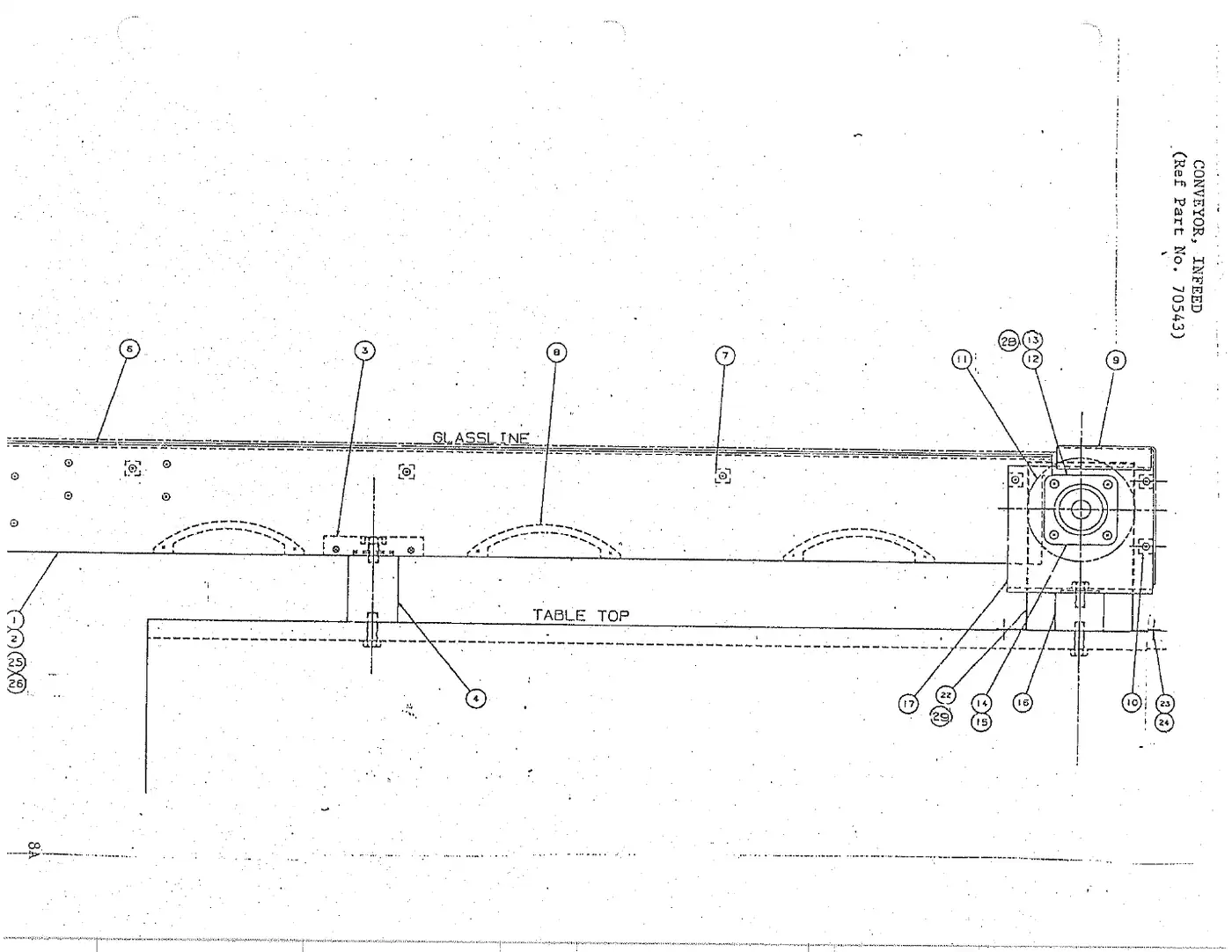

Ref	Part number	Description
3	136-9508	Separator	Ask us
5	136-87651368765	Sprocket	Request
6	000-36980003698	Wearstrip, filler conveyor out	Request
7	135-17501351750	Spacer	Request
8	133-59791335979	Shoe, return	Request
9	136-95101369510	Cover sprocket	Request
10	136-6372	Spacer	Ask us
12	100-02271000227	Bearing, flange-mount	Request
15	104-6506	Torque limiter	Ask us
16	136-95091369509-WP	Support, conveyor rear	Request
17	136-95111369511-1	Support, conveyor drive	Request
22	137-39751373975	Guard, drive coupling	Request
23	102-00641020064	Bolt, hex head	Request
24	102-03871020387	Washer, lock	Request
28	137-25371372537	D100GSHAFT, infeed conveyor	Request
4	136-3507	Supprt bearing	Ask us
6	000-3638	Wear strip	Ask us
16	136-35031363503	Plate, face infeed gate	Request
18	136-9545	Sideframe	Ask us
48	136-9546	Sideframe	Ask us
11	104-73501047350	Sprocket, bore	Request
21	136-63711366371-WP	Shaft, drive conveyor	Request

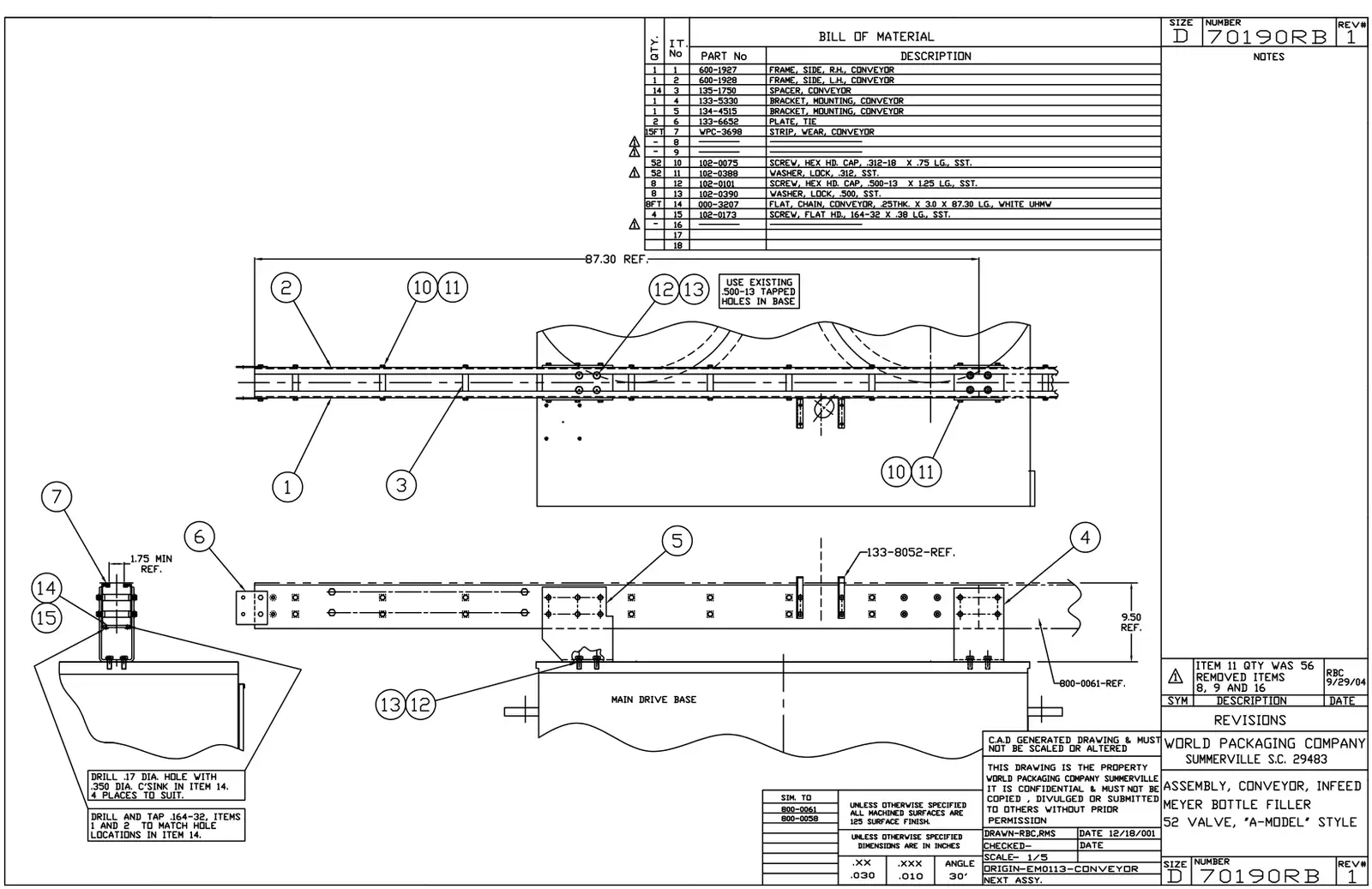

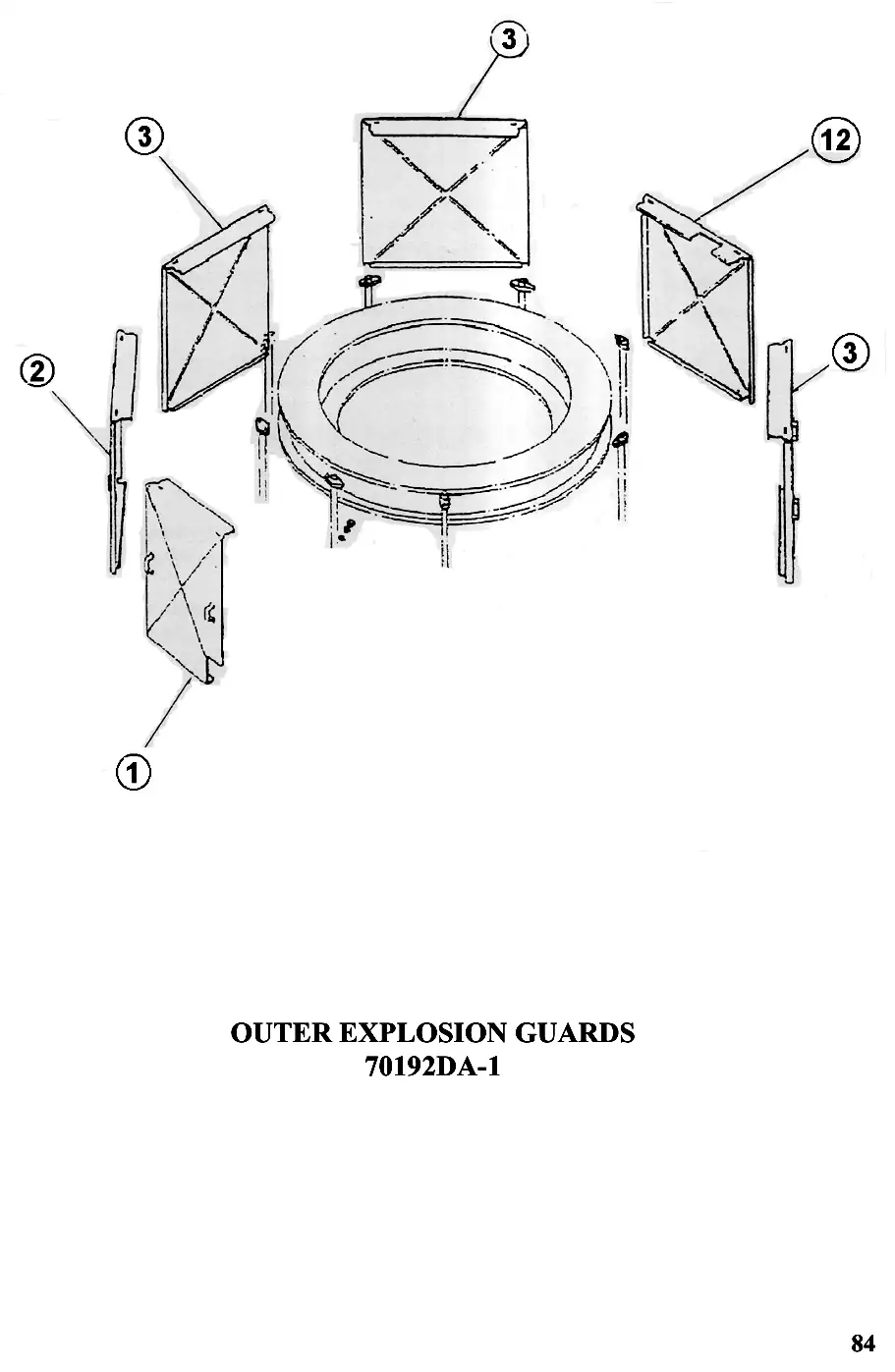

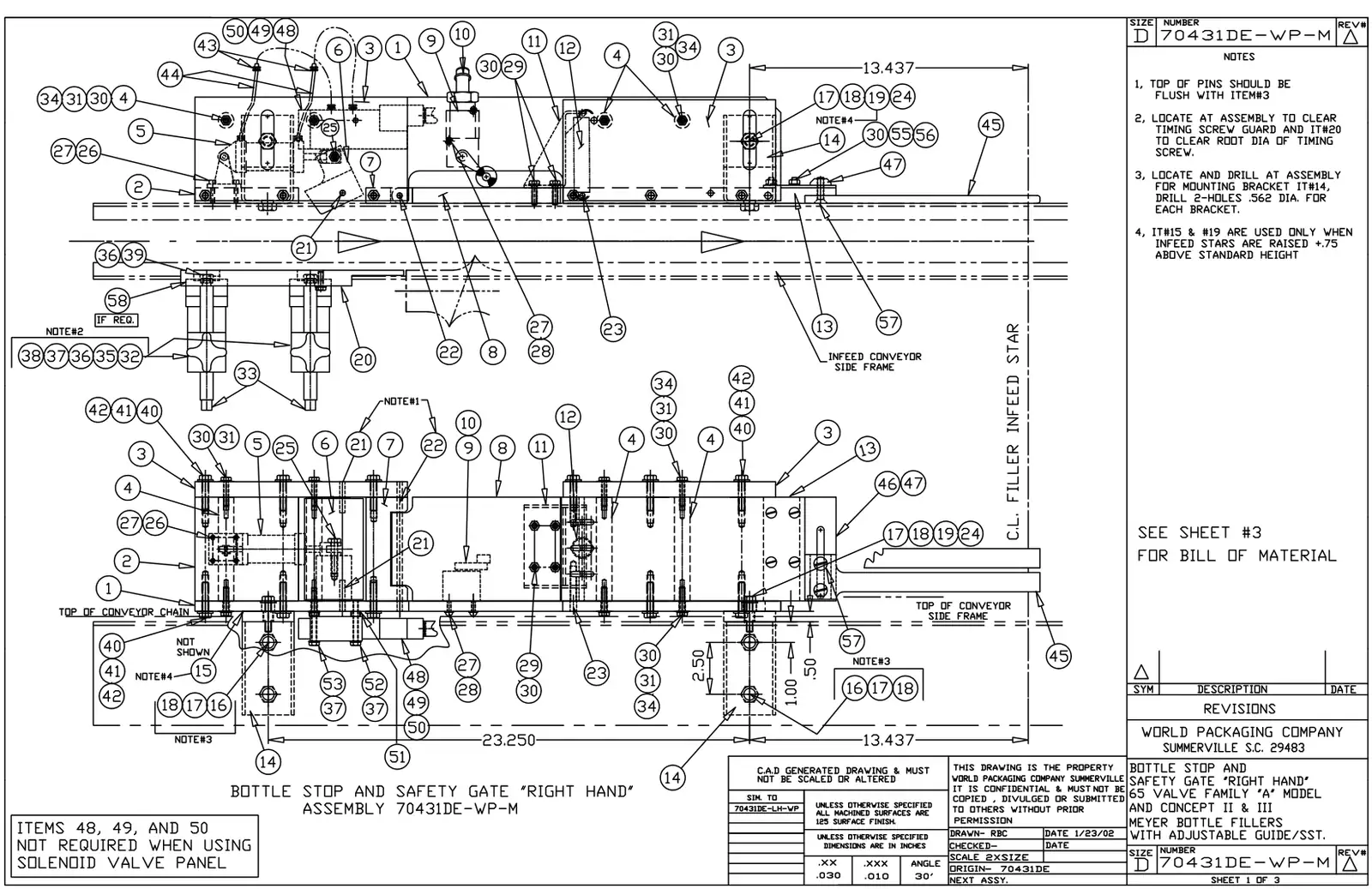

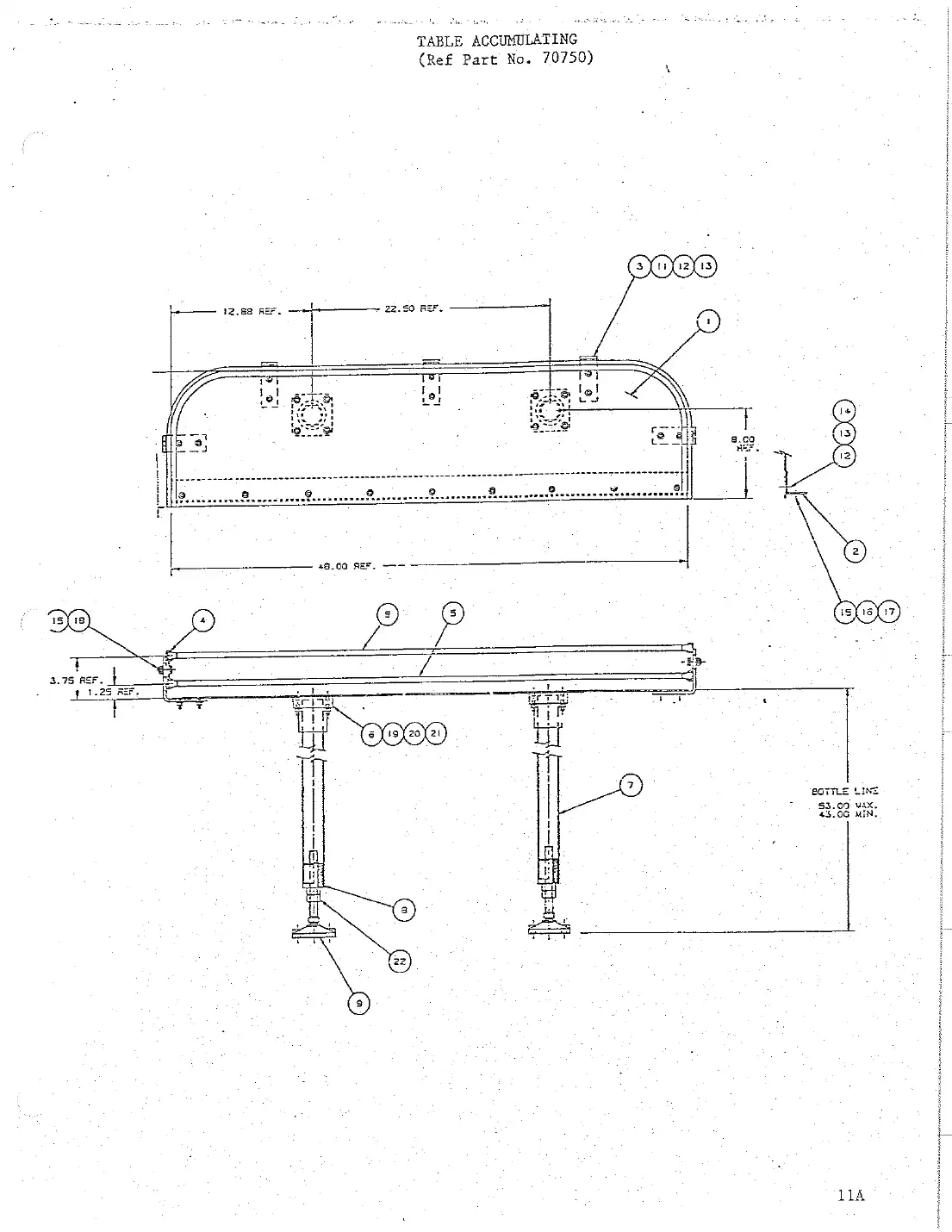

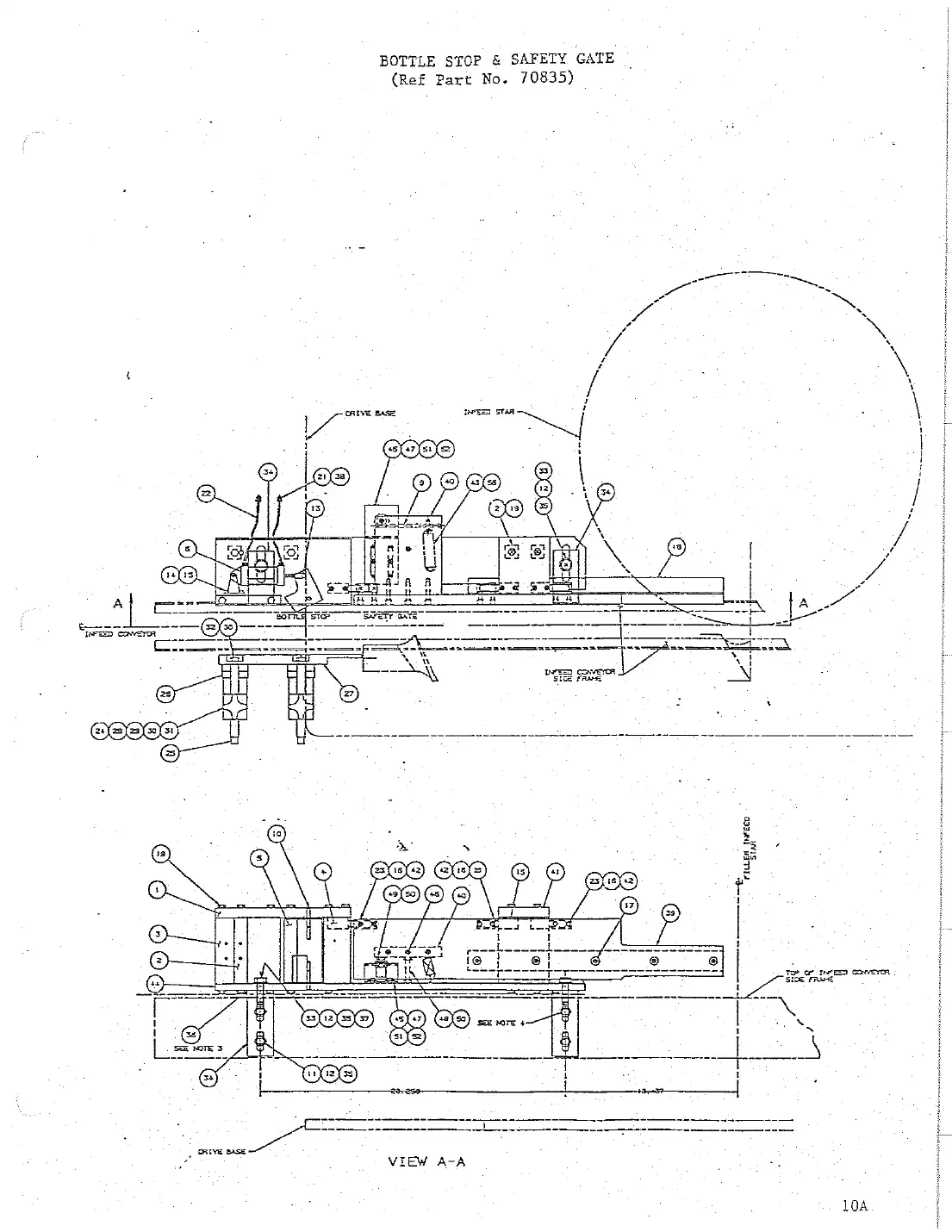

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
32	102-00891020089	Bolt, hex head	Request
33	102-01041020104	Bolt, hex head	Request
3	136-3500	Plate bracket	Ask us
35	102-03901020390	Washer, lock	Request
5	136-3504	Stop	Ask us
36	137-2535	Spacer	Ask us
6	104-51191045119	Cylinder, air infeed gate assembly	Request
37	102-01061020106	Bolt, hex head	Request
9	102-11421021142	Screw, socket head cap	Request
38	100-34851003485	Connector, male	Request
10	102-06681020668	Pin, dowel	Request
14	102-01011020101	Bolt, hex head	Request
12	102-04181020418	Washer, flat	Request
13	102-00721020072	Bolt, hex head	Request
42	905-18659051865	Pin, hinge outer explosion guards	Request
14	102-29431022943	Screw, socket head cap	Request
43	104-8540	Spring	Ask us
15	102-03861020386	Washer, lock	Request
16	102-09771020977	Screw, socket head cap	Request
17	102-0194	Screw	Ask us
46	102-07431020743	Screw, socket head cap	Request
47	102-16611021661	Bolt, hex head	Request
19	102-00781020078	Hex head bolt	Request
48	102-00831020083	Bolt, hex head	Request
21	100-89641008964	Coupling, pipe straight	Request
590	102-03331020333	Nut, hex	Request
23	136-95871369587	Block, hinge outer explosion guards	Request
51	102-03881020388	Washer, lock	Request
24	104-78351047835	Bracket, guide rail	Request
25	104-7837	Guide	Ask us
56	HH-6334	Stud	Ask us
26	104-7836	Guide	Ask us
27	136-9525	Guide	Ask us
28	102-13811021381	Screw, socket head cap	Request
29	102-12551021255	Washer, flat	Request
30	102-03891020389	Washer, lock	Request
12	102-03871020387	Washer, lock	Request
2	135-9971	Table nut	Ask us
14	102-01931020193	Screw, flat head slot	Request
16	102-00881020088	Hex head bolt	Request
8	104-8493	Tube end	Ask us
19	102-10511021051	Screw, flat head	Request
1	137-0032WP	Plate, base	Ask us
2	136-3500WP1363500WP	Plate, face LH infeed gate	Request
3	136-3496WP	Cover, plate	Ask us
4	136-3497WP1363497WP	Spacer, shaft	Request
6	136-3504WP1363504WP	Stop, bottle RH	Request
7	136-3499WP1363499WP	Plate, hinge safety gate	Request
8	136-3498WP	Plate, hinge	Ask us
9	103-57921035792	Switch, limit	Request
10	104-78971047897	Connector, 90 deg sealtite	Request
11	136-3501WP1363501WP	Bracket, spring support	Request
12	104-71811047181	Spring, extension	Request
13	136-5908-1	Plate, face	Ask us
14	904-7307WP9047307WP	Bracket, support	Request
15	137-2535WP1372535WP	Spacer, bottle stop & safety gate	Request
20	136-9525WP1369525WP	Guide, bottle	Request
22	104-71791047179	Pin, dowel	Request
23	104-71801047180	Pin, dowel	Request
25	102-00791020079	Bolt, hex head	Request
28	102-17071021707	Screw, round hd machine	Request
29	102-00671020067	Bolt, hex head	Request
31	102-00691020069	Bolt, hex head	Request
33	600-1592	Rod, guide bracket	Ask us
34	102-04151020415	Washer, flat	Request
36	102-04171020417	Washer, flat	Request
38	102-03341020334	Nut, hex	Request
40	102-00771020077	Bolt, hex head	Request
42	102-04161020416	Washer, flat	Request
43	300-00863000086	Fitting, tube straight	Request
44	0003223000-3223	Tube, polyflo	Request
45	600-15916001591	Guide, adjustable	Request
46	600-1128-16001128-1	Plate, support guide infeed gate	Request
47	600-11296001129	Nut, back plate infeed gate	Request
49	100-01661000166	Unilet, straight	Request
50	104-7897ST	Connector	Ask us
51	136-17901361790	Spacer rod	Request
53	102-07861020786	Bolt, hex head	Request
55	102-03321020332	Nut, hex	Request
56	102-0196	Screw, flat head, -20 x long	Ask us
57	102-02031020203	Screw, flat head slot	Request
58	600-20746002074	Spacer, face plate guide	Request

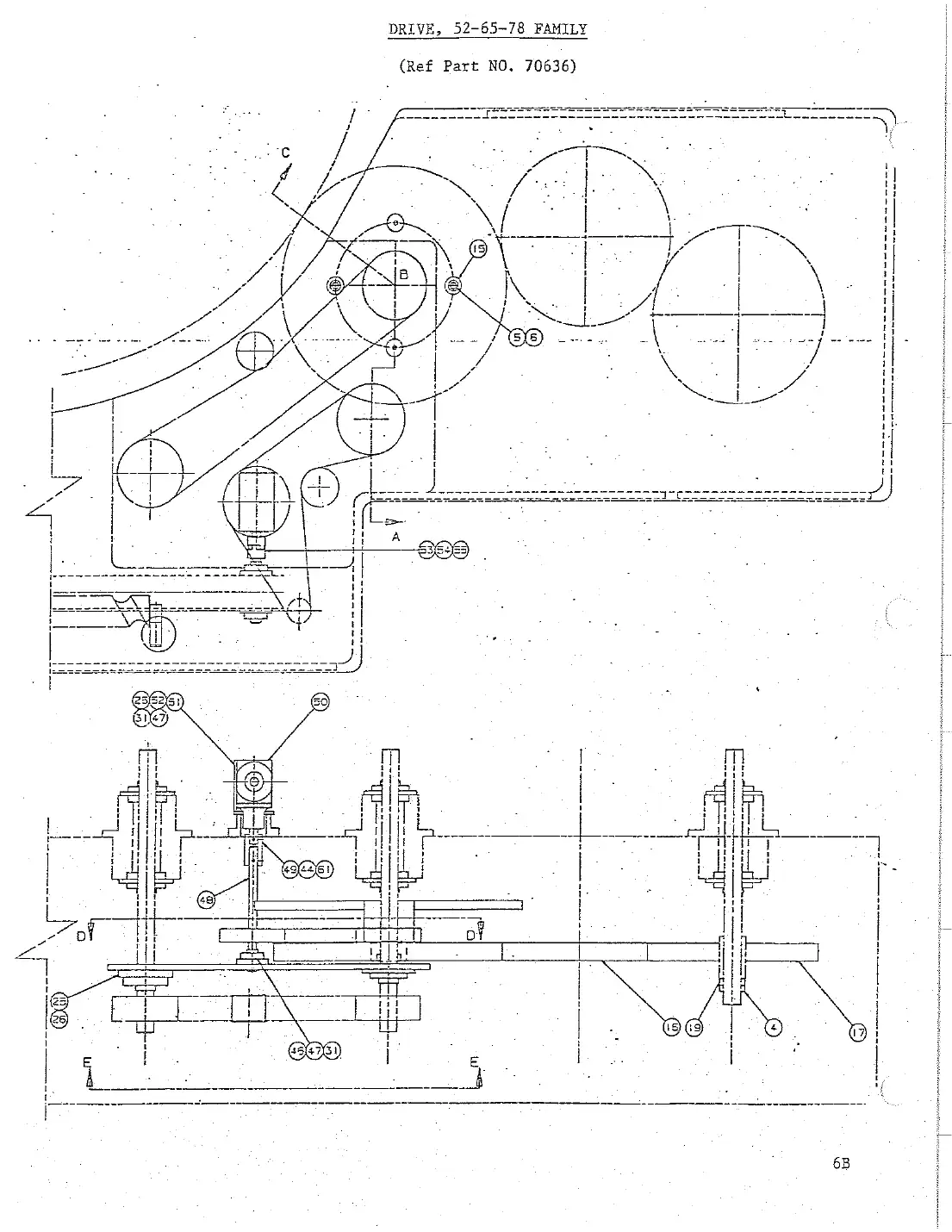

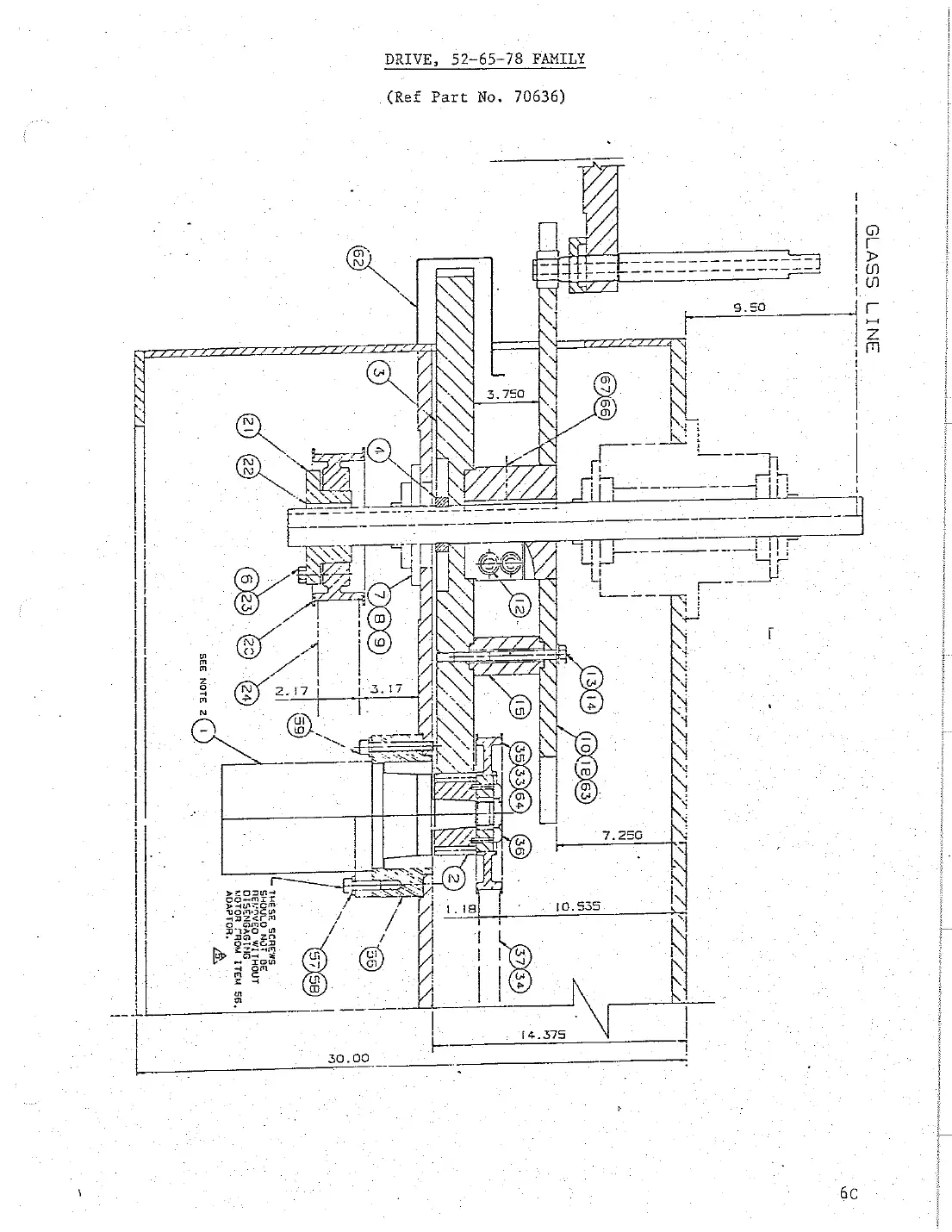

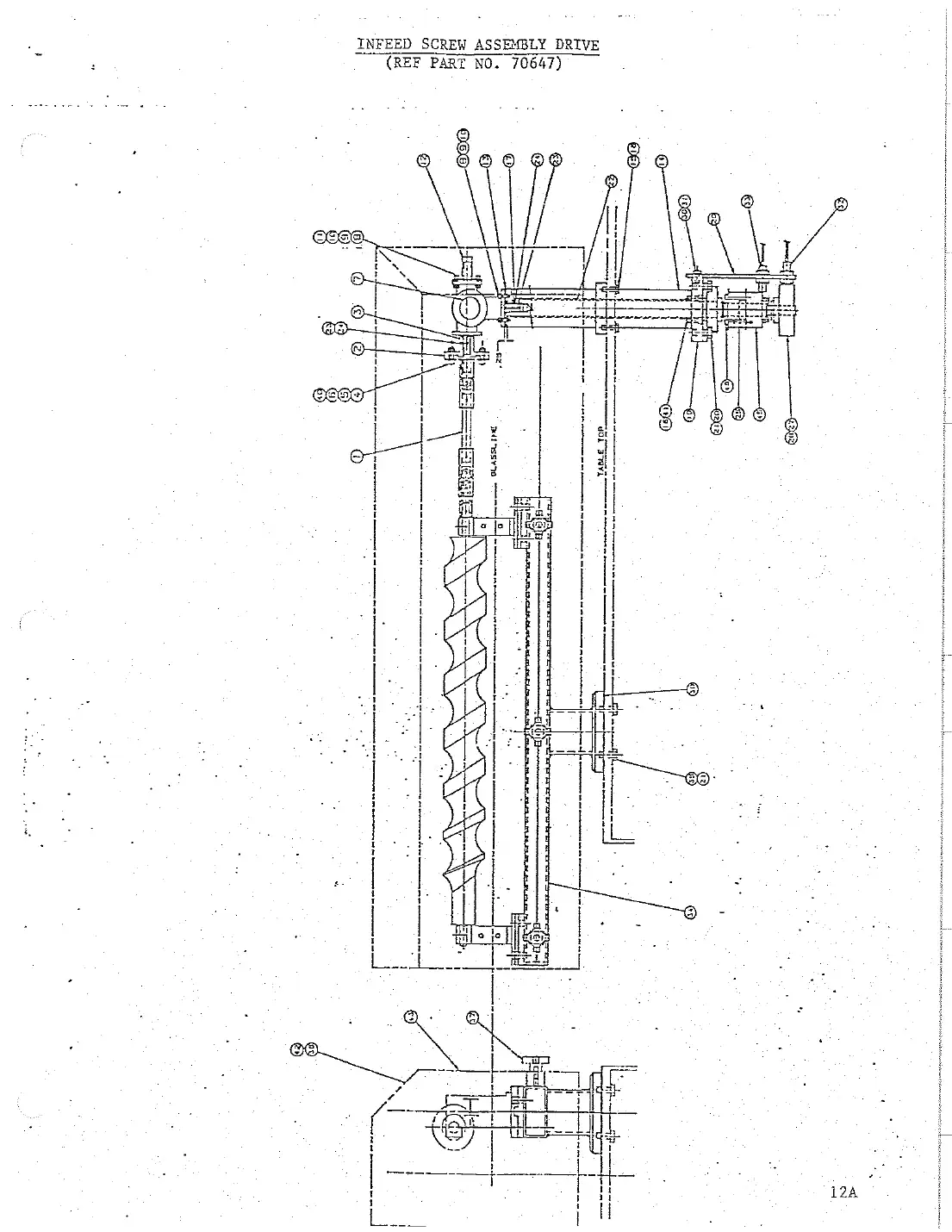

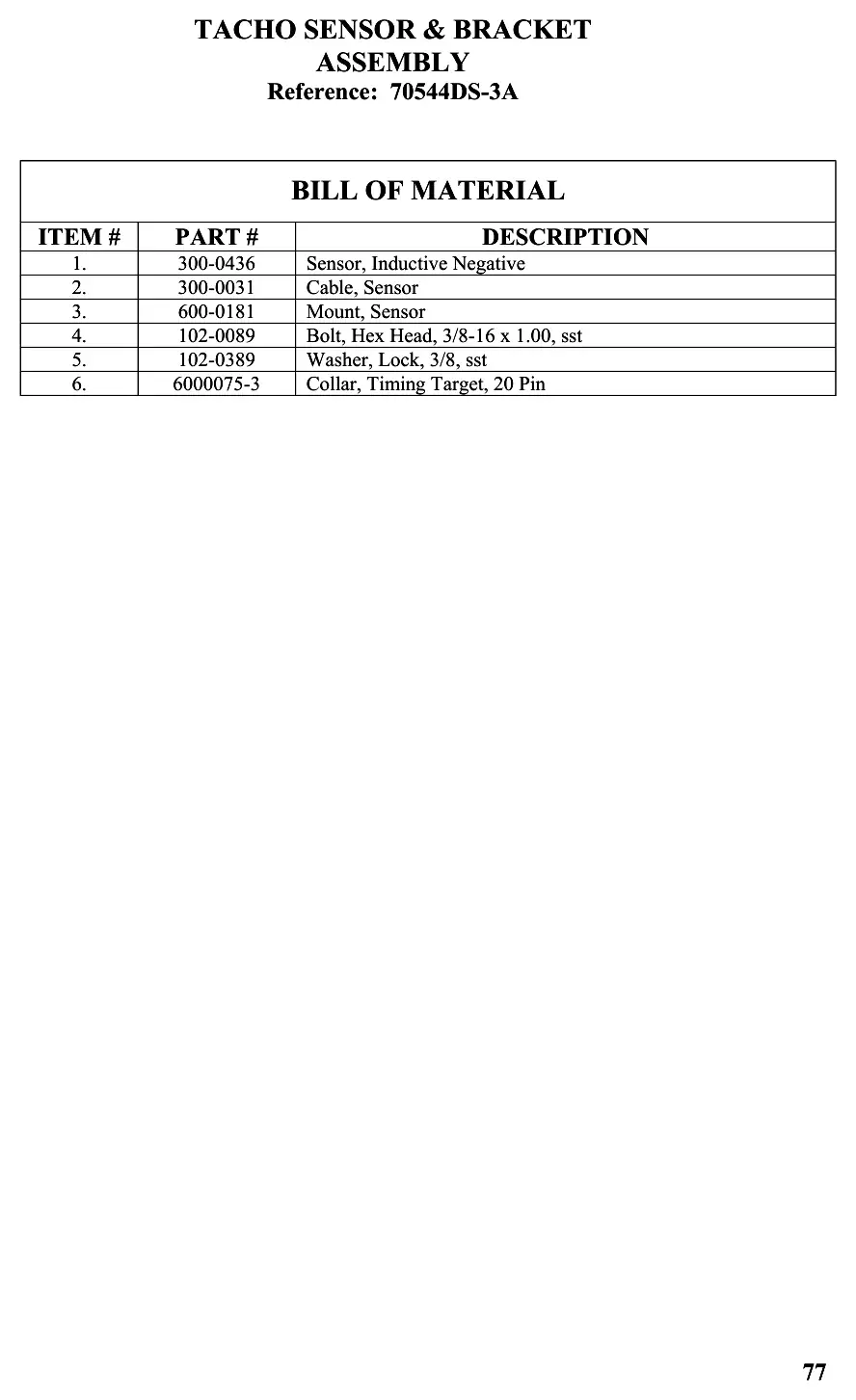

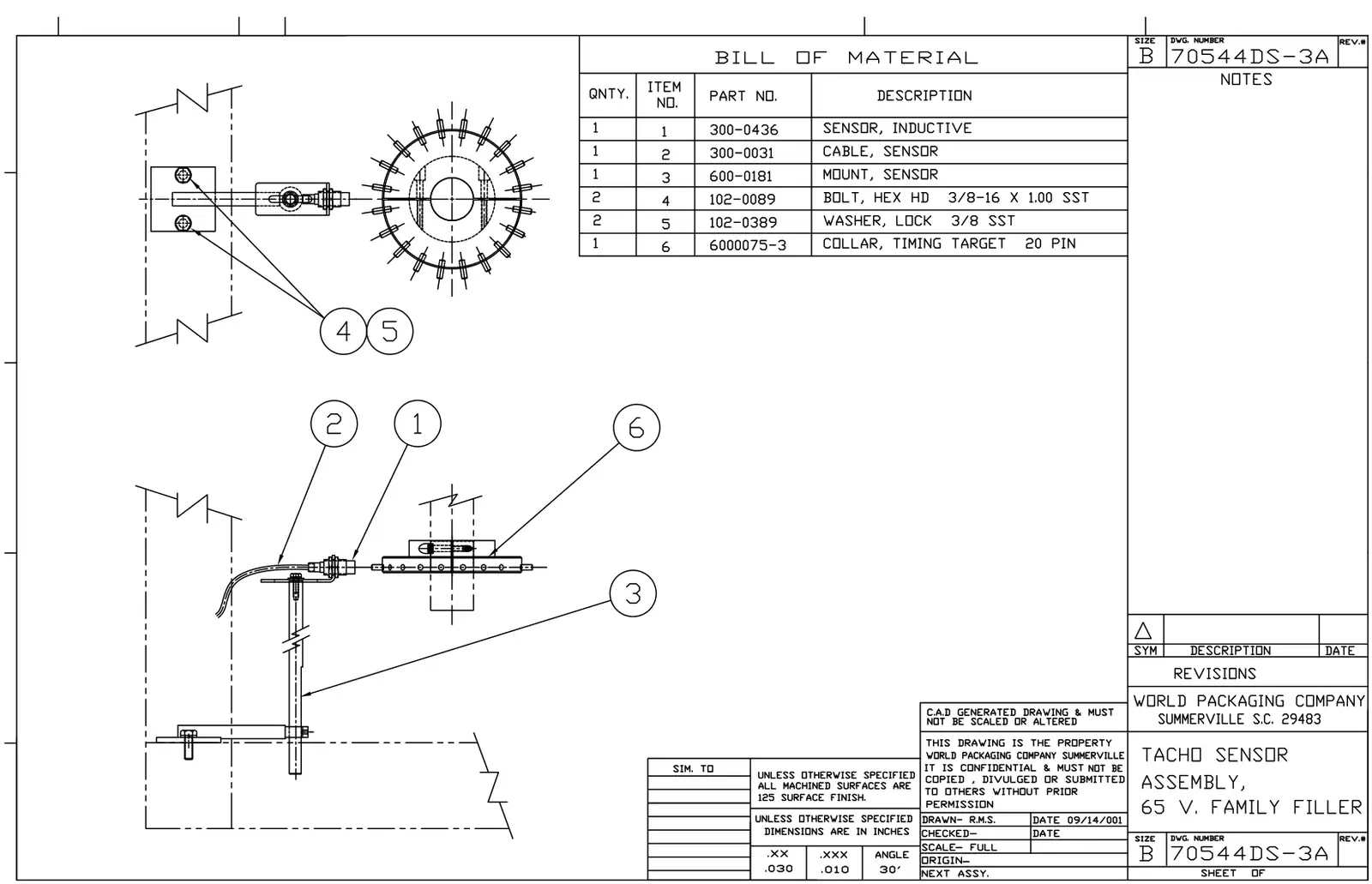

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	904-75459047545	U-joint assembly	Request
2	137-1755	Flangeplate	Ask us
3	137-1756	Flangeplate	Ask us
23	102-1333	Key	Ask us
4	102-13251021325	Screw, socket head cap	Request
24	102-04251020425	Set screw	Request
5	102-04161020416	Washer, flat	Request
6	102-03881020388	Washer, lock	Request
7	104-6510	Gearbox	Ask us
28	104-7309	Coupling	Ask us
8	102-07431020743	Screw, socket head cap	Request
9	102-04151020415	Washer, flat	Request
30	102-00881020088	Hex head bolt	Request
190	102-03871020387	Washer, lock	Request
31	102-04171020417	Washer, flat	Request
32	103-5823	Sensor	Ask us
12	903-98619039861	Cover, gear box shaft	Request
13	137-1763	Spacer	Ask us
34	904-7537	Support	Ask us
14	905-1868	Stand	Ask us
35	102-01011020101	Bolt, hex head	Request
16	102-03891020389	Washer, lock	Request
17	104-7918	Plug	Ask us
38	104-83191048319	O-ring	Request
18	136-1791	Plate	Ask us
40	102-0339	Nut	Ask us
19	100-02291000229	Bearing	Request
20	102-0039	Bolt	Ask us

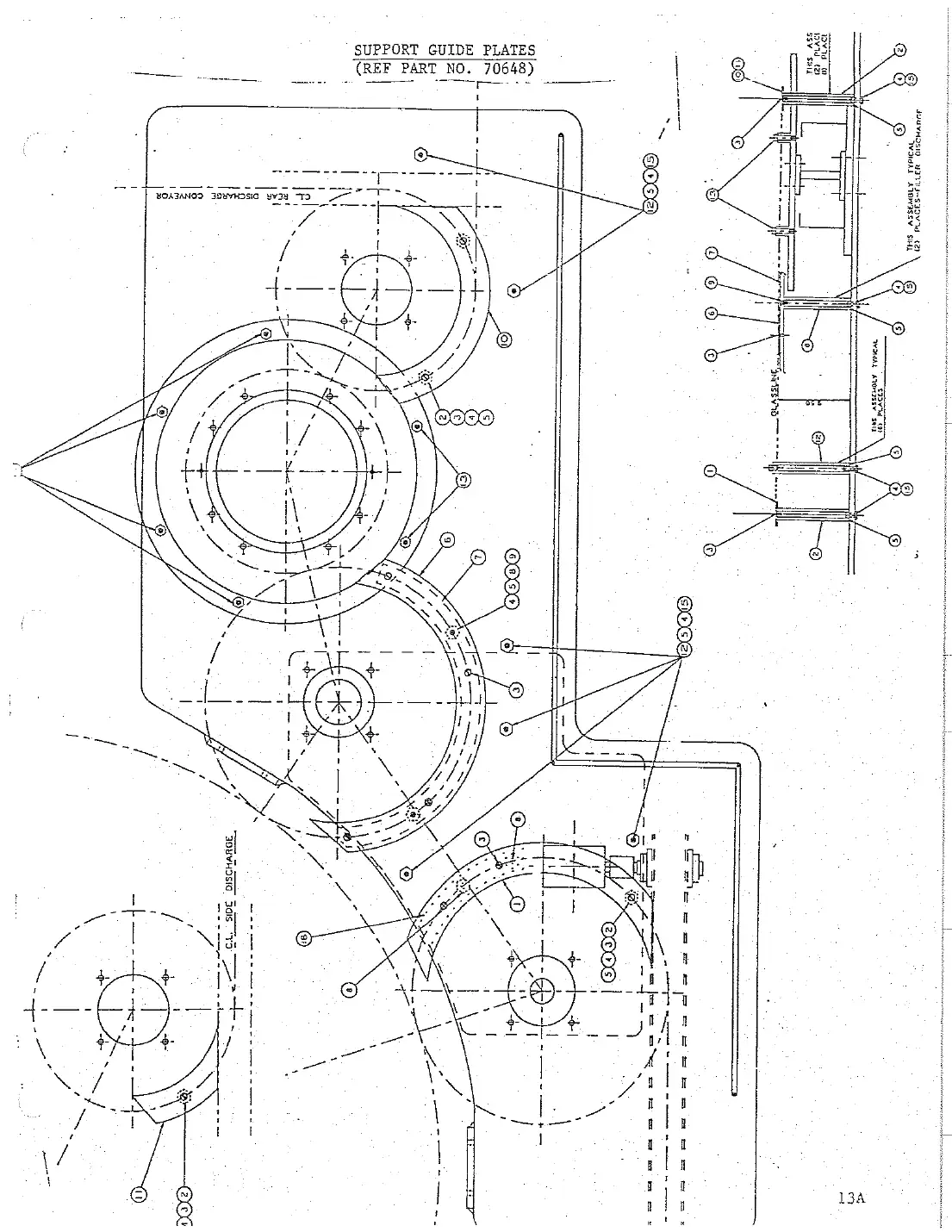

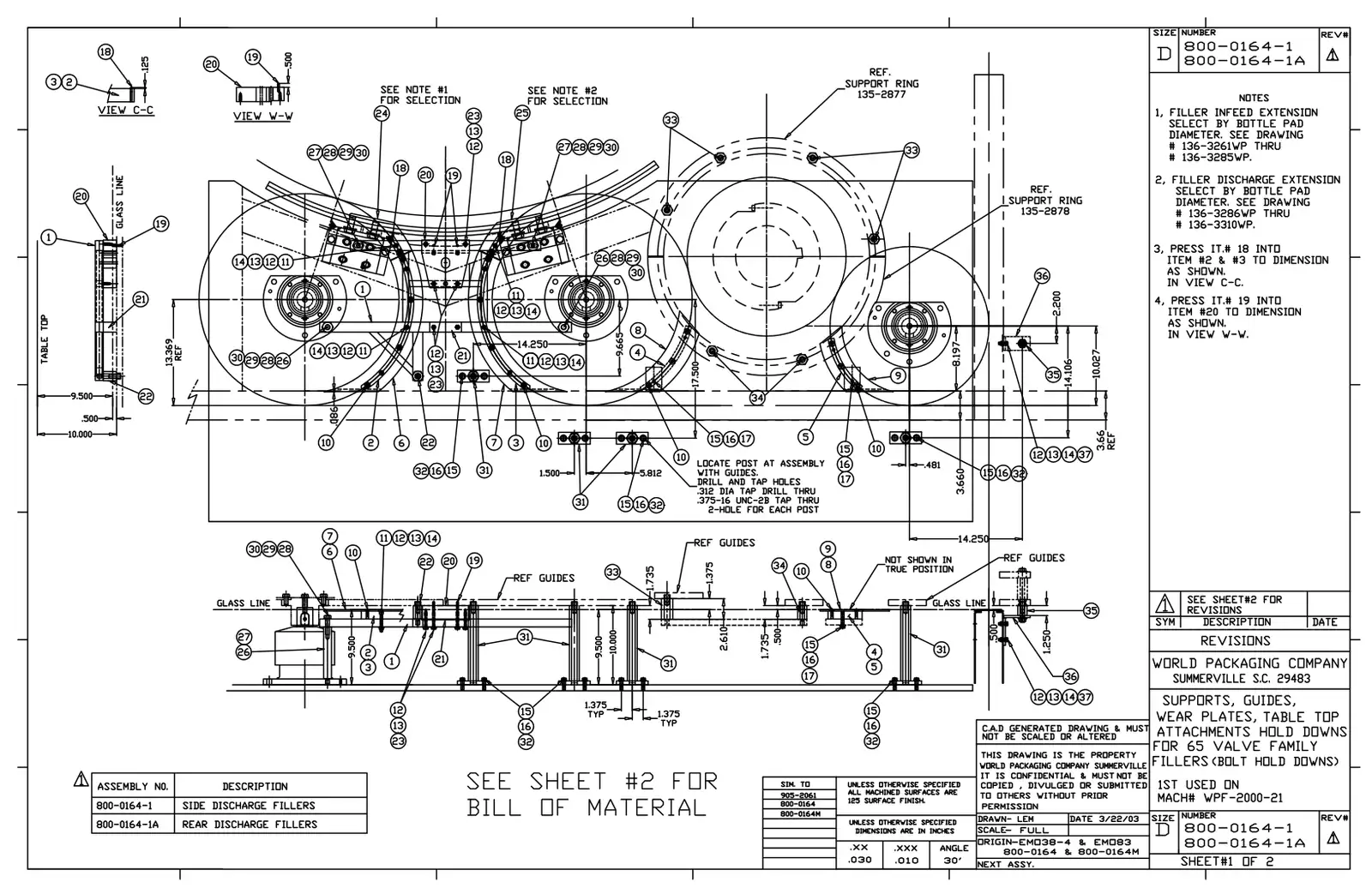

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
2	136-7228	Post	Ask us
3	102-0198	Screw	Ask us
4	102-01021020102	Bolt, hex head	Request
5	100-81281008128	O-ring, check ball	Request
7	137-1860	Wearstrip	Ask us
8	137-1861	Post	Ask us
9	102-13621021362	Screw, socket head cap	Request
10	137-1831	Wearstrip RH	Ask us
12	136-6481	Post	Ask us
13	135-1754	Spacer	Ask us
14	135-1935	Spacer	Ask us
15	102-03901020390	Washer, lock	Request
16	137-4003	Support RH	Ask us

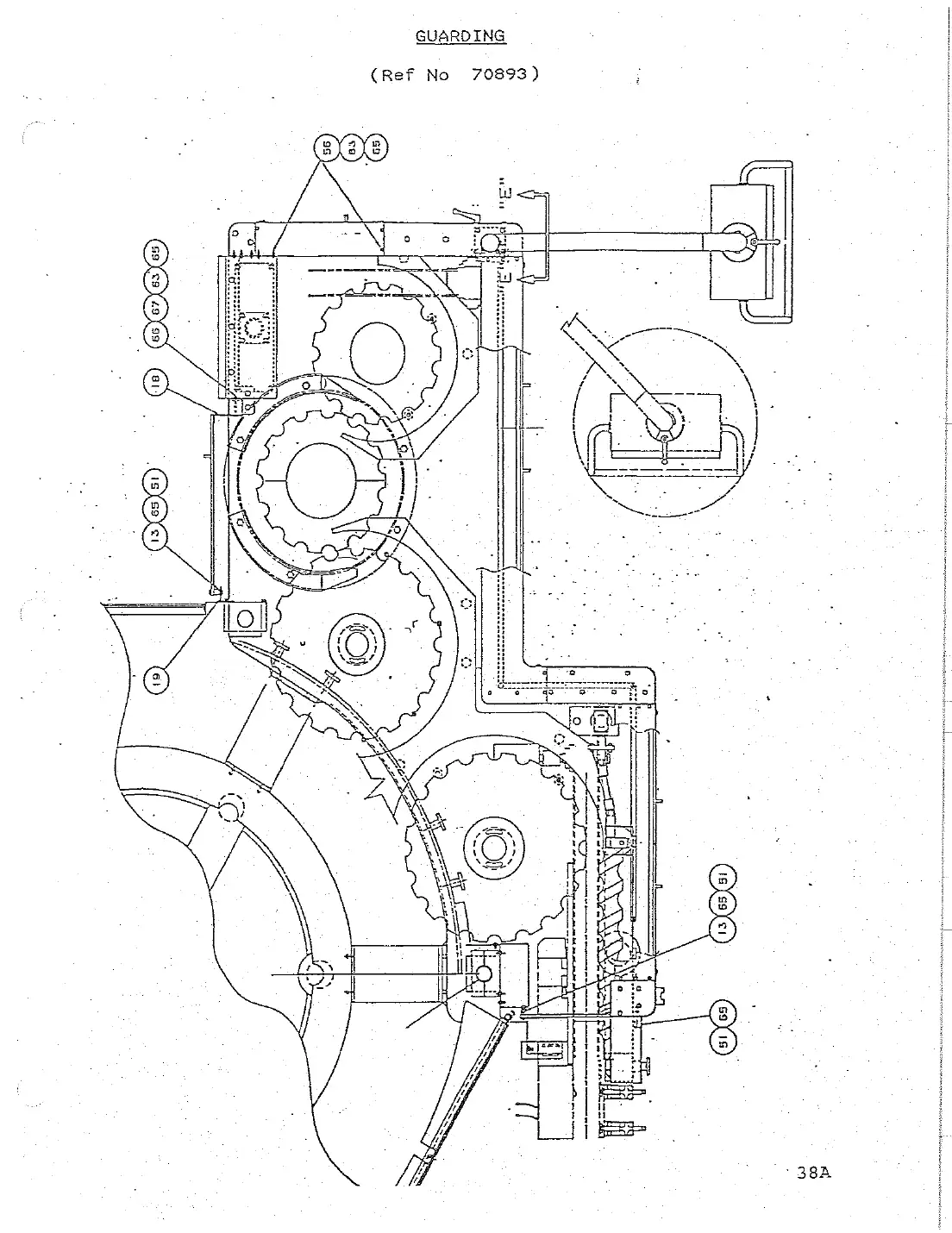

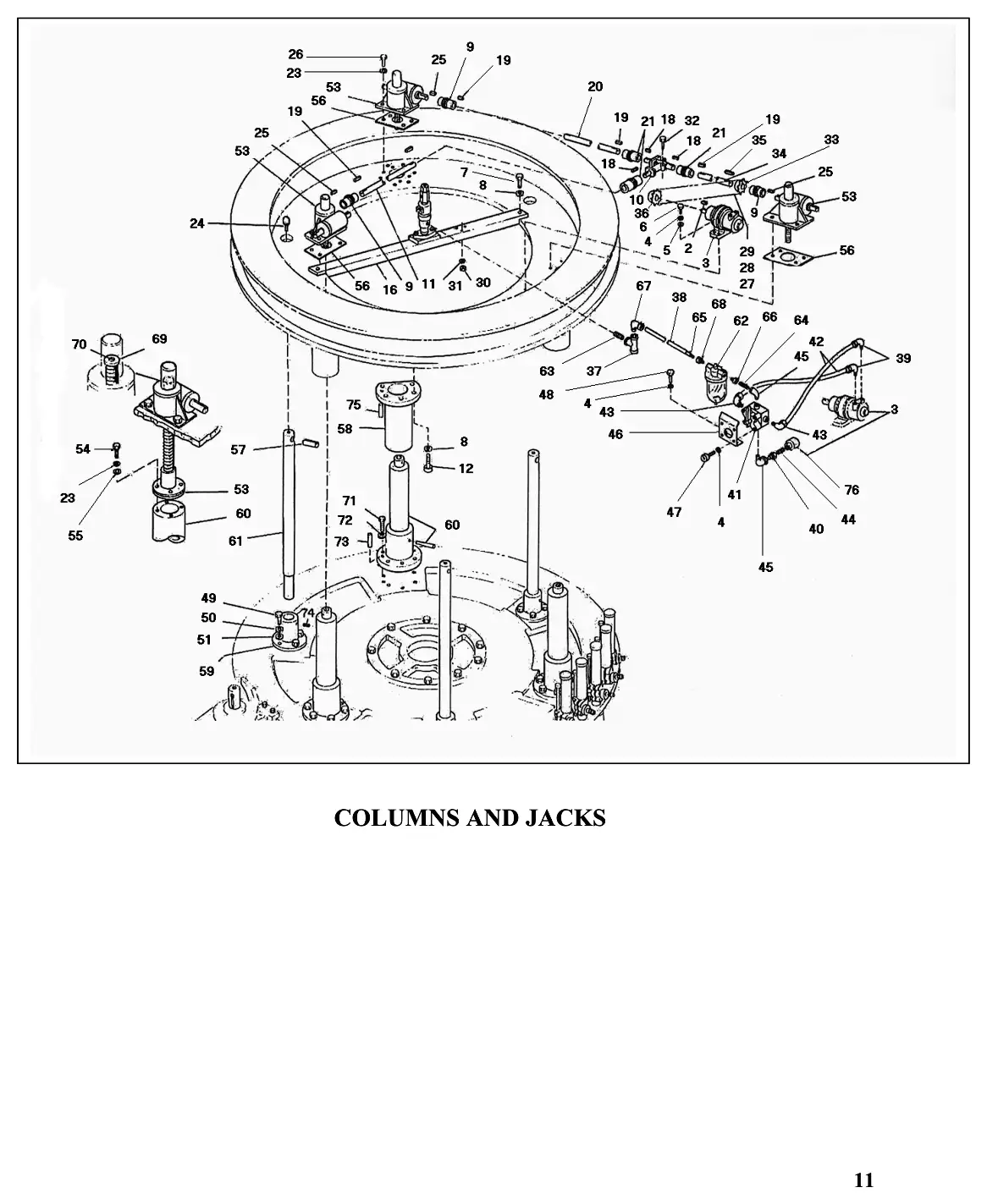

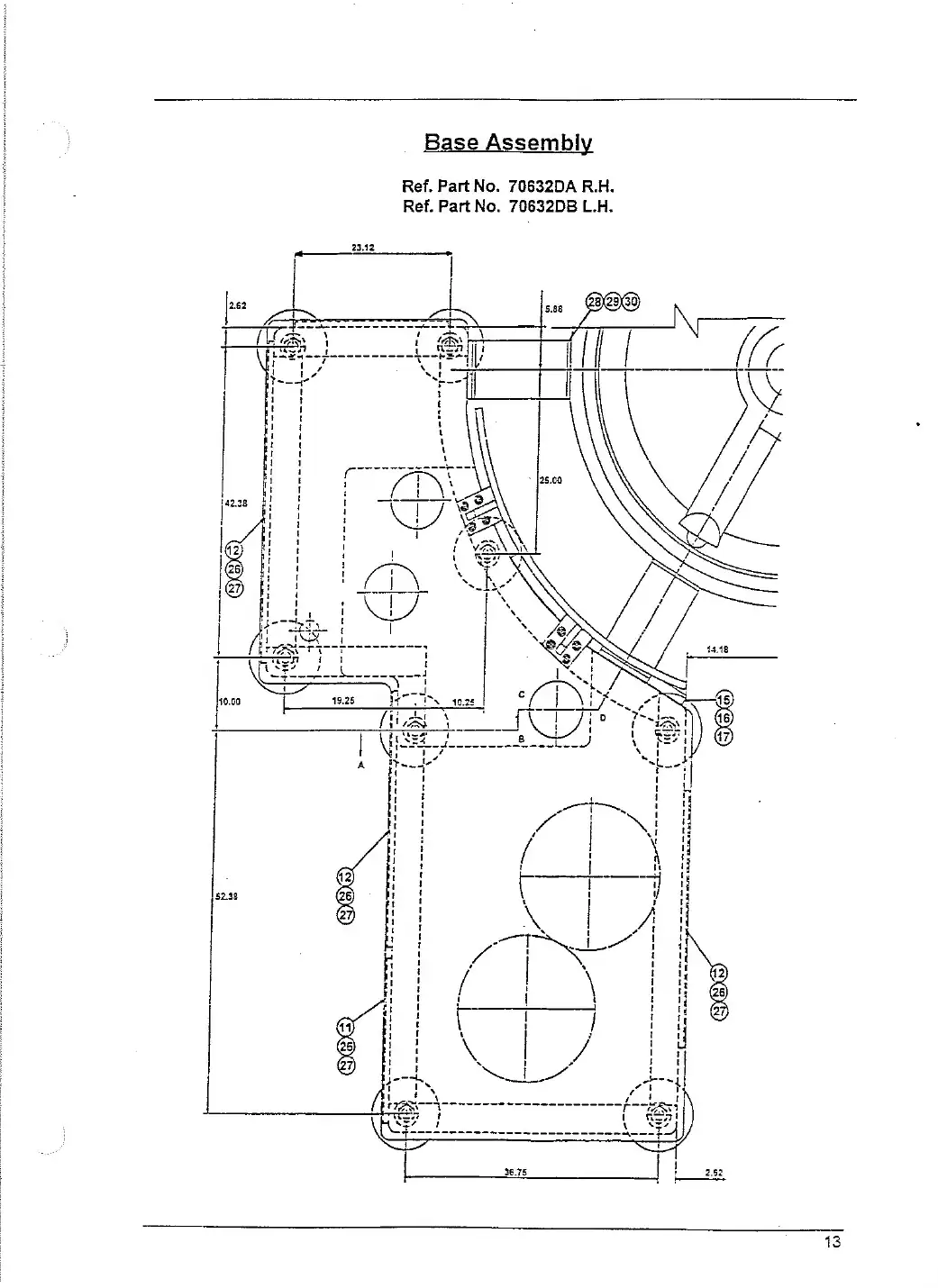

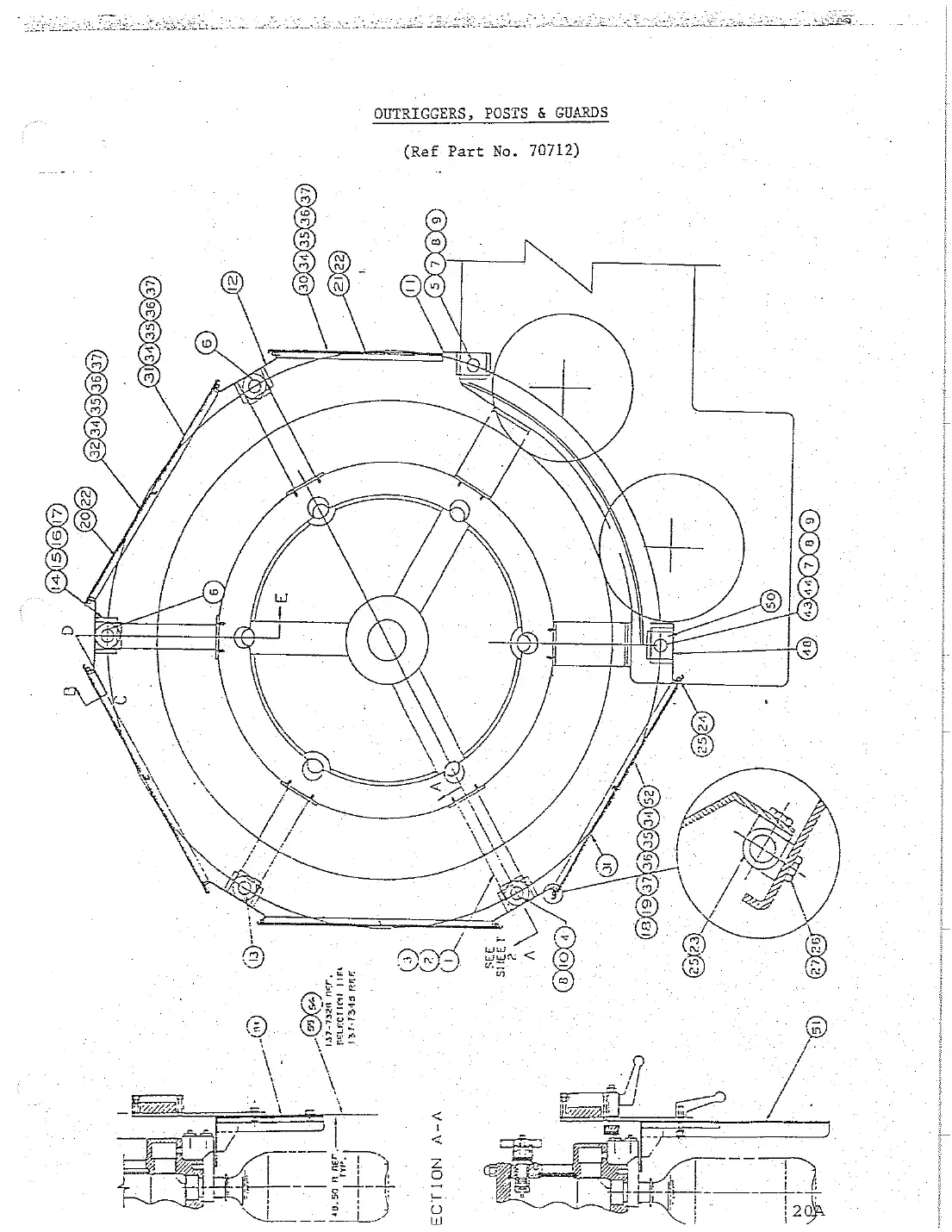

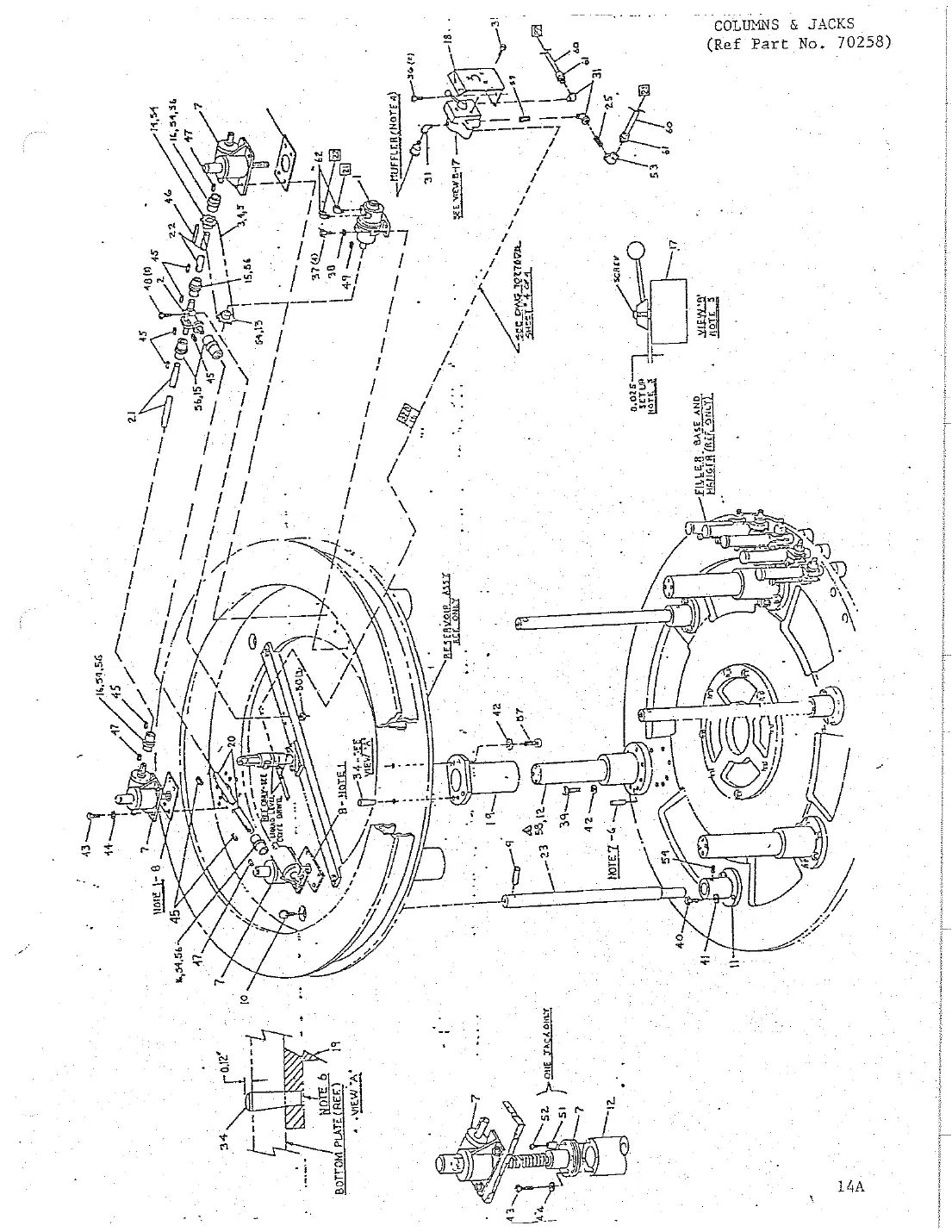

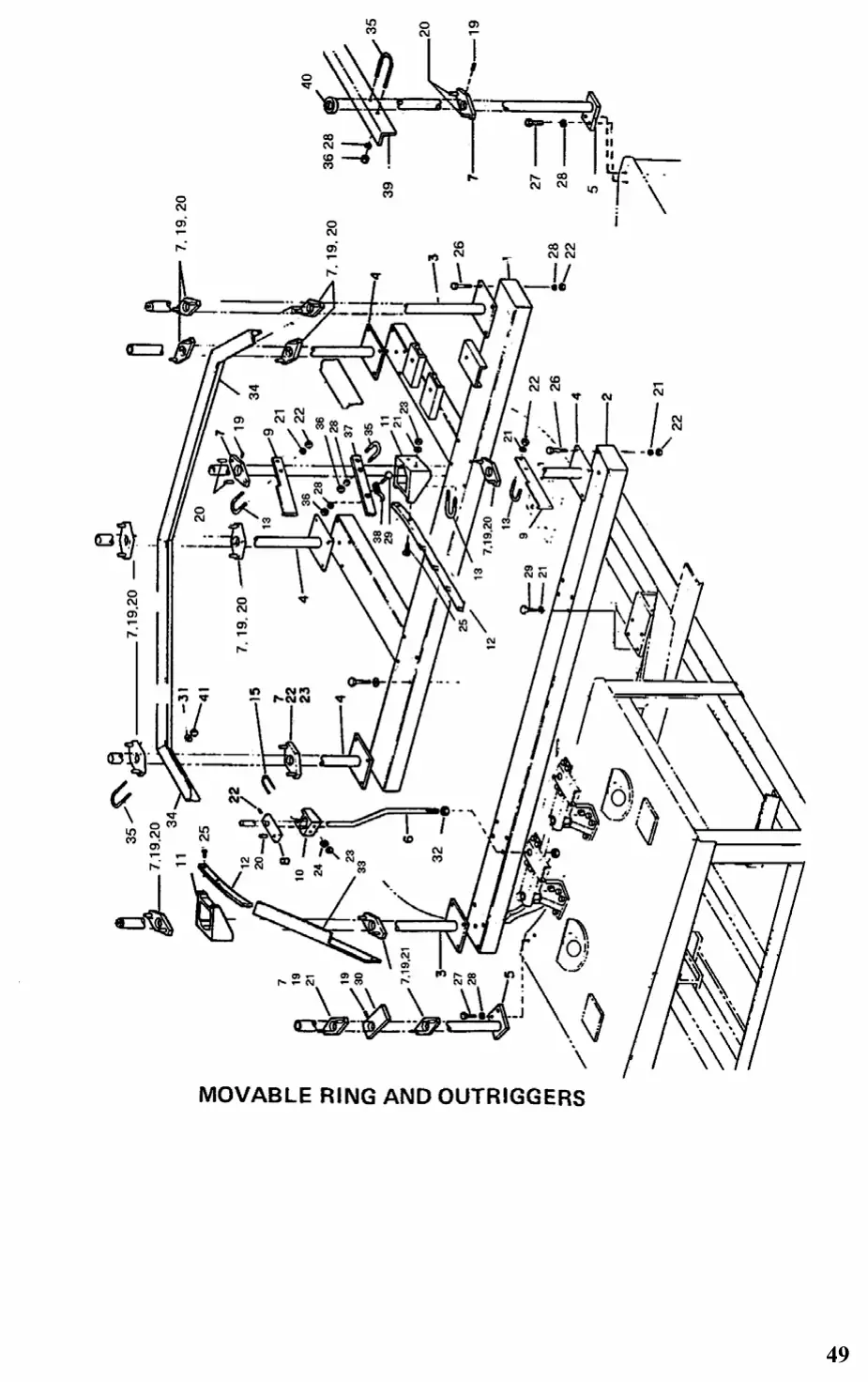

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
1	104-50951045095	Motor, air bowl lift	Request
34	102-24521022452	Pin, taper	Request
2	100-93301009330	Gearbox, three way bowl lift	Request
35	102-00651020065	Bolt, hex head	Request
3	100-82681008268	Chain, roller	Request
36	102-00731020073	Bolt, hex head	Request
4	100-63501006350	Link, offset	Request
37	102-00761020076	Bolt, hex head	Request
5	100-82691008269	Link, connecting	Request
38	102-04161020416	Washer, flat	Request
6	102-21601022160	Pin, dowel	Request
39	102-23501022350	Bolt, hex head	Request
40	102-01031020103	Bolt, hex head	Request
8	133-90721339072	Plate, jack adjusting	Request
41	102-04181020418	Washer, flat	Request
9	135-96391359639	Pin, slide cover bowl	Request
42	102-2268	Washer	Ask us
10	102-23181022318	Screw, thumb	Request
43	102-00901020090	Bolt, hex head	Request
41	137-7192	Flange	Ask us
44	102-20021022002	Washer, flat	Request
13	135-86121358612	Sprocket	Request
46	000-16250001625	Key, square	Request
14	135-8613	Sprocket	Ask us
47	000-3393	Square	Ask us
15	104-65411046541	Joint	Request
48	102-07861020786	Bolt, hex head	Request
16	104-65421046542-1	joint	Request
49	000-1629	Square	Ask us
17	104-65591046559	Valve, 3 way	Request
50	102-03321020332	Nut, hex	Request
18	135-8652	Bracket stop	Ask us
19	904-85449048544	Flange, bowl column upper	Request
52	102-11421021142	Screw, socket head cap	Request
20	135-8655	Shaft	Ask us
53	100-53721005372	Elbow, 90 deg	Request
22	135-8657	Shaft	Ask us
56	102-04351020435	Screw, set socket cup point	Request
23	137-71931377193	Column, cover lift	Request
57	102-14781021478	Screw, socket head cap	Request
59	100-41021004102	Nipple	Request
60	000-1772	Tube	Ask us
4	102-03881020388	Washer, lock	Request
8	102-03921020392	Washer, lock	Request
9	104-60111046011	Coupling, bowl lift shaft	Request
11	133-9093	Shaft, jack adjusting	Ask us
16	903-8022	Channel, product line	Ask us
20	133-9092	Shaft, jack adjusting	Ask us
21	104-60121046012	Coupling, bowl lift shaft	Request
23	102-03891020389	Washer, lock	Request
31	102-03871020387	Washer, lock	Request
33	104-6017SS1046017-SS	Sprocket, roller chain	Request
34	133-9091	Shaft, jack adjusting	Ask us
37	100-53711005371	Tee	Request
38	000-32230003223	Tube, polyflo	Request
39	100-14681001468	Elbow, tube male bras	Request
40	100-89071008907	Bushing, reducing hex female	Request
41	104-5146M1045146M	Valve, 4 way upgrade	Request
42	000-1769	Tube	Ask us
43	100-1471	Elbow, 90°	Ask us
44	100-61101006110	Nipple, close	Request
45	100-96661009666	Elbow, street 90 deg ips	Request
46	133-77711337771	Bracket, valve columns	Request
47	102-05971020597	Screw, socket head cap	Request
49	102-00421020042	Bolt, hex head	Request
50	102-03811020381	Washer, lock	Request
51	102-0757	Washer, flat	Ask us
53	903-99039039903	Jactuator, assembly	Request
54	102-00891020089	Bolt, hex head	Request
57	133-91831339183	Pin, slide cover bowl	Request
58	903-83359038335	Flange, bowl column upper	Request
59	133-9986	Flange	Ask us
60	903-83369038336	Flange, column sub-assembl	Request
61	133-99981339998	Column, cover lift 52V filler	Request
62	101-01371010137	Lubricator	Request
63	100-14411001441	Nipple, pipe	Request
64	100-27381002738	Nipple, pipe	Request
65	100-88751008875	Fitting, tube adapter	Request
66	100-89091008909	Bushing, reducing hex	Request
67	100-88741008874	Fitting, tube 90 deg elbow	Request
68	100-89081008908	Bushing, reducing hex	Request
69	135-06401350640	Stop, jacuator	Request
70	102-01911020191	Screw, flat head slot	Request
72	102-25461022546	Washer, lock internal	Request
73	102-2103	Dowel	Ask us
74	102-04271020427	Screw, set socket cup point	Request
76	104-5095-21045095-2	Muffler, air	Request

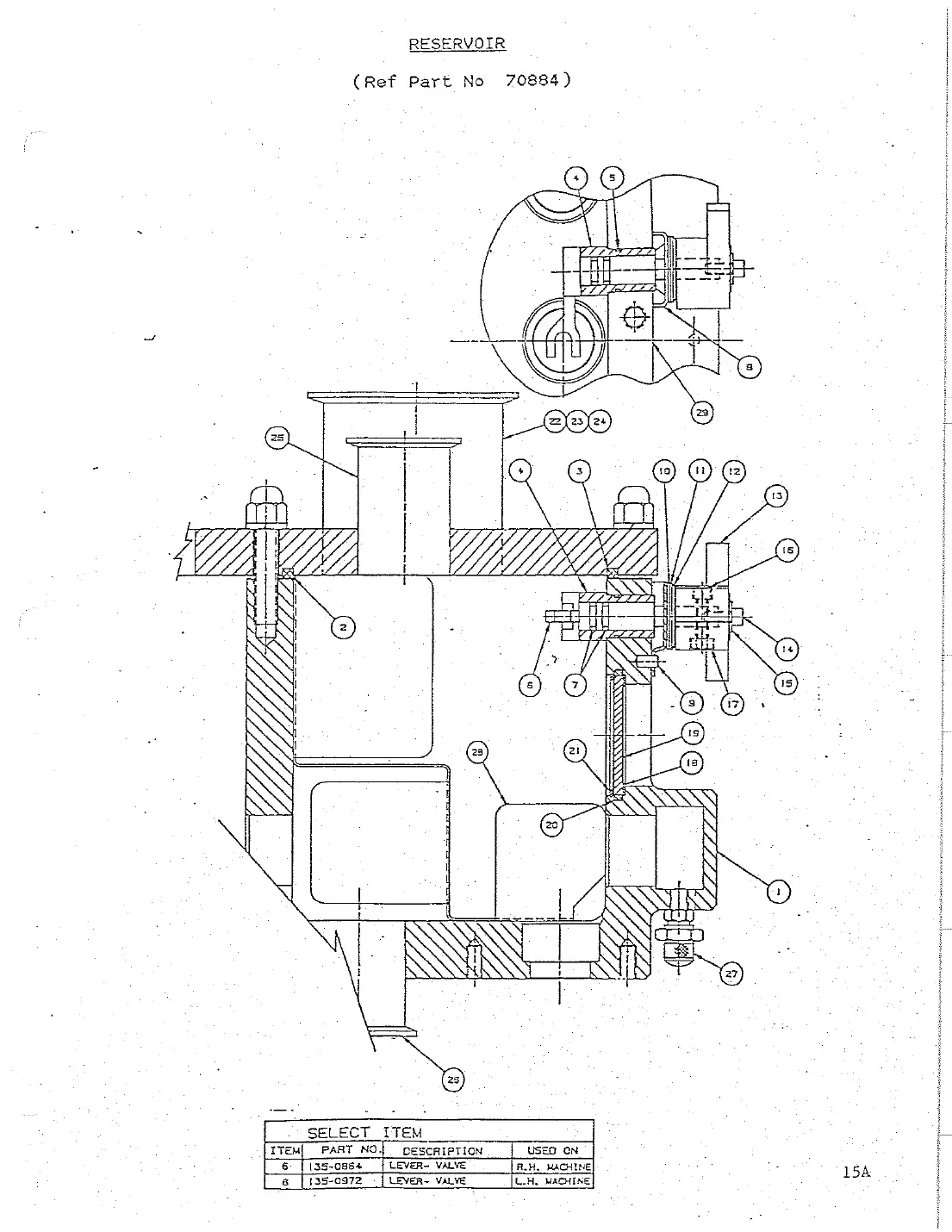

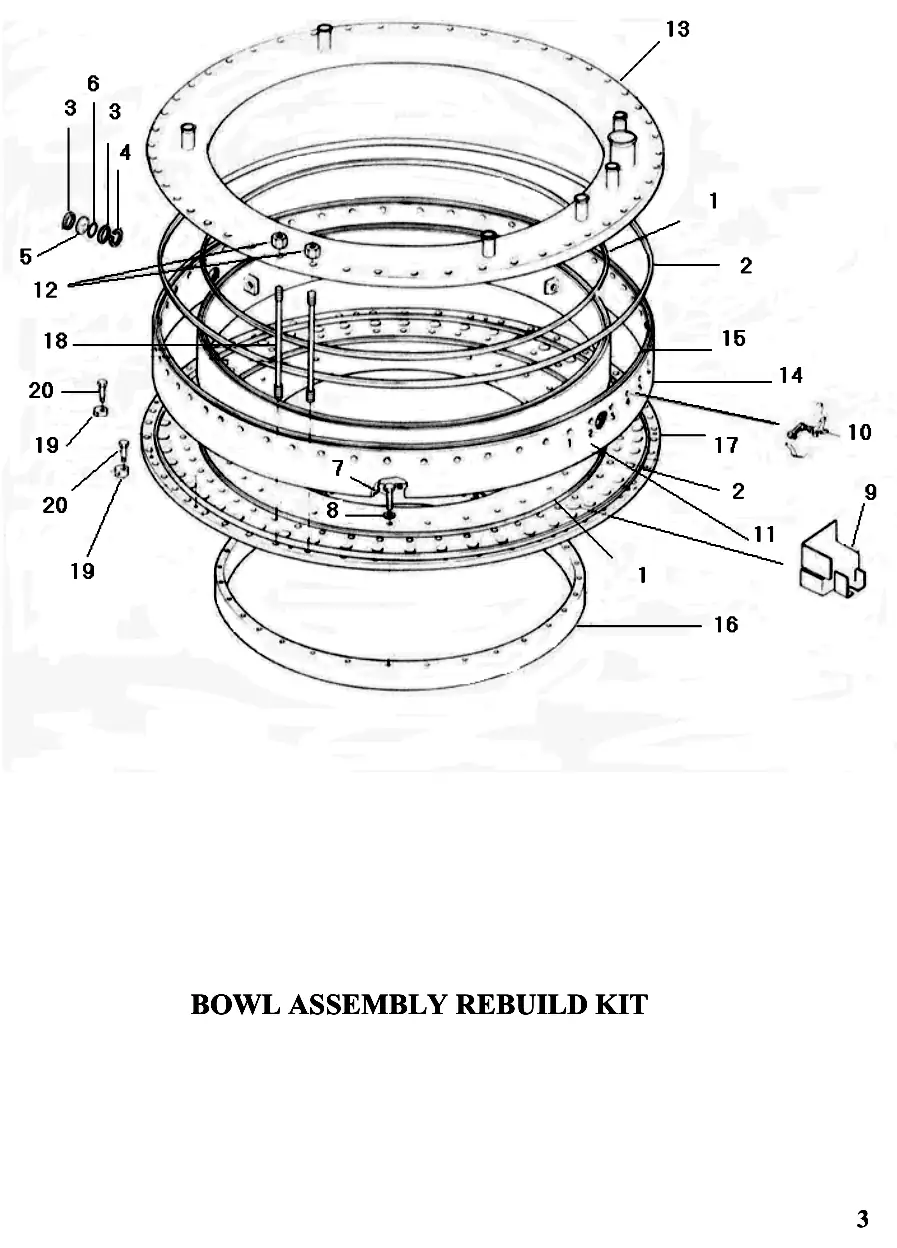

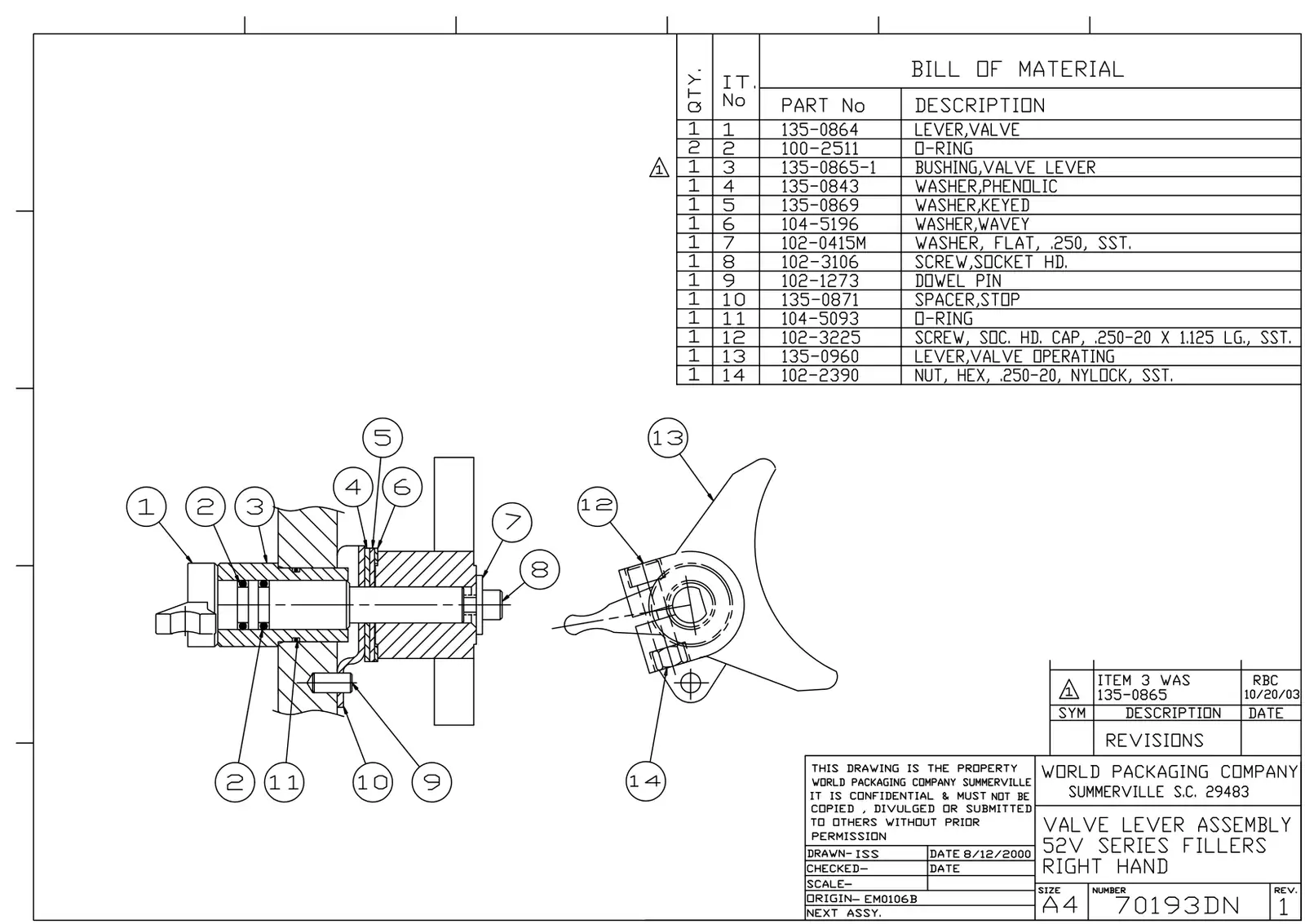

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
2	0004068000-4068	Gasket, filler bowl outer square	Request
4	135-09471350947	Bushing, valve lever OEM 90V	Request
5	104-50931045093	O-ring	Request
7	100-25111002511	O-ring, edpm, dash	Request
8	135-08711350871	Stop, reservoir spacer	Request
9	102-12731021273	Pin, dowel	Request
411	135-08691350869	Washer, keyed reservoir assembly	Request
12	104-51961045196	Washer, wave	Request
13	135-09601350960	Lever, valve operating	Request
14	102-31061023106	Screw, socket head cap	Request
15	102-04151020415	Washer, flat	Request
16	102-32251023225	Screw, socket head cap	Request
18	136-00531360053	Gasket, sight glass	Request
19	131-33601313360	Sight glass	Request
20	100-25071002507	O-ring	Request
21	100-97751009775	Ring, retaining	Request
22	104-5097	Ferrule	Ask us
23	100-21351002135	Gasket, tri clamp	Request
24	100-21441002144	Clamp, hinged sanitary	Request
27	104-8226	Valve	Ask us
28	135-0656	Baffle	Ask us
29	104-8640	Number set	Ask us

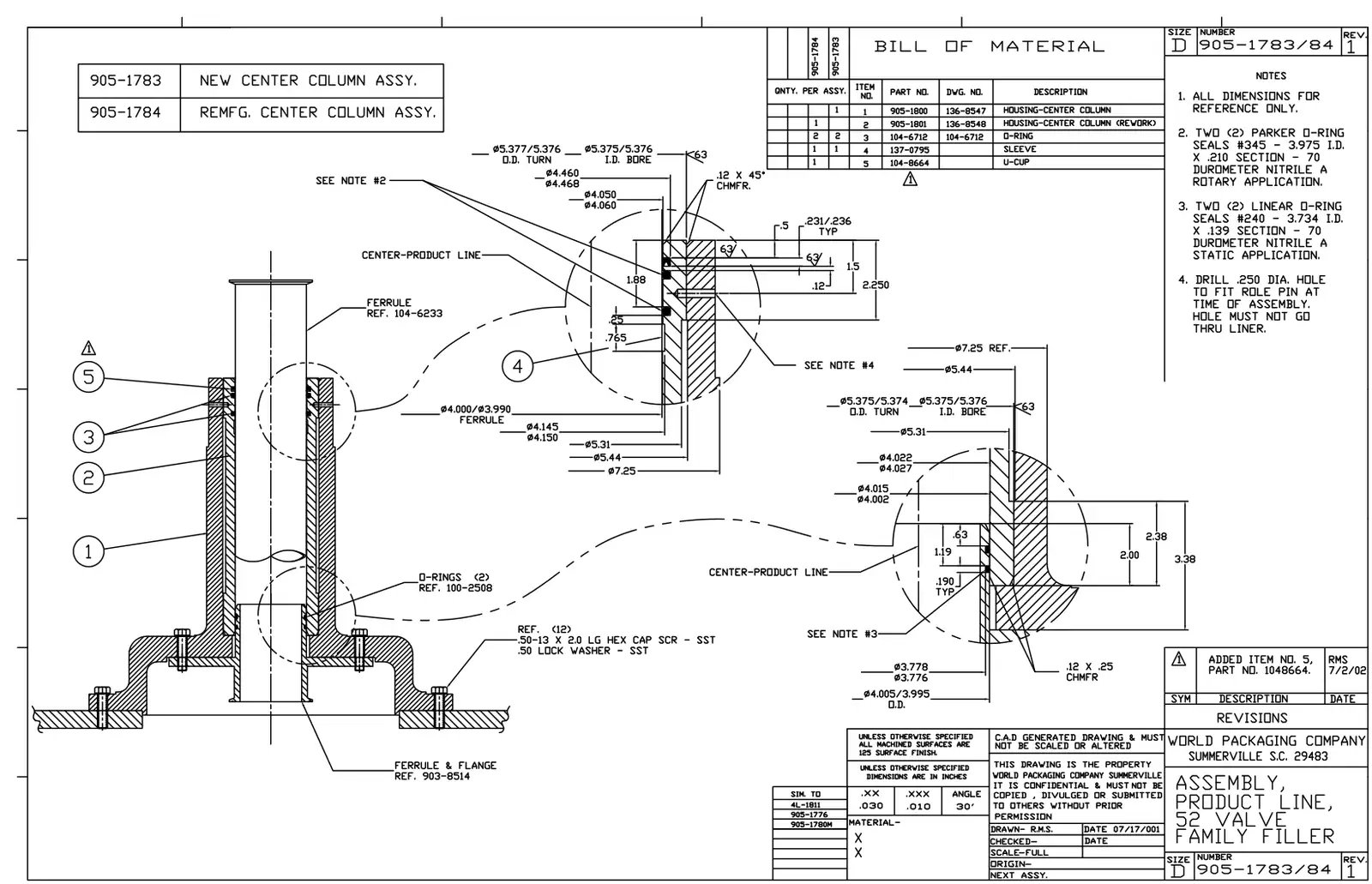

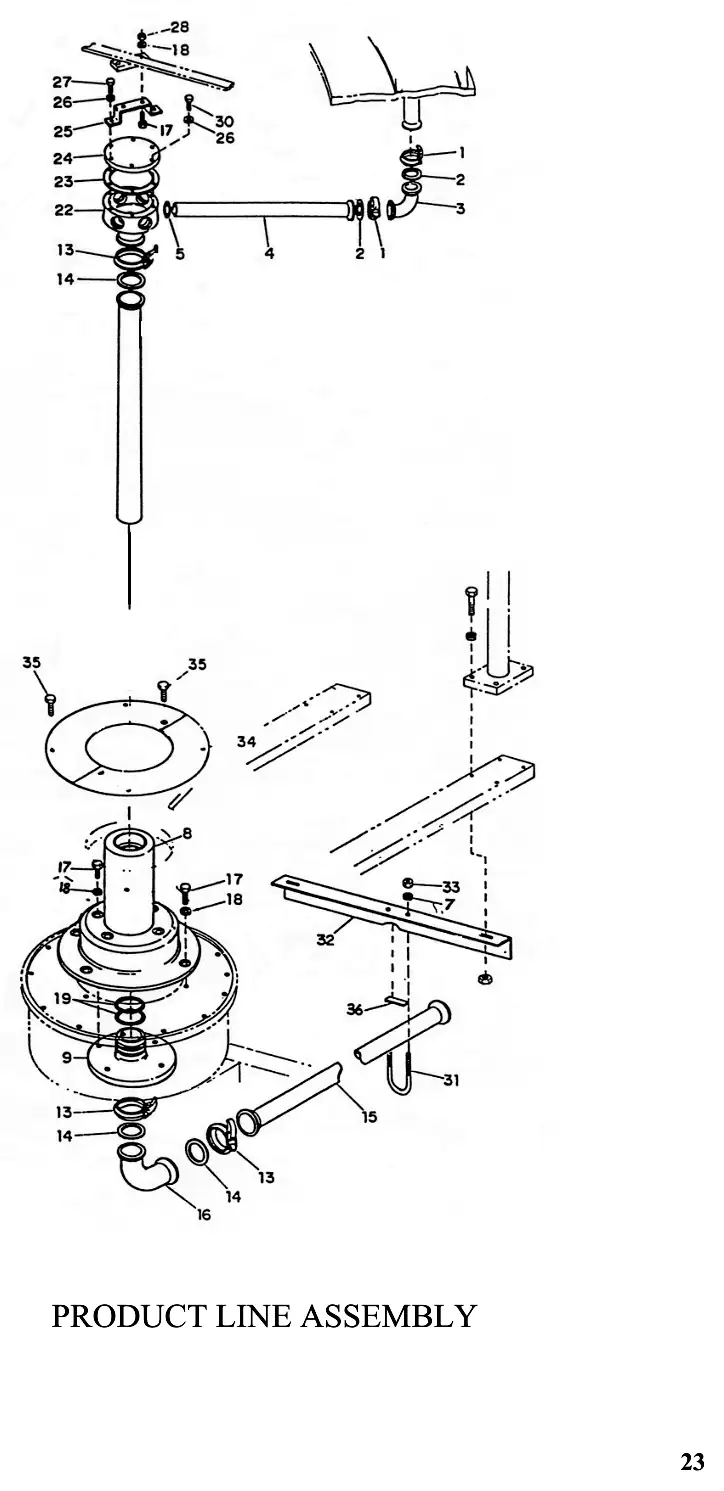

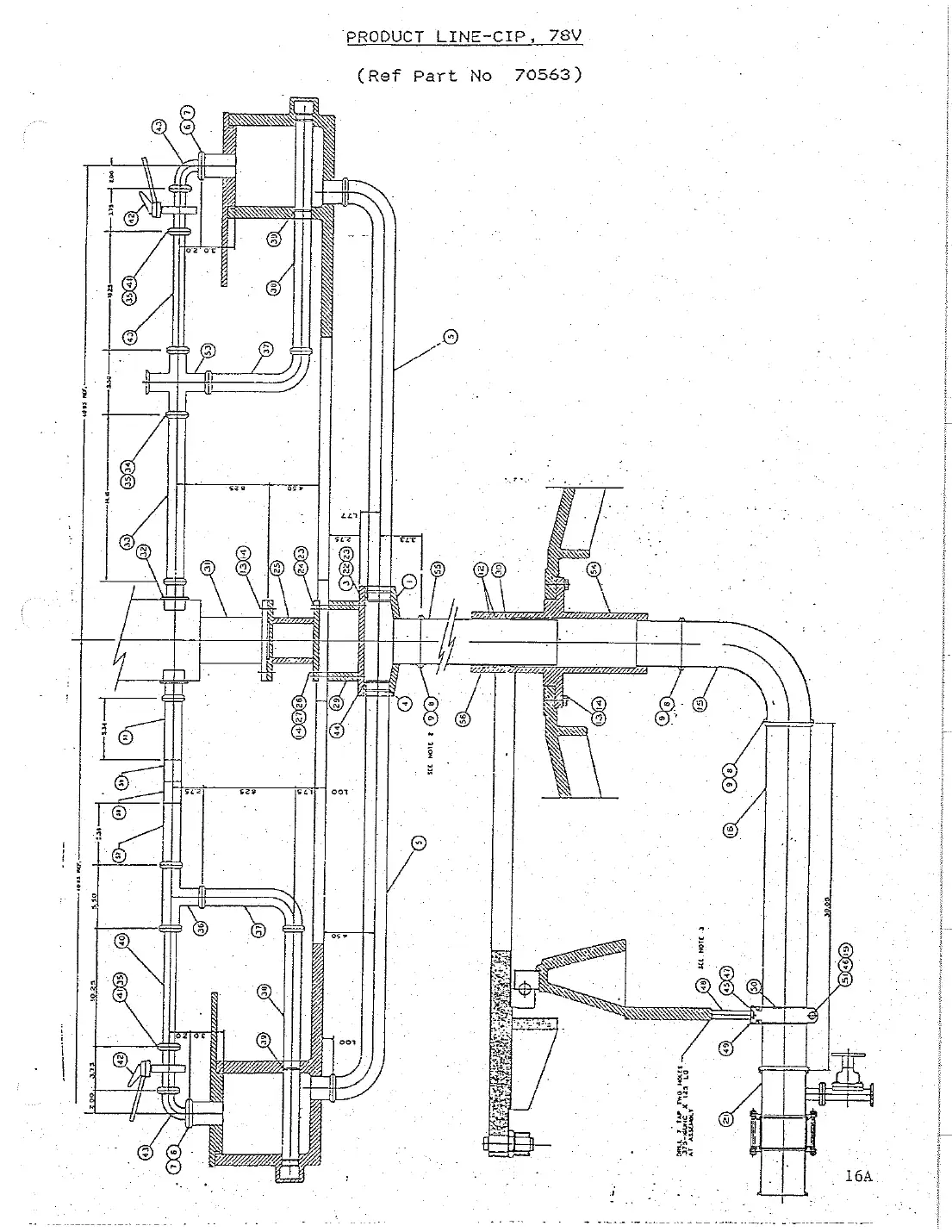

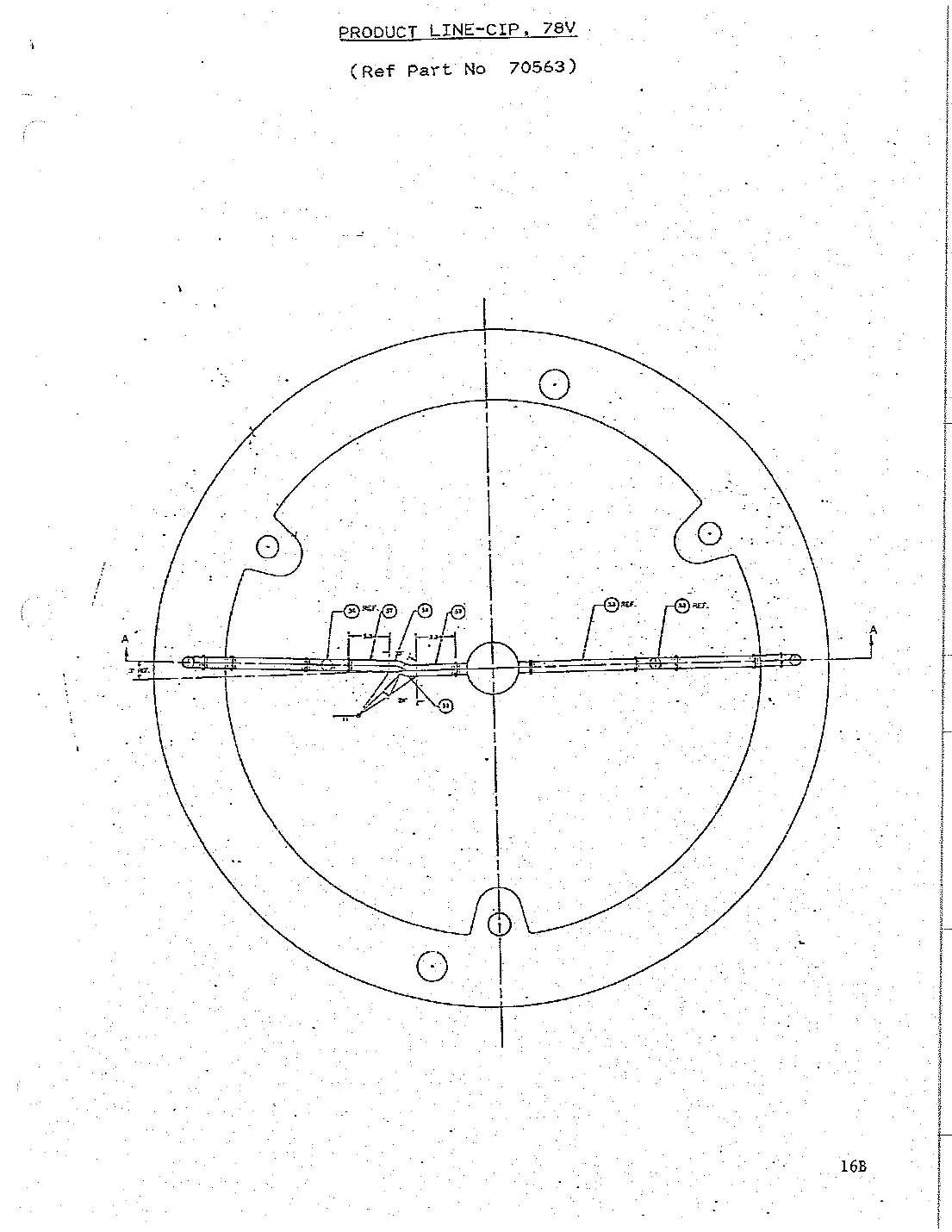

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
34	100-21321002132	Gasket, tri clamp tube	Request
2	136-00281360028	Gasket, balance chamber	Request
3	133-8034	Cover	Ask us
36	104-8166	Cross	Ask us
4	100-40251004025	O-ring	Request
37	137-0461	Line	Ask us
5	137-0455	Line	Ask us
38	136-8590	Line	Ask us
6	100-21331002133	Gasket, tri-clamp tube	Request
39	100-40331004033	O-ring	Request
40	137-0462	Line	Ask us
8	100-21351002135	Gasket, tri clamp	Request
44	100-2131	Gasket	Ask us
9	100-21421002142	Clamp, hinged sanitary	Request
42	104-7730	Valve	Ask us
12	104-67121046712	O-ring, product inlet	Request
13	102-01011020101	Bolt, hex head	Request
44	104-83041048304	O-ring, balance chamber	Request
14	102-03901020390	Washer, lock	Request
45	102-0099	Bolt	Ask us
46	102-04171020417	Washer, flat	Request
16	137-04581370458	Line, supply horizontal	Request
47	102-03891020389	Washer, lock	Request
21	905-2006	Sight glass	Ask us
48	000-0800	Pipe	Ask us
22	102-00761020076	Bolt, hex head	Request
25	137-0459	Support	Ask us
54	137-2666	Stuffing box	Ask us
26	102-01051020105	Bolt, hex head	Request
27	102-0366	Nut	Ask us
56	104-86641048664	U-cup	Request
30	137-07951370795	Sleeve, product line	Request
32	100-24061002406	O-ring	Request
33	137-0460	Line	Ask us

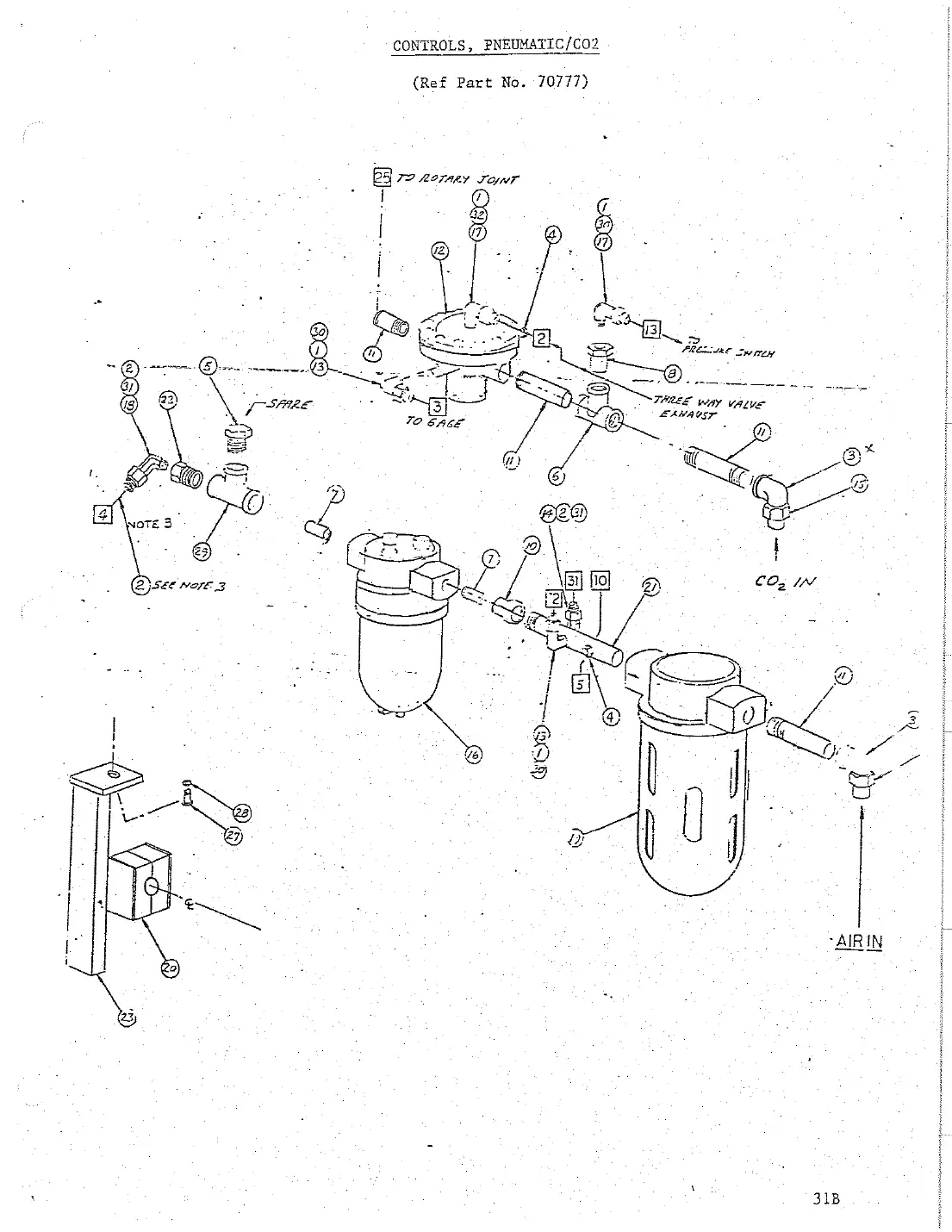

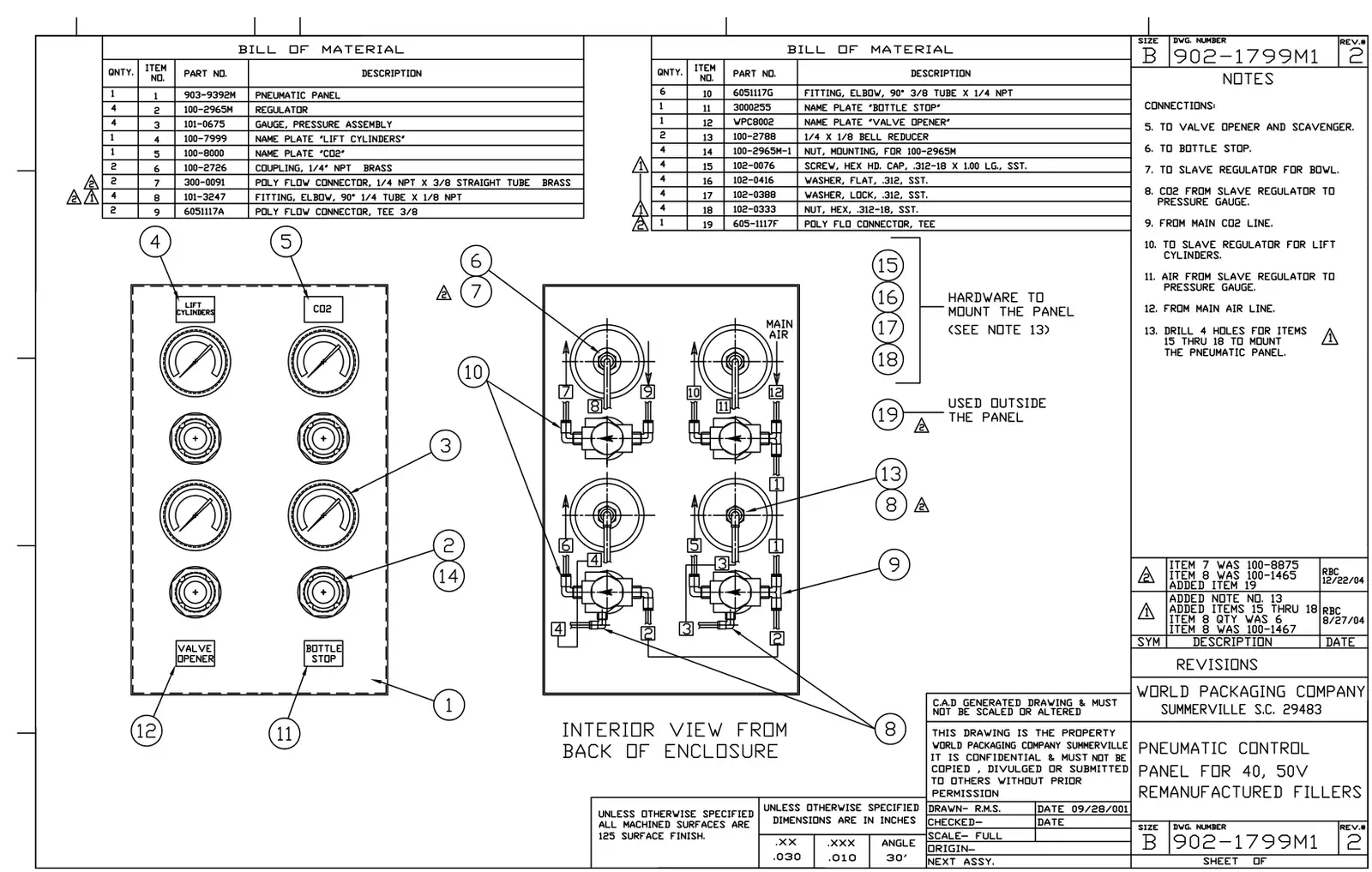

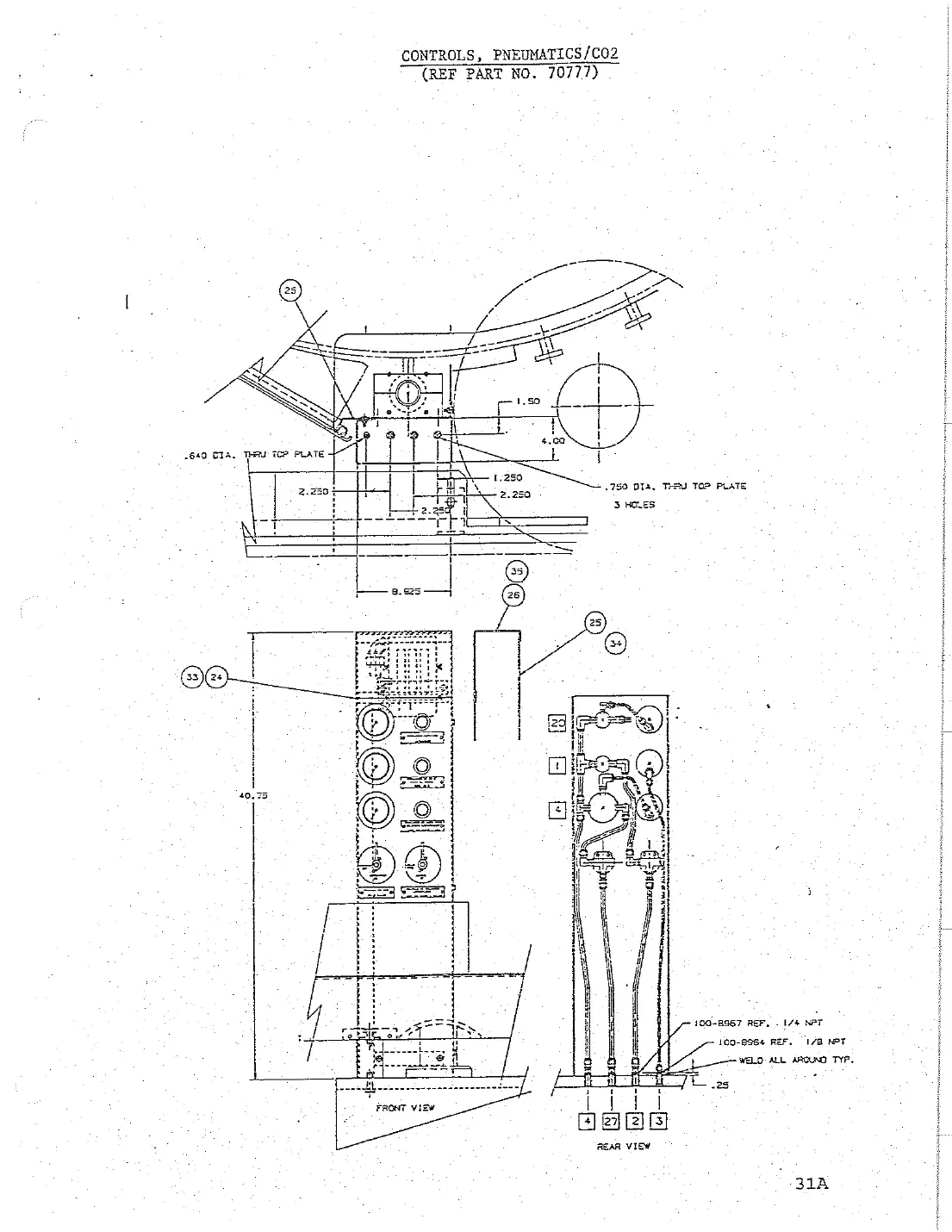

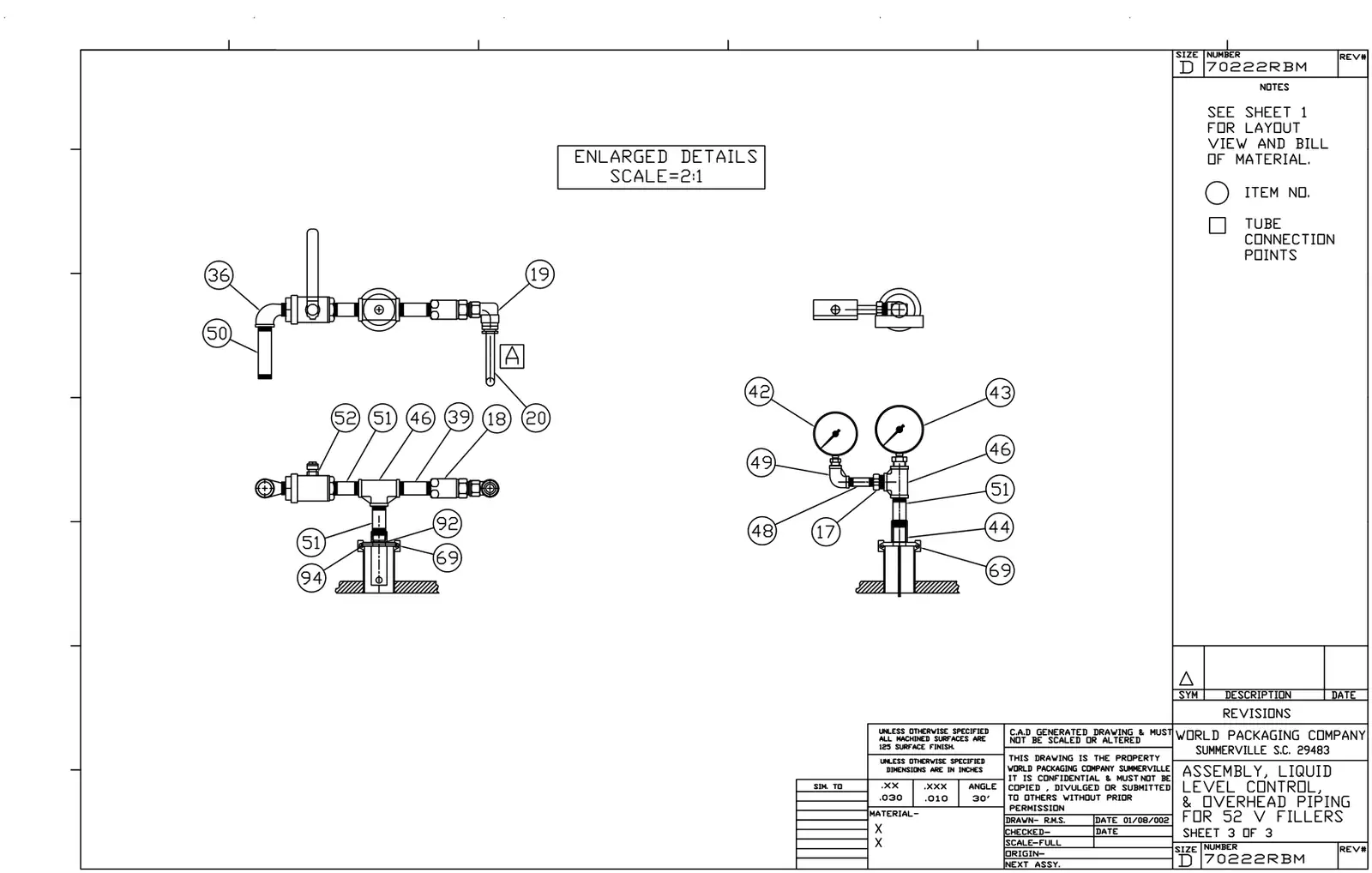

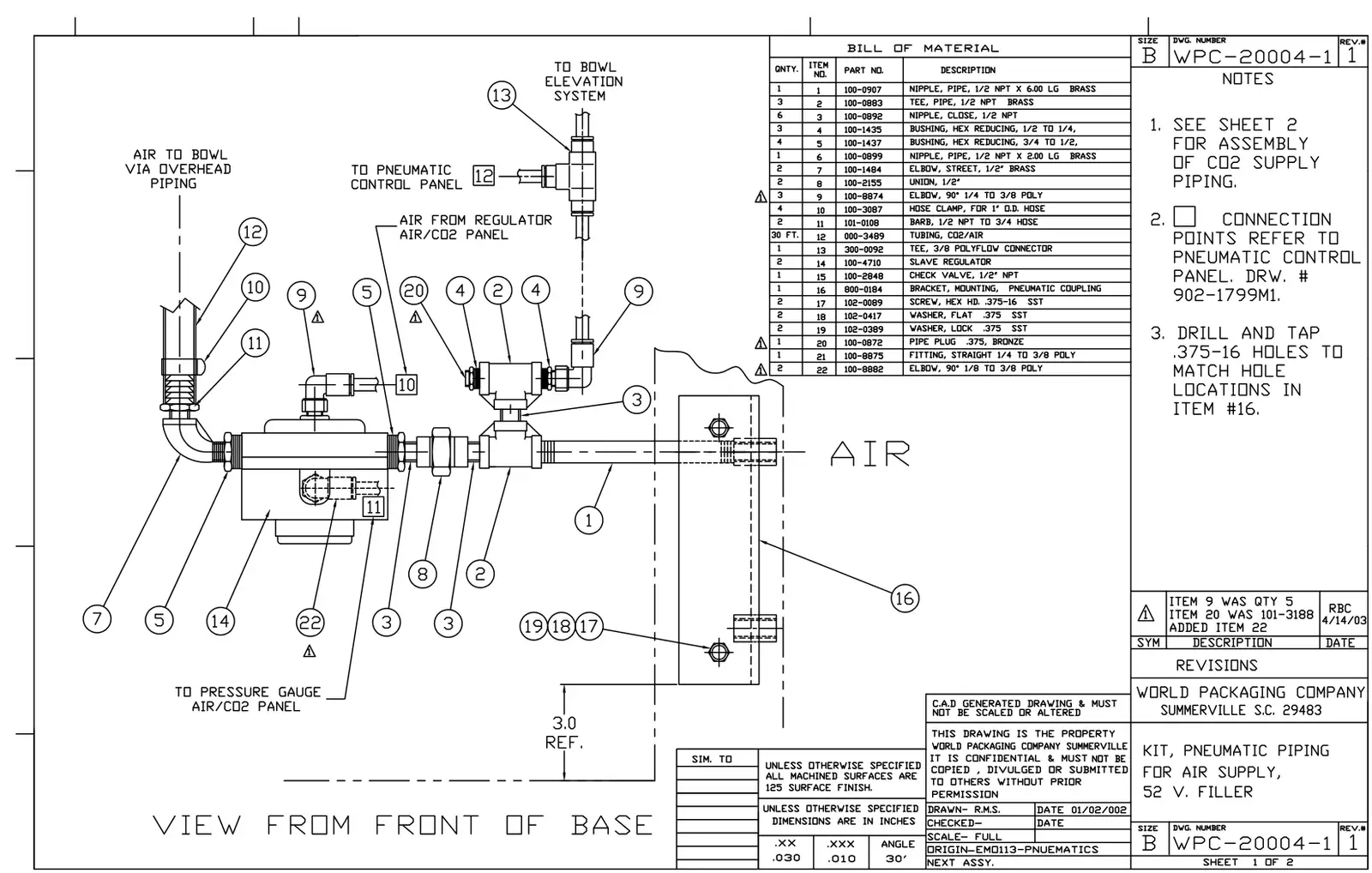

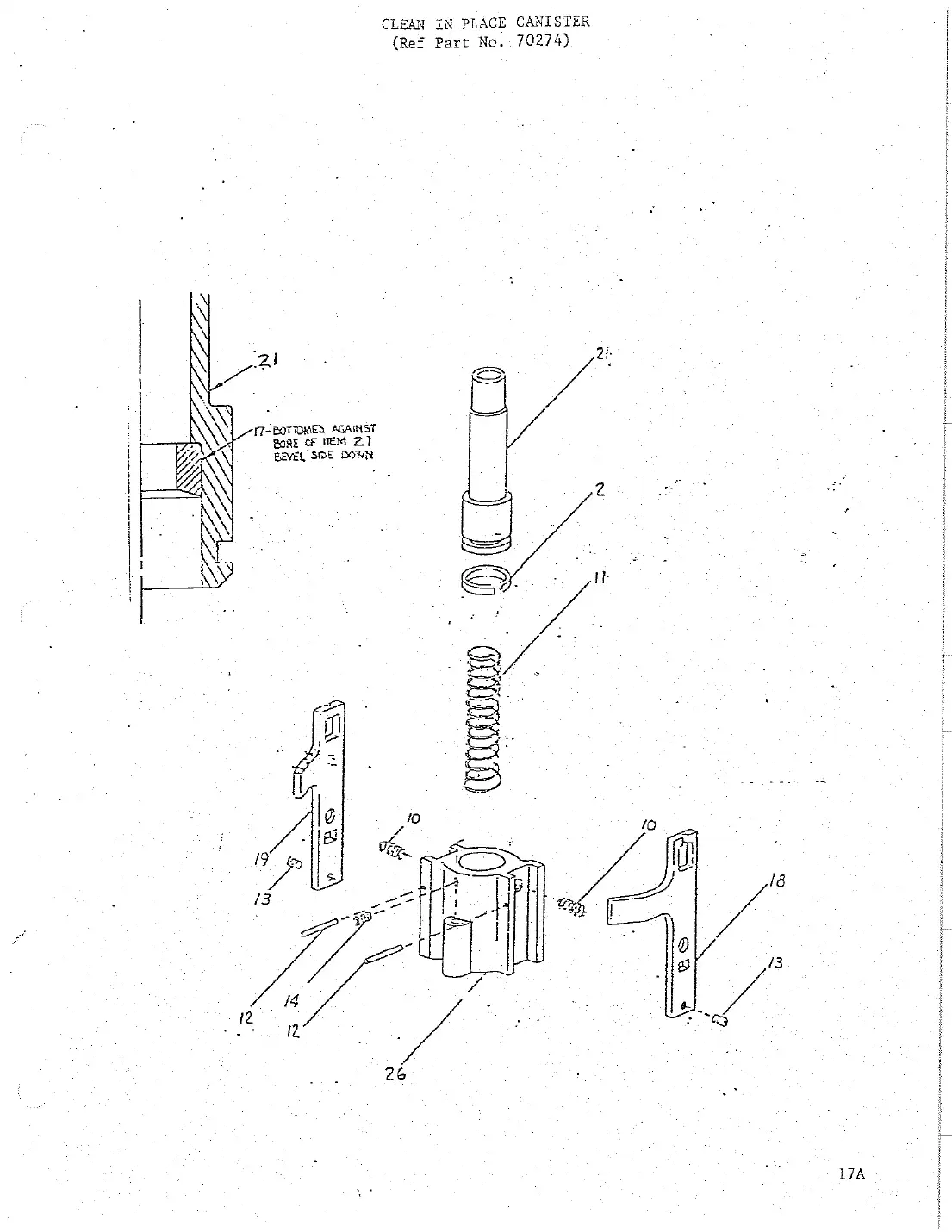

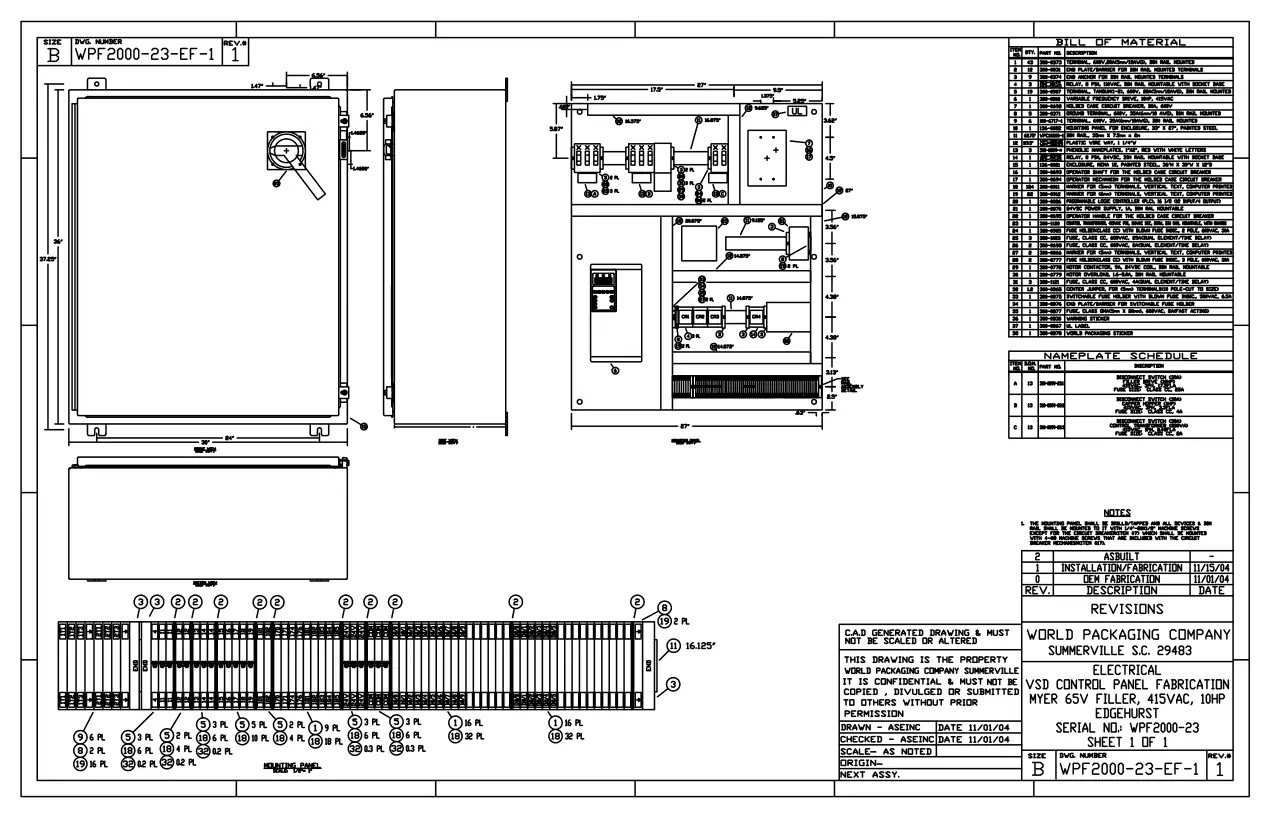

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
2	104-67061046706	Seal, U-cup	Request
7	136-31211363121	Seal, float ball	Request
10	135-94261359426	Spring, compression	Request
19	136-3469	Arm LH	Ask us
12	100-32131003213	Pin, roll	Request
2	136-39951363995	Piston	Request
13	102-04261020426	Screw, set socket cup point	Request
23	100-25191002519	O-ring	Request
14	102-04271020427	Screw, set socket cup point	Request
26	136-95801369580-1	Canister CIP	Request

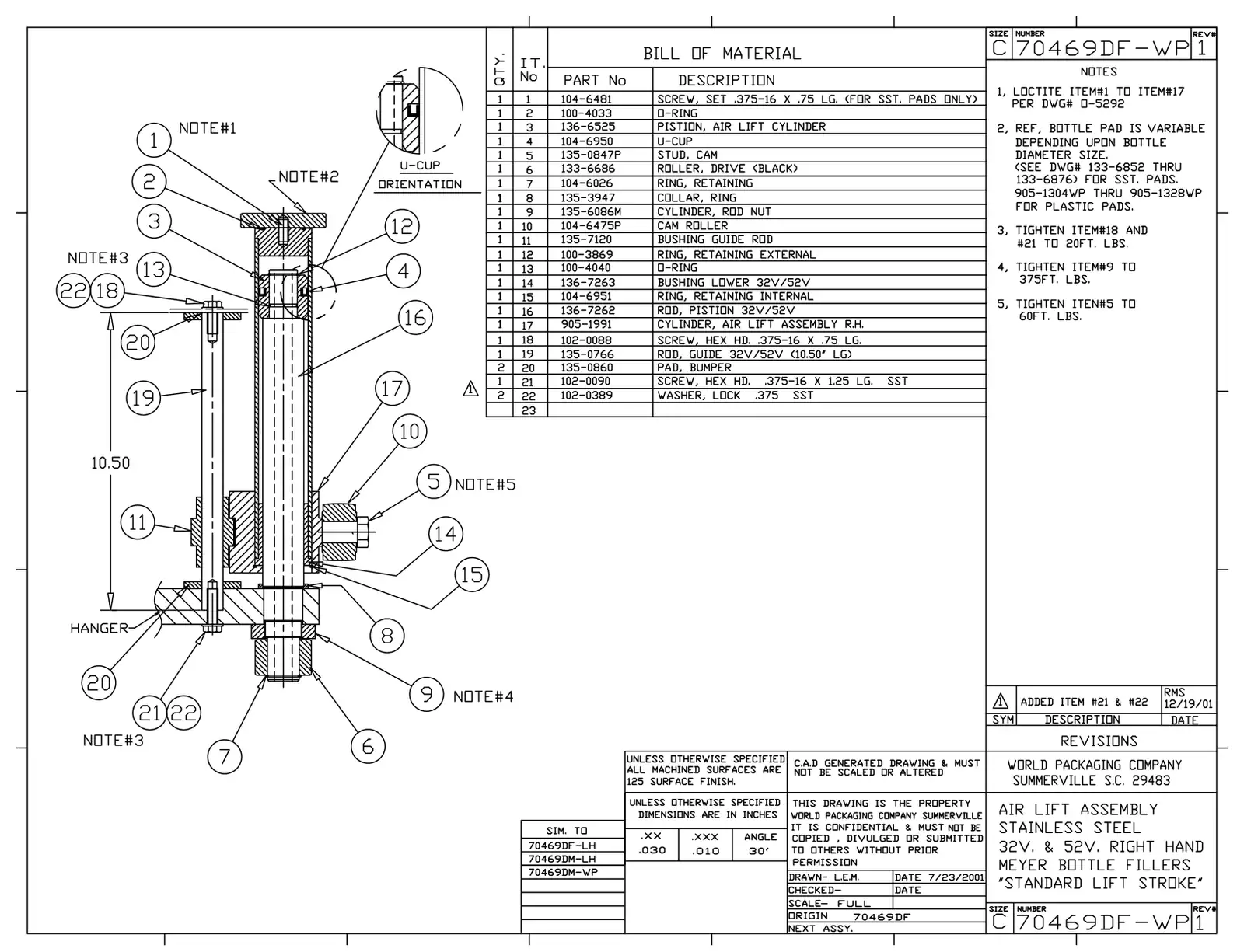

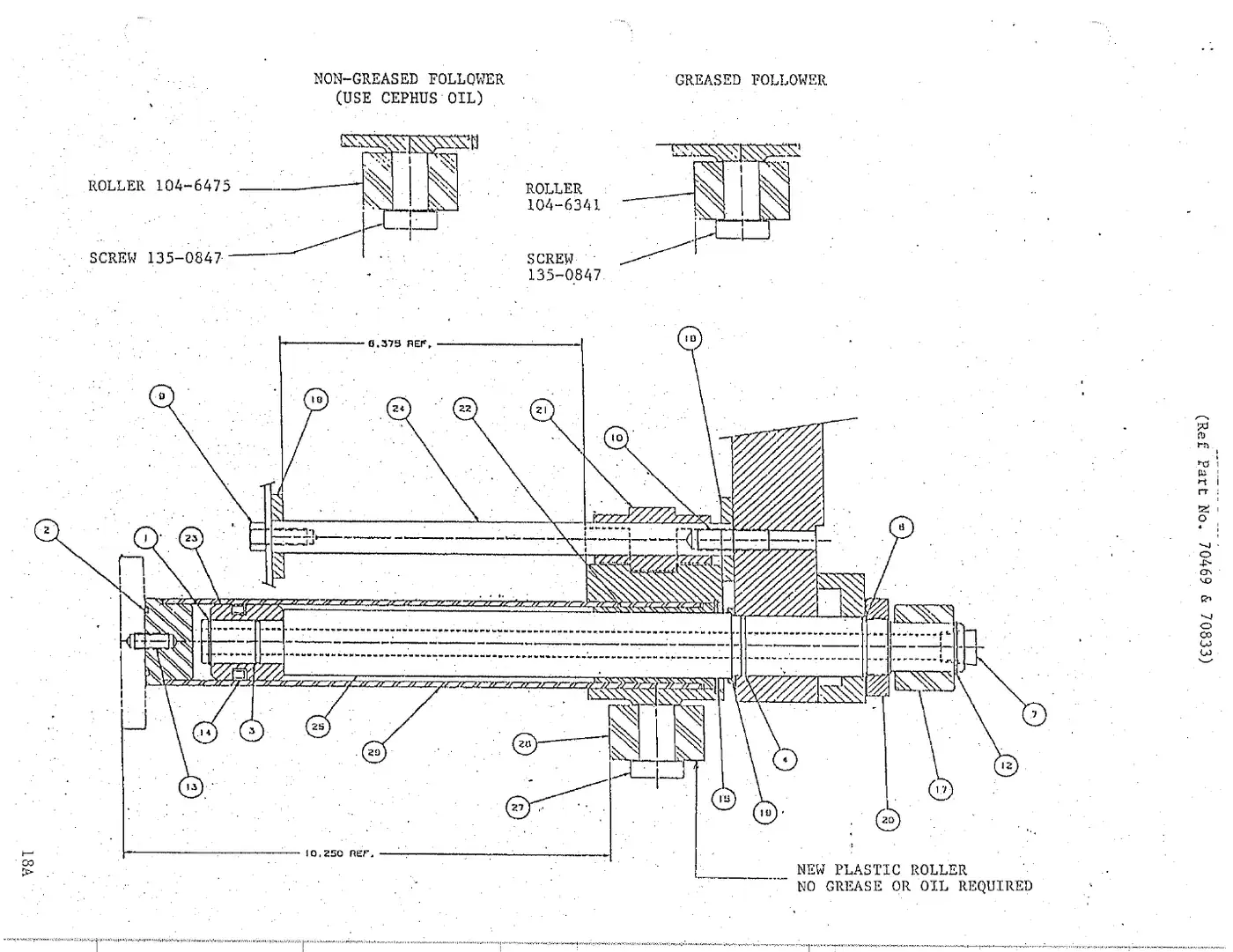

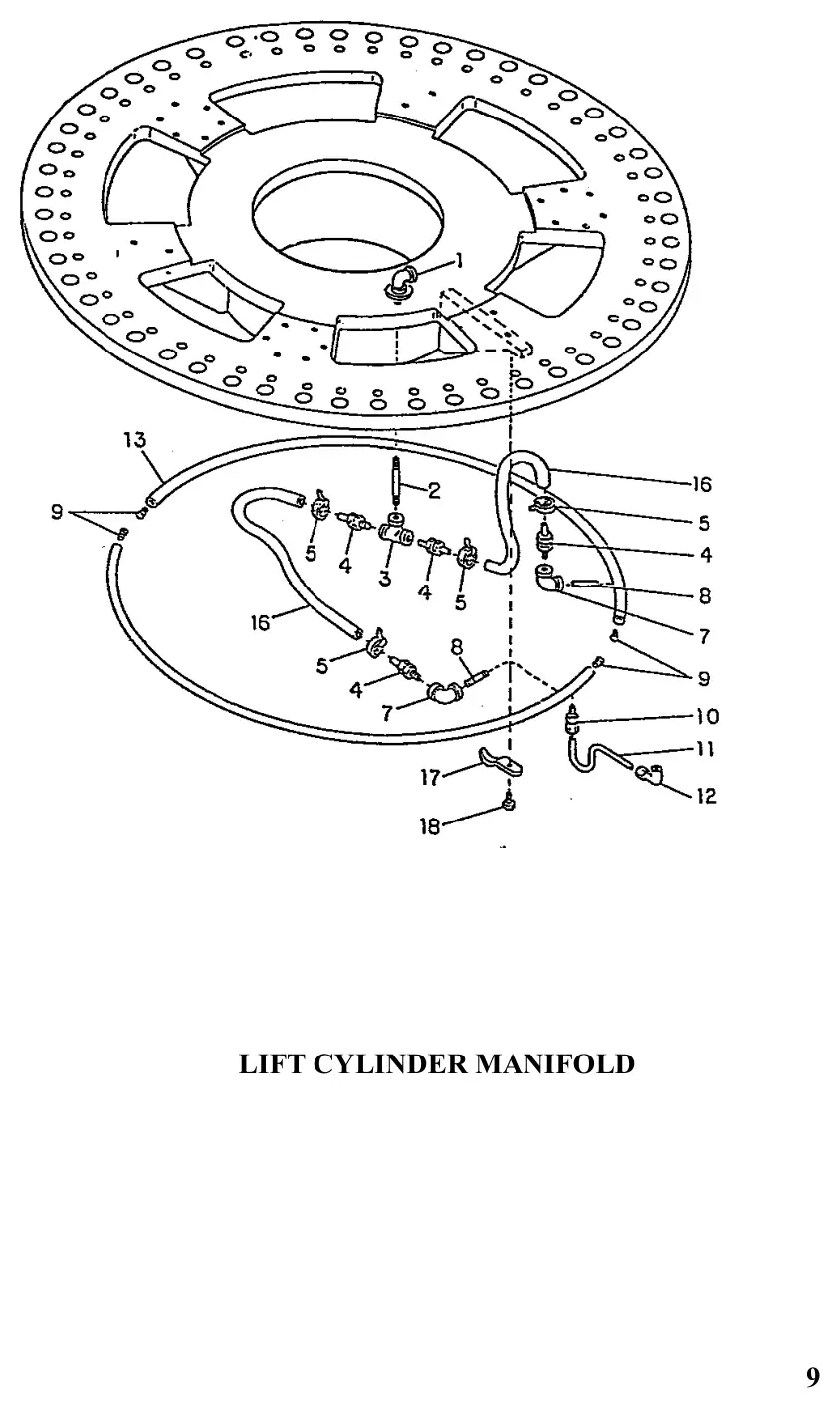

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
4	100-38691003869	Ring, retaining	Request
17	133-66861336686	Roller, driving airlift cylinder	Request
18	135-08601350860	Pad, bumper	Request
3	100-40401004040	O-ring	Request
19	135-39471353947	Collar, lift cylinder pist	Request
4	100-40411004041	O-ring	Request
20	135-60861356086	Nut, lock piston rod	Request
6	101-02081010208	O-ring, lift cylinders	Request
21	135-71201357120	Bushing, guide rod	Request
9	102-00881020088	Hex head bolt	Request
23	136-65251366525	Piston, airlift cylinder	Request
10	102-04621020462	Screw, set socket cup point	Request
24	136-66501366650	Rod, guide 90V	Request
13	104-64811046481	Screw, set socket cup point pt	Request
14	104-69501046950	U-cup, lift cylinder	Request
27	137-47911374791	Pin, stud cam follower, 65 valve family	Request
15	104-69511046951	Ring, retaining	Request
29	905-19919051991	Cylinder, airlift assembly	Request

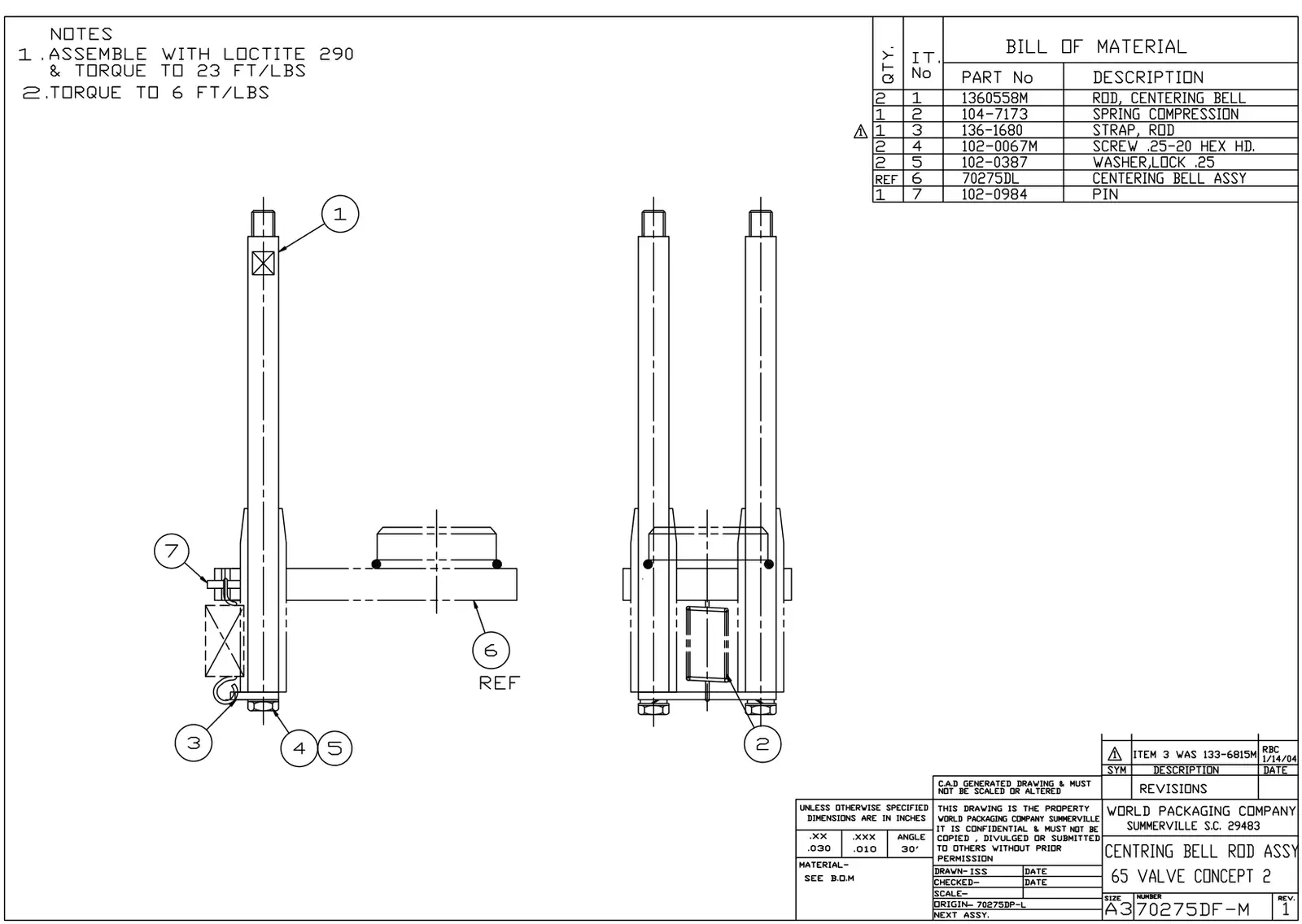

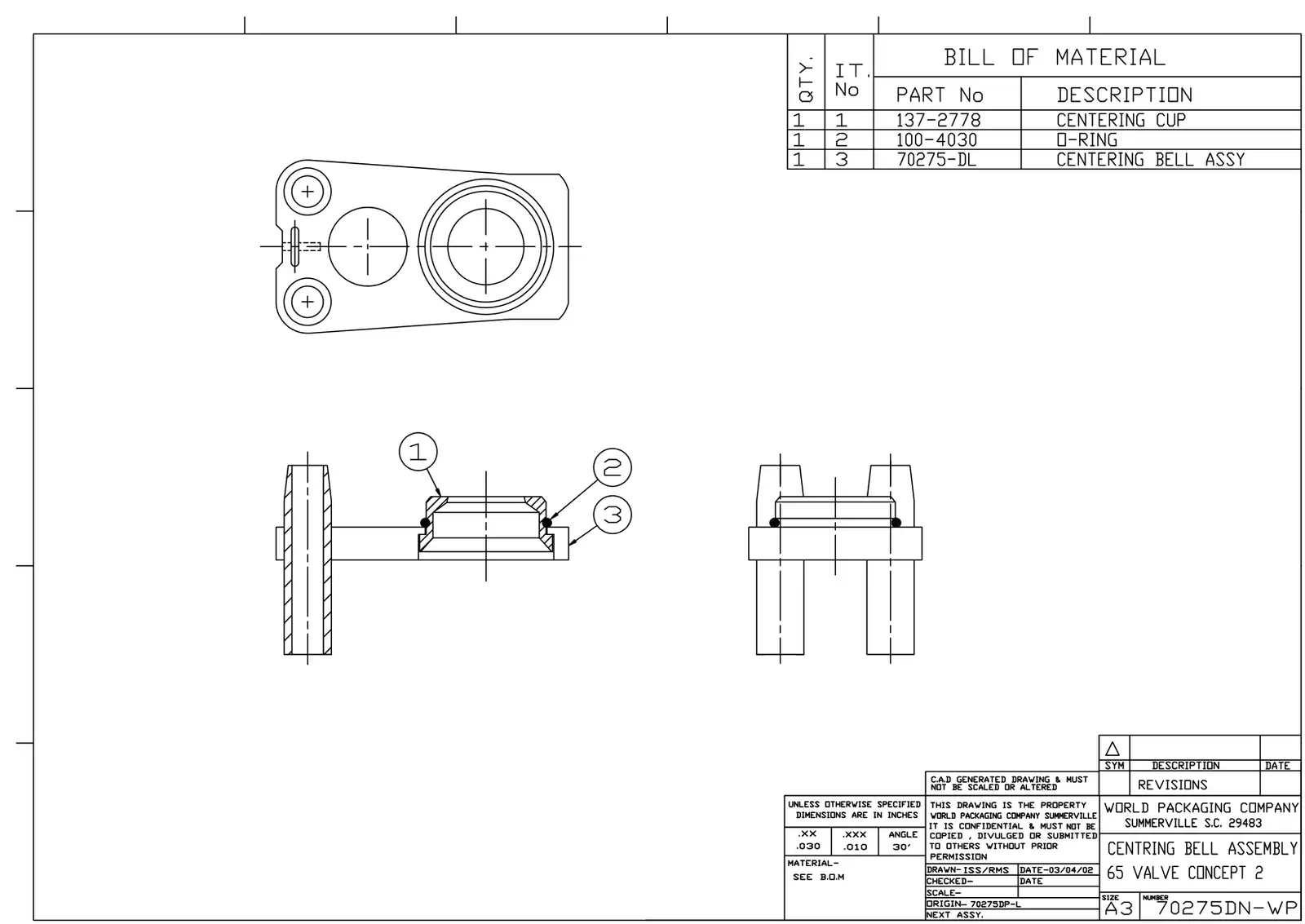

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Open full sizeOpen full size

Ref	Part number	Description
13	102-03871020387	Washer, lock	Request
3	133-1680	Strap bel	Ask us
4	102-00671020067	Bolt, hex head	Request

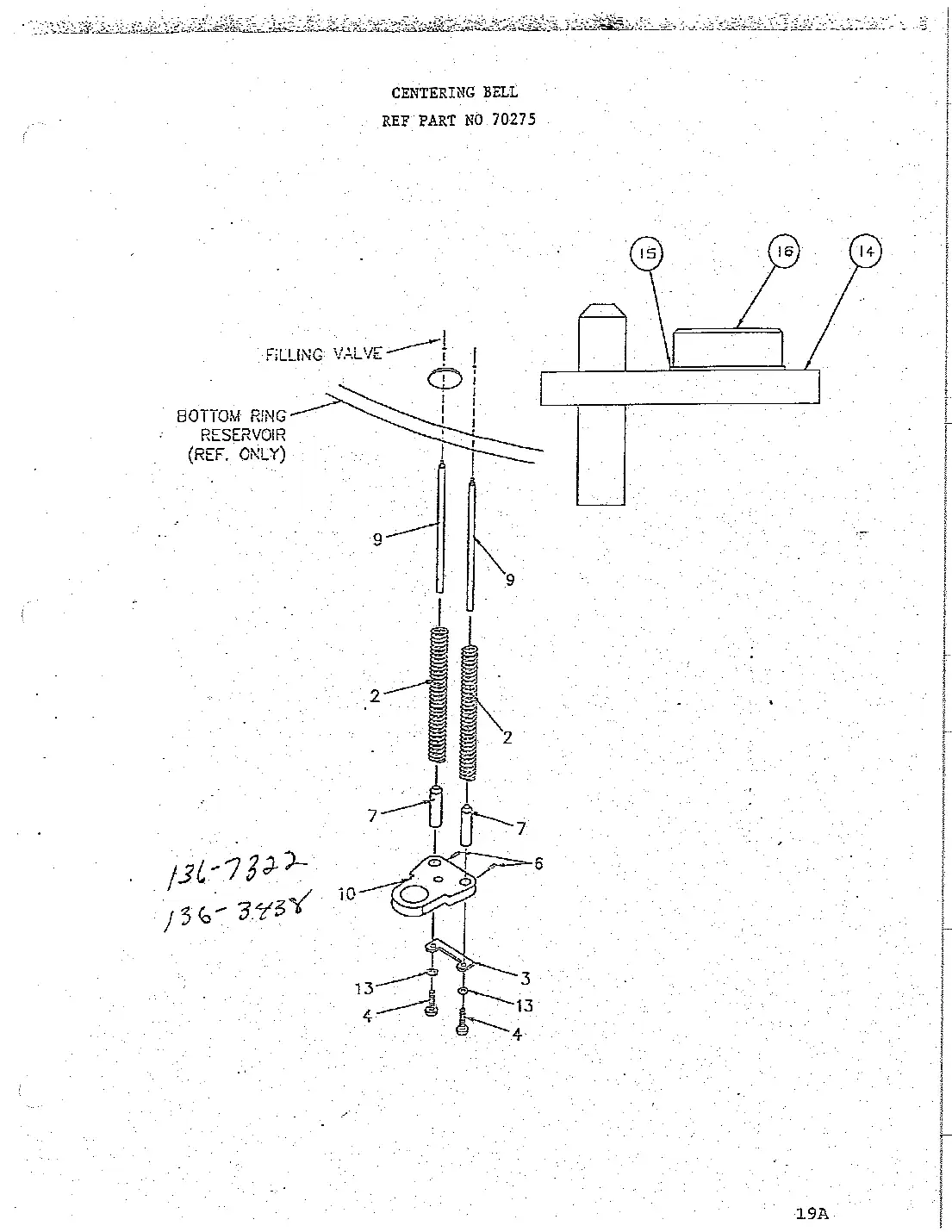

9	136-05581360558-1-FCI	Rod, guide centering bell retro-fit	Request
15	100-40301004030	O-ring	Request
10	136-34381363438	Bell, centering	Request
16	137-17421371742	Cup, centering	Request
1	137-27781372778	Cup, centering bell	Request
3	70275-DL70275DL	Centering, bell assembly	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

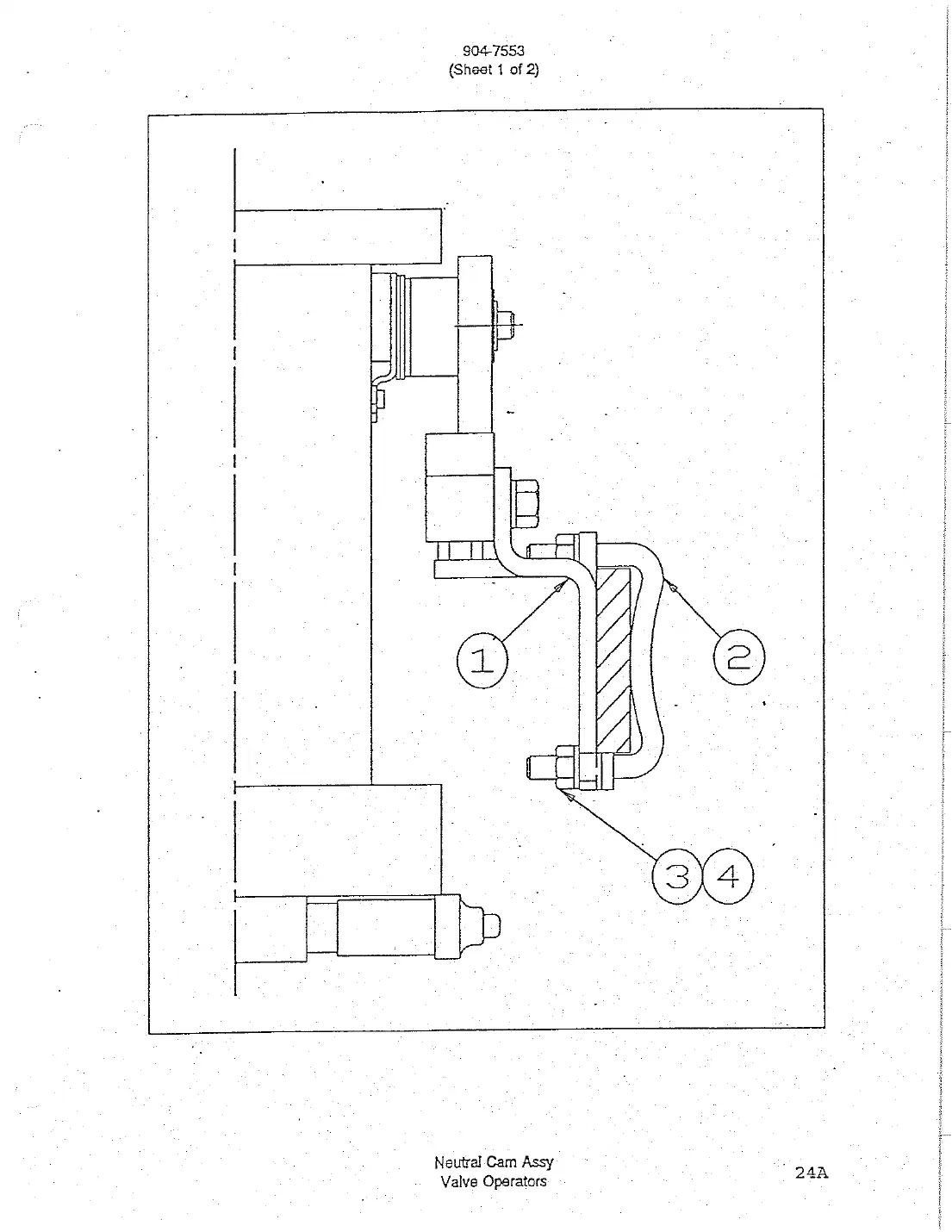

Ref	Part number	Description

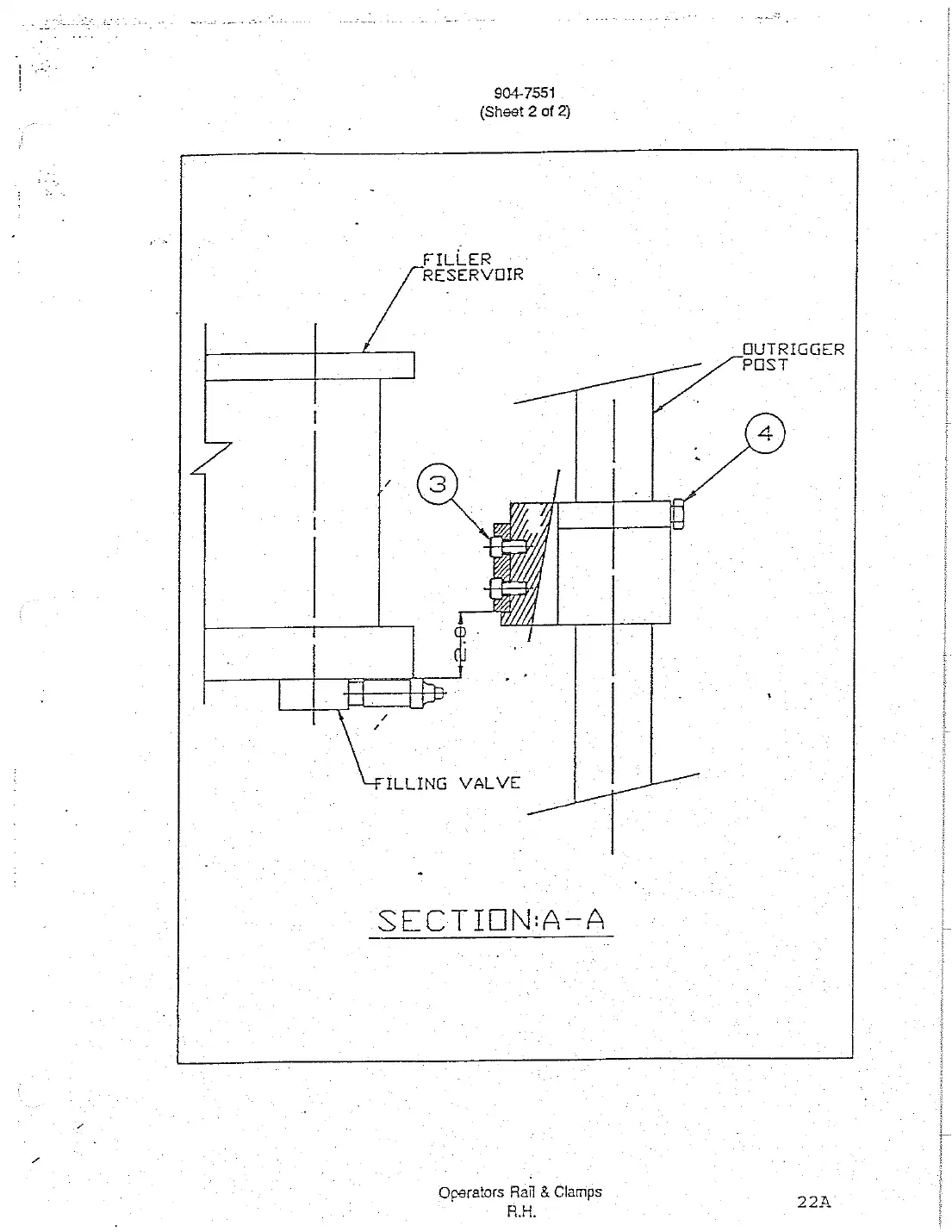

4	904-7551	Rail clamp ass	Ask us
3	904-7606	Opener valve	Ask us

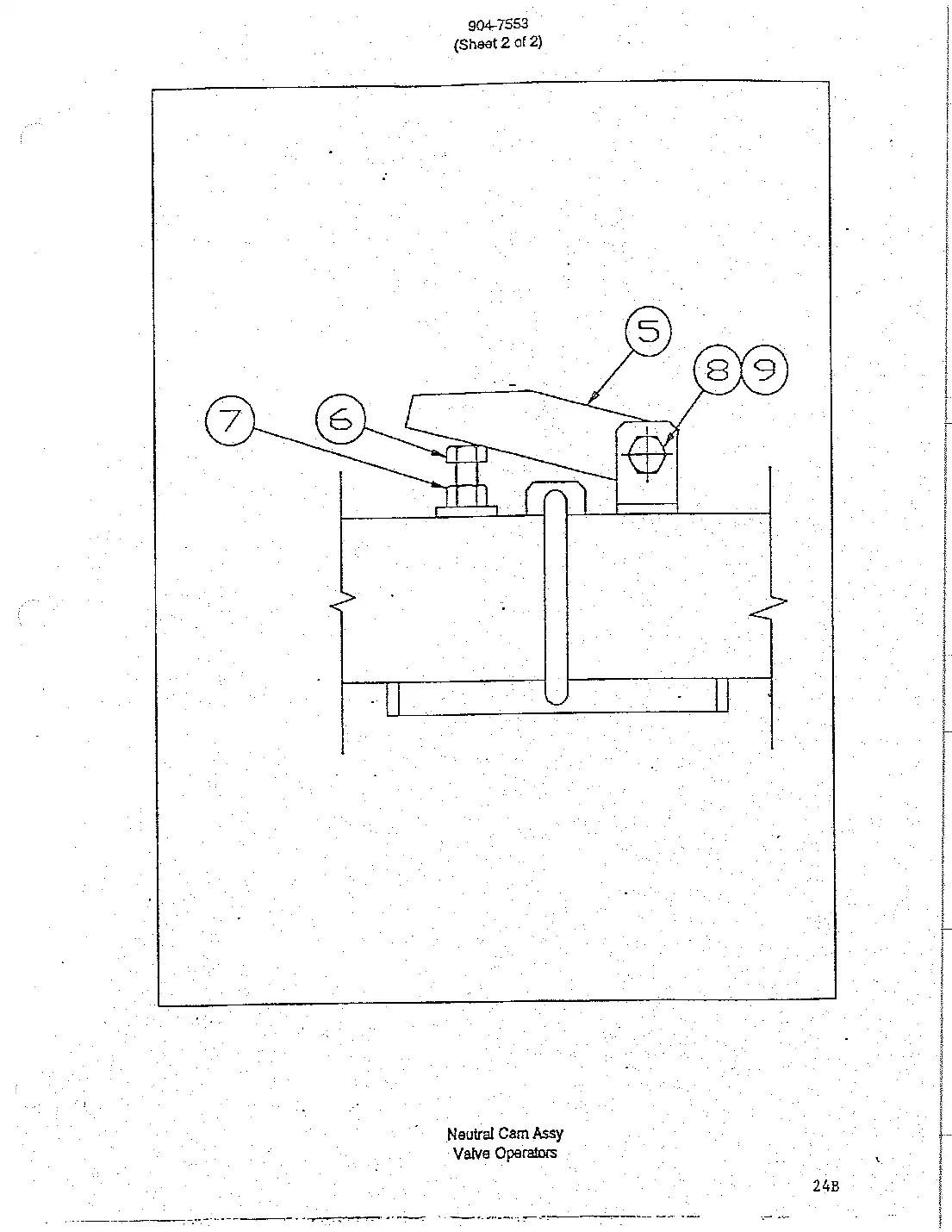

4	904-7553	Neutral cam ass	Ask us

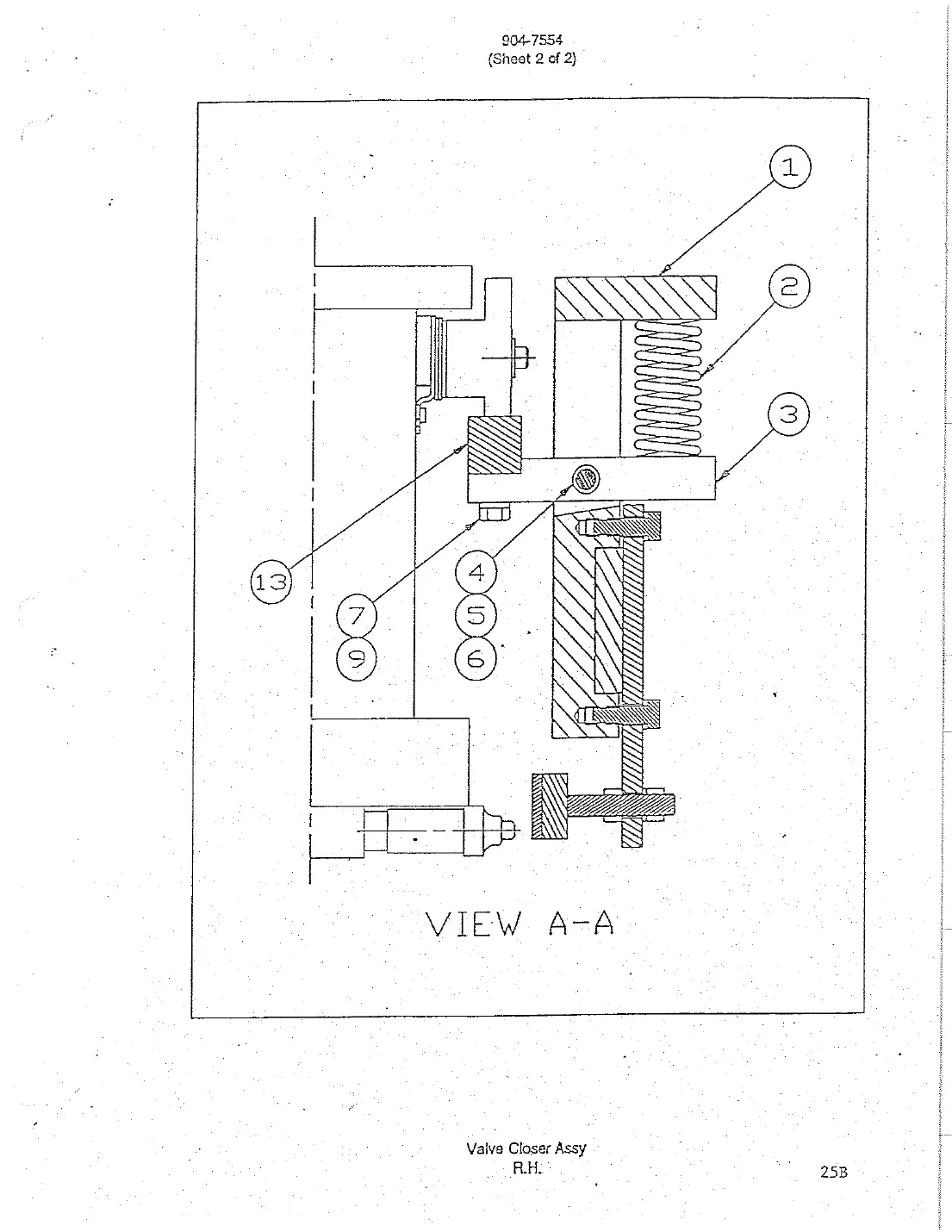

5	904-7554	Closer valve	Ask us

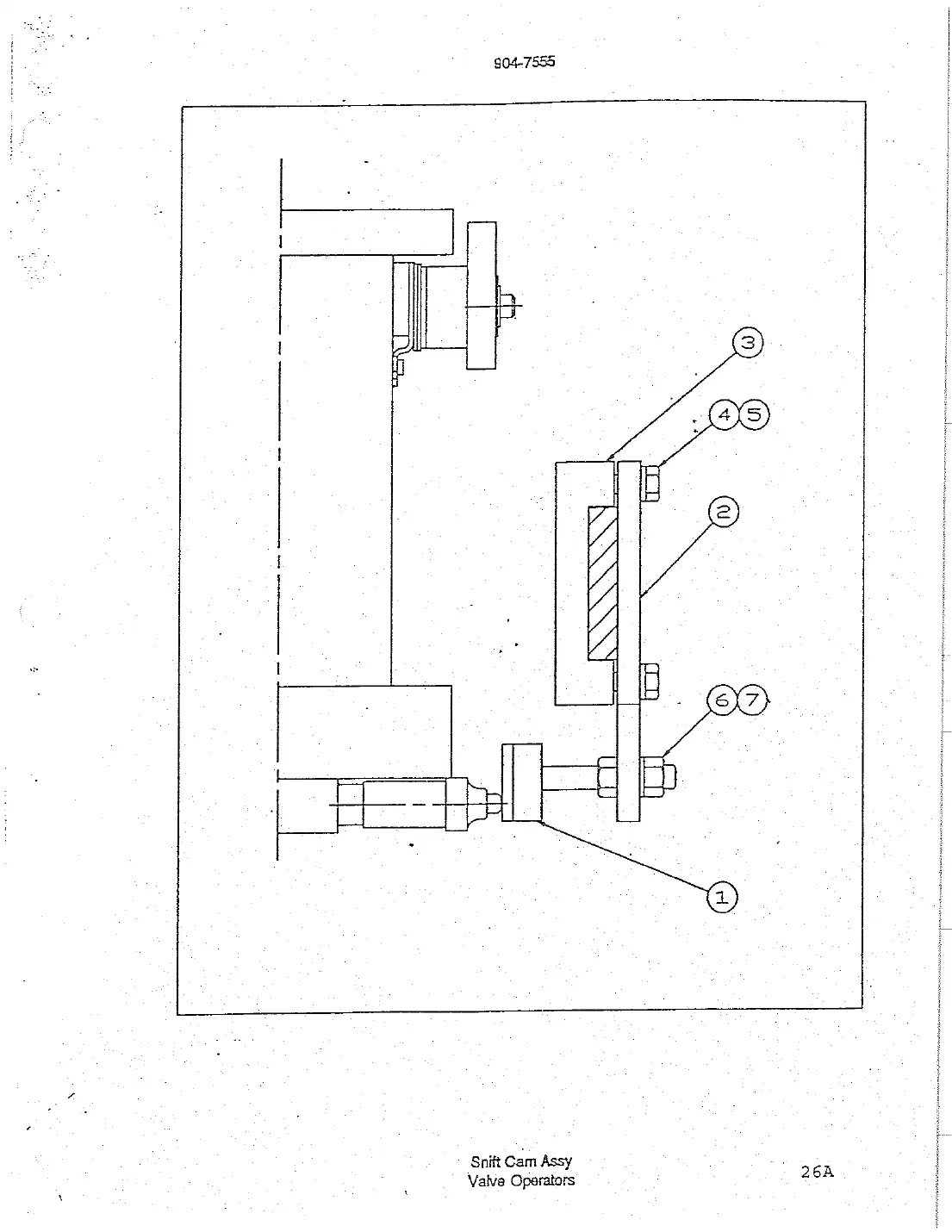

6	904-7555	Snift cam ass	Ask us

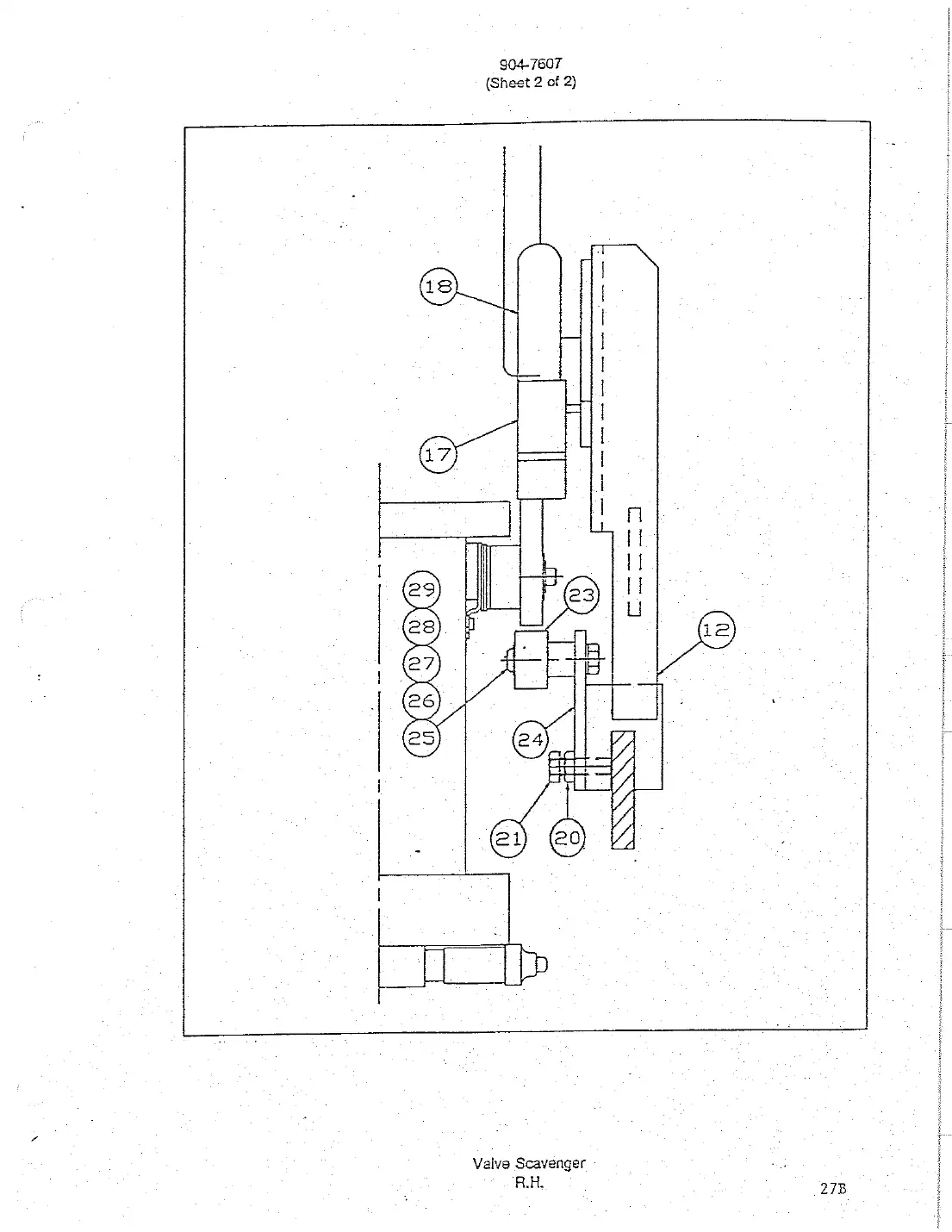

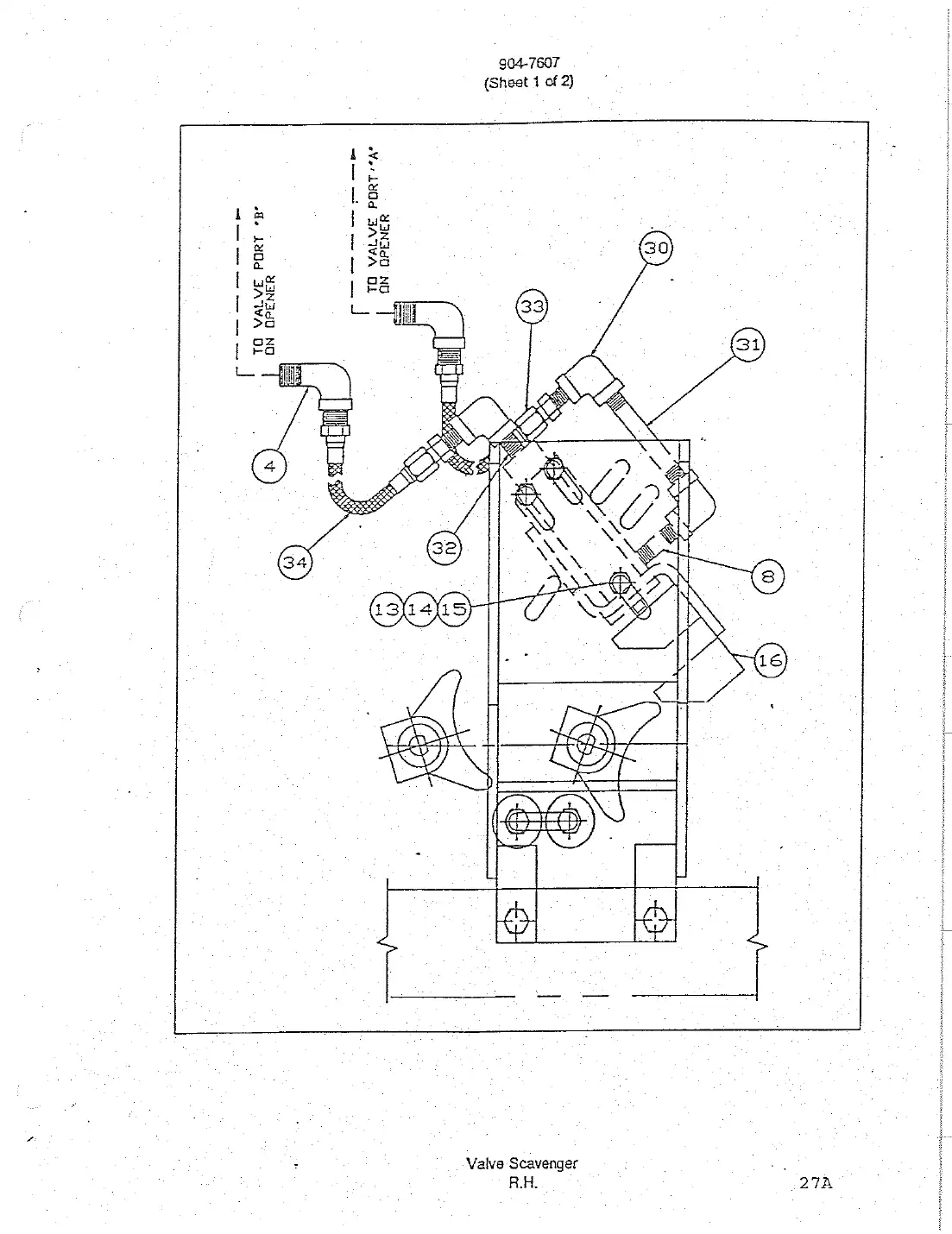

7	904-7607	Scavenger valve	Ask us
8	137-7089	Mount	Ask us
12	102-03891020389	Washer, lock	Request
13	102-00901020090	Bolt, hex head	Request
14	102-2011	Washer	Ask us
15	137-4958	Strap	Ask us
16	103-8669	Sensor	Ask us

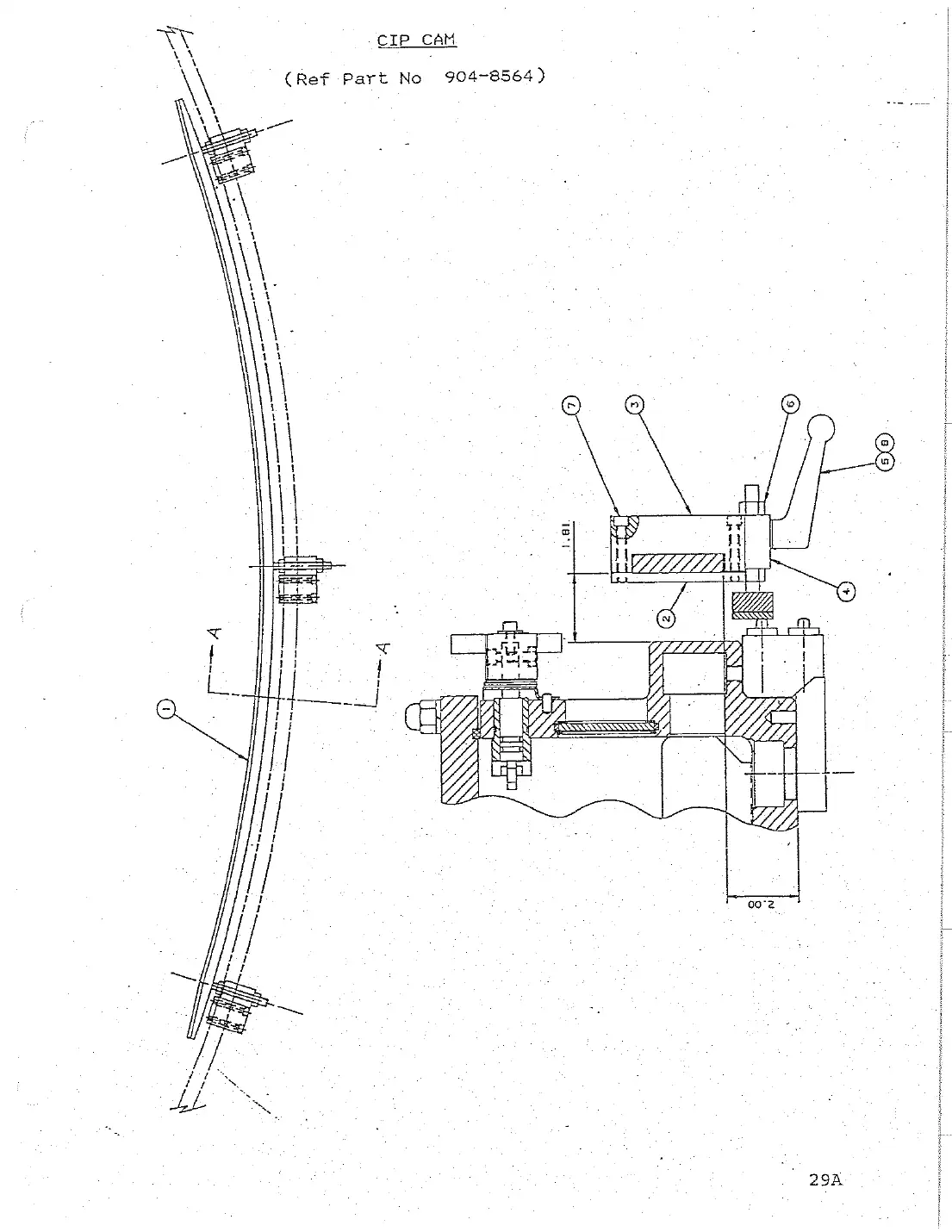

17	904-8564	Cip cam	Ask us

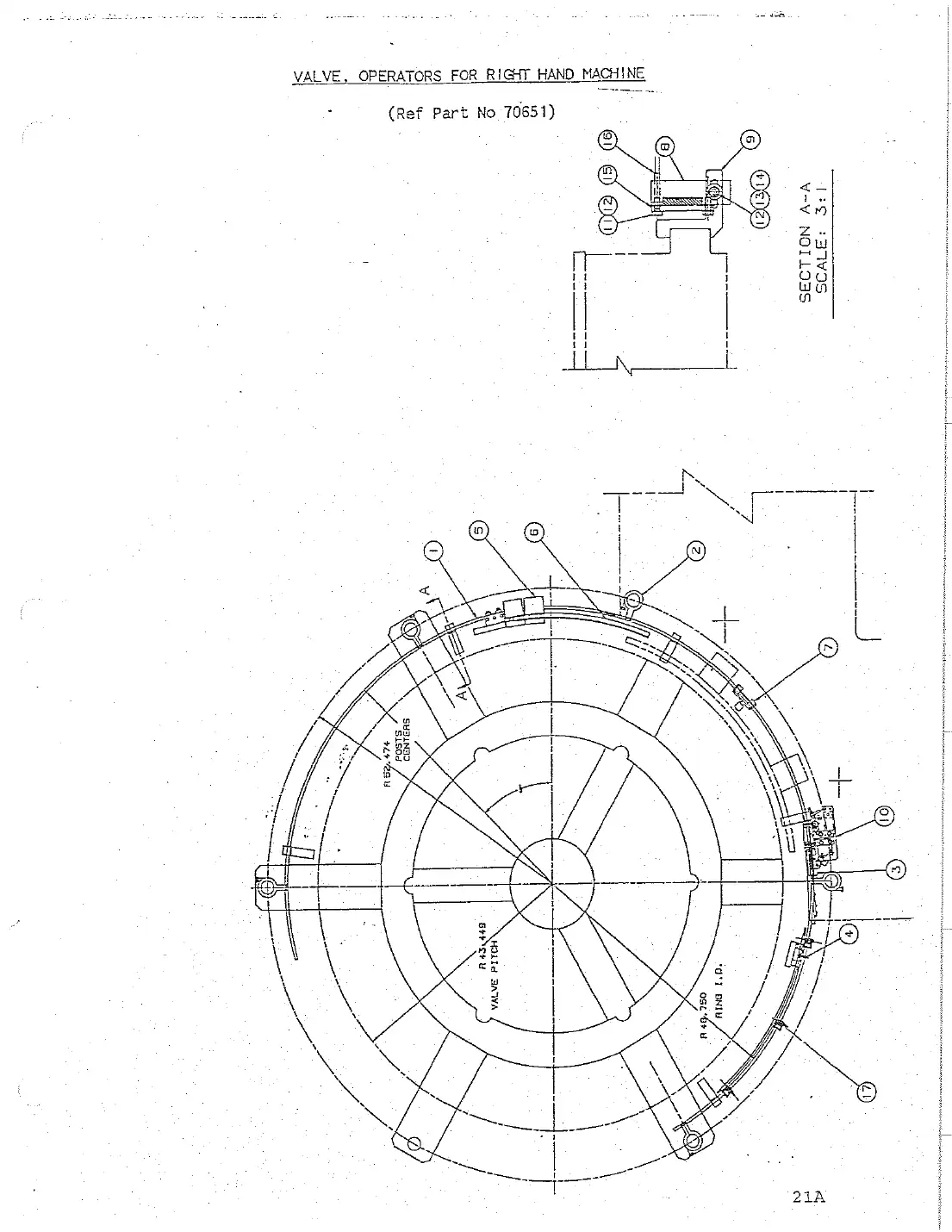

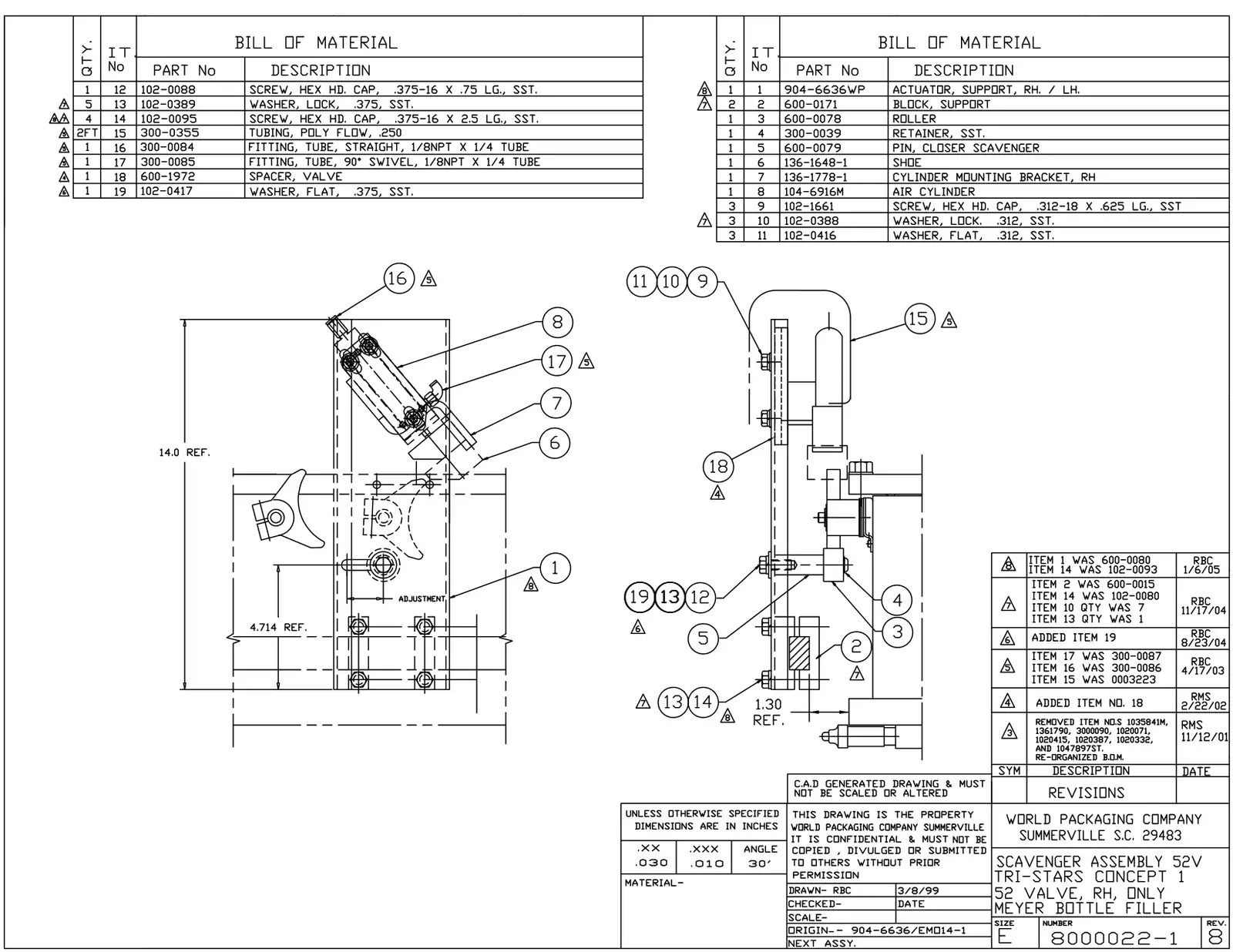

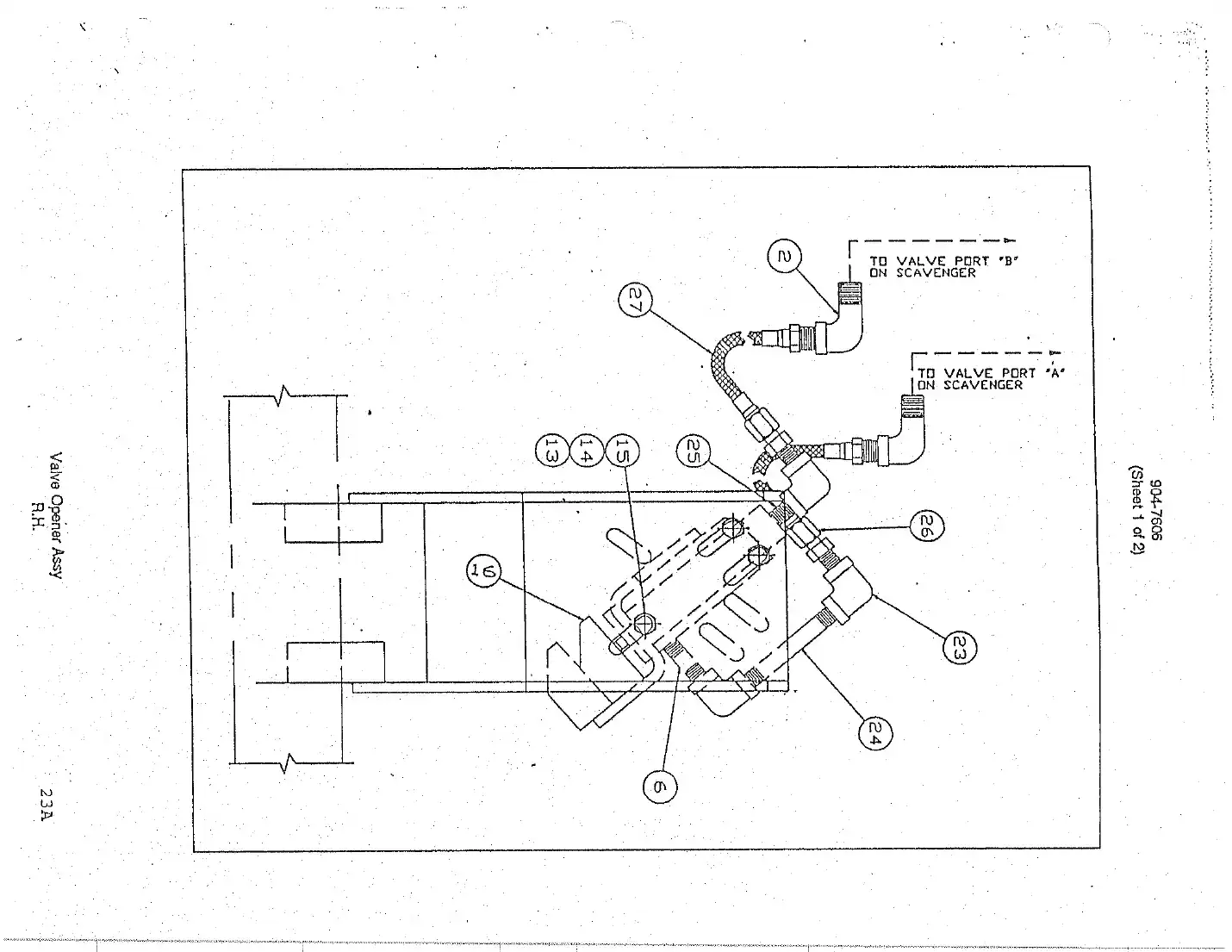

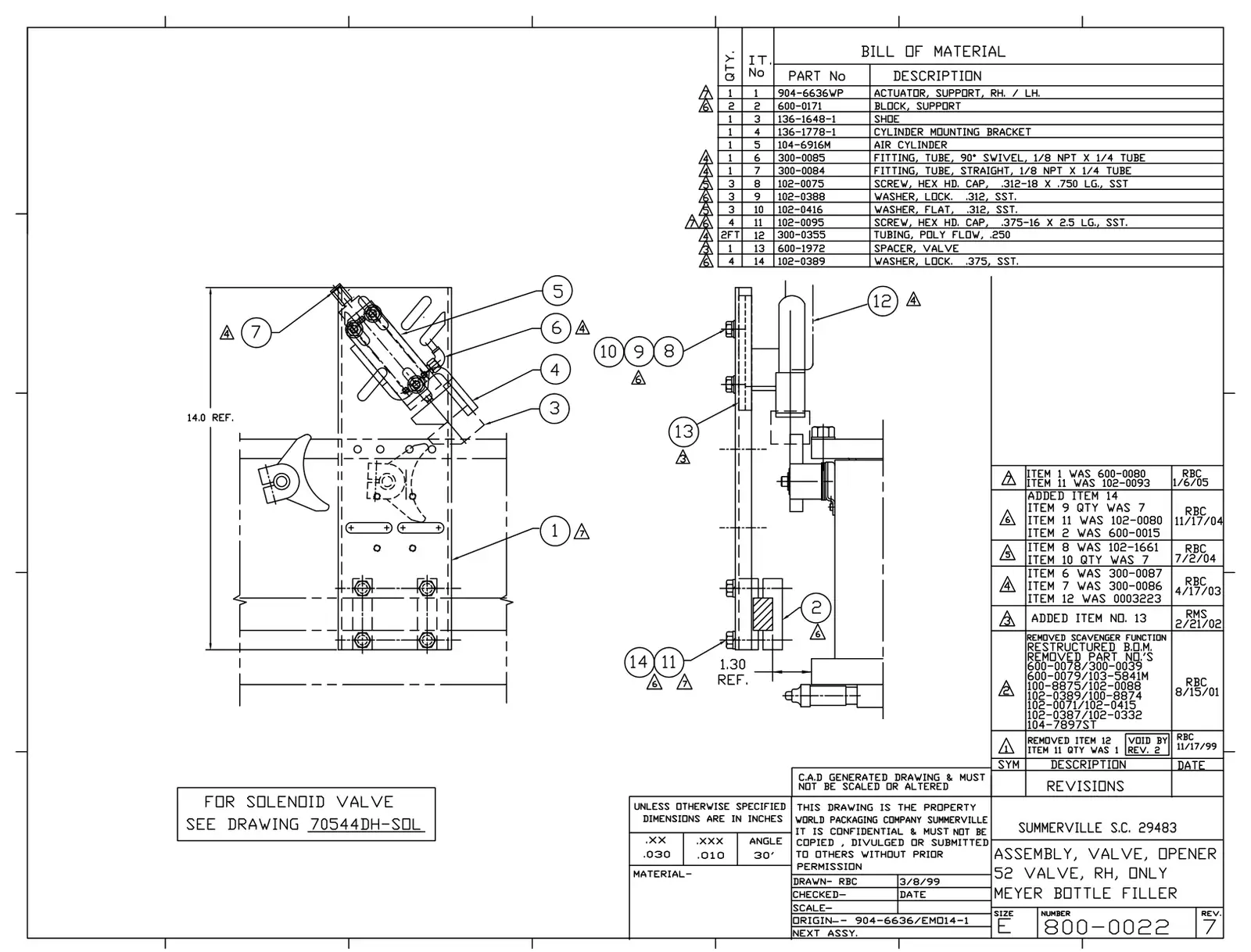

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
2	100-46601004660	Elbow, street 90 deg	Request
13	102-04161020416	Washer, flat	Request
45	102-00751020075	Bolt, hex head	Request
16	136-34811363481	Follower, cam	Request
17	137-0033	Bracket	Ask us
18	104-69161046916	Cylinder, air stroke	Request
20	102-22831022283	Nut, hex jam nylock	Request
21	102-00891020089	Bolt, hex head	Request
23	100-89261008926	Elbow, 90 deg	Request
24	100-4088	Nipple	Ask us
25	100-61091006109	Nipple, close	Request
26	137-3925	Hose	Ask us
27	137-39261373926-1	Tubing, braided	Request
1	904-66369046636-1	Spacer, valve opener bracket	Request
2	600-01716000171	Bracket, holding	Request
3	136-1648-11361648-1	Shoe, valve opener / scavenger	Request
4	136-1778-11361778-1	Bracket, mounting RH	Request
5	104-6916M1046916M	Cylinder, air (modified)	Request
6	300-00853000085	Fitting, tube swivel	Request
7	300-00843000084	Fitting, str tube	Request
9	102-03881020388	Washer, lock	Request
11	102-00951020095	Bolt, hex head	Request
12	300-03553000355	Tubing, polyflo nat	Request
13	600-19726001972	Spacer, valve opener actuator	Request
14	102-03891020389	Washer, lock	Request

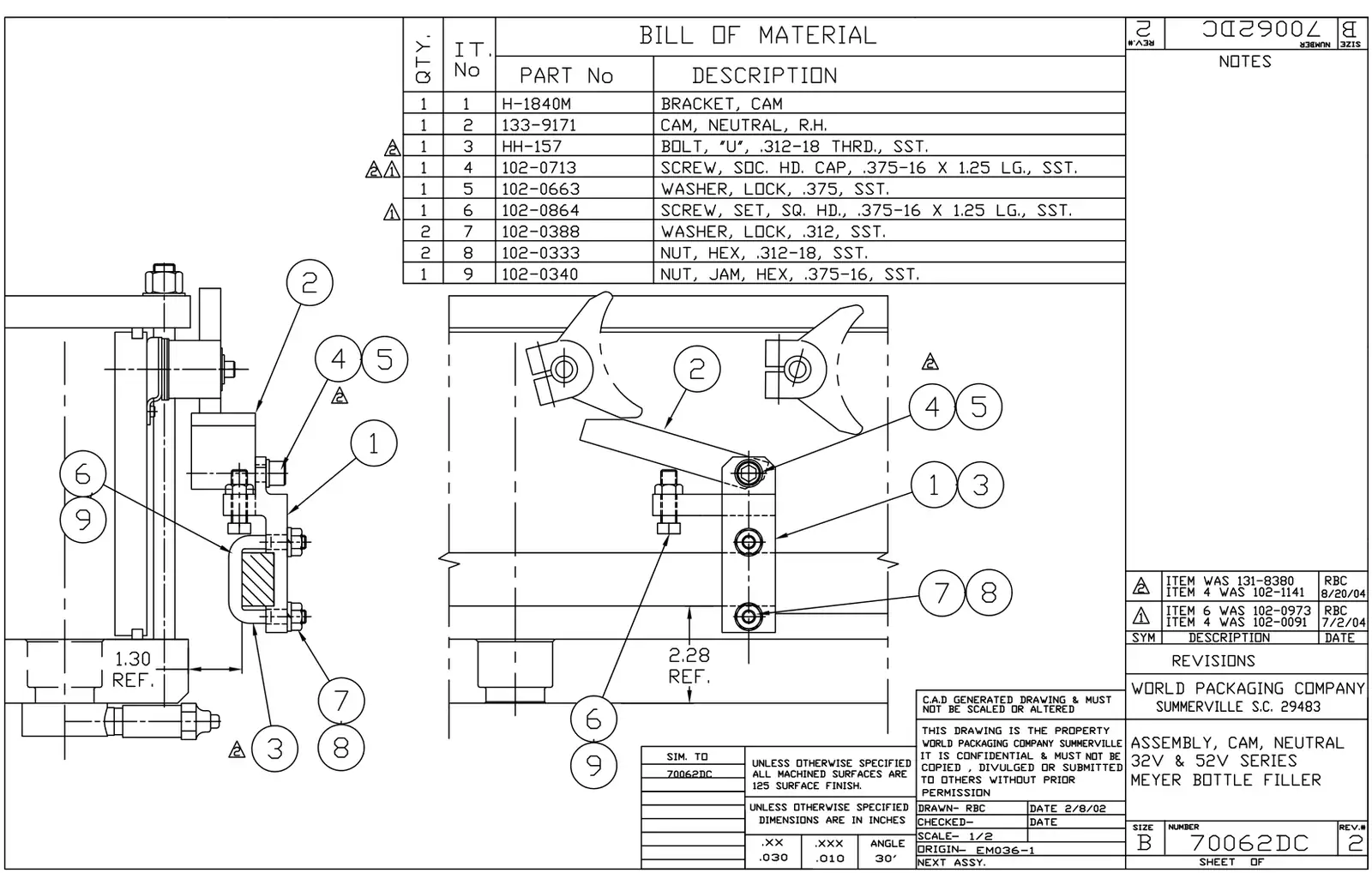

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
2	136-8776	U-bolt	Ask us
3	102-03641020364	Nut, hex	Request
4	102-03881020388	Washer, lock	Request
5	136-6355	Cam	Ask us
6	102-00891020089	Bolt, hex head	Request
1	102-03341020334	Nut, hex	Request
8	102-00801020080	Bolt, hex head	Request

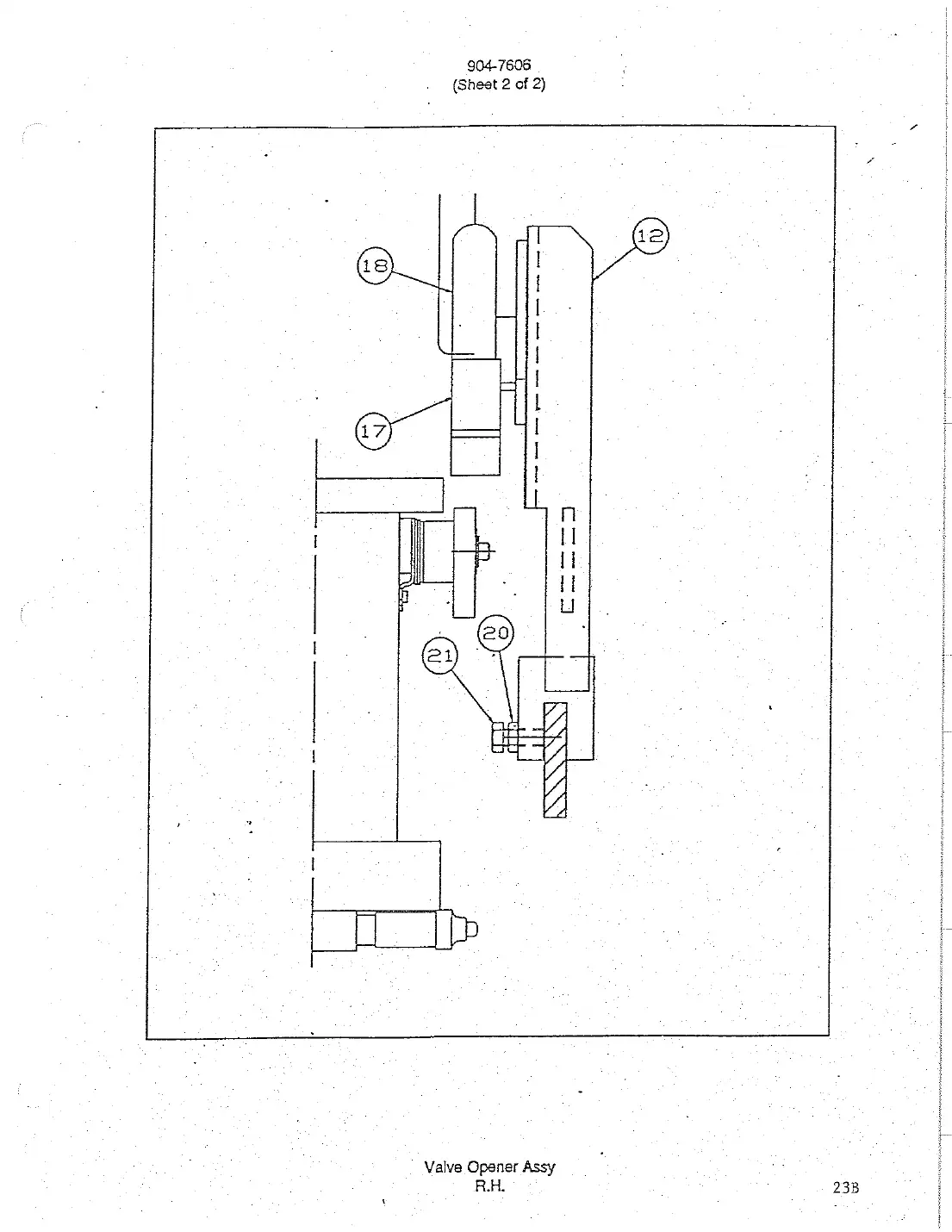

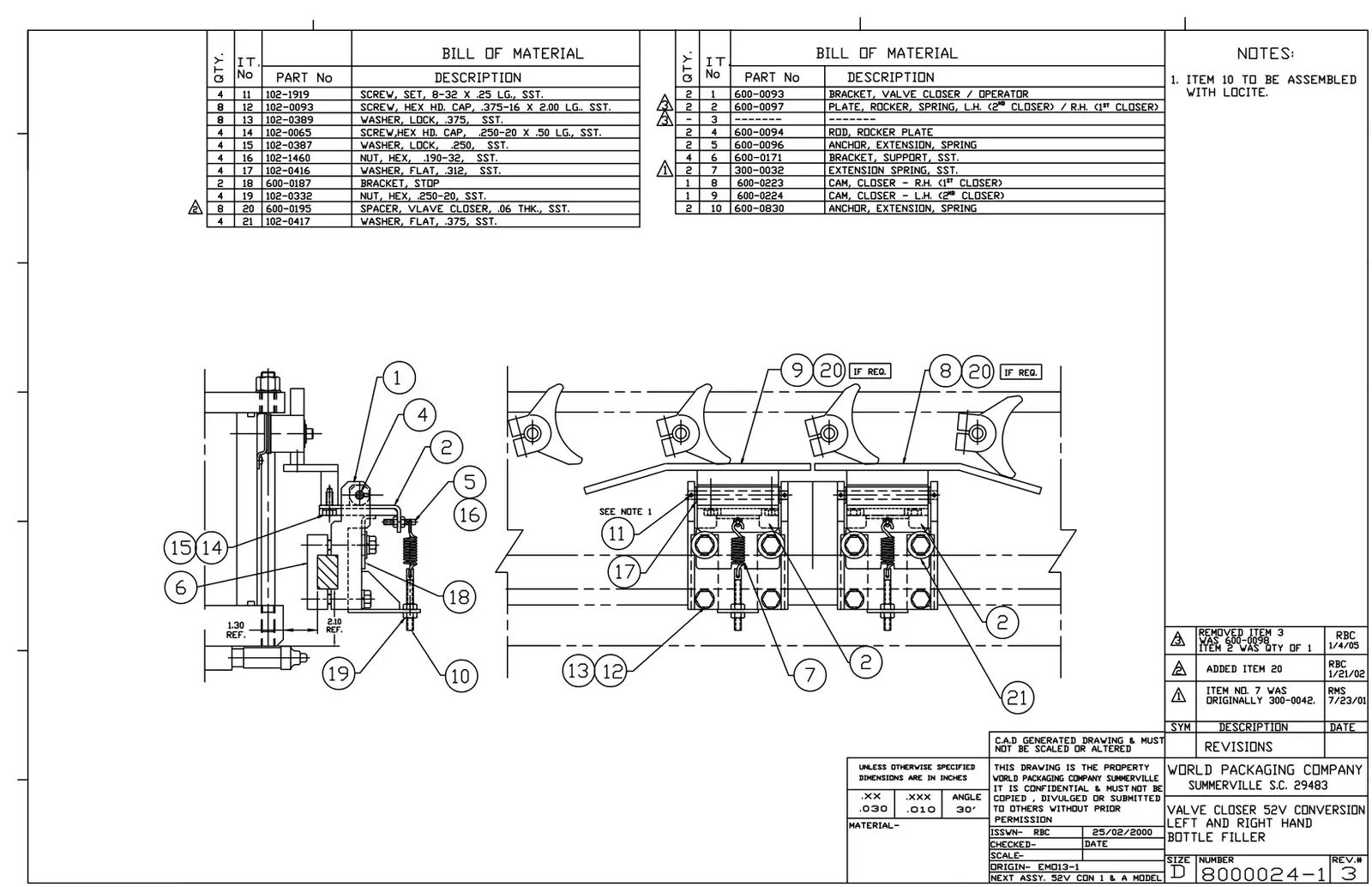

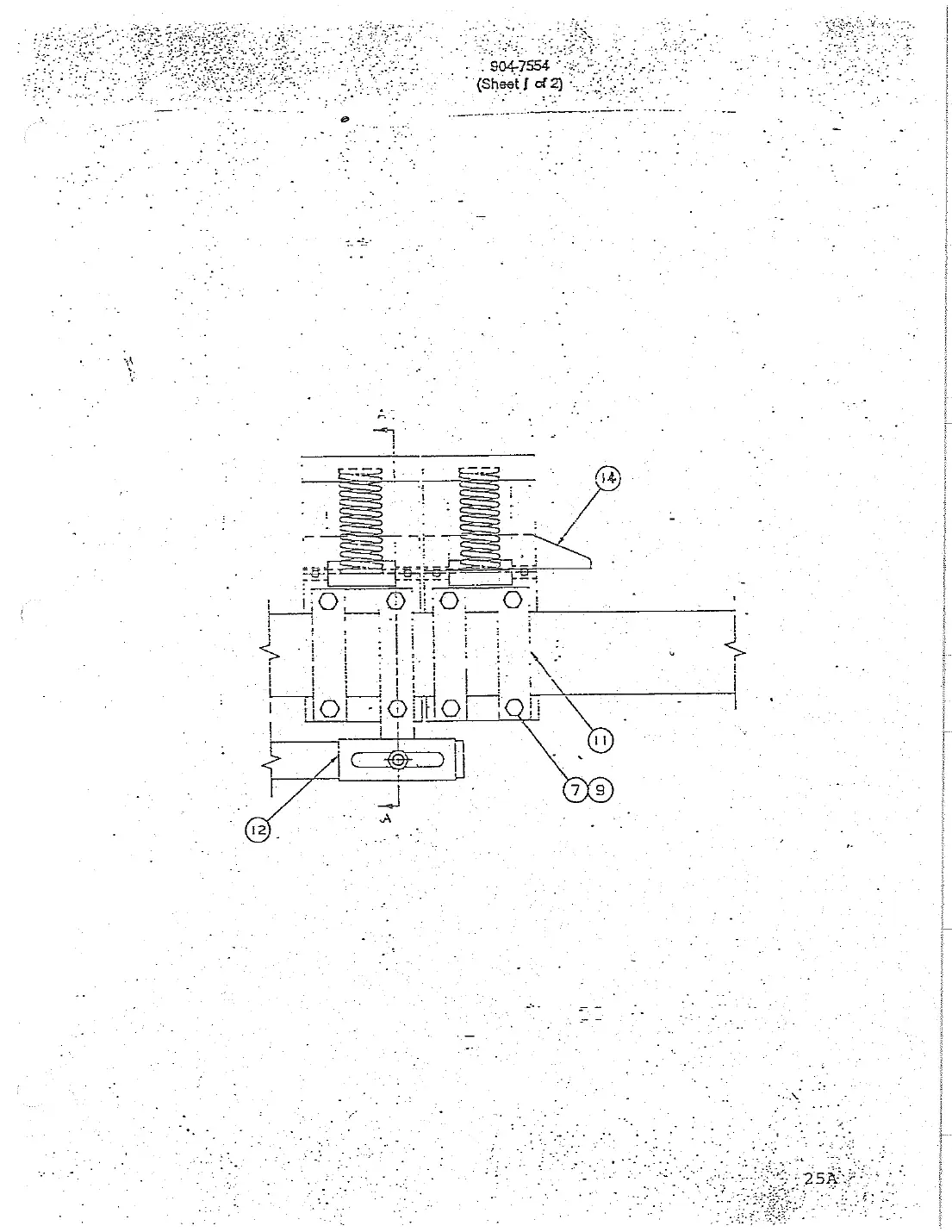

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
1	137-07281370728-1	Bracket, closer cam mounting	Request
3	137-07291370729	Support, plate closer cam	Request
4	137-07351370735	Pin, valve closer cam	Request
5	100-23281002328	Bushing	Request
6	102-04561020456	Screw, set socket cup point	Request
7	102-00761020076	Bolt, hex head	Request
1	137-1131	Claro	Ask us
12	137-1132	Clamp	Ask us
13	137-2507	Cam	Ask us
1	600-00936000093	Bracket, valve operator/closer	Request
2	600-00976000097	Plate, rocker spring LH & RH	Request
4	600-00946000094	Rod, rocker plate	Request
5	600-00966000096	Anchor, extension spring	Request
6	600-01716000171	Bracket, holding	Request
7	300-00323000032	Spring, extension	Request
8	600-02236000223	Cam closer RH	Request
9	600-02246000224	Cam closer LH	Request
10	600-08306000830	Anchor, extension spring	Request
11	102-19191021919	Screw, set	Request
12	102-00931020093	Bolt, hex head	Request
13	102-03891020389	Washer, lock	Request
14	102-00651020065	Bolt, hex head	Request
15	102-03871020387	Washer, lock	Request
16	102-14601021460	Nut, hex	Request
17	102-04161020416	Washer, flat	Request
18	600-01876000187	Bracket, stop	Request
19	102-03321020332	Nut, hex	Request
20	600-01956000195	Spacer, valve closer	Request
21	102-04171020417	Washer, flat	Request

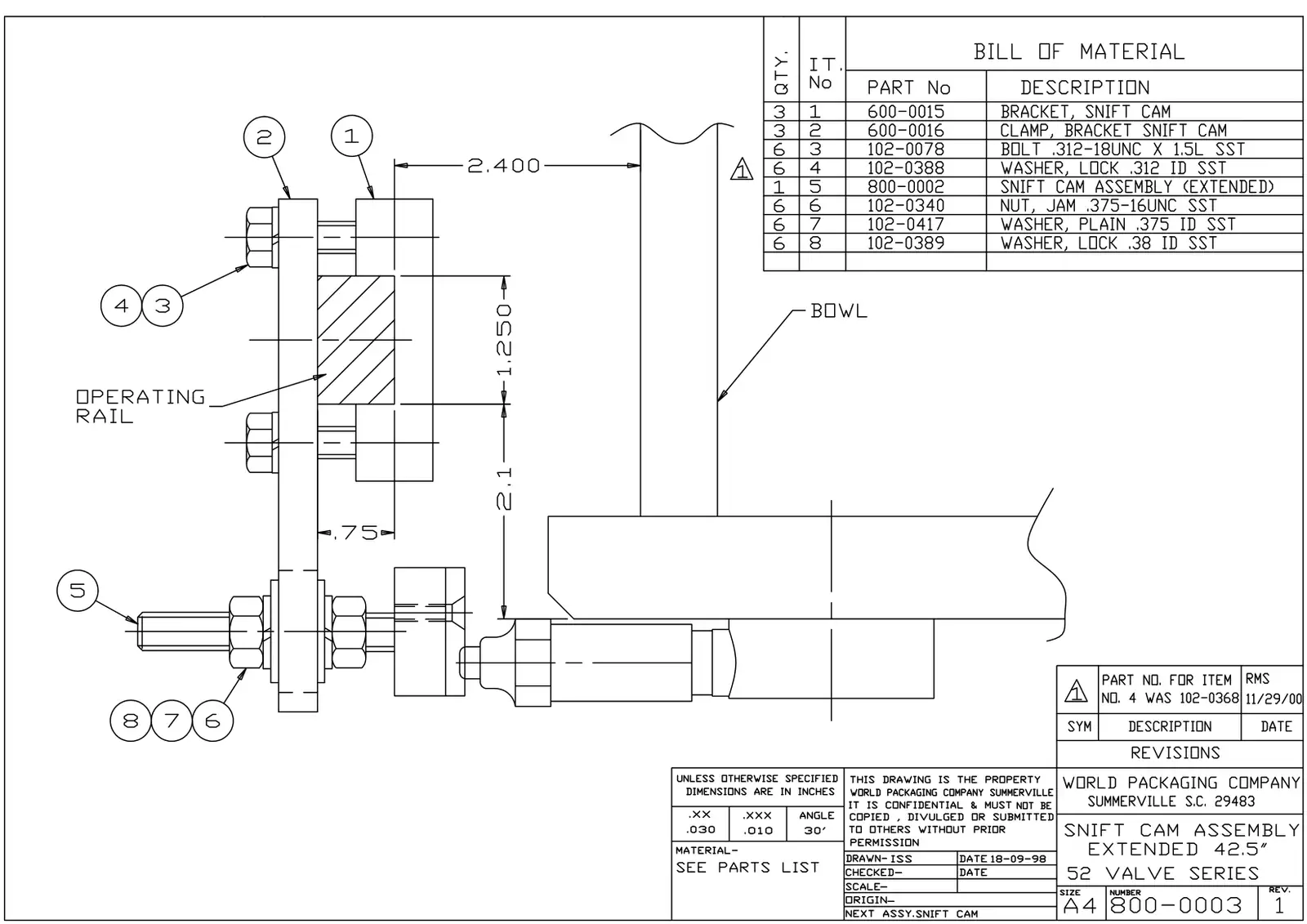

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
2	137-25441372544	Clamp, bracket	Request
3	137-18661371866	Bracket, snift cam mounting	Request
4	102-00761020076	Bolt, hex head	Request
5	102-03881020388	Washer, lock	Request
6	102-03401020340	Nut, hex jam	Request
7	102-03891020389	Washer, lock	Request

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
4	100-46601004660	Elbow, street 90 deg	Request
8	100-40851004085	Nipple, pipe	Request
12	137-24881372488	Support, valve opener 65V	Request
13	102-04161020416	Washer, flat	Request
14	102-03381020338	Nut, hex jam	Request
15	102-00751020075	Bolt, hex head	Request
16	136-34811363481	Follower, cam	Request
17	137-0033	Bracket	Ask us
18	104-69161046916	Cylinder, air stroke	Request
20	102-22831022283	Nut, hex jam nylock	Request
21	102-0050	Screw	Ask us
23	137-0501	Roller	Ask us
24	137-25081372508	Plate, roller mtg scavenge	Request
25	137-25091372509	Pin, closer scavenger 65V	Request
26	100-38651003865	Ring, retaining external	Request
27	102-03341020334	Nut, hex	Request
28	102-04171020417	Washer, flat	Request
29	102-03891020389	Washer, lock	Request
31	100-4088	Nipple	Ask us
32	100-61091006109	Nipple, close	Request
33	137-3928	Hose	Ask us
34	137-3929	Hose	Ask us

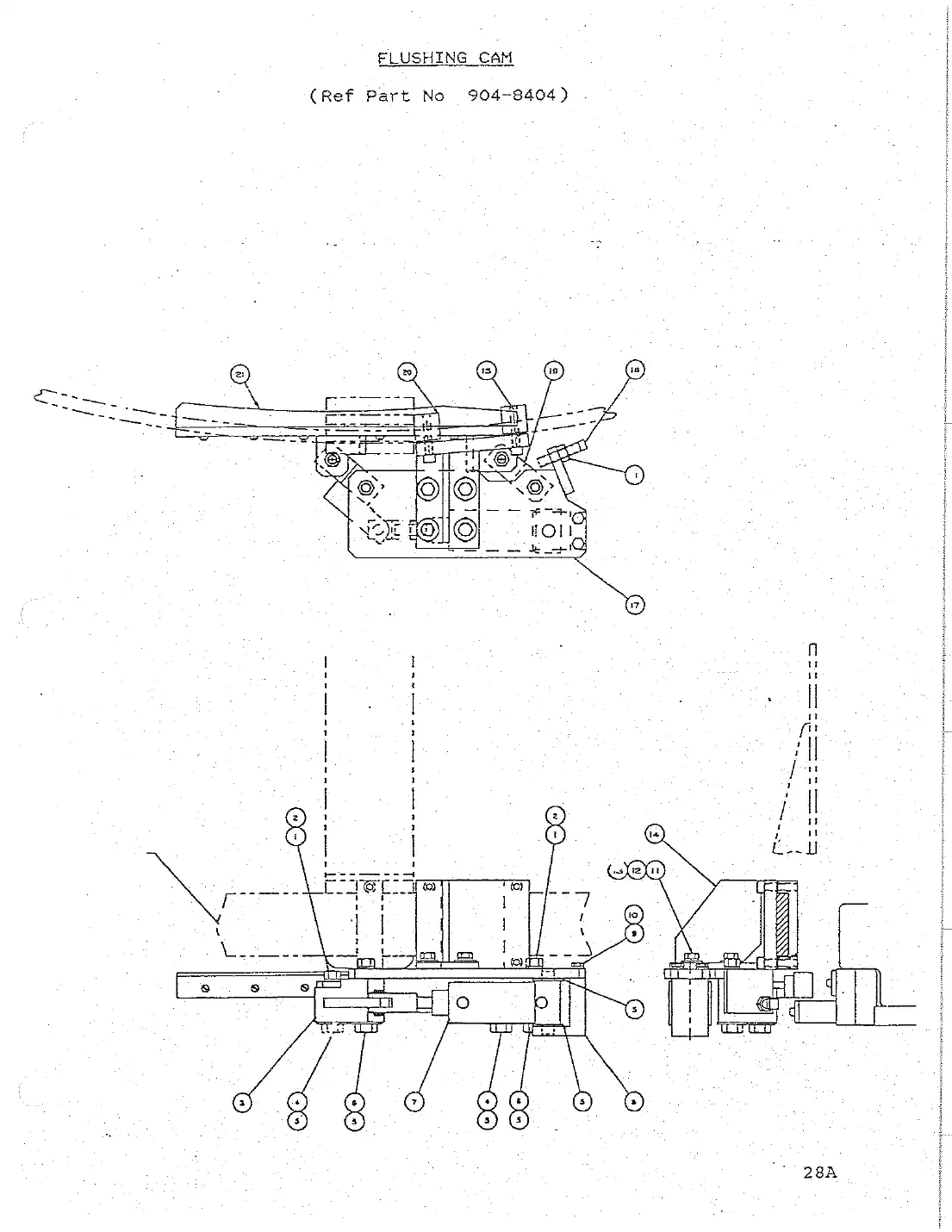

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
1	102-03341020334	Nut, hex	Request
2	102-03891020389	Washer, lock	Request
3	904-8255	Pivot assembly	Ask us
4	137-1024	Shoulder bolt	Ask us
5	102-04181020418	Washer, flat	Request
6	137-1023	Shoulder bolt	Ask us
7	104-8272	Cylinder	Ask us
8	137-1000	Clamp	Ask us
9	102-00671020067	Bolt, hex head	Request
10	102-03871020387	Washer, lock	Request
12	102-03881020388	Washer, lock	Request
13	102-04161020416	Washer, flat	Request
14	904-8256	Support	Ask us
15	102-13621021362	Screw, socket head cap	Request
17	904-8375	Support plate	Ask us
18	102-0972	Screw	Ask us
19	904-7469	Pivot assembly	Ask us

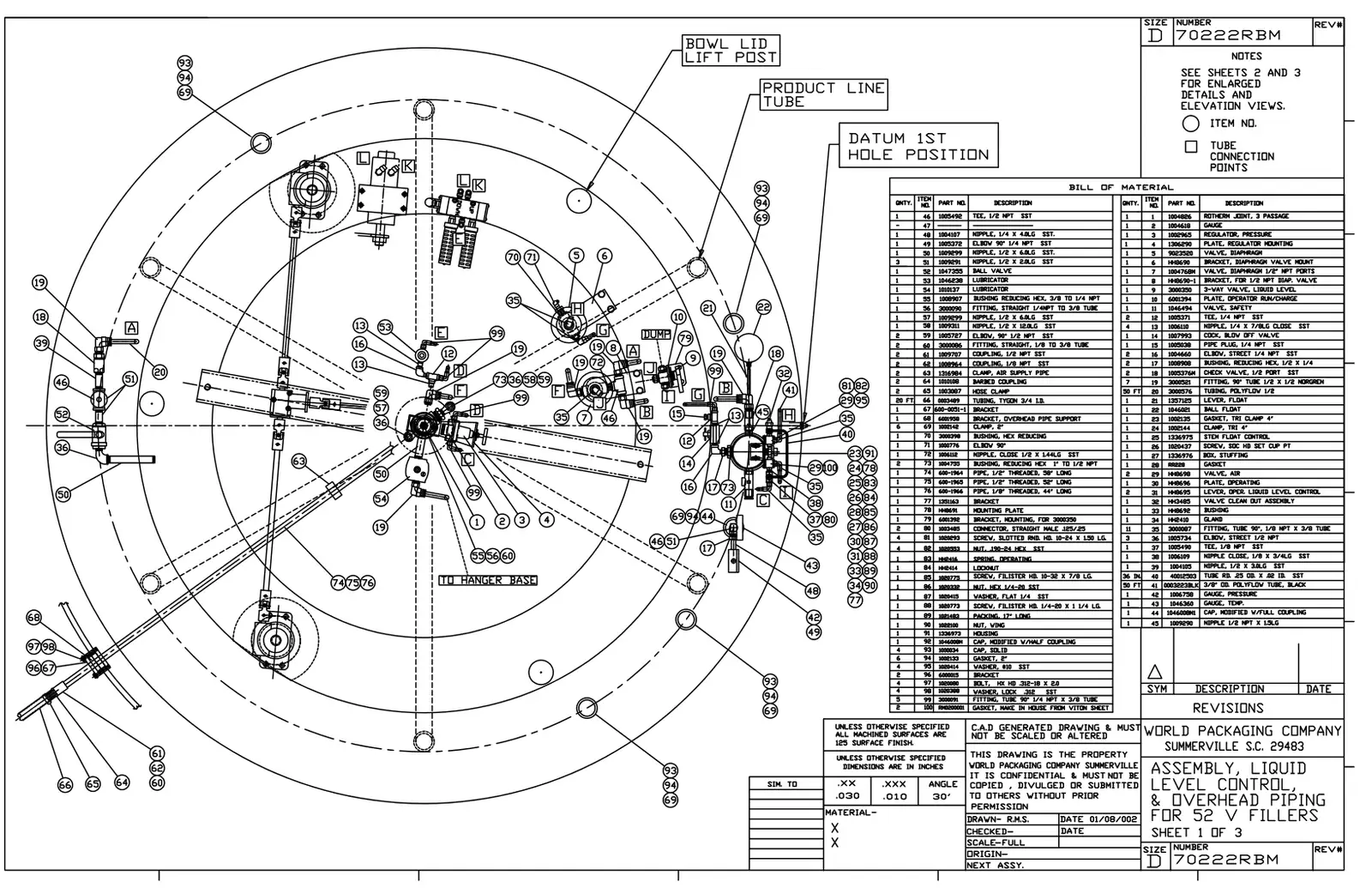

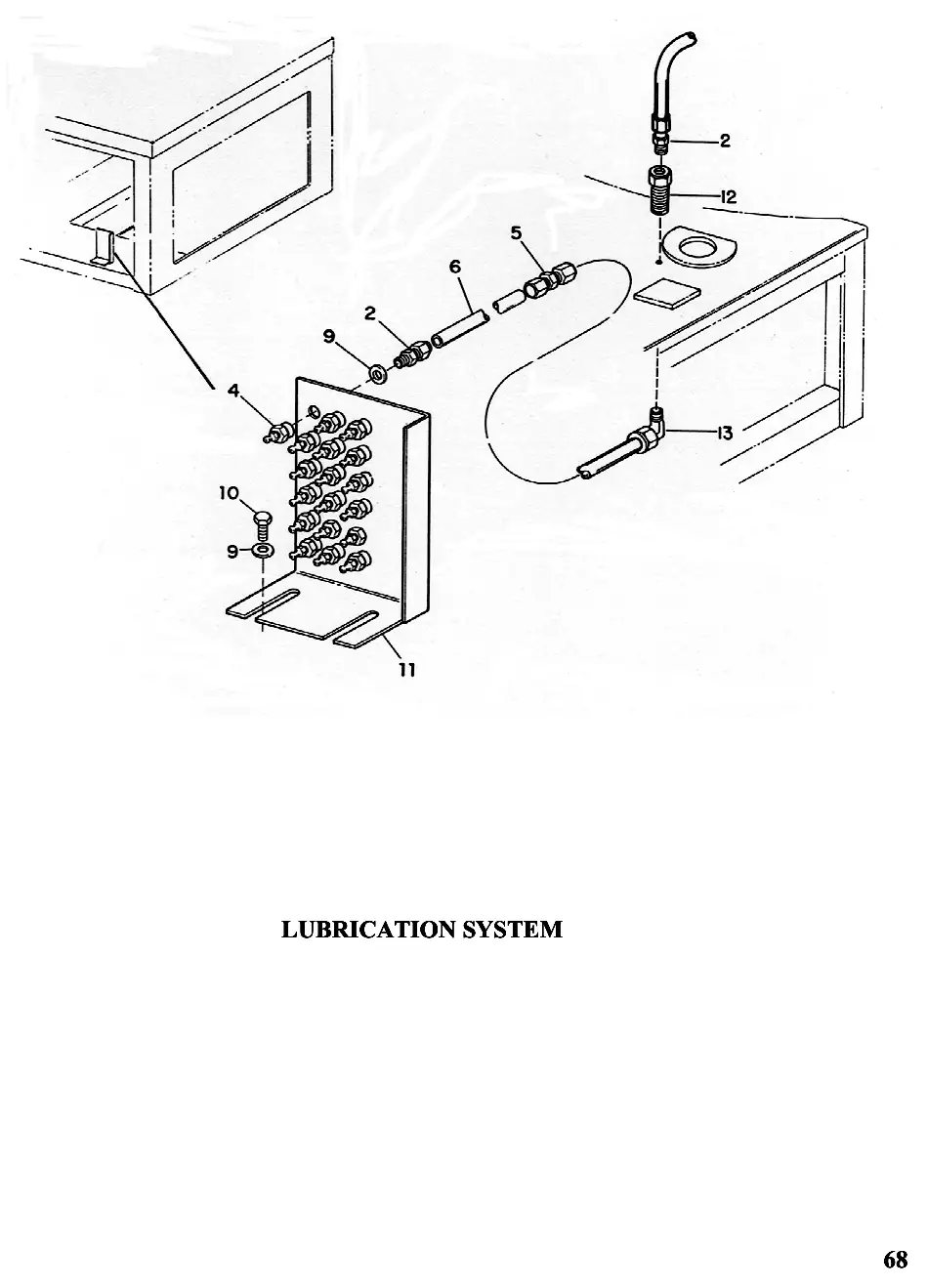

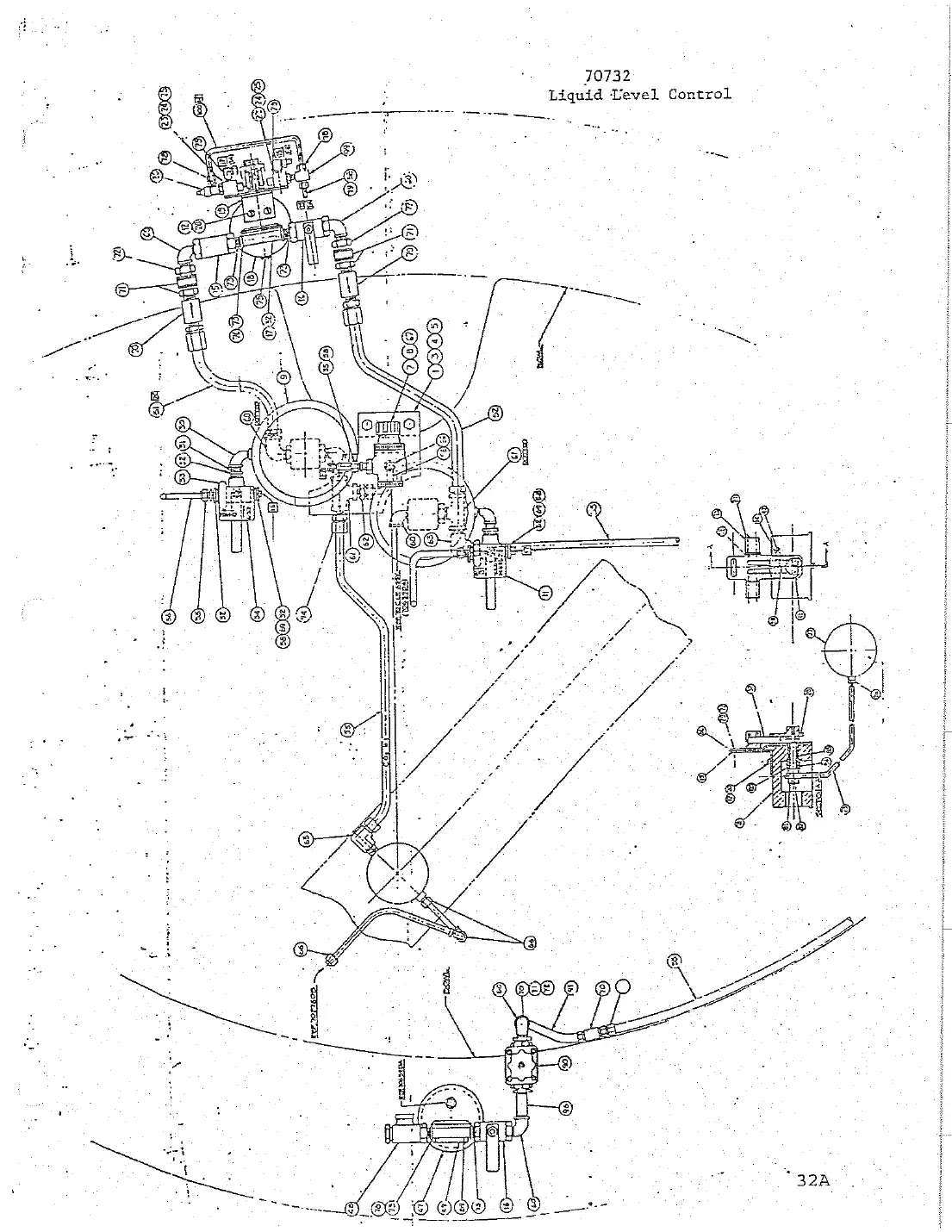

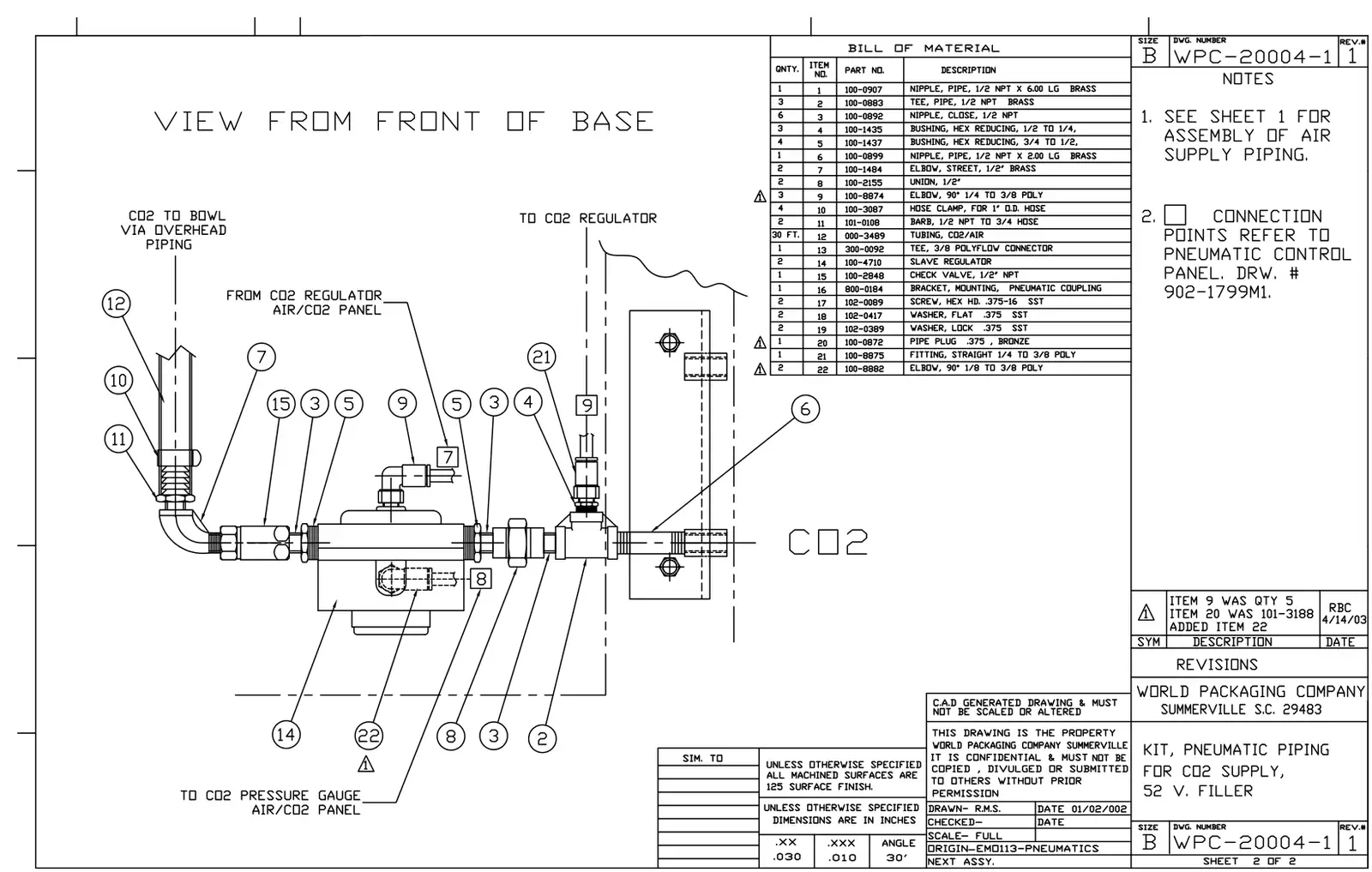

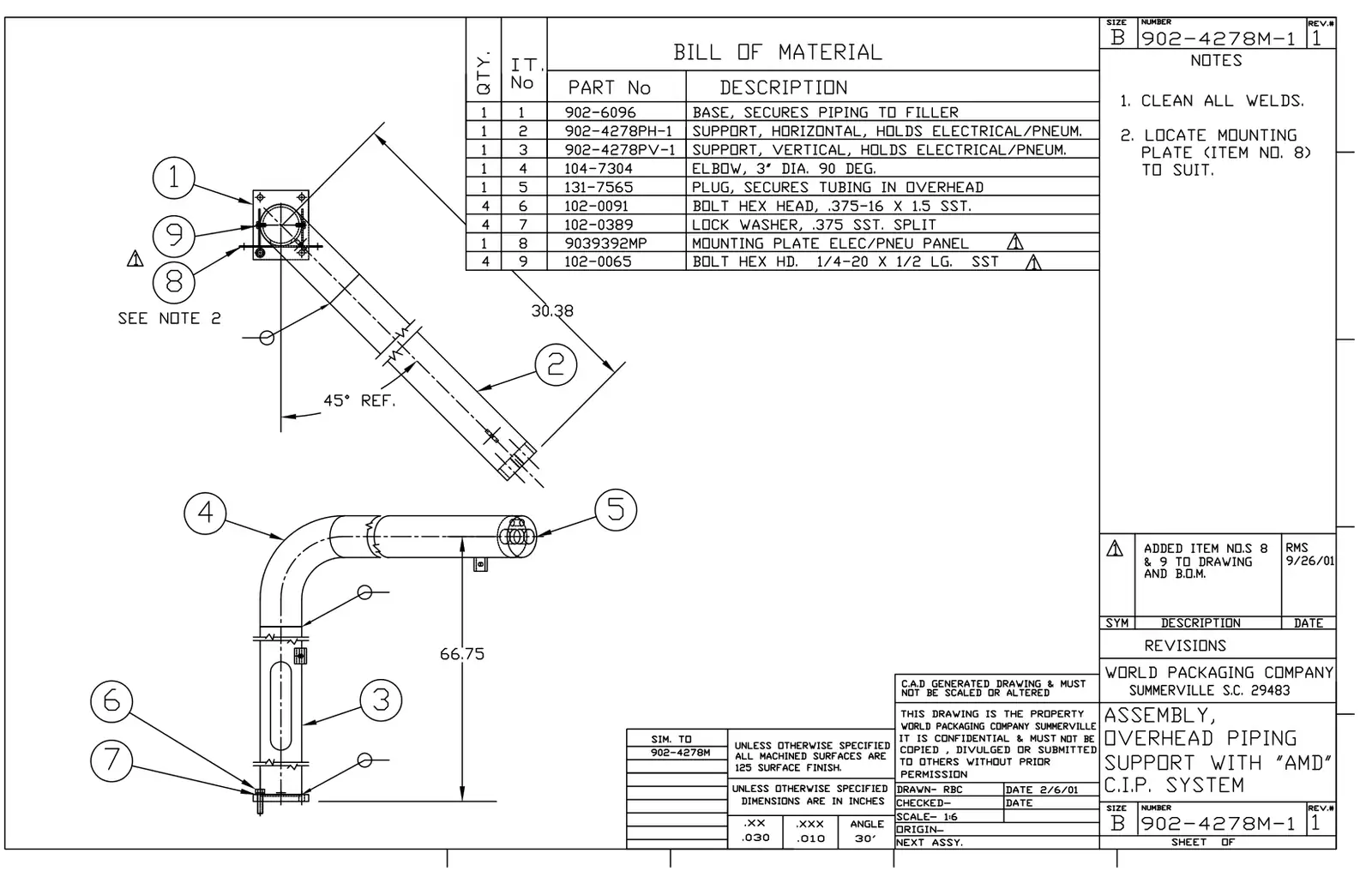

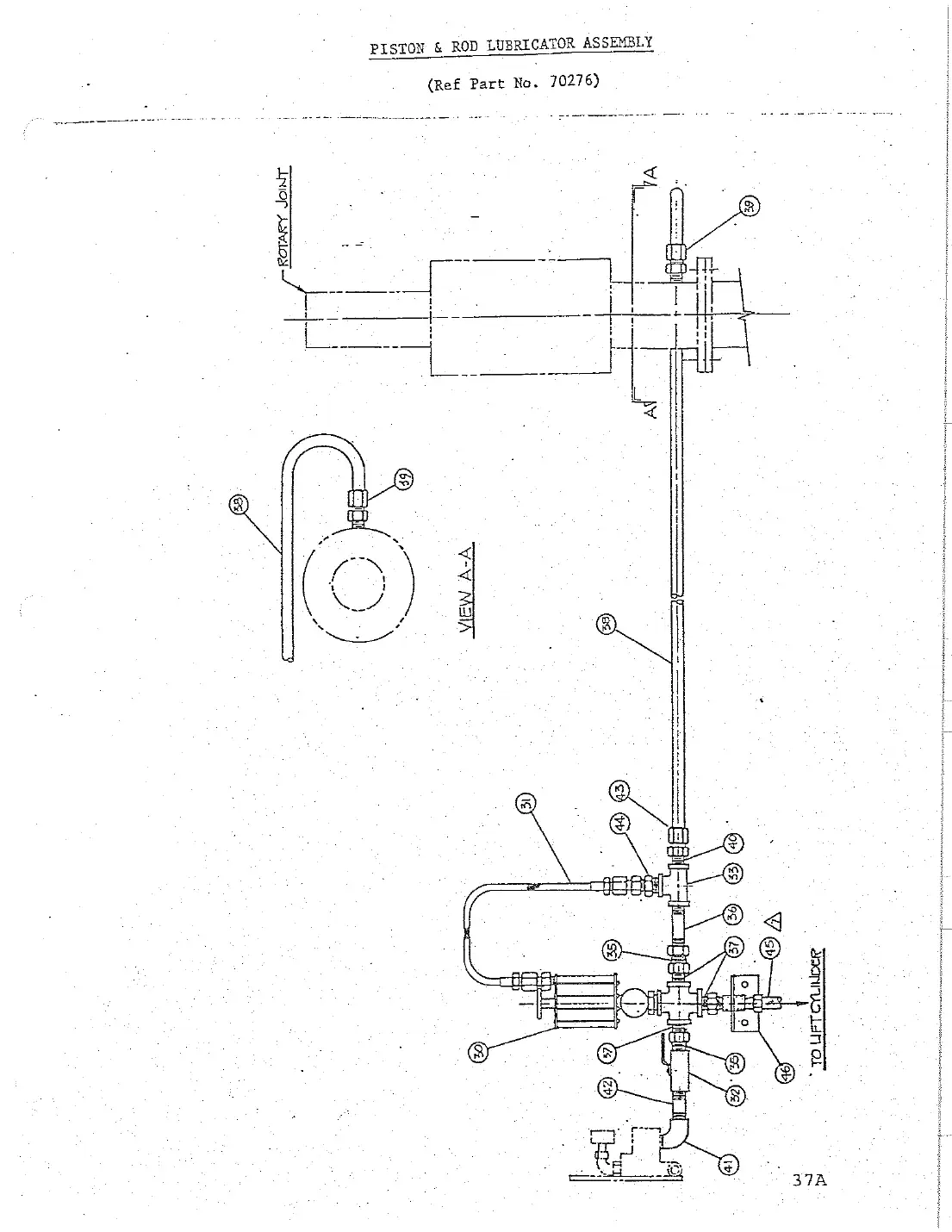

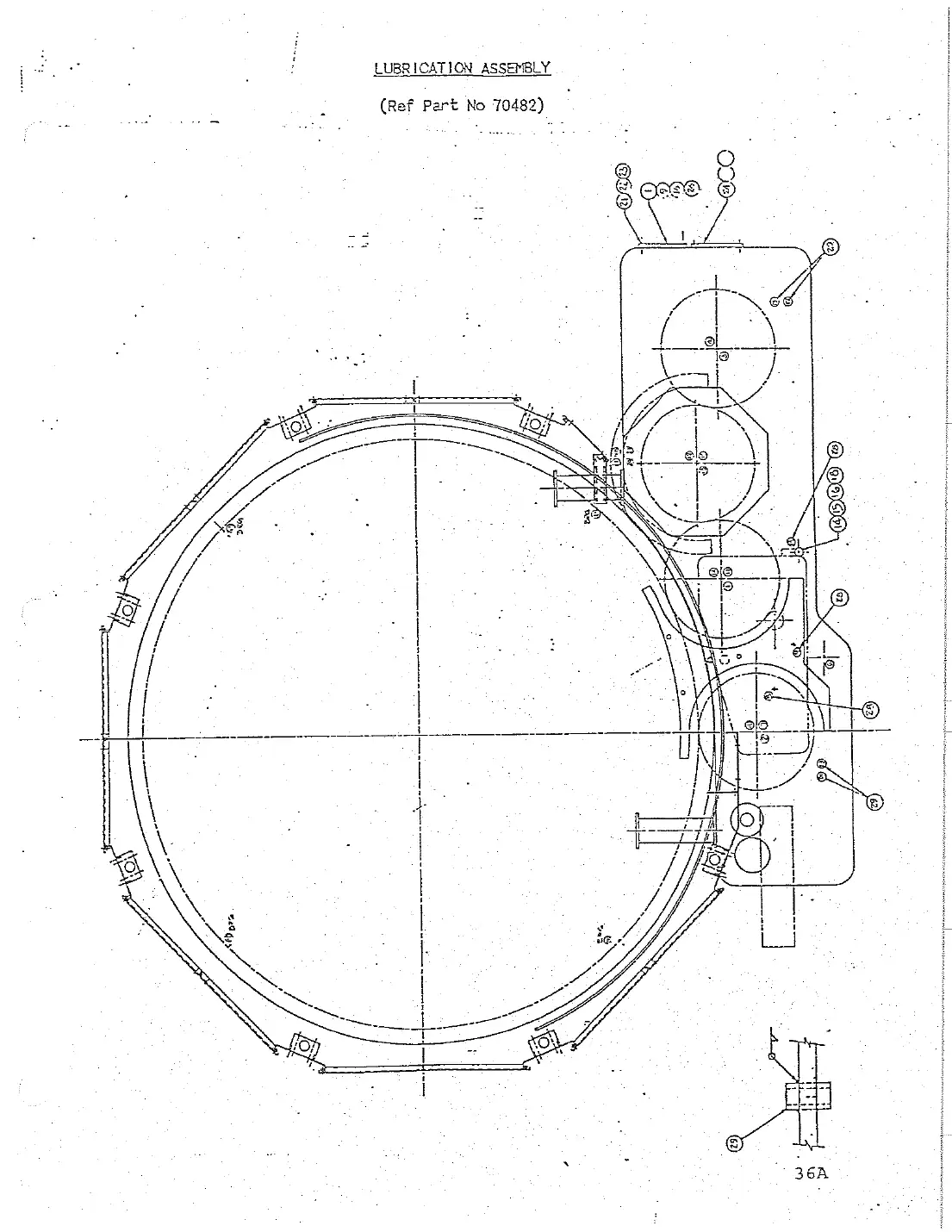

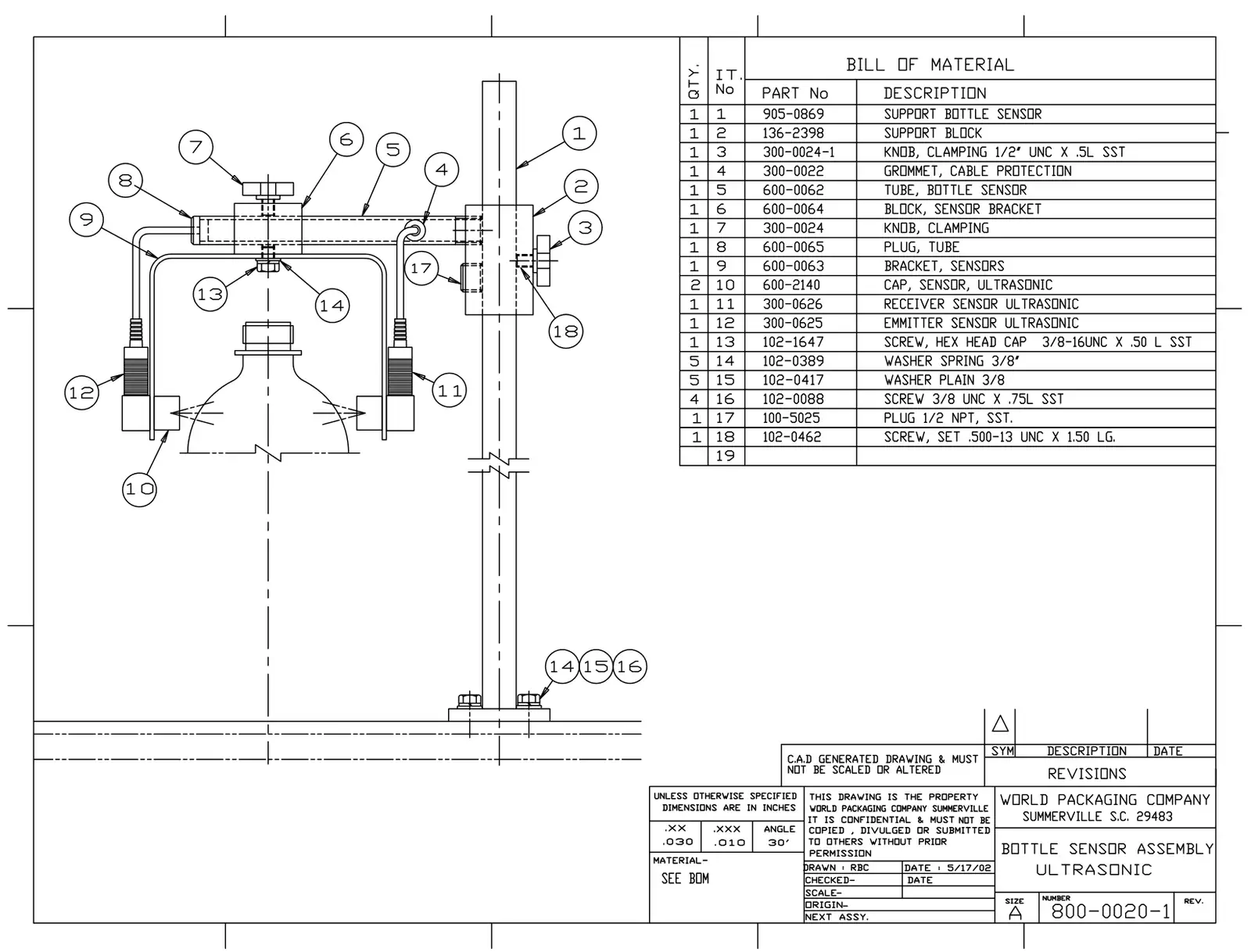

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	137-5987	Strap, cam	Ask us
6	102-03401020340	Nut, hex jam	Request

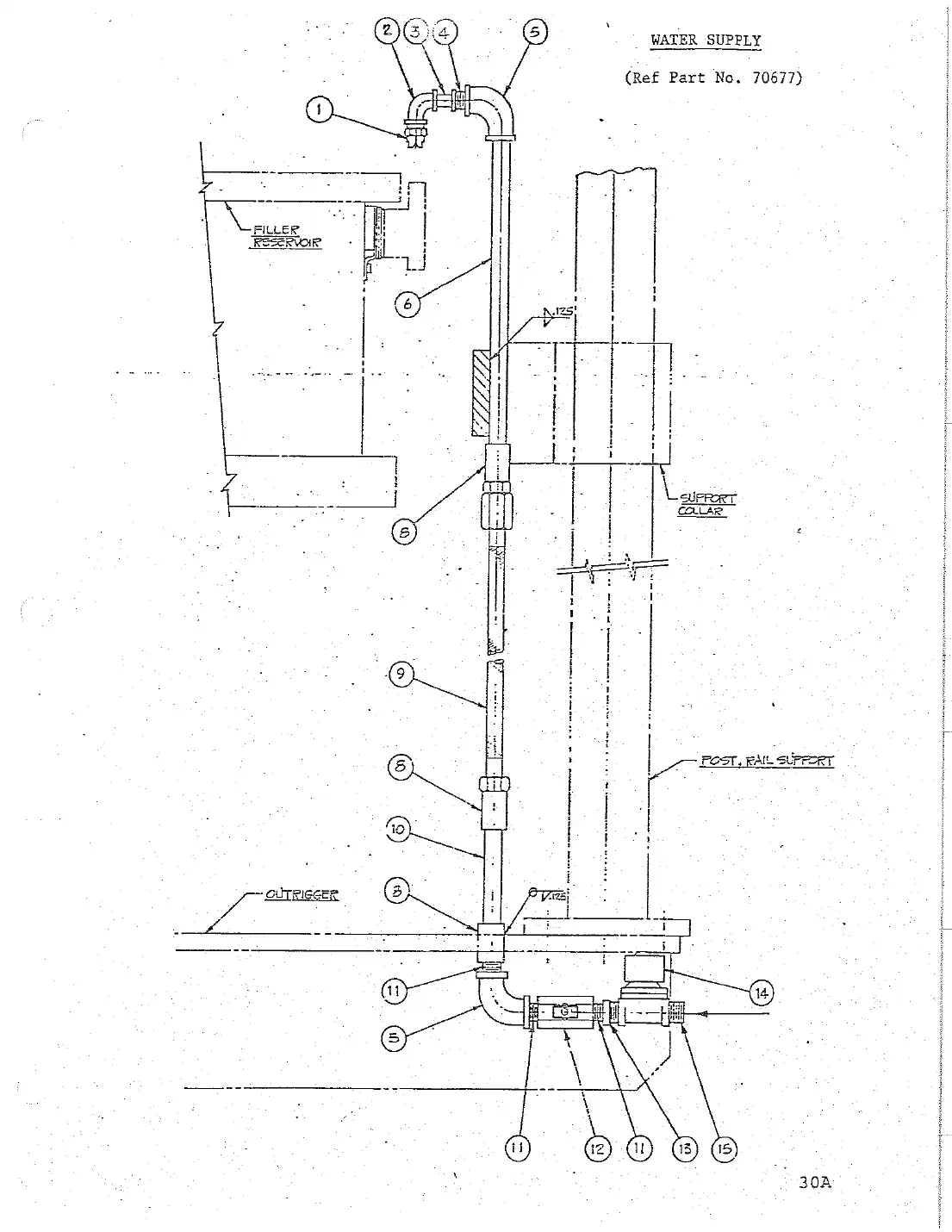

Parts for this assembly, from the original Meyer parts lists.

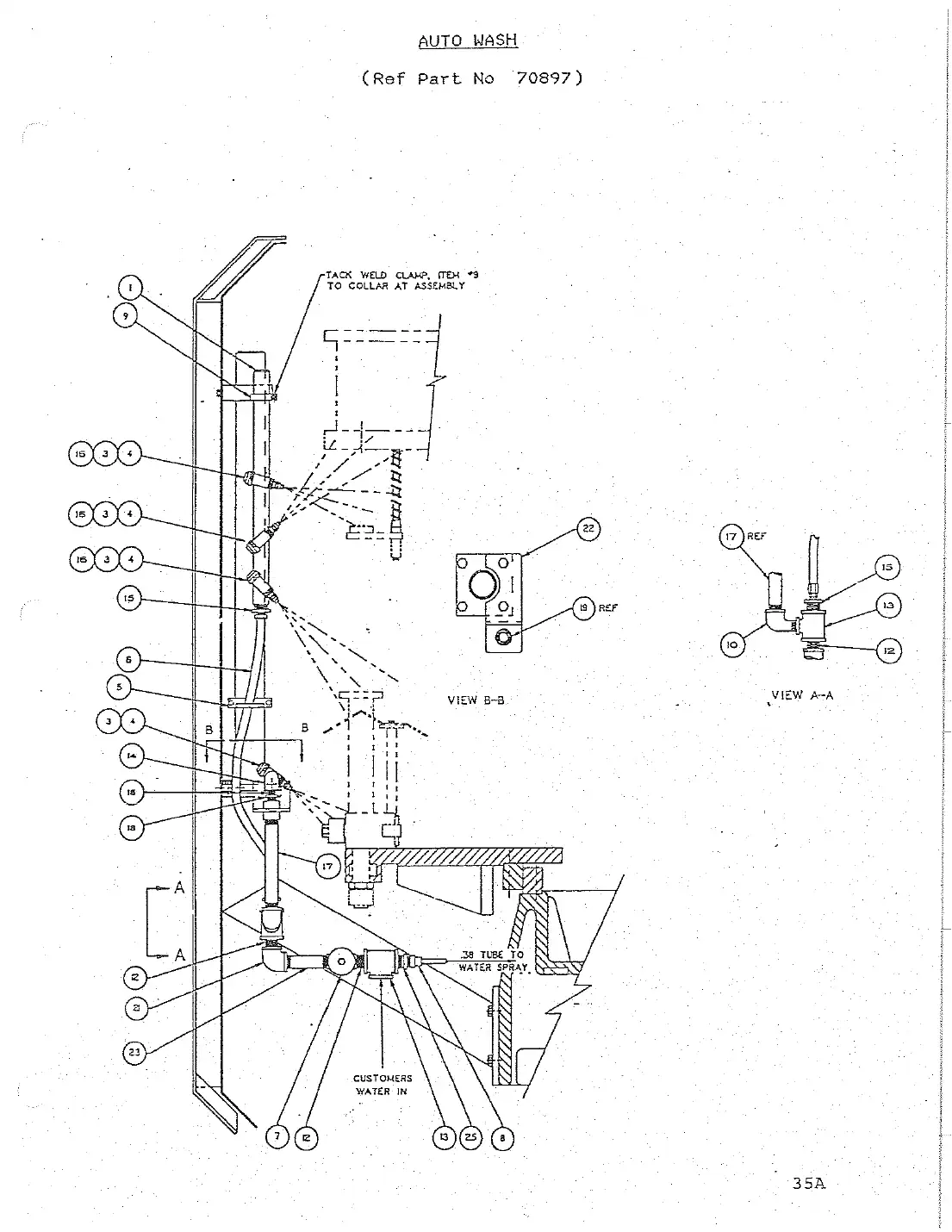

Open full size

Ref	Part number	Description
1	104-8130	Spray nozzle	Ask us
2	100-89261008926	Elbow, 90 deg	Request
3	000-0788	Pipe	Ask us
4	100-46581004658	Bushing, reducing hex	Request
5	100-53701005370	Elbow	Request
6	000-0795	Pipe	Ask us
8	100-8967	Coupling	Ask us
8	136-9955	Hose	Ask us
11	100-61101006110	Nipple, close	Request
12	104-7951	Valve	Ask us
13	100-89071008907	Bushing, reducing hex female	Request
14	103-6243	Valve, solenoid	Ask us
45	100-96651009665	Nipple, pipe	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
3	100-08571000857	Elbow	Request
4	100-08711000871	Plug, pipe	Request
5	100-08741000874	Plug, pipe square. head	Request
6	100-08841000884	Tee	Request
7	100-08921000892	Nipple	Request
8	100-1439	Bushing	Ask us
10	100-2793	Reducer	Ask us
12	100-47101004710	Regulator, air	Request
13	101-37491013749	Fitting, elbow	Request
14	100-88821008882	Fitting, tube elbow	Request
16	101-01371010137	Lubricator	Request
17	101-3750	Fitting	Ask us
18	101-3753	Fitting	Ask us
19	104-8191	Filter	Ask us
20	104-7381	Clamp	Ask us
21	137-0051	Manifold	Ask us
23	905-1351	Bracket	Ask us
24	904-7858	Panel	Ask us
25	904-7859	Shroud	Ask us
26	904-7860	Guard	Ask us
27	102-00891020089	Bolt, hex head	Request
28	102-03891020389	Washer, lock	Request
29	100-08831000883	Tee	Request
30	101-0466	Connector	Ask us
31	101-0471	Fitting	Ask us
32	101-04671010467	Fitting, tube adapter	Request

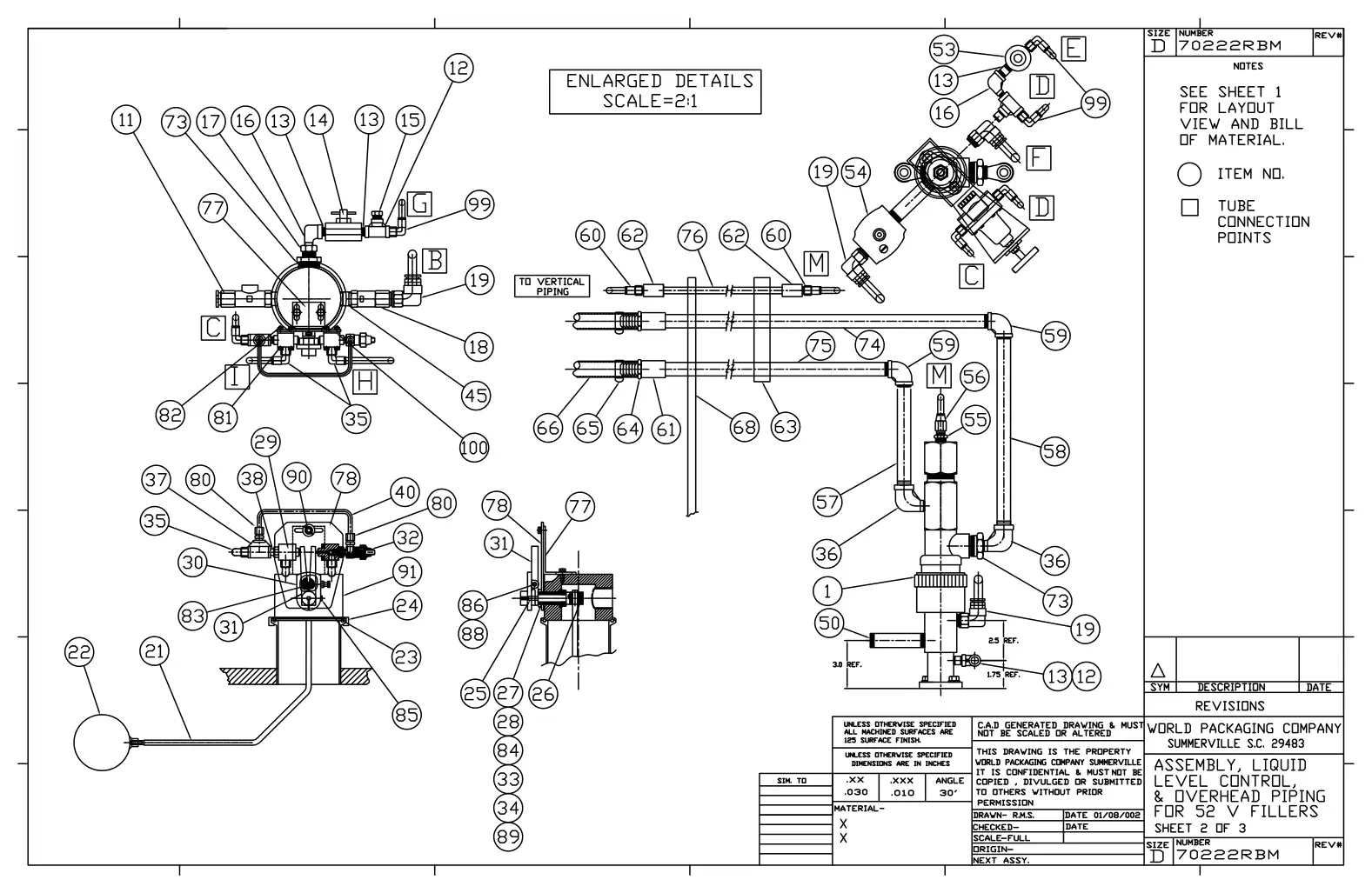

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full size

Ref	Part number	Description
1	904-7027	Bracket	Ask us
49	104-8197	Thermometer	Ask us
2	904-5907	Bracket	Ask us
51	136-9894	Hose	Ask us
3	102-00791020079	Bolt, hex head	Request
52	136-9959	Hose	Ask us
4	102-03881020388	Washer, lock	Request
54	000-3510	Tube	Ask us
5	102-03331020333	Nut, hex	Request
6	102-00751020075	Bolt, hex head	Request
56	000-1772	Tube-round	Ask us
7	104-51311045131	Regulator	Request
58	000-35190003519	Tubing, poly-flo	Request
8	100-46181004618	Gauge, pressure	Request
60	100-57341005734	Elbow, street 90 deg	Request
9	104-51261045126	Valve, diaphragm	Request
61	100-54921005492	Tee	Request
62	104-7870	Connector	Ask us
12	102-02951020295	Screw, round head slot	Request
63	104-7871	Connector	Ask us
15	104-67941046794	Valve, check	Request
66	100-34871003487	Connector, straight male pipe/tube	Request
16	104-73551047355	Valve, ball	Request
67	100-46581004658	Bushing, reducing hex	Request
17	104-8196	Gauge	Ask us
69	101-3752	Fitting	Ask us
18	136-6532	Housing	Ask us
70	100-97071009707	Coupling	Request
19	135-11631351163	Bracket, liquid level cont	Request
20	102-04151020415	Washer, flat	Request
72	104-7915	Coupler	Ask us
22	102-21001022100	Screw, thumb	Request
73	100-61121006112	Nipple	Request
75	104-6789	Plug	Ask us
24	102-02931020293	Screw, round head slot	Request
76	101-33051013305	Cross, female pipe	Request
25	102-05531020553	Nut, hex	Request
78	100-34851003485	Connector, male	Request
79	101-04691010469	Fitting, tube adapter br	Request
27	104-60211046021	Float, ball	Request
28	102-03381020338	Nut, hex jam	Request
82	102-04251020425	Set screw	Request
29	135-71251357125	Lever, float	Request
83	136-16531361653	Bushing, valve lever	Request
30	100-46601004660	Elbow, street 90 deg	Request
84	100-25111002511	O-ring, edpm, dash	Request
31	100-61101006110	Nipple, close	Request
85	101-00881010088	O-ring	Request
32	100-89081008908	Bushing, reducing hex	Request
86	136-6379	Bracket	Ask us
33	104-78671047867	Valve, ball 3 way	Request
88	100-49091004909	Union	Request
34	137-4151	Plate	Ask us
89	100-92931009293	Nipple	Request
35	101-0470	Connection	Ask us
90	100-7648	Valve	Ask us
36	000-1764	Tube round-s	Ask us
93	100-5727	Elbow	Ask us
94	104-8357	Connector	Ask us
96	100-92951009295	Nipple	Request
4L	102-07751020775	Screw, fillister hd	Request
97	100-53711005371	Tee	Request
42	102-07731020773	Screw, fillister hd	Request
98	100-4103	Nipple	Ask us
99	100-54901005490	Tee	Request
48	104-64941046494	Valve, safety	Request

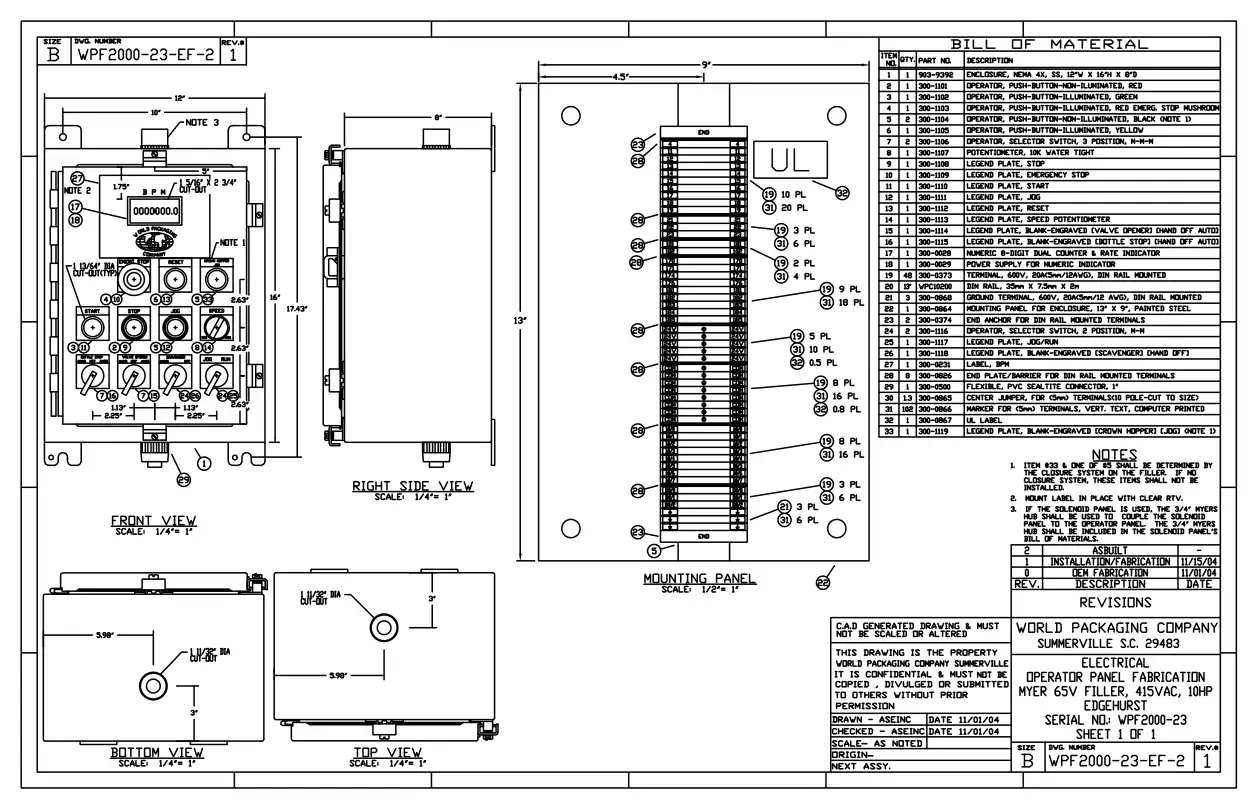

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	136-8963	Cap	Ask us
3	102-00791020079	Bolt, hex head	Request
4	102-03881020388	Washer, lock	Request
5	102-00901020090	Bolt, hex head	Request
6	102-03891020389	Washer, lock	Request
7	137-0589	Line	Ask us
9	104-8250	Adapter	Ask us
10	000-32230003223	Tube, polyflo	Request
11	100-96671009667	Elbow, street	Request
13	100-89281008928	Elbow, 90 deg	Request
20	137-4265	Bracket	Ask us
23	104-6556	Connector	Ask us
24	100-30771003077	Clamp, hose clamp	Request
26	100-4910	Union	Ask us
27	101-2537	Coupling	Ask us
28	104-8515	Connector	Ask us
29	100-97071009707	Coupling	Request
30	000-0807	Pipe	Ask us
31	100-5727	Elbow	Ask us
34	000-1772	Tube	Ask us

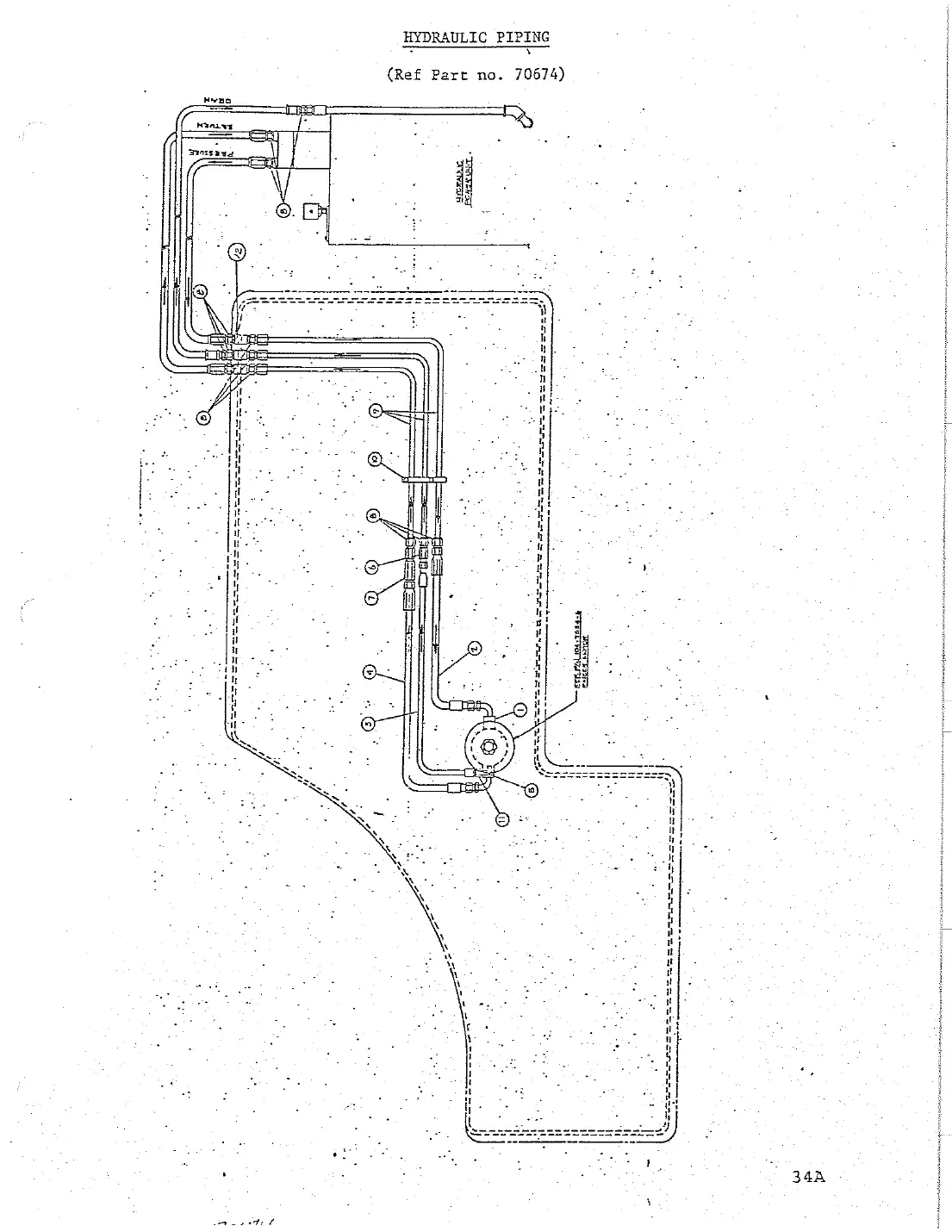

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	104-80251048025	Kit, repair hydraulic motor	Request
2	104-8028	Hose, pressure	Ask us
3	104-8030	Hose, case drain	Ask us
4	104-8029	Hose, return	Ask us
5	100-96661009666	Elbow, street 90 deg ips	Request
6	104-8040	Reducer	Ask us
7	104-6054	Check valve	Ask us
8	104-67151046715	Connector, male	Request
9	000-4129	Stainless tube	Ask us
10	137-3804	Tube hanger	Ask us
12	101-2537	Coupling	Ask us

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	904-77119047711-1	Manifold, pipe auto wash	Request
3	104-51871045187	Nozzle, wash-off	Request
4	104-6372	Diaphram valve	Ask us
5	136-9983	Hose	Ask us
6	136-9959	Hosenoid	Ask us
7	103-7112	Solenoid	Ask us
10	100-96671009667	Elbow, street	Request
41	101-2537	Full coupling	Ask us
12	100-61131006113	Nipple, close	Request
13	100-5493	Tee	Ask us
44	100-96661009666	Elbow, street 90 deg ips	Request
16	100-61111006111	Nipple, close	Request
47	100-04181000418	Nipple, pipe	Request
18	100-89101008910	Bushing, reducing hex	Request
21	100-89281008928	Elbow, 90 deg	Request
23	101-3531	Close nipple	Ask us

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	100-7327	Clip-tube	Ask us
3	104-6680	Clip-tube	Ask us
4	100-47661004766	Fitting, grease straight ptf	Request
5	100-89641008964	Coupling, pipe straight	Request
7	102-12551021255	Washer, flat	Request
9	102-00651020065	Bolt, hex head	Request
10	100-34851003485	Connector, male	Request
12	100-55801005580	Elbow, compression tube	Request
13	100-6940	Clip tube	Ask us
15	102-00721020072	Bolt, hex head	Request
16	102-0835	Washer lock	Ask us
17	104-6679	Clip tube	Ask us
18	104-64721046472	Lubricator, automatic	Request
19	100-7246	Elbow	Ask us
20	100-6628	Relief fitting	Ask us
21	102-0302	Screw	Ask us
22	102-04161020416	Washer, flat	Request
23	102-03881020388	Washer, lock	Request
24	137-00441370044-1	Legend, planel cover central	Request
26	102-04151020415	Washer, flat	Request
28	104-65441046544	Tubing, braided	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	101-0195	Nozzle reducer	Ask us
36	100-41061004106	Nipple	Request
37	100-61121006112	Nipple	Request
8	137-3973	Bracket	Ask us
38	0003346000-3346	Tubing	Ask us
9	101-25891012589	Lubricator	Request
10	100-1465	Elbow	Ask us
40	100-41011004101	Nipple, close sch	Request
121	100-3085	Connector elbow	Ask us
42	100-41051004105	Nipple	Request
23	132-7556	U-clamp connector	Ask us
24	100-3086	Connector bushing	Ask us
25	102-00671020067	Bolt, hex head	Request
26	102-04151020415	Washer, flat	Request
46	904-84649048464	Bracket, lubricator air lift cylinder rod	Request
27	102-03321020332	Nut, hex	Request
28	102-3037	Stud	Ask us
29	102-03871020387	Washer, lock	Request
30	131-56701315670	Lubricator, essex #6	Request
34	104-6545	Hose	Ask us
33	100-53711005371	Tee	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
33	904-7854	Knob	Ask us
46	102-03401020340	Nut, hex jam	Request
48	102-00901020090	Bolt, hex head	Request
49	102-03891020389	Washer, lock	Request
50	102-04151020415	Washer, flat	Request
51	102-00641020064	Bolt, hex head	Request
13	905-18659051865	Pin, hinge outer explosion guards	Request
52	102-04171020417	Washer, flat	Request
14	136-95871369587	Block, hinge outer explosion guards	Request
55	102-04161020416	Washer, flat	Request
56	102-00661020066	Bolt, hex head	Request
58	102-03901020390	Washer, lock	Request
59	102-16611021661	Bolt, hex head	Request
60	102-03881020388	Washer, lock	Request
61	102-00911020091	Bolt, hex head	Request
63	102-03321020332	Nut, hex	Request
65	102-03871020387	Washer, lock	Request
66	102-07861020786	Bolt, hex head	Request
68	102-00651020065	Bolt, hex head	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
4	102-04171020417	Washer, flat	Request
5	102-03891020389	Washer, lock	Request
7	102-04151020415	Washer, flat	Request
8	102-03871020387	Washer, lock	Request
9	102-02951020295	Screw, round head slot	Request
37	904-8408	Guard -only	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
2	134-4002	Plug	Ask us
41	102-10041021004	Bolt, hex head	Request
3	132-3962	Plate	Ask us
42	102-04141020414	Washer, flat	Request
12	102-23411022341	Nut, hex nylock	Request
43	102-2261	Screw	Ask us
15	131-8473	Guide	Ask us
44	102-2259	Screw	Ask us
16	132-09731320973	Spring, compression outer	Request
46	102-3022	Screw	Ask us
48	102-00681020068	Bolt, hex head	Request
18	132-09781320978	Spring, compression inner	Request
49	102-04151020415	Washer, flat	Request
20	134-1616	Wiper	Ask us
50	102-02081020208	Screw, flat head slot	Request
51	102-02941020294	Screw, round head slot	Request
24	135-8893	Bar	Ask us
54	134-16101341610	Key, elevating sleeve Meyer crowner and cappers	Request
25	135-8894	Bar	Ask us
55	102-14041021404	Socket head cap screw	Request
26	135-8889	Support	Ask us
61	100-47661004766	Fitting, grease straight ptf	Request
27	135-8887	Support	Ask us
64	136-5864	Retainer	Ask us
28	135-9106	Cover	Ask us
66	136-5871	Cover	Ask us
29	135-9107	Cover	Ask us
31	135-9109	Cover	Ask us
70	102-30621023062	Washer	Request
32	135-8672	Pull	Ask us
33	102-2371	Screw	Ask us
73	136-58721365872	Column, center closure	Request
37	102-15521021552	Screw, socket head cap	Request
74	102-00831020083	Bolt, hex head	Request
38	102-03411020341	Nut, hex jam	Request
39	102-01021020102	Bolt, hex head	Request
77	905-2038	Hub-spool head	Ask us
78	137-2075	Cam	Ask us
79	137-2098	Shim	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
24	102-18031021803	Bolt, hex head	Request
25	102-05961020596	Washer, lock	Request
3	102-17811021781	Pin, dowel	Request
26	102-2251	Screw	Ask us
27	102-28051022805	Screw, set socket cup point	Request
6	102-04251020425	Set screw	Request
7	100-24061002406	O-ring	Request
36-1	102-25461022546	Washer, lock internal	Request
13	904-60959046095	Crown, rest assembly 15 hd type 6	Request
36-2	102-27041022704	Nut, hex jam	Request
36-3	100-47661004766	Fitting, grease straight ptf	Request
14	102-01921020192	Screw, flat head slot	Request
36-4	131-88231318823	Roller, crowner cam	Request
15	102-01901020190	Screw, flat head slot	Request
36-8	134-74201347420	Bracket, cam roller	Request
22	102-0599	Screw	Ask us
38	902-38559023855	Sleeve, bracket crowning	Request
23	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full size

Ref	Part number	Description
1	130-0471	Hopper	Ask us
51	102-03801020380	Washer, lock	Request
2	100-11531001153	Plug, pipe countersunk	Request
52	130-6575	Insert	Ask us
3	102-00891020089	Bolt, hex head	Request
4	102-03891020389	Washer, lock	Request
54	102-09781020978	Screw, socket head cap	Request
5	101-3239	Bar ing	Ask us
55	102-01841020184	Screw, flat head slot	Request
6	131-1242	Collar	Ask us
56	135-9989	Chute	Ask us
7	102-12401021240	Pin, taper #4	Request
57	134-1556	Cover	Ask us
8	000-16280001628	Key, square	Request
58	102-00671020067	Bolt, hex head	Request
9	100-72521007252	Felt, seal	Request
59	136-0556	Spacer	Ask us
10	902-0107	Disc	Ask us
12	1007171100-7171	Bearing, outer	Request
62	102-03871020387	Washer, lock	Request
13	131-1106	Bracket	Ask us
63	102-03861020386	Washer, lock	Request
14	100-34851003485	Connector, male	Request
66	100-47661004766	Fitting, grease straight ptf	Request
16	102-01031020103	Bolt, hex head	Request
67	102-04661020466	Screw, set socket cup point	Request
17	100-71721007172	Bearing, needle roller	Request
68	135-9449	Shield	Ask us
19	102-01911020191	Screw, flat head slot	Request
70	102-00691020069	Bolt, hex head	Request
20	134-15431341543	Knob	Request
71	134-1558	Screw	Ask us
21	134-15451341545	Housing	Request
72	134-1559	Screw	Ask us
22	904-2767	Plate	Ask us
73	102-03411020341	Nut, hex jam	Request
23	904-2768	Hub stud	Ask us
24	102-05721020572	Pin, taper	Request
75	000-1755	Tube-round	Ask us
25	102-3240	Coupling connector	Ask us
26	134-1550	Disc	Ask us
77	100-9929	Name plate	Ask us
27	101-32411013241	Spring, die 14 hd crowner	Request
78	137-4142	Guard	Ask us
84	102-00791020079	Bolt, hex head	Request
85	102-0339	Nut	Ask us
86	102-02861020286	Screw, round head slot	Request
31	102-03341020334	Nut, hex	Request
87	102-5908	Sensor	Ask us
32	900-4682	Disc	Ask us
88	101-2371	Claro	Ask us
89	102-00651020065	Bolt, hex head	Request
35	100-34821003482	O-ring	Request
94	102-02951020295	Screw, round head slot	Request
36	102-12331021233	Pin, dowel	Request
37	102-1812	Screw hex	Ask us
96	100-89641008964	Coupling, pipe straight	Request
87	104-6543	Hose	Ask us
39	134-1553	Bracket	Ask us
98	104-8478	Valve	Ask us
40	102-1492	Bolt stainless swagelo	Ask us
4	102-14431021443	Washer, lock	Request
100	100-5581	Fitting	Ask us
102	136-9957	Hose	Ask us
103	100-53711005371	Tee	Request
44	102-13841021384	Pin, cotter	Request
104	100-46581004658	Bushing, reducing hex	Request
45	134-3846	Bracket	Ask us
105	104-6483	Valve	Ask us
46	135-9555	Spring	Ask us
49	101-3242	Reducer	Ask us
50	102-00261020026	Bolt, hex head	Request

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full size

Ref	Part number	Description
6	137-7003	Screw, leveling	Ask us
8	102-15171021517	Screw, socket head cap	Request
10	904-7542	Bracket	Ask us
11	904-8556	Door, front drive base	Ask us
14	905-1892	Leveling screw assembly drive base	Ask us
16	102-00651020065	Bolt, hex head	Request
17	102-03871020387	Washer, lock	Request
20	904-7724	Guard, epicycloidal gear	Ask us
291	137-7654	—	Ask us
5	102-01031020103	Bolt, hex head	Request
13	102-0659	Screw	Ask us
14	102-03821020382	Washer, lock	Request
16	136-00471360047	Gear, closure disconnect	Request
20	104-73321047332	Sprocket, HTD starwheel 65V	Request
21	104-73371047337	Bushing, taperlock starshaft	Request
23	102-03901020390	Washer, lock	Request
25	100-02331000233	Bearing, flange	Request
127	104-73361047336	Idler, flanged pulley	Request
37	104-83171048317	Belt, timing	Request
38	104-73341047334	Idler, tightener	Request
38	104-73281047328	Idler shaft	Request
40	104-73351047335	Tightener drive	Request
42	104-83121048312	Sprocket, HTD	Request
42	100-02271000227	Bearing, flange-mount	Request
14	102-29431022943	Screw, socket head cap	Request
16	102-09771020977	Screw, socket head cap	Request
16	104-65441046544	Tubing, braided	Request
31	102-03341020334	Nut, hex	Request
36	137-2535	Spacer raised star	Ask us
43	104-8540	Extension spring	Ask us
2	100-93301009330	Gearbox, three way bowl lift	Request
3	100-82681008268	Chain, roller	Request
4	100-63501006350	Link, offset	Request
40	102-23181022318	Screw, thumb	Request
44	137-7192	Flange	Ask us
1S	104-65411046541	Joint	Request
20	135-86851358685	Washer, CIP header hanger	Request
22	135-8657	Shaft	Ask us
23	137-71931377193	Column, cover lift	Request
34	102-24521022452	Pin, taper	Request
26	102-00731020073	Bolt, hex head	Request
27	102-00761020076	Bolt, hex head	Request
23	102-00801020080	Bolt, hex head	Request
44	102-20021022002	Washer, flat	Request
45	000-16250001625	Key, square	Request
2	137-04581370458	Line, supply horizontal	Request
2	102-01001020100	Bolt, hex head	Request
4	904-8244	Post	Ask us
7	102-00911020091	Bolt, hex head	Request
8	102-03891020389	Washer, lock	Request
40	102-00901020090	Bolt, hex head	Request
76	102-16611021661	Bolt, hex head	Request
7	102-03881020388	Washer, lock	Request
78	137-24811372481	Bracket, outer door	Request
18	137-2482	Angle	Ask us
20	137-0531	Support	Ask us
21	137-1837	Angle	Ask us
22	102-0194	Screw	Ask us
23	905-18659051865	Pin, hinge outer explosion guards	Request
20	137-3817	Door RH only	Ask us
22	137-3816	Door	Ask us
34	104-8747	Latch	Ask us
25	135-8672	Pull	Ask us
22	137-3826	Door LH filler	Ask us
22	104-6526	Label	Ask us
6	904-7555	Snift cam assembly	Ask us
6	904-7607	Vent tube blow-off assembly	Ask us
8	137-7089	Mount, rail change-over	Ask us
74	137-4958	Strap	Ask us
16	103-8669	Sensor, proximity	Ask us
17	904-8564	Mounting cam assembly	Ask us
7	137-0589	Vacuum return line	Ask us
9	104-8250	Adapter, reducer	Ask us
73	100-89281008928	Elbow, 90 deg	Request
