Meyer 52-12 filler parts manual

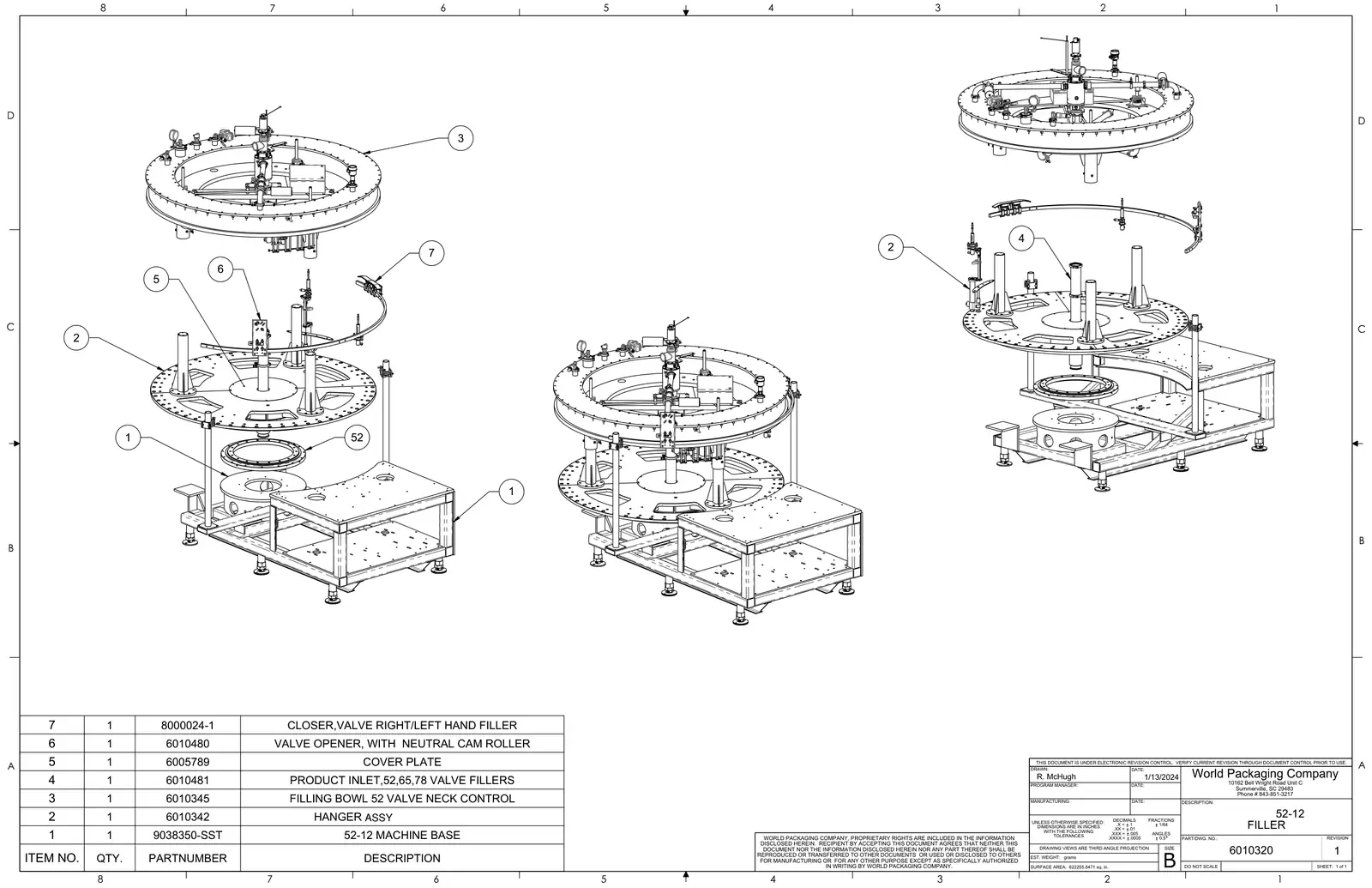

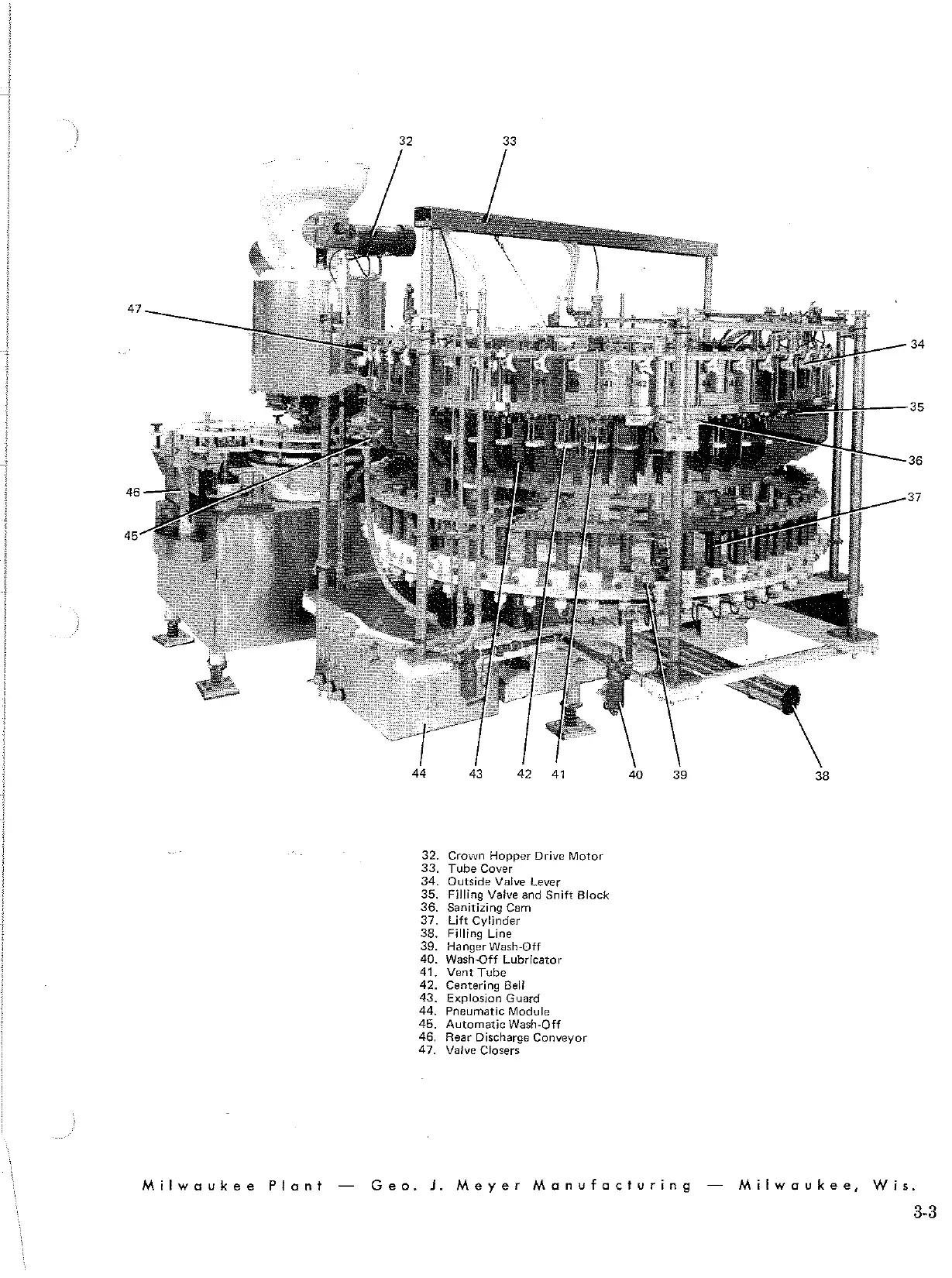

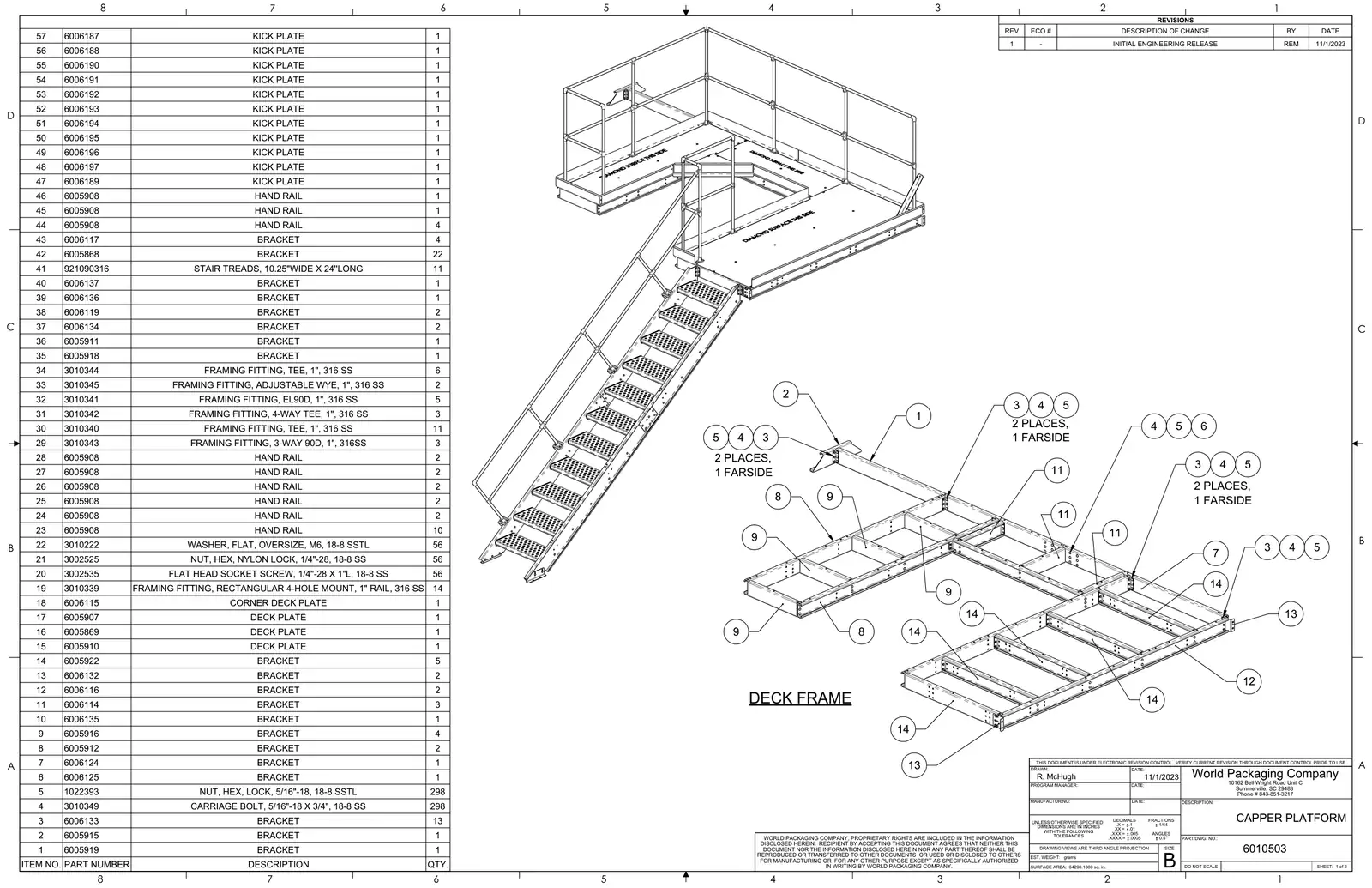

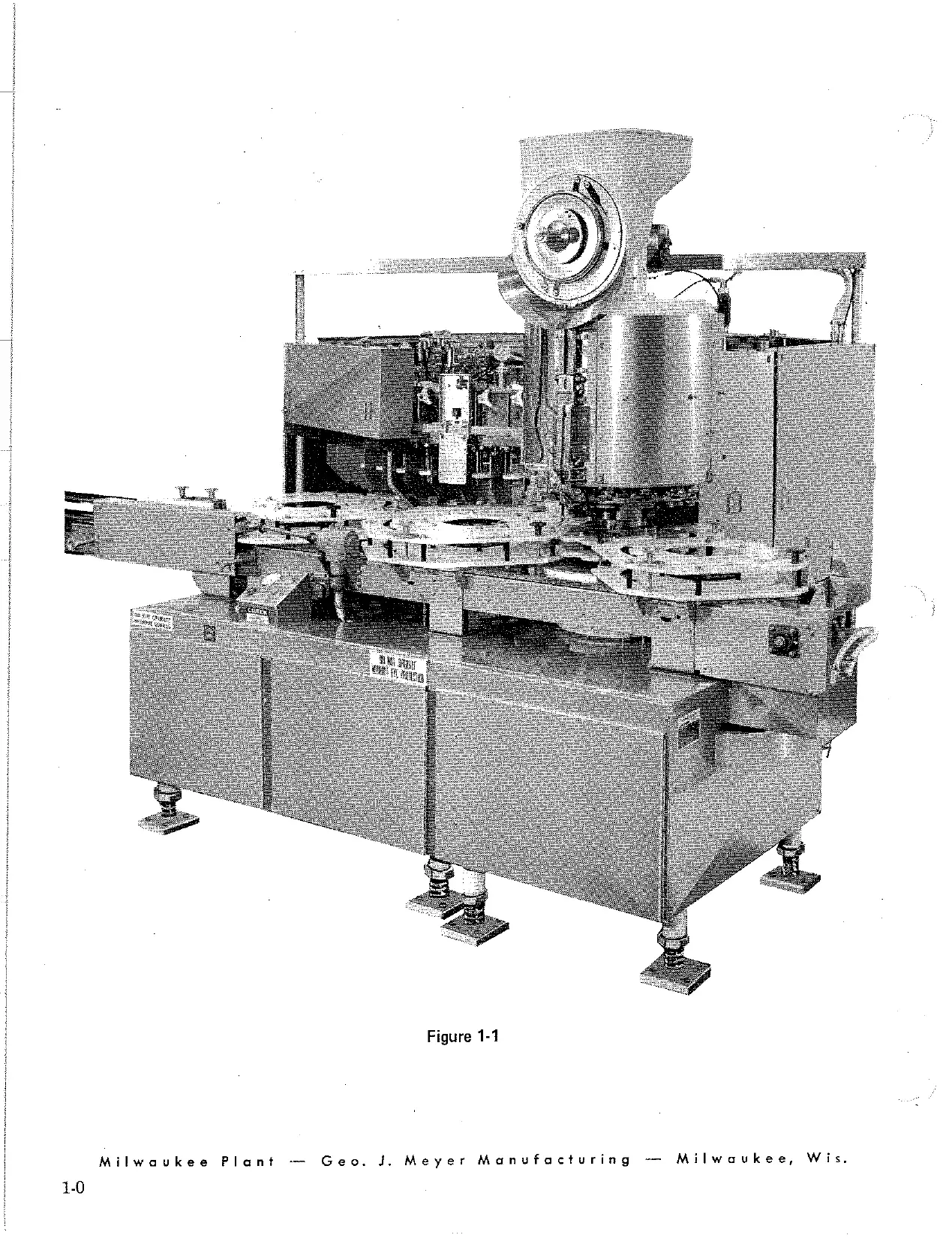

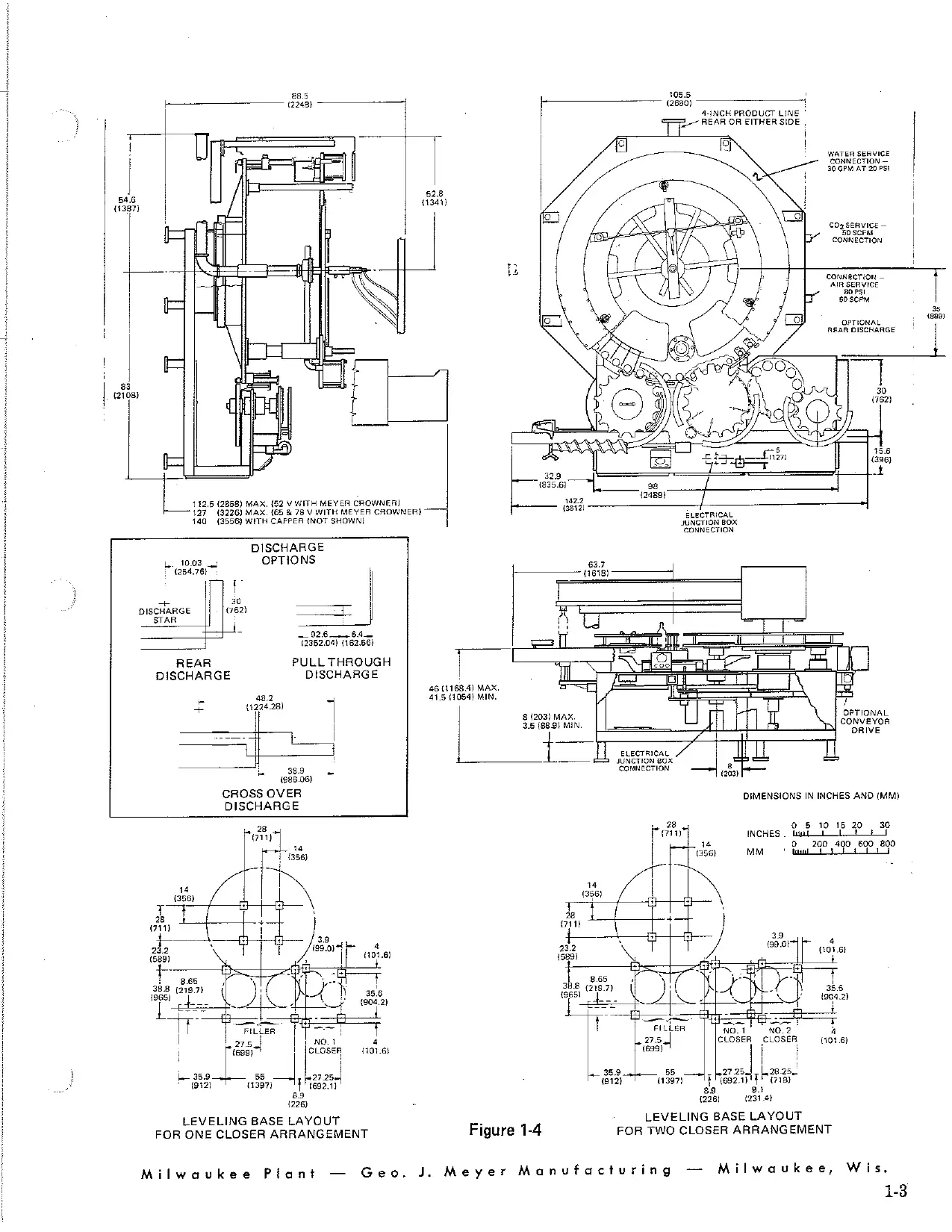

General views, layouts and schematics for the Meyer 52-12 filler, to help identify your machine and its main assemblies.

Open full size

Open full size

Open full size

Open full size

Open full size

Open full size

Open full size

Open full size

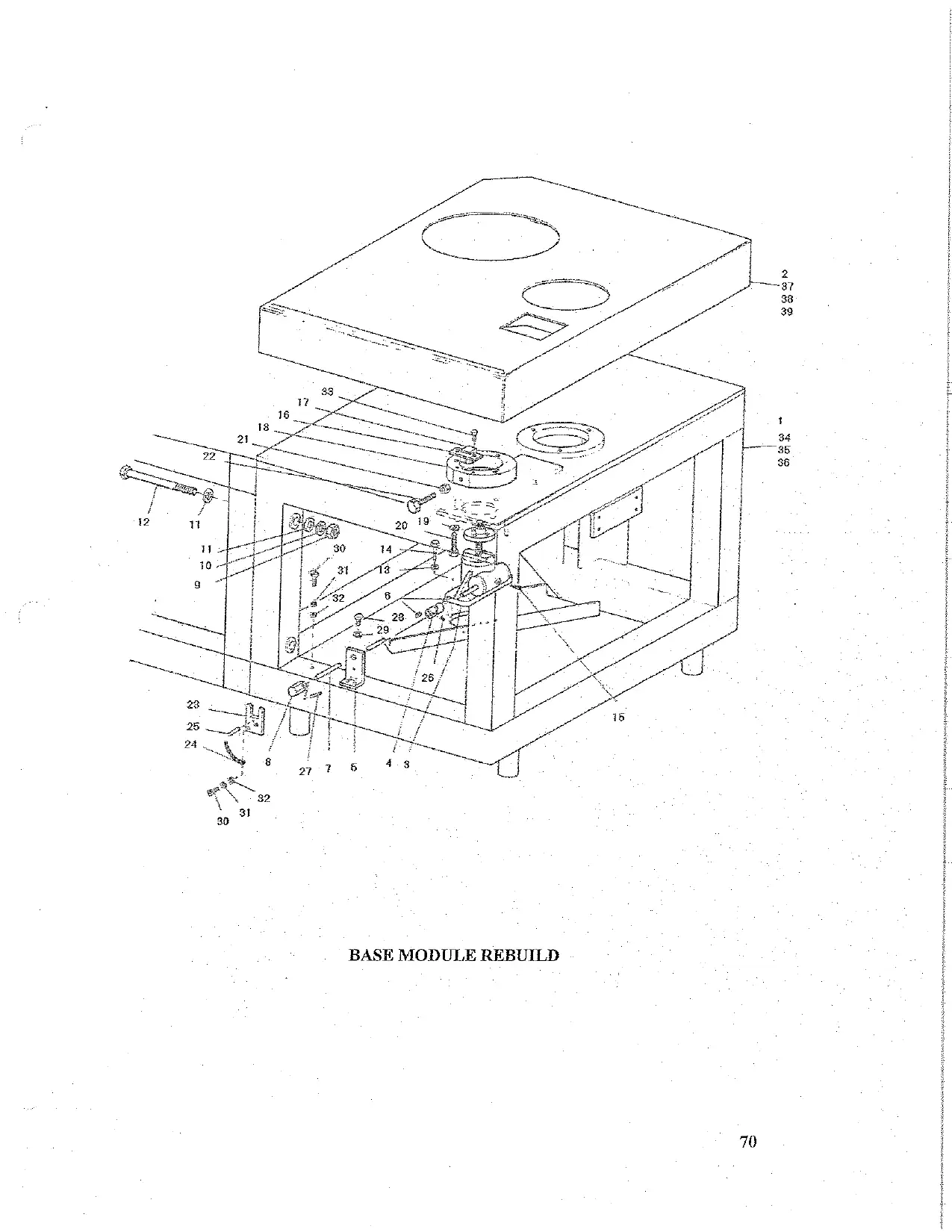

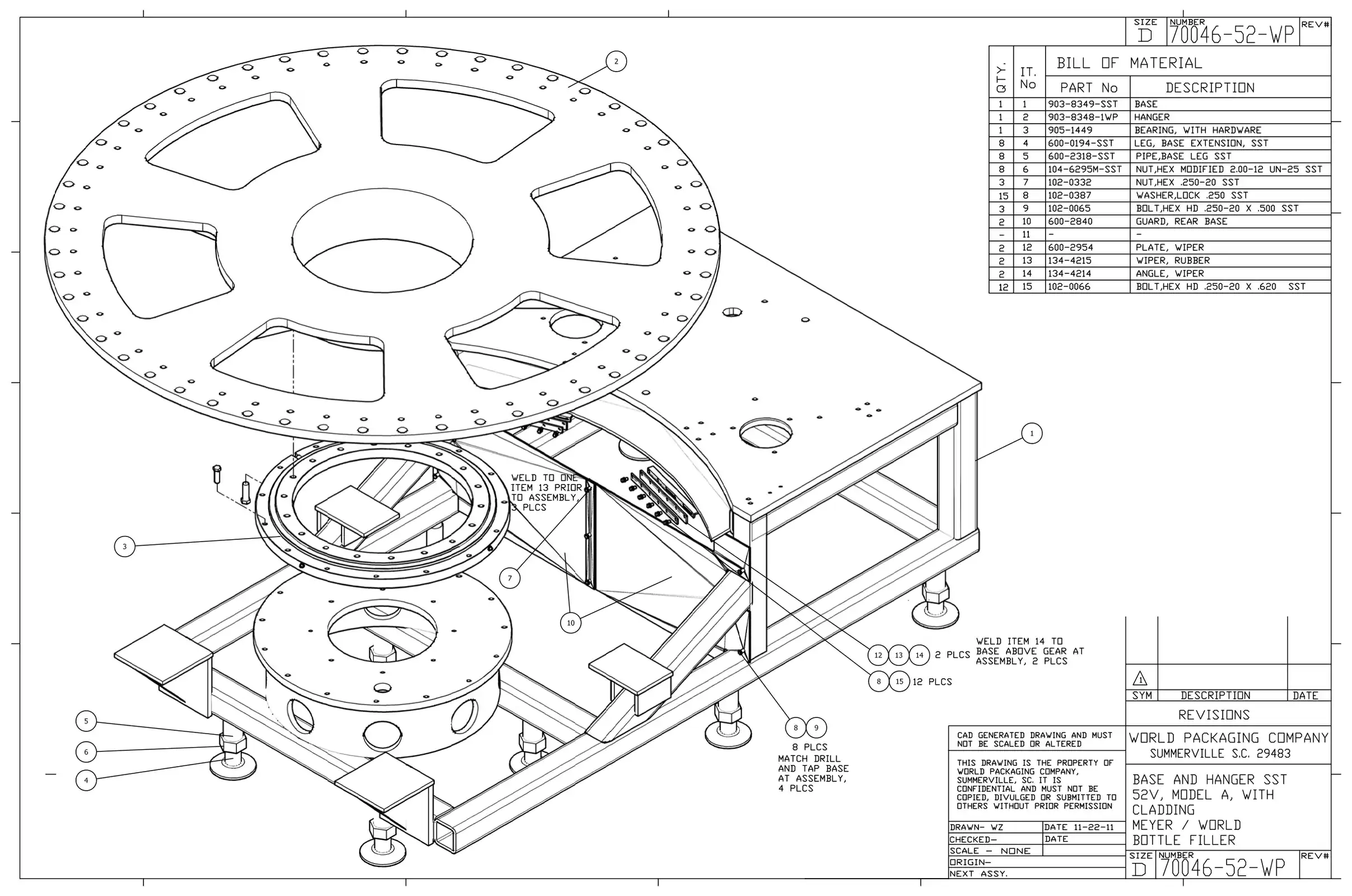

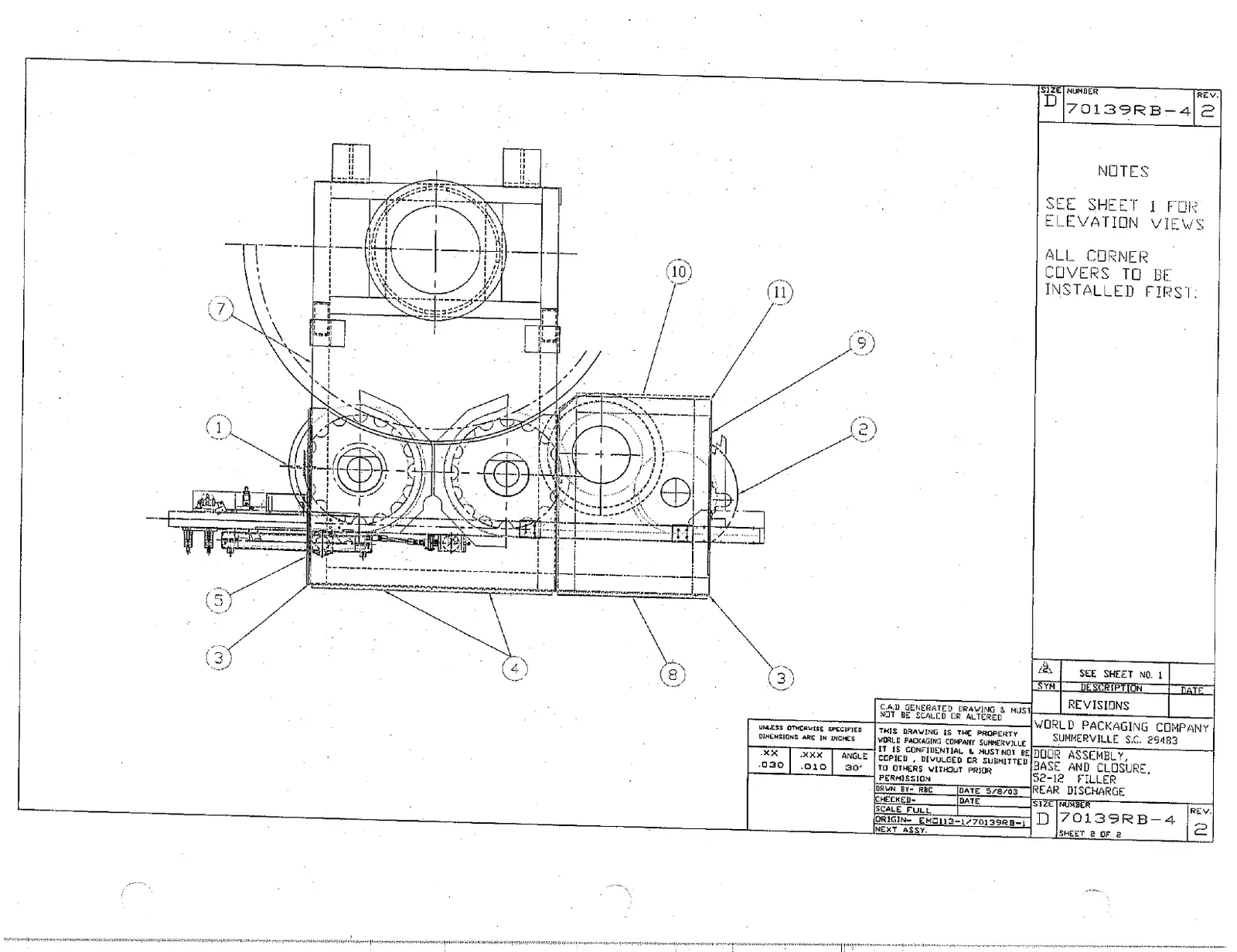

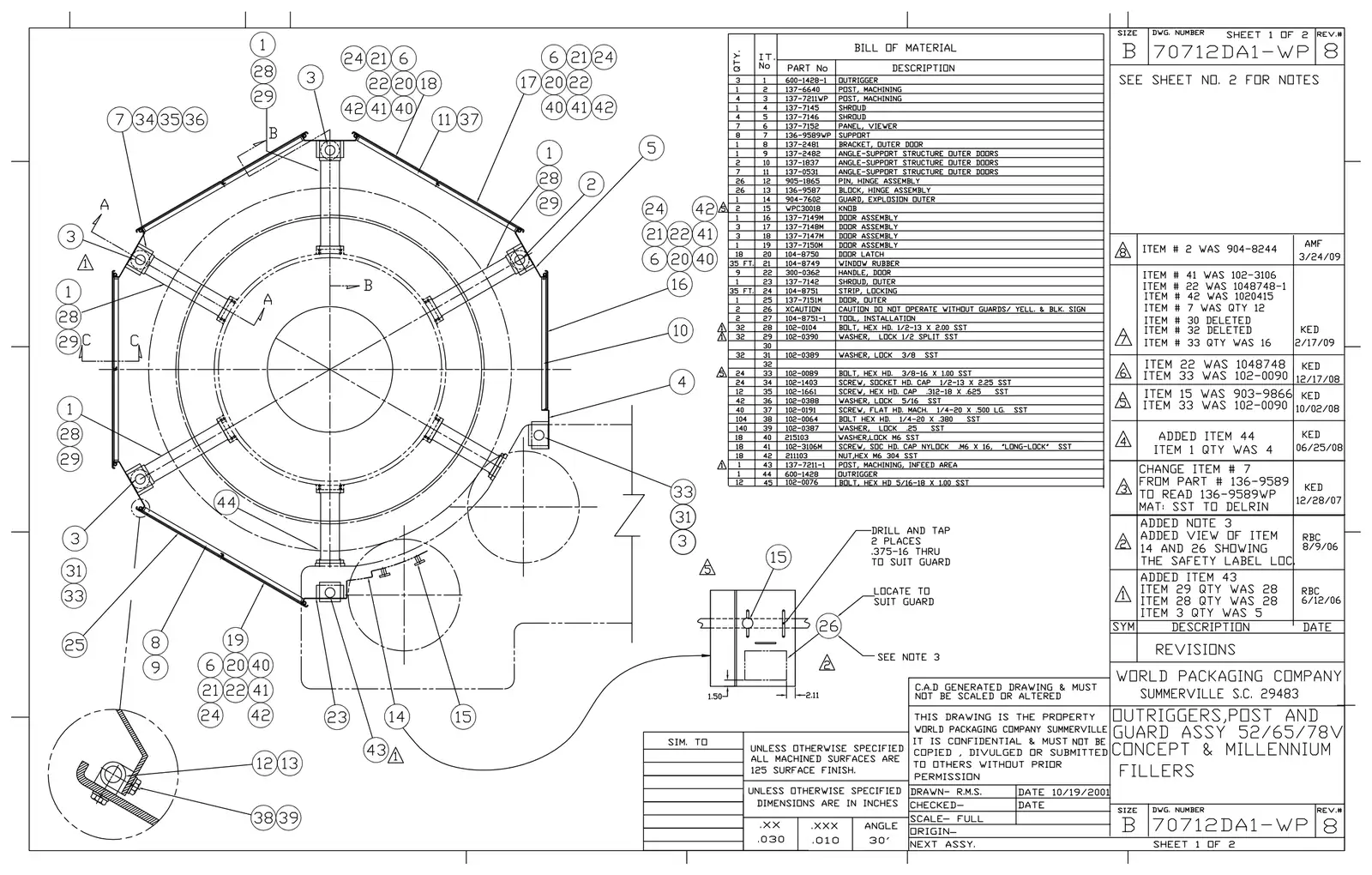

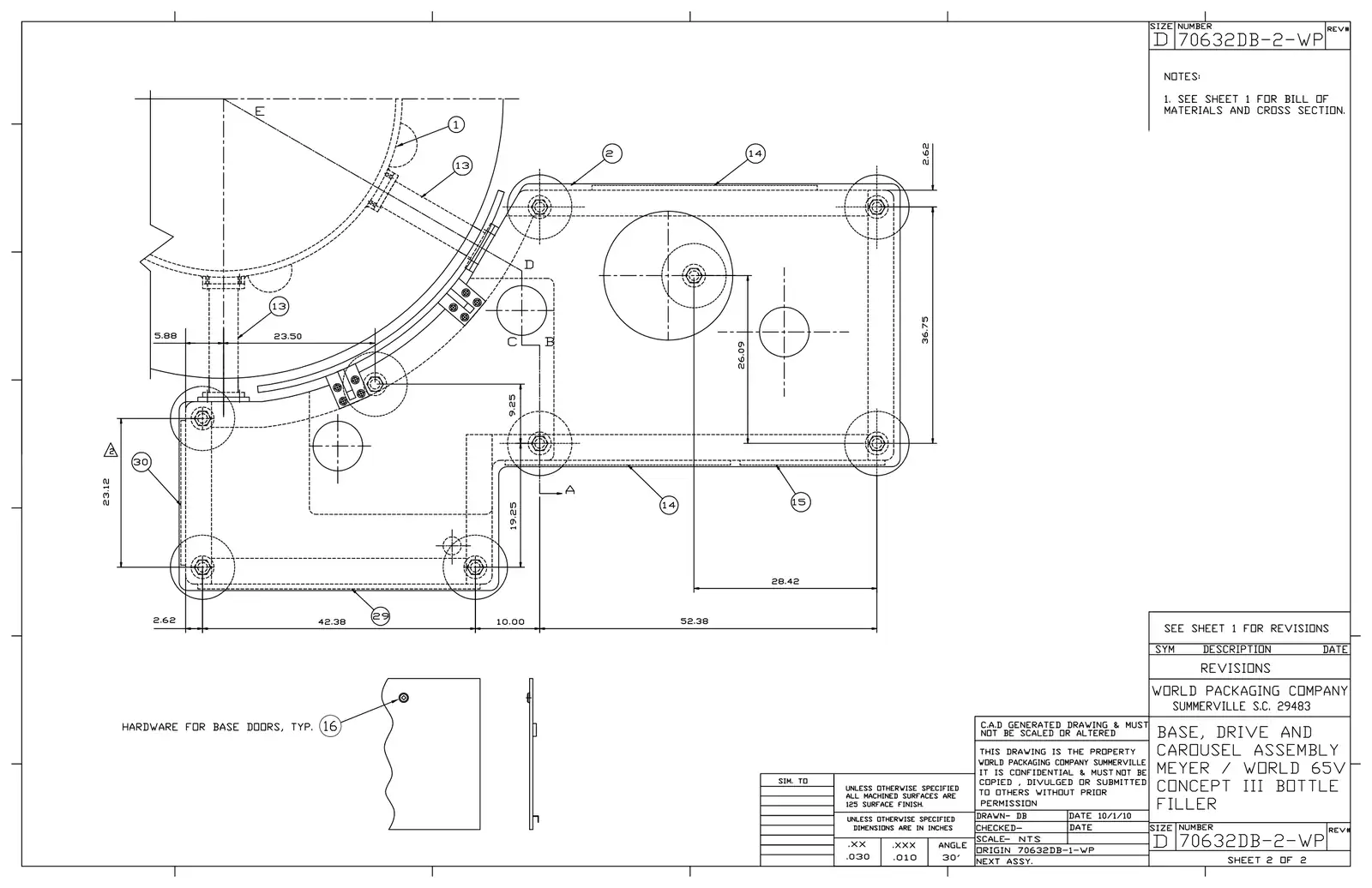

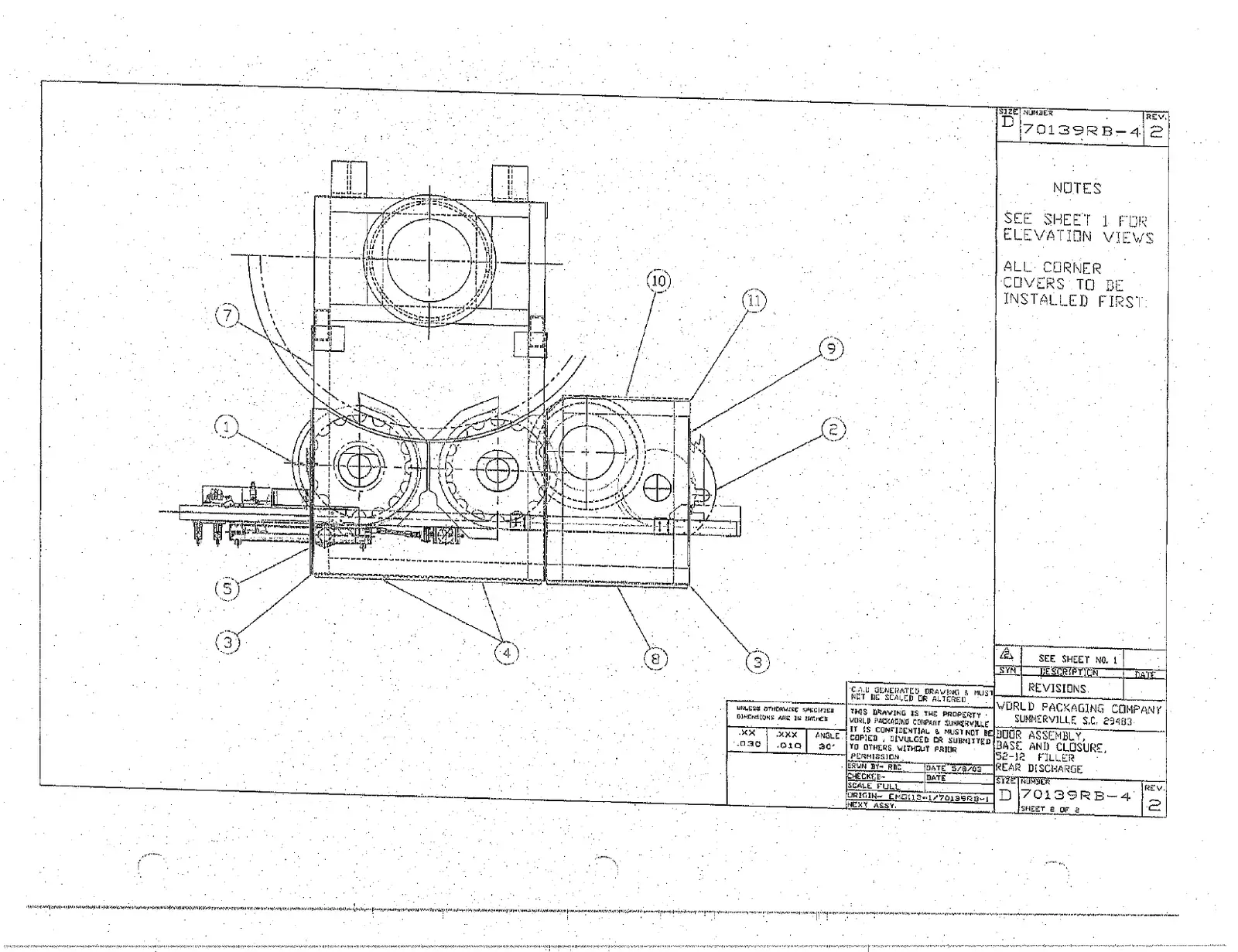

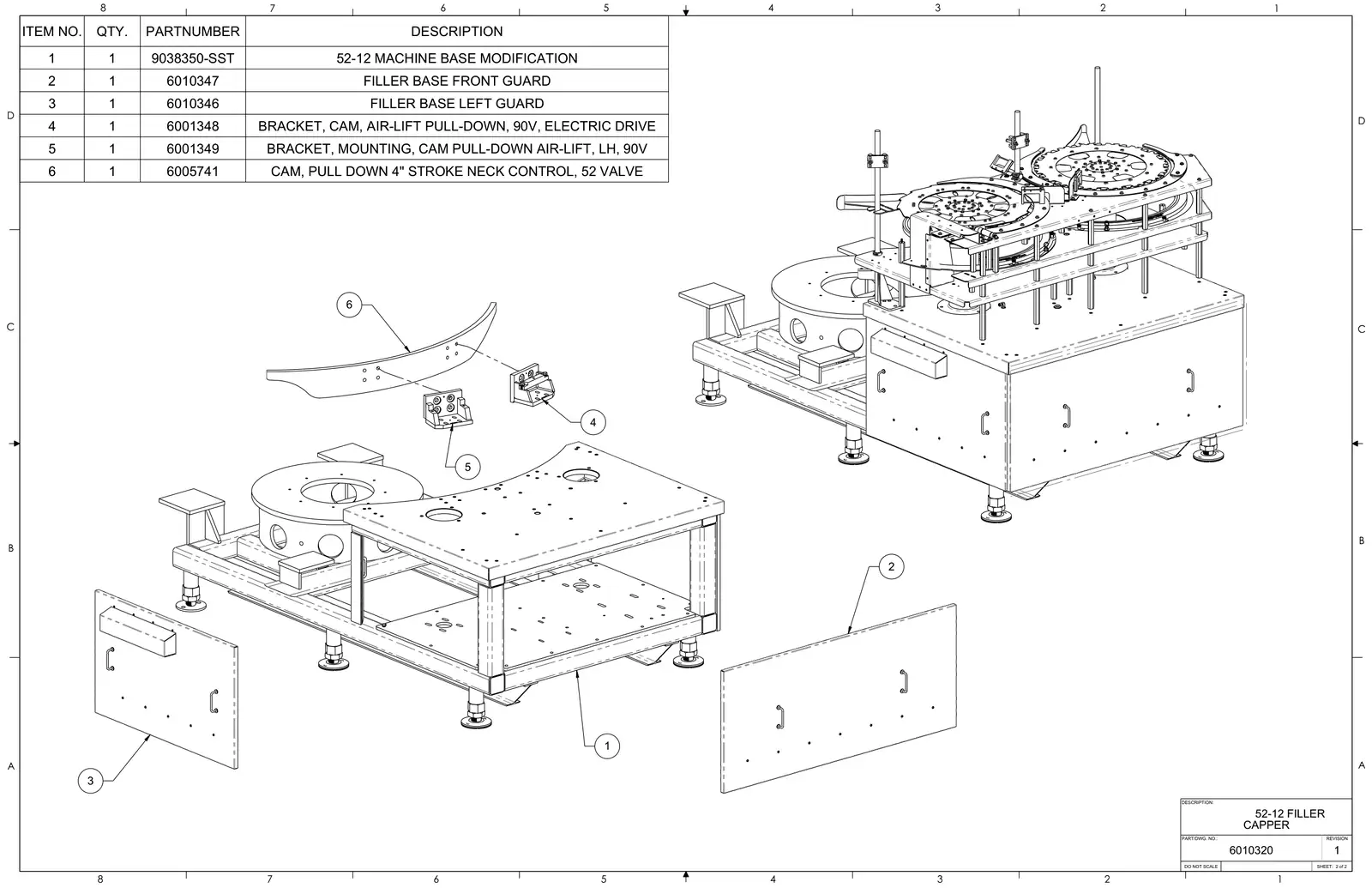

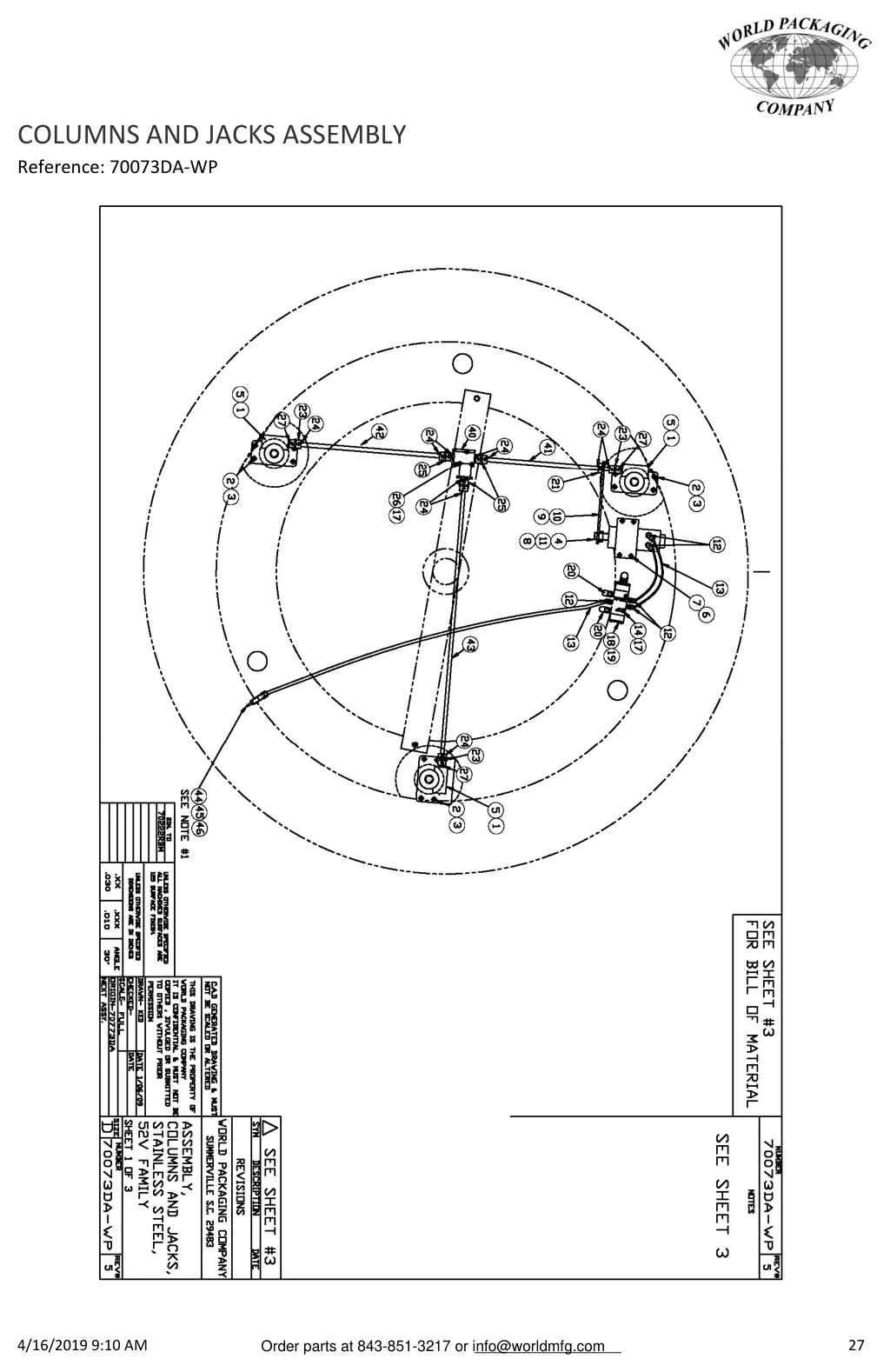

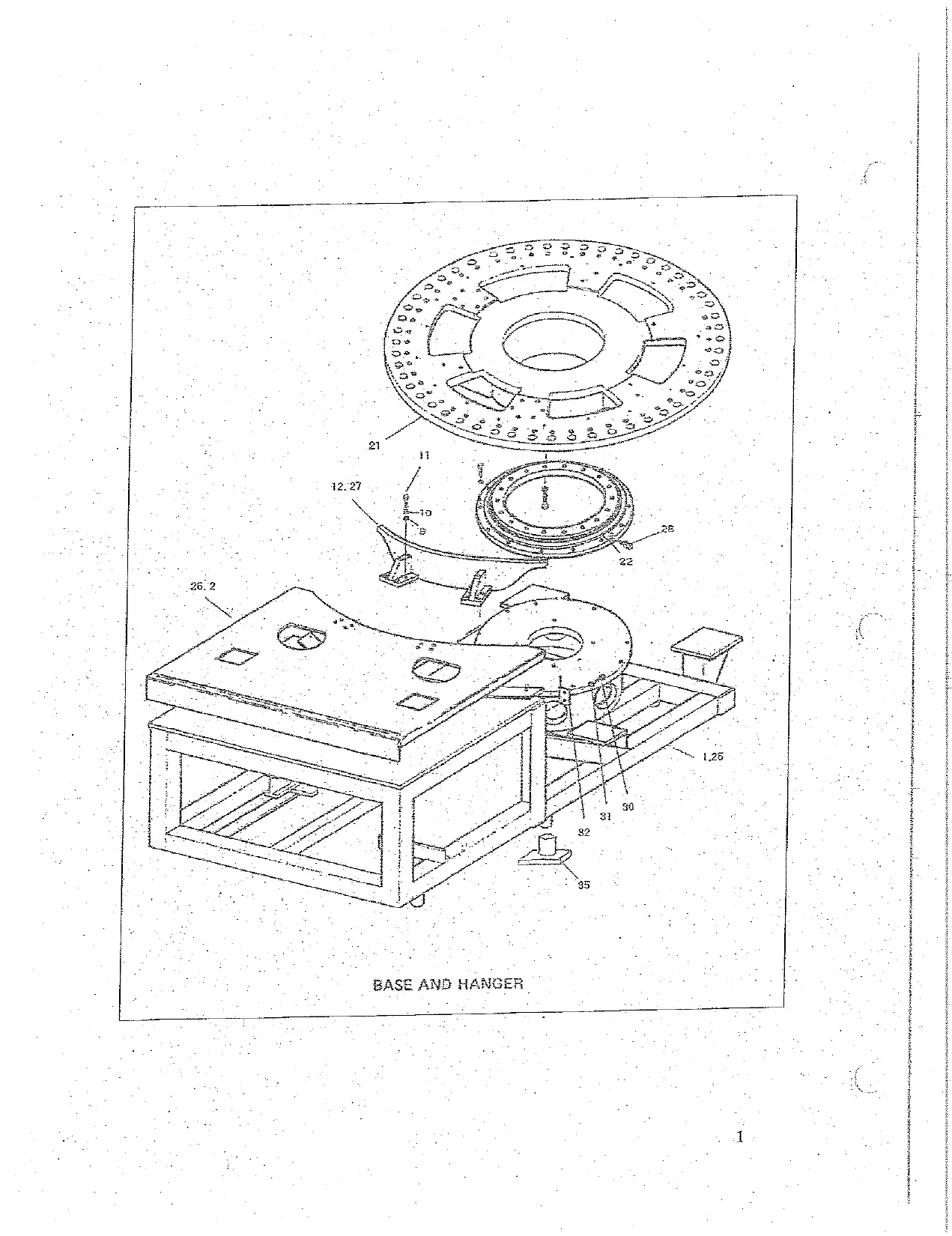

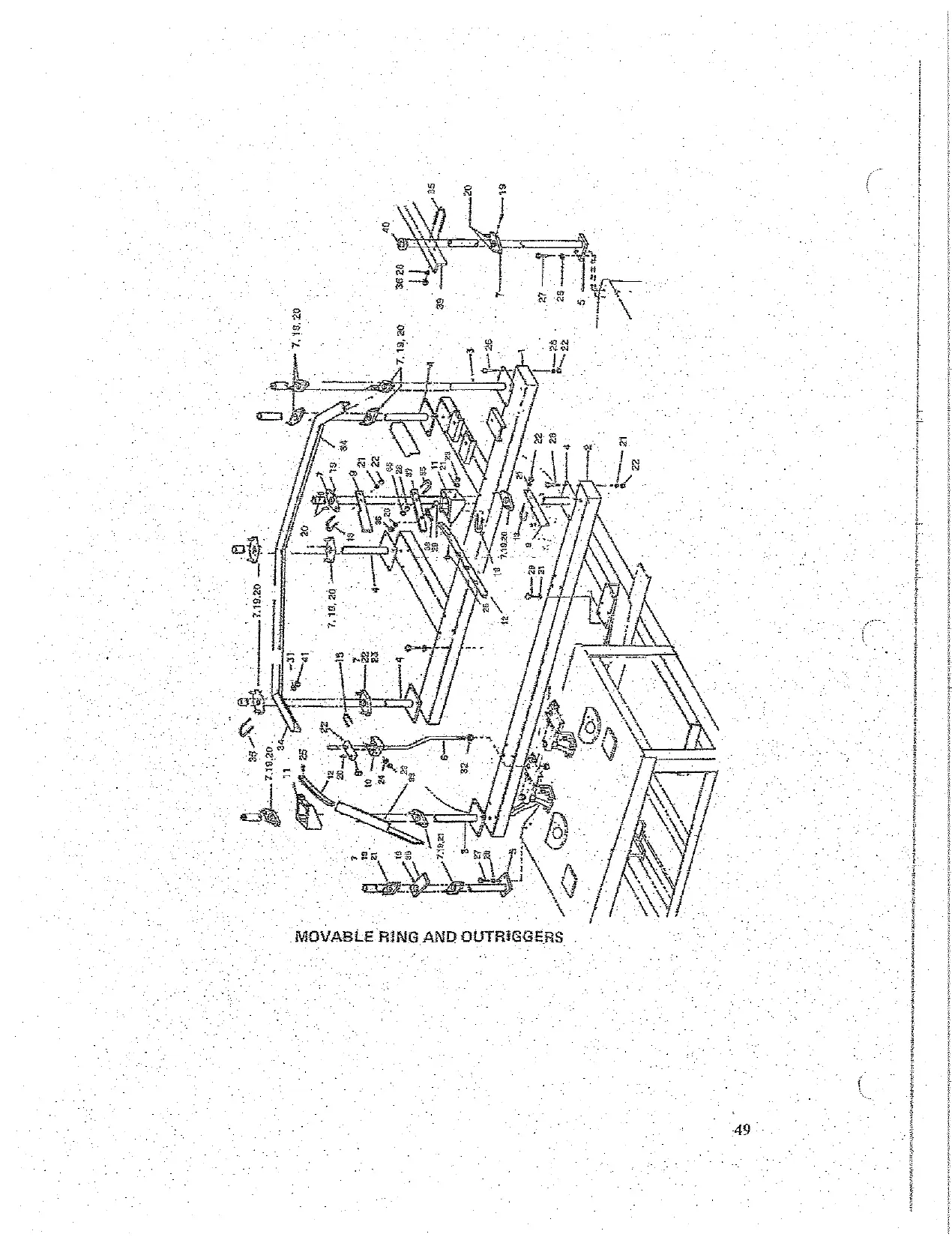

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
10	102-03901020390	Washer, lock	Request

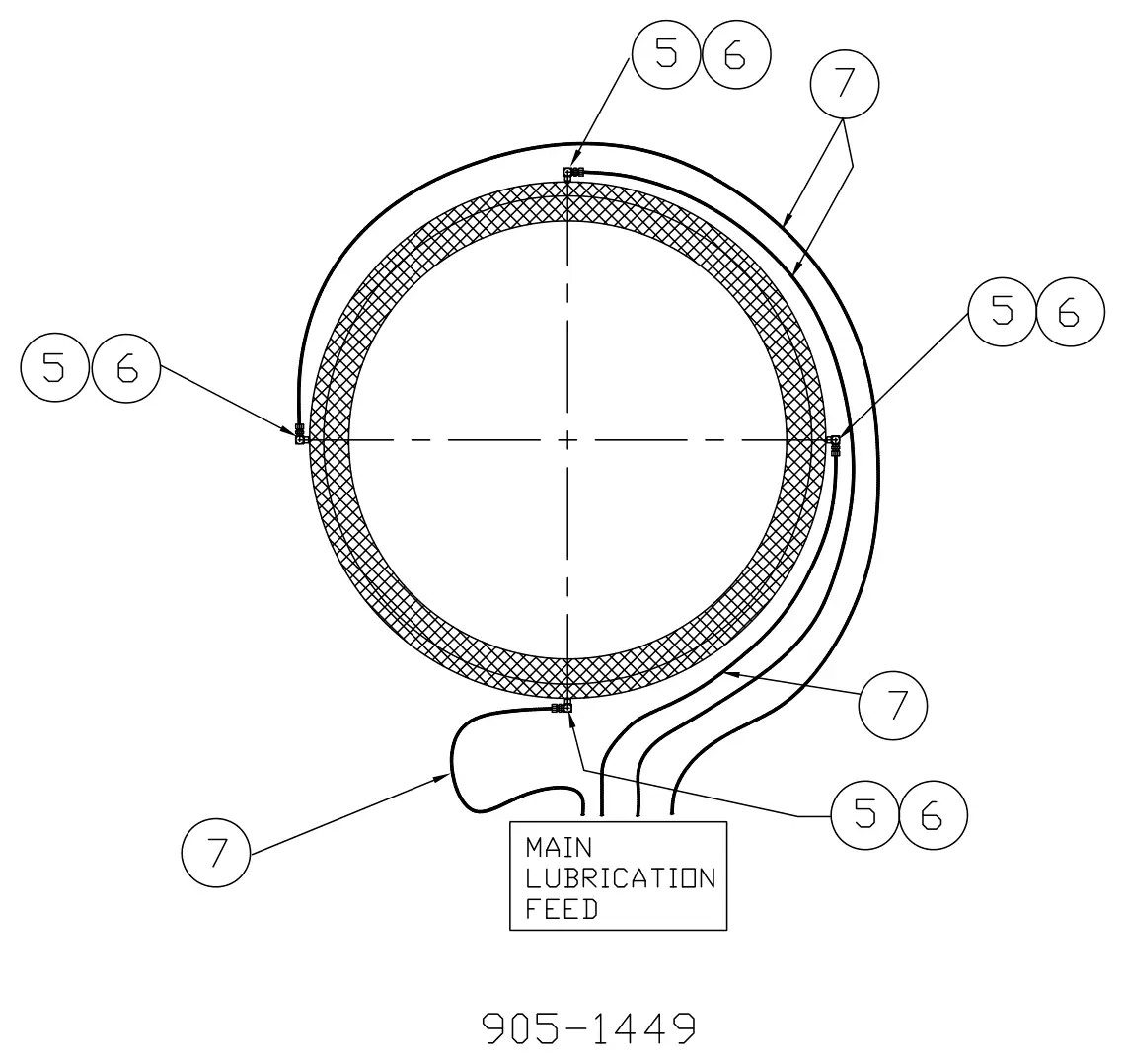

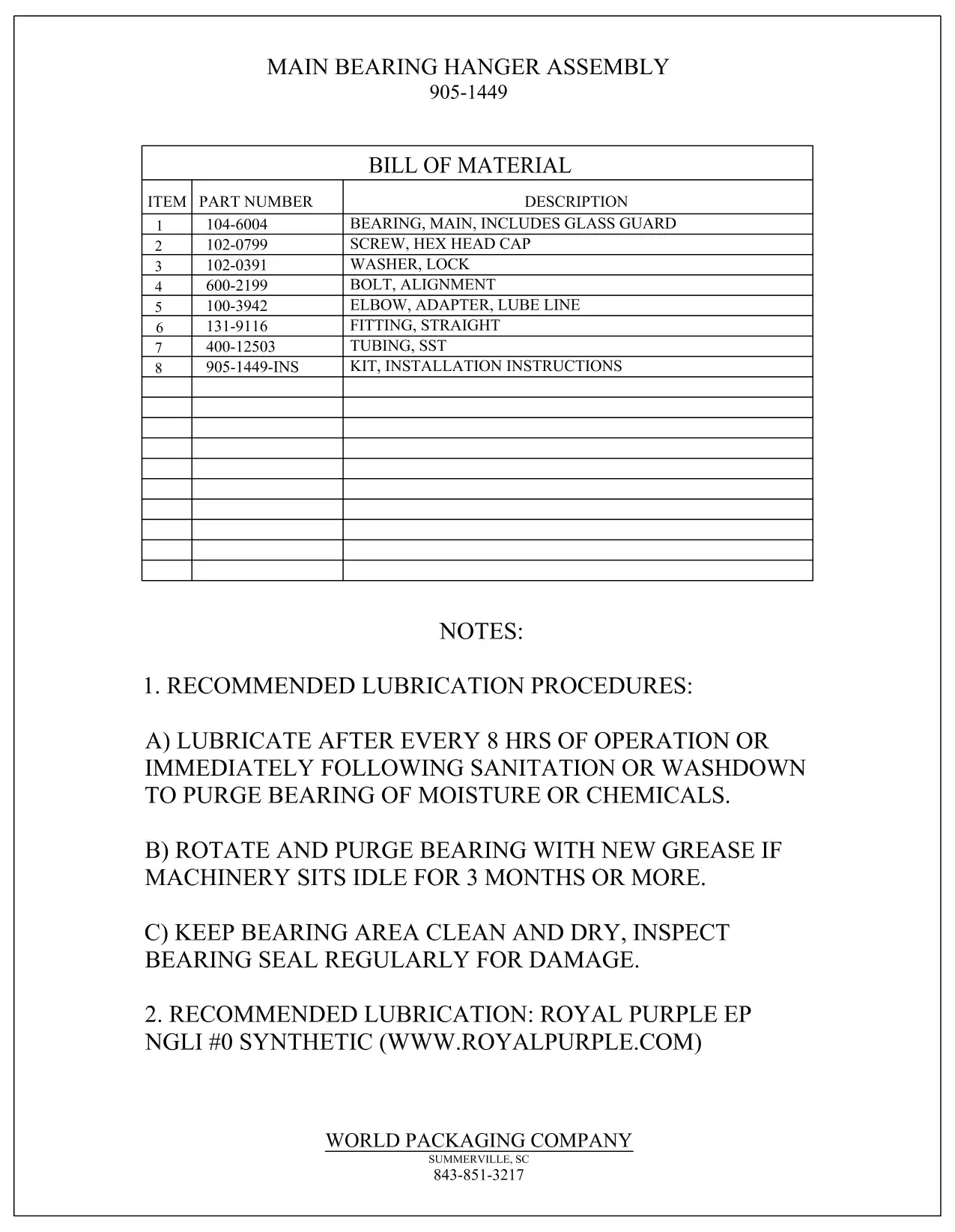

22	905-14499051449	Bearing, main hanger assembly	Request
22	102-03881020388	Washer, lock	Request
3	136-00531360053	Gasket, sight glass	Request
4	100-97751009775	Ring, retaining	Request
6	1002507100-2507	O-ring	Request
7	102-1837	—	Ask us
8	102-24101022410	Nut, hex astm	Request
8	133-9146	Stud	Ask us
8	102-17881021788	Screw, shoulder soc hd	Request
3	135-08651350865	Bushing, valve lever	Request
3	102-04151020415	Washer, flat	Request
12	102-32251023225	Screw, socket head cap	Request
12	102-23901022390	Nut, hex	Request
1	100-08571000857	Elbow	Request
1	100-30771003077	Clamp, hose clamp	Request
1	100-3976	Elbow, reducing	Ask us
9	100-11531001153	Plug, pipe countersunk	Request
9	000-32230003223	Tube, polyflo	Request
9	000-34890003489	Tubing, CO2/air braided hose	Request
8	102-03921020392	Washer, lock	Request

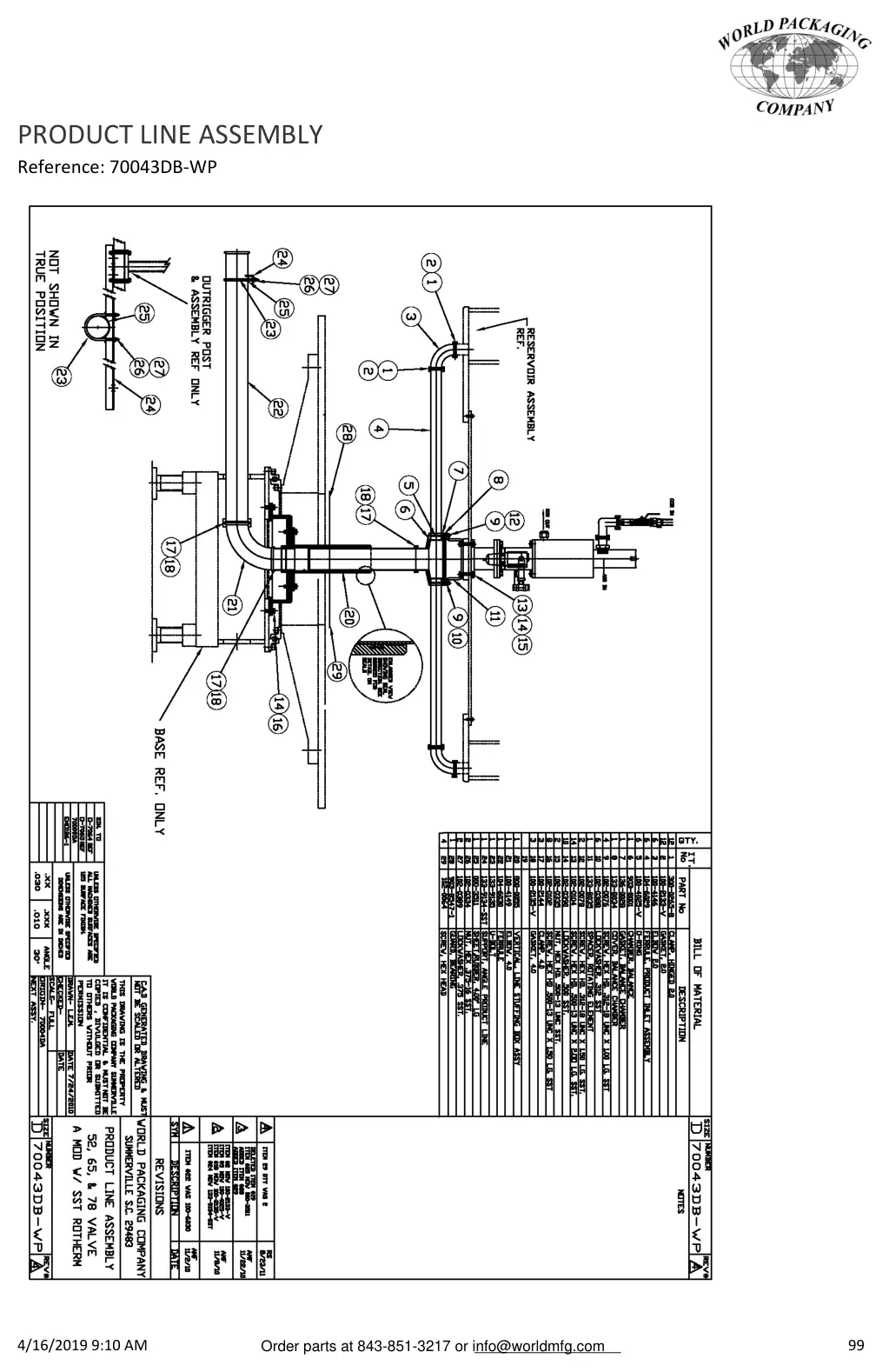

16	903-8022	Channel, product line	Ask us
46	133-77711337771	Bracket, valve columns	Request
1	903-9547	Base, main	Ask us
3	903-9566	Hanger	Ask us
4	903-9886	Cam	Ask us
5	903-9550	Module-end	Ask us
6	135-8870	Bolt, body	Ask us
7	102-1085	Screw, stl	Ask us
11	102-00511020051	Bolt, hex head	Request
12	102-03821020382	Washer, lock	Request
13	102-04181020418	Washer, flat	Request
15	102-01021020102	Bolt, hex head	Request
16	102-2324	Washer	Ask us
17	102-0337	Nut	Ask us
18	135-8895	Plug	Ask us
21	903-9958	Module, end	Ask us

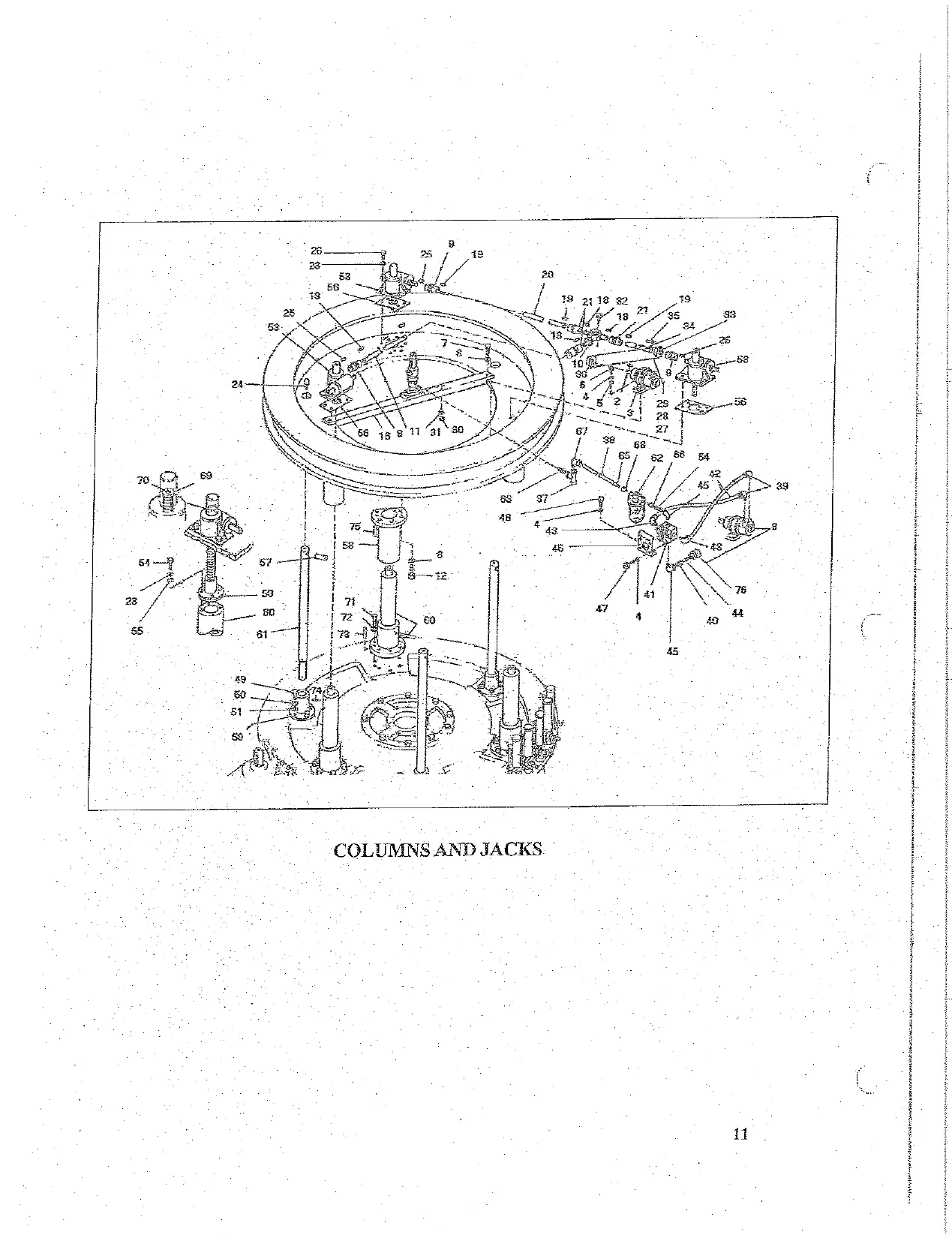

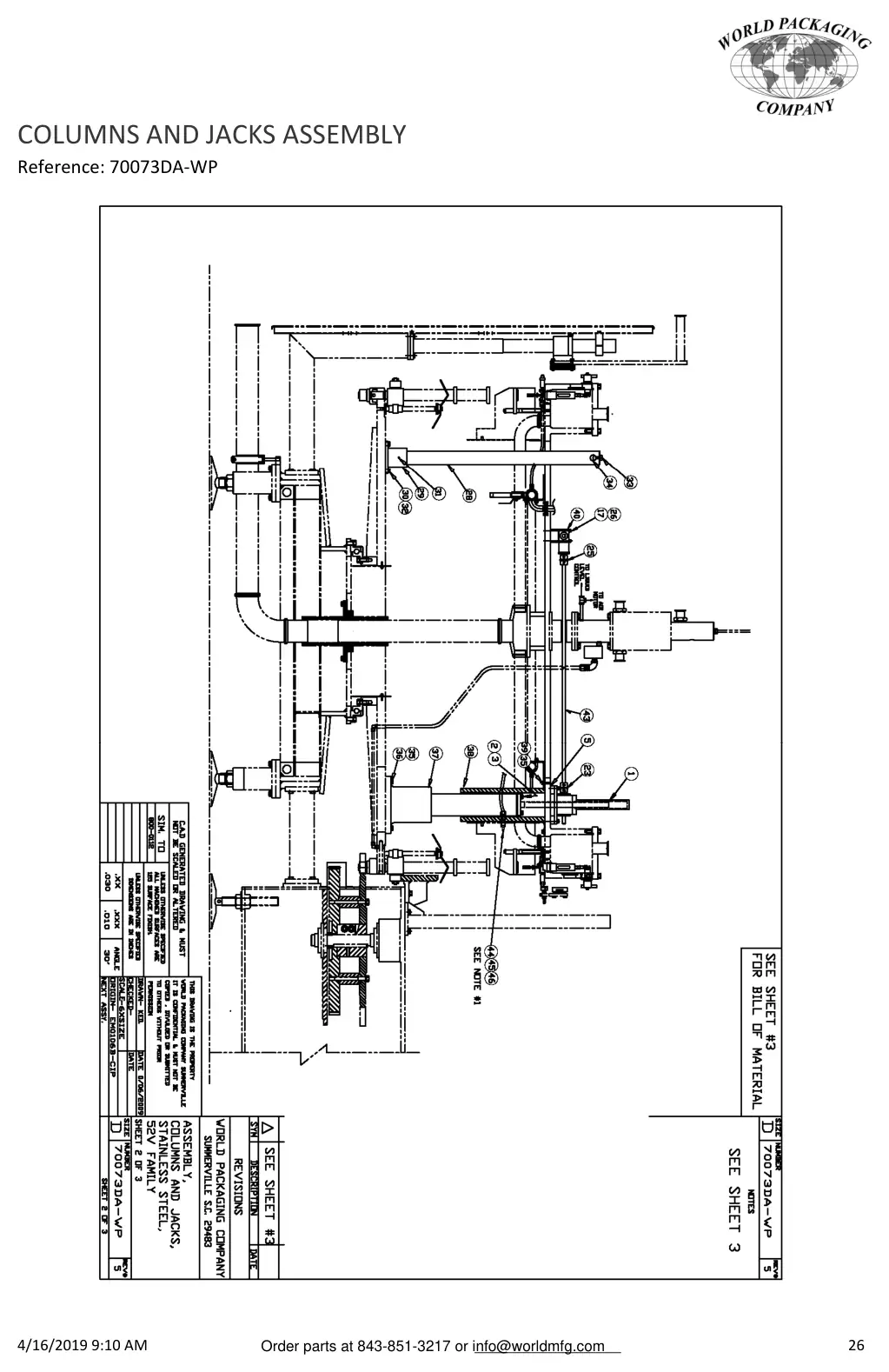

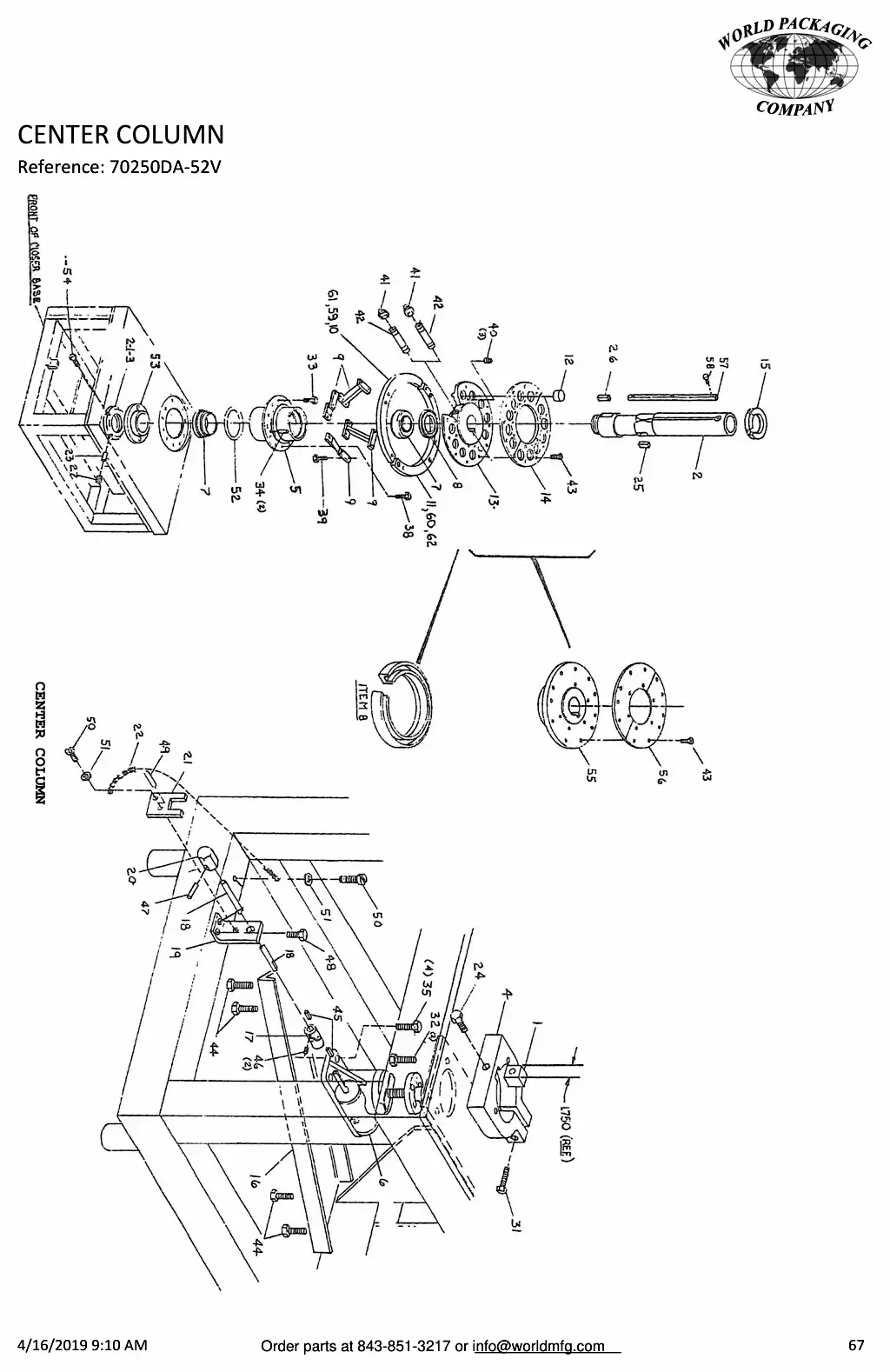

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
9	102-01041020104	Bolt, hex head	Request
9	135-68141356814	Lug, hub	Request
9	903-9523	Gear epicycloidal model	Ask us
57	133-91831339183	Pin, slide cover bowl	Request
59	133-9986	Flange	Ask us
60	903-83369038336	Flange, column sub-assembl	Request
62	101-01371010137	Lubricator	Request
63	100-14411001441	Nipple, pipe	Request
64	100-27381002738	Nipple, pipe	Request
66	100-89091008909	Bushing, reducing hex	Request
74	102-04271020427	Screw, set socket cup point	Request
75	102-24521022452	Pin, taper	Request
76	104-5095-21045095-2	Muffler, air	Request
1	9039903903-9903	Jactuator, assembly	Request
2	1020389102-0389	Washer, lock	Request
3	1020090102-0090	Bolt, hex head	Request
4	1045095104-5095	Motor, air bowl lift	Request
5	1339072133-9072	Plate, jack adjusting	Request
6	1020076102-0076	Bolt, hex head	Request
7	1020388102-0388	Washer, lock	Request
8	1358612135-8612	Sprocket	Request
9	1008269100-8269	Link, connecting	Request
10	1008268100-8268	Chain, roller	Request
10	0011	0001629- key	Ask us
12	3000091300-0091	Fitting, tube swivel	Request
13	0003223000-3223	Tube, polyflo	Request
14	1020071102-0071	Hex head bolt	Request
17	1020387102-0387	Washer, lock	Request
18	1045146M	Valve, 4 way upgrade	Request
19	WPC8000	Nameplate, up down	Request
20	30004603000460-1	Muffler, proportional regulator	Request
21	1046017-SS	Sprocket, roller chain	Request
23	1046011104-6011	Coupling, bowl lift shaft	Request
24	1021332102-1332	Key, square	Request
25	1046012104-6012	Coupling, bowl lift shaft	Request
26	1020786102-0786	Bolt, hex head	Request
27	1022504102-2504	Key, square	Request
28	1377193137-7193	Column, cover lift	Request
29	1377192137-7192	Flange, cover lift column	Ask us
30	1020102102-0102	Bolt, hex head	Request
32	1020390102-0390	Washer, lock	Request
33	1022318102-2318	Screw, thumb	Request
34	1359639135-9639	Pin, slide cover bowl	Request
35	1020392102-0392	Washer, lock	Request
36	1020058102-0058	Bolt, hex head	Request
37	9048541-WPC	Flange, column sub-assembly	Ask us
38	9048544904-8544	Flange, bowl column upper	Request
39	1021478102-1478	Screw, socket head cap	Request
40	1009330100-9330	Gearbox, three way bowl lift	Request
41	1339091133-9091	Shaft, jack adjusting	Ask us
42	1339092133-9092	Shaft jack adjusting	Ask us
43	1339093133-9093	Shaft, jack adjusting	Ask us

Parts for this assembly, from the original Meyer parts lists.

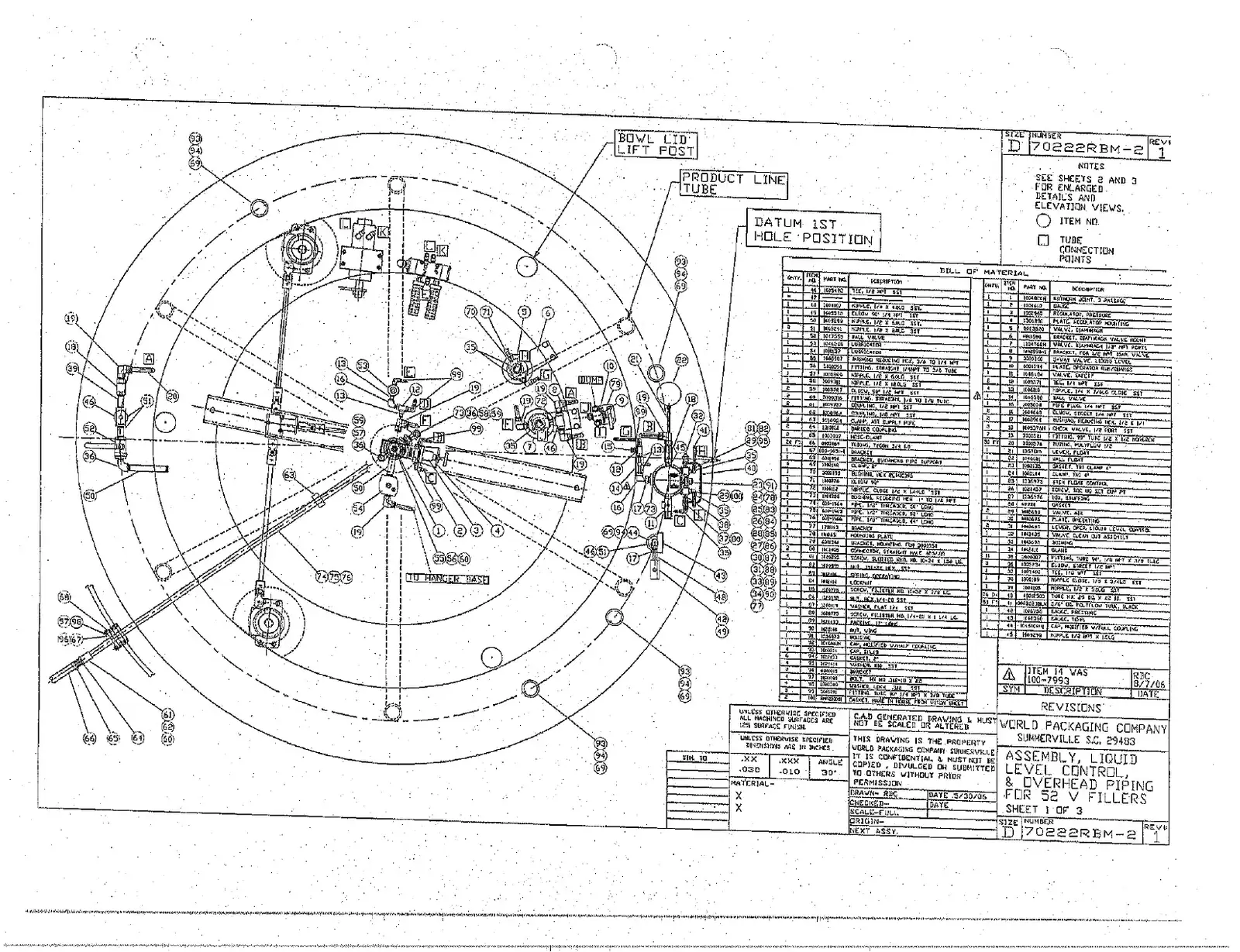

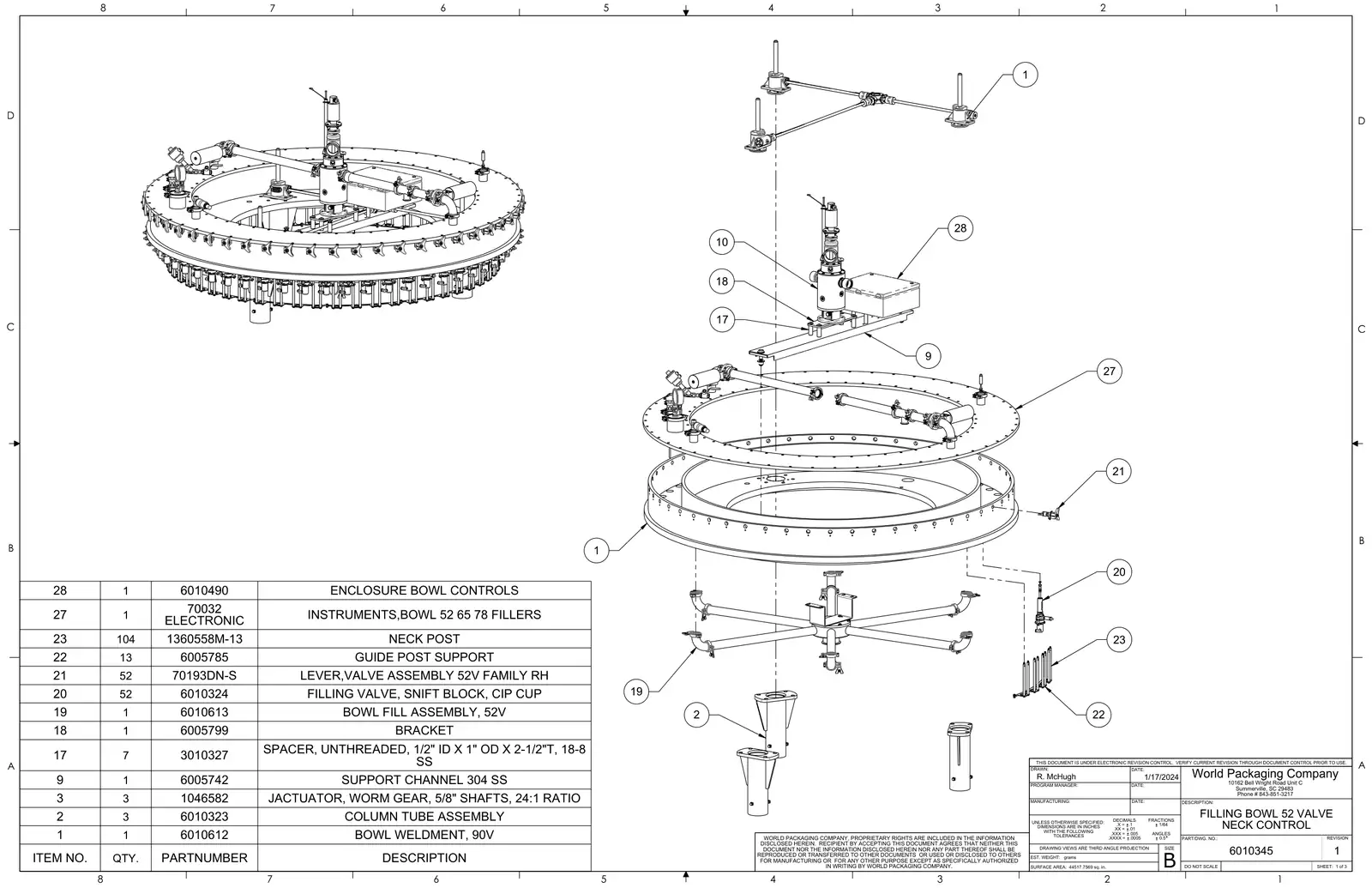

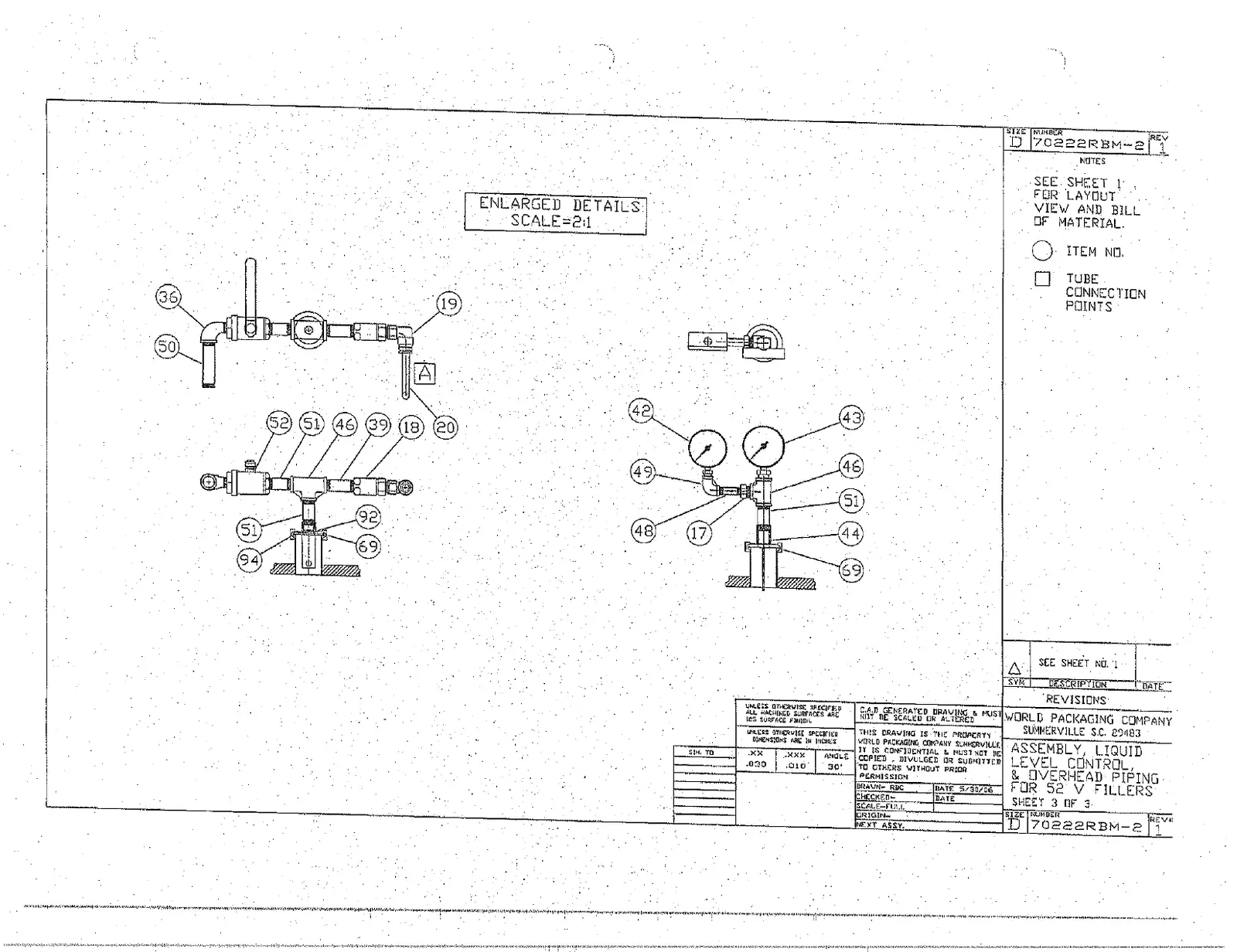

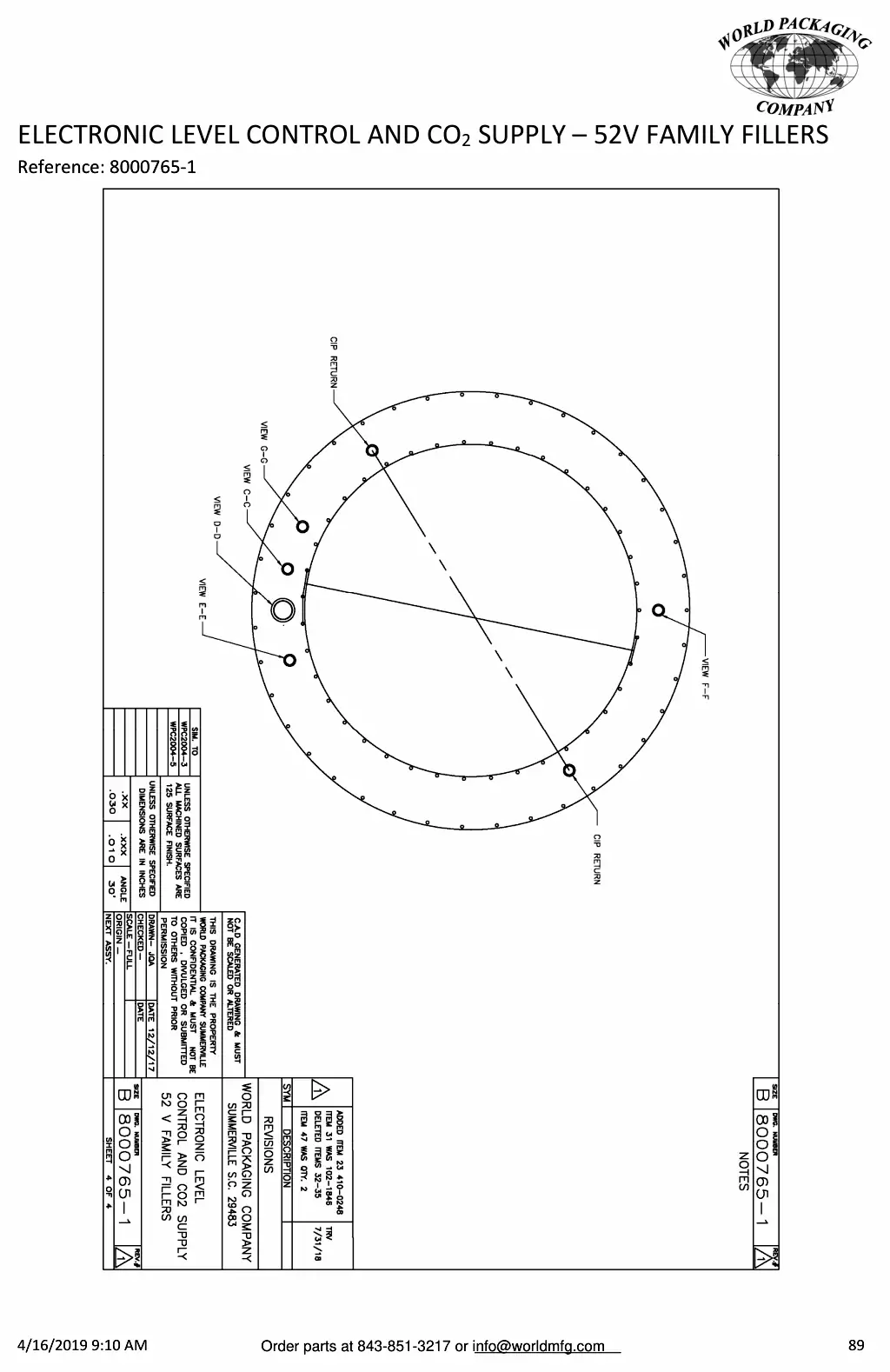

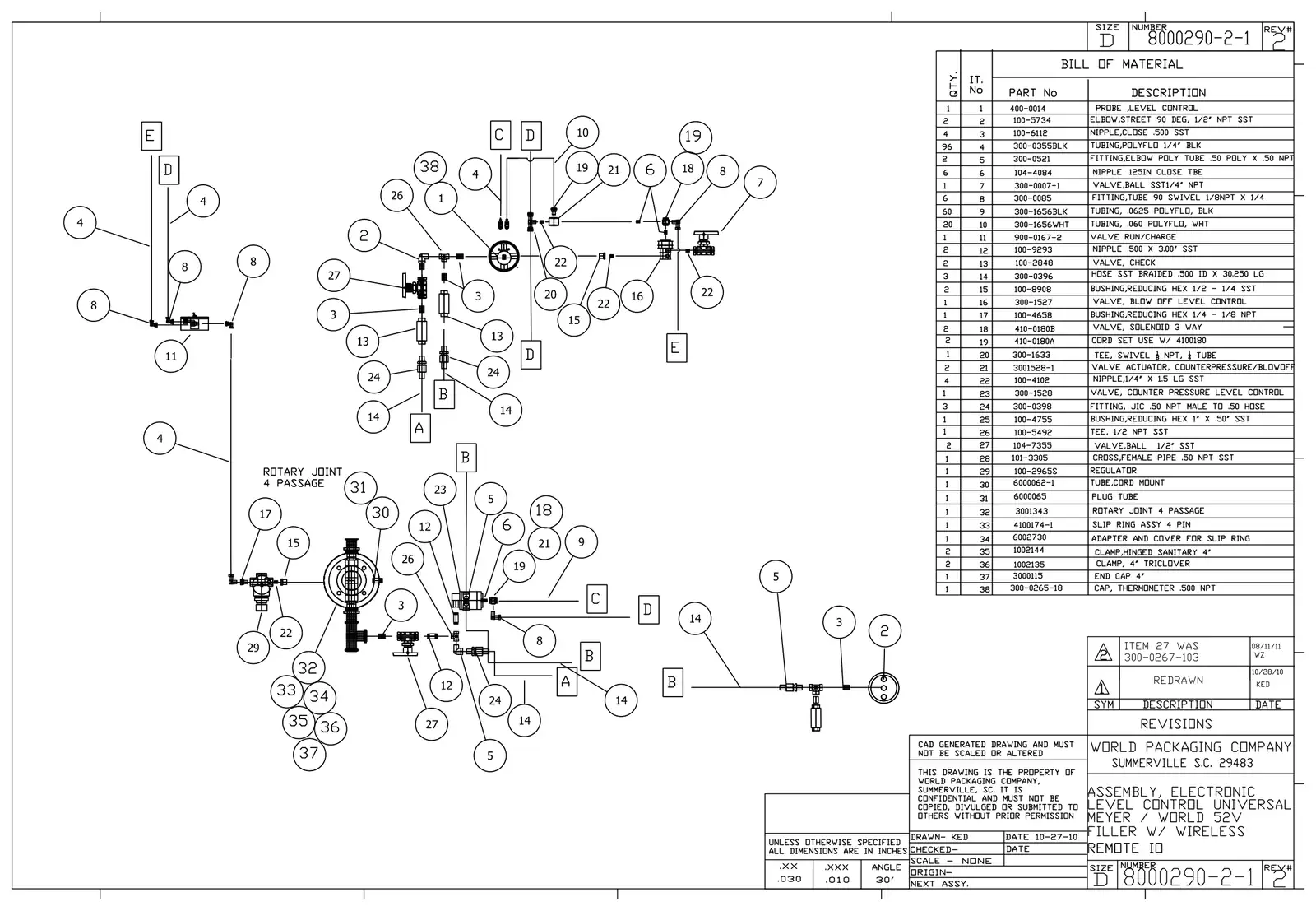

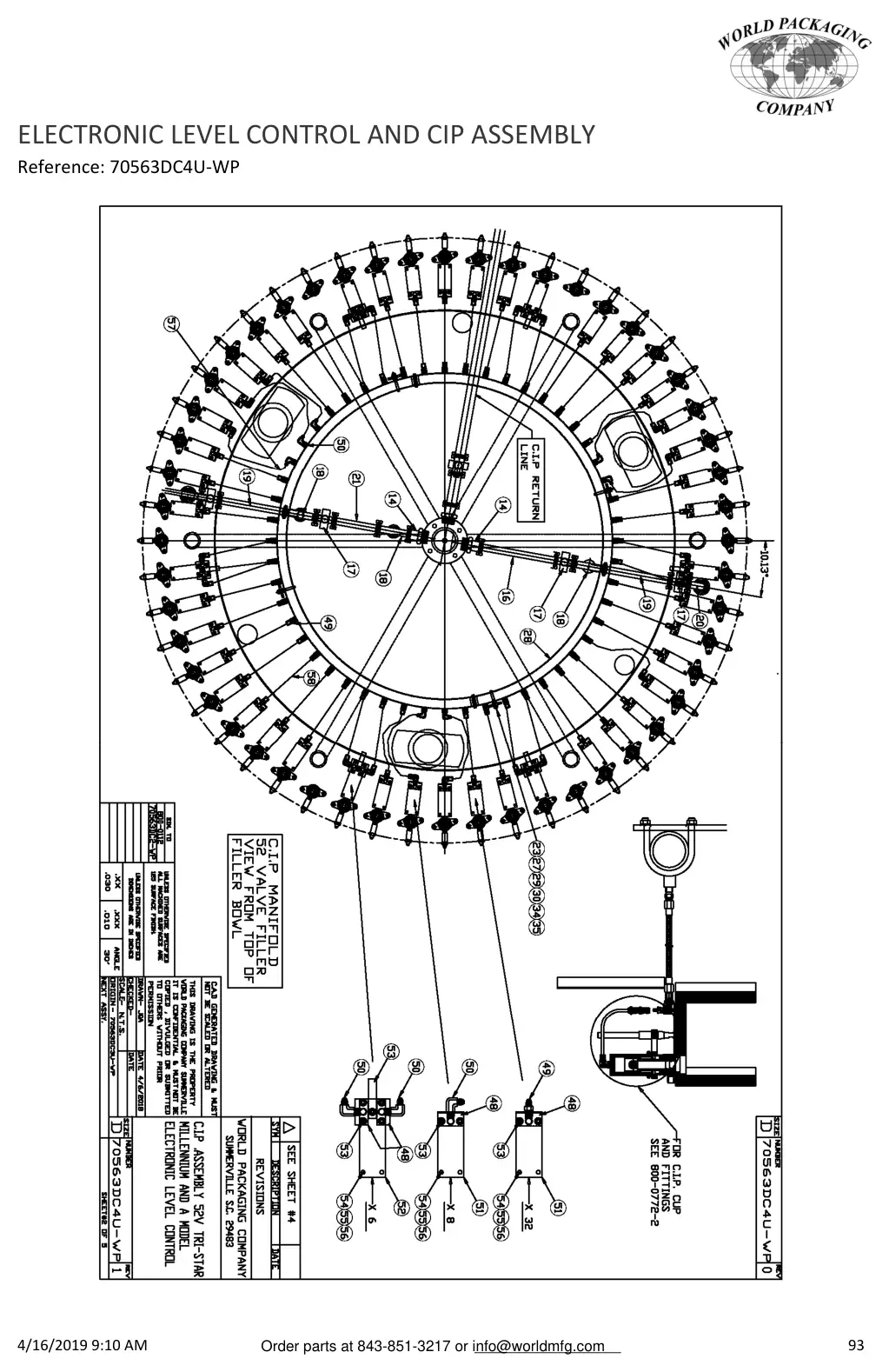

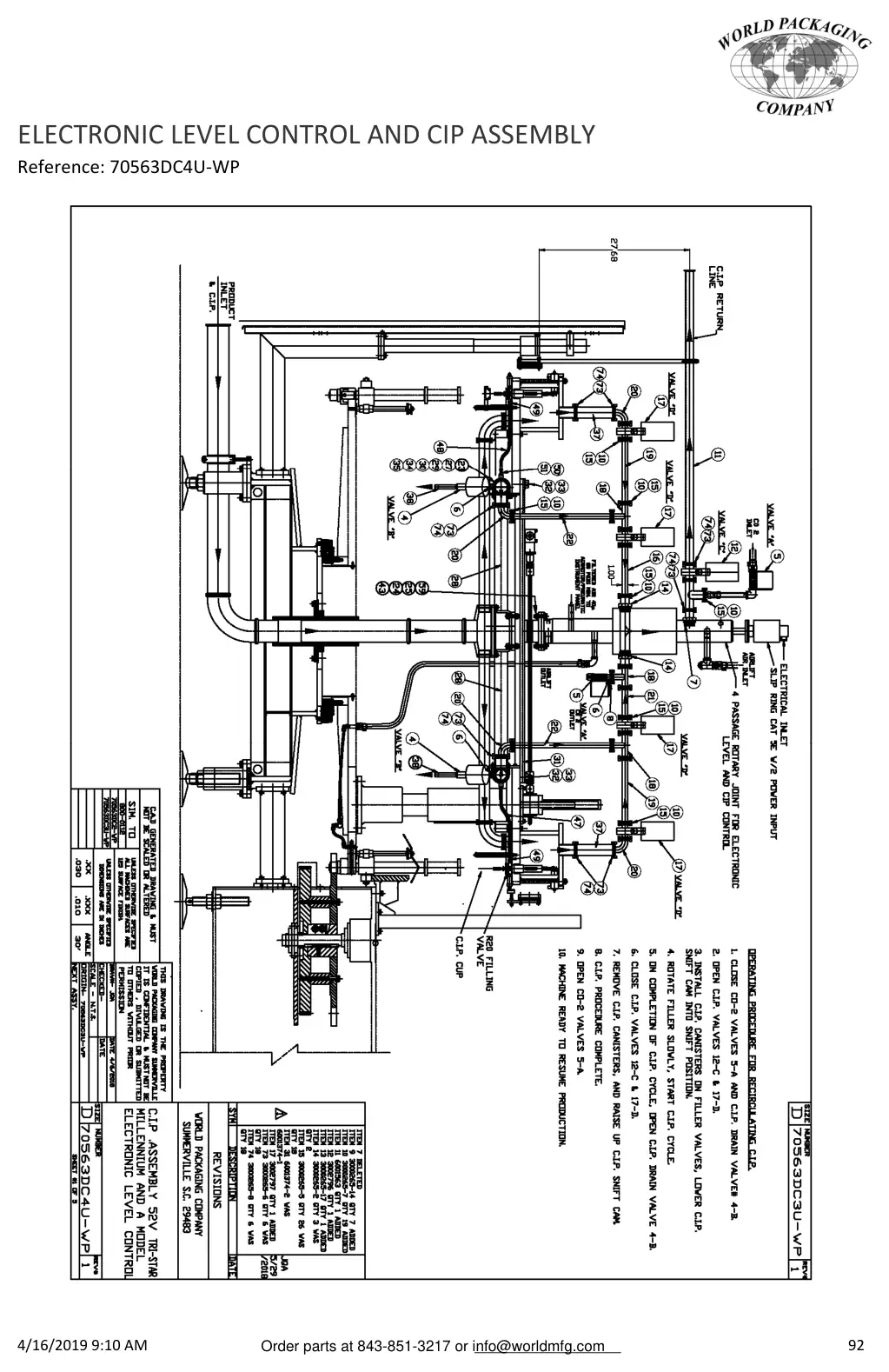

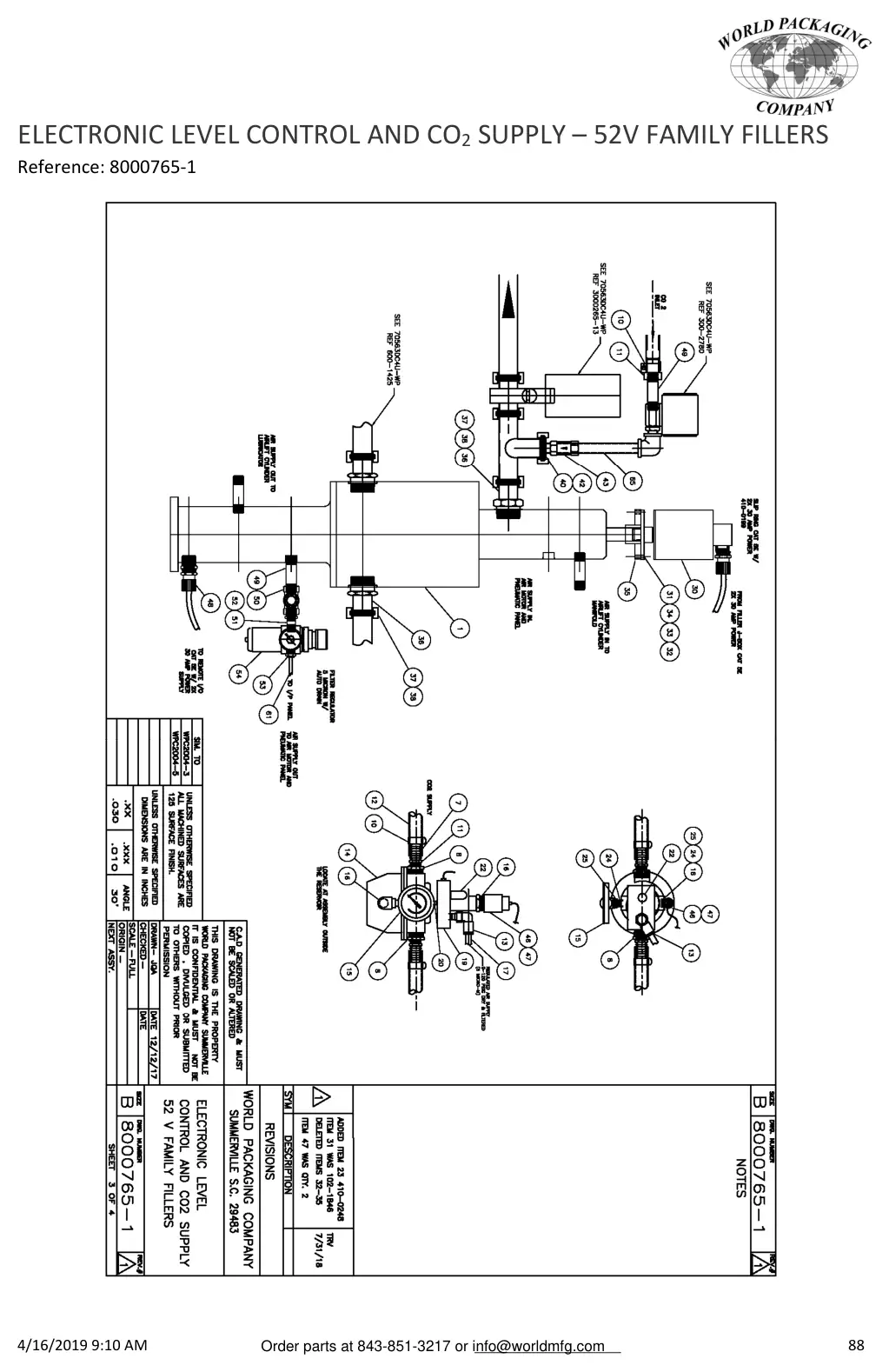

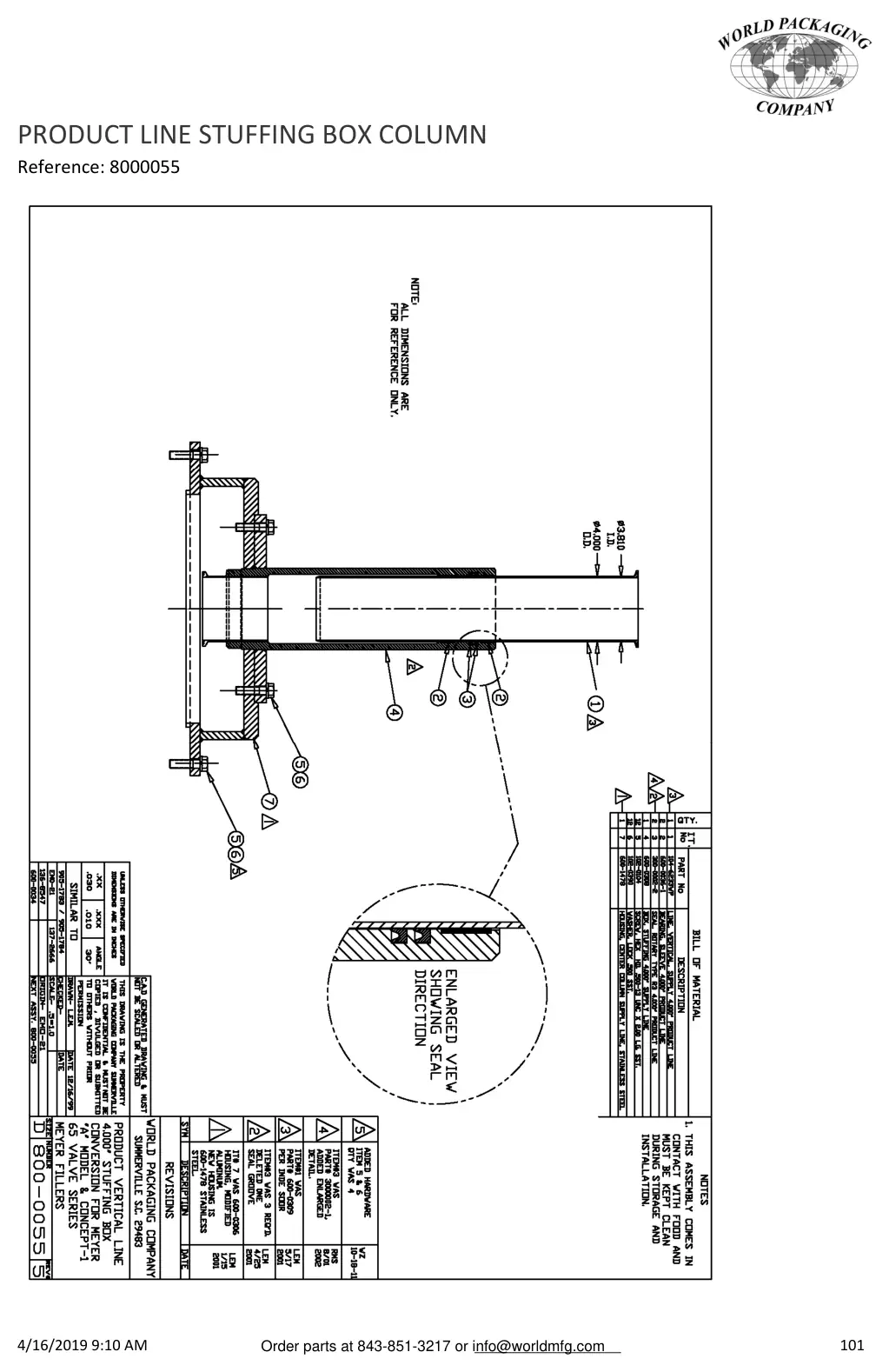

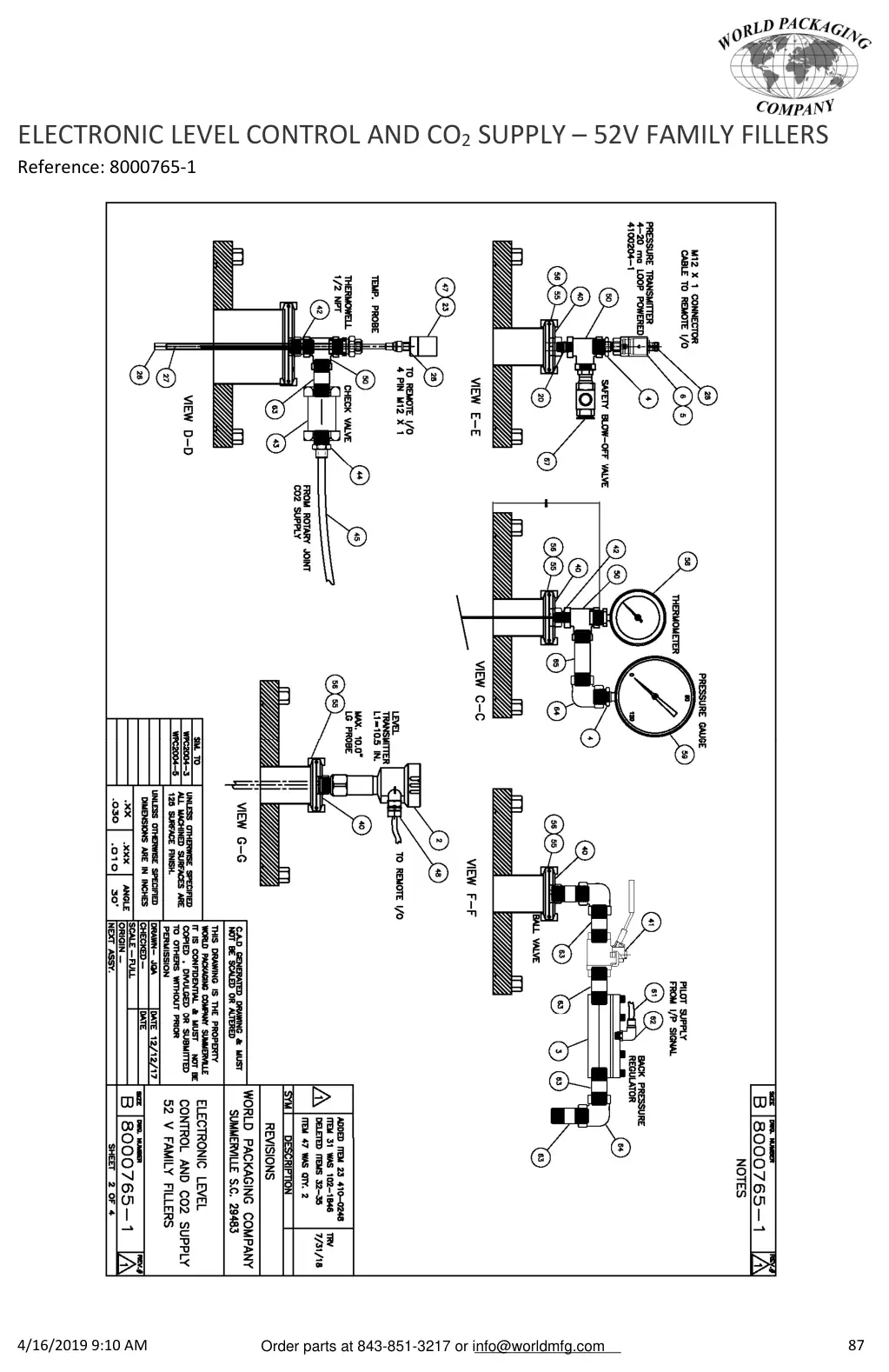

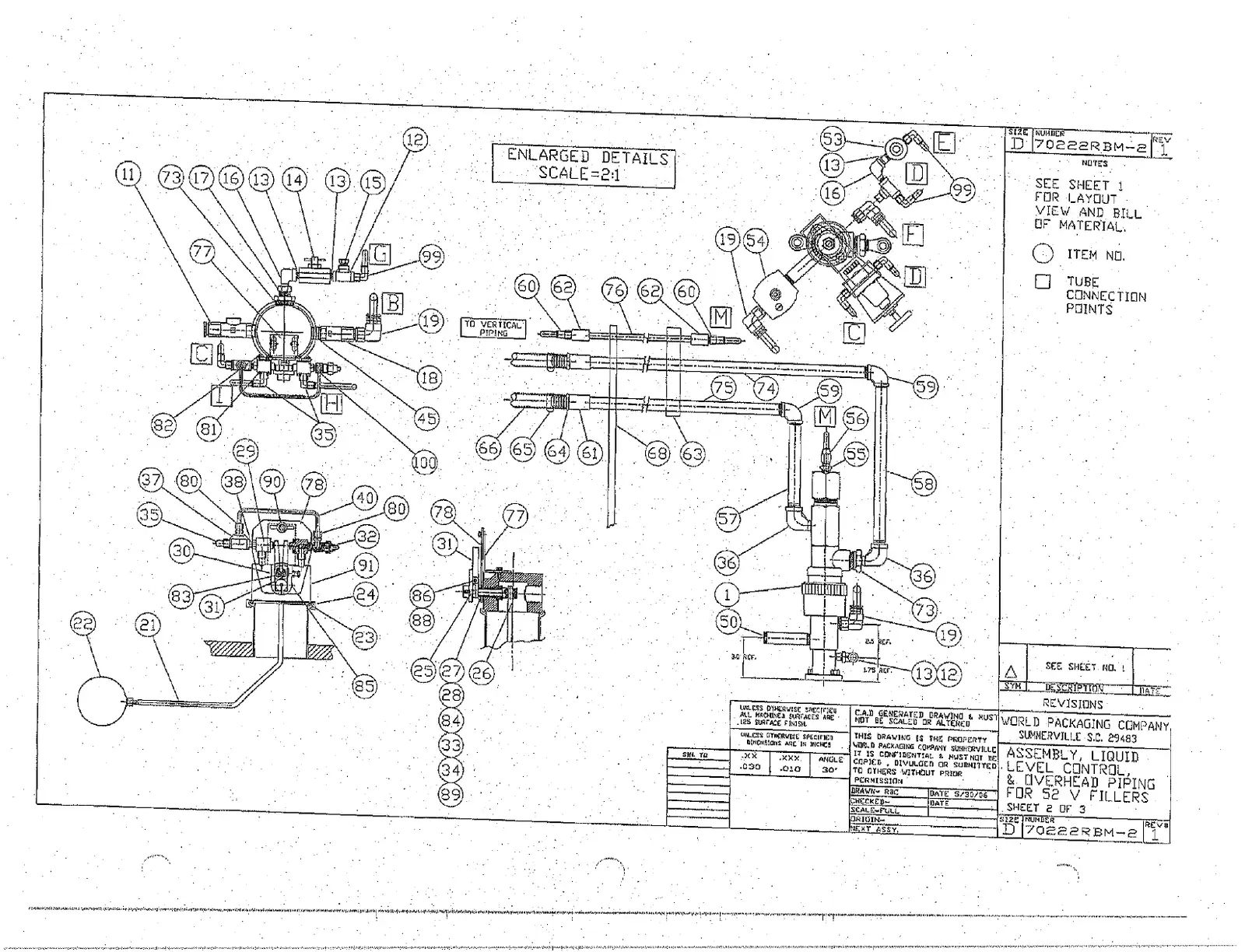

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
64	101-01081010108	Fitting, barbed	Request
68	600-19586001958	Bracket, support	Request
68	HH-8691HH8691	Plate, mounting	Request
82	102-05531020553	Nut, hex	Request
85	102-07751020775	Screw, fillister hd	Request
86	102-03321020332	Nut, hex	Request
82	102-04151020415	Washer, flat	Request
90	102-21001022100	Screw, thumb	Request
94	100-21331002133	Gasket, tri-clamp tube	Request
957	102-04141020414	Washer, flat	Request
97	102-00801020080	Bolt, hex head	Request
99	3000091300-0091	Fitting, tube swivel	Request
46	102-00881020088	Hex head bolt	Request
46	102-00671020067	Bolt, hex head	Request
5	134-4515	Bracket, mounting	Ask us
6	133-6652	Plate, tie	Ask us
49	102-00751020075	Bolt, hex head	Request

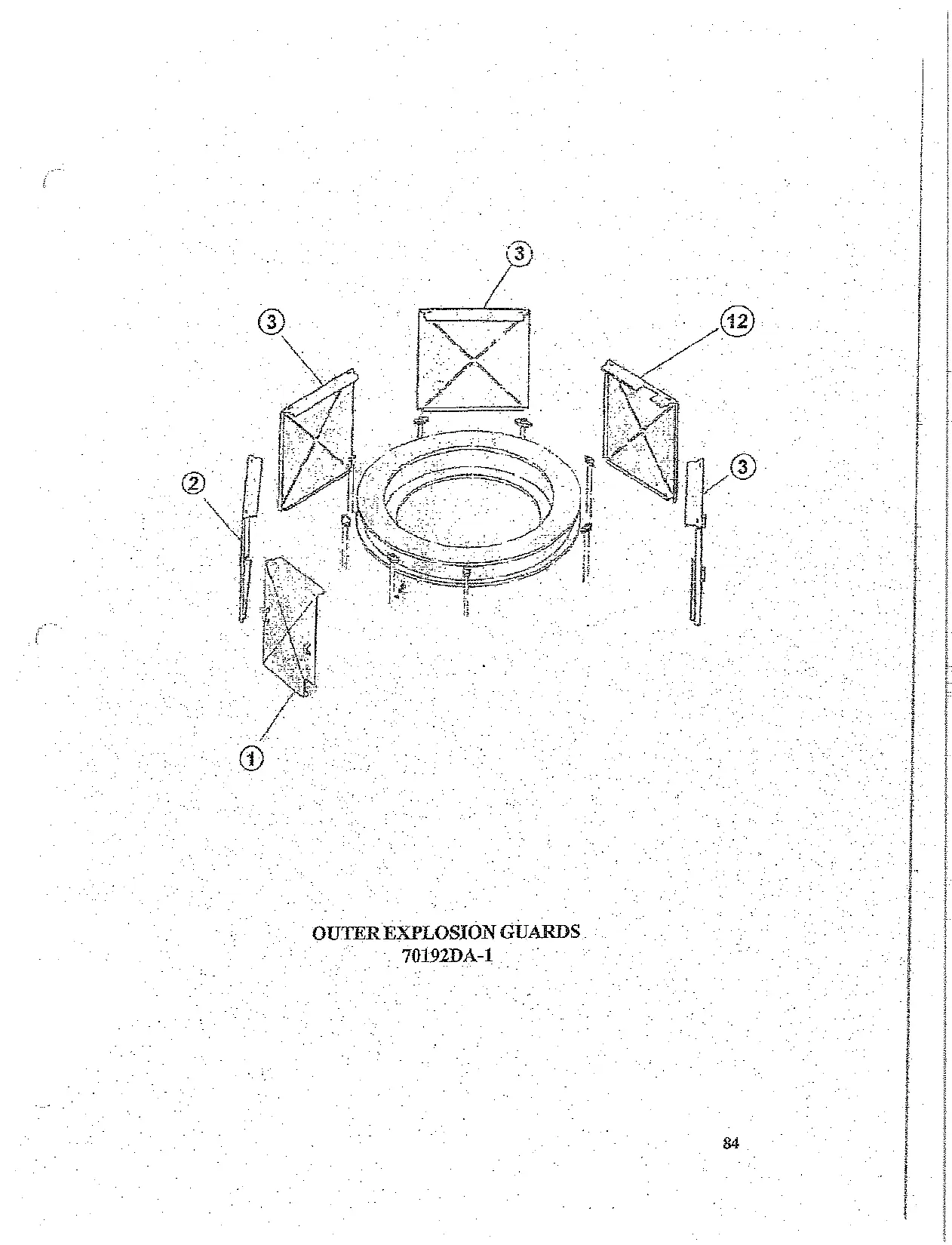

1	903-8327	Guard, outer explosion poe	Ask us
2	903-8392	Guard, outer explosion iog	Ask us
3	903-8326	Guard, outer explosion	Ask us
2	135-0755	Tie bar	Ask us

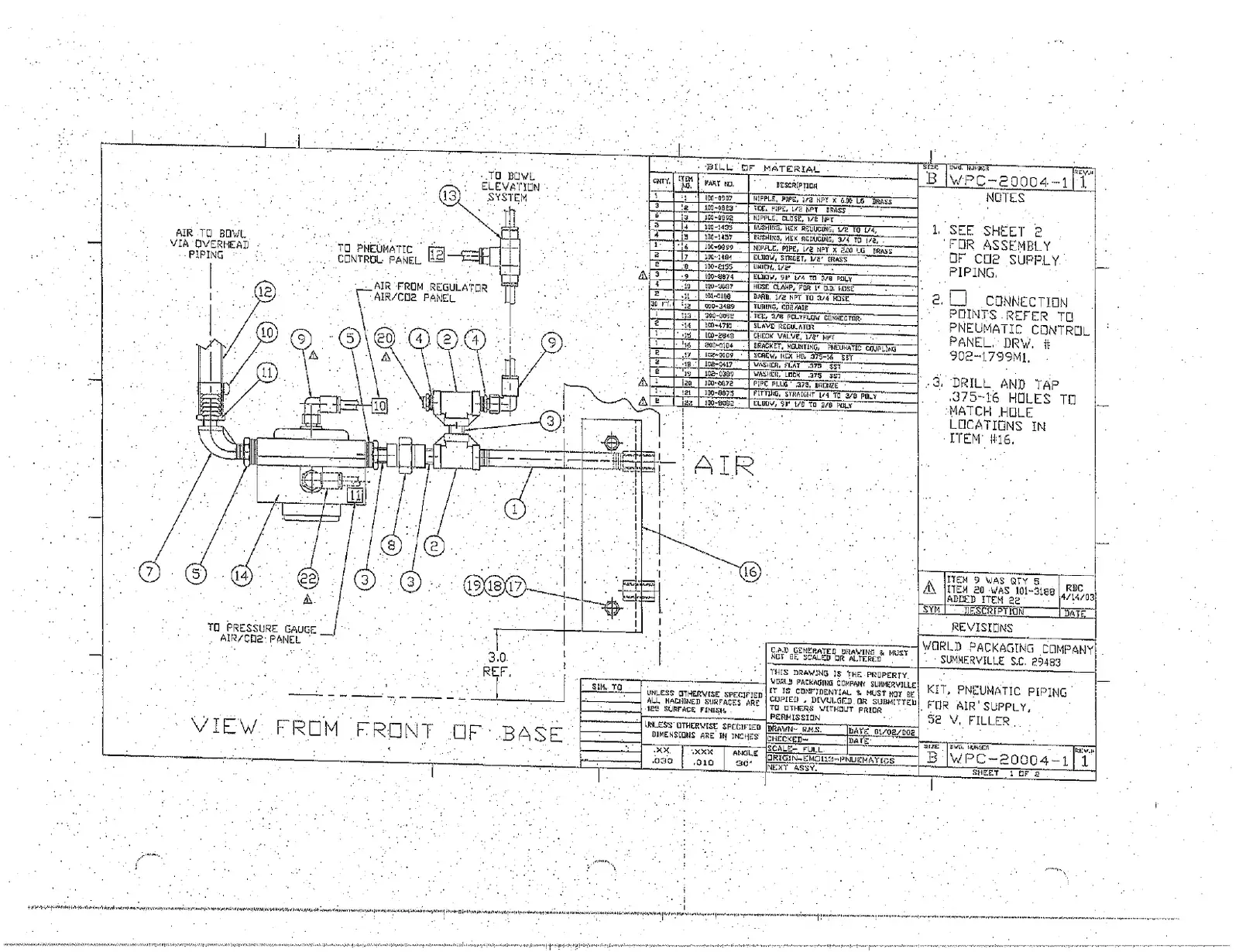

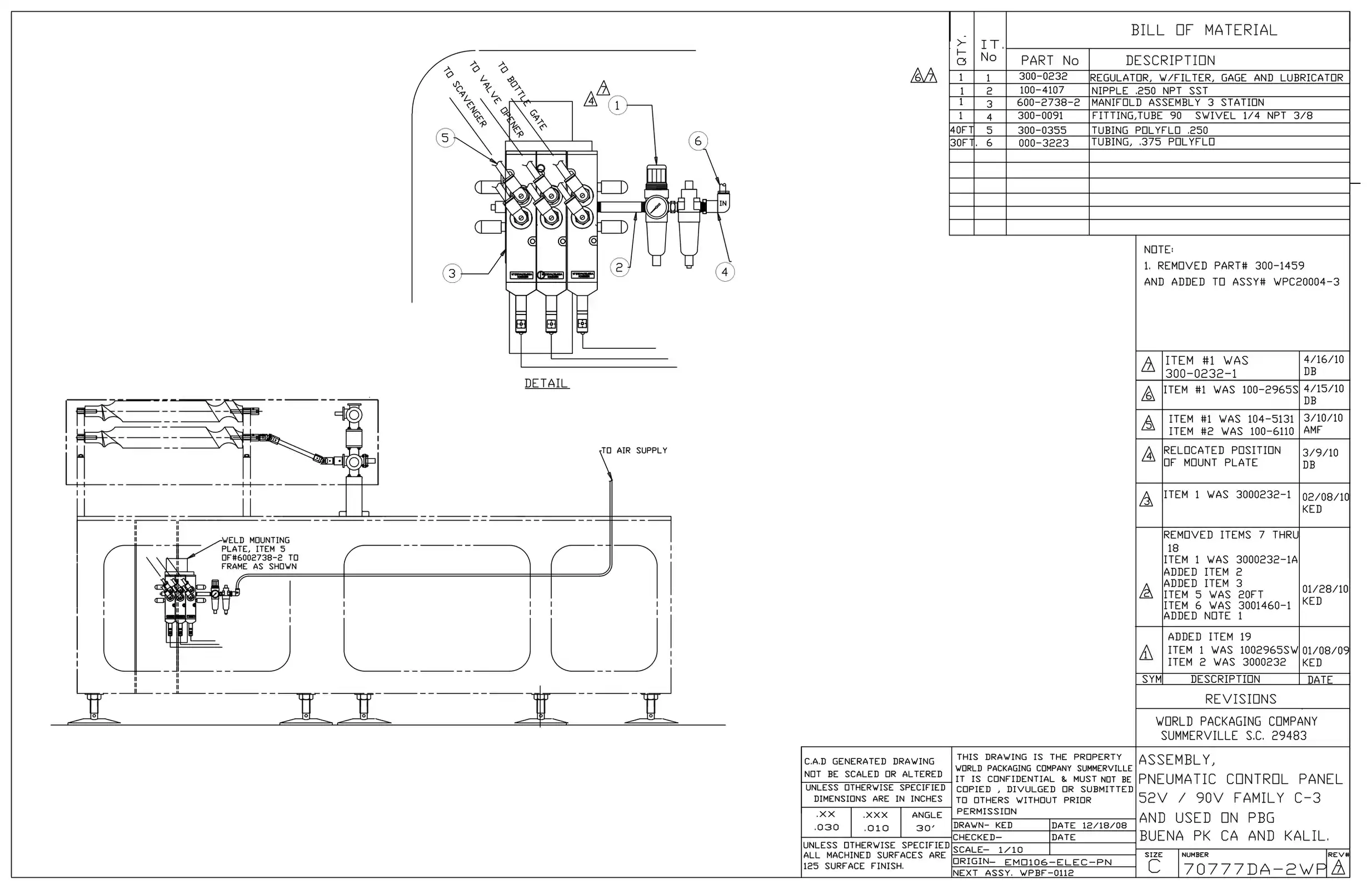

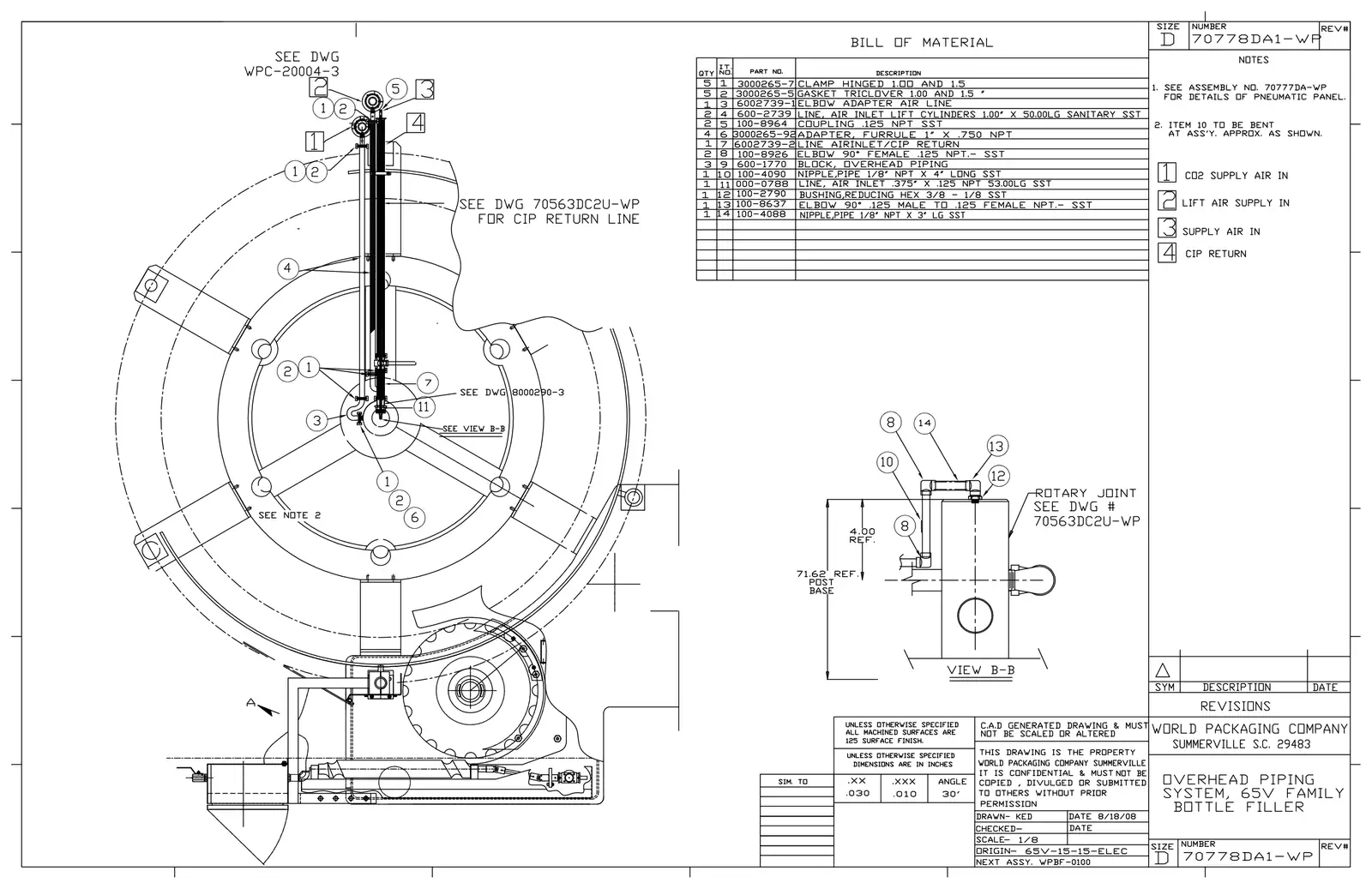

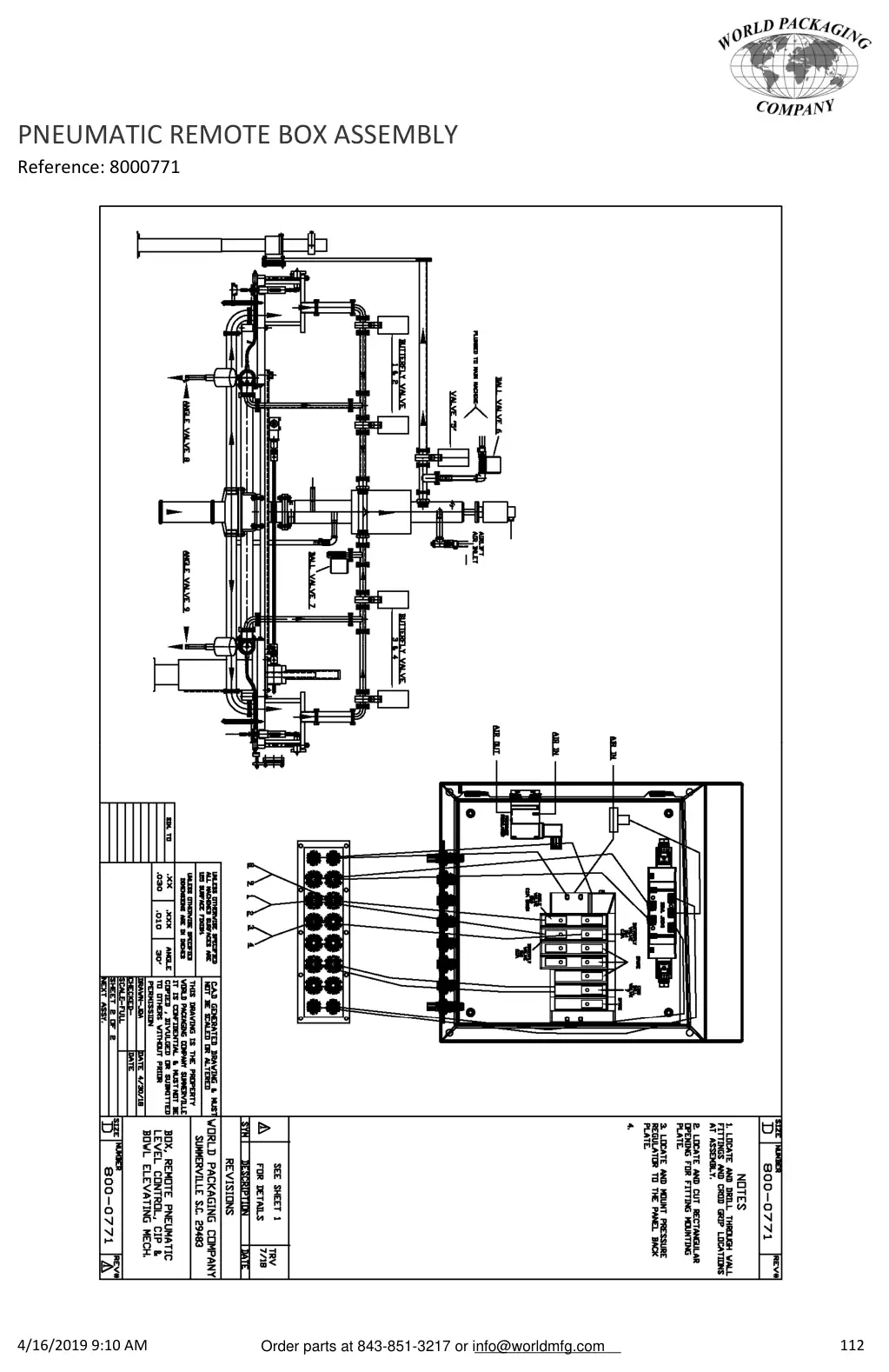

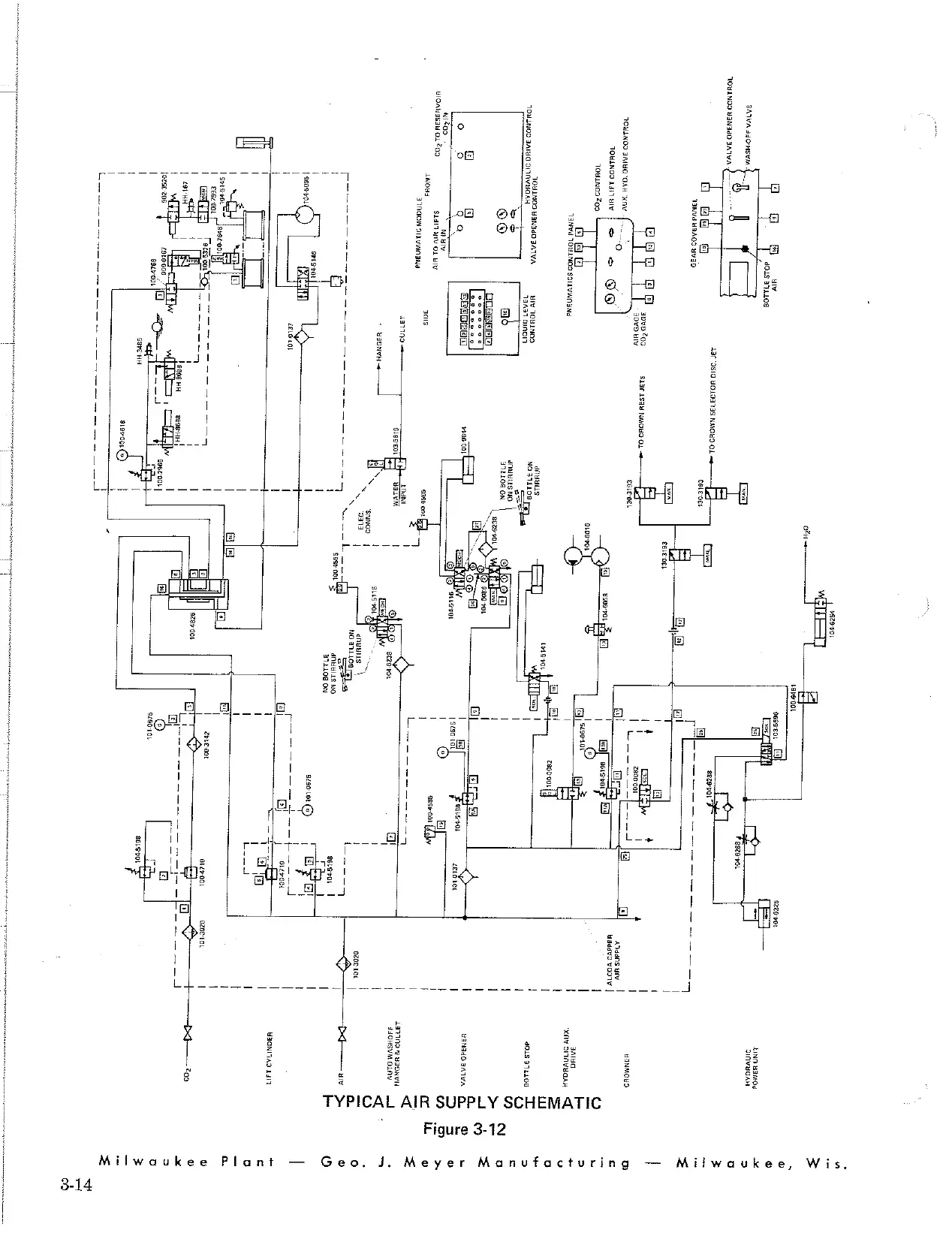

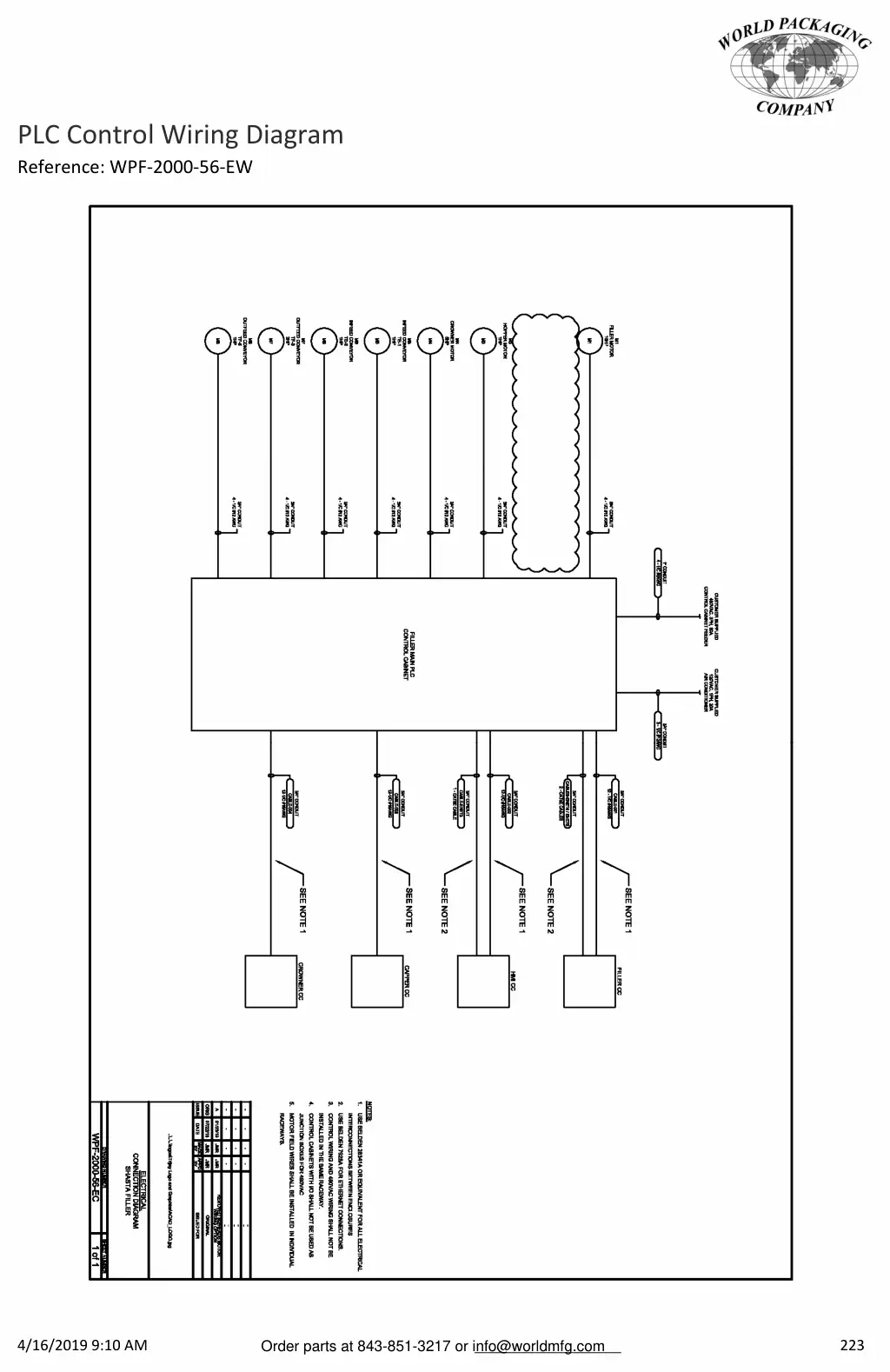

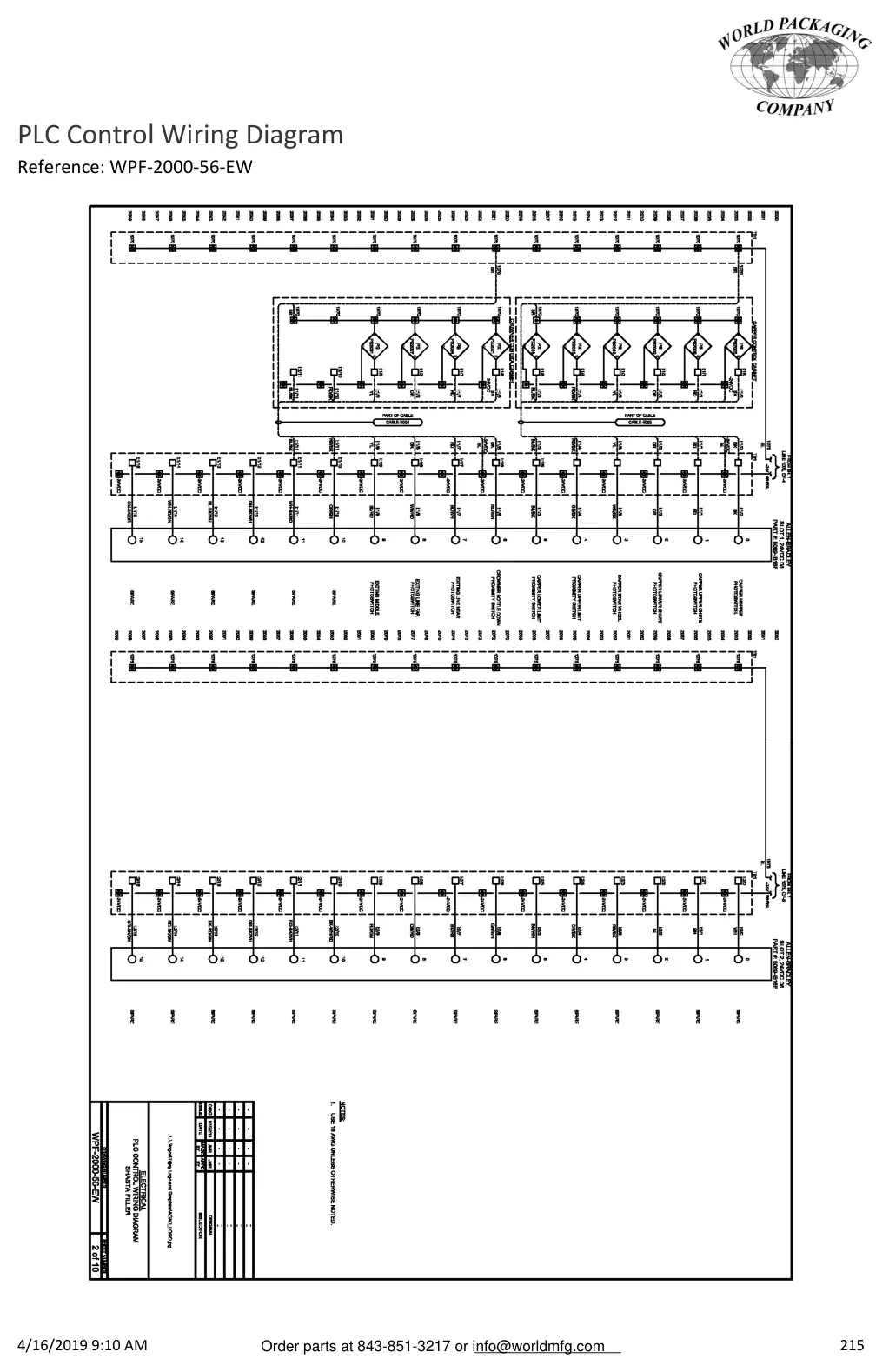

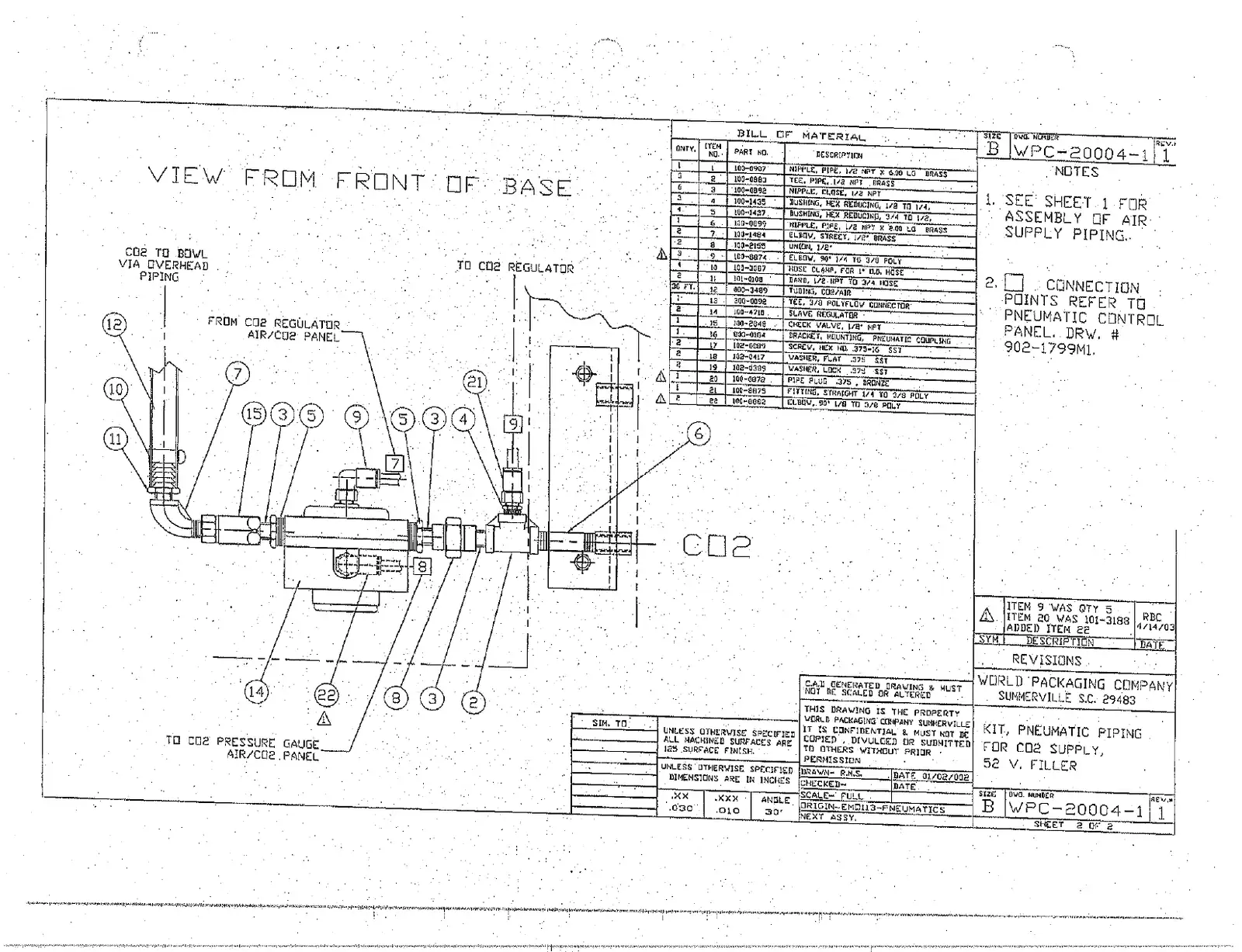

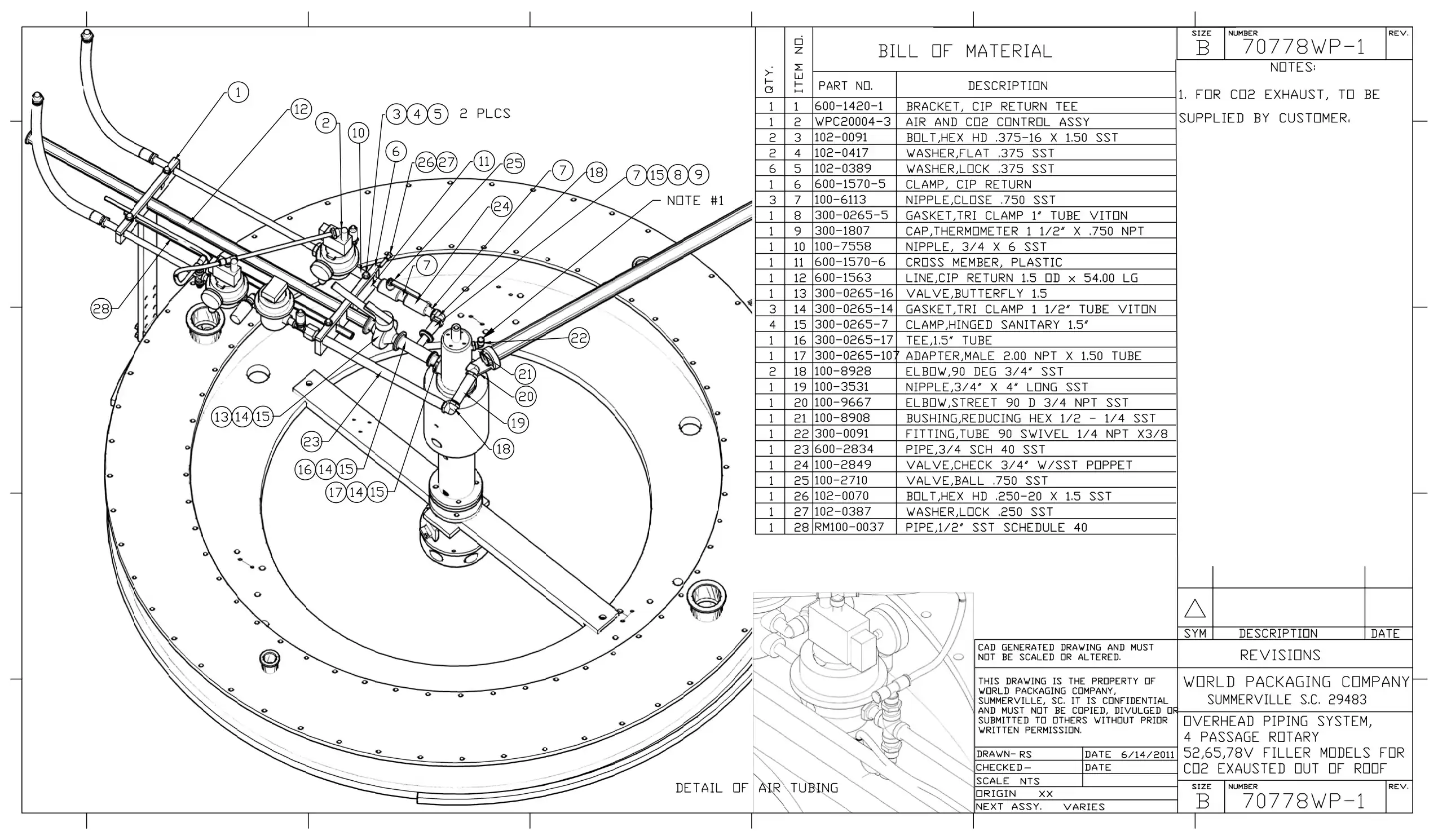

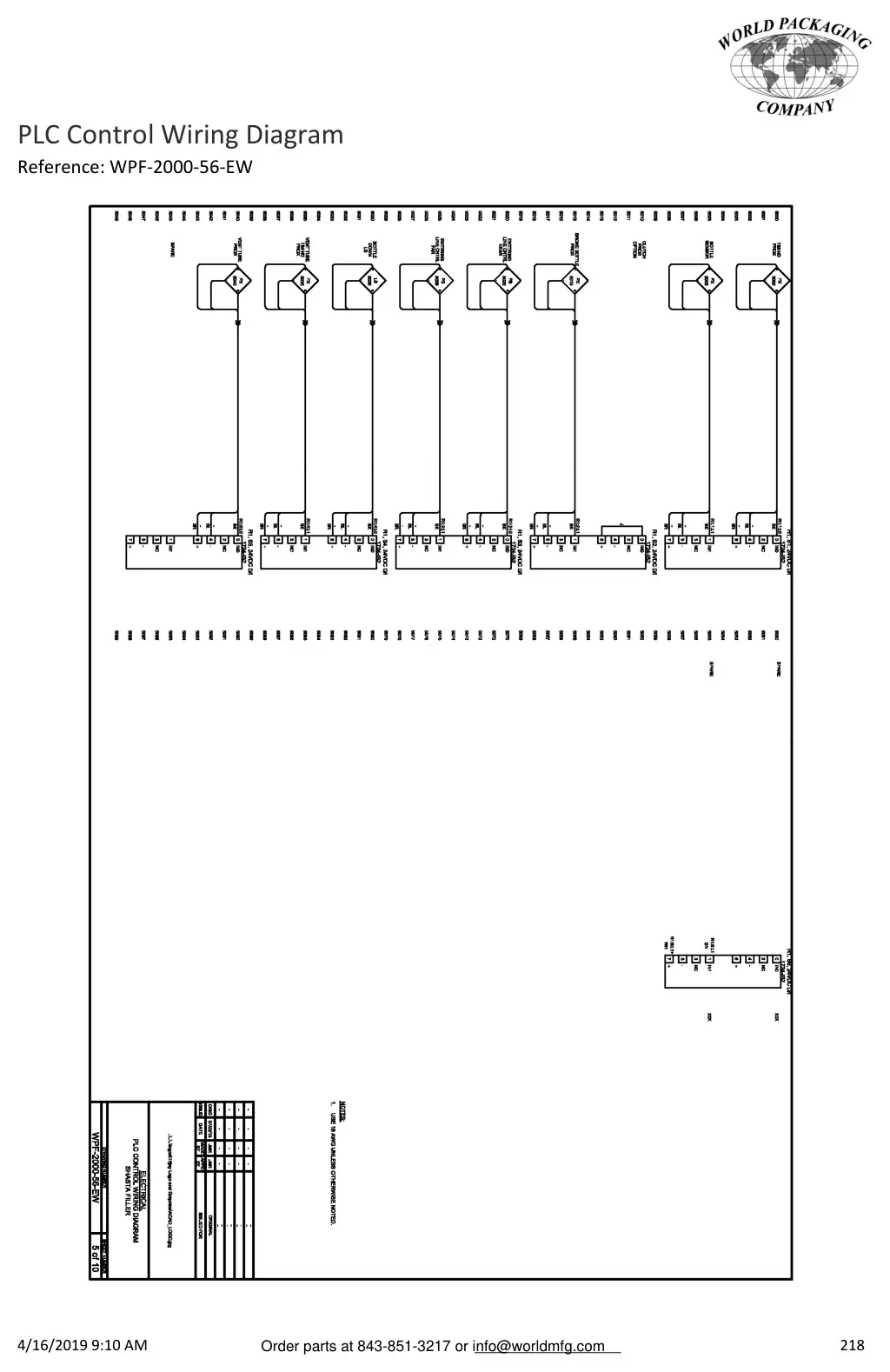

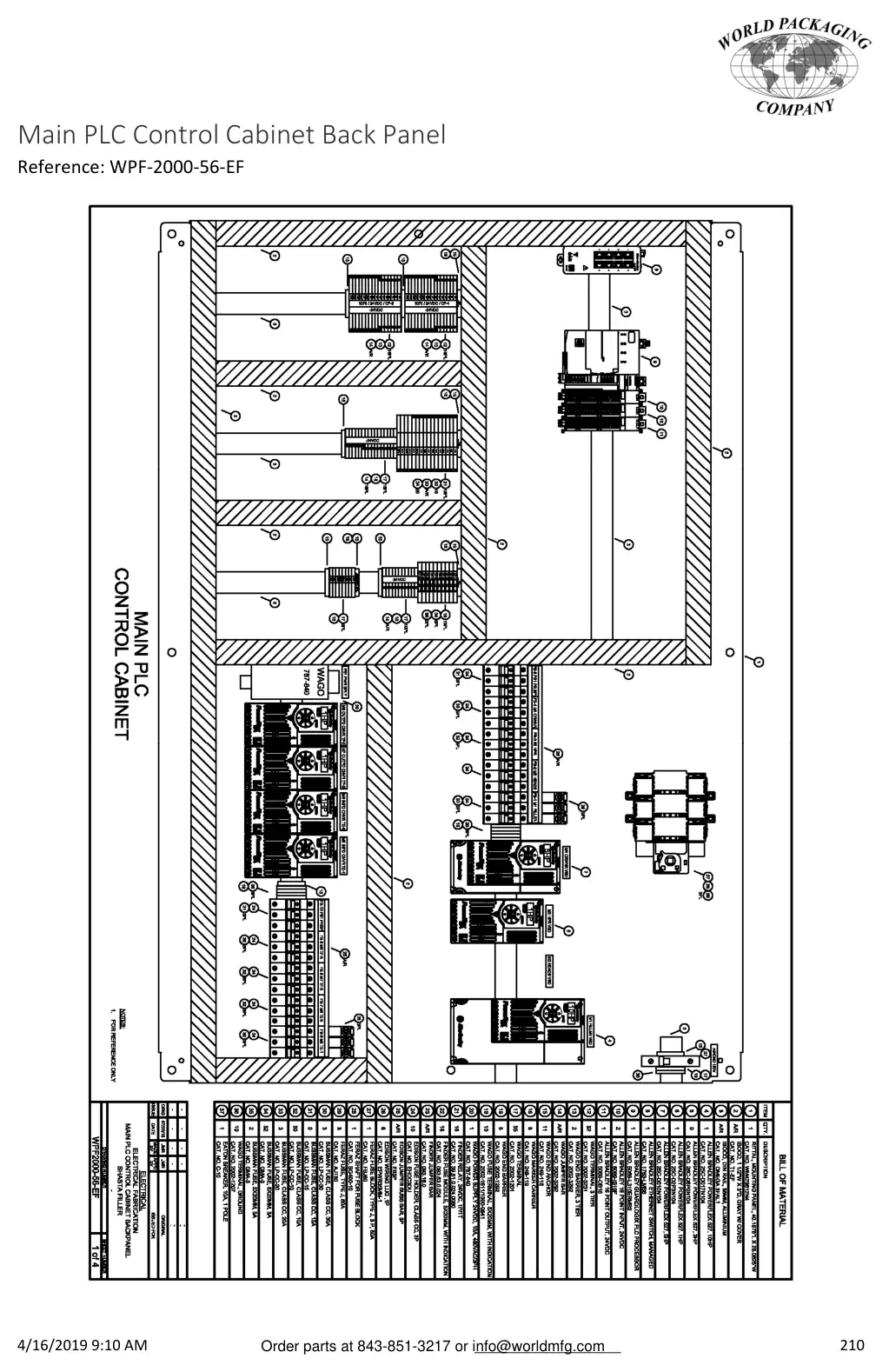

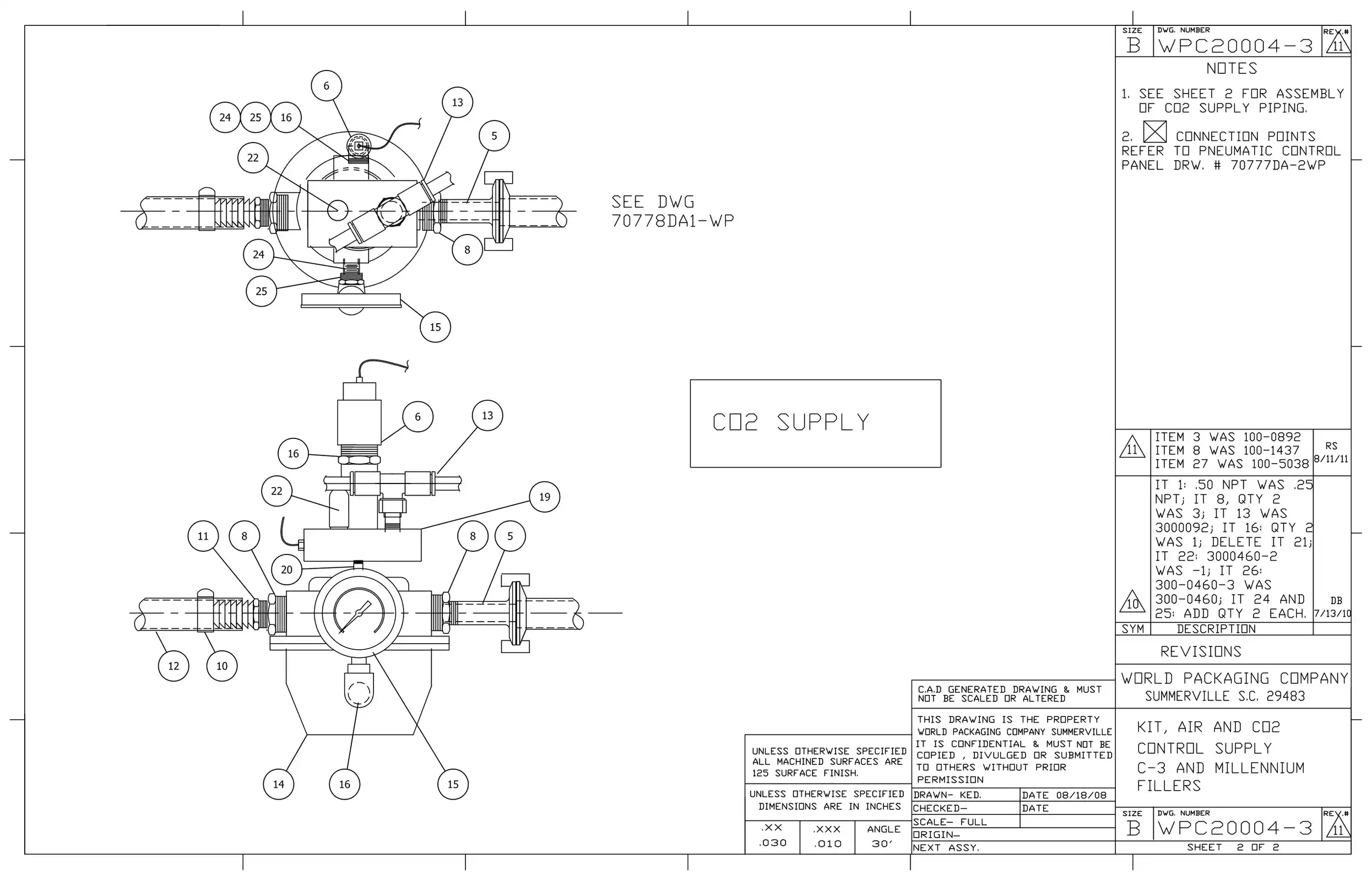

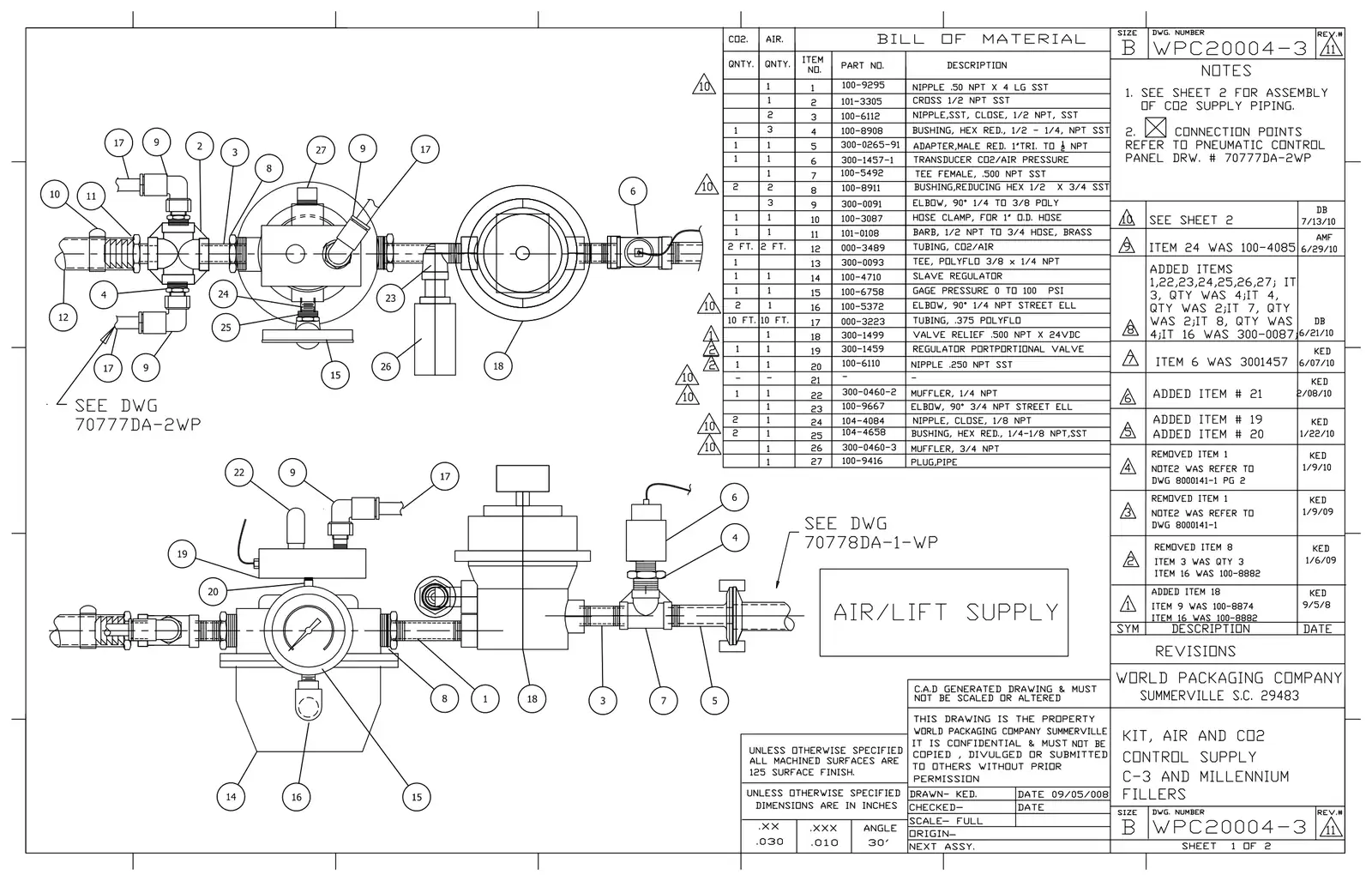

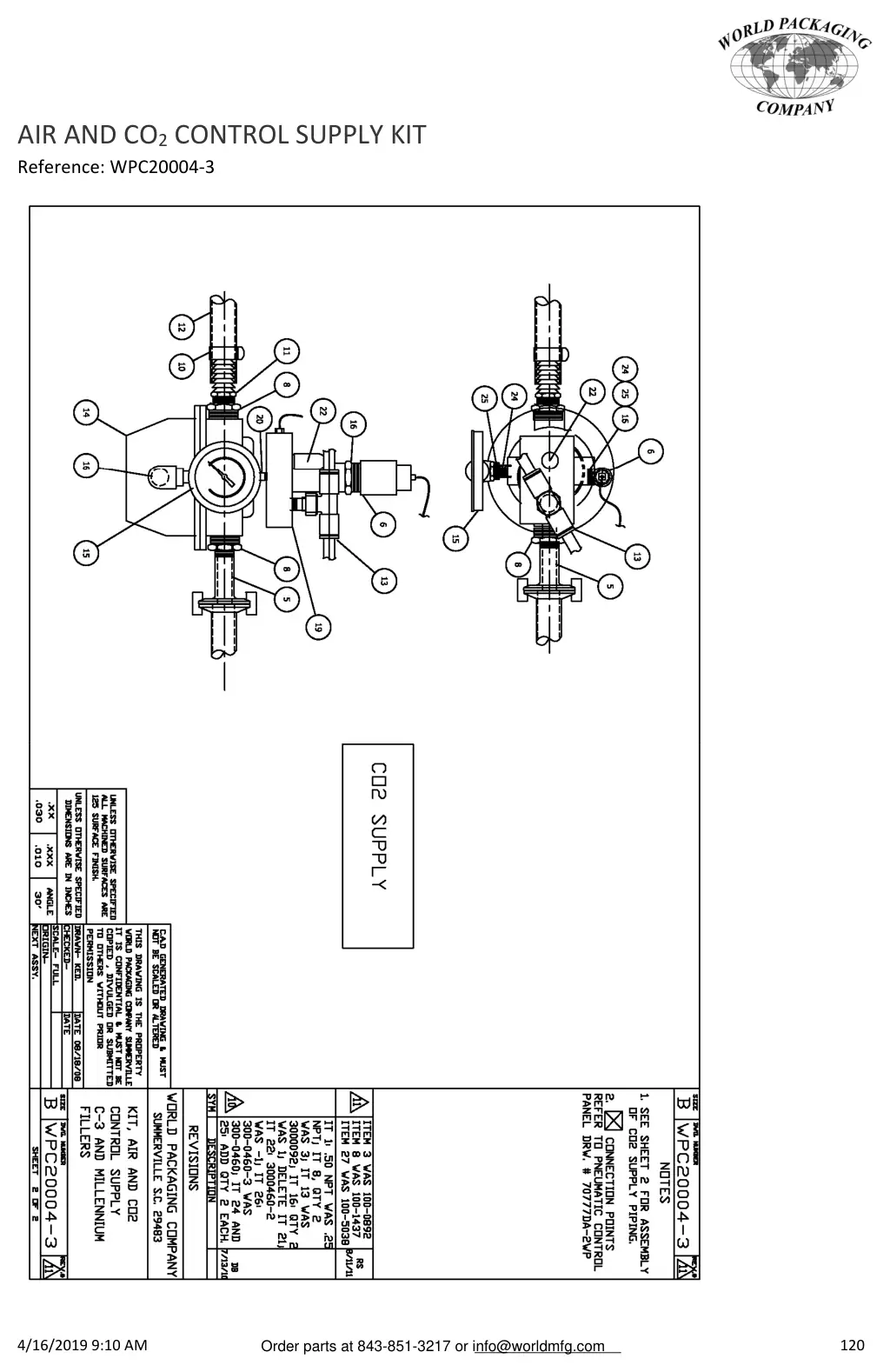

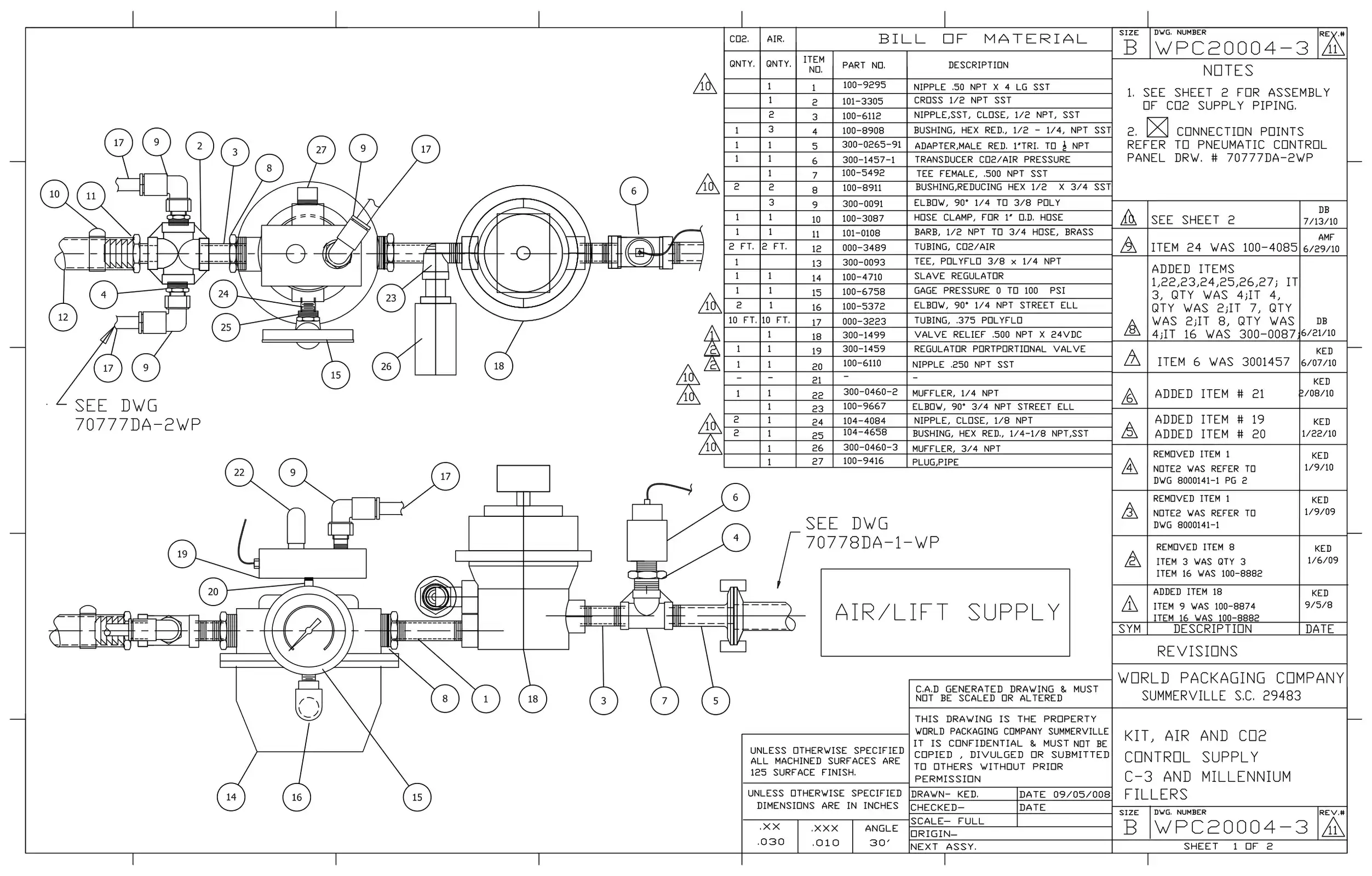

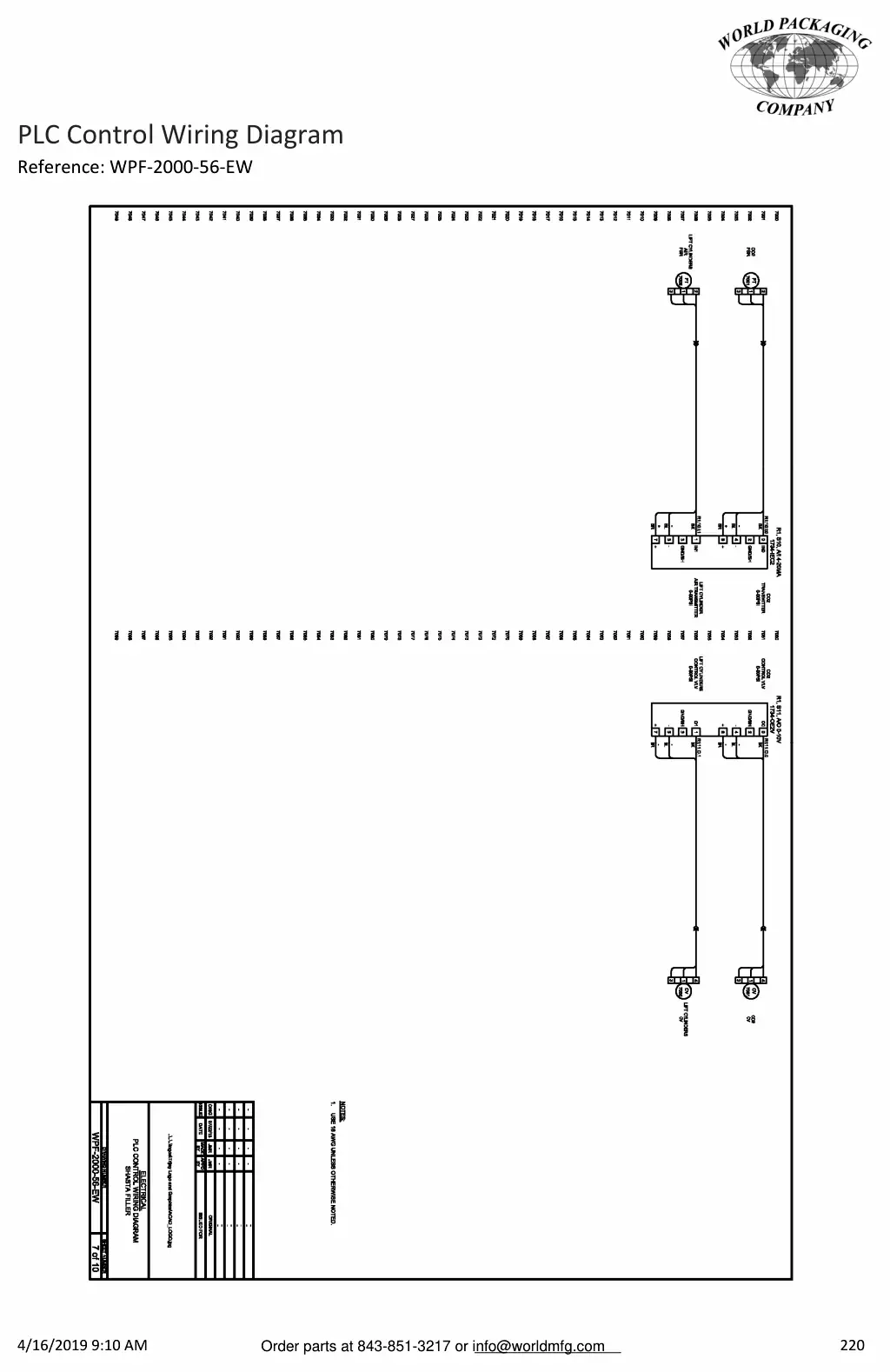

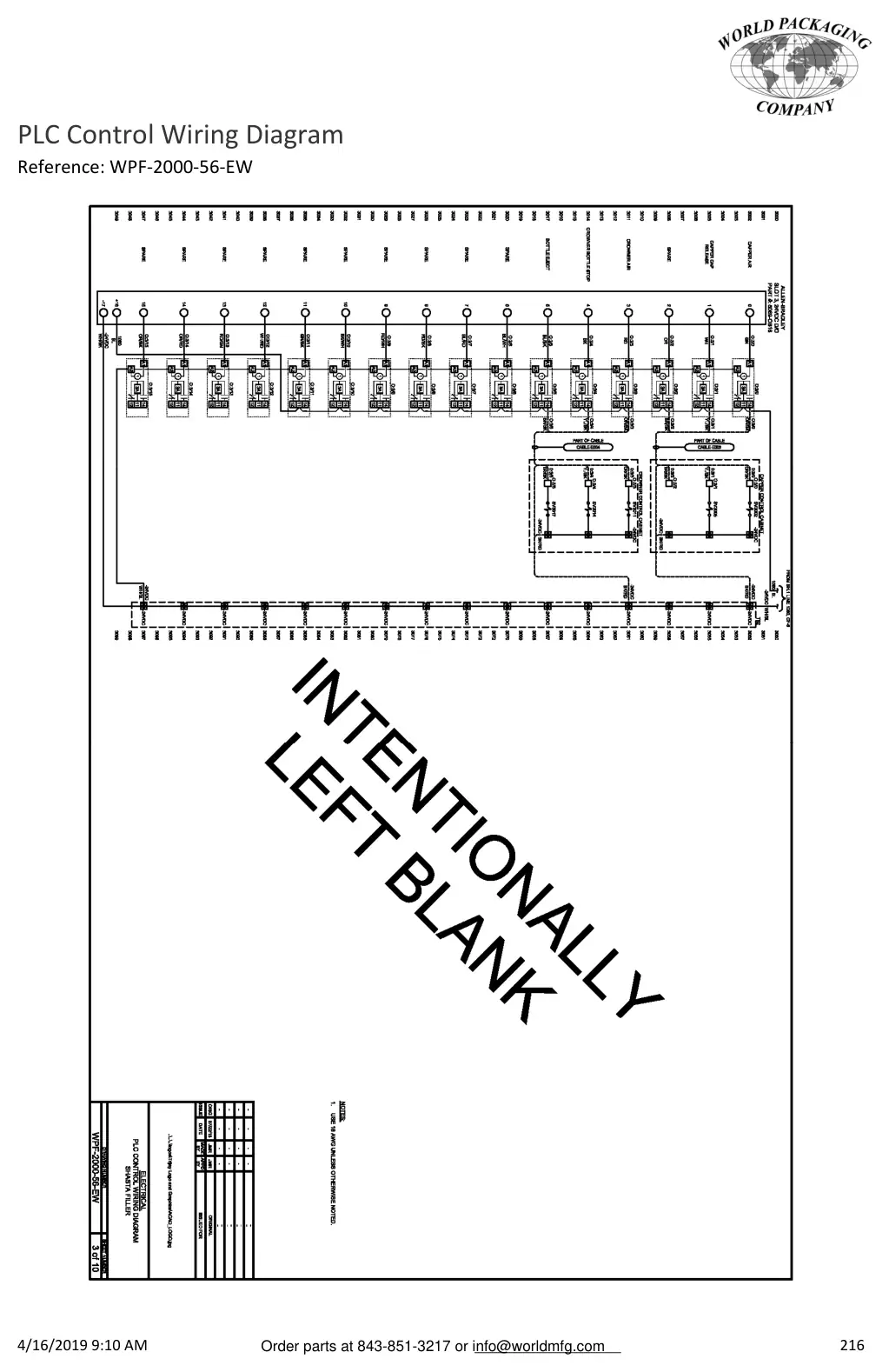

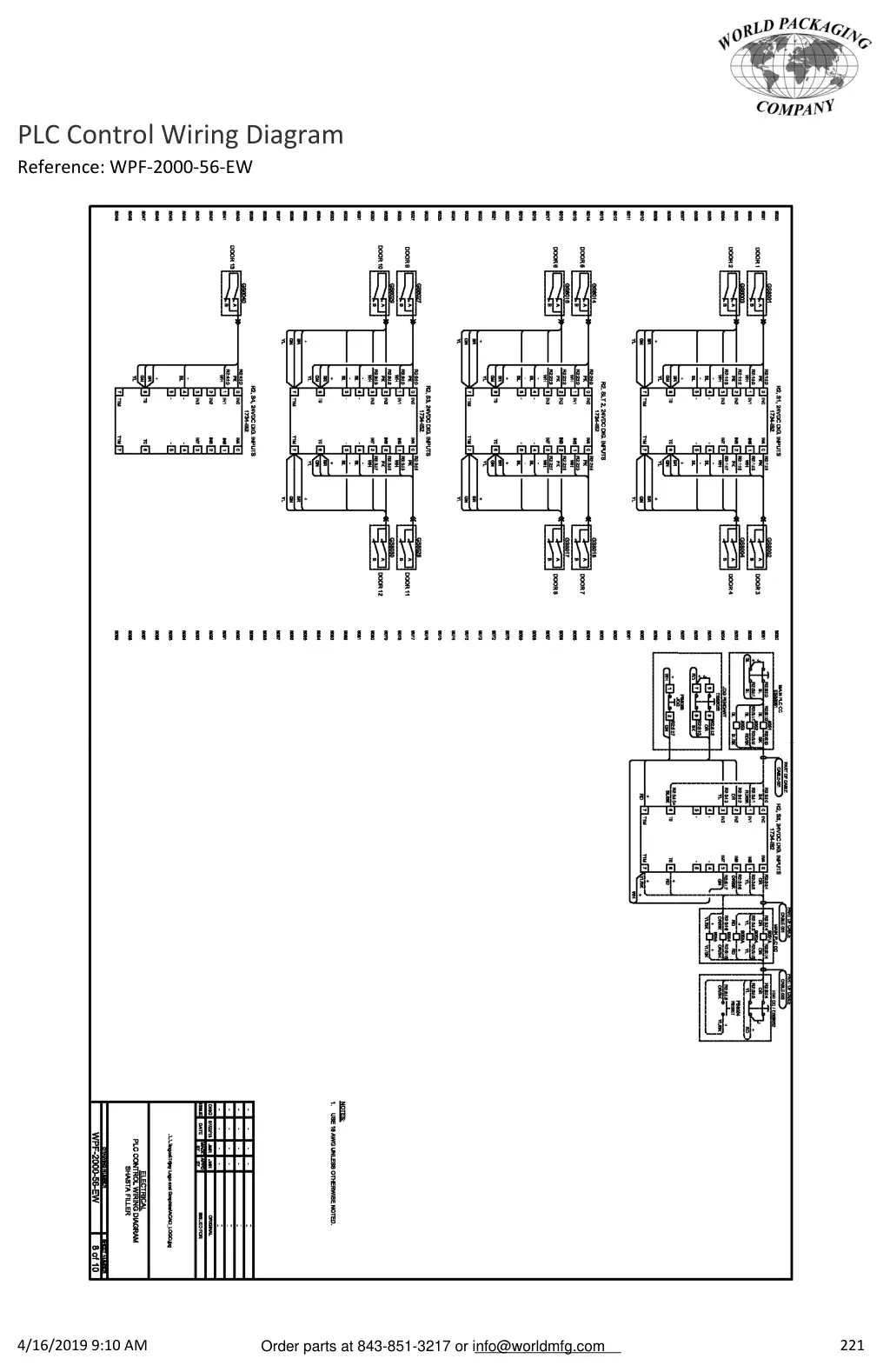

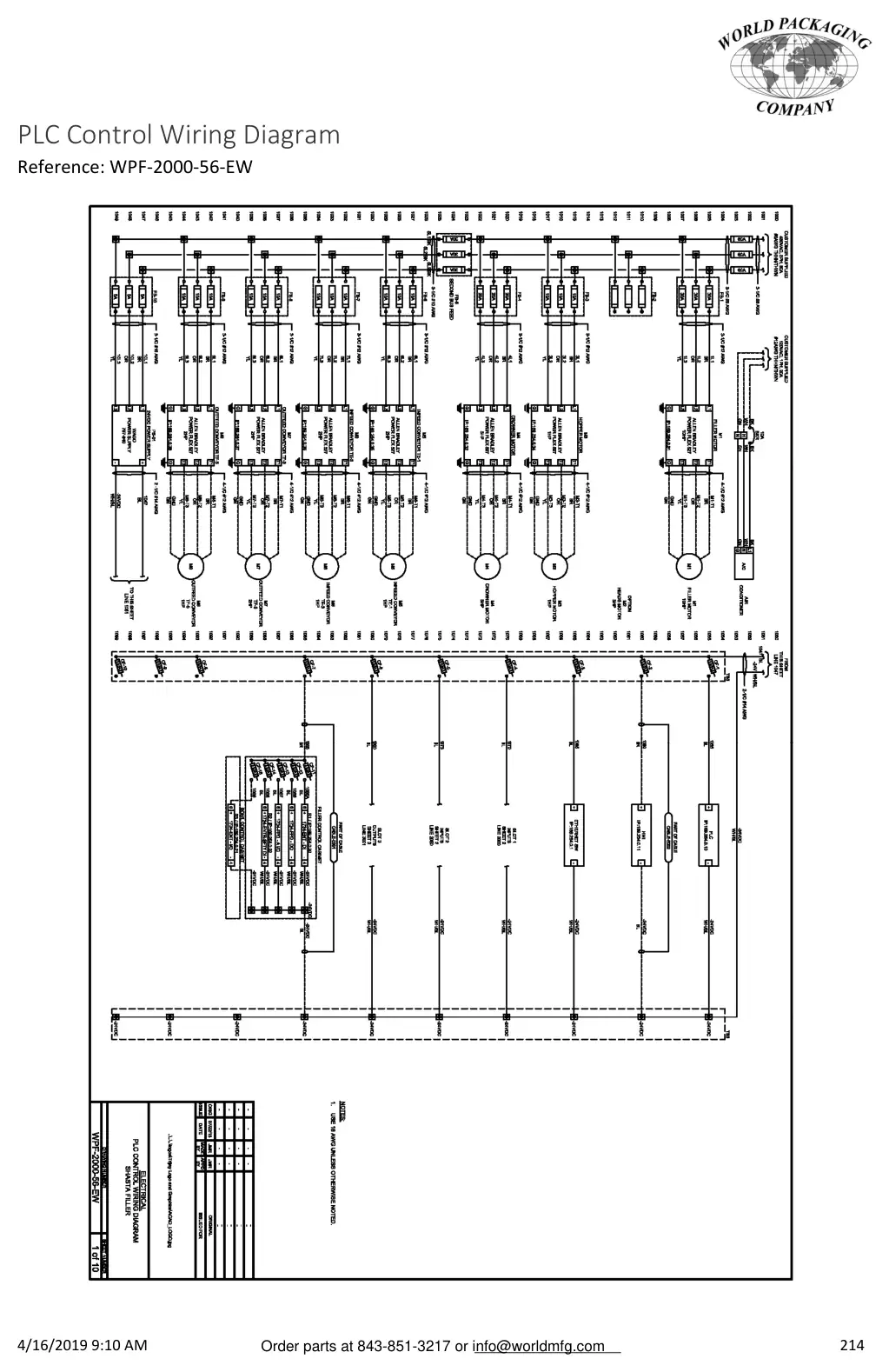

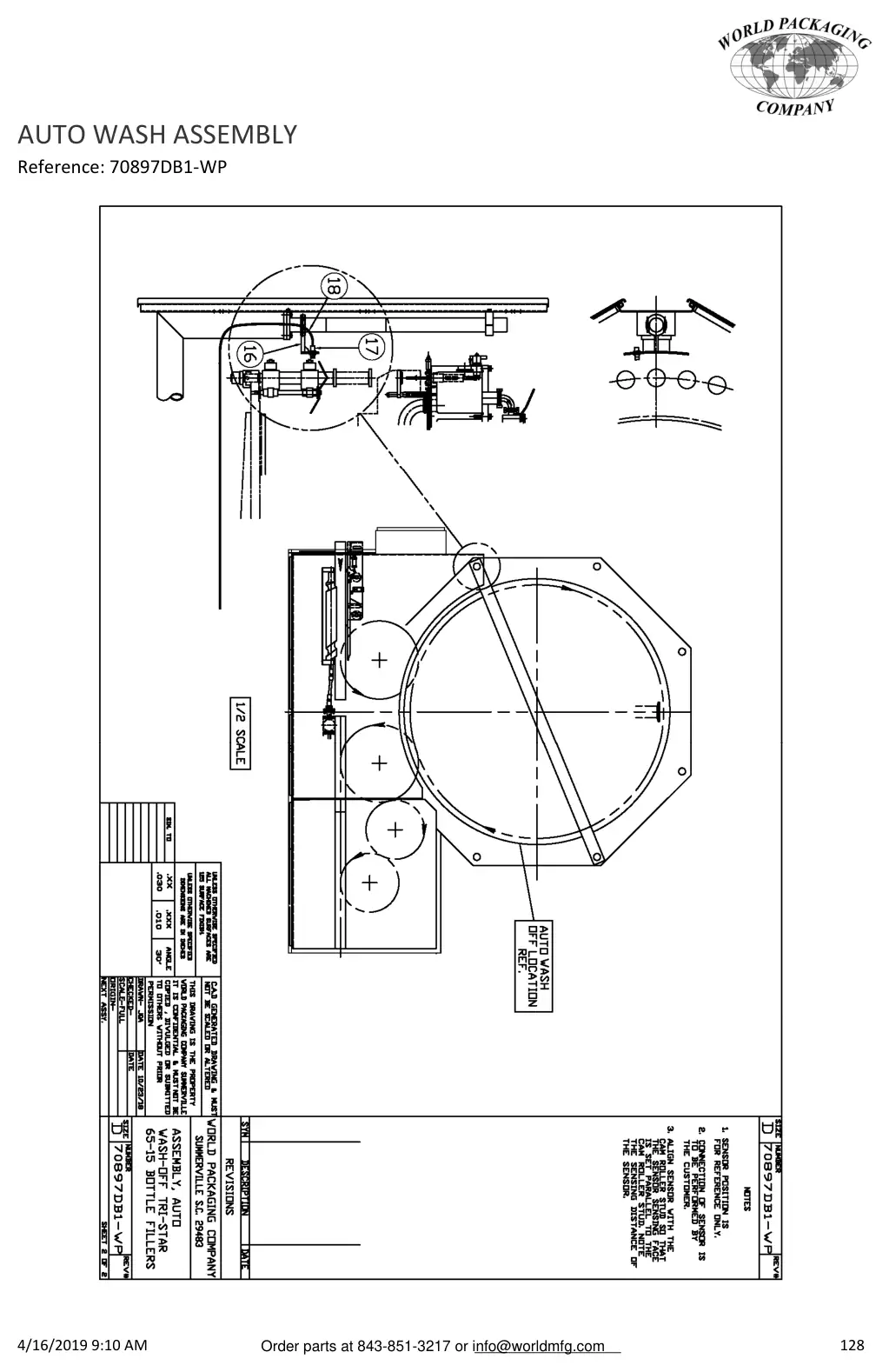

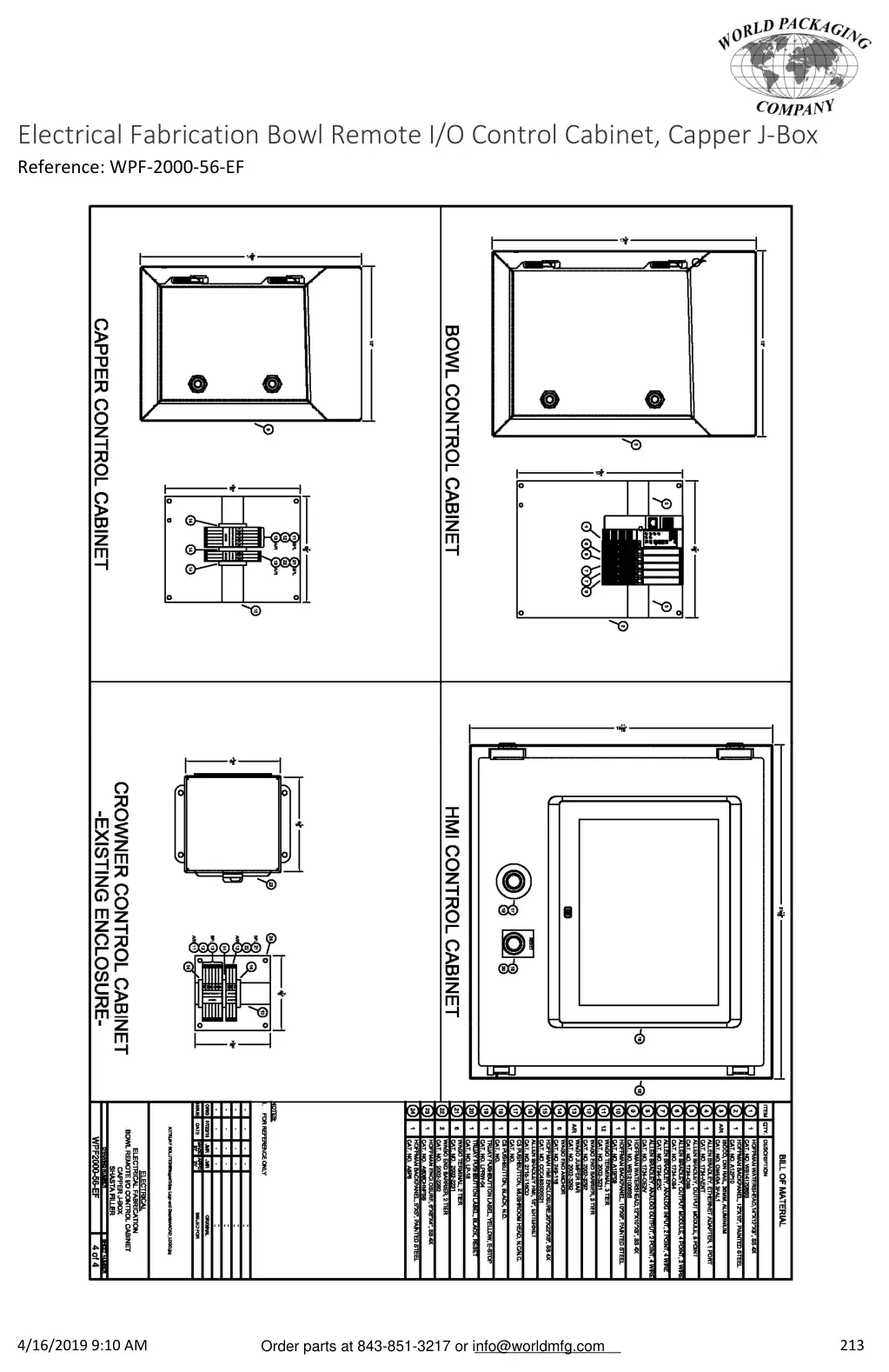

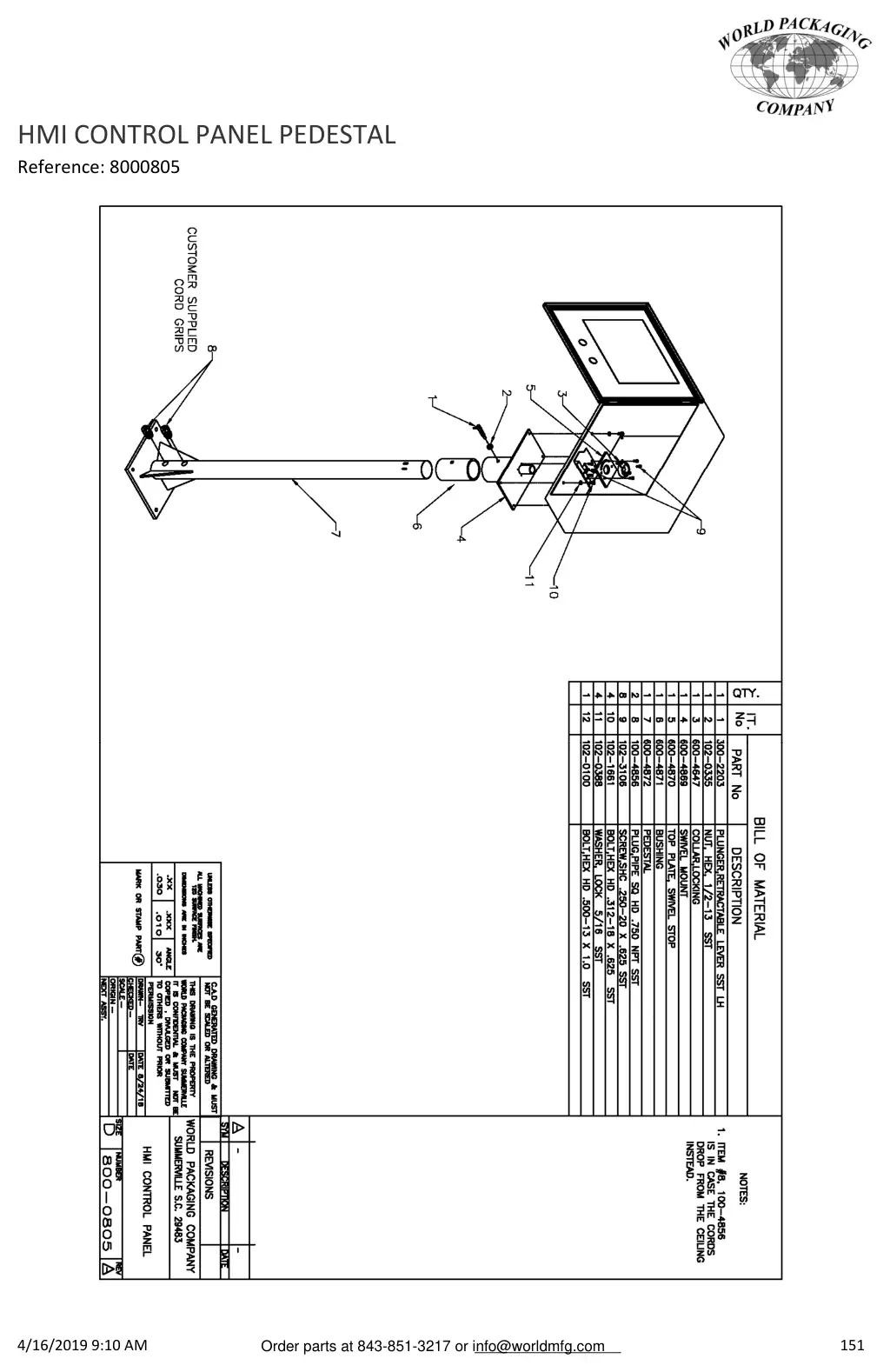

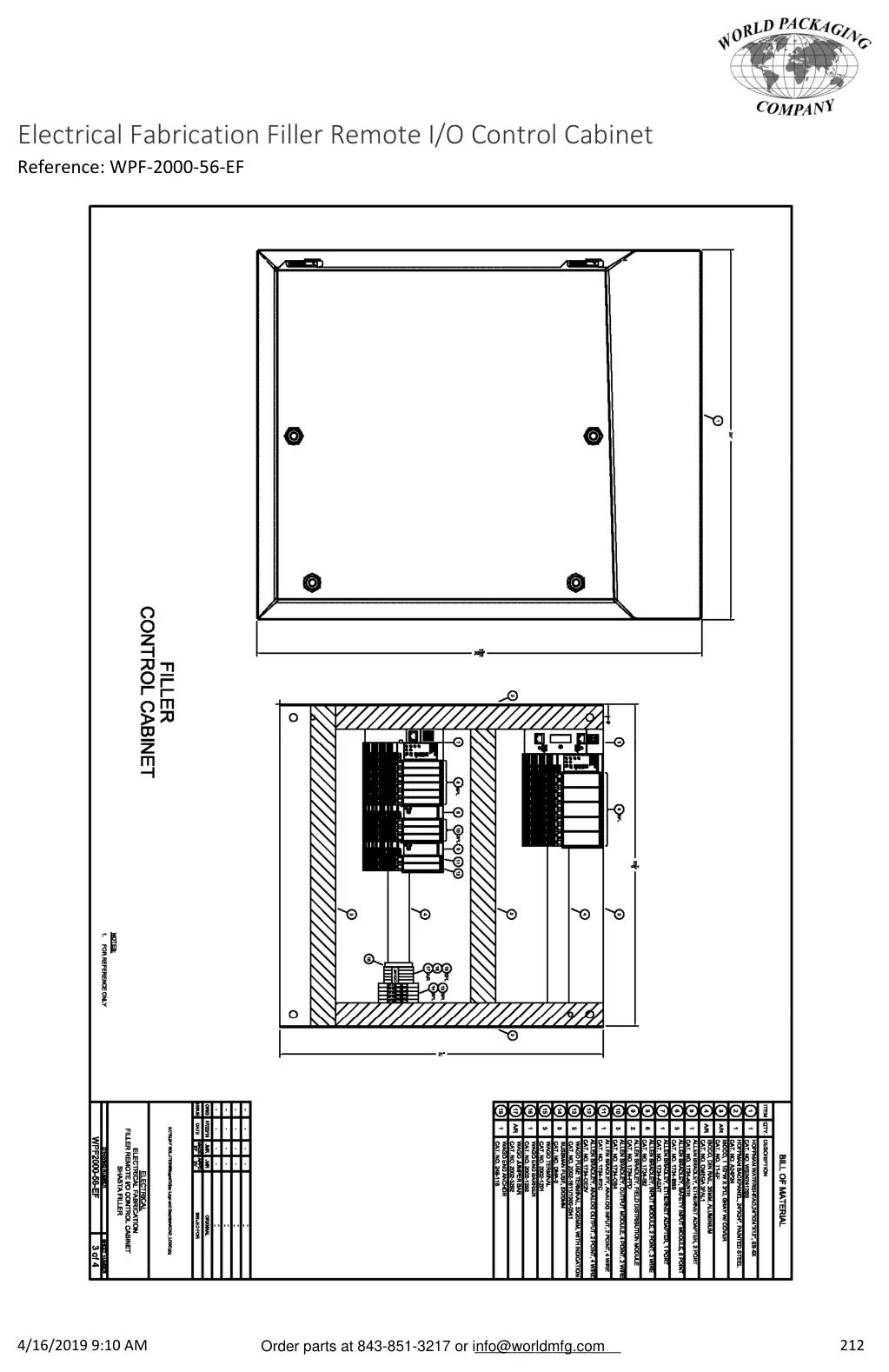

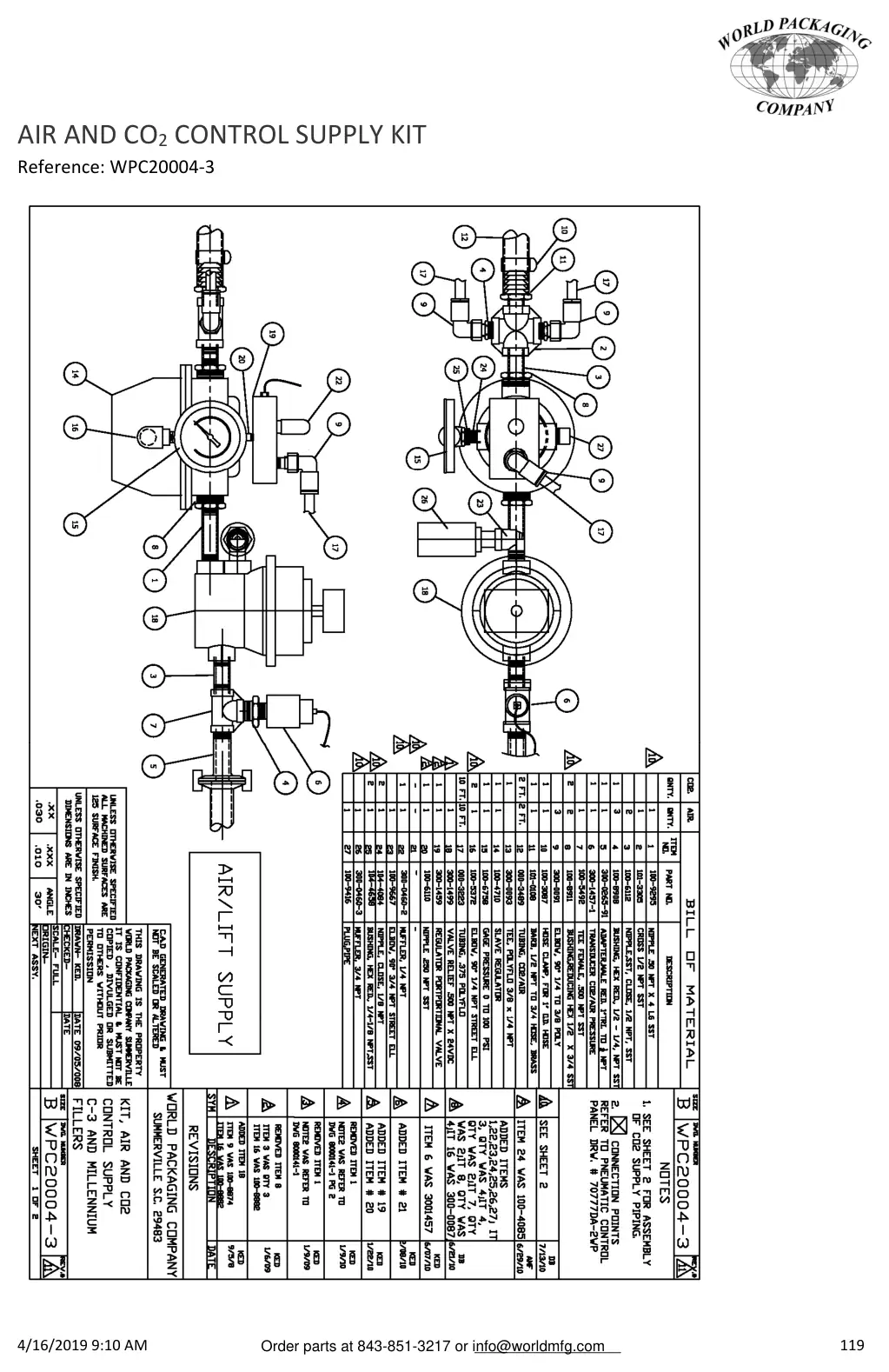

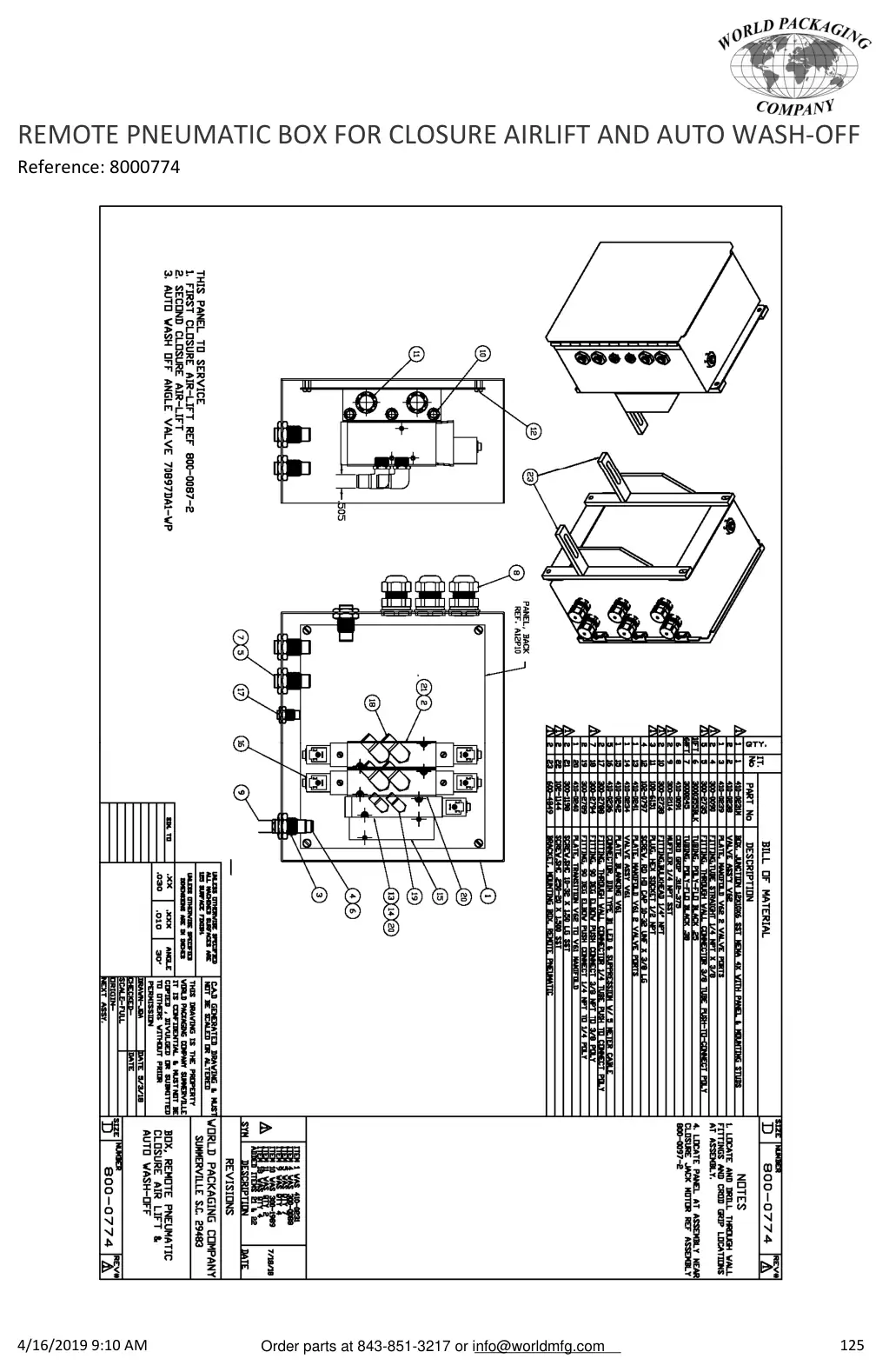

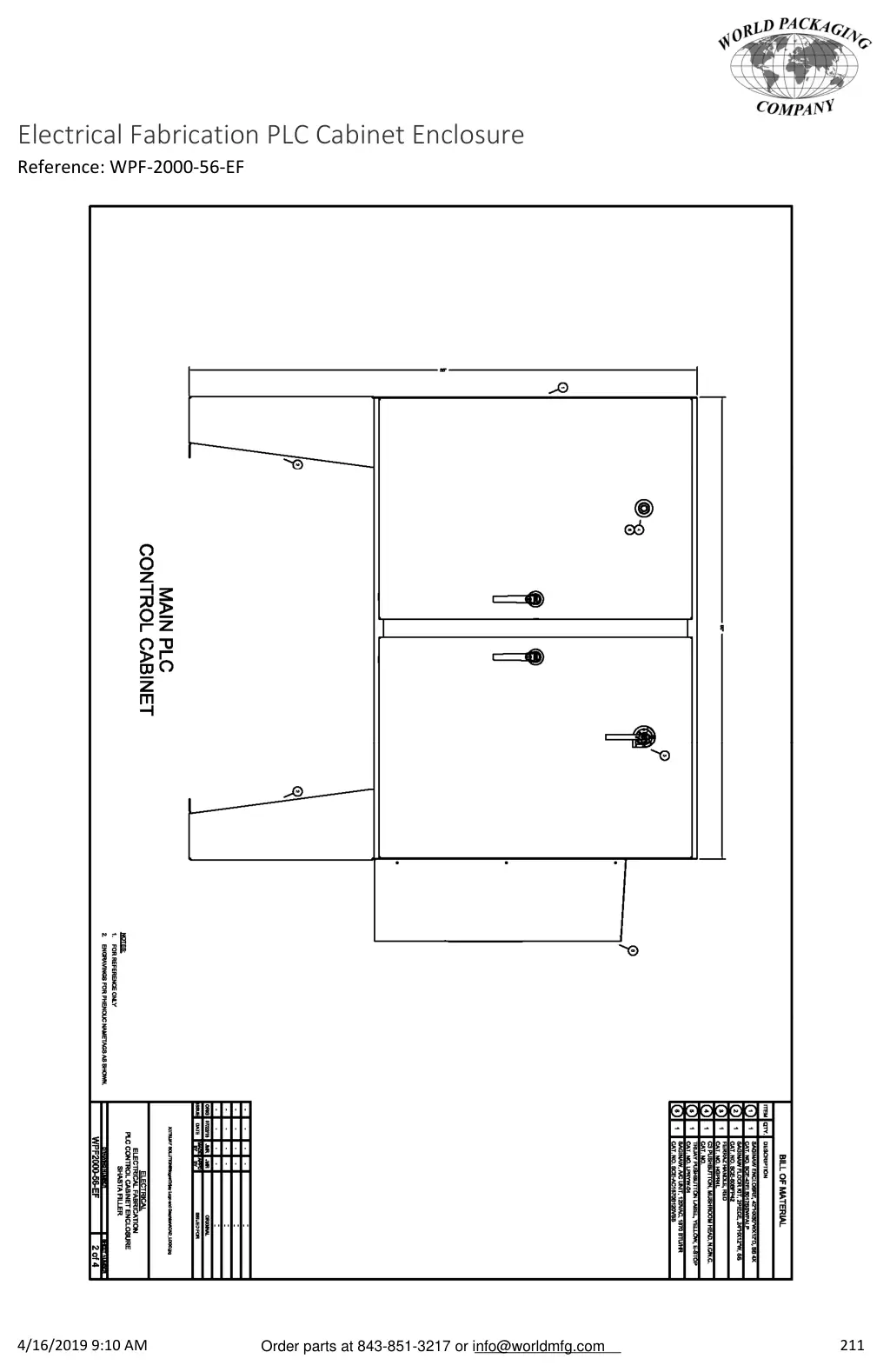

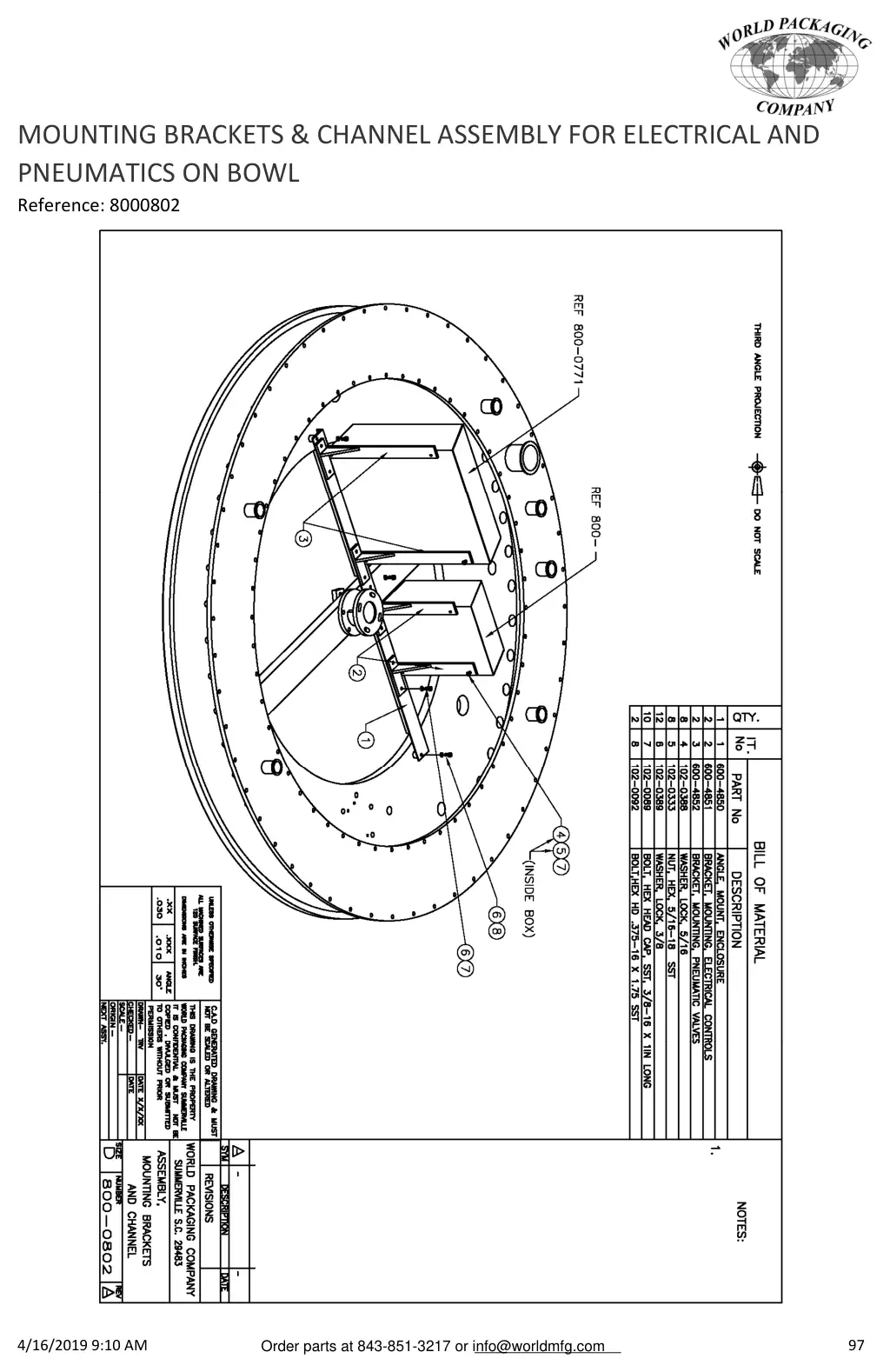

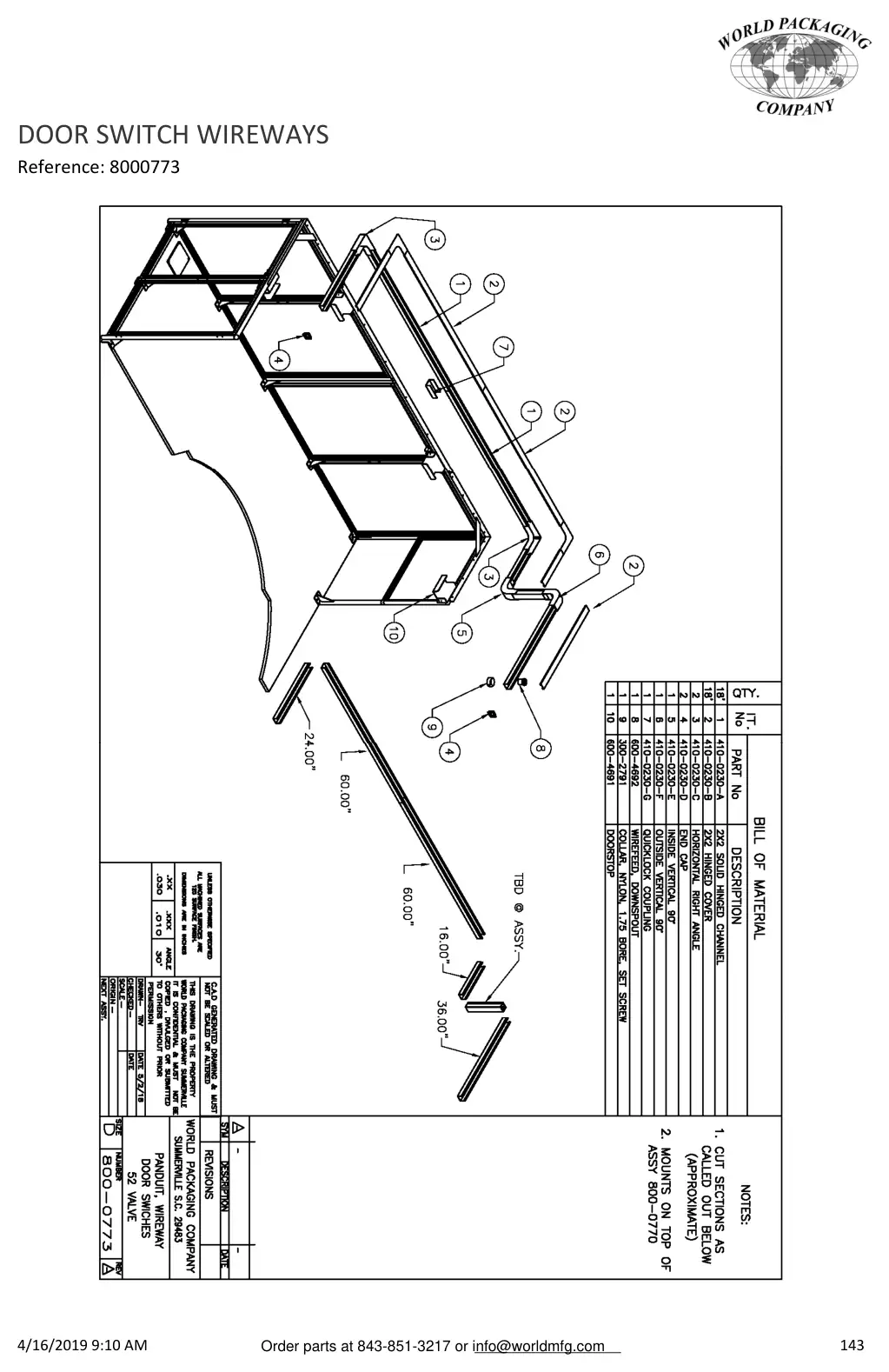

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

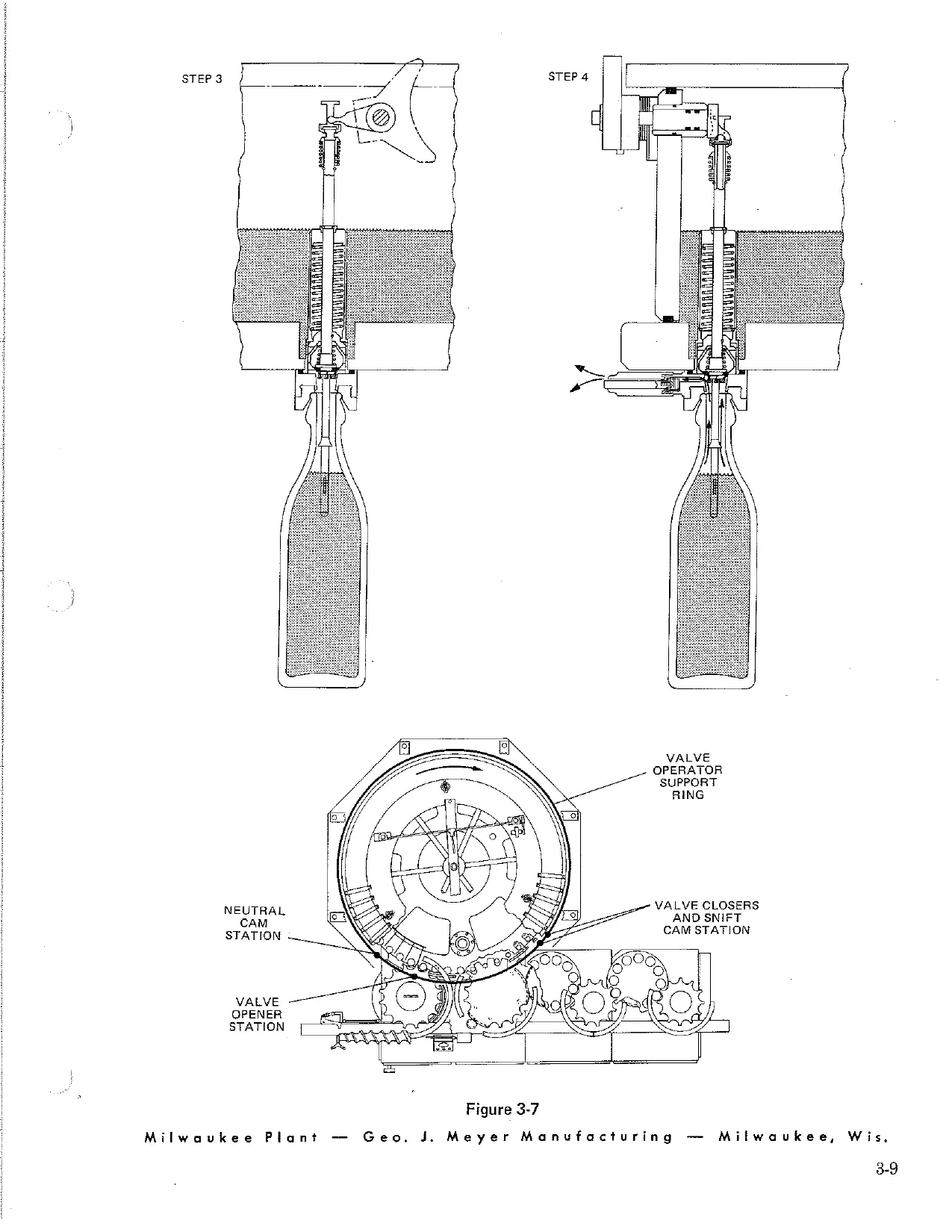

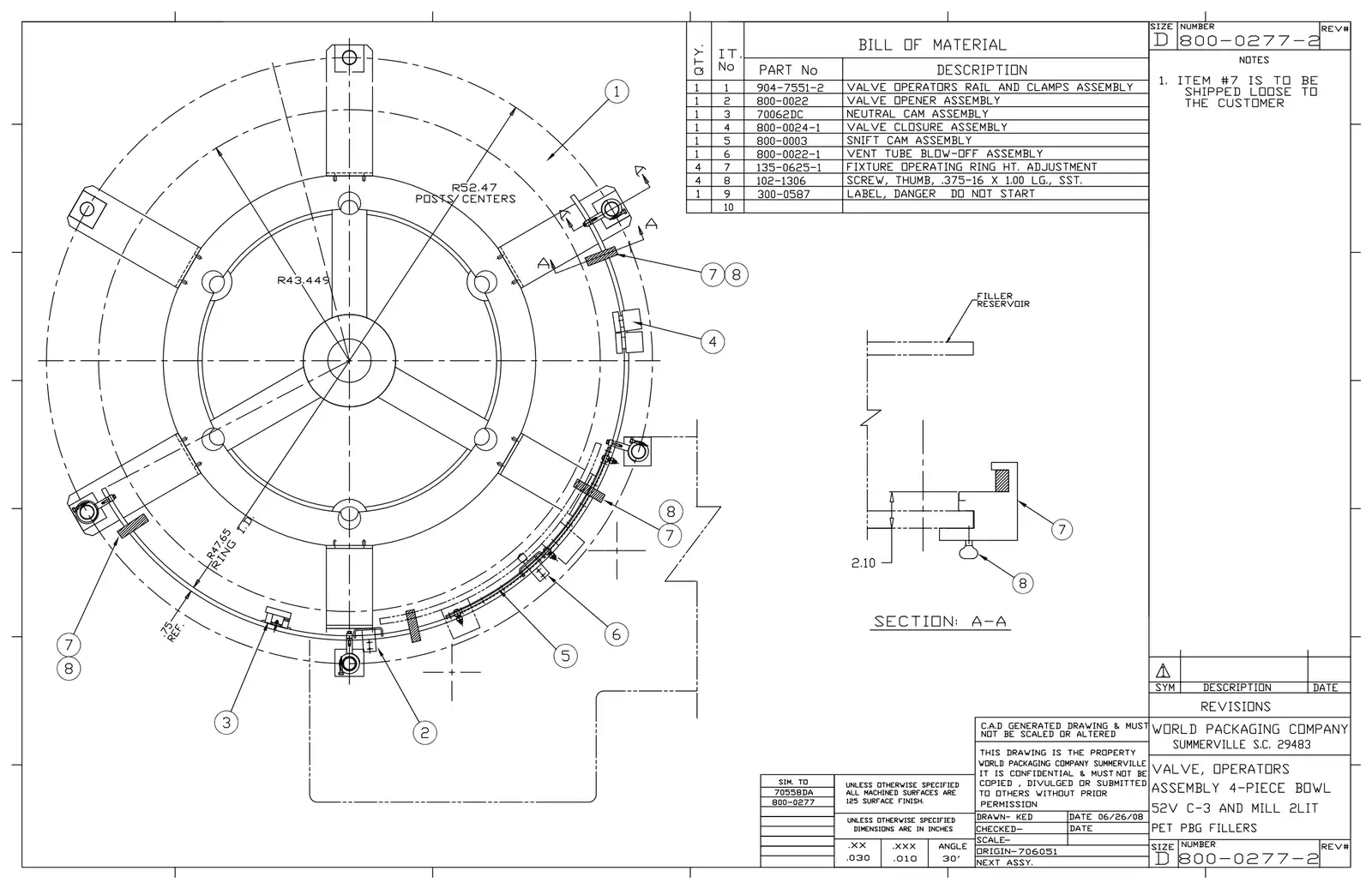

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

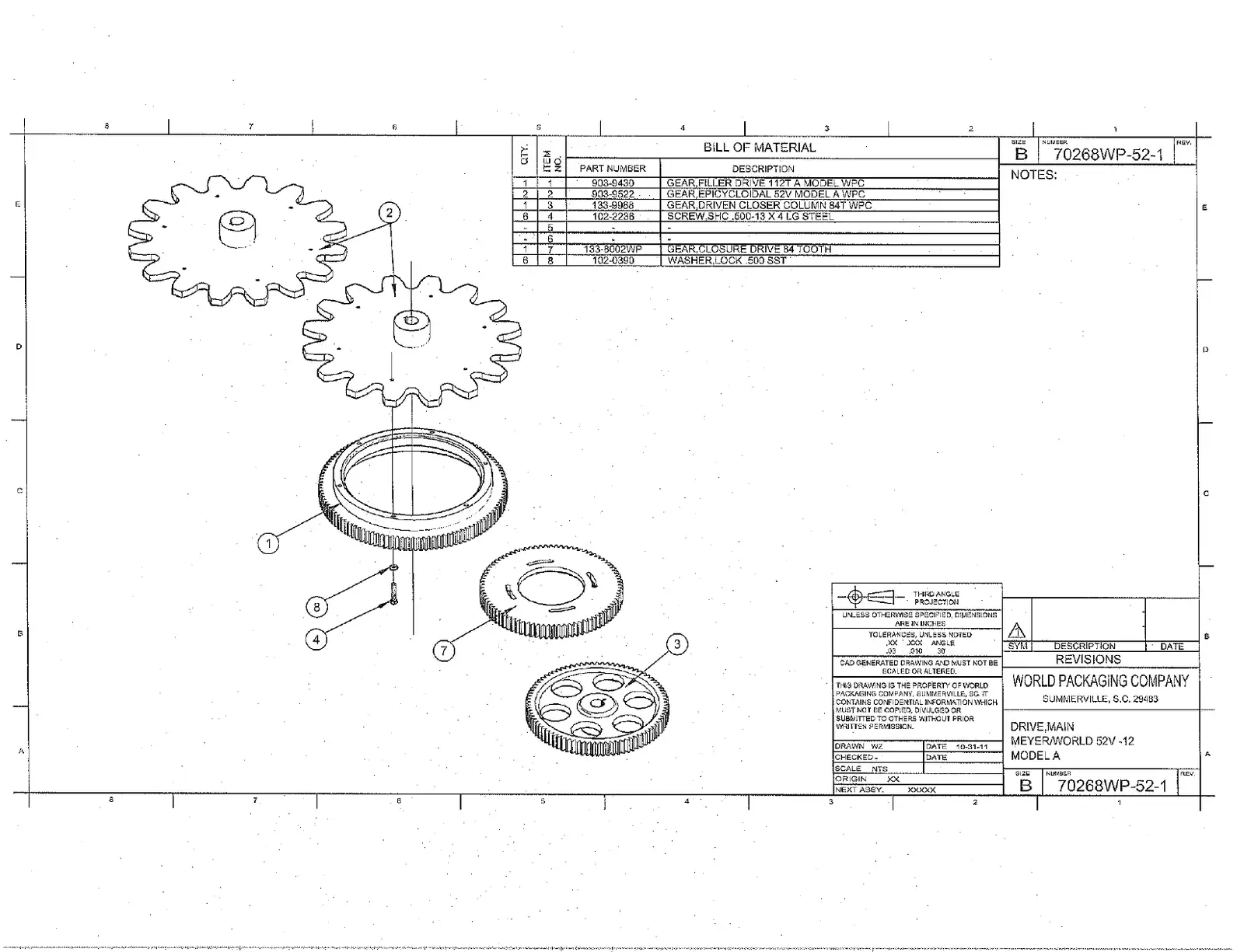

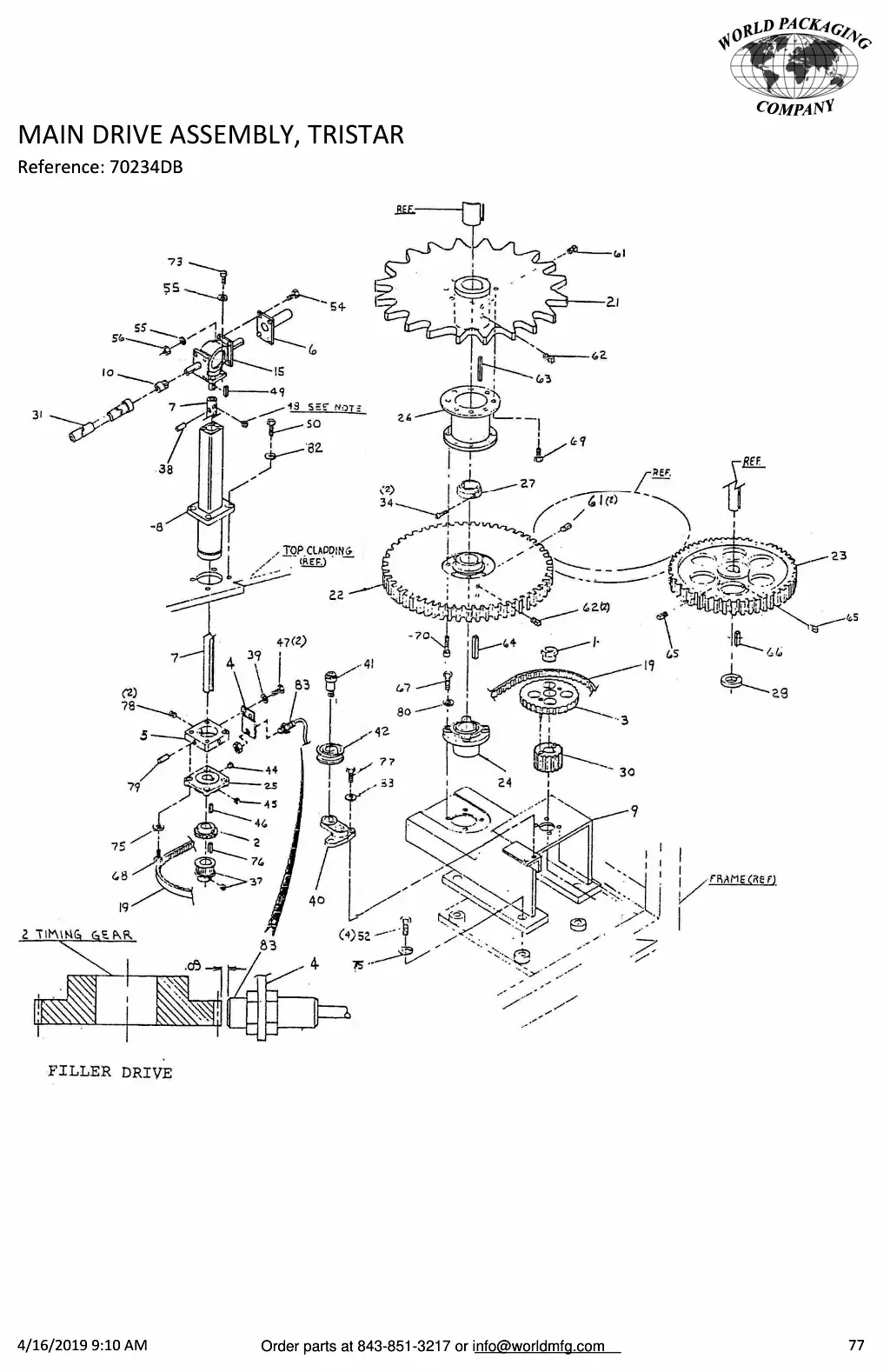

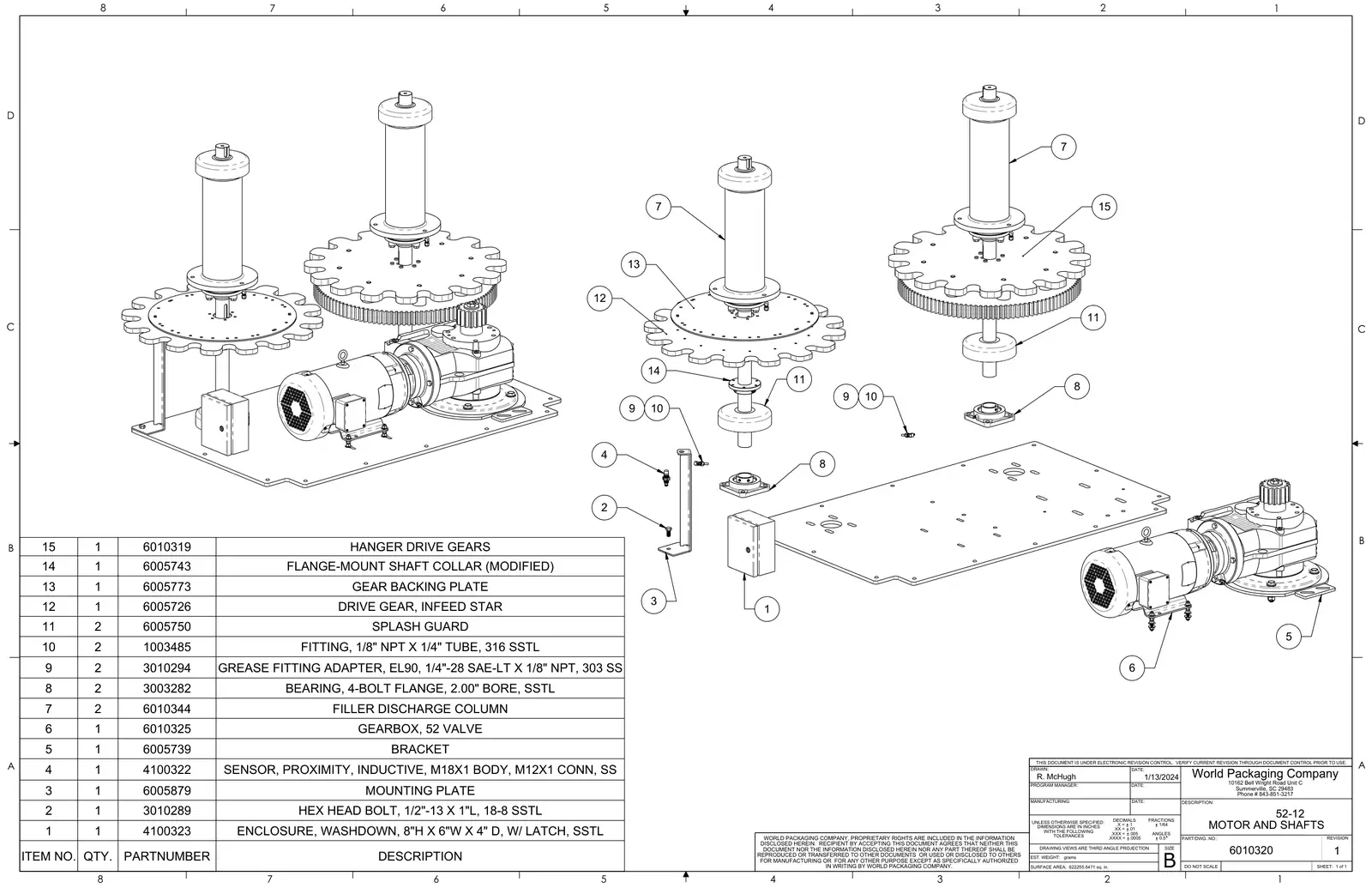

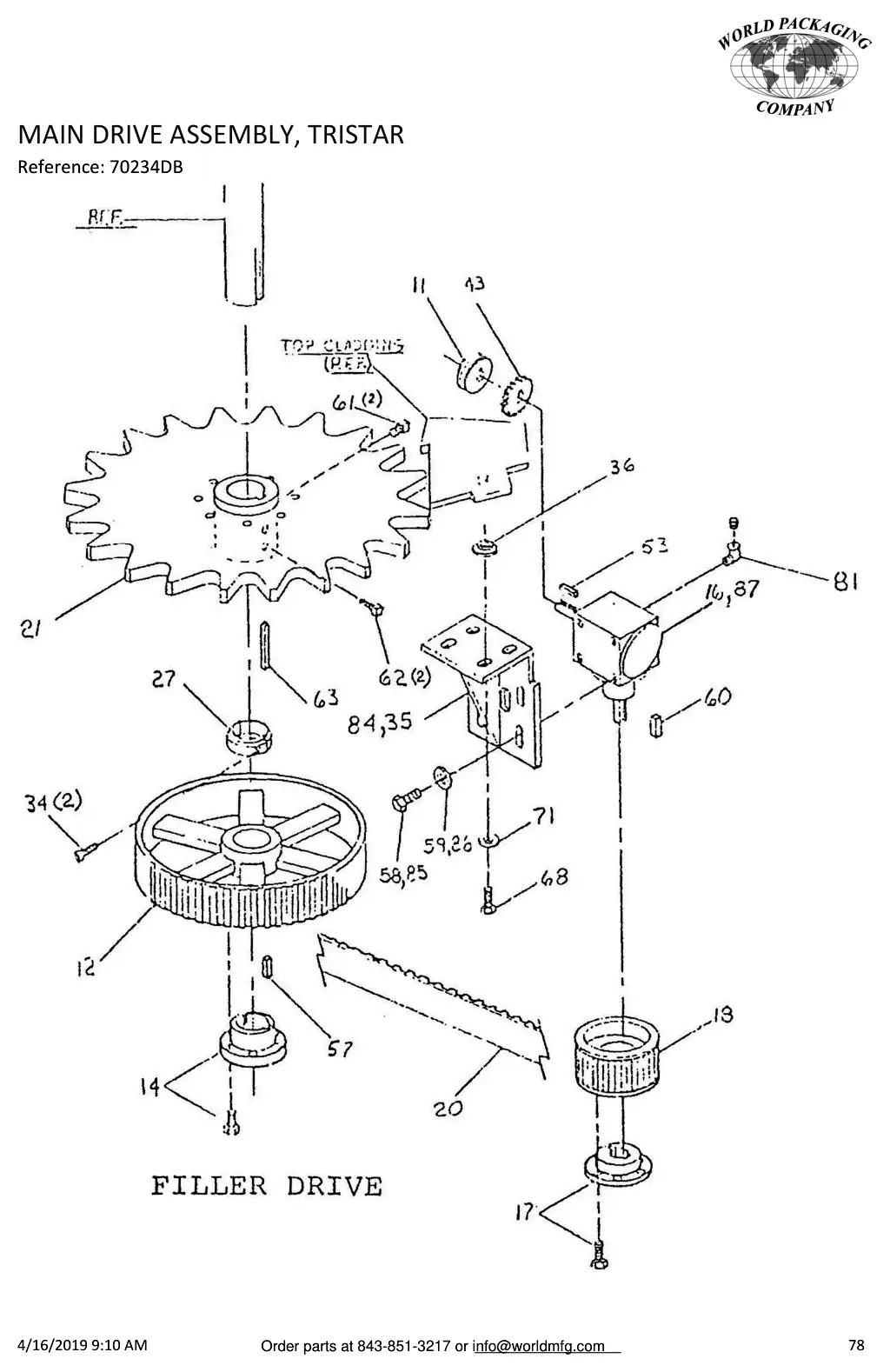

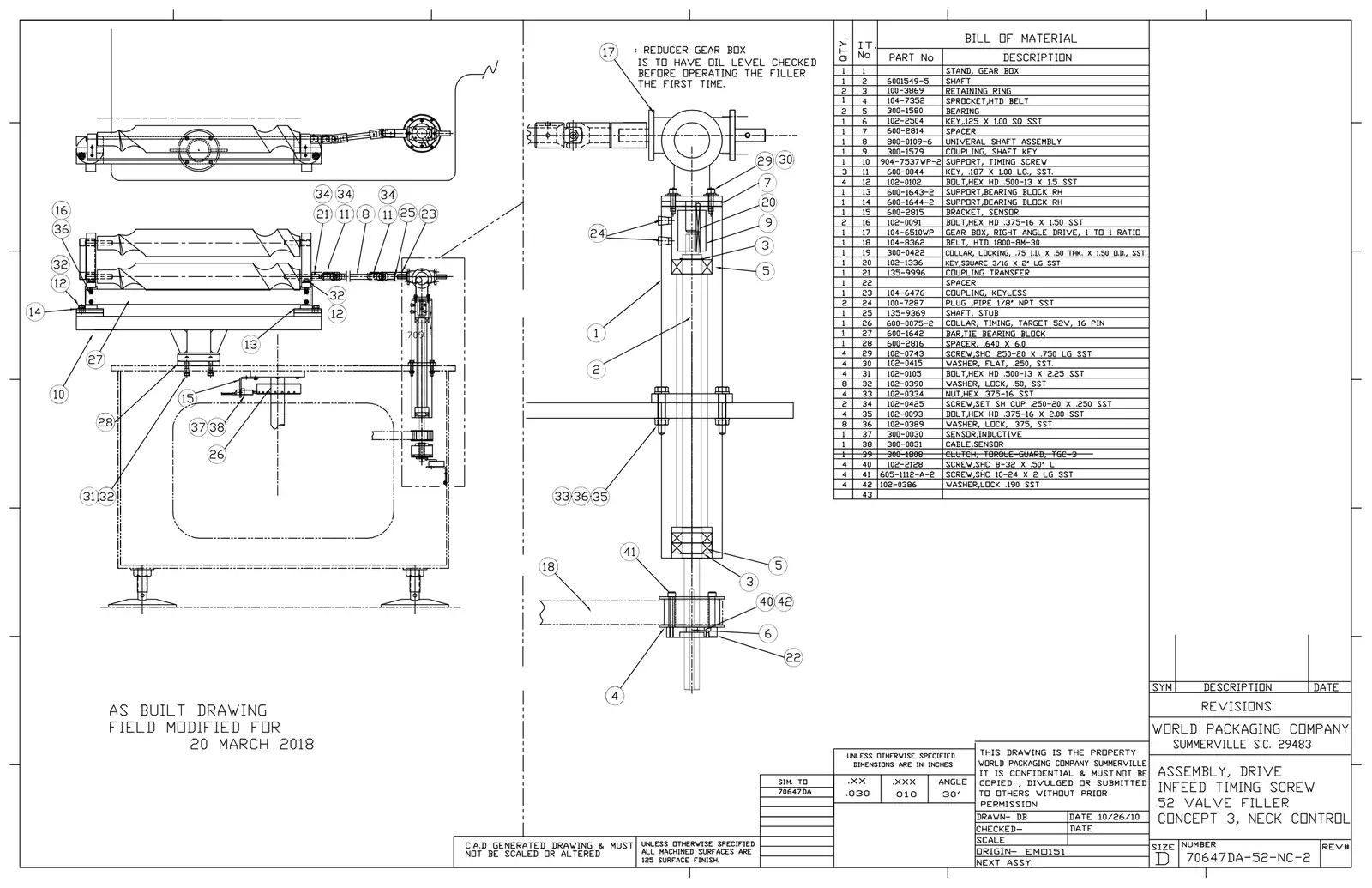

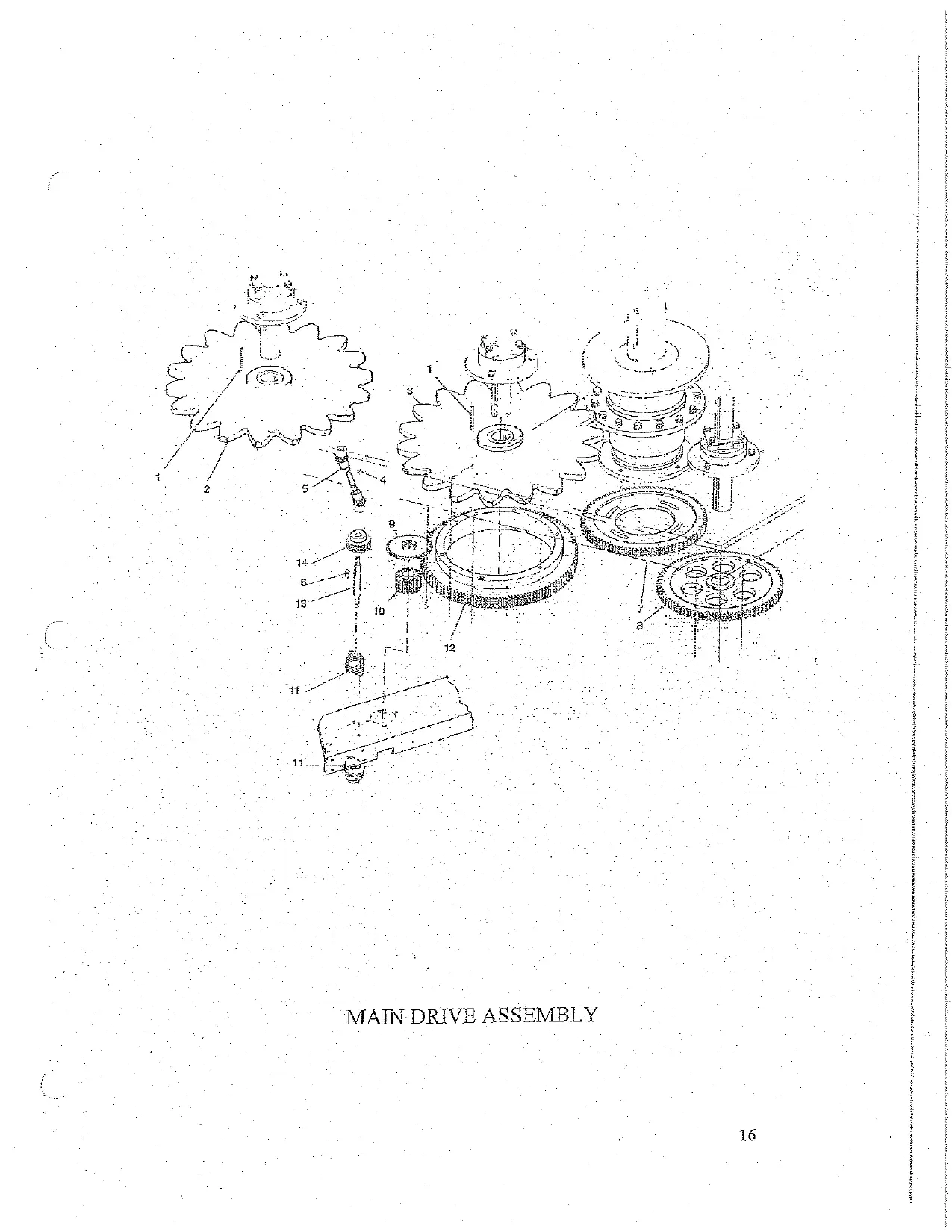

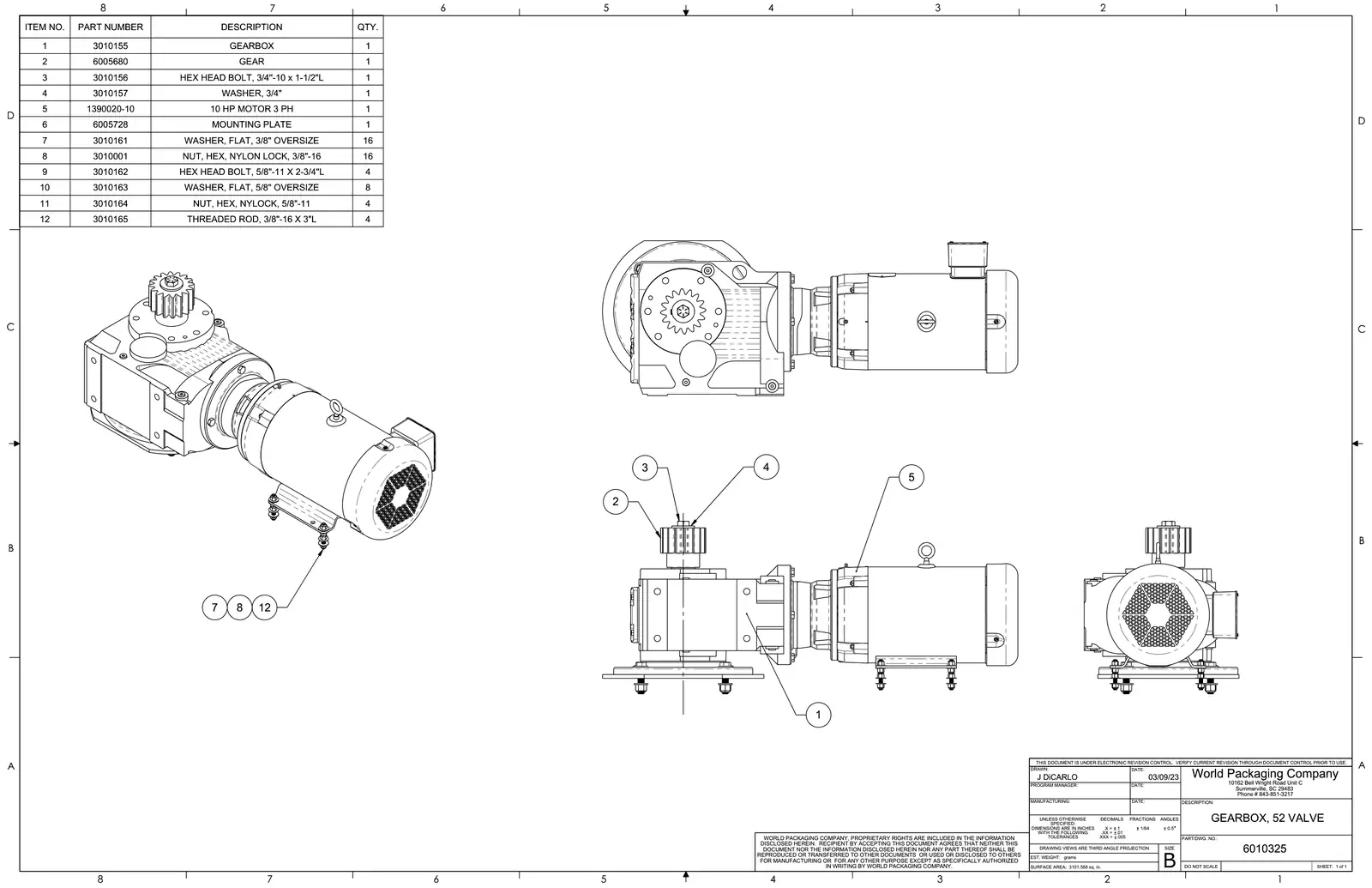

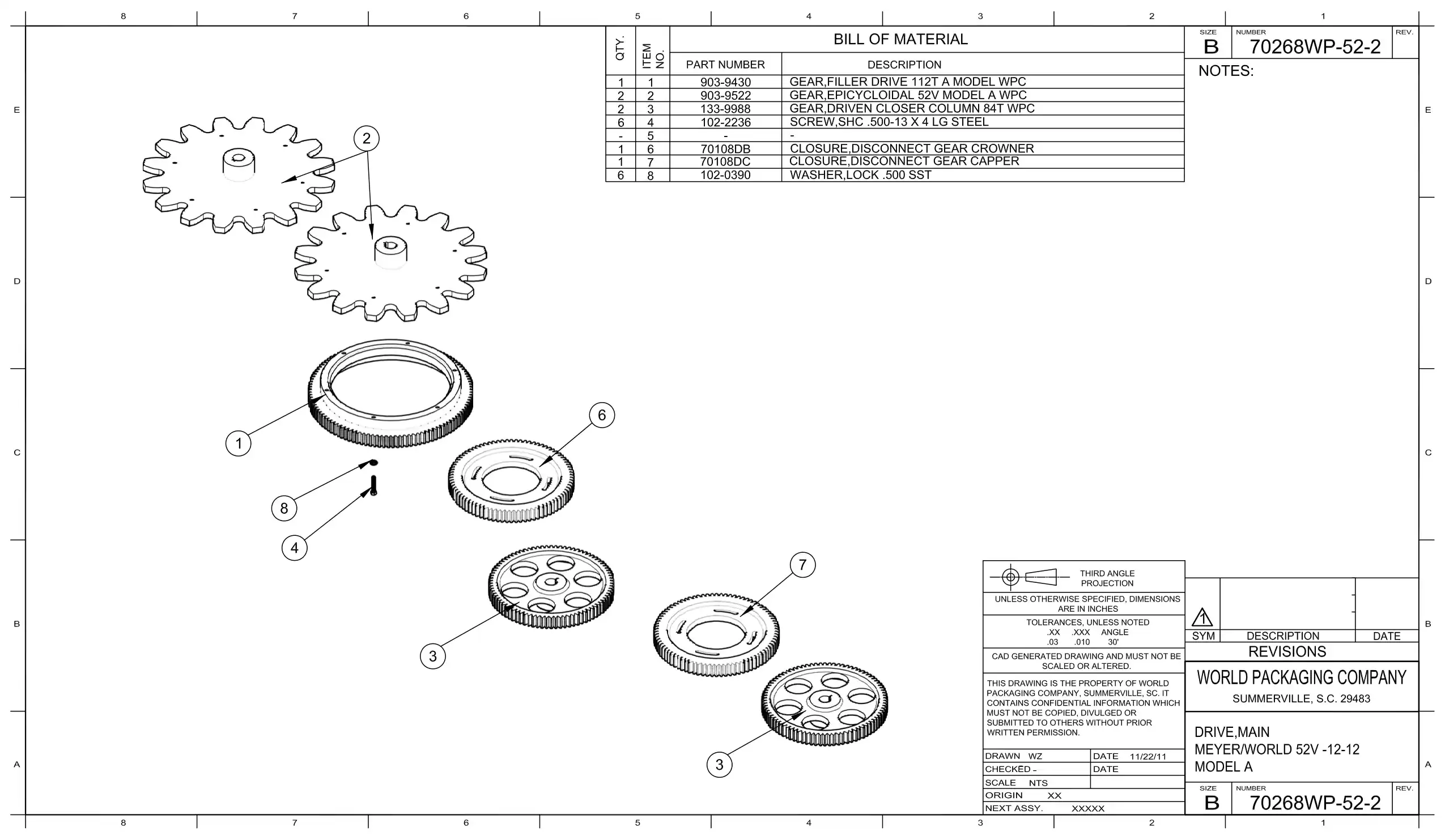

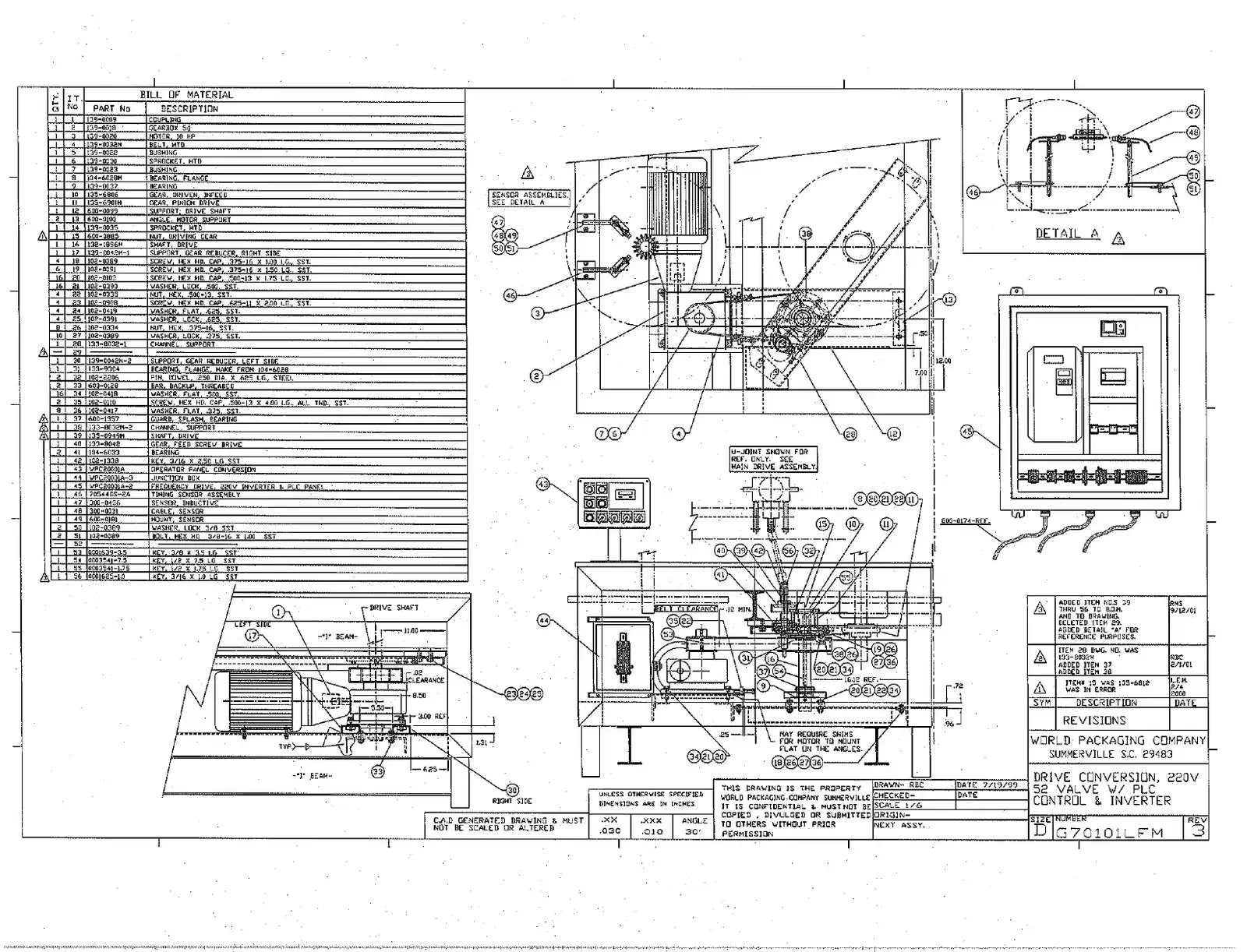

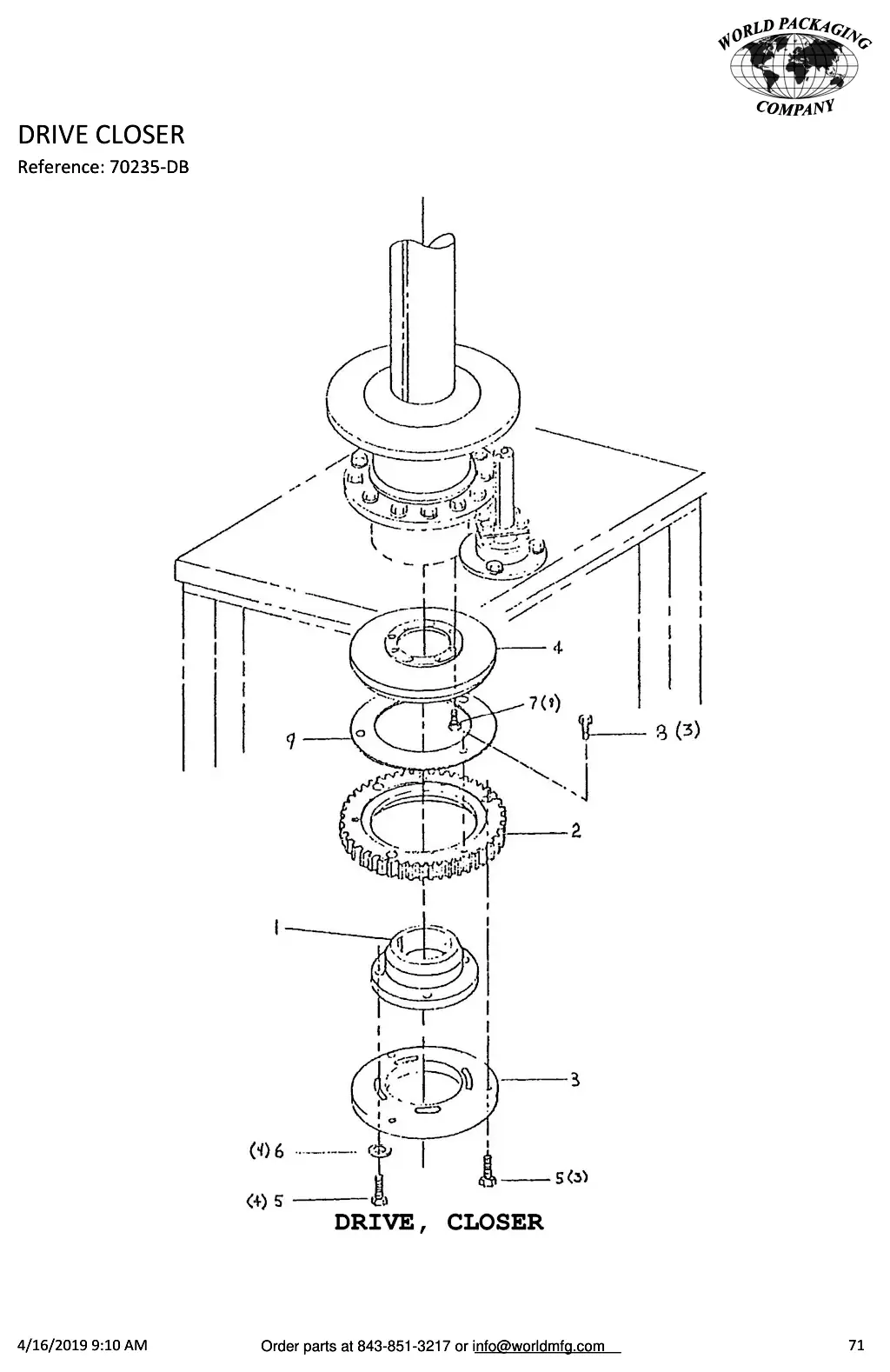

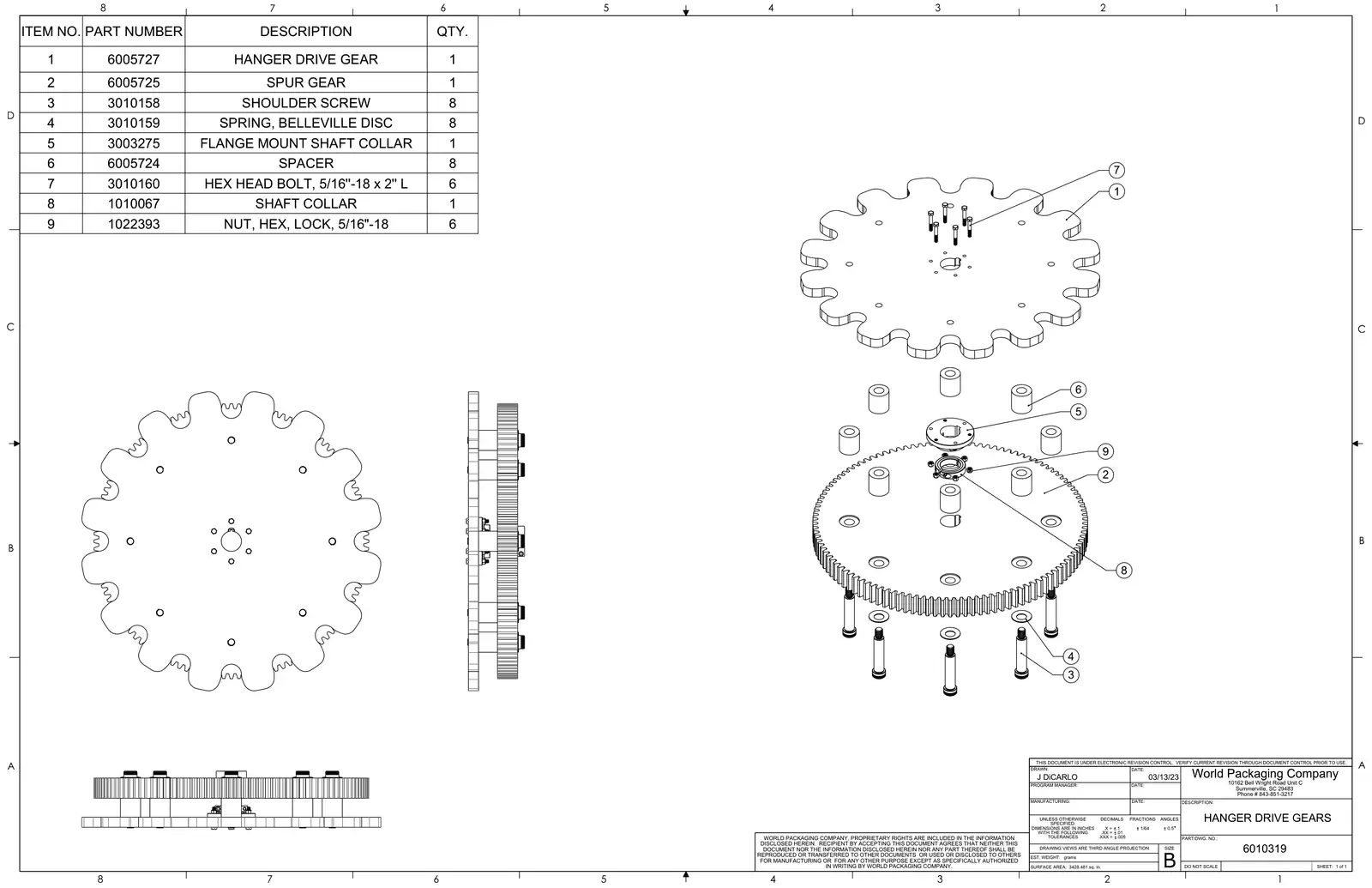

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
3	102-00911020091	Bolt, hex head	Request
6	102-03401020340	Nut, hex jam	Request
77	102-04171020417	Washer, flat	Request

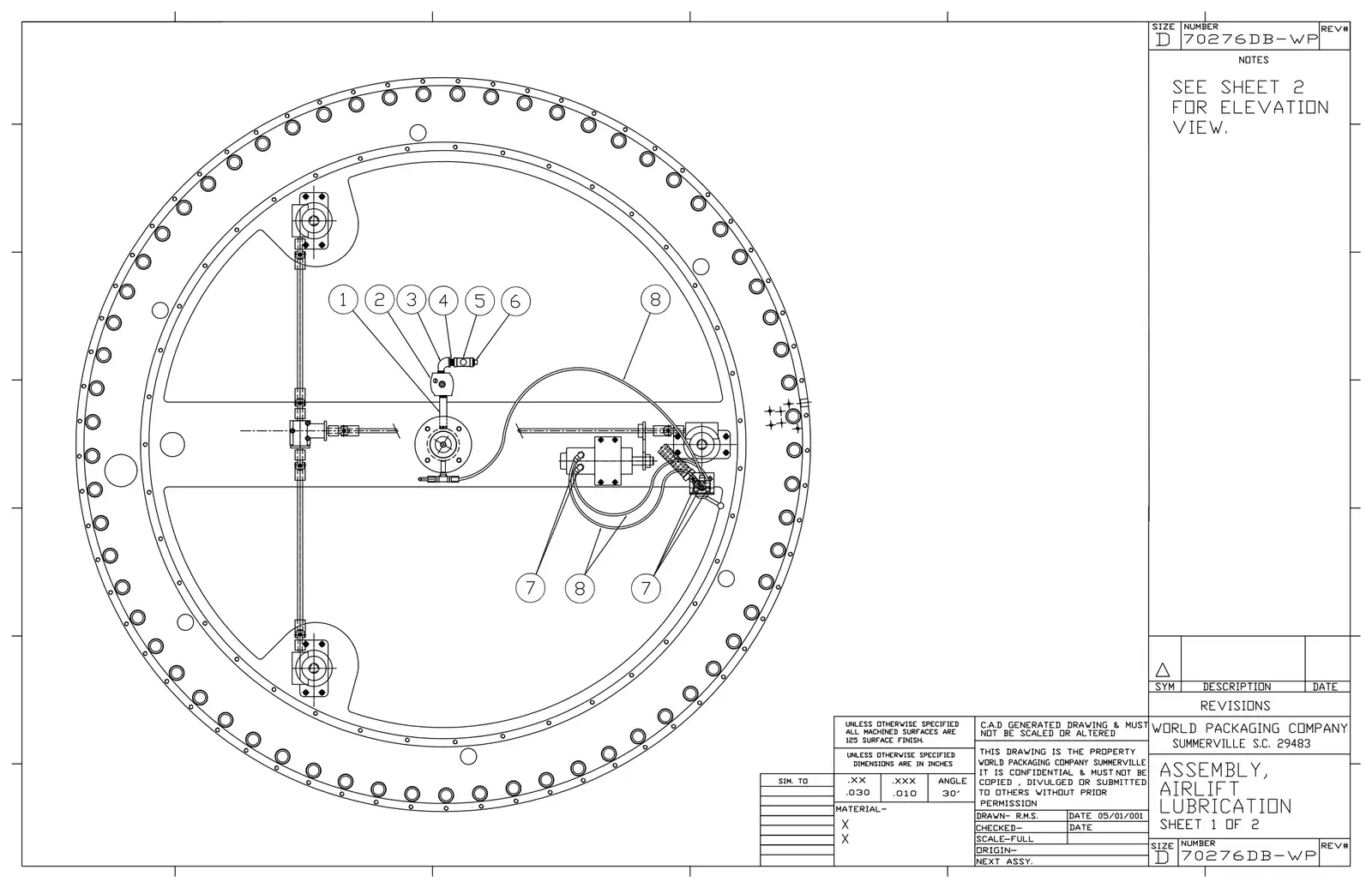

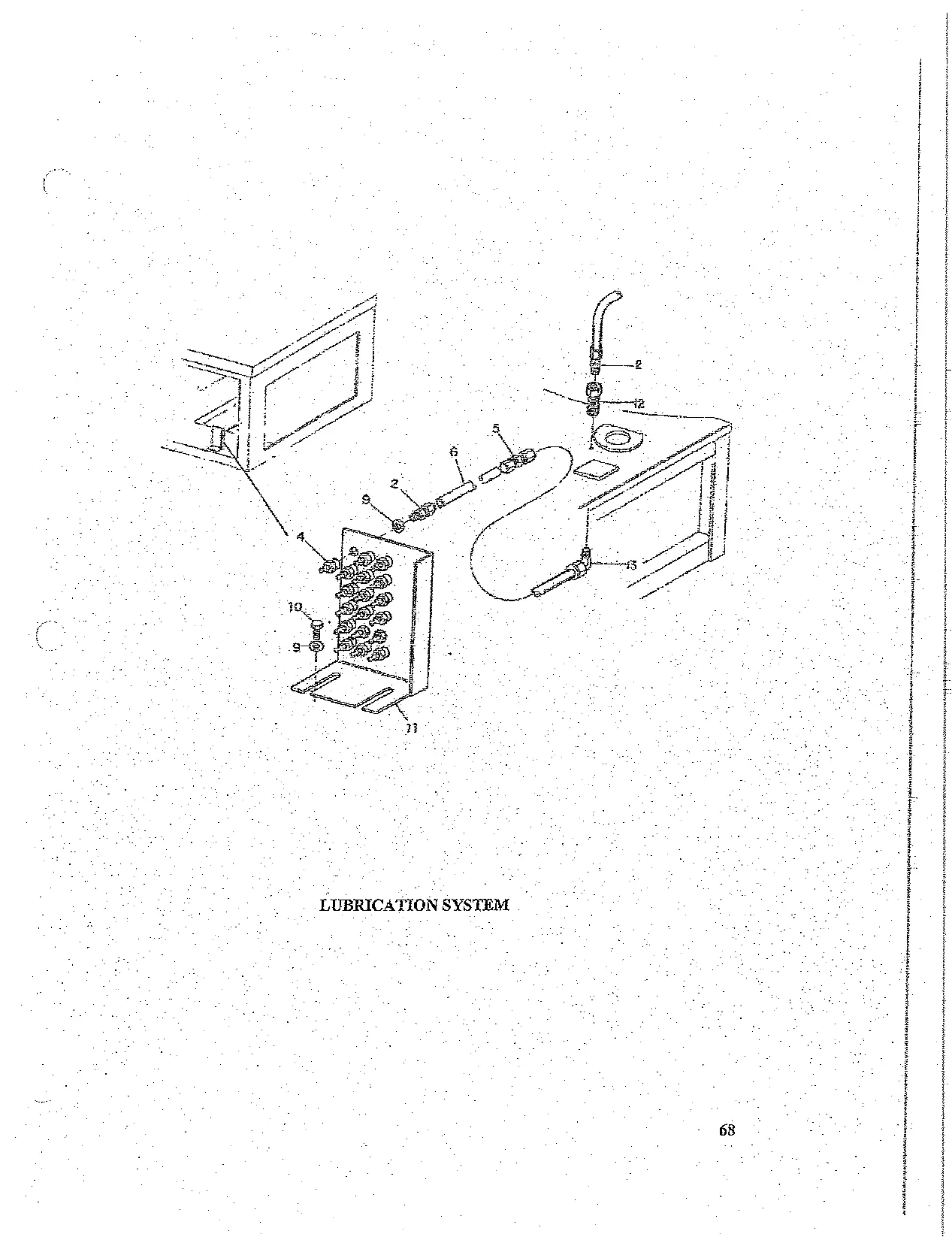

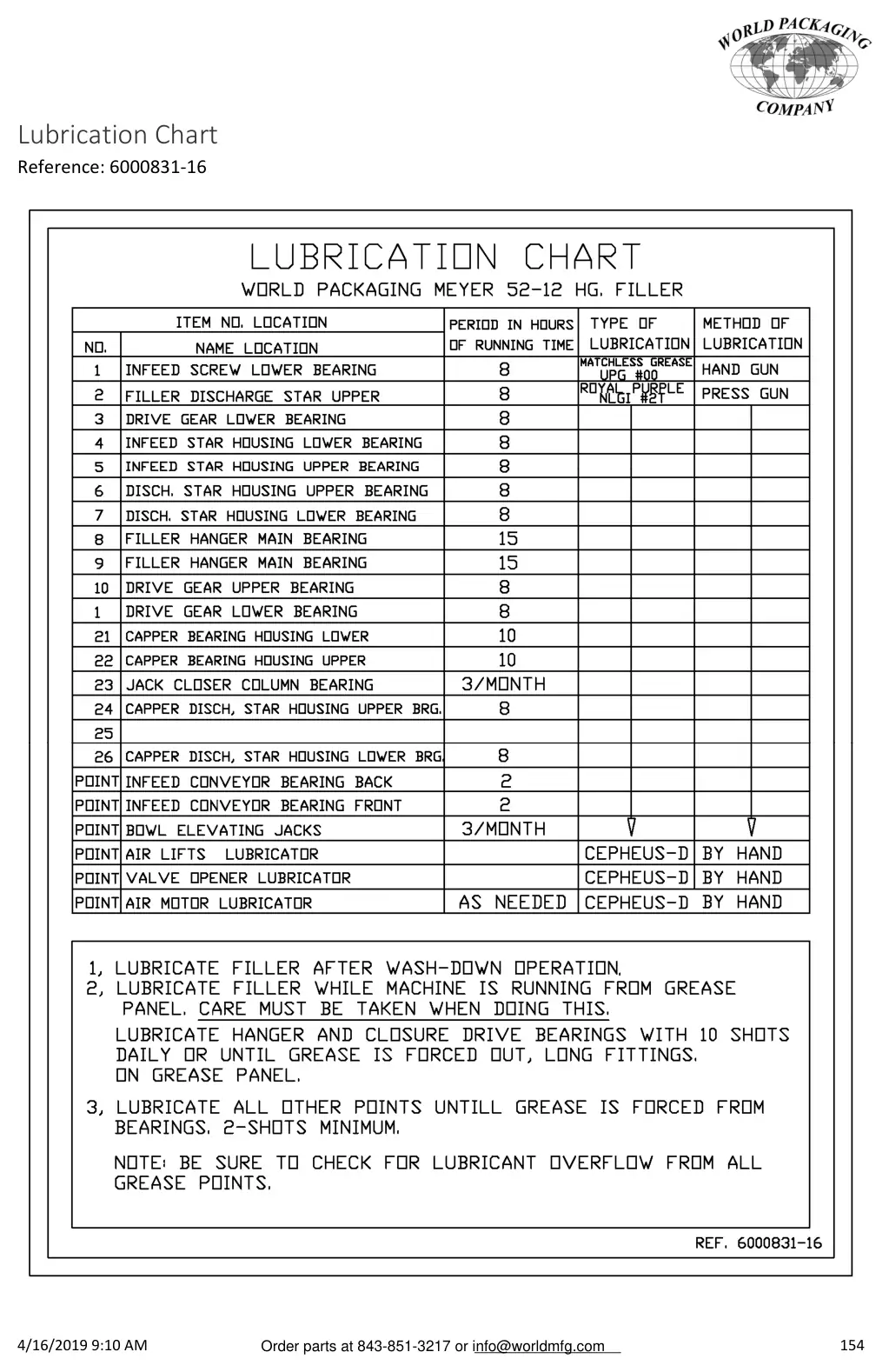

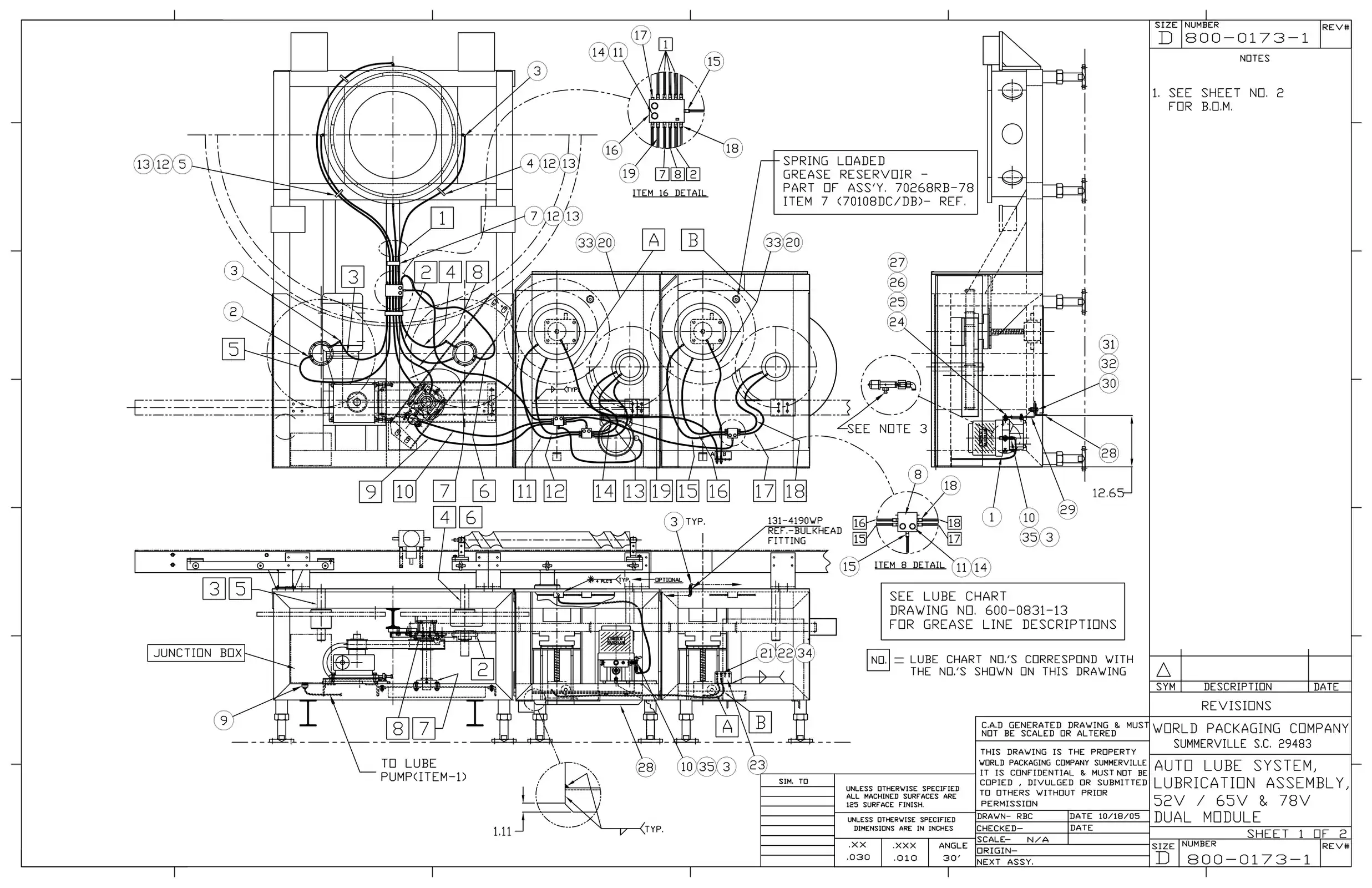

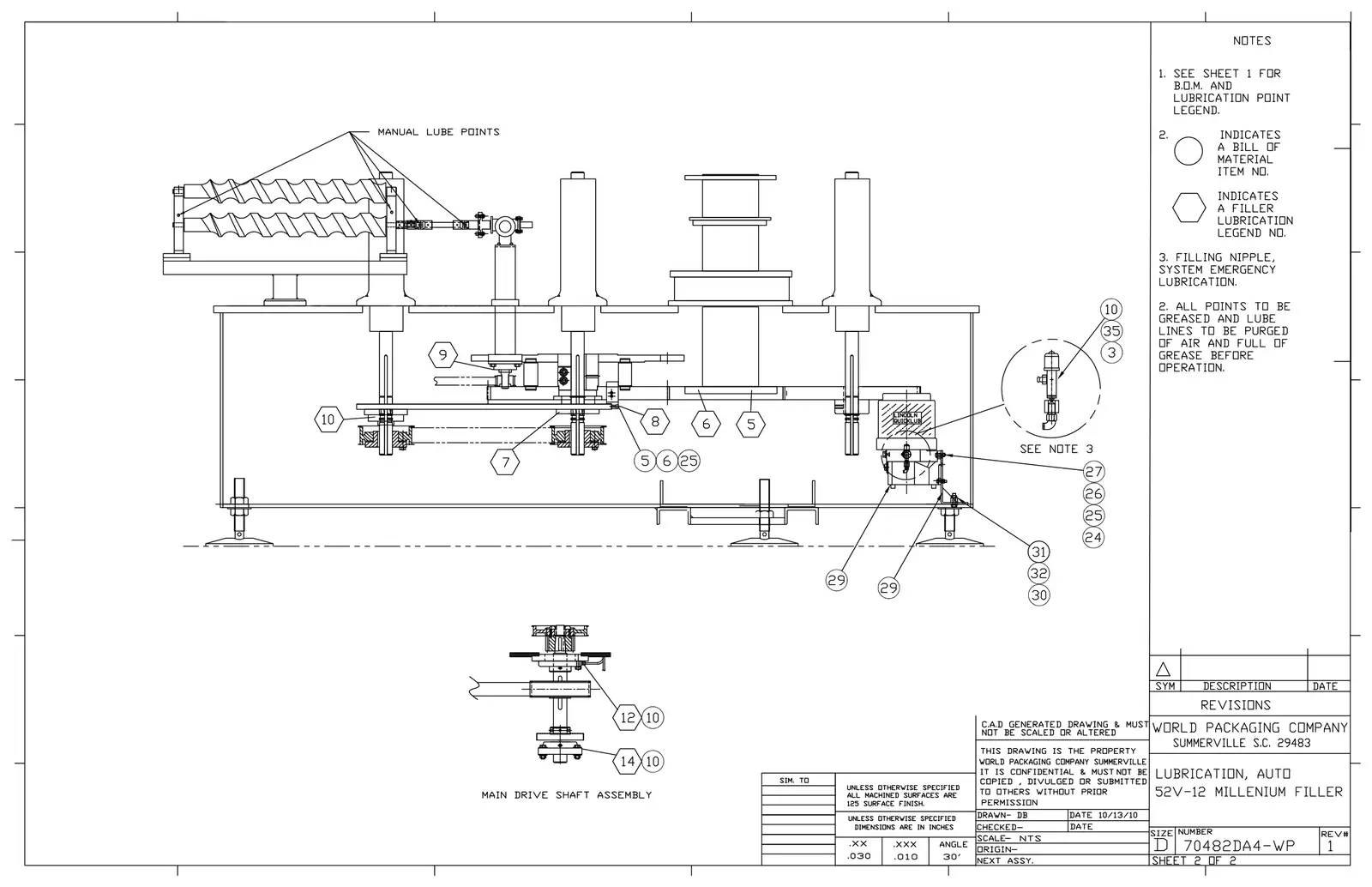

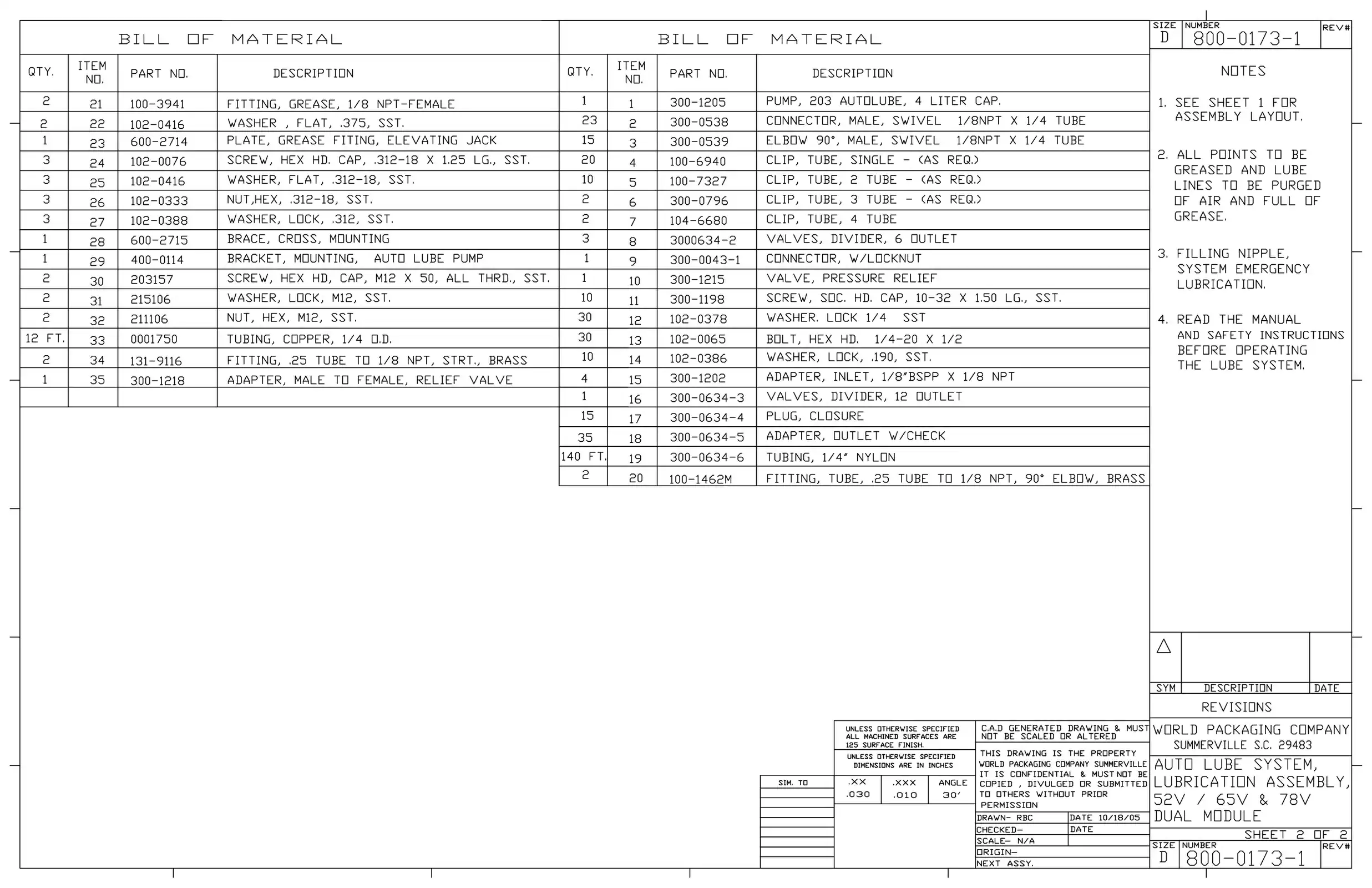

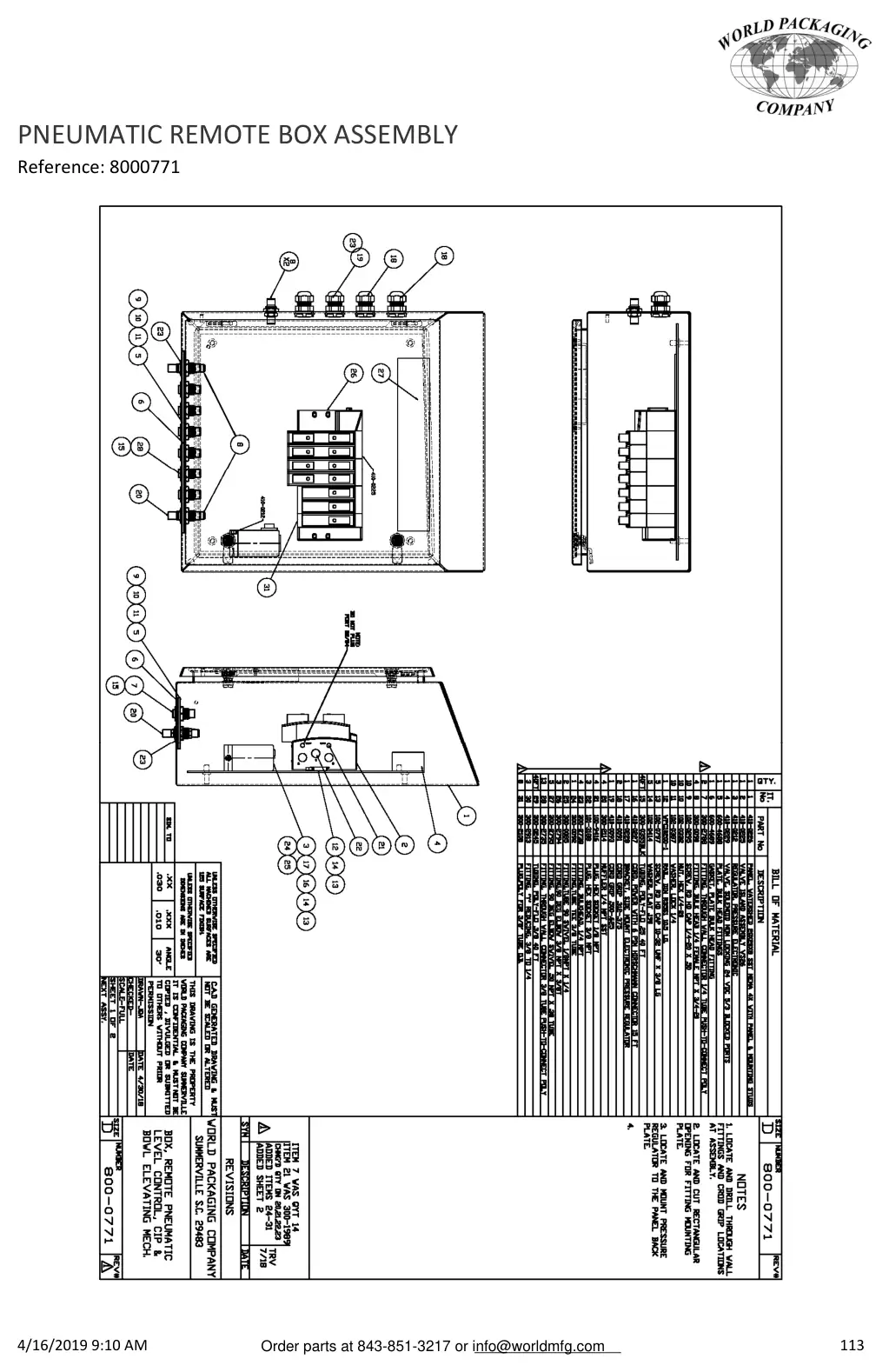

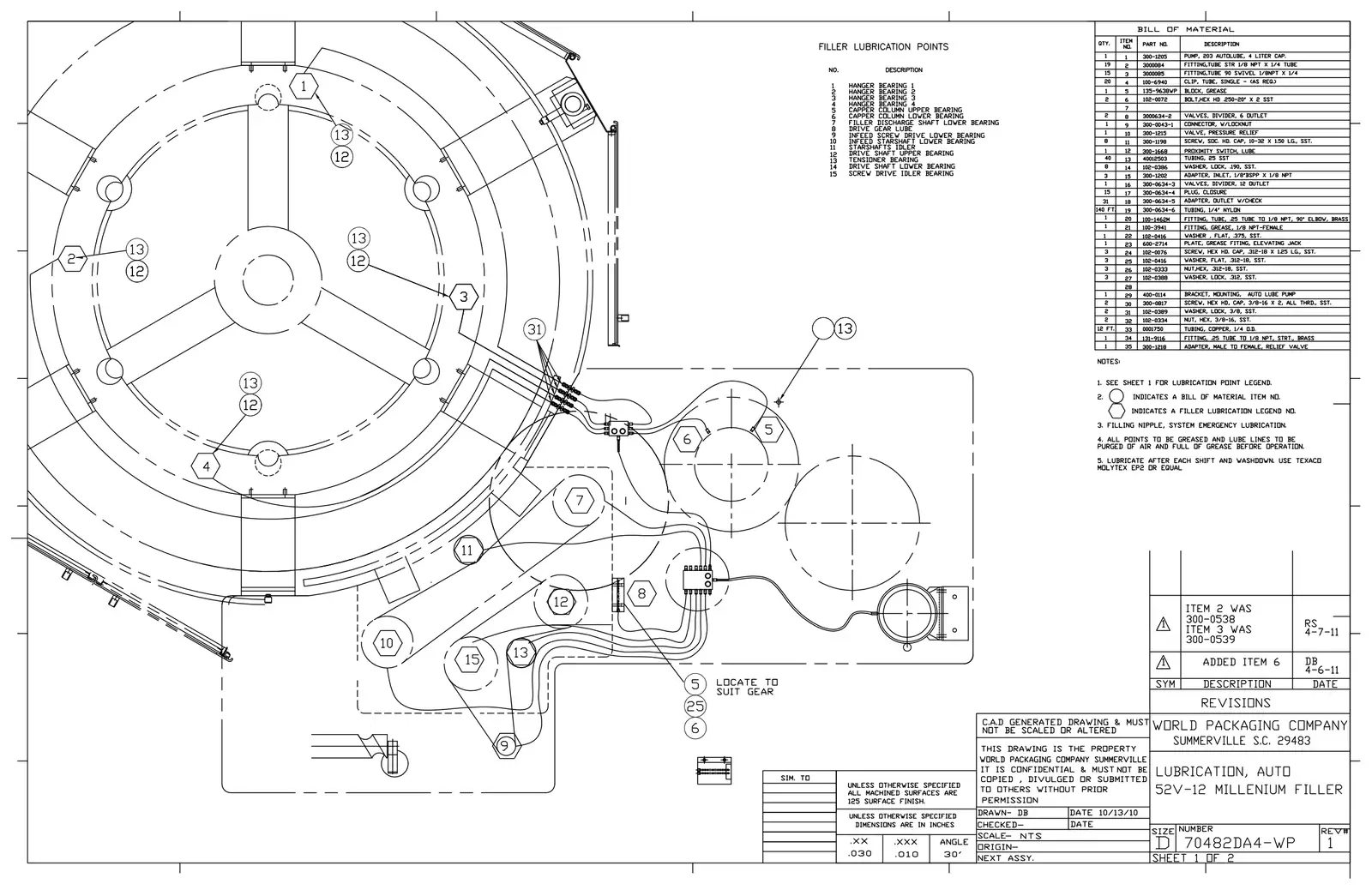

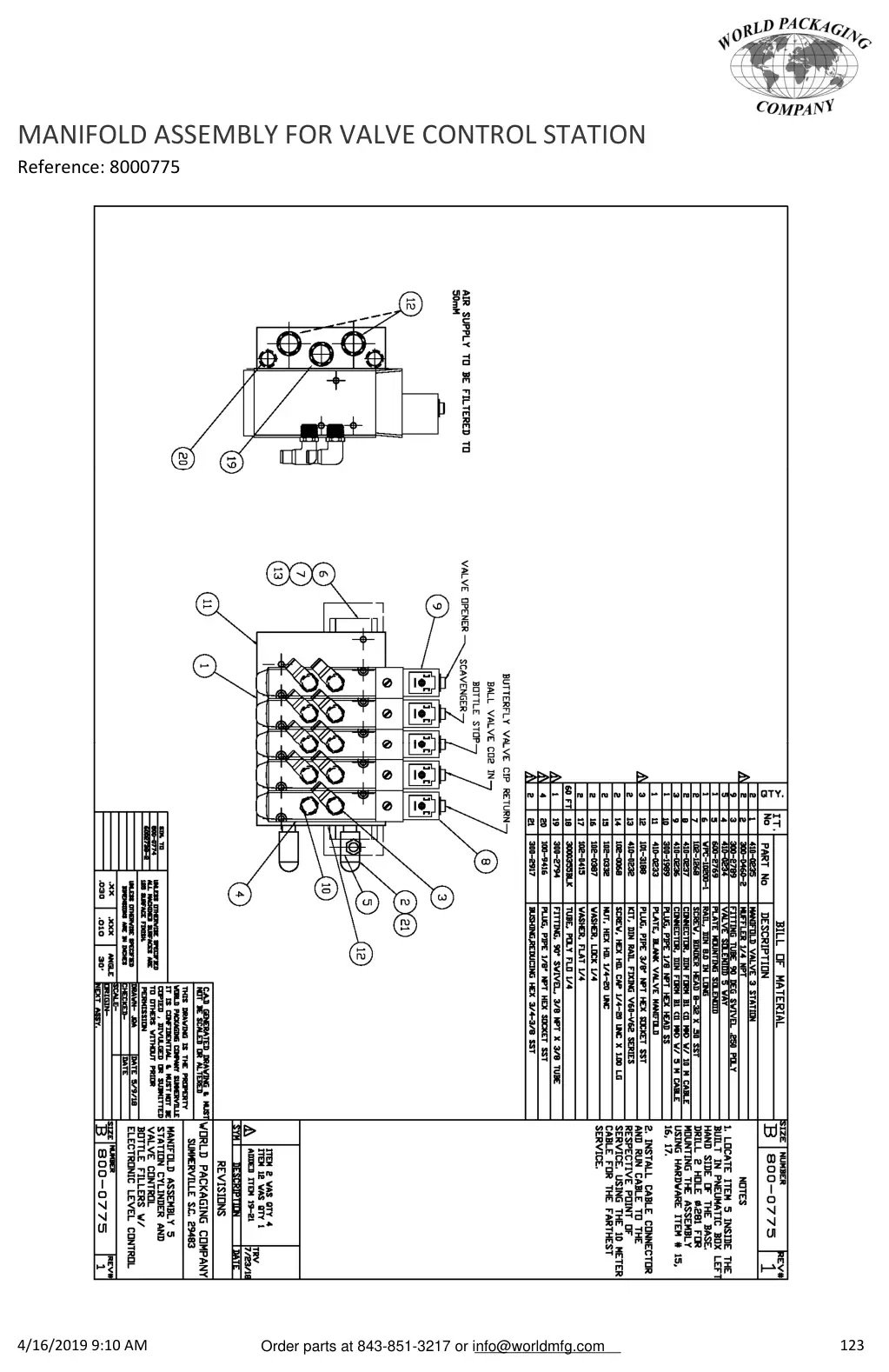

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
6	0001750000-1750	Tubing	Request
9	102-12551021255	Washer, flat	Request
9	102-16471021647	Bolt, hex head	Request
9	100-1462M1001462M	Elbow, tube male	Request
1	1003941100-3941	Fitting, grease female str	Request
2	1319116131-9116	Fitting, tube male br	Request
4	1002725M	Coupling, hex pipe	Request
5	1004766100-4766	Fitting, grease straight ptf	Request
7	1001635100-1635	Coupling, tube	Request

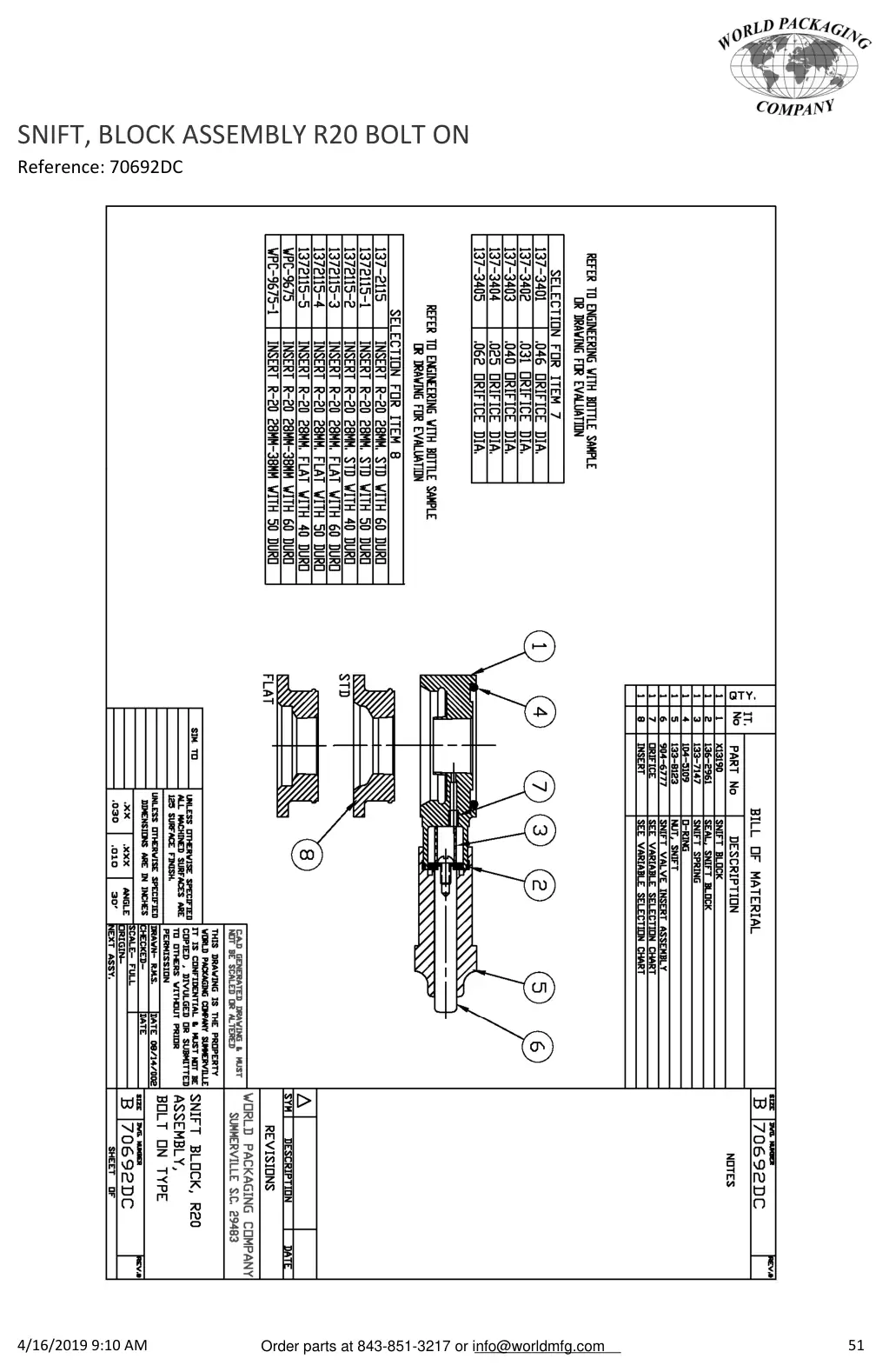

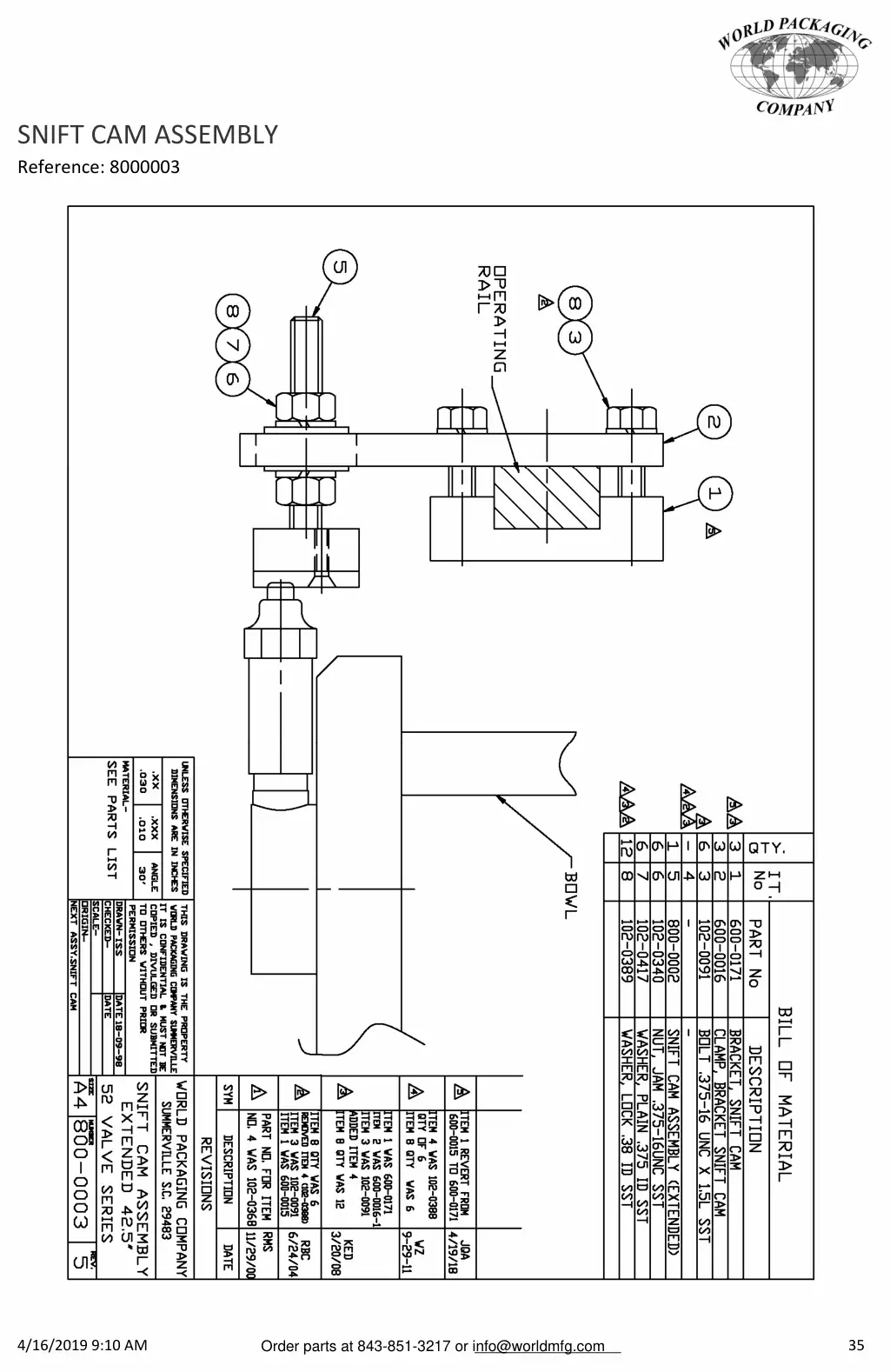

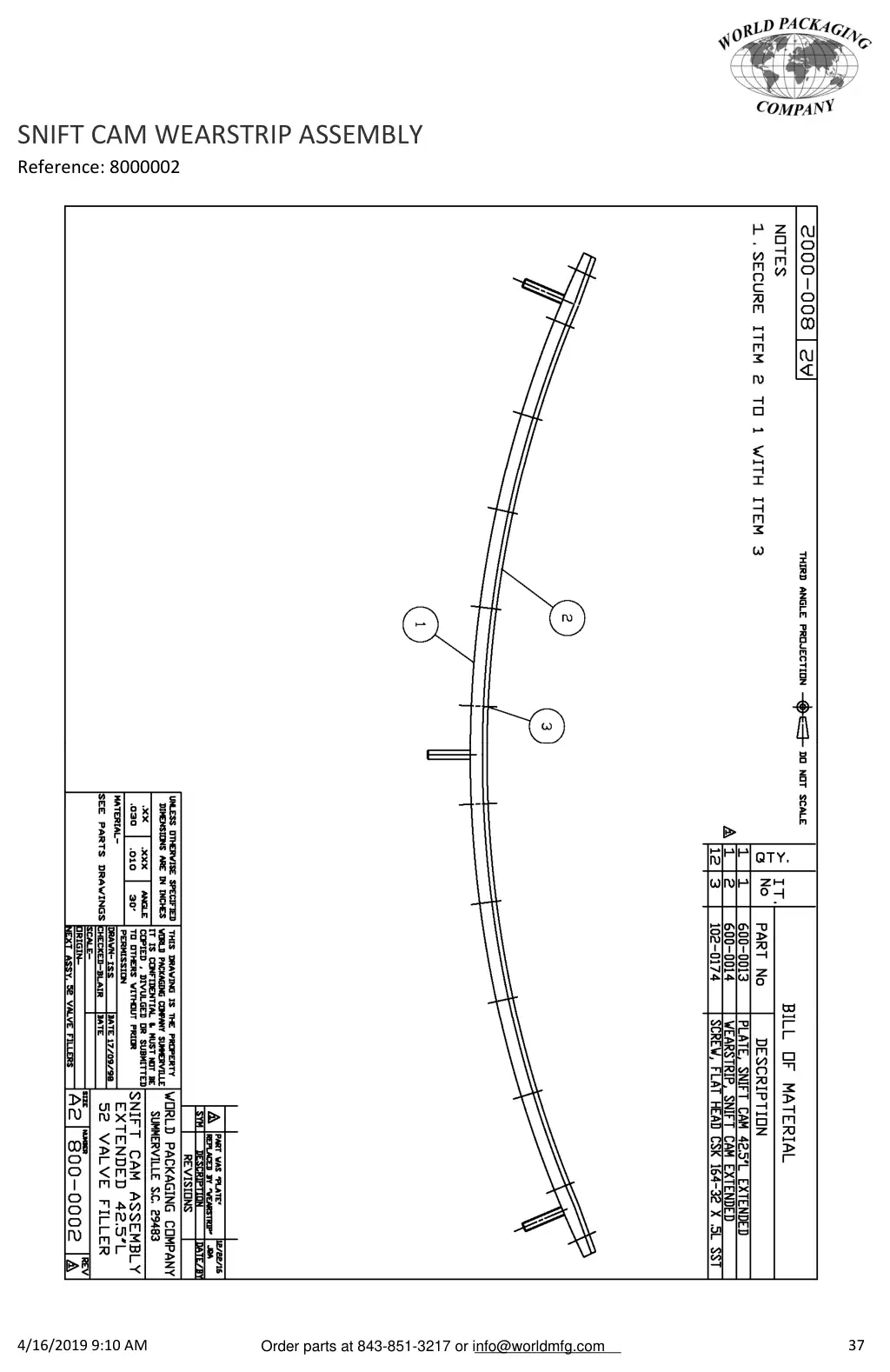

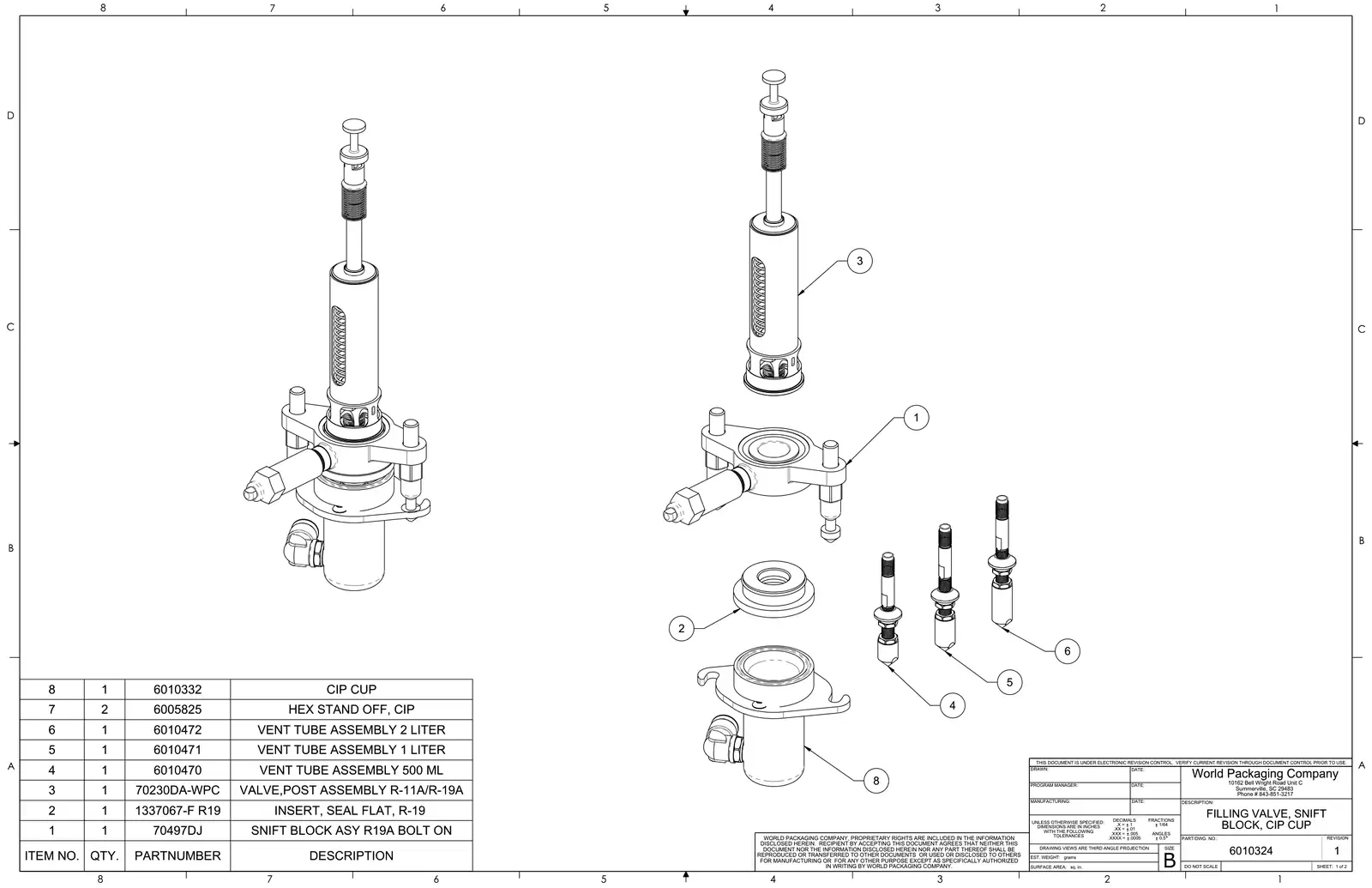

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

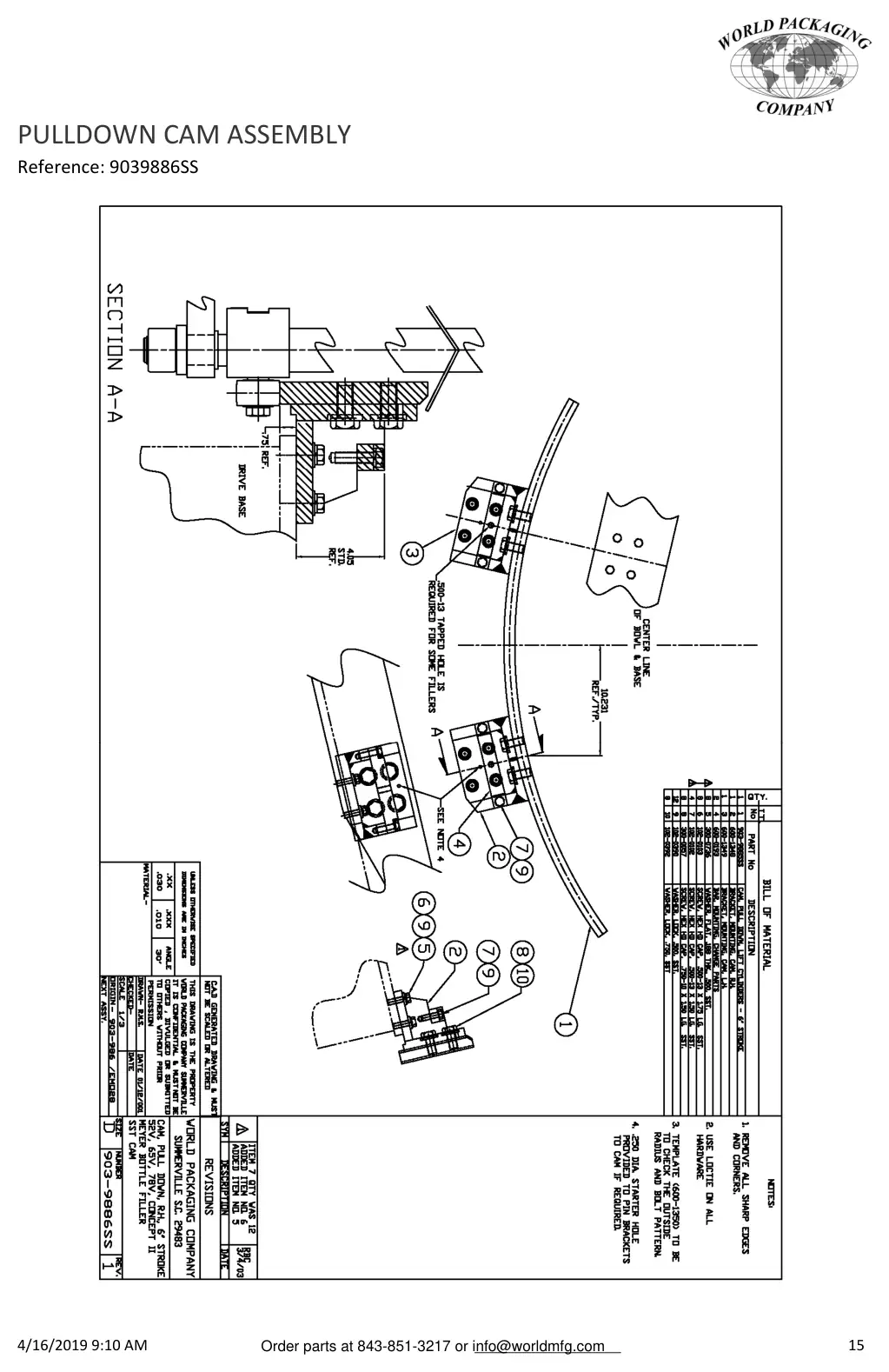

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	9039885SS	Cam, pulldown	Request
2	6001348600-1348	Bracket, mtg cam pulldown	Request
3	6001349600-1349	Bracket, mtg cam pulldown	Request
4	6000193600-0193	Bar, mounting	Request
5	3000736300-0736	Washer, flat	Request
6	1020103102-0103	Bolt, hex head	Request
7	1020102102-0102	Bolt, hex head	Request
8	3000057300-0057	Bolt, hex head	Request
9	1020390102-0390	Washer, lock	Request
10	1020392102-0392	Washer, lock	Request

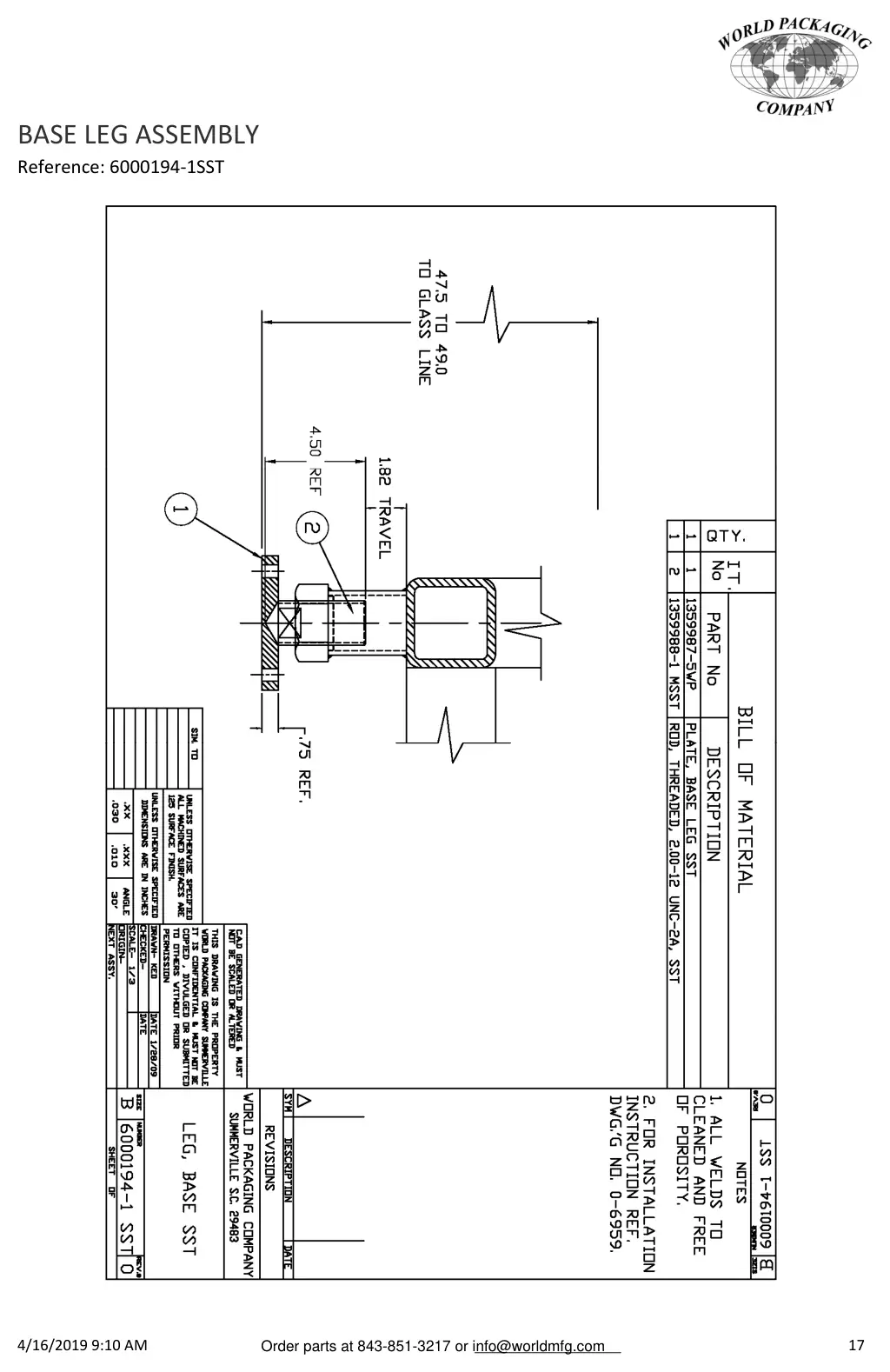

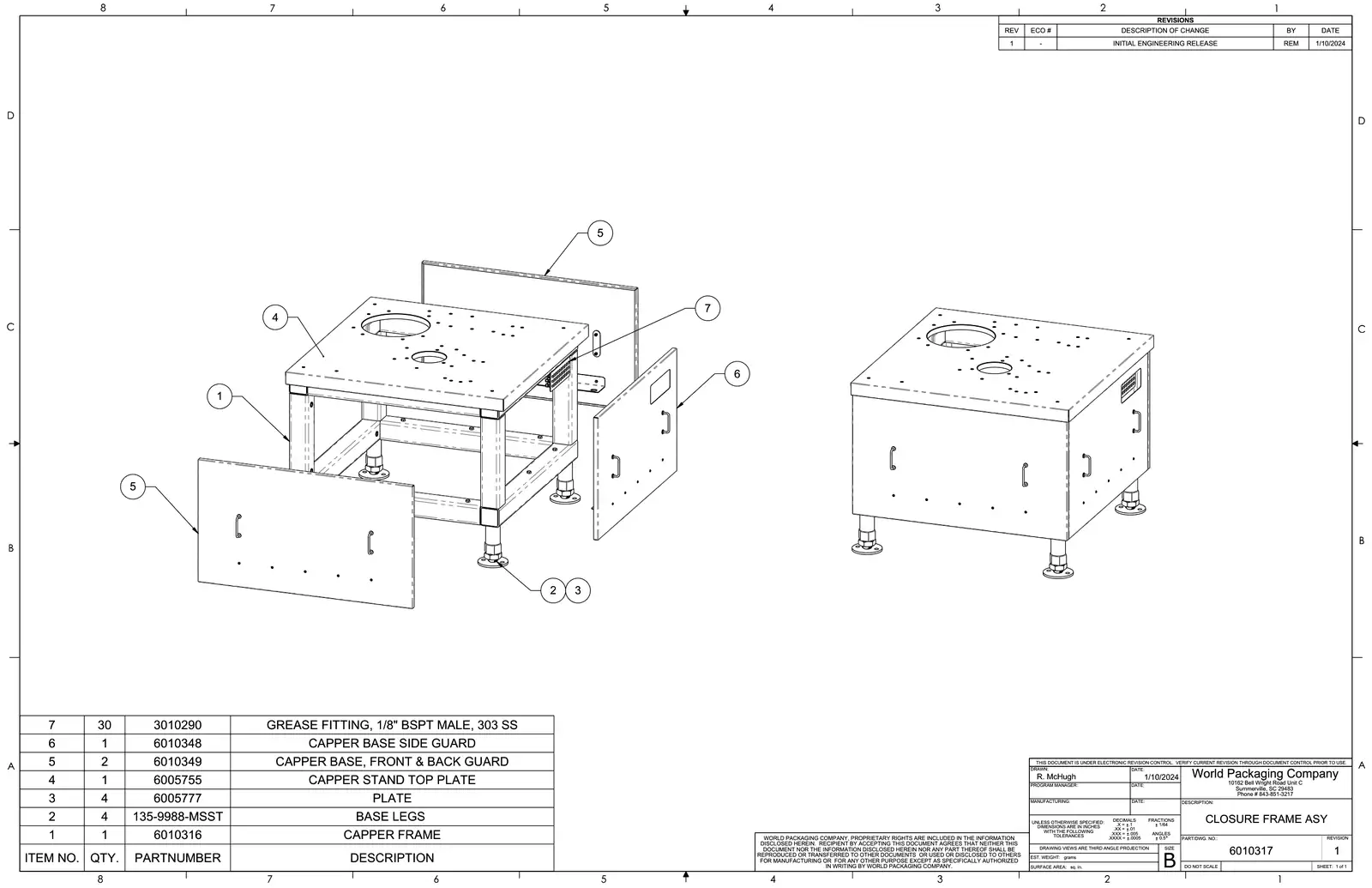

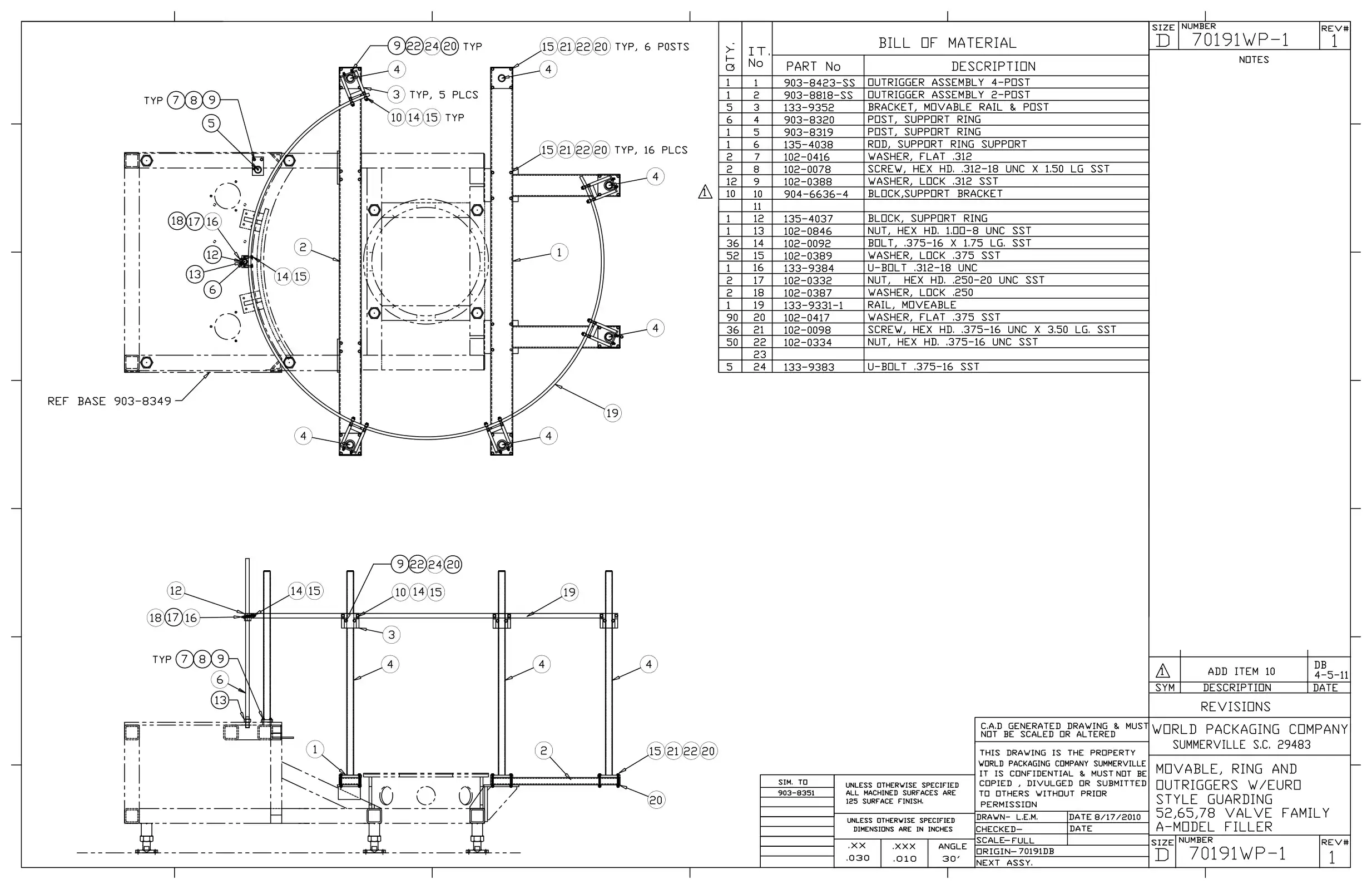

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
1	1359987-5WP	Pad, leg family	Ask us
2	1359988-1MSST	Rod, threaded base leg	Request

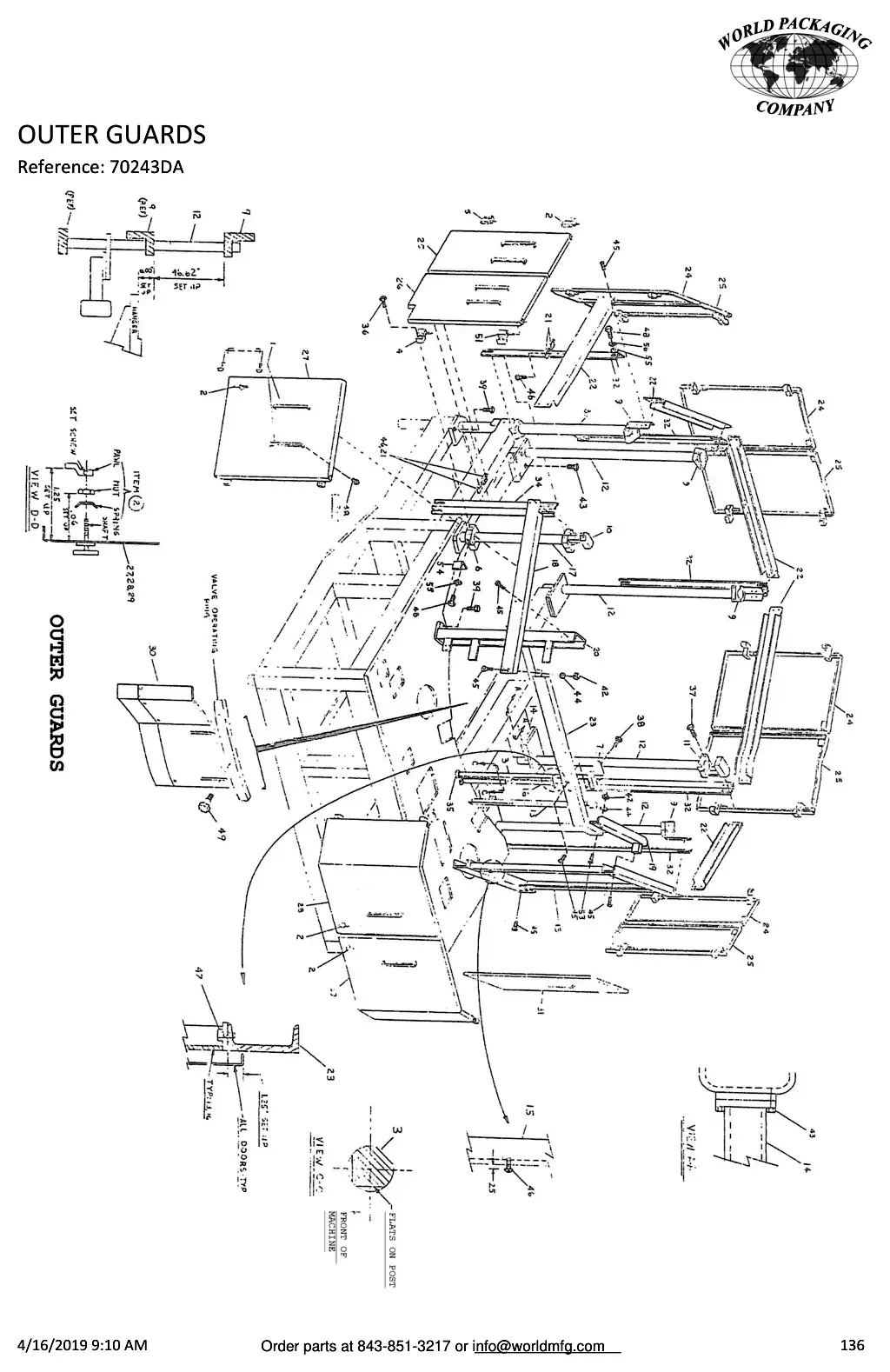

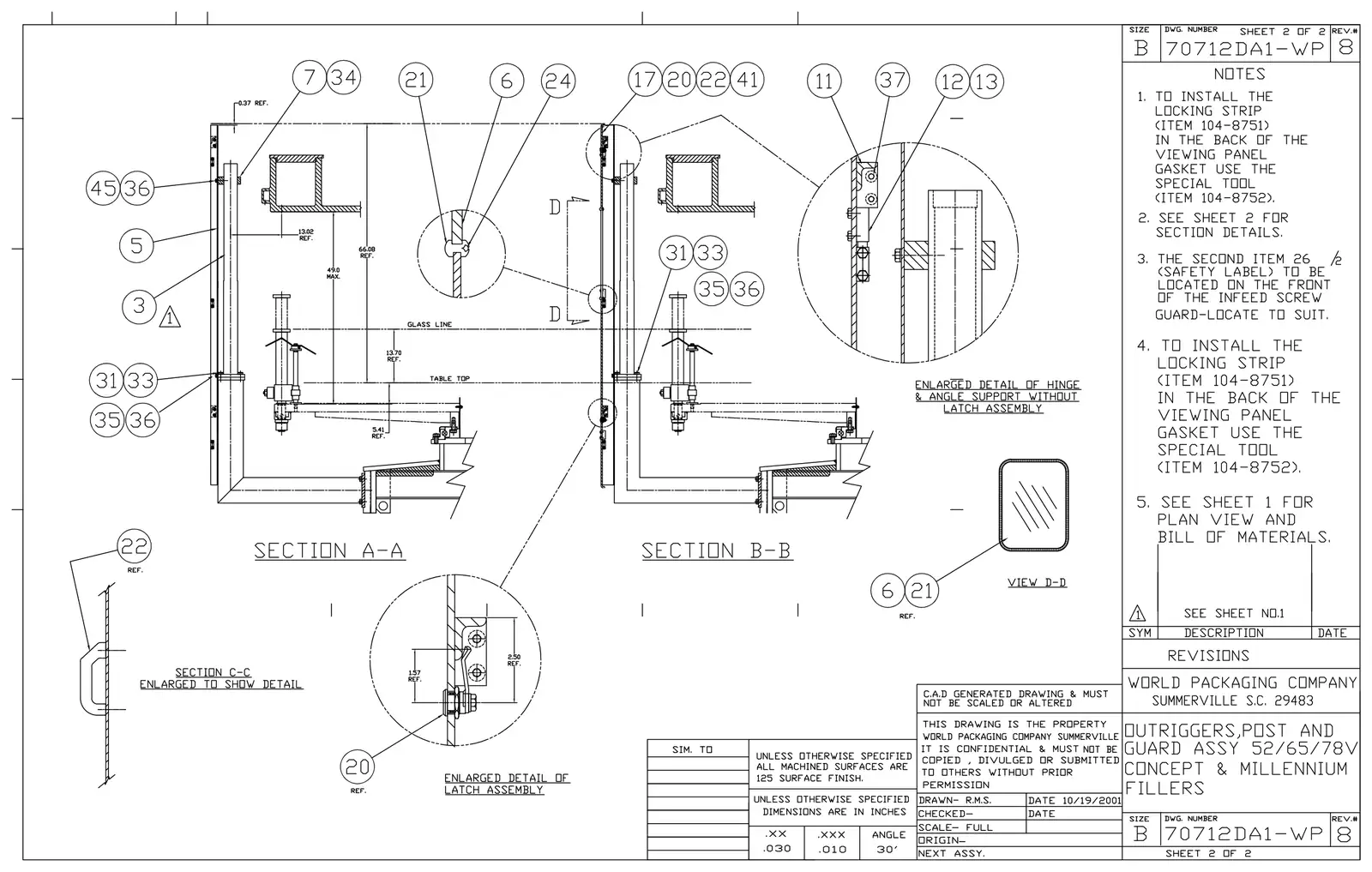

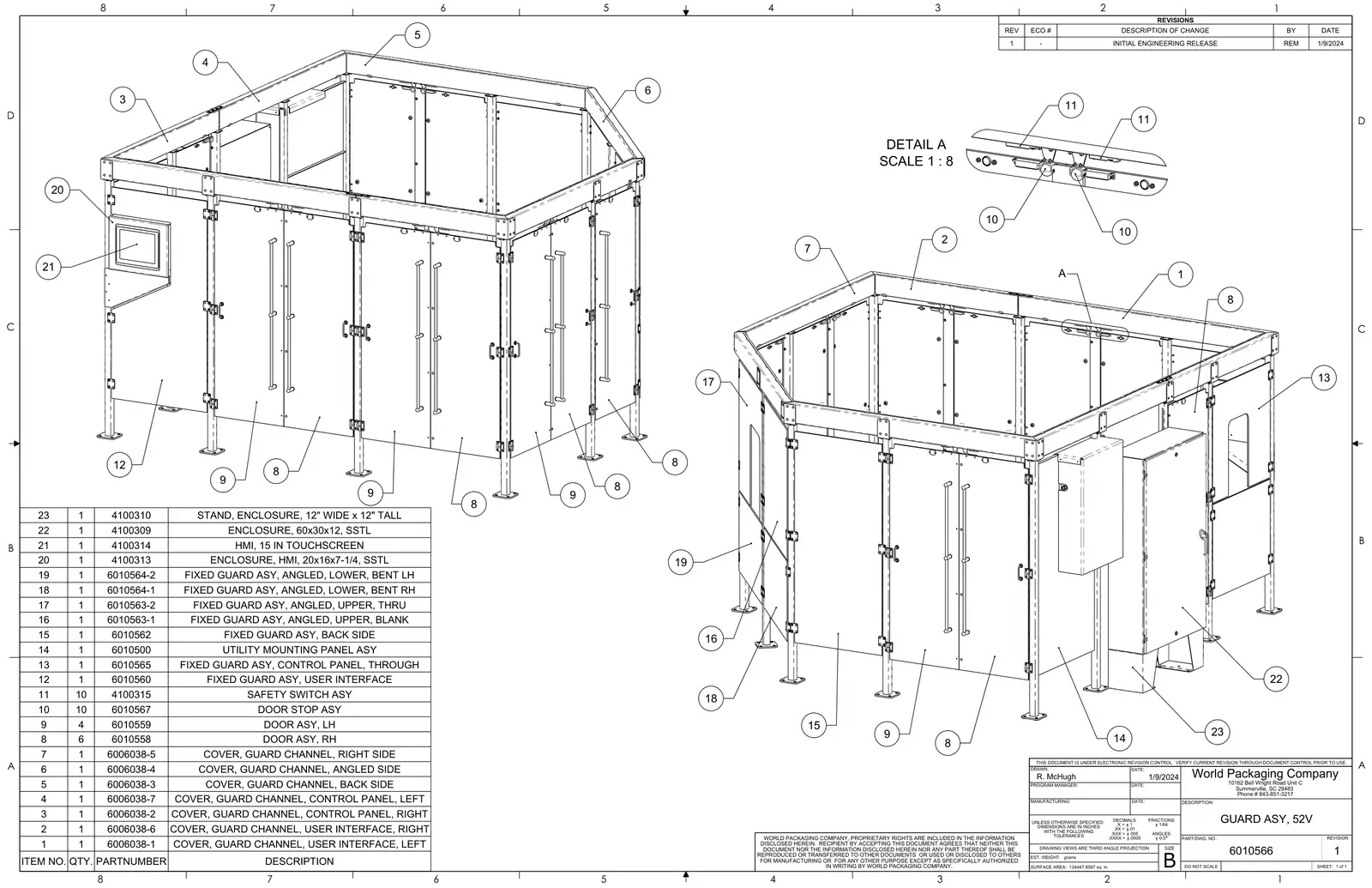

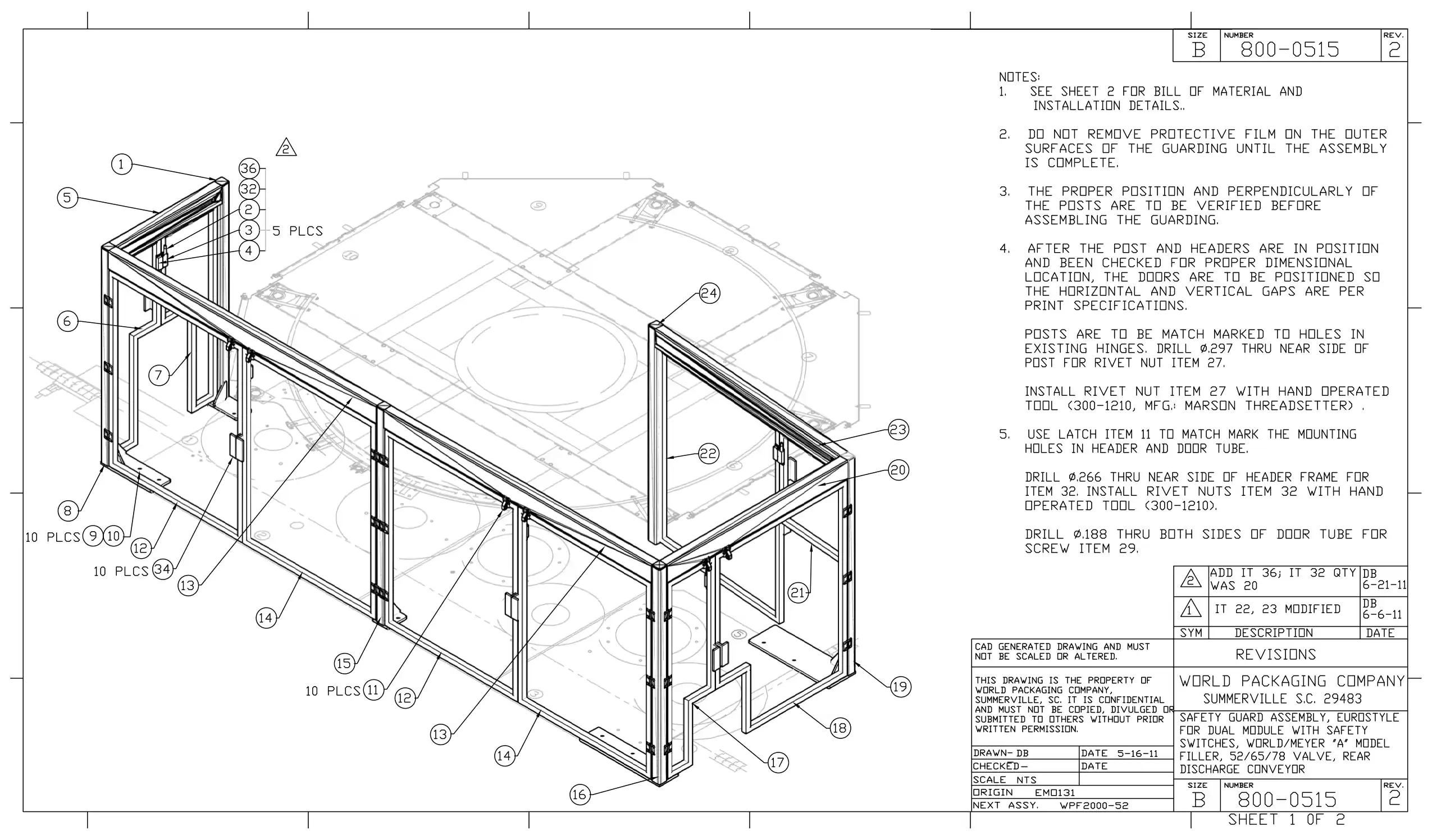

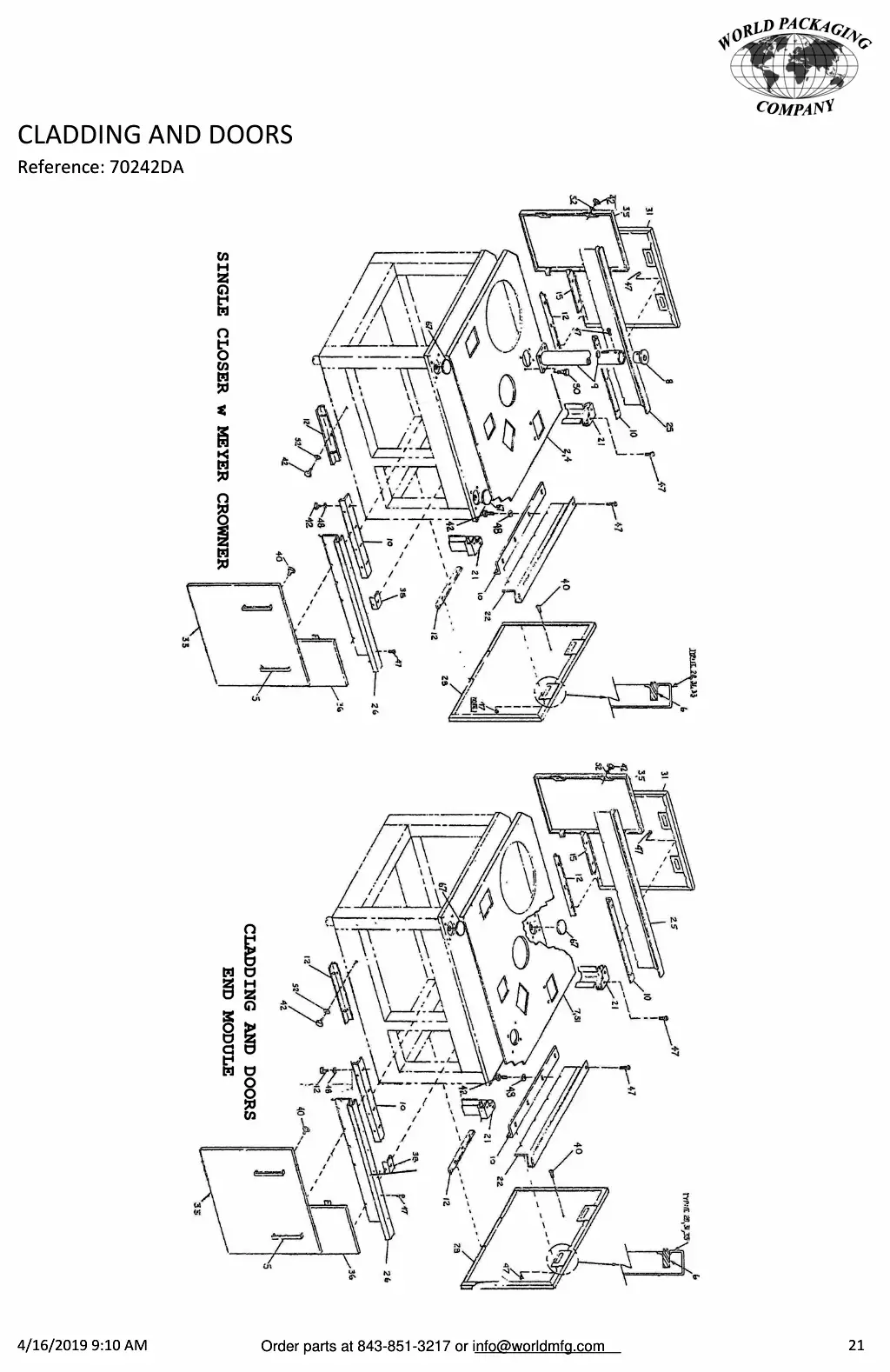

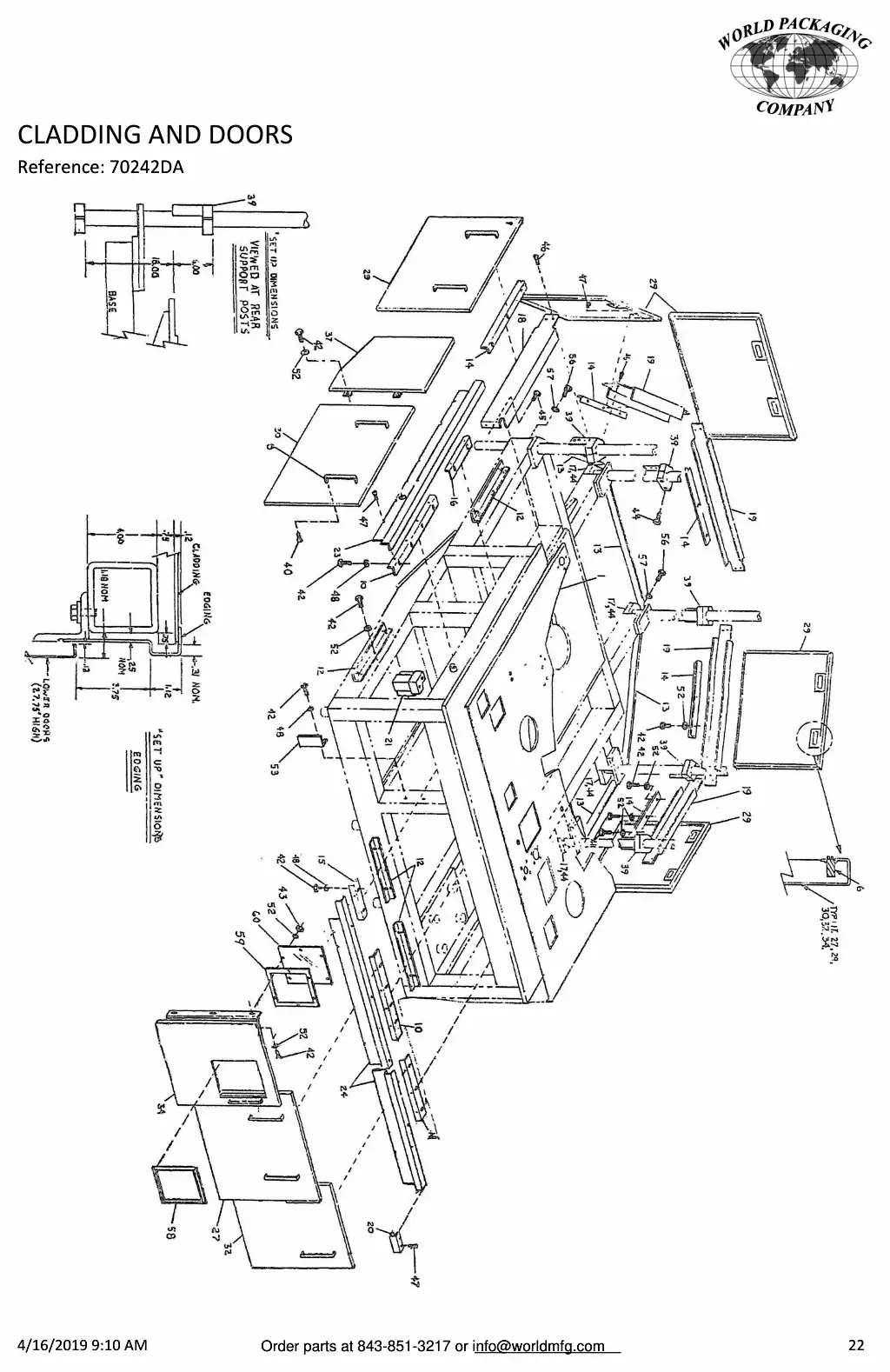

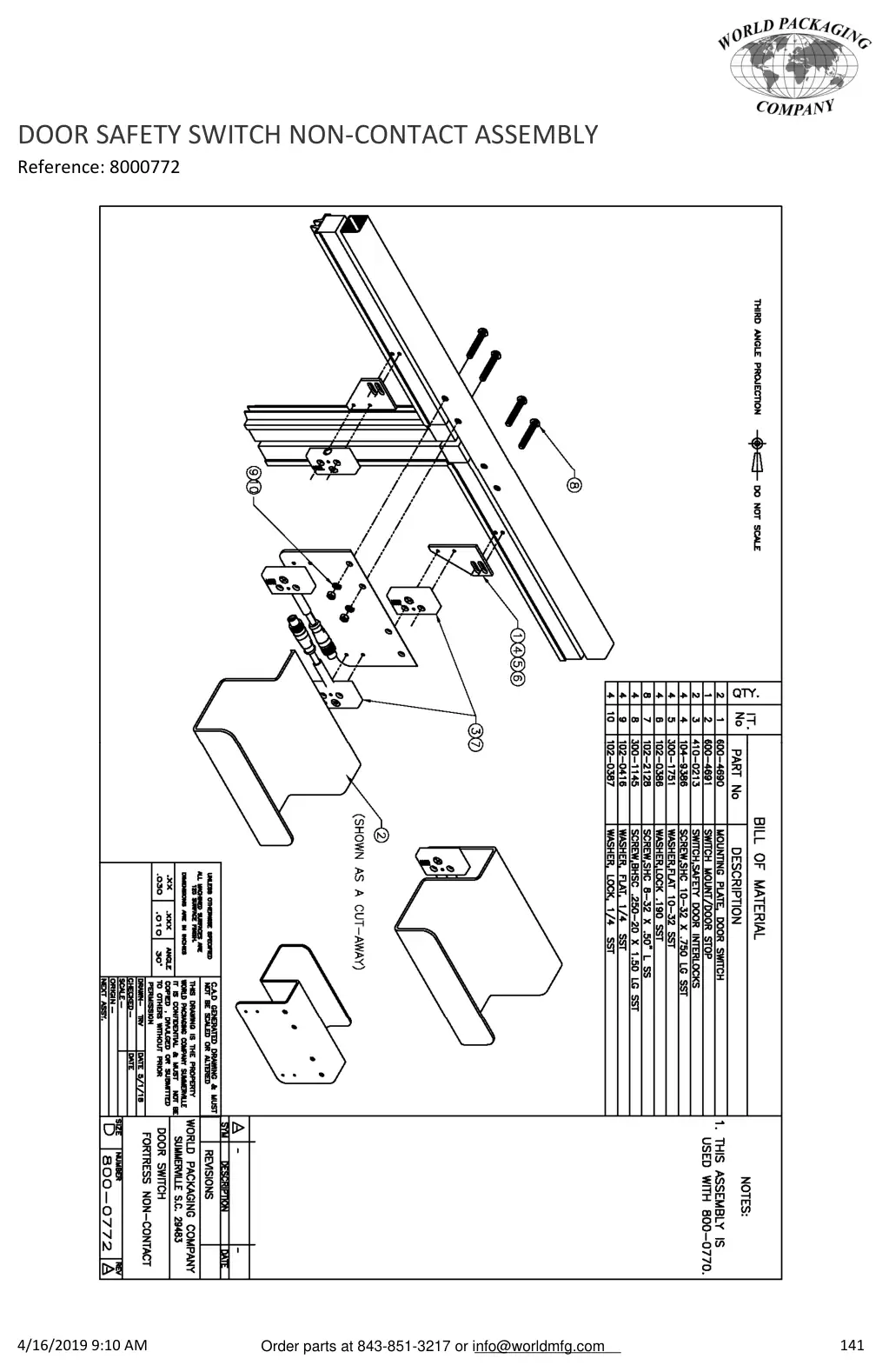

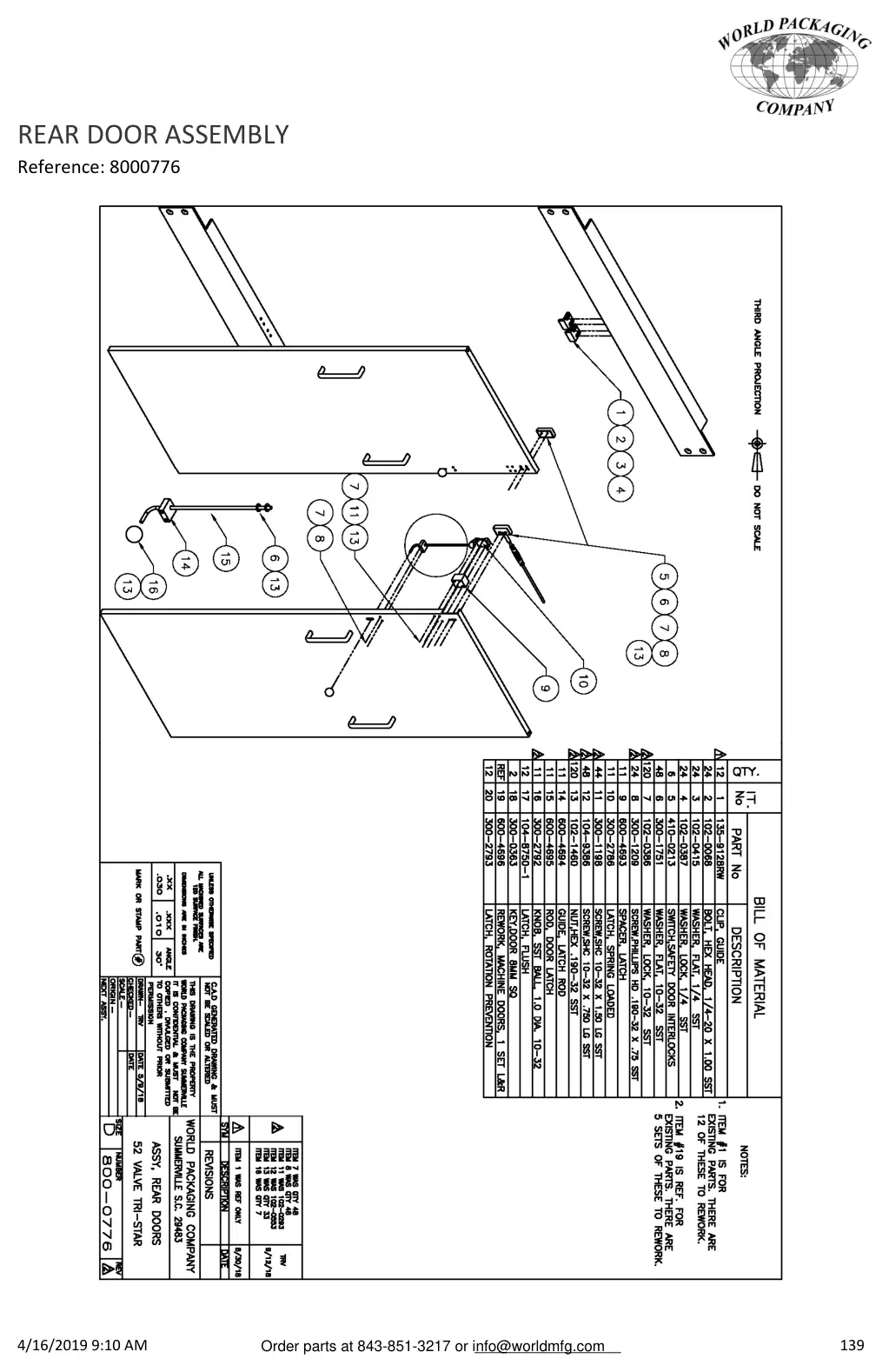

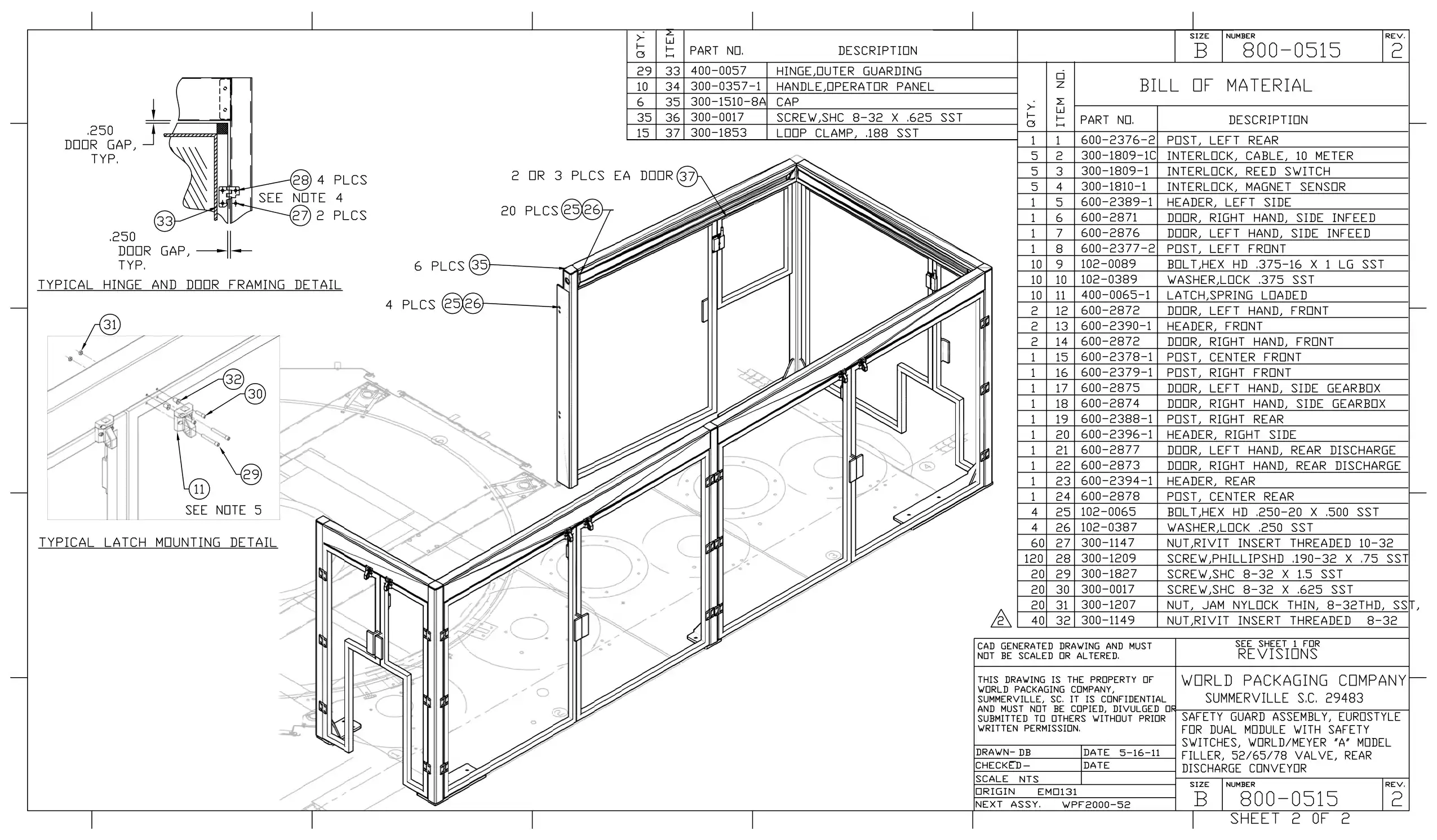

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
1	135-8484	Claddding, table	Ask us
3	135-8483	Cladding, middle	Ask us
4	136-0444	Cladding, end	Ask us
5	3002855300-2855	Handle, pull safety guarding	Request
6	104-6570	Catch, magnetic	Ask us
7	136-0445	Cladding, end	Ask us
8	135-8669	Plate, mounting	Ask us
9	903-9720	Pipe, supply	Ask us
10	135-8668	Angle, back-up	Ask us
11	135-8667	Angle, back-up	Ask us
12	903-9716	Support, angle	Ask us
13	903-9785	Angle, support rear	Ask us
14	135-8872	Angle, attachment	Ask us
15	135-8663	Retainer, edging	Ask us
16	135-8677	Retainer, metal	Ask us
17	903-9786	Bracket, mounting	Ask us
18	903-9737	Extension, edging	Ask us
19	135-9042	Extension, edging	Ask us
20	135-9047	Cap, edging	Ask us
21	903-9717	Molding, metal corner	Ask us
22	135-8881	Edging, metal end	Ask us
23	903-9721	Edging, metal side	Ask us
24	903-9718	Edging, metal base	Ask us
25	135-8885	Edging, metal end	Ask us
26	135-8879	Edging, metal end	Ask us
27	903-9722	Panel, removable base	Ask us
28	903-9745	Panel, removable end	Ask us
29	903-9735	Panel, removable lower	Ask us
30	903-9732	Panel, removable side	Ask us
31	903-9747	Panel, removable end	Ask us
32	903-9723	Panel, removable base	Ask us
33	903-9744	Panel, removable end	Ask us
34	903-9724	Panel, hinged base	Ask us
35	903-9748	Panel, stationary end	Ask us
36	903-9746	Panel, stationary end	Ask us
37	903-9733	Panel, stationary base	Ask us
38	135-9043	Retainer, edging end	Ask us
39	903-9715	Bracket, machining	Ask us
40	102-02781020278	Screw, round head slot	Request
40	102-0413	Washer	Ask us
41	102-00681020068	Bolt, hex head	Request
42	102-00661020066	Bolt, hex head	Request
43	102-03321020332	Nut, hex	Request
44	102-01071020107	Bolt, hex head	Request
45	102-13251021325	Screw, socket head cap	Request
46	102-2890	Screw, socket head	Ask us
47	102-2403	Screw, hex head	Ask us
48	135-9572	Washer, back-up angle	Ask us
52	102-04151020415	Washer, flat	Request
53	135-9567	Angle, back-up	Ask us
56	102-00881020088	Hex head bolt	Request
57	102-12551021255	Washer, flat	Request
58	903-8983	Tensioner	Ask us
59	135-9557	Gasket, window	Ask us
60	135-9556	Window, door	Ask us
61	903-9968	Panel, front	Ask us
62	903-9965	Edging, front	Ask us
63	903-9967	Panel, rear	Ask us
64	903-9966	Edging, rear	Ask us
65	136-0553	Edging, rear	Ask us
66	136-0554	Back-up angle	Ask us
67	136-0698	Plug	Ask us

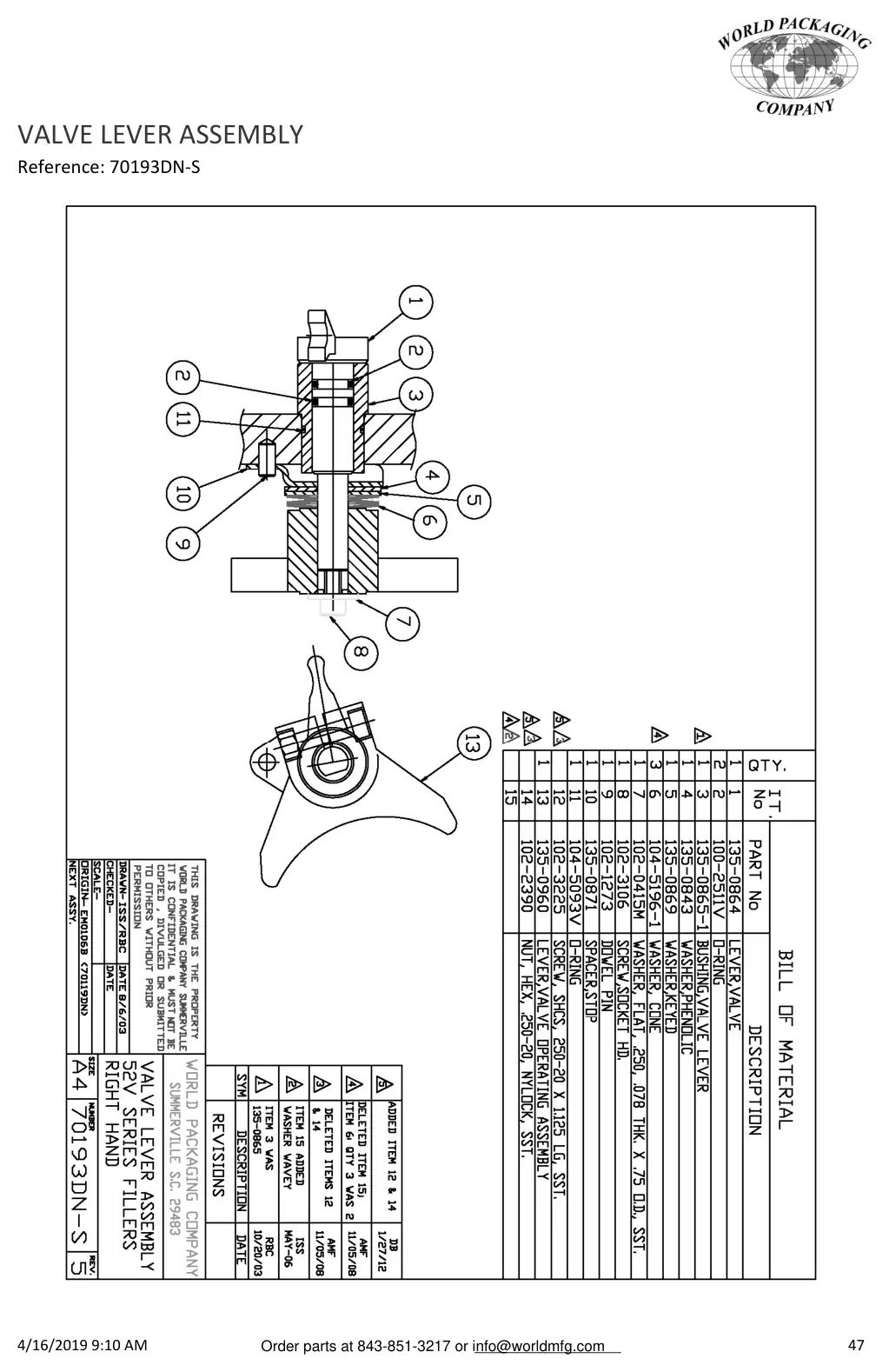

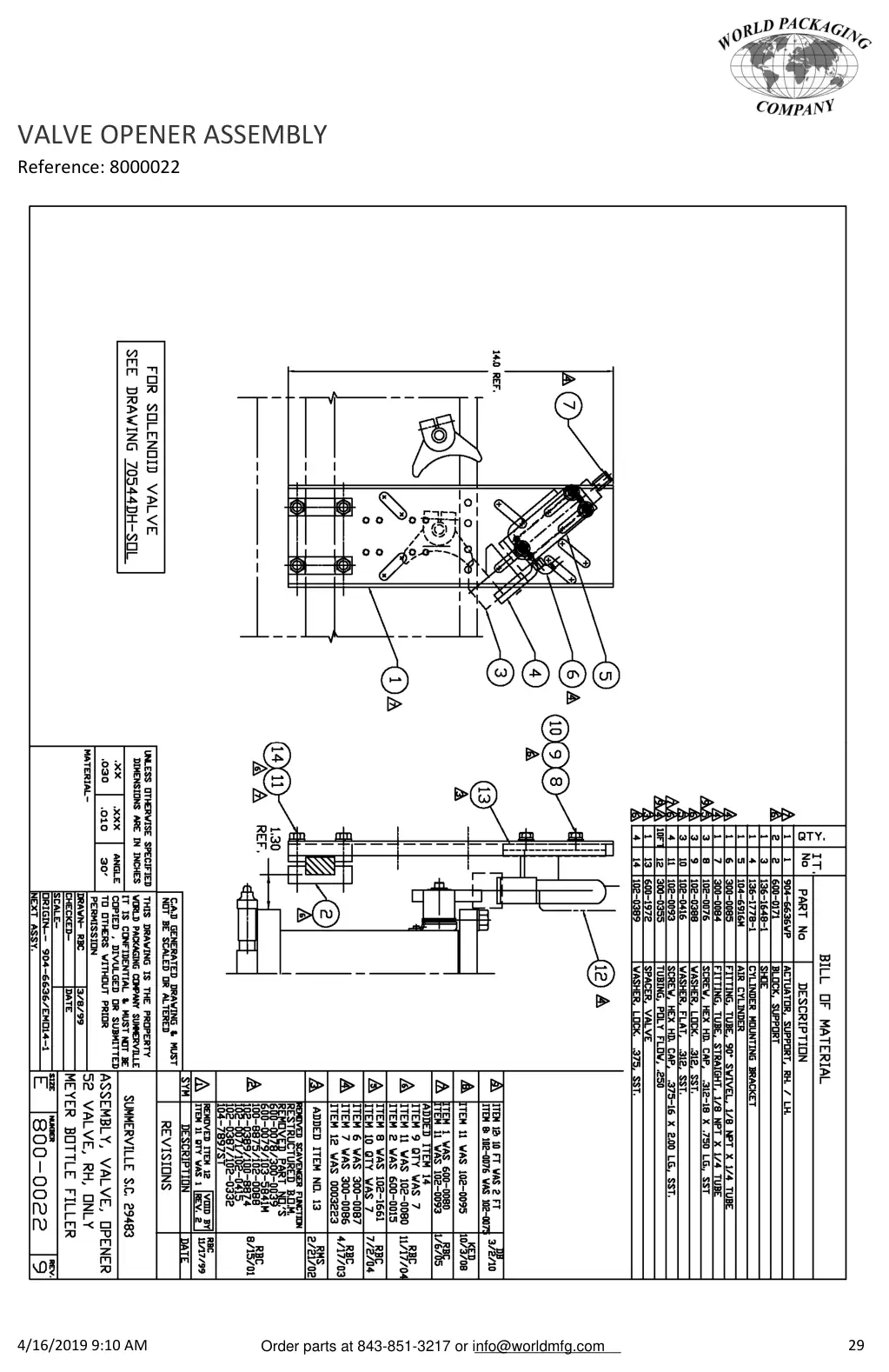

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
1	9046636WP	Bracket, actuator valve opener	Request
2	6000171600-0171	Bracket, holding	Request
3	1361648-1	Shoe, valve opener / scavenger	Request
4	1361778-1	Bracket, mounting RH	Request
5	1046916M	Cylinder, air (modified)	Request
6	3000085300-0085	Fitting, tube swivel	Request
7	3000084300-0084	Fitting, str tube	Request
8	1020076102-0076	Bolt, hex head	Request
9	1020388102-0388	Washer, lock	Request
10	1020416102-0416	Washer, flat	Request
11	1020093102-0093	Bolt, hex head	Request
12	3000355300-0355	Tubing, polyflo nat	Request
13	6001972600-1972	Spacer, valve opener actuator	Request
14	1020389102-0389	Washer, lock	Request
14	0015	Labor, inside labor, inside	Ask us

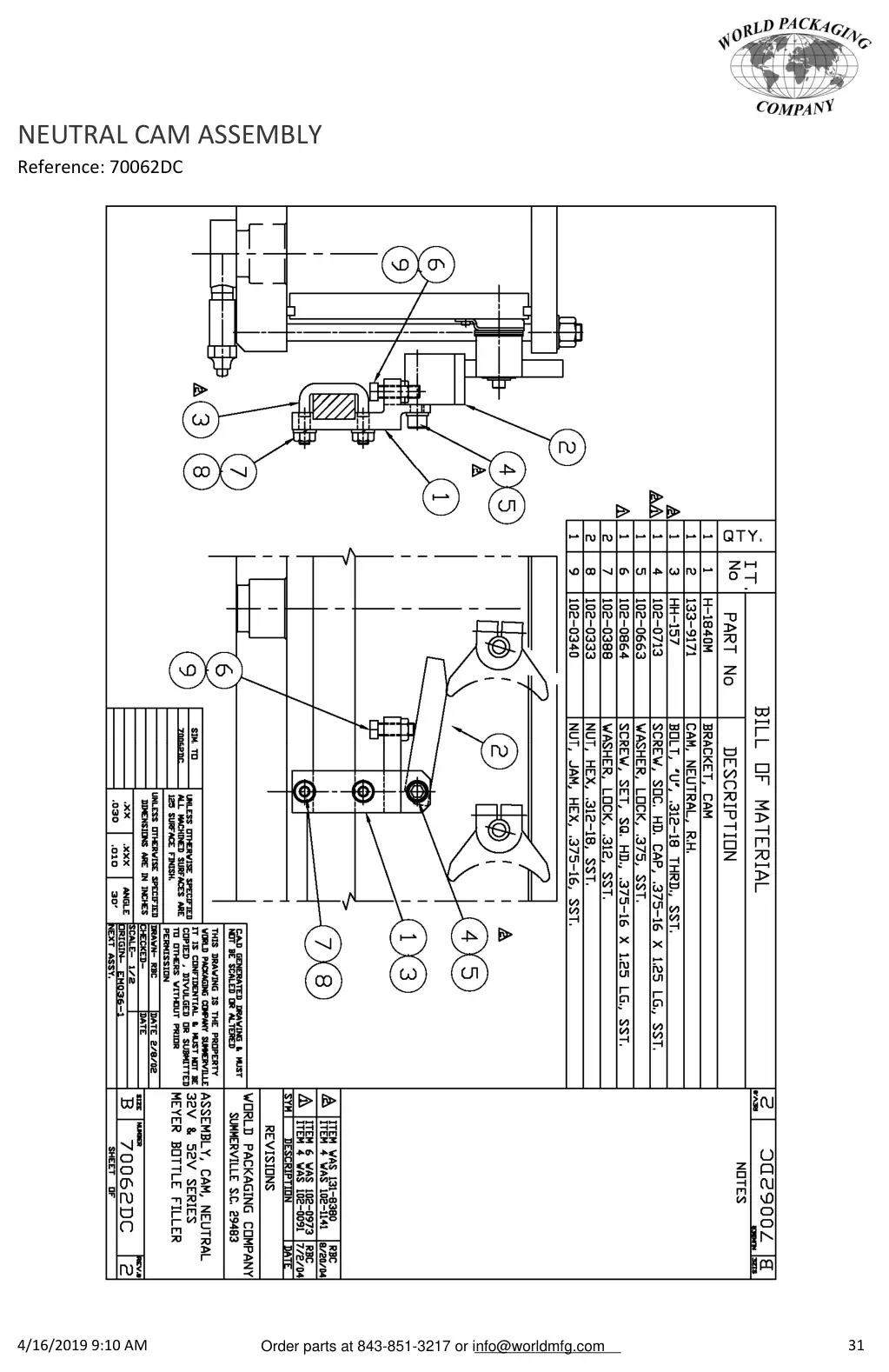

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	H1840M	Block, mounting nuetral cam old family	Request
2	1339171133-9171	Cam, neutral RH	Request
3	HH157	U-bolt, valve closer	Request
4	1020713102-0713	Screw, socket head cap	Request
5	1020663102-0663	Washer, lock external	Request
6	1020864102-0864	Screw, square hd cup pt	Request
7	1020388102-0388	Washer, lock	Request
8	1020333102-0333	Nut, hex	Request
9	1020340102-0340	Nut, hex jam	Request

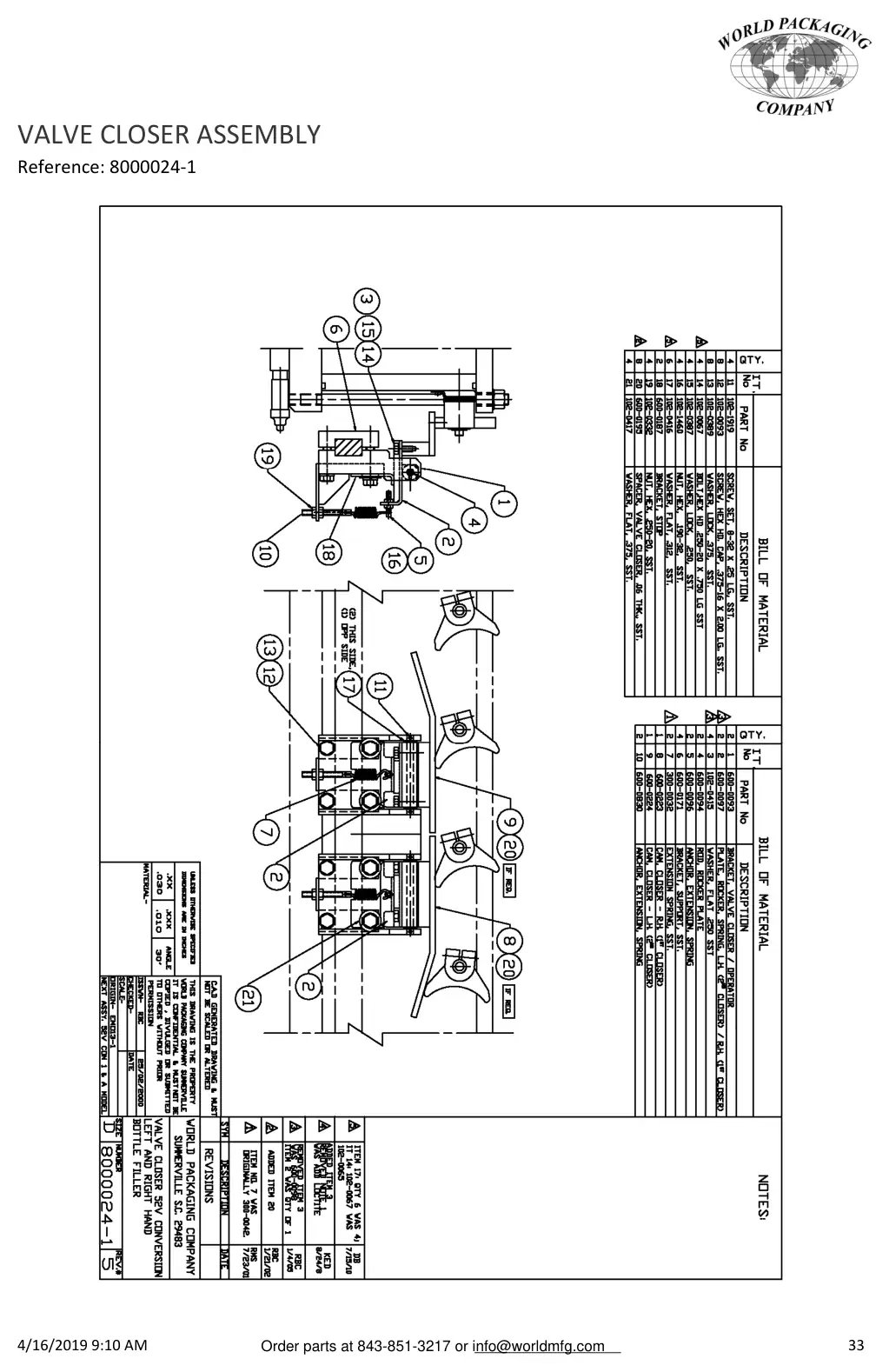

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
1	6000093600-0093	Bracket, valve operator/closer	Request
2	6000097600-0097	Plate, rocker spring LH & RH	Request
3	1020415102-0415	Washer, flat	Request
4	6000094600-0094	Rod, rocker plate	Request
5	6000096600-0096	Anchor, extension spring	Request
6	6000171600-0171	Bracket, holding	Request
7	3000032300-0032	Spring, extension	Request
8	6000223600-0223	Cam closer RH	Request
9	6000224600-0224	Cam closer LH	Request
10	6000830600-0830	Anchor, extension spring	Request
11	1021919102-1919	Screw, set	Request
12	1020093102-0093	Bolt, hex head	Request
13	1020389102-0389	Washer, lock	Request
14	1020067102-0067	Bolt, hex head	Request
15	1020387102-0387	Washer, lock	Request
16	1021460102-1460	Nut, hex	Request
17	1020416102-0416	Washer, flat	Request
18	6000187600-0187	Bracket, stop	Request
19	1020332102-0332	Nut, hex	Request
20	6000195600-0195	Spacer, valve closer	Request
21	1020417102-0417	Washer, flat	Request

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description
1	6000171600-0171	Bracket, holding	Request
2	6000016600-0016	Clamp, bracket snift cam	Request
3	1020091102-0091	Bolt, hex head	Request
5	8000002800-0002	Cam, snift assembly	Request
6	1020340102-0340	Nut, hex jam	Request
7	1020417102-0417	Washer, flat	Request
8	1020389102-0389	Washer, lock	Request

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description
1	6000013600-0013	Plate, snift cam	Request
2	6000014600-0014	Wearstrip, snift cam extended	Request
3	1020174102-0174	Screw, flat head slot	Request

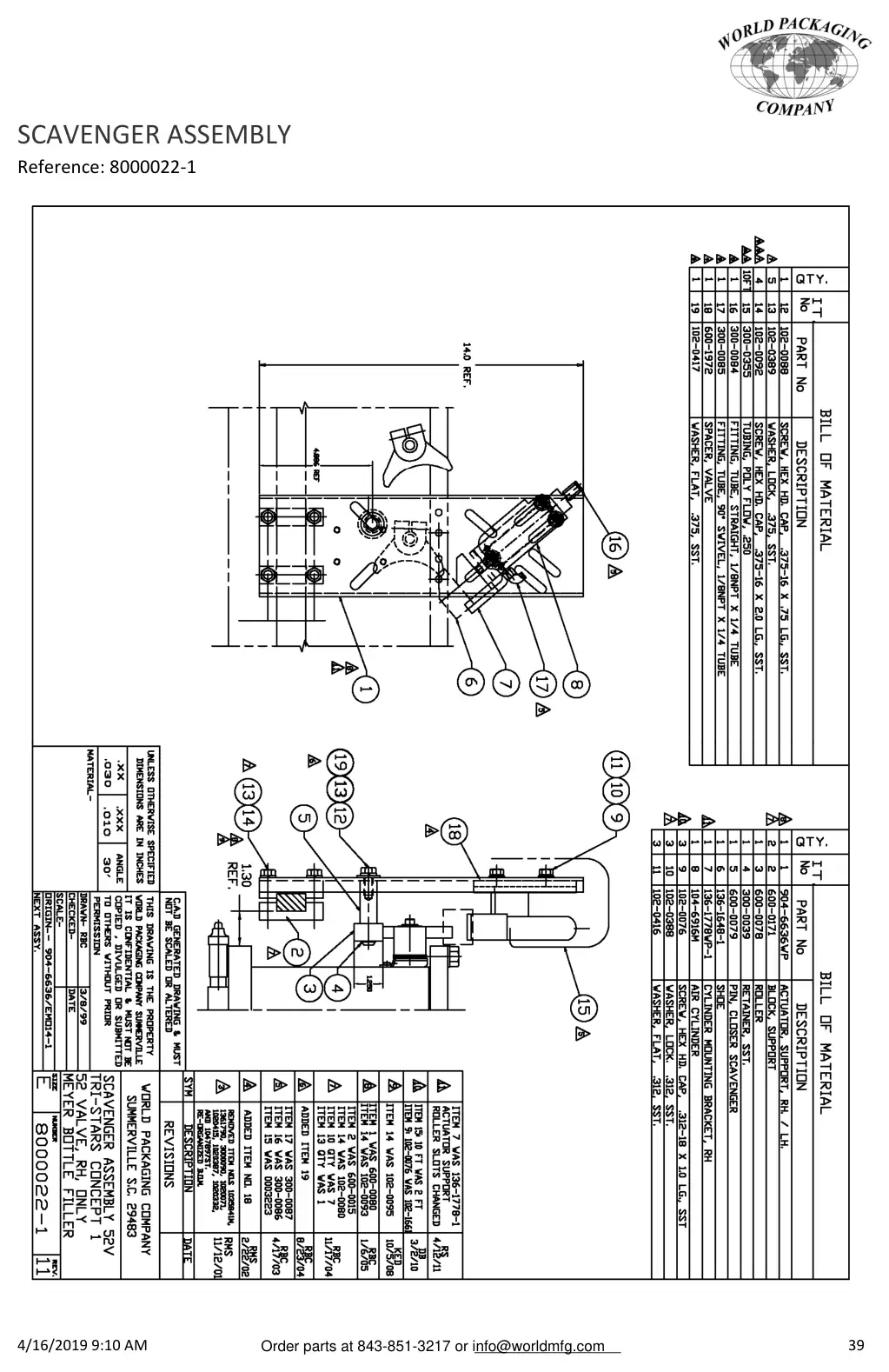

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	9046636WP	Bracket, actuator valve opener	Request
2	6000171600-0171	Bracket, holding	Request
3	6000078600-0078	Roller, vent tube	Request
4	3000039300-0039	Ring, retaining external	Request
5	6000079600-0079	Pin, closer scavenger	Request
6	1361648-1	Shoe, valve opener / scavenger	Request
7	1361778-1	Bracket, mounting RH	Request
8	1046916M	Cylinder, air (modified)	Request
9	1020076102-0076	Bolt, hex head	Request
10	1020388102-0388	Washer, lock	Request
11	1020416102-0416	Washer, flat	Request
12	1020088102-0088	Hex head bolt	Request
13	1020389102-0389	Washer, lock	Request
14	1020092102-0092	Bolt, hex head	Request
15	3000355300-0355	Tubing, polyflo nat	Request
16	3000084300-0084	Fitting, str tube	Request
17	3000085300-0085	Fitting, tube swivel	Request
18	6001972600-1972	Spacer, valve opener actuator	Request
19	1020417102-0417	Washer, flat	Request

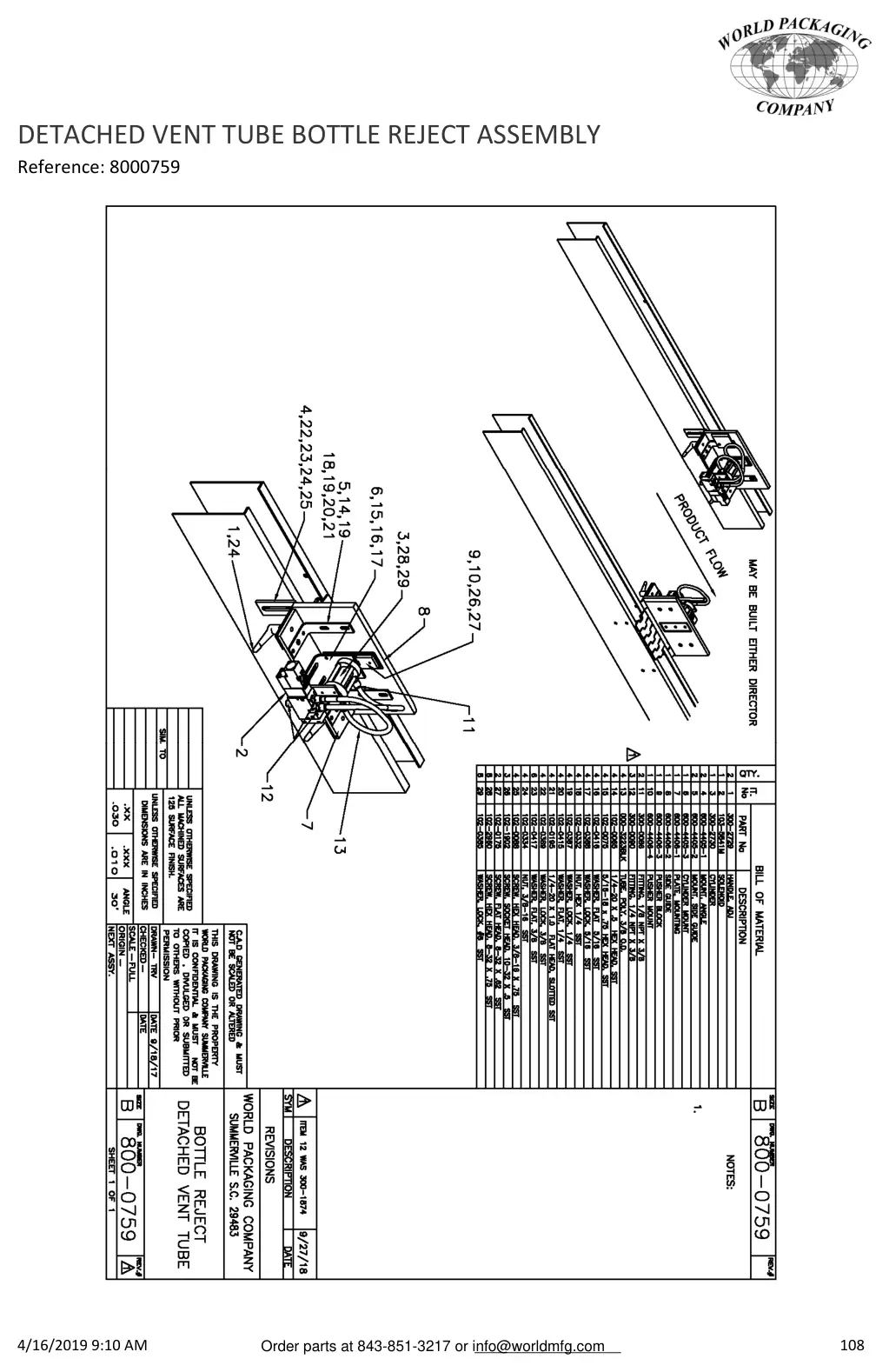

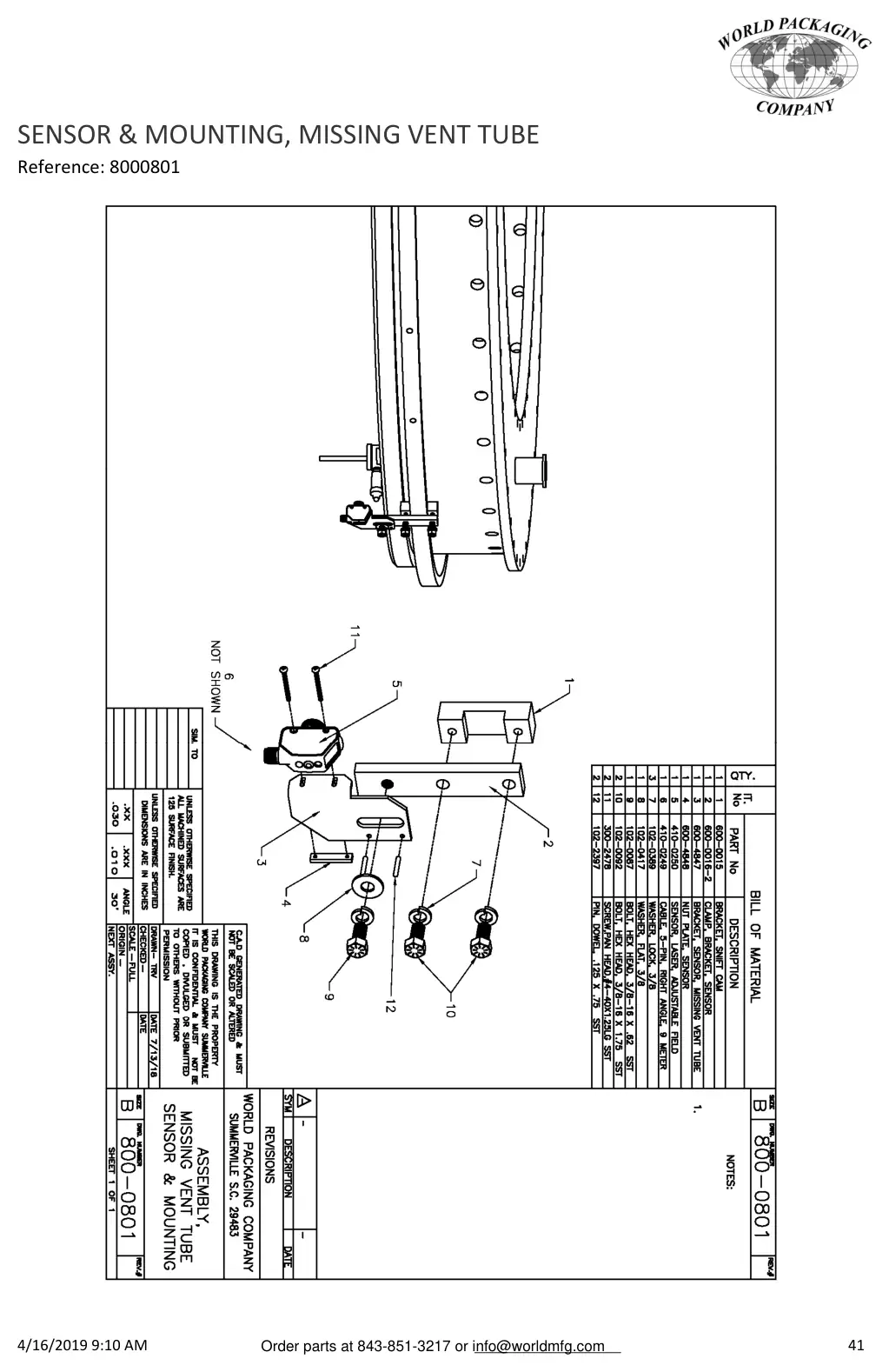

Parts for this assembly, from the original Meyer parts lists.

Open full size

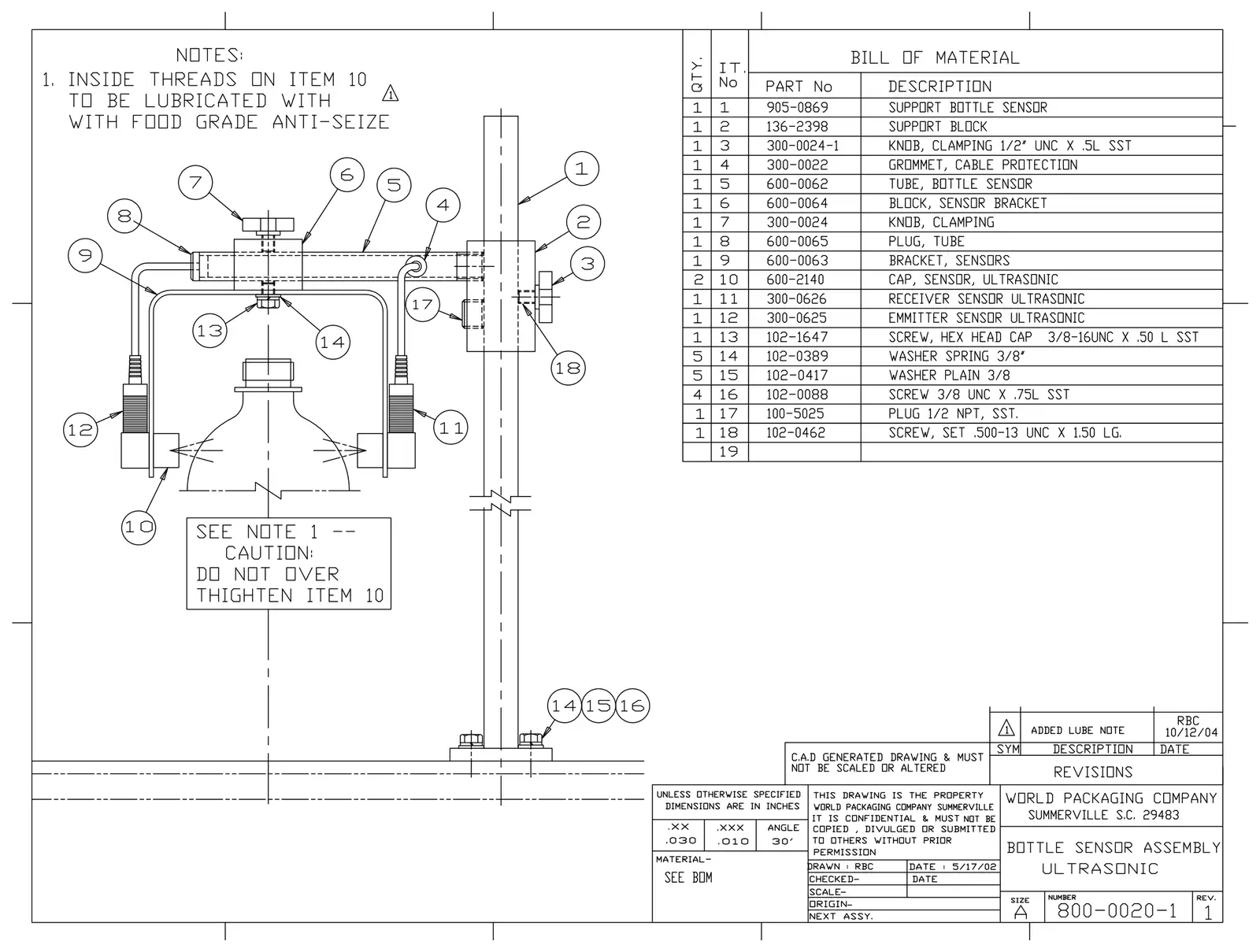

Ref	Part number	Description
1	6000015600-0015	Bracket, snift cam	Request
2	6000016-2	Clamp, bracket for bottle sensor	Request
3	6004847600-4847	Bracket, sensor missing vent tube	Ask us
4	6004848600-4848	Nut plate, sensor	Ask us
5	4100250410-0250	Sensor, laser adjustable field	Ask us
6	4100249410-0249	Cable, 5-PIN right angle meter	Request
7	1020389102-0389	Washer, lock	Request
8	1020417102-0417	Washer, flat	Request
9	1020087102-0087	Bolt, hex head	Request
10	1020092102-0092	Bolt, hex head	Request
11	3002478300-2478	Screw, pan head	Request
12	1022397102-2397	Pin, dowel	Request

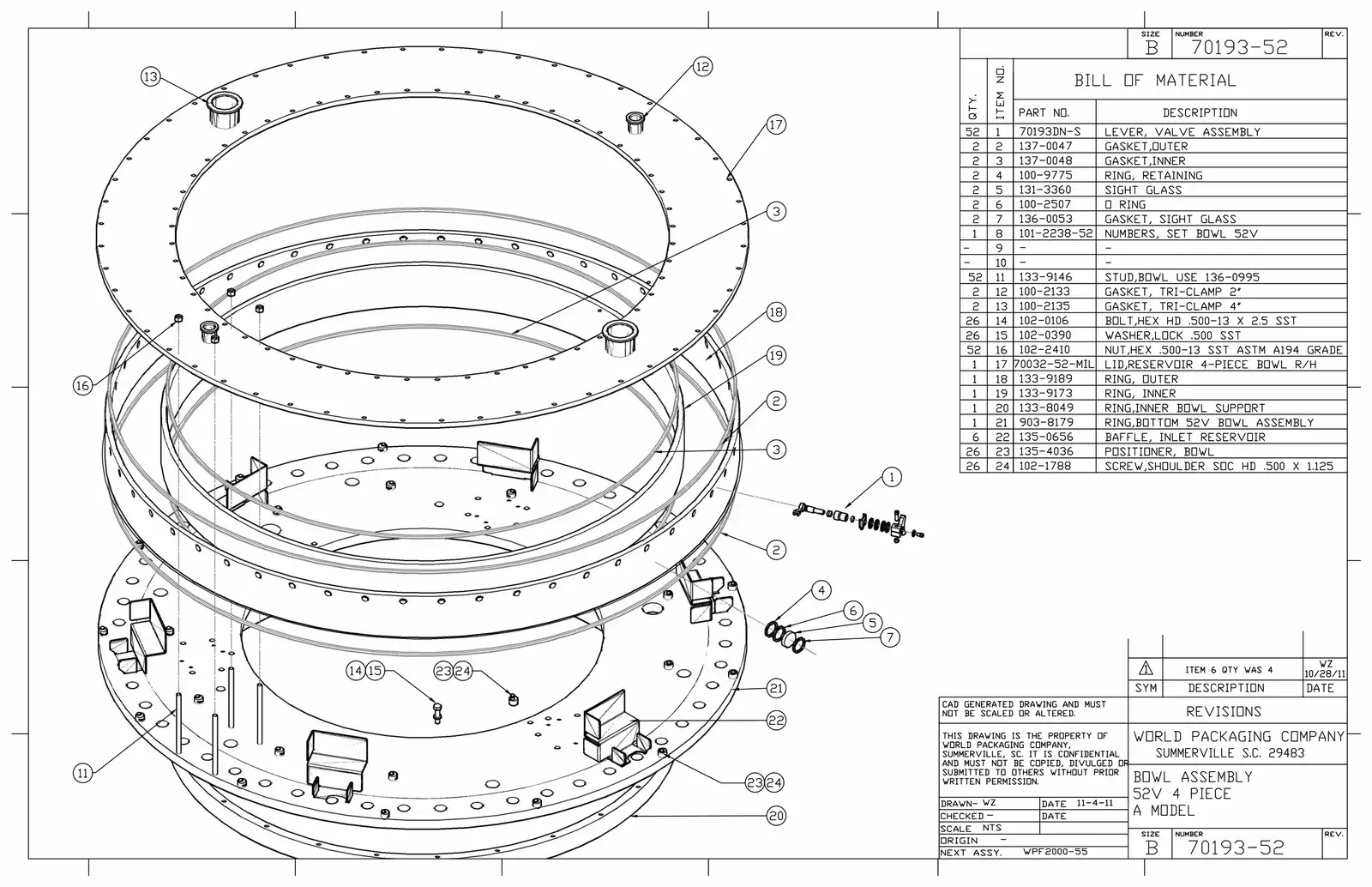

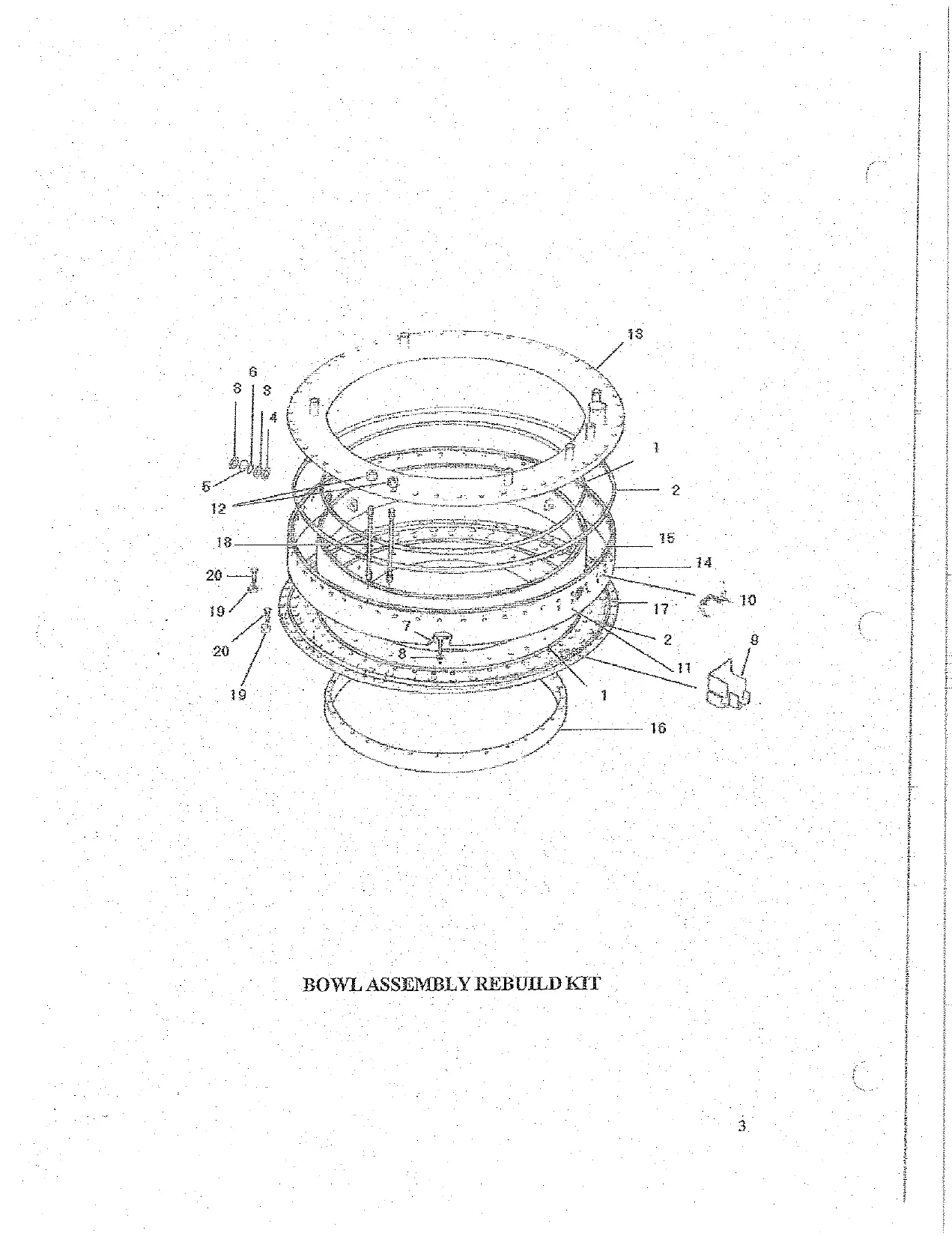

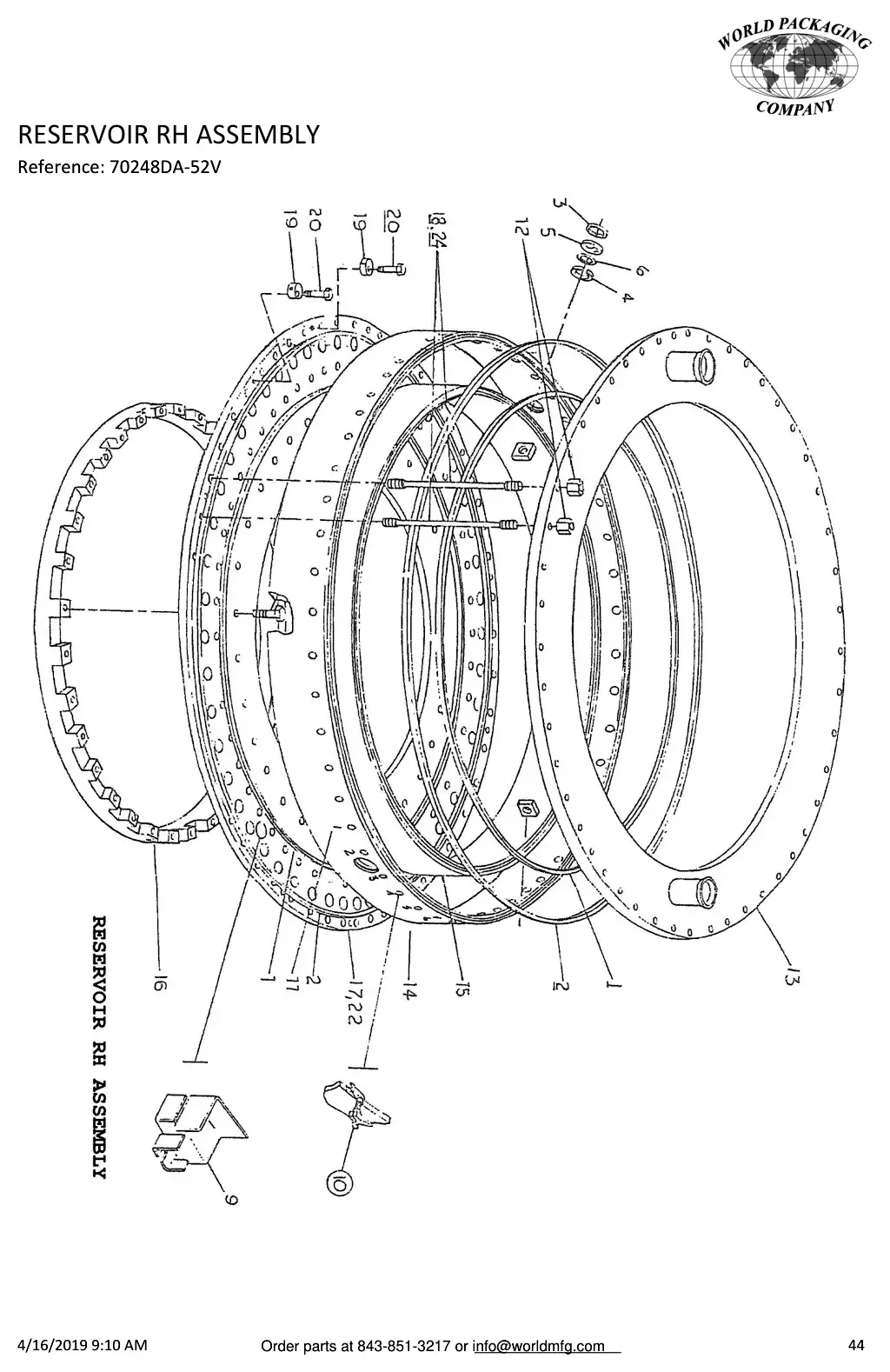

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	000-40680004068	Gasket, filler bowl outer square	Request
2	000-40680004068	Gasket, filler bowl outer square	Request
3	136-00531360053	Gasket, sight glass	Request
4	100-97751009775	Ring, retaining	Request
5	131-33601313360	Sight glass	Request
6	100-25071002507	O-ring	Request
7	102-1837	Screw, hex head	Ask us
9	135-0656	Baffle	Ask us
10	70193-DN-S70193DN-S	Lever, valve assembly 52V family	Request
11	101-2237	Number set	Ask us
12	102-24101022410	Nut, hex astm	Request
13	135-9974	Cover	Ask us
14	133-9189	Ring, outer	Ask us
14	0015	Ring, inner	Ask us
16	135-9976	Ring, reinforcing	Ask us
17	135-9978	Ring, bottom	Ask us
18	133-9146	Stud	Ask us
19	135-40361354036	Positioner, bowl	Request
20	102-17881021788	Screw, shoulder soc hd	Request
21	104-5097	Ferrule	Ask us
22	104-5096	Ferrule	Ask us
23	102-2411	Pin, dowel	Ask us
24	136-09951360995	Stud, bowl	Request

Parts for this assembly, from the original Meyer parts lists.

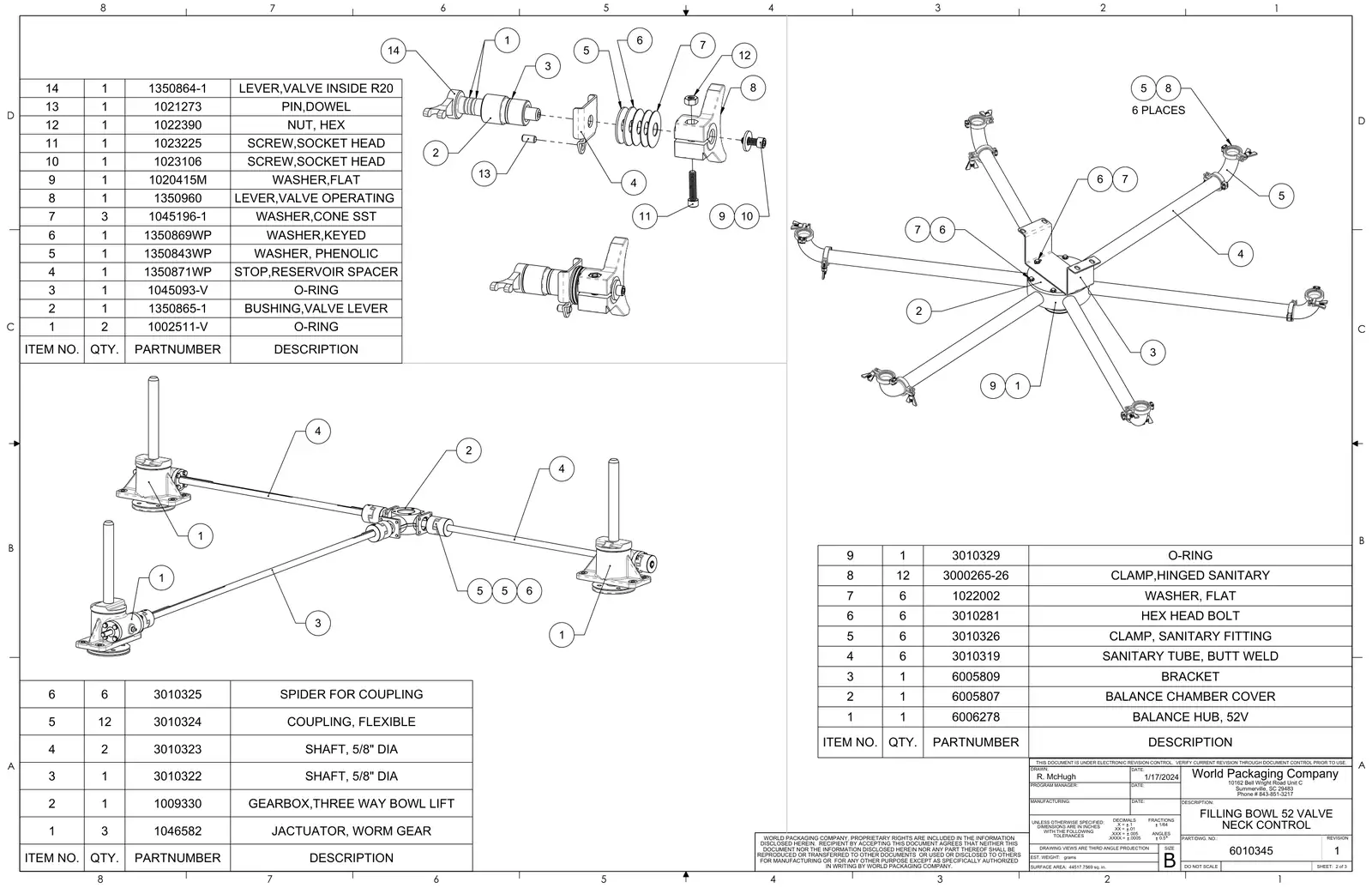

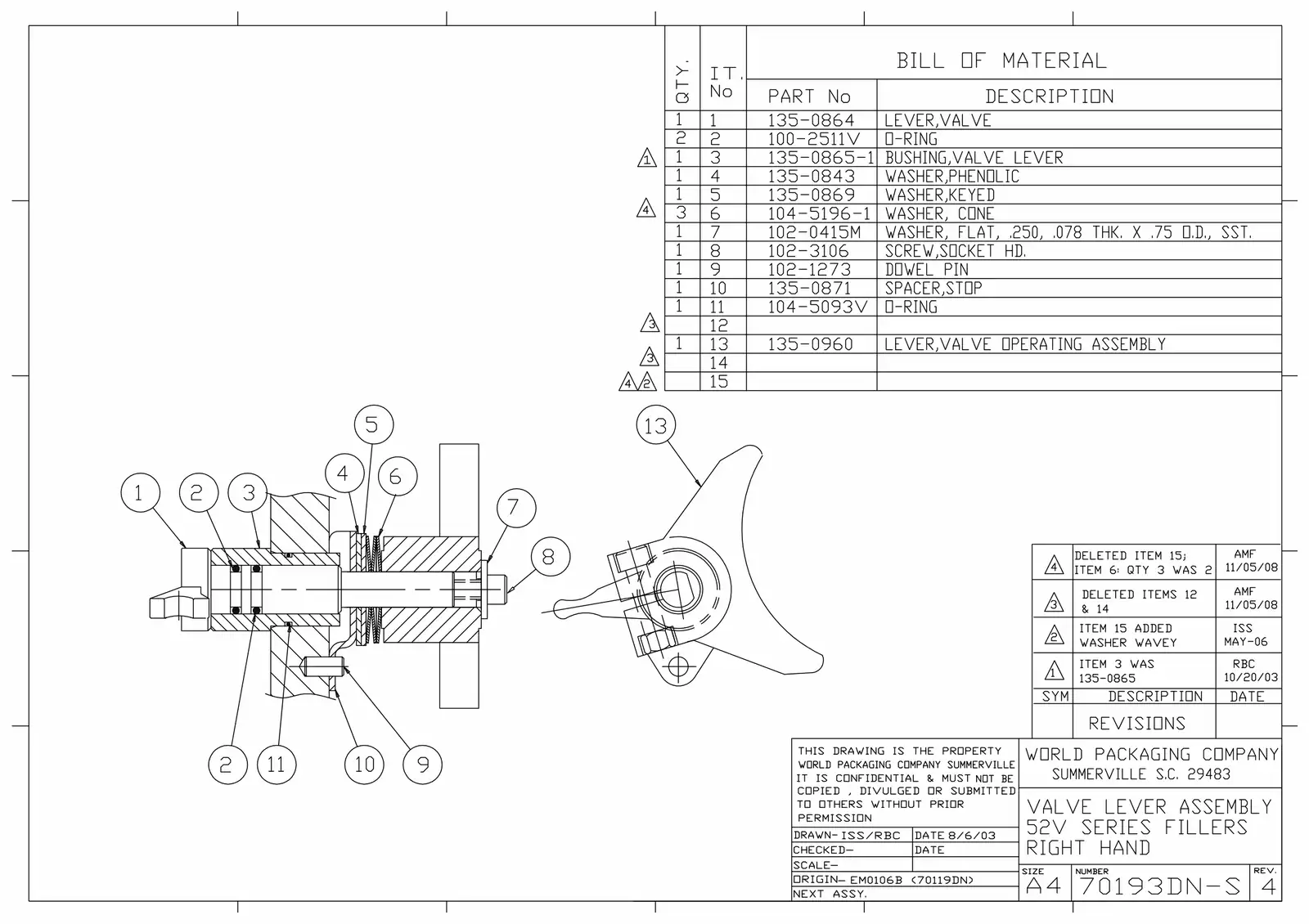

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
1	1350864135-0864	Lever, valve inside RH	Request
2	1002511-V	O-ring	Request
3	1350865-1	Bushing, valve lever new	Request
4	1350843135-0843	Washer	Request
5	1350869135-0869	Washer, keyed reservoir assembly	Request
6	1045196-1	Washer, cone	Request
7	1020415M	Washer, flat	Request
8	1023106102-3106	Screw, socket head cap	Request
9	1021273102-1273	Pin, dowel	Request
10	1350871135-0871	Stop, reservoir spacer	Request
11	1045093-V	O-ring	Request
12	1023225102-3225	Screw, socket head cap	Request
13	1350960135-0960	Lever, valve operating	Request
14	1022390102-2390	Nut, hex	Request

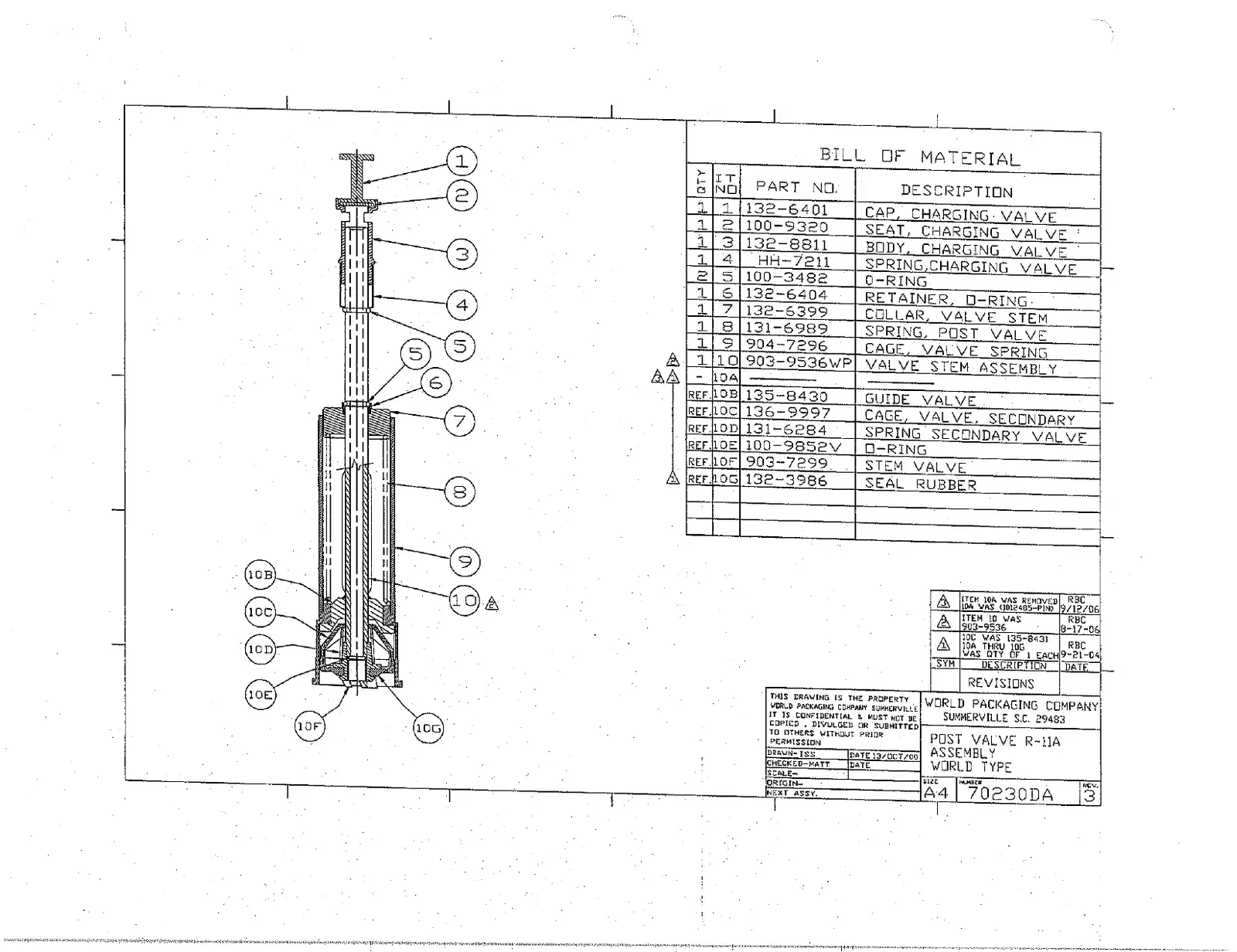

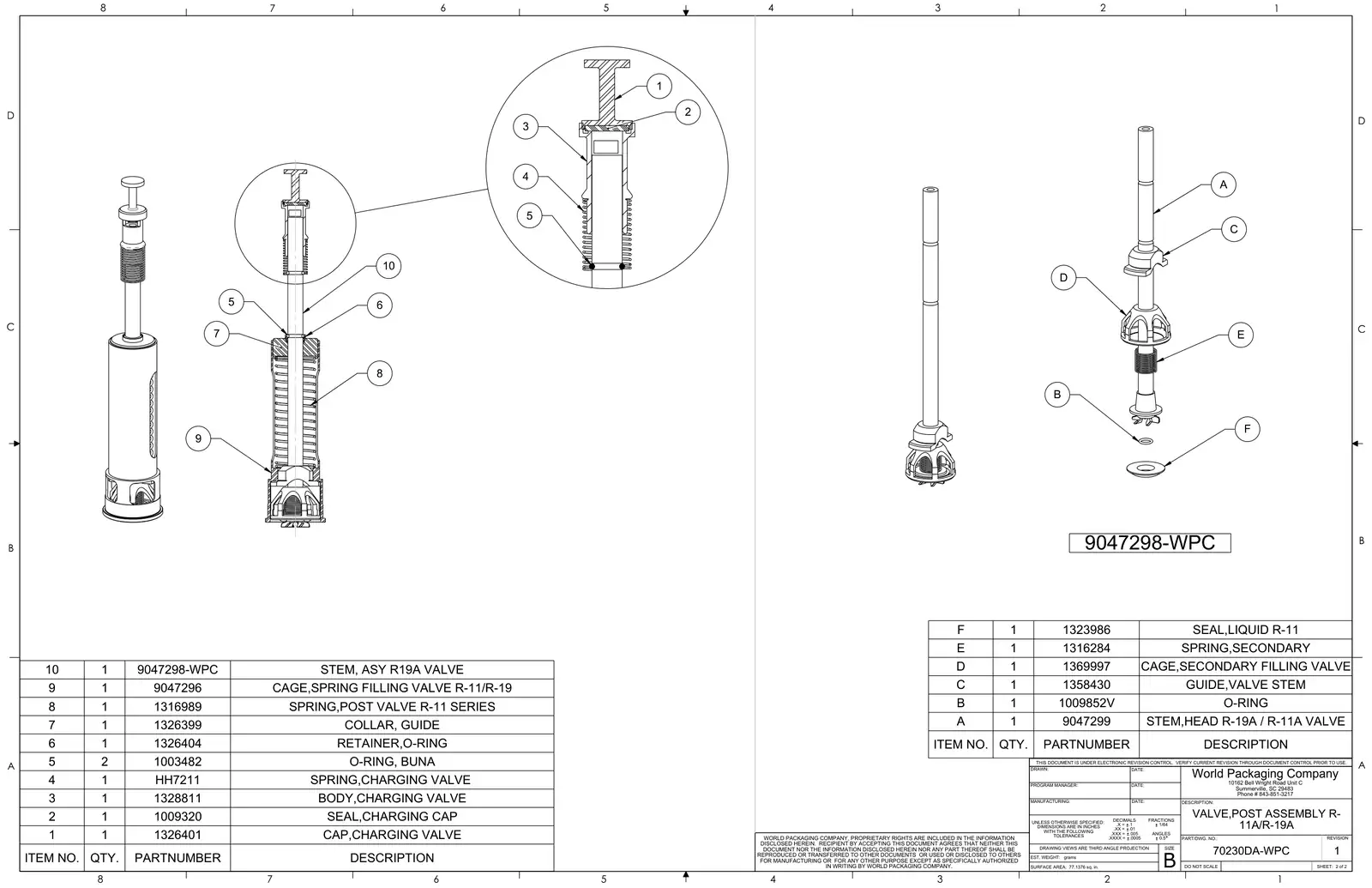

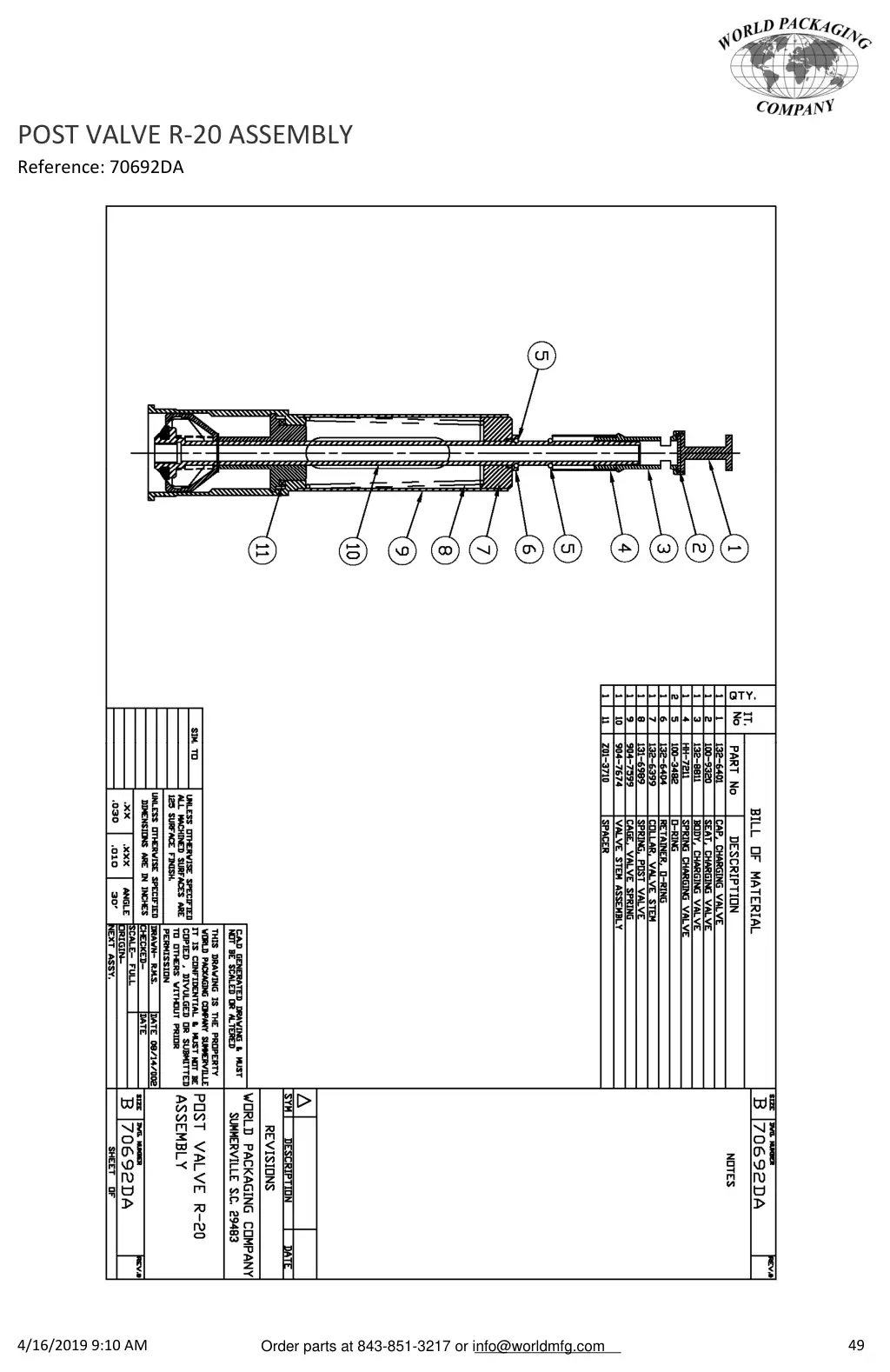

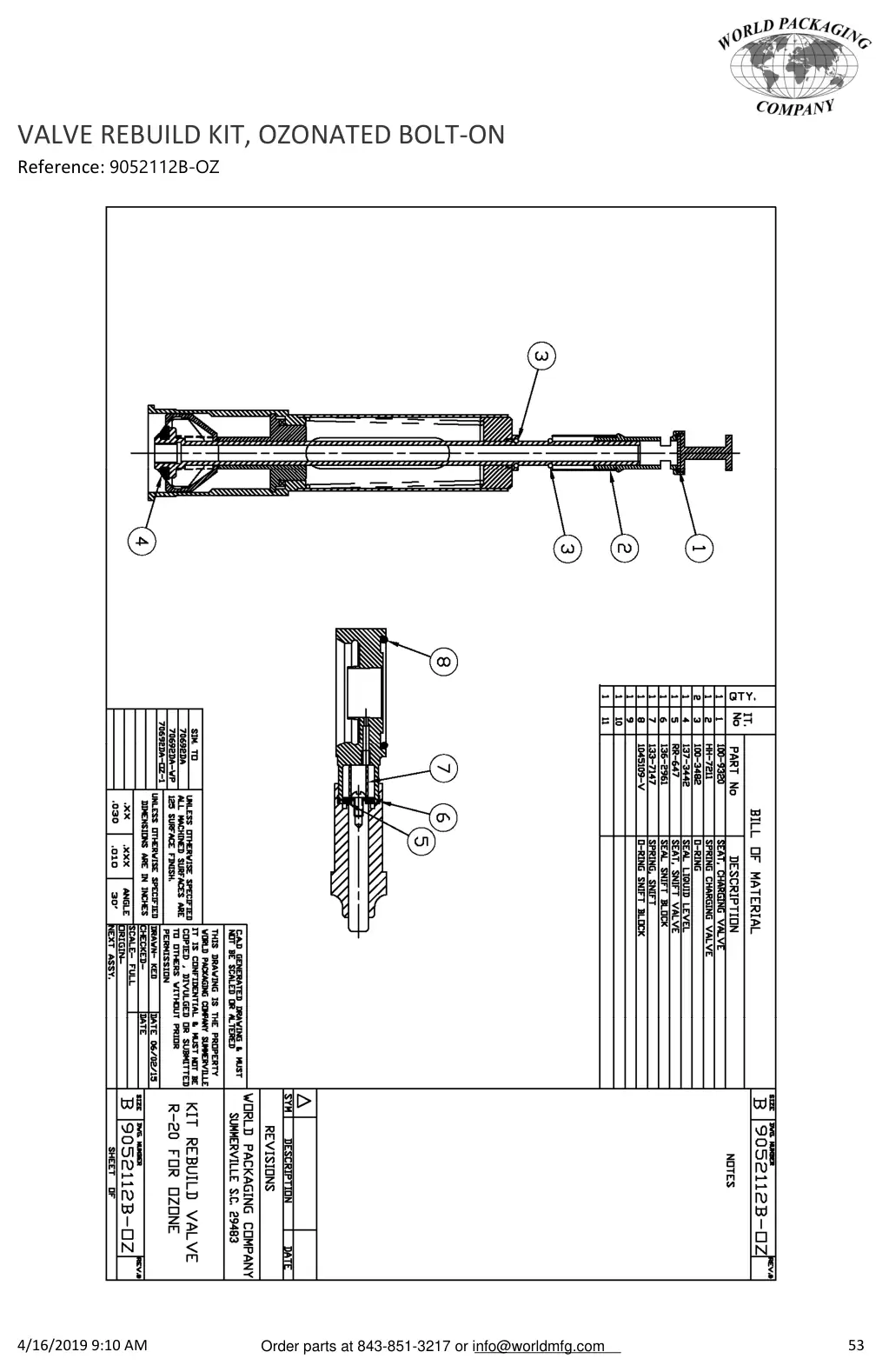

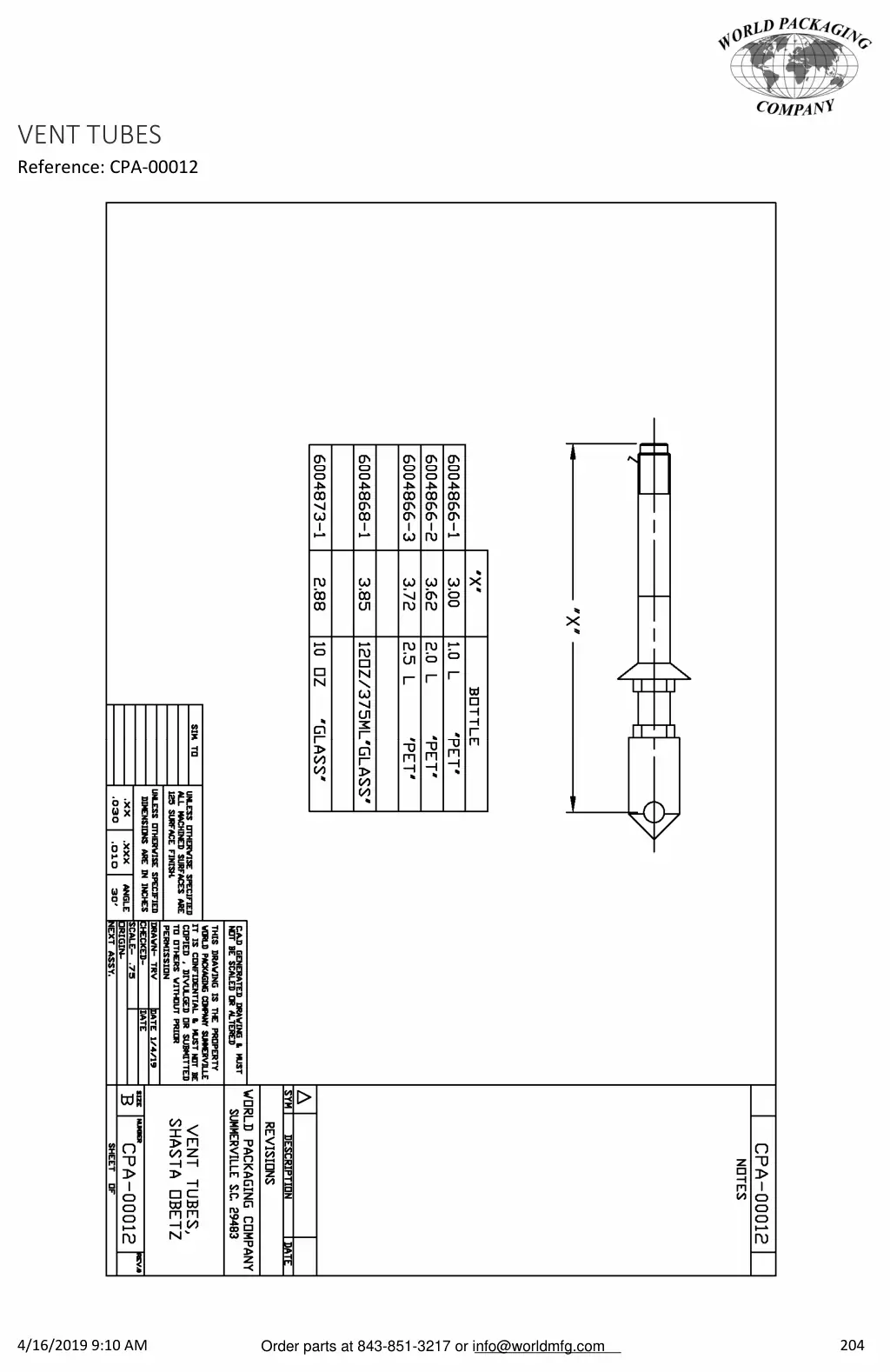

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
1	1326401132-6401	Cap, charging valve	Request
2	1009320100-9320	Seal, charging cap	Request
3	1328811132-8811	Body, charging valve	Request
4	HH7211	Spring, charging valve	Request
5	1003482100-3482	O-ring	Request
6	1326404132-6404	Retainer, O-ring	Request
7	1326399132-6399	Collar, guide	Request
8	1316989131-6989	Spring, post valve R-11 series	Request
9	9047599904-7599	Cage, spring filling valve R-20/R-21	Request
10	9047674904-7674	Stem, valve assembly R-20/21	Request
11	Z013710	Spacer, valve stem	Request

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description
1	X13190	Snift, block R-20/21 bolt on	Request
2	1362961136-2961	Seal, snift block	Request
3	1337147133-7147	Spring, snift	Request
4	1045109104-5109	O-ring, valve assembly R11/R19, R20, MX	Request
5	1338123133-8123	Nut, snift, fillers	Request
6	9046777904-6777	Valve, insert snift, assembly	Request
6	1372115137-2115	Insert, snift block R-20/21 bolt on	Request
6	1372115-F	Insert, snift block R20 PET	Request

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	1009320100-9320	Seal, charging cap	Request
2	HH7211	Spring, charging valve	Request
3	1003482-V	O-ring	Request
4	1373442137-3442	Seal, liquid valve R-20/21	Request
5	RR647	Seat, snift valve	Request
6	1362961136-2961	Seal, snift block	Request
7	1337147133-7147	Spring, snift	Request
8	1045109-V	O-ring	Request

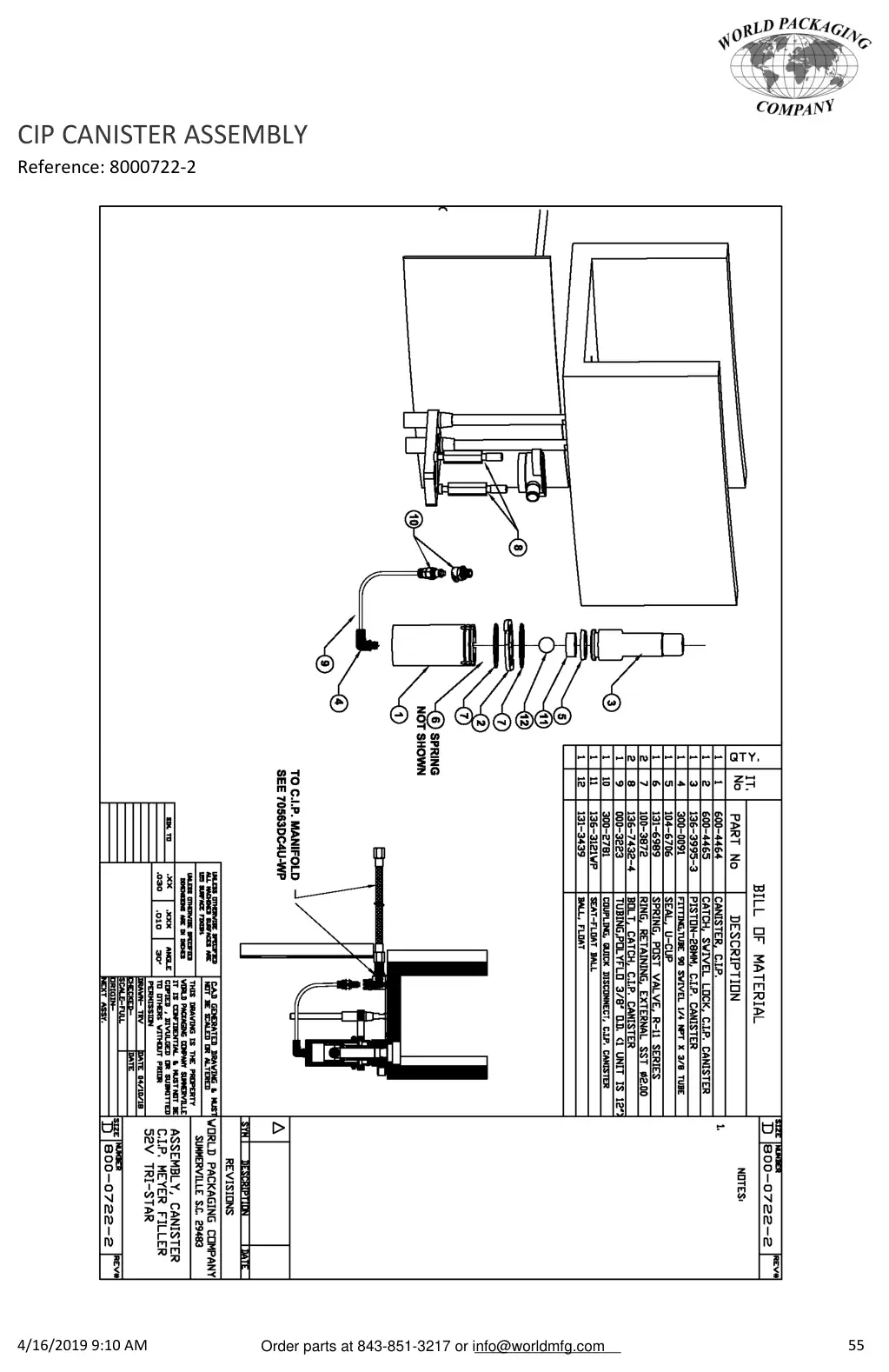

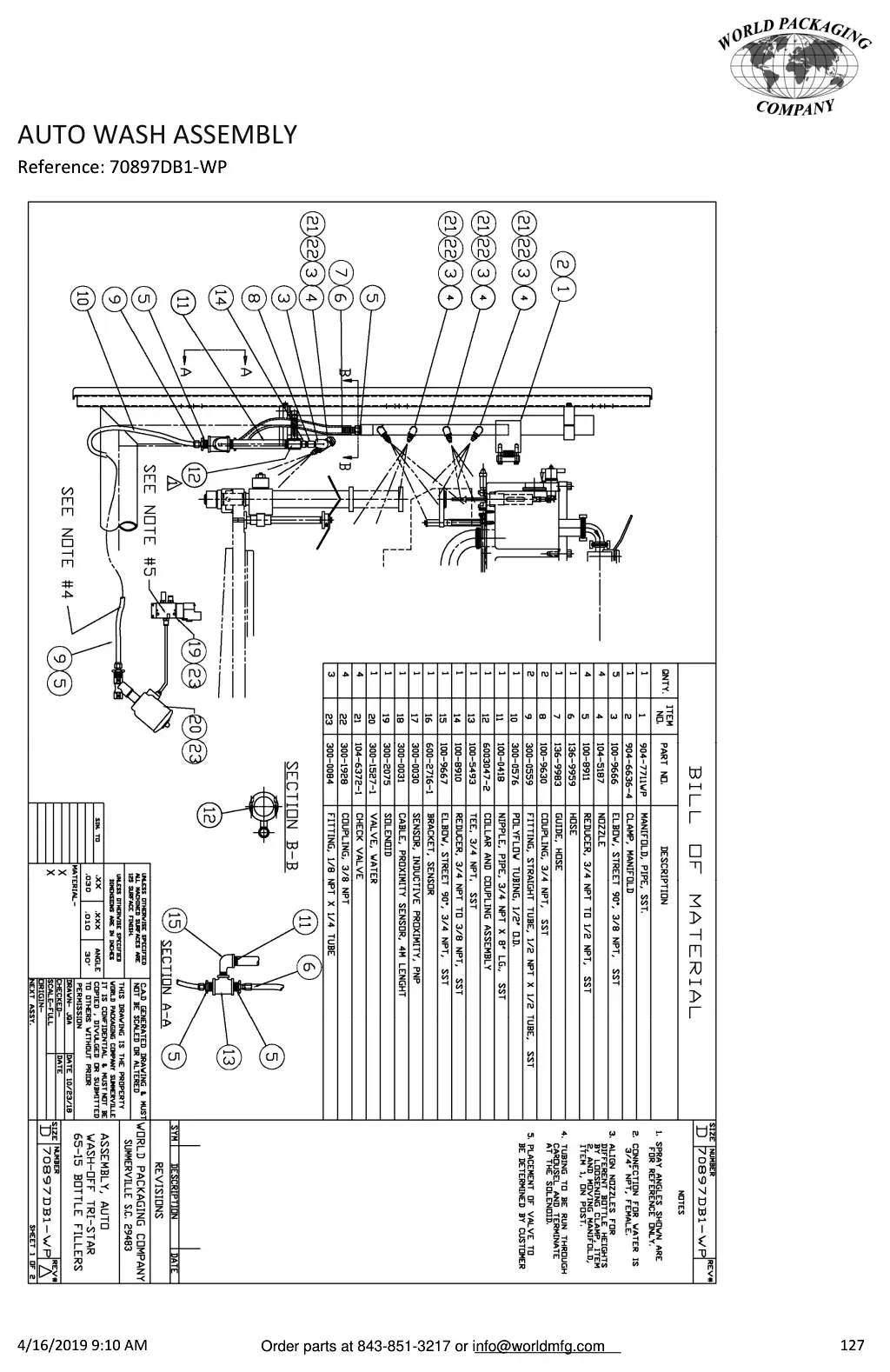

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	6004464600-4464	Canister	Request
2	6004465600-4465	Catch, swivel lock . . canister	Request
3	1363995-3	Piston, . . . canister yoshida	Request
4	3000091300-0091	Fitting, tube swivel	Request
5	1046706104-6706	Seal, U-cup	Request
6	1316989131-6989	Spring, post valve R-11 series	Request
7	1003872100-3872	Ring, retaining external	Request
8	1367432-4	Bolt, catch CIP canisters	Request
9	0003223000-3223	Tube, polyflo	Request
10	3002781300-2781	Coupling, quick disconnect	Request
11	1363121136-3121	Seal, float ball	Request
12	1313439131-3439	Ball, check	Request

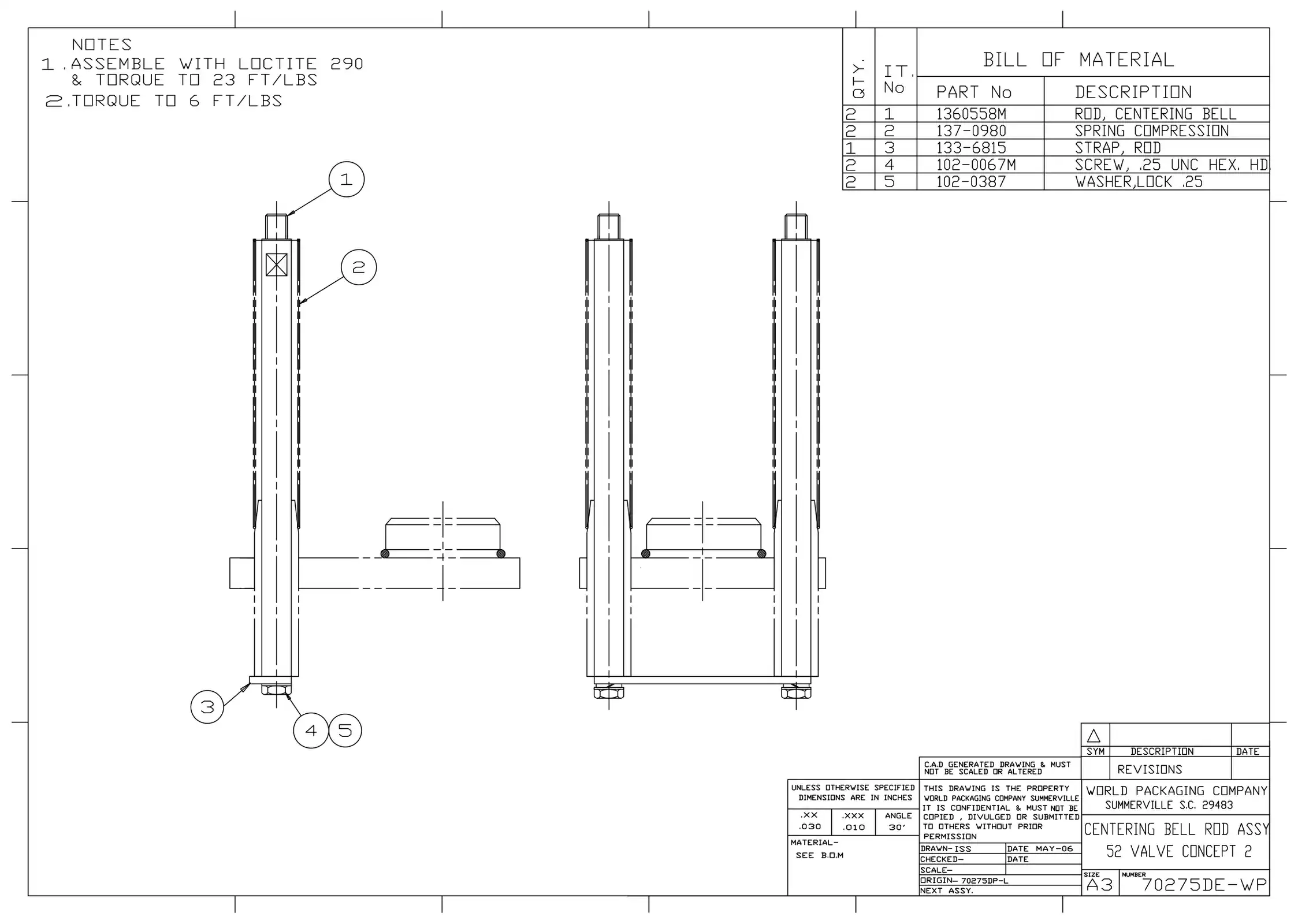

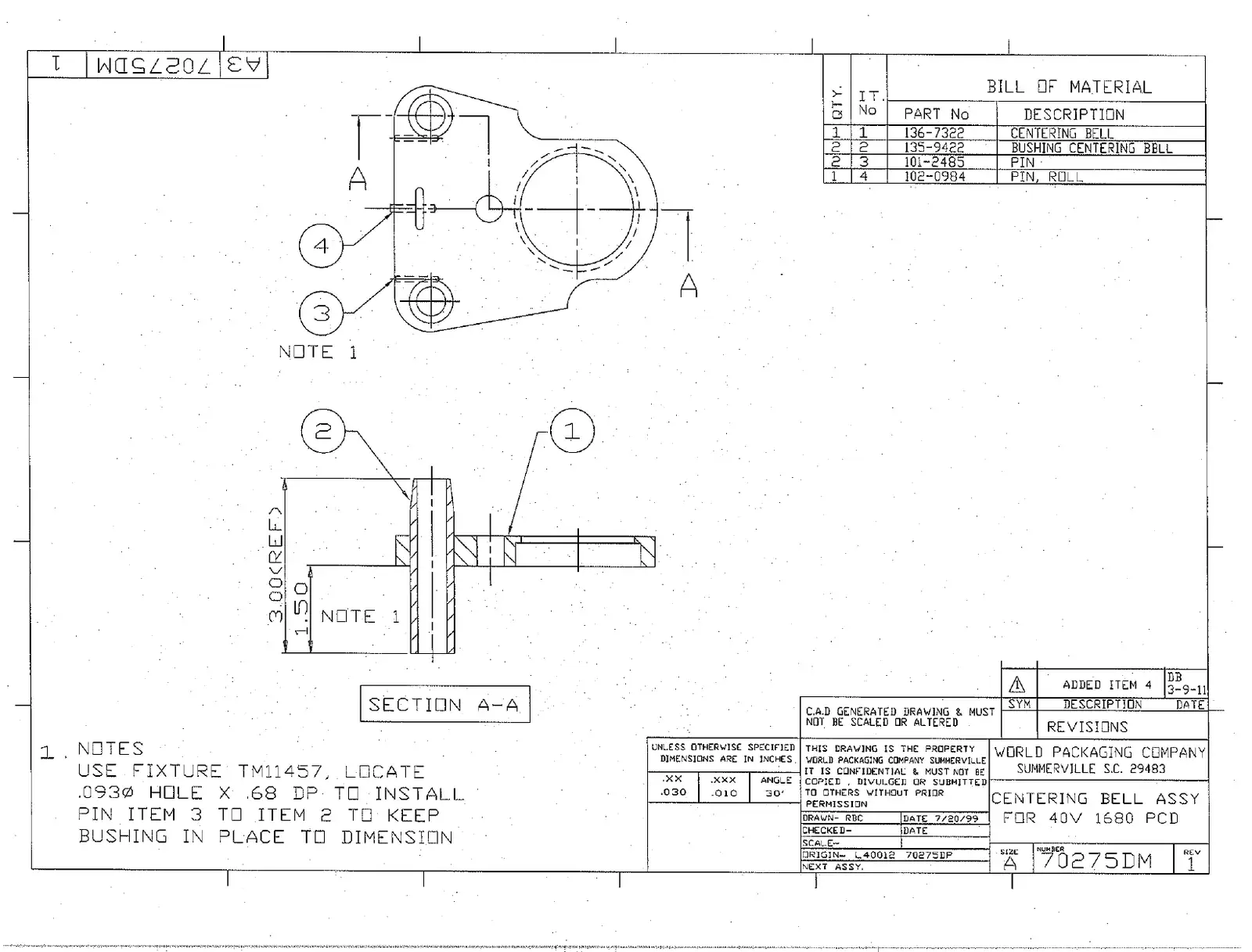

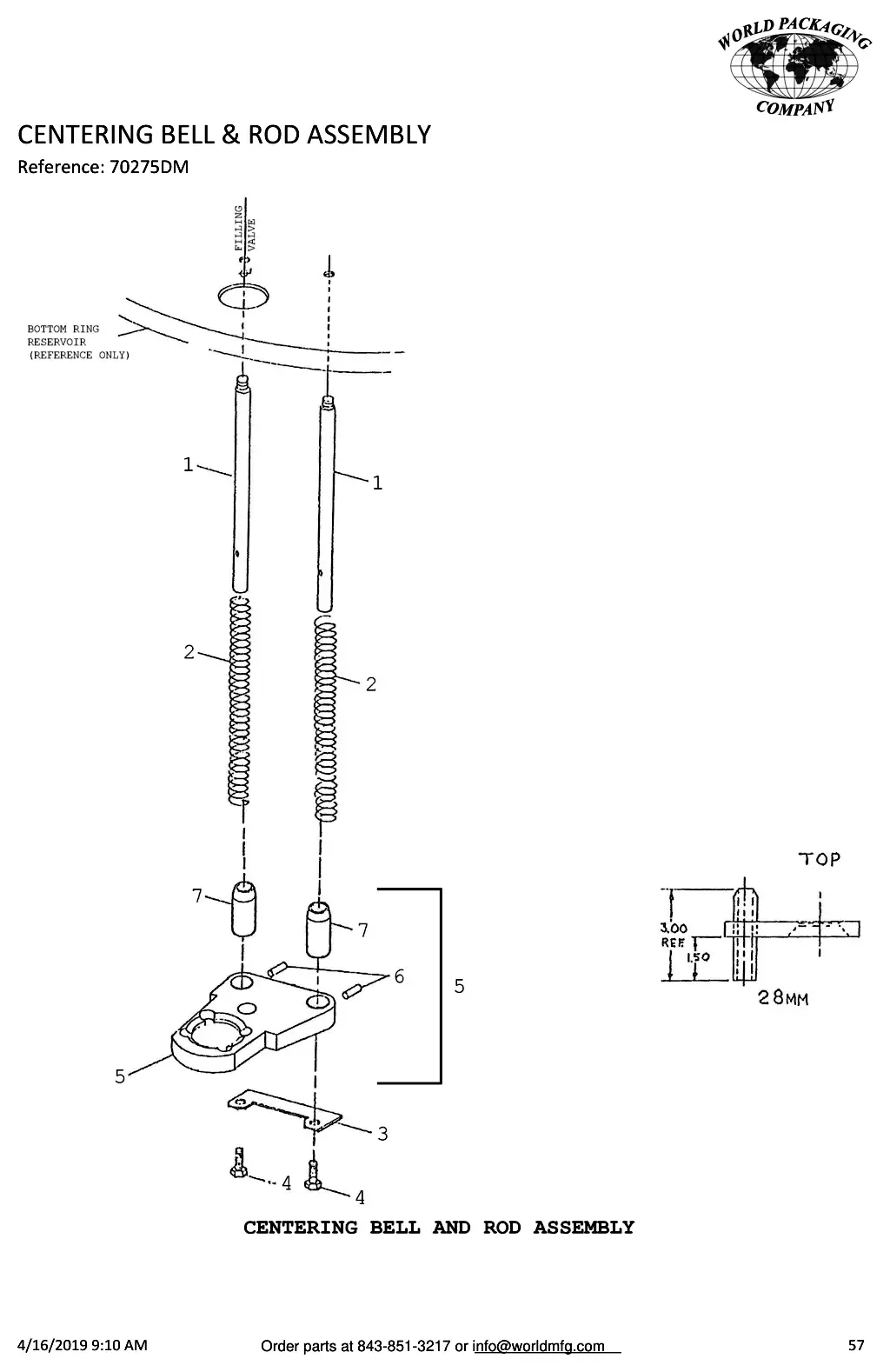

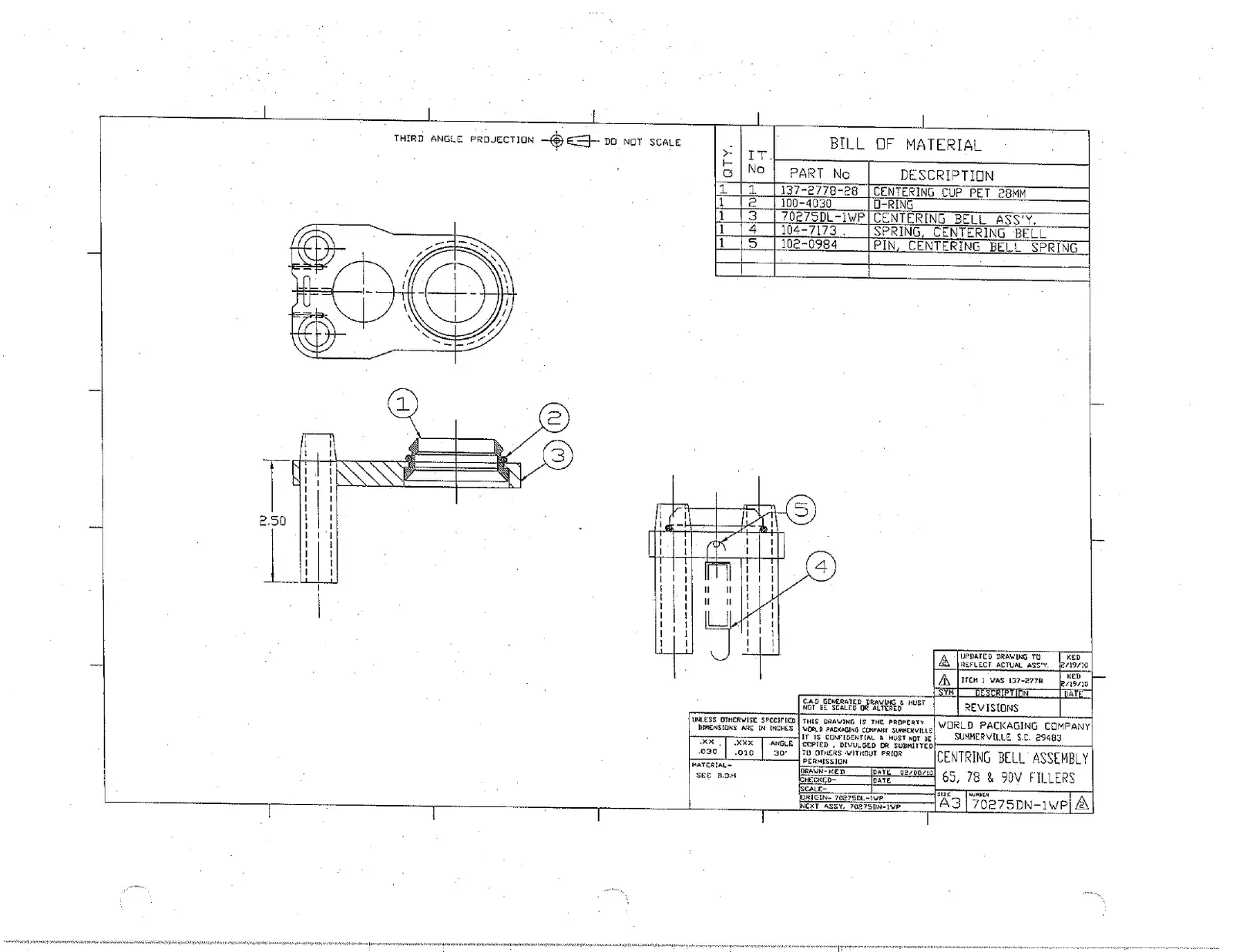

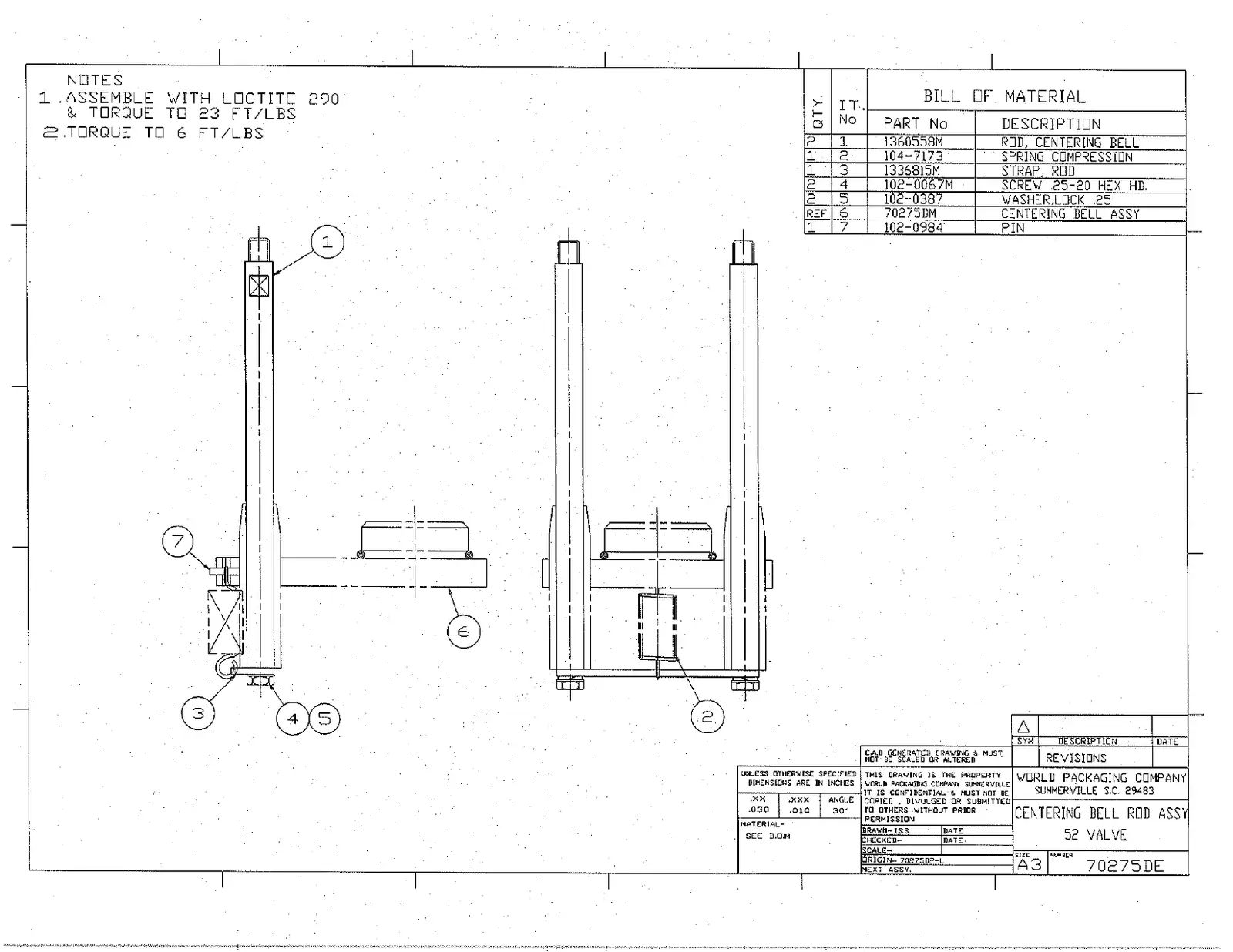

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Open full size

Ref	Part number	Description
1	1360558M-14	Rod, guide centering device	Request
2	1370980137-0980	Spring, centering bell	Request
3	133-68151336815	Strap, centering bell family	Request
4	102-00671020067	Bolt, hex head	Request
5	70275DM	Centering, bell assembly fillers	Request
5	1372778SH	Cup, centering bell special	Request
5	1004030100-4030	O-ring	Request
6	101-24851012485	Pin, groove	Request
7	135-94221359422	Bushing, centering bell	Request
8	1367322136-7322	Centering bell	Request

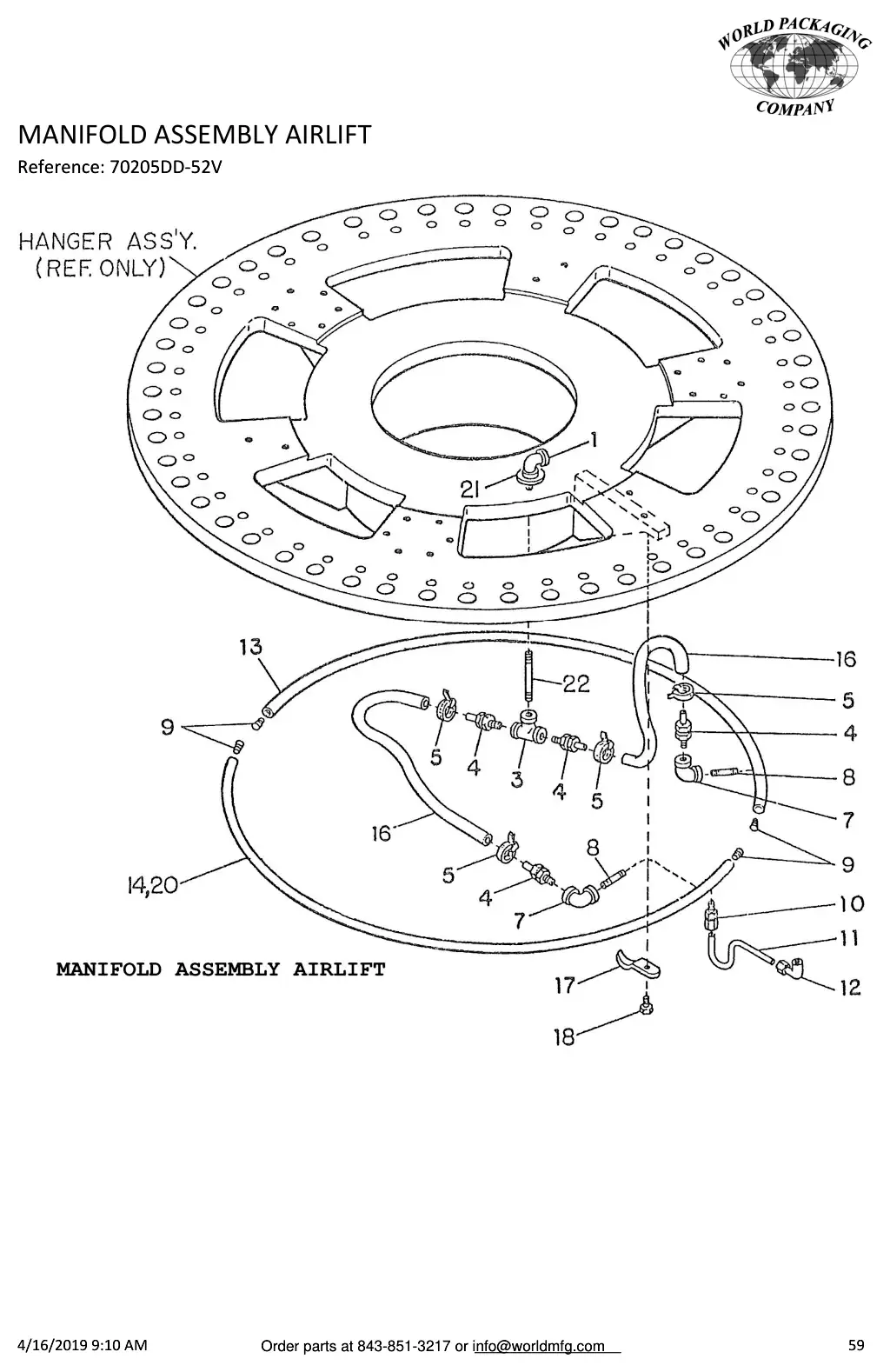

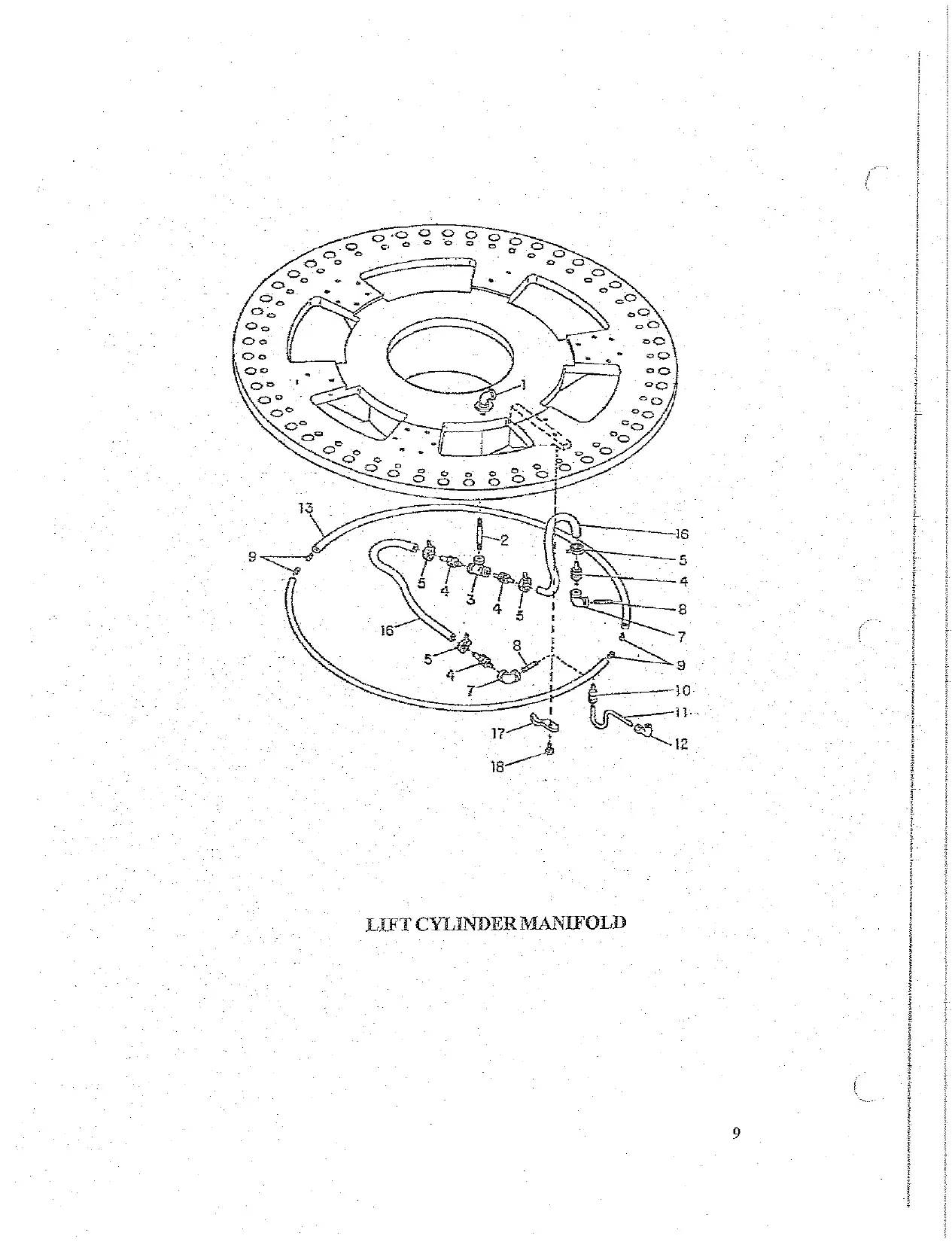

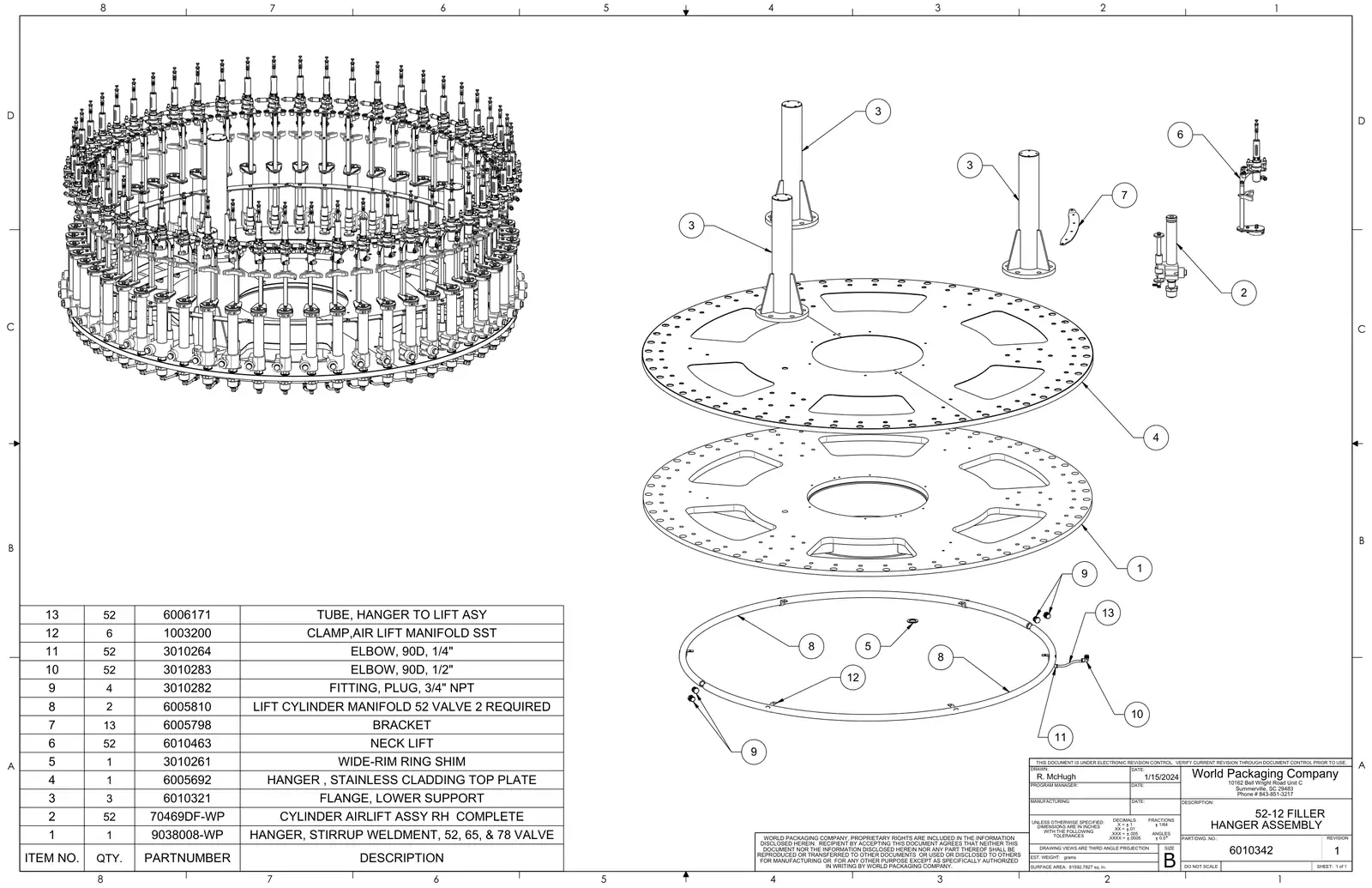

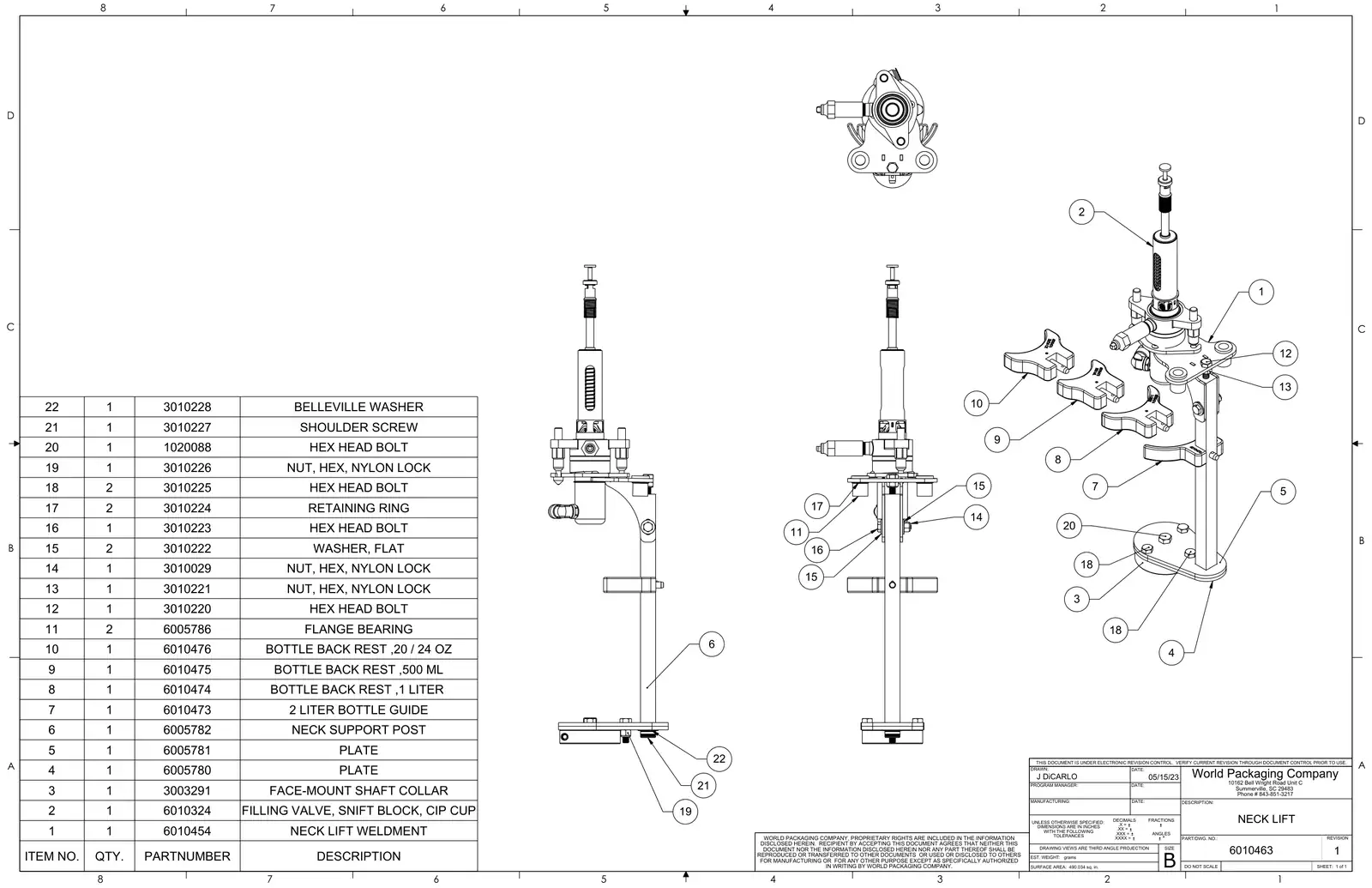

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	100-08571000857	Elbow	Request
3	100-08841000884	Tee	Request
4	101-01081010108	Fitting, barbed	Request
5	100-30771003077	Clamp, hose clamp	Request
7	100-3976	Elbow, reducing	Ask us
8	100-2734	Nipple, pipe	Ask us
9	100-11531001153	Plug, pipe countersunk	Request
10	100-09271000927	Fitting, tube adapter	Request
11	133-91661339166	Tube, air lifts	Request
12	100-14721001472	Elbow, tube	Request
13	133-99731339973-SST	Manifold, airlift 52V a model	Request
16	000-34890003489	Tubing, CO2/air braided hose	Request
17	100-32001003200	Clamp, air lift manifold	Request
18	102-00121020012	Hex head bolt	Request
21	102-2324	Washer	Ask us
22	100-3629	Nipple, pipe	Ask us

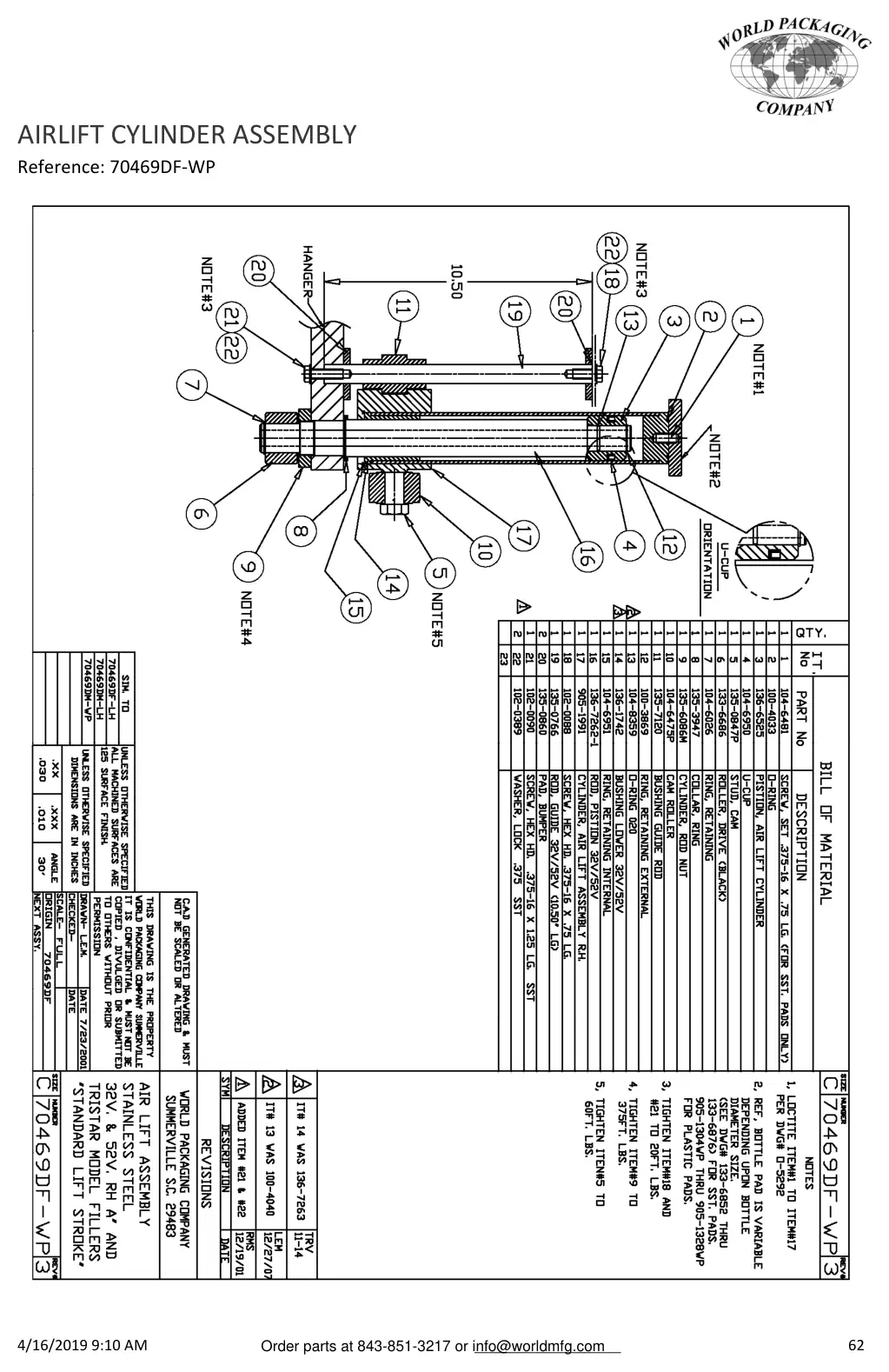

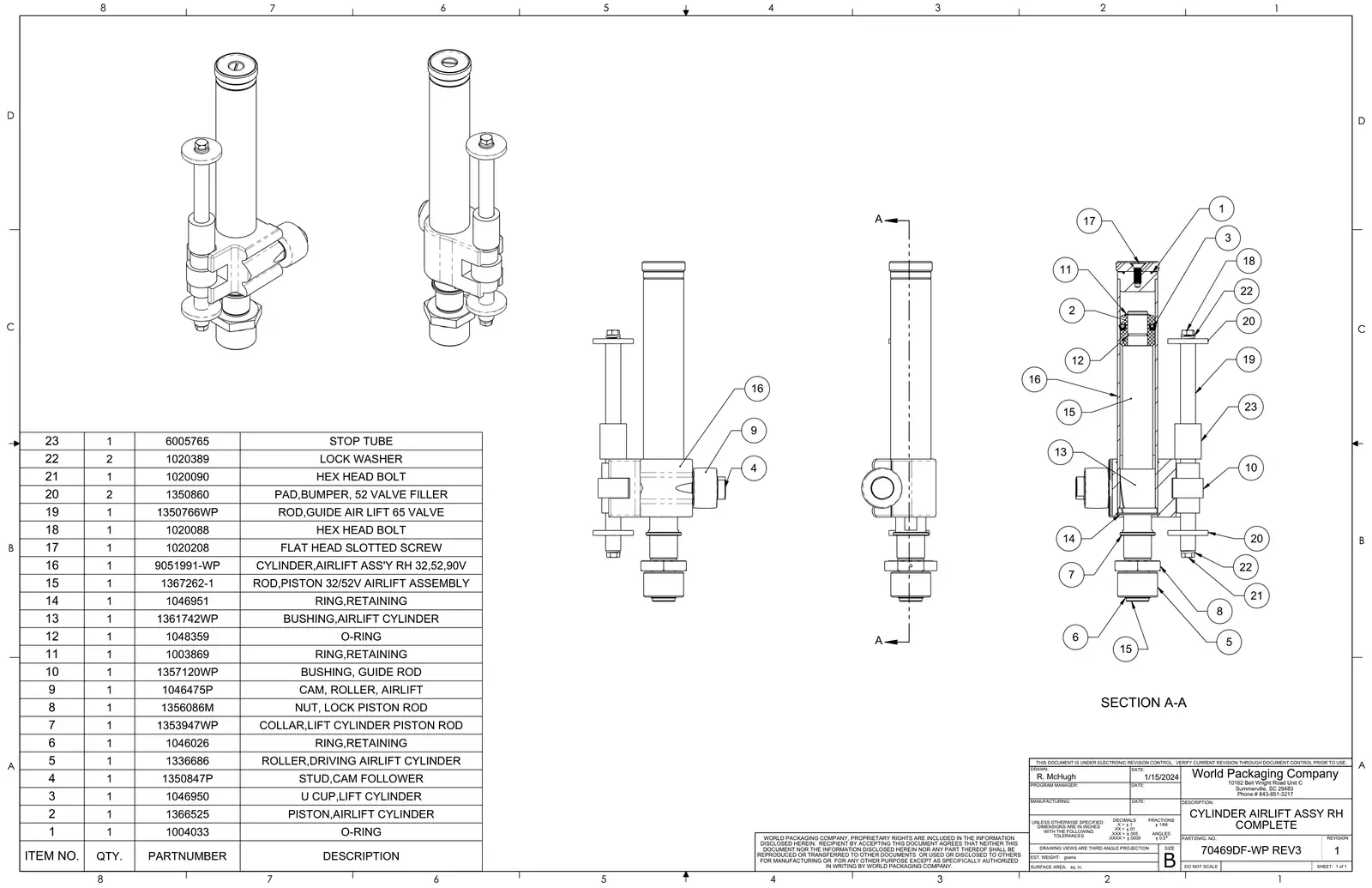

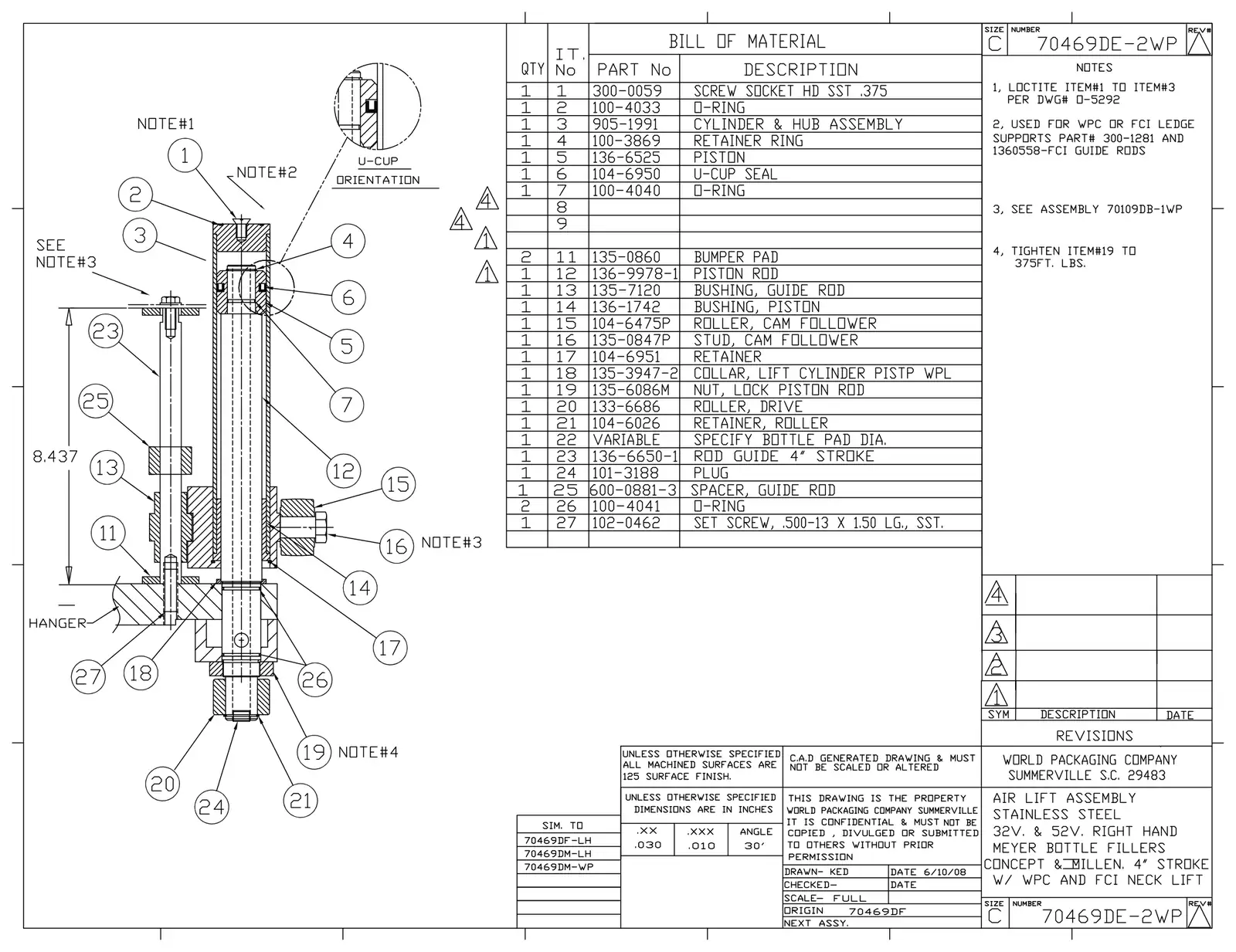

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	1046481104-6481	Screw, set socket cup point pt	Request
2	1004033100-4033	O-ring	Request
3	1366525136-6525	Piston, airlift cylinder	Request
4	1046950104-6950	U-cup, lift cylinder	Request
5	1350847P	Stud, cam follower	Request
6	1336686133-6686	Roller, driving airlift cylinder	Request
7	1046026104-6026	Ring, retaining	Request
8	1353947135-3947	Collar, lift cylinder pist	Request
9	1356086M	Nut, lock piston rod	Request
10	1046475P	Roller, cam	Request
11	1357120135-7120	Bushing, guide rod	Request
12	1003869100-3869	Ring, retaining	Request
13	1048359104-8359	O-ring	Request
14	1361742136-1742	Bushing, airlift cylinder	Request
15	1046951104-6951	Ring, retaining	Request
16	1367262-1	Rod, piston airlift	Request
17	9051991905-1991	Cylinder, airlift assembly	Request
18	1020088102-0088	Hex head bolt	Request
19	1350766135-0766	Rod, guide	Request
20	1350860135-0860	Pad, bumper	Request
21	1020090102-0090	Bolt, hex head	Request
22	1020389102-0389	Washer, lock	Request

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

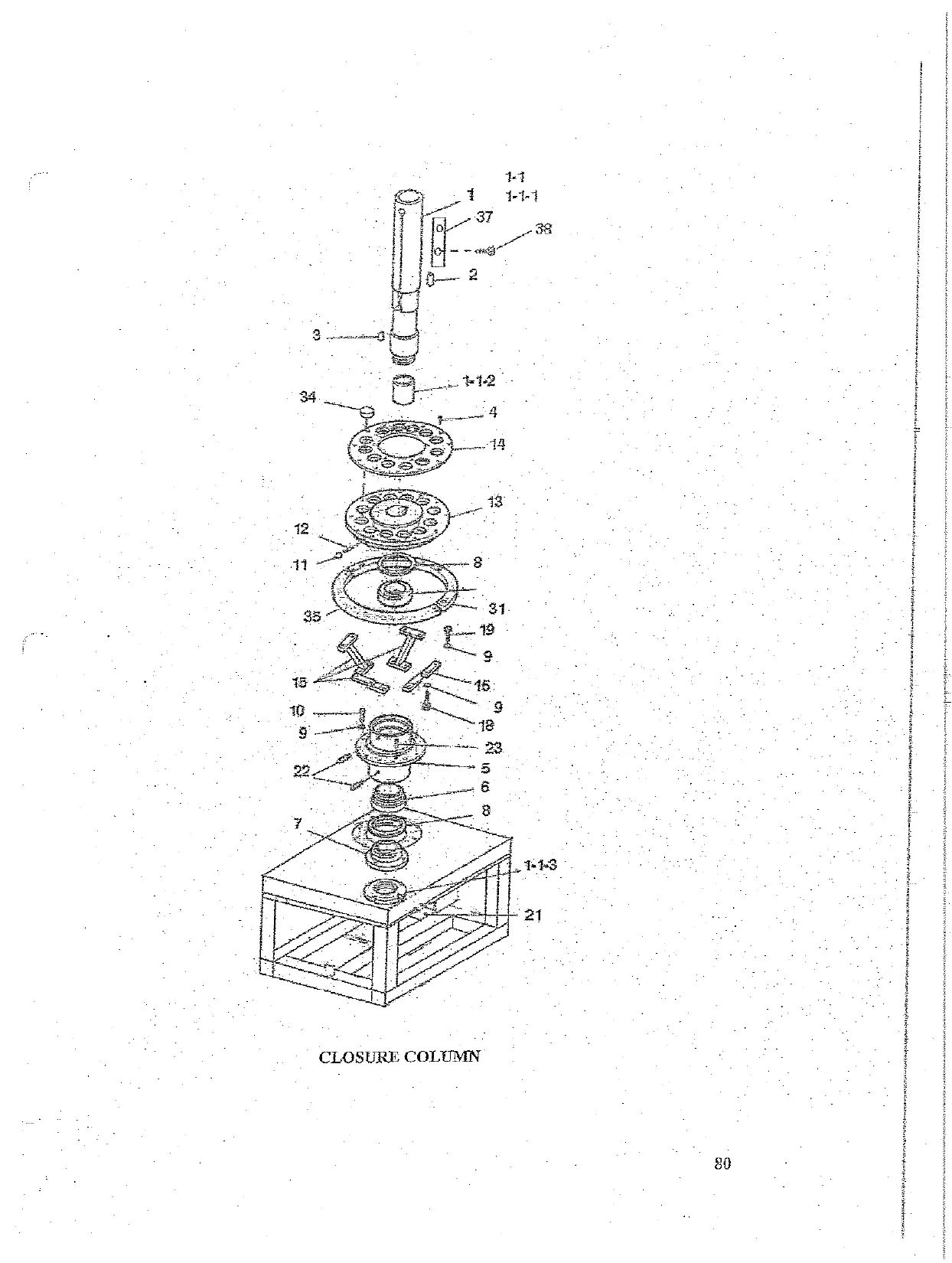

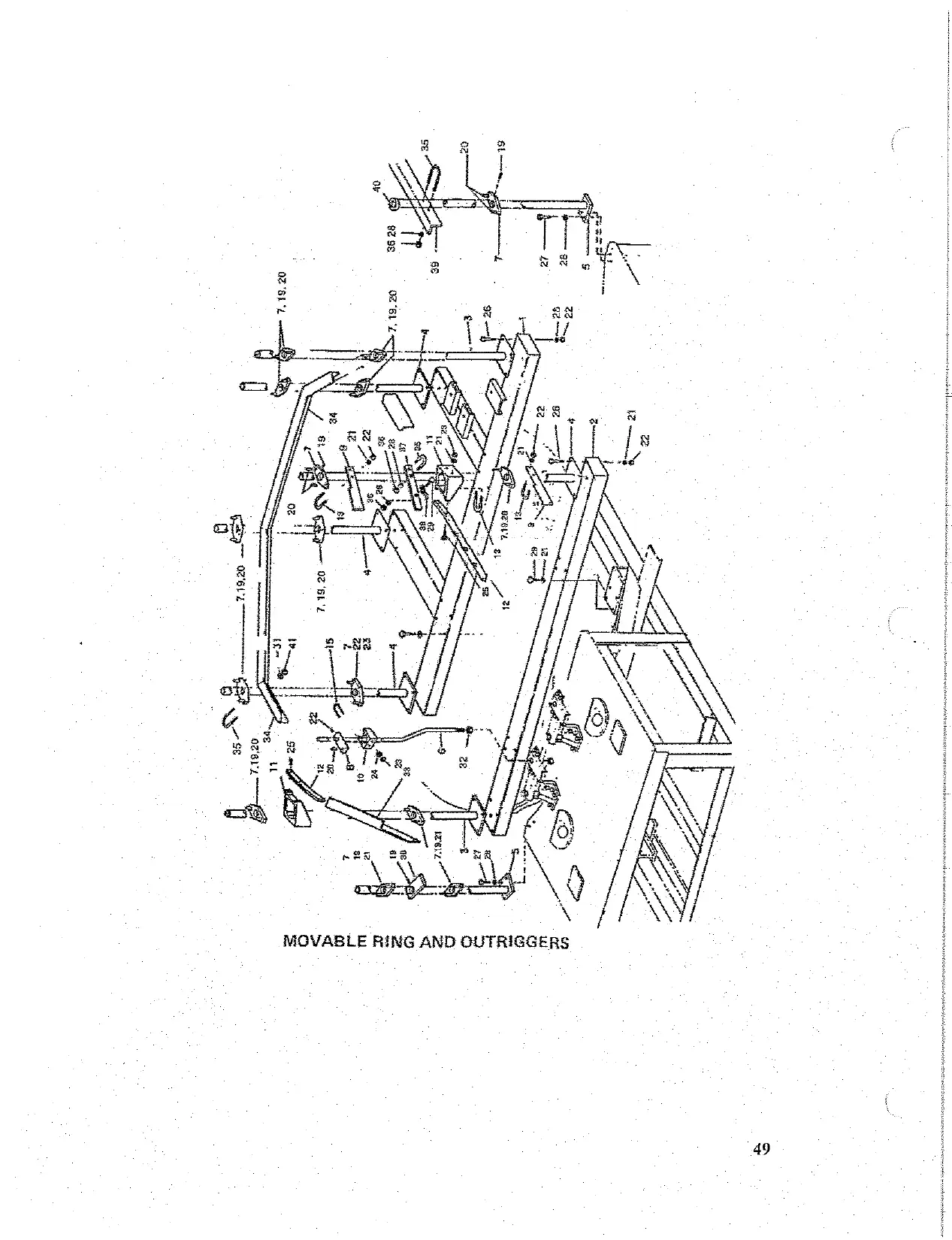

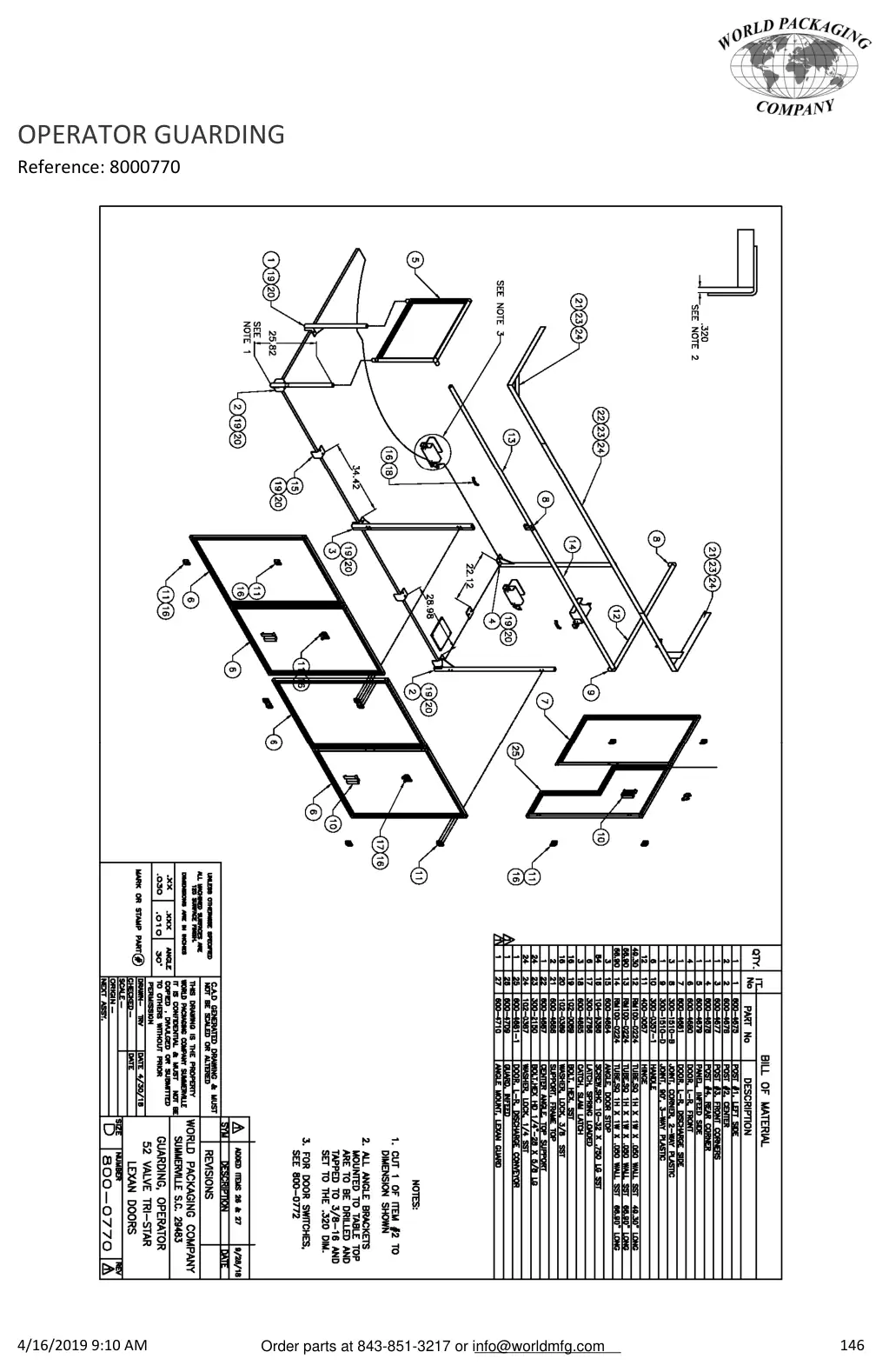

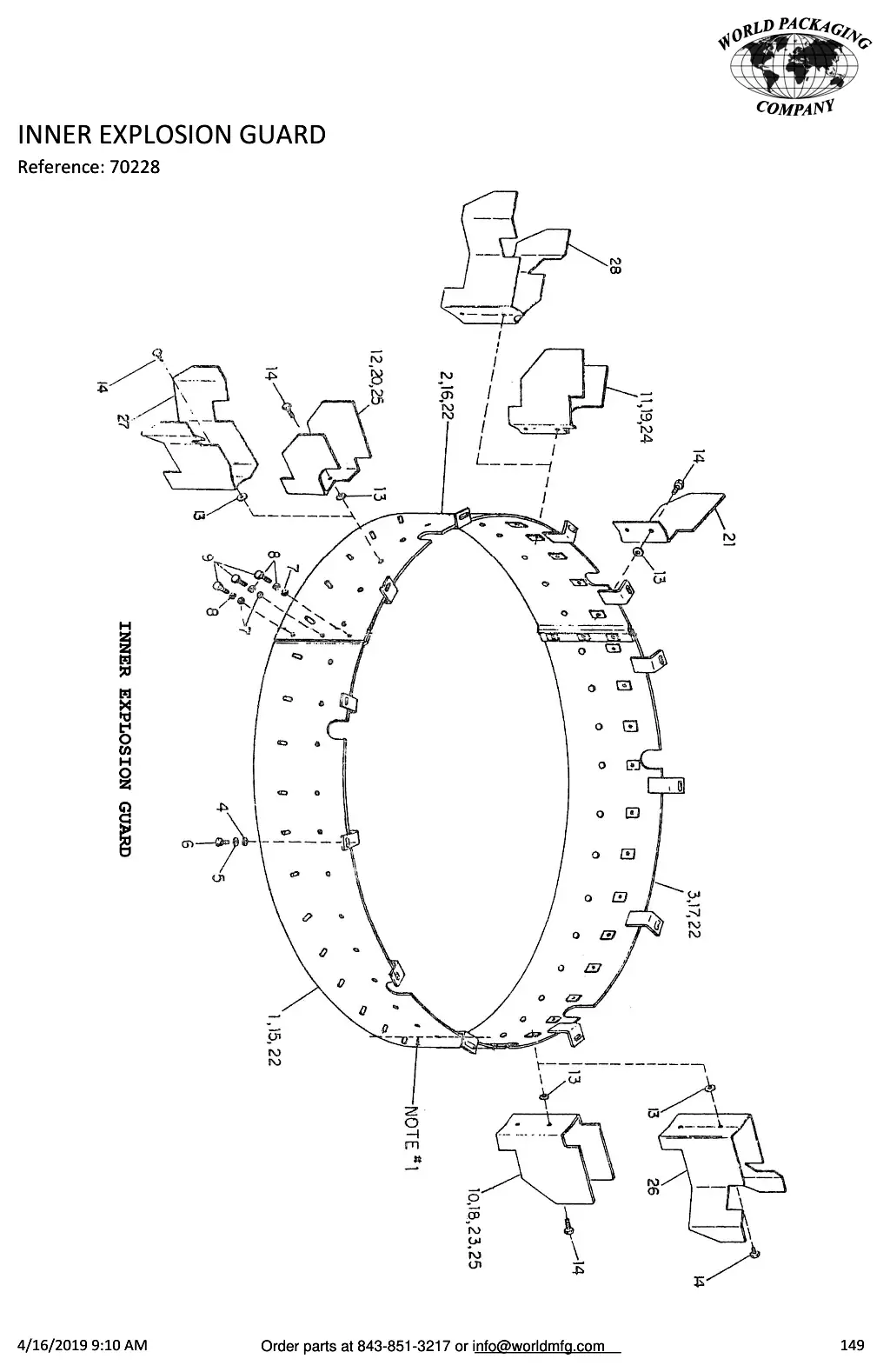

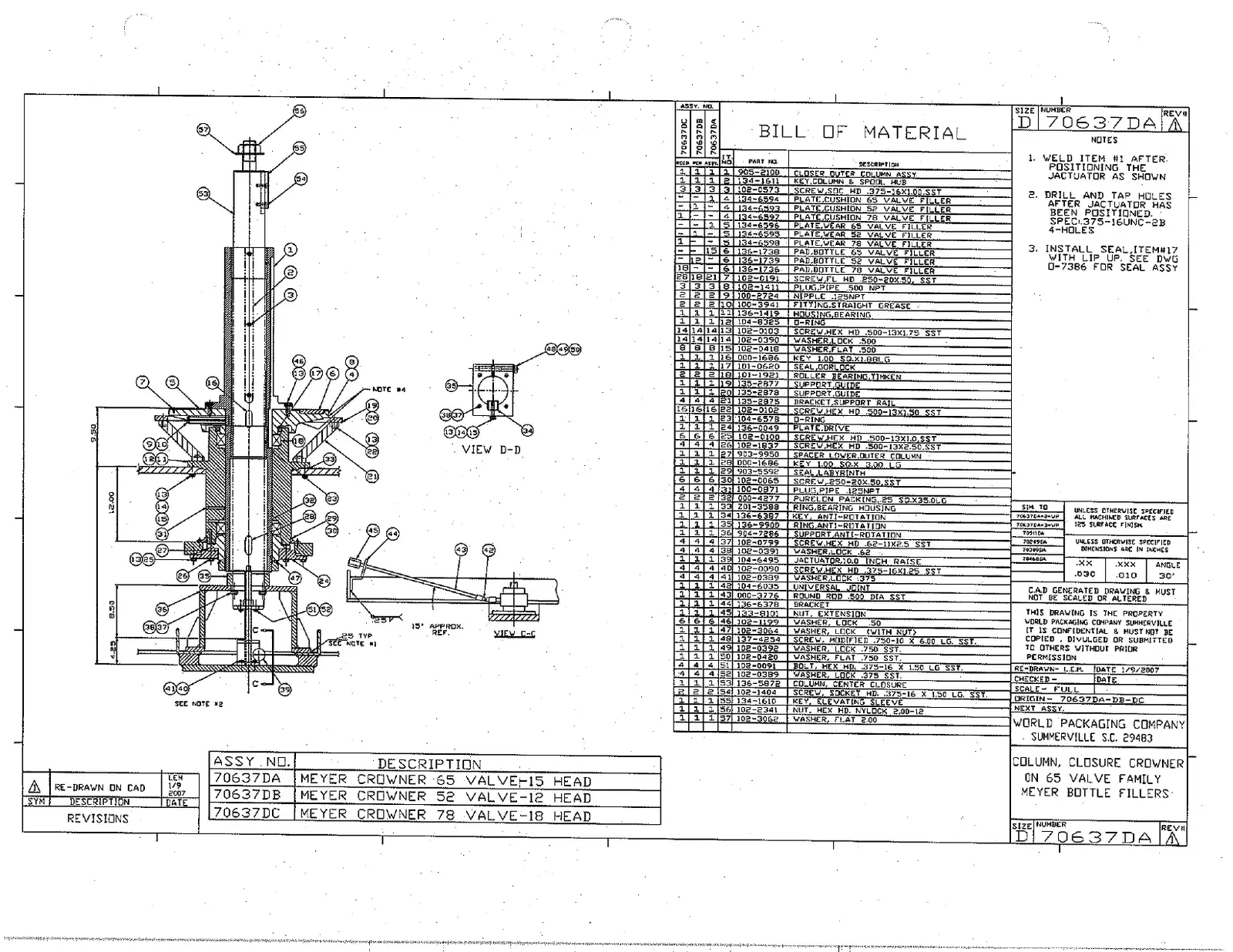

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
1	135-8475	Key, anti-rotation	Ask us
2	903-9575	Column, closer	Ask us
4	135-8474	Ring, anti-rotation	Ask us
5	903-95749039574-KIT	Fiberglass to lift cylinder	Request
6	104-64951046495	Jactuator, rise	Request
7	101-19211011921	Bearing, roller closer column	Request
8	101-06201010620	Seal, oil closer column lower	Request
9	135-2875	Bracket, rail support	Ask us
10	135-2878	Support, guide	Ask us
11	135-2877	Support, guide	Ask us
12	134-1577	Pad, bottle - -12 head	Ask us
13	135-6593	Plate, cushion - -12 head	Ask us
14	134-65951346595	Plate, wear crowner 52-12	Request
15	903-9582	Support, crowner starwheel	Ask us
16	135-9423	Base, jack support	Ask us
17	135-1670	U-joint	Ask us
18	133-8099	Shaft	Ask us
19	135-0969	Bracket, crowner	Ask us
20	133-81011338101	Extension, hex shaft drive element	Request
21	135-9981	Clip, anti-rotation	Ask us
22	000-4099	Chain, sash - in. lg.	Ask us
23	RR-516RR516	Plug, lock	Request
24	102-1836	Screw, hex head cap	Ask us
25	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
26	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
27	102-04281020428	Screw, set socket cup point	Request
31	102-2142	Screw, socket head cap	Ask us
32	102-0057	Bolt, hex head	Ask us
33	102-01031020103	Bolt, hex head	Request
34	102-21601022160	Pin, dowel	Request
35	102-00271020027	Bolt, hex head	Request
38	102-01021020102	Bolt, hex head	Request
39	102-01031020103	Bolt, hex head	Request
40	100-08741000874	Plug, pipe square. head	Request
41	100-39411003941	Fitting, grease female str	Request
42	100-27241002724	Nipple	Request
43	102-01911020191	Screw, flat head slot	Request
44	102-0038	Bolt, hex head	Ask us
45	000-3393	Key	Ask us
46	102-14301021430	Screw, set	Request
47	102-23611022361	Pin, roll	Request
48	102-16611021661	Bolt, hex head	Request
49	102-27201022720	Pin, roll	Request
50	102-1457	Screw, fillister head	Ask us
51	102-04141020414	Washer, flat	Request
52	104-65781046578	O-ring	Request
53	903-96209039620	Spacer, lower closure disconnect gr	Request
54	102-2070	Screw, set full dog	Ask us
55	134-65911346591	Plate, cushion closure sol	Request
56	134-65921346592	Plate, wear solid	Request
57	134-16111341611	Key, column & spool hub	Request
58	102-05731020573	Screw, socket head cap	Request
59	135-4047	Rail support	Ask us
60	135-08471350847	Screw, cam follower btl lift	Request
61	135-4046	Rail support	Ask us
62	135-0876	Rail support	Ask us

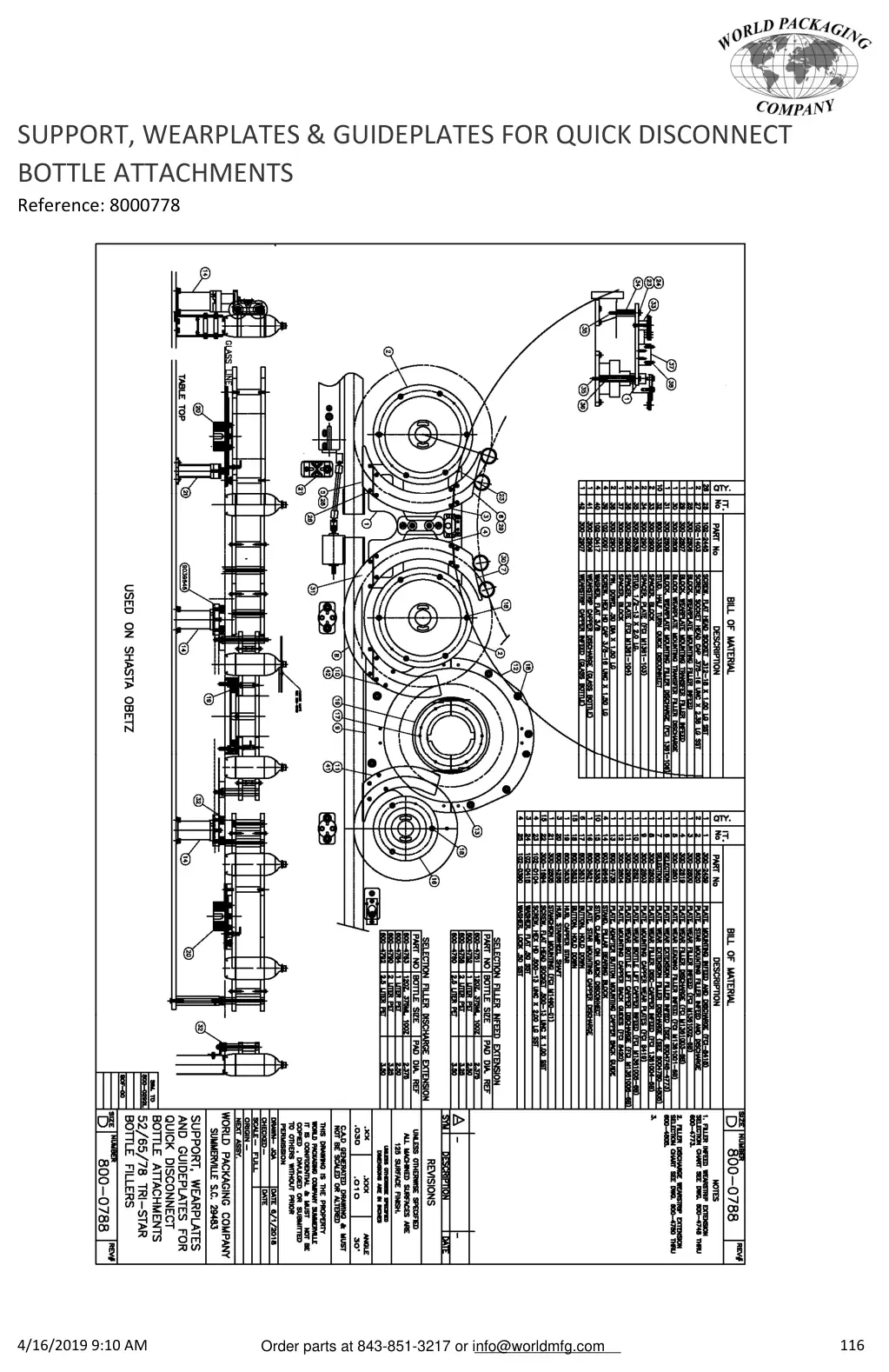

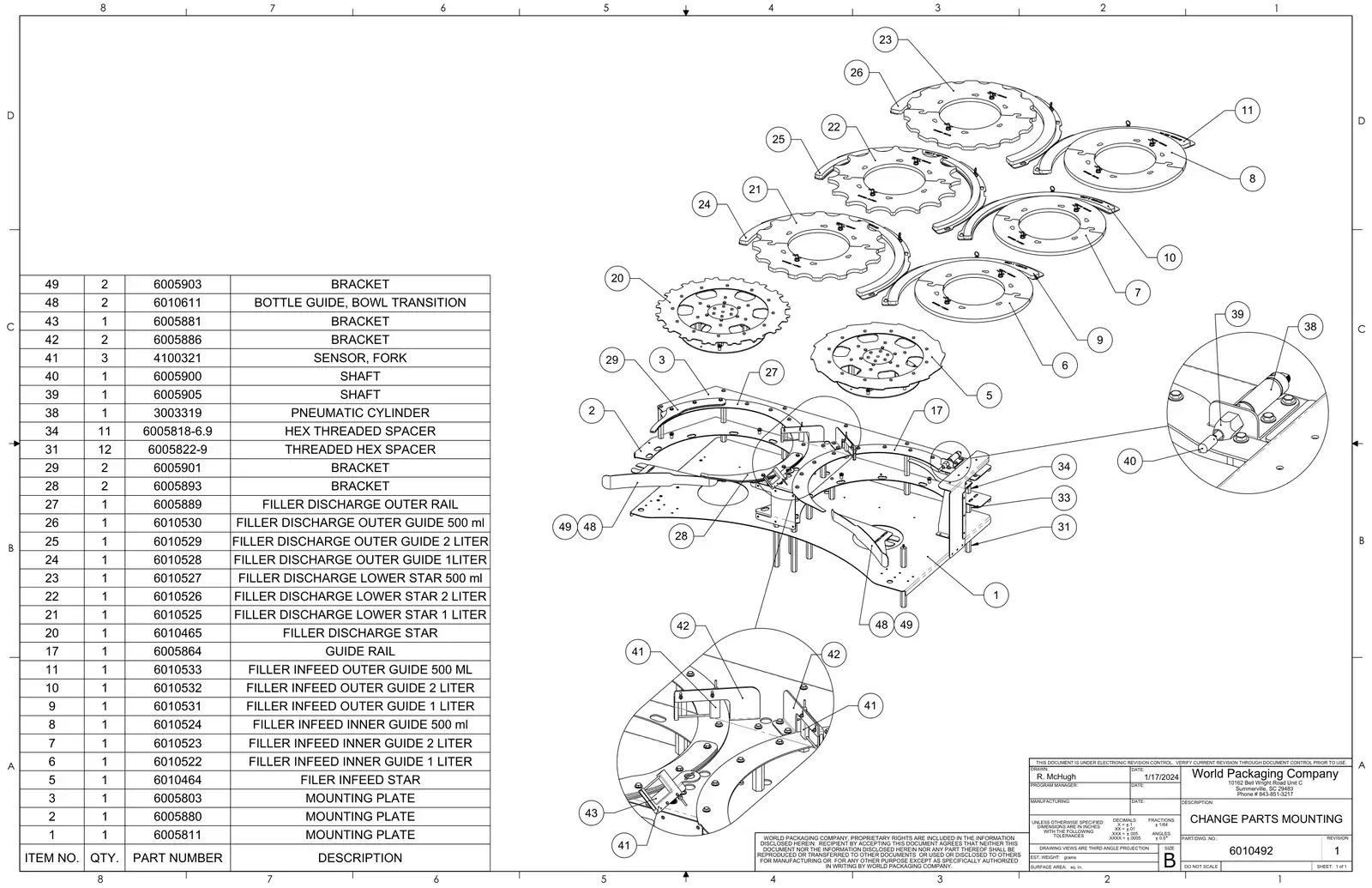

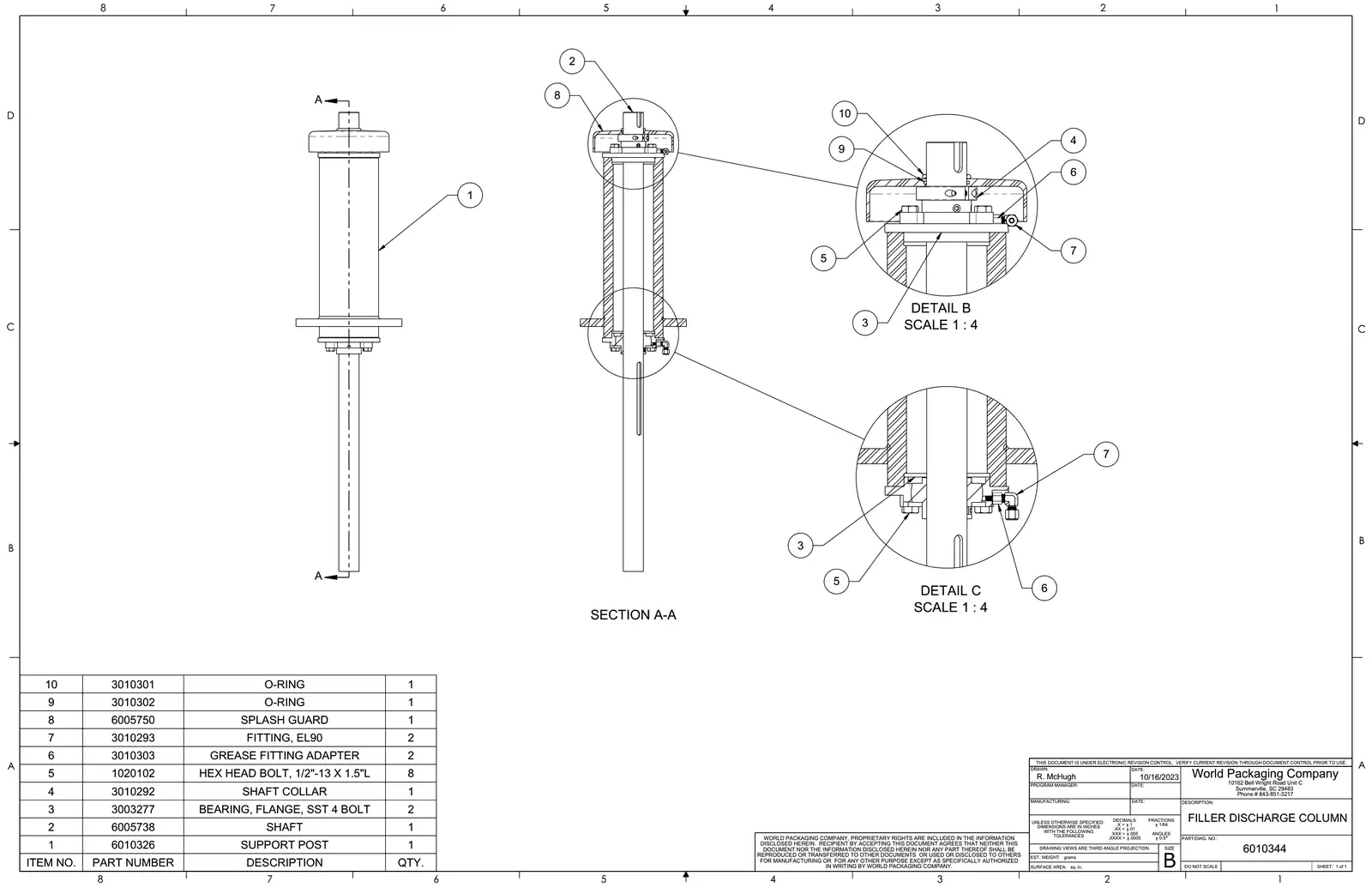

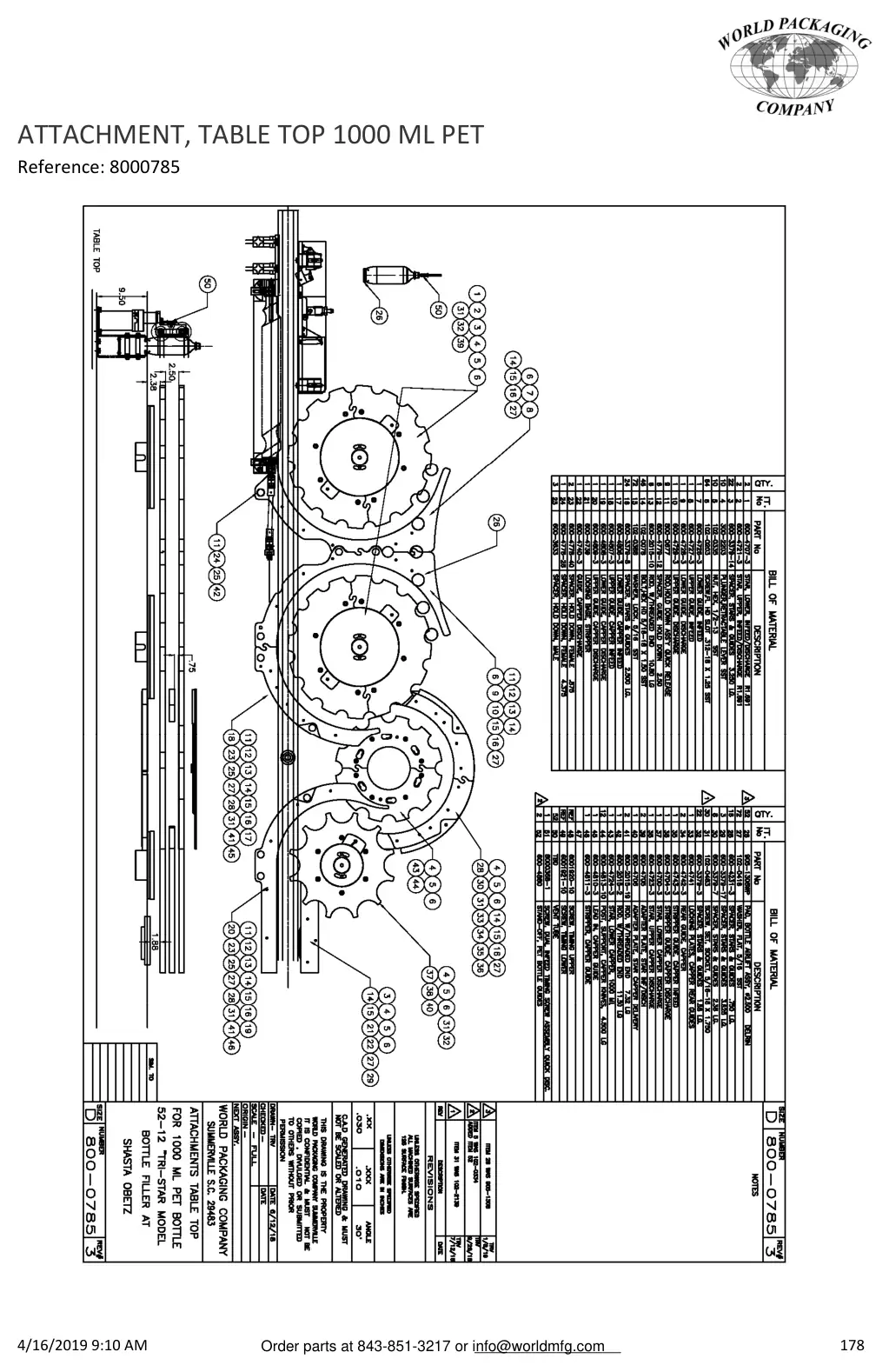

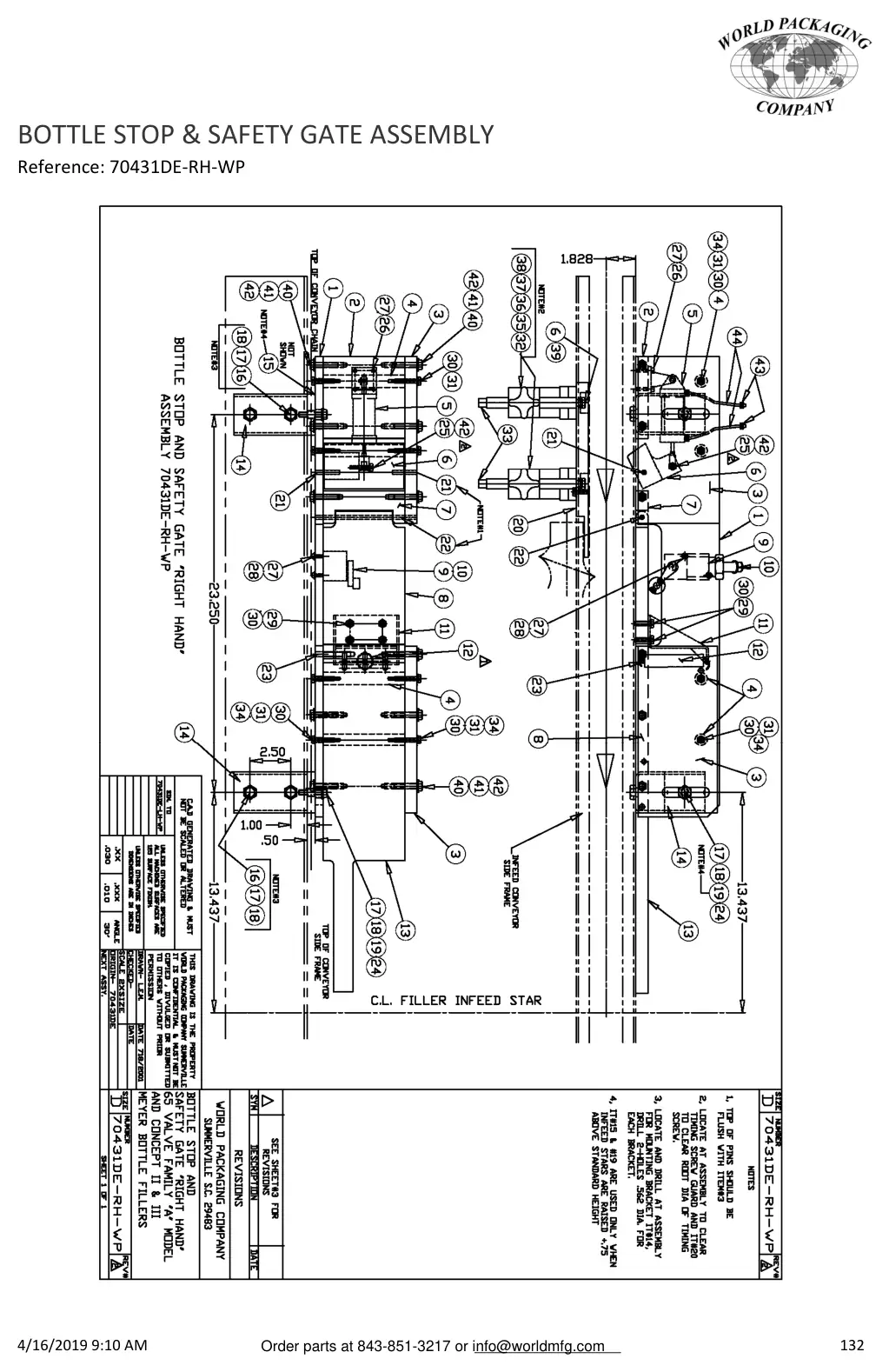

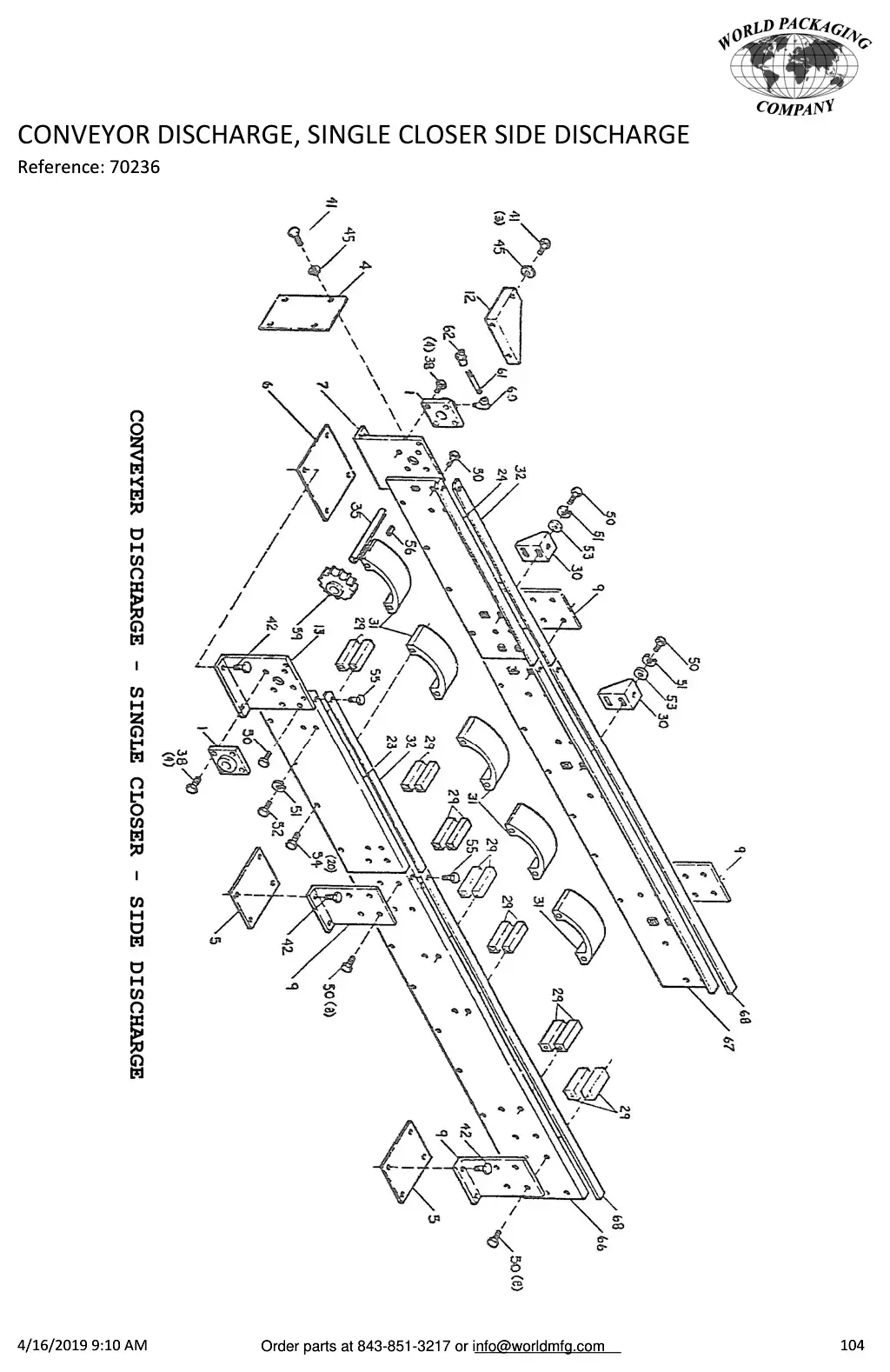

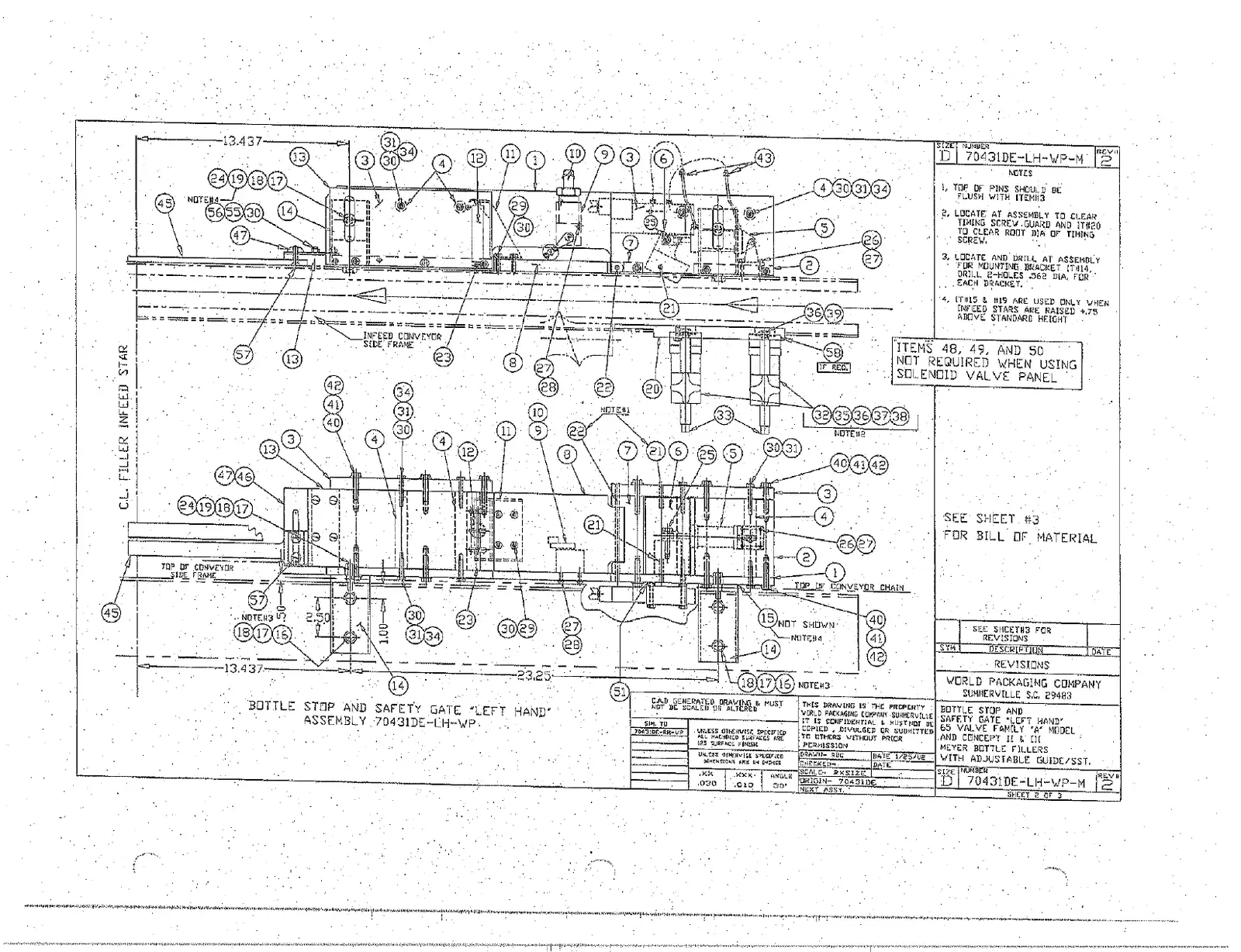

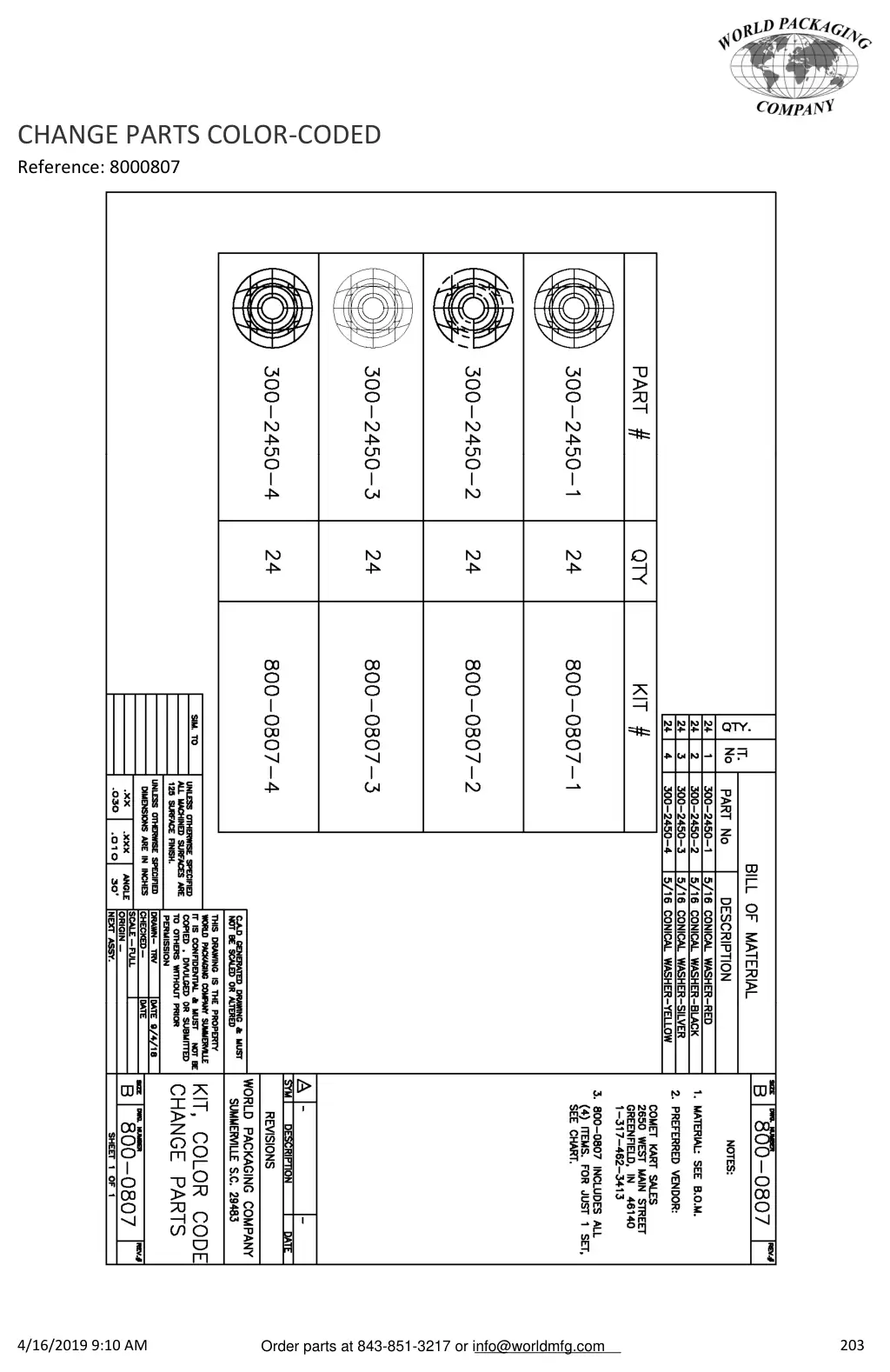

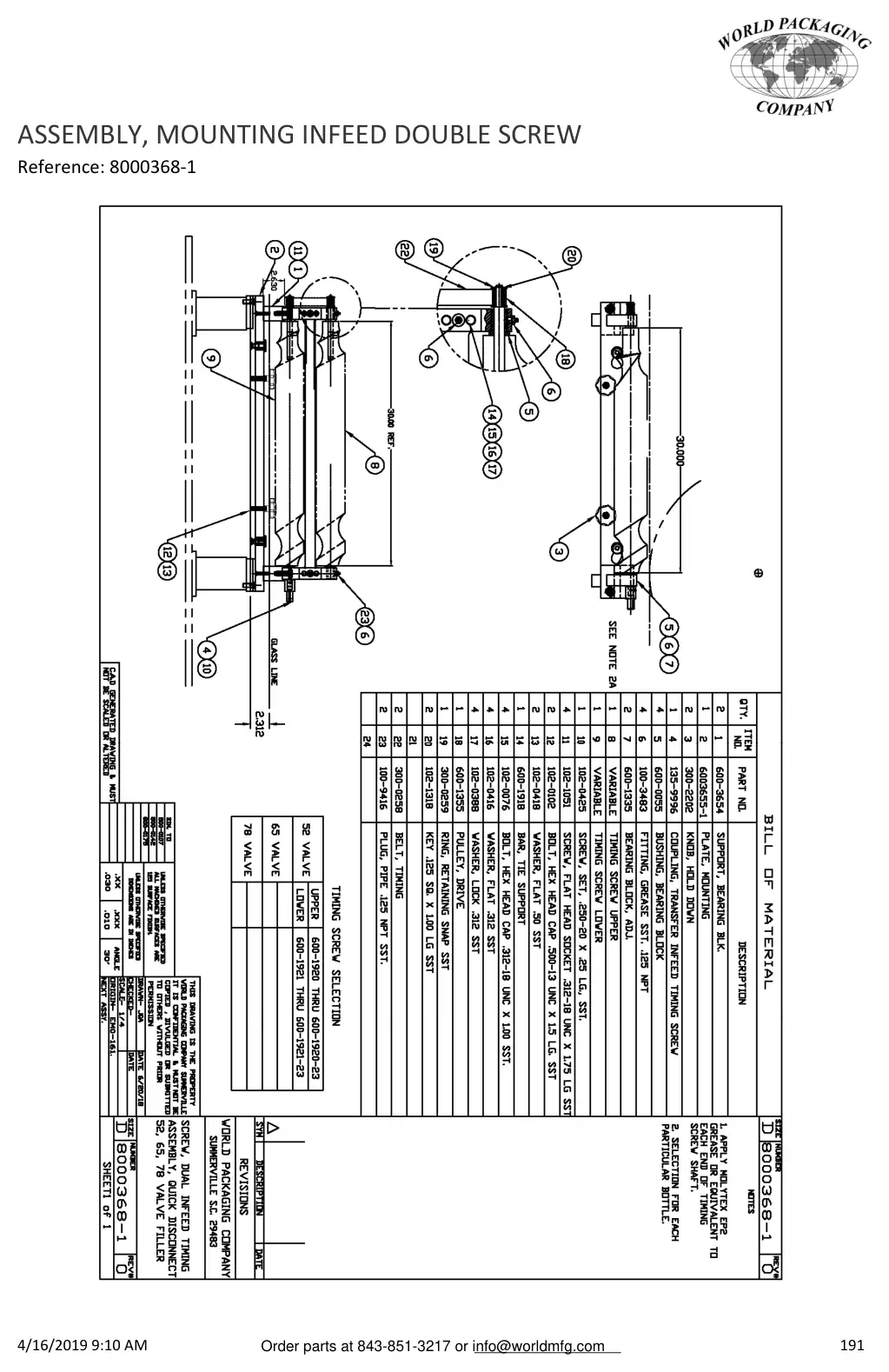

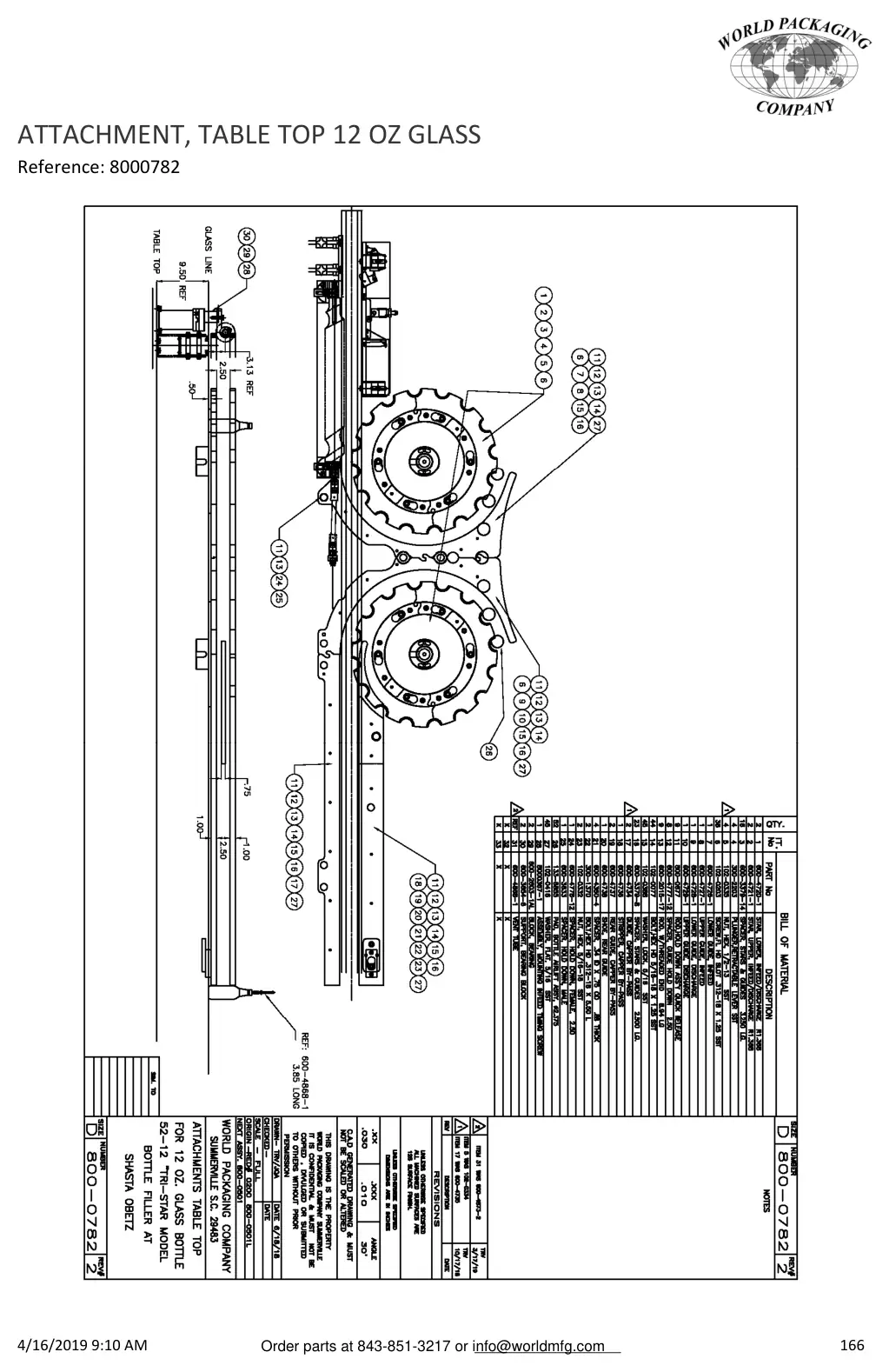

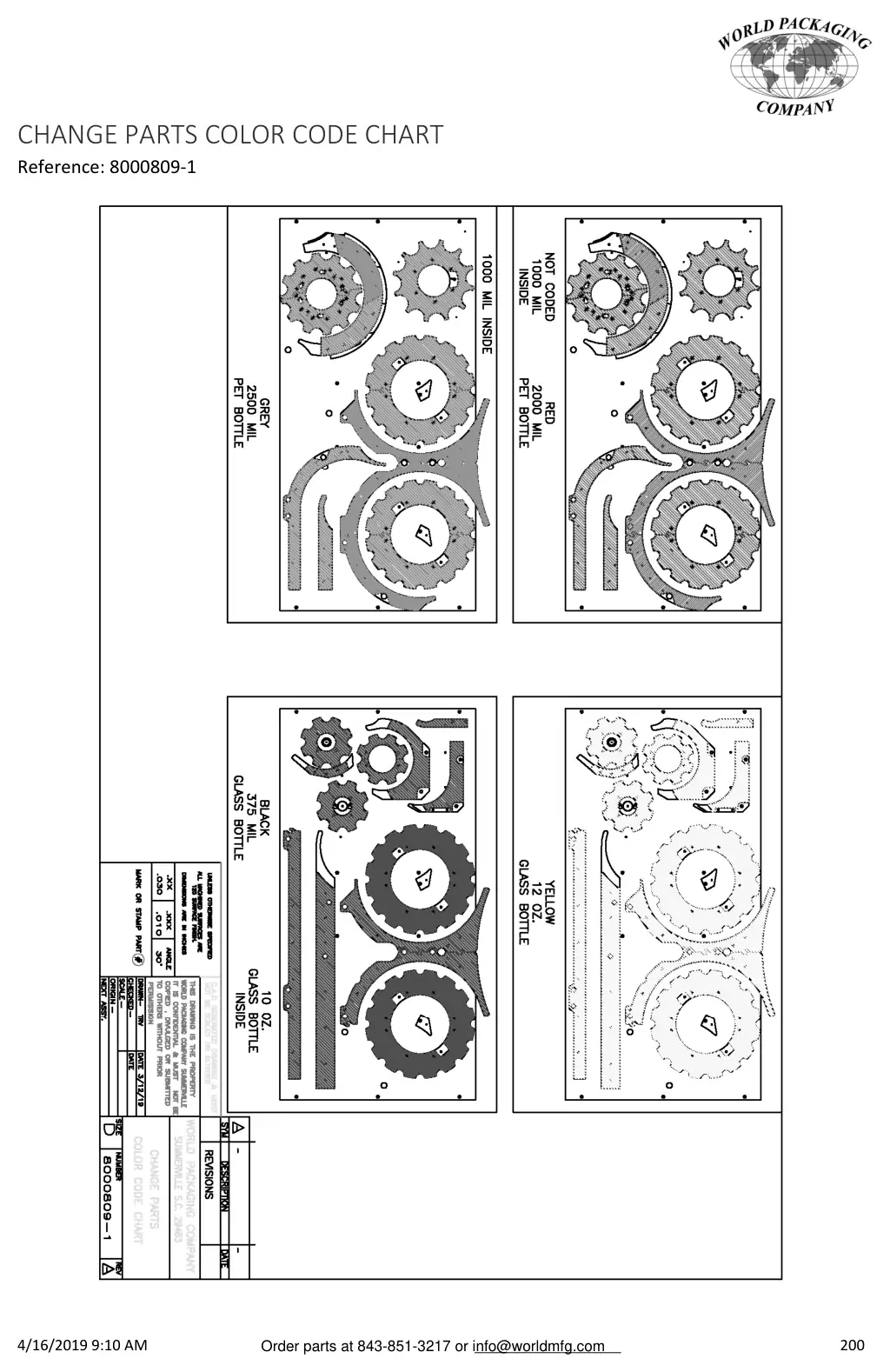

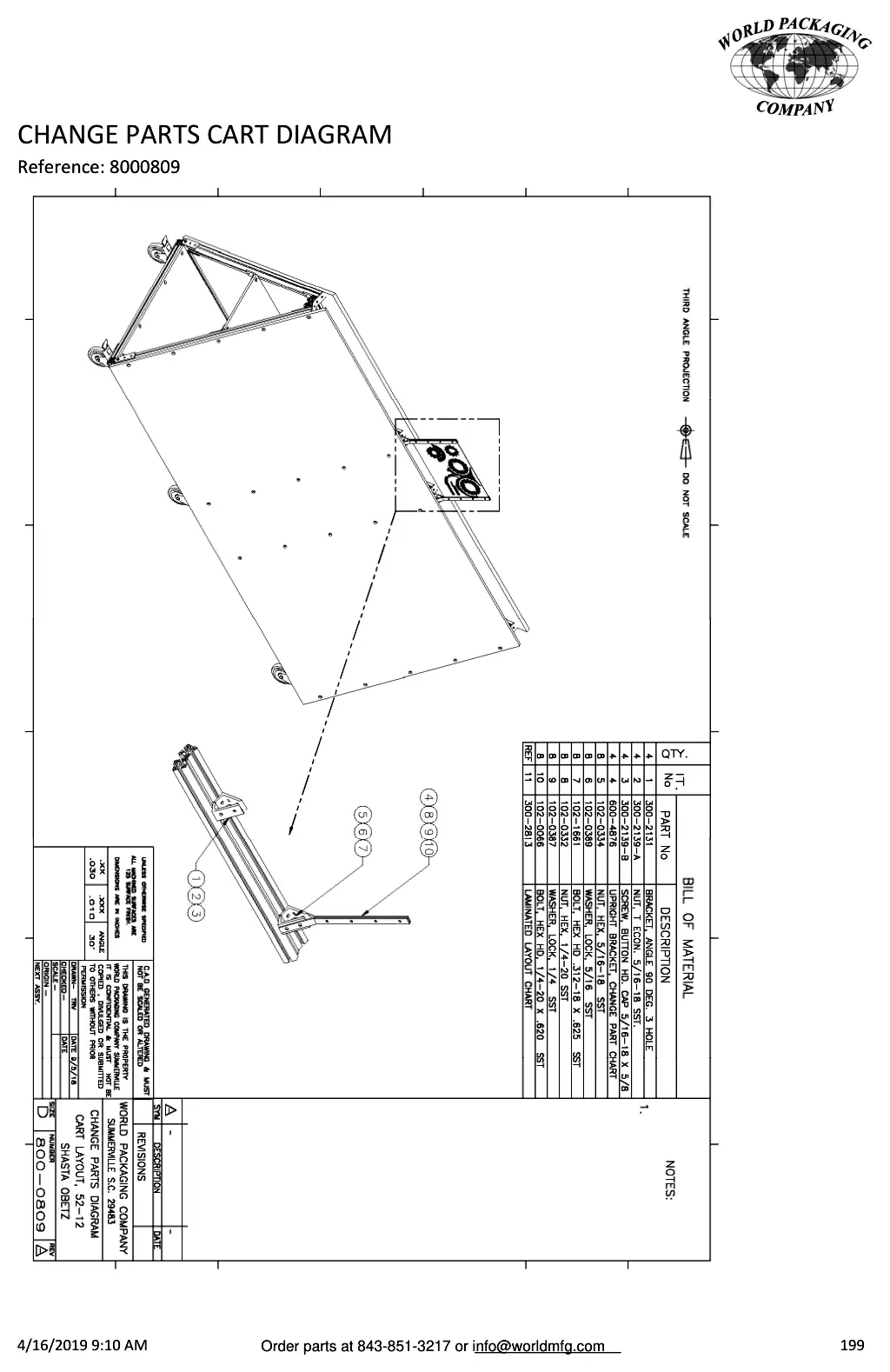

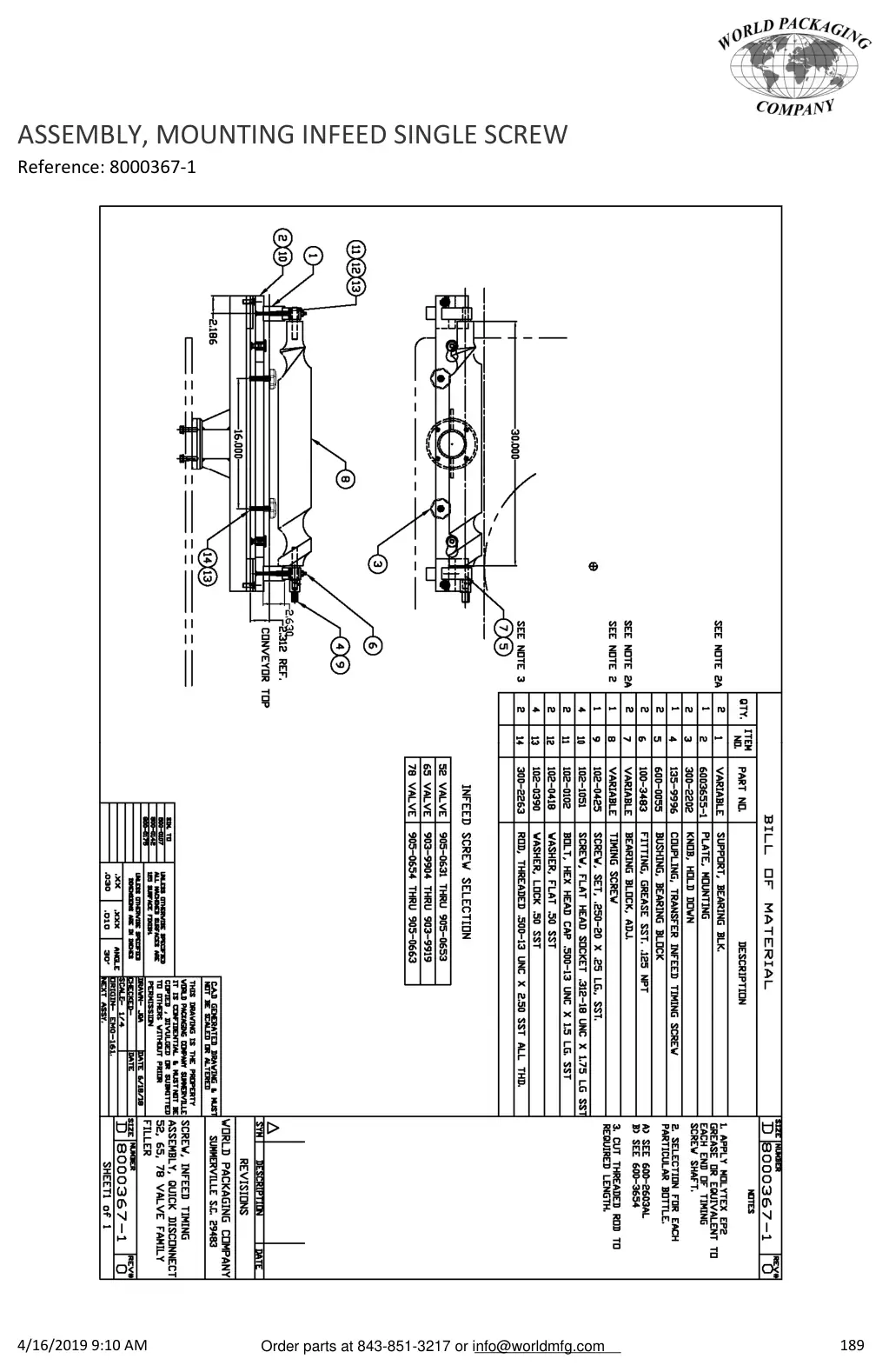

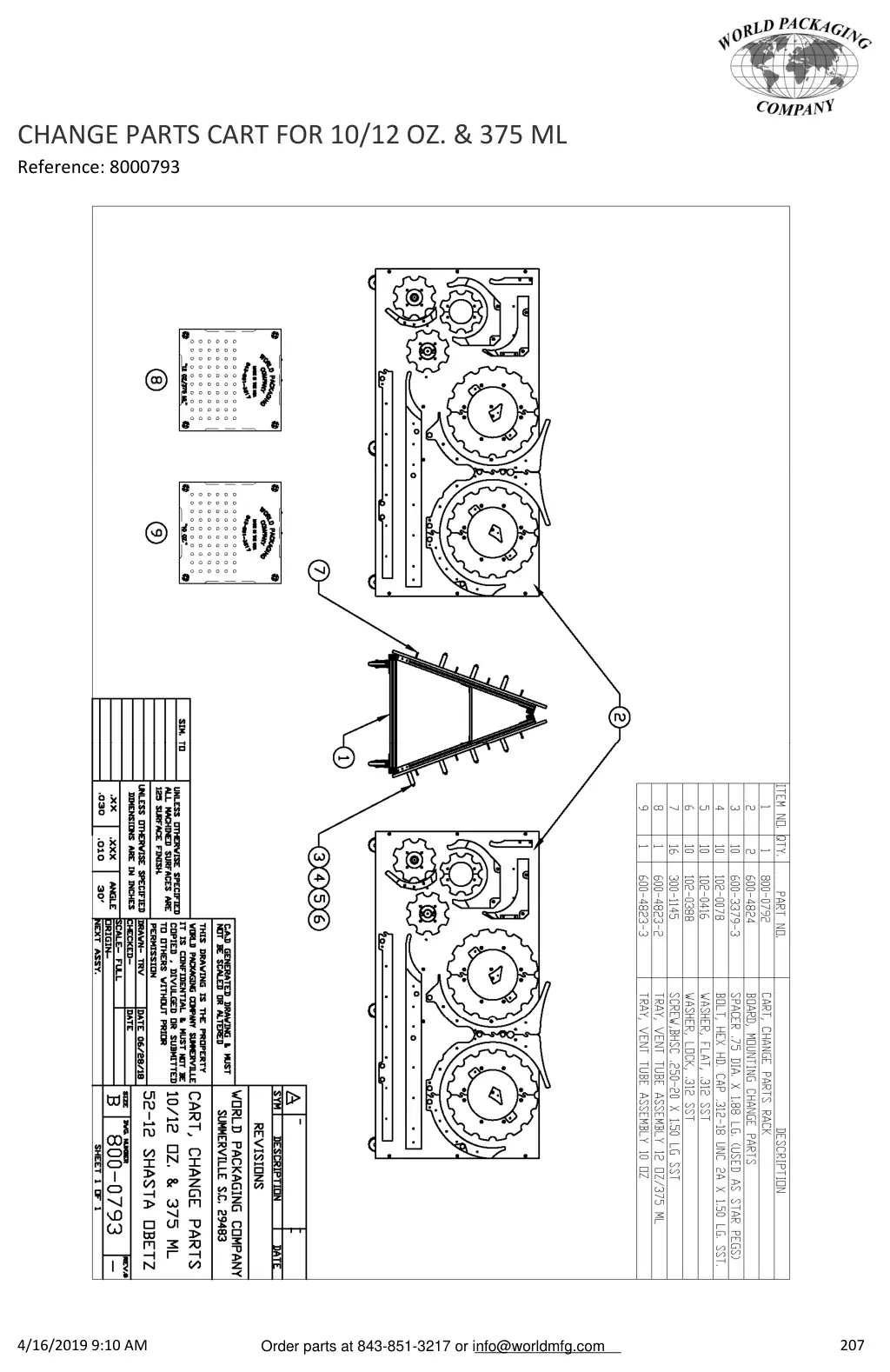

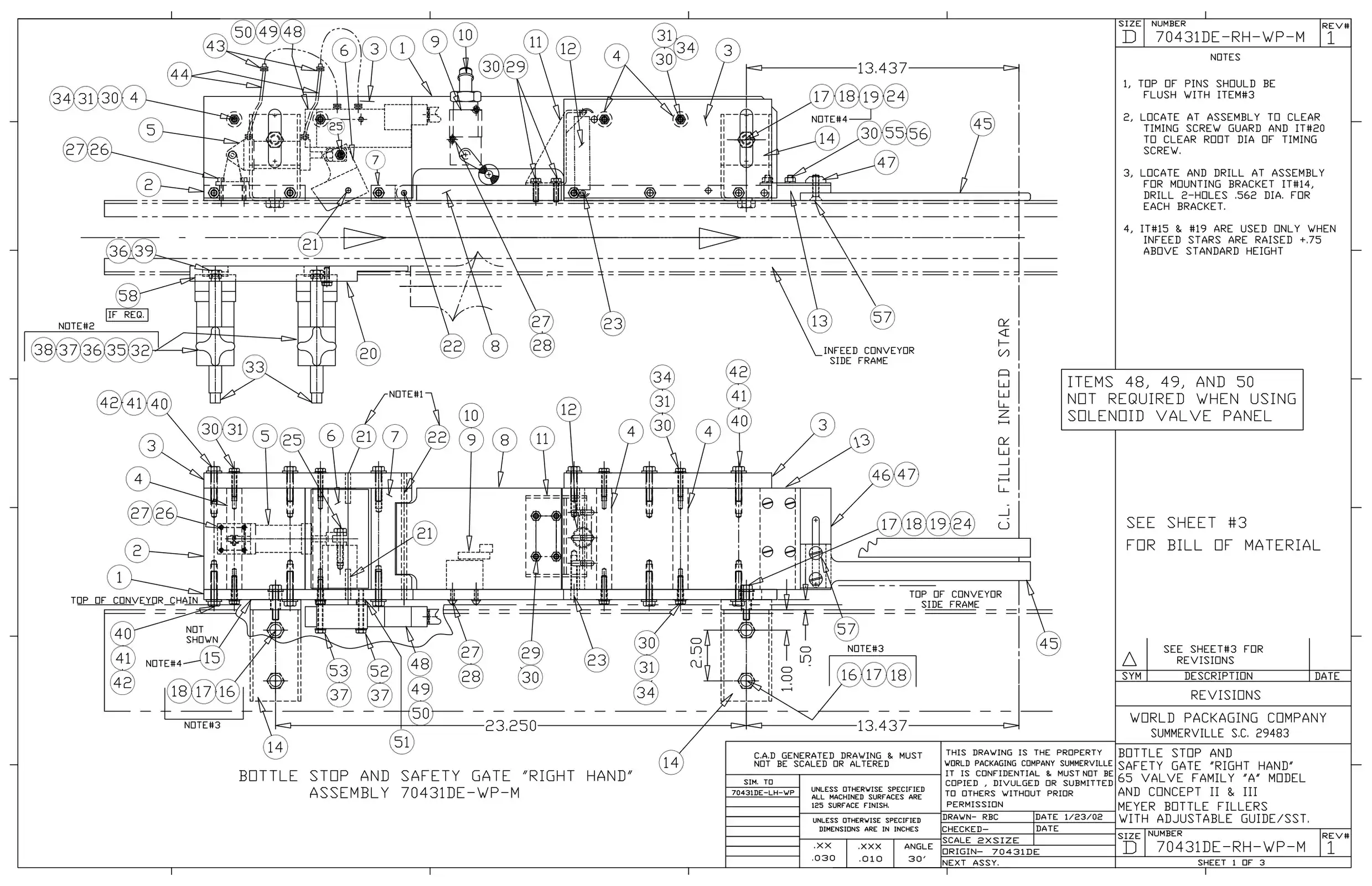

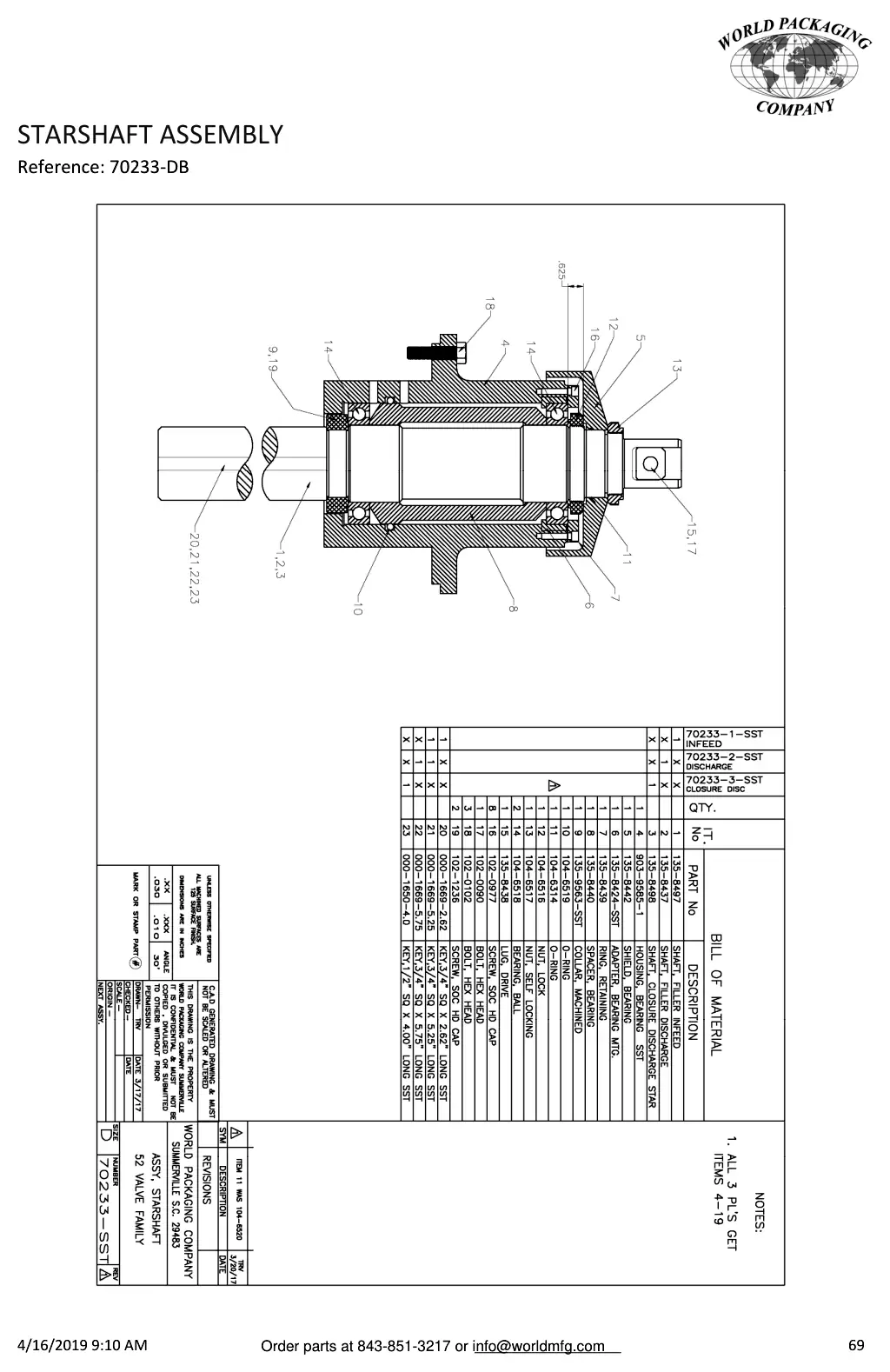

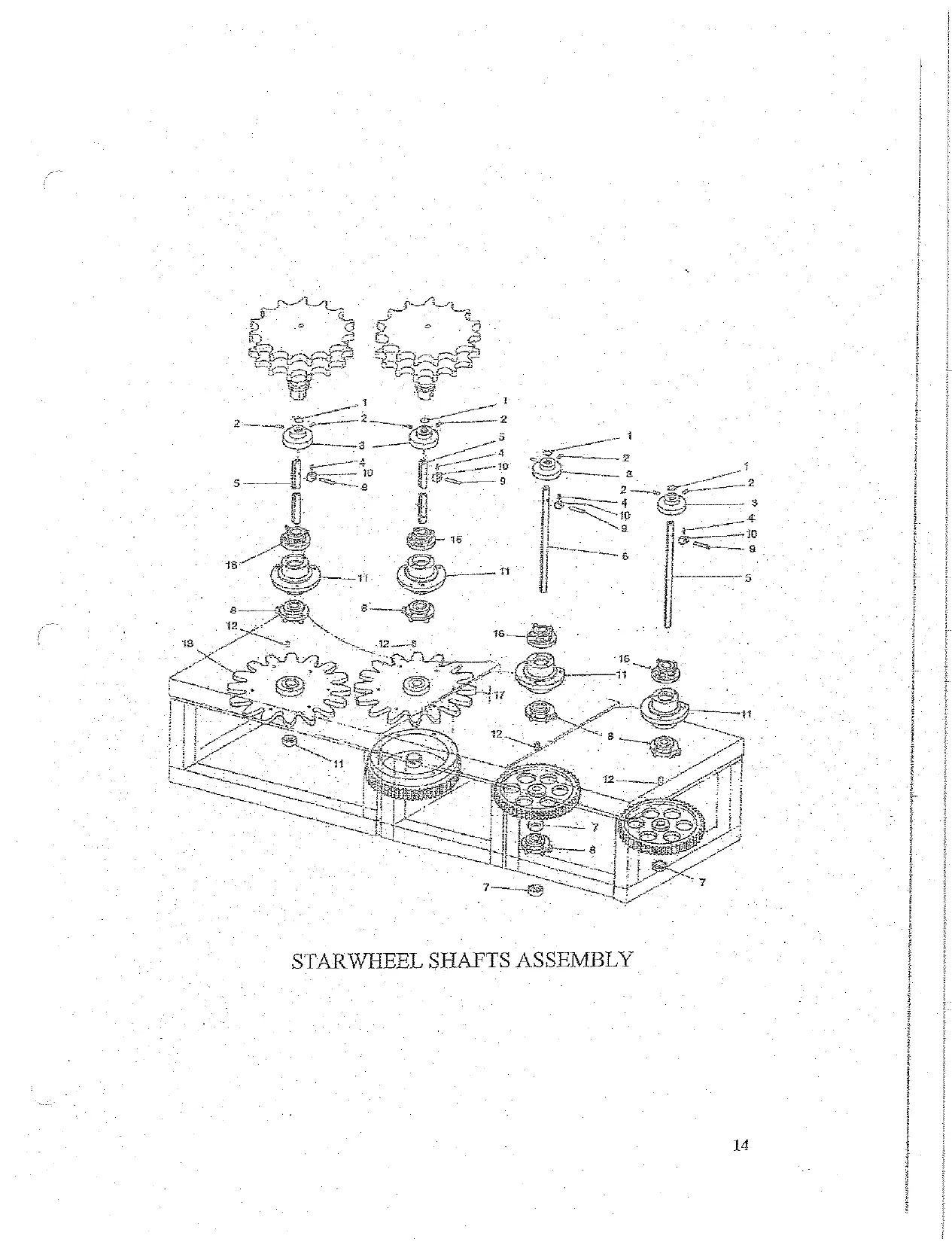

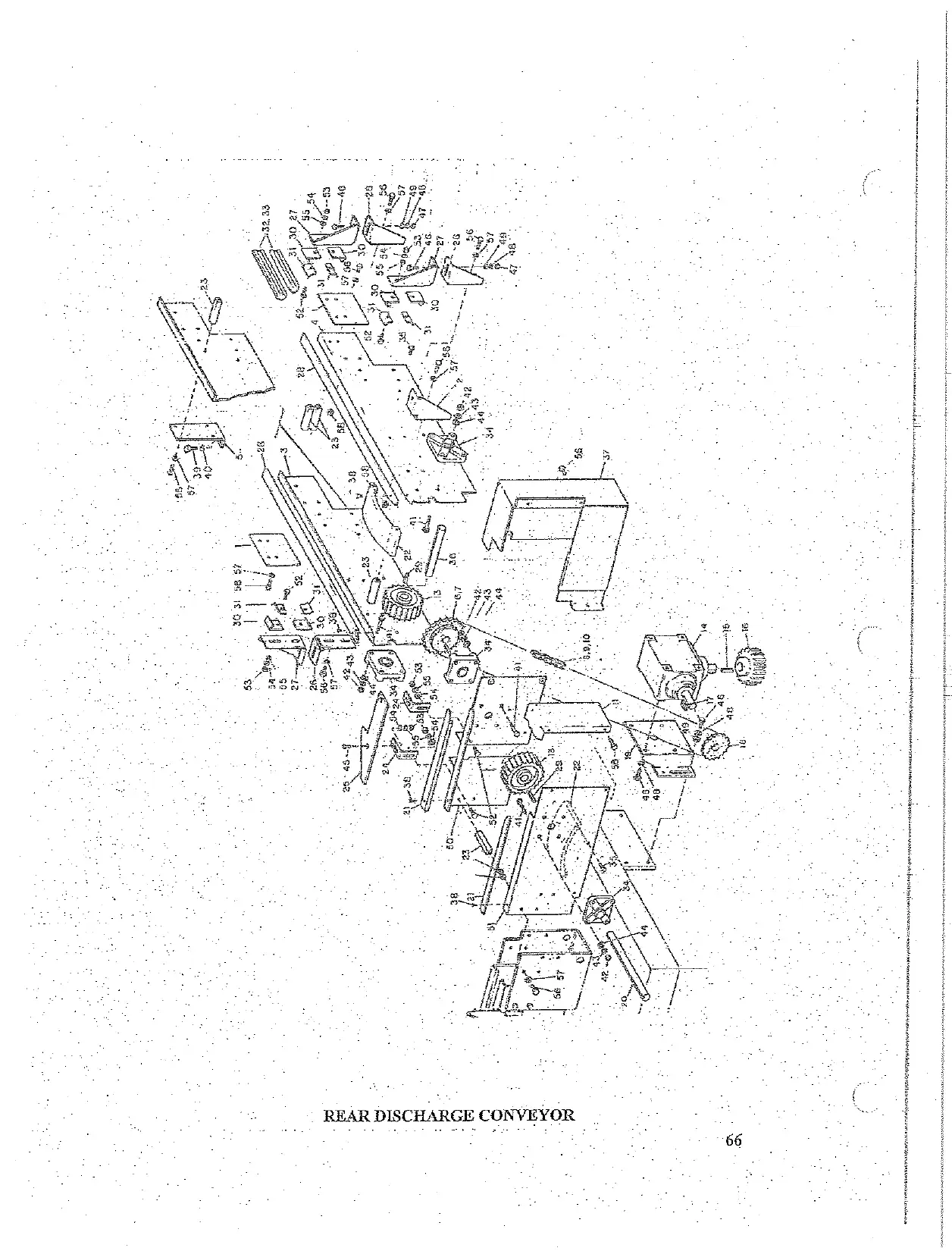

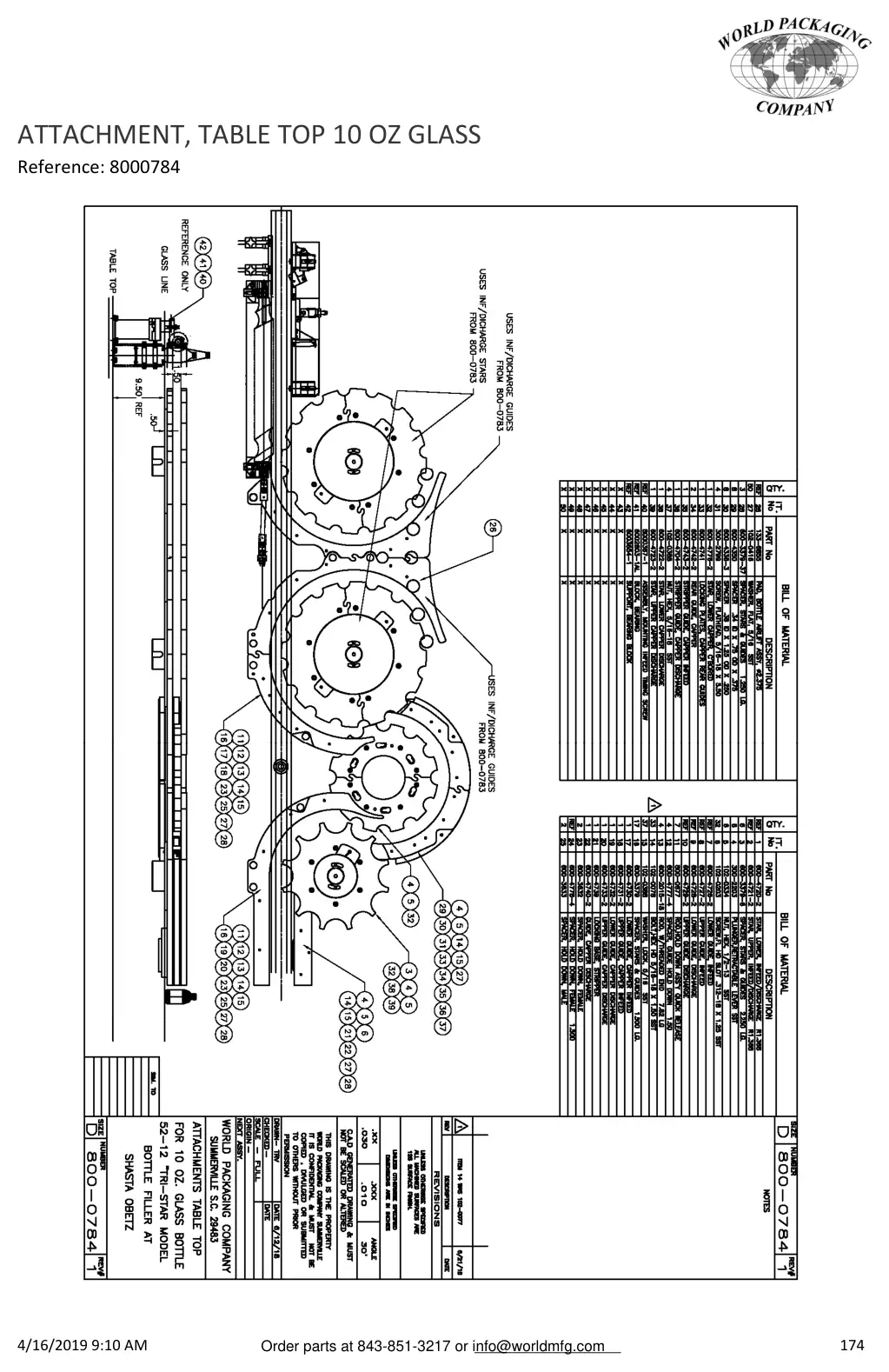

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	1358497135-8497	Shaft, filler infeed star	Request
2	1358437135-8437	Shaft, filler discharge star	Request
3	1358498135-8498	Shaft, closer discharge star	Request
4	9039585903-9585	Bearing, housing starwheel tristar	Ask us
5	1358442135-8442	Sheild, bearing	Ask us
6	1358424-SST	Adapter, bearing star shaft housing	Ask us
7	1358439135-8439	Ring, retaining tristar bearing	Request
8	1358440135-8440	Spacer, bearing	Ask us
9	1359563-SST	Collar, machined	Ask us
10	1046519104-6519	O-ring, starwheel housing	Request
11	1046314104-6314	O-ring, starshaft	Request
12	1046516104-6516	Nut, lock	Request
13	1046517104-6517	Locknut	Request
14	1046518104-6518	Bearing	Request
15	1358438135-8438	Lug, drive starshaft	Request
16	1020977102-0977	Screw, socket head cap	Request
17	1020090102-0090	Bolt, hex head	Request
18	1020102102-0102	Bolt, hex head	Request
19	1021236102-1236	Screw, socket head cap	Request
19	0020	0001669- key, sq	Ask us
19	0021	0001669- key, sq	Ask us
19	0022	0001669- key, sq	Ask us
19	0023	0001650- key	Ask us
24	1358870135-8870	Screw, shoulder steel	Ask us

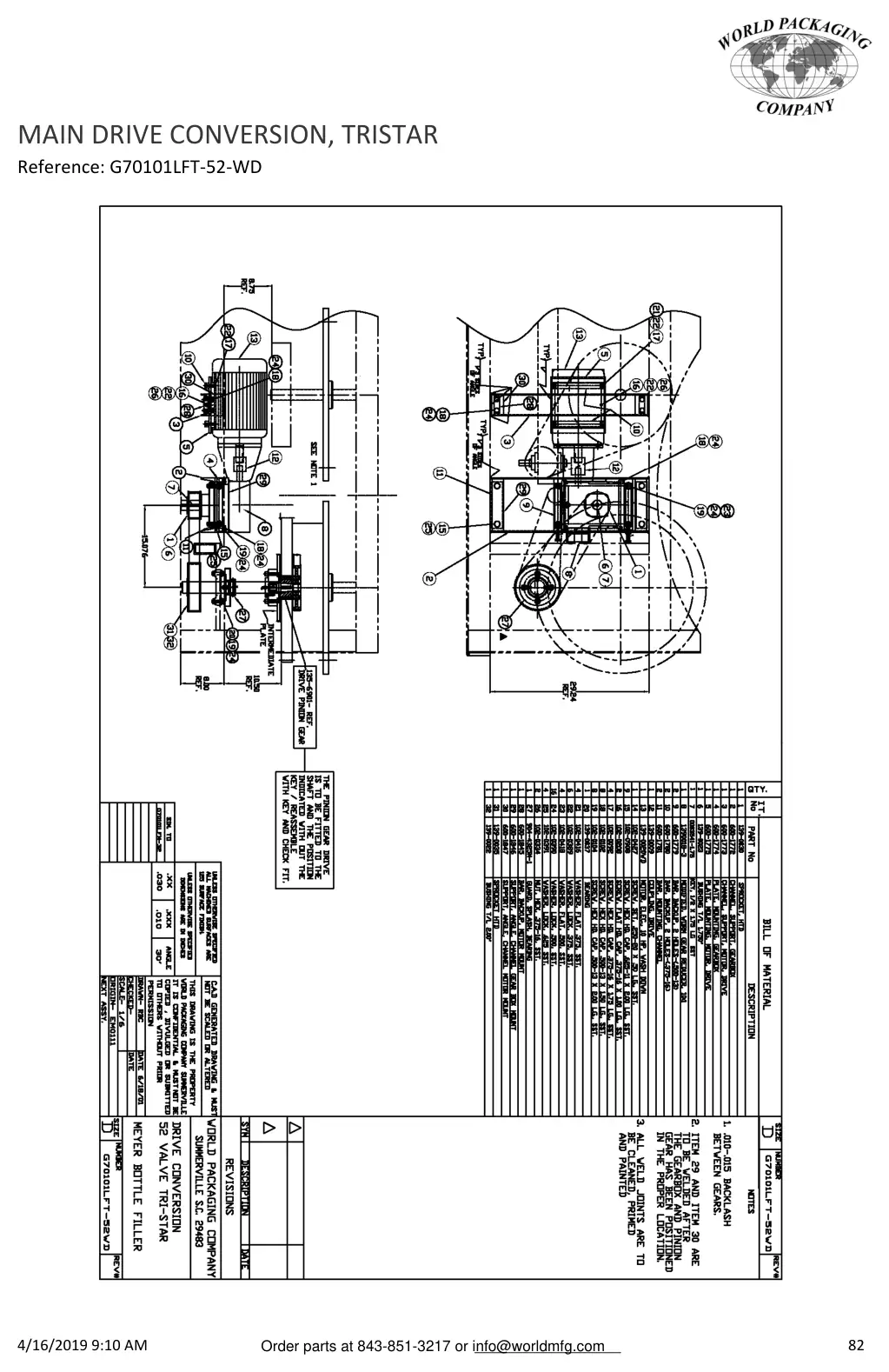

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	903-96209039620	Spacer, lower closure disconnect gr	Request
2	135-84431358443	Gear, driven closer column	Request
3	135-8445	Plate, drive closer	Ask us
4	135-8446	Plate, retaining	Ask us
5	102-01021020102	Bolt, hex head	Request
6	102-04181020418	Washer, flat	Request
7	102-00271020027	Bolt, hex head	Request
8	102-00671020067	Bolt, hex head	Request
9	135-9232	Retainer, closer	Ask us

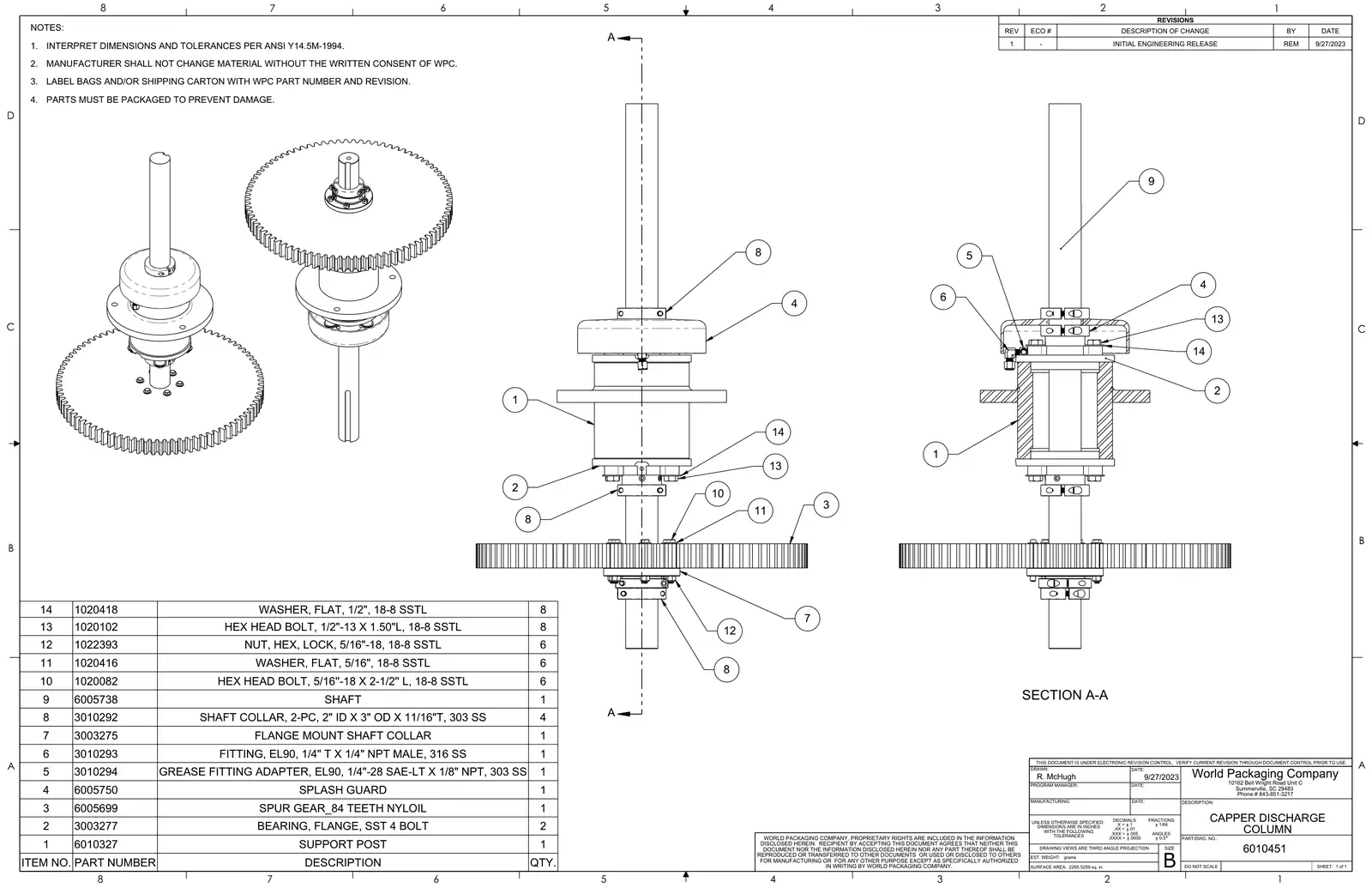

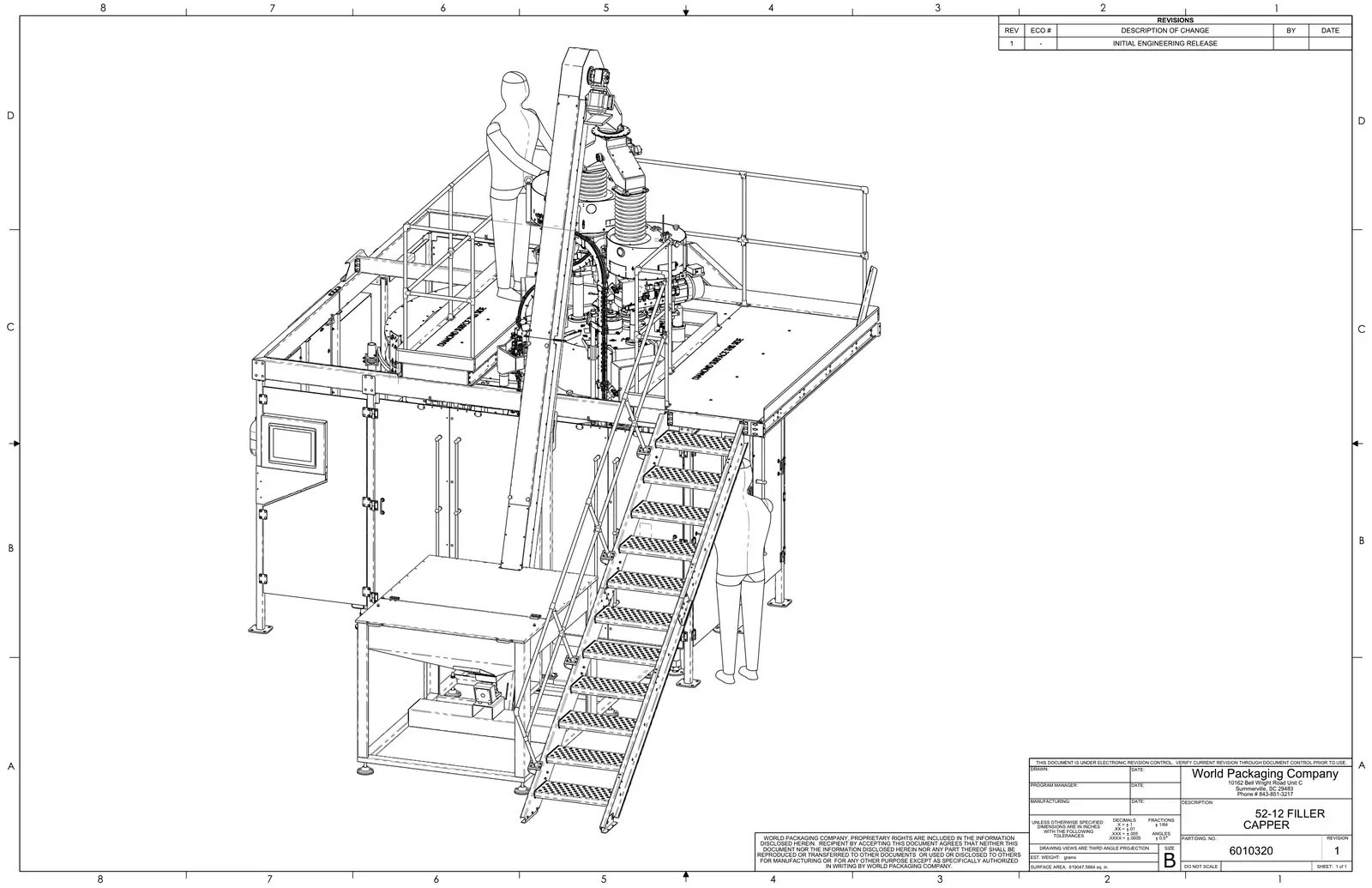

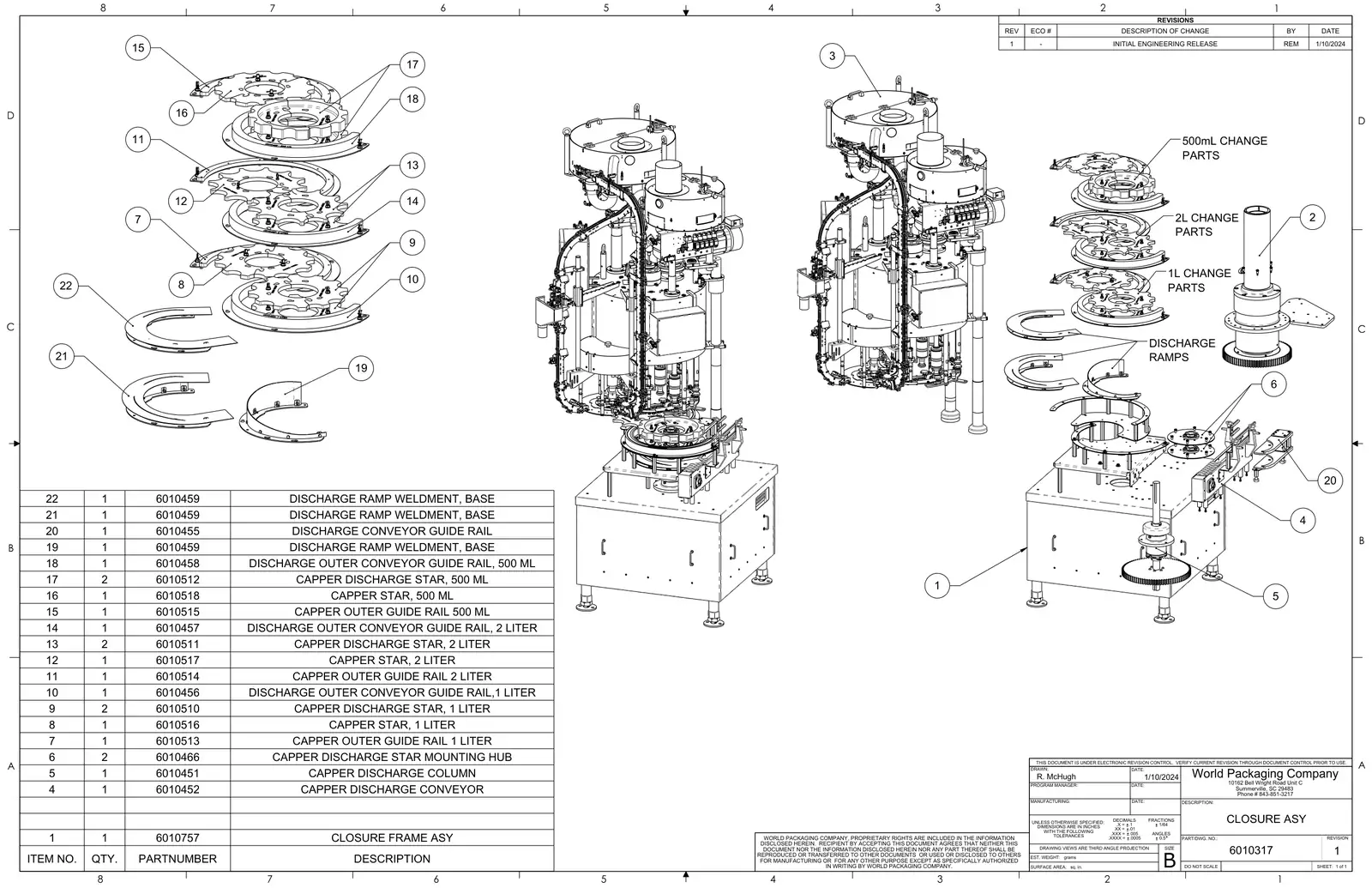

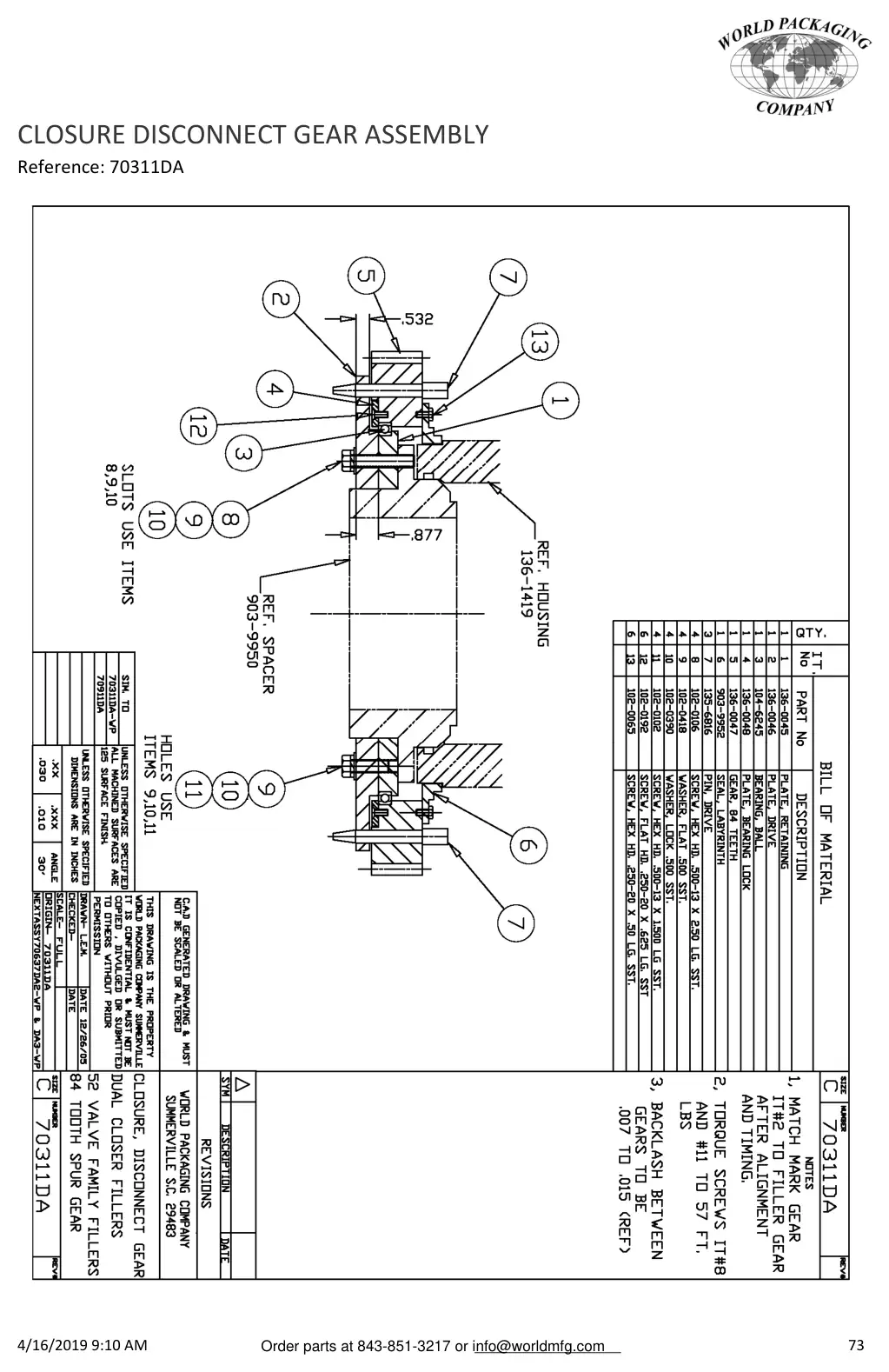

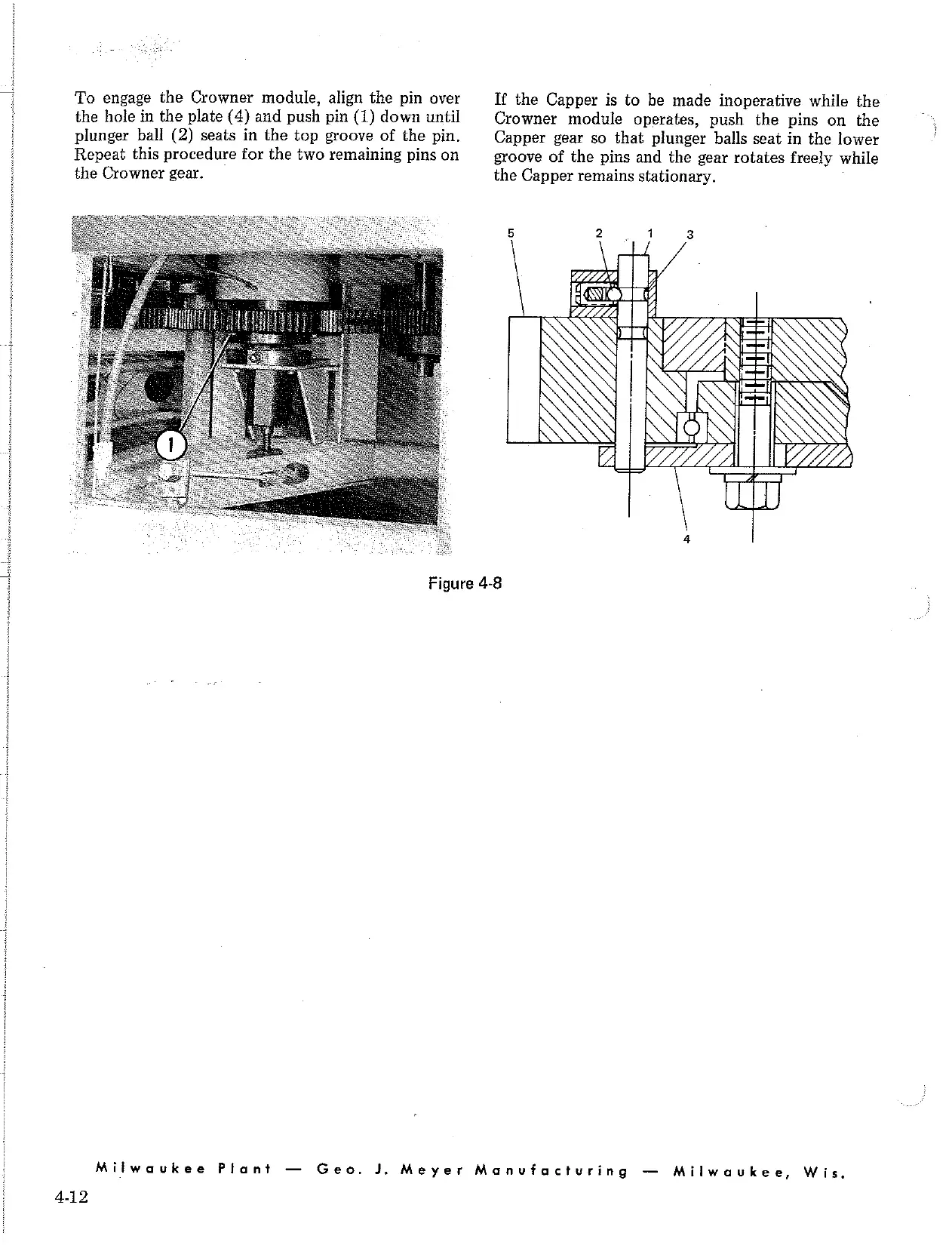

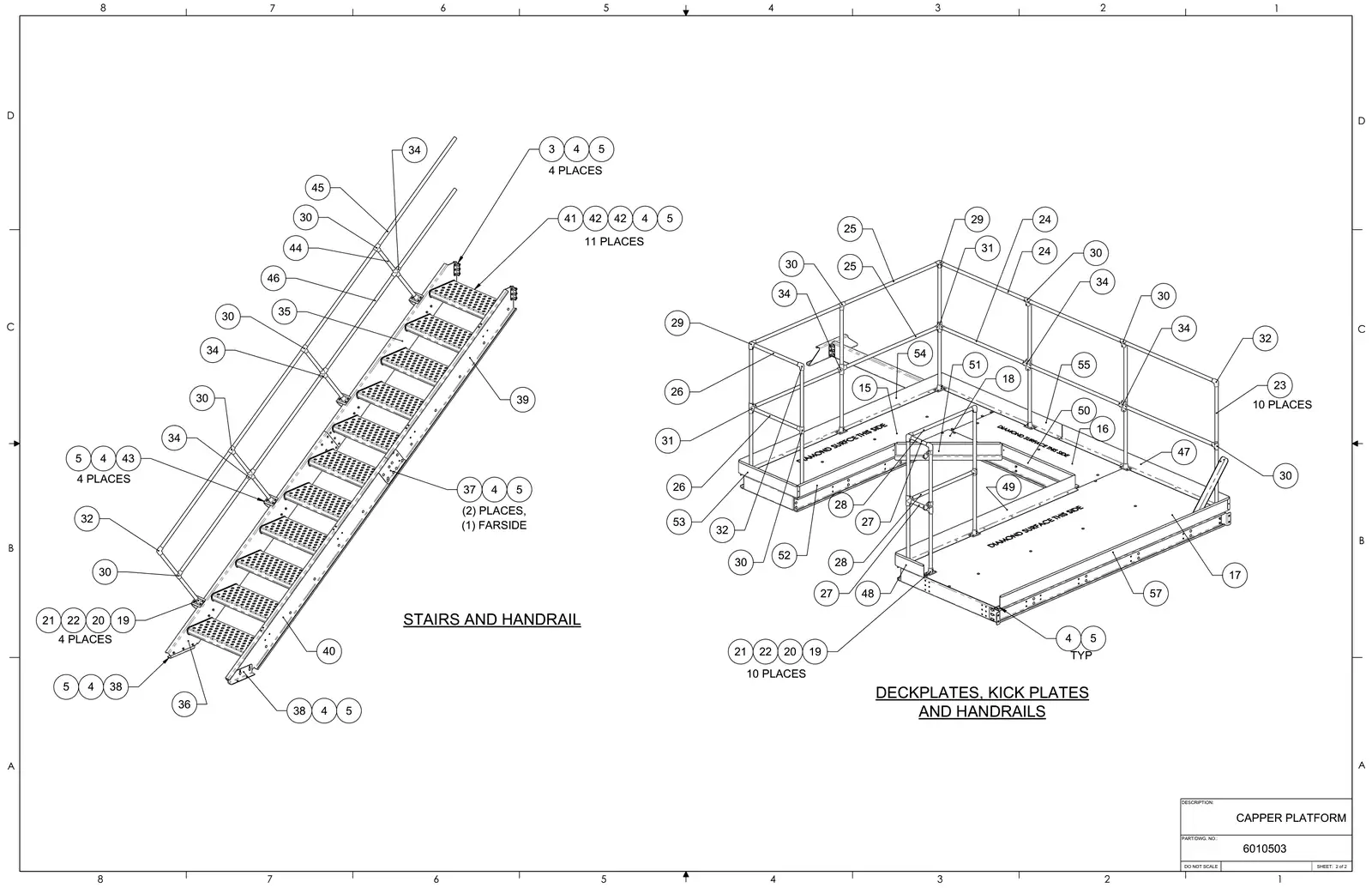

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	1360045136-0045	Plate, bearing	Request
2	1360046-WP	Plate, drive closure disconnect gear	Request
3	1046245104-6245	Bearing, disconnect gear	Request
4	1360048136-0048	Plate, bearing	Request
5	1360047136-0047	Gear, closure disconnect	Request
6	9039952903-9952	Seal labyrinth	Request
7	1356816135-6816	Pin, drive capper gear disconnect	Request
8	1020106102-0106	Bolt, hex head	Request
9	1020418102-0418	Washer, flat	Request
10	1020390102-0390	Washer, lock	Request
11	1020102102-0102	Bolt, hex head	Request
12	1020192102-0192	Screw, flat head slot	Request
13	1020065102-0065	Bolt, hex head	Request

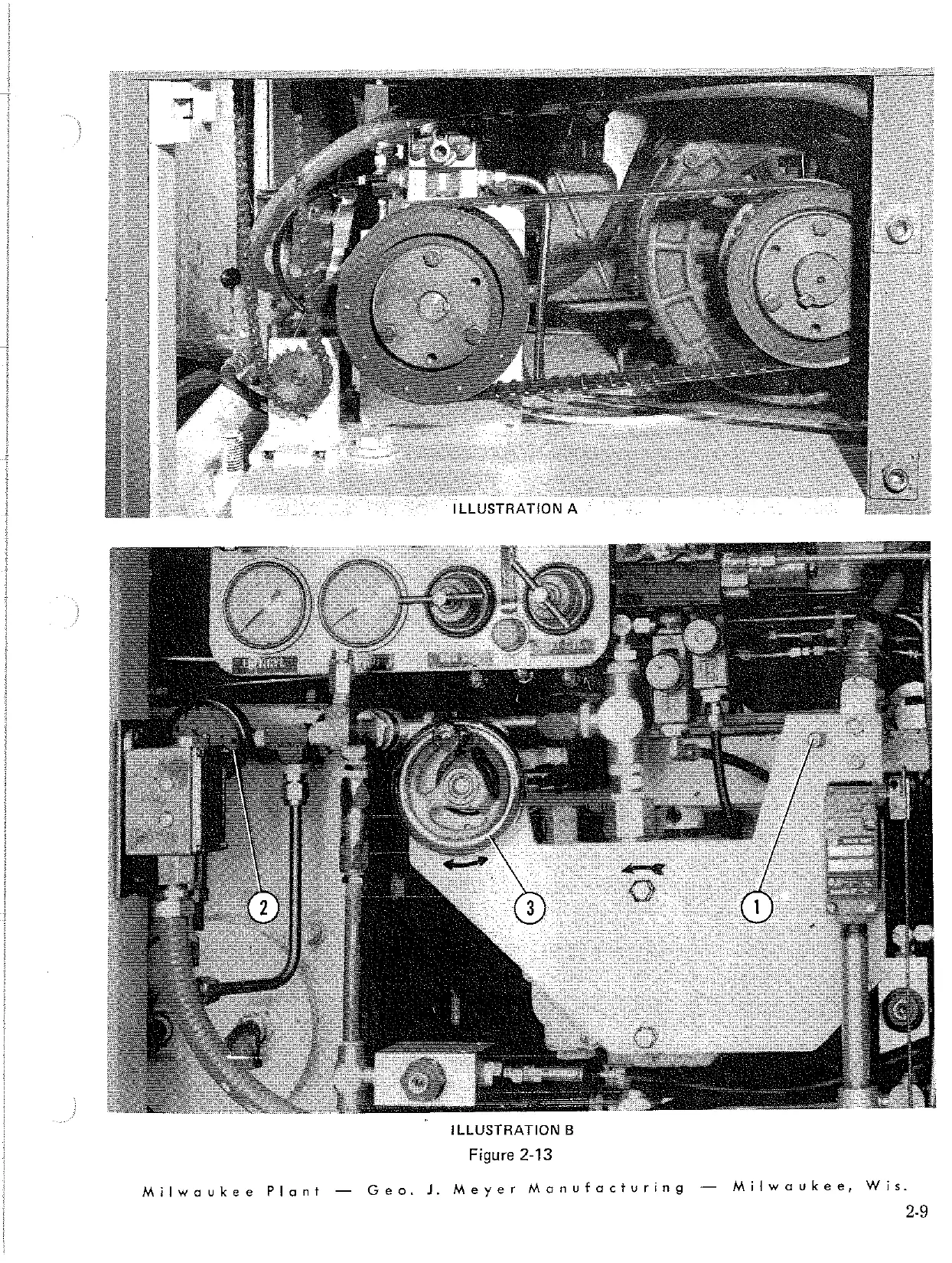

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full size

Ref	Part number	Description
1	1358479135-8479	Nut, hex drive hydraulic 52V filler	Request
2	1358481135-8481	Sprocket, worm drive crowner gearbox	Request
3	9039587903-9587	Sprocket, HTD timing screw drive 52V	Request
4	1358501135-8501	Plate, support	Ask us
5	1358499135-8499	Nut, support stand screw drive	Request
6	9039861903-9861	Cover, gear box shaft	Request
7	1358500135-8500	Shaft, vertical infeed timing screw	Ask us
8	9039601903-9601	Weldment gearbox stand	Ask us
9	9039541903-9541	Bracket, support filler	Ask us
10	1046476104-6476	Coupling, keyless	Request
11	1046506104-6506	Torque, limiter	Ask us
12	1046498104-6498	Sprocket, hrd tristar	Ask us
13	1046499104-6499	Bushing, quick disconnect keyway	Request
15	1046510WP	Gearbox, infeed	Request
17	1046497104-6497	Bushing	Ask us
18	1046496104-6496	Pully, timing	Ask us
19	1046502104-6502	Belt timing	Ask us
20	1046505104-6505	Belt, timing	Request
21	9039577903-9577	Gear, epicycloidal tristar	Ask us
22	9039581903-9581	Gear, driven tristar	Request
23	1339988133-9988	Gear, driven closer column	Request
24	1000238100-0238	Bearing, flange medium duty	Request
25	1000229100-0229	Bearing	Request
26	9039686903-9686	Spacer*cole drg	Ask us
27	1359563135-9563	Collar, clamp-type, for	Request
28	1010067101-0067	Collar, shaft	Request
30	1356901135-6901	Gear, pinion drive	Request
31	9039852903-9852	Shaft, U-joint assembly infeed screw	Request
33	1020417102-0417	Washer, flat	Request
34	1021236102-1236	Screw, socket head cap	Request
36	1358676135-8676	Washer, stand off	Ask us
37	1046501104-6501	Pulley, htd	Ask us
38	1022221102-2221	Pin, dowel	Request
39	1020387102-0387	Washer, lock	Request
40	1046576104-6576	Tensioner	Request
41	1046575104-6575	Shaft, tightener	Request
42	1046577104-6577	Idler pulley	Request
43	1003046100-3046	Sprocket	Ask us
44	1020477102-0477	Screw, set sh cup	Ask us
45	1020437102-0437	Screw, set socket cup point	Request
45	0046	0001628- key, square	Ask us
47	1020004102-0004	Bolt, hex head	Request
48	1020464102-0464	Screw, set	Ask us
48	0049	0001624- key, sq x lg	Ask us
50	1020102102-0102	Bolt, hex head	Request
52	1020103102-0103	Bolt, hex head	Request
52	0053	0001628- key, square	Ask us
54	1020067102-0067	Bolt, hex head	Request
55	1020387102-0387	Washer, lock	Request
56	1020332102-0332	Nut, hex	Request
56	0057	0001669- key, sq	Ask us
56	0060	0001628- key, square	Ask us
61	1020525102-0525	Screw, set square hd	Request
62	1020524102-0524	Screw, set sq head	Ask us
0	0063	0001669- key, sq	Ask us
0	0064	0001669- key, sq	Ask us
65	1020527102-0527	Screw, set sq head	Ask us
65	0066	0001650- key	Ask us
67	1022323102-2323	Bolt, hex head	Request
68	1020102102-0102	Bolt, hex head	Request
69	1020101102-0101	Bolt, hex head	Request
70	1020106102-0106	Bolt, hex head	Request
73	1020743102-0743	Screw, socket head cap	Request
75	1020390102-0390	Washer, lock	Request
75	0076	0001628- key, square	Ask us
77	1020089102-0089	Bolt, hex head	Request
78	1020447102-0447	Screw, set socket cup point	Request
79	1022437102-2437	Pin, roll	Request
80	1020391102-0391	Washer, lock	Request
81	1005734100-5734	Elbow, street 90 deg	Request
82	1020390102-0390	Washer, lock	Request
83	1035823103-5823	Sensor, tach dwg	Ask us
84	9039986903-9986	Bracket, gearbox	Ask us
85	1020089102-0089	Bolt, hex head	Request
86	1022011102-2011	Washer	Ask us
87	1046769104-6769	Gear box	Ask us

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	1390030139-0030	Sprocket, HTD	Request
2	6001772600-1772	Channel, support gearbox dr conv	Ask us
3	6001773600-1773	Channel, support motor dr conv	Ask us
4	6001774600-1774	Plate mounting gearbox*drive conver	Ask us
5	6001775600-1775	Plate mounting motor drive*drive co	Ask us
6	1390023139-0023	Bushing	Request
6	0007	0003541- key, square	Ask us
8	1390018-3	Gearbo ratio winsmith	Request
9	6001779600-1779	Bar back up two holes	Ask us
10	6001780600-1780	Bar back up two holes	Ask us
11	6001781600-1781	Bar mounting channel*	Ask us
12	1390009139-0009	Coupling, drive shaft 52V family	Request
13	1390020-WD	Motor, wash down v 1800	Ask us
14	1020427102-0427	Screw, set socket cup point	Request
15	1020908102-0908	Bolt, hex head	Ask us
16	1020208102-0208	Screw, flat head slot	Request
17	1020092102-0092	Bolt, hex head	Request
18	1020102102-0102	Bolt, hex head	Request
19	1020104102-0104	Bolt, hex head	Request
20	1390037139-0037	Bearing	Request
21	1020416102-0416	Washer, flat	Request
22	1020389102-0389	Washer, lock	Request
23	1020418102-0418	Washer, flat	Request
24	1020390102-0390	Washer, lock	Request
25	1020391102-0391	Washer, lock	Request
26	1020334102-0334	Nut, hex	Request
27	9044325M-1	Cover, splash guard	Request
28	6001845600-1845	Bar, backup motor mounting channel	Ask us
29	6001846600-1846	Support, angle channel gearbox	Ask us
30	6001847600-1847	Support, angle motor mtg channel	Ask us
31	1390035139-0035	Sprocket, HTD	Request
32	1390022139-0022	Bushing	Request

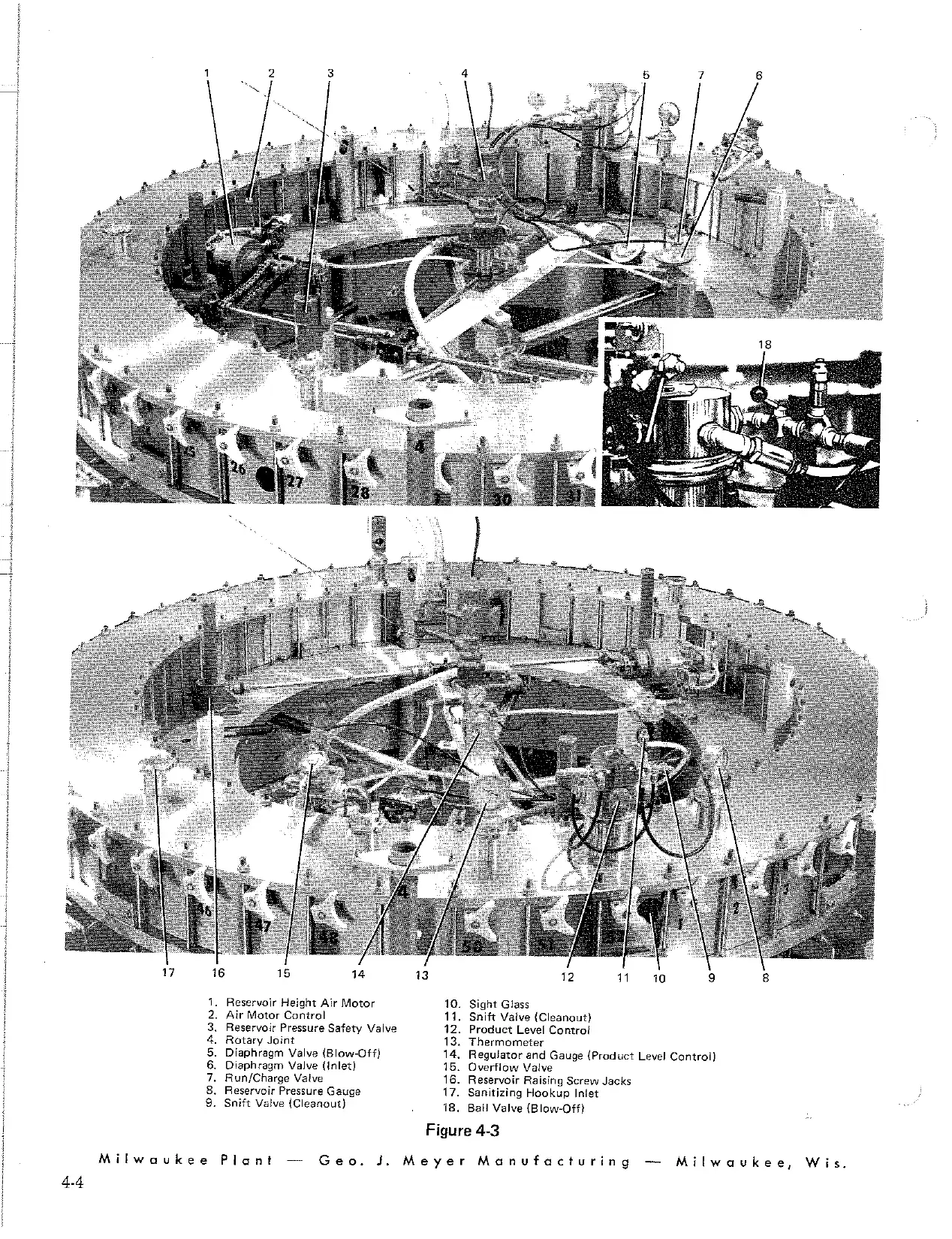

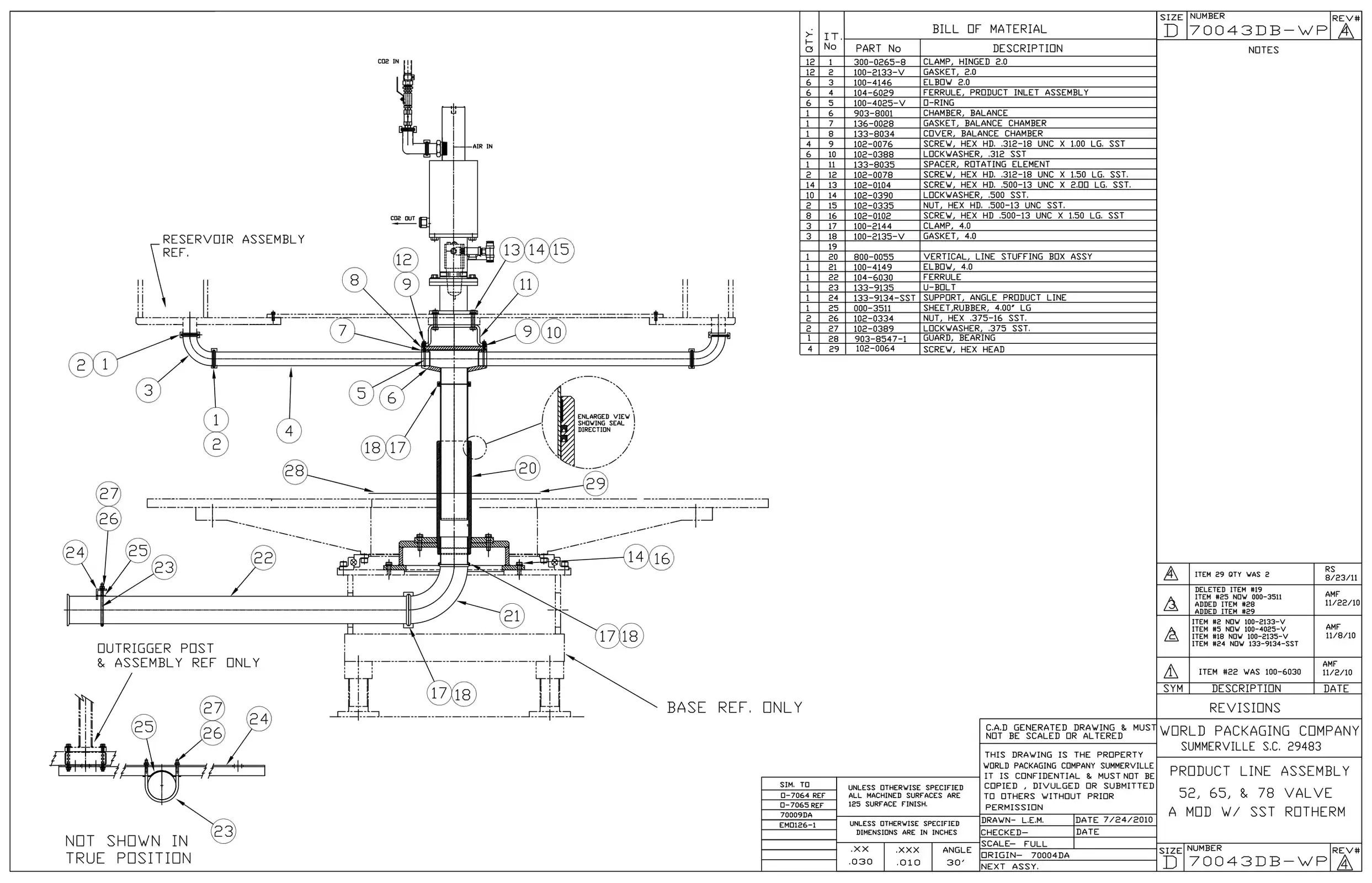

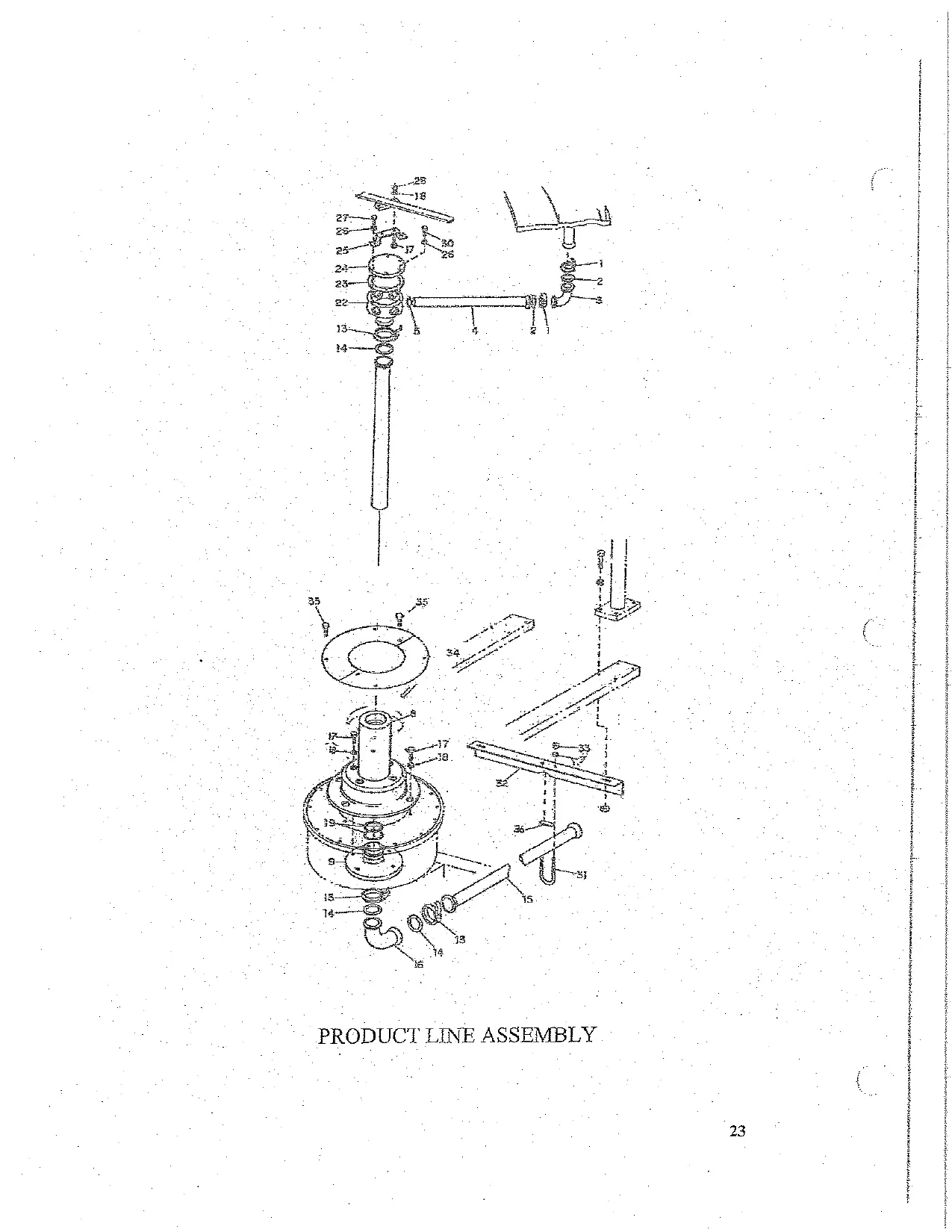

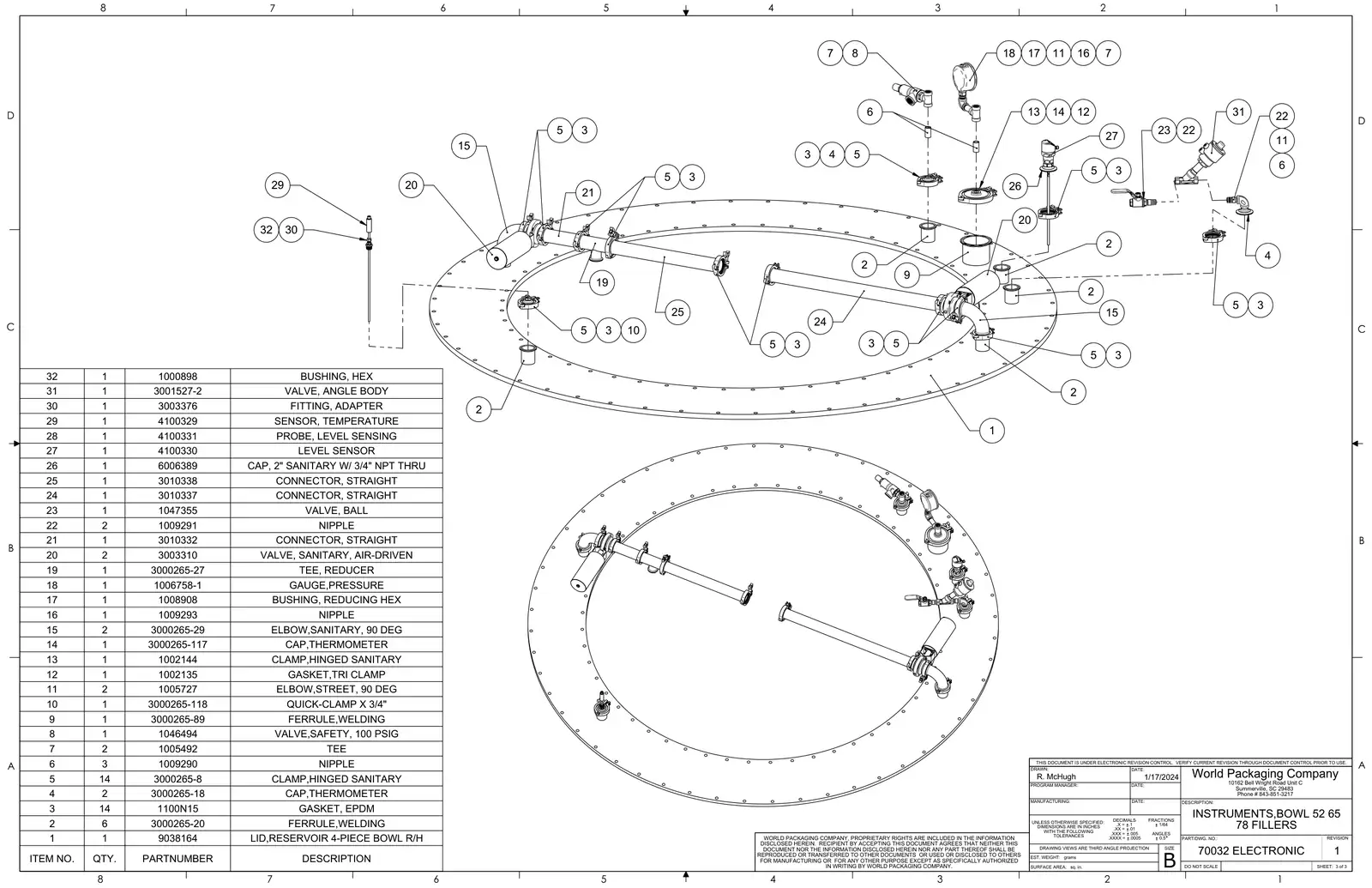

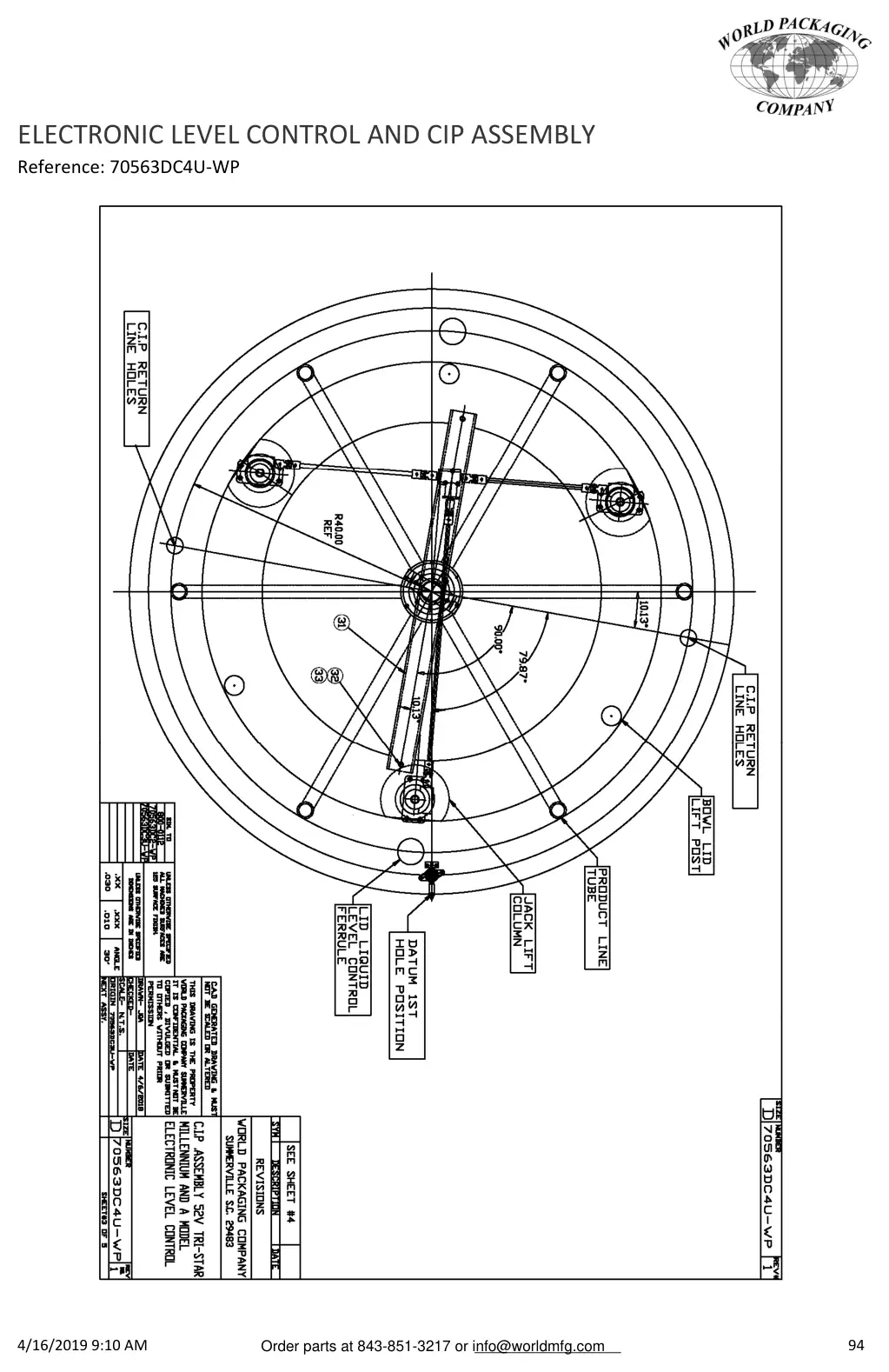

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
1	30027903002790-RB	Rebuild, joint 4 passage elec	Request
2	4000014400-0014	Probe, liquid level electronic	Request
3	3002723300-2723	Regulator, back pressure	Request
4	1008908100-8908	Bushing, reducing hex	Request
5	4100219410-0219	Cover, pressure transmitter	Ask us
6	4100217410-0217	Transmitter, pressure	Ask us
7	1003077100-3077	Clamp, hose clamp	Request
8	1008911100-8911	Bushing, reducing hex	Request
10	1003087100-3087	Clamp, hose	Request
11	1010108101-0108	Fitting, barbed	Request
12	0003489000-3489	Tubing, CO2/air braided hose	Request
13	3000091300-0091	Fitting, tube swivel	Request
14	1004710100-4710	Regulator, air	Request
15	1006758100-6758	Gauge, pressure	Request
16	1005372100-5372	Elbow, 90 deg	Request
17	0003223000-3223	Tube, polyflo	Request
19	3001459300-1459	Regulator, proportional pressure	Request
20	1006110100-6110	Nipple, close	Request
22	3000460-2	Muffler, proportional regulator	Request
23	4100248410-0248	Transmitter, temperature probe	Request
24	1044084104-4084	Nipple, close	Request
25	1004658100-4658	Bushing, reducing hex	Request
26	4100214410-0214	Thermowell	Request
27	4100215410-0215	Probe, RTD	Request
28	4100223410-0223	Cordset, washdown duty	Ask us
30	4100199410-0199	Slip ring, assembly cat	Request
31	8000736-1	Assembly, slip ring to rotary joint	Ask us
36	3000265-2	Adapter, male pipe	Request
37	3000265-7	Clamp, hinged sanitary	Request
38	3000265-14	Gasket, tri clamp tube	Request
40	3000265-18	Cap, thermometer	Ask us
41	3000265-103	Valve, ball	Request
42	1006112100-6112	Nipple	Request
43	1046794104-6794	Valve, check	Request
44	3001970300-1970	Fitting	Ask us
45	3000437300-0437	Tubing, polyflo	Request
46	4100216410-0216	Transmitter, pressure	Ask us
47	4100221410-0221	Cordset, female washdown duty	Request
48	4100196410-0196	Cord, grip inductive sensor	Ask us
49	4100218410-0218	Cover, pressure transmitt	Request
50	1005492100-5492	Tee	Request
51	1003528100-3528	Nipple	Request
52	1008909100-8909	Bushing, reducing hex	Request
53	3000558300-0558	Elbow, male swivel tub	Request
54	3002774300-2774	Regulator, filter	Ask us
55	3000265-8	Clamp, hinged sanitary	Request
56	3000265-9	Ferrule, welding short	Request
58	10463601046360-DT-10	Thermometer, digital, sani flow	Request
60	4100220410-0220	Cordset, female washdown duty	Ask us
61	3000355BLK	Tubing, polyflo bl	Request
62	3000085300-0085	Fitting, tube swivel	Request
63	1009291100-9291	Nipple	Request
64	1000779100-0779	Elbow, 90 degree	Request
65	1009293100-9293	Nipple	Request
67	1046494104-6494	Valve, safety	Request
68	3001460300-1460	Cable, proportional 5 meter	Ask us

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
4	3001527-1	Valve, level control	Request
5	3002780300-2780	Valve, ball	Ask us
6	1006112100-6112	Nipple	Request
8	3000265-18	Cap, thermometer	Ask us
9	3000265-14	Gasket, tri clamp tube	Request
10	3000265-7	Clamp, hinged sanitary	Request
11	6001563600-1563	Line, CIP return	Request
12	3002796300-2796	Valve, butterfly pneum air to spring	Request
13	3000265-17	Tee, tube	Ask us
14	3000265-2	Adapter, male pipe	Request
15	3000265-5	Gasket, tri clamp tube	Request
16	6001425600-1425	Line, CIP return	Ask us
17	30027973002797-RK	Kit, rebuild valve, butterfly pneum	Request
18	3000265-4	Tee, ferruled clamp end	Request
19	6001422600-1422	Line, CIP return	Ask us
20	3000265-19	Elbow, reducing tube	Request
21	6003074600-3074	Line, CIP return vertical	Ask us
22	6002811600-2811	Line, CIP return lg	Ask us
23	3000358300-0358	U-bolt	Request
24	1020104102-0104	Bolt, hex head	Request
25	1020418102-0418	Washer, flat	Request
26	1020093102-0093	Bolt, hex head	Request
27	1020389102-0389	Washer, lock	Request
28	6001418600-1418	Manifold, CIP	Ask us
29	1020334102-0334	Nut, hex	Request
30	6001419600-1419	Bracket, mounting CIP manifold 52V	Request
31	6001374-2	Support, channel product line 4 pass	Ask us
32	1022350102-2350	Bolt, hex head	Request
33	1020392102-0392	Washer, lock	Request
34	1020091102-0091	Bolt, hex head	Request
35	1358685135-8685	Washer, CIP header hanger	Request
36	1005492100-5492	Tee	Request
37	6002812600-2812	Line, CIP return	Ask us
38	1009295100-9295	Nipple	Request
39	1008928100-8928	Elbow, 90 deg	Request
43	1020366102-0366	Nut, hex	Ask us
48	6001341-3	Block header, CIP canister drain	Request
49	3001649300-1649	Adapter	Request
50	3001651300-1651	Elbow	Ask us
51	6004672600-4672	Plate, mounting CIP return block	Ask us
52	6004673600-4673	Plate, mounting CIP return block	Request
53	6004674600-4674	Block, mounting CIP return plate	Ask us
54	1020193102-0193	Screw, flat head slot	Request
55	1020066102-0066	Bolt, hex head	Request
56	1020387102-0387	Washer, lock	Request
57	6002735600-2735	Hose, kit CIP canister /universa	Ask us
58	6002735-2	Kit, hose CIP canister	Ask us
59	1020390102-0390	Washer, lock	Request
66	1020417102-0417	Washer, flat	Request
71	6001570-1	Bracket, mtg block CIP return supp	Ask us
72	6001570-2	Bracket, mtg block CIP return supp	Ask us
73	3000265-6	Gasket, tri-clamp	Request
74	3000265-8	Clamp, hinged sanitary	Request

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	6004850600-4850	Angle, mount enclosure	Ask us
2	6004851600-4851	Bracket, mounting electrical control	Ask us
3	6004852600-4852	Bracket, mounting pneumatic valves	Ask us
4	1020388102-0388	Washer, lock	Request
5	1020333102-0333	Nut, hex	Request
6	1020389102-0389	Washer, lock	Request
7	1020089102-0089	Bolt, hex head	Request
8	1020092102-0092	Bolt, hex head	Request

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
1	3000265-8	Clamp, hinged sanitary	Request
2	1002133-V	Gasket, tri-clamp	Request
3	1004146100-4146	Elbow, 90 deg	Request
4	1046029104-6029	Ferrule, product inlet	Ask us
5	1004025-V	O-ring, filler	Request
6	9038001903-8001	Chamber, balance	Ask us
7	1360028136-0028	Gasket, balance chamber	Request
8	1338034133-8034	Cover, balance chamber	Ask us
9	1020076102-0076	Bolt, hex head	Request
10	1020388102-0388	Washer, lock	Request
11	1338035133-8035	Spacer, rotating element 65 valve	Ask us
12	1020078102-0078	Hex head bolt	Request
13	1020104102-0104	Bolt, hex head	Request
14	1020390102-0390	Washer, lock	Request
15	1020335102-0335	Nut, hex	Request
16	1020102102-0102	Bolt, hex head	Request
17	1002144100-2144	Clamp, hinged sanitary	Request
18	1002135-V	Gasket, tri clamp	Request
20	8000055800-0055	Column, product stuffing box	Request
21	1004149100-4149	Elbow, 90 deg	Request
22	1046030104-6030	Ferrule, 52V family	Request
23	1339135133-9135	U-bolt	Ask us
24	1339134-SST	Support, angle	Ask us
25	0003511000-3511	Sheet	Request
26	1020334102-0334	Nut, hex	Request
27	1020389102-0389	Washer, lock	Request
28	9038547-1	Guard, bearing	Request
29	1020064102-0064	Bolt, hex head	Request

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
1	1046233104-6233	Line, vertical supply upper	Request
2	6000036-1	Bearing, product line	Request
3	3000002-2	Seal, rotary product line	Request
4	60003086000308-2	Box, stuffing product line 90V	Request
5	1020104102-0104	Bolt, hex head	Request
6	1020390102-0390	Washer, lock	Request
7	6001478600-1478	Housing, center column	Request
7	0002	2 6000036-1 bearing, product line	Ask us
7	0003	2 3000002-2 seal, rotary product line	Ask us

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
1	101-06021010602	Bearing, conveyor	Request
4	135-8517	Cover, idler end	Ask us
5	135-8590	Base, conveyor brkt	Ask us
6	135-8591	Base, conveyor brkt	Ask us
7	903-9613	Side, conveyor brkt	Ask us
9	903-9610	Side, conveyor brkt	Ask us
12	135-8522	Cover, idler top	Ask us
13	903-9612	Side, conveyor brkt	Ask us
23	903-9625	Frame, outer	Ask us
24	903-9631	Frame, inner	Ask us
29	135-17501351750	Spacer	Request
30	135-2880	Bracket, support rod	Ask us
31	133-59791335979	Shoe, return	Request
32	000-36980003698	Wearstrip, filler conveyor out	Request
35	133-1526	Shaft, discharge conveyor	Ask us
38	102-1492	Screw, hex head	Ask us
41	102-00651020065	Bolt, hex head	Request
42	102-1834	Screw, hex head	Ask us
45	102-03871020387	Washer, lock	Request
50	102-00751020075	Bolt, hex head	Request
51	102-03881020388	Washer, lock	Request
52	102-00761020076	Bolt, hex head	Request
53	102-04161020416	Washer, flat	Request
54	102-2296	Screw, self tap	Ask us
55	102-0181	Screw, flat head	Ask us
56	102-13321021332	Key, square	Request
59	100-93711009371	Sprocket, filler conveyor flextop ch	Request
60	100-86371008637	Elbow, street 90 deg	Request
61	100-2718	Nipple	Ask us
62	100-4204	Fitting, grease - 45°	Ask us
66	903-9932	Frame, outer-side discharge	Ask us
67	903-9931	Frame, inner-side discharge	Ask us
68	000-36980003698	Wearstrip, filler conveyor out	Request

Parts for this assembly, from the original Meyer parts lists.

Open full size

Ref	Part number	Description
1	3002729300-2729	Handle, adjustable	Ask us
2	1035841M	Valve, solenoid washdown	Request
3	3002730300-2730	Cylinder	Ask us
4	6004405-1	Angle, mounting bottle reject	Request
5	6004405-2	Angle, mounting sideguide	Ask us
6	6004405-3	Bracket, mounting cylinder	Ask us
7	6004406-1	Plate, mounting	Ask us
8	6004406-2	Plate, mounting	Ask us
9	6004406-3	Block, pusher bottle reject	Ask us
10	6004406-4	Mount, pusher bottle reject	Ask us
11	3000086300-0086	Fitting, tube straight	Request
12	3000090300-0090	Fitting, tube straight	Request
13	0003223BLK	Tube, polyflo black	Ask us
14	1020065102-0065	Bolt, hex head	Request
15	1020075102-0075	Bolt, hex head	Request
16	1020416102-0416	Washer, flat	Request
17	1020388102-0388	Washer, lock	Request
18	1020332102-0332	Nut, hex	Request
19	1020387102-0387	Washer, lock	Request
20	1020415102-0415	Washer, flat	Request
21	1020195102-0195	Screw, flat head slot	Request
22	1020389102-0389	Washer, lock	Request
23	1020417102-0417	Washer, flat	Request
24	1020334102-0334	Nut, hex	Request
25	1020088102-0088	Hex head bolt	Request
26	1021902102-1902	Socket head screw	Request
27	1020175102-0175	Screw, flat head slot	Request
28	1022960102-2960	Screw, hex head slot	Request
29	1020385102-0385	Washer, lock	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
1	4100226410-0226	Panel, watershed nema 4X	Ask us
2	4100225410-0225	Assembly, valve island 7 station	Ask us
3	4100212410-0212	Regulator, pressure	Request
4	4100229410-0229	Valve, solenoid w/connector and cord	Ask us
5	6004688600-4688	Plate, bulkhead fittings remote box	Ask us
6	6004689600-4689	Gasket, bulkhead fitting	Ask us
7	3002735300-2735	Fitting, tube push to connect	Request
8	3000090300-0090	Fitting, tube straight	Request
9	1020295102-0295	Screw, round head slot	Request
10	1020332102-0332	Nut, hex	Request
11	1020387102-0387	Washer, lock	Request
12	WPC10200-1	Rail, mounting	Request
13	1020797102-0797	Screw, round head	Request
14	1020414102-0414	Washer, flat	Request
15	3000355BLK	Tubing, polyflo bl	Request
16	4100227410-0227	Cord, power with 6 pin con	Request
17	4100228410-0228	Bracket, pressure regulator	Ask us
18	4100091410-0091	Cord, grip	Request
19	4100093410-0093	Cord, grip	Ask us
20	3002114300-2114	Muffler, air	Request
21	1009416100-9416	Plug, pipe	Request
22	1013188101-3188	Plug, pipe	Request
23	3002738300-2738	Fitting, bulkhead	Request
24	3000084300-0084	Fitting, str tube	Request
25	3000085300-0085	Fitting, tube swivel	Request
26	3002794300-2794	Fitting, 90 deg elbow push connect	Ask us
27	3002795300-2795	Fitting, 90 deg elbow push connect	Request
28	3002735300-2735	Fitting, tube push to connect	Request
29	3000245300-0245	Tubing, polyflo	Request
30	3002913300-2913	Fitting, reducing	Request
31	3002108300-2108	Plug, poly	Ask us

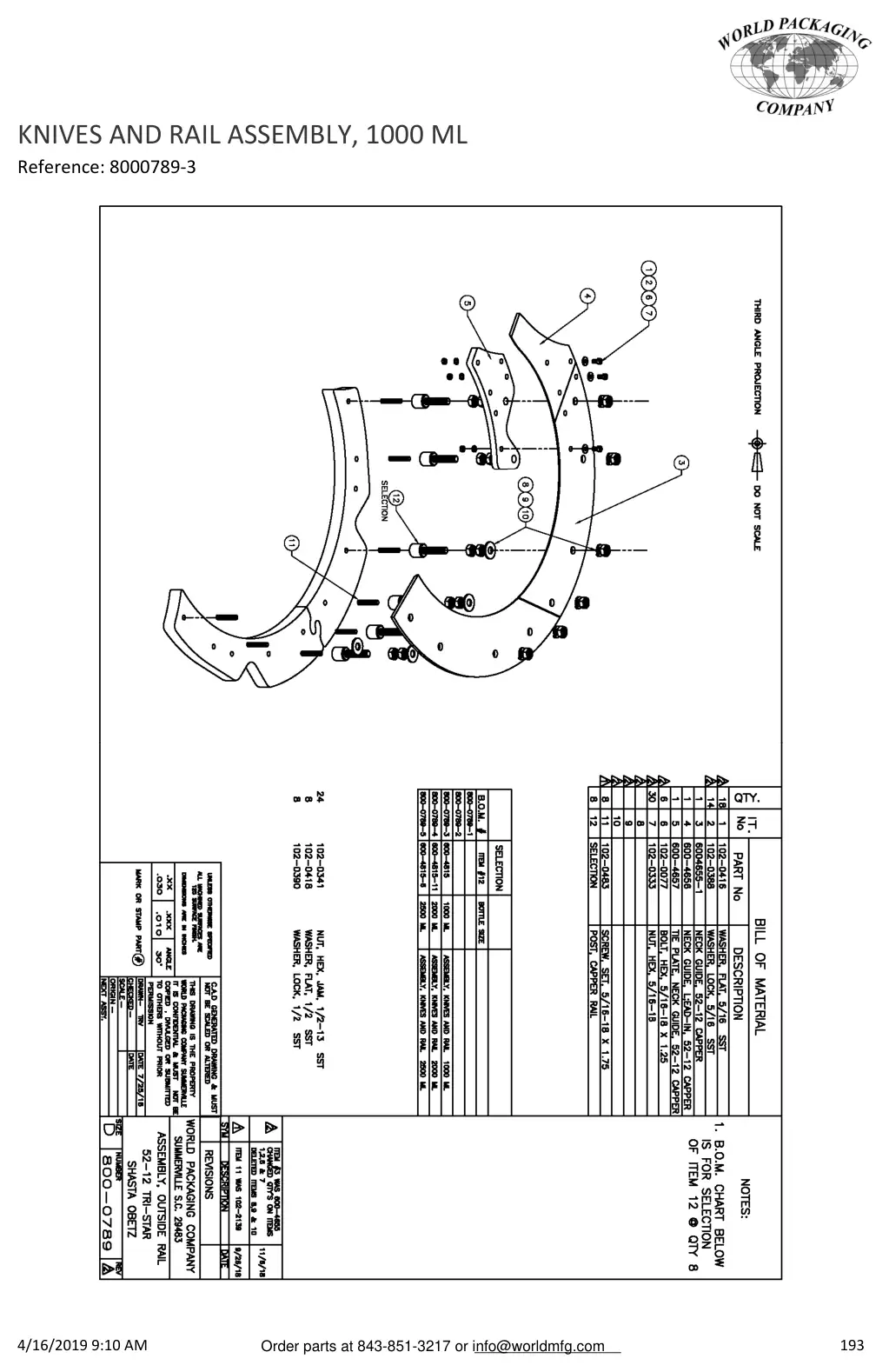

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	3002459300-2459	Base plate, 52-12 model	Request
2	6003620600-3620	Plate, timing infeed / discharge star	Request
3	3002800300-2800	Plate, wear filler infeed	Ask us
4	3002619300-2619	Wearplate "e"	Ask us
5	3002801300-2801	Plate, wear leading filler infeed	Ask us
8	3002802300-2802	Plate, wear filler disc-capper inf	Ask us
9	3002803300-2803	Plate, mounting capper wear plates	Ask us
10	3002621300-2621	Plate, wearstrip btl lift capper infeed	Request
11	3002905300-2905	Plate, wearstrip btl lift	Request
12	3002804300-2804	Plate, mounting capper back guides	Ask us
13	6004735600-4735	Plate, adapter button mounting	Ask us
14	9039645903-9645	Stand, pillar bearing block	Request
15	6003363600-3363	Stud, clamp e-z fit	Request
16	6003621600-3621	Plate, timing closure disch star	Ask us
17	6003631600-3631	Button, hold down	Request
18	6003623600-3623	Button, hold down	Request
19	6003630600-3630	Hub, closure star quick disconnect	Ask us
20	6004266600-4266	Hub, starwheel shaft above glass	Request
21	3002805300-2805	Stanchion, mounting	Ask us
22	3001694300-1694	Screw, flat head soc	Request
23	1020104102-0104	Bolt, hex head	Request
24	1020418102-0418	Washer, flat	Request
25	1020390102-0390	Washer, lock	Request
26	1022445102-2445	Screw, flat head soc	Request
27	1021403102-1403	Screw, shc	Ask us
28	3002806300-2806	Block, wearplate mounting filler inf	Ask us
29	3002807300-2807	Block, wearplate mounting trans inf	Ask us
30	3002808300-2808	Block, wearplate mounting trans disc	Ask us
31	3002809300-2809	Block, wearplate mounting disch	Ask us
32	6003363600-3363	Stud, clamp e-z fit	Request
33	3002900300-2900	Spacer, block	Ask us
34	3002901300-2901	Spacer, plate	Ask us
35	3002639300-2639	Stud.threaded	Ask us
36	3002902300-2902	Spacer, plate	Ask us
37	3002903300-2903	Spacer, block	Ask us
38	3002904300-2904	Pin, dowel	Ask us
39	1020091102-0091	Bolt, hex head	Request
40	1020417102-0417	Washer, flat	Request
41	3002906300-2906	Plate, wearstrip closer discharge	Ask us
42	3002907300-2907	Plate, wearstrip capper infeed	Ask us

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full sizeOpen full size

Ref	Part number	Description
1	1009295100-9295	Nipple	Request
2	1013305101-3305	Cross, female pipe	Request
3	1006112100-6112	Nipple	Request
4	1008908100-8908	Bushing, reducing hex	Request
5	3000265-91	Adapter, male reducer	Request
6	3001457-1	Transducer, pressure	Request
7	1005492100-5492	Tee	Request
8	1008911100-8911	Bushing, reducing hex	Request
9	3000091300-0091	Fitting, tube swivel	Request
10	1003087100-3087	Clamp, hose	Request
11	1010108101-0108	Fitting, barbed	Request
12	0003489000-3489	Tubing, CO2/air braided hose	Request
13	3000093300-0093	Fitting, tee polyflo	Request
14	1004710100-4710	Regulator, air	Request
15	1006758100-6758	Gauge, pressure	Request
16	1005372100-5372	Elbow, 90 deg	Request
17	0003223000-3223	Tube, polyflo	Request
18	3001499300-1499	Valve, relief	Request
19	3001459300-1459	Regulator, proportional pressure	Request
20	1006110100-6110	Nipple, close	Request
22	3000460-2	Muffler, proportional regulator	Request
23	1009667100-9667	Elbow, street	Request
24	1044084104-4084	Nipple, close	Request
25	1004658100-4658	Bushing, reducing hex	Request
26	3000460-3	Muffler, relief valve	Ask us
27	1009416100-9416	Plug, pipe	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	4100235410-0235	Manifold, valve 3 station	Request
2	3000460-2	Muffler, proportional regulator	Request
3	3002789300-2789	Fitting, tube 90 degree swivel	Request
4	4100234410-0234	Valve, solenoid 5 way	Request
5	6002769600-2769	Plate, mounting solenoid manifold	Request
6	WPC10200-1	Rail, mounting	Request
7	1021268102-1268	Screw, binder	Ask us
8	4100237410-0237	Connector, with cable	Request
9	4100236410-0236	Connector, din w/cable	Ask us
10	3001989300-1989	Plug, pipe hex head	Request
11	4100233410-0233	Plate, blank valve manifold	Ask us
12	1013188101-3188	Plug, pipe	Request
13	4100232410-0232	Kit, din rail fixing	Ask us
14	1020068102-0068	Bolt, hex head	Request
15	1020332102-0332	Nut, hex	Request
16	1020387102-0387	Washer, lock	Request
17	1020415102-0415	Washer, flat	Request
18	3000355BLK	Tubing, polyflo bl	Request
19	3002794300-2794	Fitting, 90 deg elbow push connect	Ask us
20	1009416100-9416	Plug, pipe	Request
21	3002917300-2917	Bushing, reducing hex	Request
