Meyer Concept III filler parts manual

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Open full size

Ref	Part number	Description
1	104-64811046481	Screw, set socket cup point pt	Request
20	104-6341	Cam	Ask us
2	100-40331004033	O-ring	Request
4	136-65251366525	Piston, airlift cylinder	Request
22	100-38691003869	Ring, retaining	Request
5	104-69501046950	U-cup, lift cylinder	Request
23	100-40401004040	O-ring	Request
7	104-63201046320	Fitting grease	Request
24	100-40411004041	O-ring	Request
8	135-08471350847	Screw, cam follower btl lift	Request
25	101-02081010208	O-ring, lift cylinders	Request
9	133-66861336686	Roller, driving airlift cylinder	Request
26	101-31881013188	Plug, pipe	Request
10	104-60261046026	Ring, retaining	Request
27	136-17421361742	Bushing, airlift cylinder	Request
11	102-04621020462	Screw, set socket cup point	Request
28	104-69511046951	Ring, retaining	Request
13	136-66501366650	Rod, guide 90V	Request
32	102-00881020088	Hex head bolt	Request
14	135-08601350860	Pad, bumper	Request
33	136-99781369978-1	Rod, piston 90V airlift cylinder	Request
17	135-39471353947	Collar, lift cylinder pist	Request
36	905-19919051991	Cylinder, airlift assembly	Request
19	135-60861356086	Nut, lock piston rod	Request

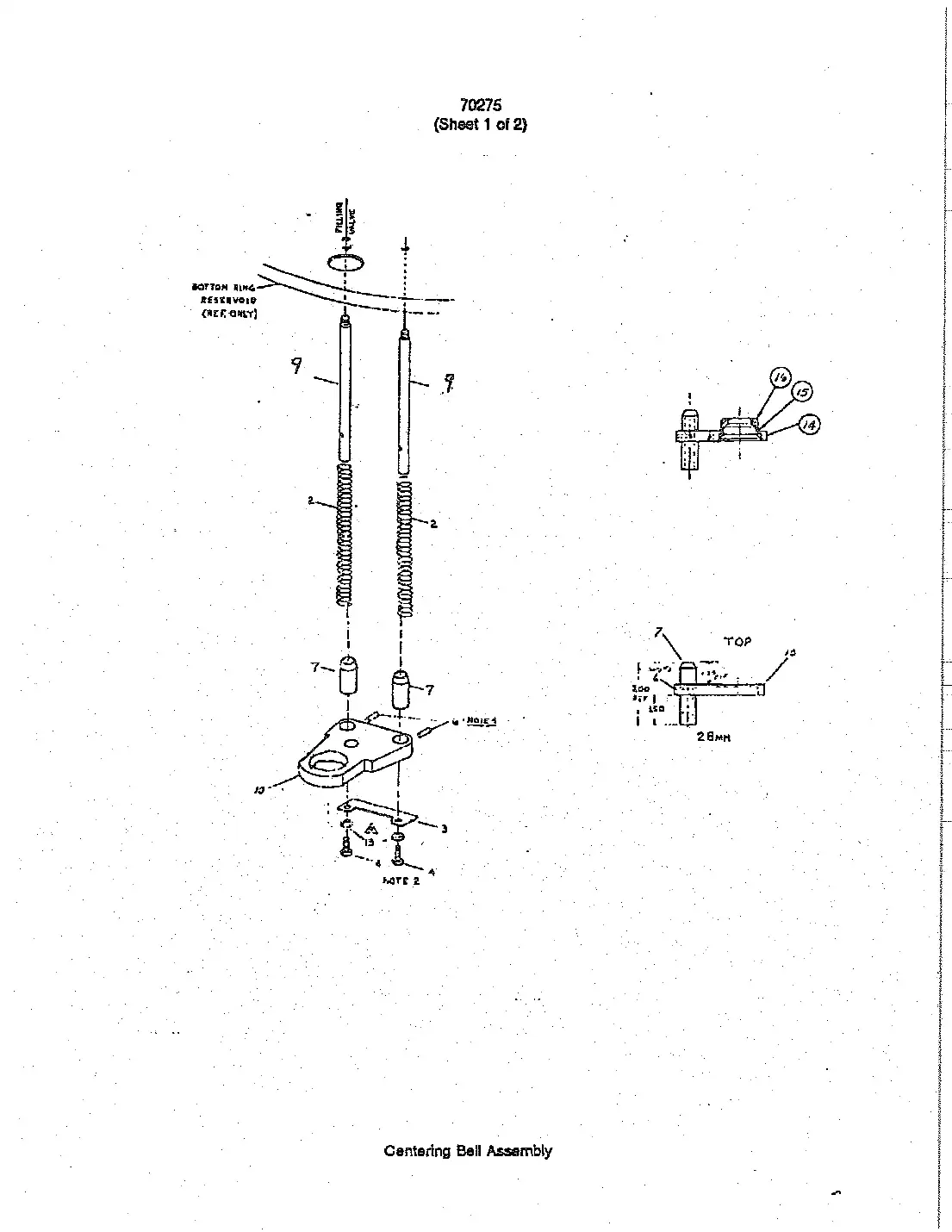

Centering bells line each bottle neck up under its filling valve. Worn bells and rubbers cause poor sealing, foaming and broken containers.

Open full size

Ref	Part number	Description
2	137-09801370980	Spring, centering bell	Request
3	133-1680	Strap	Ask us
4	102-00671020067	Bolt, hex head	Request
15	100-40301004030	O-ring	Request
16	137-17421371742	Cup, centering	Request

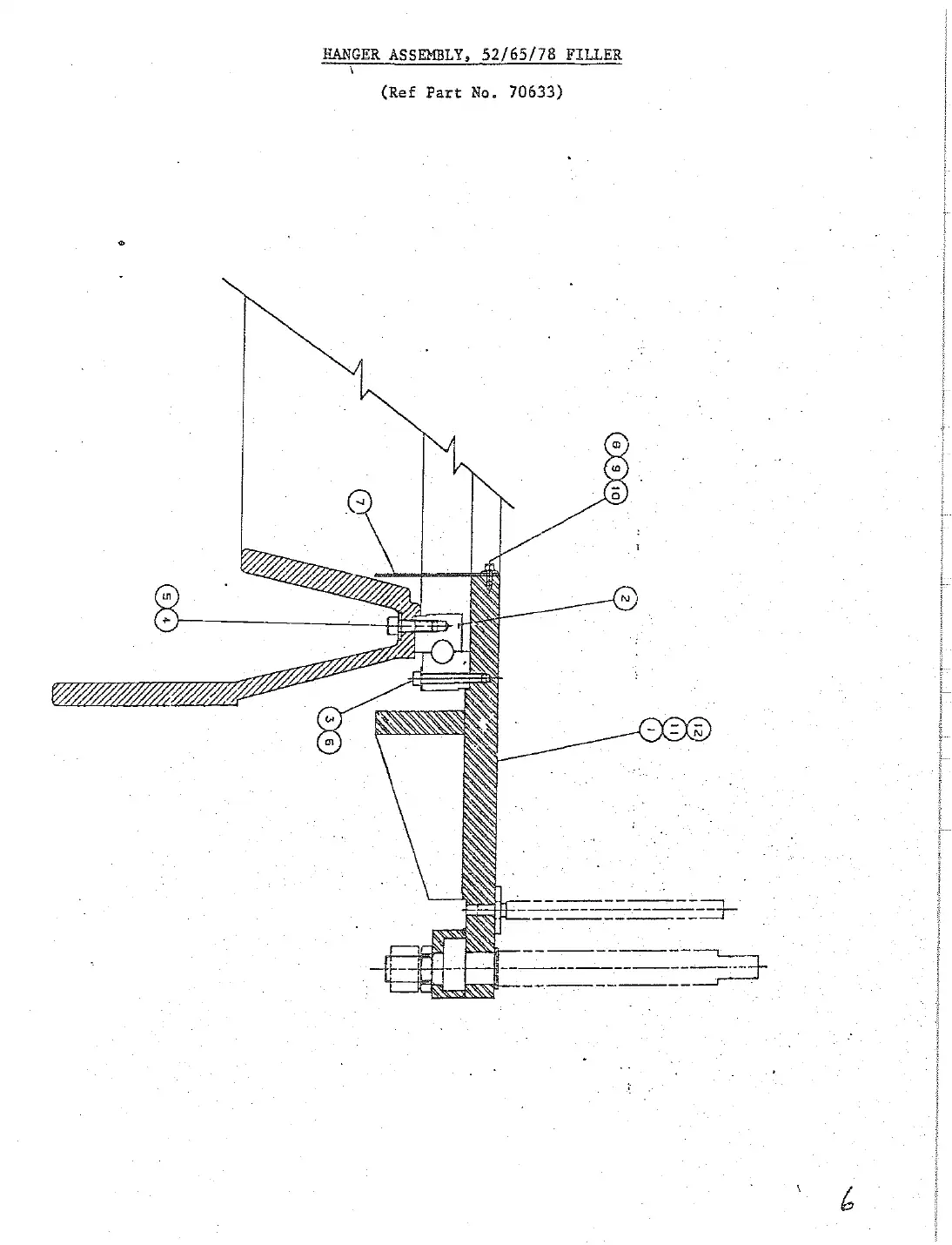

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Open full size

Ref	Part number	Description
1	000-40680004068	Gasket, filler bowl outer square	Request
4	100-97751009775	Ring, retaining	Request
5	131-33601313360	Sight glass	Request
6	100-25071002507	O-ring	Request
12	102-24101022410	Nut, hex astm	Request
19	135-40361354036	Positioner, bowl	Request
20	102-17881021788	Screw, shoulder soc hd	Request
21	104-5097	Fitting	Ask us
22	104-5096	Fitting	Ask us
23	102-2411	Pin	Ask us
24	136-09951360995	Stud, bowl	Request
26	100-21351002135	Gasket, tri clamp	Request

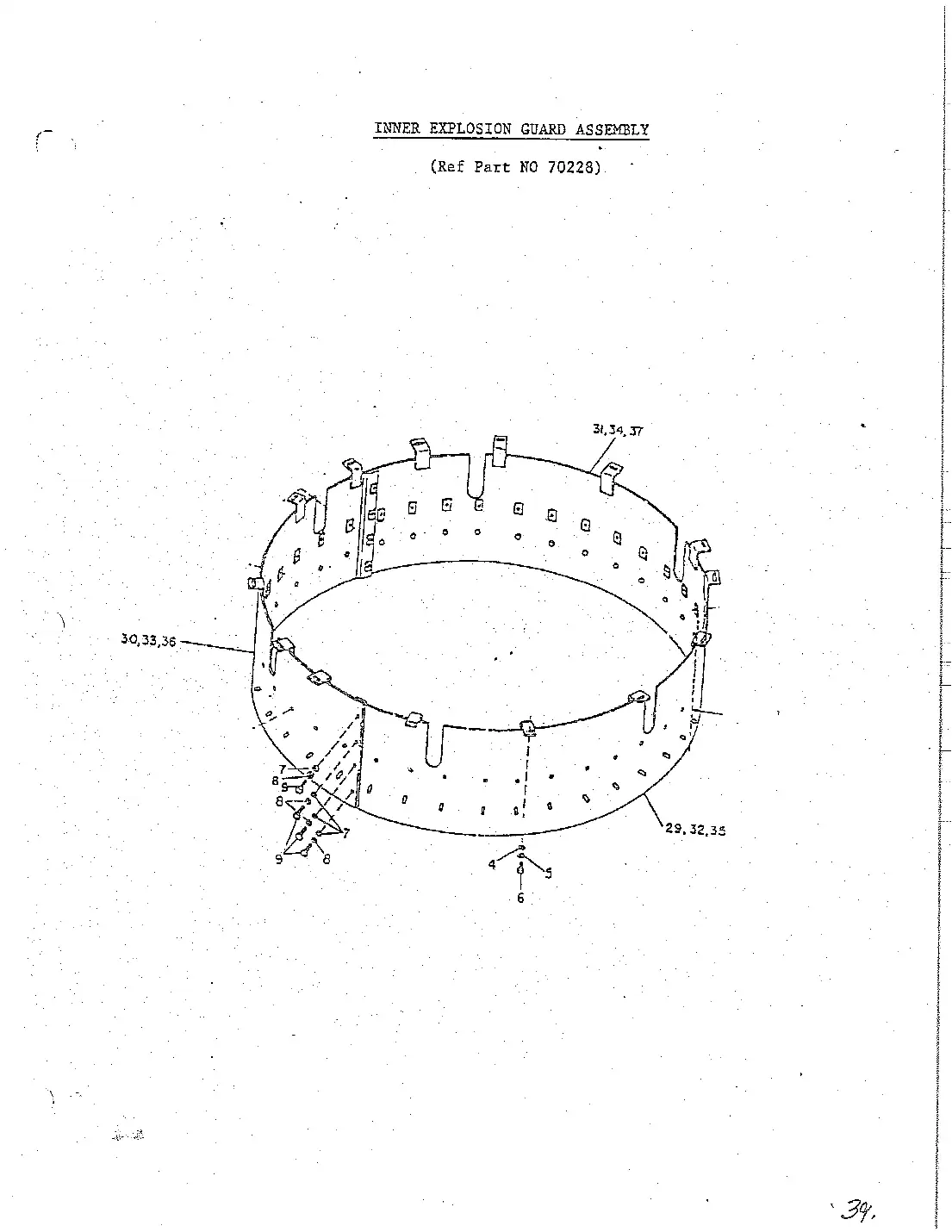

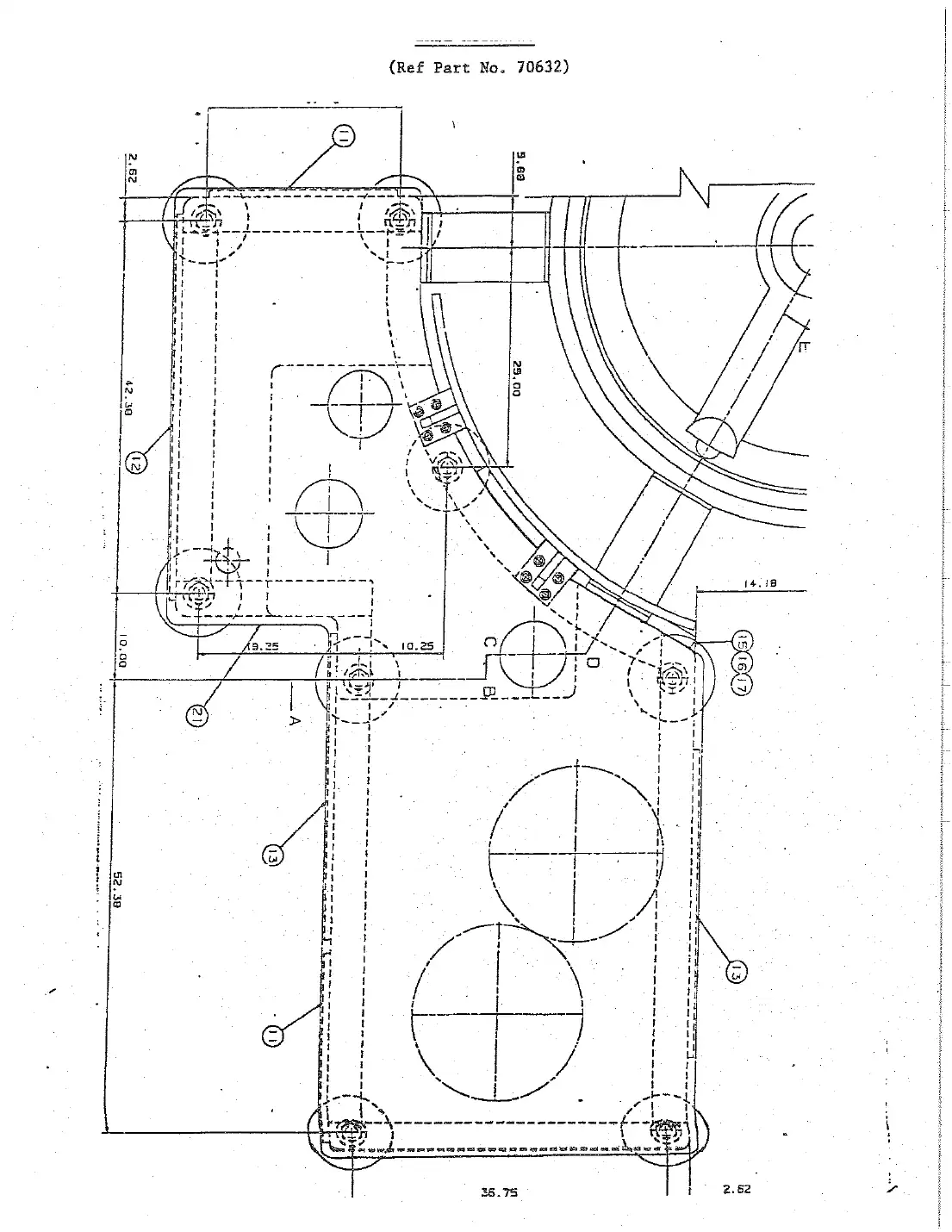

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full size

Ref	Part number	Description
2	137-0004	Bearing	Ask us
3	104-83081048308	Screw, socket head cap	Request
4	104-83071048307	Screw, socket head cap	Request
5	104-80641048064	Washer, flat	Request
6	104-80631048063	Washer, flat	Request
7	137-0364	Guard, inner bearing	Ask us
8	102-04151020415	Washer, flat	Request
10	102-00651020065	Bolt, hex head	Request

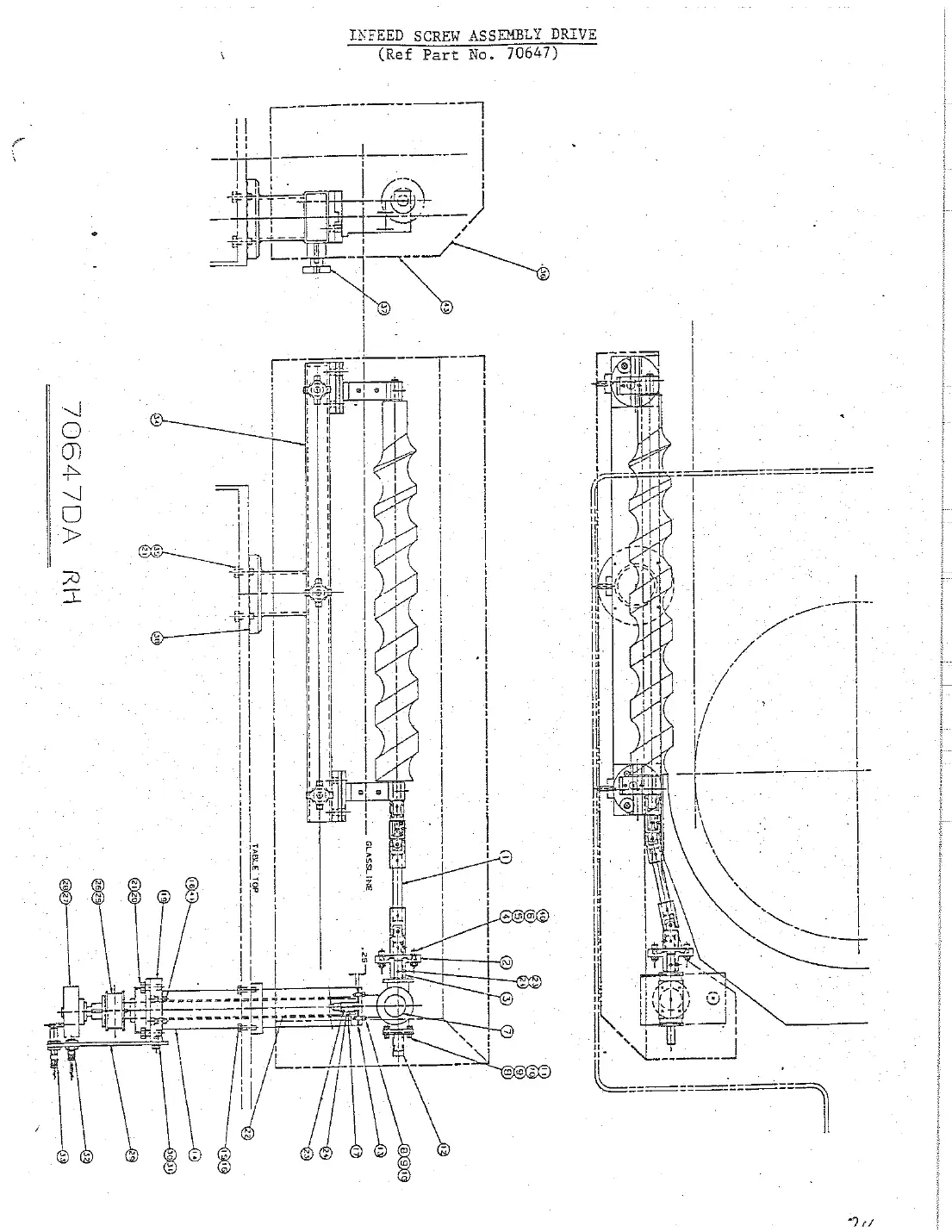

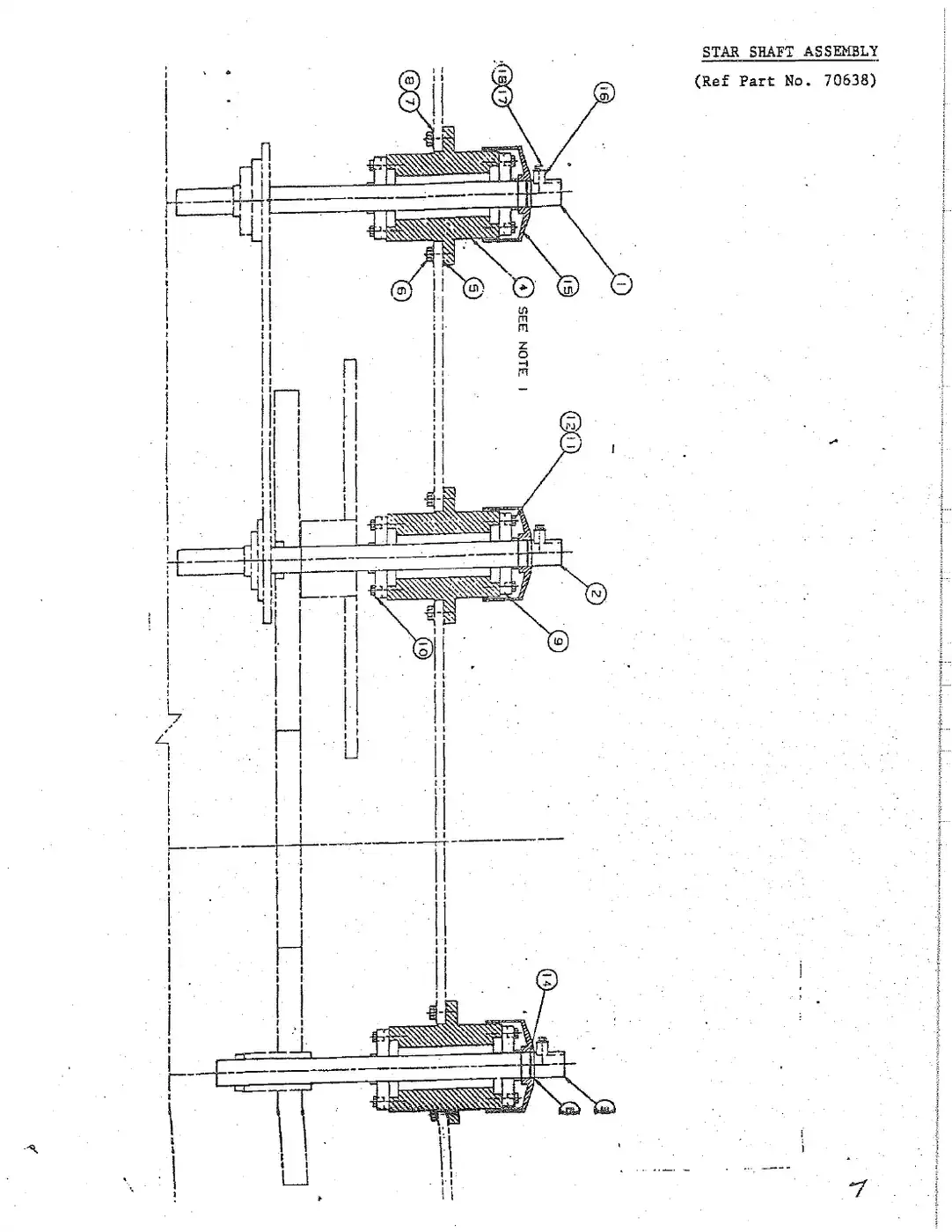

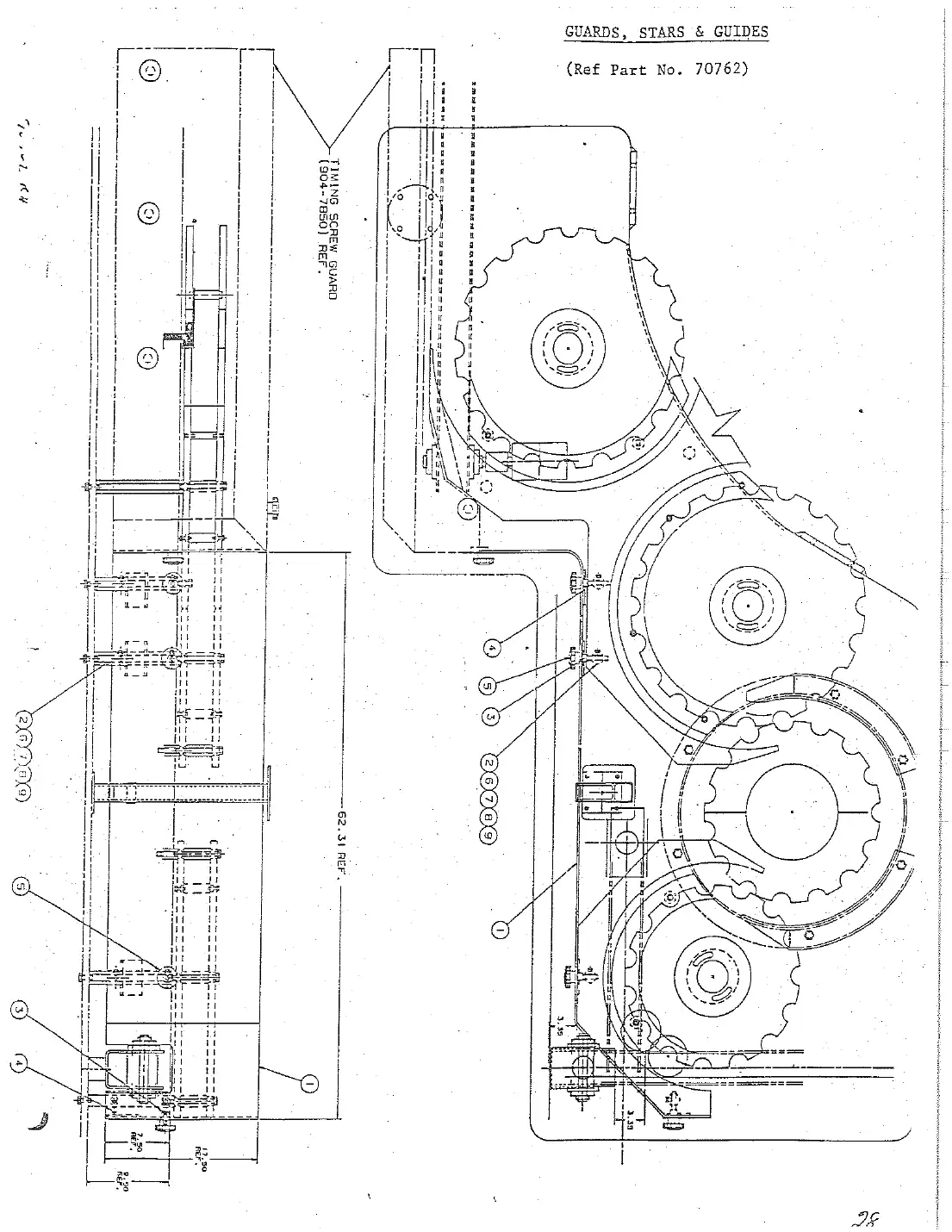

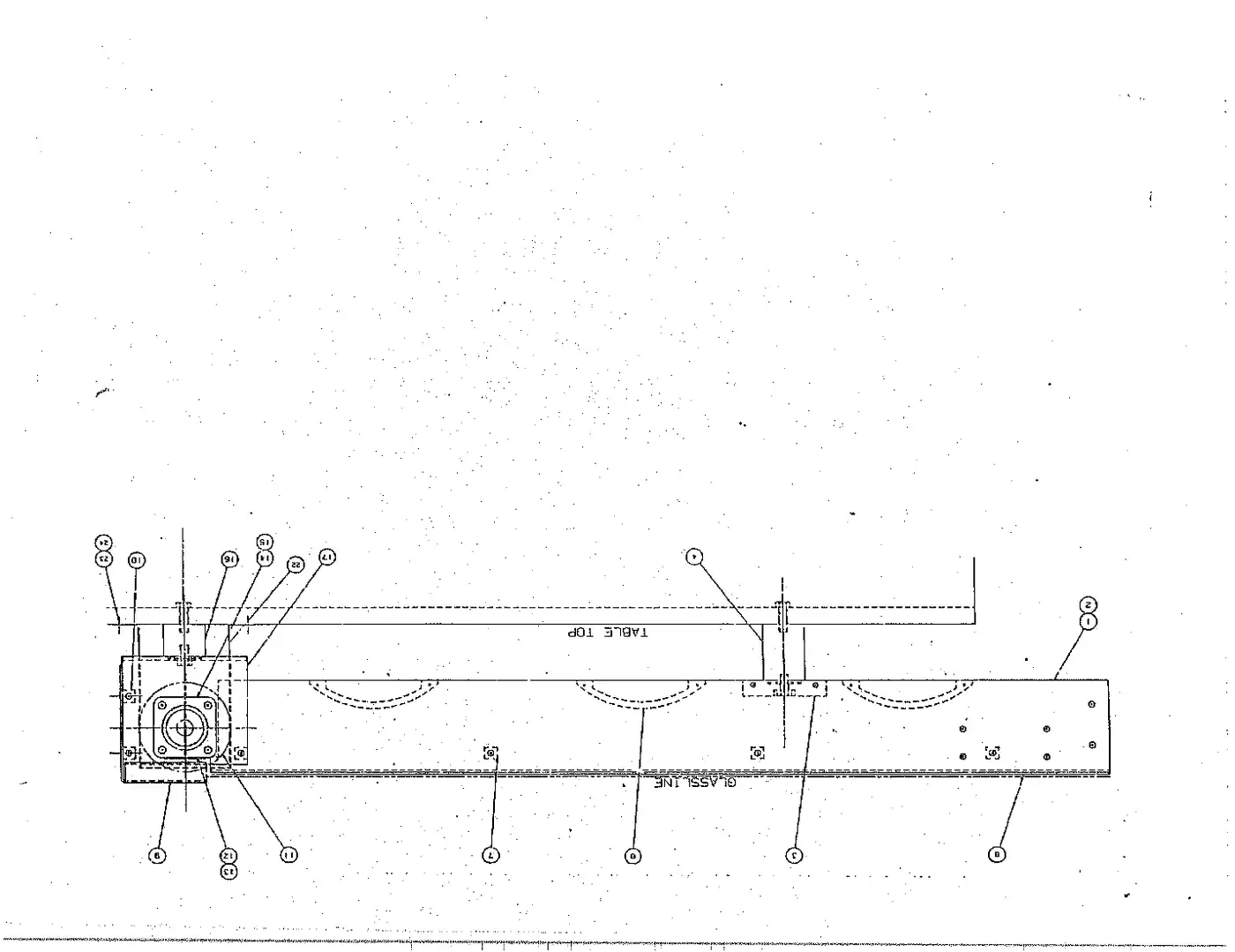

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
1	136-63481366348	Shaft, starwheel infeed	Request
2	136-62901366290	Shaft, starwheel discharge	Request
3	136-63491366349	Shaft, crowner discharge	Request
5	101-32381013238	O-ring	Request
6	102-01031020103	Bolt, hex head	Request
7	102-0413	Washer, lat	Ask us
8	102-03901020390	Washer, lock	Request
9	136-63651366365	Bearing, upper	Request
40	100-02361000236	Bearing, flange piloted	Request
12	102-14431021443	Washer, lock	Request
13	100-38721003872	Ring, retaining external	Request
14	104-73441047344	O-ring	Request
15	136-62931366293-2	Guard, bearing Meyer bottle filler	Request
16	135-84381358438	Lug, drive starshaft	Request
17	102-00921020092	Bolt, hex head	Request
18	102-20021022002	Washer, flat	Request
19	102-03891020389	Washer, lock	Request

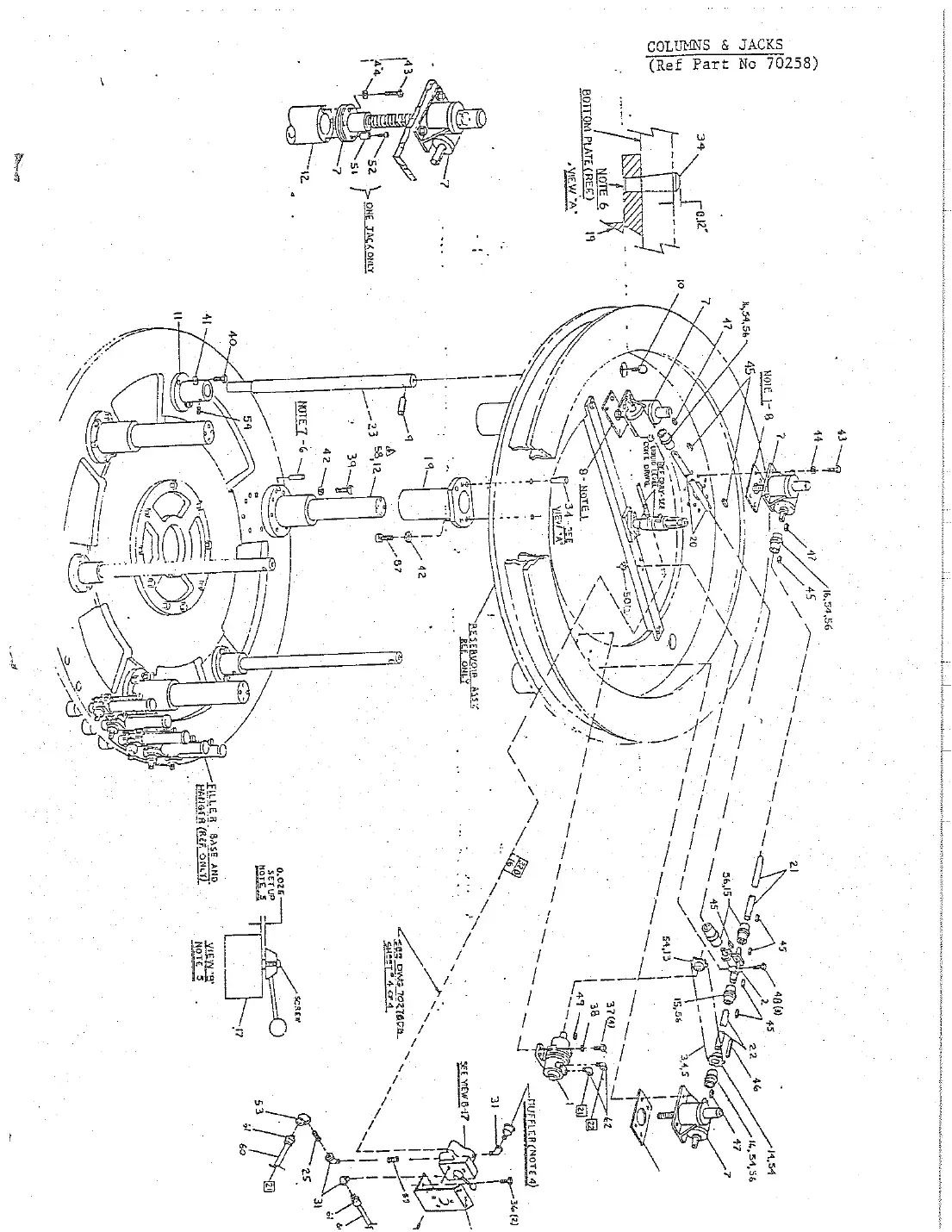

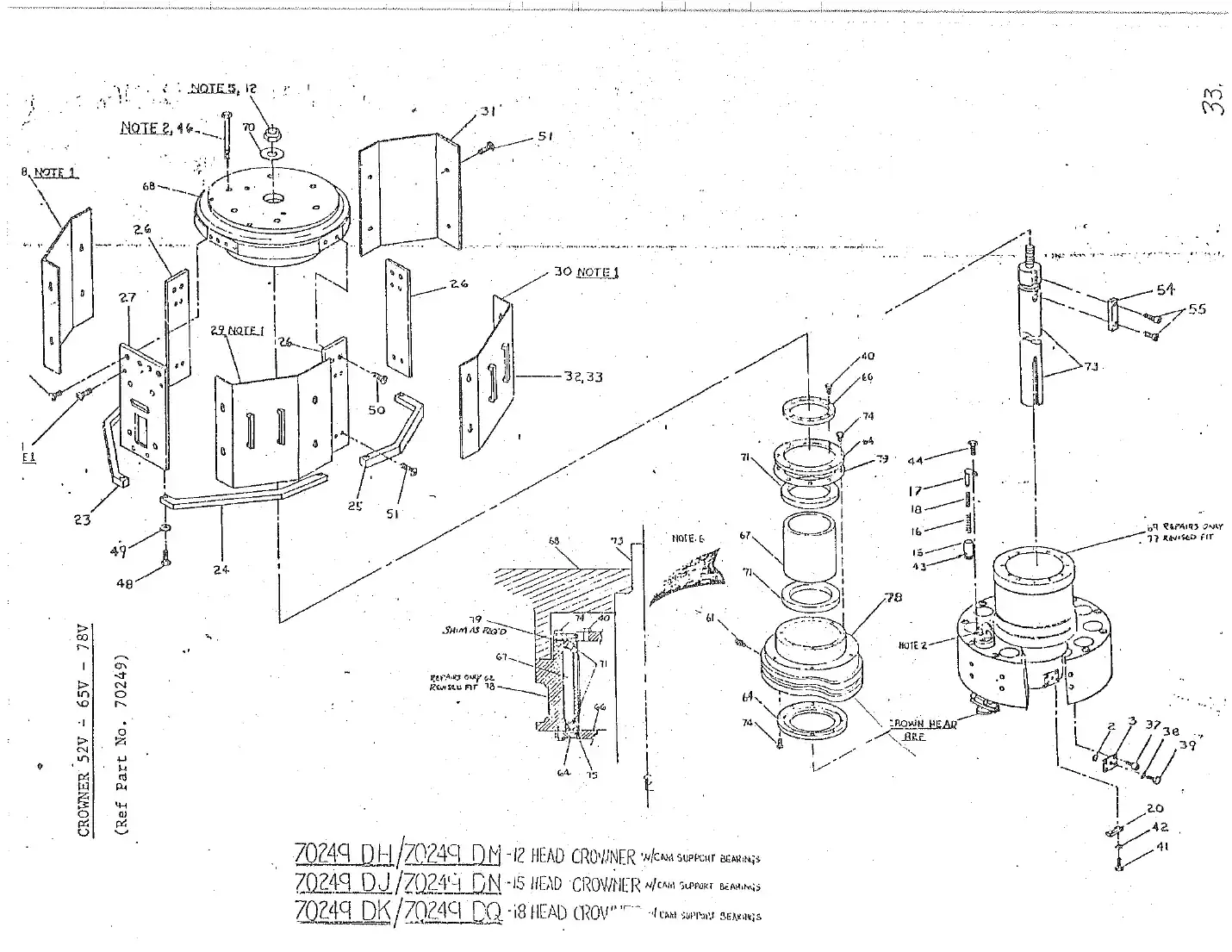

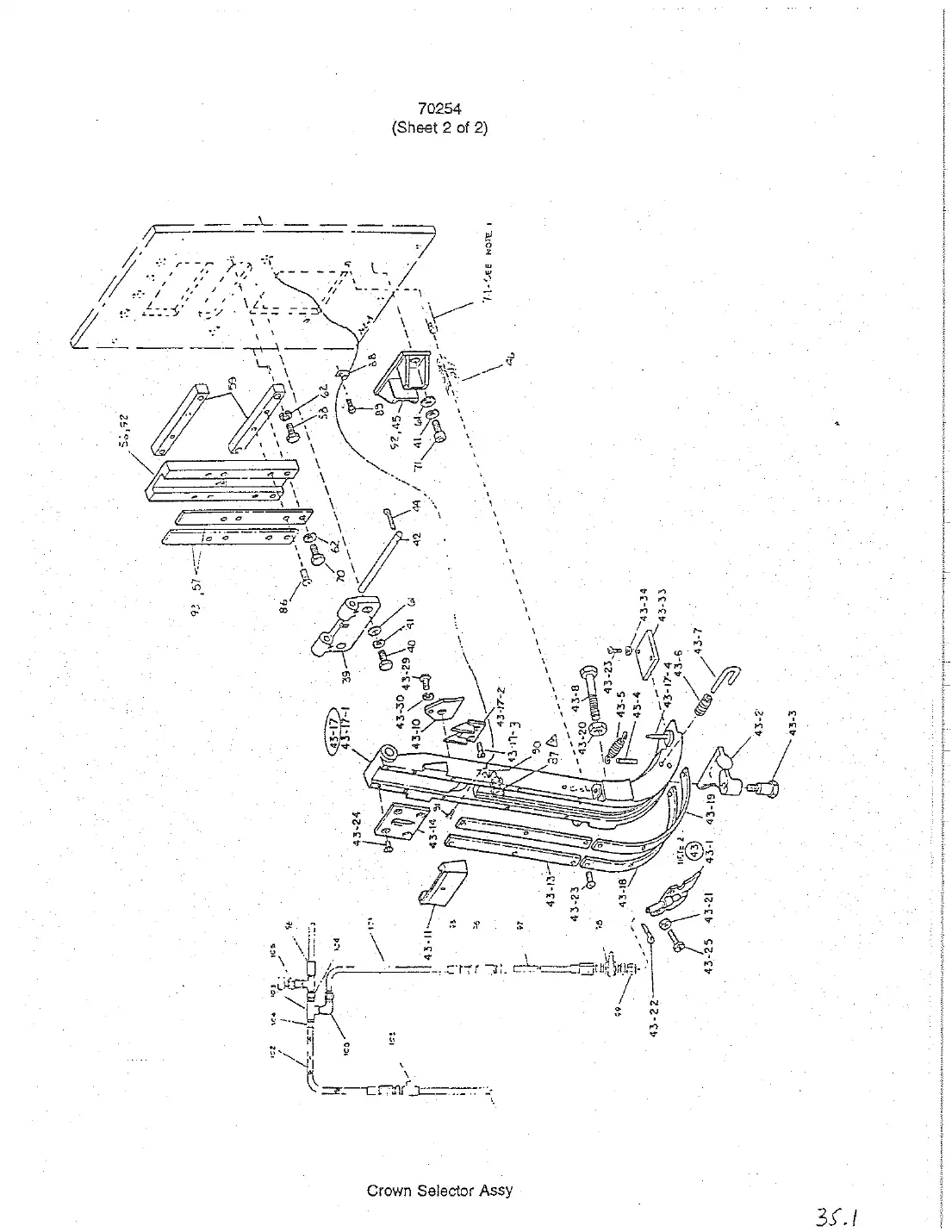

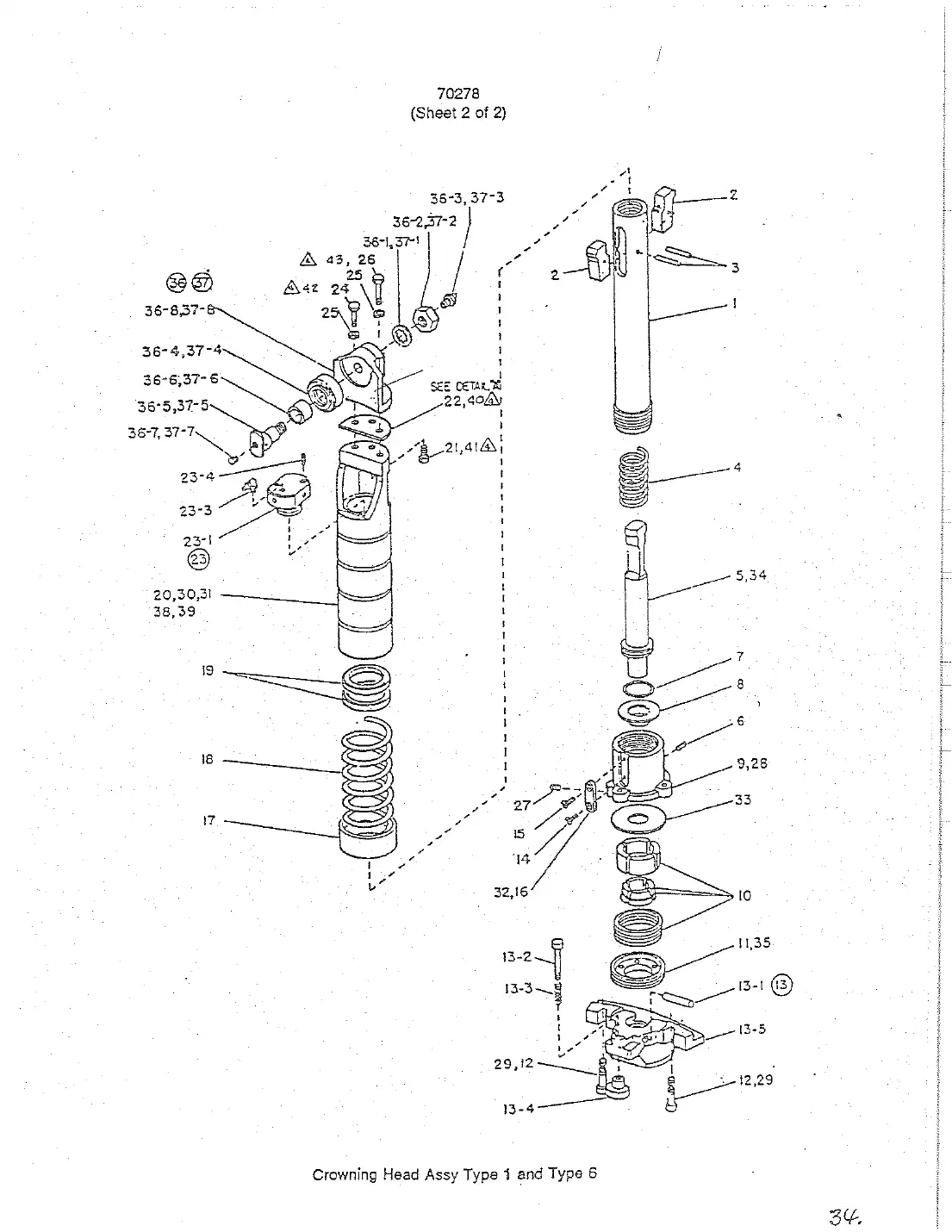

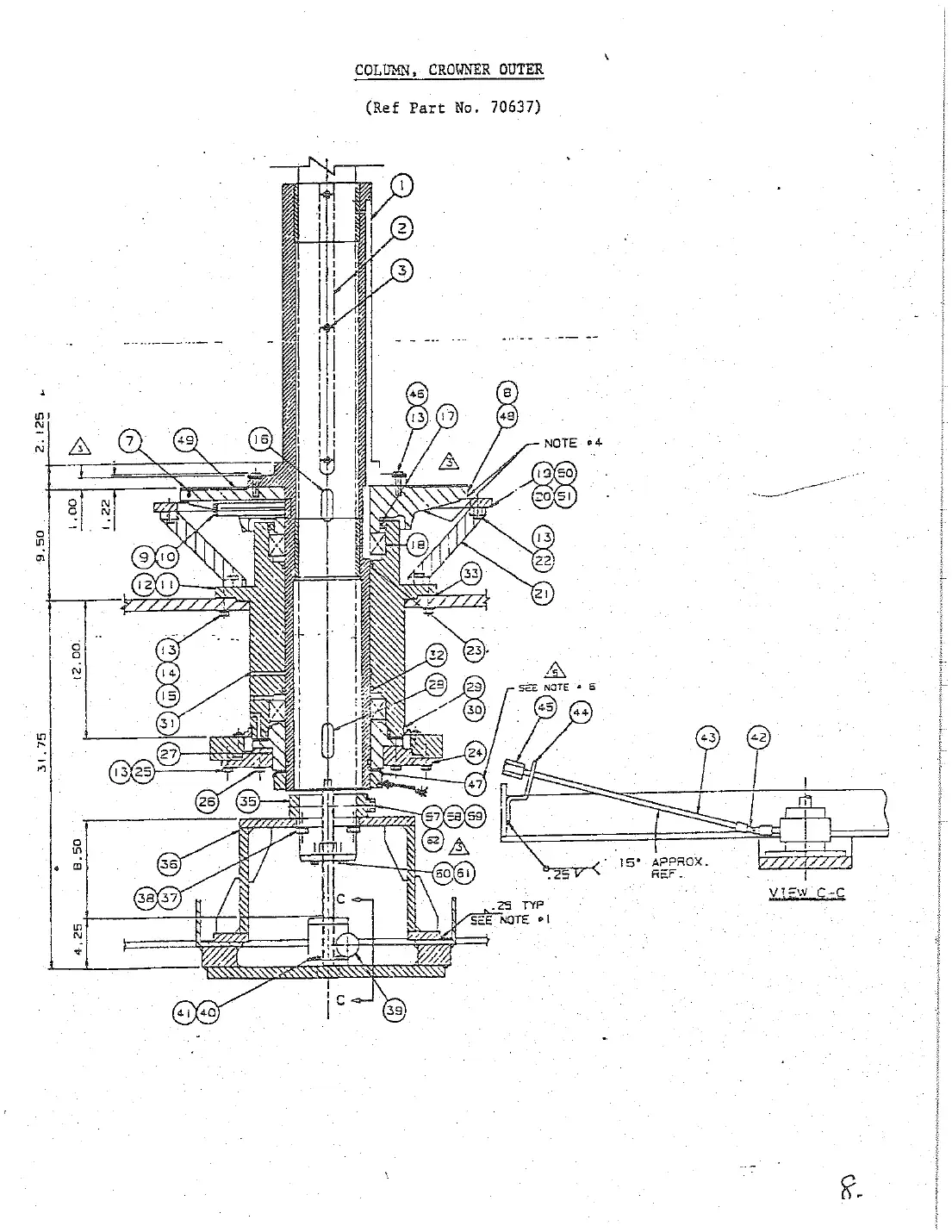

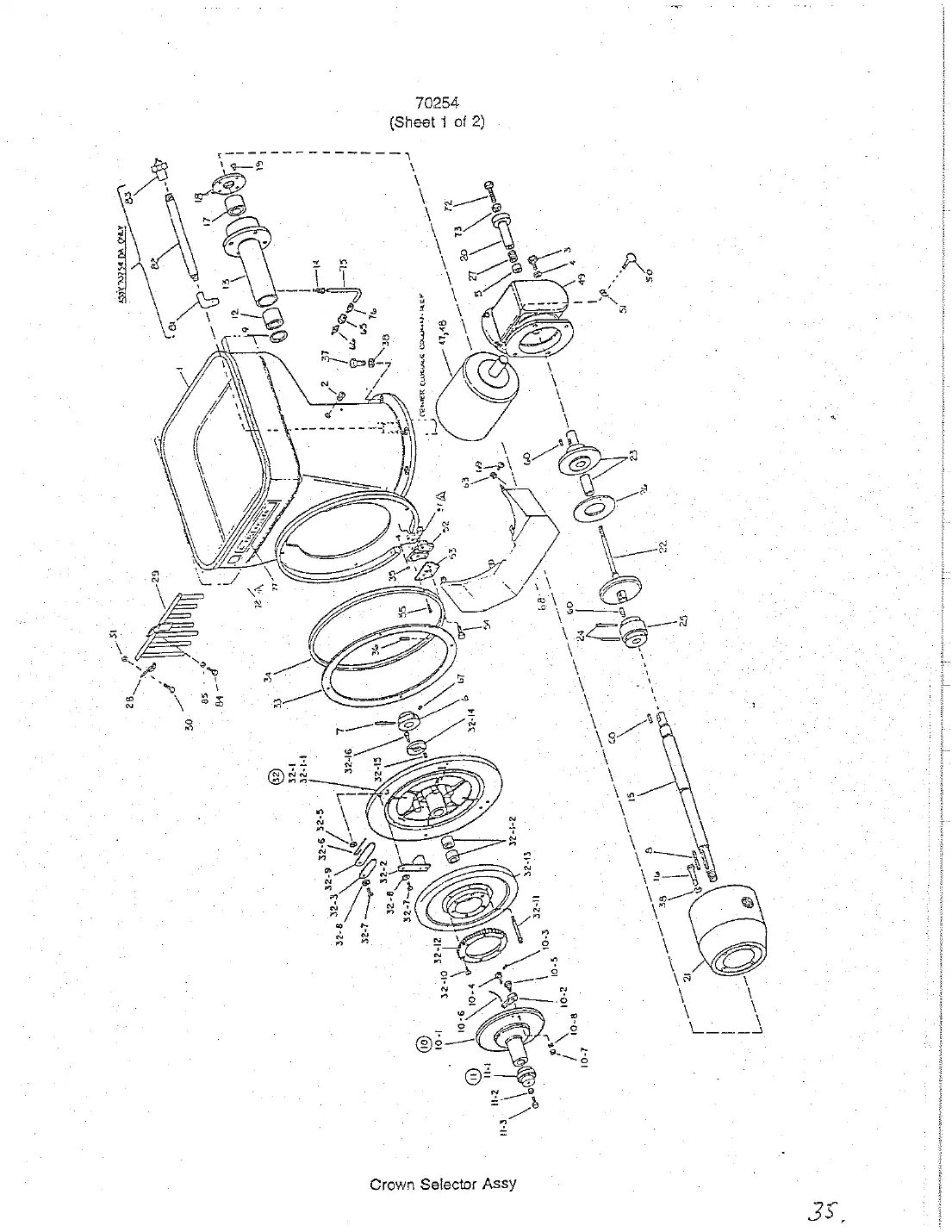

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	905-21009052100	Column, closer assembly 90V	Request
25	102-01001020100	Bolt, hex head	Request
2	134-16111341611	Key, column & spool hub	Request
26	102-1837	Screw, hex	Ask us
3	102-05731020573	Screw, socket head cap	Request
27	903-99509039950	Spacer, lower machining	Request
28	000-16860001686-2.75R	Key, column spacer upper 52V filler	Request
29	903-5592	Seal, labyrinth	Ask us
30	102-00651020065	Bolt, hex head	Request
31	100-08711000871	Plug, pipe	Request
32	000-4277	Packing, purelon	Ask us
5	134-6598	Plate, wear	Ask us
35	136-99001369900	Ring, anti-rotation closure column assembly 90V filler	Request
36	904-7286	Support anti rotation	Ask us
6	136-17361361736	Pad, crowner 12, 18, 24 hd	Request
37	102-07991020799	Bolt, hex head	Request
7	102-01911020191	Screw, flat head slot	Request
38	102-03911020391	Washer, lock	Request
8	102-14111021411	Screw, set dog pt	Request
39	104-64951046495	Jactuator, rise	Request
9	100-27241002724	Nipple	Request
40	102-00901020090	Bolt, hex head	Request
10	100-39411003941	Fitting, grease female str	Request
41	102-0383	Washer lock	Ask us
1	136-14191361419	Housing, bearing machining	Request
42	104-60351046035	Joint, , bore	Request
12	104-8325	O-ring	Ask us
43	000-3776	Rod, round	Ask us
13	102-01031020103	Bolt, hex head	Request
44	136-63781366378	Bracket, closer jack shaft 90V filler family	Request
14	102-03901020390	Washer, lock	Request
15	102-04181020418	Washer, flat	Request
46	102-1199	Washer lock	Ask us
47	102-30641023064	Washer	Request
47	101-06201010620	Seal, oil closer column lower	Request
57	137-42541374254	Bolt, hex head	Request
58	102-03921020392	Washer, lock	Request
19	135-2877	Support guide	Ask us
59	102-04201020420	Washer, flat	Request
20	135-2878	Support, guide	Ask us
60	102-00911020091	Bolt, hex head	Request
21	135-2875	Support, rai	Ask us
61	102-03891020389	Washer, lock	Request
62	136-63871366387	Key, anti-rotation	Request
23	104-65781046578	O-ring	Request
24	136-00491360049	Plate, filler drive filler	Request

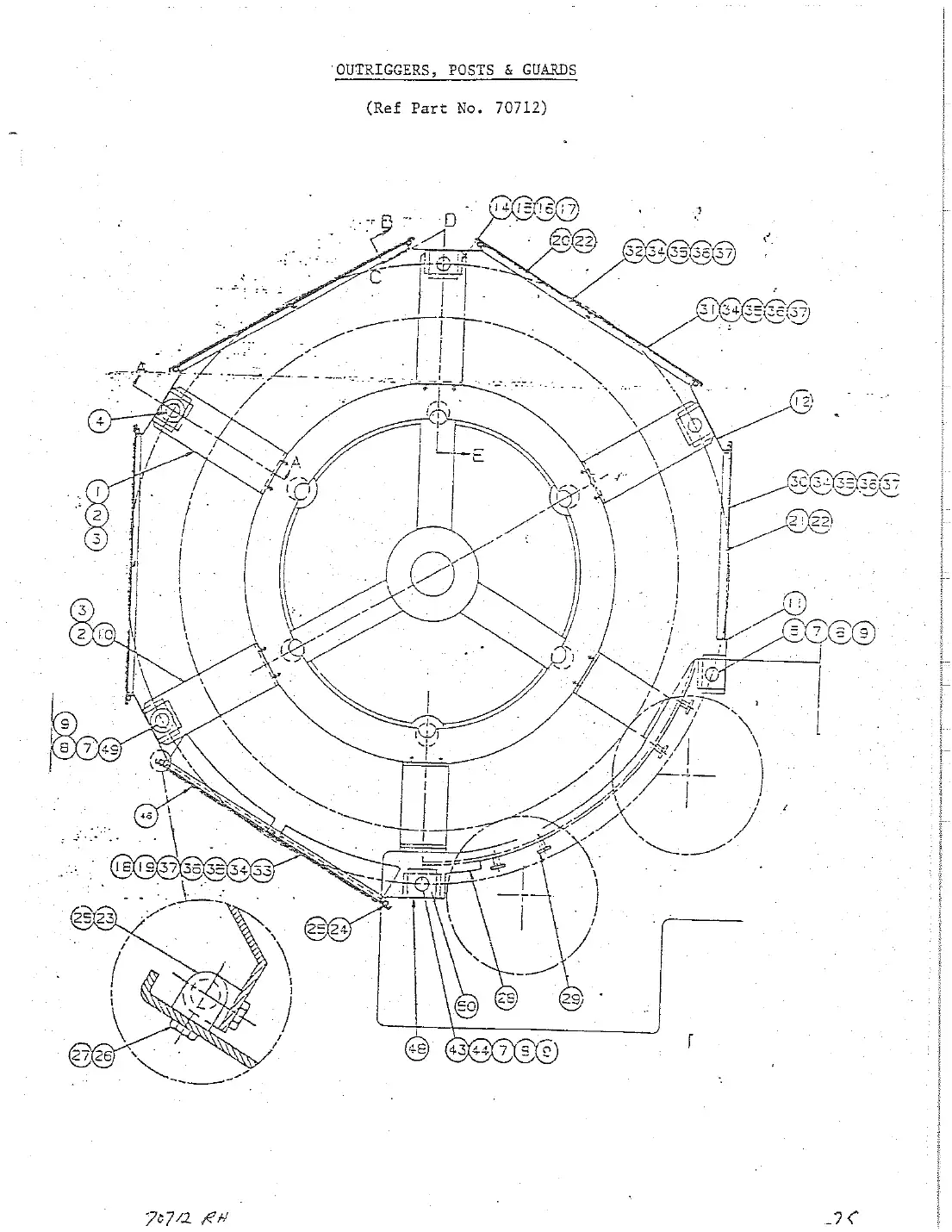

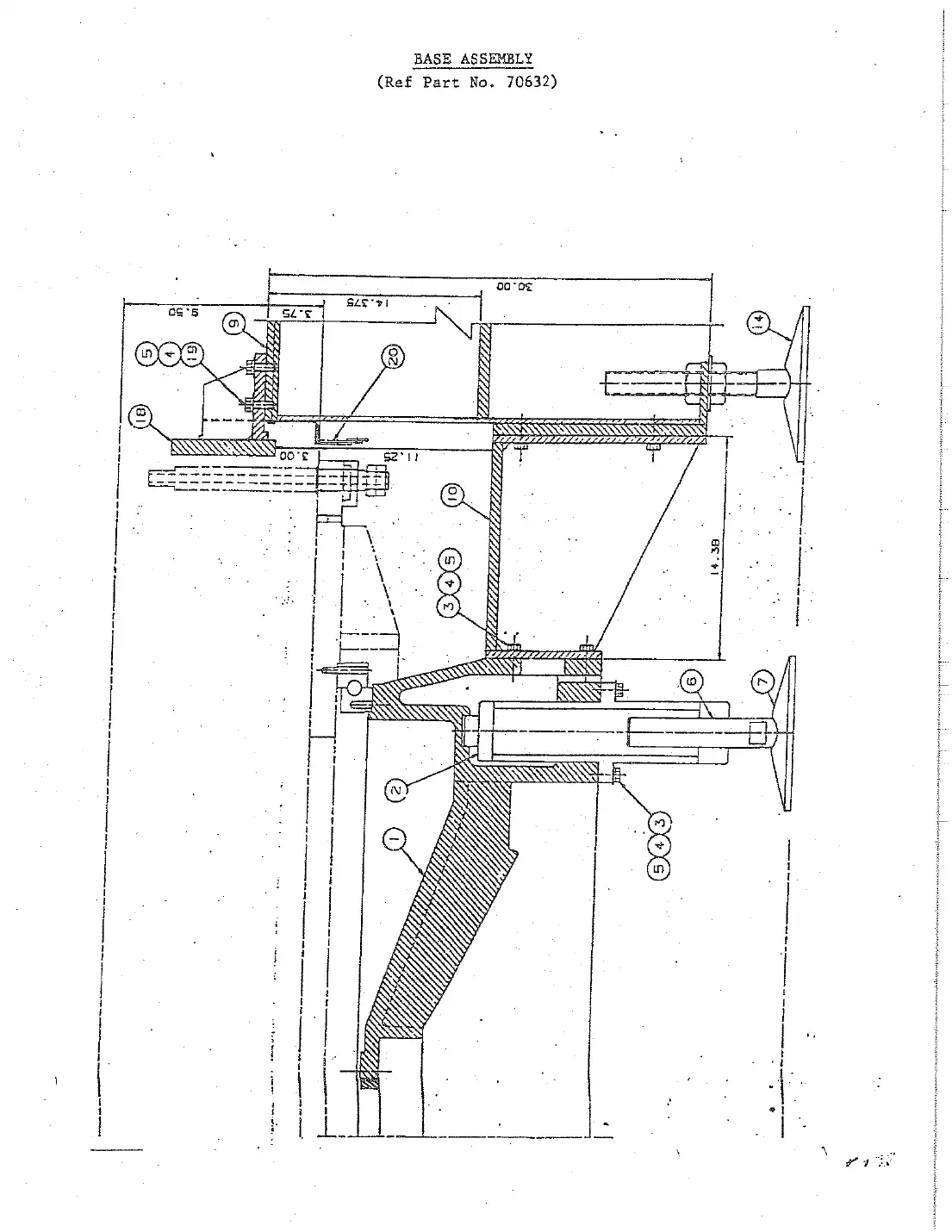

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
1	137-0357	Base	Ask us
3	102-1835	Screw, hex head	Ask us
4	102-03901020390	Washer, lock	Request
5	102-04181020418	Washer, flat	Request
6	137-0352	Screw, level ing	Ask us
7	136-86831368683-2	Pad, leg carousel base	Request
3	904-7536	Drive base	Ask us
10	904-7542	Bracket	Ask us
12	904-7543	Door, front drive base	Ask us
13	904-7544	Door, rear	Ask us
14	905-1892	Leveling screw ass drive base	Ask us
15	137-1746	Guard, washoff	Ask us
16	102-00651020065	Bolt, hex head	Request
17	102-03871020387	Washer, lock	Request
18	903-9886	Cam	Ask us
19	102-01021020102	Bolt, hex head	Request
20	904-7724	Guard, epicycloidal gear	Ask us
24	104-6628	Label, meyer filler serial	Ask us

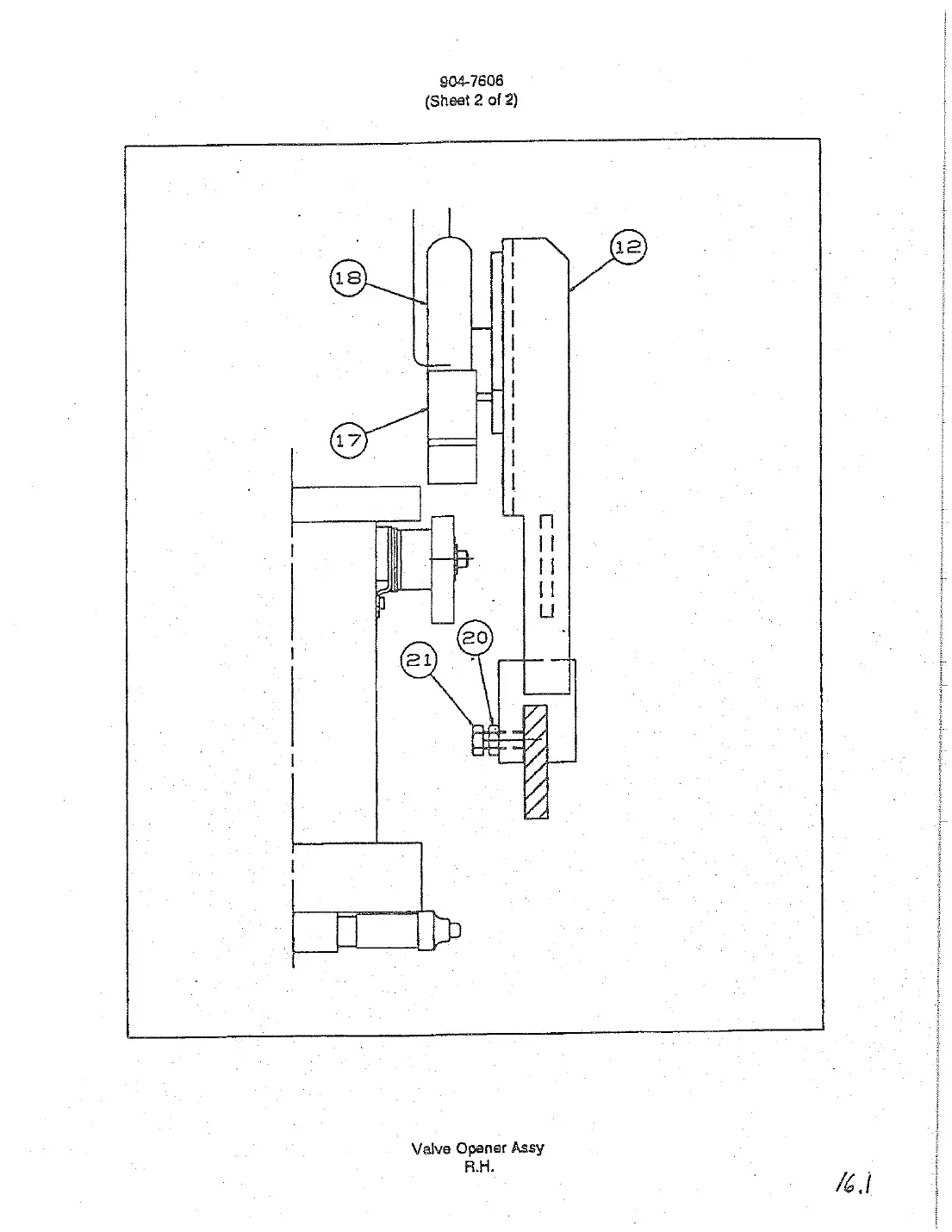

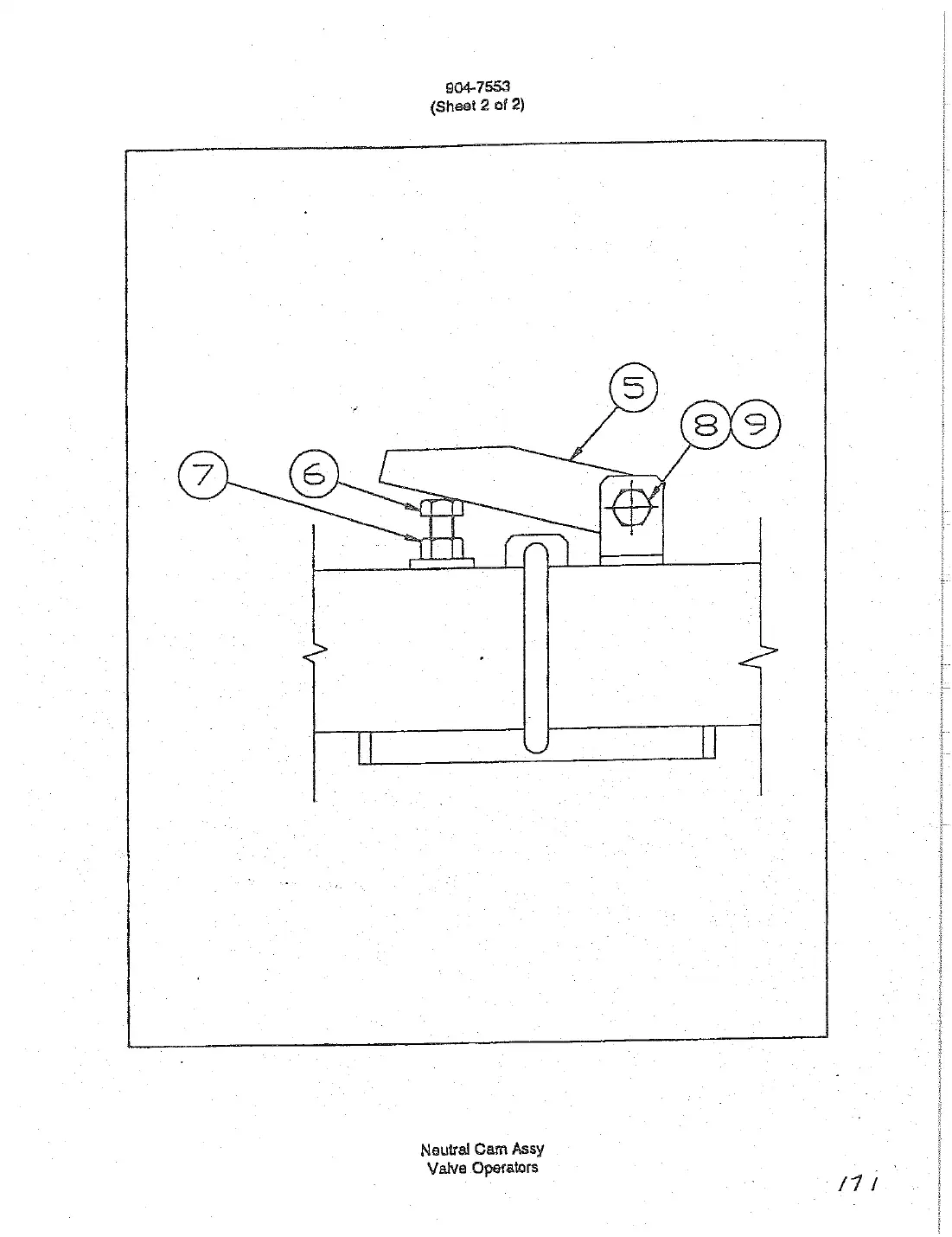

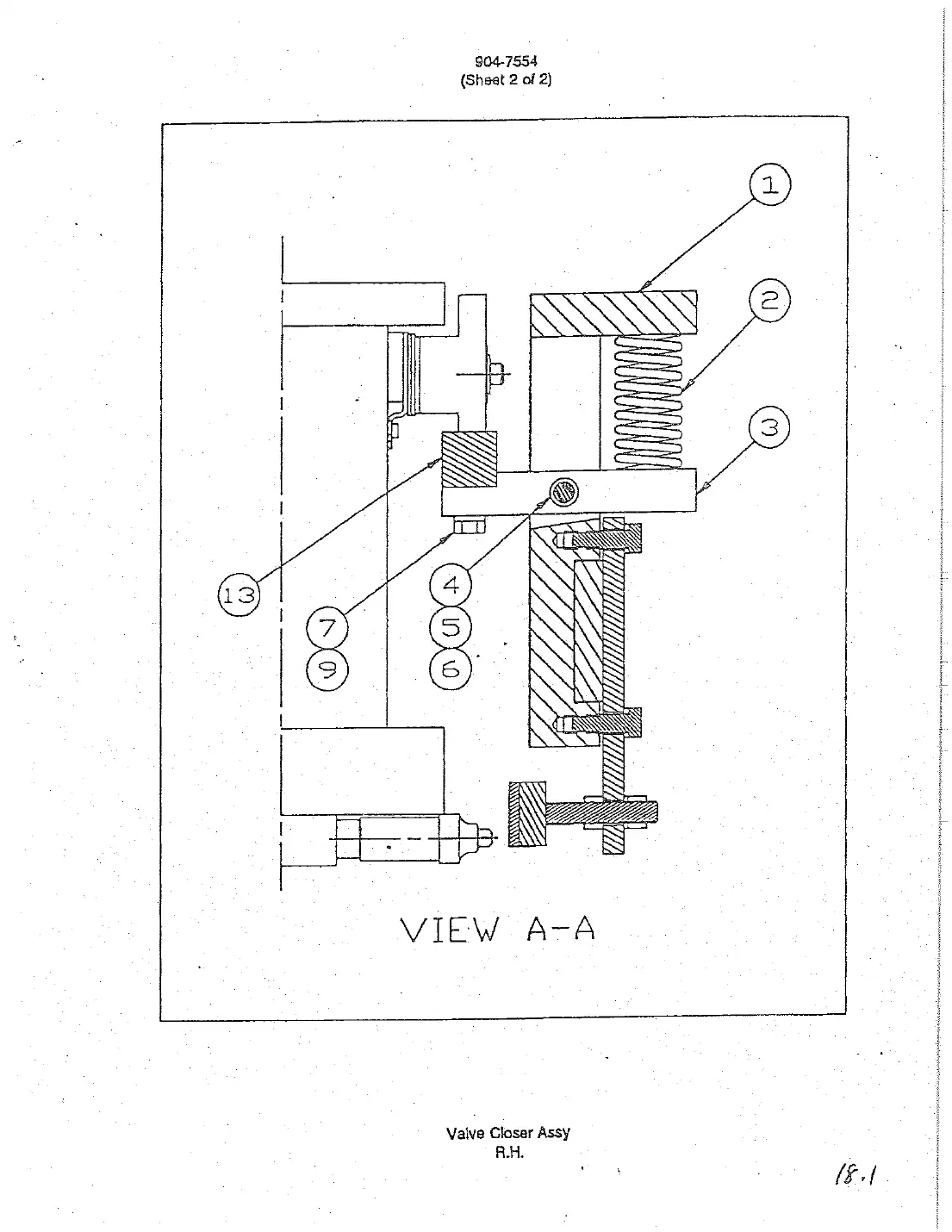

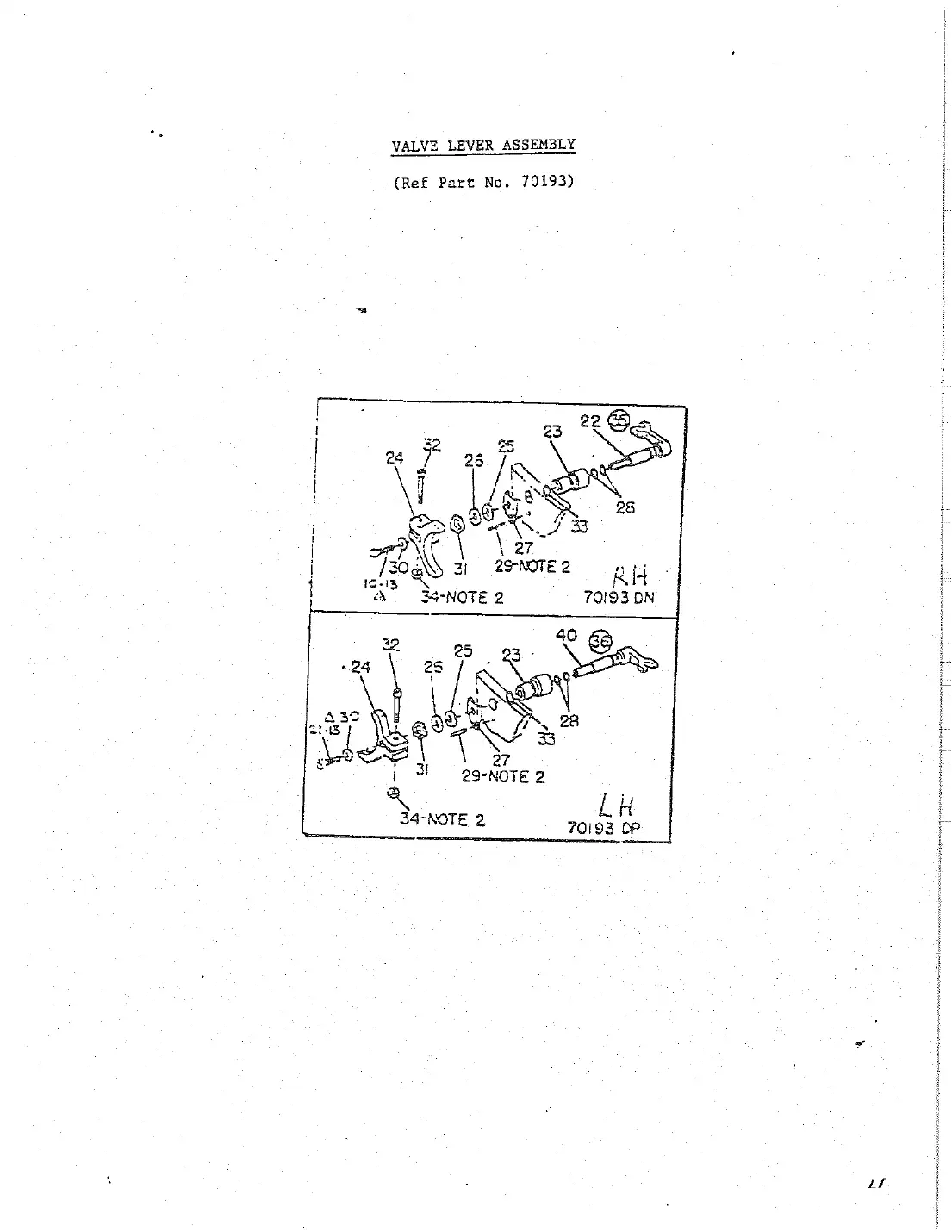

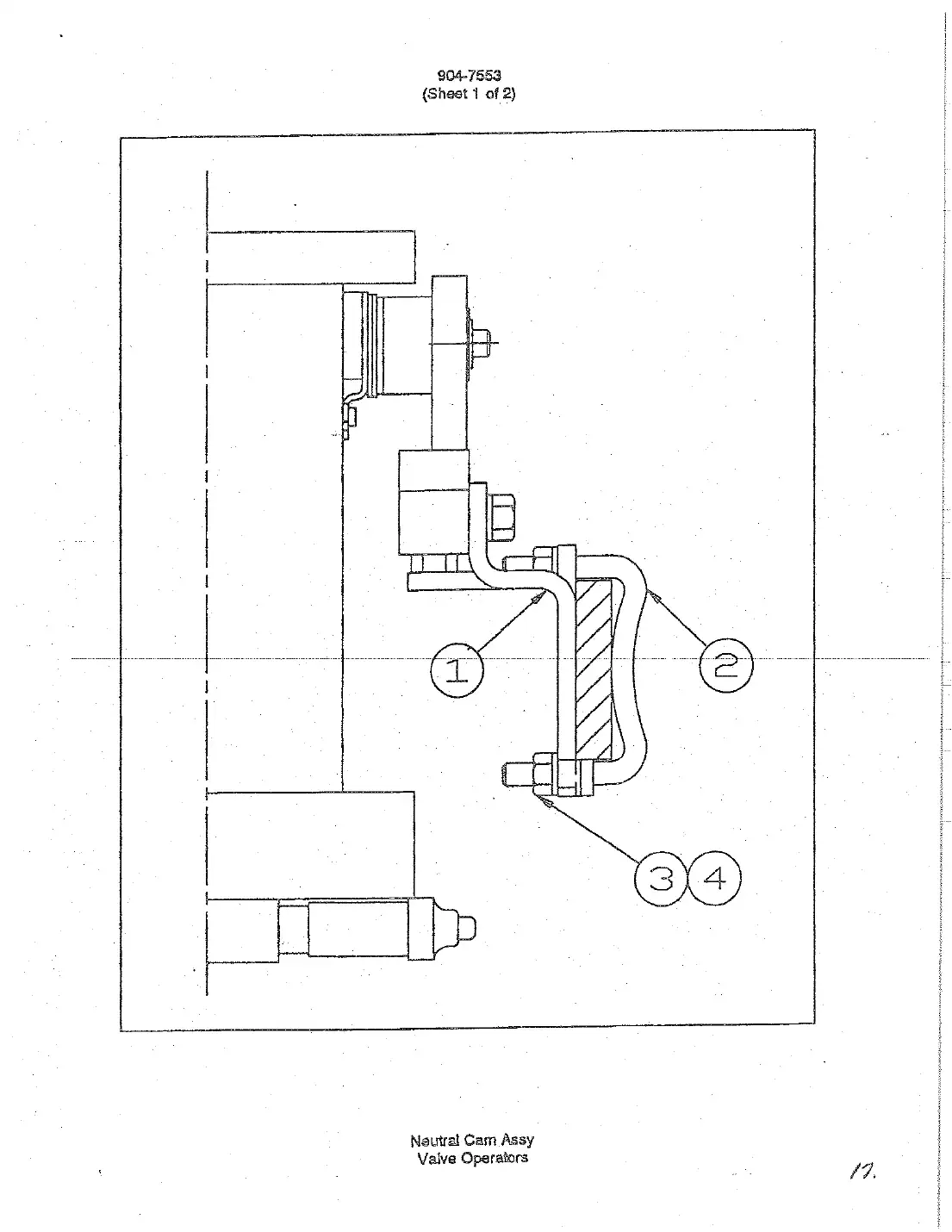

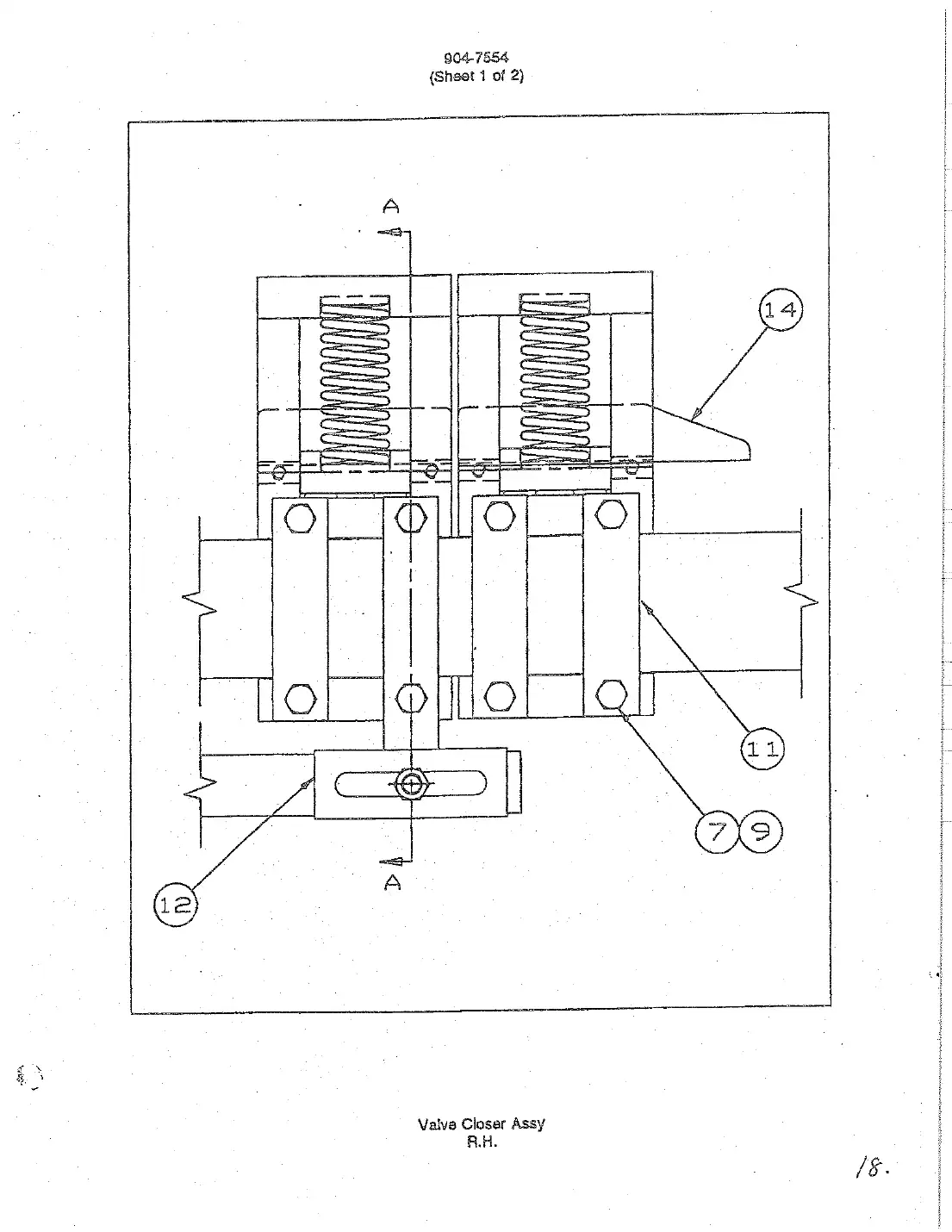

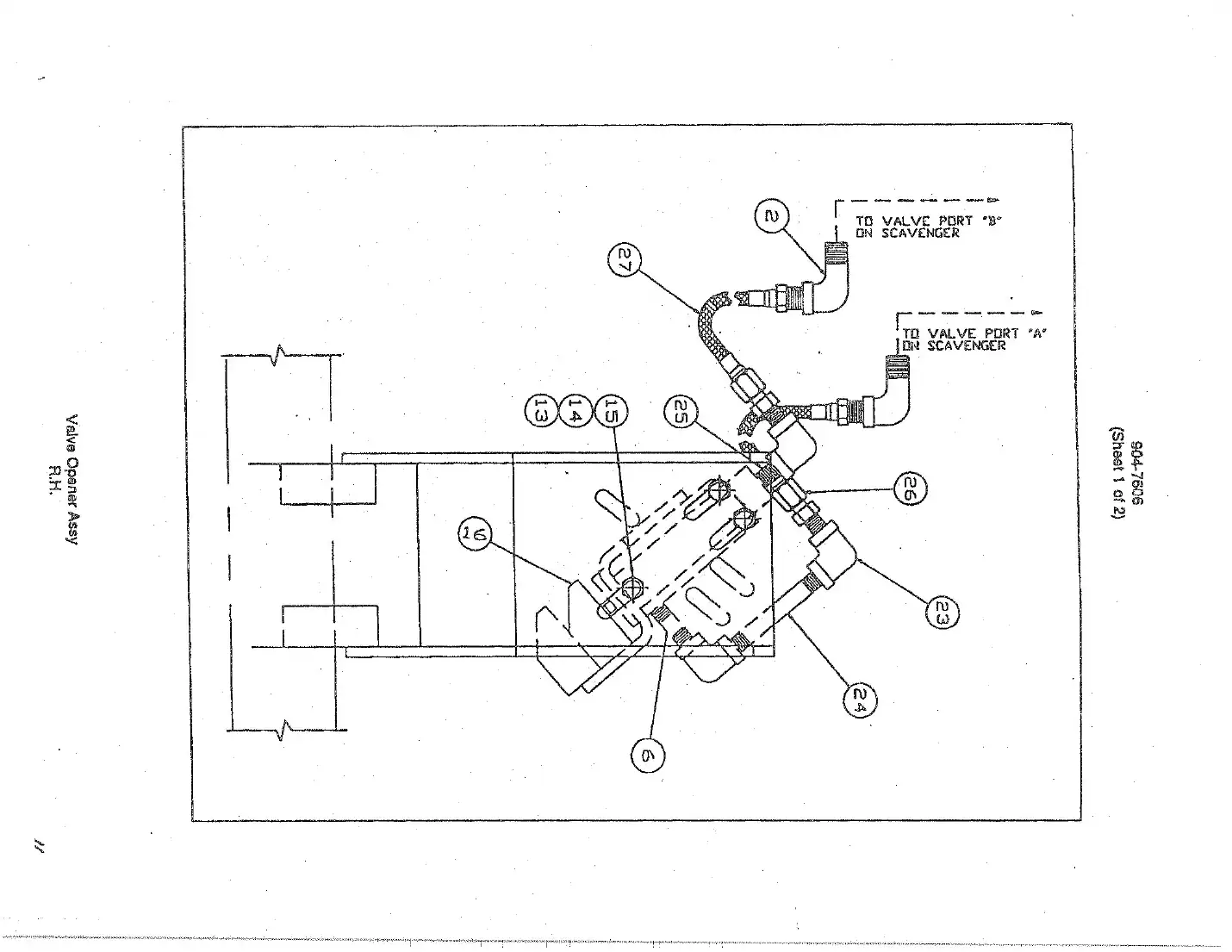

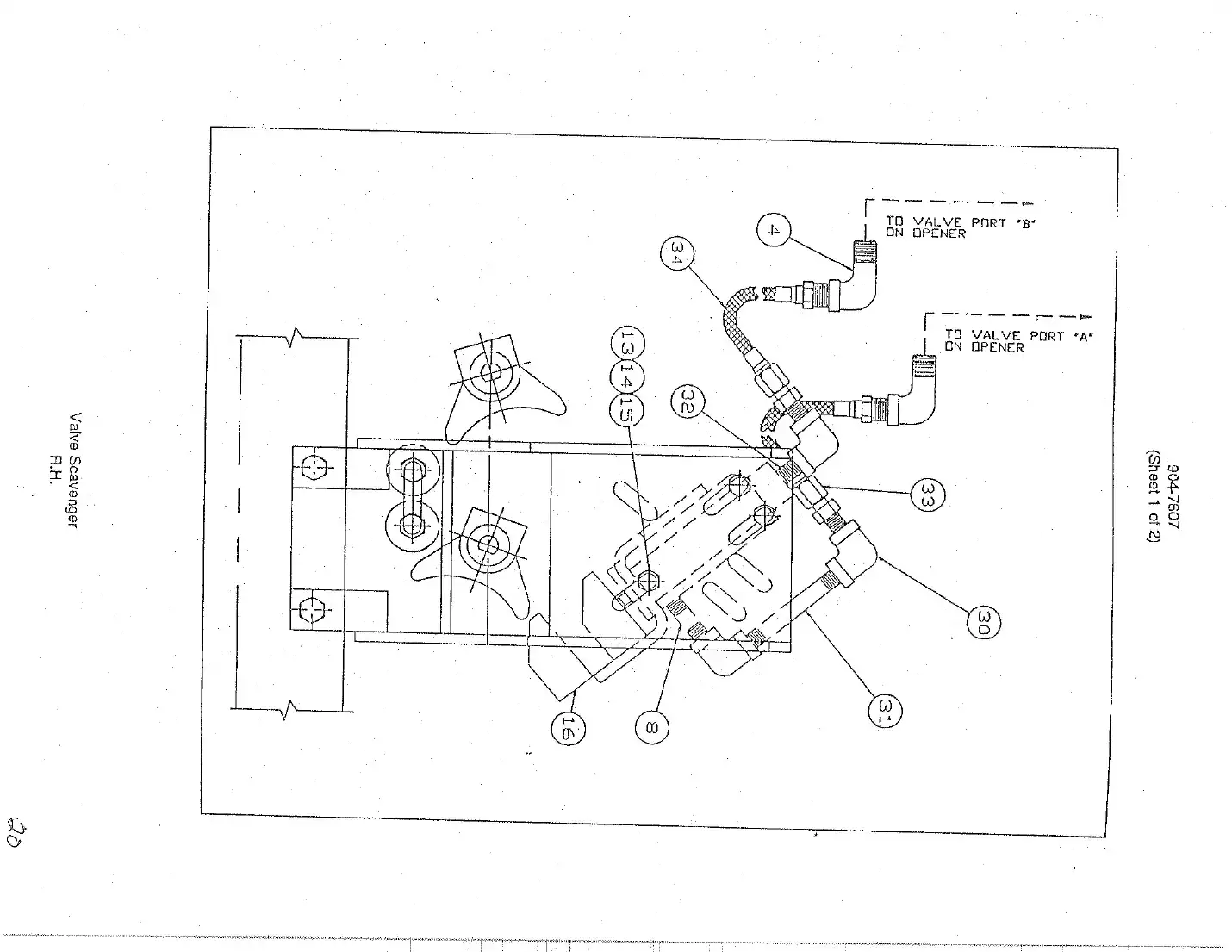

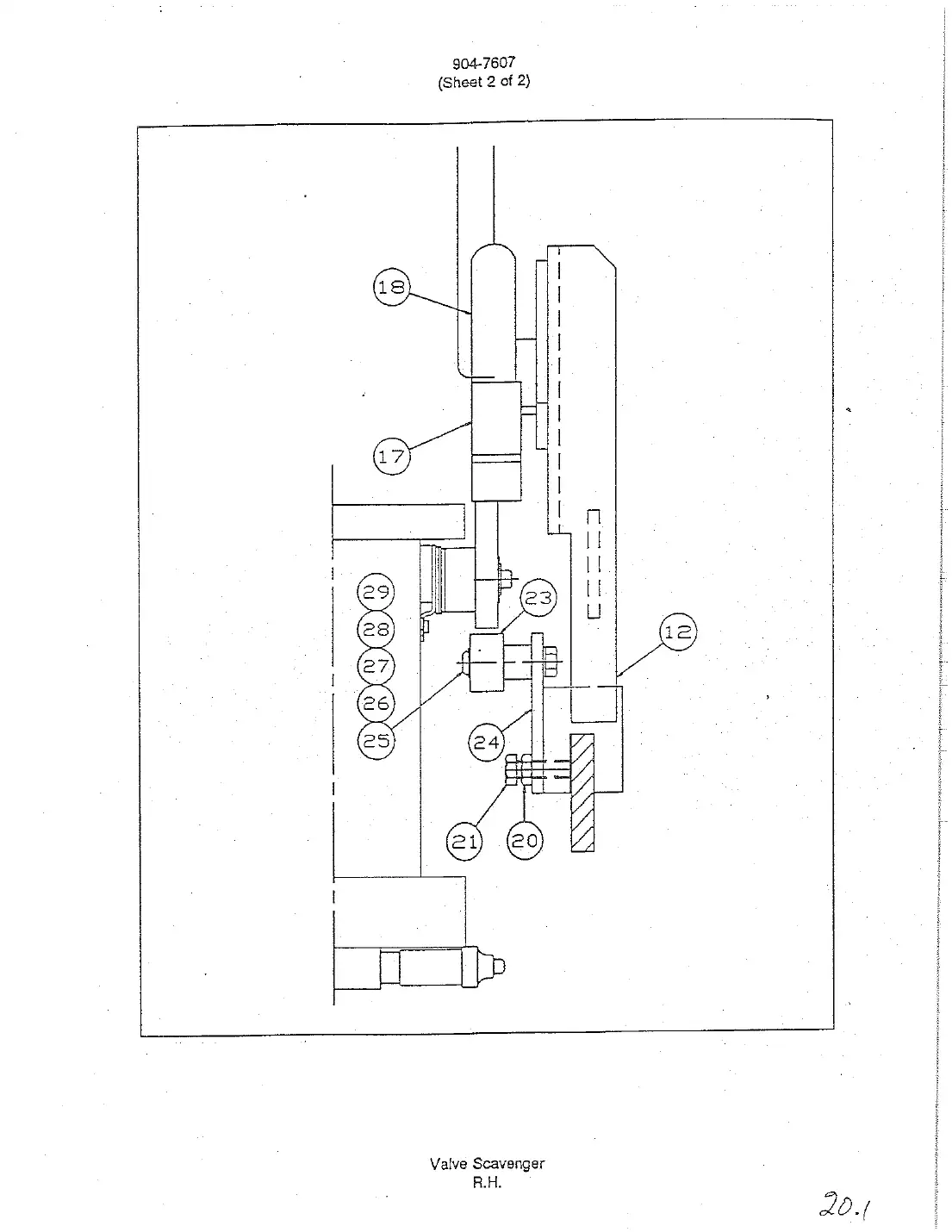

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
22	135-08641350864	Lever, valve inside RH	Request
22	135-09721350972	Valve lever LH	Request
24	135-09601350960	Lever, valve operating	Request
25	135-08431350843	Washer	Request
26	135-08691350869	Washer, keyed reservoir assembly	Request
27	135-08711350871	Stop, reservoir spacer	Request
28	100-25111002511	O-ring, edpm, dash	Request
29	102-12731021273	Pin, dowel	Request
30	102-04171020417	Washer, flat	Request
31	104-51961045196	Washer, wave	Request
32	102-32251023225	Screw, socket head cap	Request
34	102-23901022390	Nut, hex	Request
44	102-31061023106	Screw, socket head cap	Request
42	102-03381020338	Nut, hex jam	Request

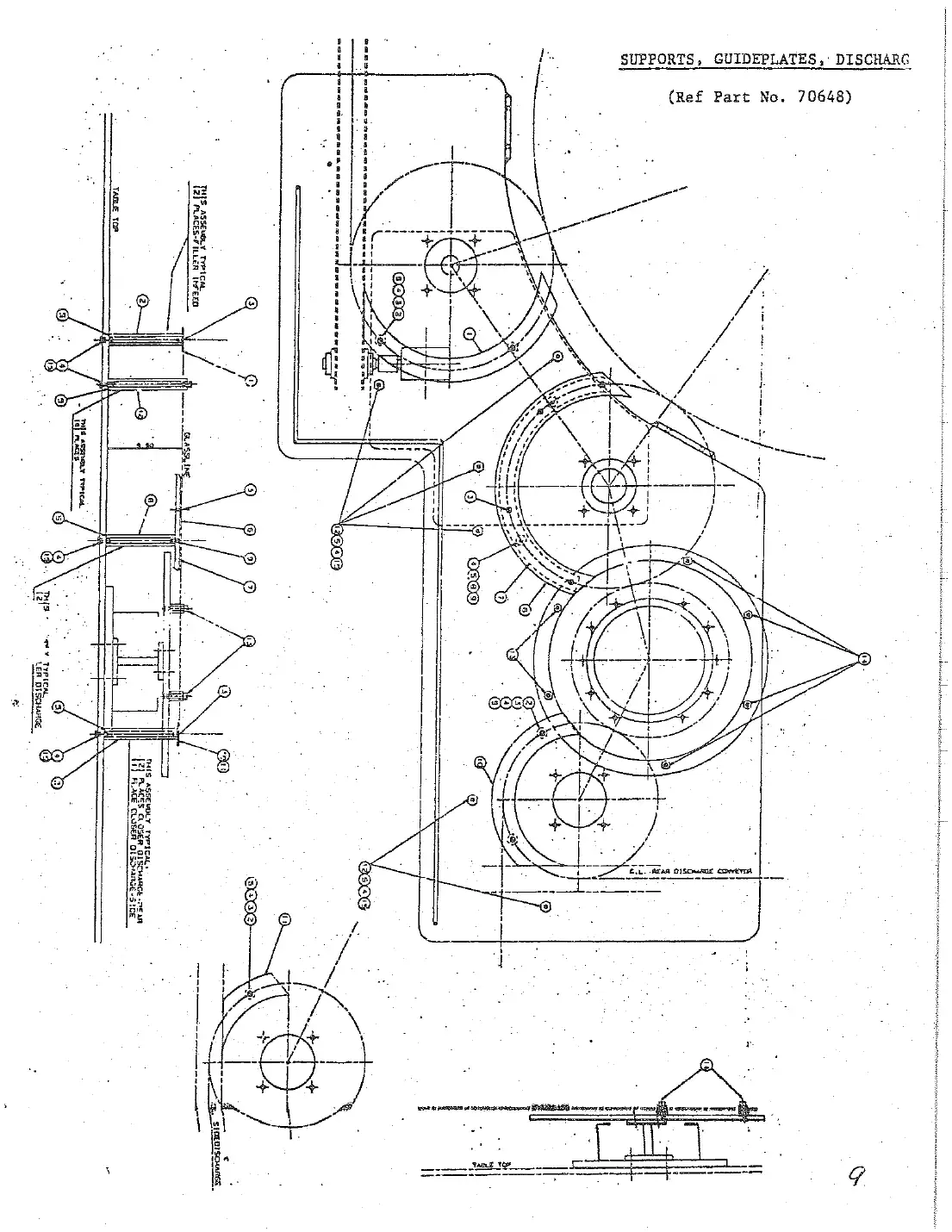

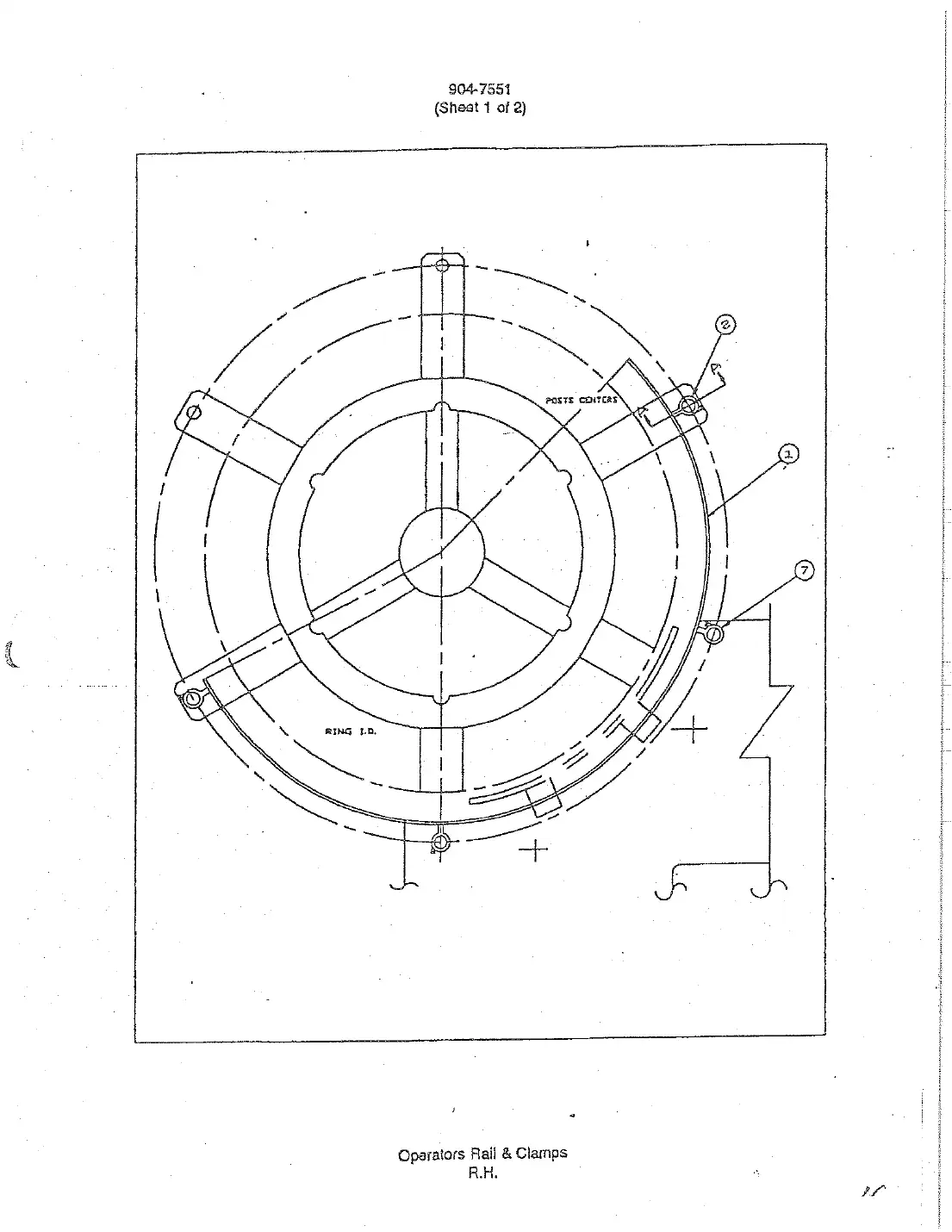

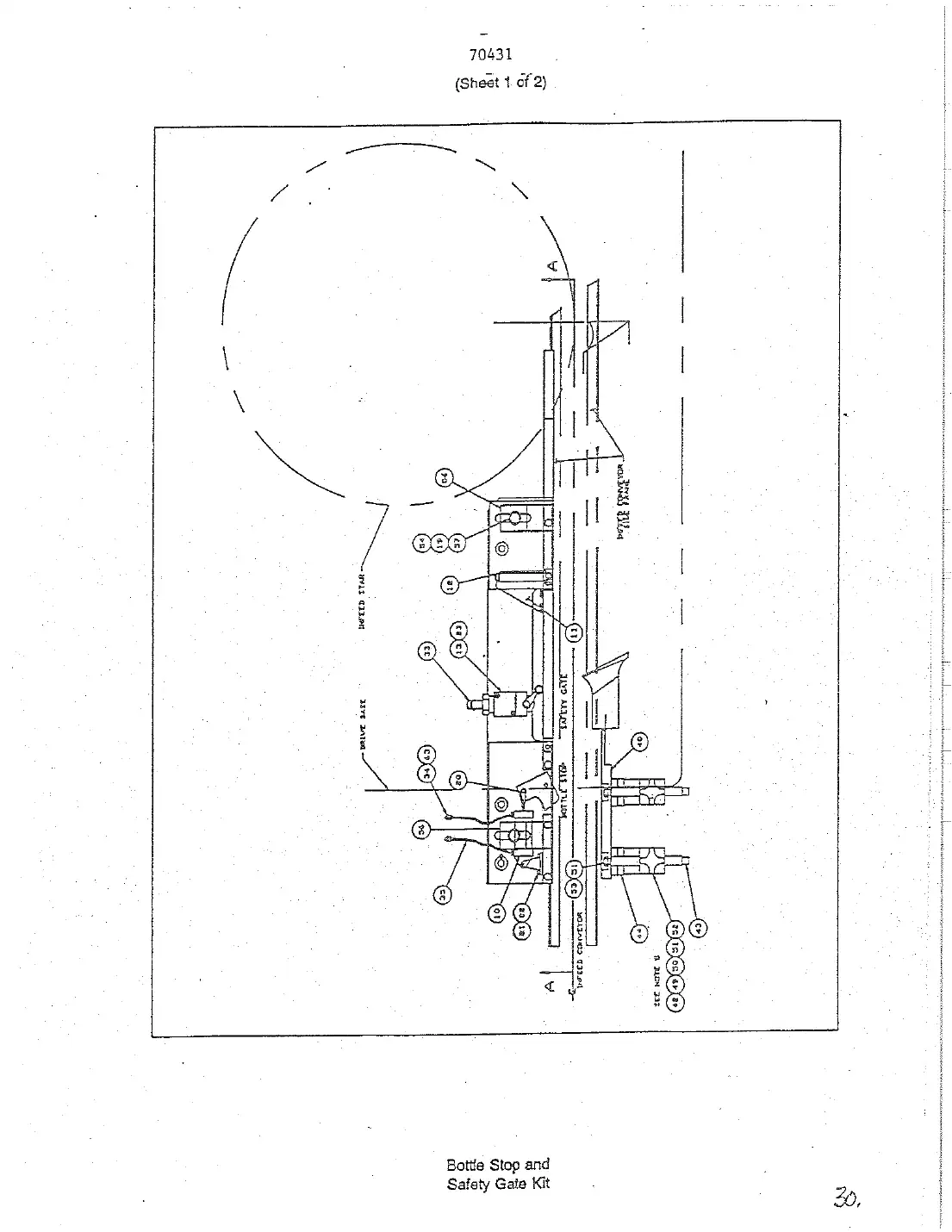

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
2	136-7228	Post	Ask us
3	102-0198	Screw	Ask us
4	102-01021020102	Bolt, hex head	Request
5	100-81281008128	O-ring, check ball	Request
7	137-1860	Wearstrip	Ask us
8	137-1861	Post	Ask us
9	102-13621021362	Screw, socket head cap	Request
10	137-1831	Wearstrip closer, rear discharge	Ask us
12	136-6481	Post	Ask us
13	135-1754	Spacer	Ask us
14	135-1935	Spacer	Ask us
15	102-03901020390	Washer, lock	Request

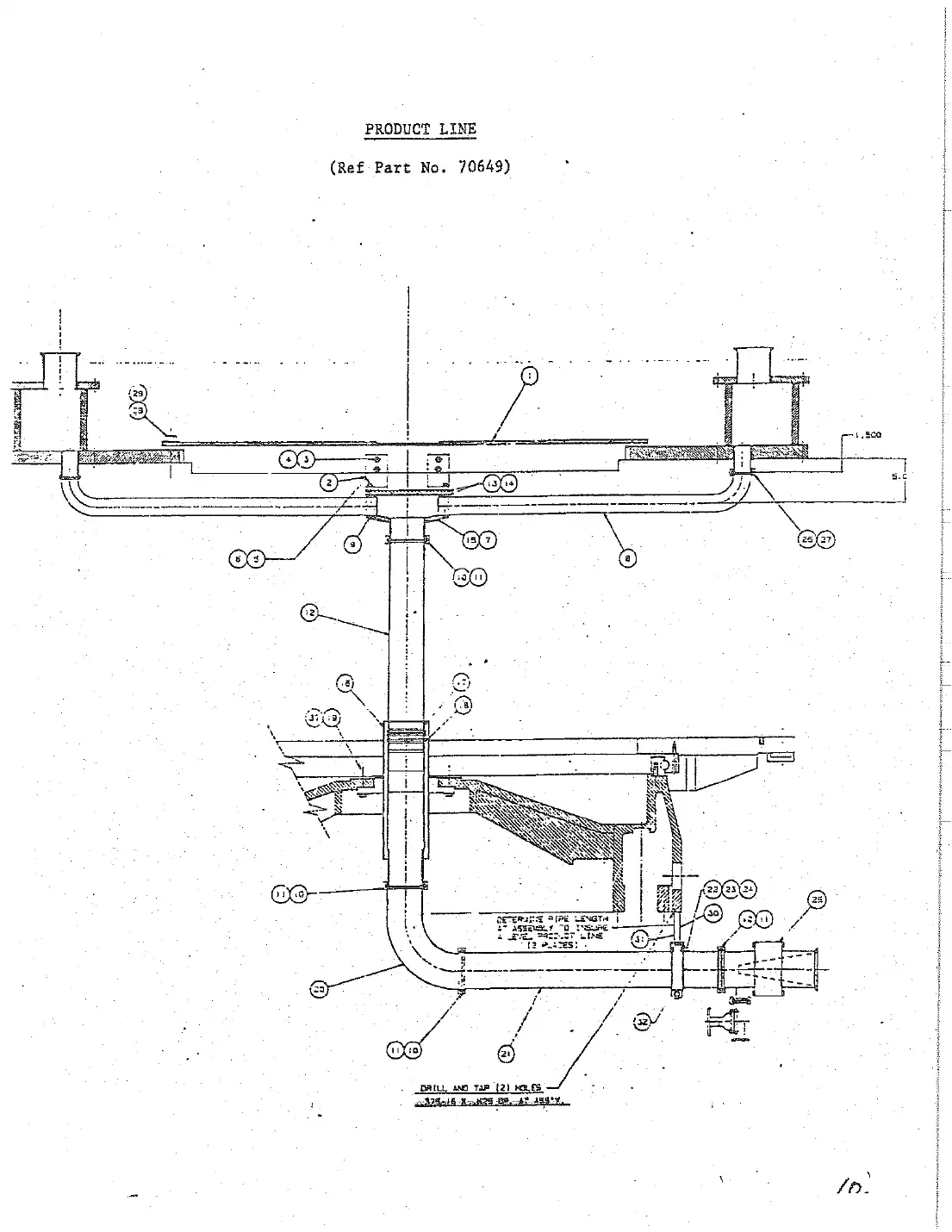

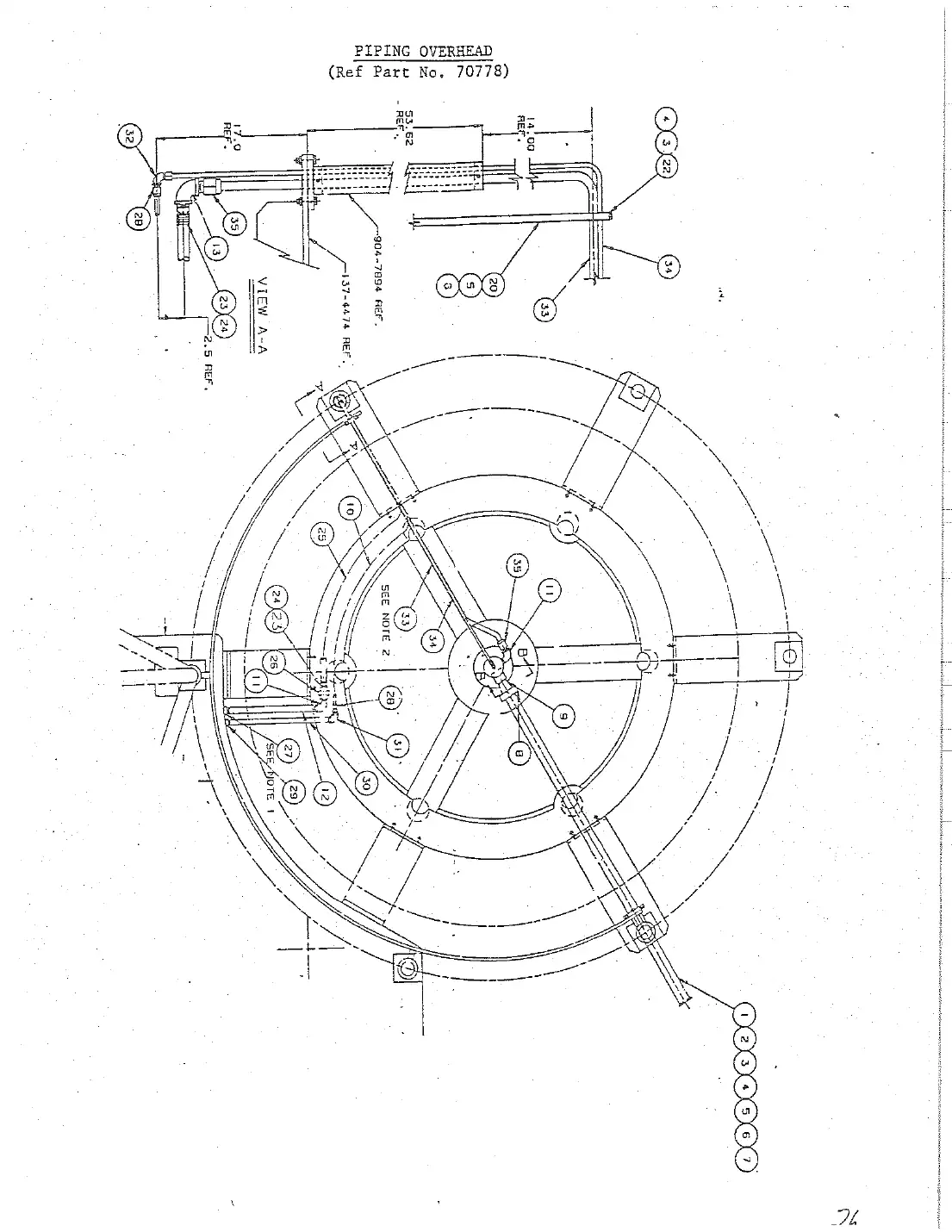

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

Open full size

Ref	Part number	Description
4	102-03891020389	Washer, lock	Request
5	102-00781020078	Hex head bolt	Request
6	102-04161020416	Washer, flat	Request
7	102-00761020076	Bolt, hex head	Request
8	137-0455	Line, supply bow	Ask us
9	100-40251004025	O-ring	Request
10	100-21351002135	Gasket, tri clamp	Request
12	136-95351369535	Line, product supply	Request
13	104-83041048304	O-ring, balance chamber	Request
14	133-8034	Cover, balance chamber	Ask us
15	903-8001	Chamber, balance	Ask us
16	137-2666	Box, stuff ing	Ask us
17	137-07951370795	Sleeve, product line	Request
18	104-67121046712	O-ring, product inlet	Request
19	102-01011020101	Bolt, hex head	Request
21	137-04581370458	Line, supply horizontal	Request
22	102-00891020089	Bolt, hex head	Request
23	102-04171020417	Washer, flat	Request
25	905-2006	Sightglass	Ask us
26	100-21331002133	Gasket, tri-clamp tube	Request
27	100-21421002142	Clamp, hinged sanitary	Request
23	102-03921020392	Washer, lock	Request
30	000-0800	Pipe	Ask us
32	104-8487	Clamp	Ask us

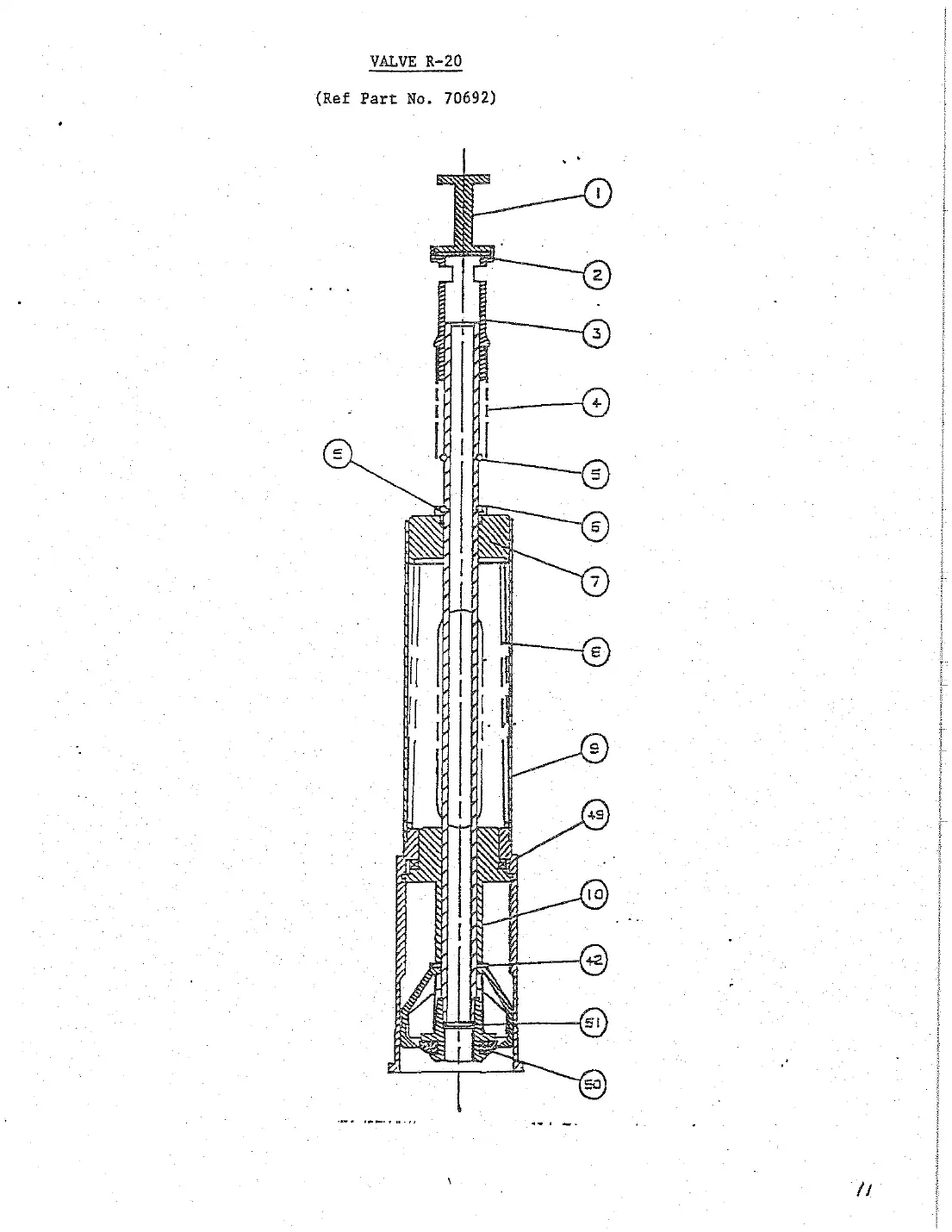

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Open full size

Ref	Part number	Description
1	132-64011326401	Cap, charging valve	Request
2	100-93201009320	Seal, charging cap	Request
3	132-88111328811	Body, charging valve	Request
5	100-34821003482	O-ring	Request
6	137-24781372478	Retainer O-ring	Request
7	132-63991326399	Collar, guide	Request
8	137-36401373640	Spring, valve cage	Request
9	904-75999047599	Cage, spring filling valve R-20/R-21	Request
50	137-34421373442	Seal, liquid valve R-20/21	Request
51	100-98521009852	O-ring, (special)	Request

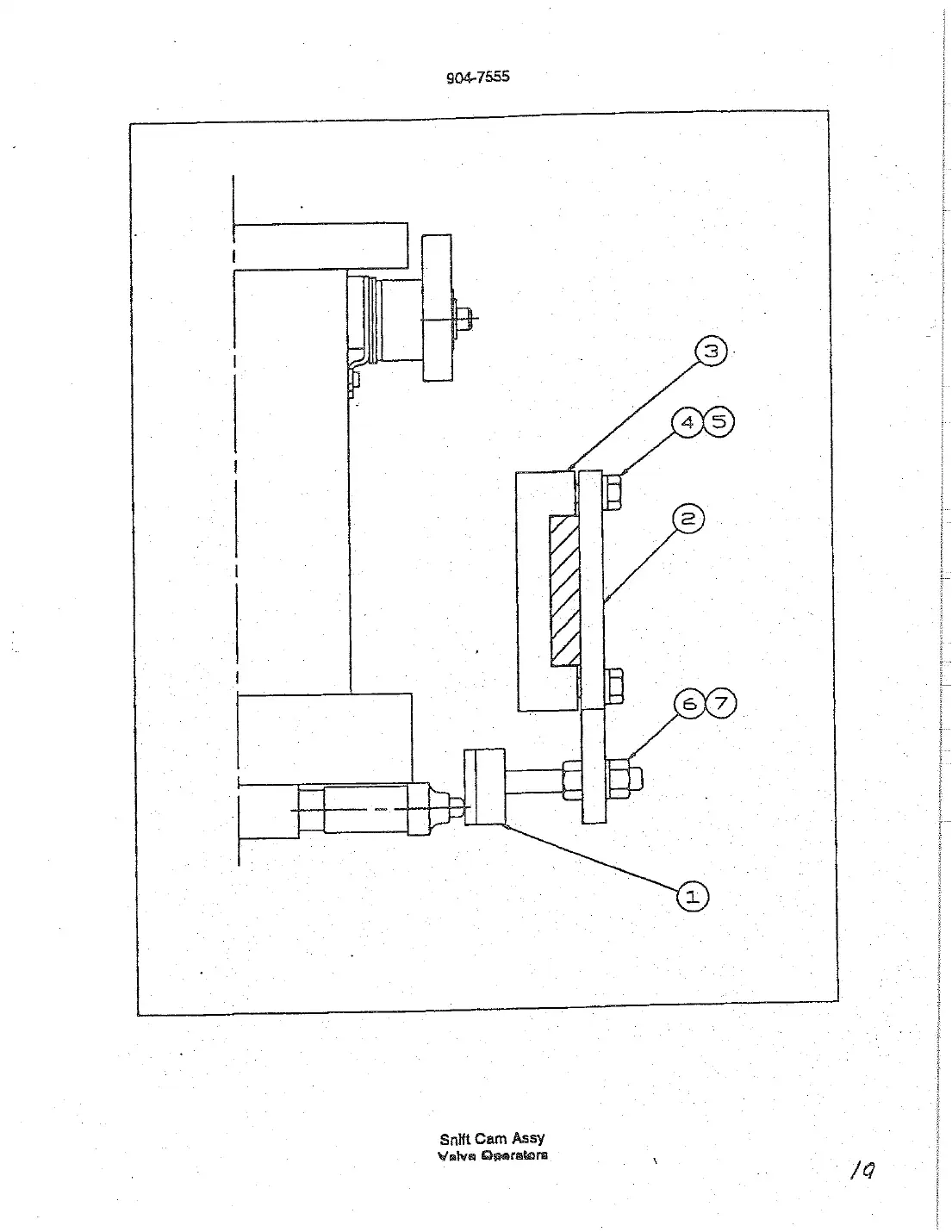

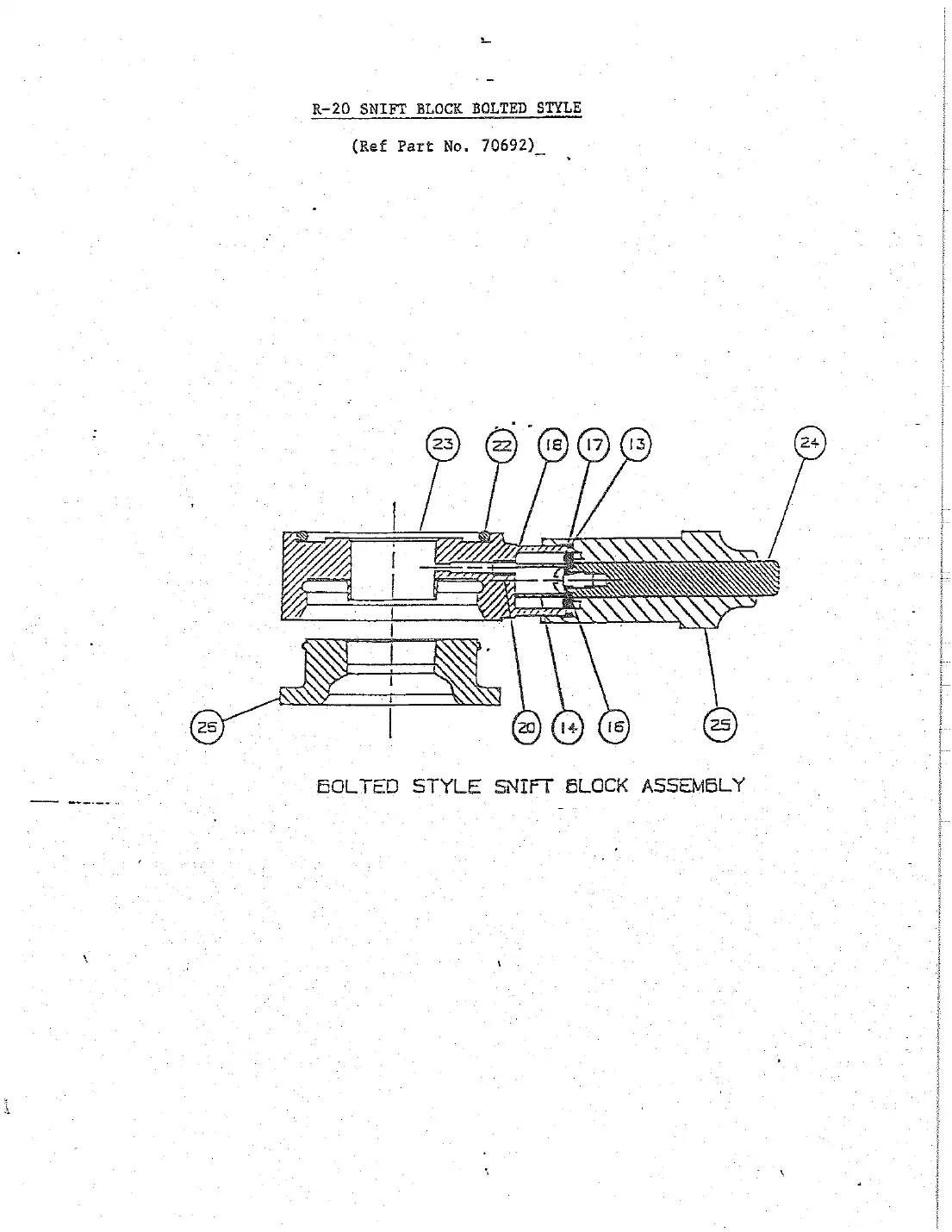

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description
13	136-29611362961	Seal, snift block	Request
14	133-71471337147	Spring, snift	Request
17	132-64031326403	Retainer, seat snift valve	Request
18	102-23571022357	Screw, round head	Request
24	136-47361364736	Stem, snift valve R-19	Request
25	133-81231338123	Nut, snift, fillers	Request
26	137-21151372115	Insert, snift block R-20/21 bolt on	Request

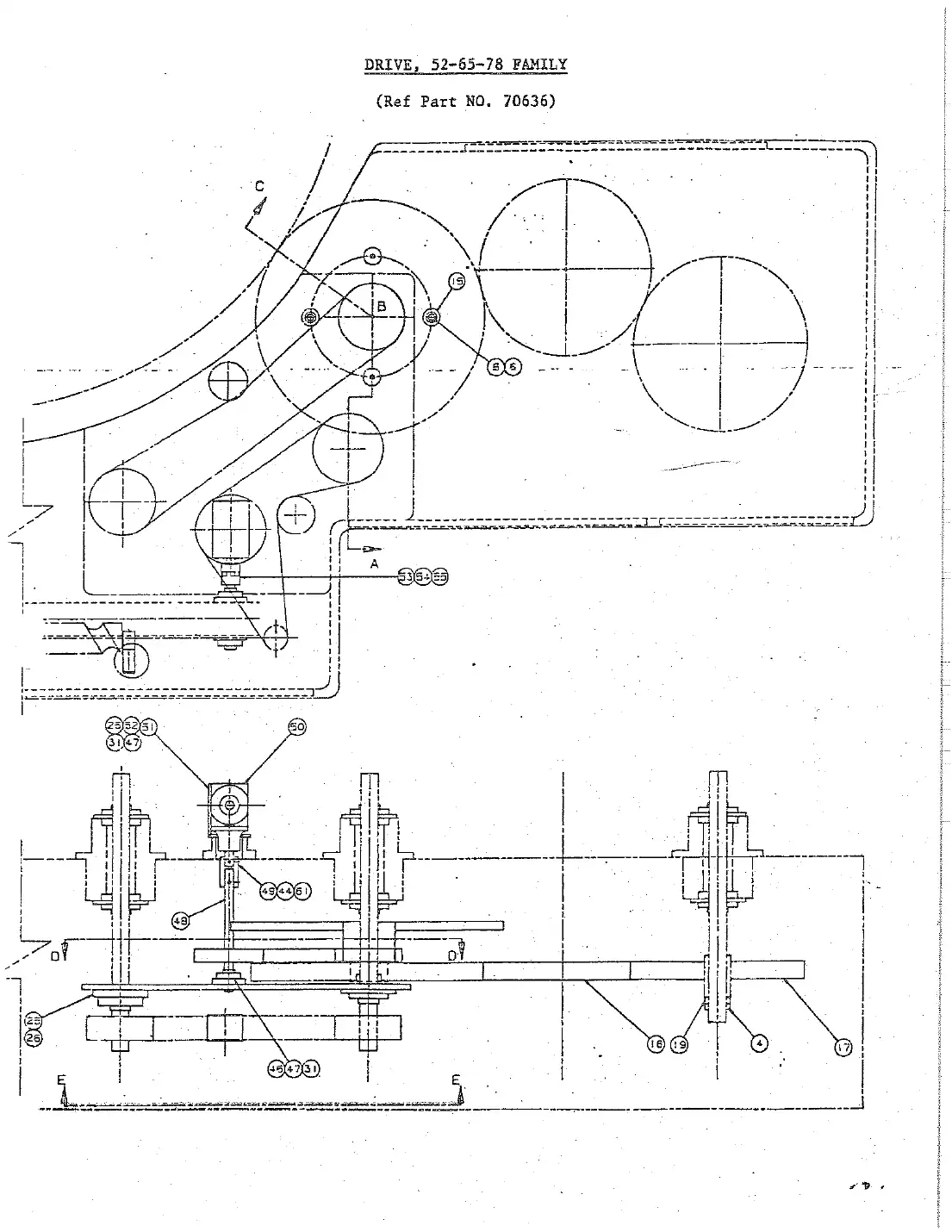

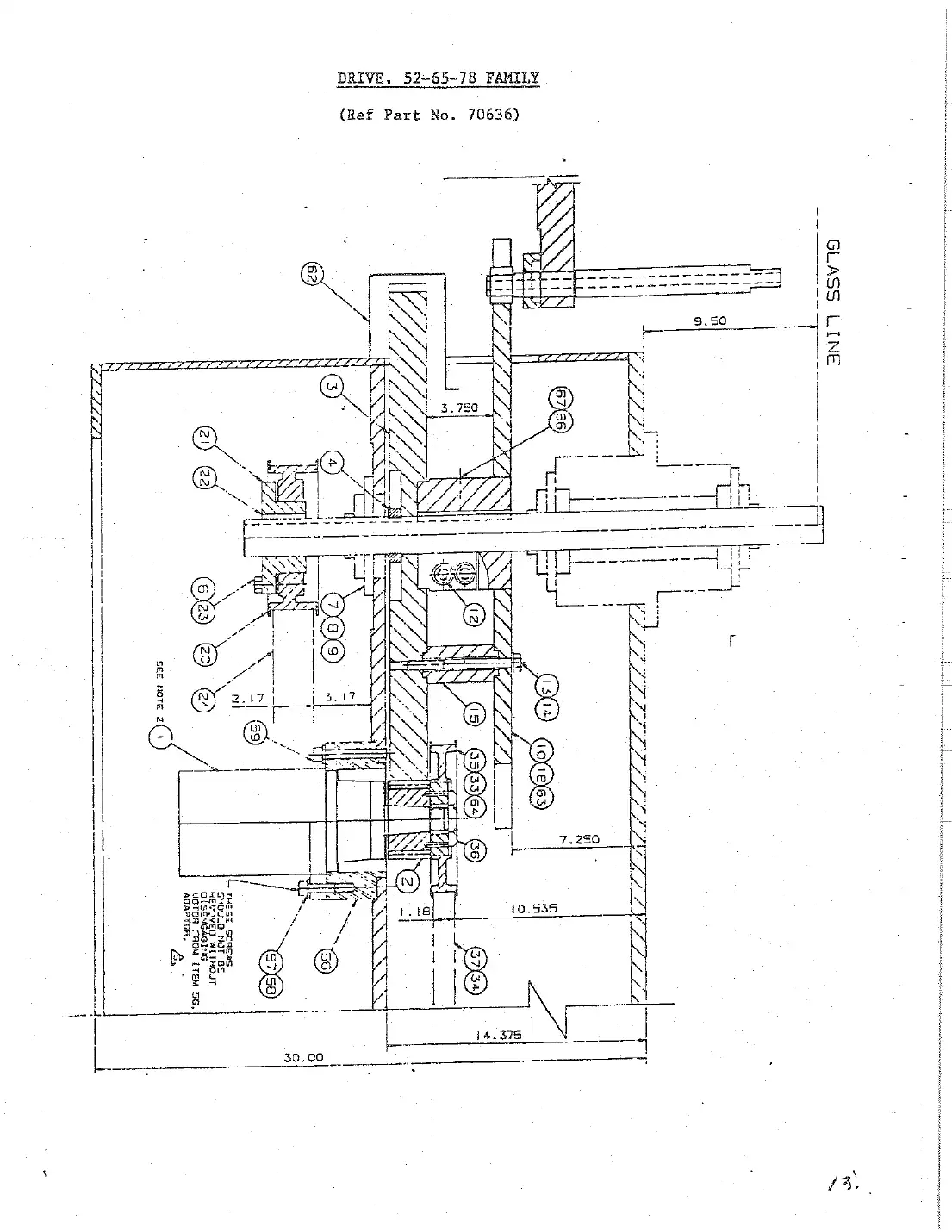

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
1	104-7855	Motor, hyd belt only	Ask us
2	137-41651374165	Gear, pinion drive concept	Request
3	137-42171374217	Gear, filler drive concept/mil	Request
38	104-73341047334	Idler, tightener	Request
4	104-7331	Collar, shaft	Ask us
39	104-73281047328	Idler shaft	Request
5	102-01031020103	Bolt, hex head	Request
40	104-73351047335	Tightener drive	Request
6	102-03901020390	Washer, lock	Request
41	102-05731020573	Screw, socket head cap	Request
7	100-02361000236	Bearing, flange piloted	Request
8	102-0674	Screw, hex head sprocket only	Ask us
9	102-14431021443	Washer, lock	Request
10	904-78459047845	Gear, epicycloidal 65V concept	Request
43	101-39661013966	Bushing, taperlock	Request
44	102-1274	Key, square	Ask us
45	102-00801020080	Bolt, hex head	Request
46	100-02271000227	Bearing, flange-mount	Request
47	102-00891020089	Bolt, hex head	Request
13	102-0659	Screw	Ask us
48	137-1740	Shaft, vert	Ask us
14	102-03821020382	Washer, lock	Request
49	137-3891	Sleeve, cup ling	Ask us
15	137-47801374780-3	Spacer, gear	Request
50	104-83141048314	Reducer, right angle gearbox	Request
16	136-00471360047	Gear, closure disconnect	Request
51	904-7541	Bracket, reducer mtd	Ask us
17	133-99881339988	Gear, driven closer column	Request
52	104-83191048319	O-ring	Request
53	104-8315	Coupling, jaw	Ask us
20	104-73321047332	Sprocket, HTD starwheel 65V	Request
54	104-8316	Insert	Ask us
21	104-73371047337	Bushing, taperlock starshaft	Request
55	102-04351020435	Screw, set socket cup point	Request
22	102-1063	Key square	Ask us
56	137-1972	Adapter, hyd mtr mounting	Ask us
24	104-73331047333	Belt	Request
58	102-1136	Screw, socket head	Ask us
25	100-02331000233	Bearing, flange	Request
26	102-01011020101	Bolt, hex head	Request
61	102-04561020456	Screw, set socket cup point	Request
28	104-73271047327	Shaft tightener	Request
62	137-3809	Guard, drive gear	Ask us
29	101-36721013672	Tensioner, belt	Request
66	102-05281020528	Screw, set square hd	Request
30	102-08541020854	Screw, socket head cap	Request
67	102-03411020341	Nut, hex jam	Request
31	102-03871020387	Washer, lock	Request
35	904-7532	Sprocket htd bit	Ask us

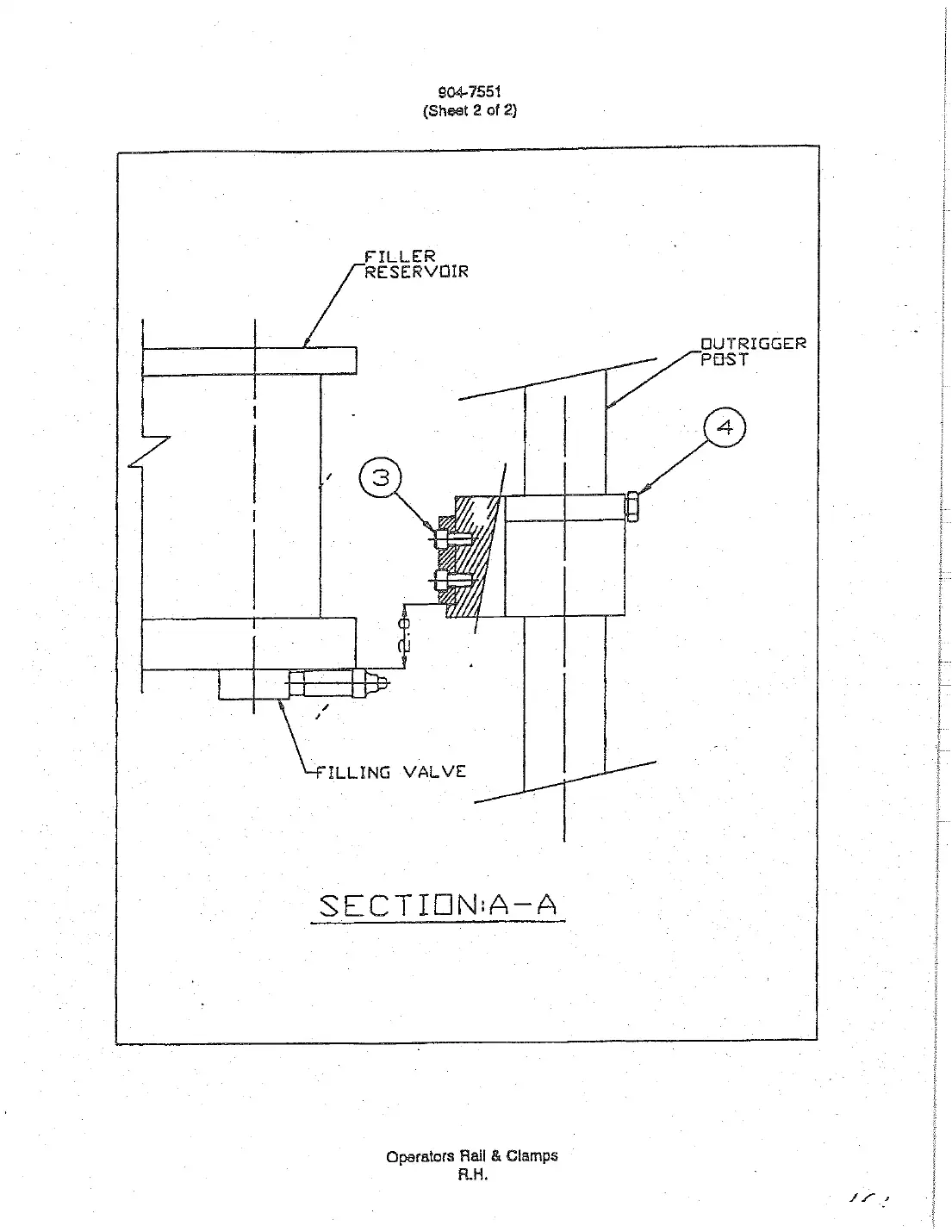

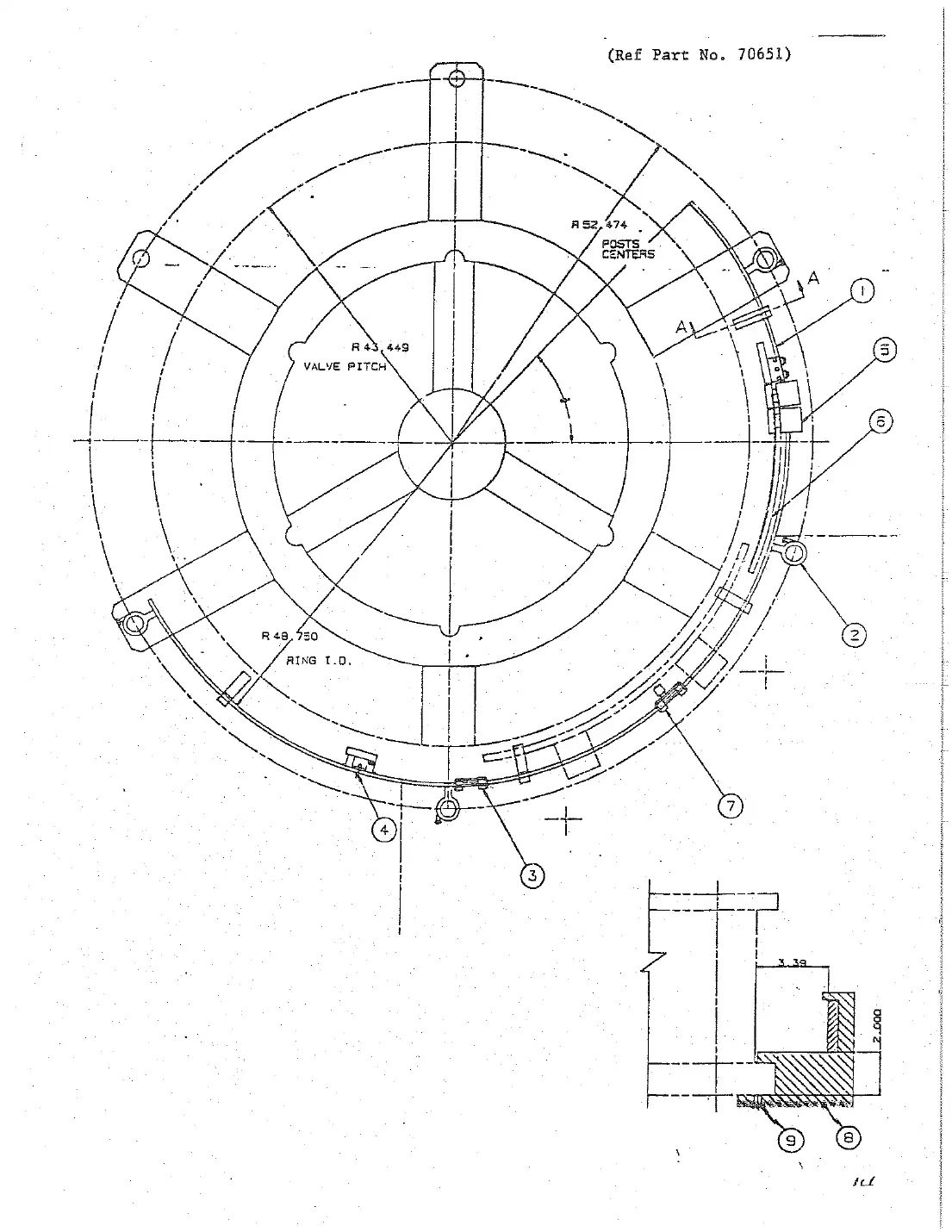

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

Ref	Part number	Description
1	904-7551	Rail clamp ass	Ask us
3	904-7606	Opener valve	Ask us
4	904-7553	Neutral cam ass	Ask us
5	904-7554	Closer valve	Ask us
6	904-7555	Snift cam ass	Ask us
7	904-7607	Scavenger valve	Ask us
8	137-1867	Clamp	Ask us
3	102-1306	Screw	Ask us

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full size

Ref	Part number	Description
2	904-76049047604-1	Support, operator rail	Request
3	102-15521021552	Screw, socket head cap	Request
4	137-1123	Screw	Ask us

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

Ref	Part number	Description
2	100-46601004660	Elbow, street 90 deg	Request
6	100-40851004085	Nipple, pipe	Request
13	102-04161020416	Washer, flat	Request
14	102-03881020388	Washer, lock	Request
15	102-00751020075	Bolt, hex head	Request
16	136-34811363481	Follower, cam	Request
18	104-69161046916	Cylinder, air stroke	Request
20	102-22831022283	Nut, hex jam nylock	Request
21	102-00891020089	Bolt, hex head	Request
23	100-89261008926	Elbow, 90 deg	Request
24	100-4088	Nipple	Ask us
25	100-61091006109	Nipple, close	Request
26	137-3925	Hose	Ask us
27	137-39261373926-1	Tubing, braided	Request

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
2	136-8776	U-bolt	Ask us
3	102-03641020364	Nut, hex	Request
4	102-03881020388	Washer, lock	Request
5	136-6355	Cam	Ask us
6	102-00891020089	Bolt, hex head	Request
7	102-03341020334	Nut, hex	Request
8	102-00801020080	Bolt, hex head	Request
9	102-03891020389	Washer, lock	Request

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Open full sizeOpen full size

Ref	Part number	Description
2	104-78151047815	Spring, compression	Request
3	137-07291370729	Support, plate closer cam	Request
4	1370735137-0735	Pin, valve closer cam	Request
5	100-23281002328	Bushing	Request
6	102-04561020456	Screw, set socket cup point	Request
7	102-00761020076	Bolt, hex head	Request
9	102-03881020388	Washer, lock	Request
12	137-1132	Clamp	Ask us
13	137-2507	Cam	Ask us

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
4	100-46601004660	Elbow, street 90 deg	Request
8	100-40851004085	Nipple, pipe	Request
12	137-24881372488	Support, valve opener 65V	Request
15	102-00751020075	Bolt, hex head	Request
16	136-34811363481	Follower, cam	Request
17	137-0033	Bracket	Ask us
18	104-69161046916	Cylinder, air stroke	Request
19	103-5841	Valve	Ask us
20	102-22831022283	Nut, hex jam nylock	Request
21	102-00901020090	Bolt, hex head	Request
23	137-0501	Roller	Ask us
24	137-25081372508	Plate, roller mtg scavenge	Request
25	137-25091372509	Pin, closer scavenger 65V	Request
26	100-38651003865	Ring, retaining external	Request
27	102-03341020334	Nut, hex	Request
28	102-04171020417	Washer, flat	Request
29	102-03891020389	Washer, lock	Request
30	100-89261008926	Elbow, 90 deg	Request
31	100-4088	Nipple	Ask us
32	100-61091006109	Nipple, close	Request
33	137-3928	Hose	Ask us
34	137-3929	Hose	Ask us

The snift releases headspace pressure gently after the fill so the product does not foam. Plungers, springs and seals wear, and plugged snift holes are a common cause of foaming.

Open full size

Ref	Part number	Description
2	137-25441372544	Clamp, bracket	Request
3	137-18661371866	Bracket, snift cam mounting	Request
4	102-00761020076	Bolt, hex head	Request
5	102-03881020388	Washer, lock	Request
6	102-03401020340	Nut, hex jam	Request
7	102-03891020389	Washer, lock	Request

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
2	100-89261008926	Elbow, 90 deg	Request
3	000-0788	Pipe	Ask us
4	100-46581004658	Bushing, reducing hex	Request
5	100-53701005370	Elbow	Request
6	000-0795	Pipe	Ask us
8	100-8967	Coupling	Ask us
9	136-9955	Hose	Ask us
7	100-61101006110	Nipple, close	Request
42	104-7951	Valve	Ask us
14	103-6243	Valve, solenoid	Ask us
15	100-96651009665	Nipple, pipe	Request

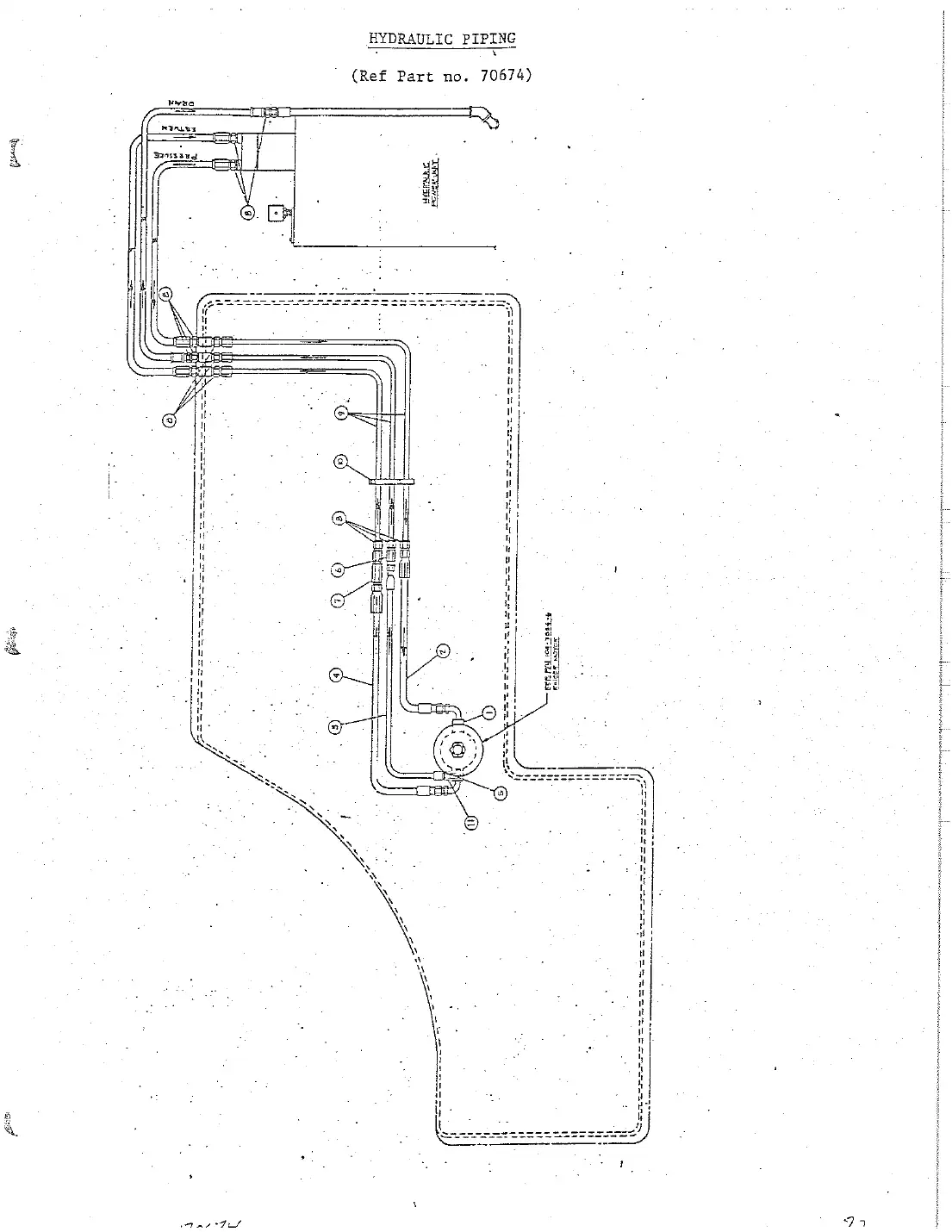

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	104-8028	Hose, pressure	Ask us
3	104-8030	Hose, case drain	Ask us
4	104-8029	Hose, return	Ask us
5	100-96661009666	Elbow, street 90 deg ips	Request
6	104-8040	Reducer	Ask us
7	104-6054	Check valve	Ask us
8	104-67151046715	Connector, male	Request
9	000-4129	Stainless tube	Ask us
10	137-3804	Tube hanger	Ask us

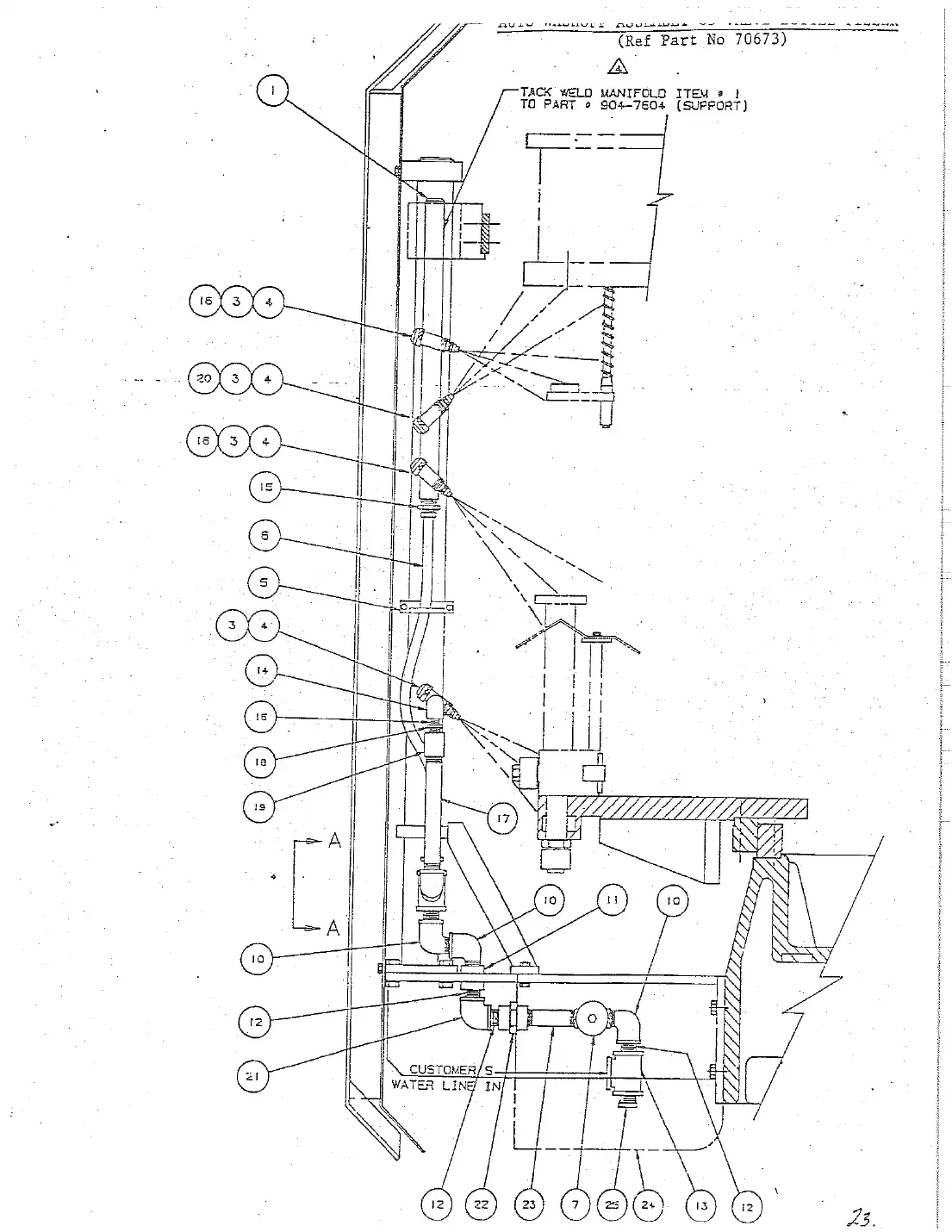

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	904-77119047711-1	Manifold, pipe auto wash	Request
3	104-51871045187	Nozzle, wash-off	Request
4	104-6372	Valve	Ask us
5	136-9983	Hose guide	Ask us
6	136-9959	Hose	Ask us
10	100-96671009667	Elbow, street	Request
11	101-2537	Coupling	Ask us
12	100-61131006113	Nipple, close	Request
13	100-5493	Tes	Ask us
14	100-96661009666	Elbow, street 90 deg ips	Request
16	100-61111006111	Nipple, close	Request
17	100-04181000418	Nipple, pipe	Request
18	100-89091008909	Bushing, reducing hex	Request
19	100-9326	Coupling	Ask us
20	100-96301009630	Coupling	Request
21	100-89281008928	Elbow, 90 deg	Request
22	100-4910	Union	Ask us
23	101-3531	Nipple	Ask us
25	100-89101008910	Bushing, reducing hex	Request

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full sizeOpen full size

Ref	Part number	Description
21	102-03811020381	Washer, lock	Request
2	137-1755	Flansceplate	Ask us
3	137-1756	Flange tate	Ask us
23	102-1333	Key	Ask us
4	102-13251021325	Screw, socket head cap	Request
24	102-04251020425	Set screw	Request
5	102-04161020416	Washer, flat	Request
25	104-73521047352	Sprocket, HTD belt	Request
6	102-03881020388	Washer, lock	Request
26	000-16280001628	Key, square	Request
8	102-07431020743	Screw, socket head cap	Request
28	104-7309	Coupling	Ask us
9	102-04151020415	Washer, flat	Request
29	136-3996	Plate	Ask us
10	102-03871020387	Washer, lock	Request
30	102-00881020088	Hex head bolt	Request
31	102-04171020417	Washer, flat	Request
12	903-98619039861	Cover, gear box shaft	Request
32	103-5823	Sensor	Ask us
13	137-1763	Spacer	Ask us
33	103-58811035881	Sensor	Request
14	905-1868	Stand	Ask us
34	904-7537	Support	Ask us
15	102-01011020101	Bolt, hex head	Request
7	104-7918	Plug	Ask us
19	100-02291000229	Bearing	Request
38	104-83191048319	O-ring	Request
41	102-14061021406	Screw, socket head cap	Request
1	137-0520	Outrigger	Ask us
22	102-01911020191	Screw, flat head slot	Request
2	102-01001020100	Bolt, hex head	Request
23	905-18659051865	Pin, hinge outer explosion guards	Request
3	102-03901020390	Washer, lock	Request
4	137-1832	Post	Ask us
25	136-95871369587	Block, hinge outer explosion guards	Request
26	102-00641020064	Bolt, hex head	Request
6	905-1905	Gusset	Ask us
7	102-00901020090	Bolt, hex head	Request
8	102-03891020389	Washer, lock	Request
23	903-9866	Knob	Ask us
9	102-03341020334	Nut, hex	Request
30	137-3817	Door RH only	Ask us
11	137-3829	Shroud RH only	Ask us
31	137-3819	Door	Ask us
32	137-3816	Door	Ask us
14	136-9589	Support	Ask us
15	102-14871021487	Socket head cap screw	Request
35	135-8672	Pull	Ask us
16	102-16611021661	Bolt, hex head	Request
36	102-02861020286	Screw, round head slot	Request
37	102-03861020386	Washer, lock	Request
18	137-24811372481	Bracket, outer door	Request
20	137-0531	Support	Ask us
42	1373826137-3826	Door LH filler only	Ask us
44	904-7580	Plate	Ask us

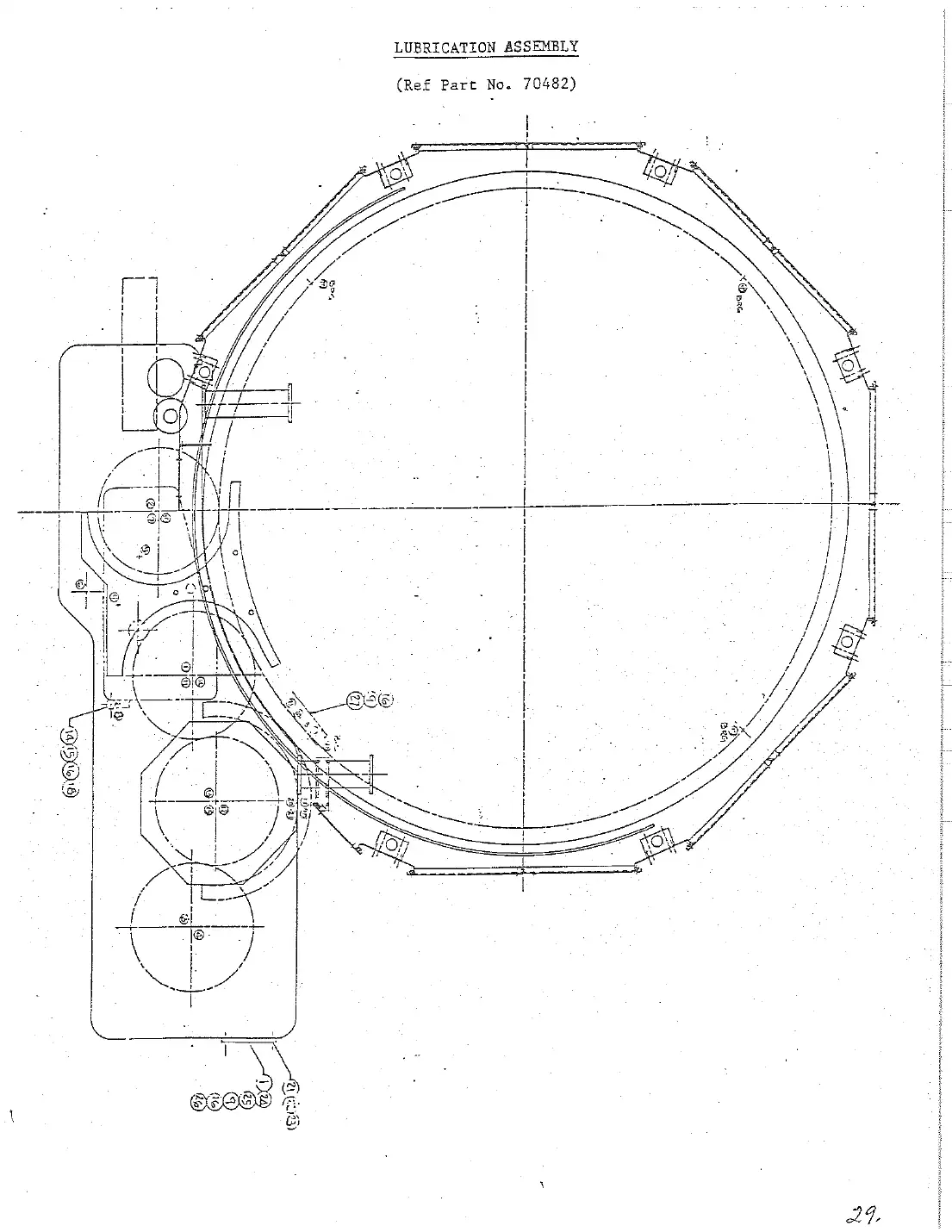

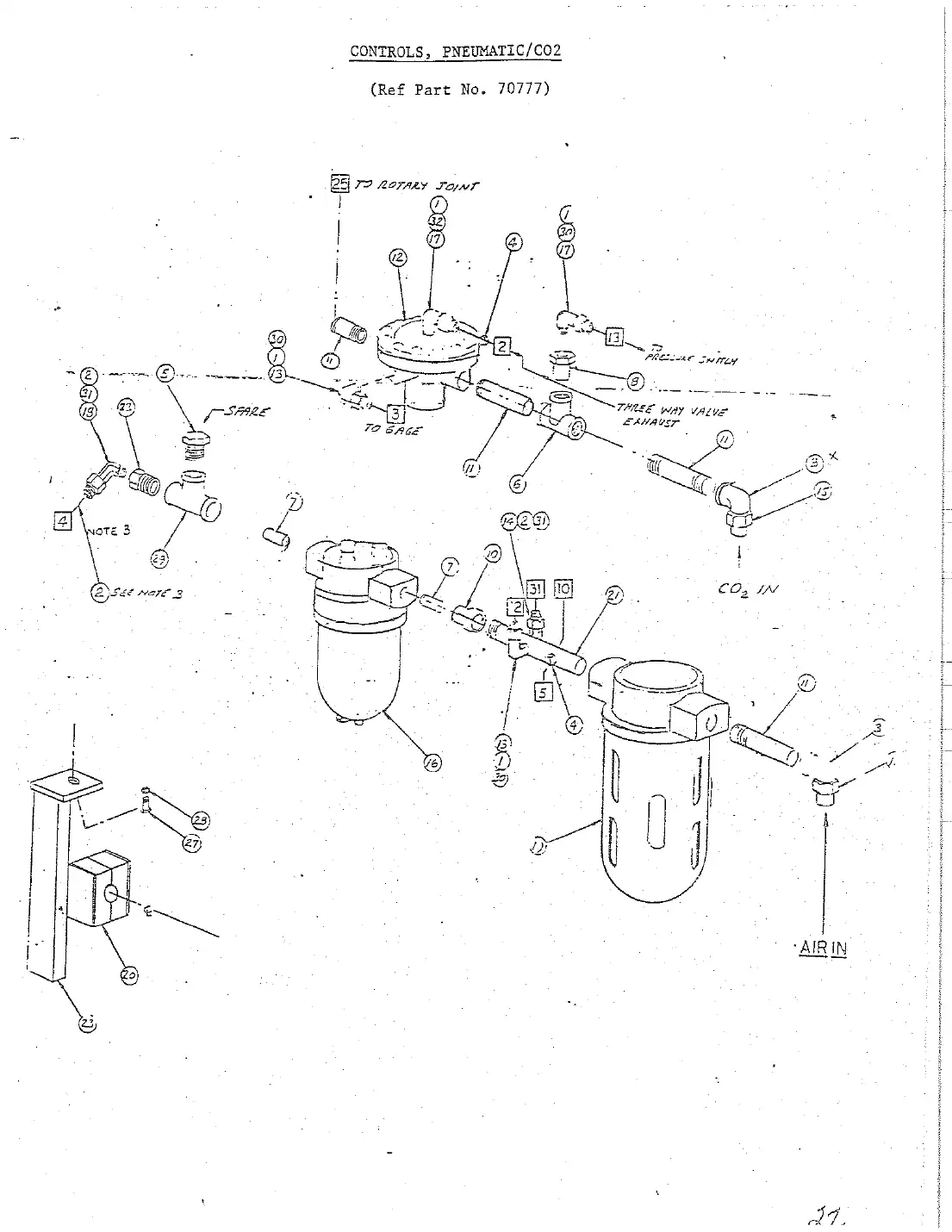

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
3	100-08571000857	Elbow	Request
4	100-08711000871	Plug, pipe	Request
5	100-08741000874	Plug, pipe square. head	Request
6	100-08841000884	Tee	Request
7	100-08921000892	Nipple	Request
8	100-1439	Bushing	Ask us
10	100-2793	Reducer	Ask us
11	100-3629	Nipple	Ask us
13	101-37491013749	Fitting, elbow	Request
15	101-01081010108	Fitting, barbed	Request
16	101-01371010137	Lubricator	Request
17	101-3750	Fitting	Ask us
18	101-3753	Fitting	Ask us
20	104-7381	Clamp	Ask us
21	137-0051	Manifold	Ask us
22	100-14351001435	Bushing, reducing hex	Request
23	905-1351	Bracket	Ask us
24	904-7858	Panel	Ask us
25	904-7859	Shroud	Ask us
26	904-7860	Guard	Ask us
27	102-00891020089	Bolt, hex head	Request
28	102-03891020389	Washer, lock	Request
29	100-08831000883	Tee	Request
30	101-0466	Connector	Ask us
31	101-0471	Fitting	Ask us
32	101-04671010467	Fitting, tube adapter	Request

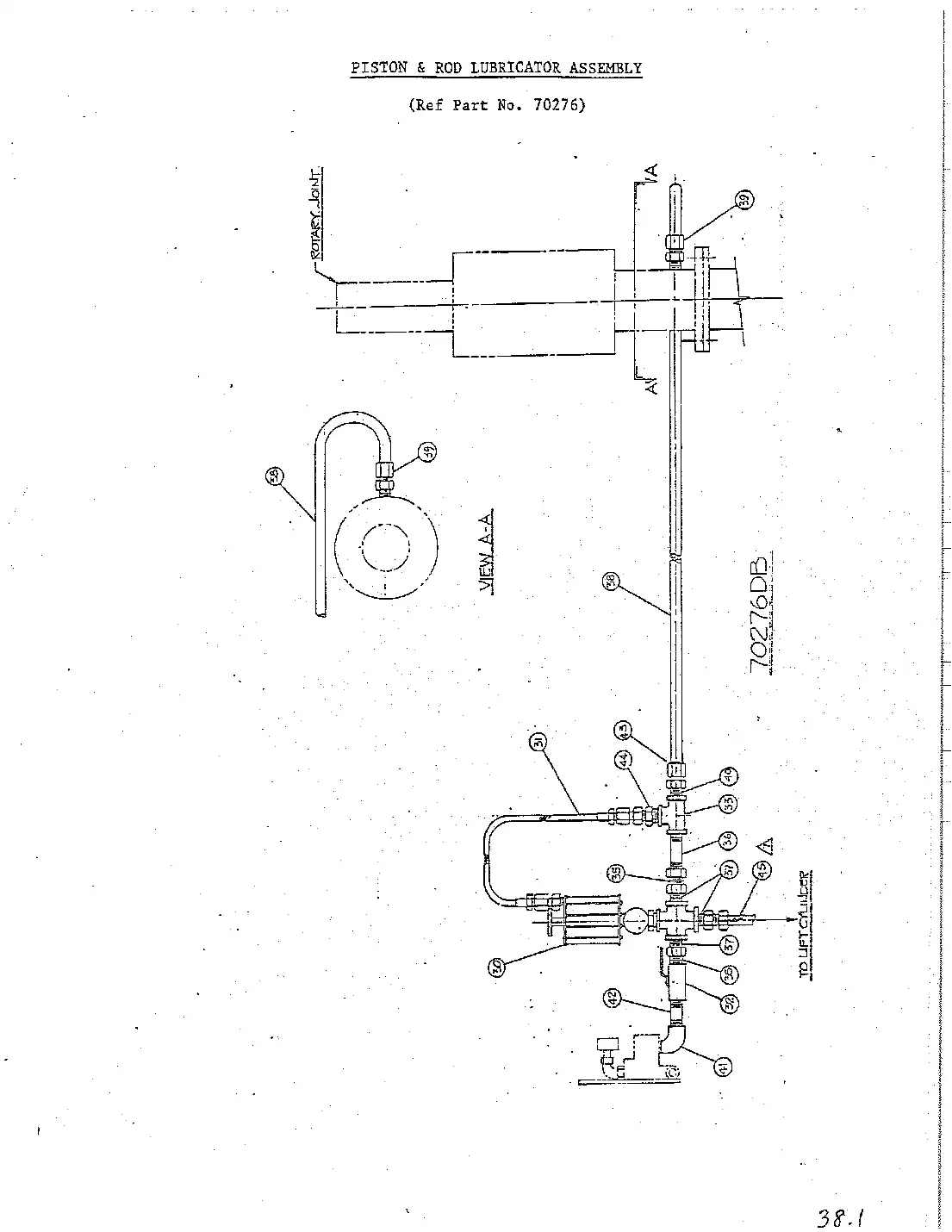

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	136-8963	Cap	Ask us
3	102-00791020079	Bolt, hex head	Request
4	102-03881020388	Washer, lock	Request
5	102-00901020090	Bolt, hex head	Request
6	102-03891020389	Washer, lock	Request
7	137-0589	Line	Ask us
8	104-8251	Nut	Ask us
9	104-8250	Adapter	Ask us
10	000-32230003223	Tube, polyflo	Request
12	000-0816	Pipe	Ask us
13	100-89281008928	Elbow, 90 deg	Request
16	101-2934	Elbow	Ask us
17	101-3527	Nipple	Ask us
20	137-4265	Bracket	Ask us
21	102-0296	Screw	Ask us
23	104-6556	Connector	Ask us
24	100-30771003077	Clamp, hose clamp	Request
25	000-34890003489	Tubing, CO2/air braided hose	Request
26	100-4910	Union	Ask us
27	101-2537	Cup ing	Ask us
28	104-8515	Connector	Ask us
30	000-0807	Pipe	Ask us
31	100-5727	Elbow	Ask us

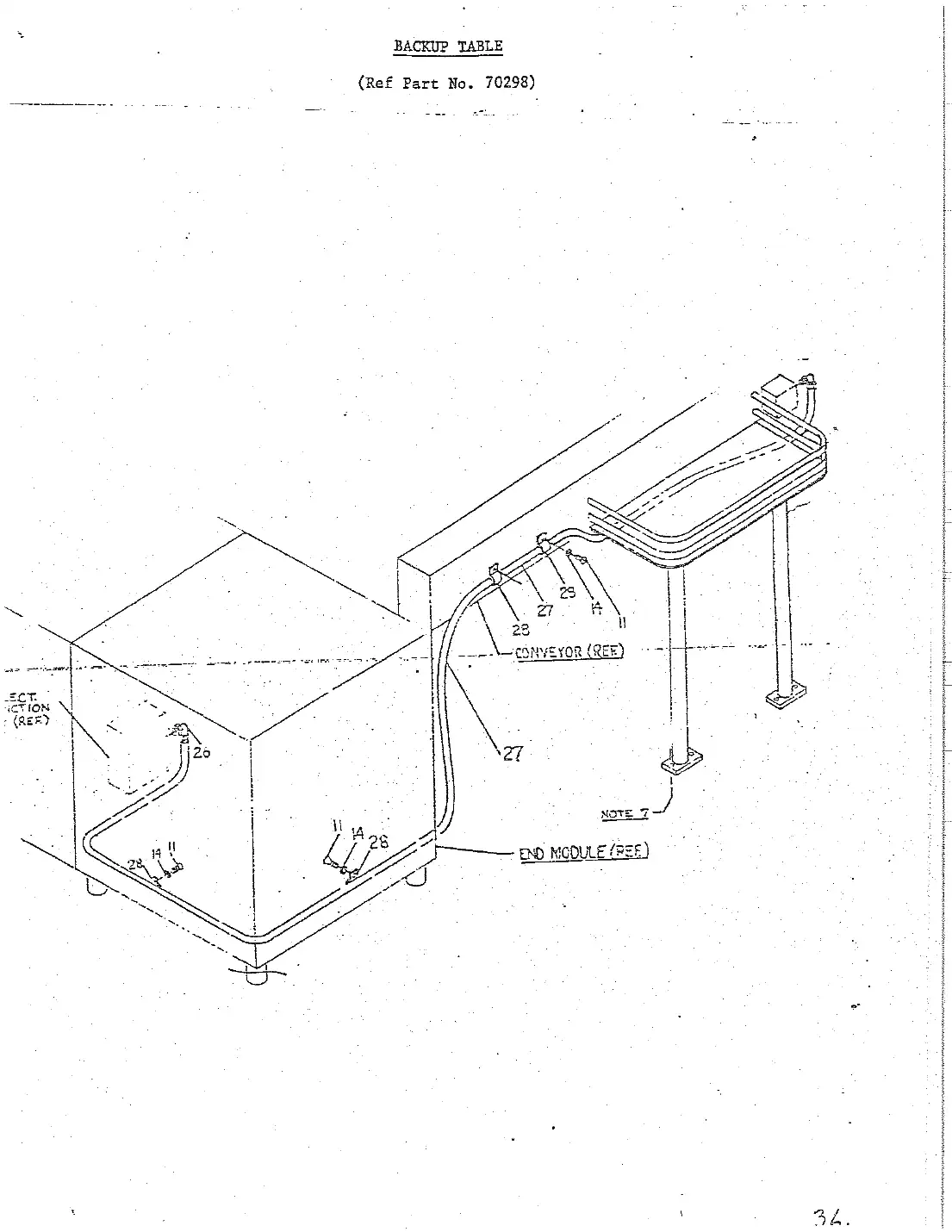

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full sizeOpen full size

Ref	Part number	Description
5	904-7854	Knob	Ask us
6	102-00731020073	Bolt, hex head	Request
7	102-01021020102	Bolt, hex head	Request
8	100-81281008128	O-ring, check ball	Request
9	102-03901020390	Washer, lock	Request

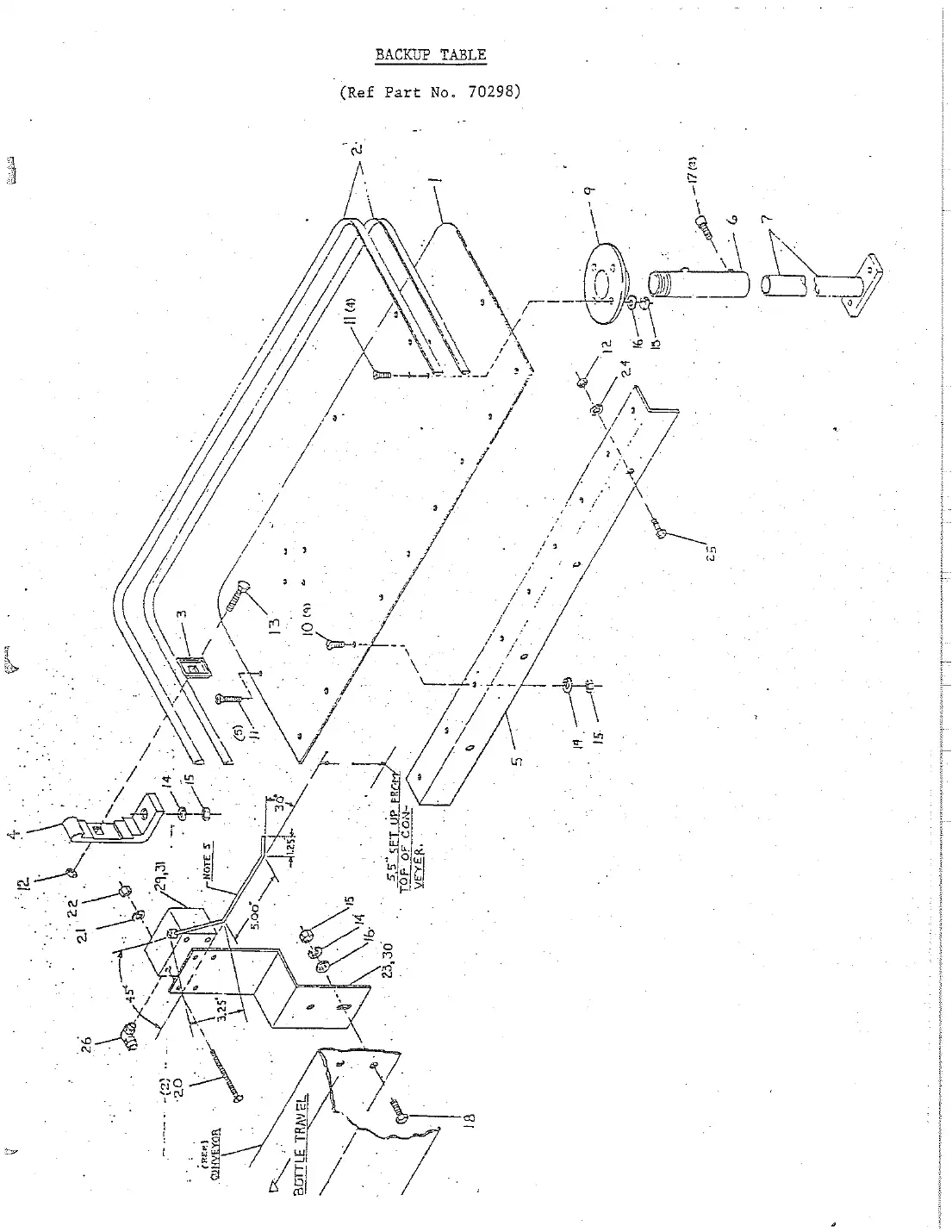

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
2	100-7327	Clip-tube	Ask us
4	100-47661004766	Fitting, grease straight ptf	Request
5	100-89641008964	Coupling, pipe straight	Request
6	100-39411003941	Fitting, grease female str	Request
9	102-00651020065	Bolt, hex head	Request
10	100-34851003485	Connector, male	Request
12	100-55801005580	Elbow, compression tube	Request
13	100-6940	Clip tube	Ask us
14	135-96381359638-1	Block, grease drive gear 65V	Request
15	102-00721020072	Bolt, hex head	Request
17	104-6679	Clip tube	Ask us
18	104-64721046472	Lubricator, automatic	Request
19	100-7246	Elbow	Ask us
20	100-6628	Relief fitting	Ask us
21	102-0302	Screw	Ask us
22	102-04161020416	Washer, flat	Request
23	102-03881020388	Washer, lock	Request
24	137-00441370044-1	Legend, planel cover central	Request
26	102-04151020415	Washer, flat	Request

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

Open full size

Ref	Part number	Description
3	136-34961363496-3	Cover plate, used with timing sc	Request
34	100-89641008964	Coupling, pipe straight	Request
4	136-3497	Spacer	Ask us
35	104-65441046544	Tubing, braided	Request
5	136-3500	Face plate	Ask us
33	101-0470	Conn, train relief	Ask us
6	136-3499	Face plate	Ask us
42	104-78351047835	Bracket, guide rail	Request
7	136-3498	Hinge plate	Ask us
43	104-7837	Bracket, guide rod	Ask us
8	136-34951363495-1	Face plate, used for timing scre	Request
44	104-7836	Spacer, guide bracket	Ask us
9	136-3504	Bottle stop	Ask us
48	136-9525	Guide, bottle	Ask us
10	104-51191045119	Cylinder, air infeed gate assembly	Request
49	102-13811021381	Screw, socket head cap	Request
50	102-12551021255	Washer, flat	Request
12	104-71811047181	Spring, extension	Request
13	103-57921035792	Switch, limit	Request
52	102-03341020334	Nut, hex	Request
14	104-71791047179	Pin, dowel	Request
53	102-00891020089	Bolt, hex head	Request
15	104-71801047180	Pin, dowel	Request
54	102-01041020104	Bolt, hex head	Request
16	102-06681020668	Pin, dowel	Request
18	102-01011020101	Bolt, hex head	Request
56	904-7307	Bracket, supprt	Ask us
19	102-04181020418	Washer, flat	Request
57	102-03901020390	Washer, lock	Request
20	102-00721020072	Bolt, hex head	Request
58	137-2535	Spacer, raised stars	Ask us
63	100-34851003485	Connector, male	Request
22	102-03861020386	Washer, lock	Request
23	102-17071021707	Screw, round hd machine	Request
24	102-00671020067	Bolt, hex head	Request
25	102-03871020387	Washer, lock	Request
26	102-00781020078	Hex head bolt	Request
33	100-0439	Conn, sealtite	Ask us

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full sizeOpen full sizeOpen full size

Ref	Part number	Description
2	134-4002	Plug	Ask us
41	102-10041021004	Bolt, hex head	Request
3	132-3962	Plate	Ask us
42	102-04141020414	Washer, flat	Request
43	102-2261	Screw	Ask us
15	131-8473	Guide	Ask us
44	102-2259	Screw	Ask us
18	132-09731320973	Spring, compression outer	Request
46	102-3022	Screw	Ask us
17	134-2304	Holder	Ask us
48	102-00681020068	Bolt, hex head	Request
18	132-09781320978	Spring, compression inner	Request
49	102-04151020415	Washer, flat	Request
20	134-1616	Wiper	Ask us
50	102-02081020208	Screw, flat head slot	Request
23	135-8891	Bar	Ask us
51	102-02941020294	Screw, round head slot	Request
24	135-8893	Bar	Ask us
54	134-16101341610	Key, elevating sleeve Meyer crowner and cappers	Request
25	135-8894	Bar	Ask us
55	102-14041021404	Socket head cap screw	Request
26	135-8889	Support	Ask us
61	100-47661004766	Fitting, grease straight ptf	Request
27	135-8887	Support	Ask us
64	136-5864	Retainer	Ask us
28	135-9106	Cover	Ask us
66	136-5871	Cover	Ask us
29	135-9107	Cover	Ask us
30	135-9108	Cover	Ask us
31	135-9109	Cover	Ask us
70	102-30621023062	Washer	Request
32	135-8672	Pull bar ing	Ask us
33	102-2371	Screw	Ask us
73	136-58721365872	Column, center closure	Request
37	102-15521021552	Screw, socket head cap	Request
74	102-00891020089	Bolt, hex head	Request
38	102-03411020341	Nut, hex jam	Request
39	102-01021020102	Bolt, hex head	Request
77	905-2039	Hub-spool head	Ask us
78	137-2075	Cam	Ask us
79	137-2098	Shim	Ask us
24	102-18031021803	Bolt, hex head	Request
25	102-05961020596	Washer, lock	Request
3	102-17811021781	Pin, dowel	Request
26	102-2251	Screw	Ask us
27	102-28051022805	Screw, set socket cup point	Request
6	102-04251020425	Set screw	Request
7	100-24061002406	O-ring	Request
36-1	102-25461022546	Washer, lock internal	Request
13	904-60959046095	Crown, rest assembly 15 hd type 6	Request
36-2	102-27041022704	Nut, hex jam	Request
13	904-6096	Rest, crown	Ask us
14	102-01921020192	Screw, flat head slot	Request
36-4	131-88231318823	Roller, crowner cam	Request
15	102-01901020190	Screw, flat head slot	Request
37-8	134-7421	Bracket, cam rolle	Ask us
21	102-0599	Screw	Ask us
38	902-38559023855	Sleeve, bracket crowning	Request
23	900-09599000959-WP	Nut, retaining compression sleeve crowner	Request

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Open full size

Ref	Part number	Description
1	130-0471	Hopper	Ask us
51	102-03801020380	Washer, lock	Request
2	100-11531001153	Plug, pipe countersunk	Request
52	130-6575	Insert	Ask us
3	102-00891020089	Bolt, hex head	Request
4	102-03891020389	Washer, lock	Request
54	102-09781020978	Screw, socket head cap	Request
5	101-3239	Bar ing	Ask us
55	102-01841020184	Screw, flat head slot	Request
6	131-1242	Collar	Ask us
56	135-9989	Chute	Ask us
57	134-1556	Cover	Ask us
8	000-16280001628	Key, square	Request
58	102-00671020067	Bolt, hex head	Request
9	100-72521007252	Felt, seal	Request
59	136-0556	Spacer	Ask us
10	902-0107	Disc	Ask us
12	1007171100-7171	Bearing, outer	Request
62	102-03871020387	Washer, lock	Request
13	131-1106	Bracket	Ask us
63	102-03861020386	Washer, lock	Request
14	100-34851003485	Connector, male	Request
66	100-47661004766	Fitting, grease straight ptf	Request
16	102-01031020103	Bolt, hex head	Request
67	102-04661020466	Screw, set socket cup point	Request
17	100-71721007172	Bearing, needle roller	Request
68	135-9449	Shield	Ask us
69	102-02851020285	Screw, round head slot	Request
19	102-01911020191	Screw, flat head slot	Request
7O	102-0063	Bolt	Ask us
20	134-15431341543	Knob	Request
71	134-1558	Screw	Ask us
21	134-15451341545	Housing	Request
72	134-1559	Screw	Ask us
22	904-2767	Plate	Ask us
73	102-03411020341	Nut, hex jam	Request
23	904-2768	Hub stud	Ask us
24	102-05721020572	Pin, taper	Request
75	000-1755	Tube-round	Ask us
25	102-3240	Coupling	Ask us
76	100-09231000923	Fitting, tube	Request
26	134-1550	Disc	Ask us
77	100-9929	Name plate	Ask us
27	101-32411013241	Spring, die 14 hd crowner	Request
78	137-4142	Guard	Ask us
84	102-00791020079	Bolt, hex head	Request
85	102-0339	Nut	Ask us
86	102-02861020286	Screw, round head slot	Request
31	102-03341020334	Nut, hex	Request
87	102-5908	Sensor	Ask us
32	900-4682	Disc	Ask us
88	101-2371	Clamp	Ask us
89	102-00651020065	Bolt, hex head	Request
35	100-34821003482	O-ring	Request
91	102-02951020295	Screw, round head slot	Request
36	102-12331021233	Pin, dowel	Request
37	102-1812	Screw hex	Ask us
86	100-89641008964	Coupling, pipe straight	Request
38	102-03901020390	Washer, lock	Request
97	104-6543	Hose	Ask us
39	134-1553	Bracket	Ask us
98	104-8478	Valve	Ask us
40	102-1492	Bolt stainless swagelo	Ask us
44	102-14431021443	Washer, lock	Request
100	100-5581	Fitting	Ask us
43	903-99029039902	Chute, Crown	Request
102	136-9957	Hose	Ask us
103	100-53711005371	Tee	Request
44	102-13841021384	Pin, cotter	Request
104	100-46581004658	Bushing, reducing hex	Request
105	104-6483	Valve	Ask us
46	135-9555	Spring	Ask us
49	101-3242	Reducer	Ask us
50	102-00261020026	Bolt, hex head	Request

Parts for this assembly, from the original Meyer parts lists.

Open full sizeOpen full size

Ref	Part number	Description
15	102-03821020382	Washer, lock	Request
16	102-04151020415	Washer, flat	Request
3	135-9991	Clamps	Ask us
17	102-0485	Screw	Ask us
4	135-9992	Brackets	Ask us
18	102-00671020067	Bolt, hex head	Request
5	135-9971	Support	Ask us
20	102-1702	Screw	Ask us
6	903-9921	Stand	Ask us
22	102-05531020553	Nut, hex	Request
3	135-9969	Flange	Ask us
23	135-9553	Bracket	Ask us
10	102-01931020193	Screw, flat head slot	Request
24	102-03891020389	Washer, lock	Request
12	102-0321	Nut ste	Ask us
26	100-0444	Connector	Ask us
13	102-0875	Bolt	Ask us
27	000-3668	Conduit	Ask us
14	102-03871020387	Washer, lock	Request
28	104-6686	Clamp	Ask us
29	100-9127	Switch	Ask us

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
34	102-24521022452	Pin, taper	Request
2	100-93301009330	Gearbox, three way bowl lift	Request
35	102-00651020065	Bolt, hex head	Request
3	100-82681008268	Chain, roller	Request
4	100-63501006350	Link, offset	Request
37	102-00761020076	Bolt, hex head	Request
5	100-82691008269	Link, connecting	Request
38	102-04161020416	Washer, flat	Request
6	102-21601022160	Pin, dowel	Request
39	102-23501022350	Bolt, hex head	Request
7	903-99039039903	Jactuator, assembly	Request
40	102-01031020103	Bolt, hex head	Request
8	133-90721339072	Plate, jack adjusting	Request
44	102-04181020418	Washer, flat	Request
9	135-96391359639	Pin, slide cover bowl	Request
42	102-2268	Washer	Ask us
10	102-23181022318	Screw, thumb	Request
43	102-00801020080	Bolt, hex head	Request
44	102-20021022002	Washer, flat	Request
12	903-83369038336	Flange, column sub-assembl	Request
45	000-16250001625	Key, square	Request
13	135-86121358612	Sprocket	Request
47	000-3393	Square	Ask us
14	135-8613	Sprocket	Ask us
48	102-07861020786	Bolt, hex head	Request
15	104-65441046544	Tubing, braided	Request
49	000-1629	Square	Ask us
16	104-65421046542-1	joint	Request
50	102-03321020332	Nut, hex	Request
17	104-65591046559	Valve, 3 way	Request
51	135-9725	Stop	Ask us
19	903-9659	Flange	Ask us
53	100-53721005372	Elbow, 90 deg	Request
20	135-8655	Shaft	Ask us
54	102-04261020426	Screw, set socket cup point	Request
56	102-04351020435	Screw, set socket cup point	Request
22	135-8657	Shaft	Ask us
57	102-14781021478	Screw, socket head cap	Request
23	133-99981339998	Column, cover lift 52V filler	Request
59	100-41021004102	Nipple	Request
60	000-1772	Tube	Ask us
61	100-34871003487	Connector, straight male pipe/tube	Request

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Open full size

Ref	Part number	Description
1	101-0195	Nozzle reducer	Ask us
5	000-17500001750	Tubing	Request
36	100-41061004106	Nipple	Request
16	100-6940	Claro	Ask us
37	100-61121006112	Nipple	Request
18	137-3973	Bracket	Ask us
38	0003346000-3346	Tubing	Ask us
19	101-25891012589	Lubricator	Request
20	100-1465	Elbow	Ask us
40	100-41011004101	Nipple, close sch	Request
21	100-3085	Connector elbow	Ask us
42	100-41051004105	Nipple	Request
23	132-7556	U-clamo connector	Ask us
24	100-3086	Connector bushing	Ask us
25	102-00671020067	Bolt, hex head	Request
26	102-04151020415	Washer, flat	Request
27	102-03321020332	Nut, hex	Request
28	102-3037	Stud	Ask us
29	102-03871020387	Washer, lock	Request
30	131-56701315670	Lubricator, essex #6	Request
31	104-6545	Hose	Ask us
33	100-53711005371	Tee	Request

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Open full sizeOpen full size

Ref	Part number	Description
5	102-03891020389	Washer, lock	Request
6	102-00881020088	Hex head bolt	Request
7	102-04151020415	Washer, flat	Request
8	102-03871020387	Washer, lock	Request
9	102-02951020295	Screw, round head slot	Request
