Meyer parts manual

Meyer 88 valve can filler parts manual

The 88 valve can filler is Meyer's largest can filler, built for high-speed can lines with nozzle filling valves and a cylinder and shoe lift.

Search all parts Submit a parts inquiry Call 843-851-3217

17assemblies

945part numbers

443in our parts list

88 valve can fillermodels covered

How to use this manual. Find the assembly, match the reference number on the drawing to the parts list, and request the part. Parts marked Request are in our parts list; for the rest, ask us and we will track them down. Always give your machine model and serial number when ordering.

Drawings and part numbers come from original Geo. J. Meyer parts manuals and our own parts records, shown for identification. Descriptions are simplified. World Packaging is an independent supplier of Meyer filler parts.

Assemblies in this manual

Base and Base Attachments 13
Valve Operators 93
Front View of Enclosure 21
Vent Tube Blow-Off 36
Cylinder and Shoe 36
Stirrup Hanger 25
Adjustable Bowl Mechanism 79
Filler Bowl 45

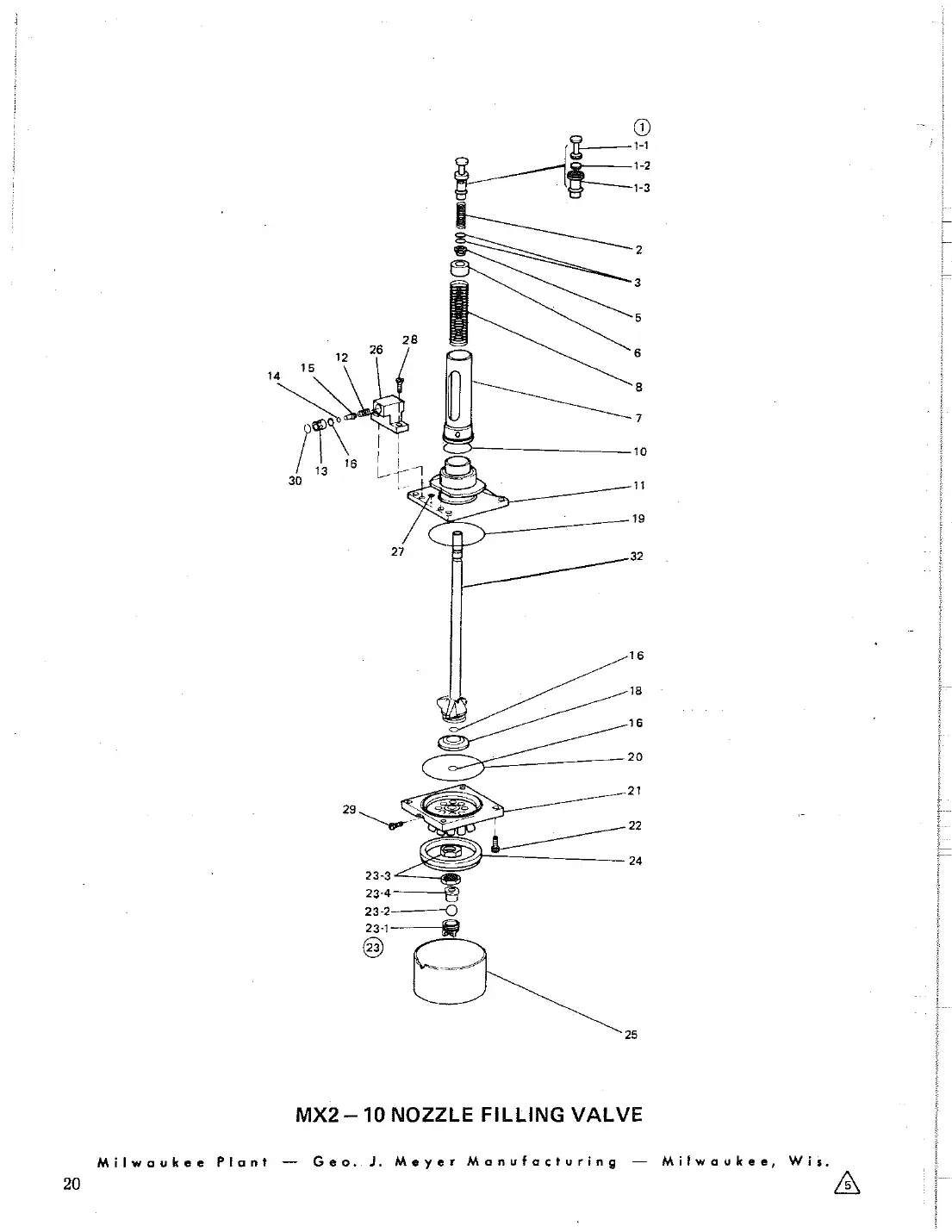

10 Nozzle Filling Valve 66
Main Drive Star Shaft Housing 28
Main Drive with Splined Vertical Pinion 89
Brake 33
Table Top 62
Timing Screw Gearbox 24
Infeed Conveyor 98
Lubrication and Grease Lines 44

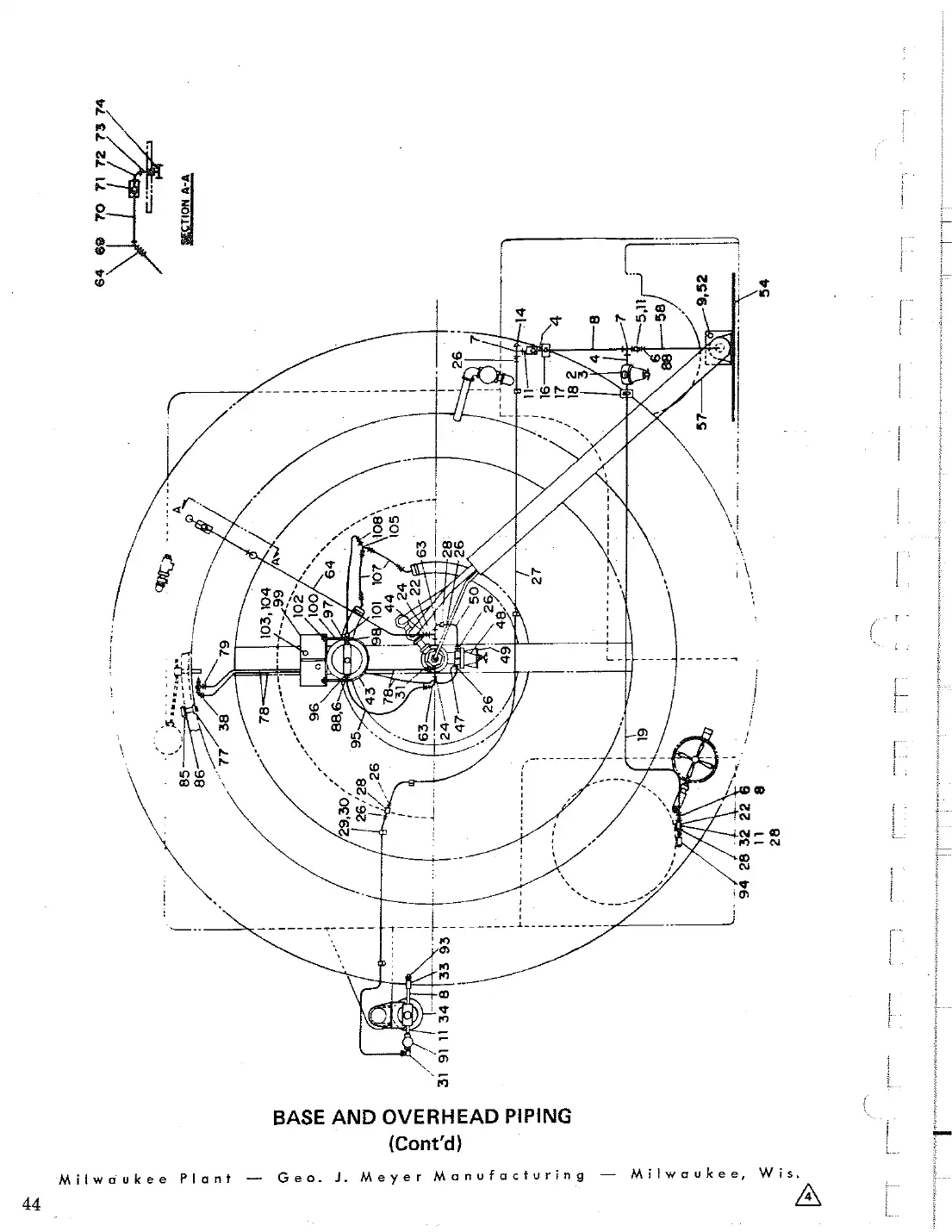

Base and Overhead Piping 153

Base and Base Attachments

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer 88 valve can filler base and base attachments drawing

Open full size

Ref	Part number	Description
6	HH-1344	Screw, jack	Ask us
7	131-1859	Plate, base support	Ask us
8	102-00651020065	Bolt, hex head	Request
1	902-0970	Door, center	Ask us
9	102-03871020387	Washer, lock	Request
2	902-2694	Door assembly	Ask us
2-3	000-3378	Gasket	Ask us
3	902-3648	Door assembly	Ask us
12	100-9786	Plate, legal	Ask us
13	100-9930	Nameplate	Ask us
4	902-2696	Door assembly	Ask us
14	104-62651046265	Label, do not operate without guards	Request
15	102-2322	Screw, drive	Ask us

Valve Operators

Contents

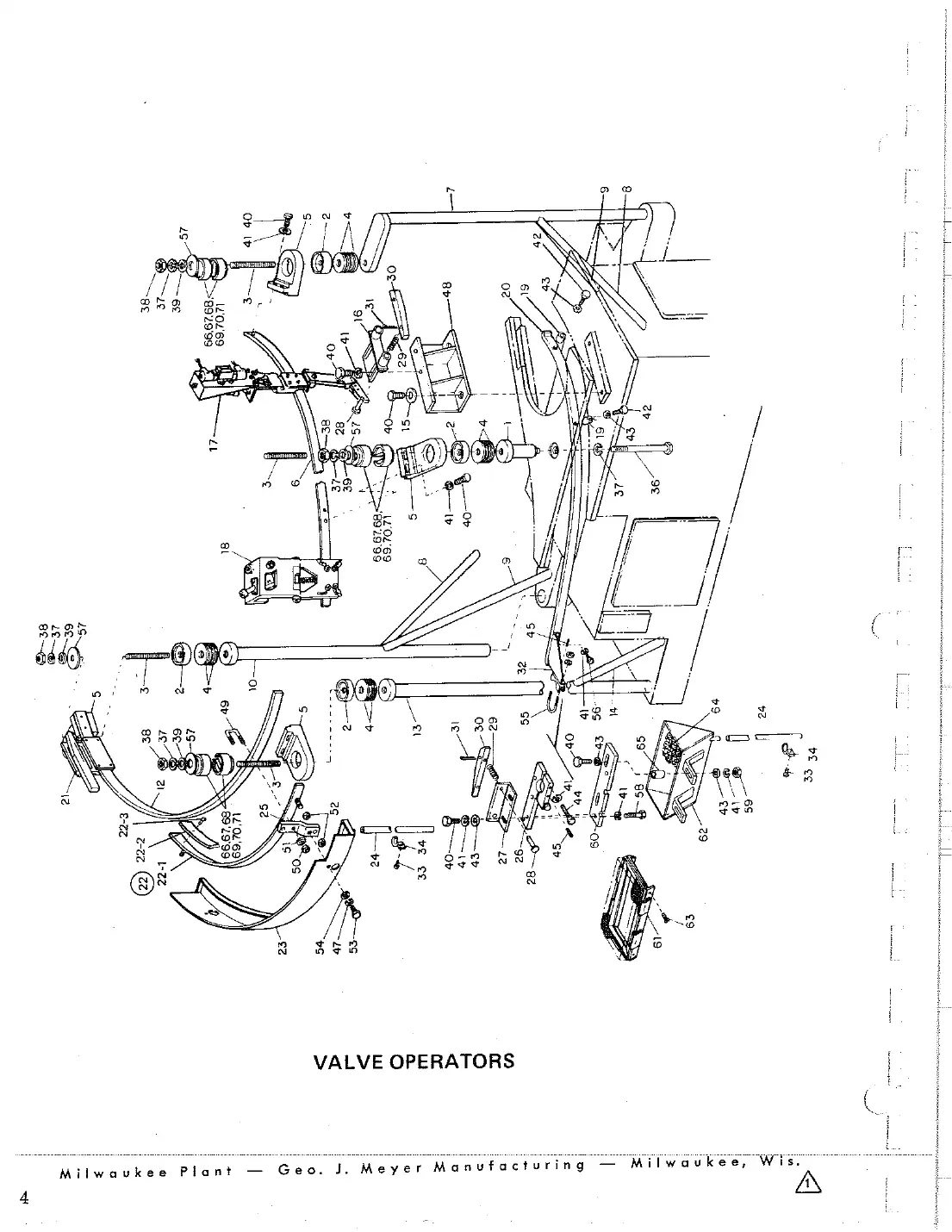

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Ref	Part number	Description
33	102-02941020294	Screw, round head slot	Request
34	100-7016	Clamp, conduit	Ask us
36	102-0037	Screw, hex head	Ask us
1	131-7439	Post, support	Ask us
37	102-03921020392	Washer, lock	Request
2	131-7070	Spacer, support	Ask us
38	102-0337	Nut, hex	Ask us
3	131-6555	Stud, spacer support	Ask us
39	102-04201020420	Washer, flat	Request
4	131-7495	Shim, spacer support	Ask us
40	102-00901020090	Bolt, hex head	Request
5	131-7471	Bracket, operator ring	Ask us
41	102-03891020389	Washer, lock	Request
42	102-00911020091	Bolt, hex head	Request
7	902-4224	Post, support	Ask us
43	102-04171020417	Washer, flat	Request
8	131-6758	Brace, support post	Ask us
44	102-00951020095	Bolt, hex head	Request
9	131-6759	Brace, support post	Ask us
45	102-09861020986	Pin, roll slotted	Request
10	902-4223	Post, support	Ask us
47	102-03871020387	Washer, lock	Request
148	904-0549	Spacer, cam spool valve	Ask us
49	HH-157HH157	U-bolt, valve closer	Request
50	102-03331020333	Nut, hex	Request
15	131-3084	Washer, flat	Ask us
51	102-04161020416	Washer, flat	Request
16	902-1939	Bracket, opener nut	Ask us
54	102-04151020415	Washer, flat	Request
55	100-9235	Clamp	Ask us
56	102-16471021647	Bolt, hex head	Request
19	000-1858	Spacer, tube	Ask us
57	132-2667	Disc, ring bracket	Ask us
58	102-00881020088	Hex head bolt	Request
59	102-03341020334	Nut, hex	Request
60	135-1240	Bracket, mounting exhaust tray	Ask us
61	904-4241	Cover, exhaust tray	Ask us
62	904-4240	Tray, exhaust	Ask us
22-3	102-01741020174	Screw, flat head slot	Request
63	102-1150	Screw, pan head	Ask us
64	104-6401	Wool, steel	Ask us
24	000-3080	Hose	Ask us
65	132-8234	Spacer	Ask us
25	131-9893	Bracket, snift cam	Ask us
66	134-4298	Spacer, ring support	Ask us
26	132-7575	Bracket, closer	Ask us
67	134-4299	Spacer, ring support	Ask us
27	902-1784	Bracket, closer angle	Ask us
68	134-4300	Spacer, ring support	Ask us
28	131-54691315469	Pin track	Request
69	134-4301	Spacer, ring support	Ask us
29	131-54681315468	Spring	Request
70	134-4302	Spacer, ring support	Ask us
30	131-54671315467	Track, valve opener	Request
71	134-4401	Spacer, ring support	Ask us
31	102-05741020574	Pin, cotter	Request
32	134-2377	Bracket, safety ring	Ask us
2	102-02871020287	Screw, phillips hd	Request
3	102-03861020386	Washer, lock	Request
5	100-07751000775	Fitting, grease male ptf	Request
6	102-04261020426	Screw, set socket cup point	Request
7	102-00661020066	Bolt, hex head	Request
9	131-8376	Bracket, latch	Ask us
10	131-8378	Hanger, lower	Ask us
11	102-0711	Nut, wing	Ask us
12	131-83801318380	U-bolt	Request
13	102-03321020332	Nut, hex	Request
14	102-03411020341	Nut, hex jam	Request
15	131-8383	Pin, hinge	Ask us
16	100-3870	Ring, retaining	Ask us
17	131-5680	Hinge, valve bracket	Ask us
18	131-8377	Bracket, sensor arm	Ask us
20	102-10121021012	Nut, hex, jam	Request
21	131-8373	Screw, mounting rod end	Ask us
22	131-6541	Bracket, hinge	Ask us
25	102-2163	Screw, head	Ask us
26	131-6536	Stud, sensor arm	Ask us
28	131-8382	Pin, hinge	Ask us
29	102-09781020978	Screw, socket head cap	Request
30	102-00761020076	Bolt, hex head	Request
31	102-03881020388	Washer, lock	Request
33	131-8379	Spring, hin	Ask us
34	102-00681020068	Bolt, hex head	Request
36	902-4662	Trigger	Ask us
37	102-1313	Screw, socket head	Ask us
38	131-6600	Clamp, trigger	Ask us
39	131-7187	Bar, wear	Ask us
40	132-4485	Bracket, pivot	Ask us
41	101-0154	Bearing, rod end	Ask us
42	102-12541021254	Pin, roll	Request
43	100-9844	Cylinder, air	Ask us
46	000-32230003223	Tube, polyflo	Request
48	101-0156	Connector	Ask us

Front View of Enclosure

Contents

The crowner or closer seals each container right after filling. Crowning throats, plungers, springs and hub bearings are the usual wear items.

Ref	Part number	Description
10	100-6717	Block, terminal	Ask us
11	100-6716	Block, fusible	Ask us
12	100-6715	Plate, fusible barrier	Ask us
13	100-6718	Clip, fuse pulling	Ask us
1	100-0643	Enclosure	Ask us
14	100-0193	Clip, retaining	Ask us
2	103-5097	Supply, power	Ask us
15	100-6227	Fuse, dual element	Ask us
3	103-5098	Amplifier	Ask us
16	000-2765	Strip, term bik mounting	Ask us
4	103-5099	Switch, solid-state	Ask us
17	100-5956	Switch, selector pos	Ask us
5	103-5100	Head, proximity sensing	Ask us
18	100-4633	Light, pilot-green	Ask us
6	103-5101	Valve, way position	Ask us
19	100-6942	Plate, legend-power- off-on	Ask us
7	103-5102	Resist	Ask us
20	100-6945	Plate, legend power	Ask us
8	103-5103	Capacitor	Ask us
21	103-5185	Socket, pin	Ask us
9	103-5104	Diode, zener	Ask us

Vent Tube Blow-Off

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer 88 valve can filler vent tube blow-off drawing

Open full size

Ref	Part number	Description
16	H-2799	Bracket, valve closer cam track	Ask us
17	HH-1854	Spring, valve closer	Request
18	HH-157HH157	U-bolt, valve closer	Request
1	131-6597	Bracket, vent tube blow-off-LH	Ask us
19	102-0711	Nut, wing	Ask us
2	131-6601	Trigger, vent tube blow-off-LH	Ask us
20	902-3292	Lock, neutral	Ask us
3	130-86191308619	Spring, trigger	Request
21	131-66131316613	Track, valve closer	Request
22	102-04311020431	Screw, set socket cup point	Request
5	131-6598	Pin, neutral trigger	Ask us
23	102-03381020338	Nut, hex jam	Request
6	131-6600	Clamp, trigger	Ask us
24	102-07431020743	Screw, socket head cap	Request
7	102-1313	Screw, socket head	Ask us
25	102-03861020386	Washer, lock	Request
8	102-00681020068	Bolt, hex head	Request
26	102-03871020387	Washer, lock	Request
28	102-04261020426	Screw, set socket cup point	Request
10	131-6602	Shaft, trigger	Ask us
29	131-7187	Bar, wear vent tube blow-off	Ask us
11	100-07751000775	Fitting, grease male ptf	Request
30	102-2217	Screw, socket head set	Ask us
12	131-6599	Retainer, trigger	Ask us
31	102-03361020336	Nut, hex	Request
32	102-04171020417	Washer, flat	Request
14	130-86171308617	Pin, valve closer hinge	Request
33	102-04271020427	Screw, set socket cup point	Request
15	130-8603	Washer	Ask us
6	134-60011346001	Track, valve closer	Request
7	131-9902	Plate	Ask us
8	102-05741020574	Pin, cotter	Request
1	134-6002	Bracket, valve lever	Ask us
10	131-64561316456	Bracket, valve closer hinge	Request
3	102-0707	Screw, socket head	Ask us
4	102-00781020078	Hex head bolt	Request

Cylinder and Shoe

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

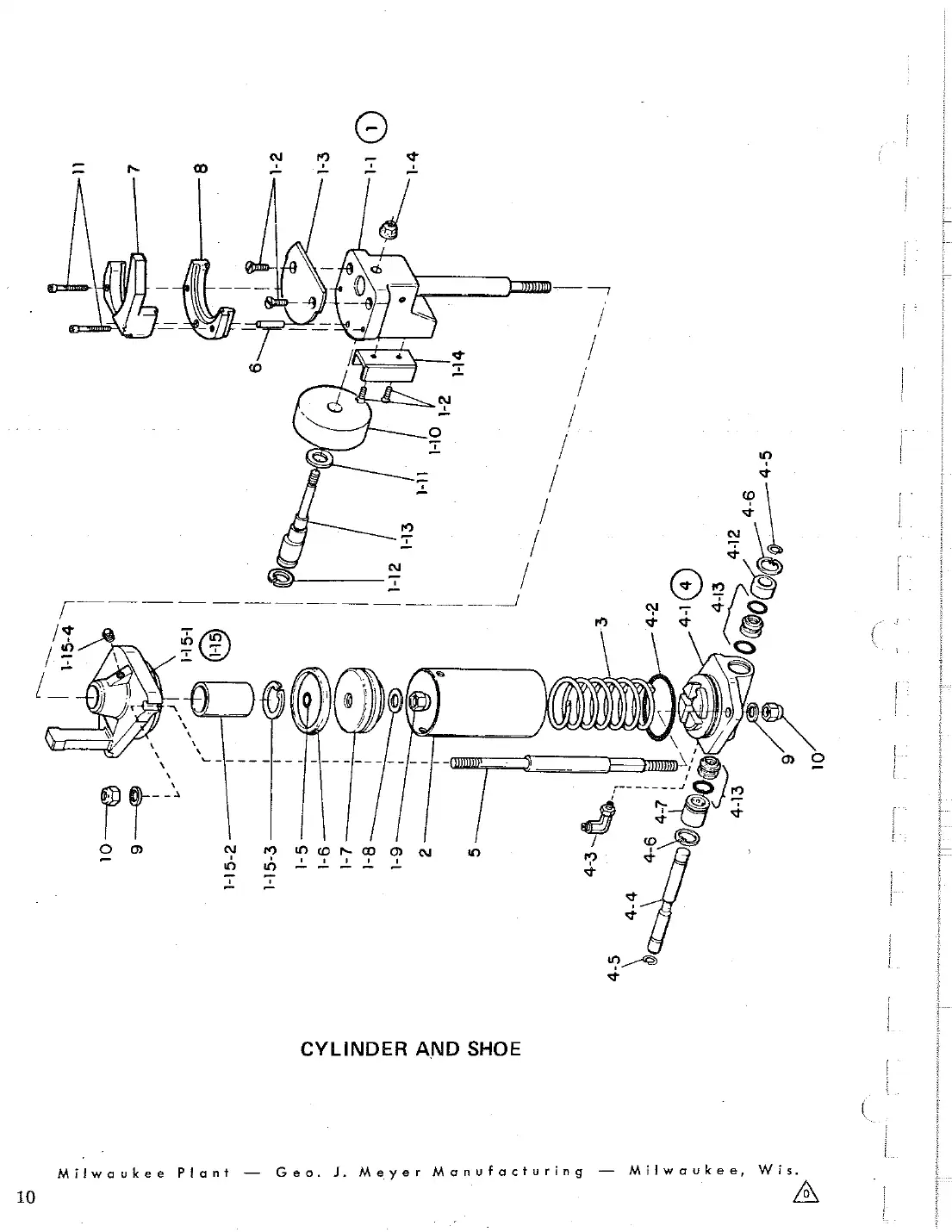

Meyer 88 valve can filler cylinder and shoe drawing

Open full size

Ref	Part number	Description
1-15-2	134-43401344340	Bushing, cylinder cap can filler	Request
1-15-3	101-36391013639	Ring, snap	Request
1-15-4	100-08711000871	Plug, pipe	Request
2	131-75801317580	Cylinder, air lift body can filler	Request
1	904-4583	Piston assembly	Ask us
3	131-76311317631	Spring, lift cylinder	Request
1-1	904-2874	Rod assembly, shoe stirrup	Ask us
4	902-43179024317-R	Cylinder, bottom assembly can filler rem	Request
4-1	131-7578	Cylinder, bottom	Ask us
1-2	102-01831020183	Screw, flat head slot	Request
4-2	101-01181010118	O-ring	Request
1-3	131-42971314297	Plate, wearstrip wear lift	Request
4-3	101-32471013247	Elbow, tube 90 deg	Request
1-4	102-23741022374	Nut, lock	Request
4-4	HH-7014HH7014	Stem, spool valve	Request
1-5	100-81331008133	O-ring	Request
4-5	100-73081007308	Ring, retaining	Request
1-6	101-01151010115	U-cup, airlift cylinder	Request
4-6	100-73091007309	Ring, spirolox	Request
1-7	131-7582	Piston	Ask us
4-7	131-68051316805	Ring, exhaust port	Request
1-8	102-04181020418	Washer, flat	Request
4-12	131-68021316802	Bushing, spool valve	Request
1-9	102-22671022267	Nut, hex nylock insert type	Request
4-13	904-44319044431	Kit, repair spool valves	Request
1-10	131-75811317581	Roller, stirrup cam	Request
5	134-02911340291	Rod, tie short stroke cylinder	Request
1-11	102-2268	Washer, flat	Ask us
1-12	100-38671003867	Ring, retaining external	Request
1-13	131-75841317584	Pin, roller eccentric	Request
1-14	131-75791317579	Bearing, insert cylinder cap	Request
9	102-20021022002	Washer, flat	Request
1-15	904-4582	Cap, cylinder assembly	Ask us
10	102-22661022266	Nut, hex nylock insert type	Request
1-15-1	134-4354	Cap, cylinder	Ask us
11	102-22231022223	Screw, socket head cap	Request

Stirrup Hanger

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

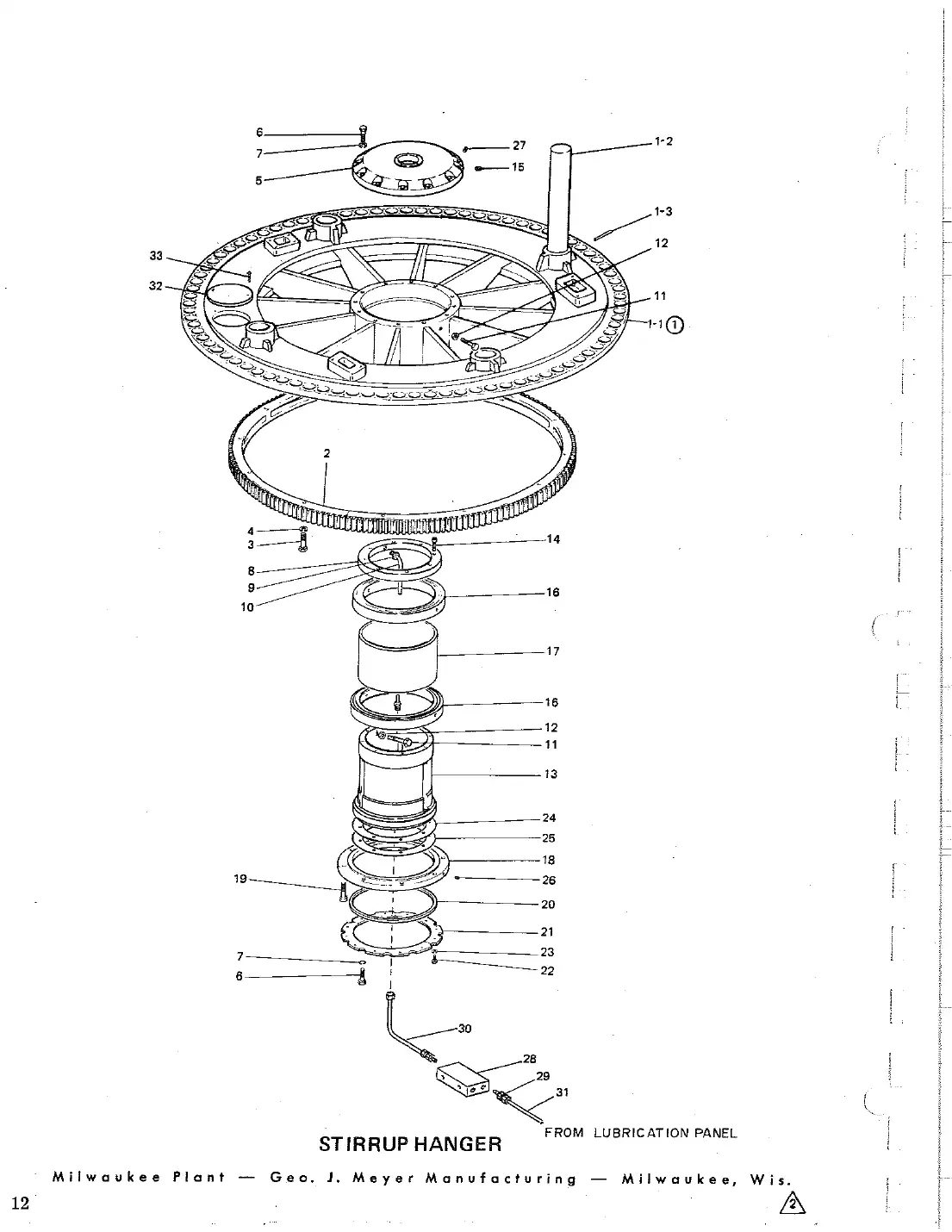

Meyer 88 valve can filler stirrup hanger drawing

Open full size

Ref	Part number	Description
15	100-6628	Fitting, grease	Ask us
16	100-44121004412	Bearing, main hanger / 84V	Request
17	130-2988	Spacer	Ask us
18	131-1003	Cap, bottom bearing	Ask us
19	102-14781021478	Screw, socket head cap	Request
20	100-70461007046	Seal, main bearing	Request
1-3	102-2123	Pin, taper	Ask us
21	131-1030	Plate, seal cover	Ask us
22	102-00891020089	Bolt, hex head	Request
23	102-03891020389	Washer, lock	Request
4	102-03911020391	Washer, lock	Request
24	130-7115	Shim, center column	Ask us
5	130-0946	Cap, top bearing	Ask us
25	130-7116	Shim, center column	Ask us
26	100-4762	Fitting, grease	Ask us
7	102-03921020392	Washer, lock	Request
27	100-08711000871	Plug, pipe	Request
8	130-3259	Retainer, bearing	Ask us
9	100-09231000923	Fitting, tube	Request
30	000-17500001750	Tubing	Request
31	000-17430001743	Tubing	Request
12	102-03411020341	Nut, hex jam	Request
13	131-0998	Column, center	Ask us
33	102-02941020294	Screw, round head slot	Request
14	102-14871021487	Socket head cap screw	Request

Adjustable Bowl Mechanism

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

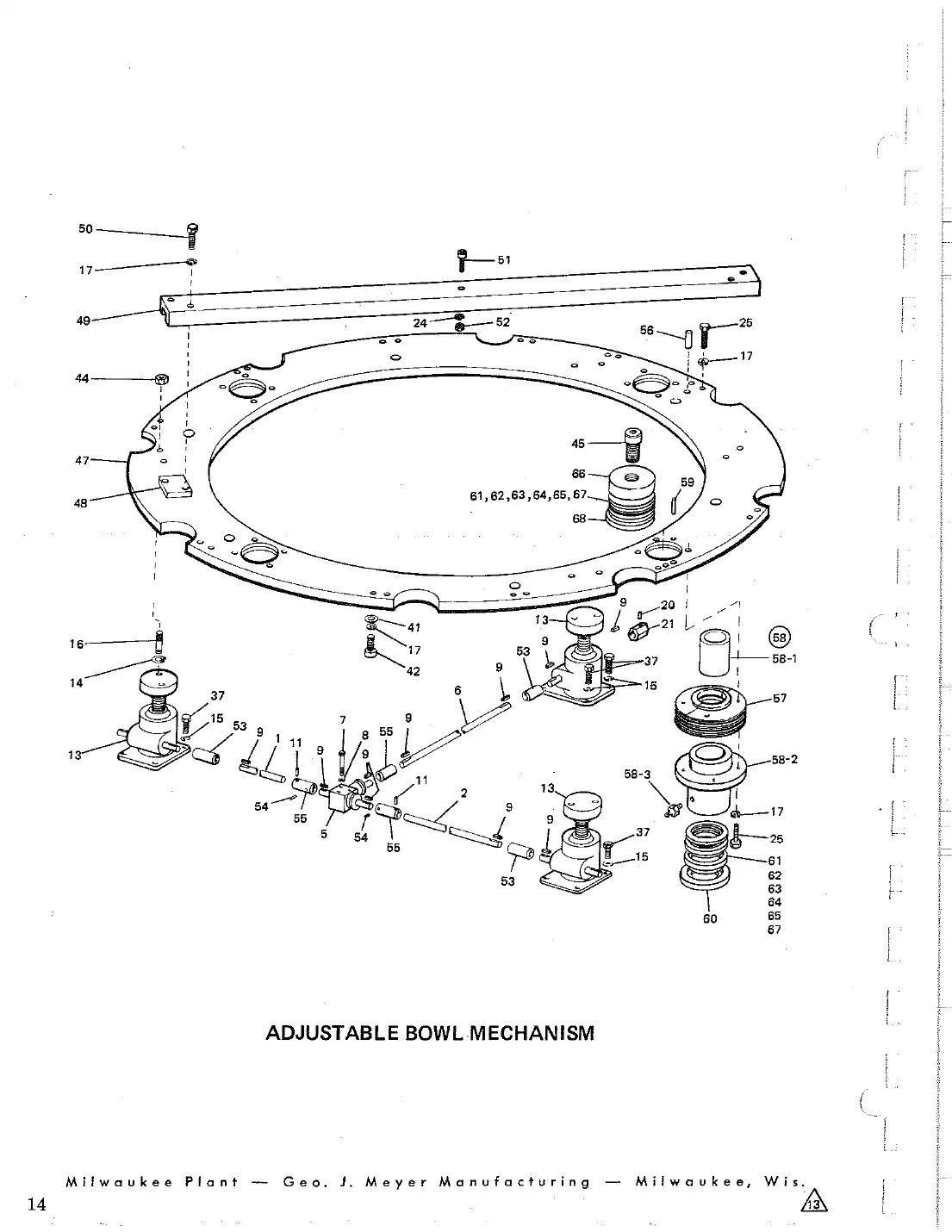

Meyer 88 valve can filler adjustable bowl mechanism drawing

Open full size

Ref	Part number	Description
50	102-01071020107	Bolt, hex head	Request
2	131-3966	Shaft, jack adjusting	Ask us
51	102-07131020713	Screw, socket head cap	Request
5	100-93301009330	Gearbox, three way bowl lift	Request
52	102-0321	Nut, hex	Ask us
6	131-3965	Shaft, jack adjusting	Ask us
53	131-67801316780	Coupling shaft	Request
54	102-0464	Screw, socket head	Ask us
8	102-03871020387	Washer, lock	Request
55	131-67811316781	Coupling shaft	Request
9	000-1624	Key leg	Ask us
56	102-2103	Pin, dowel	Ask us
11	102-09861020986	Pin, roll slotted	Request
57	131-8275	Shim, half	Ask us
13	100-9534	Jack, screw	Ask us
58	902-4490	Housing, guide post assembly	Ask us
14	100-99951009995	Ring, retaining	Request
58-1	100-9354	Bushing	Ask us
15	102-03911020391	Washer, lock	Request
58-2	131-8286	Housing, guide post	Ask us
16	131-6843	Pin, jack release	Ask us
58-3	102-19201021920	Fitting, grease	Request
17	102-03901020390	Washer, lock	Request
59	102-21601022160	Pin, dowel	Request
21	131-39881313988	Nut, drive adjustable bowl mechanism	Request
61	134-4306	Collar, guide post	Ask us
24	102-03891020389	Washer, lock	Request
62	134-4307	Collar, guide post	Ask us
25	102-00401020040	Bolt, hex head	Request
63	134-4308	Collar, guide post	Ask us
37	102-0907	Bolt, hex head	Ask us
64	134-4309	Collar, guide post	Ask us
41	102-04181020418	Washer, flat	Request
65	134-4310	Collar, guide post	Ask us
66	134-4311	Cap, guide post	Ask us
44	102-0342	Nut, hex jam	Ask us
67	134-4400	Collar, guide post	Ask us
45	100-9757	Screw, socket head	Ask us
68	134-4470	Washer, guide post	Ask us

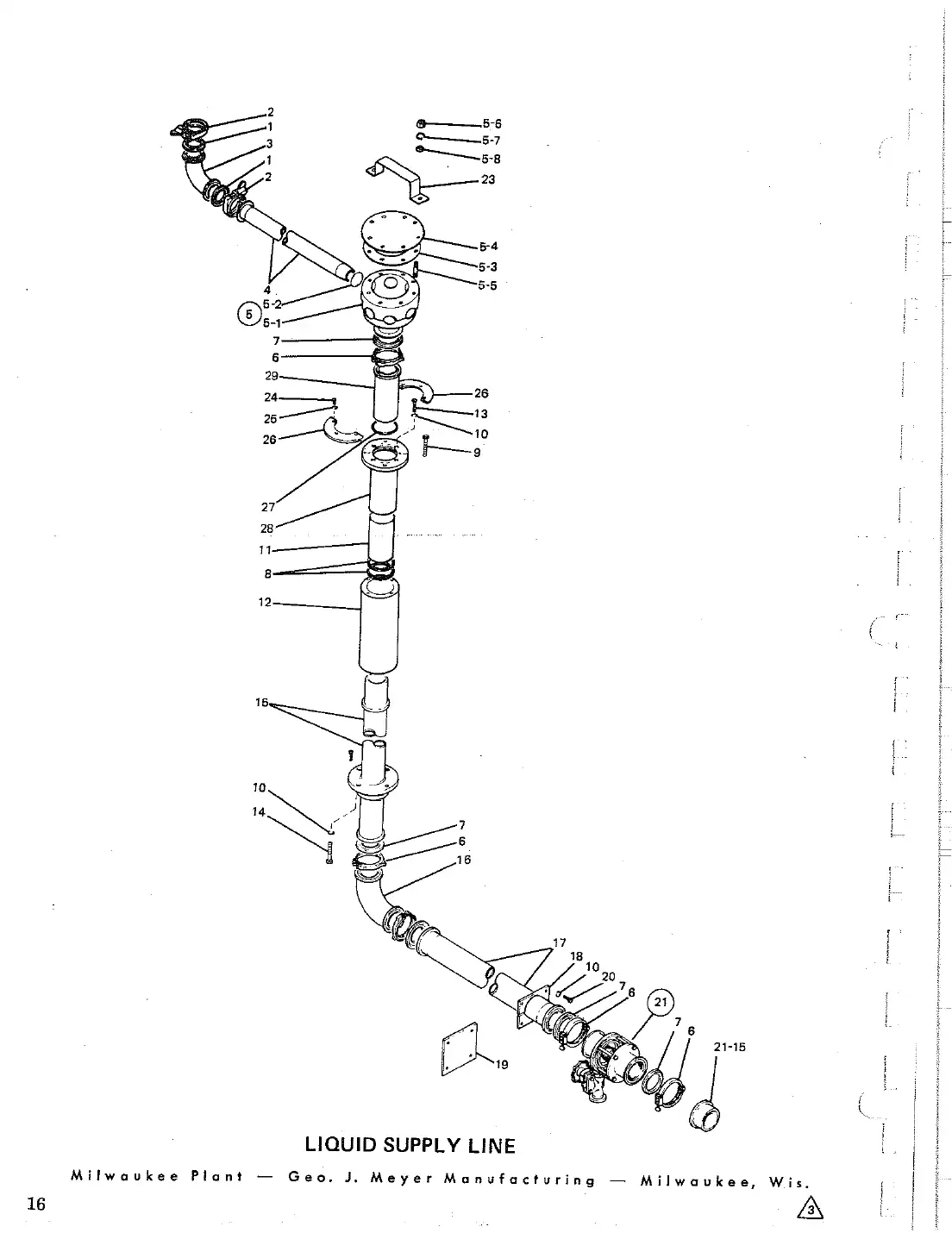

18	131-1816	Cover, split	Ask us
19	131-1815	Cover, closed end	Ask us
1	100-21331002133	Gasket, tri-clamp tube	Request
20	102-00651020065	Bolt, hex head	Request
2	100-21421002142	Clamp, hinged sanitary	Request
21	902-1137	Glass, sight assembly	Ask us
3	100-41461004146	Elbow, 90 deg	Request
21-1	902-1140	Seat, ferrule and flange	Ask us
21-2	902-1141	Seat, ferrule and flange	Ask us
21-3	131-4371	Glass, sight	Ask us
21-4	131-4373	Gasket, sight glass	Ask us
5-2	100-40251004025	O-ring	Request
21-5	131-4374	Guard, sight glass	Ask us
5-3	131-7528	Gasket, balance chamber	Ask us
21-6	HH-2153	Stud	Ask us
5-4	131-7529	Cover, balance chamber	Ask us
21-7	102-0585	Nut, hex	Ask us
5-5	102-1281	Stud	Ask us
21-8	100-00271000027	Clamp, hinged sanitary	Request
5-6	102-03331020333	Nut, hex	Request
21-9	100-00281000028	Gasket, tri-clamp	Request
5-7	102-03881020388	Washer, lock	Request
21-10	100-21411002141	Clamp, hinged sanitary	Request
5-8	102-04161020416	Washer, flat	Request
21-11	100-2131	Gasket	Ask us
21-12	902-1143	Strainer assembly	Ask us
21-13	100-0216	Valve	Ask us
8	130-85571308557	Packing ring bevel joint	Request
21-15	100-0025	Ferrule	Ask us
9	102-07941020794	Screw, socket head cap	Request
23	131-7527	Hanger, balance chamber	Ask us
24	102-02861020286	Screw, round head slot	Request
11	131-39841313984	Bushing, product line and can	Request
25	102-03861020386	Washer, lock	Request
26	131-4000	Cover, split ring	Ask us
13	102-00681020068	Bolt, hex head	Request
27	100-41511004151	O-ring, product supply	Request
14	102-07101020710	Bolt, hex head	Request
28	902-09659020965	Gland, stuffing box	Request
16	100-41481004148	Elbow, 90 deg	Request

Filler Bowl

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

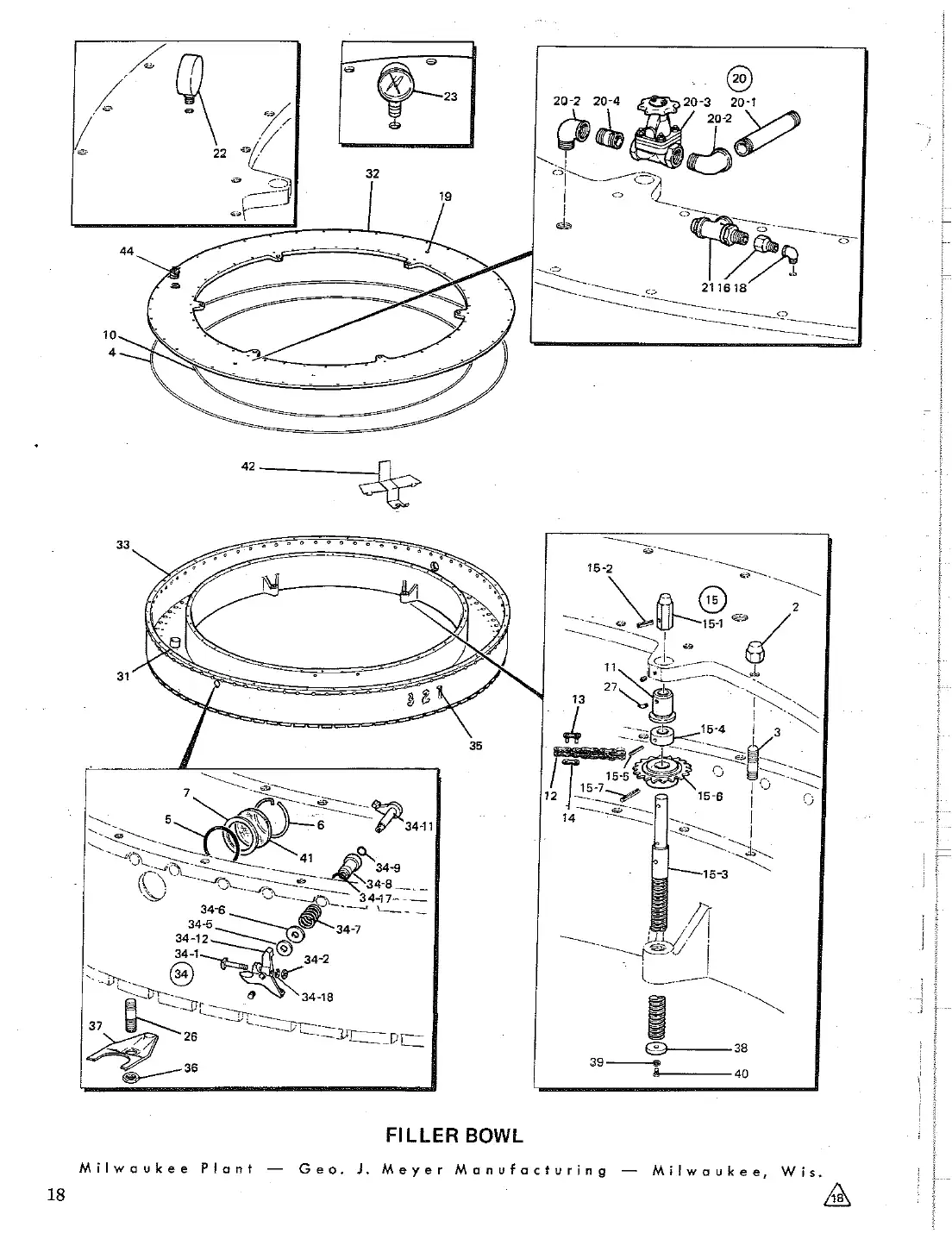

Meyer 88 valve can filler filler bowl drawing

Open full size

Ref	Part number	Description
20-4	100-61131006113	Nipple, close	Request
21	100-4121	Valve, safety blow-off	Ask us
22	100-3387	Gauge	Ask us
2	130-85621308562	Nut, dome	Request
23	100-93951009395-1	Thermometer, filler bowl digital	Request
3	130-85471308547	Stud, bowl cover	Request
4	000-2682	Gasket, outside	Ask us
27	100-4286	Fitting, grease	Ask us
5	100-25071002507	O-ring	Request
31	130-6039	Ferrule	Ask us
6	100-97751009775	Ring, retaining	Request
7	131-1767	Gasket, sight glass	Ask us
11	HH-8321	Bushing	Ask us
12	101-21031012103	Chain, roller	Request
34-2	102-03321020332	Nut, hex	Request
13	101-21041012104	Link, offset	Request
34-5	RR-348RR348	Washer, valve lever outside	Request
14	101-21051012105	Clip, link roller chain	Request
34-6	HH-1005HH1005	Washer, spring	Request
34-7	HH-5696HH5696	Spring, valve lever	Request
15-1	HH-8971	Nut, lift screw	Ask us
34-8	131-74941317494	Bushing, valve lever filler bowl	Request
15-2	100-32171003217	Pin, roll	Request
34-9	100-25111002511	O-ring, edpm, dash	Request
15-3	HH-1248	Screw, lift 34-11 lever	Ask us
15-4	HH-169	Collar, lift screw	Ask us
15-5	100-32181003218	Pin, roll	Request
34-17	101-00881010088	O-ring	Request
15-6	HH-8972HH8972	Sprocket cover lift screw	Request
34-18	102-23011022301	Washer, lock collar	Request
15-7	100-32191003219	Pin, roll	Request
35	101-2237	Numbers, valve	Ask us
16	HH-6406	Valve, adapter	Ask us
36	102-1525	Nut, hex	Ask us
18	100-46601004660	Elbow, street 90 deg	Request
37	132-15451321545	Clamp, valve	Request
19	100-61511006151	Plug, hex drive low pressure	Request
38	132-2094	Washer, stop	Ask us
20	HH-6326	Drain, bowl assembly	Ask us
39	102-03871020387	Washer, lock	Request
20-1	100-75581007558	Nipple	Request
40	102-00671020067	Bolt, hex head	Request
20-2	100-6512	Elbow glass, sight	Ask us
20-3	100-7648	Valve, diaphragm	Ask us
44	101-3062	Plug, pipe	Ask us

10 Nozzle Filling Valve

Contents

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Meyer 88 valve can filler 10 nozzle filling valve drawing

Open full size

Ref	Part number	Description
16	100-4032	O-ring	Ask us
18	135-08281350828	Seal, liquid valve	Request
19	104-63141046314	O-ring, starshaft	Request
1	HH-7170	Valve, charging assembly	Ask us
20	100-40251004025	O-ring	Request
1-1	132-64011326401	Cap, charging valve	Request
21	904-4034	Valve head assembly	Ask us
1-2	100-93201009320	Seal, charging cap	Request
22	102-07431020743	Screw, socket head cap	Request
1-3	132-88111328811	Body, charging valve	Request
2	HH-7211HH7211	Spring, charging valve	Request
23-1	135-5716	Cage, check ball	Ask us
3	100-34821003482	O-ring	Request
5	132-64041326404	Retainer, O-ring	Request
23-3	135-0825	Nut, check ball	Ask us
6	132-63991326399	Collar, guide	Request
7	RR-475RR475	Cage, spring filling valve	Request
8	HH-6487HH6487	Spring, post valve MX-2	Request
10	100-25201002520	O-ring	Request
26	135-1121	Body, snift valve	Ask us
27	100-25181002518	O-ring	Request
12	131-75851317585	Spring, compression conical	Request
28	102-01841020184	Screw, flat head slot	Request
13	135-10071351007	Bushing, snift valve	Request
29	102-2371	Screw, pan head	Ask us
14	100-40381004038	O-ring	Request
30	104-63701046370	Ring, retaining filling valve	Request
15	135-10061351006	Stem, snift valve	Request

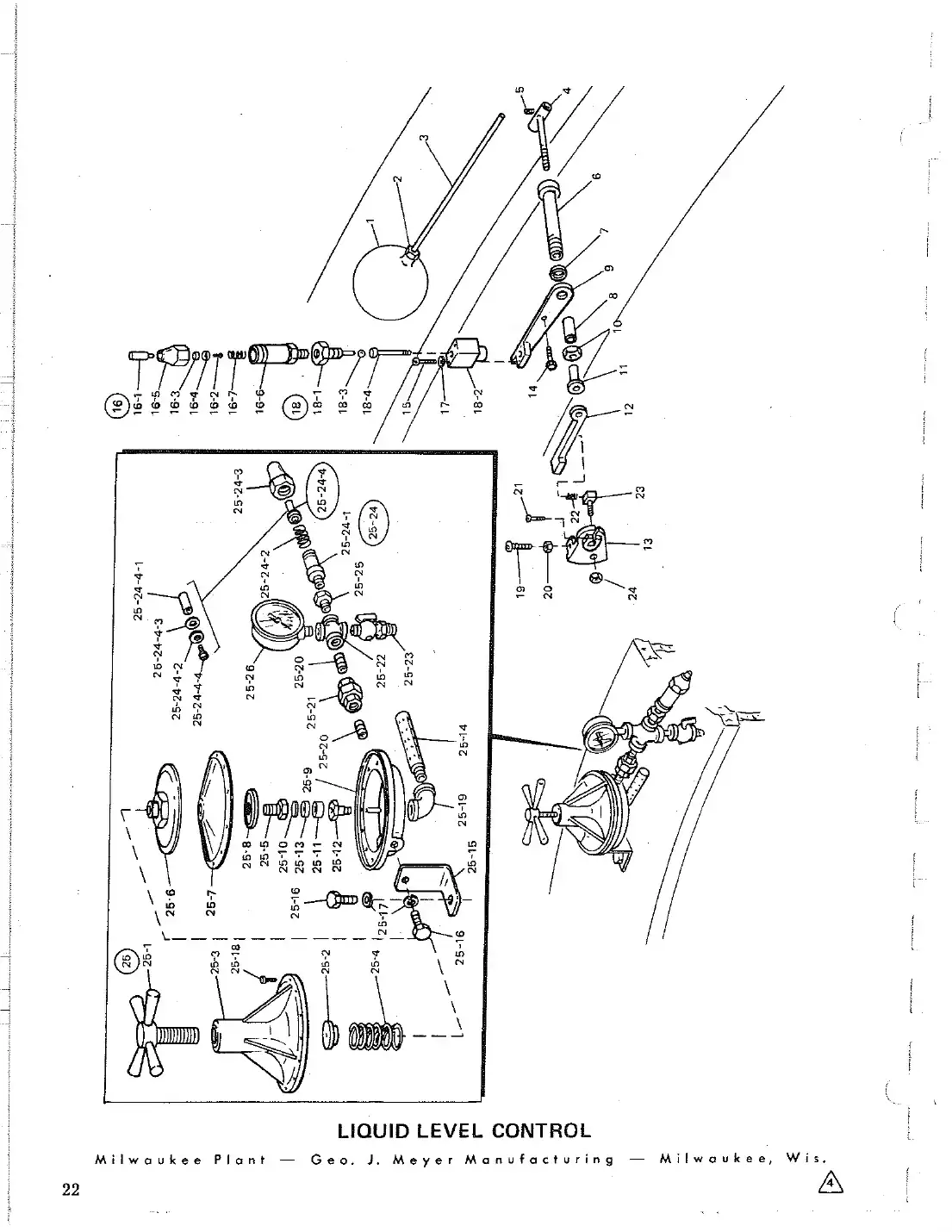

1	HH-300HH300	Ball, float	Request
2	102-03321020332	Nut, hex	Request
3	HH-2515HH2515	Float lever control valve	Request
4	HH-2409HH2409	Stem, valve operating	Request
5	102-04371020437	Screw, set socket cup point	Request
6	131-63321316332	Box stuffing	Request
7	RR-228RR228	Gasket, air inlet valve bo	Request
8	102-14831021483	Packing	Request
10	HH-2414HH2414	Nut, lock stuffing box	Request
13	H-1980H1980	Plate, operating liq level control	Request
14	102-10041021004	Bolt, hex head	Request
15	102-02921020292	Screw, round head slot	Request
25-16	102-00741020074	Bolt, hex head	Request
16	HH-3485HH3485	Valve, body clean out 52V family	Request
25-17	102-03881020388	Washer, lock	Request
16-1	132-64021326402	Stem, snift valve	Request
25-18	102-00761020076	Bolt, hex head	Request
16-2	102-23571022357	Screw, round head	Request
25-19	100-0854	Elbow	Ask us
16-3	RR-647RR647	Seat, snift valve	Request
25-20	100-08901000890	Nipple	Request
16-4	132-64031326403	Retainer, seat snift valve	Request
16-5	RR-88RR88	Nut, snift valve	Request
25-22	100-2754	Cross	Ask us
16-6	HH-3486HH3486	Valve, body clean out family	Request
25-23	100-2929	Cock, air	Ask us
25-24	HH-167HH167	Valve, clean out assembly	Request
17	102-03861020386	Washer, lock	Request
25-24-1	RR-115RR115	Valve, body clean out-sell HH3486	Request
18	HH-8698HH8698	Valve, air body assembly OEM	Request
18-1	131-35551313555	Cage, ball air valve assembly	Request
18-2	HH-8697	Body, air valve	Ask us
25-24-4	902-98279029827	Insert, snift valve assembly B-2	Request
18-3	100-77711007771	Ball float	Request
18-4	HH-2421	Trigger, air check	Ask us
22	HH-2416HH2416	Spring, operating	Request
25-25	100-14311001431	Bushing, reducing hex	Request
25-26	100-3387	Gauge, air pressure	Ask us

Main Drive Star Shaft Housing

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

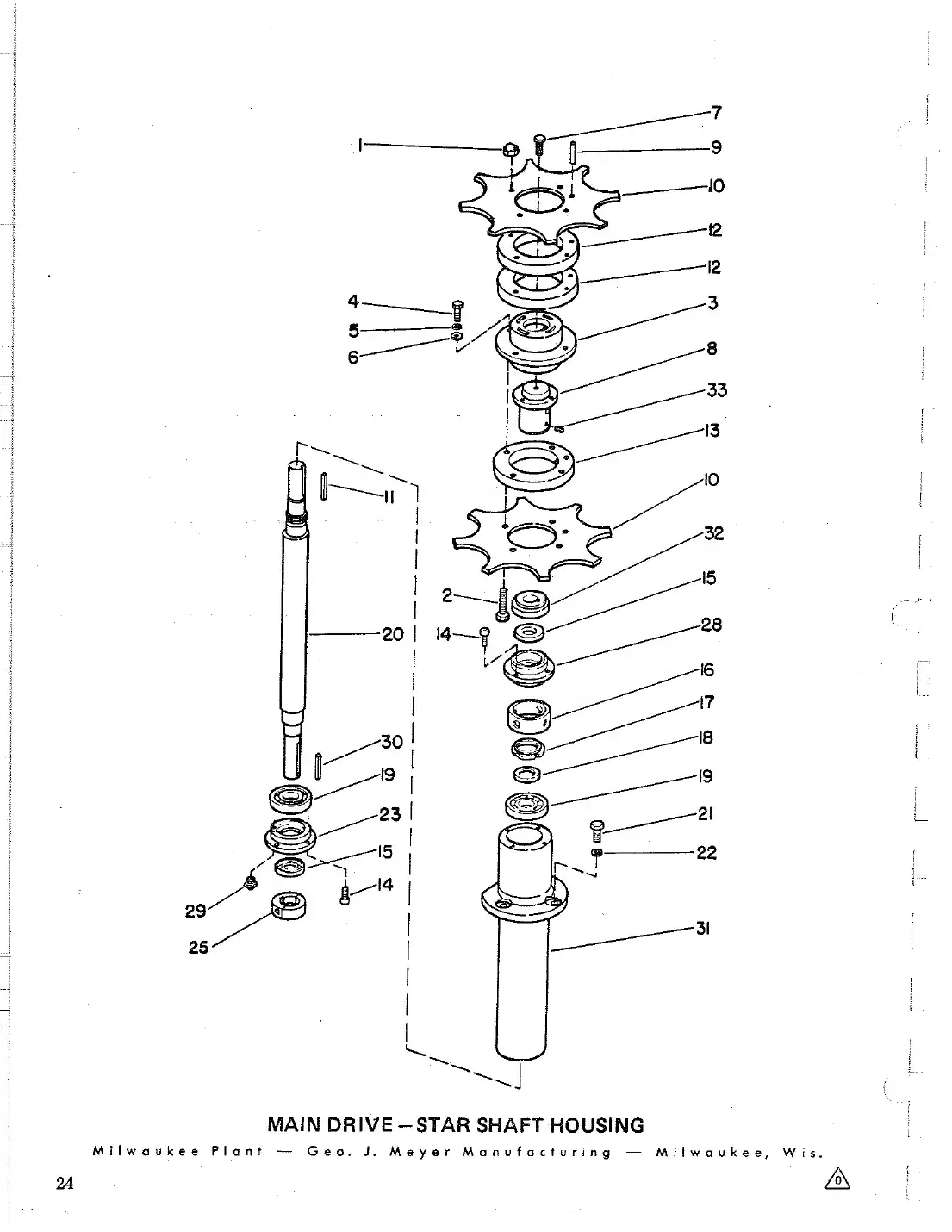

Meyer 88 valve can filler main drive star shaft housing drawing

Open full size

Ref	Part number	Description
14	102-13621021362	Screw, socket head cap	Request
15	101-0621	Seal, oil	Ask us
16	132-4391	Spacer, bearing	Ask us
17	101-0623	Locknut, bearing	Ask us
1	HH-134	Nut, dome	Ask us
18	132-4390	Spacer, bearing	Ask us
2	102-1412	Bolt, hex head	Ask us
19	101-2296	Bearing, ball	Ask us
3	131-85611318561	Hub, star infeed can filler	Request
20	132-6227	Shaft, filler infeed	Ask us
4	102-00891020089	Bolt, hex head	Request
21	102-01011020101	Bolt, hex head	Request
5	102-03891020389	Washer, lock	Request
22	102-03901020390	Washer, lock	Request
6	102-04171020417	Washer, flat	Request
23	132-4393	Cap, bearing end btm	Ask us
7	102-01001020100	Bolt, hex head	Request
25	132-6257	Collar, split	Ask us
8	132-6228	Hub, adapter	Ask us
28	132-4392	Cap, bearing end top	Ask us
9	131-69091316909	Pin, star locating filler	Request
29	100-6628	Fitting, grease	Ask us
30	000-16390001639-3.5	Key, square	Request
11	000-16280001628	Key, square	Request
31	132-6235	Housing, star drive	Ask us
32	132-6185	Spacer, star hub	Ask us
13	132-64311326431-1	Spacer	Request
33	102-04271020427	Screw, set socket cup point	Request

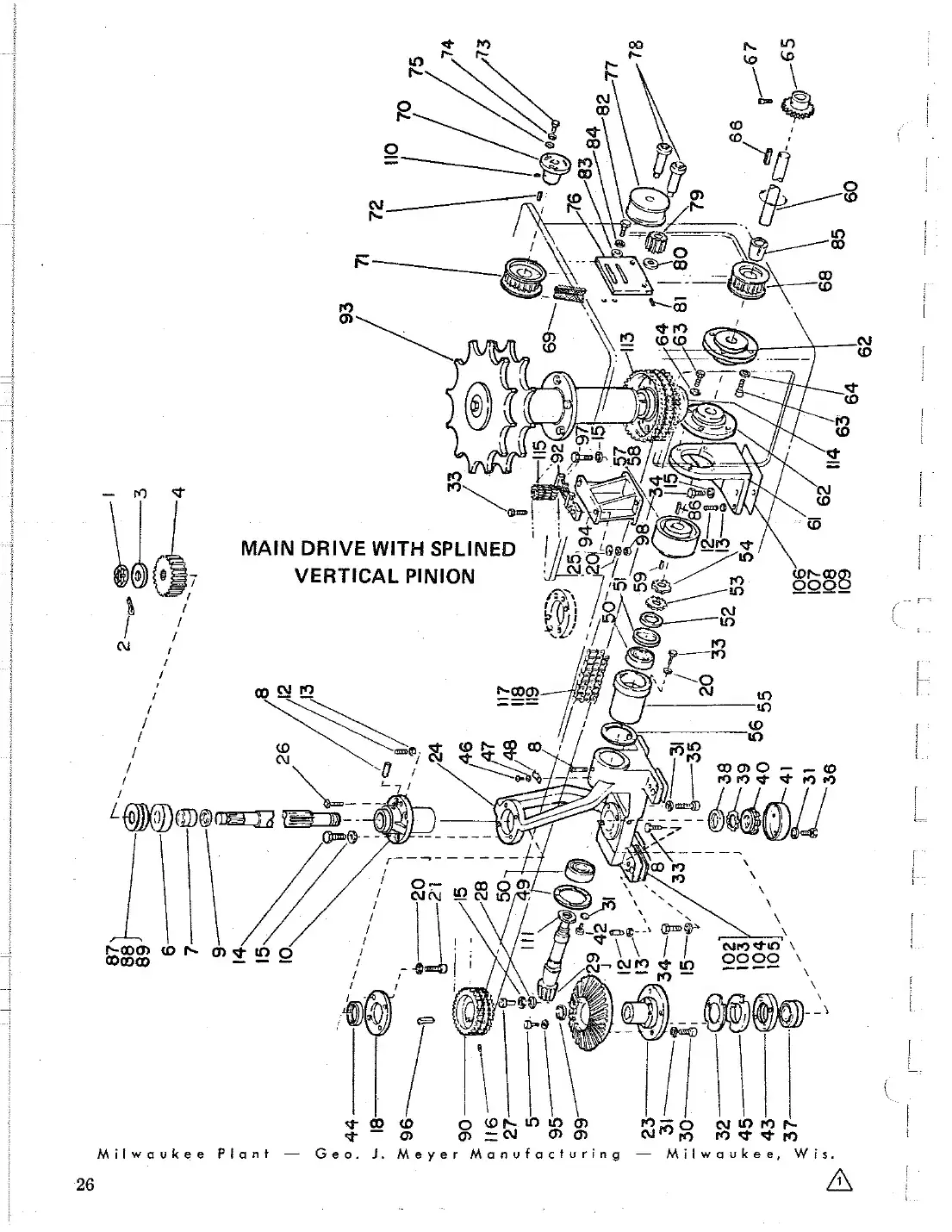

Main Drive with Splined Vertical Pinion

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Ref	Part number	Description
46	102-0269	Screw, round head	Ask us
47	102-0384	Lockwasher	Ask us
48	100-6940	Clamp	Ask us
1	HH-1335HH1335	Nut, pinion drive	Request
50	101-0180	Bearing	Ask us
2	102-05411020541	Pin, cotter	Request
51	101-0183	Seal	Ask us
3	102-22001022200	Washer, flat	Request
52	131-7951	Spacer	Ask us
53	101-01871010187	Washer, lock	Request
5	102-0813	Screw, socket head	Ask us
54	100-37171003717	Nut, lock bearing	Request
55	131-7952	Housing	Ask us
56	131-7953	Shim	Ask us
8	100-2716	Nipple	Ask us
57	101-0131	Coupling	Ask us
58	101-0202	Cover	Ask us
59	000-16390001639-3.5	Key, square	Request
12	131-7013	Pin, taper	Ask us
13	102-0320	Nut, hex	Ask us
61	902-4388	Bracket	Ask us
14	102-00511020051	Bolt, hex head	Request
62	100-02361000236	Bearing, flange piloted	Request
15	102-03811020381	Washer, lock	Request
63	102-1390	Screw, socket head	Ask us
64	102-14431021443	Washer, lock	Request
20	102-03801020380	Washer, lock	Request
65	100-9704	Sprocket	Ask us
21	102-02781020278	Screw, round head slot	Request
66	000-16500001650-1.5	Key, square	Request
67	102-0474	Screw, socket head	Ask us
68	101-2979	Sprocket	Ask us
24	131-7934	Housing	Ask us
69	101-2109	Belt, timing	Ask us
25	102-0371	Washer, flat	Ask us
70	200-6932	Hub	Ask us
26	102-0527	Screw, square head	Ask us
71	132-8249	Sprocket	Ask us
27	102-1432	Screw, socket head	Ask us
72	000-1624	Key	Ask us
28	131-7946	Washer	Ask us
73	102-2898	Screw, hex head	Ask us
74	102-04171020417	Washer, flat	Request
30	102-2789	Screw, socket head	Ask us
75	102-20021022002	Washer, flat	Request
31	102-0379	Lockwasher	Ask us
76	134-1806	Bracket	Ask us
32	131-79451317945	Shim, bevel gear can filler	Request
77	101-2985	Pulley	Ask us
33	102-0028	Bolt, hex head	Ask us
78	134-1805	Shaft-w/collar	Ask us
34	102-0039	Bolt, hex head	Ask us
79	104-5051	Pulley	Ask us
35	102-21781022178	Screw, socket head cap	Request
80	131-71091317109	Spacer, roller	Request
36	102-00151020015	Bolt, hex head	Request
81	102-0824	Screw, socket head set	Ask us
37	101-01851010185	Bearing	Request
82	102-16101021610	Bolt, hex head	Request
38	101-01861010186	Washer	Request
83	102-04181020418	Washer, flat	Request
39	101-01811010181	Washer, lock	Request
84	102-03901020390	Washer, lock	Request
40	101-01821010182	Nut, lock	Request
85	101-2397	Bushing-w/key	Ask us
41	902-45159024515	Cap, grease retainer	Request
42	102-00121020012	Hex head bolt	Request
43	131-79471317947	Ring, bearing retainer	Request
45	134-15421341542	Plate, bevel gear support	Request
92	904-43989044398	Tensioner assembly	Request
107	132-85141328514	Shim, brg support bracket can filler	Request
108	132-85151328515	Shim, brg support bracket can filler	Request
109	132-85161328516	Shim, brg support bracket can filler	Request
110	102-1472	Screw, socket head set	Ask us
95	102-0378	Lockwasher	Ask us
97	102-0037	Bolt, hex head	Ask us
114	101-2175	Bushing, taper lock	Ask us
98	102-0358	Nut, hex	Ask us
115	904-3644	Sprocket, idler	Ask us
99	101-07861010786	Ring, retaining	Request
116	102-0495	Screw, socket head set	Ask us
102	132-85031328503	Shim, main drive shaft can filler	Request
117	100-37561003756	Chain, three strand	Request
103	132-8504	Shim, main drive	Ask us
118	100-37571003757	Link, connecting three str	Request
104	132-8505	Shim, main drive	Ask us
119	100-6266	Link, offset	Ask us
105	132-8506	Shim, main drive	Ask us
106	132-85131328513	Shim, brg support bracket can filler	Request

Brake

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Open full size

Ref	Part number	Description
19	131-0863	Collar, brake shaft	Ask us
20	131-0865	Washer, brake shaft	Ask us
1	900-7231	Housing, brg pinion assembly	Ask us
22	102-00901020090	Bolt, hex head	Request
1-1	130-0937	Housing	Ask us
23	102-03891020389	Washer, lock	Request
1-2	100-2106	Plug, pipe	Ask us
24	102-13541021354	Key, round en	Request
1-3	HH-7318HH7318	Bushing, shaft drive horiz & vert	Request
25	131-0878	Drum, brake	Ask us
1-4	HH-7319HH7319	Bushing, shaft drive horiz & vert	Request
26	100-6962	Element, brake assembly	Ask us
1-5	100-27621002762	Ring, retaining	Request
27	102-00891020089	Bolt, hex head	Request
1-6	100-27631002763	Seal, oil shaft	Request
28	900-72799007279	Support, brake assembly	Request
28-1	900-7280	Plate, brake support	Ask us
5	102-05411020541	Pin, cotter	Request
28-5	131-0868	Gasket	Ask us
28-6	131-0867	Cover	Ask us
28-7	102-03871020387	Washer, lock	Request
28-8	102-00661020066	Bolt, hex head	Request
12	100-08531000853	Elbow	Request
28-9	100-4762	Fitting, grease	Ask us
14	100-2716	Nipple	Ask us
29	000-0791	Pipe	Ask us
15	100-2725	Coupling	Ask us
30	102-13531021353	Screw, socket head cap	Request
31	102-0050	Bolt, hex head	Ask us
17	000-16500001650-1.5	Key, square	Request
32	102-03821020382	Washer, lock	Request
18	102-05251020525	Screw, set square hd	Request
34	100-08731000873	Plug, pipe square. head	Request

Table Top

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

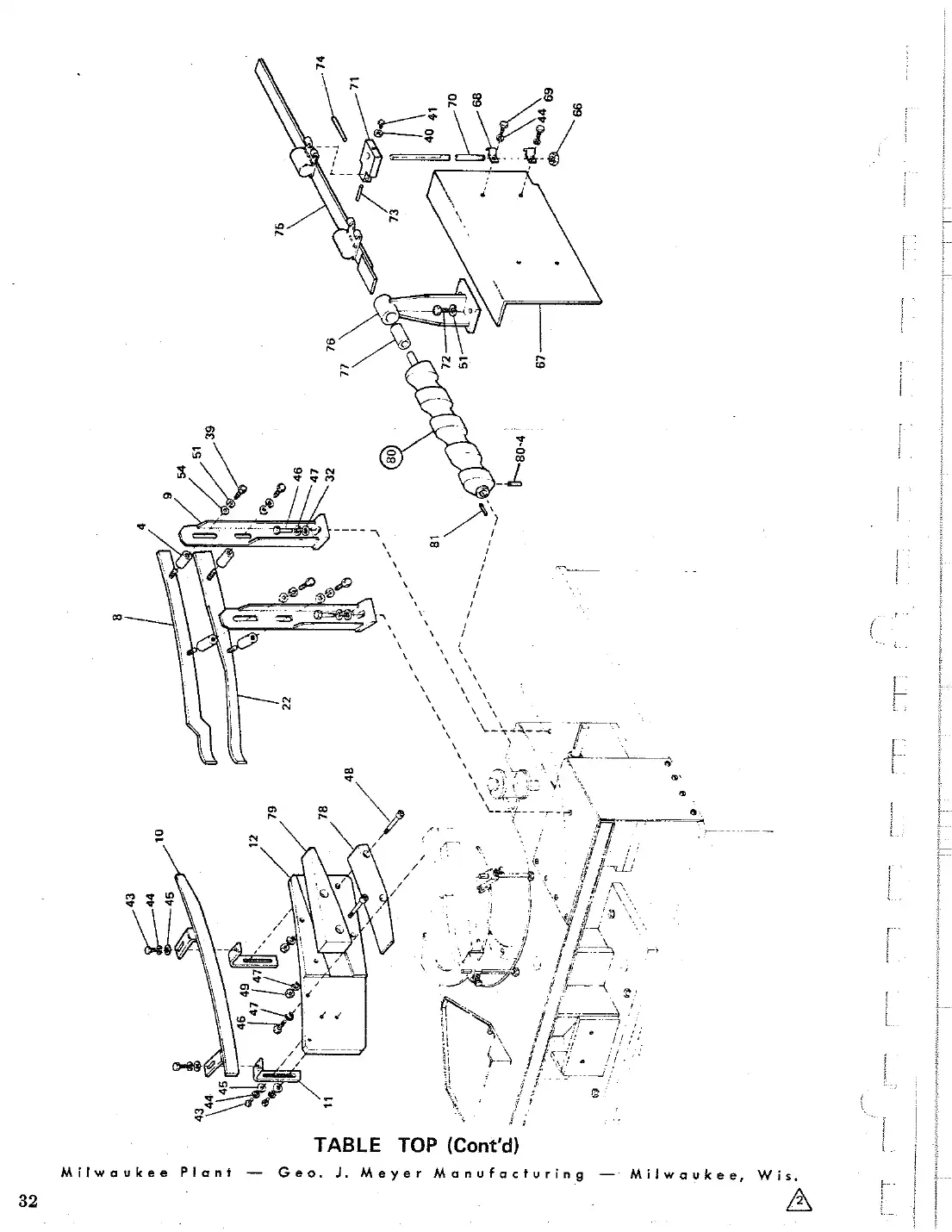

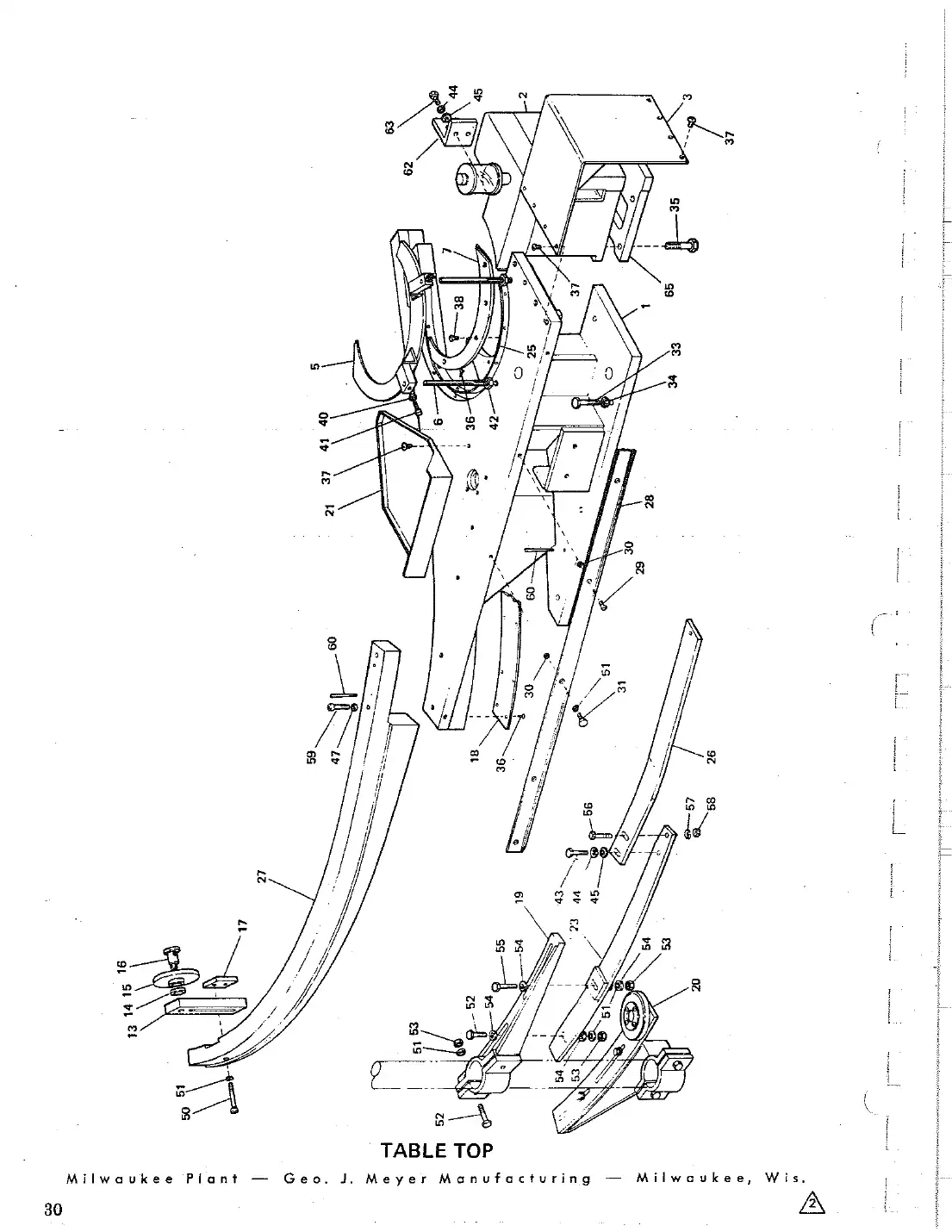

Meyer 88 valve can filler table top drawing

Open full size

Ref	Part number	Description
39	102-00871020087	Bolt, hex head	Request
40	102-03381020338	Nut, hex jam	Request
41	102-1421	Screw, square head set	Ask us
42	102-0742	Nut, jam	Ask us
43	102-00671020067	Bolt, hex head	Request
44	102-03871020387	Washer, lock	Request
45	102-04151020415	Washer, flat	Request
46	102-01011020101	Bolt, hex head	Request
4	134-0322	Spacer, infeed guide	Ask us
47	102-03901020390	Washer, lock	Request
48	102-14131021413	Screw, socket head cap	Request
6	131-6919	Stud, infeed hold down	Ask us
49	102-03351020335	Nut, hex	Request
50	102-1648	Screw, socket head	Ask us
51	102-03891020389	Washer, lock	Request
9	904-2243	Bracket	Ask us
52	102-00921020092	Bolt, hex head	Request
53	102-03341020334	Nut, hex	Request
11	131-7085	Bracket, inner guide	Ask us
54	102-04171020417	Washer, flat	Request
55	102-00951020095	Bolt, hex head	Request
13	131-71081317108	Bracket, bowl support roller	Request
56	102-00771020077	Bolt, hex head	Request
14	131-71091317109	Spacer, roller	Request
57	102-03881020388	Washer, lock	Request
15	131-07311310731	Roller, bowl contact	Request
58	102-03331020333	Nut, hex	Request
16	131-71041317104	Pin, bowl contact roller for all fil	Request
59	102-14871021487	Socket head cap screw	Request
60	131-7013	Pin, taper	Ask us
19	131-7592	Bracket, can guide	Ask us
63	102-00661020066	Bolt, hex head	Request
65	134-1809	Spacer, gearbox	Ask us
66	102-1512	Nut, hex jam	Ask us
21	132-6169	Pan, scavenger	Ask us
67	904-3025	Guard, timing screw	Ask us
68	100-7016	Clamp	Ask us
69	102-00651020065	Bolt, hex head	Request
70	134-1803	Stud, infeed hold down bkt	Ask us
71	134-1804	Bracket adj	Ask us
72	102-00891020089	Bolt, hex head	Request
73	102-09841020984	Pin, roll	Request
74	102-1859	Pin, roll	Ask us
75	904-3026	Bracket, hold down	Ask us
76	904-2990	Bracket, timing screw	Ask us
32	102-04181020418	Washer, flat	Request
77	100-2345	Bushing	Ask us
33	102-2009	Bolt, hex head	Ask us
34	102-03911020391	Washer, lock	Request
35	102-01041020104	Bolt, hex head	Request
36	102-01831020183	Screw, flat head slot	Request
80-4	102-04291020429	Screw, set socket cup point	Request
37	102-02941020294	Screw, round head slot	Request
81	000-1624	Key	Ask us
38	102-01911020191	Screw, flat head slot	Request
2	101-32461013246	Connector, straight np	Request
3	000-35190003519	Tubing, poly-flo	Request
4	100-1485	Elbow	Ask us
6	131-7964	Clamp, tube	Ask us
7	102-02951020295	Screw, round head slot	Request
8	131-7962	Clamp, pipe	Ask us
12	100-2571	Cock, air	Ask us

Timing Screw Gearbox

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

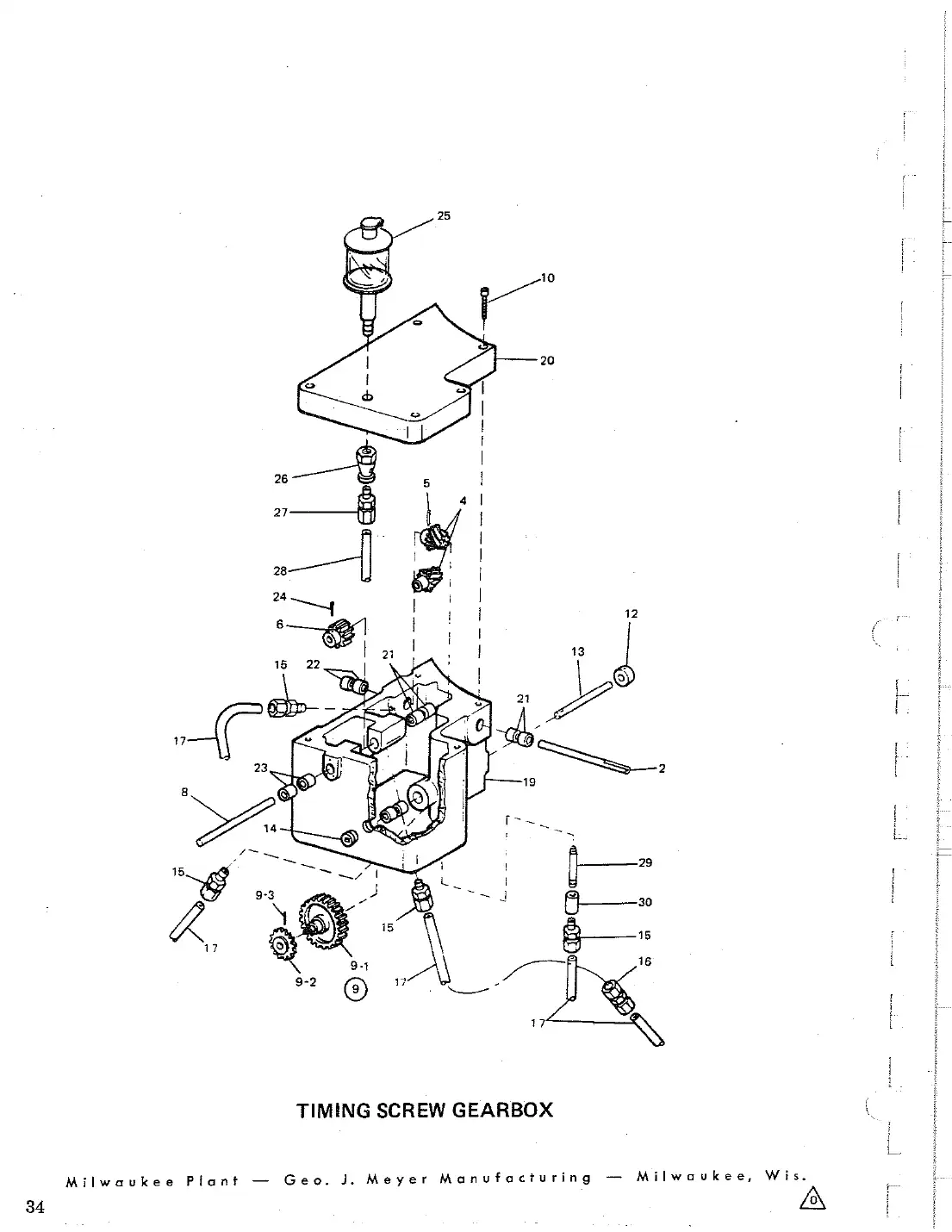

Meyer 88 valve can filler timing screw gearbox drawing

Open full size

Ref	Part number	Description
14	100-11541001154	Plug, pipe, internal hex drive	Request
15	100-09231000923	Fitting, tube	Request
16	100-16351001635	Coupling, tube	Request
17	000-17500001750	Tubing	Request
2	HH-6773	Shaft, drive	Ask us
19	H-2704	Box, gear	Ask us
4	HH-1545	Gear, mitre	Ask us
5	102-1397	Pin, taper	Ask us
21	100-2345	Bushing, sleeve	Ask us
6	HH-6718	Pinion, conveyor drive	Ask us
22	HH-6774HH6774	Bushing	Request
8	200-6931	Shaft	Ask us
23	100-23621002362	Bushing, sleeve	Request
24	102-14901021490	Pin, taper	Request
9-1	131-6242	Gear, conveyor drive	Ask us
25	100-49271004927	Oiler, gravity feed	Request
26	100-27901002790	Bushing, reducing hex	Request
27	100-09221000922	Fitting, tube adapter	Request
10	102-08291020829	Screw, socket head cap	Request
28	000-17470001747	Tubing	Request
12	100-0747	Collar, set	Ask us
29	100-2719	Nipple	Ask us
13	HH-6722	Shaft, intermediate	Ask us
30	100-2725	Coupling	Ask us

Infeed Conveyor

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

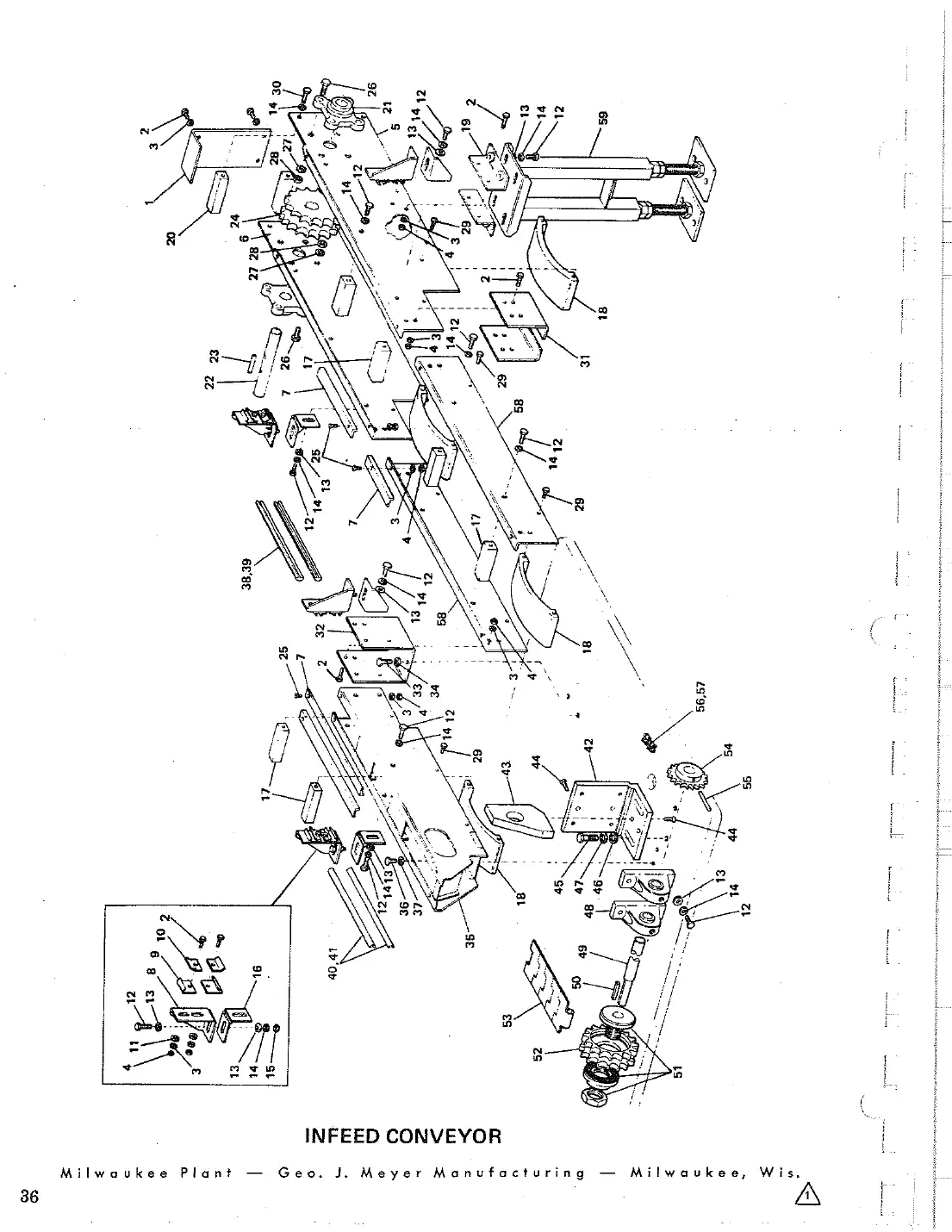

Meyer 88 valve can filler infeed conveyor drawing

Open full size

Ref	Part number	Description
29	102-2296	Screw, hex head	Ask us
30	102-00871020087	Bolt, hex head	Request
31	903-2962	Tie, side support	Ask us
1	133-1387	Cover, end	Ask us
32	134-1745	Bracket, base mounting	Ask us
2	102-00671020067	Bolt, hex head	Request
33	102-01001020100	Bolt, hex head	Request
3	102-03871020387	Washer, lock	Request
34	102-03901020390	Washer, lock	Request
4	102-03321020332	Nut, hex	Request
35	904-2989	Frame, conveyor	Ask us
5	133-1386	Channel, side	Ask us
36	102-00751020075	Bolt, hex head	Request
6	133-1385	Channel, side	Ask us
37	102-03881020388	Washer, lock	Request
7	000-36980003698	Wearstrip, filler conveyor out	Request
38	000-1421	Rail, guide	Ask us
8	131-1517	Bracket, guide rail	Ask us
39	000-3326	Cover, guide rail	Ask us
9	131-5696	Bracket, guide rail	Ask us
10	131-1718	Bracket, guide rail	Ask us
11	102-04151020415	Washer, flat	Request
42	904-3142	Bracket, conv drive shaft	Ask us
12	102-00891020089	Bolt, hex head	Request
13	102-04171020417	Washer, flat	Request
44	102-02081020208	Screw, flat head slot	Request
14	102-03891020389	Washer, lock	Request
45	102-0907	Screw, hex head	Ask us
15	102-03341020334	Nut, hex	Request
46	102-04191020419	Washer, flat	Request
16	133-1251	Support, guide rail bracket	Ask us
47	102-03911020391	Washer, lock	Request
17	133-0435	Spacer, side channel	Ask us
48	100-0222	Bearing, pillow block	Ask us
18	133-0310	Shoe, return shaft	Ask us
19	903-2961	Tie, side support	Ask us
50	000-1624	Key	Ask us
20	133-1358	Spacer, end cover	Ask us
51	100-9695	Limiter, torque	Ask us
21	101-06021010602	Bearing, conveyor	Request
52	131-84431318443	Sprocket, dwg inde	Request
22	133-2356	Shaft	Ask us
53	100-3599	Chain specify length	Ask us
23	000-16250001625	Key, square	Request
24	100-5125	Sprocket	Ask us
55	100-1852	Pin, roll	Ask us
25	102-01931020193	Screw, flat head slot	Request
56	101-21031012103	Chain, roller	Request
26	102-1492	Screw, hex head	Ask us
57	101-21051012105	Clip, link roller chain	Request
58	133-0291	Frame, side	Ask us
28	102-15331021533	Nut, hex	Request
59	904-3369	Support, conveyor	Ask us
7	102-04201020420	Washer, flat	Request
8	100-8433	Locknut	Ask us
9	102-00921020092	Bolt, hex head	Request
1	131-3418	Bracket, can guard	Ask us
10	102-0365	Nut, hex	Ask us
2	131-5221	Support, cam follower	Ask us
3	100-8443	Fitting, drive type	Ask us
4	131-3417	Roller, stabilizing	Ask us
13	131-5723	Washer, clamp	Ask us
5	131-3425	Spacer	Ask us
14	102-2069	Screw, slotted round head	Ask us
6	100-0675	Cam, bearing follower	Ask us
22	100-9874	Bracket	Ask us
23	100-2966	Regulator	Ask us
24	134-22941342294	U-bolt, pipe	Request
1	131-7566	Panel, instrument	Ask us
25	100-3636	Nipple	Ask us
2	100-1485	Elbow, street	Ask us
27	100-79991007999	Nameplate, lift cylinders	Request
3	100-4917	Valve, check	Ask us
28	100-80001008000	Nameplate, co	Request
5	100-2710	Cock, three-way	Ask us
29	102-1571	Screw, round head drive	Ask us
7	100-31421003142-1	Filter, housing	Request
33	102-00681020068	Bolt, hex head	Request
8	101-0189	Wrench	Ask us
9	100-0893	Nipple, close	Ask us
10	100-08841000884	Tee	Request
11	100-1439	Bushing	Ask us
39	102-1849	Pin, roll	Ask us
12	100-14421001442	Nipple, pipe	Request
40	101-06751010675	Gauge, pressure assembly	Request
13	100-7138	Elbow, union	Ask us
41	100-2748	Elbow	Ask us
14	100-14411001441	Nipple, pipe	Request
42	101-3020	Filter	Ask us
15	100-3634	Nipple	Ask us
43	100-27571002757	Cross, pipe	Request
16	100-3970	Elbow	Ask us
44	100-6937	Bushing	Ask us
18	100-5324	Connector, tube	Ask us
45	100-14311001431	Bushing, reducing hex	Request
19	000-35190003519	Tubing, poly-flo	Request
20	100-53251005325	Elbow, male connector	Request
21	100-47101004710	Regulator, air	Request

Lubrication and Grease Lines

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

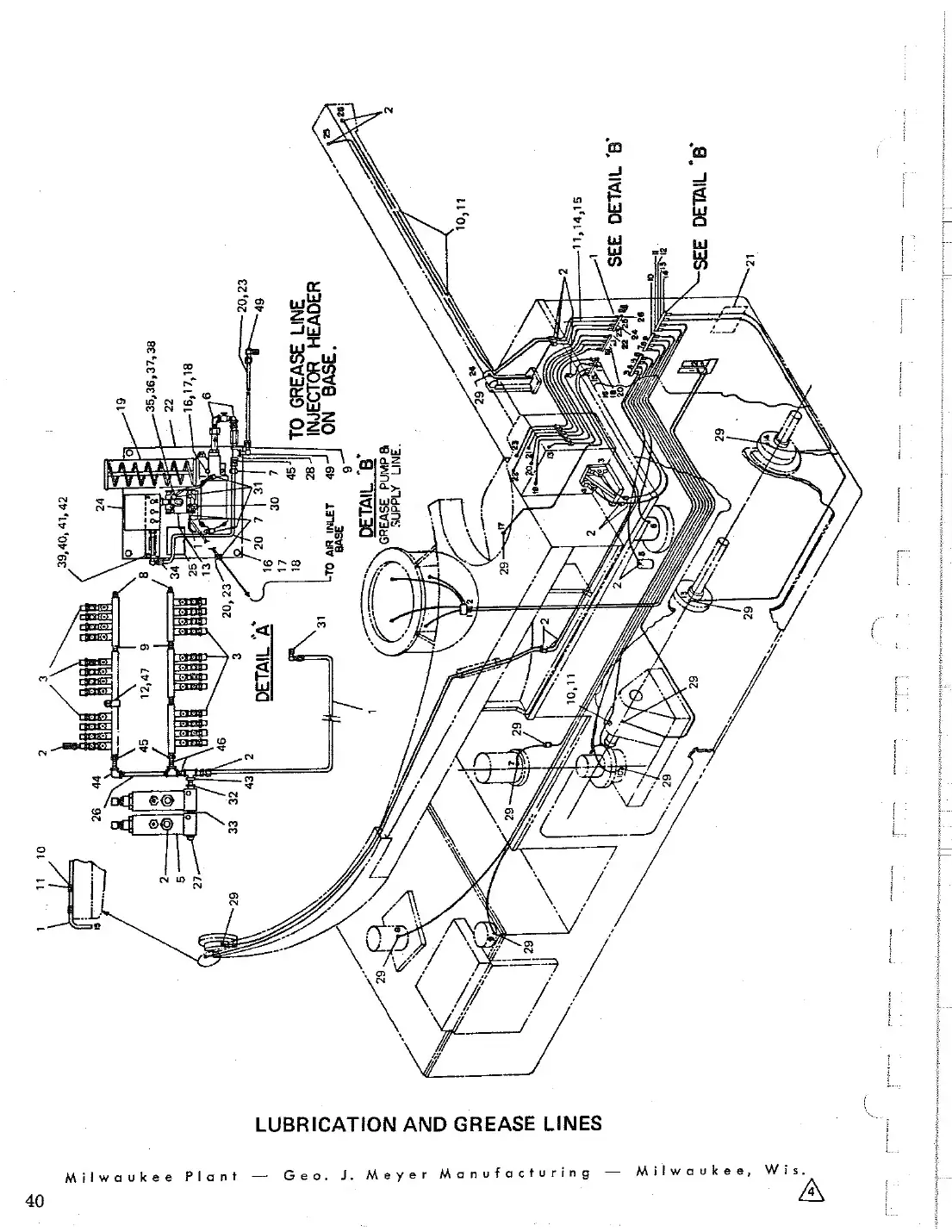

Meyer 88 valve can filler lubrication and grease lines drawing

Open full size

Ref	Part number	Description
24	101-3363	Time	Ask us
25	134-3556	Lube, instructions	Ask us
26	100-2716	Nipple, pipe	Ask us
27	100-08731000873	Plug, pipe square. head	Request
1	000-17500001750	Tubing	Request
28	100-08811000881	Tee	Request
2	100-09231000923	Fitting, tube	Request
29	100-1465	Elbow	Ask us
3	101-3250	Injector, grease	Ask us
30	100-09241000924	Fitting, tube adapter	Request
5	101-3249	Injector, grease	Ask us
31	100-14661001466	Elbow, tube male	Request
6	100-1482	Elbow	Ask us
32	100-14331001433	Bushing, reducing hex	Request
7	100-0928	Connector	Ask us
33	100-08911000891	Nipple	Request
8	100-08721000872	Plug, pipe square head	Request
34	100-1470	Elbow, male	Ask us
9	100-08901000890	Nipple	Request
35	102-07861020786	Bolt, hex head	Request
10	100-7327	Fitting, grease	Ask us
36	102-04151020415	Washer, flat	Request
11	102-02941020294	Screw, round head slot	Request
37	102-03871020387	Washer, lock	Request
12	102-03321020332	Nut, hex	Request
13	101-3362	Valve, air-sol operate	Ask us
39	102-00891020089	Bolt, hex head	Request
40	102-04171020417	Washer, flat	Request
41	102-03891020389	Washer, lock	Request
16	102-01021020102	Bolt, hex head	Request
42	102-03341020334	Nut, hex	Request
17	102-03901020390	Washer, lock	Request
43	100-08801000880	Tee, pipe	Request
18	102-03351020335	Nut, hex	Request
44	100-08531000853	Elbow	Request
19	101-3279	Pump, grease	Ask us
45	100-14311001431	Bushing, reducing hex	Request
20	000-3844	Tube specify length	Ask us
46	100-08991000899	Nipple	Request
21	132-9961	Label, instructions	Ask us
47	000-0791	Spacer pot	Ask us
22	134-2384	Plate, mounting	Ask us
49	100-14691001469	Elbow, tube male	Request
23	100-1637	Union	Ask us

Base and Overhead Piping

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

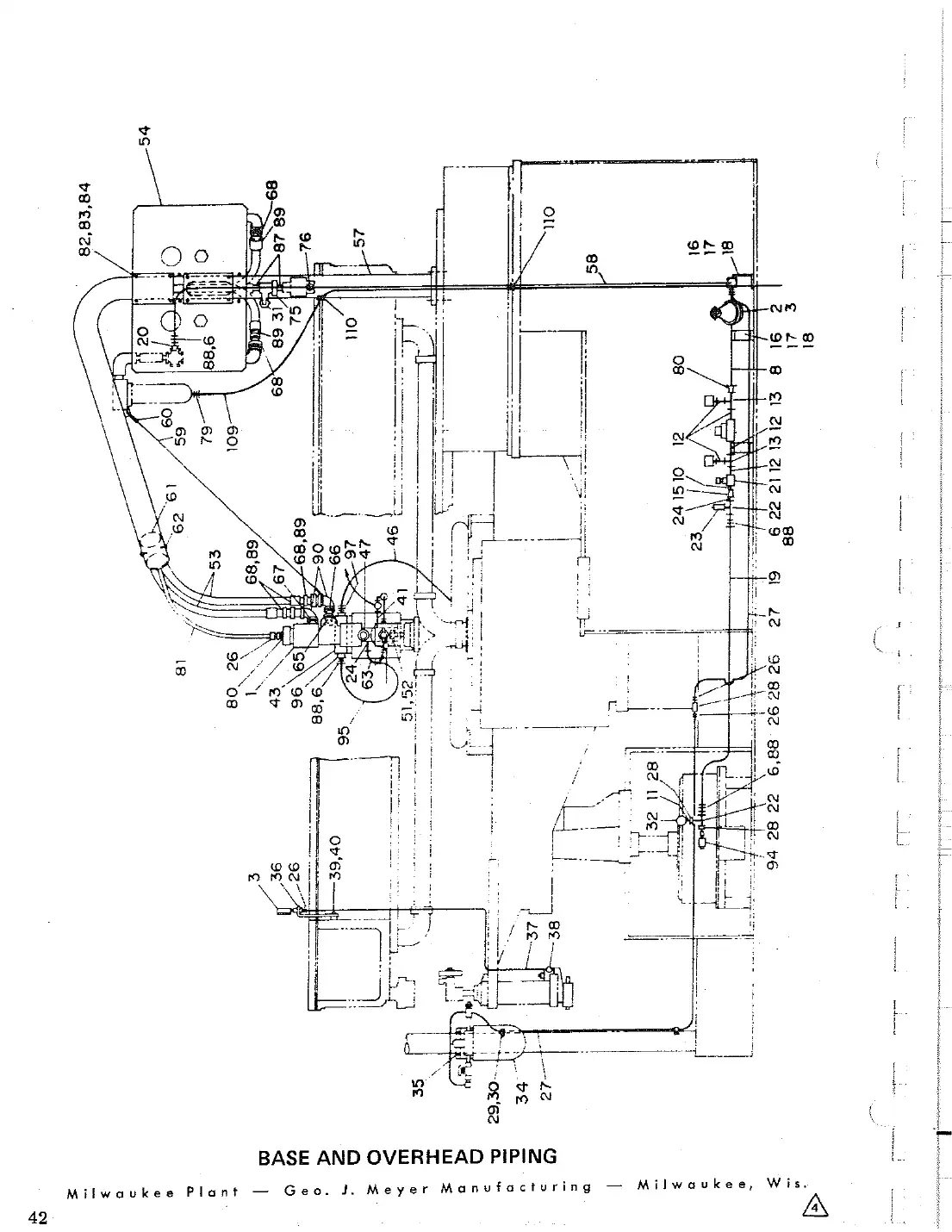

Meyer 88 valve can filler base and overhead piping drawing

Open full size

Ref	Part number	Description
58	100-7197	Hose	Ask us
59	100-4122	Cable	Ask us
2	100-2966	Regulator	Ask us
60	100-0585	Clamp, cable	Ask us
3	100-3387	Gauge, pressure	Ask us
61	131-75651317565	Plug, overhead piping	Request
4	100-1445	Nipple	Ask us
62	102-02851020285	Screw, round head slot	Request
5	100-27921002792	Coupling, reducer	Request
63	100-08561000856	Elbow	Request
6	101-0109	Coupling, hose	Ask us
7	100-08811000881	Tee	Request
65	100-5739	Bushing	Ask us
8	000-0796	Pipe	Ask us
66	100-0905	Nipple	Ask us
9	102-00901020090	Bolt, hex head	Request
10	100-08911000891	Nipple	Request
68	101-01081010108	Fitting, barbed	Request
11	100-08901000890	Nipple	Request
69	101-0107	Elbow	Ask us
70	100-04181000418	Nipple, pipe	Request
13	100-08821000882	Tee	Request
71	100-4917	Valve, check	Ask us
14	100-08721000872	Plug, pipe square head	Request
72	100-6512	Elbow, street	Ask us
16	131-7564	Support, pipe	Ask us
17	100-0356	Clamp	Ask us
18	102-00651020065	Bolt, hex head	Request
20	100-14371001437	Bushing, reducing hex	Request
78	000-35190003519	Tubing, poly-flo	Request
21	101-0110	Valve, flow control	Ask us
79	100-5324	Connector, male	Ask us
22	100-08831000883	Tee	Request
80	100-14321001432	Bushing, reducing hex	Request
23	100-8663	Valve, pressure relief	Ask us
24	100-08921000892	Nipple	Request
82	102-04151020415	Washer, flat	Request
26	101-0105	Connector, male	Ask us
83	102-00691020069	Bolt, hex head	Request
84	102-03321020332	Nut, hex	Request
28	100-14351001435	Bushing, reducing hex	Request
29	100-6940	Clamp, fitting	Ask us
86	RR-228RR228	Gasket, air inlet valve bo	Request
30	102-0267	Screw, round head	Ask us
87	100-61101006110	Nipple, close	Request
31	101-0104	Elbow, male connector	Ask us
88	100-3078	Clamp	Ask us
89	101-0106	Clamp	Ask us
33	100-2726	Coupling	Ask us
90	100-3975	Elbow, reducing	Ask us
34	100-9881	Lubricator, oil fog	Ask us
91	101-0166	Valve, needle control	Ask us
35	100-9235	Clamp	Ask us
93	101-0195	Nozzle, male veejet	Ask us
36	HH-6560	Bracket	Ask us
94	100-4118	Valve, quick release	Ask us
95	000-3386	Hose	Ask us
38	100-53251005325	Elbow, male connector	Request
96	100-1491	Bushing	Ask us
97	100-1490	Bushing	Ask us
40	102-03861020386	Washer, lock	Request
98	100-0893	Nipple, close	Ask us
99	904-0529	Bracket	Ask us
43	904-1536	Lubricator, constant density	Ask us
100	132-7556	U-clamp	Ask us
44	100-2793	Coupling, reducing	Ask us
101	100-08571000857	Elbow	Request
46	900-4249	Hose assembly	Ask us
47	100-46181004618	Gauge, pressure	Request
103	102-01001020100	Bolt, hex head	Request
48	100-29651002965	Regulator, pressure pilot	Request
104	102-03901020390	Washer, lock	Request
49	130-6290	Plate, mounting	Ask us
105	101-2595	Wye, streamline	Ask us
107	900-4252	Hose assembly	Ask us
51	102-00911020091	Bolt, hex head	Request
108	100-2729	Coupling	Ask us
52	102-03891020389	Washer, lock	Request
53	000-34890003489	Tubing, CO2/air braided hose	Request
128	200-8234	Plate, legend bowl	Ask us

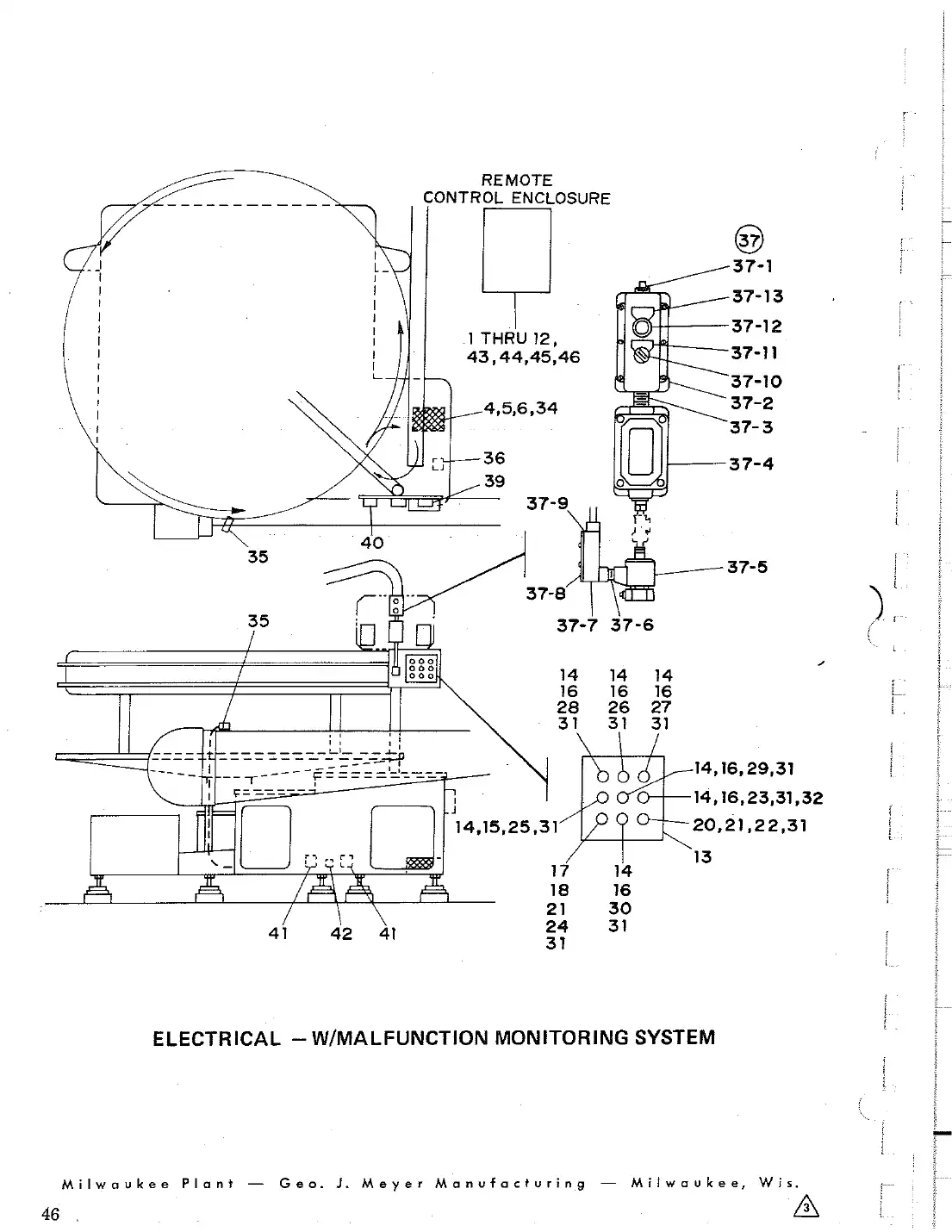

1	100-5227	Enclosure, control	Ask us
2	100-3155	Relay, control with time	Ask us
31	100-0400	Gasket, nameplate	Ask us
3	100-3157	Relay, control	Ask us
32	103-5296	Bulb, flatwasher element	Ask us
4	100-0190	Block, terminal	Ask us
34	100-3496	Enclosure, control	Ask us
5	100-0191	Plate, barrier switch	Ask us
6	100-0193	Clip, retaining	Ask us
36	100-9872	Valve, piston rod lube	Ask us
7	100-6987	Nameplate, electrical warning solenoid	Ask us
9	130-9710	Screwlug, grounding	Ask us
10	100-6715	Plate, fusible barrier	Ask us
11	100-6716	Block, fusible	Ask us
37-3	100-0148	Nipple	Ask us
12	100-3515	Fuse-fnmlo	Ask us
37-4	100-0039	Switch, pressure	Ask us
13	100-3131	Enclosure, pushbutton 37-5 valve	Ask us
14	103-5012	Light, pilot-without lens	Ask us
37-6	100-01411000141	Nipple, conduit close	Request
15	103-5016	Lens, pilot light green	Ask us
37-7	100-0161	Unilet	Ask us
16	103-5017	Lens, pilot light red	Ask us
17	103-5013	Pushbutton, operator	Ask us
37-9	100-0182	Gasket	Ask us
37-10	100-5956	Switch, selector	Ask us
18	103-5022	Lens, pushbutton illuminat	Ask us
37-12	100-4633	Light, pilot	Ask us
20	103-5055	Operator, selector pos	Ask us
21	103-5001	Block, contact	Ask us
39	200-6611	Switch, pressure psi	Ask us
22	100-6942	Plate, legend power off-on	Ask us
40	200-6612	Switch, pressure dps	Ask us
23	103-5788	Plate, legend malfunction	Ask us
41	100-4585	Switch, pressure	Ask us
42	100-5456	Valve, air brake solenoid	Ask us
24	200-8231	Plate, legend hung can rest	Ask us
43	100-6718	Clip, fuse pulling	Ask us
25	100-7411	Plate, legend filler run	Ask us
44	103-51491035149	Relay, 8 pin pl	Request
45	103-5545	Socket, octal base relay	Ask us
5	131-6797	Plate	Ask us
6	102-0132	Screw, slotted flat head	Ask us
7	102-2194	Washer, wave	Ask us
8	102-1780	Screw, set	Ask us
1	131-6796	Bracket	Ask us
9	131-6798	Collar	Ask us
2	131-6800	Block, gauge	Ask us
10	131-6799	Extension	Ask us
3	102-0005	Screw, hex head	Ask us
11	100-9761	Point, contact	Ask us
4	100-9996	Indicator, dial type	Ask us
1	100-7626	Handle, speed	Ask us
2	100-7672	Socket	Ask us
4	101-0150	Rule, depth gage	Ask us
5	100-9021	Socket, thin wall	Ask us
6	100-7343	Tool, cross-bar	Ask us
7	100-7625	Shank, extension	Ask us
9	904-5012	Cleaner, snift valve assembly	Ask us
9-2	HH-1846	Gasket	Ask us
9-3	RR-510	Body	Ask us
9-4	SW-9212	Gasket	Ask us
9-5	RR-507RR507	Valve, snift cleaner rev	Request
9-6	RR-530	Spring, snift valve cleaner	Ask us
9-7	RR-509	Plunger, valve	Ask us
9-8	RR-508RR508	Nut	Request
9-9	135-5539	Gasket	Ask us
11	100-2703	Gun, grease	Ask us
12	904-2789	Pulley, gear	Ask us
13	135-7123	Tool	Ask us
14	135-1239	Socket-mxx	Ask us
9-7	100-7670	Cepheus gallon	Ask us
99	131-4196	Myrex, bag	Ask us

Catalog drawings for this filler

Cleaner exploded drawings and part numbers from our parts catalog for assemblies used on this filler.

Need a part for your 88 valve can filler?

More than 300,000 Meyer parts in inventory, same-day shipping on stocked parts, and technicians with 40+ years of Meyer experience.

Call 843-851-3217 Submit a parts inquiry
