Meyer parts manual

Meyer 40 valve can filler parts manual

Meyer's 40 valve can filler was built in an air-lift version and a later version that shares parts with the newer bottle filler family.

Search all parts Submit a parts inquiry Call 843-851-3217

24assemblies

1,179part numbers

627in our parts list

40 valve can filler: air lift and newer-family versionsmodels covered

How to use this manual. Find the assembly, match the reference number on the drawing to the parts list, and request the part. Parts marked Request are in our parts list; for the rest, ask us and we will track them down. Always give your machine model and serial number when ordering.

Drawings and part numbers come from original Geo. J. Meyer parts manuals and our own parts records, shown for identification. Descriptions are simplified. World Packaging is an independent supplier of Meyer filler parts.

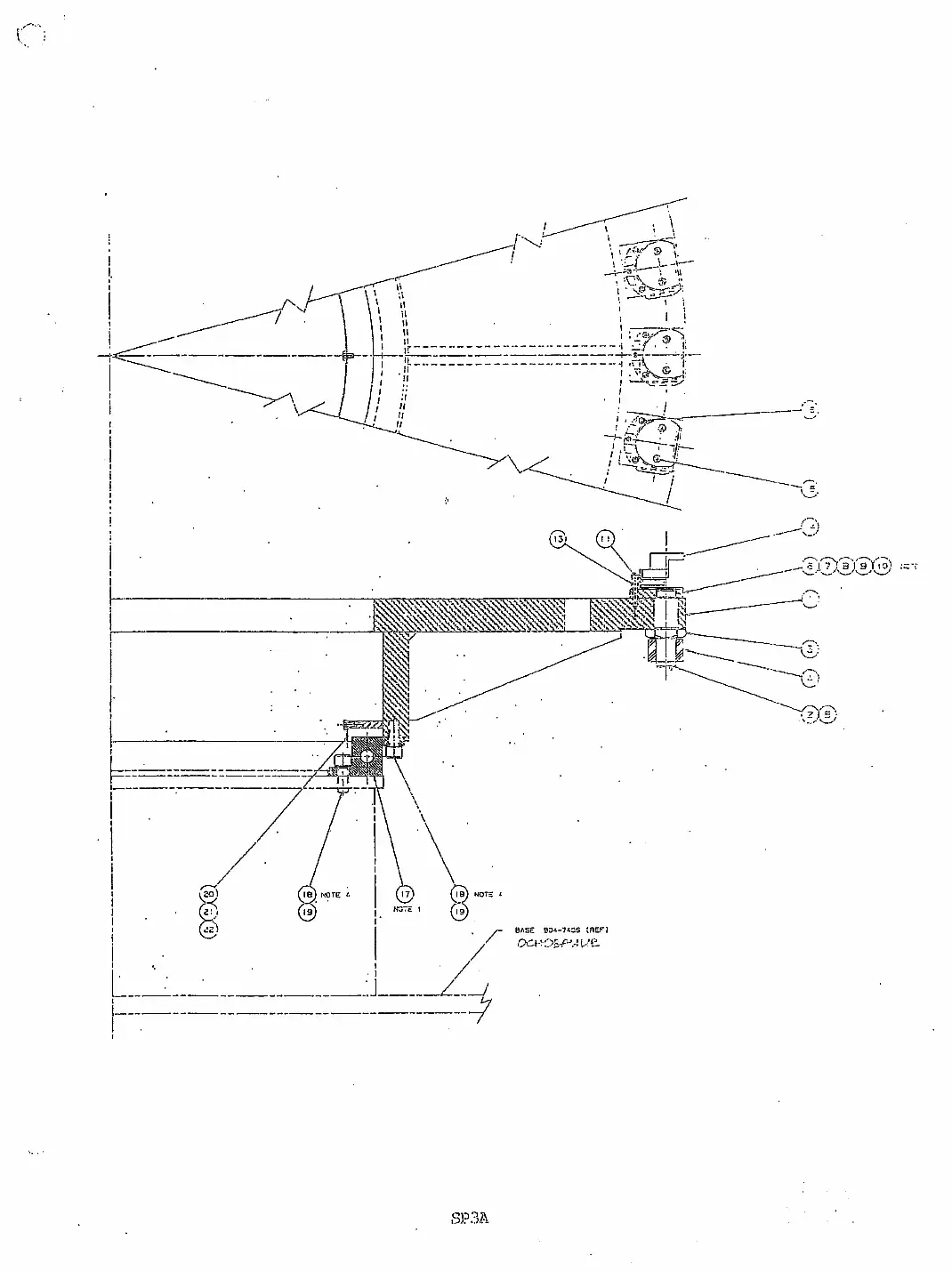

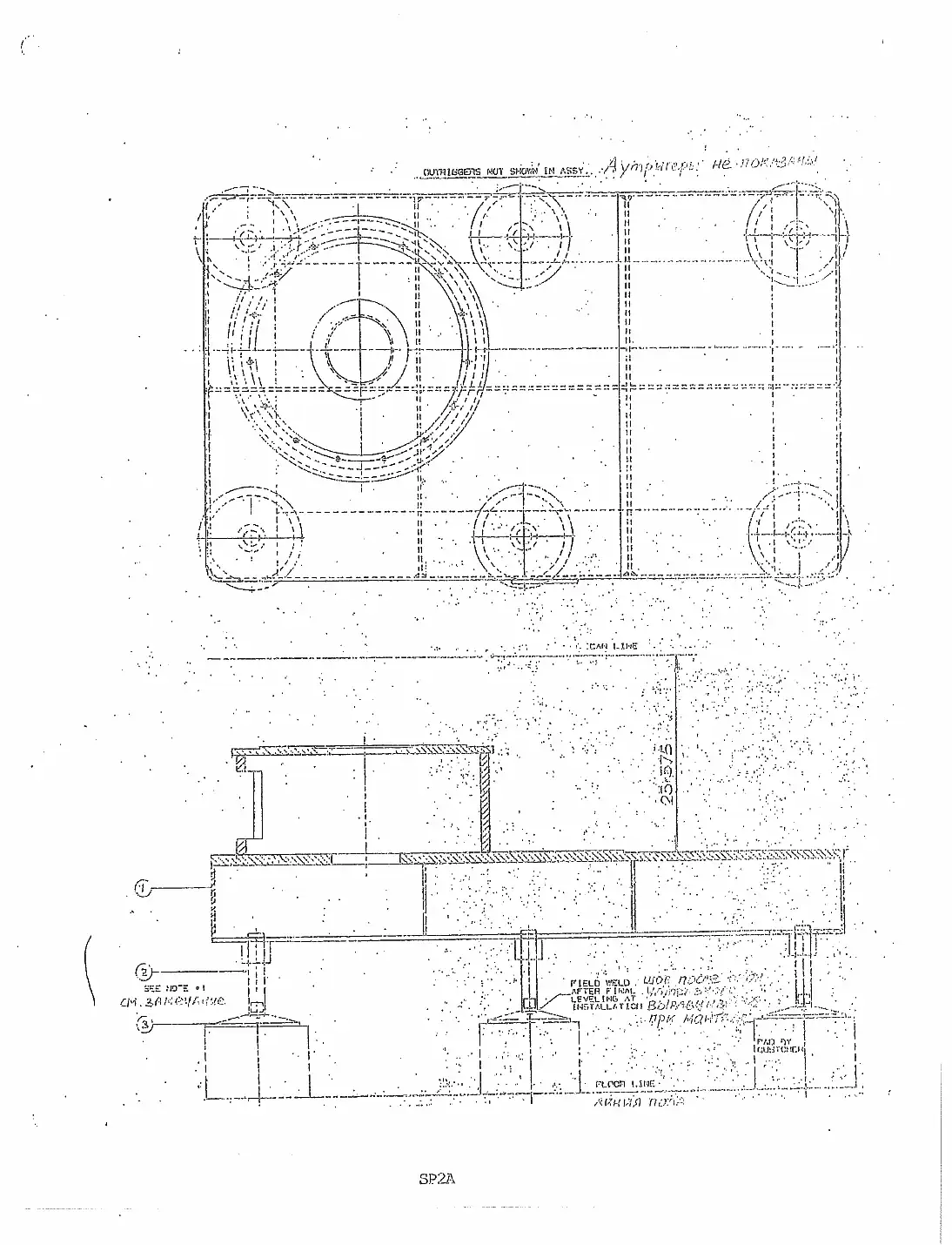

Base and Base Attachments

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

Meyer 40 valve can filler base and base attachments drawing

Open full size

Ref	Part number	Description
6	HH-1344	Screw, jack	Ask us
7	131-1859	Plate, base support	Ask us
8	102-00651020065	Bolt, hex head	Request
9	102-03871020387	Washer, lock	Request
2	902-2694	Door	Ask us
2-3	000-3378	Gasket plate, legal	Ask us
3	902-3648	Door, side	Ask us
13	100-9930	Nameplate	Ask us
14	102-6265	Label, guards	Ask us
15	102-2322	Screw, drive	Ask us

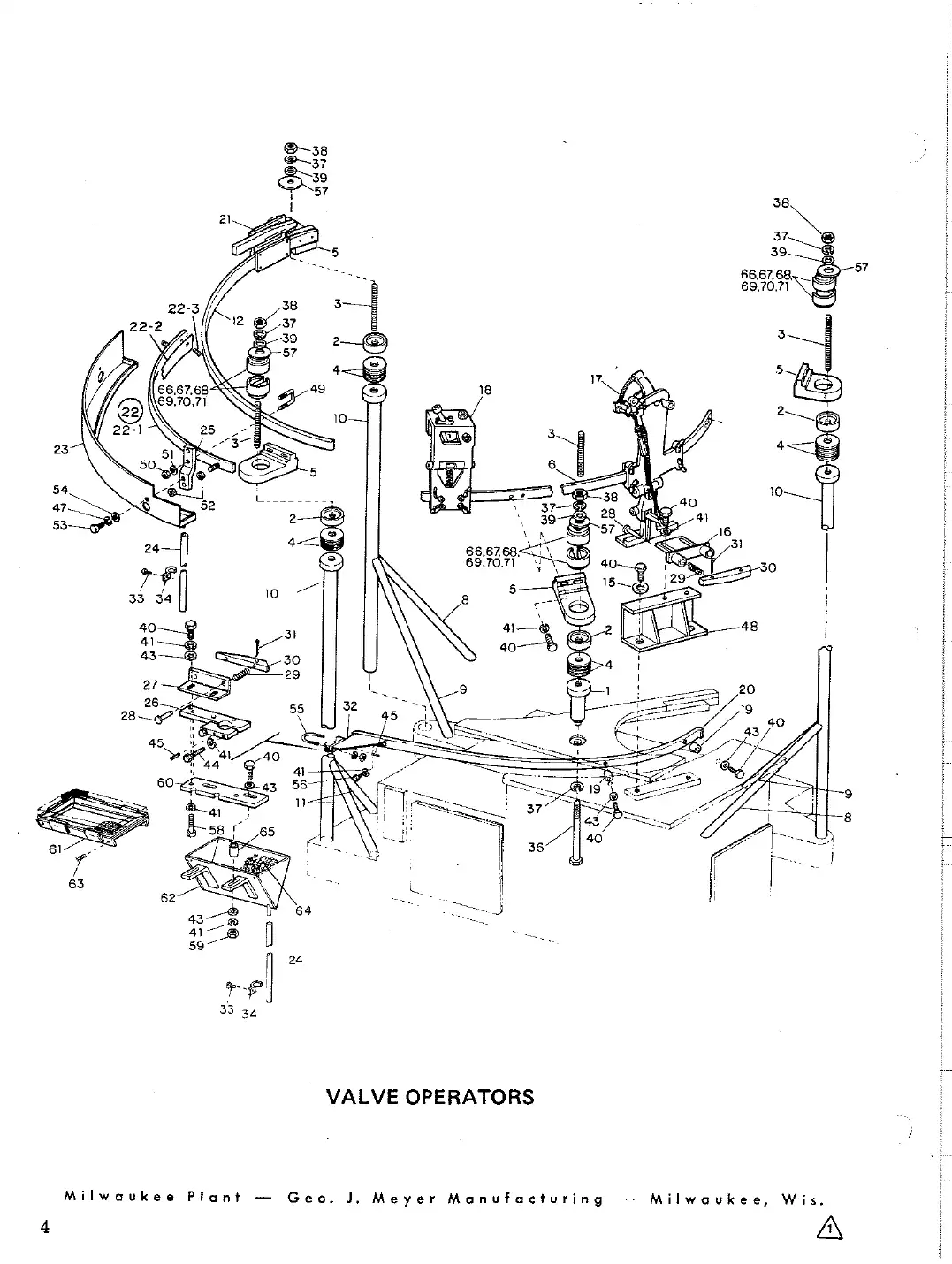

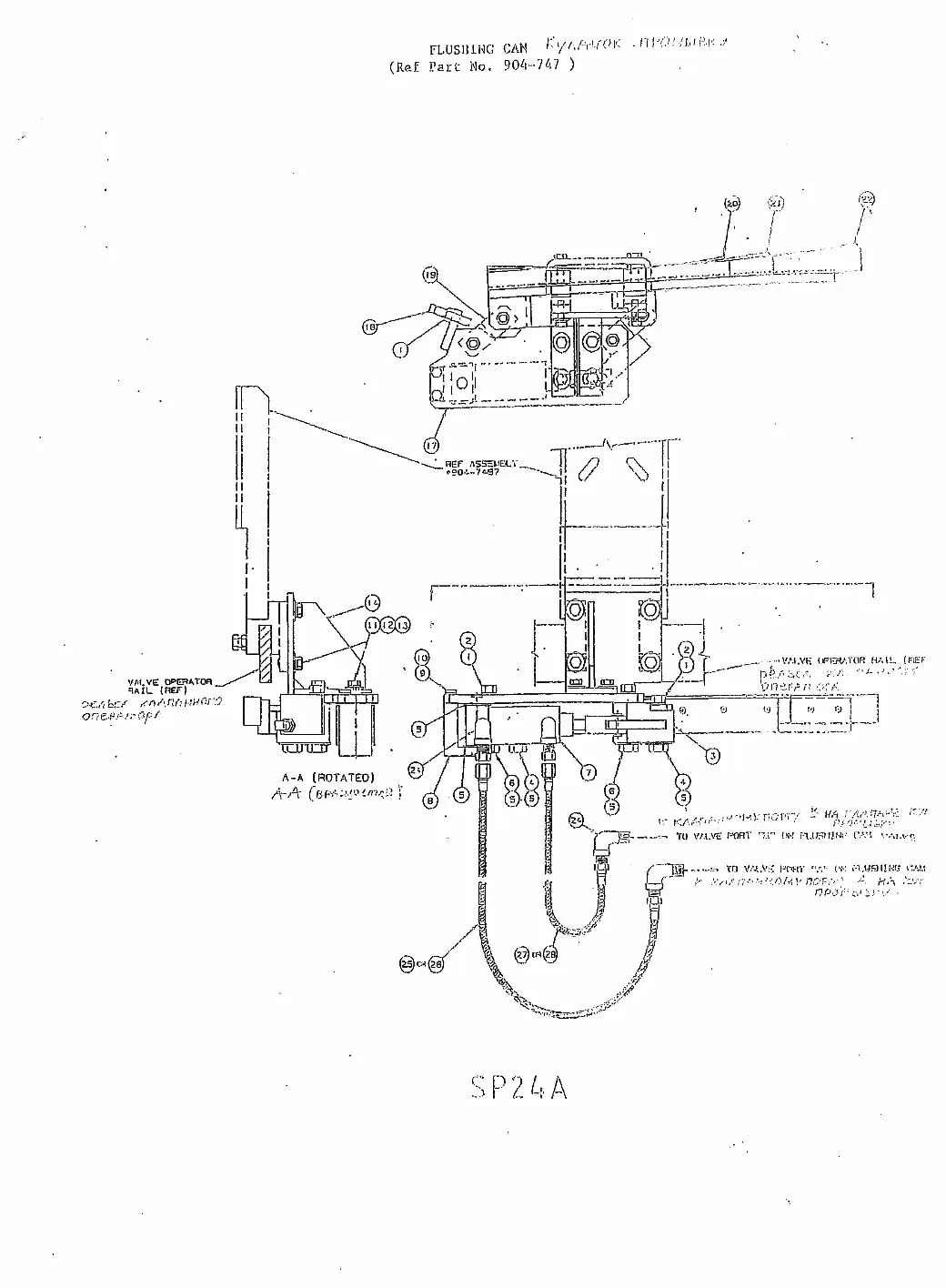

Valve Operators

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer 40 valve can filler valve operators drawing

Open full size

Ref	Part number	Description
32	134-2377	Bracket, safety ring	Ask us
33	102-02941020294	Screw, round head slot	Request
34	100-7016	Clamp, conduit	Ask us
36	102-0037	Screw, hex head	Ask us
37	102-03921020392	Washer, lock	Request
1	131-7439	Post, support	Ask us
38	102-0337	Nut, hex	Ask us
2	131-7070	Spacer, support	Ask us
39	102-04201020420	Washer, flat	Request
3	131-6555	Stud, spacer support	Ask us
40	102-00901020090	Bolt, hex head	Request
4	131-7495	Shim, spacer support	Ask us
41	102-03891020389	Washer, lock	Request
5	131-7471	Bracket, operator ring	Ask us
43	102-04171020417	Washer, flat	Request
44	102-00951020095	Bolt, hex head	Request
8	131-6758	Brace, support post	Ask us
45	102-09861020986	Pin, roll slotted	Request
9	131-6759	Brace, support post	Ask us
46	134-1028	Brace, support post	Ask us
10	902-4223	Post, support	Ask us
47	102-03871020387	Washer, lock	Request
48	904-0549	Spacer, cam spool valve	Ask us
49	HH-157HH157	U-bolt, valve closer	Request
15	131-3084	Washer, flat	Ask us
50	102-03331020333	Nut, hex	Request
16	902-1939	Bracket, opener assembly	Ask us
51	102-04161020416	Washer, flat	Request
52	102-22661022266	Nut, hex nylock insert type	Request
53	102-00671020067	Bolt, hex head	Request
54	102-04151020415	Washer, flat	Request
55	100-9235	Clamp	Ask us
19	000-1858	Spacer, tube	Ask us
56	102-16471021647	Bolt, hex head	Request
57	132-2667	Disc, ring bracket	Ask us
58	102-00881020088	Hex head bolt	Request
22	904-4428	Cam, snift assembly	Ask us
59	102-03341020334	Nut, hex	Request
60	135-1240	Bracket, mounting exhaust tray	Ask us
61	904-4241	Cover, exhaust tray	Ask us
22-3	102-01741020174	Screw, flat head slot	Request
62	904-4240	Tray, exhaust	Ask us
63	102-1150	Screw, pan head	Ask us
24	000-3080	Hose	Ask us
64	104-6401	Wool, steel	Ask us
25	131-9893	Bracket, snift cam	Ask us
65	134-8234	Spacer	Ask us
26	132-7575	Bracket, closer	Ask us
66	134-4298	Spacer, ring support	Ask us
27	902-1784	Bracket, closer angle	Ask us
67	134-4299	Spacer, ring support	Ask us
28	131-54691315469	Pin track	Request
68	134-4300	Spacer, ring support	Ask us
29	131-54681315468	Spring	Request
69	134-4301	Spacer, ring support	Ask us
30	131-54671315467	Track, valve opener	Request
70	134-4302	Spacer, ring support	Ask us
31	102-05741020574	Pin, cotter	Request
71	134-4401	Spacer, ring support	Ask us

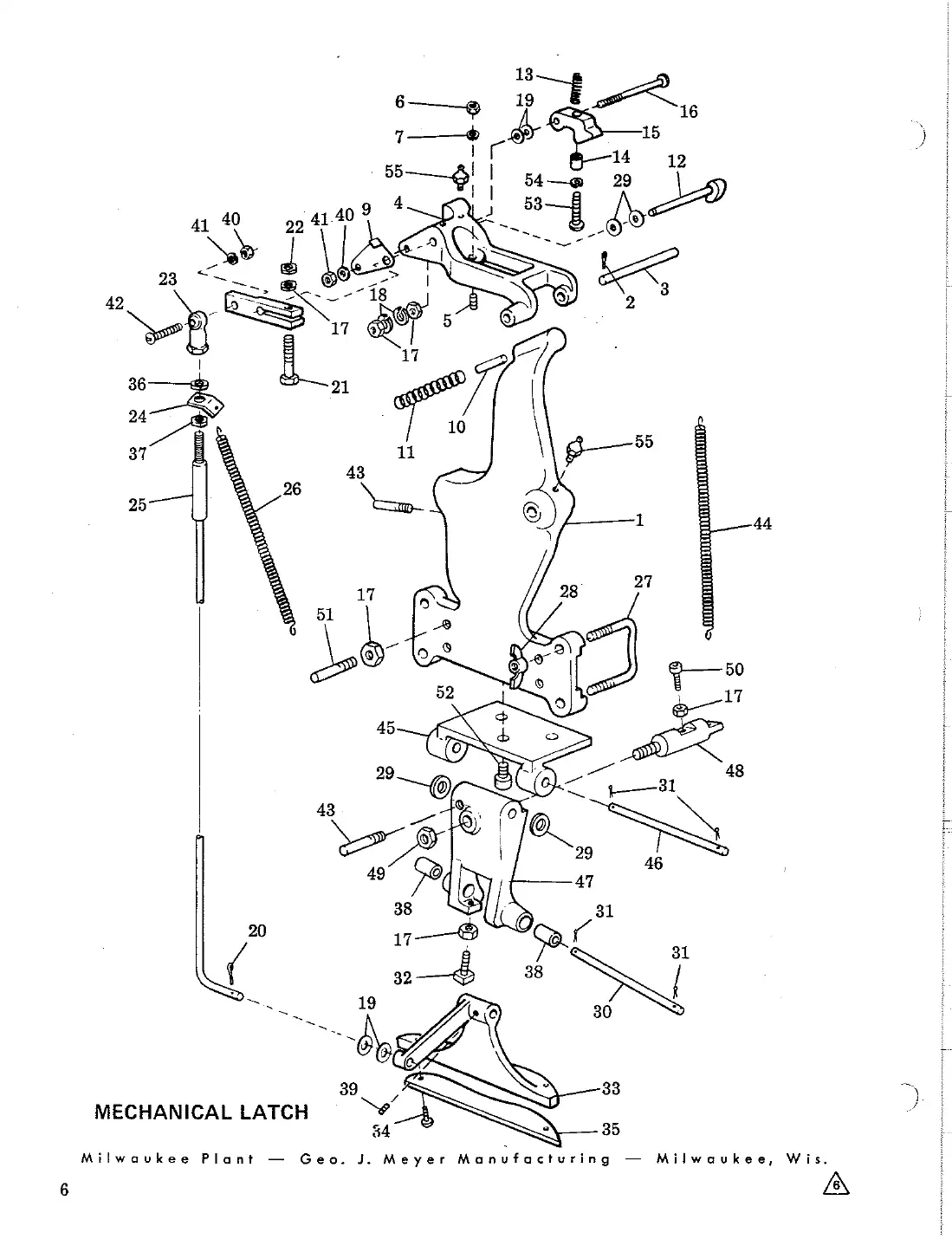

Mechanical Latch

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Ref	Part number	Description
27	HH-157HH157	U-bolt, valve closer	Request
28	102-0711	Nut, wing	Ask us
31	102-10111021011	Pins, cotter	Request
2	102-05741020574	Pin, cotter	Request
32	102-1421	Screw, square head	Ask us
3	HH-2456	Pin, swing bracket	Ask us
34	102-02871020287	Screw, phillips hd	Request
5	102-04521020452	Screw, set socket cup point	Request
6	102-03401020340	Nut, hex jam	Request
36	102-1351	Nut, hex	Ask us
7	102-03891020389	Washer, lock	Request
8	HH-2609	Lever, operating	Ask us
38	100-2329	Bearing, sleeve	Ask us
39	102-04271020427	Screw, set socket cup point	Request
10	HH-2921	Pin, spring retaining	Ask us
40	102-05531020553	Nut, hex	Request
11	RR-624RR624	Spring, swing bracket	Request
41	102-03861020386	Washer, lock	Request
42	102-02911020291	Screw, round head slot	Request
13	HH-1161HH1161	Spring, operating latch	Request
43	HH-6334	Stud, spring	Ask us
44	HH-6234HH6234	Spring	Request
45	131-5680	Hinge, valve operating bkt	Ask us
17	102-03321020332	Nut, hex	Request
18	102-03871020387	Washer, lock	Request
19	RR-273	Washer, plain	Ask us
49	102-03341020334	Nut, hex	Request
20	102-0981	Pin, cotter	Ask us
50	102-09781020978	Screw, socket head cap	Request
21	102-00681020068	Bolt, hex head	Request
51	102-04291020429	Screw, set socket cup point	Request
52	102-13621021362	Screw, socket head cap	Request
23	100-4044	Bearing, rod end	Ask us
54	102-03851020385	Washer, lock	Request
55	100-34211003421	Fitting, grease taper thd	Request
26	HH-6204HH6204	Spring, mechanical latch opener	Request
16	H-2799	Bracket, valve closer cam	Ask us
17	HH-1854	Spring, valve closer	Request
1	131-6597	Bracket, vent tube blow	Ask us
20	902-3292	Lock, neutral	Ask us
2	131-6601	Trigger, vent tube blow	Ask us
21	131-66131316613	Track, valve closer	Request
22	102-04311020431	Screw, set socket cup point	Request
3	130-86191308619	Spring, trigger	Request
23	102-03381020338	Nut, hex jam	Request
4	131-6825	Screw, socket head	Ask us
24	102-07431020743	Screw, socket head cap	Request
5	131-6598	Pin, trigger neutral	Ask us
6	131-6600	Clamp, trigger	Ask us
7	102-1313	Screw, socket head	Ask us
28	102-04261020426	Screw, set socket cup point	Request
29	131-7187	Bar, wear	Ask us
30	102-2217	Screw, socket head set	Ask us
31	102-03361020336	Nut, hex	Request
11	100-07751000775	Fitting, grease male ptf	Request
32	102-04171020417	Washer, flat	Request
12	131-6599	Retainer, trigger	Ask us
34	102-01831020183	Screw, flat head slot	Request
14	130-86171308617	Pin, valve closer hinge	Request
15	130-8603	Washer, flat	Ask us

Valve Closer

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer 40 valve can filler valve closer drawing

Open full size

Ref	Part number	Description
6	134-60011346001	Track, valve closer	Request
7	131-9902	Plate	Ask us
8	102-05741020574	Pin, cotter	Request
9	130-86171308617	Pin, valve closer hinge	Request
1	134-6002	Bracket, valve closer	Ask us
10	131-64561316456	Bracket, valve closer hinge	Request
2	102-03871020387	Washer, lock	Request
11	HH-1854	Spring, valve closer	Request
3	102-0707	Screw, socket head	Ask us
12	102-03381020338	Nut, hex jam	Request
4	102-00781020078	Hex head bolt	Request
5	102-04311020431	Screw, set socket cup point	Request

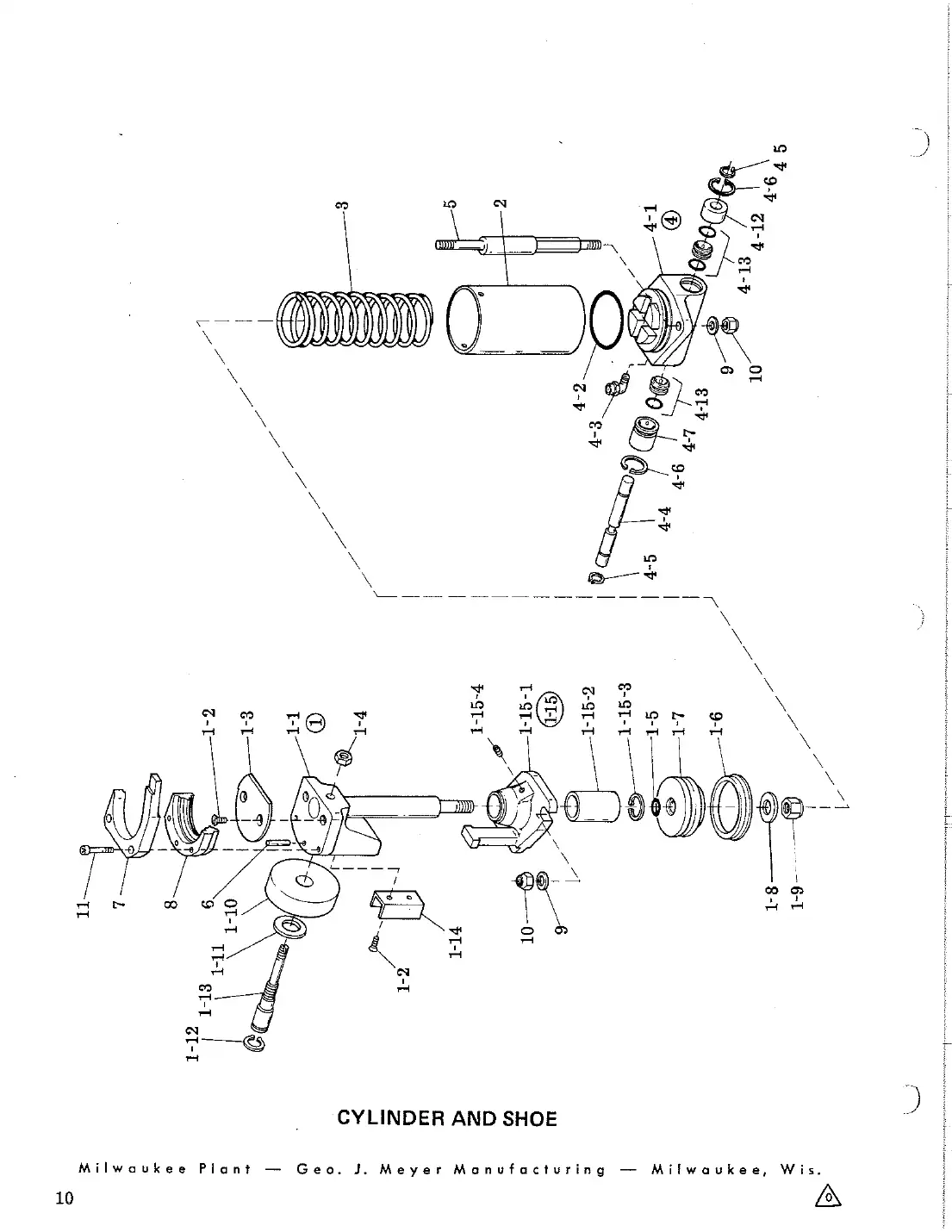

Cylinder and Shoe

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Meyer 40 valve can filler cylinder and shoe drawing

Open full size

Ref	Part number	Description
1-15-2	134-43401344340	Bushing, cylinder cap can filler	Request
1-15-3	101-36391013639	Ring, snap	Request
1-15-4	100-08711000871	Plug, pipe	Request
2	131-75801317580	Cylinder, air lift body can filler	Request
1	904-4583	Piston assembly	Ask us
3	131-76311317631	Spring, lift cylinder	Request
1-1	904-2874	Rod assembly, shoe	Ask us
4	902-43179024317-R	Cylinder, bottom assembly can filler rem	Request
41	131-7578	Cylinder, bottom	Ask us
1-2	102-01831020183	Screw, flat head slot	Request
4-2	101-01181010118	O-ring	Request
1-3	131-42971314297	Plate, wearstrip wear lift	Request
4-3	101-32471013247	Elbow, tube 90 deg	Request
1-4	102-23741022374	Nut, lock	Request
4-4	HH-7014HH7014	Stem, spool valve	Request
1-5	100-81331008133	O-ring	Request
4-5	100-73081007308	Ring, retaining	Request
1-6	101-01151010115	U-cup, airlift cylinder	Request
4-6	100-73091007309	Ring, spirolox	Request
1-7	131-7582	Piston	Ask us
4-7	131-68051316805	Ring, exhaust port	Request
1-8	102-04181020418	Washer, flat	Request
4-12	131-68021316802	Bushing, spool valve	Request
1-9	102-22671022267	Nut, hex nylock insert type	Request
4-13	904-44319044431	Kit, repair spool valves	Request
1-10	131-75811317581	Roller, stirrup cam	Request
5	134-02911340291	Rod, tie short stroke cylinder	Request
1-11	102-2268	Washer, flat	Ask us
1-12	100-38671003867	Ring, retaining external	Request
1-13	131-75841317584	Pin, roller eccentric	Request
1-14	131-75791317579	Bearing, insert cylinder cap	Request
9	102-20021022002	Washer, flat	Request
1-15	904-4582	Cap, cylinder assembly	Ask us
10	102-22661022266	Nut, hex nylock insert type	Request
1-15-1	134-4354	Cap, cylinder	Ask us
11	102-22231022223	Screw, socket head cap	Request

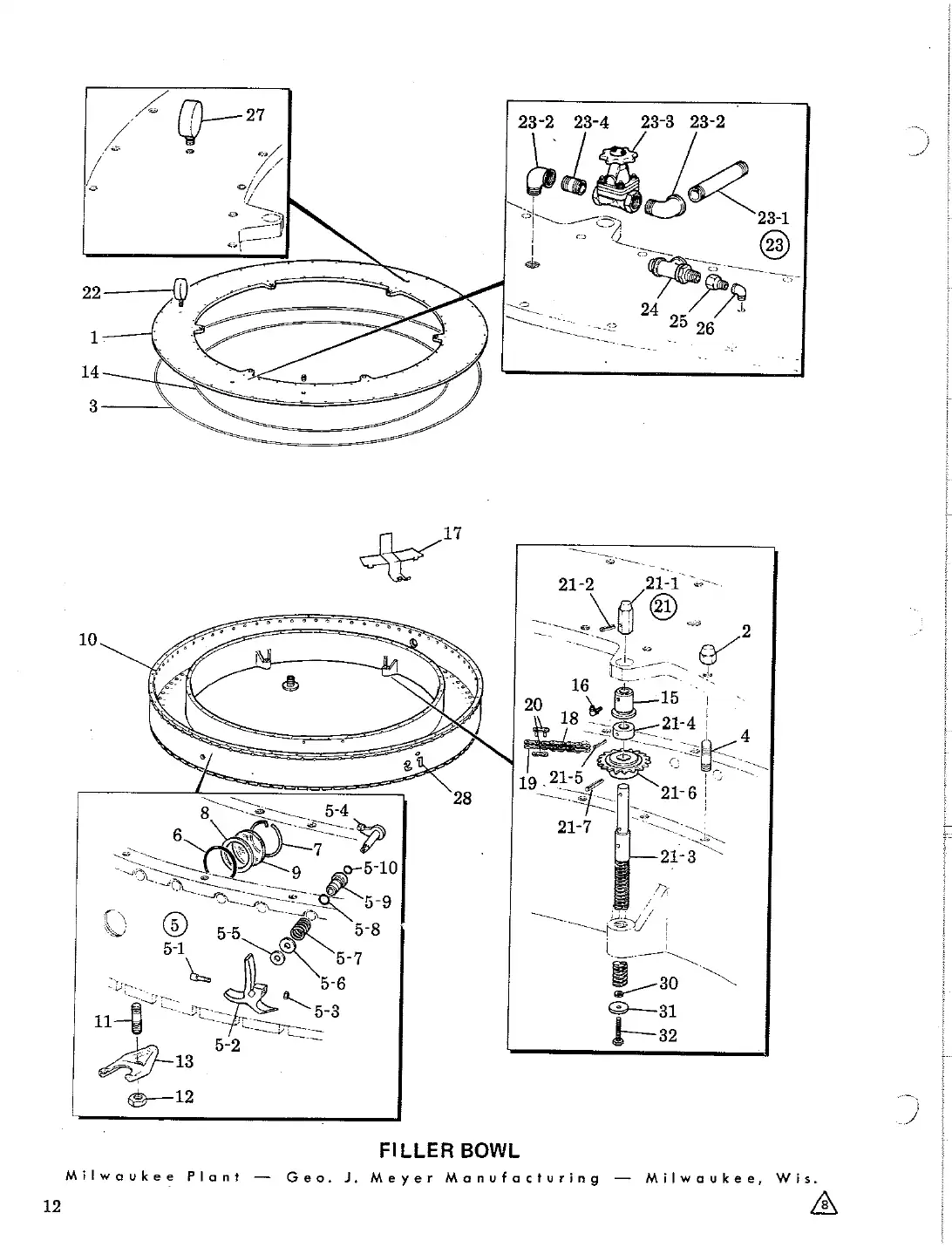

Filler Bowl

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Meyer 40 valve can filler filler bowl drawing

Open full size

Ref	Part number	Description
15	HH-8321	Bushing	Ask us
16	100-4286	Fitting	Ask us
1	131-4381	Cover, bowl	Ask us
18	101-21031012103	Chain, roller	Request
2	130-85621308562	Nut, dome	Request
19	101-21041012104	Link, offset	Request
3	000-2682	Gasket, outside	Ask us
20	101-21051012105	Clip, link roller chain	Request
4	130-85471308547	Stud, bowl cover	Request
21	HH-8974	Screw, lift assembly	Ask us
5	904-5659	Lever, valve assembly	Ask us
21-1	HH-8971	Nut, lift screw	Ask us
5-1	134-70851347085	Bolt, valve lever	Request
21-2	100-32171003217	Pin, roll	Request
5-2	135-8465	Lever, valve opener	Ask us
21-3	HH-1248	Screw, bowl cover lift	Ask us
5-3	102-23901022390	Nut, hex	Request
21-4	HH-169	Collar, lift screw	Ask us
5-4	131-74931317493	Lever, valve inside	Request
21-5	100-32181003218	Pin, roll	Request
5-5	RR-348RR348	Washer, valve lever outside	Request
21-6	HH-8972HH8972	Sprocket cover lift screw	Request
5-6	HH-1005HH1005	Washer, spring	Request
21-7	100-32191003219	Pin, roll	Request
5-7	HH-5696HH5696	Spring, valve lever	Request
22	100-3387	Gauge	Ask us
5-8	101-00881010088	O-ring	Request
23	HH-6326	Drain, bowl assembly	Ask us
5-9	131-74941317494	Bushing, valve lever filler bowl	Request
23-1	100-75581007558	Nipple	Request
5-10	100-25111002511	O-ring, edpm, dash	Request
23-2	100-6512	Elbow	Ask us
6	100-25071002507	O-ring	Request
23-3	100-7648	Valve, diaphragm	Ask us
7	100-97751009775	Ring, retaining	Request
23-4	100-61131006113	Nipple, close	Request
8	131-1767	Gasket, sight glass	Ask us
24	100-4121	Valve, safety blow-off	Ask us
9	131-33601313360	Sight glass	Request
25	HH-6406	Adapter, valve	Ask us
26	100-46601004660	Elbow, street 90 deg	Request
27	100-93951009395-1	Thermometer, filler bowl digital	Request
12	102-1525	Nut, hex	Ask us
28	101-2237	Numbers, valve	Ask us
13	132-15451321545	Clamp, valve	Request
30	132-2094	Washer, stop	Ask us
31	102-03871020387	Washer, lock	Request
32	102-00671020067	Bolt, hex head	Request

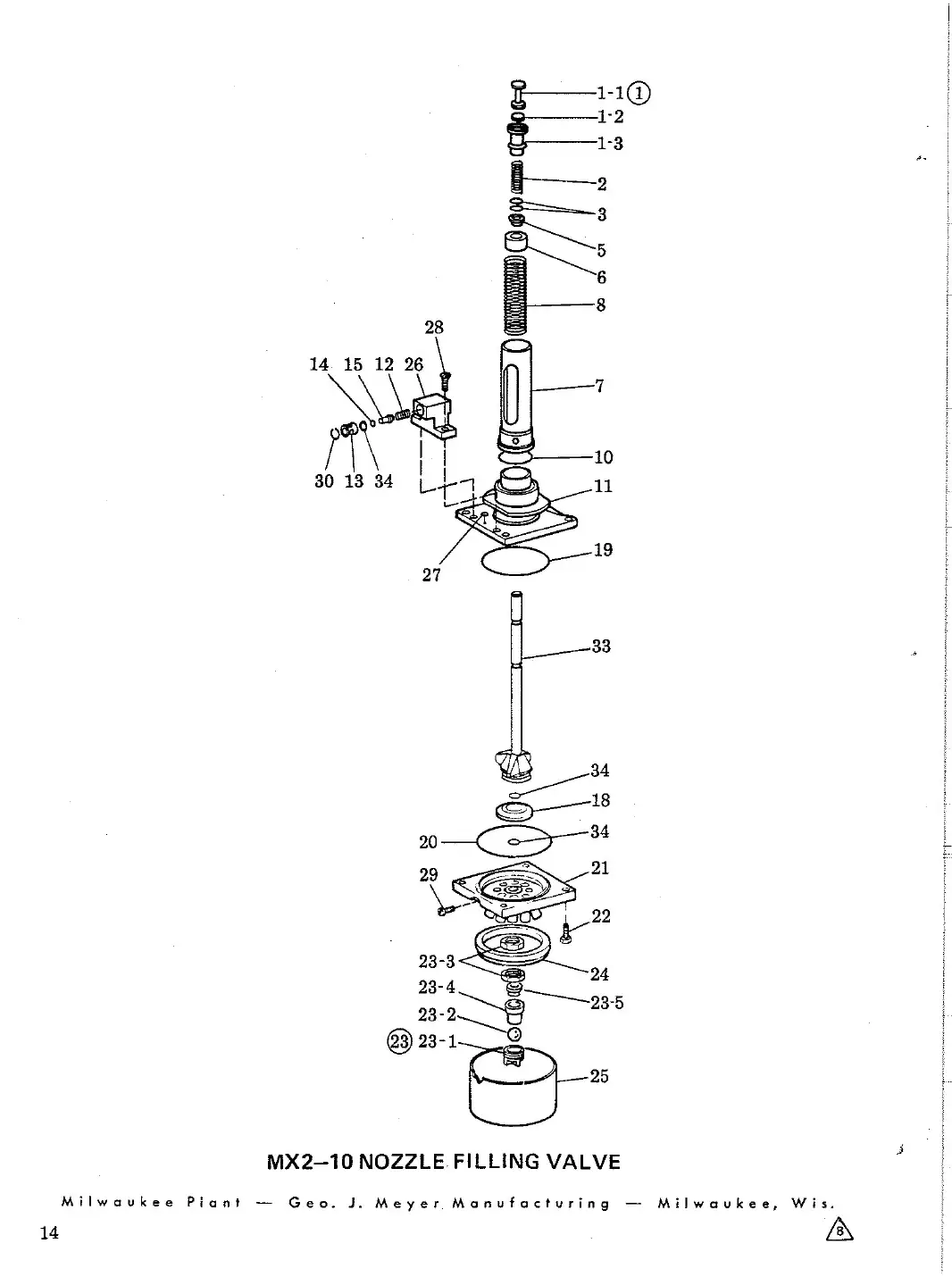

10 Nozzle Filling Valve

Contents

The filling valve seals on the container, brings it to bowl pressure, fills it and snifts the headspace. Sealing rubbers, snift parts, springs and vent tubes are the parts that wear first.

Meyer 40 valve can filler 10 nozzle filling valve drawing

Open full size

Ref	Part number	Description
18	135-08281350828	Seal, liquid valve	Request
19	104-63141046314	O-ring, starshaft	Request
20	100-40251004025	O-ring	Request
21	904-4034	Valve head assembly	Ask us
1	HH-7170	Valve, charging assembly	Ask us
22	102-07431020743	Screw, socket head cap	Request
1-1	132-64011326401	Cap, charging valve	Request
23	904-5674	Ball, check assembly	Ask us
1-2	100-93201009320	Seal, charging cap	Request
23-1	135-5716	Cage, ball check	Ask us
1-3	132-88111328811	Body, charging valve	Request
23-2	104-64861046486	Ball, check	Request
2	HH-7211HH7211	Spring, charging valve	Request
23-3	135-0825	Nut, check ball	Ask us
3	100-34821003482	O-ring	Request
23-4	135-85251358525	Seal, check ball	Request
5	132-64041326404	Retainer, O-ring	Request
23-5	135-8526	Insert, check ball	Ask us
6	132-63991326399	Collar, guide	Request
7	RR-475RR475	Cage, spring filling valve	Request
8	HH-6487HH6487	Spring, post valve MX-2	Request
26	135-1121	Body, snift valve	Ask us
10	100-25201002520	O-ring	Request
27	100-25181002518	O-ring	Request
11	135-0839	Bonnet	Ask us
28	102-01841020184	Screw, flat head slot	Request
12	131-75851317585	Spring, compression conical	Request
29	102-2371	Screw, pan head	Ask us
13	135-10071351007	Bushing, snift valve	Request
30	104-63701046370	Ring, retaining filling valve	Request
14	100-40381004038	O-ring	Request
33	904-56209045620	Stem, valve assembly MX2	Request
15	135-10061351006	Stem, snift valve	Request
34	104-65471046547	O-ring	Request

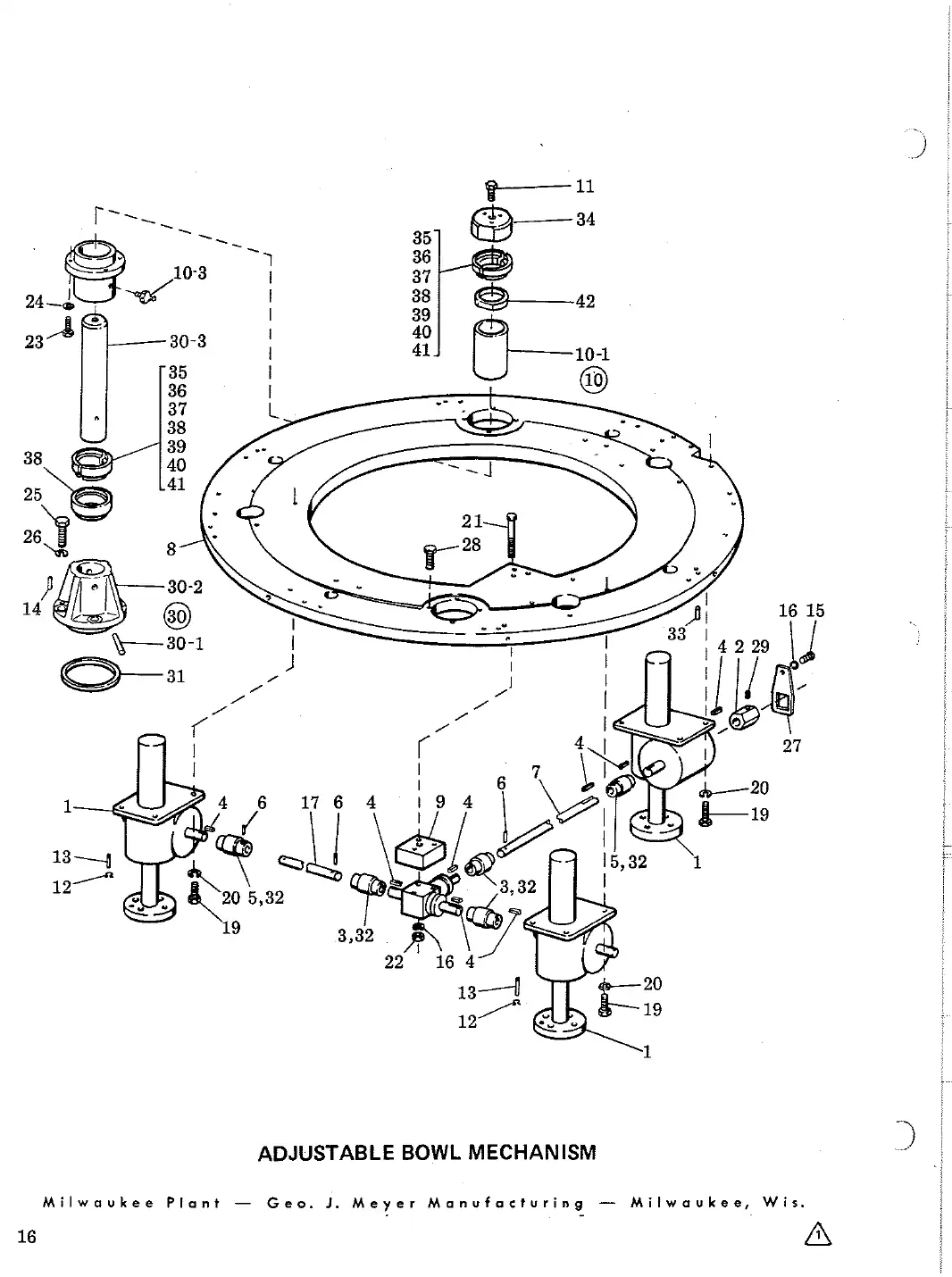

Adjustable Bowl Mechanism

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

Meyer 40 valve can filler adjustable bowl mechanism drawing

Open full size

Ref	Part number	Description
21	102-20941022094	Bolt, hex head	Request
22	102-03321020332	Nut, hex	Request
23	102-01031020103	Bolt, hex head	Request
24	102-03901020390	Washer, lock	Request
1	100-9534	Jack, wormgear screw	Ask us
25	102-09311020931	Bolt, hex head	Request
2	131-39881313988	Nut, drive adjustable bowl mechanism	Request
26	102-03921020392	Washer, lock	Request
3	131-67811316781	Coupling shaft	Request
27	131-59641315964	Lock, drive nut adjustable bowl	Request
4	000-1624	Key	Ask us
28	100-9759	Screw, socket head	Ask us
5	131-67801316780	Coupling shaft	Request
29	102-04261020426	Screw, set socket cup point	Request
6	102-09861020986	Pin, roll slotted	Request
7	131-5865	Shaft, jack adjusting	Ask us
30-1	102-2123	Pin, taper	Ask us
9	131-54511315451	Spacer, block	Request
30-3	131-5864	Post, guide	Ask us
10-1	100-9354	Bushing	Ask us
32	102-0464	Screw, socket head set	Ask us
10-3	102-19201021920	Fitting, grease	Request
33	102-2103	Pin, dowel	Ask us
11	100-9757	Screw, socket head	Ask us
34	134-4311	Cap, guide post	Ask us
12	100-99951009995	Ring, retaining	Request
13	131-6843	Pin, jack release	Ask us
36	134-4306	Collar, guide post	Ask us
14	102-1445	Pin, dowel	Ask us
37	134-4307	Collar, guide post	Ask us
15	102-00651020065	Bolt, hex head	Request
38	134-4308	Collar, guide post	Ask us
16	102-03871020387	Washer, lock	Request
39	134-4309	Collar, guide post	Ask us
17	131-58661315866	Shaft, jack bowl lift	Request
40	134-4310	Collar, guide post	Ask us
18	100-93301009330	Gearbox, three way bowl lift	Request
41	134-4400	Collar, guide post	Ask us
19	102-0907	Bolt, hex head	Ask us
42	134-4470	Washer, guide post	Ask us
20	102-03911020391	Washer, lock	Request

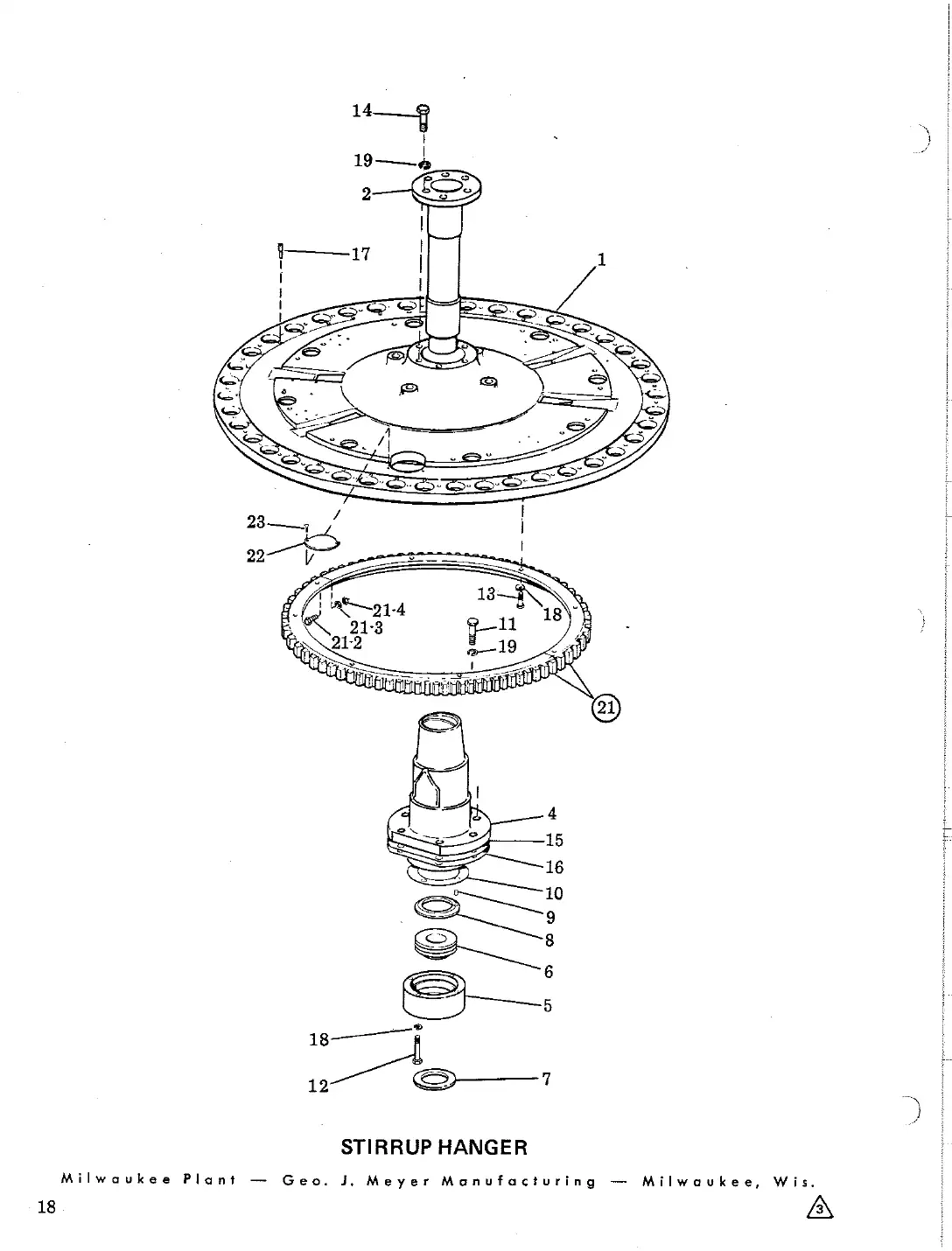

Stirrup Hanger

Contents

The lift raises each container to the filling valve and holds it there through the fill. Seals, bushings, guide rods and cam rollers wear and cause uneven lift and missed seals.

Meyer 40 valve can filler stirrup hanger drawing

Open full size

Ref	Part number	Description
12	102-08081020808	Bolt, hex head	Request
14	102-00581020058	Bolt, hex head	Request
15	HH-3662	Shim, flanged stand	Ask us
16	HH-3663	Shim, flanged stand	Ask us
2	131-5895	Column, center	Ask us
4	DFC-1231DFC1231	Stand, flange	Request
18	102-03911020391	Washer, lock	Request
5	H-574	Support, ball thrust brg	Ask us
19	102-03921020392	Washer, lock	Request
6	100-25451002545	Bearing, main hanger	Request
7	100-25471002547	Seal, main bearing	Request
8	H-579H579	Plate, drip oil	Request
21-3	102-03891020389	Washer, lock	Request
9	HH-1218	Pin, oil drip plate stud	Ask us
21-4	102-03401020340	Nut, hex jam	Request
10	HH-7693HH7693	Gasket, housing bearing su	Request
22	131-69351316935	Cover, pinion gear access	Request
11	102-08091020809	Bolt, hex head	Request
23	102-02941020294	Screw, round head slot	Request

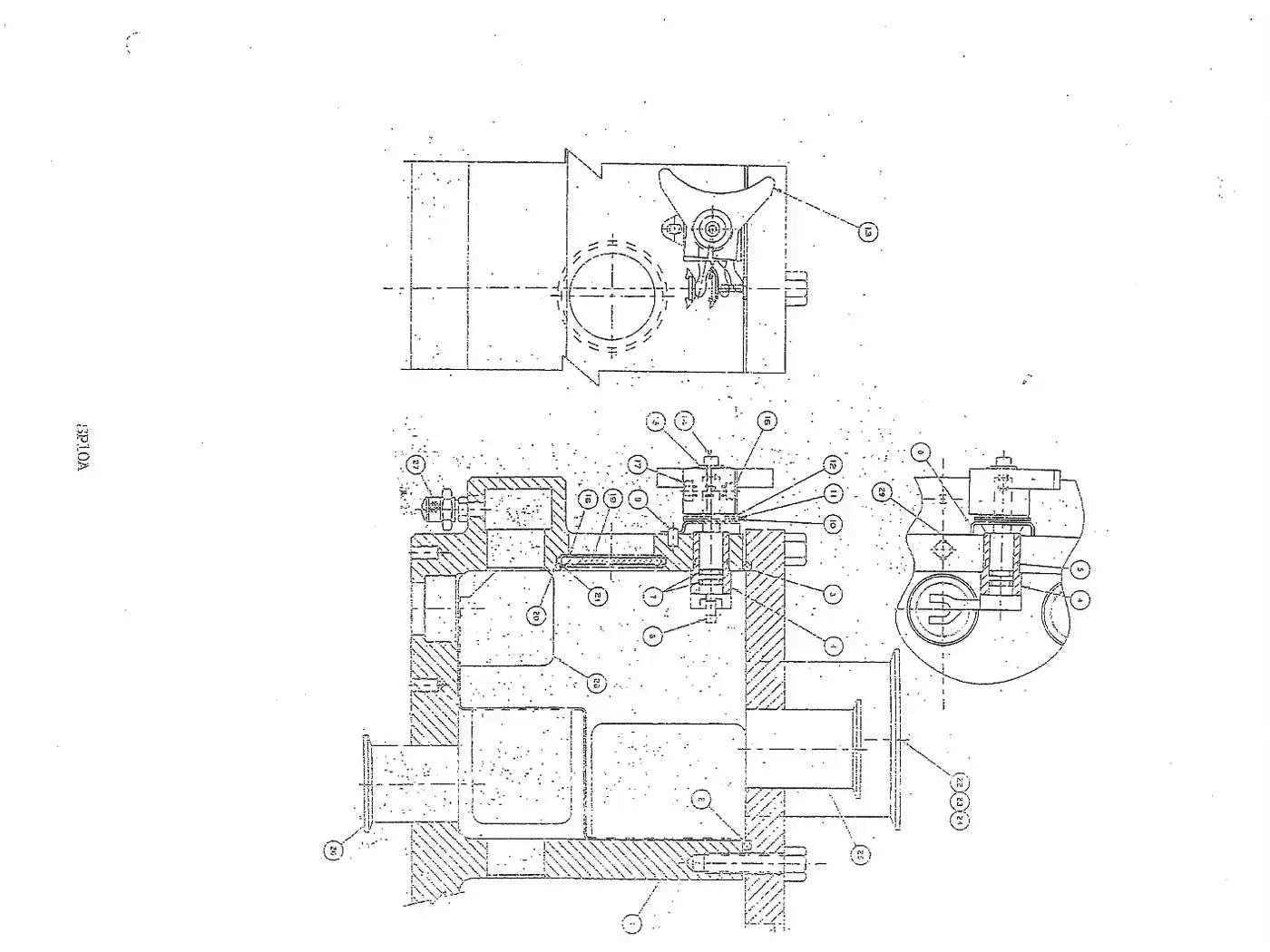

Liquid Supply Line

Contents

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

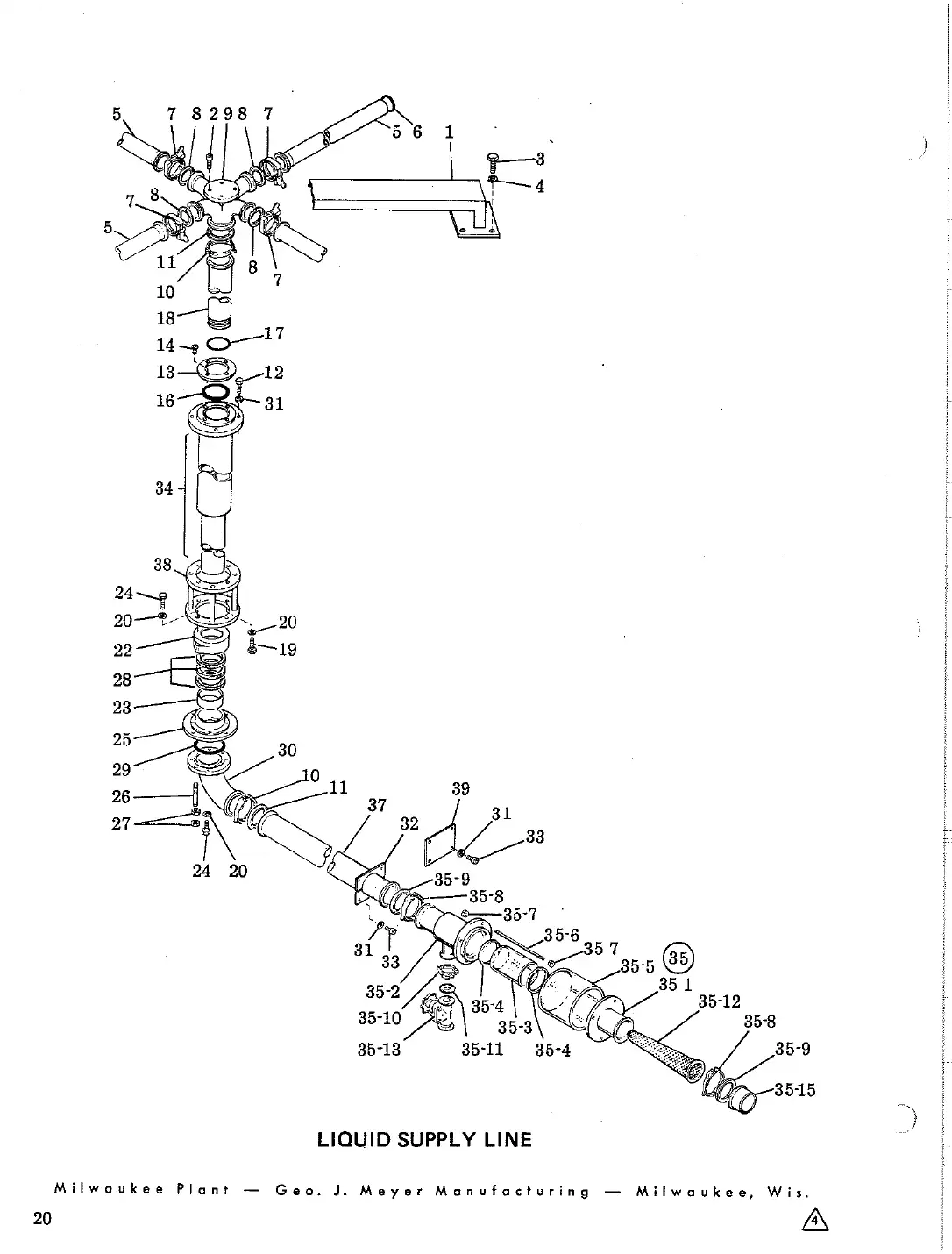

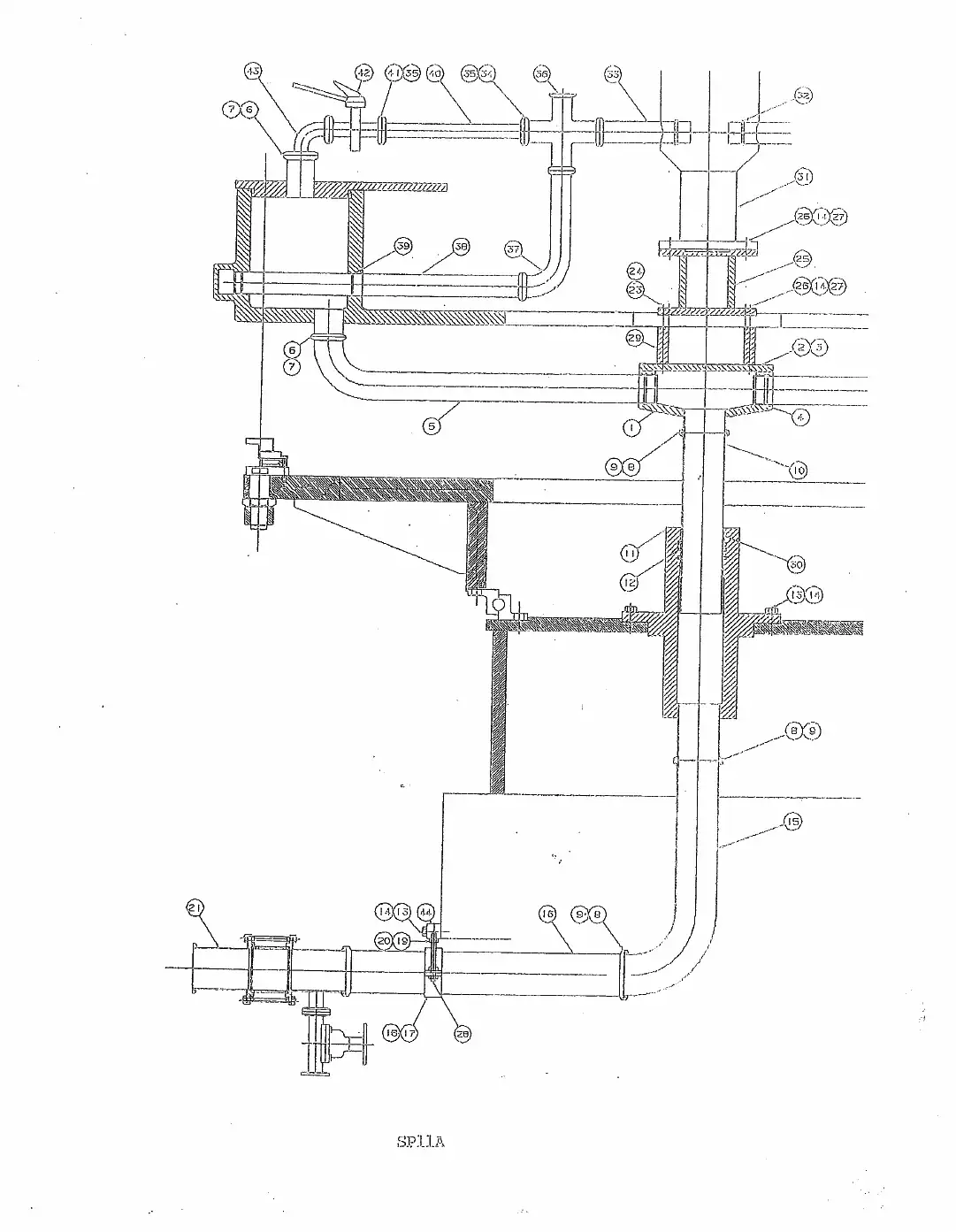

Meyer 40 valve can filler liquid supply line drawing

Open full size

Ref	Part number	Description
27	102-05871020587	Nut, hex jam	Request
28	130-85551308555	Packing, ring bevel joint	Request
29	100-25021002502	O-ring	Request
1	902-2253	Support, product line	Ask us
30	HH-8579	Elbow	Ask us
2	102-14061021406	Screw, socket head cap	Request
31	102-03871020387	Washer, lock	Request
3	102-01021020102	Bolt, hex head	Request
32	131-1816	Flange, split	Ask us
4	102-04181020418	Washer, flat	Request
33	102-02951020295	Screw, round head slot	Request
5	900-09789000978	Line bowl supply	Request
6	100-40251004025	O-ring	Request
35	902-1137	Glass, sight assembly	Ask us
7	100-21421002142	Clamp, hinged sanitary	Request
35-1	902-1140	Seat, ferrule and flange	Ask us
8	100-21331002133	Gasket, tri-clamp tube	Request
35-2	902-1141	Seat, ferrule and flange	Ask us
9	900-0394	Cross, bowl supply	Ask us
35-3	131-4371	Glass, sight	Ask us
10	100-00271000027	Clamp, hinged sanitary	Request
35-4	131-4373	Gasket, sight glass	Ask us
11	100-00281000028	Gasket, tri-clamp	Request
35-5	131-4374	Guard, sight glass	Ask us
12	102-00671020067	Bolt, hex head	Request
35-6	HH-2153	Stud	Ask us
13	131-59051315905	Plate, O-ring seal 40-8 hg	Request
35-7	102-0585	Nut, hex	Ask us
14	102-02861020286	Screw, round head slot	Request
16	100-41511004151	O-ring, product supply	Request
17	100-94931009493	Ring, quad	Request
35-10	100-21411002141	Clamp, hinged sanitary	Request
18	902-22619022261	Line, vertical supply	Request
35-11	100-2131	Gasket, clamp	Ask us
19	102-00901020090	Bolt, hex head	Request
35-12	902-1143	Strainer	Ask us
20	102-03891020389	Washer, lock	Request
35-13	100-0216	Valve	Ask us
22	HH-8589HH8589	Stuffing box	Request
35-15	100-0025	Ferrule	Ask us
23	HH-8590HH8590	Bushing	Request
24	102-00891020089	Bolt, hex head	Request
25	HH-8580	Gland sl- plate, cover	Ask us
26	HH-6627HH6627	Stud	Request

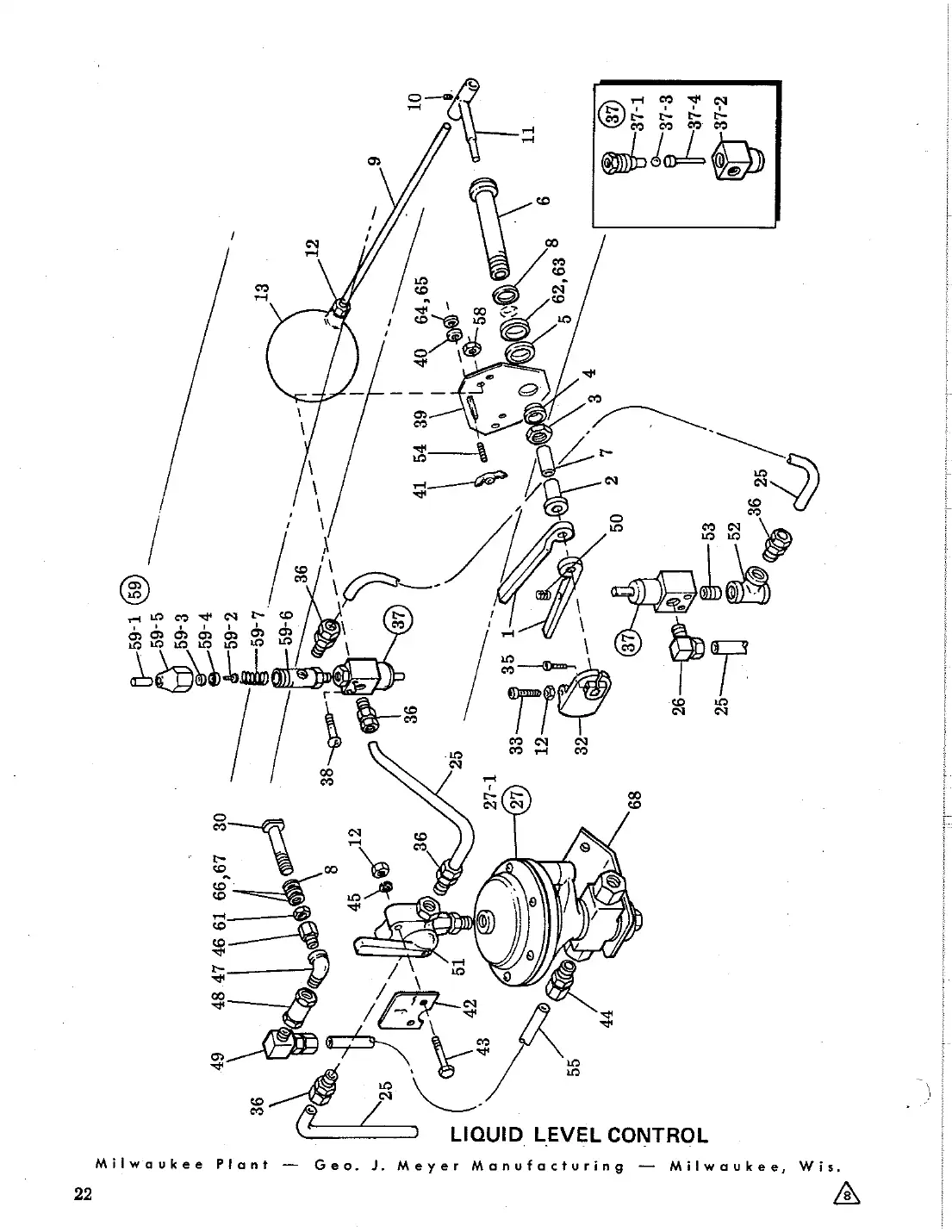

Liquid Level Control

Contents

The product supply and level control keep the bowl at a steady level and pressure. Diaphragms, seals, gauges and the vent valve need regular attention.

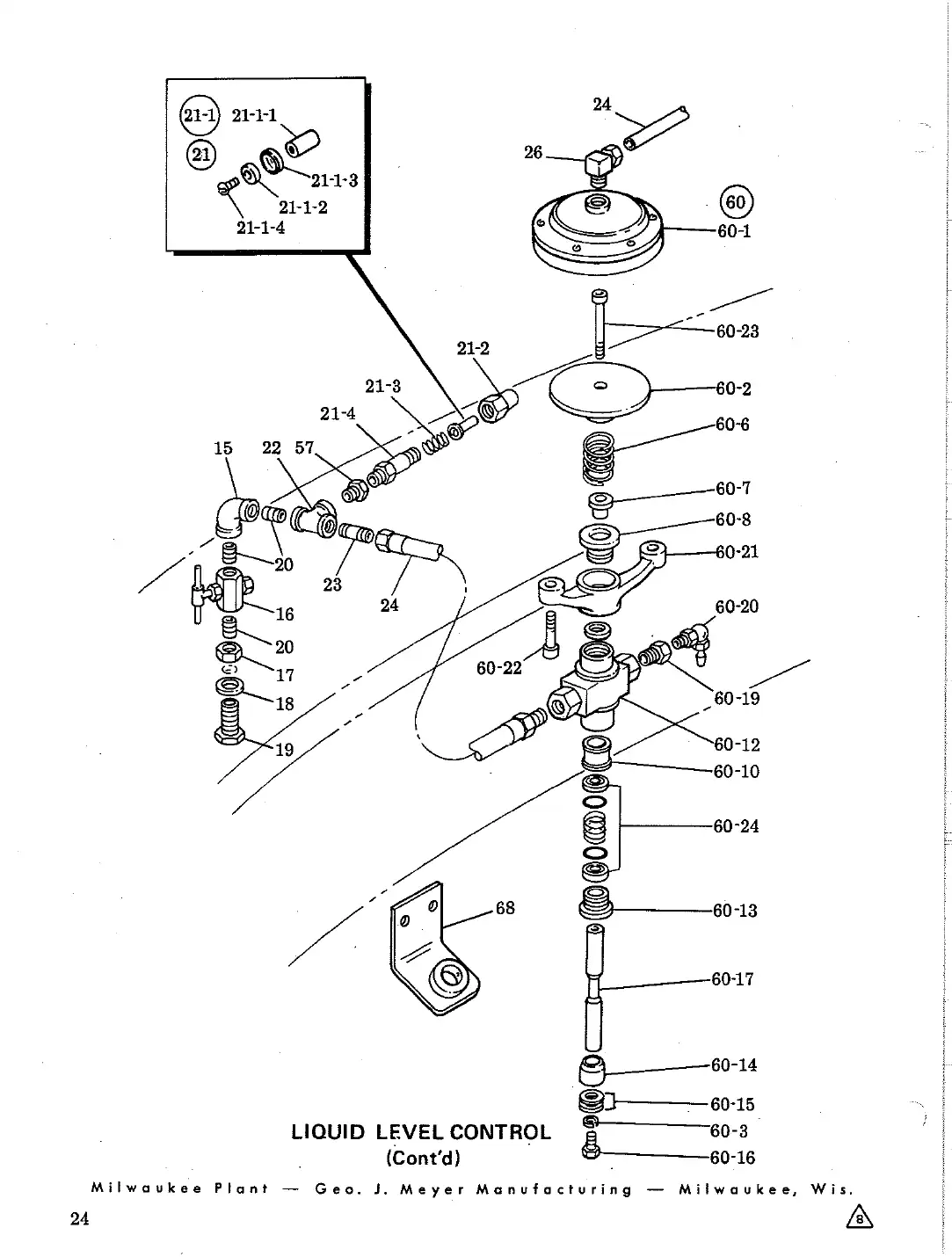

Meyer 40 valve can filler liquid level control drawing

Open full size

Ref	Part number	Description
30	HH-2407	Port, charging	Ask us
32	HH-8696HH8696	Plate, operating liq level	Request
1	HH-8695HH8695	Lever, oper liquid level control	Request
33	102-07731020773	Screw, fillister hd	Request
2	HH-2410HH2410	Gland, packing	Request
35	102-07751020775	Screw, fillister hd	Request
3	HH-2414HH2414	Nut, lock stuffing box	Request
36	100-09251000925	Fitting, tube adapter bras	Request
4	HH-8692HH8692	Retainer, bushing mounting	Request
5	HH-8693HH8693	Spacer, mounting plate liq level	Request
6	131-63321316332	Box stuffing	Request
37-2	HH-8697	Body, air valve	Ask us
7	102-14831021483	Packing	Request
37-3	100-77711007771	Ball float	Request
8	RR-228RR228	Gasket, air inlet valve bo	Request
37-4	HH-2421	Trigger, air check	Ask us
9	HH-2515HH2515	Float lever control valve	Request
38	102-02931020293	Screw, round head slot	Request
10	102-04371020437	Screw, set socket cup point	Request
39	HH-8691HH8691	Plate, mounting	Request
11	HH-2409HH2409	Stem, valve operating	Request
40	HH-8694	Spacer	Ask us
12	102-0363	Nut, hex	Ask us
41	102-0711	Nut, wing	Ask us
13	HH-300HH300	Ball, float	Request
42	130-11831301183	Plate, operator	Request
15	100-53721005372	Elbow, 90 deg	Request
43	102-00671020067	Bolt, hex head	Request
16	100-79931007993	Valve, on/off, female male	Request
44	100-09271000927	Fitting, tube adapter	Request
17	HH-457HH457	Nut	Request
45	102-03871020387	Washer, lock	Request
18	HH-8263HH8263	Gasket, valve	Request
46	HH-8948	Adapter	Ask us
19	HH-8814	Adapter, blow-off valve	Ask us
47	100-46601004660	Elbow, street 90 deg	Request
20	100-61101006110	Nipple, close	Request
48	100-53761005376	Valve, check	Request
21	HH-167HH167	Valve, clean out assembly	Request
49	100-14691001469	Elbow, tube male	Request
21-1	902-98279029827	Insert, snift valve assembly B-2	Request
50	HH-2416HH2416	Spring, operating	Request
51	900-01679000167	Valve, run / charge	Request
21-1-1	132-64021326402	Stem, snift valve	Request
52	100-08801000880	Tee, pipe	Request
21-1-2	134-6403	Retainer, snift valve	Ask us
53	100-0889	Nipple, close	Ask us
54	102-10001021000	Stud, tap end	Request
21-1-3	RR-647RR647	Seat, snift valve	Request
55	000-1769	Tubing	Ask us
21-1-4	102-23571022357	Screw, round head	Request
57	131-1419	Bushing, reducer	Ask us
21-2	RR-88RR88	Nut, snift valve	Request
58	102-05531020553	Nut, hex	Request
21-3	131-75851317585	Spring, compression conical	Request
59	HH-3485HH3485	Valve, body clean out 52V family	Request
21-4	RR-115RR115	Valve, body clean out-sell HH3486	Request
22	100-53711005371	Tee	Request
23	100-41021004102	Nipple	Request
24	900-1240	Hose, blow-off	Ask us
59-4	132-64031326403	Retainer, seat snift valve	Request
25	000-1760	Tubing specify	Ask us
26	100-1467	Elbow	Ask us
59-6	HH-3486HH3486	Valve, body clean out family	Request
27	100-47681004768	Valve, diaphragm	Request
60	902-35209023520	Valve, level control	Request
60-20	100-07761000776	Fitting, grease ptf	Request
60-1	100-9764	Diaphragm assembly	Ask us
60-21	100-97701009770	Yoke	Request
60-2	100-97651009765	Piston, diaphragm valve	Request
60-22	102-21991022199	Screw, allen cap	Request
60-3	102-03881020388	Washer, lock	Request
60-23	102-21781022178	Screw, socket head cap	Request
60-6	100-97621009762	Spring, diaphragm ret	Request
60-24	902-3638	Kit, diaphragm valve	Ask us
60-7	131-6816	Spacer repair	Ask us
60-8	100-97711009771	Bearing, large flange	Request
61	101-01741010174	Nut, hex jam	Request
60-10	100-53541005354	Spacer, packer spool valve	Request
62	132-8231	Spacer, bracket	Ask us
60-12	100-97691009769	Body	Request
63	132-8232	Spacer, bracket	Ask us
60-13	100-97721009772	Bearing, small flange	Request
64	132-8233	Spacer, bracket	Ask us
60-14	131-68171316817	Spacer, diaphragm 2-WAY valve	Request
65	132-8234	Spacer, bracket	Ask us
60-15	102-04161020416	Washer, flat	Request
66	132-8235	Spacer, bracket	Ask us
60-16	102-1666	Screw, hex head	Ask us
67	132-82361328236	Spacer	Request
60-17	100-9767	Stem	Ask us
68	HH-8690HH8690	Bracket, diaphragm valve-mount	Request
60-19	100-14311001431	Bushing, reducing hex	Request

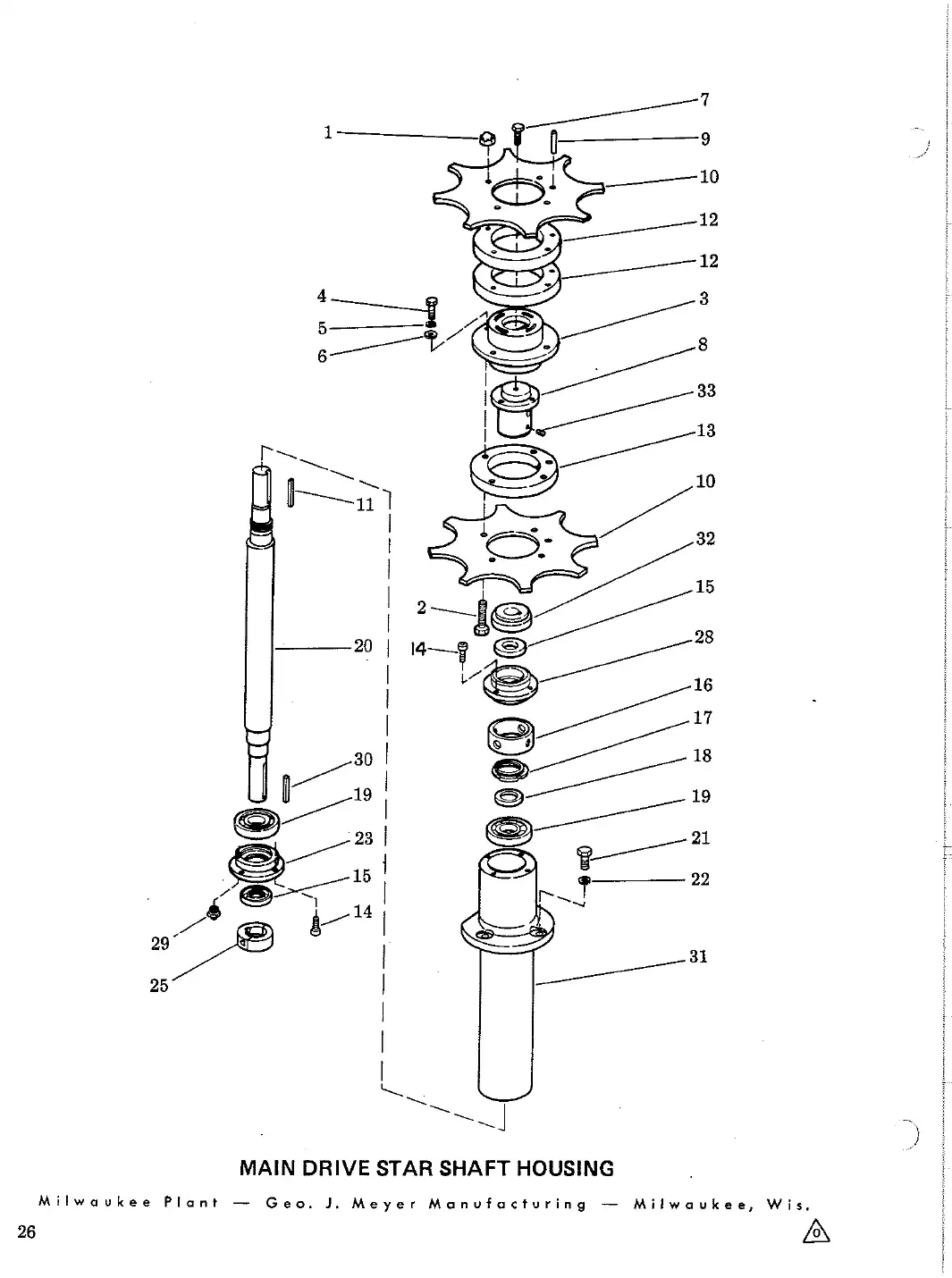

Main Drive Star Shaft Housing

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

Meyer 40 valve can filler main drive star shaft housing drawing

Open full size

Ref	Part number	Description
14	102-13621021362	Screw, socket head cap	Request
15	101-0621	Seal, oil	Ask us
16	132-4391	Spacer, bearing	Ask us
17	101-0623	Locknut, bearing	Ask us
1	HH-134	Nut, dome	Ask us
18	132-4390	Spacer, bearing	Ask us
2	102-1412	Bolt, hex head	Ask us
19	101-2296	Bearing, ball	Ask us
3	131-85611318561	Hub, star infeed can filler	Request
20	132-6227	Shaft, filler infeed	Ask us
4	102-00891020089	Bolt, hex head	Request
21	102-01011020101	Bolt, hex head	Request
5	102-03891020389	Washer, lock	Request
6	102-04171020417	Washer, flat	Request
23	132-4393	Cap, bearing end btm	Ask us
7	102-01001020100	Bolt, hex head	Request
25	132-6257	Collar, split	Ask us
8	132-6228	Hub, adapter	Ask us
28	132-4392	Cap, bearing end top	Ask us
9	131-69091316909	Pin, star locating filler	Request
29	100-6628	Fitting, relief grease	Ask us
30	000-16390001639-3.5	Key, square	Request
11	000-16280001628	Key, square	Request
31	132-6235	Housing, star drive	Ask us
12	131-8291	Spacer, star	Ask us
32	132-6185	Spacer, star hub	Ask us
13	132-64311326431-1	Spacer	Request
33	102-04271020427	Screw, set socket cup point	Request

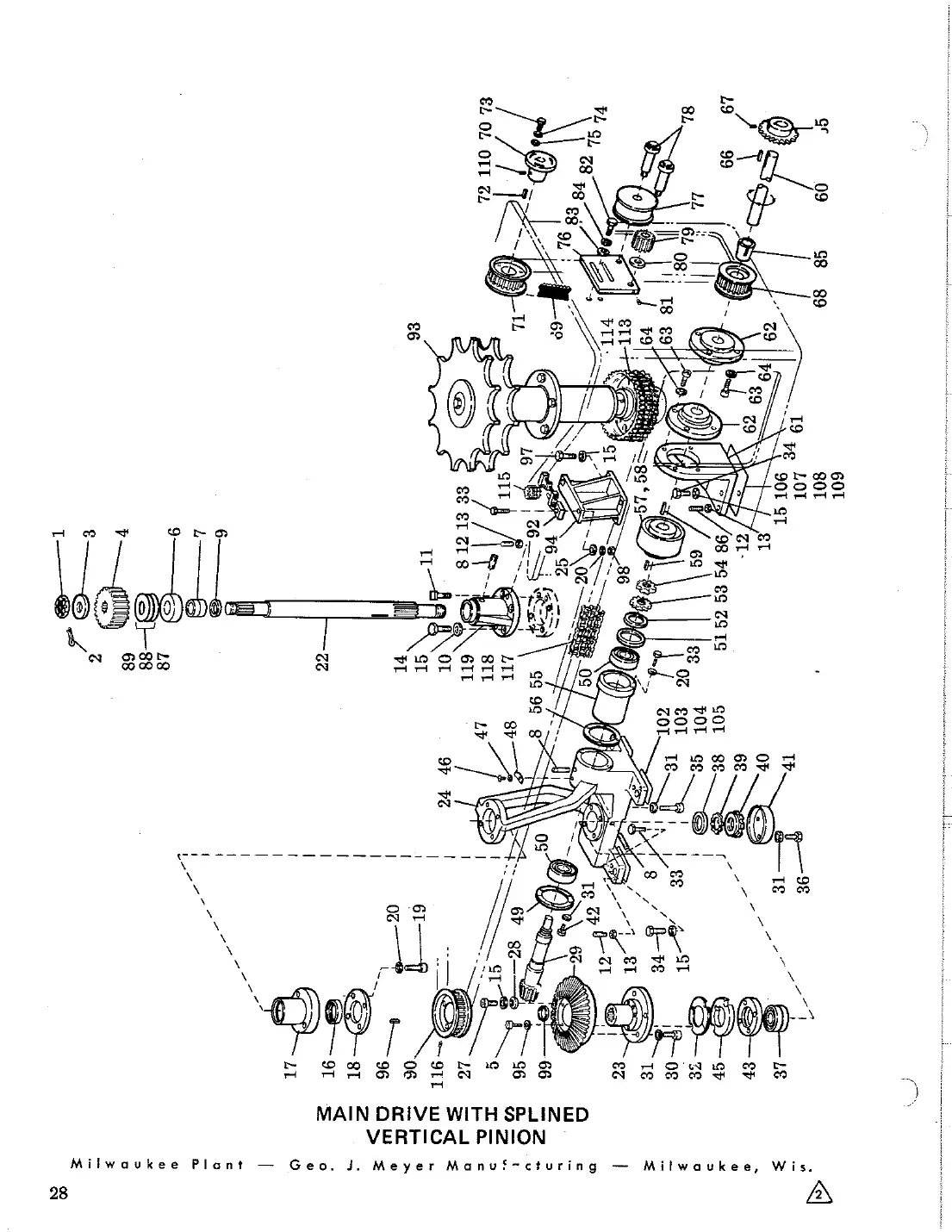

Main Drive with

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

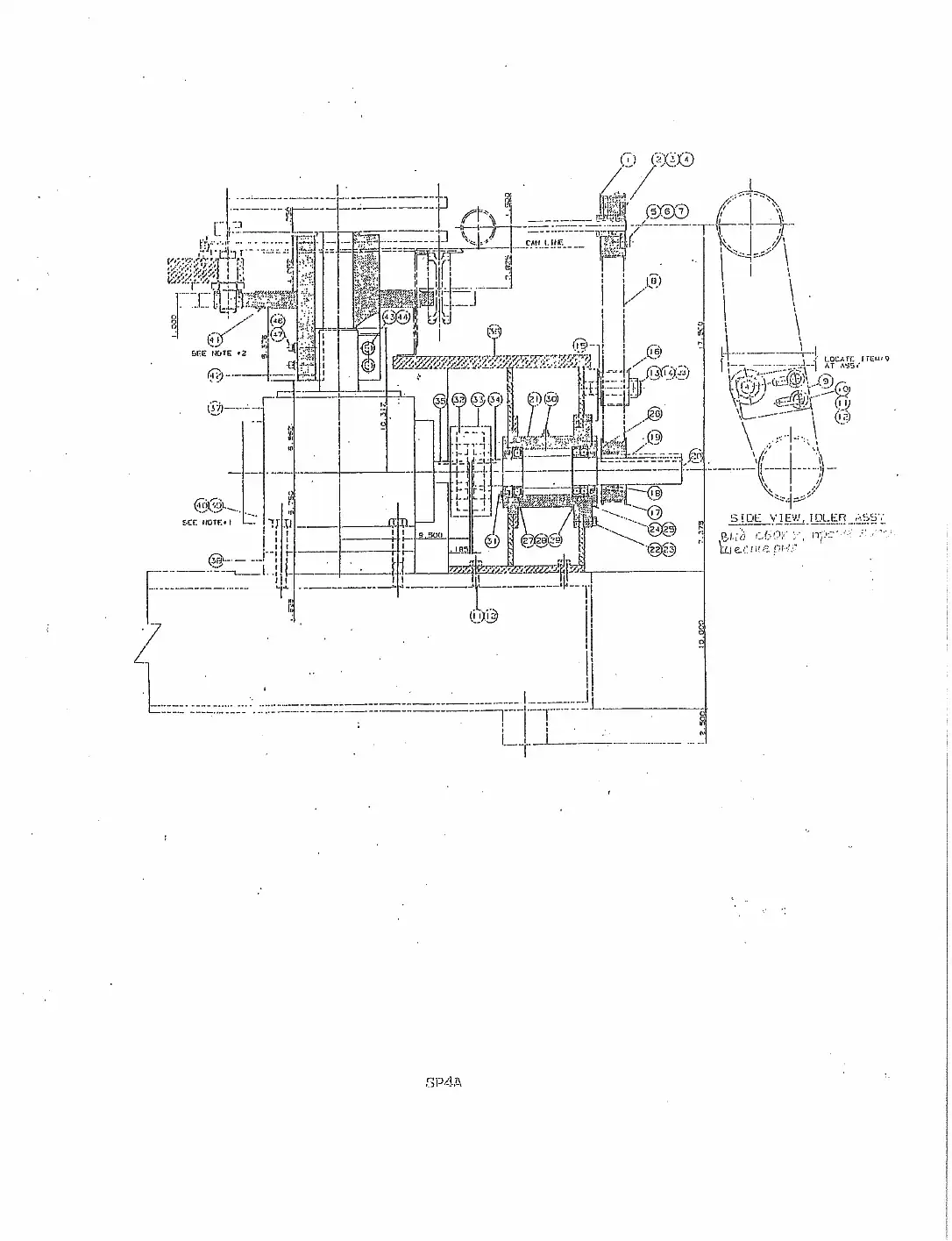

Meyer 40 valve can filler main drive with drawing

Open full size

Ref	Part number	Description
30	102-2789	Screw, socket head	Ask us
31	102-0379	Lockwasher	Ask us
32	131-79451317945	Shim, bevel gear can filler	Request
33	102-0028	Bolt, hex head	Ask us
34	102-0039	Bolt, hex head	Ask us
1	HH-1335HH1335	Nut, pinion drive	Request
35	102-21781022178	Screw, socket head cap	Request
2	102-05411020541	Pin, cotter	Request
36	102-00151020015	Bolt, hex head	Request
3	102-22001022200	Washer, flat	Request
37	101-01851010185	Bearing	Request
4	132-75281327528	Gear, pinion main drive	Request
5	102-0813	Screw, socket head	Ask us
39	101-01811010181	Washer, lock	Request
6	131-89211318921	Washer, pinion	Request
40	101-01821010182	Nut, lock	Request
7	101-02011010201	Bearing, verticle pinion shaft	Request
41	902-45159024515	Cap, grease retainer	Request
8	100-2716	Nipple	Ask us
42	102-00121020012	Hex head bolt	Request
9	134-16201341620	Spacer, bearing	Request
43	131-79471317947	Ring, bearing retainer	Request
10	131-8657	Housing	Ask us
45	134-15421341542	Plate, bevel gear support	Request
11	102-0523	Screw, square head	Ask us
46	102-0269	Screw, round head	Ask us
12	131-7013	Pin, taper	Ask us
47	102-0384	Lockwasher	Ask us
13	102-0320	Nut, hex	Ask us
48	100-6940	Clamp	Ask us
14	102-00511020051	Bolt, hex head	Request
49	131-8773	Cover	Ask us
15	102-03811020381	Washer, lock	Request
50	101-0180	Bearing	Ask us
16	101-01881010188	Seal, oil johns-manviele	Request
51	101-0183	Seal	Ask us
17	131-86591318659	Housing, lower	Request
52	131-7951	Spacer	Ask us
18	131-86631318663	Retainer, oil seal	Request
53	101-01871010187	Washer, lock	Request
19	102-2910	Screw, socket head	Ask us
54	100-37171003717	Nut, lock bearing	Request
20	102-03801020380	Washer, lock	Request
55	131-7952	Housing	Ask us
22	132-75241327524	Shaft, verticle pinion	Request
56	131-7953	Shim	Ask us
23	132-6405	Hub, bevel gear	Ask us
57	101-0131	Coupling	Ask us
24	131-7934	Housing	Ask us
58	101-0202	Cover	Ask us
25	102-0371	Washer, flat	Ask us
59	000-16390001639-3.5	Key, square	Request
27	102-1432	Screw, socket head	Ask us
28	131-7946	Washer	Ask us
61	902-4388	Bracket	Ask us
29	902-5122	Gear assembly	Ask us
62	100-02361000236	Bearing, flange piloted	Request
63	102-1390	Screw, socket head	Ask us
64	102-14431021443	Washer, lock	Request
92	904-43989044398	Tensioner assembly	Request
65	100-9704	Sprocket shaft, star assembly	Ask us
66	000-16500001650-1.5	Key, square	Request
67	102-0474	Screw, socket head	Ask us
95	102-0378	Lockwasher	Ask us
68	101-2979	Sprocket	Ask us
69	101-2109	Belt, timing	Ask us
97	102-0037	Bolt, hex head	Ask us
98	102-0358	Nut, hex	Ask us
71	132-8249	Sprocket	Ask us
99	101-07861010786	Ring, retaining	Request
72	000-1624	Key	Ask us
102	132-85031328503	Shim, main drive shaft can filler	Request
73	102-2898	Screw, hex head	Ask us
103	132-8504	Shim, main drive	Ask us
74	102-04171020417	Washer, flat	Request
104	132-8505	Shim, main drive	Ask us
75	102-20021022002	Washer, flat	Request
105	132-8506	Shim, main drive	Ask us
76	134-1806	Bracket	Ask us
106	132-85131328513	Shim, brg support bracket can filler	Request
77	101-2985	Pulley	Ask us
107	132-85141328514	Shim, brg support bracket can filler	Request
78	134-1805	Shaft-w/collar	Ask us
108	132-85151328515	Shim, brg support bracket can filler	Request
79	104-5051	Pulley	Ask us
109	132-85161328516	Shim, brg support bracket can filler	Request
80	131-71091317109	Spacer, roller	Request
110	102-1472	Screw, socket head set	Ask us
81	102-0824	Screw, socket head set	Ask us
82	102-16101021610	Bolt, hex head	Request
114	101-2175	Bushing, taper lock	Ask us
83	102-04181020418	Washer, flat	Request
115	904-3644	Sprocket, idler	Ask us
84	102-03901020390	Washer, lock	Request
116	102-0495	Screw, socket head set	Ask us
85	101-2397	Bushing, w/key	Ask us
117	100-37561003756	Chain, three strand	Request
118	100-37571003757	Link, connecting three str	Request
87	131-8979	Shim	Ask us
119	100-6266	Link, offset	Ask us
88	131-89801318980	Shim	Request
89	131-8981	Shim	Ask us
90	130-8770	Sprocket	Ask us
2	100-1485	Elbow	Ask us
3	100-0875	Plug, head	Ask us
4	101-32471013247	Elbow, tube 90 deg	Request
5	000-35190003519	Tubing, poly-flo	Request
8	131-7962	Clamp	Ask us
9	102-03891020389	Washer, lock	Request
10	102-00891020089	Bolt, hex head	Request
11	100-4587	Tie, cable self-lock	Ask us
12	100-2571	Cock, air	Ask us
26	104-77041047704	Seal	Request
27	104-7707	Bearing momiases	Ask us
4	102-1915	Screw ert	Ask us
28	104-7705	Ring, retaining non gue kpabie	Ask us
29	104-7708	Bearing rogiayrs	Ask us
30	100-47661004766	Fitting, grease straight ptf	Request
34	102-1026	Key lupe	Ask us
12	102-01021020102	Bolt, hex head	Request
18	101-2401	Bushing t/l briann	Ask us
43	102-0910	Screw set	Ask us
44	102-03911020391	Washer, lock	Request
21	136-8379	Housing kobeye	Ask us
45	904-7532	Guard	Ask us
22	102-00911020091	Bolt, hex head	Request
3	102-0703	Gerew bae	Ask us
4	102-03861020386	Washer, lock	Request
6	100-2345	Bush arvteie hes set	Ask us
7	104-6037	Thrust bearing ynopriaite moped	Ask us
9	102-05721020572	Pin, taper	Request
19	102-07131020713	Screw, socket head cap	Request
21	100-49271004927	Oiler, gravity feed	Request
22	100-27901002790	Bushing, reducing hex	Request
24	000-17470001747	Tubing	Request
4	904-74999047499	Block, bearing infeed screw can	Request
12	102-13321021332	Key, square	Request

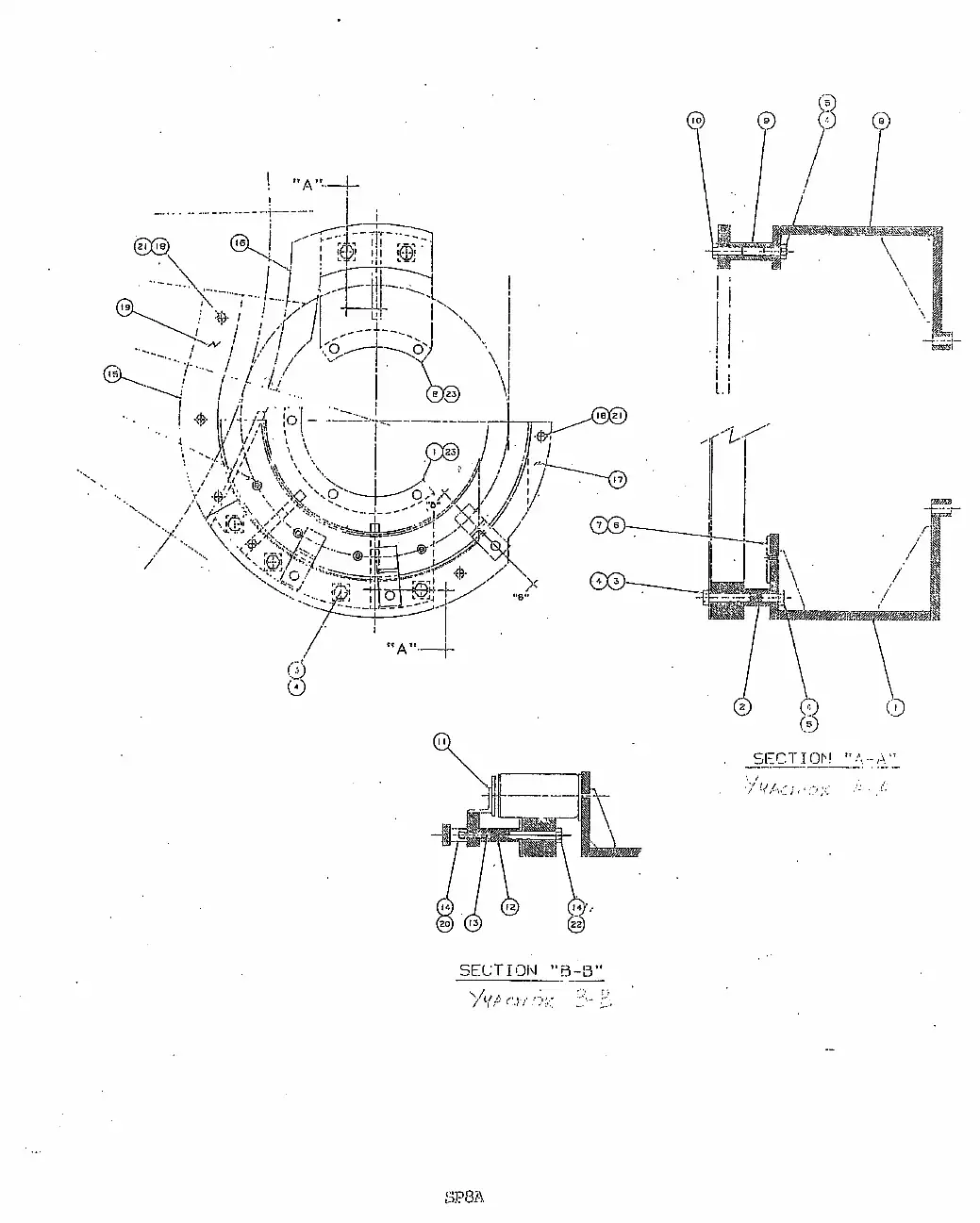

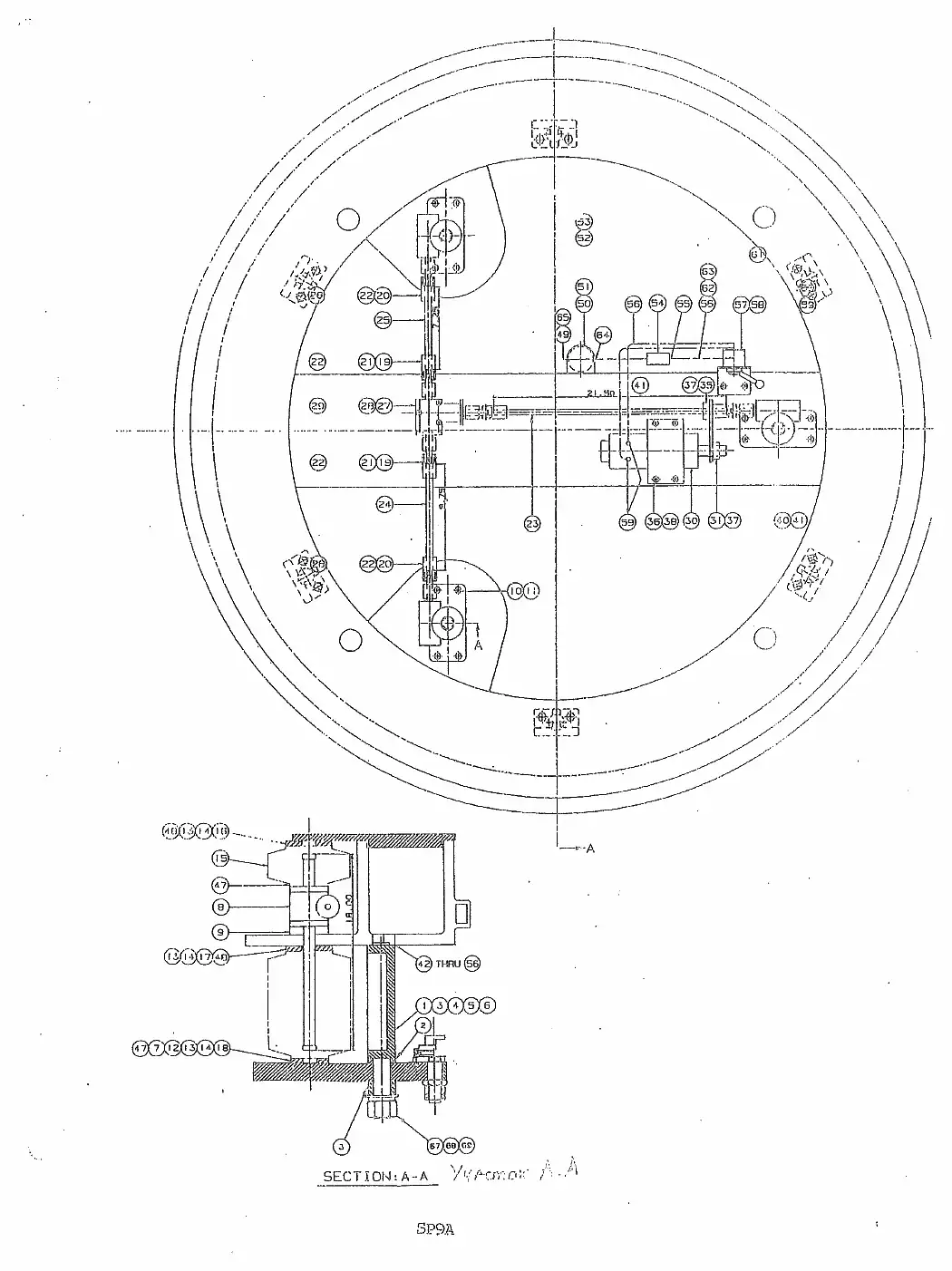

Table Top

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

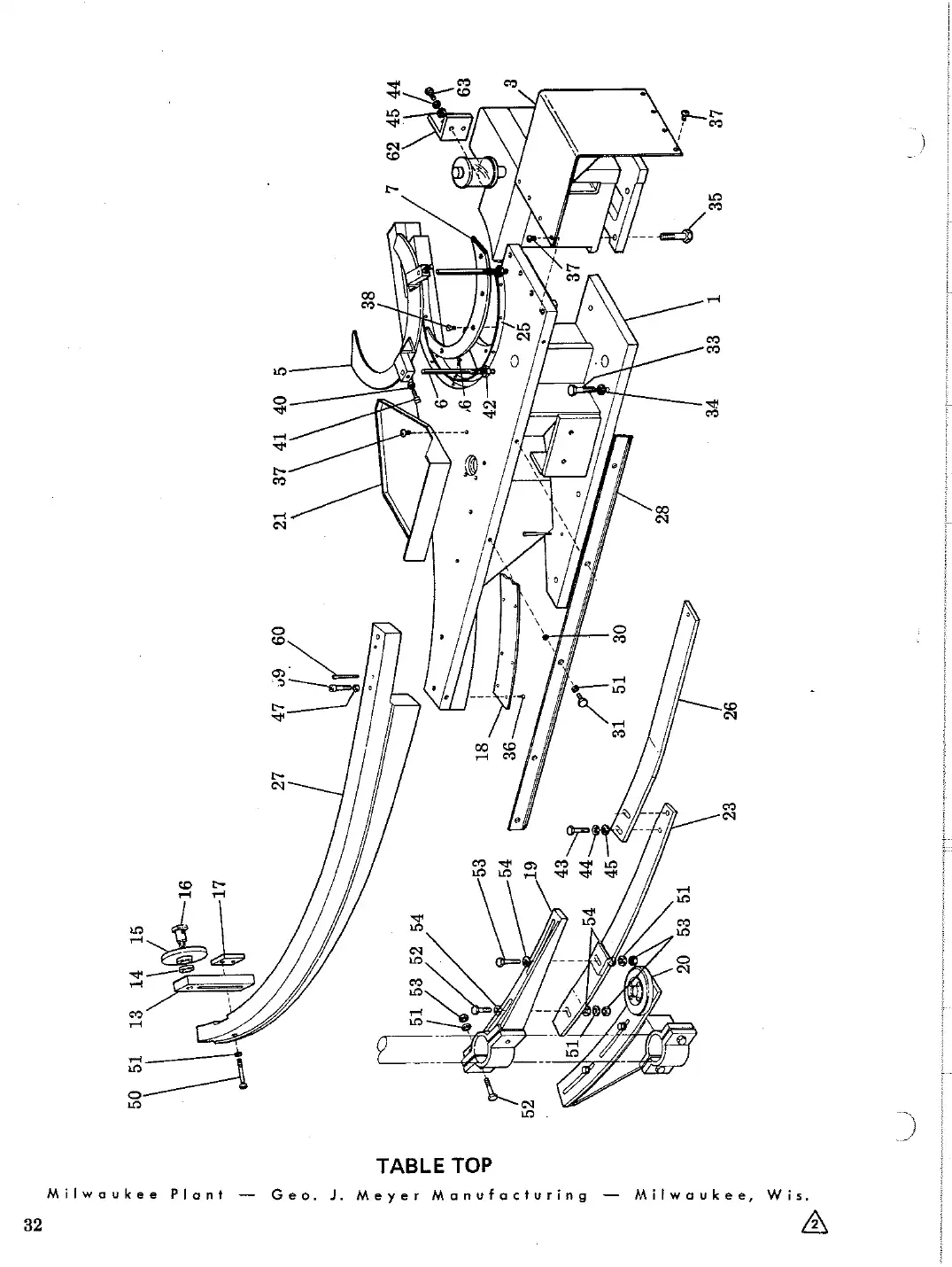

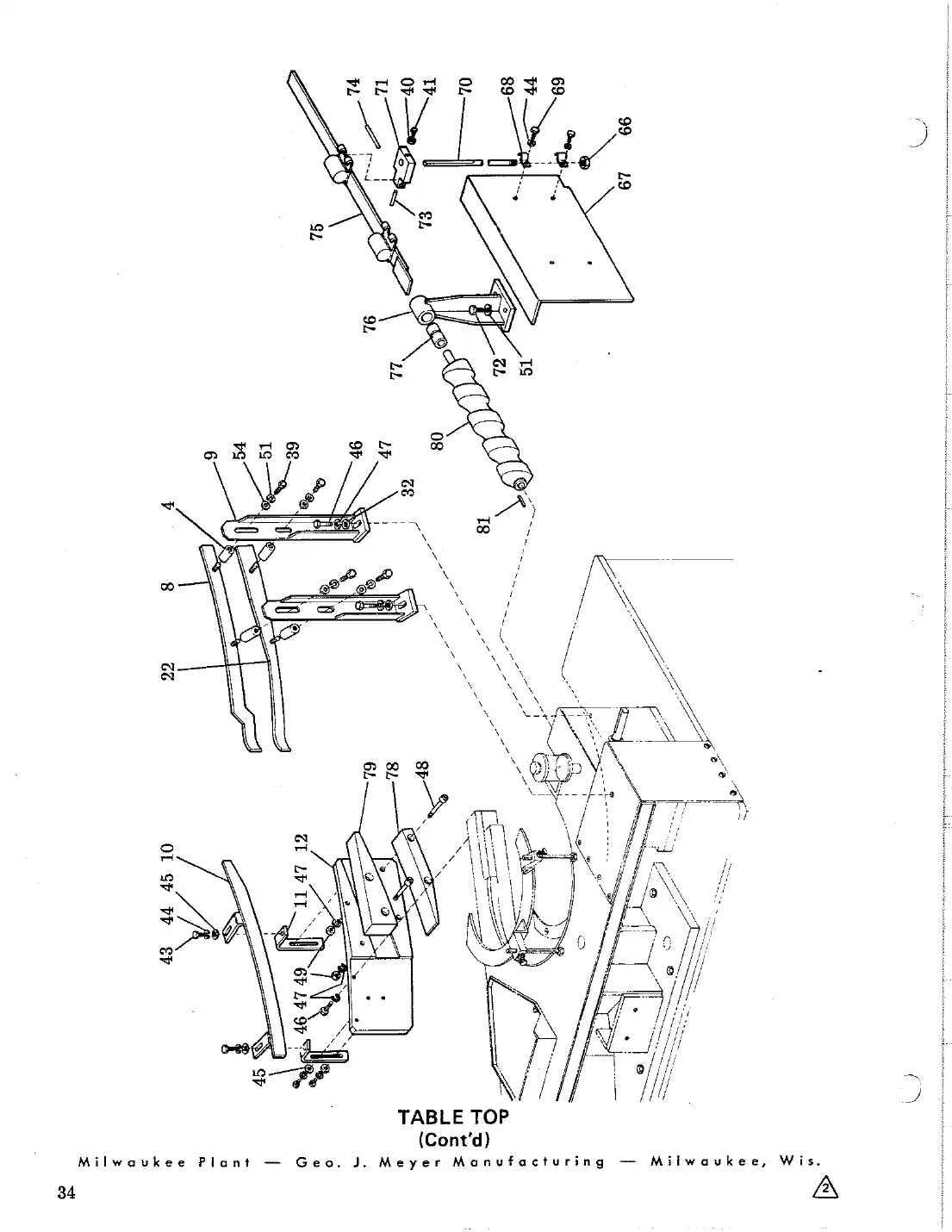

Meyer 40 valve can filler table top drawing

Open full size

Ref	Part number	Description
4	134-0322	Spacer, infeed guide	Ask us
32	102-04181020418	Washer, flat	Request
6	131-6919	Stud, infeed hold down	Ask us
33	102-2009	Bolt, hex head	Ask us
34	102-03911020391	Washer, lock	Request
35	102-01041020104	Bolt, hex head	Request
9	904-2243	Bracket	Ask us
36	102-01831020183	Screw, flat head slot	Request
37	102-02941020294	Screw, round head slot	Request
11	131-7085	Bracket, inner guide	Ask us
38	102-01911020191	Screw, flat head slot	Request
39	102-00871020087	Bolt, hex head	Request
13	131-71081317108	Bracket, bowl support roller	Request
14	131-71091317109	Spacer, roller	Request
41	102-1421	Screw, square head set	Ask us
15	131-07311310731	Roller, bowl contact	Request
42	102-0742	Nut, jam	Ask us
16	131-71041317104	Pin, bowl contact roller for all fil	Request
43	102-00671020067	Bolt, hex head	Request
17	131-7107	Plate, locking	Ask us
44	102-03871020387	Washer, lock	Request
45	102-04151020415	Washer, flat	Request
46	102-01011020101	Bolt, hex head	Request
47	102-03901020390	Washer, lock	Request
48	102-14131021413	Screw, socket head cap	Request
21	132-6169	Pan, scavenger	Ask us
49	102-03351020335	Nut, hex	Request
50	102-1648	Screw, socket head	Ask us
51	102-03891020389	Washer, lock	Request
52	102-00921020092	Bolt, hex head	Request
53	102-03341020334	Nut, hex	Request
54	102-04171020417	Washer, flat	Request
70	134-1803	Stud, infeed hold down bkt	Ask us
59	102-14871021487	Socket head cap screw	Request
71	134-1804	Bracket, adj	Ask us
60	131-7013	Pin, taper	Ask us
72	102-00891020089	Bolt, hex head	Request
73	102-09841020984	Pin, roll	Request
63	102-00661020066	Bolt, hex head	Request
74	102-1859	Pin, roll	Ask us
65	134-1809	Spacer, gearbox	Ask us
75	904-3026	Bracket, hold down	Ask us
66	102-1512	Nut, hex jam	Ask us
76	904-2990	Bracket, timing screw	Ask us
67	904-3025	Guard, timing screw	Ask us
77	100-2345	Bushing	Ask us
68	100-7016	Clamp	Ask us
69	102-00651020065	Bolt, hex head	Request
81	000-1624	Key	Ask us

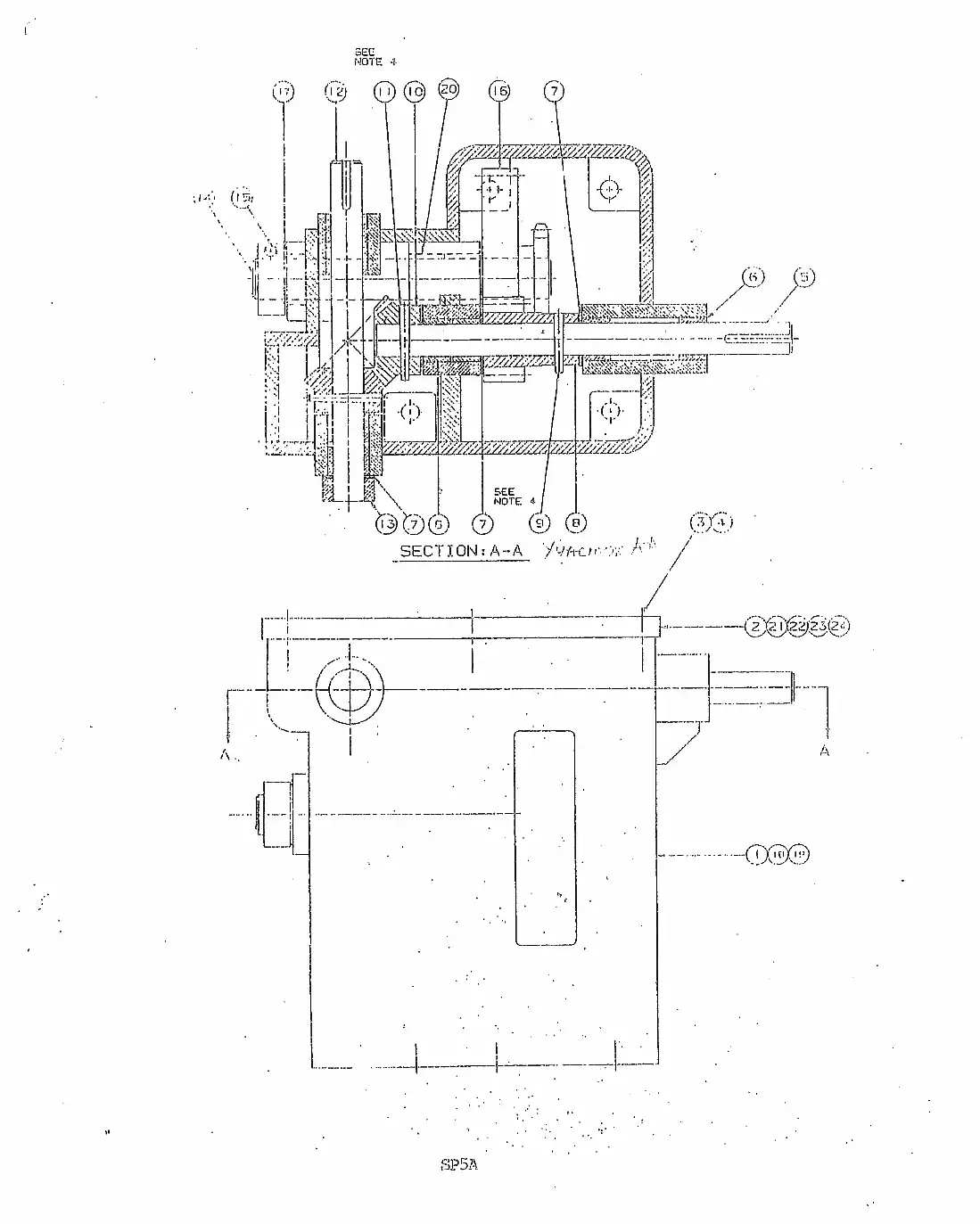

Timing Screw Gearbox

Contents

The drive turns the filler, crowner and starwheels in time with each other. Gears, pinions, bearings and seals wear slowly, but a failure here stops the whole machine.

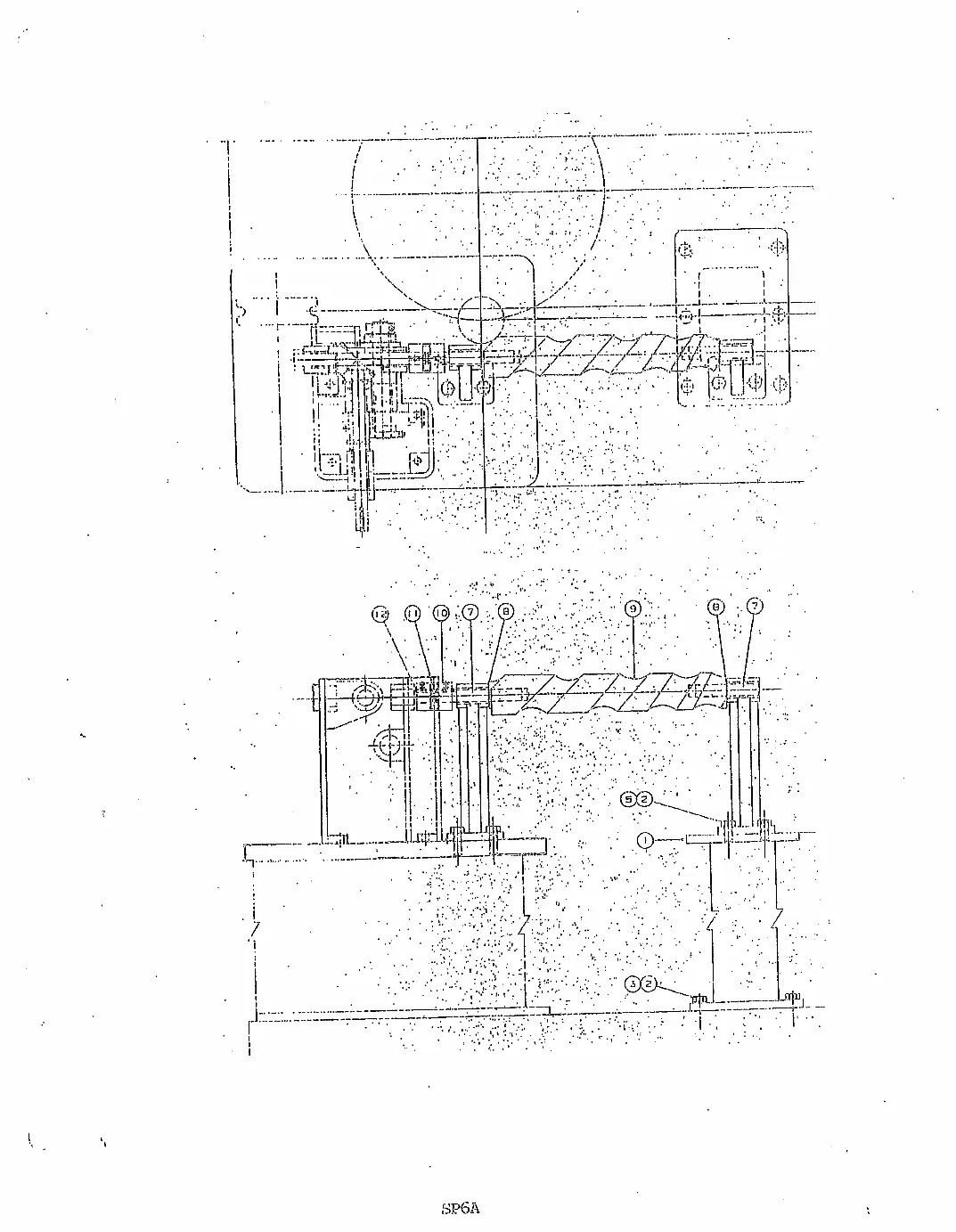

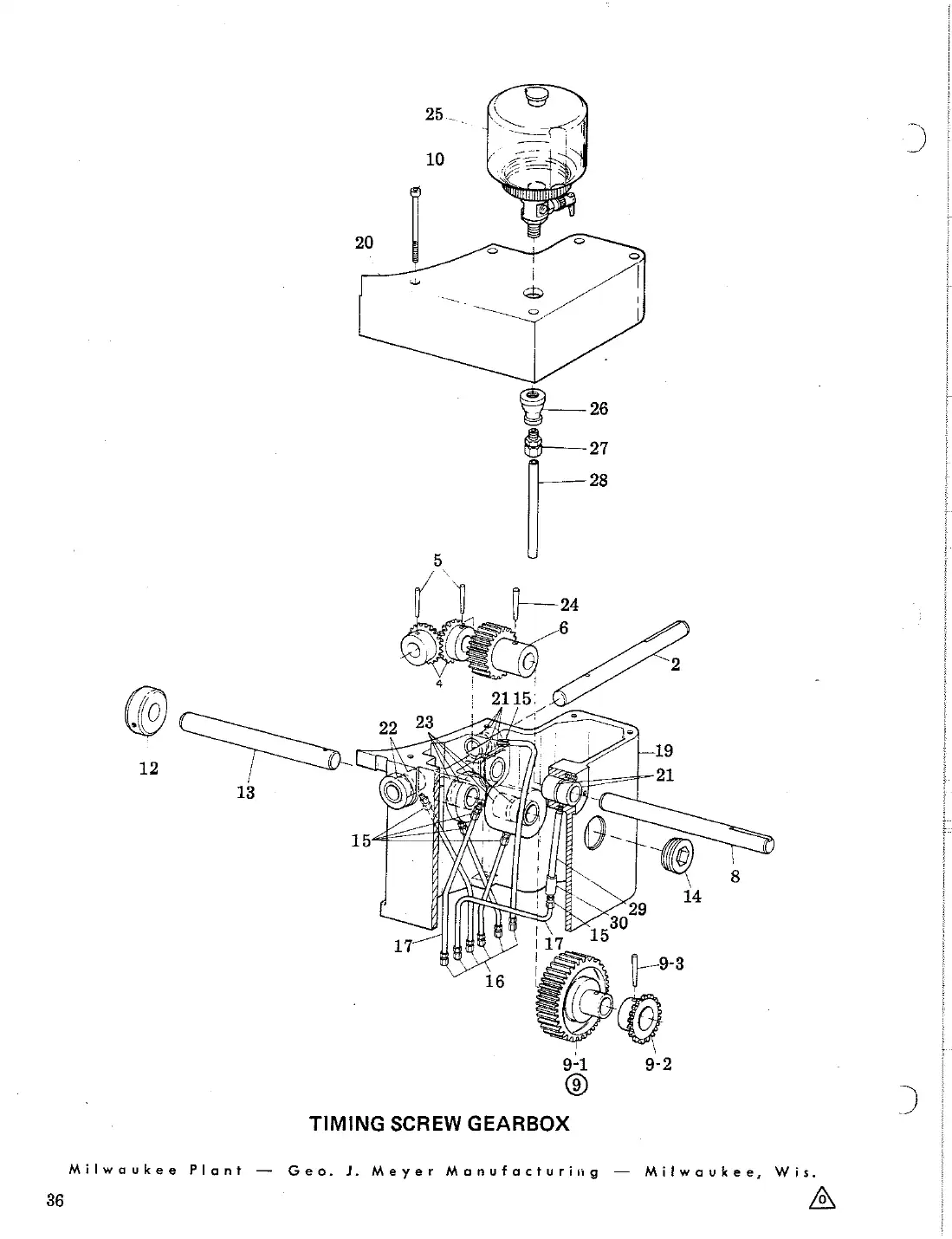

Meyer 40 valve can filler timing screw gearbox drawing

Open full size

Ref	Part number	Description
14	100-11541001154	Plug, pipe, internal hex drive	Request
15	100-09231000923	Fitting, tube	Request
16	100-16351001635	Coupling, tube	Request
2	HH-6773	Shaft, drive	Ask us
19	H-2704	Box, gear	Ask us
4	HH-1545	Gear, mitre	Ask us
5	102-1397	Pin, taper	Ask us
21	100-2345	Bushing, sleeve	Ask us
6	HH-6718	Pinion, conveyor drive	Ask us
22	HH-6774HH6774	Bushing	Request
24	102-14901021490	Pin, taper	Request
9-1	131-6242	Gear, conveyor drive	Ask us
25	100-49271004927	Oiler, gravity feed	Request
26	100-27901002790	Bushing, reducing hex	Request
27	100-09221000922	Fitting, tube adapter	Request
10	102-08291020829	Screw, socket head cap	Request
28	000-17470001747	Tubing	Request
12	100-0747	Collar, set	Ask us
29	100-2719	Nipple	Ask us
13	HH-6722	Shaft, intermediate coupling	Ask us

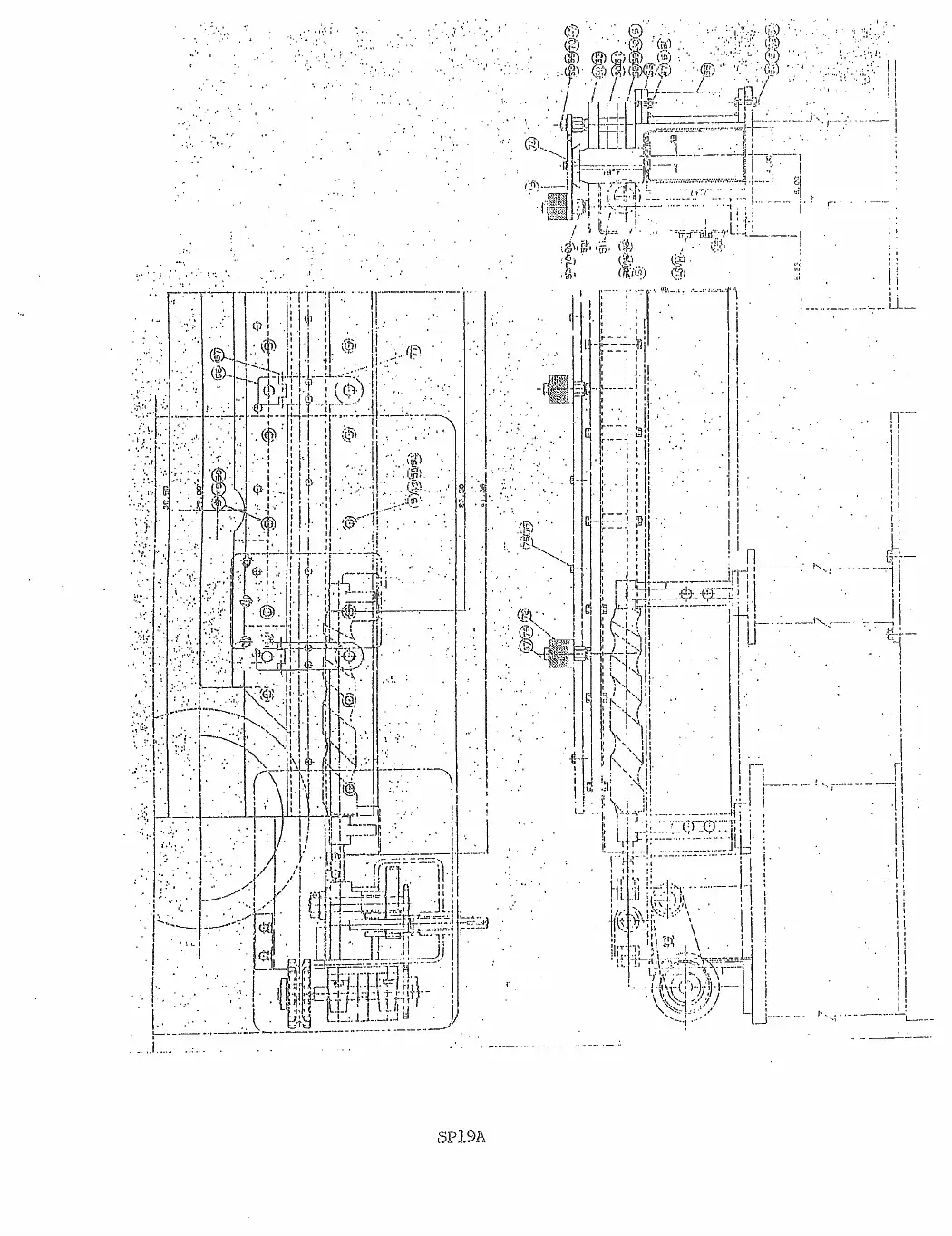

Infeed Conveyor

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

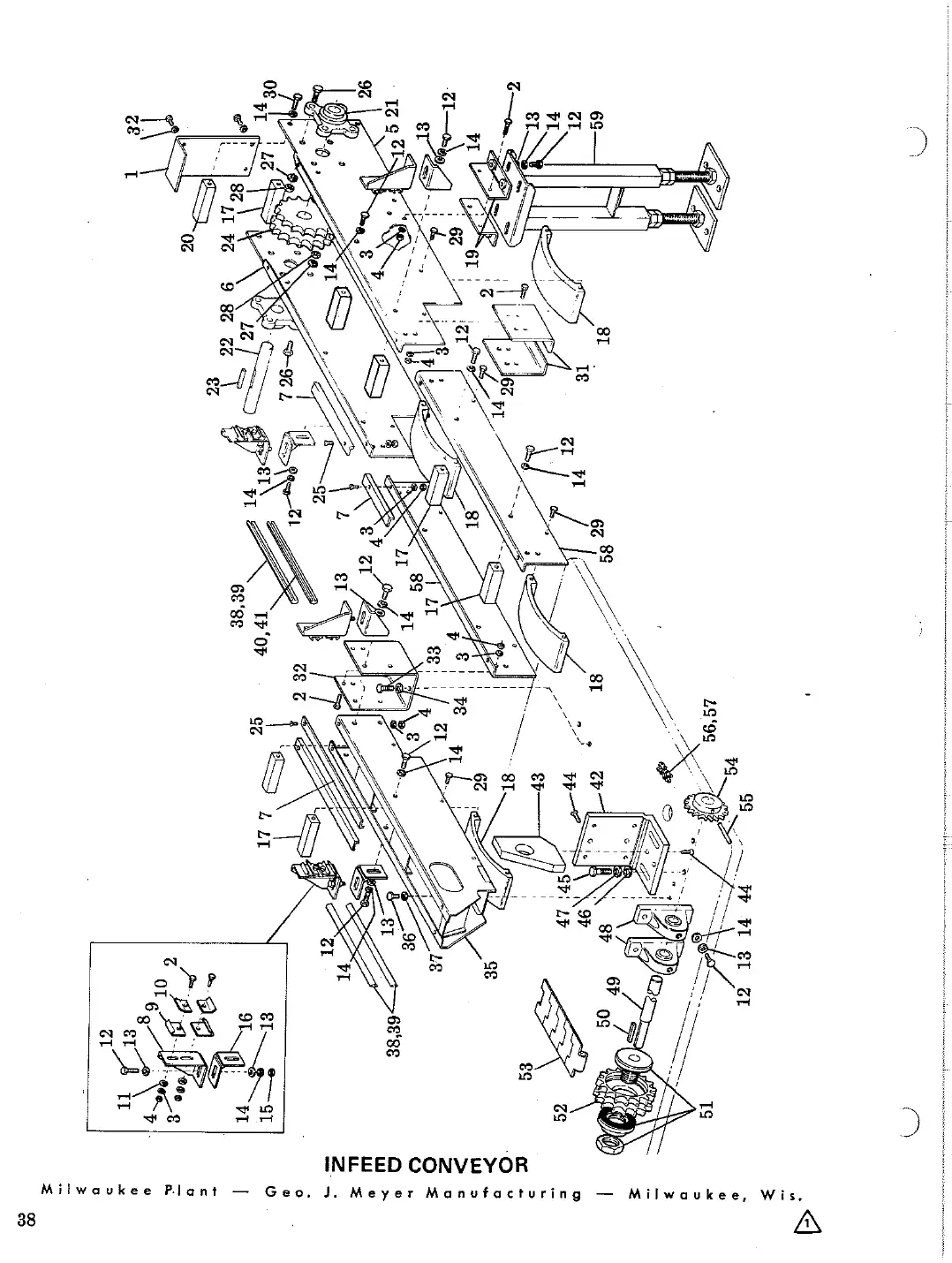

Meyer 40 valve can filler infeed conveyor drawing

Open full size

Ref	Part number	Description
29	102-2296	Screw, hex head	Ask us
30	102-00871020087	Bolt, hex head	Request
31	903-2962	Tie, side support	Ask us
1	133-1387	Cover, end	Ask us
32	134-1745	Bracket, base mounting	Ask us
2	102-00671020067	Bolt, hex head	Request
33	102-01001020100	Bolt, hex head	Request
3	102-03871020387	Washer, lock	Request
34	102-03901020390	Washer, lock	Request
4	102-03321020332	Nut, hex	Request
35	904-2989	Frame, conveyor	Ask us
5	133-1386	Channel, side	Ask us
36	102-00751020075	Bolt, hex head	Request
6	133-1385	Channel, side	Ask us
37	102-03881020388	Washer, lock	Request
7	000-36980003698	Wearstrip, filler conveyor out	Request
38	000-1421	Rail, guide	Ask us
8	131-1517	Bracket, guide rail	Ask us
39	000-3326	Cover, guide rail	Ask us
9	131-5696	Bracket, guide rail	Ask us
10	131-1718	Bracket, guide rail	Ask us
11	102-04151020415	Washer, flat	Request
42	904-3142	Bracket, conv drive shaft	Ask us
12	102-00891020089	Bolt, hex head	Request
13	102-04171020417	Washer, flat	Request
44	102-02081020208	Screw, flat head slot	Request
14	102-03891020389	Washer, lock	Request
45	102-0907	Screw, hex head	Ask us
15	102-03341020334	Nut, hex	Request
46	102-04191020419	Washer, flat	Request
16	133-1251	Support, guide rail bracket	Ask us
47	102-03911020391	Washer, lock	Request
17	133-0435	Spacer, side channel	Ask us
48	100-0222	Bearing, pillow block	Ask us
18	133-0310	Shoe, return shaft	Ask us
19	903-2961	Tie, side support	Ask us
50	000-1624	Key	Ask us
20	133-1358	Spacer, end cover	Ask us
51	100-9695	Limiter, torque	Ask us
21	101-06021010602	Bearing, conveyor	Request
52	131-84431318443	Sprocket, dwg inde	Request
22	133-2356	Shaft	Ask us
53	100-3599	Chain	Ask us
23	000-16250001625	Key, square	Request
24	100-5125	Sprocket	Ask us
55	100-1852	Pin, roll	Ask us
25	102-01931020193	Screw, flat head slot	Request
56	101-21031012103	Chain, roller	Request
26	102-1492	Screw, hex head	Ask us
57	101-21051012105	Clip, link roller chain	Request
27	102-14431021443	Washer, lock	Request
58	133-0291	Frame, side	Ask us
28	102-15331021533	Nut, hex	Request
59	904-3369	Support, conveyor	Ask us
4	102-00881020088	Hex head bolt	Request
55	904-7388	Bracket ckobe	Ask us
87	102-0210	Screw bunn	Ask us
58	137-0661	Can guide happa rabi yar bet	Ask us
59	102-00901020090	Bolt, hex head	Request
62	137-0659	Can guide warps aac, bae	Ask us
66	137-0664	Bracket cone	Ask us
69	102-03351020335	Nut, hex	Request
73	137-0666	Plate nancies	Ask us
74	137-0667	Can guide non sof	Ask us
75	102-2110	Screw buiter	Ask us
77	137-0665	Clevis koe	Ask us
78	137-0672	Height rev	Ask us
79	1020104102-0104	Bolt, hex head	Request
89	9047500904-7500	Can stop ass yen	Ask us
7	102-0813	Screw	Ask us
8	102-19241021924	Pin, dowel	Request
10	102-01021020102	Bolt, hex head	Request
16	102-03411020341	Nut, hex jam	Request

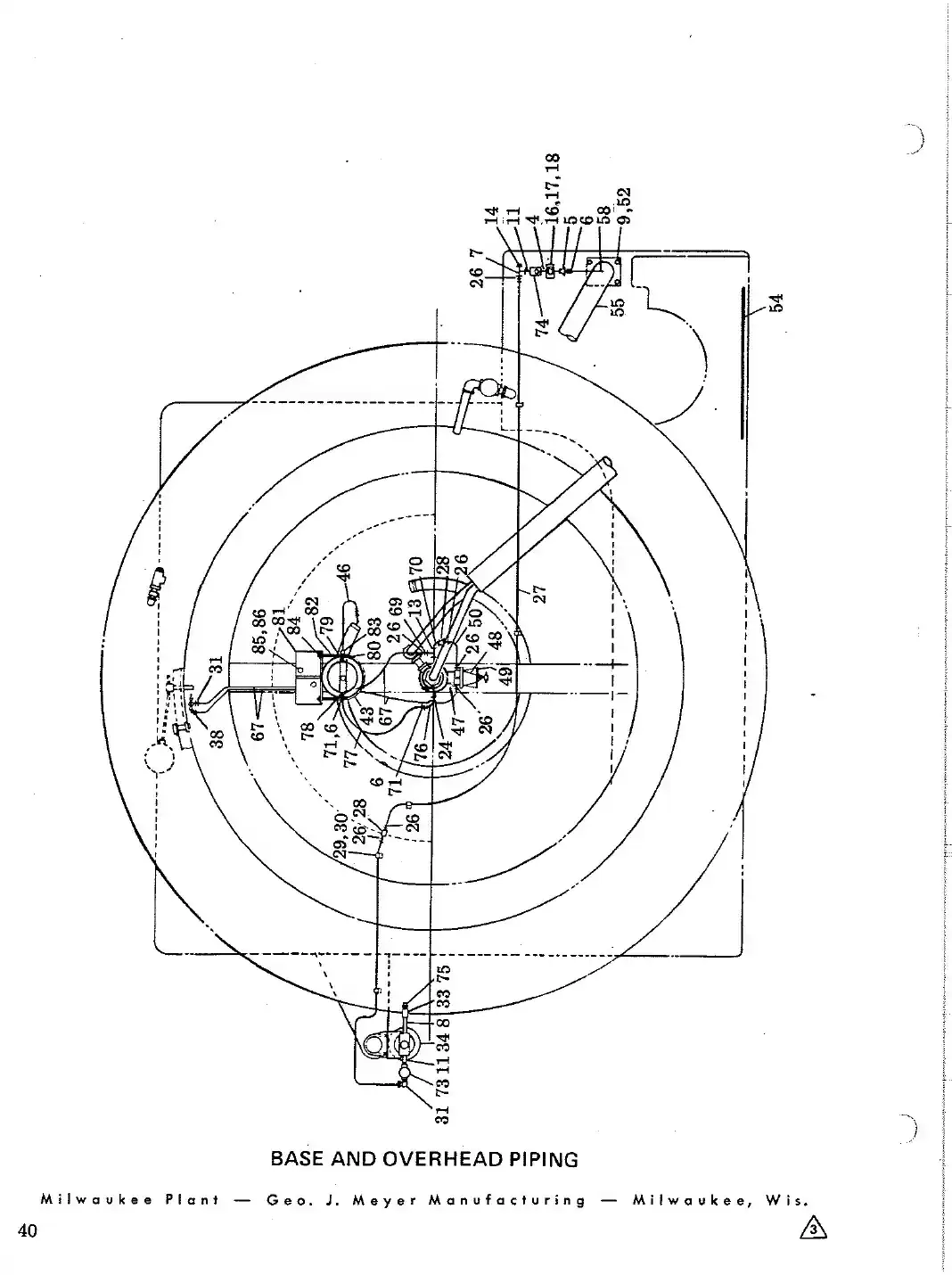

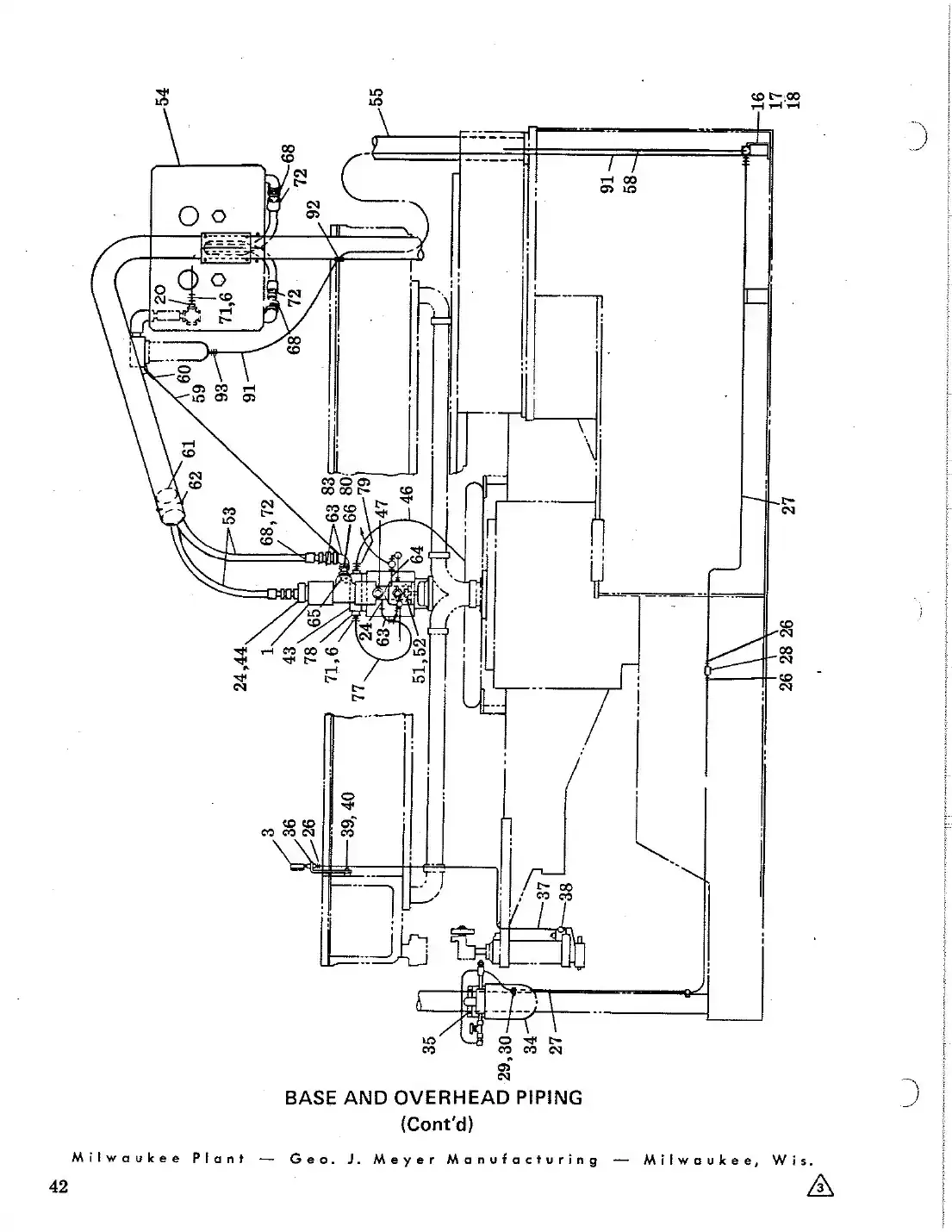

Base and Overhead Piping

Contents

The base, columns and guarding support the rotating filler and protect operators. Most service here is fasteners, doors, guards and leveling hardware.

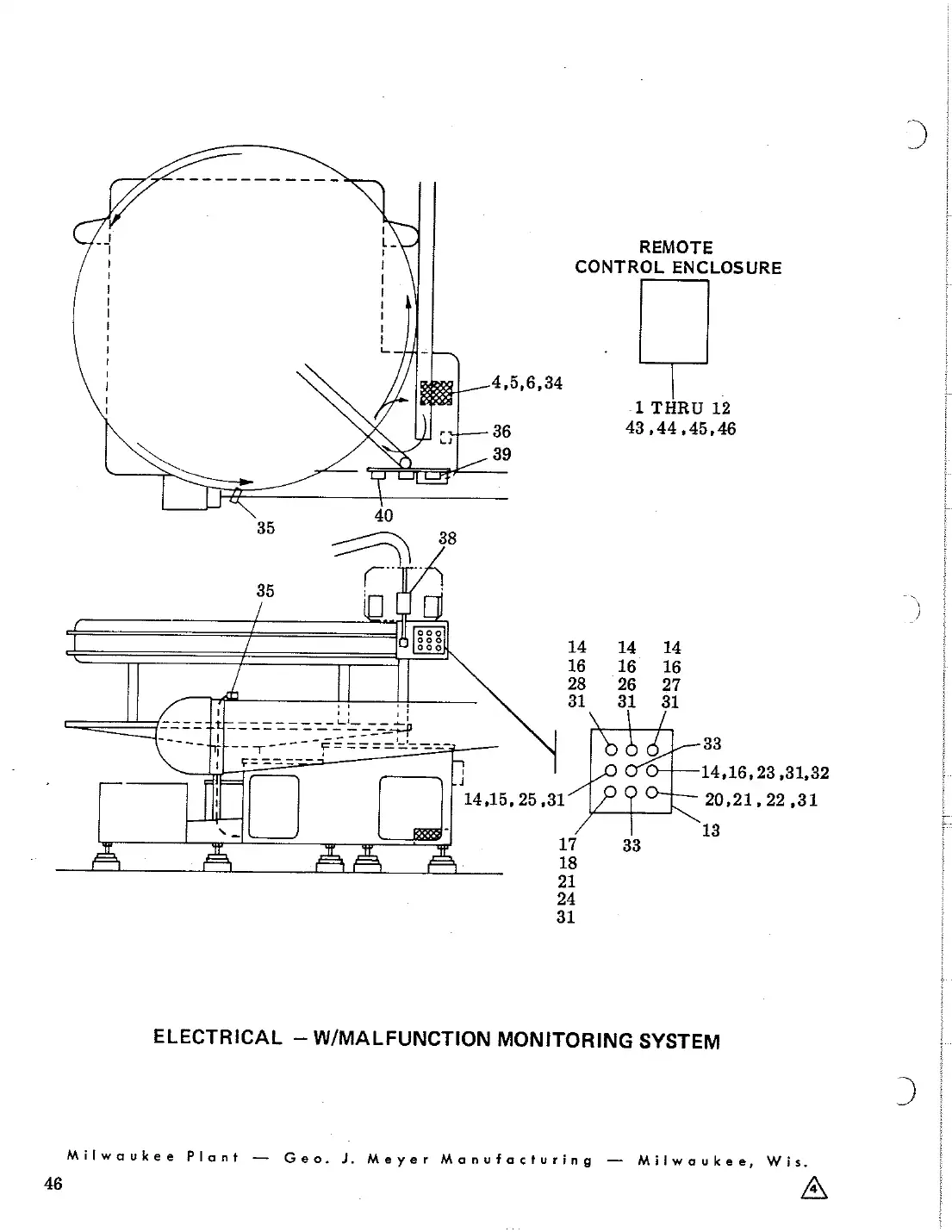

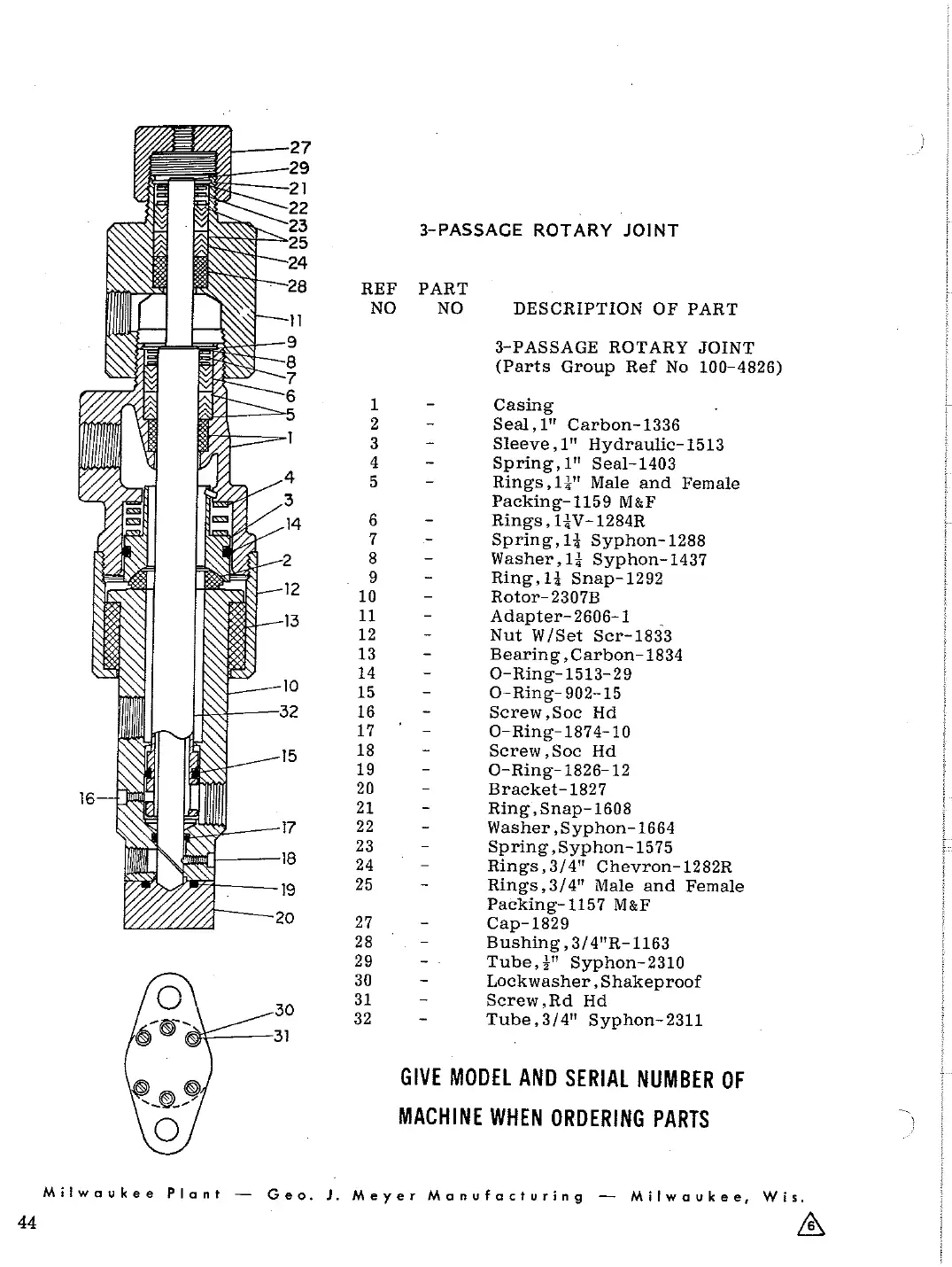

Meyer 40 valve can filler base and overhead piping drawing

Open full size

Ref	Part number	Description
50	000-35190003519	Tubing, poly-flo	Request
51	102-00911020091	Bolt, hex head	Request
52	102-03891020389	Washer, lock	Request
53	000-34890003489	Tubing, CO2/air braided hose	Request
3	100-3387	Gauge, pressure	Ask us
4	100-1445	Nipple	Ask us
5	100-27921002792	Coupling, reducer	Request
58	100-7197	Hose	Ask us
6	101-0109	Coupling, hose	Ask us
59	100-4122	Cable	Ask us
7	100-08811000881	Tee	Request
60	100-0585	Clamp, cable	Ask us
8	000-0796	Pipe	Ask us
61	131-75651317565	Plug, overhead piping	Request
9	102-00901020090	Bolt, hex head	Request
62	102-02851020285	Screw, round head slot	Request
11	100-08901000890	Nipple	Request
63	100-3975	Elbow	Ask us
13	100-08821000882	Tee	Request
64	100-2734	Nipple	Ask us
14	100-08721000872	Plug, pipe square head	Request
65	100-5739	Bushing	Ask us
16	131-7564	Support, pipe	Ask us
66	100-0905	Nipple	Ask us
17	100-0356	Clamp	Ask us
18	102-00651020065	Bolt, hex head	Request
68	101-01081010108	Fitting, barbed	Request
20	100-14371001437	Bushing, reducing hex	Request
69	100-14321001432	Bushing, reducing hex	Request
24	100-08921000892	Nipple	Request
70	100-0855	Elbow	Ask us
26	101-0105	Connector, male	Ask us
71	100-3078	Clamp, hose	Ask us
72	101-0106	Clamp	Ask us
28	100-14351001435	Bushing, reducing hex	Request
73	101-0166	Valve, needle	Ask us
29	100-6940	Clamp, fitting	Ask us
74	100-9872	Valve, solenoid	Ask us
30	102-0267	Screw, round head	Ask us
75	101-0195	Nozzle	Ask us
31	101-0104	Elbow, male connector	Ask us
76	100-08561000856	Elbow	Request
33	100-2726	Coupling	Ask us
77	000-3386	Hose	Ask us
34	100-9881	Lubricator, oil fog	Ask us
78	100-1491	Bushing	Ask us
35	100-9235	Clamp	Ask us
79	100-1490	Bushing	Ask us
36	HH-6560	Bracket	Ask us
80	100-0893	Nipple, close	Ask us
81	904-0529	Bracket	Ask us
38	100-53251005325	Elbow, male connector	Request
82	132-7556	U-clamp	Ask us
39	102-0290	Screw, round head	Ask us
83	100-08571000857	Elbow	Request
40	102-03861020386	Washer, lock	Request
84	102-03321020332	Nut, hex	Request
43	904-1536	Lubricator, constant density	Ask us
85	102-01001020100	Bolt, hex head	Request
44	100-2793	Coupling, reducing	Ask us
86	102-03901020390	Washer, lock	Request
46	900-4249	Hose assembly	Ask us
47	100-46181004618	Gauge, pressure	Request
48	100-29651002965	Regulator, pressure pilot	Request
49	130-6290	Plate, mounting	Ask us
93	100-5324	Connector	Ask us
7	102-04201020420	Washer, flat	Request
8	100-8433	Locknut	Ask us
9	102-00921020092	Bolt, hex head	Request
10	102-0365	Nut, hex	Ask us
1	131-3418	Bracket, can guard	Ask us
11	102-04171020417	Washer, flat	Request
2	131-5221	Support, cam follower	Ask us
3	100-8443	Fitting, drive type	Ask us
13	131-5723	Washer, clamp	Ask us
4	131-3417	Roller, stabilizing	Ask us
14	102-2069	Screw, slotted round head	Ask us
5	131-3425	Spacer	Ask us
15	102-03871020387	Washer, lock	Request
6	100-0675	Cam, bearing follower	Ask us
23	103-5788	Plate, legend mal	Ask us
25	100-7411	Plate, legend filler	Ask us
1	100-5227	Enclosure, control run	Ask us
2	100-3155	Relay, control with time 7200-8232 plate	Ask us
3	100-3157	Relay, control pressure low	Ask us
4	100-0190	Block, terminal plate	Ask us
5	100-0191	Plate, barrier air pressure low	Ask us
6	100-0193	Clip, retaining plate	Ask us
7	100-6987	Nameplate, electrical level low	Ask us
31	100-0400	Gasket, nameplate	Ask us
32	103-5296	Bulb, flatwasher element	Ask us
9	130-9710	Screwlug, grounding	Ask us
33	100-0048	Plate, hole closing	Ask us
10	100-6715	Plate, fusible barrier	Ask us
34	100-3496	Enclosure, control	Ask us
11	100-6716	Block, fusible	Ask us
35	200-4217	Switch, limit hung can	Ask us
12	100-3515	Fuse-fnmlo	Ask us
13	100-3131	Enclosure, pushbutton solenoid	Ask us
14	103-5012	Light, pilot-without lens	Ask us
38	100-0039	Switch, air pressure aps	Ask us
15	103-5016	Lens, pilot light	Ask us
16	103-5017	Lens, pilot light red	Ask us
40	200-6612	Switch, pressure dps	Ask us
17	103-5013	Pushbutton, operator	Ask us
43	100-6718	Clip, fuse pulling	Ask us
44	103-51491035149	Relay, 8 pin pl	Request
18	103-5022	Lens, pushbutton	Ask us
45	103-5545	Socket, octal base relay	Ask us
20	103-5055	Operator, selector pos	Ask us
21	103-5001	Block, contact	Ask us
22	100-6942	Plate, legend power	Ask us
22	100-9874	Bracket	Ask us
23	100-2966	Regulator	Ask us
24	134-22941342294	U-bolt, pipe	Request
25	100-3636	Nipple	Ask us
1	131-7566	Panel, irstrument	Ask us
27	100-79991007999	Nameplate, lift cylinders	Request
2	100-1485	Elbow, street	Ask us
28	100-80001008000	Nameplate, co	Request
3	100-4917	Valve, check	Ask us
29	102-1571	Screw, round head drive	Ask us
5	100-2710	Cock, three-way	Ask us
33	102-00681020068	Bolt, hex head	Request
3	101-0189	Wrench	Ask us
35	102-04151020415	Washer, flat	Request
10	100-08841000884	Tee	Request
39	102-1849	Pin, roll	Ask us
11	100-1439	Bushing	Ask us
40	101-06751010675	Gauge, pressure assembly	Request
12	100-14421001442	Nipple, pipe	Request
41	100-2748	Elbow	Ask us
13	100-7138	Elbow, union	Ask us
42	101-3020	Filter	Ask us
14	100-14411001441	Nipple, pipe	Request
43	100-27571002757	Cross, pipe	Request
15	100-3634	Nipple	Ask us
44	100-6937	Bushing	Ask us
16	100-3970	Elbow	Ask us
45	100-14311001431	Bushing, reducing hex	Request
47	102-03341020334	Nut, hex	Request
21	100-47101004710	Regulator, air	Request

Lubrication and Grease Lines

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Ref	Part number	Description
24	101-3363	Time	Ask us
25	134-3556	Lube, instructions	Ask us
26	100-2716	Nipple, pipe	Ask us
27	100-08731000873	Plug, pipe square. head	Request
1	000-17500001750	Tubing	Request
28	100-08811000881	Tee	Request
2	100-09231000923	Fitting, tube	Request
29	100-1465	Elbow	Ask us
3	101-3250	Injector	Ask us
30	100-09241000924	Fitting, tube adapter	Request
4	101-3252	Injector	Ask us
31	100-14661001466	Elbow, tube male	Request
5	101-3249	Injector, grease-sll	Ask us
32	100-14331001433	Bushing, reducing hex	Request
6	100-1482	Elbow	Ask us
34	100-1470	Elbow, male	Ask us
7	100-0928	Connector, male	Ask us
35	102-07861020786	Bolt, hex head	Request
8	100-08721000872	Plug, pipe square head	Request
36	102-04151020415	Washer, flat	Request
9	100-08901000890	Nipple	Request
37	102-03871020387	Washer, lock	Request
10	100-7327	Fitting, grease	Ask us
38	102-03321020332	Nut, hex	Request
11	102-02941020294	Screw, round head slot	Request
39	102-00891020089	Bolt, hex head	Request
40	102-04171020417	Washer, flat	Request
13	101-3362	Valve, air-sol operate	Ask us
41	102-03891020389	Washer, lock	Request
16	102-01021020102	Bolt, hex head	Request
42	102-03341020334	Nut, hex	Request
17	102-03901020390	Washer, lock	Request
43	100-08801000880	Tee, pipe	Request
18	102-03351020335	Nut, hex	Request
44	100-08531000853	Elbow	Request
19	101-3279	Pump, grease	Ask us
45	100-14311001431	Bushing, reducing hex	Request
20	000-3844	Tube specify length	Ask us
46	100-08991000899	Nipple	Request
21	132-9961	Label, instructions	Ask us
47	000-0791	Spacer	Ask us
22	134-2384	Plate, mounting	Ask us
49	100-14691001469	Elbow, tube male	Request
23	100-1637	Union	Ask us
1	100-7626	Handle speed	Ask us
2	100-7672	Socket	Ask us
4	101-0150	Rule, depth gage	Ask us
5	100-9021	Socket, thin wall	Ask us
6	100-7343	Tool, cross-bar	Ask us
7	100-7625	Shank, extension	Ask us
8	100-8679	Wrench, crown foot	Ask us
9	904-5012	Cleaner, snift valve assembly	Ask us
9-2	HH-1846	Gasket	Ask us
9-3	RR-510	Body	Ask us
94	SW-9212	Gasket	Ask us
9-5	RR-507RR507	Valve, snift cleaner rev	Request
96	RR-530	Spring, snift valve cleaner	Ask us
9-7	RR-509	Plunger, valve	Ask us
9-8	RR-508RR508	Nut	Request
9-9	135-5539	Gasket	Ask us
11	100-2703	Gun, grease	Ask us
12	904-2789	Pulley, gear	Ask us
13	135-7123	Tool	Ask us
14	135-1239	Socket-mx liquid seal	Ask us
15	135-1226	Assembler, valve stem	Ask us
16	904-5551	Tool, cage setting	Ask us
16	100-7670	Oil, cepheus gallon	Ask us
16	100-7553	Myrex, drum	Ask us
16	100-7550	Myrex, drum	Ask us
5	131-6797	Plate	Ask us
6	102-0132	Screw, slotted flat head	Ask us
7	102-2194	Washer, wave	Ask us
8	102-1780	Screw, set	Ask us
9	131-6798	Collar	Ask us
1	131-6796	Bracket	Ask us
10	131-6799	Extension	Ask us
2	131-6800	Block, gauge	Ask us
11	100-9761	Point, contact	Ask us
3	102-0005	Screw, hex head	Ask us
4	100-9996	Indicator, dial type	Ask us

Sind, cau pad mrores den eee

Contents

Parts for this assembly, from the original Meyer parts lists.

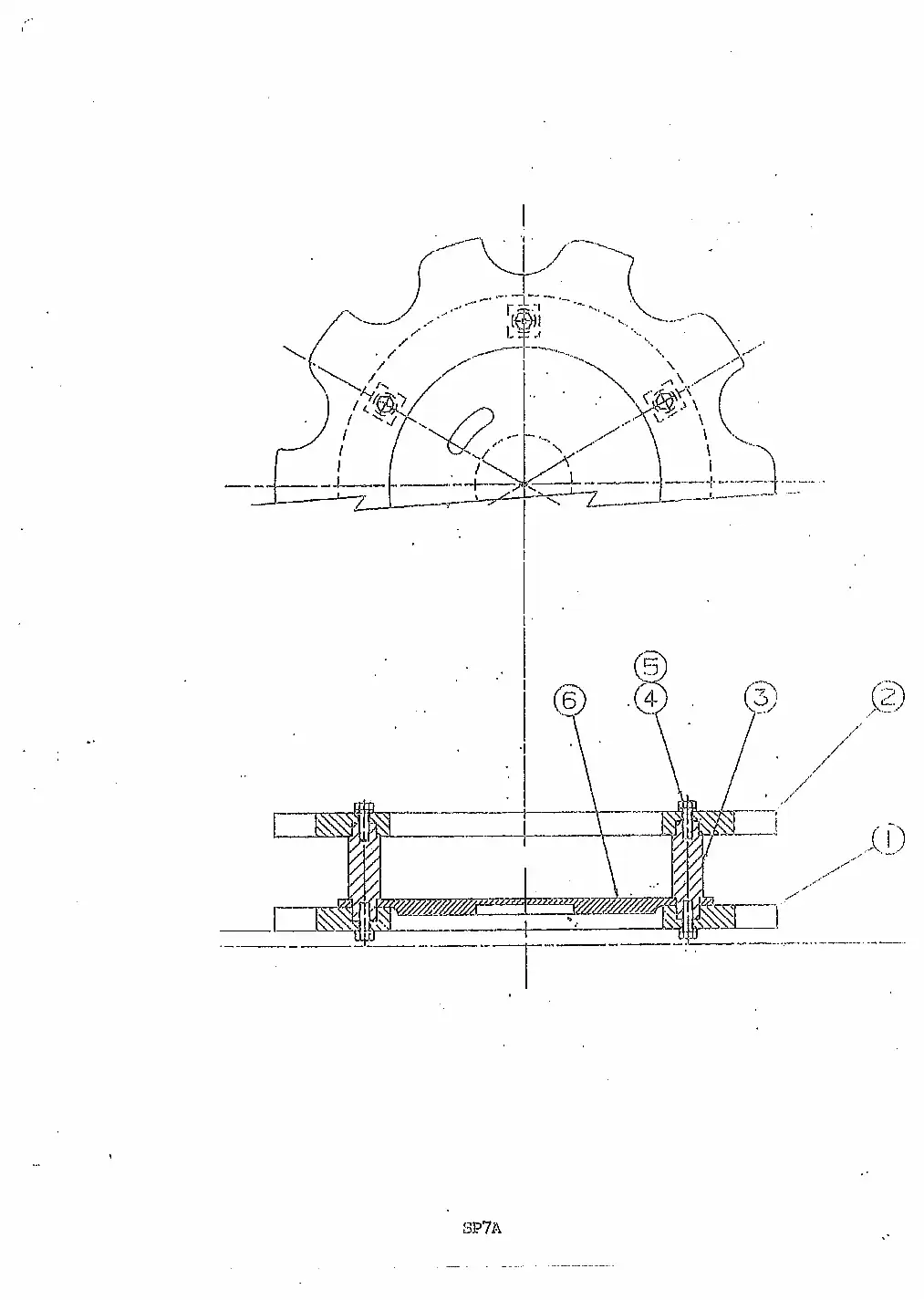

Meyer 40 valve can filler sind, cau pad mrores den eee drawing

Open full size

Ref	Part number	Description
2	136-8704	Sind, cau pad mrores den eee	Ask us
3	136-8696	Nii ale	Ask us
5	104-60261046026	Ring, retaining	Request
6	136-8695	Pad, can ipoxantice	Ask us
7	136-8697	Shim	Ask us
10	136-8700	Shiva	Ask us
17	905-14499051449	Bearing, main hanger assembly	Request
18	102-16021021602	Screw, socket head cap	Request
24	102-00651020065	Bolt, hex head	Request

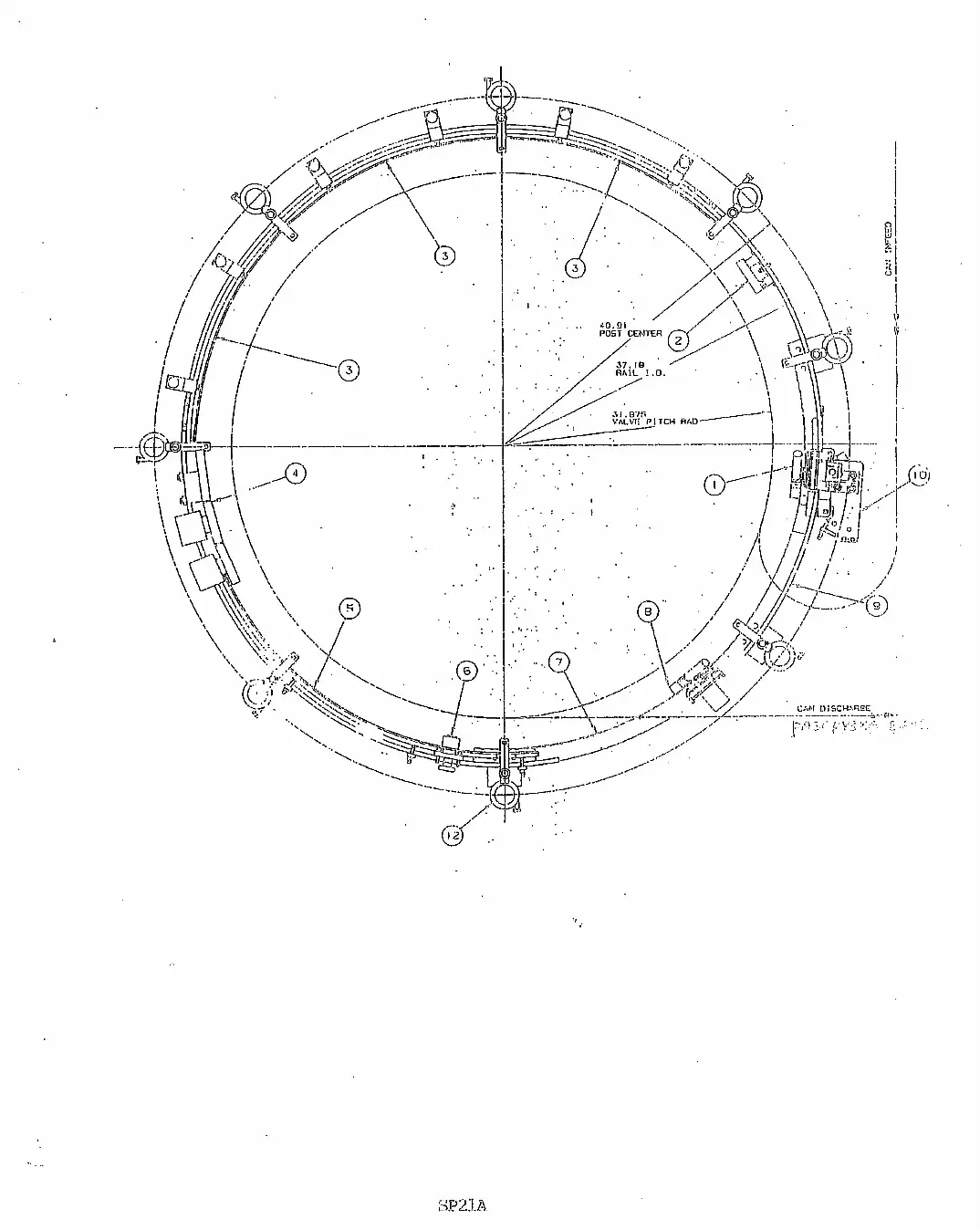

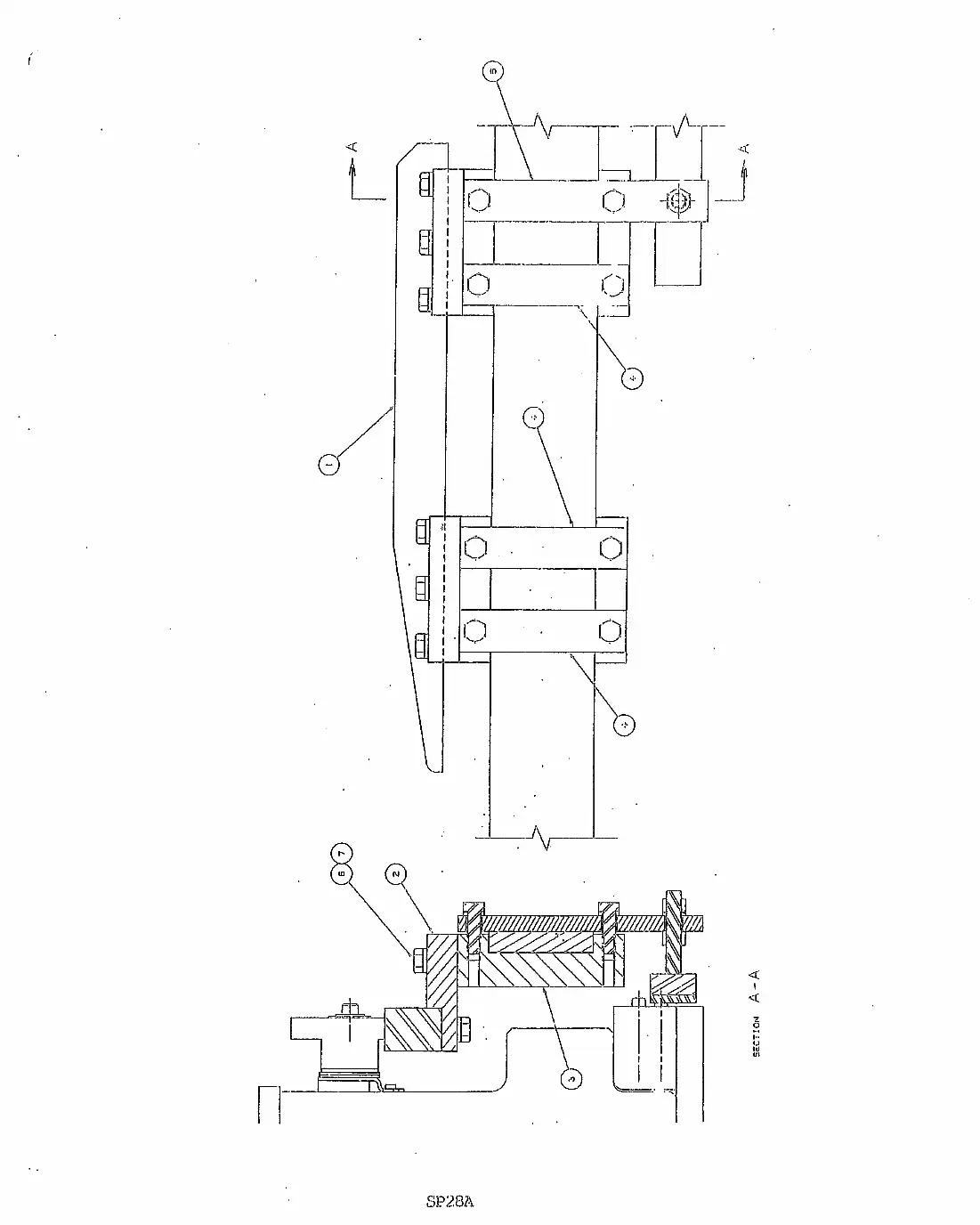

Can Guide Assembly

Contents

The handling parts move containers into, around and out of the filler. Starwheels, guides, timing screws and wear strips are package-specific and wear with every container.

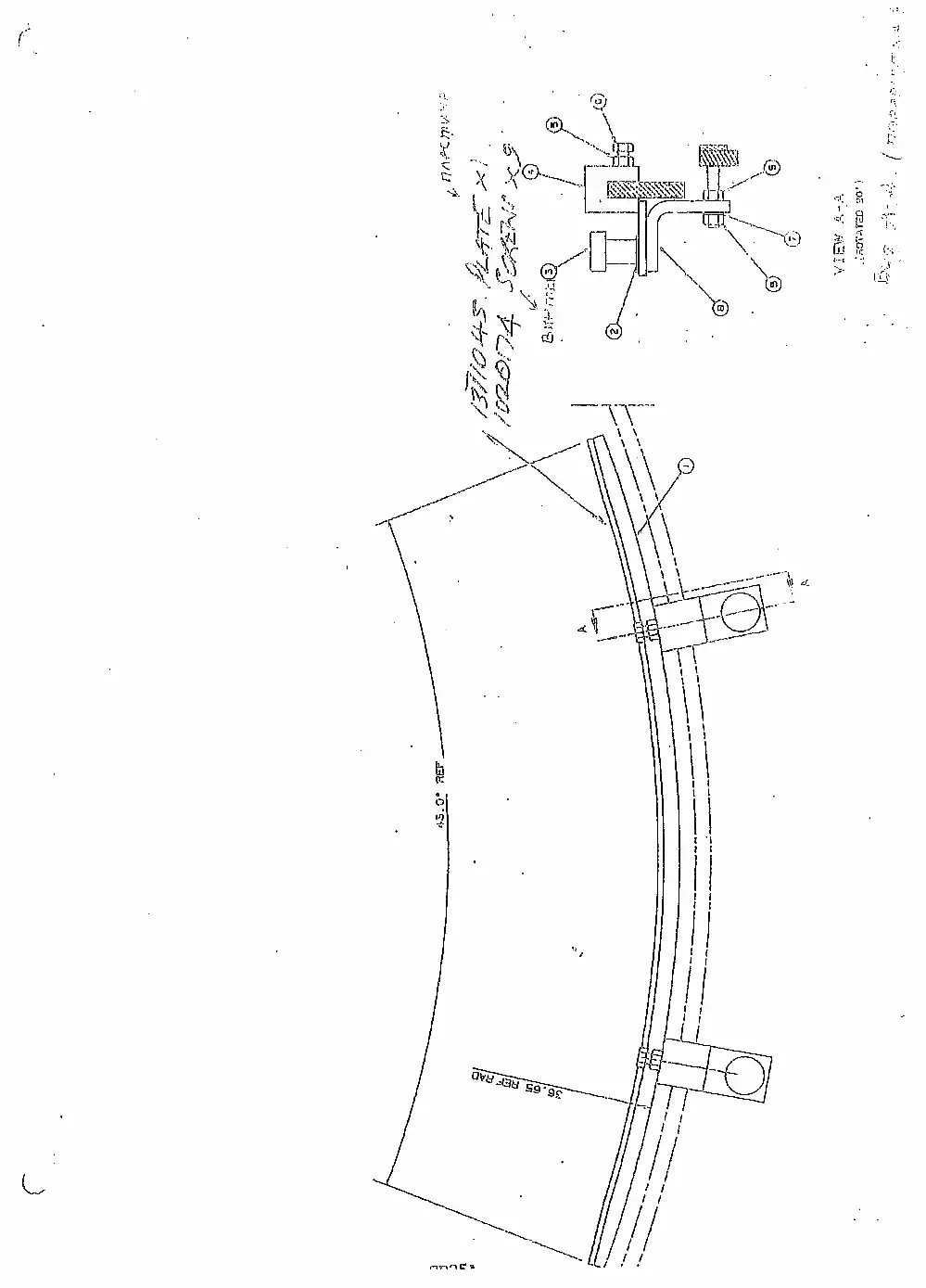

Meyer 40 valve can filler can guide assembly drawing

Open full size

Ref	Part number	Description
3	102-01061020106	Bolt, hex head	Request
4	102-03901020390	Washer, lock	Request
5	102-01001020100	Bolt, hex head	Request
7	102-01921020192	Screw, flat head slot	Request
14	102-04481020448	Screw, set socket cup point	Request
18	102-00751020075	Bolt, hex head	Request
20	137-0353	Fenob eeors	Ask us
24	102-04161020416	Washer, flat	Request
25	135-8613	Sprocket	Ask us
36	102-00761020076	Bolt, hex head	Request
37	102-04271020427	Screw, set socket cup point	Request
4	104-8252	Screw gui	Ask us
40	102-1274	Key icaroy	Ask us
41	102-1913	Screw bunt	Ask us
2	136-85381368538	Spacer, jack	Request
10	102-00921020092	Bolt, hex head	Request
44	136-9165	Shim lae	Ask us
47	104-7817	Bose clamp lacie nee	Ask us
50	101-01371010137	Lubricator	Request
31	102-00681020068	Bolt, hex head	Request
52	102-03871020387	Washer, lock	Request
4	104-7885	Ball valve waposats eenn ett	Ask us
58	100-46601004660	Elbow, street 90 deg	Request
26	000-16250001625	Key, square	Request
60	104-65591046559	Valve, 3 way	Request
28	102-07861020786	Bolt, hex head	Request
62	102-00791020079	Bolt, hex head	Request
63	102-03331020333	Nut, hex	Request
30	104-50951045095	Motor, air bowl lift	Request
31	135-86121358612	Sprocket	Request
95	104-8306	Quick connect botcp aay	Ask us
34	100-82681008268	Chain, roller	Request
86	136-9954	Hose usp hpt	Ask us
34	100-63501006350	Link, offset	Request

Reservoir Assembly

Contents

The filler bowl holds product under counter-pressure above the filling valves. Gaskets, sight glasses and adjusting hardware are the main service parts.

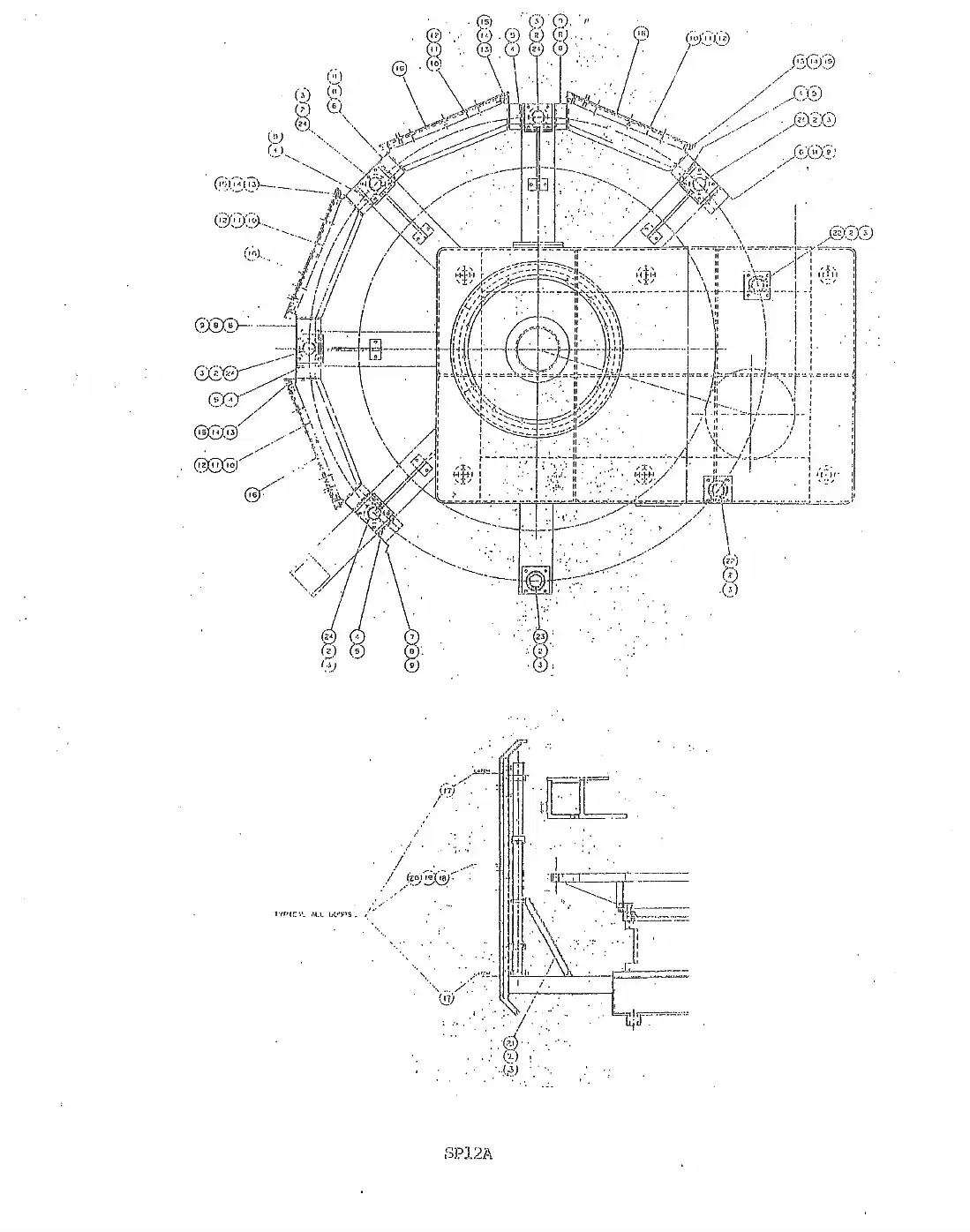

Meyer 40 valve can filler reservoir assembly drawing

Open full size

Ref	Part number	Description
4	135-09471350947	Bushing, valve lever OEM 90V	Request
7	100-25111002511	O-ring, edpm, dash	Request
3	135-08711350871	Stop, reservoir spacer	Request
9	102-1274	Pin iam	Ask us
12	104-51961045196	Washer, wave	Request
13	135-09601350960	Lever, valve operating	Request
15	102-04151020415	Washer, flat	Request
16	102-32251023225	Screw, socket head cap	Request
17	102-23901022390	Nut, hex	Request
13	136-00531360053	Gasket, sight glass	Request
20	100-25071002507	O-ring	Request
21	100-97751009775	Ring, retaining	Request
23	100-21551002155	Union, pipe	Request
27	104-8226	Valve foe	Ask us
2	104-83041048304	O-ring, balance chamber	Request
25	137-0459	Support san scene	Ask us
3	133-91381339138	Cover, balance chamber	Request
26	102-01051020105	Bolt, hex head	Request
4	100-40251004025	O-ring	Request
27	102-0366	Mat maw	Ask us
6	100-21331002133	Gasket, tri-clamp tube	Request
7	100-21421002142	Clamp, hinged sanitary	Request
8	100-00281000028	Gasket, tri-clamp	Request
9	100-00271000027	Clamp, hinged sanitary	Request
12	104-82641048264	O-ring food service	Request
35	100-21411002141	Clamp, hinged sanitary	Request
13	102-01021020102	Bolt, hex head	Request
36	104-8166	Croge ikpecs	Ask us
14	102-03901020390	Washer, lock	Request
37	1370461137-0461	Pipeline	Ask us
48	136-8590	Pipe line	Ask us
39	100-40331004033	O-ring	Request
19	102-0034	But matics gasket por sce	Ask us
42	104-7730	Valve maior	Ask us
23	102-03881020388	Washer, lock	Request
2	102-00911020091	Bolt, hex head	Request
3	102-03891020389	Washer, lock	Request
4	136-9589	Shroud support cpartnce	Ask us
5	102-14871021487	Socket head cap screw	Request
8	102-16611021661	Bolt, hex head	Request
14	102-00641020064	Bolt, hex head	Request
17	100-96771009677	Handle	Request
19	102-02861020286	Screw, round head slot	Request
20	102-03861020386	Washer, lock	Request
18	104-7576	Valve aata	Ask us
2	100-0283	Coupling ane unenoe	Ask us
19	1047577104-7577	Aviator tee	Ask us
3	100-0893	Nipple hunnenb	Ask us
20	101-0470	Connector coegiun wits	Ask us
4	100-21561002156	Union wryiver	Request
21	104-73791047379	Reguator, air filler	Request
5	100-31421003142-1	Filter, housing	Request
93	1010675101-0675	Gauge, pressure assembly	Request
7	100-53251005325	Elbow, male connector	Request
24	135-91391359139	Adapter, cole drg	Request
9	101-3752	Elbow cone	Ask us
28	100-27881002788	Bushing, reducing bell	Request
10	104-8191	Filter gouaprnp	Ask us
11	100-27571002757	Cross, pipe	Request
30	904-7362	Support plate one	Ask us
12	100-1438	Reducing bush mepe voy	Ask us
13	100-1474	Elbow wanehe	Ask us
34	102-00821020082	Bolt, hex head	Request
14	000-42790004279	Cord, stock round	Request
16	101-3753	Elbow koneno	Ask us
37	102-00901020090	Bolt, hex head	Request
17	000-32230003223	Tube, polyflo	Request
2	100-46181004618	Gauge, pressure	Request
3	104-78671047867	Valve, ball 3 way	Request
4	104-67941046794	Valve, check	Request
6	104-73551047355	Valve, ball	Request
7	104-8197	Thermometer mepmore	Ask us
43	HH-2416HH2416	Spring, operating	Request
14	136-6532	Housing opr	Ask us
16	104-60211046021	Float, ball	Request
17	136-63801366380	Stem, valve operating liq level cont	Request
18	136-16531361653	Bushing, valve lever	Request
20	101-00881010088	O-ring	Request
2	100-89261008926	Elbow, 90 deg	Request
3	000-0788	Pipe ynpy	Ask us
4	100-46581004658	Bushing, reducing hex	Request
6	000-0795	Pipe mpys	Ask us
7	100-7017	Clamp	Ask us
9	102-03871020387	Washer, lock	Request
10	100-53711005371	Tee	Request
12	100-89641008964	Coupling, pipe straight	Request
16	104-7951	Valve kaatiay	Ask us
18	104-6651	Hose nat	Ask us
20	100-40861004086	Nipple, pipe	Request

Central Manual Lubrication Leimpercvas Ay 85 8 Cage

Contents

Piping, pneumatics, lubrication and controls supply air, CO2 and power to the filler. Fittings, regulators, solenoids and switches are the usual replacements.

Ref	Part number	Description
3	102-03891020389	Washer, lock	Request
4	100-47661004766	Fitting, grease straight ptf	Request
6	000-17490001749	Tubing	Request
7	100-55801005580	Elbow, compression tube	Request
8	100-89641008964	Coupling, pipe straight	Request
10	000-3742	Tube mpy eke	Ask us
12	100-72471007247	Adapter, straight	Request

Valve Opener Yo Pr Oil

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer 40 valve can filler valve opener yo pr oil drawing

Open full size

Ref	Part number	Description
3	100-46601004660	Elbow, street 90 deg	Request
13	102-04161020416	Washer, flat	Request
14	102-03881020388	Washer, lock	Request
15	102-00751020075	Bolt, hex head	Request
12	104-69161046916	Cylinder, air stroke	Request
21	102-00891020089	Bolt, hex head	Request
22	100-89261008926	Elbow, 90 deg	Request
23	100-4088	Nipple unreas	Ask us
24	100-61091006109	Nipple, close	Request
25	137-3925	Hose lychee	Ask us
26	137-39261373926-1	Tubing, braided	Request
1	102-0344	Mut rare	Ask us
2	102-03891020389	Washer, lock	Request
3	904-7470	Pivot ass mage	Ask us
4	137-1024	Shoulder bolt duee bre pene	Ask us
5	102-04181020418	Washer, flat	Request
6	137-1023	Shoulder bolt goren ferme	Ask us
7	104-8272	Cylinder limiter tes	Ask us
8	137-1000	Clamp pee	Ask us
2	102-00671020067	Bolt, hex head	Request
10	102-03871020387	Washer, lock	Request
4	137-0996	Angle cord	Ask us
20	904-7479	Cam ass myaetict	Ask us
23	102-2263	Mat maces	Ask us
2	102-04171020417	Washer, flat	Request
4	136-8793	Bracket ciate	Ask us
5	102-03341020334	Nut, hex	Request
1	102-03641020364	Nut, hex	Request
3	136-8776	Unbolt onvethar auc	Ask us

Vent Tube Blow Off Assembly

Contents

The valve operating system opens and closes each filling valve at the right point in the rotation. Levers, closer springs and cam tracks wear and cause valves to open late or close incompletely.

Meyer 40 valve can filler vent tube blow off assembly drawing

Open full size

Ref	Part number	Description
4	100-46601004660	Elbow, street 90 deg	Request
8	100-40851004085	Nipple, pipe	Request
14	102-03881020388	Washer, lock	Request
16	136-34811363481	Follower, cam	Request
17	136-3178	Bracket	Ask us
18	104-69161046916	Cylinder, air stroke	Request
23	137-0501	Roller pores	Ask us
25	137-25091372509	Pin, closer scavenger 65V	Request
26	100-38651003865	Ring, retaining external	Request
28	102-04171020417	Washer, flat	Request
29	102-03891020389	Washer, lock	Request
30	100-89261008926	Elbow, 90 deg	Request
31	100-4088	Nipple puriens	Ask us
34	100-61091006109	Nipple, close	Request
8	104-6238	Roller machehea	Ask us
15	101-37491013749	Fitting, elbow	Request
16	102-00901020090	Bolt, hex head	Request
18	102-2366	Screw tsf	Ask us
2	104-6556	Connector core cheer	Ask us
3	100-30771003077	Clamp, hose clamp	Request
4	000-34890003489	Tubing, CO2/air braided hose	Request
5	100-89281008928	Elbow, 90 deg	Request
12	102-00771020077	Bolt, hex head	Request
15	101-2934	Elbow spacer	Ask us
16	101-3529	Nipple hynness	Ask us
24	104-87501048750	Latch, door	Request

Catalog drawings for this filler

Cleaner exploded drawings and part numbers from our parts catalog for assemblies used on this filler.

Need a part for your 40 valve can filler?

More than 300,000 Meyer parts in inventory, same-day shipping on stocked parts, and technicians with 40+ years of Meyer experience.

Call 843-851-3217 Submit a parts inquiry

Assemblies in this manual

Base and Base Attachments

Valve Operators

Mechanical Latch

Valve Closer

Cylinder and Shoe

Filler Bowl

10 Nozzle Filling Valve

Adjustable Bowl Mechanism

Stirrup Hanger

Liquid Supply Line

Liquid Level Control

Main Drive Star Shaft Housing

Main Drive with

Table Top

Timing Screw Gearbox

Infeed Conveyor

Base and Overhead Piping

Lubrication and Grease Lines

Sind, cau pad mrores den eee

Can Guide Assembly

Reservoir Assembly

Central Manual Lubrication Leimpercvas Ay 85 8 Cage

Valve Opener Yo Pr Oil

Vent Tube Blow Off Assembly

Catalog drawings for this filler

Need a part for your 40 valve can filler?
