Meyer crowner and crowning head parts

The crowner applies and crimps crowns right after filling. It includes the hopper and selector disc, the crown chute, the turret with its hub and spool, and the crowning heads. Below are the parts that appear across our Meyer manuals, and where to find each version by filler.

Search all parts Submit a parts inquiry Call 843-851-3217

What wears

Crown throats, rests and plungers
Plunger, retainer and compensating springs
Cushion plates
Hub and spool bearings
Hopper face springs and slip clutch parts
Chute guides

Common Meyer crowner and crowning head parts

Parts that appear in two or more of our Meyer manuals. Ask us to confirm fit for your machine.

Part number	Description	Manuals
100-47661004766	Fitting, grease straight ptf	16	Request
102-03871020387	Washer, lock	14	Request
102-01911020191	Screw, flat head slot	13	Request
102-02941020294	Screw, round head slot	12	Request
102-03901020390	Washer, lock	12	Request
102-17811021781	Pin, dowel	11	Request
000-16280001628	Key, square	11	Request
102-13841021384	Pin, cotter	11	Request
102-05721020572	Pin, taper	10	Request
900-09599000959-WP	Nut, retaining compression sleeve crowner	10	Request
102-04251020425	Set screw	10	Request
100-71711007171	Bearing, outer	10	Request
100-71721007172	Bearing, needle roller	10	Request
102-1492	Screw, hex head cap	10	Ask us
102-27041022704	Nut, hex jam	10	Request
102-25461022546	Washer, lock internal	10	Request
102-01901020190	Screw, flat head slot	10	Request
102-0599	Screw, socket head cap	10	Ask us
102-14431021443	Washer, lock	10	Request
102-03861020386	Washer, lock	10	Request
100-24061002406	O-ring	10	Request
900-54209005420	Agitator, Crown assembly	9	Request
1002363	Bearing	9	Request
902-0107	Crown selector disc pawl-assembly	9	Ask us
1002015	Magnet, Crown rest	9	Request
131-1242	Collar, thrust	9	Ask us
102-1812	Screw, hex head cap bevel	9	Ask us
100-72521007252	Felt, seal	9	Request
102-12401021240	Pin, taper #4	9	Request
102-01921020192	Screw, flat head slot	9	Request
102-18031021803	Bolt, hex head	9	Request
102-02951020295	Screw, round head slot	9	Request
102-02861020286	Screw, round head slot	9	Request
102-03891020389	Washer, lock	9	Request
102-00891020089	Bolt, hex head	9	Request
100-09231000923	Fitting, tube	8	Request
100-34821003482	O-ring	8	Request
CL-446CL446	Bushing, guide	8	Request
102-05961020596	Washer, lock	8	Request
CL-527CL527	Ring, compensating latch	8	Request
CL-445CL445	Plunger, crowner type 2	8	Request
102-00901020090	Bolt, hex head	8	Request
900-4682	Disc and handwheel	8	Ask us
102-03411020341	Nut, hex jam	8	Request
102-00651020065	Bolt, hex head	8	Request
100-6628	Relief, fitting alemite	7	Ask us
102-03911020391	Washer, lock	7	Request
102-00271020027	Bolt, hex head	7	Request
000-1755	Tube specify length	7	Ask us
CL-227	Nut, selector disc	7	Ask us
LC-71LC71	Rear Crown selector	7	Request
CL-265CL265	Spring	7	Request
CL-109CL109	Spring, agitator hand	7	Request
HH-865	Rachet	7	Ask us
DFC-36DFC36	Disc, driving	7	Request
HH-859HH859	Holder, spring	7	Request
CL-444CL444	Nut, throat retaining	7	Request
CL-534CL534	Screw, Crown rest latch	7	Request
131-88231318823	Roller, crowner cam	7	Request
CL-520CL520	Latch, compensating	7	Request

Find it in your filler's manual

Meyer 24-72 valve bottle filler: Crowner Drive Assembly 10 parts

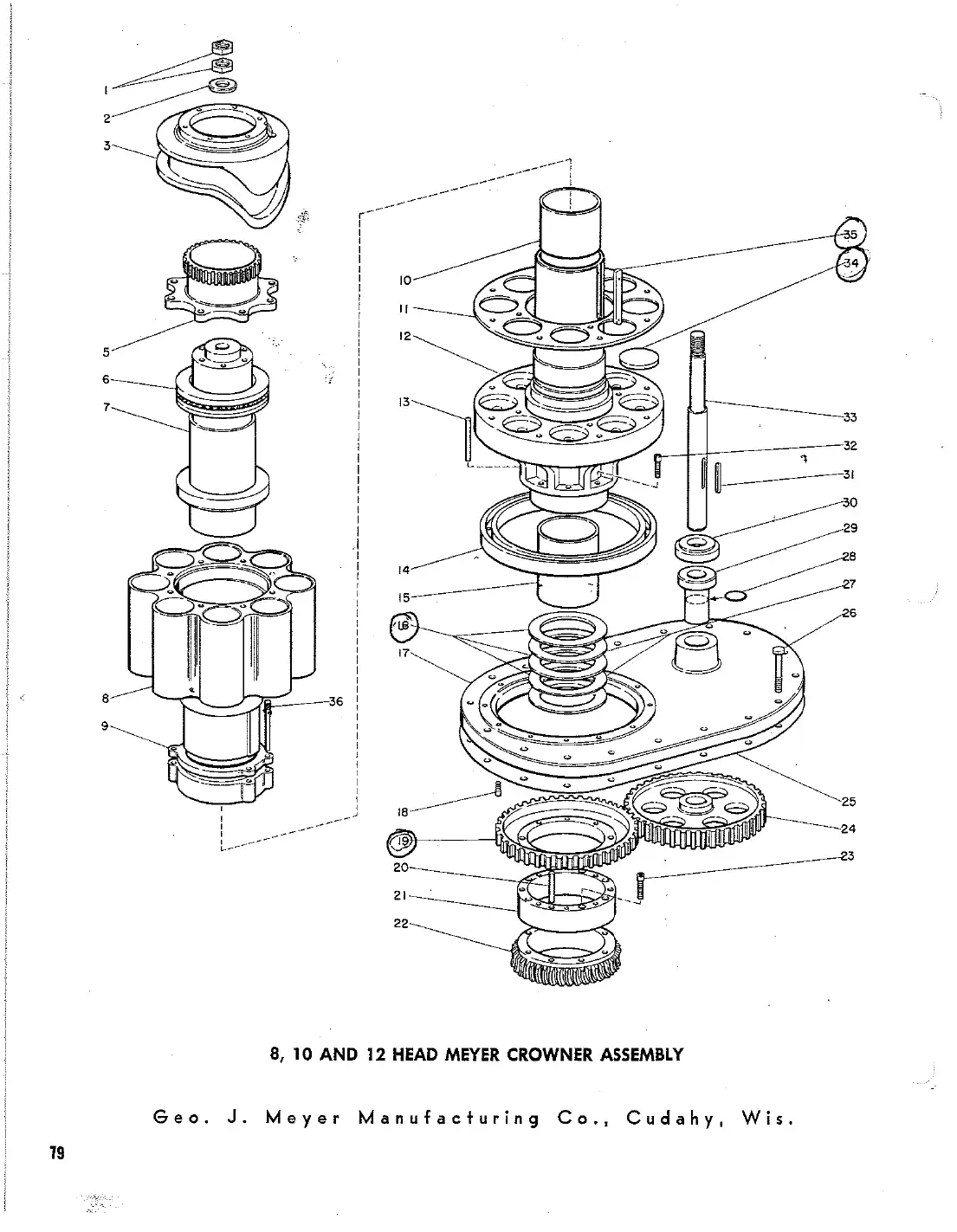

Meyer 24-72 valve bottle filler: 10 and 12 Head Meyer Crowner Assembly 29 parts
Meyer 24-72 valve bottle filler: Crowning Head Assembly 8 Head 10 Head and 12 Head 8 parts
Meyer 40-8 filler: Crowner 281 parts
Meyer 60-10 Pt filler: Main Drive Hand Wheel & Crowner Drive 44 parts
Meyer 60-10 Pt filler: Crowner 220 parts
Meyer 60-12 Qt filler: Main Drive Hand Wheel & Crowner Drive 33 parts
Meyer 60-12 Qt filler: Crowner 186 parts
Meyer 72-12 Qt filler: Crowner 37 parts
Meyer 72-12 Qt filler: Crowning Head 6 parts
Meyer 32/40/48 valve filler: Crowner 38 parts
Meyer 32/40/48 valve filler: Crown Selector 123 parts
Meyer 32/40/48 valve filler: Crowning Head 59 parts
Meyer A-Model filler: Crown Selector 12 Head 143 parts
Meyer A-Model filler: Crowner 26 parts
Meyer A-Model filler: Crowning Head 71 parts
Meyer Tri-Star filler: Crown Selector 65 parts
Meyer Tri-Star filler: Crowner Turret 51 parts
Meyer Tri-Star filler: Crowning Head Assembly 52 parts
Meyer Tri-Star filler: Electrical Hardware with Oeh Crown Selector 103 parts
Meyer Tri-Star filler: Electrical Hardware with O&H Crown Selector 41 parts
Meyer Concept III filler: Column Crowner Outer 46 parts
Meyer Concept III filler: Crowner 52V 65V 78V 59 parts
Meyer Concept III filler: Crown Selector 74 parts
Meyer 65-15 filler: Column Crowner Outer 49 parts
Meyer 65-15 filler: Crowner 52V 65V 738V 39 parts
Meyer 65-15 filler: Crowning Head 18 parts
Meyer 65-15 filler: Crown Selector 72 parts
Meyer Free-standing crowner: Crowner Base and Drive 13 parts
Meyer Free-standing crowner: Crowner Assembly and Crown Selector 58 parts
Meyer Free-standing crowner: Crown Hopper Drive 22 parts
Meyer Free-standing crowner: Crowner Cam 25 parts
Meyer Free-standing crowner: Crowning Head Crown Rest and Throat 37 parts
Meyer Remanufactured filler: Crowning Head 43 parts
Meyer Remanufactured filler: Crowner Drive 21 parts
Meyer Remanufactured filler: Chute Crown and Housing 24 parts
Meyer Remanufactured filler: Column Crowner and Cushion Plate Assembly 38 parts
Meyer Remanufactured filler: Crown Selector 8 10 & 12 Head 86 parts
