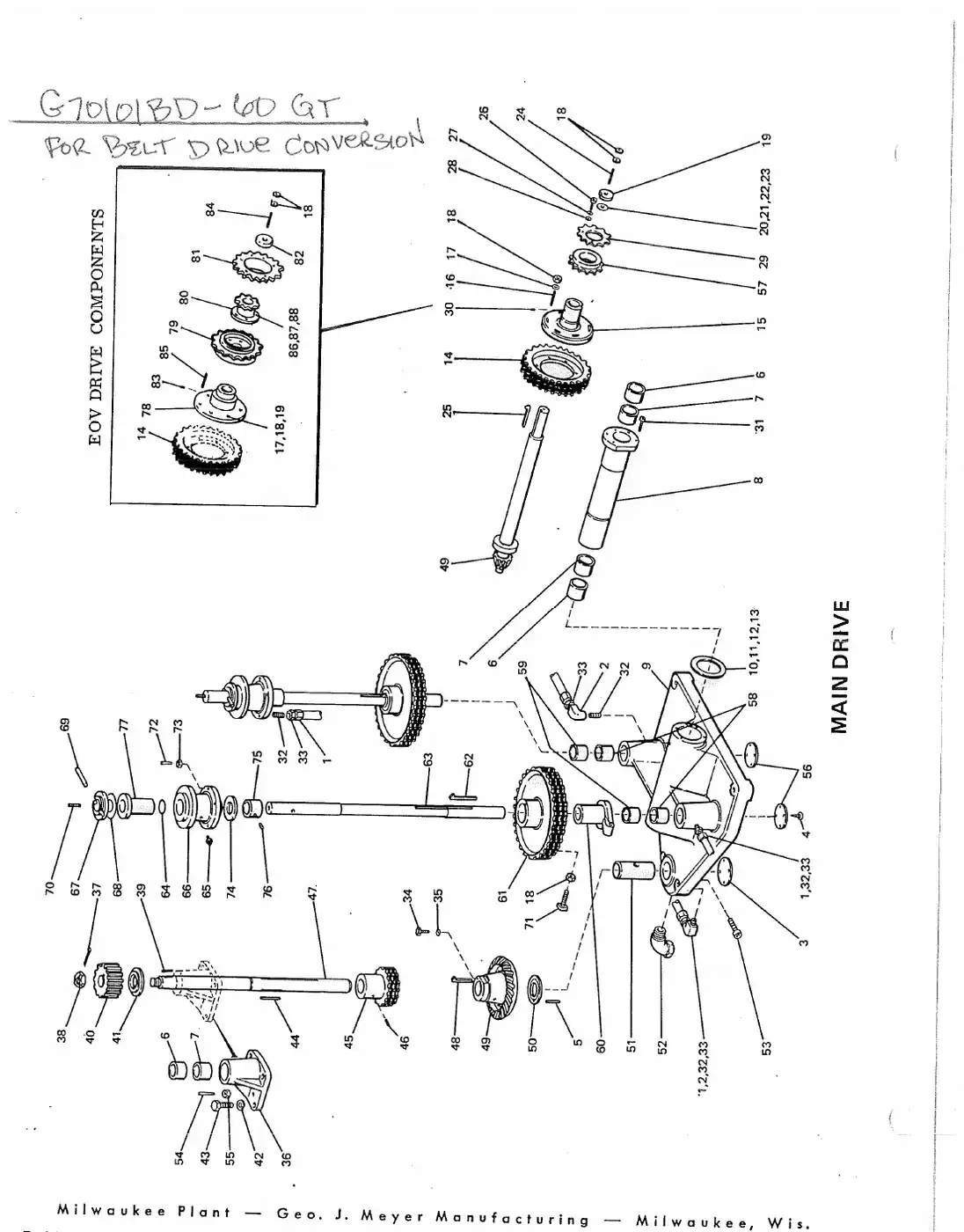

Meyer main drive parts
The main drive turns the filler bowl, starwheels and closer together. Older Meyer fillers used variable-speed belt drives, chains or hydraulic drives; many have been converted to VFDs. Below are the parts that appear across our Meyer manuals, and where to find each version by filler.
What wears
- Main drive gears and pinions
- Bearings, shafts and bushings
- Belts, chains and sprockets
- Brake parts
- Gearbox seals
Common Meyer main drive parts
Parts that appear in two or more of our Meyer manuals. Ask us to confirm fit for your machine.
| Part number | Description | Manuals | |
|---|---|---|---|
| 102-00891020089 | Bolt, hex head | 15 | Request |
| 102-03901020390 | Washer, lock | 15 | Request |
| 102-03891020389 | Washer, lock | 13 | Request |
| 102-03871020387 | Washer, lock | 12 | Request |
| 102-04171020417 | Washer, flat | 12 | Request |
| 000-16280001628 | Key, square | 9 | Request |
| 102-03801020380 | Washer, lock | 8 | Request |
| 102-01011020101 | Bolt, hex head | 8 | Request |
| 102-01021020102 | Bolt, hex head | 8 | Request |
| 102-04181020418 | Washer, flat | 8 | Request |
| 102-0379 | Lockwasher sprocket, inf screw | 7 | Ask us |
| 102-05411020541 | Pin, cotter | 7 | Request |
| 102-0039 | Screw, hex head | 7 | Ask us |
| 102-03411020341 | Nut, hex jam | 6 | Request |
| HH-1335HH1335 | Nut, pinion drive | 6 | Request |
| 000-16500001650-1.5 | Key, square | 6 | Request |
| 102-00271020027 | Bolt, hex head | 6 | Request |
| 100-37571003757 | Link, connecting three str | 6 | Request |
| 000-1624 | Key | 6 | Ask us |
| 102-03811020381 | Washer, lock | 6 | Request |
| 1020391 | Washer, lock | 6 | Request |
| 102-0378 | Lockwasher | 6 | Ask us |
| 102-14431021443 | Washer, lock | 6 | Request |
| 000-16390001639-3.5 | Key, square | 6 | Request |
| 102-0495 | Screw, head | 5 | Ask us |
| HH-7318HH7318 | Bushing, shaft drive horiz & vert | 5 | Request |
| HH-7319HH7319 | Bushing, shaft drive horiz & vert | 5 | Request |
| 102-03821020382 | Washer, lock | 5 | Request |
| 102-00511020051 | Bolt, hex head | 5 | Request |
| 102-13621021362 | Screw, socket head cap | 5 | Request |
| 102-03881020388 | Washer, lock | 5 | Request |
| 102-03331020333 | Nut, hex | 5 | Request |
| 102-00661020066 | Bolt, hex head | 5 | Request |
| 102-03341020334 | Nut, hex | 5 | Request |
| 100-37561003756 | Chain, three strand | 5 | Request |
| 100-6628 | Fitting, relief | 5 | Ask us |
| 1339988 | Gear, driven closer column | 5 | Request |
| 1020427 | Screw, set socket cup point | 5 | Request |
| 102-00901020090 | Bolt, hex head | 5 | Request |
| 100-02361000236 | Bearing, flange piloted | 5 | Request |
| 1002505 | O-ring | 4 | Request |
| 100-09231000923 | Fitting, tube | 4 | Request |
| 100-08711000871 | Plug, pipe | 4 | Request |
| 902-8264 | Bearing, drive pinion | 4 | Ask us |
| 102-00921020092 | Bolt, hex head | 4 | Request |
| 100-27621002762 | Ring, retaining | 4 | Request |
| 100-27631002763 | Seal, oil shaft | 4 | Request |
| 100-2106 | Plug pipe pt bushing | 4 | Ask us |
| 131-7013 | Pin, taper no 6-x | 4 | Ask us |
| 100-6266 | Link, roller | 4 | Ask us |
| 102-03861020386 | Washer, lock | 4 | Request |
| 100-02291000229 | Bearing | 4 | Request |
| 102-00671020067 | Bolt, hex head | 4 | Request |
| 1020103 | Bolt, hex head | 4 | Request |
| 102-00121020012 | Hex head bolt | 4 | Request |
| 102-01001020100 | Bolt, hex head | 4 | Request |
| 102-0371 | Washer, flat | 4 | Ask us |
| 102-0910 | Screw, socket head | 4 | Ask us |
| 100-2716 | Nipple | 4 | Ask us |
| 904-43989044398 | Tensioner assembly | 4 | Request |
Find it in your filler's manual
- Meyer 24-72 valve bottle filler: Main Drive Assembly 10 parts
- Meyer 60-10 Pt filler: Main Drive 68 parts
- Meyer 60-10 Pt filler: Main Drive Hand Wheel & Crowner Drive 44 parts
- Meyer 60-10 Pt filler: Main Drive Chain Tensioner 49 parts
- Meyer 60-12 Qt filler: Main Drive 61 parts
- Meyer 60-12 Qt filler: Main Drive Hand Wheel & Crowner Drive 33 parts
- Meyer 60-12 Qt filler: Main Drive Chain Tensioner 50 parts
- Meyer 72-12 Qt filler: Intermediate Drive Assembly 9 parts
- Meyer 72-12 Qt filler: Drive 46 parts
- Meyer 32/40/48 valve filler: Main Drive 102 parts
- Meyer 32/40/48 valve filler: Filler Drive 30 parts
- Meyer 52-12 filler: Main Drive 3 parts
- Meyer 52-12 filler: Drive Closer 9 parts
- Meyer 52-12 filler: Main Drive Assembly, Tristar 76 parts
- Meyer 52-12 filler: Main Drive Conversion, Tristar 32 parts
- Meyer A-Model filler: Hydraulic Drive Gearing 24 parts
- Meyer Tri-Star filler: Drive Closer 9 parts
- Meyer Tri-Star filler: Drive 35 parts
- Meyer Tri-Star filler: Filler Drive 60 parts
- Meyer Concept III filler: Drive 52-65-78 Family 49 parts
- Meyer 65-15 filler: Drive 52-65-78 Family 51 parts
- Meyer 65-15 filler: Main Drive Assembly 14 parts
- Meyer 65-15 filler: Drive Conversion 60 parts
- Meyer 90-18 filler: Filler Base Assembly, In/outfeed, Drive, Capper, Exit, 90V 25 parts
- Meyer 90-18 filler: Drive Motor & Mount Plate 11 parts
- Meyer 90-27 filler: Drive Main Sov Filler 17 parts
- Meyer 40 valve can filler: Main Drive Star Shaft Housing 28 parts
- Meyer 40 valve can filler: Main Drive with 137 parts
- Meyer 60/72 valve can filler: Main Drive Star Shaft Housing 30 parts
- Meyer 60/72 valve can filler: Main Drive with 119 parts
- Meyer 78 valve can filler: Main Drive 78V Can Filler Assembly 30 parts
- Meyer 88 valve can filler: Main Drive Star Shaft Housing 28 parts
- Meyer 88 valve can filler: Main Drive with Splined Vertical Pinion 89 parts
- Meyer 88 valve can filler: Brake 33 parts
- Meyer Remanufactured filler: Main Drive 103 parts
Need Meyer main drive parts?
Send the machine model, serial number and a photo and we will identify the part.
